Page 1

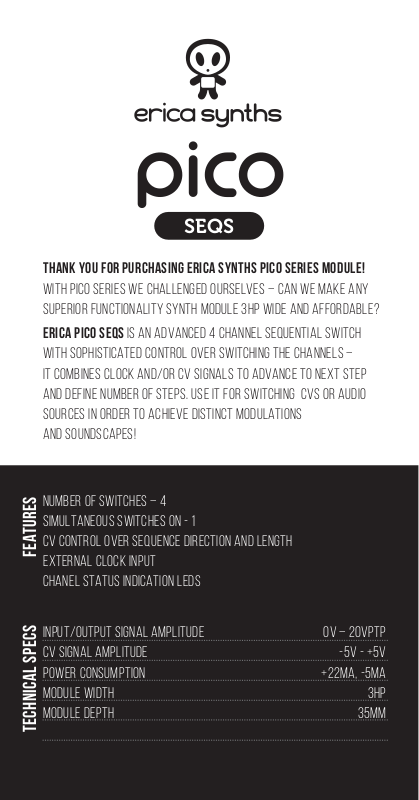

PICO
SEQS
Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?
Erica Pico SEQS is an advanced 4 channel sequential switch
with sophisticated control over switching the channels –
it combines clock and/or CV signals to advance to next step
and define number of steps. Use it for switching CVs or audio
sources in order to achieve distinct modulations
and soundscapes!
Number of switches – 4
Simultaneous switches ON - 1
CV control over sequence direction and length
FEATURESTECHNICAL SPECS
External clock input
Chanel status indication LEDs
Input/Output signal amplitude 0V – 20Vptp
CV signal amplitude -5V - +5V
Power consumption +22mA, -5mA
Module width 3HP
Module depth 35mm
Page 2
PICO
SEQS
Patch the external clock here and the
module will advance to the next step
on rising edge of the incoming clock
signal. If nothing is patched in CLK IN,
switching is performed by CV only
Apply CV signal here! Polarity of the CV
signal will define direction of the
sequence (positive CV – channels switch
from top to bottom; negative CV –
channels switch from bottom to top).
Amplitude of the CV signal will define
active step (each step corresponds to
1,25V; CV of 5V will activate IO4). If no
Clock signal is applied to CLK IN,
switching will be controlled via
CV alone.
These are 4 Inputs/Outputs; one of
these will be active depending on
incoming CV/Clock combination
described above
SEQS
CLK IN
CV IN
COM
IO1
IO2
This LED indicates incoming clock
signal
This is Common Input/Output – connect
audio or CV signals, you want to send
to one of 4 Outputs, OR take the audio
or CV signal form this jack, if you wish
to connect one of 4 Inputs to the
Common Output
These 4 LEDs indicate active
Inputs/Outputs
IO3
IO4
PICO
Page 3
Please follow the instructions for use of the Erica Synths module
below, ‘cause only this will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a humid or
wet environment. No liquids or other conducting substances must get
into the module. Should this happen, the module should be disconnected
from mains power immediately, dried, examined and cleaned by
a qualified technician.
Do not expose the module to temperatures above +50° C or below -20° C.
Safety Instructions
If you have transported module in extreme low temperatures, leave it in
room temperature for an hour before plugging it in.
Transport the instrument carefully, never let it drop or fall over.
Warranty does not apply to modules with visual damages.
The module has to be shipped in the original packaging only. Any module
shipped to us for return, exchange and/or warranty repair has to be in
its original packaging. All other deliveries will be rejected
and returned to you. Make sure you keep the original packaging and
technical documentation.
This device complies to the EU guidelines and is manufactured R
OHS
conforming without use of led, mercury, cadmium and chrome.
Nevertheless, this device is special waste and disposal in household
waste is not recommended.
You will find Erica Synths terms of warranty at www.ericasynths.lv.
Items for return, exchange and/or warranty repair have to be sent to:
Erica Synths
Andrejostas Str. 12
Riga
Latvia
LV-1045
User manual by Girts Ozolins@Erica Synths
Design by Ineta Briede@Carre Branding
Copying, distribution or any commercial use in any way is prohibited and needs the written
permission by Erica Synths. Specifications are subject to change without notice.
In case of any questions, feel free to contact us through www.ericasynths.lv or via e-mail
