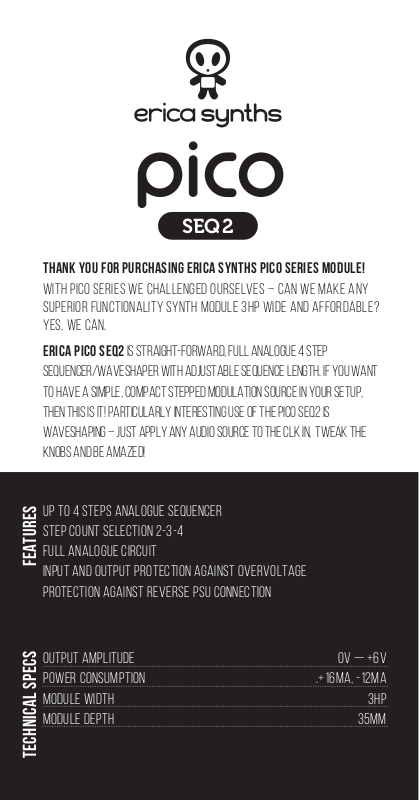

PICO
SEQ 2
Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?
Yes, we can.
Erica Pico SEQ2 is straight-forward, full analogue 4 step
sequencer/waveshaper with adjustable sequence length. If you want
to have a simple, compact stepped modulation source in your setup,
then this is it! Particularly interesting use of the Pico SEQ2 is
waveshaping – just apply any audio source to the CLK IN, tweak the
knobs and be amazed!
Up to 4 steps analogue sequencer
Step count selection 2-3-4
Full analogue circuit
FEATURESTECHNICAL SPECS
Input and output protection against overvoltage
Protection against reverse PSU connection
Output amplitude 0V — +6V
Power consumption .+16mA, -12mA
Module width 3HP
Module depth 35mm
Page 2
PICO
Use these knobs to set the voltages
per step. LEDs will give visual
feedback on the currently active
step. If you apply the audio signal to
the input, the sequencer will act as a
waveshaper, where the signal is
converted into (up to) 4 step
“staircase” with adjustable step
height. This way you can create a
suboscillaors and plenty of other
distinct sounds that are in tune with
your audio source.
SEQ2
Patch the clock or audio signal here.
Due to limited panel space and
functionality, Pico SEQ2 does not have
a Gate output. WE recommend you to
use stackable patchcables to copy
clock signal to envelope generators
OR get gates from Pico Trigger or Logic
modules
Select a number of steps (2-3-4)
in the sequence!
This is the CV output
Page 3
Please follow the instructions for use of the Erica Synths module
below, ‘cause only this will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a humid or
wet environment. No liquids or other conducting substances must get
into the module. Should this happen, the module should be disconnected
from mains power immediately, dried, examined and cleaned by
a qualified technician.
Do not expose the module to temperatures above +50° C or below -20° C. If
Safety Instructions
you have transported module in extreme low temperatures, leave it in
room temperature for an hour before plugging it in
Transport the instrument carefully, never let it drop or fall over.
Warranty does not apply to modules with visual damages.
The module has to be shipped in the original packaging only. Any module
shipped to us for return, exchange and/or warranty repair has to be in
its original packaging. All other deliveries will be rejected and
returned to you. Make sure you keep the original packaging and
technical documentation.
This device complies to the EU guidelines and is manufactured R
OHS
conforming without use of led, mercury, cadmium and chrome.
Nevertheless, this device is special waste and disposal in household
waste is not recommended.
You will find Erica Synths terms of warranty at www.ericasynths.lv.
Items for return, exchange and/or warranty repair have to be sent to:
Erica Synths
Andrejostas Str. 43
Riga
Latvia
LV-1045
User manual by Girts Ozolins@Erica Synths
Design by Ineta Briede@Black8
Copying, distribution or any commercial use in any way is prohibited and needs the written
permission by Erica Synths. Specifications are subject to change without notice.
In case of any questions, feel free to contact us through www.ericasynths.lv or via e-mail
