Erica Synths Midi Through Box User Manual

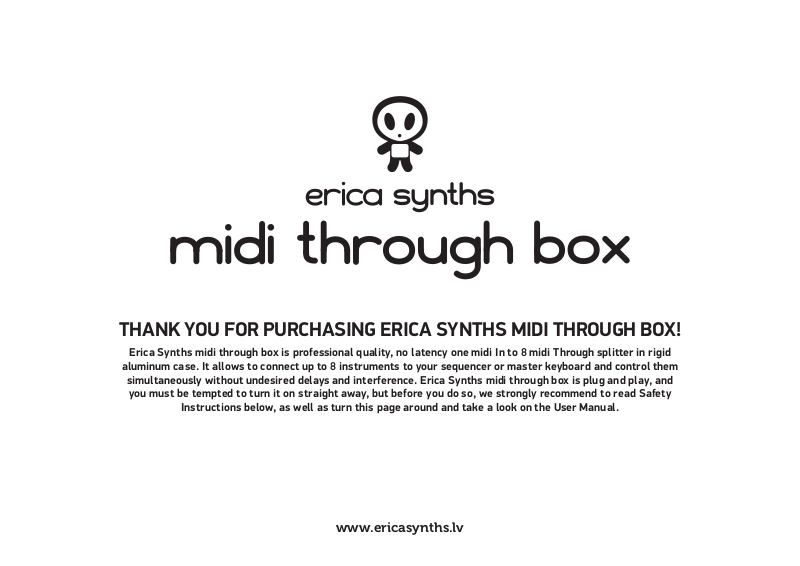

THANK YOU FOR PURCHASING ERICA SYNTHS MIDI THROUGH BOX!

Erica Synths midi through box is professional quality, no latency one midi In to 8 midi Through splitter in rigid

aluminum case. It allows to connect up to 8 instruments to your sequencer or master keyboard and control them

simultaneously without undesired delays and interference. Erica Synths midi through box is plug and play, and

you must be tempted to turn it on straight away, but before you do so, we strongly recommend to read Safety

Instructions below, as well as turn this page around and take a look on the User Manual.

www.ericasynths.lv

TECHNICAL SPECS

Power supply: universal 220V/110V to 9VDC
adapter supplied with a device

Latency: 60ns – far below of limits of human
perception, even subconscious

Due to solid build and mass of 0,5kg,
you can use midi through box for
self-defense, but two year warrantee
applies only to the instruments that
are used for the purpose described in
this User manual.

Plug here up to 8 midi controlled devices –
synthesizers, drum machines and other

stuff that accepts midi

Use PSU supplied to power up the unit

Obviously, here you will plug your multi­channel sequencer or master keyboard

Bicolor LED indicates the status of the
unit. Green – the unit is on, orange – the
unit receives and transmits midi messages

Mass: 0,5kg

Dimensions: 220X50X32mm

SAFETY INSTRUCTIONS

Please follow the instructions for use of the
Erica Synths midi through box below, ‘cause
only this will guarantee proper operation of
the module and ensure warranty from Erica
Synths.

Water is lethal for most of the elec­tric devices, unless they are made
waterproof. Erica Synths midi
through box is NOT intended for use
in a humid or wet environment. No
liquids or other conducting
substances must get into the
module. Should this happen, the midi
through box should be disconnected
from mains power immediately,
dried, examined and cleaned by a

qualified technician.

Do not expose the midi through box
to temperatures above +50° C or
below -20° C.

Although the module has rigid alumi­num case, so you technically can
stand on it, it’s not recommended to
place objects heavier than 10 kg on
the top of the instrument.

Transport the instrument carefully,
never let it drop or fall over. Warran­ty does not apply to midi through box
with visual damages.

The midi through box has to be
shipped in the original packaging
only. Any module shipped to us for
return, exchange and/or warranty
repair has to be in its original pack­aging. All other deliveries will be
rejected and returned to you. Make
sure you keep the original packaging
and technical documentation. In case
of a destroyed warranty seal, any
warranty claim will be rejected.

You will find Erica Synths terms of warranty

at www.ericasynths.lv. Items for return,
exchange and/or warranty repair have to be
sent to: Erica Synths, Andrejsalas Str. 4a ­T8/C, Riga, Latvia, LV-1045

DISPOSAL

This device complies to the EU guidelines,
nevertheless, this device is special waste
and disposal in household waste is not
recommended.

CREDENTIALS

User manual by Girts Ozolins@Erica Synths.
Design by Edgars Rasins. Copying, distribu­tion or any commercial use in any way is
prohibited and needs the written permission

by Erica Synths. Specifications are subject to

change without notice. In case of any ques­tions, feel free to contact us through
www.ericasynths.lv or via e-mail
[e-mail].
