PowerLite® Pro Z9750UNL/Z9870UNL
Z10000UNL/Z10005UNL
Quick Reference
This Quick Reference card gives brief instructions on connecting your
PowerLite projector and using common features. For details, see the
online User’s Guide.
S-Video cable
Note: SDI is available for the PowerLite Pro Z9870UNL, Z10000UNL, and Z10005UNL only.
BNC video cable
HD-SDI cable
HDBaseT cable
Ethernet cable
DVI-D cable
HDMI cable
5BNC-to-VGA cable
VGA cable
Wireless LAN module
VGA-to-component cable
VGA cable
Remote control cable
Turning the Projector On
1. Turn on your computer or image
source.
2. Remove the projector lens cover.
3. Press the On button. After the
power and status lights stay blue,
the projector is ready.
Note: If the Direct Power On function is
enabled, you can turn the projector on
without pressing the On button; just
plug it in or flip the switch controlling
the outlet to which the projector is
connected. To turn on this feature, see
the online User’s Guide.
4. If your image does not appear, see
“Switching Between Image Sources”
or “Troubleshooting.”
Changing the Language of the Projector Menus
The default language of the projector’s
menu system is English, but you can
change it as necessary.
1. Press the Menu button to acess the
projector’s menu system.
2. Select Extended and press .
Switching Between Image Sources
Press the Search button or one of
the source buttons (remote control),
or one of the source buttons
(projector).
Adjusting Image Position
Press the Lens Shift button on the
remote control or projector until
Adjust Lens Shift is displayed on the
screen.
Press the arrow buttons on the
remote control or projector to adjust
the position.
3. Select Language and press .
4. Select your language and press .
5. When you’re done, press Menu
to exit.
If the projector is on a table, you can
level the image by turning any of the
projector’s adjustable feet.

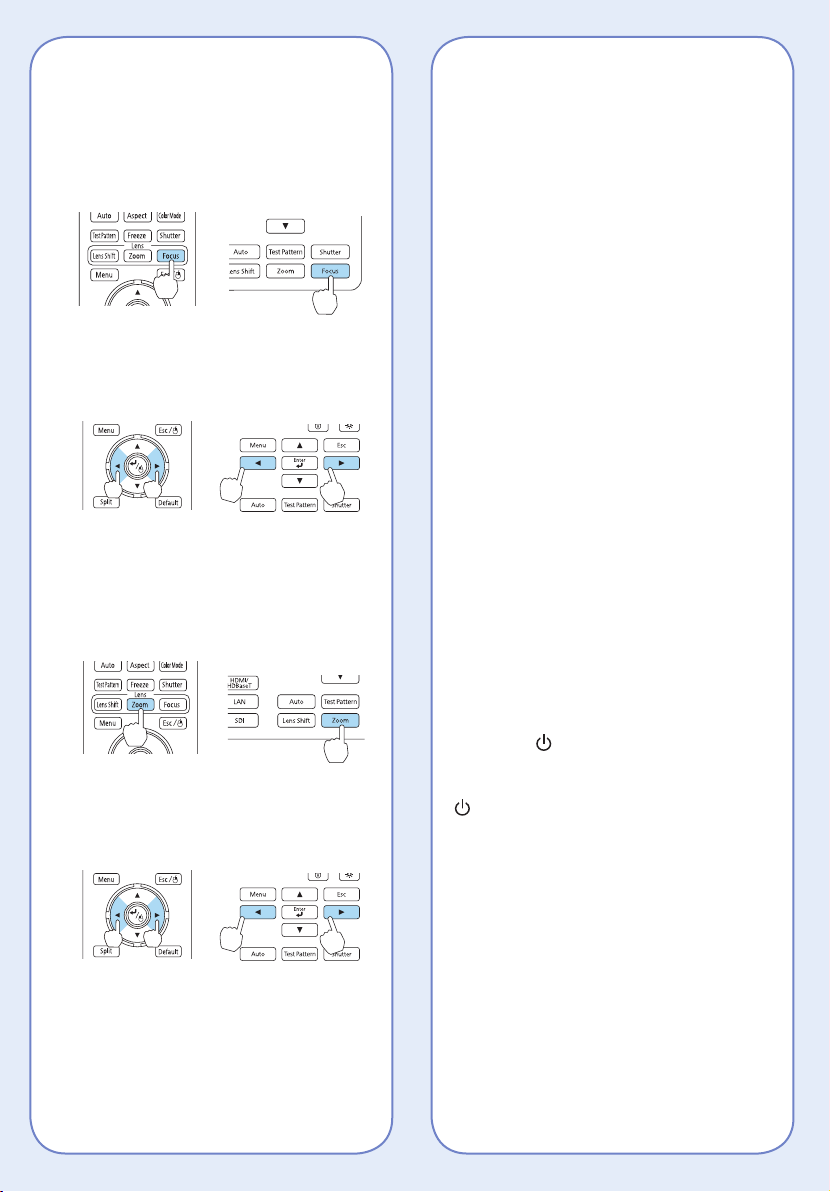

Focusing the Image
Press the Focus button on the remote
control or projector until Adjust Focus is
displayed on the screen.
Press the left and right arrow buttons on
the remote control or projector to adjust
the focus.
Zooming the Image
Press the Zoom button on the remote
control or projector until Adjust Zoom is
displayed on the screen.
Correcting Image Shape
If your image is uneven on the
sides, you can use the projector’s
distortion correction features such as
H/V-Keystone and Quick Corner®
to adjust the shape. See the online
User’s Guide.
Changing the Aspect Ratio
Press the Aspect button on the remote
control to change the aspect ratio.
For images input through the
Computer port, select Normal to
automatically resize the image.
Making Other Image Adjustments
For help on using the projector’s
features to improve the image quality,
see the online User’s Guide. You can
also view information on how to adjust
the image color, position, and edges
(Edge Blending) when projecting from
multiple projectors to create one
seamless widescreen image.
Press the left and right arrow button
on the remote control or projector to
reduce/enlarge the image.
Turning the Projector Off
Press the Standby button to
turn the projector off. If you see a
confirmation message, press the
Standby button again.
Note: If the Direct Power On function is
enabled, you can unplug the projector or flip
the switch controlling the outlet to which the
projector is connected instead. To turn on
this feature, see the online User’s Guide.
With Epson’s Instant Off® technology,
you don’t have to wait for the projector
to cool down; just turn it off or unplug
it when you’re done.
Troubleshooting
If you see a blank screen or the
message No signal
• Make sure the power and status
lights on the projector are blue and
not flashing, and the lens cover is
removed.
• Make sure the cables are
connected correctly. See the
online User’s Guide.
• You may need to change the
image source. See “Switching
Between Image Sources.” Also
make sure the source device is
turned on.
If the projector and the notebook
don’t display the same image
Windows
Press the function key on your
keyboard that lets you display on an
external monitor. It may be labeled
CRT/LCD or have an icon such as
Fn key while pressing it (such as
Fn + F7). Wait a moment for the
display to appear. You may need to
press the keys again to display the
image on both devices.
OS X
Open System Preferences and select
Displays. Click the Arrangement
tab and select the Mirror Displays
checkbox.
®
. You may need to hold down the
Where to Get Help
Manuals
For more information about using
the projector, click the icons on your
desktop to access the online manuals
(requires an Internet connection). If you
don’t have icon links to the manuals,
you can install them from the projector
CD or go to the Epson website, as
described below.
Internet support
Visit epson.com/support (U.S.)
or epson.ca/support (Canada) to
download utilities and documentation,
get FAQs and troubleshooting advice,
or e-mail Epson.
Speak to a support representative
To use the Epson® PrivateLine®
Support service, call (800) 637-7661.
This service is available for the
duration of your warranty period.
You may also speak with a projector
support specialist by dialing
(562) 276-4394 (U.S.) or
(905) 709-3839 (Canada).
Support hours are 6 am to 8 pm, Pacific
Time, Monday through Friday and 7 am
to 4 pm, Pacific Time, Saturday.
Days and hours of support are subject
to change without notice. Toll or long
distance charges may apply.
Purchase supplies and accessories
You can purchase screens and other
accessories from an Epson authorized
reseller. To find the nearest reseller,
call 800-GO-EPSON (800-463-7766).
Or you can purchase online at
epsonstore.com (U.S. sales) or
epson.ca (Canadian sales).
Remote Control Map
Turn the projector on
Turn the projector off
Select a source
Automatically adjust computer
Change the aspect ratio
Display a test pattern
Adjust image position
Freeze the image
Open projector menus
Navigate through menu settings;
move pointer
Select menu settings; left
mouse button
Activate split screen
Move to next or previous
image when projecting from a
computer over the network
Open menus assigned by user
Use numeric keys to enter
passwords, IP settings, etc.
Illuminate buttons temporarily
Switch image sources
Select color modes
Temporarily turn off display
Adjust image focus
Cancel current operation or return
to previous menu; right mouse
button
Reduce or enlarge image
Reset menu settings to their
default value
Zoom in or out on part of an
Hold down and use numeric keys
to select projector to control
Control one or all projectors
Hold down and use numeric keys
to enter numbers
Display on-screen help
Replacement Parts and Accessories
Product Part number
Replacement lamp one-pack (ELPLP81) V13H010L81
Replacement lamp two-pack (ELPLP82) V13H010L82
Replacement lamp (portrait mode) V13H010L83
one-pack (ELPLP83)
Replacement lamp (portrait mode) V13H010L84
two-pack (ELPLP84)
Air filter (ELPAF46) V13H134A46
Wireless LAN module (ELPAP07) V12H418P12
You can purchase replacement parts from an Epson
authorized reseller. See “Where to Get Help” inside this card
for more information.
EPSON, Instant Off, PowerLite, and Quick Corner are registered trademarks and EPSON Exceed Your Vision is a registered logomark of
Seiko Epson Corporation. PrivateLine is a registered trademark of Epson America, Inc.
OS X is a trademark of Apple Inc., registered in the U.S. and other countries.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners.
Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2014 Epson America, Inc., 6/14
CPD-40850R1
