Epson SureColor F7070 Setup Guide
Epson® SureColor®
F7070 Setup Guide
2 |
Contents
Unpacking the Printer ...........................................................................................................................3
Assembling the Stand .............................................................................................................................6
Installing the Printer ............................................................................................................................10
Installing the Media Feeding Unit .......................................................................................................15
Installing the Take-up Reel System ......................................................................................................19
Setting the Language ............................................................................................................................22
Adjusting the Media System ................................................................................................................23
Loading Media ....................................................................................................................................25
Installing the Software .........................................................................................................................31

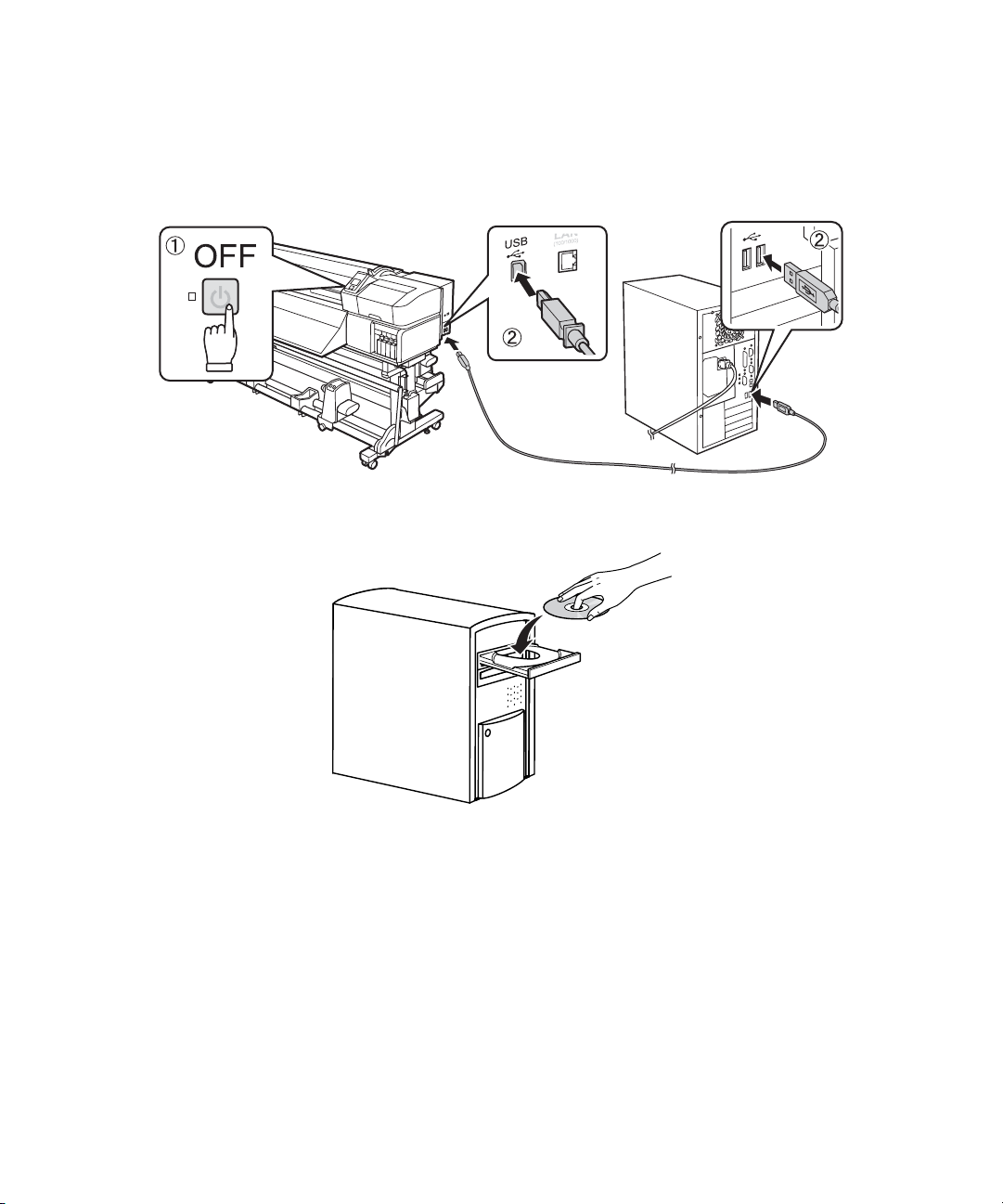

USB Installation ............................................................................................................................32
Network Installation .....................................................................................................................33
Unpacking the Printer | 3
Read all of these instructions before using your printer. Also be sure to follow all warnings and instructions
marked on the printer and in the User’s Guide.
Unpacking the Printer
Before beginning assembly, make sure you have sufficient space to set up and use the printer. The
following illustration shows the minimum space required for using the printer:
Callout Distance
1 19.7 in. (500 mm)
2 3.9 in. (100 mm)
3 68.9 in. (1750 mm)
4 39.4 in. (1000 mm)
5 114.3 in. (2903 mm)
6 19.7 in. (500 mm)
7 39.4 in. (1000 mm)
8 142.5 in. (3620 mm)
4 | Unpacking the Printer
When choosing a place for the printer, leave adequate room for easy access and ventilation. Avoid locations
subject to direct sunlight, excessive heat, humidity, or dust. Be sure the printer is placed on a flat, stable
location that can support 496 lb (225 kg).
Caution: Six people are required to unpack and install the printer.
You need an even larger floor space to assemble the printer and stand, so be sure to prepare a large, clear
area before unpacking them. Also make sure you save the box and packaging in case you need to ship the
printer later.
The following items should be included with your printer:
Printer and Stand Assembly
Cable
support
Power cord
Hex wrench
Caution label
Software and
documentation
Horizontal struts
Legs
Printer
Carry bars
Waste ink
tank bracket
Waste ink tube
bracket
Waste
ink tank
Media System Assembly
Media feeding unit
Unpacking the Printer | 5
Take-up reel
Reel brackets
Roll core
Adjustment paper
The items below can be found in the “Ink Supply System Cover 1” box.
Bracket and mounting
hardware
6 | Assembling the Stand
Assembling the Stand
Make sure you have the following items before assembling the stand.
1. Slide the large horizontal strut into both of the legs.
back of stand
2. Use the long end of the hex wrench to tighten the pre-placed screws on each of the legs.
Assembling the Stand | 7
Attach the smaller horizontal strut by securing two B screws (four total) in the back of the right and
3.
left legs.
4. Attach the waste ink tank bracket and secure it with a B screw.
5. Attach one B screw to the other side of the bracket, move the slider into place, then attach another B
screw.
8 | Assembling the Stand
6. Temporarily fasten the waste ink tube bracket using one B screw.
7. Remove the four screws, then remove the plastic piece.
8. Loosely fasten the mounting pieces to the bracket using three D screws and six washers.
Slide the mounting pieces into the grooves, as shown.
9.
10. Remove the screw, align the bracket, then fasten the screw to the stand.
Assembling the Stand | 9
11. Tighten the screws.
10 | Installing the Printer
12. Replace the plastic piece and then fasten it using the screws from step 7.
Installing the Printer
You need six people to install the printer; four people to carry it and two people to position it on the stand.
Use the carry bars to lift and move the printer.
Make sure you have the following items before installing the printer.
1. Lock the casters and fix the stand in place. To fix the stand, rotate the feet clockwise until they’re
firmly placed on the ground.
Installing the Printer | 11
Insert the carry bars into both sides of the printer with the locking bolts toward the ground. Once the
2.
carry bars are inserted, rotate them counterclockwise 180° to lock them into place. This keeps the
printer from sliding when lifted.
Caution: Before installing the printer, make sure the stand is fixed in place.
3.
Lift the printer as shown.
Caution: The printer is heavy. Use at least four people when lifting the printer.
