Epson Stylus CX5800F Parts
Document
cover
Document
table
Memory card slots Output tray and
extension
Left edge
guide
Memory
card cover
Scanner
Ink cartridges
Control panel
(buttons and lights)
Paper support
extension
Paper support
Feeder guard
PictBridge/
USB-DP
camera port
(USB)
Paper thickness
lever
Epson Stylus CX5800F
LINE
phone line port
LINE
USB
EX
T
.
EXT
phone/answering
USB portAC inlet
machine port
Accessories
Ink Cartridges
Color Part number
Black T060120
Cyan T060220
Magenta T060320
Yellow T060420
Media
Paper name Size Part number
®
Epson
Ultra Premium
Glossy Photo Paper
Epson Premium Bright
White Paper
Epson Premium Glossy
Photo Paper
Epson Premium
Semigloss Photo Paper
Epson Glossy Photo
Paper
Epson Matte Paper
Heavyweight
Epson Double-Sided
Matte Paper*
Epson Photo Quality Ink
Jet Paper
Borderless 4 × 6 inches S041934
Letter (8.5 × 11 inches) S041935
Letter (8.5 × 11 inches) S041586
Borderless 4 × 6 inches S041808/
S041727
Borderless 5 × 7 inches S041464
Borderless 8 × 10 inches S041465
Letter (8.5 × 11 inches) S041286/
S041667
Letter (8.5 × 11 inches) S041331
Borderless 4 × 6 inches S041809
Letter (8.5 × 11 inches) S041141/
S041649/
S041272/
S041271
Borderless 8 × 10 inches S041467
Letter (8.5 × 11 inches) S041257
Letter (8.5 × 11 inches) S041568
Letter (8.5 x 11 inches) S041062
Legal (8.5 x 14 inches) S041067
A4 (8.3 x 11.7 inches) S041061
* Windows only
8/05 1
Page 2
Epson Stylus CX5800F
Specifications
Printing
Printing method On-demand ink jet
Nozzle configuration Black: 90 nozzles
Color: 270 nozzles
(90 each cartridge: cyan, magenta,
yellow)
Print direction Bidirectional with logic seeking
Ink Cartridges
Color Cyan, magenta, yellow, black
Cartridge life 6 months at 77 °F (25 °C) after
opening the package
Temperature Storage: –4 to 104 °F (–20 to 40 °C)
1 month at 104 °F (40 °C)
Freezing*: 3.2 °F (–16 °C)
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution:
To ensure good results, use genuine Epson ink cartridges and do
not refill them. Other products may cause damage to your printer
not covered by Epson’s warranty. Do not use an ink cartridge if the
date on the package has expired.
Envelopes
Size No. 10 (4.1 × 9.5 inches)
Paper type Plain bond paper
Thickness 0.016 to 0.02 inch (0.40 to 0.52 mm)
Weight 20 lb (75 g/m²) to 24 lb (90 g/m²)
Note:
Poor quality paper may reduce the print quality and cause paper jams
or other problems. If you have print quality problems, switch to a
higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
Printable Area
Single sheets or cards
Normal Borderless*
A
B-L B-R
Paper
Note:
Since the quality of any particular brand or type of paper may be
changed by the manufacturer at any time, Epson cannot guarantee
the quality of any non-Epson brand or type of paper. Always test a
sample of paper stock before purchasing large quantities or printing
large jobs.
Single sheets
Size A4 (8.3×11.7inches)
A5 (5.8 × 8.3 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5×11inches)
Legal (8.5×14inches)
Half-letter (5.5 × 8.5 inches)
4×6inches
5×7inches
3.5×5inches
8×10 inches
User Defined up to 8.5 × 44 inches
Paper type Plain bond paper or special paper
distributed by Epson
Thickness 0.003 to 0.005 inch (0.08 to 0.13 mm)
Weight 17 lb (64 g/m²) to 24 lb (90 g/m²)
(for plain bond paper)
C
* When printing with the borderless feature, print quality may decline in the
expanded area. Before printing large jobs using the borderless setting, print a
single sheet to confirm printout quality.
Envelopes
A: The minimum top margin is 0.12” (3.0 mm).
B-L: The minimum left margin is 0.12” (3.0 mm).
B-R: The minimum right margin is 0.12” (3.0 mm).
C: The minimum bottom margin is 0.12”(3.0 mm).
D The minimum bottom margin is 0.78” (20 mm).
Note:
Always load paper into the sheet feeder with the short edge first.
Load envelopes flap edge left with the flap side down.
2 8/05
Page 3
Epson Stylus CX5800F
Scanning
Scanner type Flatbed color
Photoelectric device CIS
Effective pixels 10,200 × 14,040 pixels at 1200 dpi
Document size 8.5 × 11.7 inches (216 × 297 mm)
A4 or US letter size
Scanning resolution 1200 dpi (main scan)
2400 dpi with Micro Step (sub scan)
Output resolution 50 to 4800, 7200, and 9600 dpi
(50 to 4800 dpi in 1 dpi increments)
Scanning speed Approximately 15 msec per line at
600 dpi (full color)
Image data 16 bits per pixel per color internal
8 bits per pixel per color external
(maximum)
Interface One USB 2.0 Hi-Speed or
USB 1.1 port
Light source RGB three color LED
Mechanical
Paper path Sheet feeder, top entry
Sheet feeder capacity About 100 sheets at 17 lb (64 g/m²)
Dimensions Width: 18.2 inches (463 mm)
Depth: 13.5 inches (344 mm)
Height: 7 inches (178 mm)
(with the output tray and paper
support closed)
Weight 15 lb (6.8 kg) without ink cartridges
Electrical
Input voltage 90 to 132 V
Rated frequency 50 to 60 Hz
Rated current 1.2 A max
Power consumption Approx. 20 W (operating)
Approx. 9 W (idle mode)
Approx. 1 W (power-off mode)
USB Interface
Standard Based on Universal Serial Bus
Specifications Revision 2.0, Universal
Serial Bus Device Class Definition for
Printing Devices Version 1.1,
Universal Serial Bus Mass Storage class
Bulk-Only Transport Revision 1.0
Bit rate 480 Mbps (High speed device)
Data encoding NRZI
Adaptable connector USB Series B
Cable length Under 6.6 feet (2 meters)
Safety Approvals
Safety UL 60950 (U.S.)
CSA No. 60950 (Canada)
EMC FCC Part 15 Subpart B class B (U.S.)
ICES003 CSA C108.8 Class B
(Canada)
Telecom regulations FCC Part 68 (U.S.)
IC CS03 (Canada)
Supported Memory Cards
™
™
™
(maximum 128MB)
™2
™1
™
1
card
™
™1
1
Compatible CompactFlash
memory cards SmartMedia™ (maximum 128MB)
Memory Stick
Memory Stick PRO
Memory Stick Duo
Memory Stick PRO Duo
MagicGate® Memory Stick (maximum
128MB)
MagicGate Memory Stick Duo
Microdrive
SD™ (Secure Digital) Card
MultiMediaCard
miniSD
xD-Picture Card
Voltage 3.3 V
requirements Maximum current is 500 mA
1 Adapter required
2 Copy protection function not supported
Environmental
Temperature Operation: 50 to 95 °F (10 to 35 °C)
Storage: –4 to 104 °F (–20 to 40 °C)
120 hours at 140 °F (60 °C) [packed]
1 month at 104 °F (40 °C) [unpacked]
Humidity Operation: 20 to 80% RH
Storage: 5 to 85% RH
(without condensation)
Memory Card Slot Compatibility
CF Type II Compatible with CF+ and
card slot CompactFlash Specification 1.4 cards
SmartMedia Compatible with SmartMedia
card slot Standard 2000 cards
8/05 3
Page 4
Epson Stylus CX5800F
Memory Stick/ Compatible with Memory Stick
MemoryStick PRO Standard version 1.3 or Memory Stick
card slot Standard Memory Stick PRO Format
Specifications version 1.0 cards
SD/MMC Compatible with SD Memory Card
card slot Specifications / PART1. Physical Layer
Specification Version 1.0 cards and
MultiMediaCard Standard cards
xD-Picture Compatible with xD-Picture card Card
card Slot Specification Version 1.00 cards
Memory Card Image File Requirements
Media format DCF version 1.0 or 2.0 compliant*
File format JPEG, DOS FAT (FAT 12 or 16, one
partition) taken with a DCF version
1.0 or 2.0 compliant digital camera
Supports Exif version 2.21
Image size 80 × 80 pixels to 9200 × 9200 pixels
Number of files Up to 999
* DCF is the “Design rule for Camera File system” standard
Loading Paper
3. Slide the left edge guide to the left.
4. Insert the paper, printable side up, against the right edge
guide. Always load it short edge first, even for landscape
printing. Make sure the paper lies beneath the tabs and the
arrow mark on the left edge guide.
Letter-size
paper
Single Sheets
1. Open the paper support and output tray, then slide out the
extensions.
2. Flip the feeder guard forward.
4 x 6-inch or
5 x 7-inch, or
other paper
sizes
You can load up to 100 sheets of 17 lb plain paper and up
to 20 sheets of photo paper. (See page 6 for capacity
guidelines on other paper types.)
4 8/05
Page 5
Epson Stylus CX5800F
Note:
The type of paper you choose affects the way your printout
looks, so be sure to select the correct paper for your job. If you
are just making a copy or printing a rough draft of an image, plain
paper is fine. However, for the best results, you’ll want to use
one of Epson’s special ink jet papers designed for your printer.
For example, your photos will look great printed on Premium
Glossy Photo Paper. See “Media” on page 1 for more
information.
5. Slide the left edge guide against the left edge of the paper
(but not too tightly).
6. Flip the feeder guard back.
Follow these guidelines when loading paper:
❏ Don’t load paper above the arrow on the left edge guide.
Make sure the paper is under the tabs on the left and right
edge guides.
❏ Load the printable side face-up. It’s often brighter or whiter
than the other side.
❏ Always load the short edge first, even when printing in
landscape mode.
❏ Load letterhead or preprinted paper into the printer top
edge first.
❏ If you experience paper feeding problems, try loading fewer
sheets.
❏ If you’re using special paper, check the package for special
loading instructions.
Envelopes
1. Open the paper support and output tray, then slide out the
extensions.
7. Make sure the paper thickness lever is set down to the
m L position.
2. Flip the feeder guard forward.
8/05 5
Page 6
Epson Stylus CX5800F
3. Slide the left edge guide to the left.
4. Load up to 10 envelopes at a time, flap edge left, printable
side up, against the right edge guide.
Load the flap
edge left,
printable side up
Select the following settings when printing on envelopes:
Envelope as the paper Type or Media Type setting
❏
❏ The correct envelope size as the Size or Paper Size setting
❏
Landscape as the Orientation setting
Paper Loading Capacity
When loading Epson ink jet papers, follow these capacity
guidelines:
Paper type Loading capacity
Premium Bright White Paper 80 sheets
Premium Glossy Photo Paper
Ultra Premium Glossy Photo Paper
Premium Semigloss Photo Paper
Glossy Photo Paper
Matte Paper Heavyweight
Double-Sided Matte Paper*
Photo Quality Ink Jet Paper 100 sheets
* Windows only
20 sheets
Selecting the Correct Media Type
The table below lists the settings you should choose for your
paper in the printer software:
Note:
For best results, press each envelope flat before loading, or load
one envelope at a time.
5. Slide the left edge guide against the envelopes (but not too
tightly).
6. Flip the feeder guard back.
7. Set the paper thickness lever to the
^ H position.
Paper Type or Media Type setting
Plain paper
Epson Premium Bright White Paper
Epson Matte Paper Heavyweight
Epson Double-Sided Matte Paper*
Epson Photo Quality Ink Jet Paper
Epson Ultra Premium Glossy Photo
Paper
Epson Premium Glossy Photo Paper Premium Glossy Photo Paper
Epson Premium Semigloss Photo
Paper
Epson Glossy Photo Paper Glossy Photo Paper
Envelopes Envelope
* Windows only
Plain Paper / Bright White
Paper
Matte Paper - Heavyweight
Ultra Premium Glossy Photo
Paper
Premium Semigloss Photo
Paper
6 8/05
Page 7
Epson Stylus CX5800F
Placing Originals for Copying, Scanning, or Faxing
Caution:
Do not place heavy objects on the document table glass and do not
press the glass with too much force.
1. Open the document cover and place your original facedown on the glass, in the upper left corner. Move your
original about 0.04 inch (1 mm) away from the top and left
edges so all of it will be scanned.
Placing Large or Thick Documents
When you scan a large or thick document, you can remove the
document cover. Just open it and pull it straight up.
If you need to press the document flat while you copy or scan
it, do not press too hard and be careful not to move it.
Caution:
Do not use excessive force on the document cover, and do not
twist it diagonally. You may damage the document cover.
When you are done, replace the document cover by inserting
the tabs back into the slots.
2. Close the document cover gently so that your original does
not move.
Caution:
Never open the document cover beyond where it stops.
If you need to clean the document table glass, wipe it gently with
a soft cloth. Do not spray glass cleaner on the glass.
Copying
Using the Epson Stylus CX5800F buttons, you can make
copies using either letter-size (8.5 × 11-inch) plain paper, or
letter-size, 4 × 6-inch, or 5 × 7-inch photo paper.
Copying a Document
1. Press the P On button to turn
on the Epson Stylus CX5800F.
You see a screen like this:
2. Place the document on the glass as described in the left
column. Be sure to close the document cover.
3. Load up to 100 sheets of letter-size plain paper. See page 4
for details.
4. Press the
Copy button. You see
this display:
5. If you want your copies
automatically reduced or
enlarged to fit the loaded paper
size (Fit to Page mode), press
the
Copy button again. The
display changes to this:
6. To make multiple copies (up to 99), press the number keys
on the numeric keypad. The display shows the number you
select.
12:00 PM Y
Copies:1 100%
Copies:1 FitPage
8/05 7
Page 8
Epson Stylus CX5800F
Note:
If you need to cancel the number of copies selected, press the
y Cancel/Back button. To exit Copy mode, press the y Cancel/
Back button again.
7. Press the paper type button to select Plain Paper. The light
indicates which type is selected.
8. Press the paper size button to select
9. To make a color copy, press the x
To make a black and white copy, press the x
Letter.
Start Color button.
Start B&W
button.
Printing appears on the display and the Epson Stylus
CX5800F starts copying.
If you need to stop copying, press the y
Cancel/Back button.
Do not pull out paper that is being printed; it will be ejected
automatically to the output tray.
Note:
The copies may not be exactly the same size as the original.
Copying a Photo
1. Press the P On button to turn
on the Epson Stylus CX5800F.
You see a screen like this:
12:00 PM Y
2. Place the photo on the glass as described on page 7. Be sure
to close the document cover.
3. Load up to 20 sheets of letter-size, 4 × 6-inch, or 5 × 7-inch
photo paper. See page 4 for details.
4. Press the
this display:
Copy button. You see
Copies:1 100%
5. If you want borderless photos
(printed without a white
border), press the
again to select
mode. (If you select
Copy button
Fit to Page
100%,
photos are printed with a
0.12-inch [3 mm] border.) The
display changes to this:
Copies:1 FitPage
6. To make multiple copies (up to 99), press the number keys
on the numeric keypad. The display shows the number you
select.
Note:
If you need to cancel the number of copies selected, press the
y Cancel/Back button. To exit Copy mode, press the y Cancel/
Back button again.
9. To make a color copy, press the x
To make a black and white copy, press the x
Start Color button.
Start B&W
button.
Printing appears on the display and the Epson Stylus
CX5800F starts copying.
If you need to stop copying, just press the y
Cancel/Back
button. Do not pull out paper that is being printed; it will be
ejected automatically to the output tray.
Note:
The copies may not be exactly the same size as the original.
When making a lot of copies, it is a good idea to remove the printed
copies from the output tray after every 10 sheets or so.
Speeding Up Copying
If you want to make a copy quickly and do not need high
quality, you can print a “draft” copy. The print quality is
reduced, but the copy is printed faster.
1. Load plain, letter-size paper.
2. Press the
this display:
3. Press the paper type button to select
4. Press the paper size button to select
5. Hold down the y
x
B&W
Draft Mode or B/W Draft Mode appears on the display,
Copy button. You see
Cancel/Back button, then press the
Start Color button (to copy in color) or the x Start
Copies:1 100%
Plain Paper.
Letter.
button (to copy in black and white). When Color
release both buttons.
Printing From a Memory Card
Inserting the Card
1. Make sure the Epson Stylus CX5800F is turned on.
Note:
When you print directly from a memory card, it is best if the
Epson Stylus CX5800F is not connected to your computer (or
your computer is turned off).
2. Open the memory card door.
7. Press the paper type button to select Photo Paper.
8. Press the paper size button to select
5”x 7”.
8 8/05
Letter, 4”x 6”, or
Page 9
Epson Stylus CX5800F
3. Make sure the memory card access light is off and that no
cards are in any of the slots. Then insert your card into the
correct slot. The memory card access light flashes and then
stays on.
Insert just one card at a time
Left slot Right slot
Memory card access light
Slot Type of card
Left slot SmartMedia
Right slot CompactFlash
Memory Stick
MagicGate Memory Stick
MagicGate Memory Stick Duo
MultiMediaCard
Memory Stick Duo
Memory Stick PRO
Memory Stick PRO Duo
SD Card
miniSD Card
xD-Picture Card
Microdrive
1
2
1
1
1
Printing an Index Sheet
1. Make sure your Epson Stylus CX5800F is not connected to
your computer (or your computer is turned off).
2. Load several sheets of letter-size plain paper. (Use only
letter-size paper to print the index sheet.) Up to 30 images
are printed on each page, so if there are more than 30
photos on the memory card, you’ll need enough sheets for
all the index pages to be printed.
3. Insert the memory card if it is not already in the slot (see the
left column).
4. If the light in the
button is not lit, press the
Card
Memory Card button. The
Epson Stylus CX5800F counts
the images on your card and
you see this display, indicating
it is ready to print the index
sheet:
5. Make sure
6. Press the
OK button. The Epson Stylus CX5800F starts
printing the index sheet(s). This may take a few minutes.
Memory
1.Img:92 Prt Idx
Plain Paper and Letter are selected.
1 Adapter required
2 Copy protection function not supported
4. Close the memory card door. Now you can:
❏ Print an index sheet so you can select which photos to
print (see the next section)
❏ Print all the photos on the card (see page 10)
❏ Print photos pre-selected on your camera using DPOF
(see page 10)
When you want to remove the card, make sure the memory
card access light is not flashing, then pull the card straight out
of its slot.
Note:
You can print only in color when printing directly from a memory card;
you cannot print in black and white.
Caution:
Do not remove the card or turn off the Epson Stylus CX5800F while
the memory card access light is flashing; you may lose data on the
card.
For multiple index sheets, the pages containing the most
recent images are printed first. If you want to cancel
printing more sheets, press the y
Cancel/Back button.
Now follow the instructions in the next section to select
photos and print.
8/05 9
Page 10
Epson Stylus CX5800F
Selecting Photos on the Index Sheet
1. Once you have printed the index sheet, use a dark pen or
pencil to fill in one of the ovals beneath each photo you
want to print to indicate how many copies you want (1, 2,
or 3).
OK:
No
good:
Make sure just one oval is filled in for each selected photo
and mark the sheet carefully; once it has been scanned you
will not be able to change your selections.
Note:
If you want one copy of all the photos on the index sheet, fill in
the ALL oval at the top of the page.

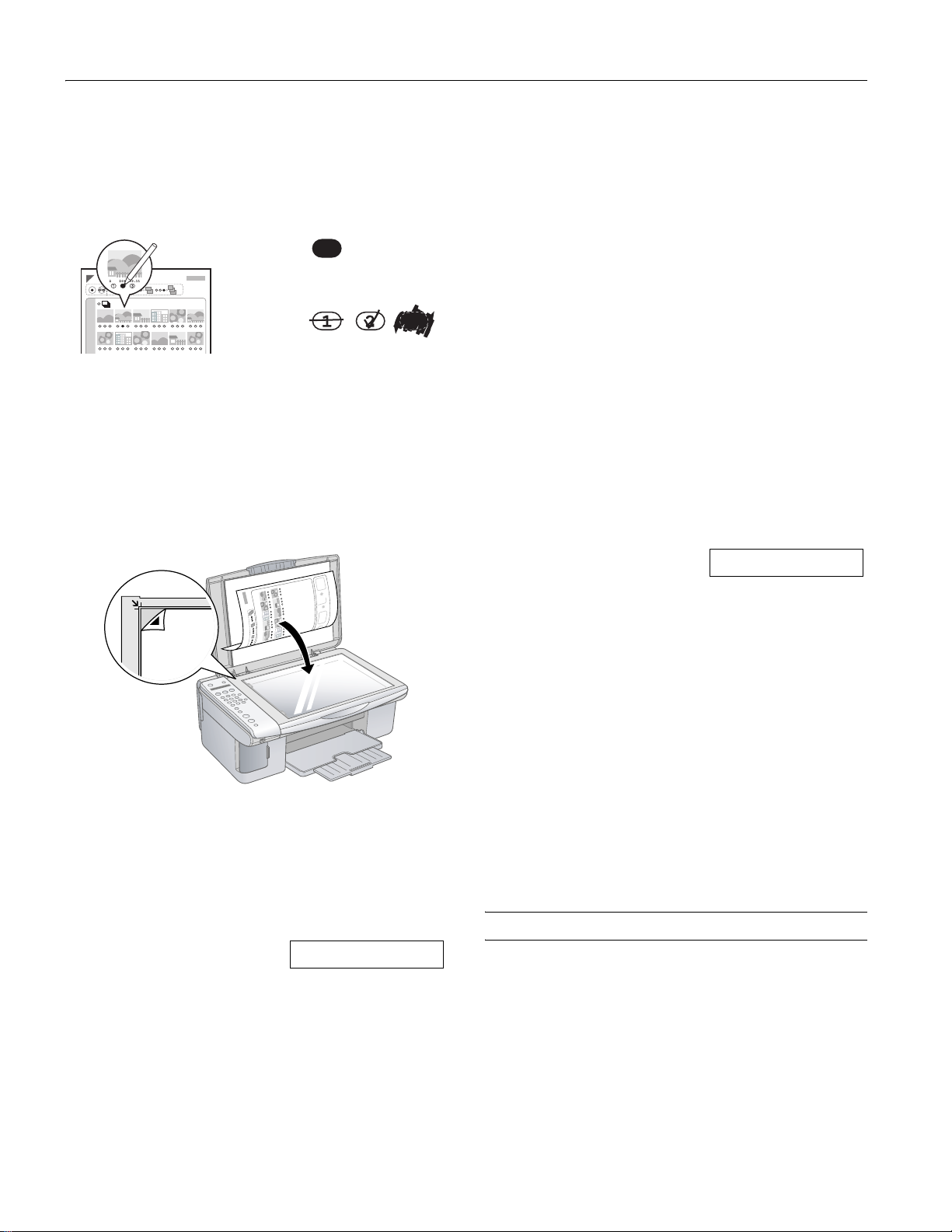

2. Place the index sheet face-down on the glass, in the upper
left corner, so that the top of the sheet is aligned against the
left edge of the glass.
If you select
border. If you select
Plain Paper, the photo(s) print with a white
Photo Paper, the photos print
borderless, to the edge of the paper.
7. Select
8. Press the
Letter, 4”x 6”, or 5”x 7” for the paper size.
OK button to start printing.
Note:
If you need to stop printing, press the y Cancel/Back button.
9. When you are done printing, remove the memory card by
pulling it straight out of its slot.
Printing All Photos or DPOF Photos
Follow the steps below to print one copy of each photo on the
card or to print only those photos that were pre-selected with
your camera’s DPOF feature.
1. Insert the memory card (see page 8).
2. Load up to 100 sheets of plain paper or up to 20 sheets of
photo paper at a time (see page 4 for details). You can load
more paper later as necessary to print all your photos.
3. Press the
button repeatedly, until the
display looks something like
this:
Note:
If the memory card does not contain DPOF information, one copy
of all the photos on the card will be printed.
Memory Card
3.Img:92 All/DPO
3. Close the document cover.
4. Load up to 100 sheets of plain paper or up to 20 sheets of
photo paper at a time (see page 4 for details). You can load
more paper later as necessary to print all your selected
photos.
5. The display should now look
like this, indicating that the
Epson Stylus CX5800F is ready
to scan the index sheet:
If this setting is not displayed, press the
2.Img:92 Scn Idx
Memory Card
button until it is displayed.
6. Select
Plain Paper or Photo Paper (whichever you
loaded).
4. Select Plain Paper or Photo Paper (whichever you
loaded).
If you select
border. If you select
Plain Paper, the photo(s) print with a white
Photo Paper, the photos print
borderless, to the edge of the paper.
5. Select
6. Press the
Letter, 4”x 6”, or 5”x 7” for the paper size.
OK button to start printing.
Note:
If you need to stop printing, press the y Cancel/Back button.
7. When you are done printing, remove the memory card by
pulling it straight out of its slot.
Printing From a Digital Camera
If your camera is PictBridge- or USB DIRECT-PRINT™compatible, you can print your JPEG photos by connecting
your digital camera directly to your Epson Stylus CX5800F.
Your photos must be sized from 80 × 80 pixels to
9200 × 9200 pixels.
1. Make sure your Epson Stylus CX5800F is not printing
from a computer.
2. Remove any memory cards from the slots.
10 8/05
Page 11
Epson Stylus CX5800F
3. Load the type of paper you want to use (see page 4). Load
enough sheets for the number of photos you’ll be printing.
4. Select
Plain Paper or Photo Paper (whichever you
loaded). If you select
Photo Paper, the photos print
borderless, to the edge of the paper.
5. Select
Letter, 4”x 6”, or 5”x 7” for the paper size.
6. Connect the USB cable that came with your camera to the
USB connector on the front of your Epson Stylus
CX5800F.
7. Turn on your camera and select the photos you want to
print. Then adjust any necessary settings and print your
photos as explained in your camera manual.
8. When you’re finished, disconnect your camera and cable
from the USB connector. (You cannot use the Epson Stylus
CX5800F for any other purpose while your camera is
connected.)
The EPSON Scan software provides three scanning modes for
progressive levels of control over your scanned image:
❏
Full Auto Mode scans quickly and easily using automatic
settings.
❏
Home Mode previews your image and provides automatic
image adjustments, cropping tools, and preset options for
various types of scans.
Professional Mode previews your image and lets you
❏
manually configure your scan settings with a full array of
tools.
Scanning Directly From EPSON Scan
1. Place your original on the document table as described on
page 7.
2. Do one of the following to start EPSON Scan:
❏ Windows
your desktop.
❏ Macintosh
Applications folder.
You see the EPSON Scan standby window:
®
: Double-click the EPSON Scan icon on
®
: Double-click EPSON Scan in the
Note:
Epson cannot guarantee the compatibility of any camera.
Depending on the Epson Stylus CX5800F settings and your digital
camera settings, some combinations of paper type, size, and layout
may not be supported. In addition, some of your digital camera
settings may not be reflected in the printed output.
Scanning
You can use your Epson Stylus CX5800F to scan a photo or
document and save it on your computer or other device, or to
fax or e-mail it to someone else.
You can even automatically restore faded color photographs as
you scan. See page 12 for details.
You can scan from any TWAIN-compliant application—such
as ArcSoft PhotoImpression
“Scanning From a Program” on page 12). Or you can start
EPSON Scan directly from your computer and save your
image to a file (see the next section).
™
—using EPSON Scan (see
3. If the Mode setting in the upper right corner is set to
Auto Mode
Note:
If you want to automatically restore a color photo as you scan,
click the Customize button. See page 12 for instructions.
, click the Scan button.
If you are in Home or Professional Mode, you see a
different EPSON Scan settings window. You can change
the mode using the Mode selector in the upper right corner.
(For details on using Home or Professional Mode, see the
on-screen User’s Guide.)
Full
8/05 11
Page 12
Epson Stylus CX5800F

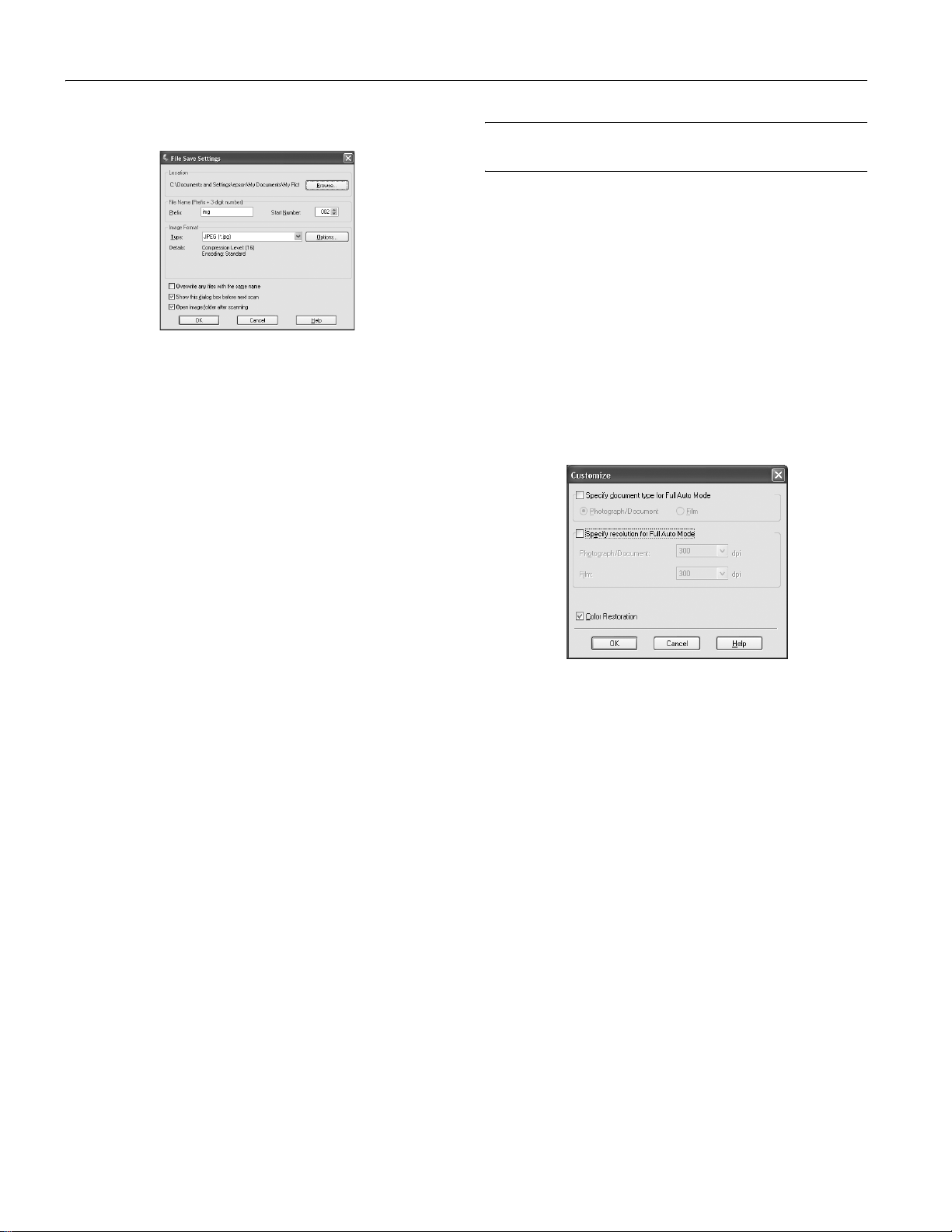

4. You see the File Save Settings window:
Choose the location where you want to save your scanned
file and type a name for it in the Prefix box. Select a file
format in the Image Format box.
5. Click
OK. The image is scanned and you see its icon in an
open folder.
Scanning From a Program
1. Place your original on the scanner as described on page 7.
2. Start your scanning program.
Double-click the program icon from your desktop, if it is
available, or do one of the following:
Restoring Color While Scanning Photos
Using the Color Restoration feature in EPSON Scan, you can
automatically transform an old, faded, or badly exposed photo
into one with true-to-life color and sharpness as you scan.
1. Place your original photo on the document table as
described on page 7.
2. Start EPSON Scan. See page 11 for instructions.
3. When the EPSON Scan window appears, do one of the
following, depending on the currently selected scan mode:
❏ Home or Professional Mode: go to step 4.
❏ Full Auto Mode: click the
Color Restoration checkbox, and click OK. Continue
with step 9.
Customize button, click the
❏ Windows: Select
program folder > program icon
❏ Mac OS
program folder, and click the program icon.
®
Start > All Programs or Programs >
.
X: Open the Applications folder, select the
3. Select your program’s scanning option. (See your scanning
program help for instructions.)
For example, in ArcSoft PhotoImpression, open the File
menu and select
Scanner
Note:
In some programs, you must select the Epson Stylus CX5800F
as the “source” first. If you see a Select Source option, choose
it and select your Epson Stylus CX5800F there first.
Get Photo. Then click the Camera/
icon.
4. Select your Epson Stylus CX5800F. EPSON Scan starts
automatically.
Note:
With Windows XP, do not choose a WIA option for your Epson
Stylus CX5800F; it will not work correctly.
4. Select the basic settings for the type of original(s) you are
scanning, then select the destination setting for the way you
will use your image(s). See the on-screen User’s Guide for
instructions.
5. Click the Preview button to preview your image(s), then
select your scan area.
6. Do one of the following to select the Color Restoration
option:
❏ Home Mode: Click the
Color Restoration checkbox.
❏ Professional Mode: Scroll down to the Adjustments
area and click the
Color Restoration checkbox.
7. Make any other necessary image adjustments.
8. Size your image as necessary.
9. Click the
Scan button to scan and restore the color in your
image(s).
What happens next depends on how you started EPSON
Scan. See the on-screen User’s Guide for details.
12 8/05
Page 13
Epson Stylus CX5800F
USB
EXT.
LINE

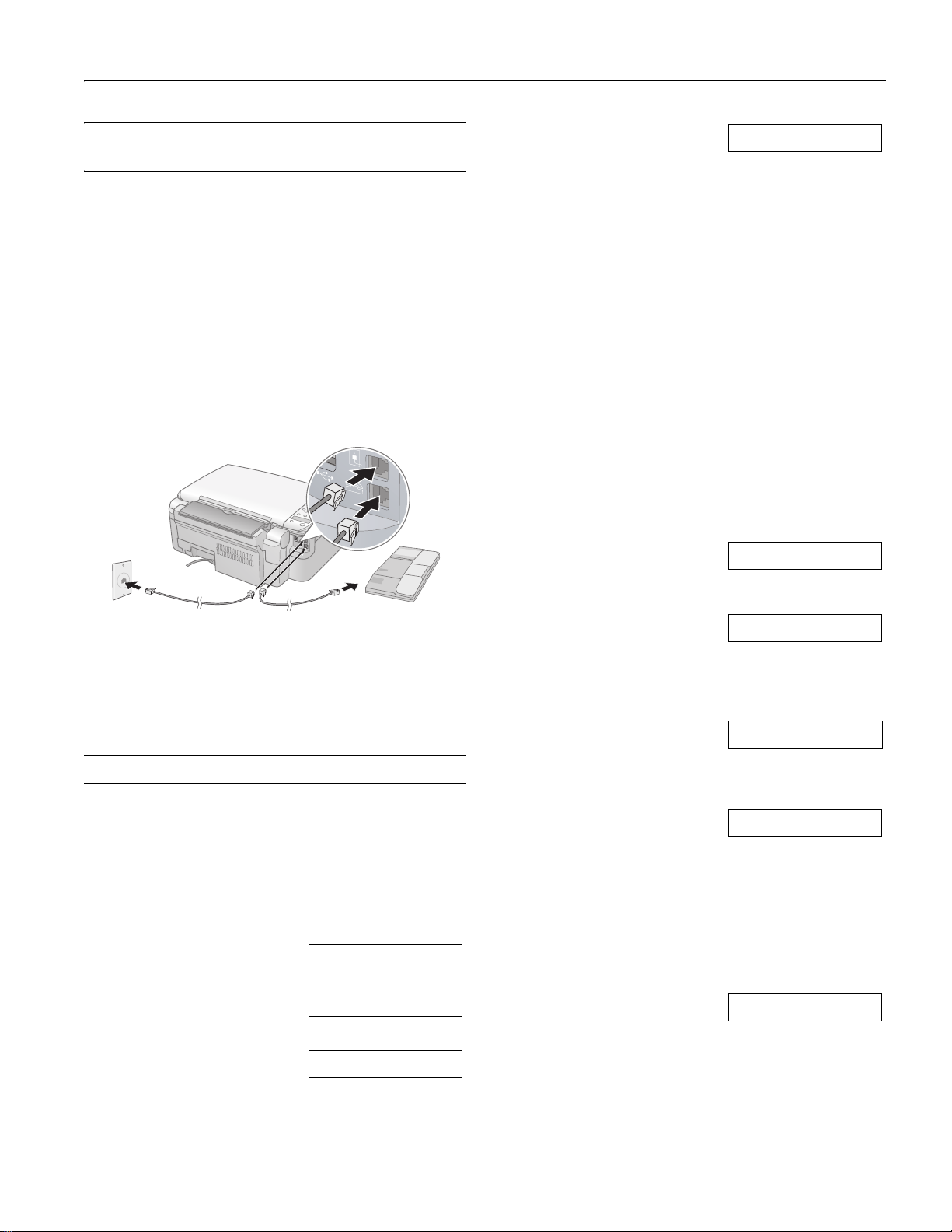

Connecting the Epson Stylus CX5800F to a Phone Line
If you are connecting a phone line to the Epson Stylus
CX5800F for faxing, connect the phone cable leading from the
wall jack to the
Note:
If you connected the Epson Stylus CX5800F to a DSL phone line, you
must install a DSL filter to the line or you won’t be able to fax.
Contact your DSL provider for the necessary filter.
LINE port, as shown below.
If you’re also connecting the Epson Stylus CX5800F to a
telephone or answering machine so you can use them to pick
up voice calls on the same phone line, follow these steps:
1. Connect one end of another phone cable to the telephone
or answering machine.
2. Connect the other end of the cable to the
EXT port on the
back of the Epson Stylus CX5800F.
3. To receive voice calls on the phone line, you need to set up
your Epson Stylus CX5800F to receive faxes manually. See
page 17 for details.
Setting Up Your Fax Features
Before sending or receiving faxes, you may want to create a fax
header, select your fax preferences, and set up a speed dial list
of frequently used fax numbers.
Creating Header Information
1. Press the Fax button once to
enter Fax mode. The
button lights up and you see
this display:
2. Press the
Setup button. You
see this display:
3. Press the u or d button, or
press the
6 key on the numeric
keypad, to display this option:
Fax
Enter Fax Number
1.Select Speed D
6.Header & Time
4. Press the
this display:
5. Press the
for the cursor (
OK button. You see
OK button again. The display goes blank except
_).
1.Fax Header Set
6. Press the keys on the numeric keypad to enter up to 40
digits of header information. Use the number keys to enter
the letters A to Z (in uppercase or lowercase), the numbers
0 to 9, and various symbols.
Press a key repeatedly to display first the numbers and
symbols (if available), then the uppercase and lowercase
letters, as indicated on the key. Wait a few seconds or press
the
r button to move to the next character space. When
you’re finished, wait a few seconds or press the
r button to
move to a blank space.
Note:
If you need to change a character to the left, press the l button
to delete the character and re-enter it. Press the r button if you
need to move the cursor to the right.
7. Press the OK button. You return to the 1.Fax Header
Setup display.
8. Press the u or d button, or
press the
keypad, to display this option:
9. Press the
2 key on the numeric
2.Date/Time
OK button. You see
this display (to indicate the
two-digit month, day, and
year):
MM:DD:YY
10. Press the keys on the numeric keypad to enter the date. You
can enter the numbers 0 to 9.
11. Press the
this display (to indicate the
hour and minute):
OK button. You see
HH:MM AM
12. Press the keys on the numeric keypad to enter the time in a
12-hour format. You can enter the numbers 0 to 9.
13. Press the
this display:
14. Press the
AM (1) or PM (2).
15. Press the
OK button. You see
1 key or the 2 key on the numeric keypad to select
OK button. You return to the 2.Date/Time
1: AM 2: PM
display.
16. If you want to print your fax
number in the fax header, press
the u or d button, or press the
3 key on the numeric keypad,
to display this option:
17. Press the
cursor (
OK button. The display goes blank except for the
_).
3.Your Phone Num
8/05 13
Page 14
Epson Stylus CX5800F
18. Press the keys on the numeric keypad to enter your fax
number. You can enter the numbers 0 to 9, and the
characters * and #; up to 64 digits total.
19. Press the
20. Press the y
OK button.
Cancel/Back button until you return to the first
screen.
Selecting the Paper Size
Before you receive a fax, be sure to load plain paper and set the
Paper Size setting to the size of paper you’ve loaded. Also
make sure the
Automatic Reduction setting is set to receive
faxes in the desired size. See the next section for details.
Selecting Send/Receive Settings
If you want to set up a speed dial list, speed dial a fax number,
create a fax header, or customize your fax preferences, you can
change the fax settings.
1. Press the
Fax button once to enter Fax mode. The Fax
button lights up and you see this display:
Enter Fax Number
2. Press the
Setup button. You see this display:
1.Select Speed D
3. Press the
on the numeric keypad to display the options shown in the
table below.
Setting Options and descriptions
1.Select Speed
Dial
2.Print Report
3.Speed Dial
Setup
OK button, the u or d button, or a number key
For instructions on speed dialing a fax number, see
page 16.
To print fax information reports, select one of
these options, then press the
the report.
1.Speed Dial List
Prints a list of the speed dial entries you created.
See page 15 for instructions on creating a speed
dial list.
2.Fax Log
Prints information about the last 30 fax
transmissions.
3.Last Transmission
Prints information about the last fax transmission.
4.Reprint Faxes in Memory
Reprints all the faxes currently in memory.
See page 15 for instructions on creating a speed
dial list.
OK button to print
Setting Options and descriptions
4.Scan&Print
Setup
5.Communication To change various phone settings, press the
To change various settings, press the OK button,
then select one of these options. Press the
button to select the option, then press the
button to change the setting.
1.Resolution
Adjusts the fax quality for the original you’re
faxing. (You can also select the fax resolution by
pressing the
Standard (default)
Fine
2.Contrast
Adjusts the contrast for the original you’re faxing.
(You can also select the fax contrast by pressing
Fax button three times.)
the
Normal (default)
Light
Dark
3.Paper Size
Indicates the size of the paper loaded in the Epson
Stylus CX5800F for printing received faxes.
Letter (8.5 × 11; default)
Legal (8.5 × 14)
A4 (8.3 × 11.7)
4.Automatic Reduction
Indicates whether large received faxes are
reduced in size to fit on the selected Paper Size or
printed at their original size on multiple sheets.
On (default)
Off
5.Last Transmission Report
Indicates whether or when the Epson Stylus
CX5800F prints a report for outgoing faxes.
Off (turns off report printing)
On Error (prints reports only when an error
occurs; default)
On Send (prints reports for every fax you send)
button, then select one of these options. Press the
OK button to select the option, then press the u
d button to change the setting.
or
1.Dial Mode
Indicates the type of phone system to which
you’ve connected the Epson Stylus CX5800F.
Tone (default)
Pulse
2.DRD
Indicates the type of answer ring pattern you want
to use to receive faxes. (You must have set up
your phone system to use different ring patterns to
select an option other than
All (default)
Single
Double
Triple
Double & Triple
(continued)
Fax button twice.)
All.)
u or d
OK
OK
14 8/05
Page 15
Epson Stylus CX5800F
Setting Options and descriptions
5.Communication
(continued)
6.Header & Time For instructions on creating fax header information,
7.Setup For instructions on using the maintenance utilities,
3.ECM: On/Off
Indicates whether you use Error Correction Mode
to automatically request retransmission of fax data
that is received with detected errors.
On (default)
Off
4.V.34: On/Off
Indicates the speed at which you transmit faxes.
On is 33.6 Kbps and Off is 14.4 Kbps.
On (default)
Off
5.Rings to Answer
Indicates the number of rings that must occur
before the Epson Stylus CX5800F automatically
receives a fax.
4 (default)
1, 2, 3, 5, 6, 7, 8, or 9
and setting the date and time, see page 13.
see page 17 through page 20.
4. When you’re finished, press the y Cancel/Back button to
return to the first screen.
Setting Up Your Speed Dial List
You can create a speed dial list of up to 60 fax numbers so you
can quickly select them for faxing. You can also add names to
identify the recipients and print the speed dial list.
1. Press the
enter Fax mode. The
button lights up and you see
this display:
2. Press the
see this display:
3. Press the u or d button, or
press the
keypad, to display this option:
4. Press the
this display:
5. Press the
see this display:
6. Press the
Number
7. Press the keys on the numeric
keypad to enter the fax number
of the first speed dial entry. You
can enter the numbers 0 to 9,
and the characters * and #; up
to 64 digits total.
Fax button once to
Fax
Enter Fax Number
Setup button. You
3 key on the numeric
OK button. You see
OK button again. You
OK button again. The screen displays Telephone
briefly, then goes blank except for a cursor (_).
1.Select Speed D
3.Speed Dial Set
1.Add Entry
[01]
1234567890
Note:
If you need to change a character to the left, press the l button
to delete the character and re-enter it. Press the r button if you
need to move the cursor to the right.
8. Press the OK button again. The screen displays Name
briefly, then goes blank except for a cursor (
_).
9. Press the keys on the numeric
keypad to enter a name for the
speed dial entry (up to 30
characters). Use the number
keys to enter the letters A to Z
(in uppercase or lowercase), the
numbers 0 to 9, and various
Main Office
symbols.
Press a key repeatedly to display first the numbers and
symbols (if available), then the uppercase and lowercase
letters, as indicated on the key. Wait a few seconds or press
the
r button to move to the next character space. When
you’re finished, wait a few seconds or press the
r button to
move to a blank space.
10. Press the
OK button. You see
this display, indicating the next
available speed dial entry
number:
[02]
11. If you want to add another speed dial entry, repeat steps 6
through 10.
When you’re finished, press the y
return to the
Editing or Deleting a Speed Dial Entry
3.Speed Dial Setup menu.
Cancel/Back button to
1. To edit a speed dial entry, press
the
OK button. Then press the
u or d button, or the
the numeric keypad, to display
this option:
2. Press the
OK button. You see the first speed dial entry
2 key on
2.Edit Entry
number and name displayed.
3. Press the
button to select a different entry and press the
OK button to edit this entry, or press the u or d
OK button.
4. The phone number for the selected entry is displayed. Press
the r button to move to the digits you want to edit. Press
the number keys to enter new numbers or press the
l button to delete digits to the left. When you’re finished,
press the
OK button.
5. The name for the selected entry is displayed. Edit the name
the same way as in step 4. When you’re finished, press the
OK button to return to the 2.Edit Entry display.
6. Press the y
Dial Setup menu.
Cancel/Back button to return to the 3.Speed
8/05 15
Page 16
Epson Stylus CX5800F
7. To delete a speed dial entry,
press the
OK button. Then
press the u or d button, or the
3 key on the numeric keypad,
3.Delete Entry
to display this option:
8. Press the
number (such as
9. Press the
button to select a different entry and press the
OK button. You see the first speed dial entry
[1]) and name displayed.
OK button to delete this entry, or press the u or d
OK button to
delete it.
Printing Your Speed Dial List
1. Press the y Cancel/Back button to return to the first fax
screen.
2. Press the
see this display:
Setup button. You
1.Select Speed D
3. Press the u or d button, or
press the 2 key on the numeric
2.Print Report
keypad, to display this option:
4. Press the
this display:
5. Press
OK button. You see
OK to print the speed dial list.
1.Speed Dial Lis
Sending a Fax
Before you fax, place your original document or photo on the
document table glass as described on page 7. Then send your
fax by manually entering a fax number, redialing the previous
fax number, or selecting an entry from your speed dial list.
3. To send a black-and-white fax, press the x
Start B&W
button.
To send a color fax, press the x
Start Color button. (If the
receiving fax machine cannot print in color, the fax prints in
black-and-white.)
You see this display during
faxing:
Note:
If you need to cancel faxing at any time, press the y Cancel/Back
button.
4. After your original is scanned,
you see this screen:
If you do not need to fax another page, press the
Scanning 001 98%
Send another pag
2 key (for
No). The Epson Stylus CX5800F dials the fax number and
faxes your document.
Note:
If the fax number is busy or there is some other connection
problem, you see an error message and the Epson Stylus
CX5800F returns to the first fax mode screen. The Epson Stylus
CX5800F redials the number after one minute. Wait for the redial,
or check your connection and settings and try faxing again.
If you need to fax another page, press the 1 key (for Yes).
Open the document cover, remove your first original, place
your next original, and close the document cover. Then
press the
OK button to fax the next page. Repeat this step to
fax all the necessary pages. The fax connection stays open
until you’re finished.
Note:
If you’re sending a color fax, or a large document that fills up the
memory area, the Epson Stylus CX5800F scans and faxes one
page at a time. It then asks if you want to send another page.
Manually Entering or Redialing a Fax Number
1. Press the Fax button once to
enter Fax mode. The
button lights up and you see
this display:
2. Press the keys on the numeric
keypad to enter the fax
number. You can enter the
numbers 0 to 9 and the
characters * and #; up to 64
digits total.
Note:
If you need to change a character to the left, press the l button
to delete the character and re-enter it. Press the r button if you
need to move the cursor to the right.
If you want to redial the last fax number you used, press the
Redial/Pause button instead of entering a fax number. The
last fax number appears on the screen.
16 8/05
Fax
Enter Fax Number
1234567890
Speed Dialing a Fax Number
1. Press the Fax button once to
enter Fax mode. The
button lights up and you see
this display:
2. Press the
Setup button. You
see this display:
3. Press the
OK button. You see the first speed dial entry name
or number from your list displayed.
4. To fax to the first speed dial entry, press the
Then go to step 5.
To select a different speed dial entry, press the u or d
button to display the entry, or press the number key that
corresponds to the speed dial entry number. Press the
button, then go to step 5.
5. To send a black-and-white fax, press the x
button.
Fax
Enter Fax Number
1.Select Speed D
OK button.
Start B&W
OK
Page 17
Epson Stylus CX5800F
f
To send a color fax, press the x Start Color button. (If the
receiving fax machine cannot print in color, the fax prints in
black-and-white.)
You see this display during
faxing:
Note:
If you need to cancel faxing at any time, press the y Cancel/Back
button.
6. After your original is scanned,
you see this screen:
If you do not need to fax another page, press the
Scanning 001 98%
Send another pag
2 key (for
No). The Epson Stylus CX5800F dials the fax number and
faxes your document.
Note:
If the fax number is busy or there is some other connection
problem, you see an error message and the Epson Stylus
CX5800F returns to the first fax mode screen. The Epson Stylus
CX5800F redials the number after one minute. Wait for the redial,
or check your connection and settings and try faxing again.
If you need to fax another page, press the 1 key (for Yes).
Open the document cover, remove your first original, place
your next original, and close the document cover. Then
press the
OK button to fax the next page. Repeat this step to
fax all the necessary pages.
Note:
If you’re sending a color fax, or a large document that fills up the
memory area, the Epson Stylus CX5800F scans and faxes one
page at a time. It then asks if you want to send another page.
Selecting the Answer Mode
The Epson Stylus CX5800F
tells you whether Auto Answer
is turned on or not on the first
screen:
To change the answer mode,
press the
button. The
Answer Mode
Y or N changes
on the first screen. Press
Answer Mode again to
change it back.
Note:
You can select the number of rings that must occur before the Epson
Stylus CX5800F receives a fax using the Rings to Answer setting.
See page 14 for details.
12:00 PM Y
Y: Auto Answer is turned on
12:00 PM N
N: Auto Answer is turned of
Receiving a Fax
When the Epson Stylus CX5800F receives a fax with Auto
Answer mode turned on, the message
the display.
When the Epson Stylus CX5800F receives a fax in manual
answer mode, the connected phone begins ringing. Once you
answer the phone to confirm that the call is a fax, press the
x
Start B&W or x Start Color button to receive the fax. The
message
Receiving appears on the display.
After the Epson Stylus CX5800F receives all the pages, it
begins printing the fax. When it’s finished, you see the
message
Complete.
Receiving appears on
Receiving Faxes
The Epson Stylus CX5800F automatically receives and prints
faxes in Auto Answer mode. However, you may want to
receive faxes manually if you connected the Epson Stylus
CX5800F and a phone or answering machine to a phone line
that also receives voice calls. Then you can check for a fax tone
from the sending fax machine and press a button on the Epson
Stylus CX5800F to receive the fax, or allow your answering
machine to determine if the call is an incoming fax.
Note:
Make sure you selected the Paper Size
of paper you’ve loaded. If the incoming fax pages are larger than the
paper size you loaded, the fax size is reduced to fit or printed on
multiple pages, depending on the Automatic Reduction setting you
select. See page 14 for details.
setting that matches the size
Note:
If you run out of paper during printing, you see the error message
Paper out. Load more paper and press the OK button so printing can
continue. If you see any other error messages, see page 22.
Checking the Print Head Nozzles
If your printouts are faint or have gaps in them, some of the
nozzles in the print head may be clogged. Follow the steps
below to check the print head nozzles using the control panel.
1. Load letter-size paper in the sheet feeder.
2. Press the P
on the Epson Stylus CX5800F,
or press the y
button until you see a screen
like this:
3. Press the
see this display:
4. Press the u or d button, or
press the
keypad, to display this option:
On button to turn
Cancel/Back
Setup button. You
3 key on the numeric
12:00 PM Y
1.Load/Eject
3.Nozzle Check
8/05 17
Page 18
Epson Stylus CX5800F
5. Press the
OK button. The Epson Stylus CX5800F prints a
test pattern like this:
Print head does
not need to be
cleaned:
Print head needs
to be cleaned:
6. Press the y
Cancel/Back button to return to the first
screen.
If the pattern does not look good, try cleaning the print head
as described below.
Cleaning the Print Head
If your printouts are unexpectedly light or faint, or you notice
light or dark bands across your printout, you may need to
clean the print head. This unclogs the nozzles so they can
deliver ink properly. Run a nozzle check (as described above)
to see if the print head needs cleaning.
Note:
Print head cleaning uses ink, so clean it only if quality declines and the
nozzle check indicates that the print head needs to be cleaned.
If you see an ink error message on the display, you cannot clean the
print head. In this case, press the OK button and replace the
appropriate ink cartridge first. See the next section for details.
1. Press the P On button to turn
on the Epson Stylus CX5800F,
or press the y
button until you see a screen
like this:
2. Press the
see this display:
3. Press the u or d button, or
press the
keypad, to display this option:
4. Press the
head cleaning cycle and the message
on the display.
Caution:
Never turn off the Epson Stylus CX5800F while head cleaning is
in progress. You may damage it.
Cancel/Back
12:00 PM Y
Setup button. You
4 key on the numeric
OK button. The Epson Stylus CX5800F runs a
1.Load/Eject
4.Head Cleaning
Cleaning . . . appears
5. When the display returns to 4.Head Cleaning, run a nozzle
check to verify that the print head is clean. See the left
column for details.
6. If there are still gaps or lines, or the test patterns are faint,
run another cleaning cycle and check the nozzles again.
Note:
If you don’t see any improvement after cleaning the print head
four or five times, turn off the Epson Stylus CX5800F and wait
overnight. This lets any dried ink soften. Then try cleaning the
print head again. If quality still does not improve, one of the ink
cartridges may be old or damaged and needs to be replaced. See
page 19 for details.
Caution:
If you do not use your Epson Stylus CX5800F often, it is a good idea
to print a few pages at least once a month to maintain good print
quality.
Checking the Ink Levels
You can check the approximate level of ink in your cartridges
using the control panel.
1. Press the P
on the Epson Stylus CX5800F,
or press the y
button until you see a screen
like this:
2. Press the
see this display:
3. Press the u or d button, or
press the
keypad, to display this option:
4. Press the
display like this:
If one or more cartridges are
low on ink, you see a display
like this:
5. Press the
screen.
If you need to replace an ink cartridge, see the next section.
Note:
You can also check the ink levels using software when the Epson
Stylus CX5800F is connected to your computer. See the on-screen
User’s Guide for instructions.
On button to turn
Cancel/Back
12:00 PM Y
Setup button. You
2 key on the numeric
OK button. You see a
1.Load/Eject
2.Ink Levels
C:50% M:50% Y:50
C:Ink low M:50%
OK or y Cancel/Back button to return to the first
18 8/05
Page 19
Epson Stylus CX5800F
Replacing Ink Cartridges
If you see a message like this on
the display, one or more cartridges
are low on ink:
When you see a message like this
on the display, you need to replace
one or more cartridges:
You cannot print when a cartridge is empty.
Note:
You’ll also see a low ink or ink out message on your computer screen
when you print from your computer.
You can purchase genuine Epson ink and paper from an
authorized Epson reseller. To find the nearest reseller, please
call 800-GO-EPSON (800-463-7766). To purchase online,
visit www.epsonstore.com (U.S. sales only). In Canada, please
call 800-463-7766 for reseller referral.
Use these part numbers when you order or purchase new ink
cartridges:
Color Part number
Black T060120
Cyan T060220
Magenta T060320
Yellow T060420
Cyan ink low->Pr
Cyan ink out->Pr
5. Make sure that the document cover is closed, then open the
scanner.
Caution:
Do not open the scanner when the document cover is open.
Do not move the print head by hand; this may damage the Epson
Stylus CX5800F. Always select 5.Replace Cartridge from the
display to move it.
6. Open the cartridge cover.
Caution:
Leave the empty cartridge installed until you have obtained a
replacement, or the ink remaining in the print head nozzles may dry
out.
We recommend that you use genuine Epson cartridges. The use of
other products may affect your print quality and could result in
printer damage. Yields vary considerably based on images printed,
print settings, paper type, frequency of use, and temperature. The
printer ships with full cartridges and part of the ink from the first
cartridges is used for priming the printer.
1. Press the P On button to turn
on the Epson Stylus CX5800F,
or press the y
button until you see a screen
like this:
2. Press the
see this display:
Cancel/Back
Setup button. You
12:00 PM Y
1.Load/Eject
3. Press the u or d button, or
press the
keypad, to display this option:
4. Press the
5 key on the numeric
OK button.
5.Replace Cartri
7. Squeeze the tab at the back of the cartridge and lift it
straight out. Dispose of it carefully. Do not take the used
cartridge apart or try to refill it.
Warning:
If ink gets on your hands, wash them thoroughly with soap and
water. If ink gets into your eyes, flush them immediately with
water.
8/05 19
Page 20
Epson Stylus CX5800F
Start
Color
OK
8. Before you open the new ink cartridge package, shake it
four or five times. Then remove it from the package.
Caution:
Do not touch the green chip on the front of the cartridge. This can
damage the ink cartridge.
9. Place the new ink cartridge into the cartridge holder and
push it down until it clicks into place.
12. Close the scanner.
13. Press the
OK button. The Epson Stylus CX5800F begins
charging ink and
Charging appears on the display.
10. Replace any other cartridges that need to be replaced.
11. Close the ink cartridge cover and press it until it clicks into
place.
Charging takes about one minute. When it’s finished,
5.Replace Cartridge appears on the display.
Caution:
Never turn off the Epson Stylus CX5800F while Charging
appears on the display or you’ll waste ink.
Note:
If you see an ink cartridge error message on the display, the ink
cartridge may not be installed correctly. Press the OK button and
reinstall the ink cartridge until it clicks into place.
14. Press the y Cancel/Back button until you return to the first
screen.
Aligning the Print Head
If your printouts look grainy or blurry, or you see light or dark
horizontal banding, you may need to align the print head.
Note:
Banding may also occur if your cartridges are low on ink or you need
to clean the print head.
You can also align the print head using the control panel buttons.
Press the Setup button, select 6.Head Alignment, and follow the
instructions on the display.
20 8/05
Page 21
Epson Stylus CX5800F
1. Turn on the Epson Stylus CX5800F.
2. Load several sheets of paper.
3. Windows: Right-click the printer icon on your taskbar
(in the lower right corner of your screen). Select
Alignment.
Macintosh OS X: Open the
EPSON Print Utility. Select Stylus CX5800F in the printer
list, click
OK, and select Print Head Alignment.
Applications folder and select
Print Head
4. Follow the instructions on the screen to print a vertical
alignment sheet. You see a window like this one:
7. Look at the printout and select the pattern with no gap or
line between the rectangles. Enter the number for that
pattern in the box on the screen and click
Next.
If you can’t find an aligned pattern, choose the one that
looks the best. Then click
Realignment to print another
alignment sheet and repeat this step.
8. Click
Print to print a color horizontal alignment sheet.
After it’s printed, you see a window like this one:
5. Look at the four sets of patterns in your printout. For each
set, if you see a pattern with no visible vertical lines, enter its
number in the corresponding box on the screen and click
Next.
If you can’t find an aligned pattern, choose the one that’s
closest to being aligned. Click
Realignment and then Print
to print another alignment sheet and repeat this step.
6. Click
Print to print a black horizontal alignment sheet.
After it’s printed, you see a window like this one:
9. Look at the printout and find the pattern with no gap or
line between the rectangles and enter its number in the box
on the screen.
If you can’t find an aligned pattern, choose the one that
looks the best. Then click
Realignment to print another
alignment sheet and repeat this step.
10. Click
Finish to close the Print Head Alignment Utility.
Transporting the Epson Stylus CX5800F
If you need to ship your Epson Stylus CX5800F all-in-one,
you must prepare it for transportation by packing it in its
original box or one of a similar size.
1. Turn off the Epson Stylus CX5800F.
2. Remove any paper from the sheet feeder and close the paper
support.
3. Unplug the power cord from the electrical outlet. Then
disconnect the USB cable from the Epson Stylus CX5800F.
4. Open the scanner section and make sure the ink cartridge
holder is in the home position on the right.
8/05 21
Page 22
Epson Stylus CX5800F
5. Secure the ink cartridge holder (print head) to the case with
tape.
Caution:
Be sure to remove the tape after installing the printer in its new
location.
6. Close the scanner section, push in the output tray extension,
and close the output tray.
7. Repack the Epson Stylus CX5800F in the original box
using the protective materials that came with it.
Keep the Epson Stylus CX5800F level as you transport it.
After transporting the Epson Stylus CX5800F, remove the
tape securing the print head, plug in the Epson Stylus
CX5800F, and turn it on. If you notice a decline in print
quality, clean the print head (see page 18); if output is
misaligned, align the print head (see page 20).
Error Messages
Display message Cause and solution
Paper out -> Load paper into
the sheet feeder, then press
the OK button.
Paper jam -> Press the OK
button. Remove any remaining
jammed paper by hand.
[Cyan, Magenta, Yellow,
Black] ink low -> Press the OK
button to begin ink cartridge
replacement.
[Cyan, Magenta, Yellow,
Black] ink out -> Press the OK
button to begin ink cartridge
replacement.
No [Cyan, Magenta, Yellow,
Black] ink cartridge -> Press
the OK button to install a new
ink cartridge.
Load or reload paper in the sheet
feeder and press the
continue. See page 4 for details.
See the User’s Guide for instructions
on clearing the paper jam.
Ink is low in one or more of the
indicated cartridges. See page 19 for
replacement instructions.
Ink is out in one or more of the
indicated cartridges. See page 19 for
replacement instructions.
An ink cartridge is not installed or is
installed incorrectly. See page 19 for
replacement instructions.
OK button to
Display message Cause and solution
[Cyan, Magenta, Yellow,
Black] Ink cartridge error ->
Cartridge replacement is
necessary. Press the OK
button to begin.
No memory card A memory card is inserted that is not
No photos on memory card The inserted memory card does not
No index sheet detected or
sheet placed incorrectly.
Correct the sheet placement
and try again.
No photos selected or photos
marked incorrectly. Select
photos correctly and try again.
Memory card data does not
match index sheet. Replace
the card or index sheet and try
again.
Paper thickness lever is set for
envelope printing.
An ink cartridge that is not supported
by the Epson Stylus CX5800F is
installed. See page 19 for
replacement instructions.
supported by the Epson Stylus
CX5800F. Remove the incompatible
memory card. See page 3 for details.
contain any valid images. See page 4
for a list of compatible card and image
types.
An index sheet was not recognized
because it is not positioned correctly.
Align the top of the sheet with the left
edge of the glass. See page 10 for
details.
No marks are detected on the index
sheet or the sheet includes more than
one mark for an image. Remove the
index sheet, mark it correctly, and try
again. See page 10 for details.
The index sheet does not match the
photos on the memory card. Remove
the card and insert the one used to
print the index sheet (see page 8), or
place the correct index sheet on the
glass (see page 10).
The paper thickness lever is set to the
^ H position. If you are printing on
envelopes, press x
Start B&W to continue.
x
Otherwise, set the lever to the
Start Color or
m L position.
Paper thickness lever is set for
printing sheets of paper.
Service required. See your
documentation for details.
Printer error ->
or
Scanner error ->
See your documentation and
call service if necessary.
The paper thickness lever is set to the
m L position. If you are printing on
paper sheets, press x
Start B&W to continue. If you’re
x
printing on envelopes, set the lever to
^ H position.
the
An Epson Stylus CX5800F part needs
to be replaced. Contact your local
authorized servicer or contact Epson
for a referral.
There is a problem with the Epson
Stylus CX5800F. Turn it off and then
back on. If the error does not clear,
contact your local authorized servicer
or contact Epson for a referral.
Start Color or
Related Documentation
CPD-20212 Epson Stylus CX5800F Start Here sheet
CPD-20213 Epson Stylus CX5800F Basics Guide
CPD-20214 Epson Stylus CX5800F CD-ROM
(includes on-screen User’s Guide)
22 8/05
Loading...
