Epson PowerLite S17, PowerLite W17, PowerLite X17 User's Guide
PowerLite
®
S17/X17/X21/W17
User's Guide
Contents
PowerLite S17/X17/X21/W17 User's Guide................................................................................................ 9
Introduction to Your Projector ................................................................................................................. 10
Setting Up the Projector ........................................................................................................................... 23
Projector Features.............................................................................................................................. 10
Product Box Contents.................................................................................................................... 11
Additional Components ................................................................................................................ 12
Optional Equipment and Replacement Parts................................................................................. 13
Warranty and Registration Information.......................................................................................... 14
Notations Used in the Documentation................................................................................................ 14
Where to Go for Additional Information .............................................................................................. 15
Projector Part Locations..................................................................................................................... 15
Projector Parts - Front/Top............................................................................................................ 16
Projector Parts - Rear.................................................................................................................... 17
Projector Parts - Base.................................................................................................................... 18
Projector Parts - Control Panel...................................................................................................... 18
Projector Parts - Remote Control................................................................................................... 21
Projector Placement........................................................................................................................... 23
Projector Setup and Installation Options ....................................................................................... 23
Projection Distance........................................................................................................................ 25
Projector Connections........................................................................................................................ 26
Connecting to Computer Sources.................................................................................................. 27
Connecting to a Computer for USB Video and Audio................................................................ 27
Connecting to a Computer for VGA Video................................................................................. 29
Connecting to a Computer for HDMI Video and Audio.............................................................. 29
Connecting to a Computer for USB Mouse Control................................................................... 30
Connecting to a Computer for Sound........................................................................................ 30
Connecting to Video Sources........................................................................................................ 31
Connecting to an HDMI Video Source ...................................................................................... 31
Connecting to a Component-to-VGA Video Source.................................................................. 32
Connecting to a Composite Video Source ................................................................................ 32
3
Connecting to an S-Video Video Source................................................................................... 33
Connecting to a Video Source for Sound.................................................................................. 33
Connecting to an External Computer Monitor................................................................................ 34
Connecting to External Speakers.................................................................................................. 35
Connecting to External USB Devices............................................................................................ 36
USB Device Projection.............................................................................................................. 36
Connecting a USB Device or Camera to the Projector.............................................................. 37
Selecting the Connected USB Source...................................................................................... 37
Disconnecting a USB Device or Camera From the Projector.................................................... 37
Connecting to a Document Camera .............................................................................................. 38
Installing Batteries in the Remote Control .......................................................................................... 38
Opening the Lens Cover .................................................................................................................... 40
Using Basic Projector Features ............................................................................................................... 42

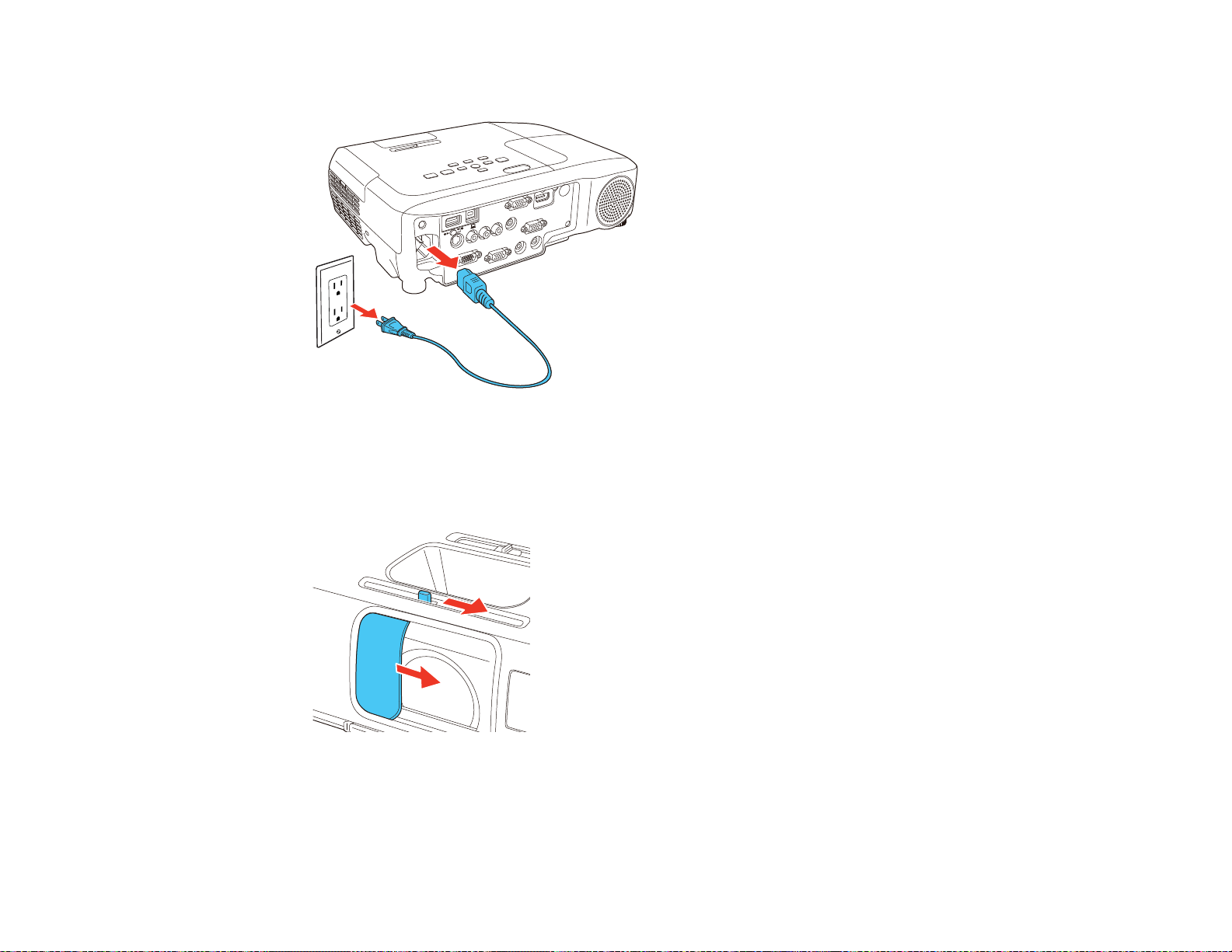

Turning On the Projector.................................................................................................................... 42
Turning Off the Projector.................................................................................................................... 44
Selecting the Language for the Projector Menus................................................................................ 46

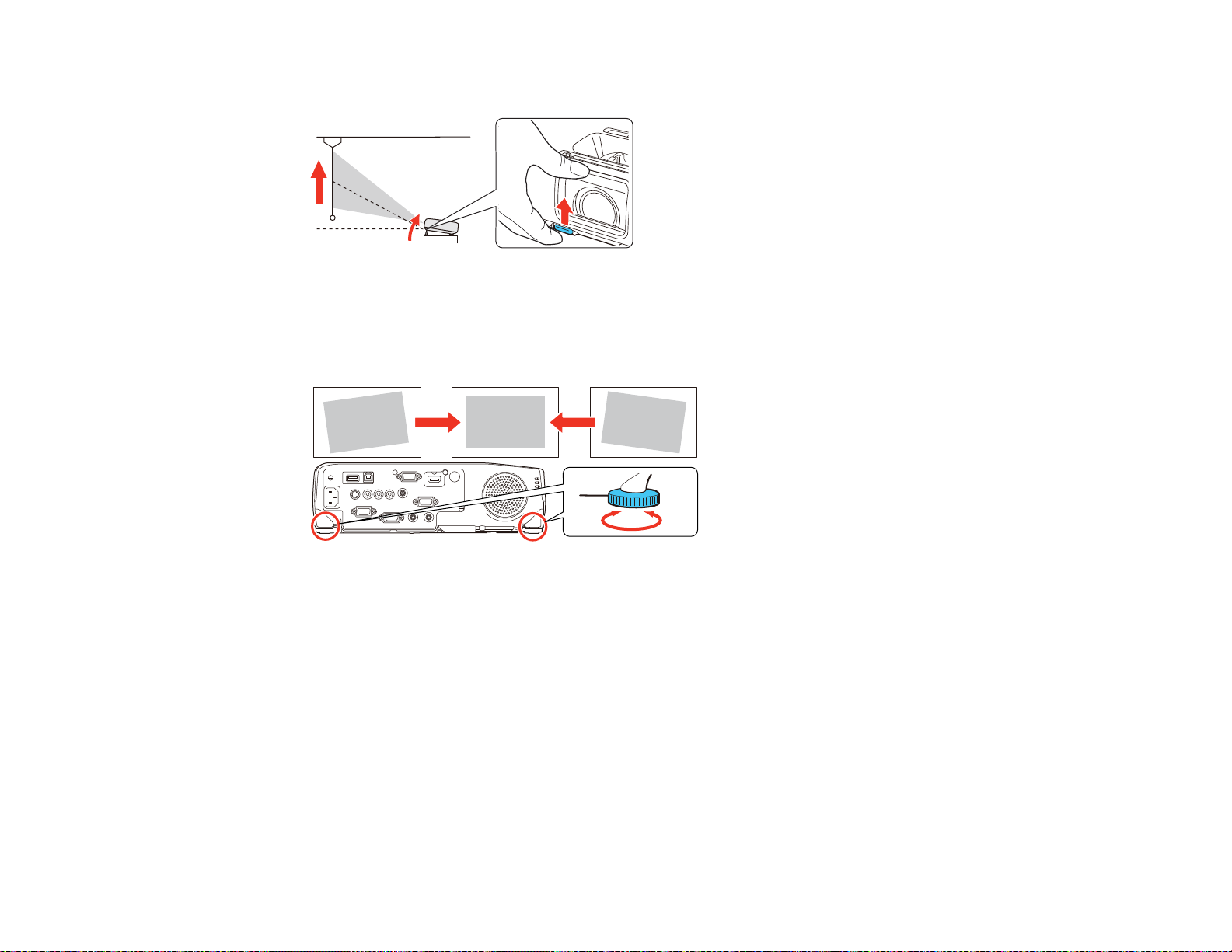

Adjusting the Image Height ................................................................................................................ 46
Image Shape...................................................................................................................................... 47
Correcting Image Shape with the Horizontal Keystone Slider ....................................................... 48
Correcting Image Shape with the Keystone Buttons...................................................................... 49
Correcting Image Shape with Quick Corner .................................................................................. 50
Resizing the Image............................................................................................................................. 52
Focusing the Image Using the Focus Ring......................................................................................... 53
Remote Control Operation ................................................................................................................. 54
Using the Remote Control as a Wireless Mouse ........................................................................... 55
Using the Remote Control as a Pointer.......................................................................................... 56
Selecting an Image Source ................................................................................................................ 57
Projection Modes ............................................................................................................................... 59
Changing the Projection Mode Using the Remote Control ............................................................ 59
Changing the Projection Mode Using the Menus........................................................................... 60
Image Aspect Ratio............................................................................................................................ 60
Changing the Image Aspect Ratio................................................................................................. 61
Available Image Aspect Ratios...................................................................................................... 61
4
Color Mode......................................................................................................................................... 62
Changing the Color Mode.............................................................................................................. 63
Available Color Modes................................................................................................................... 63
Turning On Auto Iris....................................................................................................................... 64
Controlling the Volume with the Volume Buttons................................................................................ 65
Projecting a PC Free Presentation..................................................................................................... 66
Supported PC Free File Types ...................................................................................................... 66
Starting a PC Free Slide Show...................................................................................................... 67
Starting a PC Free Movie Presentation ......................................................................................... 69
PC Free Display Options............................................................................................................... 70
Adjusting Projector Features................................................................................................................... 72
Shutting Off the Picture and Sound Temporarily ................................................................................ 72
Stopping Video Action Temporarily.................................................................................................... 73
Zooming Into and Out of Images........................................................................................................ 73
Projector Security Features................................................................................................................ 74
Password Security Types.............................................................................................................. 74

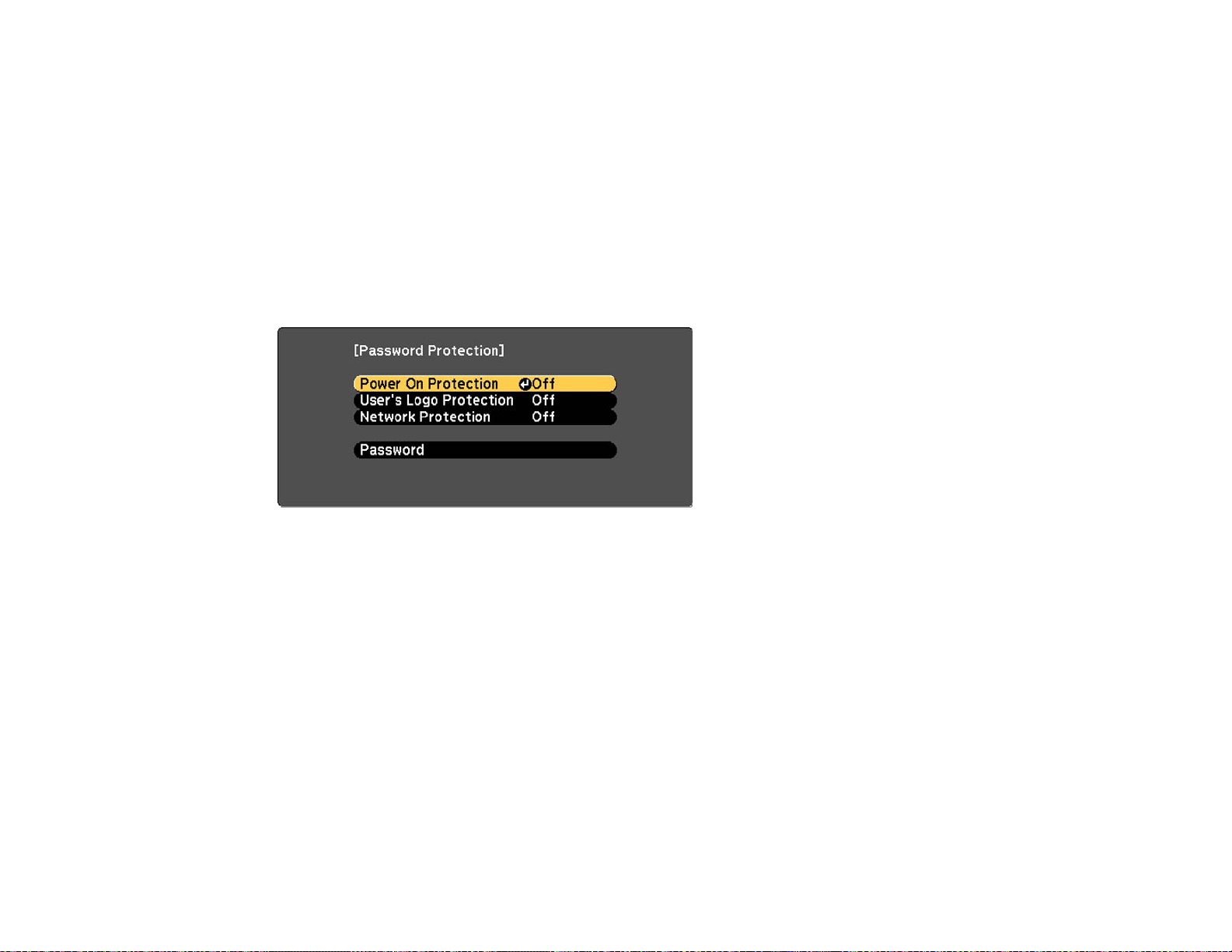

Setting a Password................................................................................................................... 75
Selecting Password Security Types.......................................................................................... 76
Entering a Password to Use the Projector................................................................................. 77
Saving a User's Logo Image to Display..................................................................................... 78
Locking the Projector's Buttons ..................................................................................................... 80
Unlocking the Projector's Buttons............................................................................................. 81

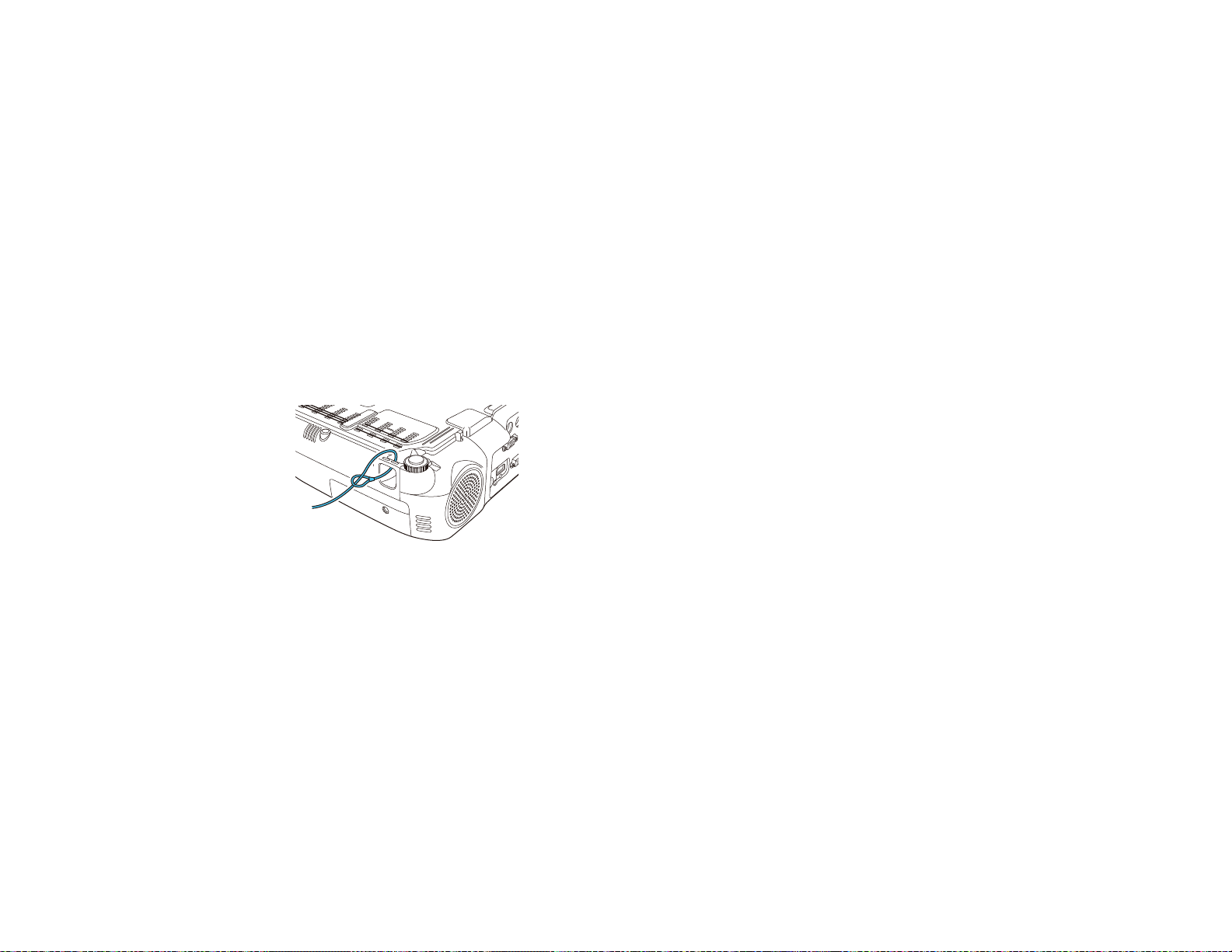

Installing a Security Cable............................................................................................................. 81
Creating a User Pattern to Display..................................................................................................... 81
Using the Projector on a Network............................................................................................................ 83
Wireless Network Projection .............................................................................................................. 83
Installing the Wireless LAN Module............................................................................................... 84
Using Quick Wireless Connection (Windows Only)....................................................................... 85
Selecting Wireless Network Settings Manually.............................................................................. 87
Wireless LAN Menu Settings .................................................................................................... 89
Selecting Wireless Network Settings in Windows.......................................................................... 91
Selecting Wireless Network Settings in Mac OS X........................................................................ 91
Setting Up Wireless Network Security........................................................................................... 91
5
Wireless Security Menu Settings .............................................................................................. 92
Setting Up Projector Network E-Mail Alerts........................................................................................ 93
Network Projector E-mail Alert Messages ..................................................................................... 95
Setting Up Monitoring Using SNMP ................................................................................................... 95
Controlling a Networked Projector Using a Web Browser .................................................................. 96
Adjusting the Menu Settings.................................................................................................................... 99
Using the Projector's Menus............................................................................................................... 99
Image Quality Settings - Image Menu .............................................................................................. 101
Input Signal Settings - Signal Menu.................................................................................................. 102
Projector Feature Settings - Settings Menu...................................................................................... 105
Projector Setup Settings - Extended Menu....................................................................................... 108

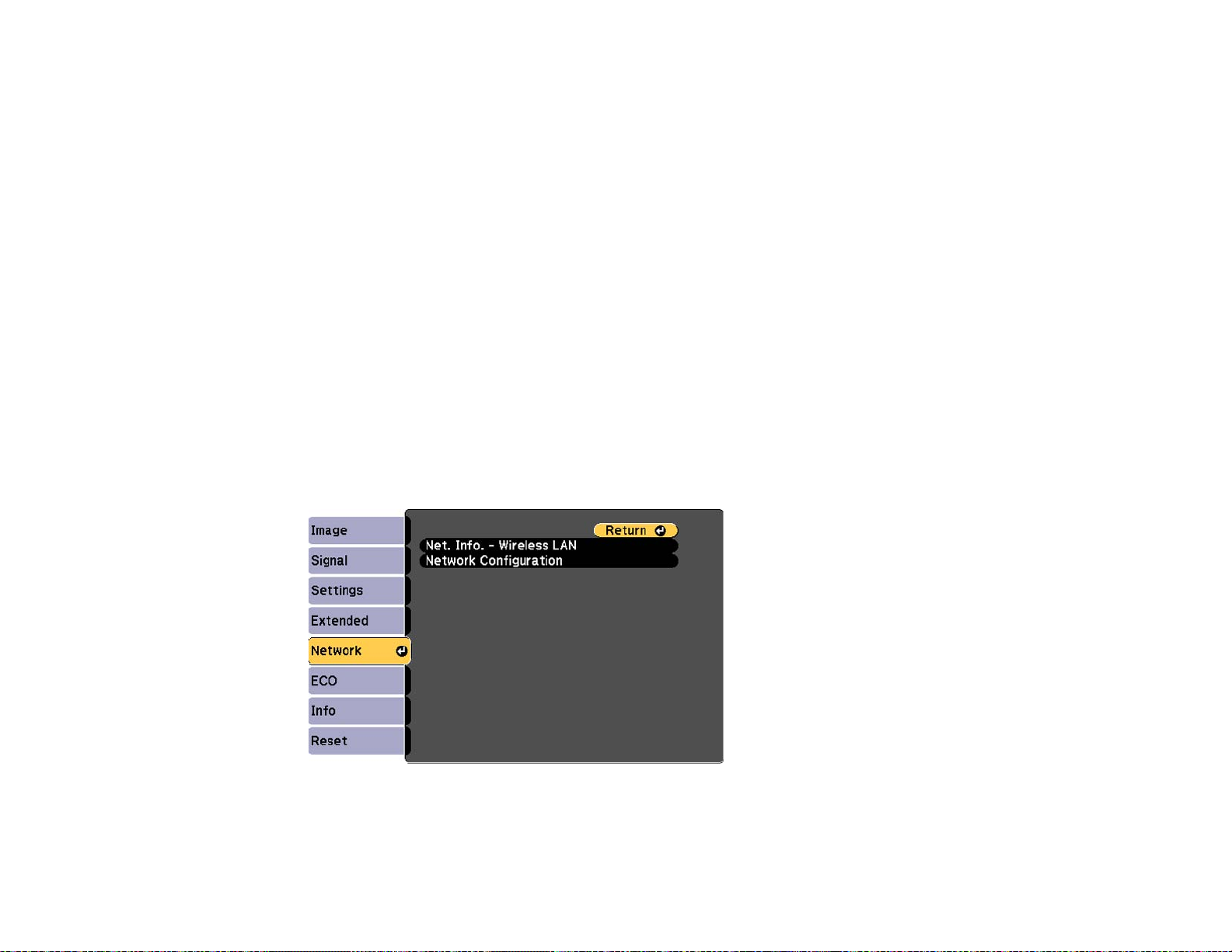

Projector Network Settings - Network Menu..................................................................................... 111
Projector Setup Settings - ECO Menu.............................................................................................. 112
Projector Information Display - Info Menu ........................................................................................ 113
Event ID Code List....................................................................................................................... 115
Projector Reset Options - Reset Menu............................................................................................. 116
Maintaining and Transporting the Projector......................................................................................... 118
Projector Maintenance..................................................................................................................... 118
Cleaning the Lens........................................................................................................................ 118
Cleaning the Projector Case........................................................................................................ 119
Air Filter and Vent Maintenance .................................................................................................. 119
Cleaning the Air Filter and Vents............................................................................................. 120
Replacing the Air Filter............................................................................................................ 120
Projector Lamp Maintenance....................................................................................................... 122
Replacing the Lamp................................................................................................................ 123
Resetting the Lamp Timer....................................................................................................... 127
Replacing the Remote Control Batteries ..................................................................................... 128
Transporting the Projector................................................................................................................ 129
Solving Problems.................................................................................................................................... 130
Projection Problem Tips................................................................................................................... 130
Projector Light Status....................................................................................................................... 130
Using the Projector Help Displays.................................................................................................... 133
Solving Image or Sound Problems................................................................................................... 134
6
Solutions When No Image Appears............................................................................................. 134
Solutions When Image is Incorrect Using the USB Display Function .......................................... 135
Solutions When "No Signal" Message Appears........................................................................... 136
Displaying From a PC Laptop................................................................................................. 136
Displaying From a Mac Laptop ............................................................................................... 136
Solutions When "Not Supported" Message Appears................................................................... 137
Solutions When Only a Partial Image Appears............................................................................ 137
Solutions When the Image is Not Rectangular ............................................................................ 138
Solutions When the Image Contains Noise or Static ................................................................... 138
Solutions When the Image is Fuzzy or Blurry.............................................................................. 139
Solutions When the Image Brightness or Colors are Incorrect .................................................... 140
Solutions to Sound Problems ...................................................................................................... 141
Solving Projector or Remote Control Operation Problems ............................................................... 141
Solutions to Projector Power or Shut-Off Problems..................................................................... 142
Solutions to Problems with the Remote Control........................................................................... 142
Solutions to Password Problems................................................................................................. 143
Solving Network Problems............................................................................................................... 143
Solutions When You Cannot Access the Projector Through the Web ......................................... 144
Solutions When Network Alert E-Mails are Not Received............................................................ 144
Where to Get Help............................................................................................................................ 144
Technical Specifications ........................................................................................................................ 146
General Projector Specifications...................................................................................................... 146
Projector Lamp Specifications.......................................................................................................... 149
Remote Control Specifications......................................................................................................... 149
Projector Dimension Specifications.................................................................................................. 150
Projector Electrical Specifications.................................................................................................... 150
Projector Environmental Specifications............................................................................................ 151
Projector Safety and Approvals Specifications................................................................................. 151
Supported Video Display Formats.................................................................................................... 151
USB Display System Requirements................................................................................................. 154
Notices ..................................................................................................................................................... 156
Recycling.......................................................................................................................................... 156
Important Safety Information............................................................................................................ 156
7
Important Safety Instructions............................................................................................................ 157
Restriction of Use........................................................................................................................ 160
FCC Compliance Statement............................................................................................................. 160
Trademarks...................................................................................................................................... 161
Open Source Software License........................................................................................................ 161
Copyright Notice............................................................................................................................... 206
A Note Concerning Responsible Use of Copyrighted Materials................................................... 207
Copyright Attribution.................................................................................................................... 207
8
PowerLite S17/X17/X21/W17 User's Guide
Welcome to the PowerLite S17/X17/X21/W17 User's Guide.
9
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations
Projector Features
The PowerLite S17, X17, X21, and W17 projectors include these special features:
Bright, high-resolution projection system
• PowerLite S17/X17: Up to 2700 lumens of brightness (white light output and color light output)
PowerLite W17: Up to 2800 lumens of brightness (white light output and color light output)
PowerLite X21: Up to 3000 lumens of brightness (white light output and color light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending
on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output
measured in accordance with ISO 21118.
• PowerLite S17: Native resolution of 800 × 600 pixels (SVGA)
PowerLite X17/X21: Native resolution of 1024 × 768 pixels (XGA)
PowerLite W17: Native resolution of 1280 × 800 pixels (WXGA)
Flexible connectivity
• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup
• Projection from iOS or Android devices with the optional wireless LAN module and free Epson
iProjection app; visit epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more
information
• PC Free photo slide shows and videos via connected USB memory devices
• HDMI port for computer or video device connection
• Ports for connecting an external monitor and external speakers
10
Easy-to-use setup and operation features
• Low total cost of ownership with longer lamp life
• Innovative horizontal keystone correction slider for flexible projector placement
• 1.2x optical zoom ratio for improved zooming capability
• Built-in closed captioning decoder
• Epson's Instant Off and Direct Power On features for quick setup and shut down
Product Box Contents
Additional Components
Optional Equipment and Replacement Parts
Warranty and Registration Information
Parent topic: Introduction to Your Projector
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.
Note: Your product may look different from the illustrations in this guide, but the instructions are the
same.
Make sure your projector box included all of these parts:
11
1 Projector
2 Remote control and batteries (two AA alkaline)
3 Power cord
4 VGA computer cable
5 Wireless LAN module cover
6 Projector documentation CD
7 Projector software CD
Parent topic: Projector Features
Additional Components
Depending on how you plan to use the projector, you may need to obtain the following additional
components:
• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local
computer or electronics dealer for purchase information.
• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You
can purchase one from Epson or an authorized Epson reseller.
• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or
an authorized Epson reseller.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.
Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not
support audio through the HDMI port.
• To project with audio from certain ports, you may need a commercially available audio cable
compatible with your device. See your local computer or electronics dealer for purchase information.
• To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video
output to the projector's VGA video port, you need to obtain an adapter. Contact Apple for compatible
adapter options.
Parent topic: Projector Features
Related references
Optional Equipment and Replacement Parts
12
Optional Equipment and Replacement Parts
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online
at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Genuine Epson Replacement lamp (ELPLP78) V13H010L78
Air filter replacement set (2 filters; ELPAF32) V13H134A32
Wireless LAN module (ELPAP07) V12H418P12
Quick Wireless Connection USB Key (ELPAP09) V12H005M09
Epson DC-06 document camera (ELPDC06) V12H321005
Epson DC-11 document camera (ELPDC11) V12H377020
Epson DC-12 document camera (ELPDC12) V12H594020
Epson DC-20 document camera (ELPDC20) V12H500020
BrightLink Solo interactive module (IU-01) V12H415020
AP-60 Projector Sound Solution V12H329020
PixiePlus Control System ELPSP10
Accolade Duet portable projector screen ESPSC80
ES1000 Ultra Portable Tabletop Projection screen V12H002S4Y
ES3000 Ultra Portable Tabletop Projection screen V12H002S3Y
Universal projector ceiling mount ELPMBPJF
Adjustable suspended ceiling channel kit ELPMBP01
False ceiling plate kit ELPMBP02
Structural Round ceiling plate ELPMBP03
Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01
Kensington security lock ELPSL01
Soft carrying case V12H001K67
13
Option or part Part number
Component-to-VGA video cable (ELPKC19) V12H005C19
VGA video cable 1.8 m length ELPKC02
VGA video cable 3.0 m length ELPKC09
VGA video cable 20 m length ELPKC10
Remote control 1599176
1-Year Extended Service Program - Exchange Service EPPEXPA1
2-Year Extended Service Program - Exchange Service EPPEXPA2
1-Year Extended Service Program - Depot Repair Service EPPFTPA1
2-Year Extended Service Program - Depot Repair Service EPPFTPA2
Parent topic: Projector Features
Warranty and Registration Information
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you
won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere
in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.
Register your product online using the projector CD or at this site: epson.com/webreg.
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector
14
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• epson.com/support (U.S) or epson.ca/support (Canada)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and the sources listed above, you can use the Epson
PrivateLine Support service to get help fast. For details, see "Where to Get Help".
Parent topic: Introduction to Your Projector
Related references
Where to Get Help
Related tasks
Using the Projector Help Displays
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
15
Projector Parts - Front/Top
1 Exhaust vent
2 A/V Mute slide lever
3 Foot release lever
4 Front adjustable foot
5 A/V Mute slide
6 Remote receiver
7 Focus ring (PowerLite X17/X21/W17)
8 Zoom ring (PowerLite X17/X21/W17)
9 Intake vent
10 Air filter cover
11 Security slot
12 Focus ring (PowerLite S17)
13 Control panel
14 Horizontal keystone slider
15 Lamp cover
Parent topic: Projector Part Locations
16
Projector Parts - Rear
1 AC input port
2 S-Video port
3 RS-232C port
4 Video port
5 Audio-L/R ports
6 Monitor Out port
7 Audio1 port
8 Audio Out port
9 Audio2 port
10 Speaker
11 Remote control receiver
12 HDMI port
13 Computer2 (VGA) port
14 Computer1 (VGA) port
15 USB-B port
16 USB-A port
17 Wireless LAN module cover screw
Parent topic: Projector Part Locations
17
Projector Parts - Base
1 Mounting bracket holes
2 Security cable attachment point
3 Rear feet
4 Front adjustable foot
Parent topic: Projector Part Locations
Related tasks
Installing a Security Cable
Projector Parts - Control Panel
PowerLite S17
18
1 Source Search button (searches for connected sources)
2 Enter button (selects options)
3 Keystone adjustment buttons (adjust screen shape) and arrow buttons
4 Help button (accesses projector help information)
5 Esc button (cancels/exits functions)
6 Wide/Tele buttons (adjust projected image size) and arrow buttons
7 Menu button (accesses projector menu system)
8 Power button/light
9 Status, Lamp, and Temp (Temperature) lights
PowerLite X17/X21/W17
1 Source Search button (searches for connected sources)
19
2 Enter button (selects options)
3 Keystone adjustment buttons (adjust screen shape) and arrow buttons
4 Help button (accesses projector help information)
5 Esc button (cancels/exits functions)
6 Volume control buttons and arrow buttons
7 Menu button (accesses projector menu system)
8 Power button/light
9 Status, Lamp, and Temp (Temperature) lights
Parent topic: Projector Part Locations
Related references
Projector Light Status
20
Projector Parts - Remote Control
1 Power button
21
2 Computer button (cycles through connected computer sources)
3 Video button (cycles through connected video sources)
4 Numeric buttons (enter numbers)
5 Auto button (automatically adjusts position, tracking, and sync settings)
6 Aspect button (selects the image aspect ratio)
7 Num button (when held down, switches numeric buttons to number function)
8 Menu button (accesses projector menu system)
9 Arrow buttons (move through on-screen options and control wireless mouse functions)
10 Enter button (selects options and controls wireless mouse functions)
11 User button (customizable for different functions)
12 Page up/down buttons (control presentation slides)
13 E-Zoom +/– buttons (zoom into and out of the image)
14 A/V Mute button (turns off picture and sound)
15 Help button (accesses projector help information)
16 Freeze button (stops video action)
17 Volume up/down buttons (adjust speaker volume)
18 Pointer button (activates on-screen pointer)
19 Esc button (cancels/exits functions and controls wireless mouse functions)
20 Color Mode button (selects display modes)
21 LAN button (switches to available network sources)
22 USB button (cycles through connected USB sources)
23 Source Search button (searches for connected sources)
Parent topic: Projector Part Locations
22
Setting Up the Projector
Follow the instructions in these sections to set up your projector for use.
Projector Placement
Projector Connections
Installing Batteries in the Remote Control
Opening the Lens Cover
Projector Placement
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling mount if you want to use it in a fixed location.
Keep these considerations in mind as you select a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible mount.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or
next to anything that could block the vents.
• Position the projector within reach of a grounded electrical outlet or extension cord.
Projector Setup and Installation Options
Projection Distance
Parent topic: Setting Up the Projector
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
Front
23
Rear
Front Ceiling
Rear Ceiling
Wherever you set up the projector, make sure to position it squarely in front of the center of the screen,
not at an angle, if possible.
If you project from the ceiling or from the rear, be sure to select the correct Projection option in the
projector's menu system.
Parent topic: Projector Placement
24
Related references
Projector Setup Settings - Extended Menu
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on
the size of the projected image. (Conversion figures may have been rounded up or down.) You can also
use the projector Throw Distance Calculator at epson.com/support (U.S.) or epson.ca/support (Canada).
PowerLite S17
4:3 Aspect Ratio
Screen or Projection distance
image size
1 50 inches 58 to 79 inches (147 to 200 cm)
2 80 inches 93 to 126 inches (237 to 321 cm)
3 100 inches 117 to 158 inches (297 to 401 cm)
4 150 inches 176 to 237 inches (446 to 603 cm)
Wide to Tele
25
PowerLite X17/X21
4:3 Aspect Ratio
Screen or Projection distance
image size
1 50 inches 59 to 71 inches (150 to 180 cm)
2 80 inches 95 to 114 inches (241 to 290 cm)
3 100 inches 119 to 143 inches (302 to 363 cm)
4 150 inches 179 to 215 inches (454 to 546 cm)
PowerLite W17
16:10 Aspect Ratio
Screen or Projection distance
image size
1 50 inches 55 to 66 inches (139 to 168 cm)
2 80 inches 88 to 106 inches (225 to 270 cm)
3 100 inches 111 to 133 inches (281 to 338 cm)
Wide to Tele
Wide to Tele
4 150 inches 167 to 200 inches (424 to 509 cm)
Parent topic: Projector Placement
Projector Connections
You can connect the projector to a variety of computer, video, and audio sources to display
presentations, movies, or other images, with or without sound.
• Connect any type of computer (Windows or Mac) that has a USB port, standard video output (monitor)
port, or HDMI port.
• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and
smartphones with compatible video output ports.
• If your presentation or video includes sound, you can connect audio input cables, if necessary.
• For slide shows without a computer, you can connect USB devices (such as a flash drive or camera)
or an optional Epson document camera.
26
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode
to ensure the projector's internal temperature is regulated properly.
Connecting to Computer Sources
Connecting to Video Sources
Connecting to an External Computer Monitor
Connecting to External Speakers
Connecting to External USB Devices
Connecting to a Document Camera
Parent topic: Setting Up the Projector
Related references
Projector Setup Settings - Extended Menu
Connecting to Computer Sources
Follow the instructions in these sections to connect a computer to the projector.
Connecting to a Computer for USB Video and Audio
Connecting to a Computer for VGA Video
Connecting to a Computer for HDMI Video and Audio
Connecting to a Computer for USB Mouse Control
Connecting to a Computer for Sound
Parent topic: Projector Connections
Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and audio output to the projector
through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a
USB cable.
Note: An HDMI connection is recommended for projecting content requiring high bandwidth.
1. Turn on your computer.
27
2. Connect the cable to your projector's USB-B port.
3. Connect the other end to any available USB port on your computer.
4. Do one of the following:
• Windows 8: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.EXE in
the dialog box that appears to install the Epson USB Display software.
• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to
install the Epson USB Display software.
• Windows XP: Wait as messages appear on your computer screen and the projector installs the
Epson USB Display software on your computer.
• Windows 2000: Select Computer, EPSON_PJ_UD,and EMP_UDSE.EXE to install the Epson
USB Display software.
• Mac OS X: The USB Display setup folder appears on your screen. Select USB Display Installer
and follow the on-screen instructions to install the Epson USB Display software.
Follow any on-screen instructions. You need to install this software only the first time you connect
the projector to the computer.
Note: If you are using Windows XP or Windows 2000 and you see a message asking if you want to
restart your computer, select No.
The projector displays the image from your computer's desktop and outputs sound, if your presentation
contains audio.
Parent topic: Connecting to Computer Sources
Related references
USB Display System Requirements
Related tasks
Connecting to a Computer for HDMI Video and Audio
28
Connecting to a Computer for VGA Video
You can connect the projector to your computer using a VGA computer cable.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port.
Contact Apple for compatible adapter options.
1. If necessary, disconnect your computer's monitor cable.
2. Connect the VGA computer cable to your computer's monitor port.
3. Connect the other end to a Computer port on the projector.
4. Tighten the screws on the VGA connector.
Parent topic: Connecting to Computer Sources
Related tasks
Connecting to a Computer for Sound
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.
Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support
audio through the HDMI port.
1. Connect the HDMI cable to your computer's HDMI output port.
29
2. Connect the other end to the projector's HDMI port.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for USB Mouse Control
If you connected your computer to a Computer, USB-B, or HDMI port on the projector, you can set up
the remote control to act as a wireless mouse. This lets you control projection at a distance from your
computer. To do this, connect the projector to your computer using a USB cable, if it is not connected
already.
1. Connect the USB cable to your projector's USB-B port.
2. Connect the other end to any available USB port on your computer.
3. If necessary, configure your computer to work with an external USB mouse. See your computer
documentation for details.
Parent topic: Connecting to Computer Sources
Related tasks
Using the Remote Control as a Wireless Mouse
Connecting to a Computer for Sound
If your computer presentation includes sound and you did not connect it to the projector's USB-B or
HDMI port, you can still play sound through the projector's speaker system. Just connect an optional
3.5 mm stereo mini-jack audio cable as described here.
1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or
audio-out port.
30
