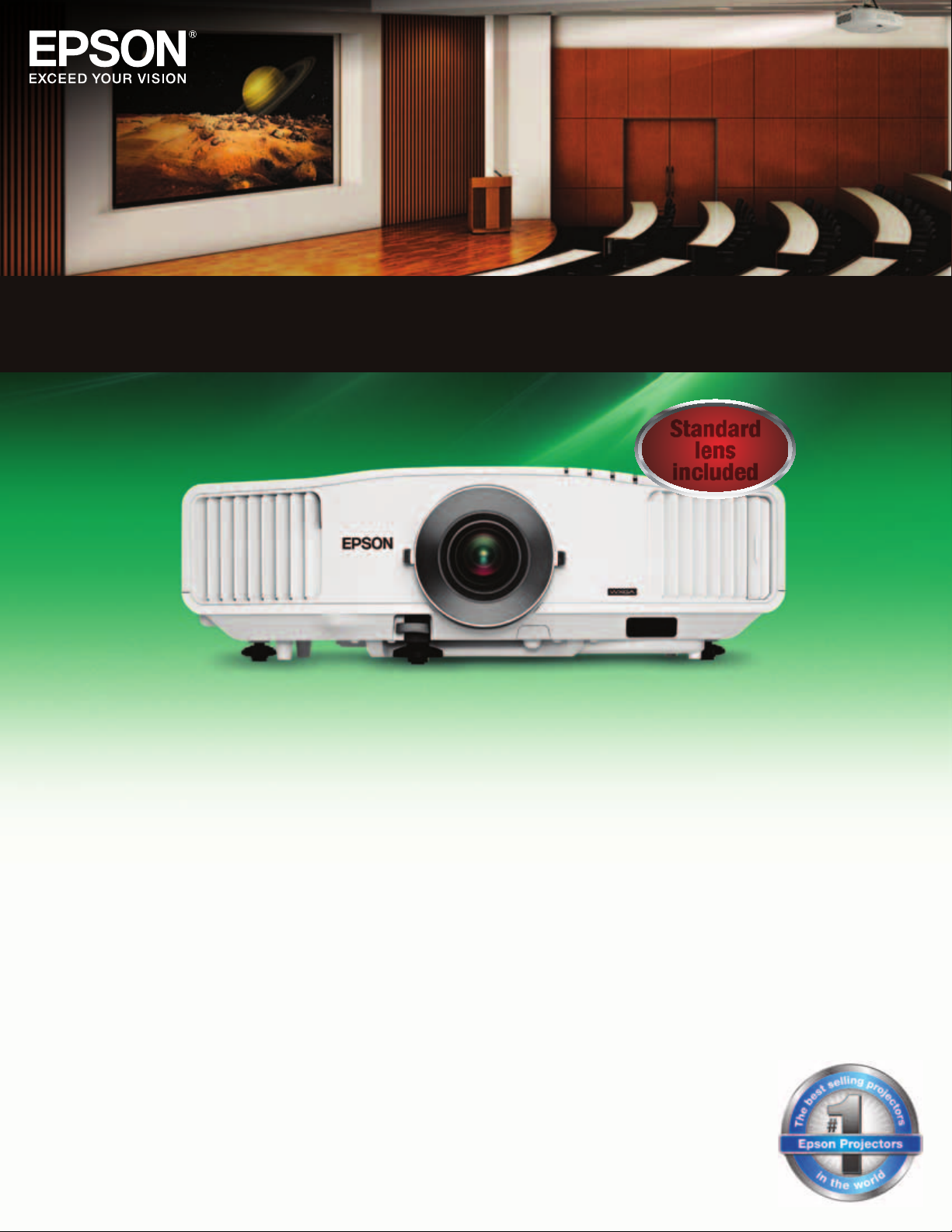

PowerLite® Pro G5650W
Multimedia Projector
Standard lens included
Brilliant widescreen performance meets precision control.
The PowerLite Pro G5650W offers the ultimate projection solution for any auditorium or boardroom, even in ambient light. Now included with a standard lens, it provides amazing image quality with 4500 lumens color and white light output1, WXGA (1280 x 800) resolution and C2Fine™ technology. Engineered to integrate with both IP and RS-232, the G5650W works with industry-leading devices, allows easy remote monitoring and control using Epson’s Easy Management® software and is also compatible with Crestron’s RoomView. The G5650W features DICOM simulation mode for training and educational purposes 2. It even includes a closed captioning decoder, so there are no added costs to accommodate those with hearing impairments.
High brightness and widescreen performance — crystal-clear images with WXGA resolution, C2Fine technology, 4500 lumens color and white light output1, and up to 2000:1 contrast ratio Complete networkability — wired and wireless (optional) Crestron RoomView compatible network connection, content over IP and message broadcasting
Enhanced connectivity — HDMI, VGA and multiple video and audio inputs Multi-screen options — project two side-by-side images from different inputs or up to four images from network users
Additional lens options — upgrade to other interchangeable bayonet lenses, including short-throw, long-throw and rear-projection; with horizontal and vertical lens shift for flexible setup configurations
PowerLite® Pro G5650W
MULTIMEDIA PROJECTOR
The best-selling projectors in the world.
Epson understands business and education and has a solution no matter what your situation. Built with image quality and reliability in mind, Epson ® projectors enhance communication and inspire collaboration, while offering a low total cost of ownership. From long-throw projectors to ultra-short-throw and all-in-one solutions, Epson has the model made for you.
Brilliant image quality
3LCD technology — for quality and color that’s beyond amazing
• 3 chips for full-time, vibrant color
•25% less electricity required per lumen of brightness when compared to 1-chip DLP projectors3
•Over 20 years of road-tested reliability built into every projector
Screen |
Mirror |
|
|
Dichroic mirror |
|
|
Lens |
|
|
|
|
|
Red |
Lamp |
|
Prism |
|
|
Green |
|
Mirror |
3LCD chips |
Dichroic mirror |
|
Blue |
|
|
|
Mirror |
3LCD technology
Advanced sharpness
Another feature Epson has transferred over from its industryleading home cinema projectors — advanced sharpness for video. Depending on the content, users can adjust any of the following attributes of the image depending on the content: thin line enhancement, thick line enhancement, vertical line enhancement or horizontal line enhancement.
For more information on Epson’s environmental programs, go to eco.epson.com
Amazing color light output
Rich color and detail are critical for
presentations — that’s why it’s important to
T R U E - T O - L I F E C O L O R
understand that color light output is an
essential ingredient in achieving optimum performance.
The PowerLite Pro G5650W delivers 4500 lumens of color light output and 4500 lumens of white light output1 for bright, vibrant, colorful images.
C2Fine technology delivers a higher contrast ratio
C2Fine offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, and, when combined with auto iris, it allows for contrast ratios of up to 2000:1.
With C2Fine |
Without C2Fine |
Enhanced connectivity
The PowerLite Pro G5650W is equipped with:
•Full digital connectivity with an HDMI port
•5 BNC, 2 video/audio, 2 x VGA and RS-232 for additional flexibility
Eco Features
• Energy-efficient 3LCD light engine
SM
• Designed to be recycled4
• Epson America, Inc. is a SmartWaySM
Transport Partner5
Full-featured performance
DICOM simulation mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes 2.
Normal Mode |
DICOM Simulation Mode |
6-axis color adjustment
For special projection material such as high-quality photographs or artwork, users can adjust the hue, saturation and brightness for six colors: RGBCMY (Red, Green, Blue, Cyan, Magenta, Yellow).
Improved video with 3:2 and 2:2 pull-down options
3:2 pull-down creates 60 frames per second and 2:2 pull-down creates 48 frames per second from 24 frames.
•3:2 pull-down: The image is smoother.
•2:2 pull-down: One frame length is the same as film. It is ideal for movies.
Test patterns
The PowerLite Pro G5650W also includes four test patterns with precise setup features, including detecting distortion, checking linearity, color reproduction and bleeding, and DICOM simulation mode.
|
|
|
Standard |
|
Cross-hatch |
Color Bars |
Grayscale |
PowerLite Pro G5650W Product Specification
