Epson PowerLite Home Cinema 705HD User Guide

PowerLite® Home Cinema 705HD

Home Theater Projector

User’s Guide

Important Safety Information

WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.
Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and
filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically
explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service
personnel.

WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small
children to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by
the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of Seiko Epson Corporation. The information contained herein is designed only for use with
this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or
any consumable products other than those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.

Software Copyright:
This product uses free software as well as software to which this company holds the rights.
The following is information on the free software used by this product.

Hereafter, each author, the conditions, and so on are described in the original. Furthermore, there is no guarantee
for free software because of the characteristics of the free software that has already been used in this product; any
problems in this product (including problems that originate with the free software concerned) do not influence the
conditions of the guarantee (written guarantee) issued by this company.

(1) libjpeg
© 1991-1998 Thomas G. Lane.
This software is based in part on the work of the Independent JPEG Group.

(2) libpng
© 1998-2004 Glenn Randers-Pehrson
© 1996-1997 Andreas Dilger
© 1995-1996 Guy Eric Schalnat, Group 42, Inc.

(3) zlib
© 1995-2003 Jean-loup Gailly and Mark Adler

2

Trademarks

Epson and Instant Off are registered trademarks, and Epson Exceed Your Vision is a registered logomark of Seiko
Epson Corporation.

PowerLite, Accolade, and PrivateLine are registered trademarks, SizeWise and Duet are trademarks, and Extra
Care is a service mark of Epson America, Inc.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing, LLC.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. Epson disclaims any and all rights in those marks.

This information is subject to change without notice.

© 2009 Epson America, Inc. 7/09

CPD-27620

3

4

1

Contents

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 10

Projector Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Projector Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . 12

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Projector Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting Up the Projector . . . . . . . . . . . . . . . . . . . . . 17

Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Additional Components. . . . . . . . . . . . . . . . . . . . . . . . . 18

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Determining Projection Distance. . . . . . . . . . . . . . . . . . 20

Connecting to Video Equipment . . . . . . . . . . . . . . . . . . . . . 22

Connecting an HDMI Video Source . . . . . . . . . . . . . . . 23

Connecting a Component Video Source . . . . . . . . . . . . 24

Connecting a Composite Video Source . . . . . . . . . . . . . 25

Connecting an S-Video Source . . . . . . . . . . . . . . . . . . . 25

Connecting an RGB Video Source. . . . . . . . . . . . . . . . . 26

Connecting to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . 27

Playing Sound Through the Projector. . . . . . . . . . . . . . . . . . 28

Connecting a Digital Camera or Other USB Device. . . . . . . 28

Turning the Projector On and Off . . . . . . . . . . . . . . . . . . . . 30

Using the Direct Power On Function . . . . . . . . . . . . . . 31

Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . 32

5

2

3

4

Displaying and Adjusting the Image . . . . . . . . 33

Selecting an Image Source . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Adjusting the Position of the Image . . . . . . . . . . . . . . . . 35

Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 35

Focusing and Zooming the Image . . . . . . . . . . . . . . . . . 36

Selecting the Color Mode . . . . . . . . . . . . . . . . . . . . . . . 37

Resizing Video Images . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Remote Control . . . . . . . . . . . . . . . . . . . 39

Operating the Remote Control. . . . . . . . . . . . . . . . . . . . . . . 40

Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 40

Turning Off the Picture and Sound. . . . . . . . . . . . . . . . 40

Stopping Action. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Controlling the Volume. . . . . . . . . . . . . . . . . . . . . . . . . 41

Presenting a Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Starting a Slideshow. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Selecting Slideshow Display Options . . . . . . . . . . . . . . . 44

Fine-Tuning the Projector. . . . . . . . . . . . . . . . . . . 45

Using the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . 47

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Adjusting Signal Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 51

Customizing Power and Operation . . . . . . . . . . . . . . . . . . . 52

Using the Projector Security Features . . . . . . . . . . . . . . . . . . 54

Creating Your Own Startup Screen . . . . . . . . . . . . . . . . 54

Disabling the Projector’s Buttons. . . . . . . . . . . . . . . . . . 56

Using Security Locking . . . . . . . . . . . . . . . . . . . . . . . . . 57

Maintaining the Projector. . . . . . . . . . . . . . . . . . . 59

5

6

Cleaning the Lens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . 60

Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Replacing the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

6

A

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . 65

Checking Lamp Usage . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Replacing the Remote Control Batteries . . . . . . . . . . . . . . . . 66

Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Using On-Screen Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Checking Projector Status. . . . . . . . . . . . . . . . . . . . . . . . . . . 71

What To Do When the Lights Come On or Flash. . . . . 71

Solving Projector Operation Problems . . . . . . . . . . . . . . . . . 73

Solving Problems With the Image or Sound . . . . . . . . . . . . . 74

Solving Problems With the Remote Control. . . . . . . . . . . . . 80

Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Speak to a Support Representative . . . . . . . . . . . . . . . . . 81

Technical Specifications . . . . . . . . . . . . . . . . . . . . . 83

B

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . 89

FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . 92

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

7

8

-

Welcome

The PowerLite

®

Home Cinema 705HD lets you enjoy
High-Definition, theater-quality images in the relaxing environment
of your own home. You can connect it to a wide range of video
sources and computers, so you can enjoy perfectly adjusted images
from all your movies and games.

Your compact, lightweight projector offers these outstanding features:

■ 720p High-Definition performance

■ Native WXGA resolution (1280 × 800) with up to 2500 lumens

of white and color light output (brightness)

■ 3000:1 contrast ratio in Dynamic color mode with Auto Iris

■ HDMI

™

(High Definition Multimedia Interface™) port for

superior, uncompressed digital video

■ USB thumb drive port for PC-free JPEG slideshows

■ Four color modes to optimize viewing for different environments

and image content

■ Flexible setup options, including front projection and ceiling

mounted

■ Instant Off

®

/On power modes for quick setup and take-down

■ Auto Keystone correction and 1.2X optical zoom for easy picture

adjustments

■ Projector button lock and security cable attachments for parental

control and security

■ Integral lens cover that won’t get lost

■ Low power, long-lasting lamp with two Power Consumption

modes

9

Using Your Documentation

This book contains all the information you need to set up and use
your projector. Please follow these guidelines as you read through it:

■ Warnings must be followed carefully to avoid bodily injury.

■ Cautions must be observed to avoid damage to your equipment.

■ Notes contain important information about your projector.

■ Tips contain additional projection hints.

Here’s where you can look for even more information:

■ Quick Setup sheet

Provides information for connecting the projector to your
equipment, displaying and adjusting the image, and solving
display problems.

■ Built-in help system

Provides assistance for common problems. Available from the

?Help button on the projector or the remote control. See page 70

for details.

■ epson.com/support

Download FAQs and e-mail your questions to Epson support.

■ PrivateLine

If you still need help after checking this User’s Guide and the
sources listed in this section, you can use the Epson PrivateLine
Support service to get help fast. Call [phone] and enter
the PIN on the PrivateLine card. Or take advantage of Epson’s
automated support services 24 hours a day. See page 81 for more
information.

®

support

10 Welcome

Projector Parts

Front

Ventilation
slots

Lens cover
tab

A/V mute slide
(lens cover)

Foot release
lever

Back

Infrared
receiver

Lamp cover

S-Video port

Video
port

Zoom ring

Infrared
receiver

Control panel

Air
filter

HDMI
port

Focus ring

Adjustable
foot

USB (TypeB) port (for service only)

Computer
(Component
Video) port

Air filter
cover

Kensington
lock port

Lamp cover
screw

Rear
adjustable
foot

AC
power
inlet

Audio
ports

USB
(TypeA)
port

Rear adjustable
foot

Welcome 11

Projector Control Panel

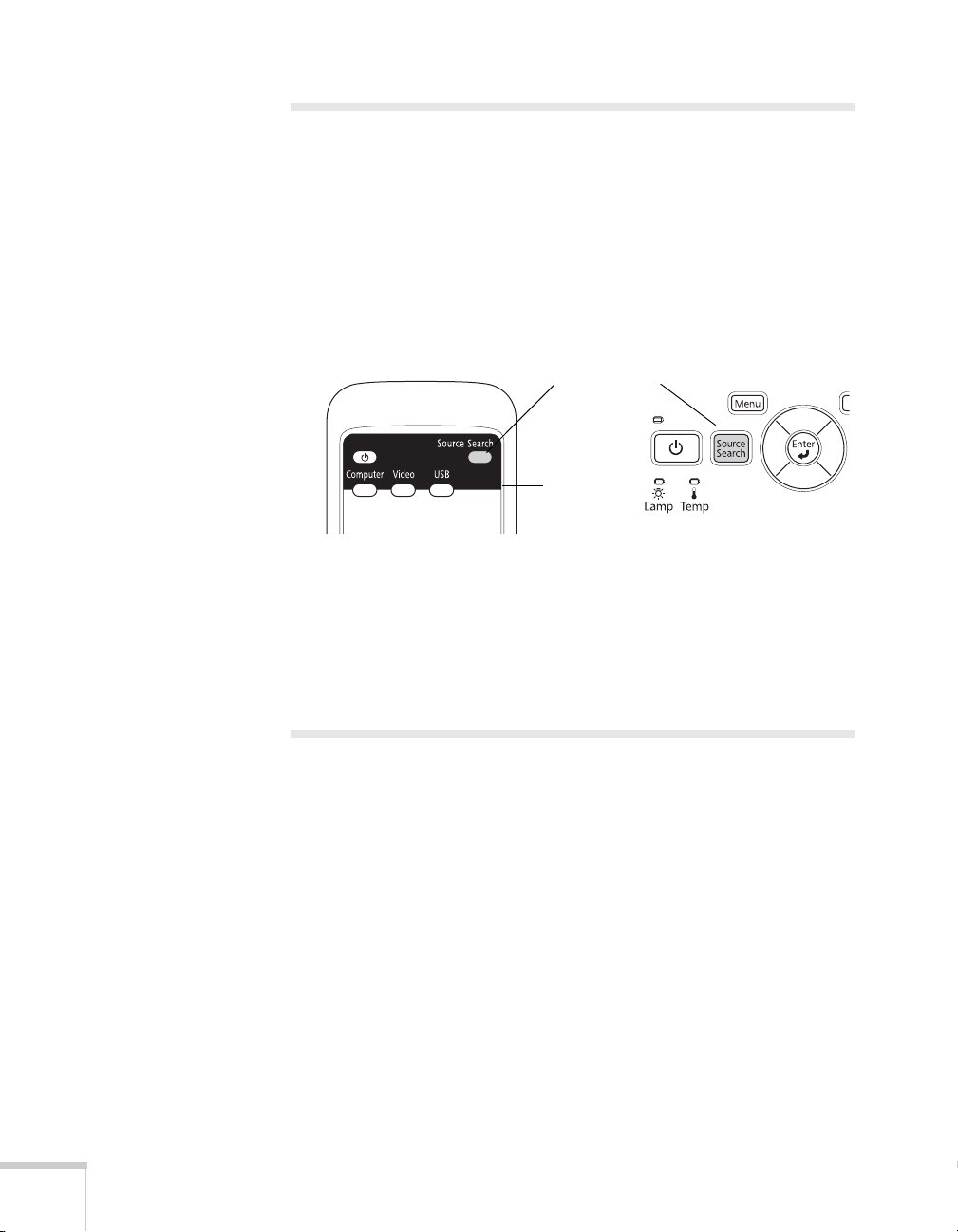

Source Search button
(searches for connected
video sources)

Power
light

Power
button

Menu button
(displays
projector menus)

Keystone button
(corrects screen shape)

Esc button
(exits menu
items)

Help
button

Lamp and
Temperature
warning lights

Volume
down button

Keystone button
(corrects screen
shape)

Volume up
button

Enter button
(selects
menu items)

12 Welcome

Remote Control

Power
button

A/V Mute button
(turns off image)

Auto button
(resets tracking,
sync, and position)

Aspect button
(changes screen size)

Menu button
(accesses
projector menus)

Menu navigation
(arrow) buttons
and Enter button

Search and Source buttons
(select image source)

Freeze button
(stops image)

User button
(lets you assign
function)

Color Mode button
(changes display mode)

Help button
(displays help menus)

Volume buttons
(adjusts volume)

Esc button
(exits menus)

Welcome 13

3.11 in.
(79 mm)

3.03 in.
(77 mm)

Projector Dimensions

Use the dimensions below to guide you in placing or installing the
projector.

11.61 in.
(295 mm)

1.5 in.
(38.3 mm)

1.57 in.
(39.8 mm);
center of lens
to mounting
bracket holes

3.62 in.
(92 mm)

8.98 in.
(228 mm)

0.51 in.
(13 mm)

9.59 in.
(243.5 mm)

5.04 in. (128 mm)

0.98 in.
(25 mm)

1.48 in.
(37.5 mm)

3.66 in.
(93 mm)

Mounting
screw holes

14 Welcome

Registration and Warranty

Your projector comes with a basic warranty that lets you project with
confidence. For details, see the warranty brochure included with your
projector.

SM

In addition, Epson offers free Extra Care

Home Service. In the
unlikely event of an equipment failure, you won’t have to wait for
your unit to be repaired. Instead, Epson will ship you a replacement
unit anywhere in the United States or Canada. See the brochure
included with your projector for details.

You can register using the included CD, or you can register online at
epson.com/webreg

. Registering also lets you receive special updates on

new accessories, products, and service.

Optional Accessories

To enhance your use of the projector, Epson offers the following
optional accessories:

Product Part number

Replacement lamp V13H010L54

Replacement air filter set V13H134A25

Universal projector ceiling mount
Adjustable suspended ceiling channel kit
False ceiling plate kit
Structural round ceiling plate
Adjustable extension column (pipe) 8” - 11”

Kensington security lock ELPSL01

50-inch portable screen (4:3 aspect ratio)
80-inch portable pop-up screen (4:3 aspect ratio)
Accolade

®

Duet™ Portable Projector Screen (4:3/16:9)

ELPMBPJF
ELPMBP01
ELPMBP02
ELPMBP03
ELPMBC01

ELPSC06
ELPSC08
ELPSC80

Welcome 15

Product Part number

Component-to-VGA video cable
S-Video cable

DC-06 document camera (ELPDC06)
DC-10s document camera

Soft shoulder case for projector and notebook
Wheeled soft carrying case
Molded hard-shell wheeled carrying case
Swiss Gear

®

backpack

ELPKC19
ELPSV01

V12H321001
ELPDC10S

ELPKS61
ELPKS62
ELPKS58
ELPKS63

You can purchase screens or other accessories from an Epson
authorized reseller. To find the nearest reseller, call 800-GO-EPSON
(800-463-7766). Or you can purchase online at www.epsonstore.com
(U.S. sales) or www.epson.ca

(Canadian sales).

16 Welcome

Setting Up the Projector

This chapter tells you how to unpack the projector and connect it to

video equipment, such as a VCR, DVD player, or video camera, or to
a notebook or desktop computer.

You can also connect the projector to a USB storage device or digital
camera.

Follow the instructions in this chapter on:

■ Unpacking the projector

■ Positioning the projector

■ Connecting to video equipment

■ Connecting to a computer

1

■ Playing sound through the projector

■ Connecting to a digital camera or other USB device

■ Turning the projector on and off

17

Unpacking the Projector

After unpacking the projector, make sure you have all these parts:

PDF manual and
registration CD-ROM

Projector

Component-to-VGA
video adapter

Power cord

Carrying case

Remote control
and batteries

Save all packaging in case you need to ship the projector. Always use
the original packaging (or the equivalent) when you need to send the
projector to another location; see page 67 for instructions.

Additional Components

Depending on how you plan to use the projector, you may need
additional components:

■ To receive an HDMI signal from your video device, you’ll need

an HDMI cable. One may be provided with your video
equipment.

■ To receive a component video signal from a DVD player or other

video device, you’ll need a component video cable (one may be
provided with your video equipment) and the
component-to-VGA video adapter that came with the projector.

■ To receive an S-Video signal, you’ll need an S-Video cable. One

may be included with your video equipment, or you can purchase
one from Epson. See “Optional Accessories” on page 15.

18 Setting Up the Projector

■ To receive an audio signal, you’ll need an RCA-type audio cable

with two male plugs, or a stereo mini-jack audio adapter cable
(not necessary with HDMI connection).

Positioning the Projector

You can place the projector in a variety of viewing setups.

When projecting from the front, place the projector directly in front
of the center of the screen, facing the screen squarely. The center of
the lens should be about level with the bottom of the screen.

If you place the projector below screen level, you may need to tilt it up
by extending the front adjustable foot (see page 35). Tilting the
projector causes the image to become “keystone” shaped, but you can
correct the distortion (see page 35).

note

After positioning the
projector, you may want to
connect a Kensington
MicroSaver
device to the lock port on the
projector. You can purchase
this from Epson; see
page 15.

®

anti-theft

You can also install the projector on the ceiling using the optional
ceiling mounting hardware (see page 15). Use the projector
dimensions on page 14 to assist you in installing the projector.

Setting Up the Projector 19

You can also install the projector in two other viewing setups: rear
projection onto a semi-transparent screen, or rear/ceiling projection.

If you project from overhead or the rear of the screen, you’ll need to

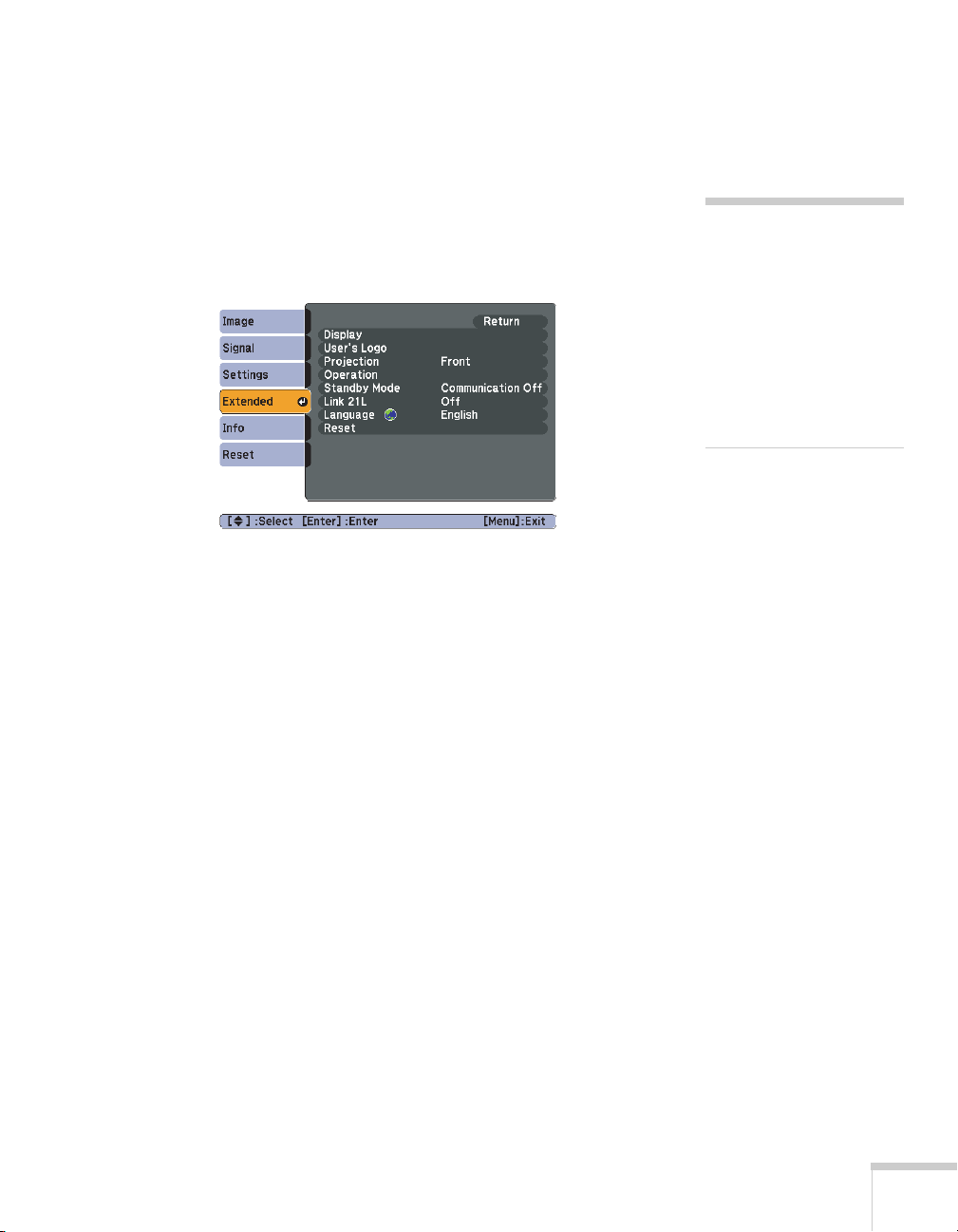

select the appropriate

Projection setting in the projector’s Extended

menu to orient the image correctly (see page 52).

Keep these considerations in mind as you position the projector:

■ Place the projector on a sturdy, level surface.

■ Make sure there is plenty of space for ventilation around and

under the projector.

■ Make sure the projector is within 5.9 feet (1.8 meters) of a

grounded electrical outlet or extension cord.

Determining Projection Distance

Image size increases with distance, but can vary depending on the
aspect ratio (image shape), how you zoom into the image, and
whether you’ve adjusted other image settings. Use the illustrations and
tables below to help you determine the projection distance.

20 Setting Up the Projector

Center of lens

You can also use the Image Size Calculator

Center of
lens

on the Epson website.

16:10 image

Diagonal screen
size

40 inches
(102 cm)

50 inches
(127 cm)

60 inches
(152 cm)

80 inches
(203 cm)

100 inches
(254 cm)

150 inches
(381 cm)

200 inches
(508 cm)

320 inches
(813 cm)

4:3 image

Screen size

40 inches
(102 cm)

50 inches
(127 cm)

60 inches
(152 cm)

80 inches
(203 cm)

100 inches
(254 cm)

150 inches
(381 cm)

200 inches
(508 cm)

280 inches
(711 cm)

Projection distance (A)
Wide to Tele Offset (B)

44 to 53 inches
(111 to 134 cm)

55 to 66 inches
(139 to 168 cm)

66 to 79 inches
(168 to 202 cm)

88 to 106 inches
(225 to 270 cm)

111 to 133 inches
(281 to 338 cm)

167 to 200 inches
(424 to 509 cm)

223 to 268 inches
(566 to 680 cm)

357 to 429 inches
(907 to 1089 cm)

Projection distance (A)
Wide to Tele Offset (B)

50 to 60 inches
(126 to 152 cm)

62 to 75 inches
(158 to 190 cm)

75 to 90 inches
(190 to 229 cm)

100 to 121 inches
(255 to 306 cm)

126 to 151 inches
(319 to 383 cm)

189 to 227 inches
(480 to 577 cm)

252 to 303 inches
(641 to 770 cm)

354 to 425 inches
(898 to 1079 cm

–3 inches
(–8 cm)

–3.8 inches
(–10 cm)

–4.5 inches
(–12 cm)

–6.1 inches
(–15 cm)

–7.6 inches
(–19 cm)

–11.4 inches
(–29 cm)

–15.1 inches
(–38 cm)

–24.2 inches
(–62 cm)

–3.4 inches
(–9 cm)

–4.3 inches
(–11 cm)

–5.1 inches
(–13 cm)

–6.9 inches
(–17 cm)

–8.6 inches
(–22 cm)

–12.9 inches
(–33 cm)

–17.1 inches
(–44 cm)

–24 inches
(–61 cm)

Setting Up the Projector 21

16:9 image

Projection distance (A)

Screen size

40 inches
(102 cm)

50 inches
(127 cm)

60 inches
(152 cm)

80 inches
(203 cm)

100 inches
(254 cm)

150 inches
(381 cm)

200 inches
(508 cm)

310 inches
(787 cm)

Wide to Tele Offset (B)

45 to 54 inches
(114 to 137 cm)

56 to 68 inches
(143 to 172 cm)

68 to 82 inches
(172 to 208 cm)

91 to 109 inches
(231 to 278 cm)

114 to 137 inches
(289 to 348 cm)

171 to 206 inches
(435 to 523 cm)

229 to 275 inches
(582 to 699 cm)

356 to 427 inches
(903 to 1084 cm)

–2 inches
(–5 cm)

–2.5 inches
(–6 cm)

–3 inches
(–8 cm)

–4 inches
(–10 cm)

–5.1 inches
(–13 cm)

–7.6 inches
(–19 cm)

–10.1 inches
(–26 cm)

–15.7 inches
(–40 cm)

Connecting to Video Equipment

22 Setting Up the Projector

You can connect several video sources to the projector at the same
time. Before starting, look at your video equipment to determine its
available video output connections:

■ If your video player has an HDMI connector, see “Connecting an

HDMI Video Source” on page 23.

■ If your video player has a component video port (three connectors

labeled either Y/Cb/Cr or Y/Pb/Pr), see “Connecting a
Component Video Source” on page 24.

■ If your video player has a yellow RCA video output connector, see

“Connecting a Composite Video Source” on page 25.

■ If your video player has an S-Video connector, see “Connecting

an S-Video Source” on page 25.

■ If your video player has an RGB video port, see “Connecting an

RGB Video Source” on page 26.

After connecting video cables, you may also want to connect an

p

f

optional audio cable to play sound through the projector; see page 28.

If you connect using an HDMI cable, the video and sound are both
transferred and you won’t need to connect any additional cables for
audio.

Connecting an HDMI Video Source

For the best image and sound quality, connect your video equipment
to the HDMI (High-Definition Multimedia Interface) port, if
possible.

Connect an HDMI cable to the HDMI connector on your player and
the

HDMI port on the projector.

HDMI port

note

If an HDMI cable was not

rovided with your video

device, you can purchase one

rom an electronics dealer.

When you’ve finished making connections, see page 30 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.

Setting Up the Projector 23

Connecting a Component Video Source

If your video equipment has component video connectors (three
connectors labeled either Y/Cb/Cr or Y/Pb/Pr), you can use the
component-to-VGA video adapter that came with your projector and
a component video cable, or you can purchase a component-to-VGA
video cable from Epson (see page 15) or an electronics dealer.

1. Connect one end of your component video cable to the Y/Cb/Cr
(or Y/Pb/Pr) connectors on your player.

2. Connect the component end of the component-to-VGA video
adapter to the free end of the component video cable.

3. Connect the VGA end of the adapter to the

(Component Video)

Computer (Component Video) port

port on your projector.

Computer

4. You may need to change the Input Signal setting in the
projector’s Signal menu to

Auto (see page 50).

5. If you want to play sound through the projector, see page 28 for
instructions on connecting an audio cable.

When you’ve finished making connections, see page 30 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.

24 Setting Up the Projector

Connecting a Composite Video Source

p

f

p

f

1. If your video cable has an RCA connector, connect it to the
yellow video output connector on your player and the yellow

Video port on the projector.

Video port

2. If you want to play sound through the projector, see page 28 for
instructions on connecting an audio cable.

When you’ve finished making connections, see page 30 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.

note

If the video cable was not

rovided with your video

device, you can purchase one

rom an electronics dealer.

Connecting an S-Video Source

1. Connect the S-Video cable to the S-Video connector on your
player and the

S-Video port on the projector.

S-Video port

note

If the S-Video cable was not

rovided with your video

device, you can purchase one

rom Epson; see page 15.

2. If you want to play sound through the projector, see page 28 for
instructions on connecting an audio cable.

When you’ve finished making connections, see page 30 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.

Setting Up the Projector 25

note

You can purchase a VGA
computer cable from an
electronics dealer.

Connecting an RGB Video Source

You can connect to an RGB video source using a VGA computer
cable.

1. Connect the cable to the RGB video port on your player and the

Computer (Component Video) port on the projector.

Computer (Component Video) port

2. You may need to change the
projector’s Signal menu to

Input Signal setting in the

RGB (see page 50).

3. If you want to play sound through the projector, see page 28 for
instructions on connecting audio cables.

When you’ve finished making connections, see page 30 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.

26 Setting Up the Projector

Connecting to a Computer

You can connect the projector to any computer that has a standard
video output (monitor) port, including desktop models, PC notebook
computers, Macintosh PowerBook
hand-held devices.

To play sound through the projector, connect an audio cable (see
page 28).

You can connect to the projector using a VGA computer cable.

1. Connect one end of a VGA computer cable to the projector’s

Computer (Component Video) port and the other end to your

computer’s monitor port.

Computer (Component
Video) port

®

and iBook® computers, and

note

You can purchase a VGA
computer cable from an
electronics dealer.

caution

Don’t try to force a
connector to fit a port with a
different shape or number of
pins. You may damage the
port or connector.

2. You may need to change the Input Signal setting in the
projector’s Signal menu to

RGB or Auto (see page 50).

3. You can connect an optional audio cable to play sound through
the projector (see page 28).

When you’ve finished making connections, see page 30 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.

Setting Up the Projector 27

Playing Sound Through the Projector

You can play sound through the projector’s speaker system.

note

Use a cable less than 10 feet
(3 meters) long and connect
the camera or other device
directly to the projector.
Your projector may not
function correctly if you use
a longer cable or connect to
a USB hub.

If you connect a USB hard
drive, make sure you use the
AC adapter to power the
hard drive.

1. Locate the appropriate cable and connect it to the
the projector.

Audio jacks

2. Connect the other end of the cable to the audio output
connector(s) on your computer or video equipment.

Audio jacks on

Connecting a Digital Camera or Other USB Device

You can connect your digital camera, USB thumb (flash memory)
drive, USB hard drive, or multimedia storage viewer, such as the
Epson P-7000 to the projector. Then you can use the projector’s
Slideshow function to display JPEG images or a presentation. See
page 42 for details.

Use the USB cable specified for your device.

1. Follow the instructions beginning on page 30 to turn on the
projector.

28 Setting Up the Projector

2. Connect the USB drive or the flat end of the USB cable to the

f

USB

TypeA port on the projector, as shown.

Indicator light

Connecting a
thumb drive

Connecting a
digital camera

3. Connect the other end of the cable to your camera or other
device, if necessary.

The indicator light on the projector turns orange and then green
when a USB device is connected.

4. If you are not connected to another image source, the Slideshow
program appears.

If you are connected to another image source, press the

USB

button on the remote control to go to the Slideshow program.

See page 42 for instructions on controlling the slideshow.

5. When you’re finished, press

Esc and select Exit to exit the

Slideshow before turning off or removing the USB device.

caution

Be sure to turn off your USB device (if necessary) before you remove
the device or cable from the projector. Failure to do so may damage
the device and/or the projector.

Do not remove the device
when the indicator light is

lashing or on, or the
Slideshow program is
running, or you may
damage the device or
projector.

Setting Up the Projector 29

Turning the Projector On and Off

Turn on any connected computer or video equipment before starting
the projector so it can automatically detect and display the image
source. If you turn on the projector first, or have multiple pieces of
connected equipment, you may have to select the image source
manually (see page 34).

Follow these steps to turn on the projector:

1. Open the

2. Plug one end of the power cord into the projector, and the other
end into an electrical outlet.

A/V Mute slide (lens cover).

30 Setting Up the Projector

The Ppower light turns orange.

Power light

3. Press the Ppower button on the projector or on the remote

control.

Power
button

The projector beeps once and the Ppower light flashes green as
the projector warms up, then an image begins to appear. When
the Ppower light stops flashing and remains green, the projector
is ready for use.

Using the Direct Power On Function

The Direct Power On function enables faster setup. The projector
starts up automatically when you plug it in or turn it on with a wall
switch. You don’t have to press the Ppower button.

Follow these steps to enable Direct Power On:

1. Press the
select the

2. Choose

Menu button on the remote control or projector, then

Extended menu and press Enter.

Operation and press Enter.

warning

Never look into the lens
when the lamp is on. This
can damage your eyes, and is
especially dangerous for
children.

note

If a power outage occurs
when Direct Power On is
enabled and the projector is
plugged in, the projector will
restart when the power is
restored.

Setting Up the Projector 31

3. Choose

Direct Power On and press Enter.

note

Lamp life will vary
depending upon mode
selected, environmental
conditions, and usage.

Turn off this product when
not in use to prolong the life
of the projector.

You can set the projector to
automatically turn off the
lamp and enter “sleep mode”
when it has not received any
signals for 1 to 30 minutes
(see page 53). This conserves
electricity, cools the
projector, and extends the
life of the lamp. If you want
to start projecting again,
press the P power button.
If you are done using the
projector, unplug the power
cord.

4. Highlight

5. Press

On and press Enter.

Menu to exit. The setting will take effect the next time you

plug the projector into a power outlet.

Shutting Down the Projector

This projector incorporates Instant Off technology. To turn it off, you
can press its Ppower button as described below, unplug it, or turn off
a power switch that supplies power to the projector. You don’t have to
wait for the projector to cool down first.

1. To turn off the projector, press the Ppower

control or projector.

You see a confirmation message.
(If you don’t want to turn it off,
press any other button.)

2. Press the Ppower button again. The projection lamp turns off

and the projector beeps twice. You can then unplug the power
cord.

If you want to turn the projector on again, make sure the orange
Ppower light is not flashing, then press the P power button.

button on the remote

32 Setting Up the Projector

Displaying and Adjusting the Image

Follow the guidelines in this chapter for:

■ Selecting an image source

■ Adjusting the image

2

33

Selecting an Image Source

You may need to select the image source if you have multiple image
sources connected to the projector (such as a computer or DVD
player). Selecting the image source lets you switch between images
input from different pieces of connected equipment.

If you don’t see the image you want, press the
or one of the

Source Search button on the projector.

Source buttons on the remote control, or press the

Source Search
button

Source
buttons

Source Search button

If you still can’t see an image or can’t project the same image that is on
your notebook or computer screen, see page 74 for solutions.

USB to project from a USB device. See page 42 for

Select
instructions.

Adjusting the Image

Once you see your image, you may need to make certain adjustments:

■ If the image is too high or too low, reposition it as described on

page 35.

■ If the image isn’t square, see page 35.

■ To focus or zoom your image, see page 36.

■ To quickly adjust the color mode, see page 37.

■ To change the image size (aspect ratio), see page 38.

■ If you need to fine-tune the image and/or sound, see

“Fine-Tuning the Projector” on page 45.

34 Displaying and Adjusting the Image

Adjusting the Position of the Image

If the image is too low on the screen, you can use the front adjustable
foot to raise it.

1. Press the foot release lever up and lift the front of the projector.

2. Once the image is positioned where you want it, release the lever
to lock the foot in position.

3. If the image is tilted or you need to fine-tune the height of the
image, you can turn the projector’s adjustable rear feet.

Raising the projector may cause the image shape to distort or
“keystone,” but you can correct the shape as described below.

Adjusting the Image Shape

You can maintain a rectangular image by placing the projector directly
in front of the screen and keeping it level. This also produces the best
picture quality. If the projector is tilted up or down (up to 30°), or
placed at an angle, the shape may “keystone” and you may need to
correct the image shape.

Displaying and Adjusting the Image 35

The projector’s

Auto Keystone function detects and corrects vertical

keystone distortion. It takes about one second after the projector starts
for the image to be corrected.

If your image is still distorted, do one of the following:

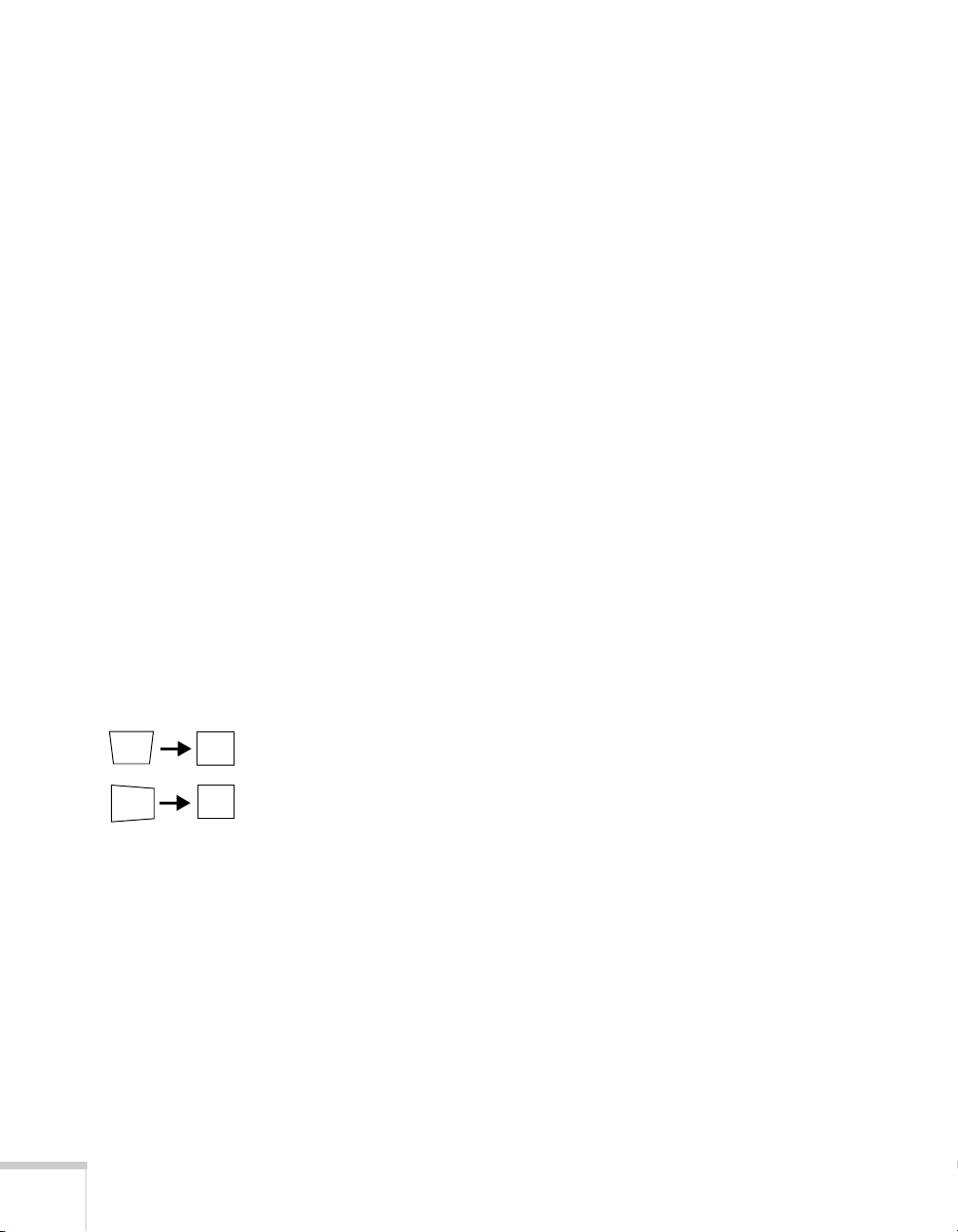

■ Press the appropriate keystone correction button on the

projector’s control panel until the shape is evenly rectangular.

Keystone correction
buttons

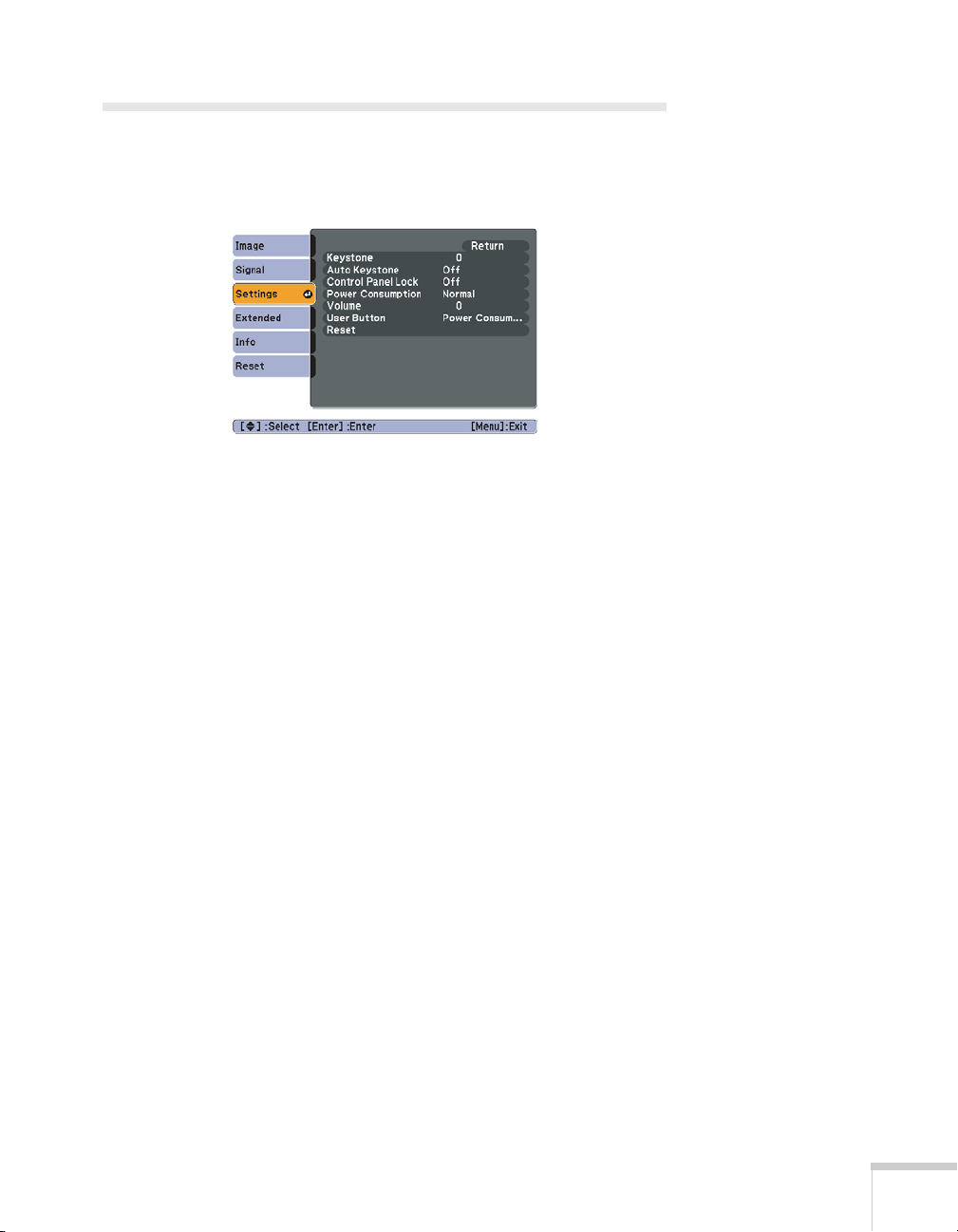

■ Select the Keystone setting in the projector’s Settings menu (see

page 51). Then use the arrow buttons on the remote control to
adjust the shape of the image.

Focusing and Zooming the Image

Turn the focus ring on the projector to sharpen the image.

To enlarge or reduce the image, turn the zoom ring.

36 Displaying and Adjusting the Image

If the image still isn’t large enough, you may need to move the
projector farther away from the screen.

Selecting the Color Mode

The Color Mode adjusts the brightness, contrast, and color for various
common viewing environments. Use this setting to quickly obtain a
good picture.

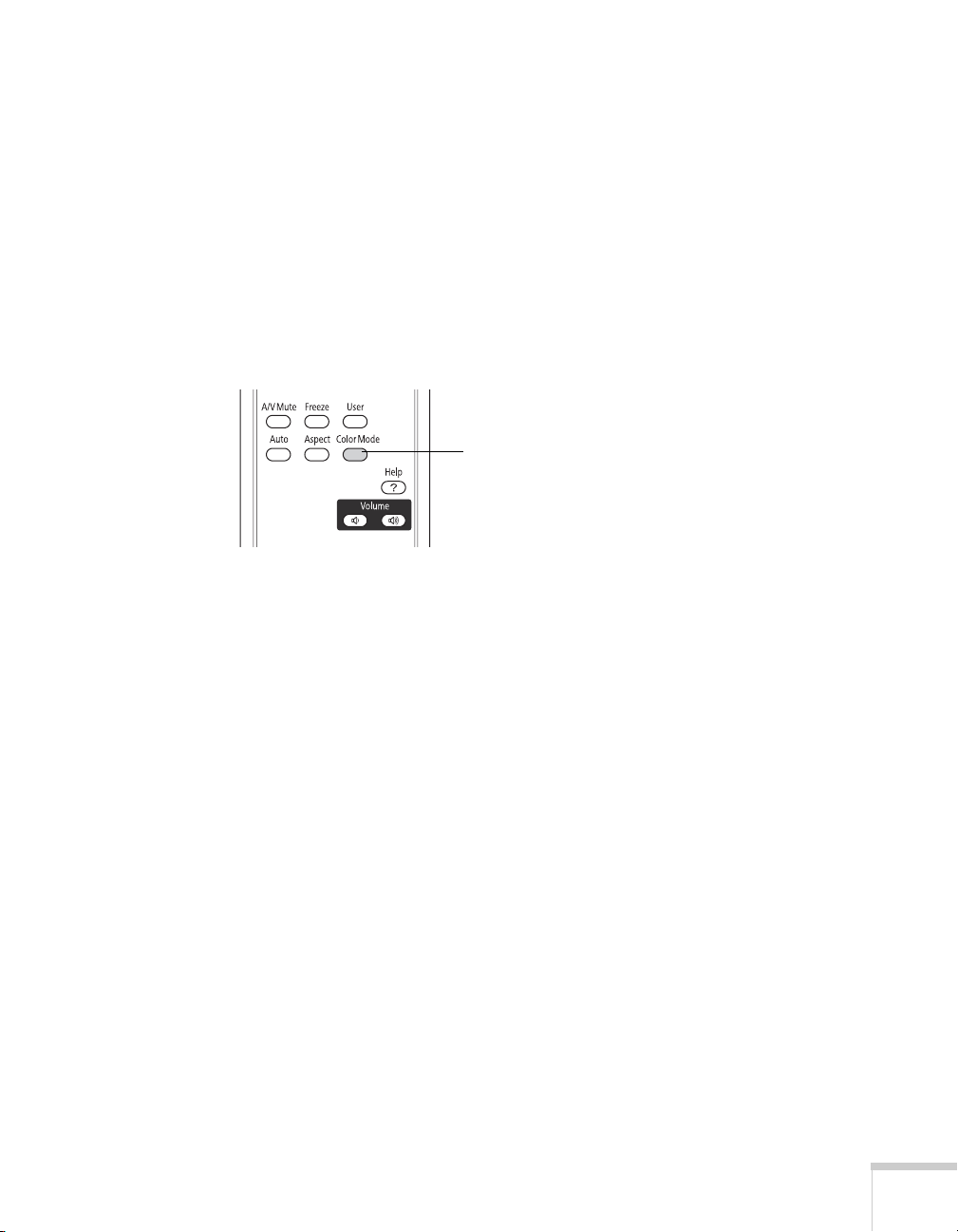

Press the

Color Mode button on the remote control until the option

you want is projected in the upper right corner.

Color Mode
button

You can also select the

Color Mode setting from the projector’s Image

menu. See page 47 for instructions.

Select from one of these

■ Dynamic: For projecting in a bright room.

■ Game: For video games or TV in a bright room.

■ Living Room: For projecting in a room with blinds closed.

■ Theatre: For natural-toned movies in a darkened room.

Color Mode options:

Displaying and Adjusting the Image 37

note

You cannot change the
aspect ratio when displaying
from a USB device.

Resizing Video Images

You can resize your images by changing the aspect (width to height)
ratio (depending on your input signal).

Press the
through the available options.

Aspect button on the remote control repeatedly to cycle

Aspect
button

You can also select the

Aspect setting from the projector’s Signal

menu. See page 49 for instructions.

Select from one of these

■ Auto (HDMI images only): Automatically sets the best aspect

Aspect options:

ratio according to the input signal.

■ Normal (for images sent through the Computer (Component

Video)

port only): Displays images using the full projection area
and maintains the aspect ratio of the image. Choose this setting to
automatically resize the image and make the best use of the
display area.

■ 16:9: Converts the aspect ratio of the image to 16:9. 4:3 ratio

images are elongated horizontally to fit.

■ Zoom: Displays images using the full width of the projection area

and maintains the aspect ratio of the image. The image may be
cut off on the top and bottom depending on its aspect ratio.

■ Full: Displays images using the full width of the projection area,

but does not retain the aspect ratio. 4:3 ratio images are elongated
horizontally.

■ Native: Displays images as is (aspect ratio and resolution are

maintained). Black bands may appear or images may be cut off,
depending on the resolution.

38 Displaying and Adjusting the Image

Using the Remote Control

The projector includes a number of tools to enhance your video or

presentation. All of them can be accessed using the remote control,
which lets you operate the projector from anywhere in the room—up
to 19.7 feet (6 meters) away.

This chapter covers:

■ Operating the remote control

■ Controlling the picture and sound

■ Presenting a slideshow from a USB device

3

39

note

p

If a button is pressed for
longer than 30 seconds, the
remote control stops
operating to conserve battery

ower. When you release the
button, normal operation
resumes.

Operating the Remote Control

Make sure batteries are installed as described on page 66. Follow these
tips for using the remote control:

■ Point the remote control at the front or back of the projector, or

at the screen.

■ Stand within 19.7 feet (6 meters) of the projector.

Using the remote control
under bright fluorescent
lamps or in direct sunlight
may affect projector
response.

■ Aim the remote control within 30° to the side of, or 15° above or

below, the remote control receivers on the projector.

Controlling the Picture and Sound

You can use the remote control to temporarily turn off the picture and
sound, freeze the action, zoom in on the picture, and adjust the
volume.

Turning Off the Picture and Sound

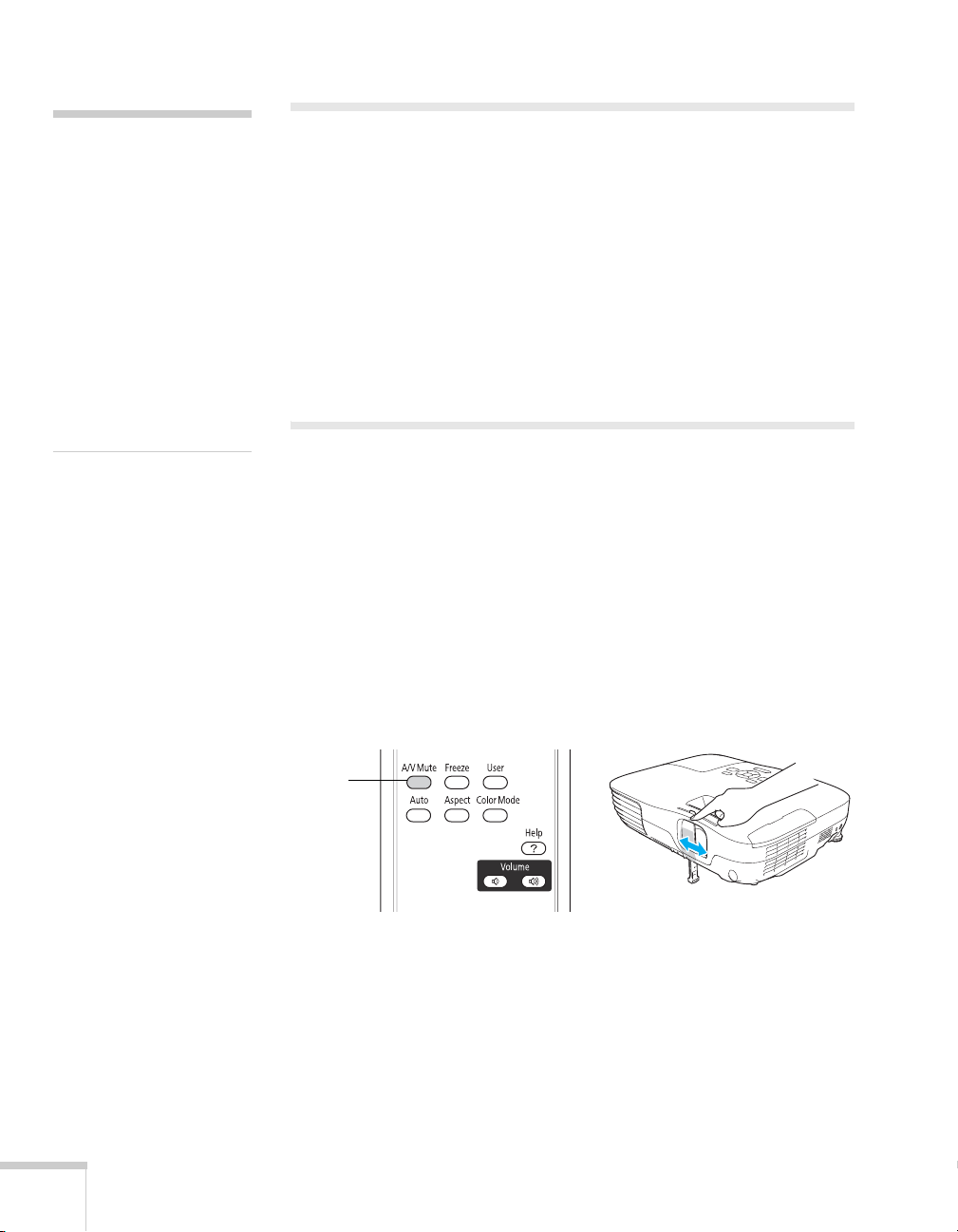

Press the A/V Mute button on the remote control or close the

A/V Mute slide on the projector to turn off the image and sound, and

darken your screen. This is useful if you want to temporarily re-direct
your audience’s attention without the distraction of a bright screen.

A/V Mute
button

To turn the image and sound back on, press the button again, or open
the

A/V Mute slide.

You can create an image, such as a company logo or picture, to display
on the screen whenever you press the

A/V Mute button. See page 54

for more information.

40 Using the Remote Control

You can also set the Lens Cover Timer setting to automatically turn
off the projector after 30 minutes to protect the projector if the

A/V Mute slide is closed for a long time. See page 52 for instructions.

Stopping Action

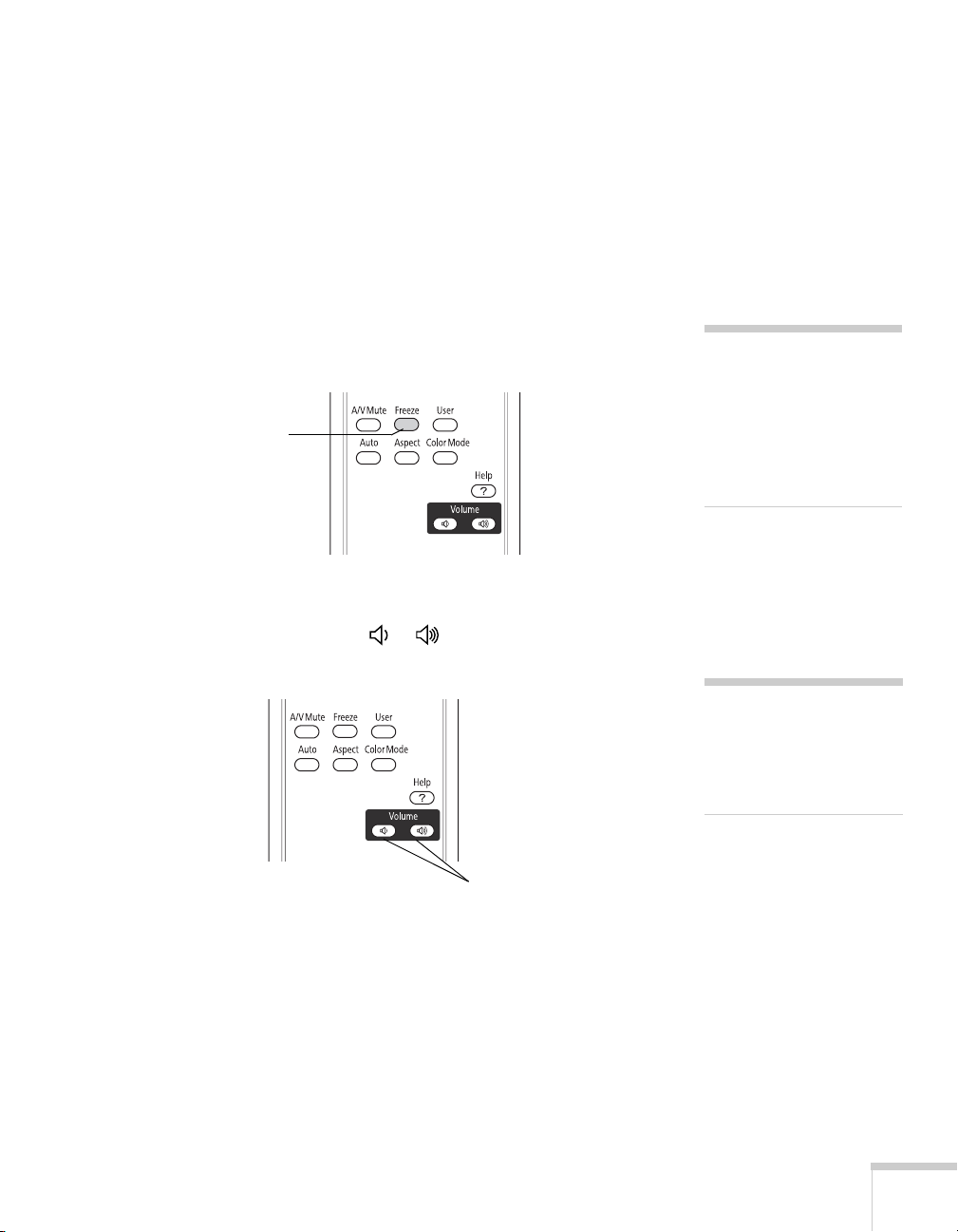

Press the Freeze button on the remote control to stop the action in
your video or computer image. The image freezes but the sound
continues.

To restart the action, press the

Freeze
button

Freeze button again.

Controlling the Volume

To change the volume, press the or button on the remote
control or on the projector’s control panel.

note

The Freeze function pauses
the image, not the sound.
Because the source continues
to transmit signals, it will
not resume at the same
point.

Volume
buttons

note

To temporarily shut off the
sound and picture, press the

A/V Mute button or close

the A/V Mute slide.

Using the Remote Control 41

note

You can project .JPG files in
resolutions up to
8176 × 6144, with pixel
counts incrementing in
multiples of 8.

If a .JPG file is highly
compressed, your projector
may not be able to display it
correctly.

You cannot project movie
files or progressive JPEG files
using the Slideshow feature.

Presenting a Slideshow

You can use your projector’s Slideshow feature whenever you connect
a USB device that contains .JPG image files. This lets you quickly and
easily display individual images, or start a slideshow of all the images
in a folder. You can control your slideshow using the projector remote
control.

For an instant PowerPoint presentation, save your PowerPoint slides
in JPEG File Interchange Format (.JPG) and store them in a folder.
Copy that folder to a USB flash memory drive (thumb drive) or other
USB device. Then connect the device to the projector and make sure
the Slideshow
page 44. Then you can start your presentation, as described below.

You can switch the display from the device displaying the slideshow to
another source using the

Source buttons on the remote control. To return to the Slideshow

source, press

USB button.

Starting a Slideshow

Display order option is set to Name order; see

Source Search button or one of the specific

Source Search and select USB, or simply press the

42 Using the Remote Control

1. Connect a USB device to the projector’s USB TypeA port (see
page 28).

2. If you are connected to another image source, press the

USB

button on the remote control to go to the Slideshow program.

If you are not connected to another image source, the Slideshow
program appears automatically.

If necessary, press the arrow buttons on the remote control to
highlight the device you want to present from, then press the

Enter button.

3. If you need to select a subfolder on your device, press the arrow
buttons to highlight the folder and press

Enter.

4. To display an individual image, press the arrow buttons to
highlight it and press

Enter. To display additional image files,

press the l or r arrow button.

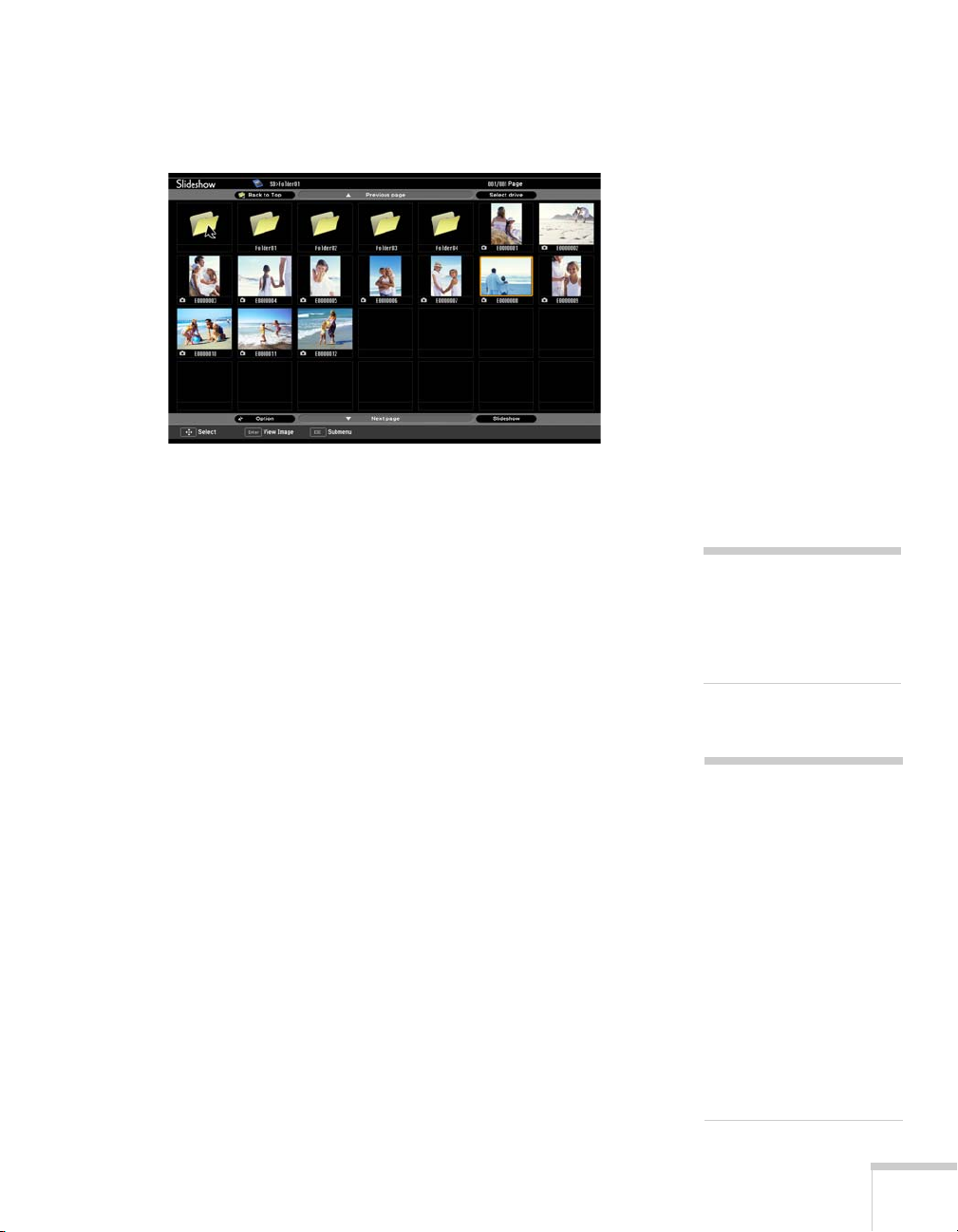

5. To display a slideshow of all the images in the current folder, use
the arrow buttons to highlight
Slideshow screen and press

Slideshow on the bottom of the

Enter. The images display sequentially

one time through. At the end, you see the folder display again.

Select the following as necessary to control your display or slideshow:

■ To move back up a folder level, highlight Back to Top at the top

of the Slideshow screen and press

■ To select a different device, highlight Select drive in the upper

right corner of the screen, press

■ If all the images in a folder do not fit on the Slideshow screen,

highlight

Next page at the bottom of the screen and press Enter

to display the next screen full of images. Select

Enter.

Enter, and select the device.

Previous page at

the top of the screen to display the previous screen.

note

To rotate a displayed image,
press the u or d button on
the remote control until it is
displayed correctly.

note

To display a slideshow from
a folder that is not open,
highlight the folder and press
the

Esc button on the

remote control. Then select

Slideshow from the menu

that appears and press

Enter.

To begin a slideshow from a
particular image, use the
arrow buttons to highlight
that image, press
then press Enter again.

Enter,

Using the Remote Control 43

■ To exit the slideshow, press Esc, select Exit, and press Enter.

Selecting Slideshow Display Options

To select slideshow options or add special effects, follow these steps:

1. Highlight
screen and press

Option at the bottom left corner of the slideshow

Enter. You see this screen:

2. Highlight the options you want to use, and press

Option Available settings

Display
order

Continuous
play

Name order displays files in name order
Date order displays files in date order

On displays a slideshow continuously
Off displays a slideshow one time through

Enter.

44 Using the Remote Control

Screen
switching
time

Effect Wipe transitions between images with a wipe effect

3. When you are finished, highlight
and press

No does not switch file display automatically
1Sec. to 60Sec. displays files for the selected time

and switches them automatically

Dissolve transitions between images with a dissolve

effect

Random transitions between images using a variety

of effects in random order

OK at the bottom of the screen

Enter. (Highlight Cancel and press Enter to cancel

your changes.)

Fine-Tuning the Projector

You can use the projector’s on-screen menus to adjust the image,

sound, and other features. This chapter covers the following
information:

■ Using the menu system

■ Adjusting the image

■ Adjusting signal settings

■ Customizing projector features

■ Customizing power and operation

■ Using the projector security features

4

45

Using the Menu System

You can use the remote control or the projector’s control panel to
access the menus and change settings. Follow these steps:

1. To display the menu screen, press the

Menu button on the

remote control or on the projector. You see a menu screen similar
to the one below:

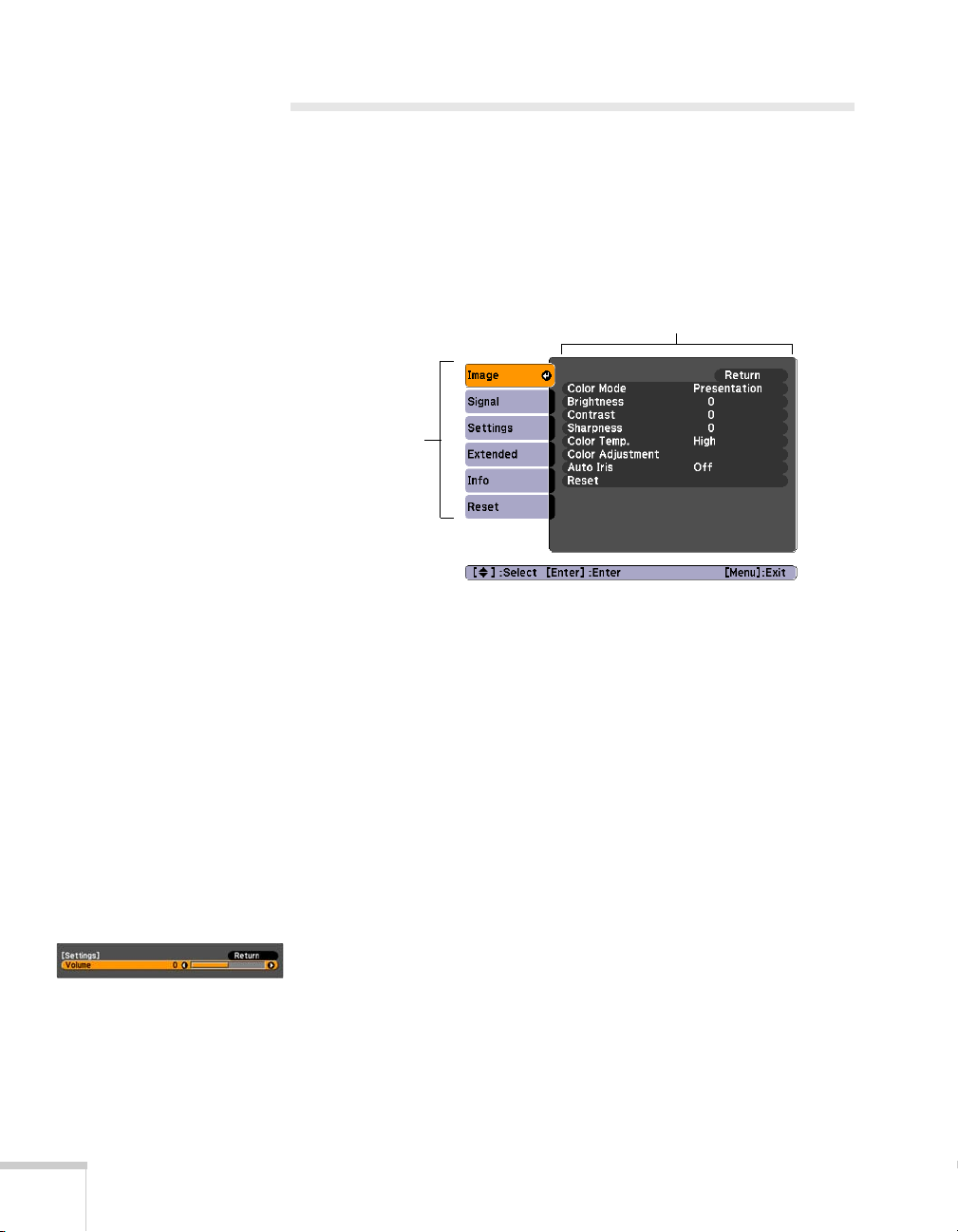

Options

Menu list

The menus are listed on the left and the options available for the
highlighted menu are shown on the right.

2. Use the arrow buttons on the remote control or the projector to
scroll through the menu list. When you’ve highlighted the desired
menu, press the

Enter button to select it.

3. Once you’ve selected the menu, use the arrow buttons to scroll
through the list of options. (Some of the options may be grayed
out or unavailable, depending on the selected source.)

4. After highlighting the option you want to adjust, use the arrow

5. After changing the settings, press the

46 Fine-Tuning the Projector

buttons to change the setting. In some cases, you may have to
press the

■ Press the left or right arrow button to adjust a slider bar.

■ To select from two or more settings, press the up or down

Enter button to view a sub-screen.

arrow button to highlight the setting and press

Esc button to save your

Enter.

changes and return to the previous menu (or press it again to exit
the menu system). You can also press the

Menu button to exit.

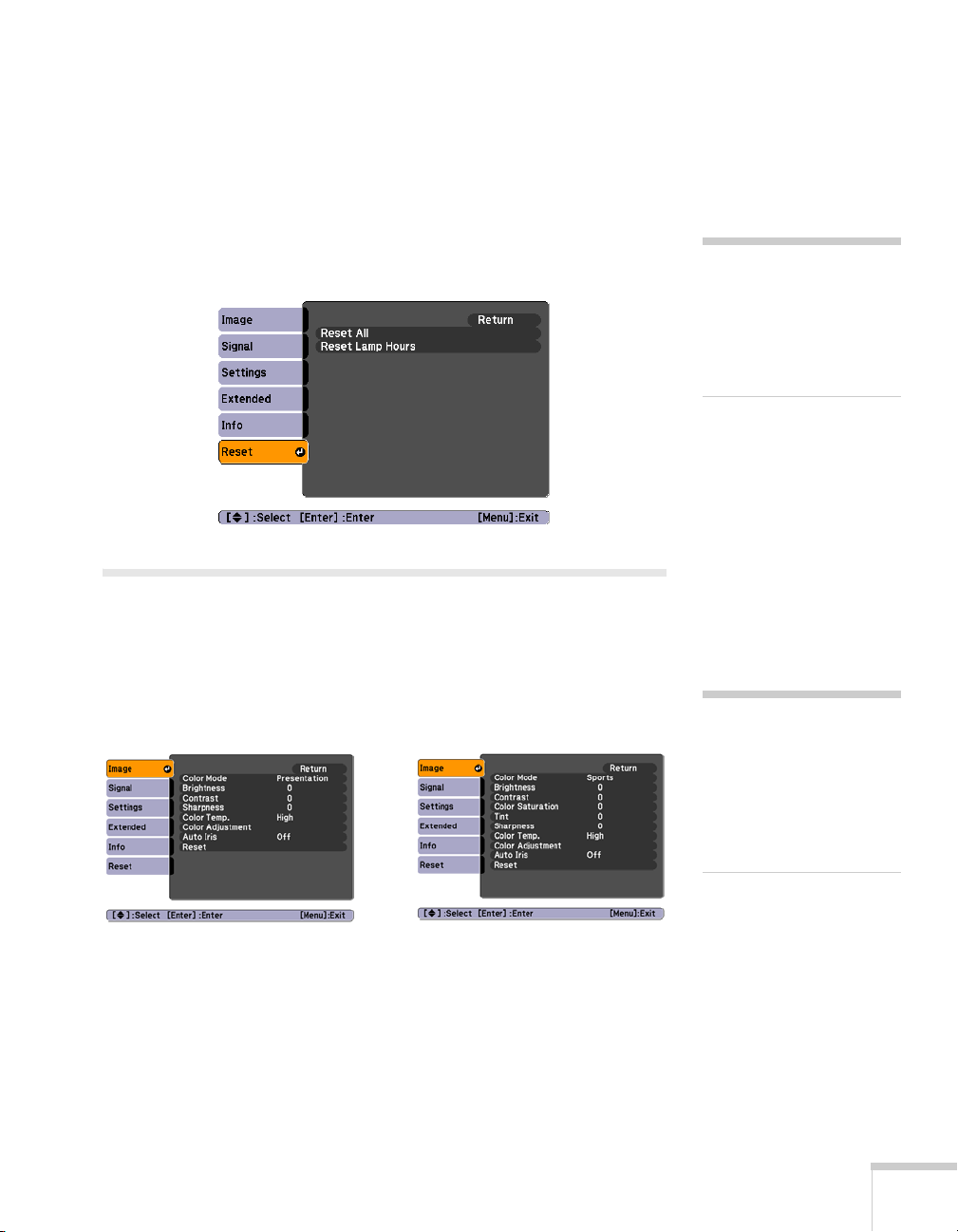

Restoring the Default Settings

You can use the Reset option on any menu to restore the
factory-default settings for the settings in that menu.

To restore all the projector settings to their factory-default values,
select the

Yes to confirm.

Reset menu, highlight Reset All, press Enter, and select

Adjusting the Image

You can use the Image menu to adjust the brightness, sharpness, color,
tint, contrast, and

Auto Iris settings.

note

When you select Reset All
in the Reset menu, it does
not reset the Input Signal,
User’s Logo, Language, or
Lamp Hours settings.

1. Press the
select the

Computer/RGB video Component video/

Menu button on the projector or remote control and

Image menu. You see a screen similar to one of these:

Composite video/
S-Video

note

If you are using the HDMI
port, you see the menu on
the left if the current signal
is digital RGB video, or the
menu on the right if the
signal is component video.

Fine-Tuning the Projector 47

note

The available settings vary
depending on the input
source selected.

The

Brightness setting

changes the opacity of the
projector’s LCD panels. You
can also change the lamp’s
brightness. Select

Consumption

Settings menu, then choose

Normal or ECO (the

default setting is Normal).

Power

in the

2. Adjust the desired options as needed:

■ Color Mode

Lets you quickly adjust the color and brightness for various
environments. You can save a different setting for each
source. See page 37 for a description of each color mode.

■ Brightness

Lightens or darkens the overall image.

■ Contrast

Adjusts the difference between light and dark areas.

■ Color Saturation

Adjusts the color depth of the image.

■ Tint

Adjusts the balance of green to magenta in the image.

■ Sharpness

Adjusts the sharpness of the image.

■ Color Temp.

Sets the color temperature of the image. Select High to tint
the image bluer or

Medium). (Not available if sRGB is selected as the Color

Low to tint it redder (default setting is

Mode setting.)

48 Fine-Tuning the Projector

■ Color Adjustment

Adjusts the color values. Select Red, Green, Blue to adjust
red, green, and blue hue and saturation values. (Not available
if

sRGB is selected as the Color Mode setting.)

■ Auto Iris

Automatically adjusts the projected luminance according to
the brightness of the image. (Available only when

Dynamic

or Theater is selected as the Color Mode for the current
input source.)

Adjusting Signal Settings

Although the projector normally detects and optimizes the input
signal automatically, you can use the Signal menu to make manual
adjustments. In addition to changing the position of the projected
image, you can correct tracking and sync for computer images, or
change the aspect ratio.

1. Press the

Menu button and select the Signal menu. You see a

screen similar to one of those below. (The settings will be different
depending on the source you are projecting from.)

Computer/RGB video Component video

Composite video/S-Video HDMI

2. Adjust the desired options as needed:

■ Auto Setup

Leave this setting

On to automatically optimize computer

images. Turn it off if you want to save adjustments you have
made to the Tracking, Sync, and Position settings.

■ Resolution

Set to Auto to have the projector automatically identify the
resolution of the input signal. If necessary, select
widescreen images) or

Normal (for 4:3 ratio images).

Wide (for

Fine-Tuning the Projector 49

note

p

p

You can also use the remote
control’s
automatically reset the

and Position settings. See

Auto button to

rojector’s Tracking, Sync,

age 78 for details.

■ Tracking

Adjust this value to eliminate vertical stripes in computer
images.

■ Sync

Adjust this value if computer images appear blurry or flicker.

■ Position

If the image is slightly cut off on one or more sides, it may not
be centered exactly. Select this setting and use the arrow
buttons to center it.

note

You can adjust the

Progressive setting for

signals from the HDMI
input port (excluding digital
RGB) or component video
only when 480i/576i/1080i
signals are being input.

The HDMI Video Range
setting cannot be set for
digital RGB signals.

■ Progressive

For composite video, S-Video, component video, and certain
signals from the HDMI port only. Turn this setting on to
convert interlaced signals into progressive signals (best for
moving images). Leave the setting

■ HDMI Video Range

Off for still images.

When you connect to the HDMI input port, set the
projector’s video range to match the video range setting of
your device.

■ Input Signal

If the colors don’t look right on the Auto setting, select the
setting for the type of equipment you’ve connected to the

Computer (Component Video) port. Choose RGB for a

computer or RGB-video connection, or

Auto for a video

player that outputs a component video signal (with
connectors labeled Y/Cb/Cr or Y/Pb/Pr).

■ Video Signal (composite or S-Video signals only)

Select the setting for the type of equipment you’ve connected
to the

Video port. Leave this setting at Auto unless you are

using a 60-Hz PAL system (then select

PAL60).

■ Aspect

Sets the image’s aspect ratio (ratio of width to height). See
page 38 for more information.

50 Fine-Tuning the Projector

Customizing Projector Features

You can use the Settings menu to lock the buttons on the projector,
adjust audio volume, and customize several other features.

■ Keystone

Adjusts the shape of the image if the projector has been tilted
upward or downward. If you notice that lines or edge look jagged
after adjustment, decrease the

■ Auto Keystone

Automatically compensates for keystone distortion when the
projector is tilted upward or downward. This feature is available
only when the projector is set for front projection (enabled by
default).

Sharpness setting (see page 47).

■ Control Panel Lock

Lets you disable all of the buttons on the projector, or all of the
buttons except the Ppower button. See page 56 for more
information.

■ Power Consumption

Lets you select from two levels of brightness. The ECO setting
reduces power consumption and projector noise, and extends the
lamp’s operating life.

■ Volume

Raises or lowers the volume of the projector’s speaker.

Fine-Tuning the Projector 51

■ User Button

Lets you create a shortcut to one of the following menu items:

Power Consumption, Info, Progressive, Resolution. When

you press the

User button on the remote control, the assigned

menu item is displayed.

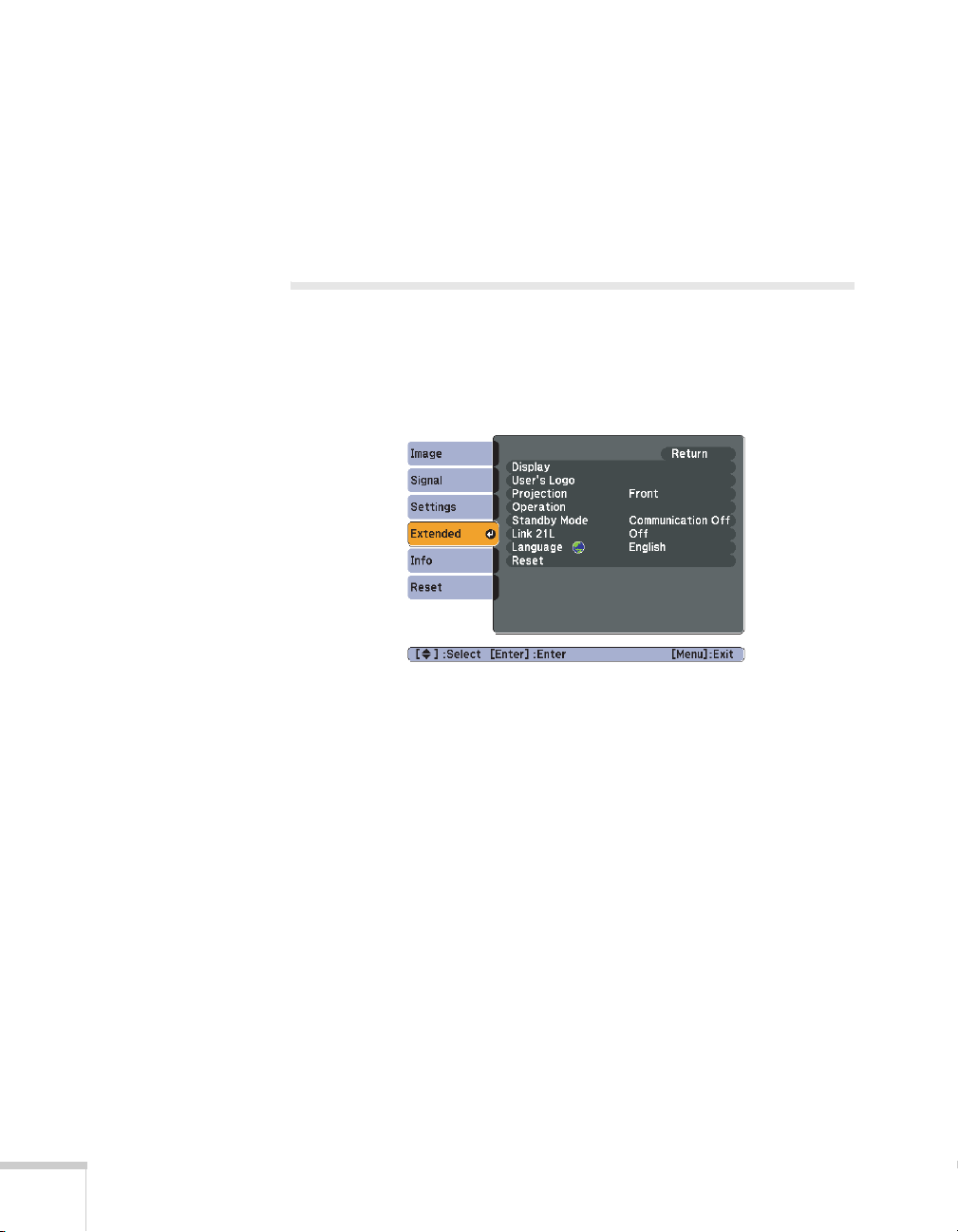

Customizing Power and Operation

You can use the Extended menu to customize the way the projector
displays images, enable Direct Power On, turn sleep mode on or off,
and customize other projector operations.

■ Display

■ User’s Logo

■ Projection

52 Fine-Tuning the Projector

Messages:

Display Background: Sets the screen background to Black,
Blue, or Logo when no image signal is available.

Startup Screen: Enables or disables display of the startup (User’s

Lets you turn screen messages on or off.

Logo) screen when the projector is turned on.

A/V Mute: Sets the screen background to Black, Blue, or Logo

when the

A/V Mute button is pressed.

Create a custom startup screen, as described on page 54.

Select Front (to project onto the front of a screen), Front/Ceiling
(when the projector is mounted upside-down from the ceiling),

(to project from behind onto a transparent screen), or

Rear
Rear/Ceiling (to project from behind onto a transparent screen

when the projector is mounted upside-down from the ceiling).

■ Operation

Direct Power On:

Enable if you want to be able to start the

projector when you connect the power cord (without pressing the
Ppower button).

Sleep Mode: Enable if you want the projector to turn off

automatically if it is idle and no signal is received for 1 to 30
minutes (you can adjust the amount of time using the next
setting).

Sleep Mode Timer: When Sleep Mode is on, you can set the

period of time before the projector turns off automatically, from
1to 30 minutes.

Lens Cover Timer: Enabled by default to turn the projector’s

power off automatically when the

A/V Mute slide is closed for

more than 30 minutes.

High Altitude Mode: Enable when you are using the projector

above 4,900 feet (1,500 meters) to ensure that the temperature is
regulated properly. Turn this setting off for lower elevations.

note

If you hold down the A/V

Mute

button on the remote
control for about five
seconds, you switch between

Front and Front/Ceiling

or

Rear and Rear/Ceiling.

If

Direct Power On is

enabled, the power cord is
connected, and a power
outage occurs, the projector
will start when the power is
restored.

note

Do not use the projector at
altitudes above 7,500 feet
(2,286 meters).

■ Standby Mode

Select Communication On to enable the projector to be
monitored and controlled from a computer when it is in standby
mode (the power light is orange).

■ Link 21L

Select On to enable the projector to be monitored and controlled
from a computer using Link 21L software and the Epson USB
Communication driver.

■ Language

Select a language to use for the projector menus.

Fine-Tuning the Projector 53

Using the Projector Security Features

To prevent unauthorized use of the projector, you can:

■ Create a custom screen that is displayed at startup and/or when

A/V Mute button is pressed. The screen can be locked with a

the
password to discourage theft and provides a way to identify the
projector should it be stolen. See page 54.

■ Disable the projector’s buttons; this is useful, for example, in a

classroom when you want to ensure that no one touches the
projector’s buttons while you’re using the remote control. See
page 56.

■ Secure the projector to prevent theft using a cable locking system.

See page 57.

Creating Your Own Startup Screen

You can transfer any image from your computer or video source to the
projector and then use it as your startup screen. You can also use it as
the screen displayed when the projector is not receiving a signal or
when you press the
logo, slogan, photograph, or any other image you want to use.

A/V Mute button. The image can be a company

54 Fine-Tuning the Projector

Capturing the Image

f

Start by displaying the image you want to use from either a computer
or video source, such as a DVD player or digital camera. Then follow
these steps to capture the image and transfer it to the projector:

1. Press the

Extended menu, and press Enter.

Menu button on the remote control, highlight the

note

When you choose an image

or the user’s logo, it erases
any previously used image.
You can save an image up to
300 × 400 pixels in size.
Once you have saved a new
user’s logo, you cannot
return to the factory default
logo.

2. Highlight

3. When you see a message asking

User’s Logo?

User’s Logo and press Enter.

Choose this image as the

, select Yes and press Enter. A selection box

displays over the image.

4. Use the arrow buttons to select the area of the image you want to
use. Then press

5. When you see the message
and press

Enter.

Select this image?, highlight Yes

Enter.

6. Use the arrow buttons to select a zoom factor (display size) and

Enter.

press

7. When the message
appears, select

Save this image as the User’s Logo?

Yes and press Enter. Saving the logo may take a

few moments. Do not use your projector, remote control, or
video source while the logo is being saved.

8. When you see the message

Completed, press Menu to exit.

Fine-Tuning the Projector 55

Choosing When to Display the Image

After your image is saved, you can set it to display as the startup
screen, the screen you see when there’s no signal, or the screen you see
when you press the

A/V Mute button (see page 40).

1. Press the

Enter.

2. Select

Menu button, highlight the Extended menu, and press

Display and press Enter.

3. Choose from these display options:

■ Set Display Background to Logo to display your image

when there is no signal.

■ Set Startup Screen to On to display your image when the

projector is warming up.

■ Set A/V Mute to Logo to display your image when you press

the

A/V Mute button.

4. When you’re finished, press

Menu to exit.

Disabling the Projector’s Buttons

When you enable the Control Panel Lock function, you can lock all of
the projector’s buttons, or all of the buttons except the Ppower
button. The remote control can still be used to operate the projector.

1. Press the

Enter.

Menu button, highlight the Settings menu, and press

2. Select

3. Select

4. Select

56 Fine-Tuning the Projector

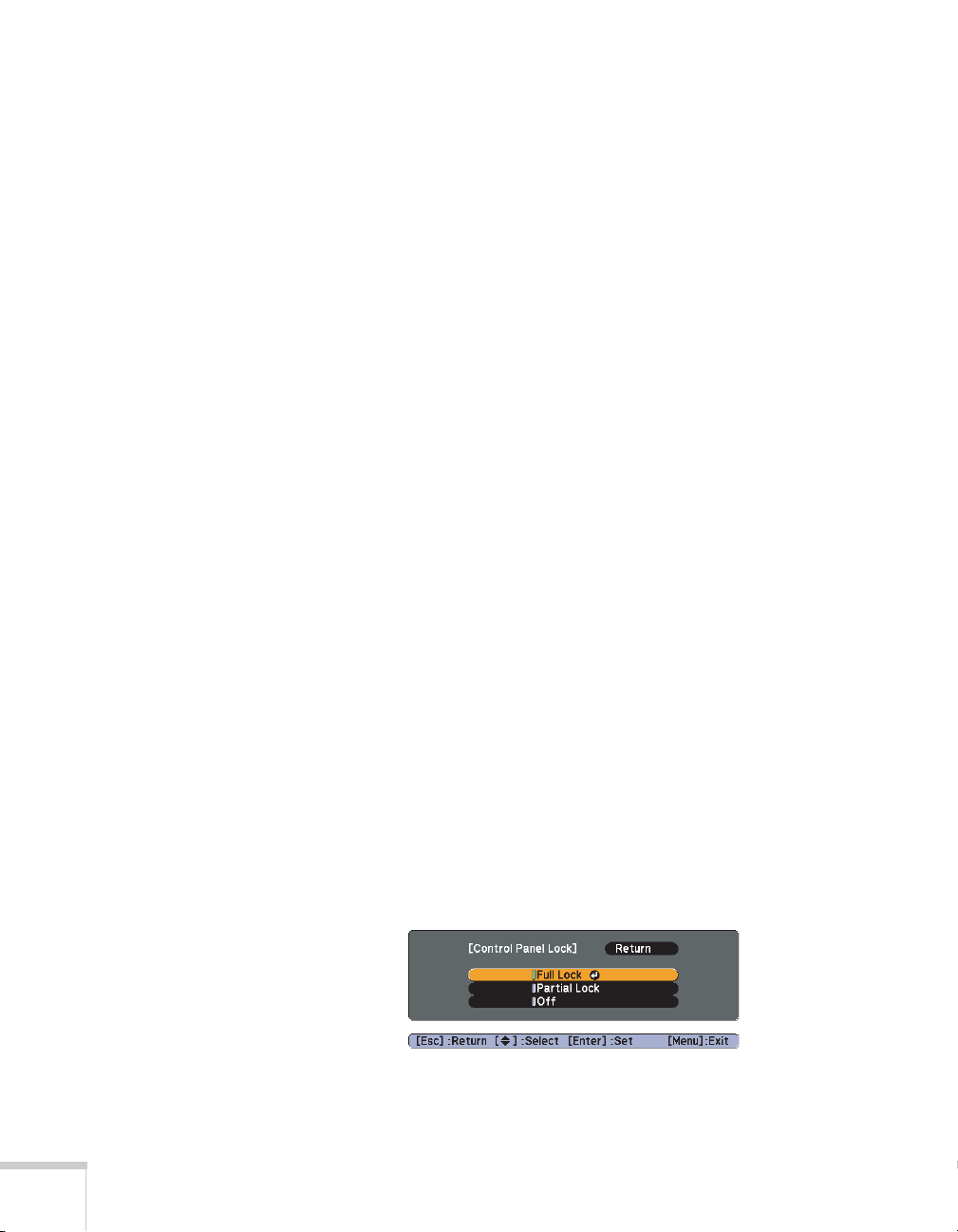

Control Panel Lock and press the Enter button.

Full Lock (to lock all projector buttons) or Partial Lock (to

lock all buttons except the P power button) and press

Yes and press Enter to confirm the setting.

Enter.

5. Press the Menu button to exit.

To disable the Control Panel Lock function, select
Panel Lock menu. Or press and hold the

Enter button on the

Off in the Control

projector’s control panel for seven seconds. A message is displayed and
the lock is released.

Using Security Locking

The projector includes two security locking points to prevent its theft
when installed or used in public locations:

■ Security cable attachment. You can attach a commercially

available security cable as shown below to secure the projector to a
table or ceiling mount.

Security cable
attachment

Kensington
security slot

■ Kensington security slot. The security slot (located on the side

of the projector) is compatible with the MicroSaver security
systems manufactured by Kensington. You can purchase this lock
from Epson (see page 15).

Fine-Tuning the Projector 57

58 Fine-Tuning the Projector

warning

Before you clean any part of
the projector, turn it off and
unplug the power cord.
Never open any cover on the
projector, except the lamp
cover. Dangerous electrical
voltages in the projector can
injure you severely. Do not
try to service this product
yourself, except as specifically
explained in this User’s
Guide. Refer all other
servicing to qualified service
personnel.

5

Maintaining the Projector

Your projector needs little maintenance. All you have to do on a

regular basis is clean the lens, and check that the air filter and vents are
clean. A clogged air filter or vent can block ventilation needed to cool
the projector.

The only parts you should replace are the lamp and air filter. If any
other part needs replacing, contact your dealer or a qualified servicer.

This chapter covers the following:

■ Cleaning the lens

■ Cleaning the projector case

■ Cleaning the air filter

■ Replacing the air filter

■ Replacing the lamp

■ Replacing the remote control batteries

■ Transporting the projector

59

caution

Do not rub the lens with
harsh materials or subject
the lens to shocks, or you
may damage it.

Do not use wax, alcohol,
benzene, paint thinner, or
other chemical detergents.
These can damage the case.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

To remove dirt or smears on the lens, use a commercially available
cloth for cleaning glasses.

Cleaning the Projector Case

Before cleaning, turn off the projector and unplug the power cord.

■ To remove dirt or dust, wipe the case with a soft, dry, lint-free

cloth.

■ To remove stubborn dirt or stains, moisten a soft cloth with water

and a neutral detergent and firmly wring the cloth dry. Then wipe
the case.

Cleaning the Air Filter

note

To order replacement air
filters, request part number
V13H134A25. See page 15
for ordering information.

60 Maintaining the Projector

Your projector includes an air filter to ensure the best performance. If
dust collects on the air filter, clean it as described here. Dust clogs
prevent proper ventilation and can cause overheating, which can
damage the projector.

1. Turn off the projector and unplug the power cord.

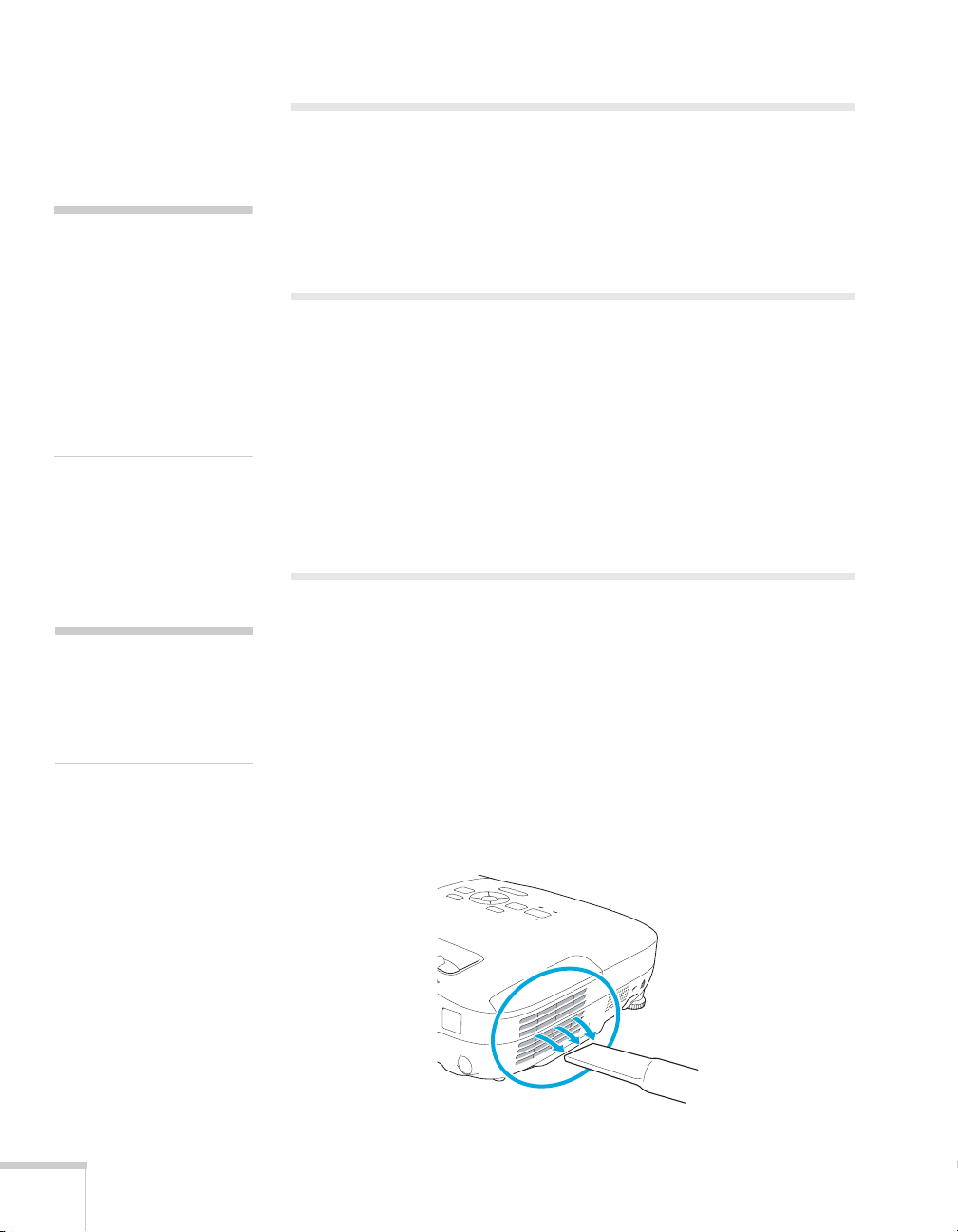

2. Remove dust from the air filter using a small vacuum cleaner
designed for computer or office equipment, or gently clean the
vent with a soft brush (such as an artist’s paintbrush).

You can remove the air filter to clean both sides

If the filter is too dirty or broken, replace the filter as described below.

Replacing the Air Filter

You need to replace the air filter if:

■ You cannot remove the dust from it

■ The air filter is damaged or torn

■ You repeatedly see a projected message telling you to clean or

replace it

Contact your dealer or call Epson at 800-GO-EPSON
(800-463-7766) to obtain a new air filter. Request part number
V13H134A25.

1. Turn off the projector and unplug the power cord.

2. Open the air filter cover on the side of the projector.

3. Lift the air filter out of its slot as shown.

note

Air filters contain
polycarbonate, ABS resin,
and polyurethane foam.
Dispose of used air filters
according to local
regulations.

Maintaining the Projector 61

4. Slide the new air filter into the slot until it clicks into place.

note

Turn off this product when
not in use to prolong the life
of the projector.

Replacing the Lamp

The life span of the projection lamp is about 4000 hours if Power

Consumption

hours if this setting is

It is time to replace the lamp when:

■ The projected image gets darker or starts to deteriorate.

■ The message Replace the lamp appears on the screen and the

Lamp light flashes orange. To maintain projector brightness

and image quality, replace the lamp as soon as possible.

You may also need to replace the lamp if the
red. See page 71.

Lamp light

in the Settings menu is Normal (default), and 5000

ECO. See page 65 to check the lamp usage.

Lamp light flashes

62 Maintaining the Projector

Contact your dealer or call Epson at 800-GO-EPSON
(800-463-7766). Request part number V13H010L54.

Follow these steps to replace the lamp:

warning

Let the lamp cool fully
before replacing it.

1. Turn off the projector and unplug the power cord.

2. Let the projector cool for at least an hour (if it has been on). The
lamp is extremely hot immediately after use.

3. Loosen the lamp cover screw (you cannot remove it). Then slide
the lamp cover off.

4. Loosen the two screws holding the lamp in place (you can’t
remove them).

Loosen, but don’t
remove these screws

In the unlikely event that
the lamp has broken, small
glass fragments may be
present and should be
removed carefully to avoid
injury. If the projector has
been installed on the ceiling,
you should stand to the side
of the lamp cover, not
underneath it.

If the lamp is used after the
replacement period has
passed, the possibility that
the lamp may break
increases. When a lamp
replacement message
appears, replace the lamp
with a new one as soon as
possible, even if it is still
working.

Maintaining the Projector 63

note

The lamp(s) in this
product contain mercury.
Please consult your state and
local regulations regarding
disposal or recycling. Do not
put in the trash.

5. Hold the lamp as shown and pull it straight out.

6. Gently insert the new lamp. (If it doesn’t fit easily, make sure it is
facing the right way.) Then tighten its screws.

note

Tighten the lamp cover
securely so you do not receive
a lamp cover error when you
turn the projector back on.

64 Maintaining the Projector

7. Replace the lamp cover, then tighten its screw.

8. Reset the lamp timer as described in the next section.

Resetting the Lamp Timer

After you replace the lamp, you need to reset the lamp timer using the
projector’s menu system.

1. Press the
projector’s control panel. You see the main menu.

2. Select the

Menu button on the remote control or on the

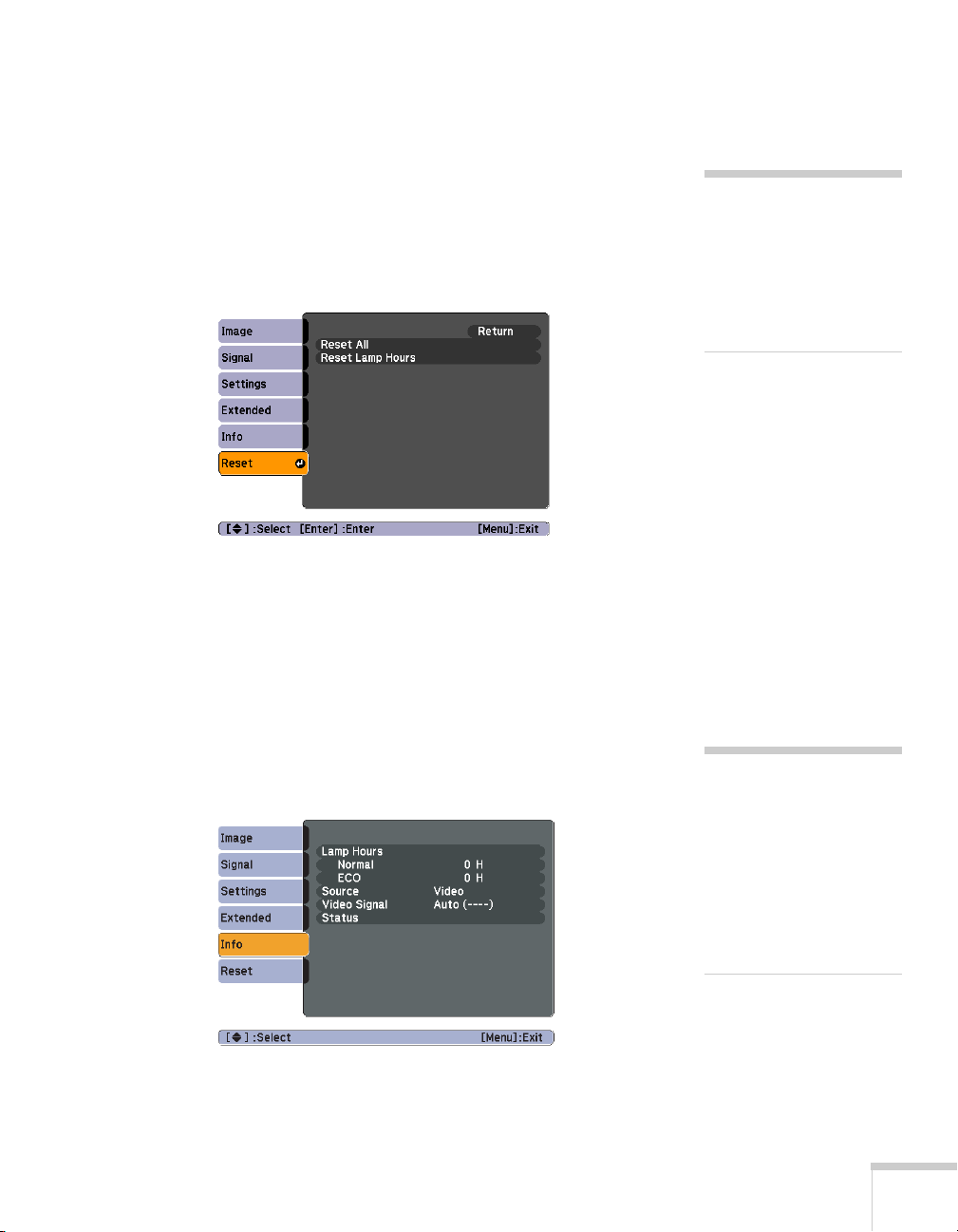

Reset menu and press Enter. You see this screen:

note

Do not reset the lamp timer
if you have not replaced the
lamp. Otherwise, you will
receive incorrect lamp usage
information on the Info
menu; see page 65.

3. Select

4. When you see the prompt, select

5. When you’re finished, press

Reset Lamp Hours and press Enter.

Yes and press Enter.

Menu to exit.

Checking Lamp Usage

To check the number of hours the lamp has been used, press the

Menu button and highlight the Info menu. You see a screen like this:

note

The information displayed
depends on the input signal
currently selected.

If you have used the
projector for less than
10 hours, the hours are
listed as 0H.

Maintaining the Projector 65

The life span of the lamp is about 4000 hours if

Consumption

hours if this setting is

in the Settings menu is Normal (default), and 5000

ECO. Make sure you have a spare lamp handy if

Power

the usage hours on this menu are close to the life span of your lamp.

Replacing the Remote Control Batteries

caution

When replacing batteries,
take the following
precautions:

■ Replace the batteries as

soon as they run out. If the
batteries leak, wipe away
battery fluid with a soft
cloth. If fluid gets on your
hands, wash immediately.

■ Do not expose batteries to

heat or flame.

■ Dispose of used batteries

according to local
regulations.

■ Do not use batteries other

than those specified in this
User’s Guide and do not
use batteries of different
types or mix old and new
batteries.

■ Keep these batteries out of

the reach of children.
Batteries are choking
hazards and are very
dangerous if swallowed.

Replace the batteries in the remote control as described below:

1. Turn the remote control over.

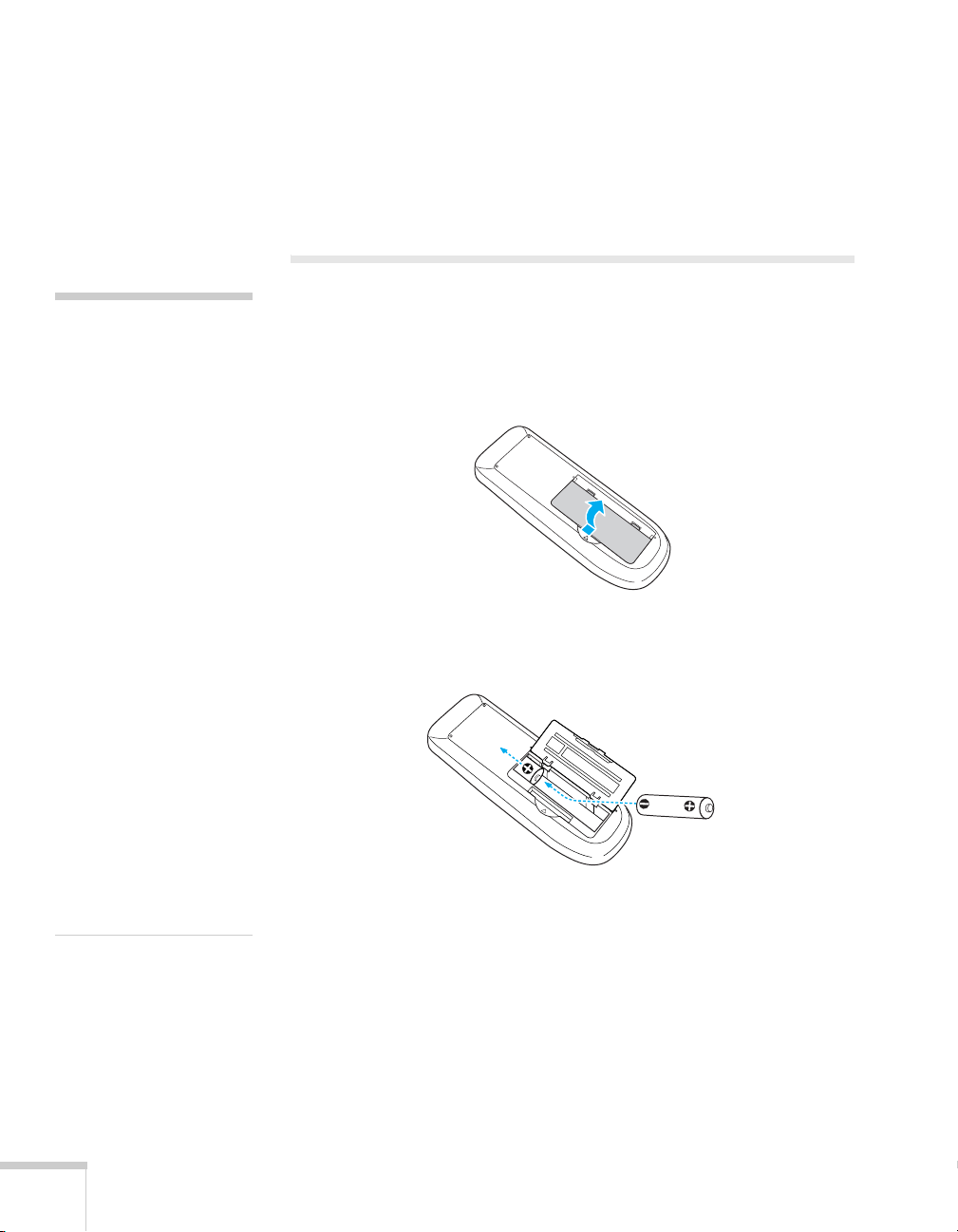

2. Press in on the catch on the battery cover as you lift the cover off.

3. Install two AA alkaline batteries, inserting the

+ and – ends as

shown.

66 Maintaining the Projector

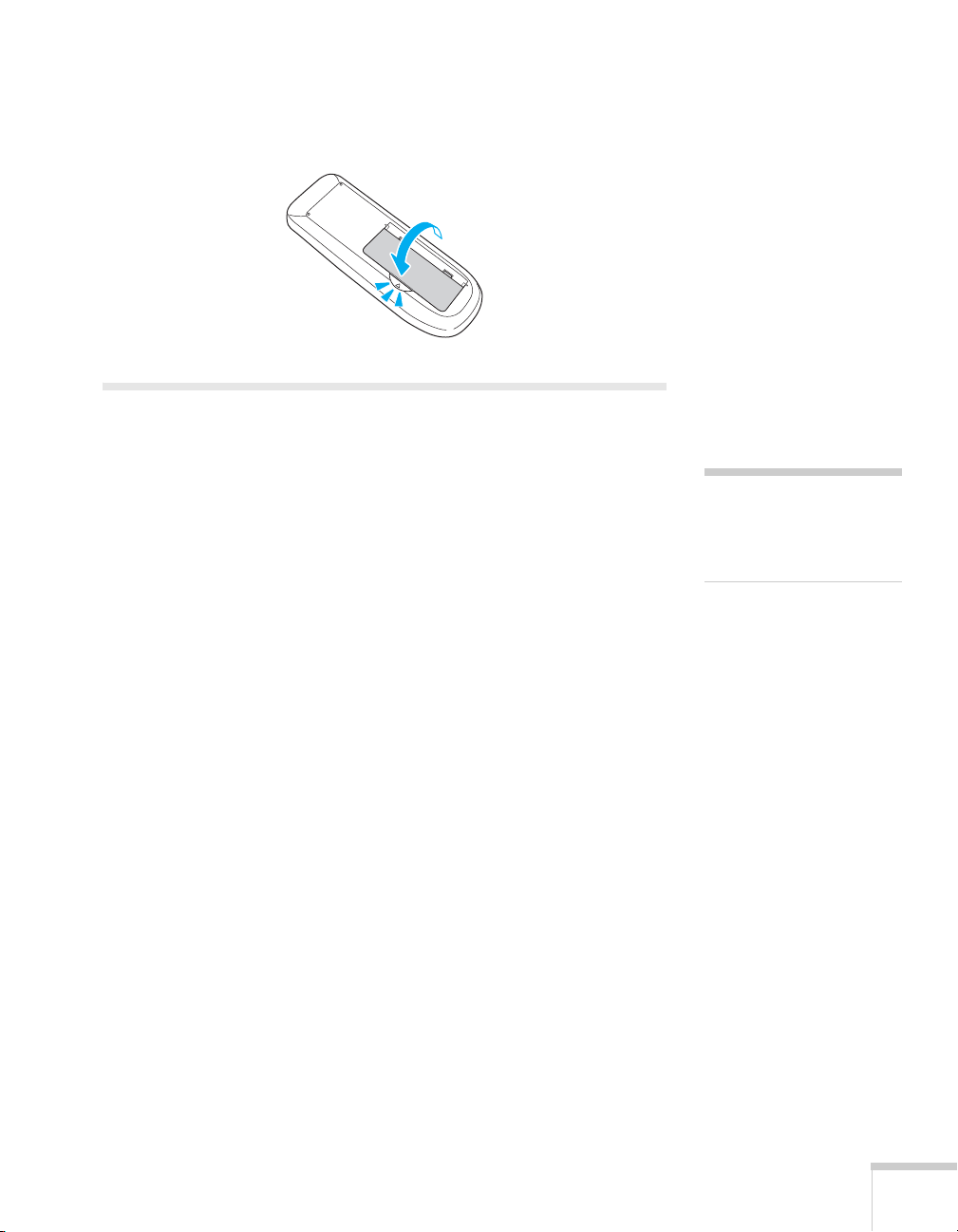

4. Replace the battery cover and press it down until it clicks into
place.

Transporting the Projector

The projector contains many glass and precision parts. When
hand-carrying the projector, use the carrying case.

Follow these guidelines to prevent damage when transporting it:

■ When shipping the projector for repairs, use the original

packaging material if possible. If you do not have the original
packaging, use equivalent materials, placing plenty of cushioning
around the projector.

note

Epson shall not be liable for
any damages incurred
during transportation.

■ When transporting the projector a long distance, first place it in a

hard-shell shipping case, then pack it in a firm box with
cushioning around the case.

■ Close the A/V Mute slide (lens cover).

■ If a USB device is connected, remove it from the projector.

■ Return the projector feet to their stored (highest) positions.

Maintaining the Projector 67

68 Maintaining the Projector

Solving Problems

This chapter helps you solve problems with your projector and tells

you how to contact technical support for problems you can’t solve
yourself. The following information is included:

■ Using the projector’s on-screen help system

■ What to do when the projector’s status lights come on or flash

■ Solving projector operation problems

■ Solving problems with the image or sound

■ Solving problems with the remote control

■ Contacting technical support

6

69

Using On-Screen Help

If the image doesn’t look right or your audio isn’t working, you can
get help by pressing the
control.

? Help button on the projector or the remote

1. Press the
projector.

You see the Help menu:

2. Use the arrow buttons on the remote control or the projector to
highlight menu items.

3. Press the
select the menu item and read the solutions.

4. To exit the help system, press the

If none of the suggestions solve your problem, see additional solutions
to problems in the following sections.

? Help button on the remote control or on the

Enter button on the remote control or the projector to

? Help button or Esc button.

70 Solving Problems

Checking Projector Status

If your projector isn’t working correctly, first turn it off and unplug it.
Then plug the power cord back in and turn on the projector. If this
doesn’t solve the problem, check the lights on top of the projector.

What To Do When the Lights Come On or Flash

The lights on top of the projector indicate the projector’s status.

Power light

Lamp light

Temperature
light

Refer to the following tables for a complete description of the
projector’s status lights:

Power light status

power light status Description

P

Flashing green The projector is warming up. Wait for the image to appear.

Green The projector is operating normally.

Orange The projector is in sleep or standby mode. You can unplug it or press the

P power button to turn it on.

Flashing orange The projector is cooling down.

Red or flashing red There is a problem with the projector. Check the next table to diagnose the

problem.

Solving Problems 71

Error light(s) status

Error light(s) status Description

P Green or orange

Flashing orange

Off

P Flashing red

Off

Flashing orange

P Red

Off

Red

P Red

Flashing red

Flashing red

It’s time to replace the lamp. See page 62 for instructions. If you continue
to use the lamp after the replacement warning, there is an increased
possibility that the lamp may break.

Rapid cooling is in progress. Although this is not an abnormal condition,
projection will stop automatically if the temperature rises higher. Make sure
there is plenty of space around and under the projector for ventilation, and
that the air filter and vents are clean.

The projector is overheating, which turns the lamp off automatically.
Wait until the projector switches to standby mode (about 5 minutes). Make
sure there is plenty of space around and under the projector for ventilation.

The air filter may be clogged. Clean or replace the air filter as described on
pages 60 to 62.

If you’re using the projector above an altitude of 4,900 feet (1,500 meters),
turn on High Altitude Mode in the Operation menu (see page 53).

If the projector continues to overheat after you clean the air filter, stop
using the projector, disconnect the power cord, and contact Epson for help
as described on page 81.

Warning: Except as specifically explained in this User’s Guide, do not
attempt to service this product yourself.

The projector has an internal problem. Stop using the projector, disconnect
the power cord, and contact Epson for help, as described on page 81.

P Red

Off

Flashing red

P Flashing red

Flashing red

Flashing red

72 Solving Problems

There is a problem with the fan or temperature sensor. Stop using the
projector, disconnect the power cord, and contact Epson as described on
page 81.

The auto iris or ballast is malfunctioning. Unplug the power cord and contact
Epson as described on page 81.

Error light(s) status

Error light(s) status Description

P Red

Flashing red

Off

The lamp may be burnt out. First make sure the lamp cover is securely
installed. If that’s not the problem, the air filter may be clogged. Clean or
replace the air filter as described on pages 60 to 62.

If this does not resolve the problem, let the lamp cool and then remove it. If
the lamp is cracked, replace it as described on page 62. If the lamp is not
cracked, reinstall it. If reinstalling doesn’t work, replace the lamp.

If you’re using the projector above an altitude of 4,921 feet (1,500 meters),
turn on High Altitude Mode in the Operation menu (see page 53).

If none of these suggestions resolves the problem, contact Epson as
described on page 81.

Solving Projector Operation Problems

The power doesn’t turn on.

■ If the projector doesn’t turn on when you press the Ppower

button, make sure the power cord is connected to the projector
and plugged into a working electrical outlet.

■ The power cord may be defective. Disconnect the cord from the

outlet and contact Epson as described on page 81.

■ If you’re using the Direct Power On function and you

immediately plug the power cord back in after unplugging it, the
power may not turn back on. Press the Ppower button to turn
the projector back on.

The buttons on the projector don’t work.

If the Control Panel Lock function has been enabled, you can’t use the
buttons on the projector. Try using the remote control instead, or
press and hold the projector’s
release the lock (see page 56).

Enter button for seven seconds to

Solving Problems 73

Solving Problems With the Image or Sound

No image appears on the screen.

■ Check that the Ppower light is green (not flashing) and that the

A/V Mute slide is open. Also press the A/V Mute button on the

remote control to make sure the picture has not been turned off
temporarily.

■ The projector may be in standby or sleep mode. If the Ppower

light is orange, press the Ppower button to turn the projector on.

■ If the power was switched off and then on again, the projector

may be cooling down. Wait until the P power light stops flashing
and remains orange; then press the Ppower button again.

■ The attached computer may be in sleep mode or displaying a

black screen saver. Try pressing a key on the computer.

■ If you are projecting from a DVD player or other video source,

make sure you turn it on and press its

■ If you are projecting from a composite or S-Video video source,

make sure the Video Signal setting is correct (see page 49).

Play button.

74 Solving Problems

■ You can also try resetting all of the menu settings (see page 47).

You’ve connected a computer and see a blue screen with the
message No Signal displayed.

■ Make sure the cables are connected correctly, as described

beginning on page 27.

■ If you’ve connected a computer and one or more video sources,

you may need to press the
correct source. Allow a few seconds for the projector to sync up
after pressing the button.

■ Make sure the power for your connected equipment is turned on.

Source Search button to select the

If you’re using a PC notebook:

■ Hold down the Fn key on the keyboard and press the function

key that lets you display on an external monitor. It may have an
icon such as , or it may be labelled

CRT/LCD. Allow a few

seconds for the projector to sync up after pressing it. Check your
notebook’s manual or online help for details.

On most systems, the key lets you toggle between the LCD
screen and the projector, or display on both at the same time.

If you connect the notebook while the projector or computer are
already turned on, the function

Fn key that changes the

computer’s image signal to external output may not work. Turn
the computer and the projector off and then back on again.

■ Depending on your computer’s video card, you might need to use

the Display utility in the Control Panel to make sure that both the
LCD screen and external monitor port are enabled. See your
computer’s documentation or online help for details.

If you’re using Mac OS X:

1. Open

2. Click

3. Click

4. Select

5. Click

6. Select

System Preferences.

Display or Displays.

Detect Displays.

VGA Display or Color LCD.

Arrangement or Arrange.

Mirror Displays.

The message Not Supported is displayed.

■ Make sure the correct input signal is selected in the Signal menu

(see page 49).

■ Make sure your computer’s resolution and frequency or refresh

rate is supported by the projector (see page 86). If necessary,
change your computer’s settings.

Solving Problems 75

Only part of the computer image is displayed.

■ Press the Auto button on the remote control or the Enter button

on the projector.

■ Make sure the image Position setting is correct in the Signal

menu. See page 50 for more information.

■ Press the Aspect button on the remote control or select the

correct
details on the available options.

■ Press the Esc button on the remote control to cancel the E-Zoom

function.

■ Make sure your computer’s resolution setting is correct. See the

compatible video formats listed on page 86.

■ You also may need to modify existing presentation files if you

created them for a different resolution. See your software
documentation for specific information.

■ If you’re projecting a widescreen computer image, adjust the

Resolution setting (see page 49), if necessary.

■ If you’re projecting an image from a computer with dual display

activated, turn dual display off.

Aspect setting from the Signal menu. See page 38 for

76 Solving Problems

The image isn’t square, but keystone-shaped.

If the image isn’t evenly rectangular, adjust its shape as described on
page 35.

The image contains static or noise.

■ If you’re using a computer cable longer than 6 feet (1.8 meters),

or an extension cable, the image quality may be reduced.

■ Keep your computer and video cables away from the power cord

as much as possible to prevent interference.

■ The video signal may be split between the computer and the

projector. If you notice a decline in the projected image quality
when the image is displayed simultaneously on your notebook
computer and the projector, turn off the notebook’s LCD display.

■ Make sure the correct input signal is selected in the Signal menu

(see page 50).

■ If you’re using a composite, S-Video, or component video source

with 480i signals, turn on the

Progressive setting on the Signal

menu (see page 50).

■ If you’ve used the Keystone adjustment, you may need to decrease

the

Sharpness setting in the Image menu (see page 48).

■ If you’re projecting from a computer, make sure its signal is

compatible with the projector. See page 86.

■ If you’re projecting from a computer, press the Auto button on

the remote control to reset the projector’s Tracking, Sync, and
Position settings

The image is blurry.

■ There may be dirt or smears on the lens. Clean the lens as

described on page 60.

■ Adjust the focus using the focus ring (see page 36).

■ If the projector is angled sharply toward the screen, it may not be

possible to focus the entire image. Move the projector to position
it more directly in front of the screen.

■ Lower the projection angle to reduce the amount of keystone

correction required.

■ Make sure the projector is within the proper range (projection

distance) from the screen (see page 19).

■ Make sure the lens is not fogged by condensation. You may need

to wait before using the projector after moving it from a cold
environment to a warm environment.

■ If you’re projecting from a computer, you may need to adjust the

tracking and sync settings as described in the next section.

Solving Problems 77

You see vertical bands or the image still looks blurry after
trying the solutions in the previous section.

note

You must be projecting an
image for the
to have any effect. It works
only with computer images
projected through the

Computer (Component
Video) port.

Auto button

■ If you’re projecting from a computer and displaying an image that

contains a lot of fine detail, you may notice vertical bands or some
of the characters may look heavy or blurred. Press the
button on the remote control or the

Enter button on the

Auto

projector to reset the projector’s Tracking, Sync, and Position
settings.

■ If further adjustment is needed, you can fine-tune the Tracking

and

Sync settings manually using the Signal menu, as described

on page 50.

1. Fill the screen with an image containing fine detail, such as a

pattern to appear as your desktop background, or try
projecting black text on a white background.

2. Adjust the

3. Adjust the

Tracking to eliminate vertical bands.

Sync setting to increase the image sharpness.

78 Solving Problems

The image is too light or dark, or colors are incorrect.

■ Press the Color Mode button or select a different Color Mode

option in the Image menu. See page 37 for details on the available
options.

■ If you’re displaying video, adjust the Color Adjustment and

Color Mode settings on the Image menu. You can also try

adjusting the
on the Image menu.

■ Try adjusting the Brightness and Contrast settings on the Image

menu.

■ Try adjusting the Power Consumption setting (see page 51).

■ Check your computer display settings to correct the color balance.

■ The projector’s lamp may need to be replaced. See page 62 for

instructions.

■ Make sure the correct input signal is selected in the Signal menu

(see page 50).

■ Make sure that all cables are connected to the proper ports and

connected securely.

Color Saturation, Color Temp, and Tint settings

note

Because of the different
technologies used, your
projected image may not
exactly match the colors on
your notebook or computer
monitor.

Nothing happens when you connect a computer to the USB
Type B port.

This port is for service only. You can’t use it for computer display.

There is no sound, or the sound is not loud enough.

■ Use the Volume buttons to adjust the volume (see page 41), or

adjust the

■ Make sure A/V Mute is not enabled. (Press the A/V Mute button

to disable it.)

■ If your presentation includes computer audio, make sure the

volume control on your computer is not turned all the way down
or muted. In Windows, you may be able to check this by clicking
the volume control in your Windows system tray (lower right

Volume setting in the Settings menu.

Solving Problems 79

corner of the screen). On a Mac, you may be able to adjust the
volume from your menu bar (top right corner of the screen) or via
the volume control function keys.

■ If you’re using a DVD player or other video source, make sure the

cables are connected correctly, as described on page 28.

Solving Problems With the Remote Control

The projector doesn’t respond to remote control commands.

■ Point the remote control towards the projector’s receiver. Make

sure you are within 19.7 feet (6 meters) of the projector and
within a 30° horizontal angle and a 15° vertical angle from the
projector’s front or back receiver.

■ The remote control’s batteries may not be installed correctly or

may be low on power. To change the batteries, see page 66.

■ Dim the room lights and turn off any fluorescent lights. Make

sure the projector is not in direct sunlight. Strong lighting,
especially fluorescent lights, may affect the projector’s infrared
receivers. Also, turn off any nearby equipment that emits infrared
energy, such as a radiant room heater.

80 Solving Problems

■ If any buttons are held for longer than 30 seconds, the remote

enters sleep mode. Release any button that is held to wake the
remote.

Where To Get Help

Internet Support

Visit Epson’s support website in the U.S. and Canada for solutions to
common problems. You can download utilities and documentation,
get FAQs and troubleshooting advice, or e-mail Epson with your
questions.

Speak to a Support Representative

To use the Epson PrivateLine Support service, call [phone]
and enter the PIN on the included Epson PrivateLine Support card.
This is the fastest way of speaking to a live representative, and it’s free.
This service is available 6
Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one
of these numbers:

■ U.S.: [phone], 6 AM to 6 PM, Pacific Time, Monday

through Friday.

■ Canada: [phone], 6 AM to 6 PM, Pacific Time, Monday

through Friday.

AM to 6 PM, Pacific Time, Monday through

Days and hours of support are subject to change without notice. Toll
or long distance charges may apply.

Solving Problems 81

Before you call for support, please have the following information
ready:

■ Product name (PowerLite Home Cinema 705HD)

■ Product serial number (located on the bottom of the projector)

■ Proof of purchase (such as a store receipt) and date of purchase

■ Computer or video configuration

■ Description of the problem

Purchase Supplies and Accessories

You can purchase screens and other accessories from an Epson
authorized reseller. To find the nearest reseller, call 800-GO-EPSON
(800-463-7766). Or you can purchase online at www.epsonstore.com
(U.S. sales) or www.epson.ca

(Canadian sales).

82 Solving Problems

Technical Specifications

General

Type of display Poly-silicon TFT active matrix

Resolution
(native format) 1280 × 800 pixels (WXGA)

Color reproduction 16.8 million colors

Light output
(brightness) Normal mode:

White light output 2500 lumens
(ISO 21118 standard)
Color light output 2500 lumens

ECO mode:

White light output 1960 lumens
(ISO 21118 standard)
Color light output 1960 lumens

A

Contrast ratio 3000:1 (Dynamic color mode, Normal

Power Consumption, with
setting turned on in the Image menu;
see page 47)

Image size
(16:10 image) 33 to 320 inches (83.8 to 812.8 cm)

Projection distance
(16:10 image) 36 to 429 inches (91 to 1089 cm)

Projection methods Front, rear, upside-down (ceiling

mount)

Internal sound system 1 W (monaural)

Optical aspect ratio 16:10 (horizontal:vertical)

Zoom ratio Manual 1:1.2

Auto Iris

83

Noise level 29 dB in ECO mode

37 dB in Normal mode

note

Lamp life will vary
depending upon mode
selected, environmental
conditions, and usage.
Brightness decreases over
time.

Turn off this product when
not in use to prolong the life
of the projector.

Keystone correction Manual:

±30° vertical

Auto Keystone: 0 to 11° vertical

Projection Lamp

Type UHE (Ultra High Efficiency)

Power consumption 200 W

Lamp life Approx. 4000 hours (Normal mode)

Approx. 5000 hours (ECO mode)

Part number V13H010L54

Remote Control

Range 19.7 feet (6 meters)

Batteries (2) Alkaline AA

Dimensions

Height 3.0 inches (77 mm), not including feet

Width 11.6 inches (295 mm)

84 Technical Specifications

Depth 9.0 inches (228 mm)

Weight 5.1 lb (2.3 kg)

Electrical

Rated frequency 50/60 Hz AC

Power supply 100 to 240 VAC

Power consumption 228 W in ECO mode

280 W in Normal mode

0.3 W Standby (Communication Off)

2.6 W Standby (Communication On)

±10%, 2.8A to 1.2 A

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (–10 to 60 °C)

Humidity
(non-condensing) Operating: 20 to 80% RH

Operating altitude 0 to 7500 ft (0 to 2286 m);

over 4921 ft (1500 m), enable

Altitude

mode in the Extended menu

High

(see page 52)

Safety and Approvals

United States FCC 47CFR Part 15B Class B (DoC)

UL60950-1 First Edition (cTUVus
Mark)

Canada ICES-003 Class B

CSA C22.2 No. 60950-1

™

Pixelworks

DNX™ ICs are used in this projector.

Technical Specifications 85

Compatible Video Formats

These projectors support the high definition video and computer
display formats listed here.

To project images output from a computer, the computer’s video card
must be set at a refresh rate (vertical frequency) that’s compatible with
the projector. Some images are automatically resized using Epson’s

™

SizeWize
frequencies of some computers may not allow images to display
correctly; see your computer’s documentation for details.

Computer, component video, composite video, and S-Video

Mode

VGA EGA 85 640 × 350

VGA—60
VESA—72
VESA—75
VESA—85

SVGA—56
SVGA—60
SVGA—72
SVGA—75
SVGA—85

XGA—60
XGA—70
XGA—75
XGA—85

SXGA1—70
SXGA1—75
SXGA1—85
SXGA1—100

WXGA—60
WXGA—75
WXGA—85

SXGA2—60
SXGA2—75
SXGA2—85

SXGA3—60
SXGA3—75
SXGA3—85

technology to display in the projector’s native format. The

Refresh
rate (Hz) Resolution

60
72
75
85

56
60
72
75
85

60
70
75
85

70
75
85
100

60
75
85

60
75
85

60
75
85

640 × 480 (640 × 360*)
640 × 480 (640 × 360*)
640 × 480 (640 × 360*)
640 × 480 (640 × 360*)

800 × 600 (800 × 450*)
800 × 600 (800 × 450*)
800 × 600 (800 × 450*)
800 × 600 (800 × 450*)
800 × 600 (800 × 450*)

1024 × 768 (1024 × 576*)
1024 × 768 (1024 × 576*)
1024 × 768 (1024 × 576*)
1024 × 768 (1024 × 576*)

1152 × 864
1152 × 864
1152 × 864
1152 × 864

1280 × 800
1280 × 800
1280 × 800

1280 × 960
1280 × 960
1280 × 960

1280 × 1024
1280 × 1024
1280 × 1024

86 Technical Specifications

Computer, component video, composite video, and S-Video

Refresh

Mode

WXGA1—60
WXGA2—60

WSXGA—60
WSXGA—75
WSXGA—85

SXGA+60
SXGA+75
SXGA+85

UXGA—60 60 1600 ×

WSXGA+—60** 60 1680

iMAC VGA
iMAC SVGA
iMAC XGA
MAC13
MAC16
MAC19
MAC19-60
MAC21

NTSC
NTSC 4:43
PAL
N-PAL
M-PAL
PAL—60
SECAM

SDTV (480i)
SDTV (576i)
SDTV (480p)
SDTV (576p)
HDTV (720p)
HDTV (1080i)

rate (Hz) Resolution

60
60

60
75
85

60
75
85

117
95
75
67
75
75
60
75

60
60
50
50
60
60
50

60
50
60
50
60/50
60/50

1280 × 768
1360 × 768

1440 × 900
1440 × 900
1440 × 900

1400 × 1050
1400 × 1050
1400 ×1050

1200

× 1050

640 × 480 (640 × 360*)
800 × 600 (800 × 450*)
1024 × 768 (1024 × 576*)
640 ×

480

832 × 624
1024 × 768
1024 × 768
1152 × 870

720 × 480 (720 × 360*)
720 × 480 (720 × 360*)
720 × 576 (720 × 432*)
720 × 576 (720 × 432*)
720 × 576 (720 × 432*)
720 × 576 (720 × 432*)
720 × 576 (720 × 432*)

720 × 480 (720 × 360*)
720 × 576 (720 × 432*)
720 × 480 (720 × 360*)
720 × 576 (720 × 432*)
1280 × 720
1920 × 1080

* Letterbox signal

** Available only when you select Wide as the Resolution setting

Technical Specifications 87

HDMI signals

Refresh

Mode

VGA 60 640 × 480 (640 × 360*)

SVGA 60 800 × 600

XGA 60 1024 × 768

SXGA
SXGA

SXGA+ 60 1400 × 1050

UXGA 60 1600 ×

SDTV (480i)
SDTV (576i)
SDTV (480p)
SDTV (576p)
HDTV (720p)
HDTV (1080i)

* Letterbox signal

rate (Hz) Resolution

60
60

60
50
60
50
60/50
60/50

1280 × 960
1280 × 1024

1200

720 × 480 (720 × 360*)
720 × 576 (720 × 432*)
720 × 480 (720 × 360*)
720 × 576 (720 × 432*)
1280 × 720
1920 × 1080

88 Technical Specifications

Notices

This appendix includes safety instructions and other important information

about your projector.

Important Safety Instructions

Follow these safety instructions when setting up and using the projector:

■ Do not look into the lens when the projector is on. The bright light can

damage your eyes.

■ Do not place the projector on an unstable cart, stand, or table.

■ Do not operate the projector on its side, or while tilted to one side.

Do not tilt the projector forward or back at a greater angle than that
specified for keystone correction (see page 84).

■ If the projector is mounted on a ceiling, it should be installed by

qualified technicians using mounting hardware designed for use with
this projector.

■ If you use a ceiling mount and apply adhesives to the mount to prevent

the screws from loosening, or if you use lubricants or oils on the
projector, the projector case may crack and the projector may fall from
its ceiling mount. This could cause serious injury to anyone under the
mount and could damage the projector. When installing or adjusting a
ceiling mount, do not use adhesives to prevent the screws from loosening
and do not use oils or lubricants.

■ Do not stand on the projector or place heavy objects on it.

■ Do not use the projector where it may be exposed to rain, water, or

excessive humidity.

■ Unplug the projector from the wall outlet before cleaning. Use a dry

cloth (or, for stubborn dirt or stains, a moist cloth that has been wrung
dry) for cleaning. Do not use liquid or aerosol cleaners.

■ Never spill liquid of any kind into the projector.

■ Do not use the projector where it may be exposed to excessive dust or

smoke.

B

89

■ Never push objects of any kind through the cabinet slots.

■ Do not use or store the projector or remote control in a hot location,

such as near a heater, in direct sunlight, or in a closed vehicle.

■ Do not block the slots and openings in the projector case. They provide

ventilation and prevent the projector from overheating. Do not operate
the projector on a sofa, rug, or other soft surface, or set it on top of loose
papers, which could block vents underneath your projector. If you are
setting up the projector near a wall, leave at least 7.9 inches (20 cm) of
space between the wall and the air exhaust vent.

■ Do not operate the projector in a closed-in cabinet unless proper

ventilation is provided.

■ If you are using two or more projectors side-by-side, leave at least 2 feet

(60 cm) of space between the projectors to allow for proper ventilation.

■ You may need to clean the air filter and vent. A clogged air filter or vent

can block ventilation needed to cool the projector.

■ Do not store the projector outdoors for an extended length of time.

■ Do not use the projector outside the required temperature range of

41 to 95 °F (5 to 35 °C). Doing so may cause an unstable display and
could lead to projector damage.

■ Do not store the projector outside the required temperature range of

14 to 140 °F (–10 to 60 °C) or in direct sunlight for long periods of
time. Doing so may cause damage to the case.

■ Do not touch the plug during an electrical storm. Otherwise, you may

receive an electric shock.

■ Unplug the projector when it will not be used for extended periods.

■ Unplug the projector from the wall outlet and refer servicing to qualified

service personnel under the following conditions: If it does not operate
normally when you follow the operating instructions, or exhibits a
distinct change in performance; If smoke, strange odors, or strange
noises come from the projector; If the power cord or plug is damaged or
frayed; If liquid or foreign objects get inside the projector, or if it has
been exposed to rain or water; If it has been dropped or the housing has
been damaged.

■ Except as specifically explained in this User’s Guide, do not attempt to

service this product yourself. Refer all servicing to qualified personnel.
Opening or removing covers may expose you to dangerous voltages and
other hazards.

■ Never open any covers on the projector except as specifically explained

in this User’s Guide. Never attempt to disassemble or modify the
projector. Refer all repairs to qualified service personnel.

90 Notices

■ Use the type of power source indicated on the projector. Use of a

different power source may result in fire or electric shock. If you are not
sure of the power available, consult your dealer or power company.

■ If you use the projector in a country other than where you purchased it,

use the correct power cord for that country.

■ Do not overload wall outlets, extension cords, or power strips. Do not

insert the plug into a dusty outlet. This can cause fire or electric shock.

■ Take the following precautions when handling the plug: Do not hold

the plug with wet hands. Do not insert the plug into an outlet with dust
present. Insert the plug firmly into the outlet. Do not pull the power
cord when disconnecting the plug; always be sure to hold the plug when
disconnecting it. Failure to comply with these precautions could result
in fire or electric shock.

■ Do not place the projector where the cord can be walked on.

■ The lamp(s) in this product contain mercury. Please consult your

state and local regulations regarding disposal or recycling. Do not put in
the trash.

■ Do not place anything that can become warped or damaged by heat near

the exhaust vents. Do not bring your hands or face close to the vents
while projection is in progress.

■ Before you move the projector, make sure its power is turned off, the

plug is disconnected from the outlet, and all cables are disconnected.

■ Never try to remove the lamp immediately after use because it will be

extremely hot. Before removing the lamp, turn off the power and wait at
least an hour to allow the lamp to cool completely.

■ Do not place the source of an open flame, such as a lit candle, on or near

the projector.

■ Do not modify the power cord. Do not place heavy objects on top of the

power cord or bend, twist, or pull it excessively. Keep the power cord
away from hot electrical appliances.

■ If the lamp breaks, ventilate the room to prevent gases contained in the

lamp from being inhaled or coming in contact with the eyes or mouth.

■ If the projector is mounted overhead and the lamp breaks, be careful to

prevent pieces of glass from falling into your eyes when you open the
lamp cover.

WARNING: The cords included with this product contain chemicals,
including lead, known to the State of California to cause birth defects or
other reproductive harm. Wash hands after handling. (This notice is
provided in accordance with Proposition 65 in Cal. Health & Safety Code

§25249.5 and following.)

Notices 91

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio and television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

WARNING

92 Notices

The connection of a non-shielded equipment interface cable to this
equipment will invalidate the FCC Certification of this device and may cause
interference levels which exceed the limits established by the FCC for this
equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than
one interface connector, do not leave cables connected to unused interfaces.
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement
sur le materiel brouilleur du Canada.

Index

A

A/V Mute

button, 40
display settings, 52, 56

A/V Mute slide

closing, 40, 53, 67

opening, 30, 40, 74
Accessories, 15 to 16
Air filter

cleaning, 60 to 61

ordering, 15

replacing, 61 to 62
Altitude, 53, 72, 73, 85
Anti-theft device, 15, 19, 57
Aspect ratio, 38, 50, 83
Audio

problems, troubleshooting, 79 to 80

turning off (using A/V Mute), 40
Auto Iris setting, 48
Auto Keystone setting, 36, 51
Auto Setup setting, 49

B

Background screen settings, 52, 56
Bands, vertical, 78
Batteries, replacing, 66 to 67
Blurry image, 77
Brightness, 83
Brightness setting, 48

C

Cables

component-to-VGA, 16, 22, 24
composite, 22, 25
HDMI, 23
illustrations, 18
ordering, 15 to 16
security, 57
S-Video, 16, 25
USB, 28 to 29

VGA, 26, 27
Capturing image, 55
Carrying cases, 16, 18, 67
Ceiling mount, 15, 19 to 20
Cleaning

air filter, 60 to 61

lens, 60

projector case, 60
Color

correcting, 37, 47 to 48

problems, 79

saturation, 48

settings, 48

temperature, 48
Color Mode, 37, 48
Component-to-VGA video cable, 16, 22, 24
Composite video cable, 22, 25
Computer

connecting to, 27

selecting source, 34
Connecting projector

to computer, 27

to digital camera, 28 to 29

to USB device, 28 to 29

to video equipment, 22 to 26
Contrast ratio, 83
Contrast setting, 48
Control Panel Lock setting, 51, 56 to 57, 73
Custom screen, see User’s Logo

93

D

Default settings, restoring, 47
Digital camera, connecting, 28 to 29
Dimensions, projector, 14, 84
Direct Power On, 31
Distance from projector to screen, 20 to 22, 83
Documentation, 10
DVD player, connecting, 22 to 26
Dynamic color mode, 37

E

Electrical specifications, 84
Environmental specifications, 85
Epson

accessories, 15 to 16
PrivateLine Support, 10
technical support, 10, 81 to 82

warranty, 15
Error status lights, 72
Extended menu, 52 to 53

F

FCC compliance statement, 92
Feet, projector, 35
Filter, see Air filter
Fn key, notebook, 75
Focusing image, 36
Freeze button, 41
Full aspect setting, 38

G

Game color mode, 37

H

HDMI cable, 23
HDMI Video Range setting, 50
HDTV images, video formats, 88
Height of image, adjusting, 35
Help system, using, 70
Help, Epson, 10, 81 to 82
High Altitude mode, 53, 72, 85

I


adjusting, 34 to 38, 47 to 48
blurry, 77
capturing and saving in projector, 55
correcting shape, 36, 51, 76
fitting on screen, 49, 76
height, adjusting, 35
presentation cameras, 16
problems with, 74 to 79
raising, 35
selecting source, 34
shape, correcting, 36
size and projection distance, 20 to 22, 83
turning off (using A/V Mute), 40
turning off temporarily, 40 to 41

zooming, 36
Image menu, 47 to 48
Info menu, 65 to 66
Input Signal setting, 24, 26, 27, 50
Input signal, selecting, 34
Installing projector, 19 to 20
Instant Off, 32

K

Kensington anti-theft device, 15, 19, 57
Keystone correction, 36, 51, 76, 84

L

Lamp

number of hours used, 65 to 66

ordering, 15

replacing, 62 to 65

specifications, 84

status light, 62, 71 to 73
Lamp timer, resetting, 65
Language setting, 53
Laptop computer

connecting to, 27

display problems, 74 to 75

selecting source, 34
Lens Cover Timer setting, 41, 53
Lens, cleaning, 60

94 Index

Light output specifications, 83
Lights, status, 71 to 73
Living Room color mode, 37
Locking

buttons, 56 to 57
projector, 57

Logo, saving on projector, 54 to 56

M

Macintosh display problems, 75
Manuals, 10
Menus

changing settings, 46
default settings, restoring, 47
Extended, 52 to 53
Image, 47 to 48
Info, 65 to 66
Reset, 47, 65
Settings, 51
Signal, 49 to 50
User’s Logo, 55

N

No Signal message, 74 to 75
Noise level, 84
Normal aspect setting, 38
Not Supported message, 75

O

Optical aspect ratio, 38, 83
Options for projector, 15 to 16

P

Picture source, selecting, 34
Picture, see Image
Position setting, 50, 76
Positioning

image, 35
projector, 19 to 20

Power

button, 31
specifications, 84
status light, 31, 71 to 73

Power Consumption setting, 51, 62, 66
PowerPoint, 42
PrivateLine Support, 10
Problems

color, 79
image, 74 to 79
no signal, 74 to 75
remote control, 80
sound, 79 to 80
using on-screen help, 70

Progressive format, 50
Projection lamp, see Lamp
Projection setting, 53
Projector

cleaning, 60
disabling buttons, 56 to 57
distance from screen, 20 to 22, 83
installing, 19 to 20
lamp specifications, 84
options, 15 to 16
parts, 11
positioning, 19 to 20
resolution, 83
security features, 54 to 57
specifications, 83 to 85
transporting, 67
troubleshooting, 69 to 82
turning off, 32
turning on, 30 to 31
unpacking, 18
viewing information about, 65 to 66

R

Raising image, 35
Rear-screen projection, 19 to 20, 53
Registration, 15

Index 95

Remote control

A/V Mute button, 40
batteries used, 84
batteries, replacing, 66 to 67
correcting color, 37, 47 to 48
Freeze button, 41
problems, 80
range, 84
specifications, 84
troubleshooting, 80
USB button, 29, 34

using, 13, 40
Replacing lamp, 62 to 65
Resetting lamp timer, 65
Resetting menu options, 47
Resize image, 38
Resolution, 38, 75, 83
Resolution setting, 49

S

Safety

instructions, 89 to 91

specifications, 85
Saturation setting, 48
Screen

distance from projector, 20 to 22, 83

ordering, 15 to 16

startup screen, creating, 54 to 55
Screen image, see Image
Security

cables, 57

Control Panel Lock, 56 to 57

identifying logo, 55 to 56

Kensington lock, 15, 57
Settings menu, 51
Sharpness setting, 48
Signal menu, 49 to 50
Sleep mode, 32, 53, 71, 74
Slideshow

options, 44

running, 42 to 44
Sound, troubleshooting, 79
Source, selecting, 34
Speaker, specifications, 83

Specifications

brightness, 83
dimensions, 84
electrical, 84
environmental, 85
general, 83
lamp, 84
remote control, 84
resolution, 83
safety, 85
speaker, 83
video formats, 86 to 88

Startup screen

creating, 54 to 56
settings, 56
user’s logo, see User’s Logo

Status lights, 71 to 73
Support, see Technical support
S-Video cable, 16, 25
Switching picture source, 34
Sync, adjusting, 50, 78

T

Technical support, 10, 81 to 82
Temperature

requirements, 85

status light, 71 to 73
Temperature, color, 48
Theatre color mode, 37
Tint setting, 48
Tracking, adjusting, 50, 78
Transporting projector, 67
Troubleshooting

blank screen, 74 to 75

cut-off image, 76

distorted image, 36

image and sound problems, 74 to 80

no signal, 74 to 75

projector problems, 69 to 82

remote control problems, 80

tapered image, 36
Turning off picture (using A/V Mute), 40
Turning off projector, 32

96 Index

U

Unpacking projector, 18
USB

button, 29, 34
cable, 28 to 29
connecting external device, 28 to 29

User’s Logo

creating, 55
display settings, 56

V

VCR, connecting, 22 to 26
VGA video cable, 26, 27
Video

cables, 15 to 16, 18, 22
connecting video equipment, 22 to 26
formats, supported, 86 to 88

selecting source, 34
Video Signal setting, 50
Volume, controlling, 51

W

Warning lights, 71 to 73
Warranty, 15
Windows display problems, 75

Z

Zoom aspect setting, 38
Zoom ratio, 83
Zoom ring, 36
Zooming image, 36

Index 97
