Epson PowerLite D6150, PowerLite D6155W, PowerLite D6250 User Manual

PowerLite

D6150/D6155W/D6250

User's Guide

Introduction to Your Projector ................................................................................................................... 9

Setting Up the Projector ........................................................................................................................... 21

Projector Features................................................................................................................................ 9

Product Box Contents.................................................................................................................... 10

Additional Components ................................................................................................................ 12

Optional Equipment and Replacement Parts................................................................................. 12

Warranty and Registration Information.......................................................................................... 13

Notations Used in the Documentation................................................................................................ 14

Where to Go for Additional Information .............................................................................................. 14

Projector Parts Locations................................................................................................................... 14

Projector Parts - Front/Top............................................................................................................ 15

Projector Parts - Rear.................................................................................................................... 16

Projector Parts - Base.................................................................................................................... 17

Projector Parts - Control Panel...................................................................................................... 18

Projector Parts - Remote Control................................................................................................... 19

Projector Placement........................................................................................................................... 21

Projector Setup and Installation Options ....................................................................................... 21

Projection Distance........................................................................................................................ 23

Projector Connections........................................................................................................................ 29

Connecting to Computer Sources.................................................................................................. 30

Connecting to a Computer for VGA Video ................................................................................ 30

Connecting to a Computer for HDMI Video and Audio.............................................................. 31

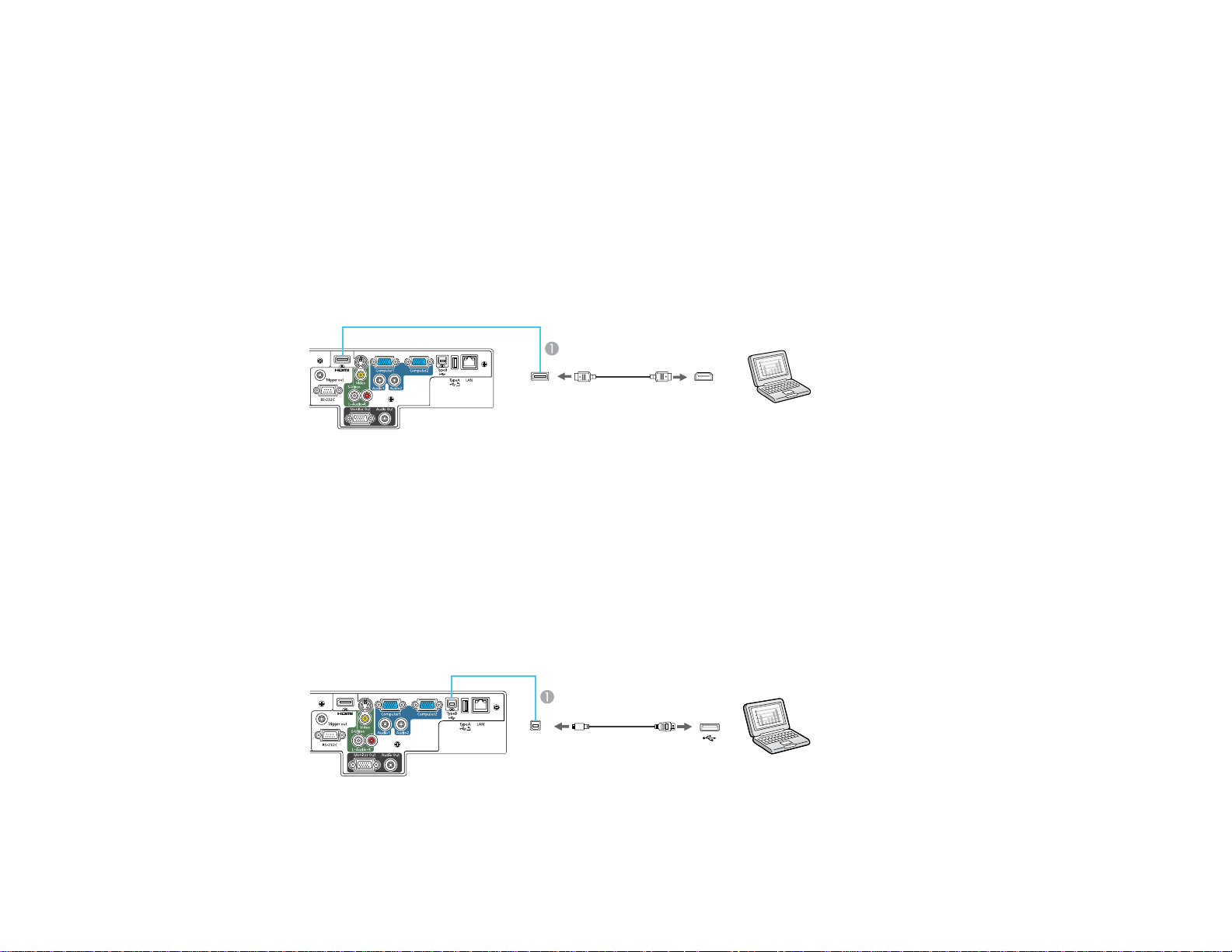

Connecting to a Computer for USB Mouse Control................................................................... 31

Connecting to a Computer for Sound........................................................................................ 32

Connecting to Video Sources........................................................................................................ 32

Connecting to an HDMI Video Source ...................................................................................... 33

Connecting to a Component-to-VGA Video Source.................................................................. 33

Connecting to a Composite Video Source ................................................................................ 34

Connecting to an S-Video Video Source................................................................................... 34

Connecting to a Video Source for Sound.................................................................................. 35

Connecting to an External Computer Monitor................................................................................ 36

Connecting to External Speakers.................................................................................................. 36

Connecting to External USB Devices............................................................................................ 37

USB Device Projection.............................................................................................................. 37

Connecting a USB Device or Camera to the Projector.............................................................. 38

Selecting the Connected USB Source...................................................................................... 38

Disconnecting a USB Device or Camera From the Projector.................................................... 39

Connecting to a Document Camera .............................................................................................. 39

Attaching and Removing the Cable Clips........................................................................................... 40

Attaching and Removing the Cable Cover ......................................................................................... 40

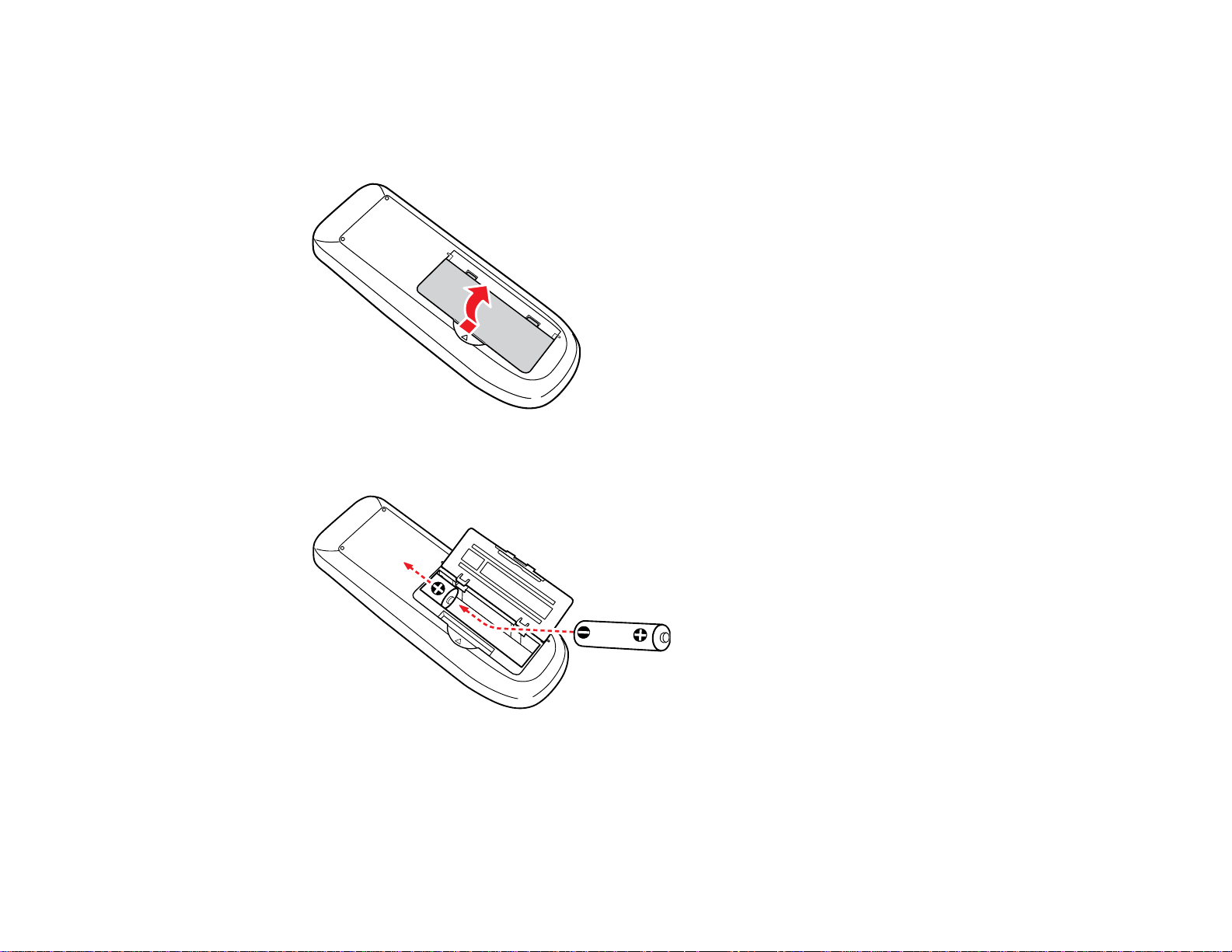

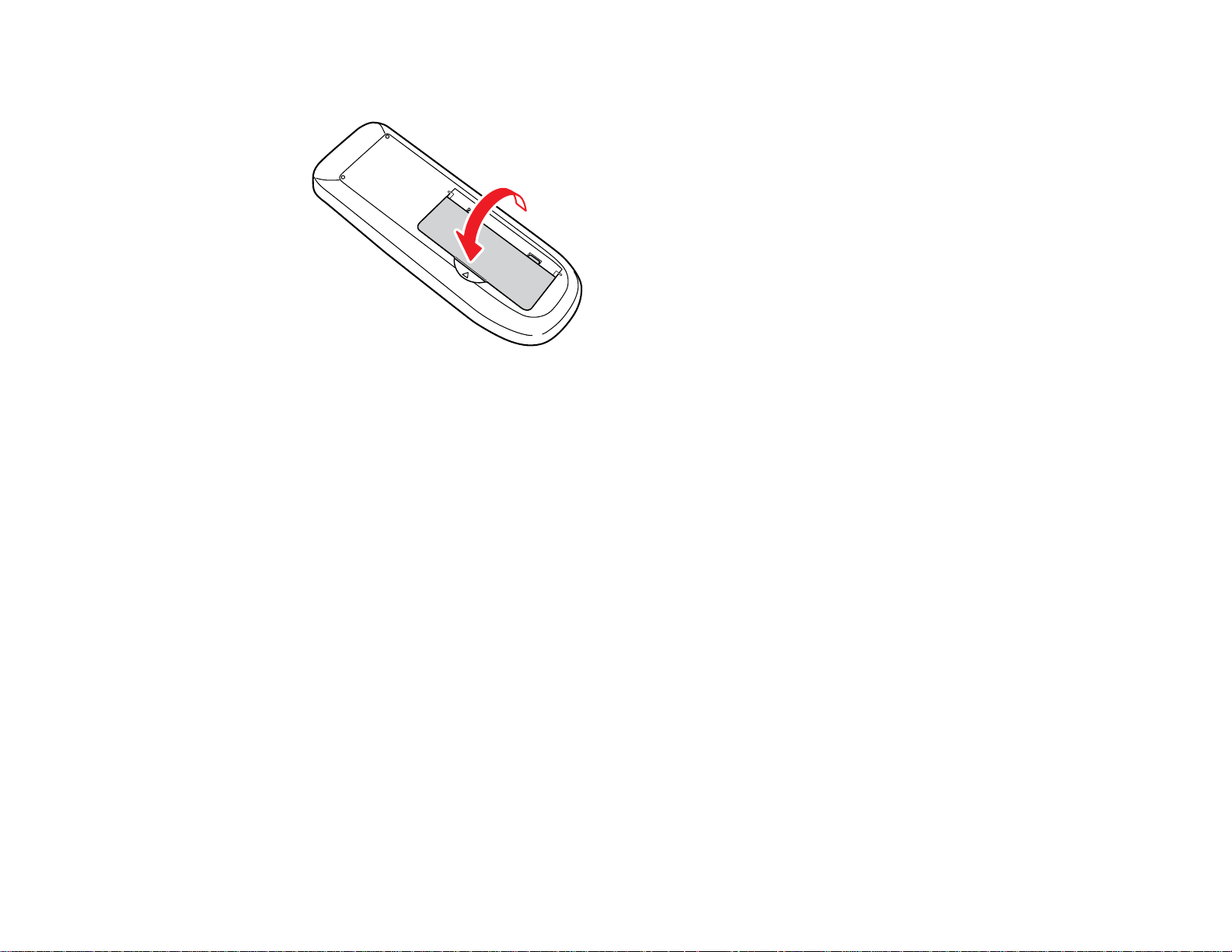

Installing Batteries in the Remote Control .......................................................................................... 42

Using the Projector on a Network............................................................................................................ 44

Wired Network Projection................................................................................................................... 44

Connecting to a Wired Network..................................................................................................... 44

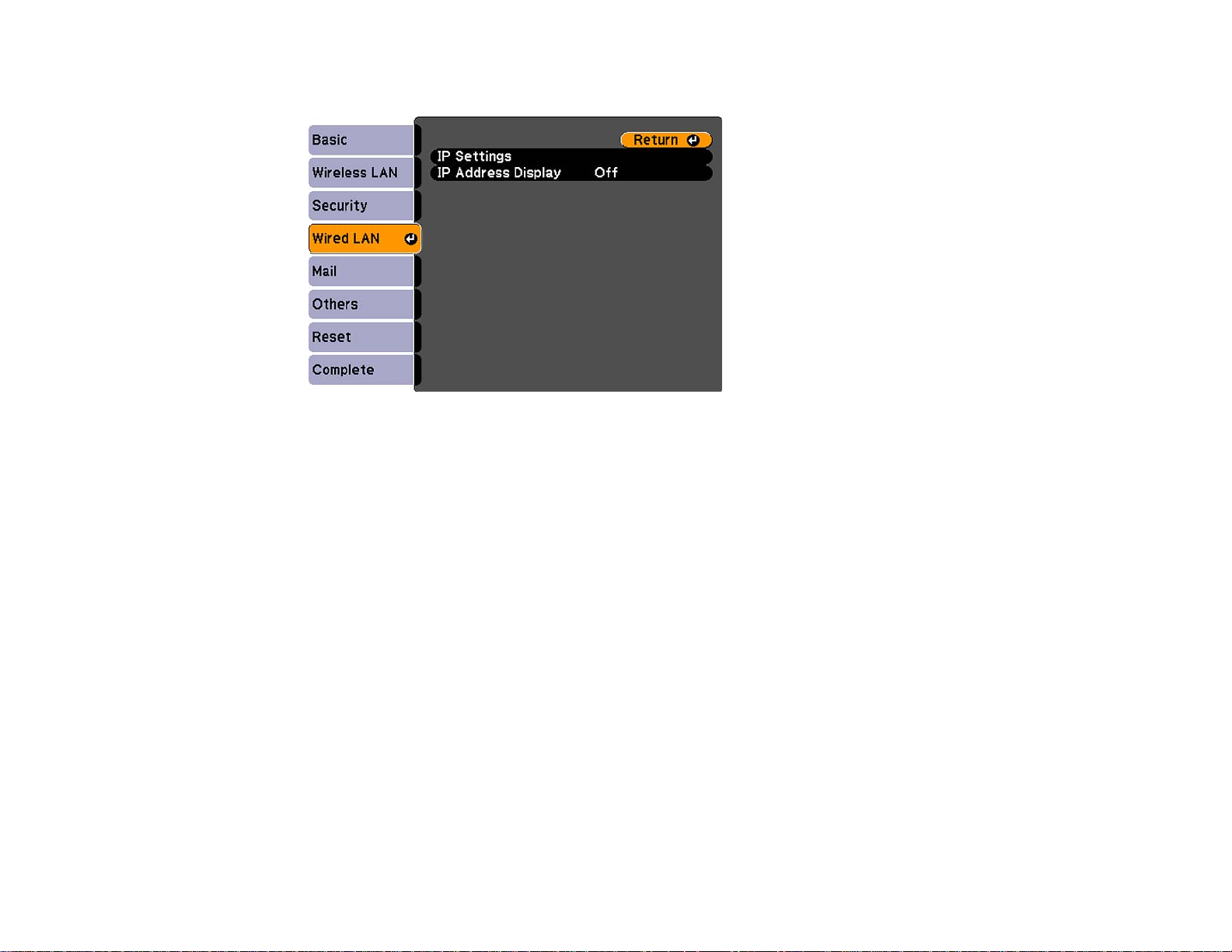

Selecting Wired Network Settings ................................................................................................. 45

Wireless Network Projection .............................................................................................................. 47

Installing the Wireless LAN Module............................................................................................... 48

Using Quick Wireless Connection (Windows Only)....................................................................... 50

Selecting Wireless Network Settings Manually.............................................................................. 51

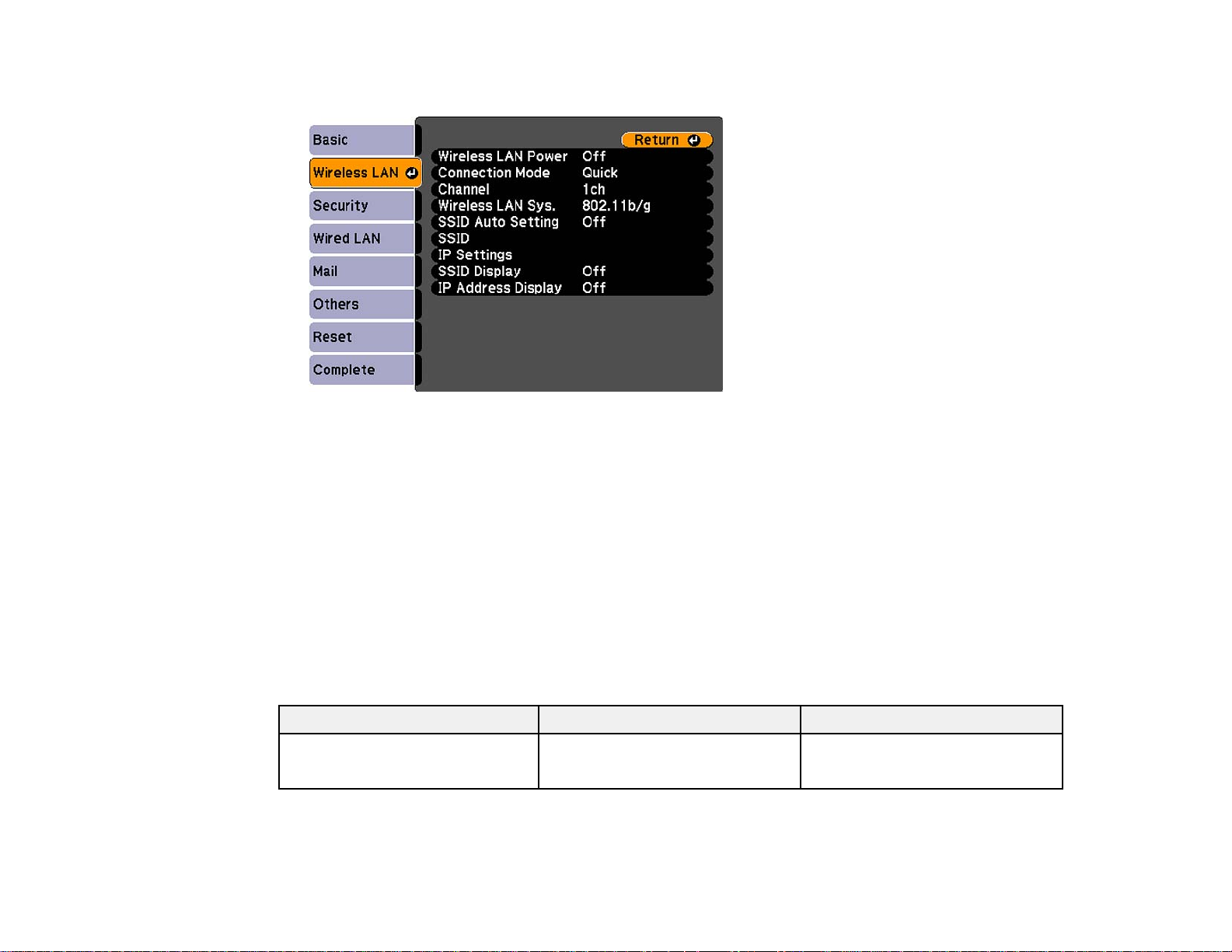

Wireless LAN Menu Settings .................................................................................................... 53

Selecting Wireless Network Settings in Windows.......................................................................... 55

Selecting Wireless Network Settings in Mac OS ........................................................................... 55

Setting Up Wireless Network Security........................................................................................... 55

Wireless Security Menu Settings .............................................................................................. 56

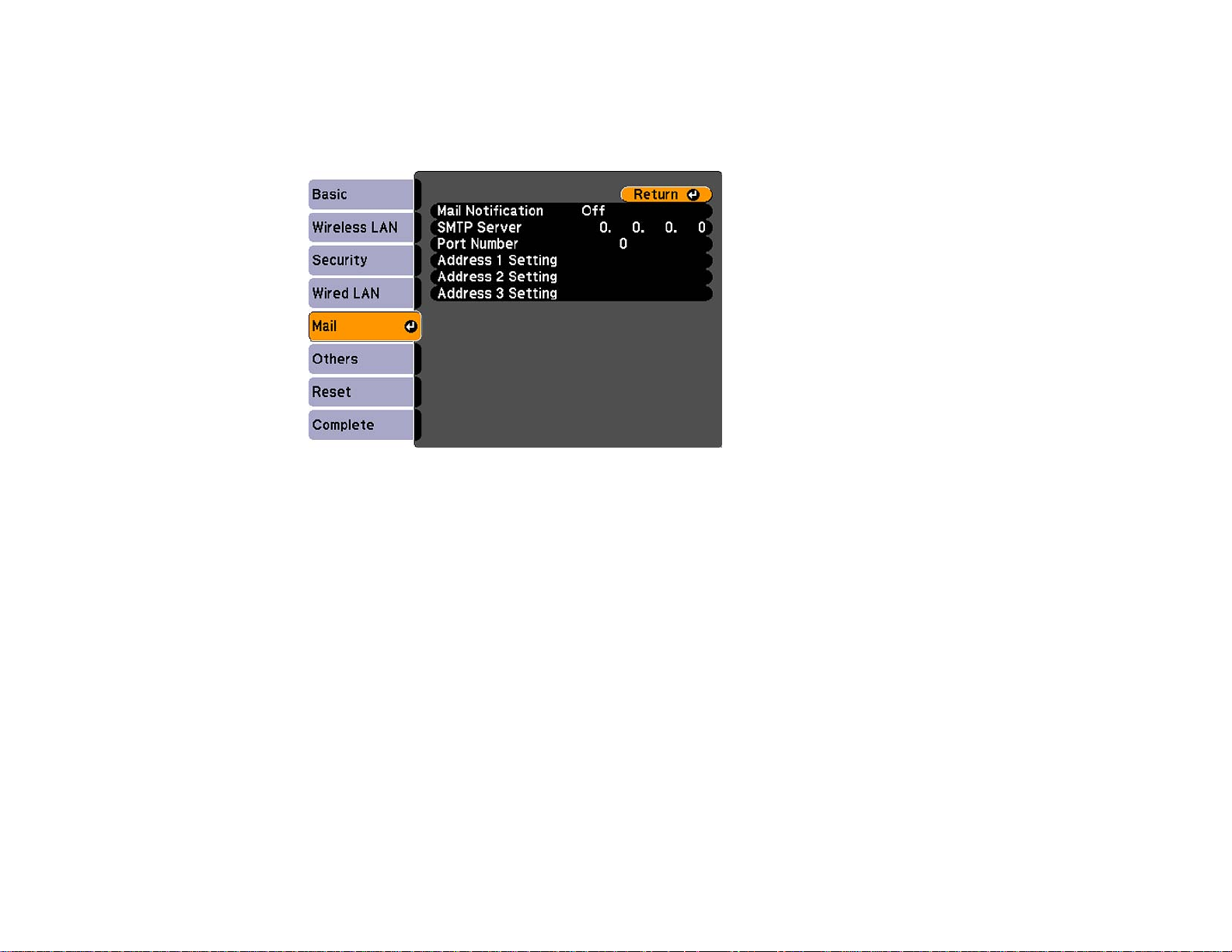

Setting Up Projector Network E-Mail Alerts........................................................................................ 57

Network Projector E-mail Alert Messages..................................................................................... 59

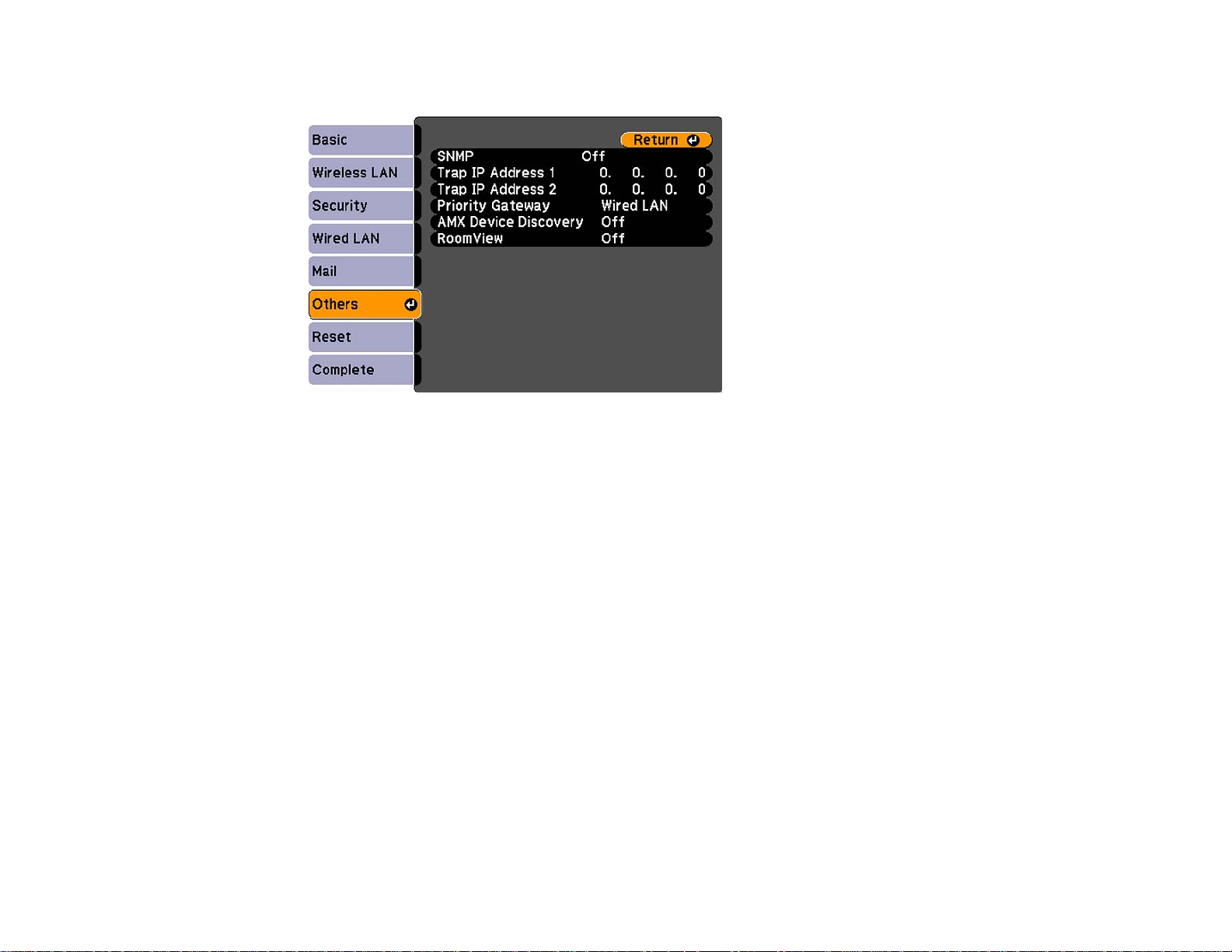

Setting Up Monitoring Using SNMP ................................................................................................... 59

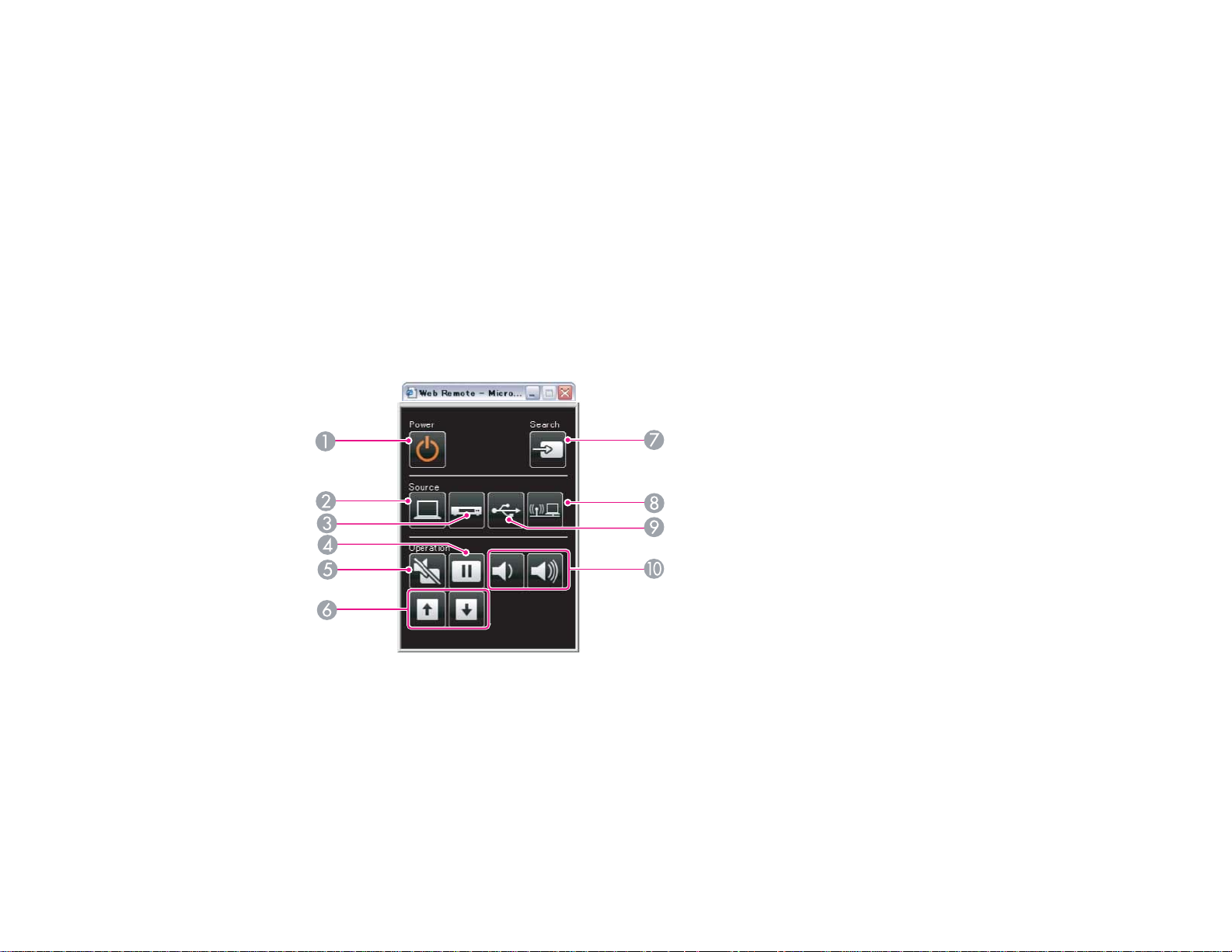

Controlling a Networked Projector Using a Web Browser.................................................................. 60

Crestron RoomView Support.............................................................................................................. 62

Setting Up Crestron RoomView Support....................................................................................... 62

Controlling a Networked Projector Using Crestron RoomView...................................................... 63

Using Basic Projector Features ............................................................................................................... 65

Turning On the Projector.................................................................................................................... 65

Turning Off the Projector.................................................................................................................... 67

Selecting the Language for the Projector Menus................................................................................ 68

Adjusting the Image Height................................................................................................................ 69

Image Shape...................................................................................................................................... 70

Correcting Image Shape With Quick Corner.................................................................................. 70

Correcting Image Shape With the Keystone Buttons..................................................................... 72

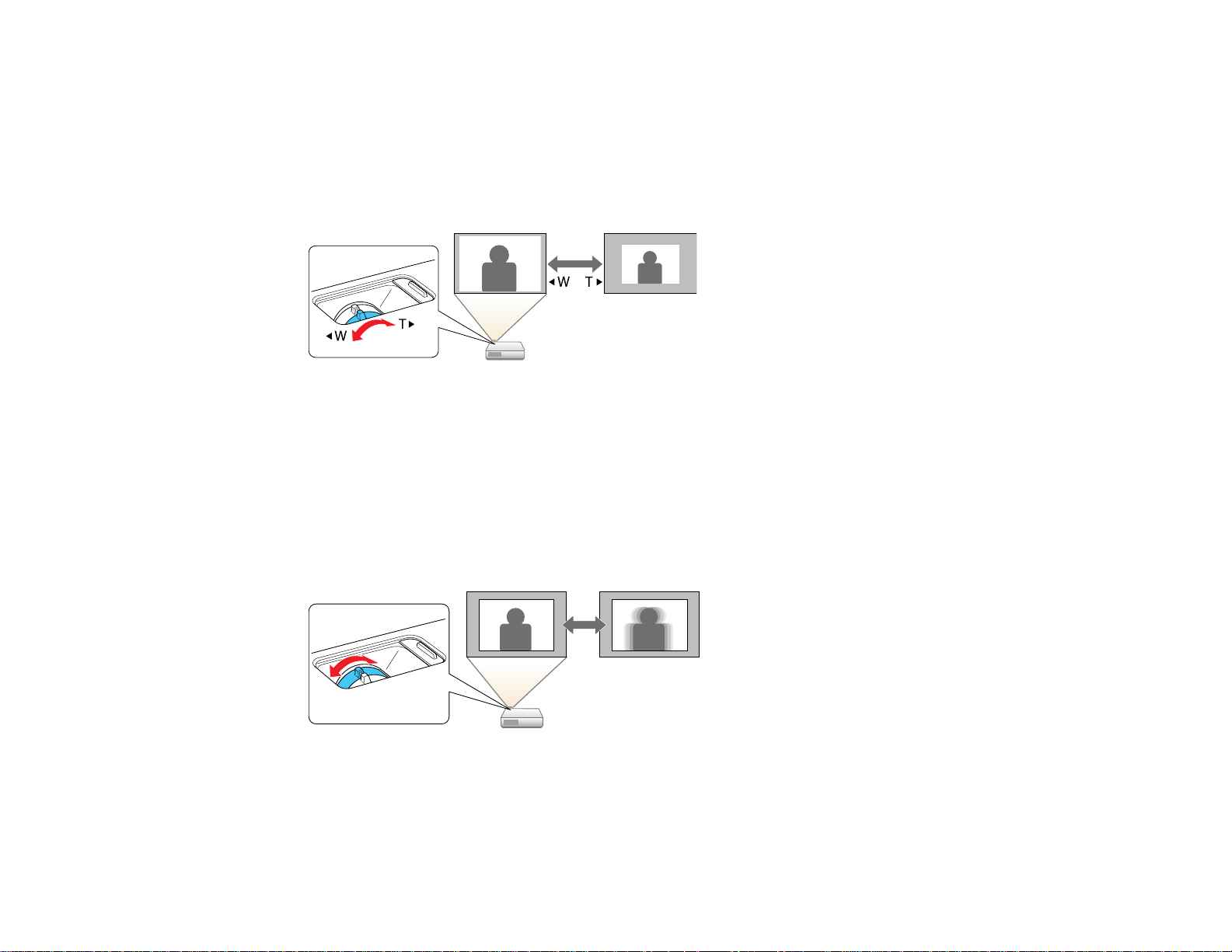

Resizing the Image With the Zoom Ring............................................................................................ 74

Focusing the Image Using the Focus Ring......................................................................................... 74

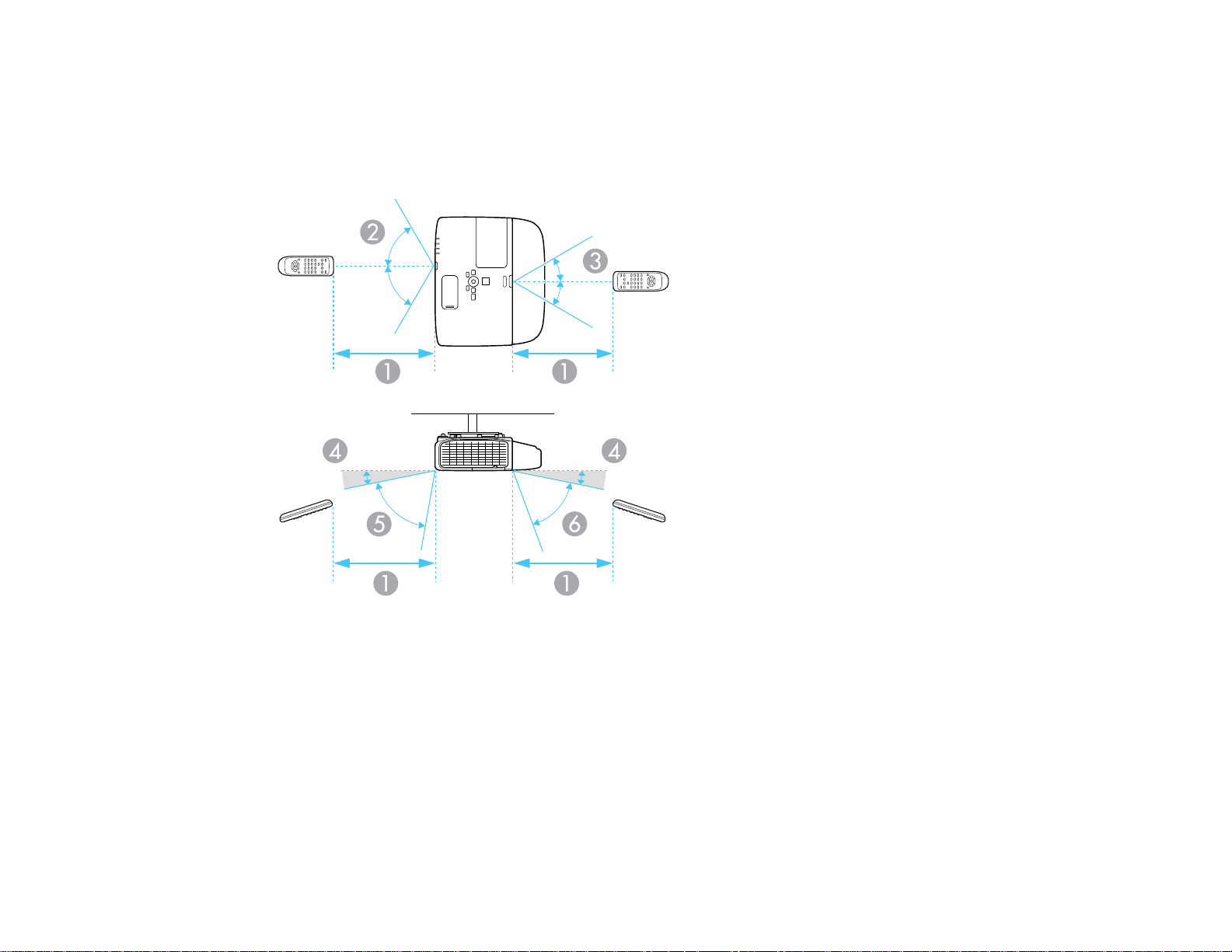

Remote Control Operation ................................................................................................................. 75

Using the Remote Control as a Wireless Mouse ........................................................................... 76

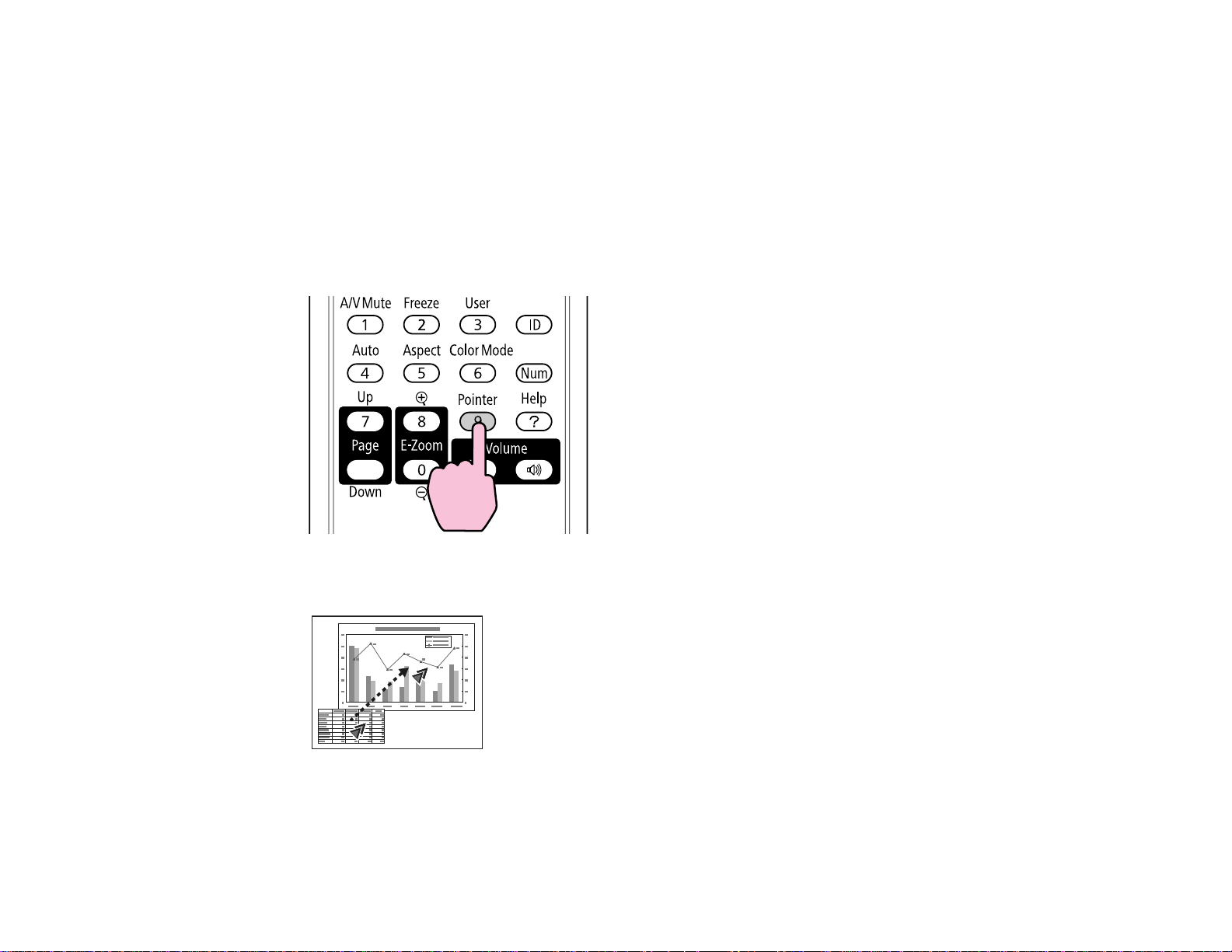

Using the Remote Control as a Presentation Pointer .................................................................... 77

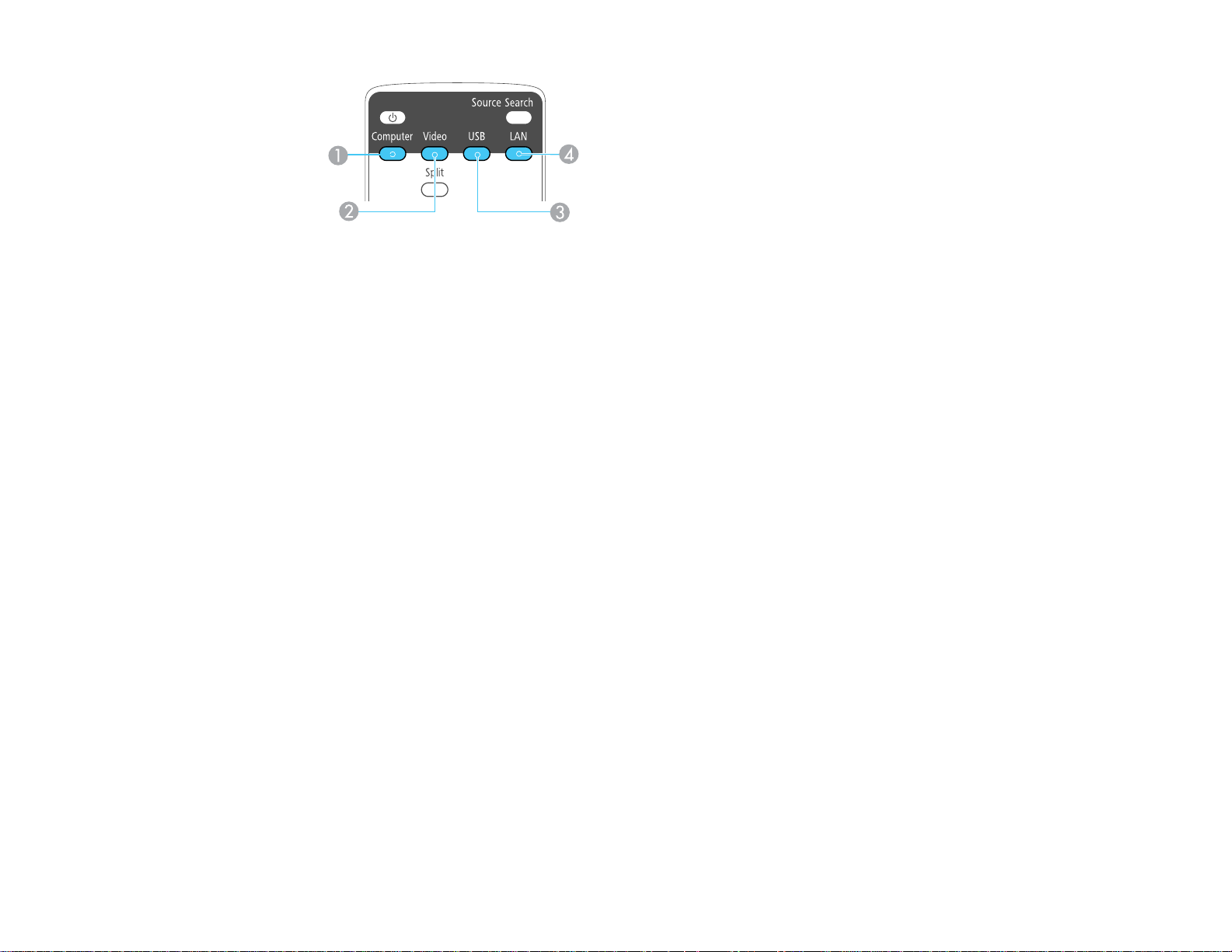

Selecting an Image Source................................................................................................................ 78

Projection Modes ............................................................................................................................... 79

Changing the Projection Mode Using the Remote Control ............................................................ 80

Changing the Projection Mode Using the Menus........................................................................... 80

Image Aspect Ratio............................................................................................................................ 81

Changing the Image Aspect Ratio................................................................................................. 82

Available Image Aspect Ratios...................................................................................................... 82

Color Mode......................................................................................................................................... 83

Changing the Color Mode.............................................................................................................. 84

Available Color Modes................................................................................................................... 84

Turning On Auto Iris....................................................................................................................... 85

Controlling the Volume With the Volume Buttons............................................................................... 86

Projecting a Slide Show ..................................................................................................................... 87

Slideshow Presentations............................................................................................................... 87

Supported Slideshow File Types................................................................................................... 87

Starting a Slide Show or Presentation........................................................................................... 88

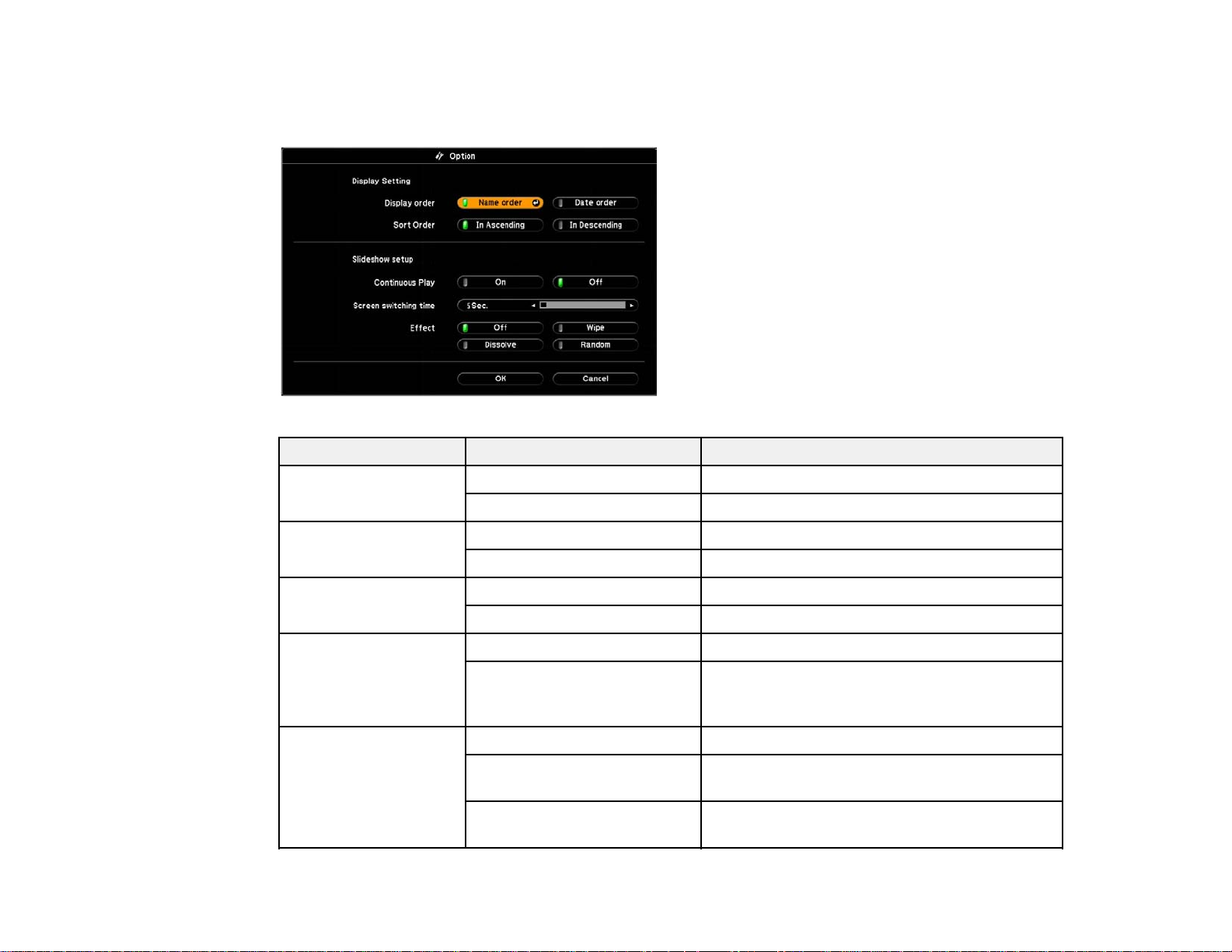

Slideshow Display Options ....................................................................................................... 90

Adjusting Projector Features................................................................................................................... 92

Shutting Off the Picture and Sound Temporarily................................................................................ 92

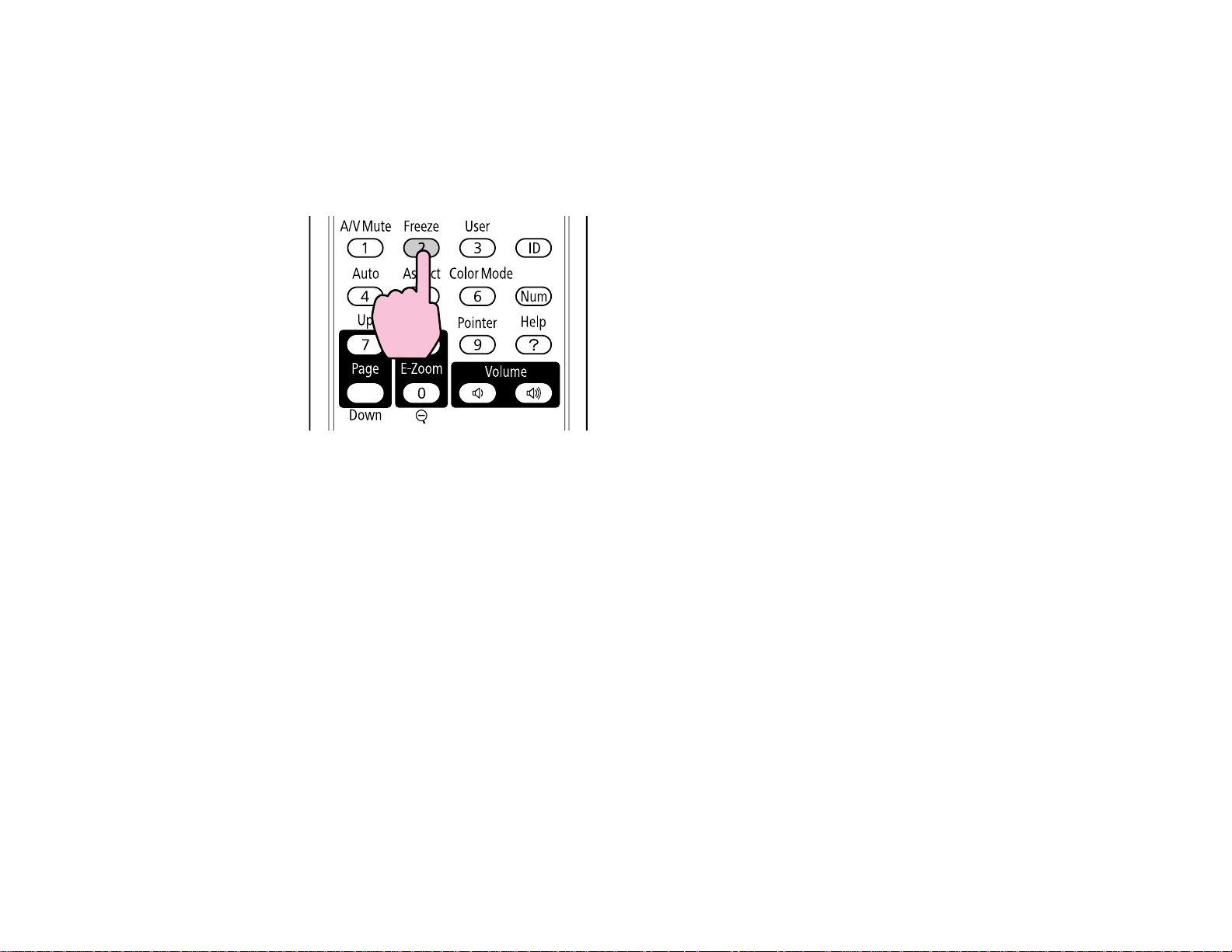

Stopping Video Action Temporarily.................................................................................................... 93

Zooming Into and Out of Images........................................................................................................ 93

Projector Security Features................................................................................................................ 94

Password Security Types.............................................................................................................. 95

Setting a Password................................................................................................................... 95

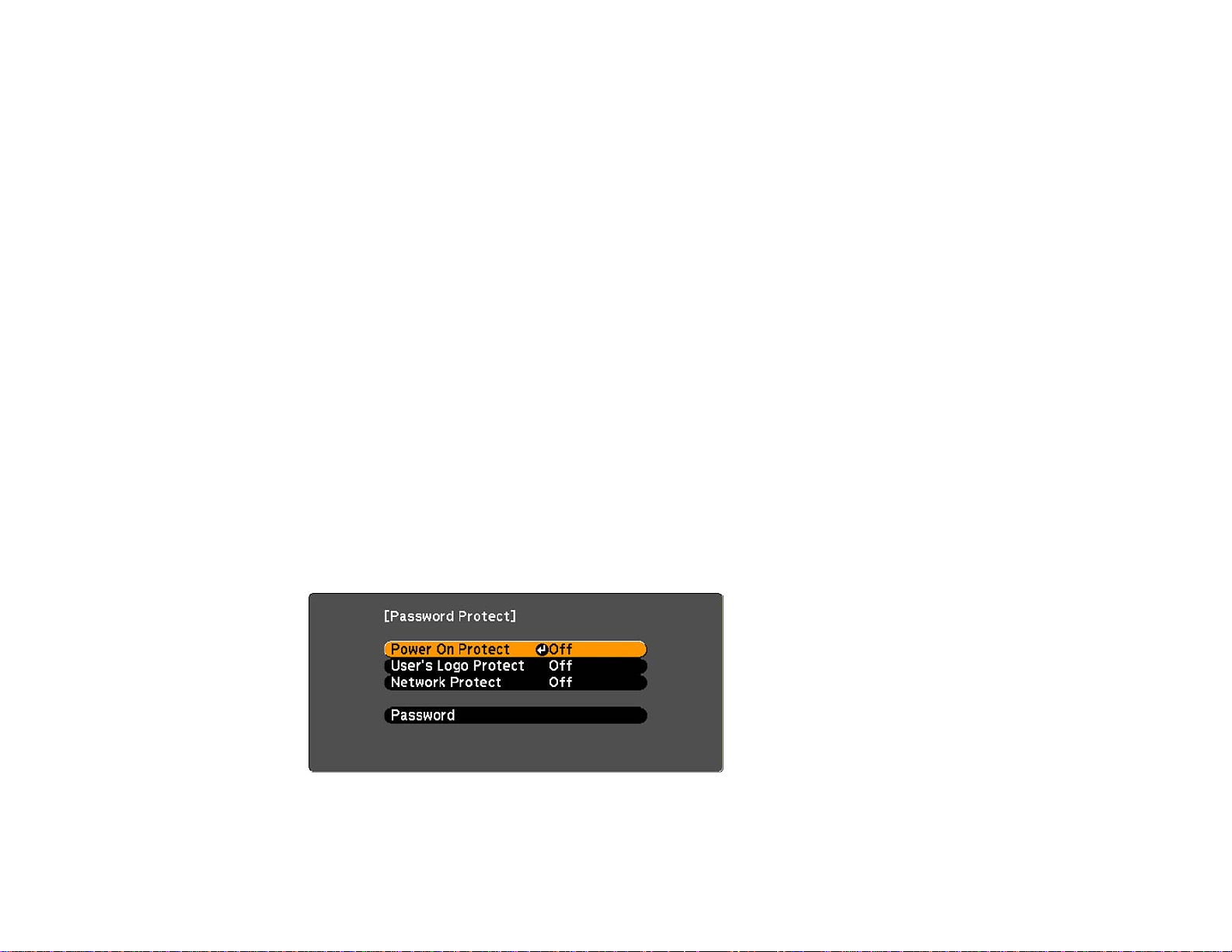

Selecting Password Security Types.......................................................................................... 96

Entering a Password to Use the Projector ................................................................................ 97

Saving a User's Logo Image to Display..................................................................................... 99

Locking the Projector's Buttons................................................................................................... 101

Unlocking the Projector's Buttons........................................................................................... 101

Installing a Security Cable........................................................................................................... 102

Projector Identification System for Multiple Projector Control........................................................... 102

Setting the Projector ID................................................................................................................ 103

Setting the Remote Control ID..................................................................................................... 103

Matching Multiple-Projector Display Quality................................................................................ 104

Projecting Two Images Simultaneously ........................................................................................... 106

Adjusting the Menu Settings.................................................................................................................. 108

Using the Projector's Menus............................................................................................................. 108

Image Quality Settings - Image Menu.............................................................................................. 110

Input Signal Settings - Signal Menu ................................................................................................. 111

Projector Feature Settings - Settings Menu...................................................................................... 114

Projector Setup Settings - Extended Menu ...................................................................................... 116

Projector Network Settings - Network Menu..................................................................................... 119

Projector Information Display - Info Menu ........................................................................................ 121

Event ID Code List....................................................................................................................... 122

Projector Reset Options - Reset Menu............................................................................................. 123

Maintaining and Transporting the Projector......................................................................................... 125

Projector Maintenance..................................................................................................................... 125

Cleaning the Lens Cover Glass................................................................................................... 125

Cleaning the Projector Case........................................................................................................ 126

Air Filter and Vent Maintenance .................................................................................................. 126

Cleaning the Air Filter ............................................................................................................. 127

Replacing the Air Filter............................................................................................................ 130

Projector Lamp Maintenance....................................................................................................... 132

Replacing the Lamp................................................................................................................ 133

Resetting the Lamp Timer....................................................................................................... 137

Replacing the Remote Control Batteries ..................................................................................... 138

Transporting the Projector................................................................................................................ 140

Solving Problems.................................................................................................................................... 141

Projection Problem Tips................................................................................................................... 141

Projector Light Status....................................................................................................................... 141

Using the Projector Help Displays.................................................................................................... 145

Solving Image or Sound Problems................................................................................................... 145

Solutions When No Image Appears............................................................................................. 146

Solutions When "No Signal" Message Appears........................................................................... 147

Displaying From a PC Laptop................................................................................................. 147

Displaying From a Mac Laptop ............................................................................................... 147

Solutions When "Not Supported" Message Appears................................................................... 148

Solutions When Only a Partial Image Appears............................................................................ 148

Solutions When the Image is Not Rectangular............................................................................ 149

Solutions When the Image Contains Noise or Static ................................................................... 149

Solutions When the Image is Fuzzy or Blurry.............................................................................. 150

Solutions When the Image Brightness or Colors are Incorrect.................................................... 151

Solutions When No Image Appears on an External Monitor........................................................ 151

Solutions When There is No Sound or Low Volume.................................................................... 152

Solving Projector or Remote Control Operation Problems............................................................... 152

Solutions to Projector Power or Shut-Off Problems..................................................................... 152

Solutions to Problems With the Remote Control.......................................................................... 153

Solutions to Password Problems................................................................................................. 154

Solutions When Network Alert E-Mails are Not Received................................................................ 154

Where to Get Help............................................................................................................................ 154

Technical Specifications ........................................................................................................................ 156

General Projector Specifications...................................................................................................... 156

Projector Lamp Specifications.......................................................................................................... 158

Remote Control Specifications......................................................................................................... 159

Projector Dimension Specifications.................................................................................................. 159

Projector Electrical Specifications.................................................................................................... 160

Projector Environmental Specifications............................................................................................ 161

Projector Safety and Approvals Specifications................................................................................. 161

Supported Video Display Formats.................................................................................................... 162

Notices ..................................................................................................................................................... 164

Important Safety Information............................................................................................................ 164

Important Safety Instructions............................................................................................................ 164

FCC Compliance Statement............................................................................................................. 167

Trademarks...................................................................................................................................... 168

Software Copyright........................................................................................................................... 169

Copyright Notice............................................................................................................................... 196

Copyright Attribution.................................................................................................................... 196

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Parts Locations

Projector Features

The PowerLite D6150, D6155W, and D6250 projectors include these special features:

Bright, high-resolution projection system

• PowerLite D6150/D6155W: Up to 3500 lumens of brightness (white light output and color light output) PowerLite D6250: Up to 4000 lumens of brightness (white light output and color light output)

• PowerLite D6150/D6250: Native resolution of 1024 × 768 pixels (XGA) PowerLite D6155W: Native resolution of 1280 × 800 pixels (WXGA)

Flexible connectivity

• HDMI port for computer or video device connection

• Wired network support

• Projector monitoring and control via remote network computer

• Optional wireless network support, including video and audio transfer

• PC Free presentations via connected USB memory devices or Epson document camera

• Dual VGA ports for connections by multiple presenters

• Port for connecting an external monitor or second projector

Innovative display and operation features

• Split screen feature for projecting two images at the same time

• Low total cost of ownership with sealed body, electrostatic filter, and longer lamp and filter life

• Support for Crestron RoomView network monitoring systems

• Epson Instant Off and Direct Power On features for quick setup and shut down

• Network message broadcast system to project timely messages to all networked projectors (Windows only)

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector Related concepts

Projector Parts Locations

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector 2 Remote control 3 Remote control batteries (two AA alkaline) 4 Power cord 5 VGA computer cable 6 Cable clips 7 Cable cover 8 Password Protected sticker 9 Projector documentation CD 10 Projector software CD

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.

• To receive an HDMI signal, you need a compatible HDMI cable. See your local computer or electronics dealer for purchase information.

• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson Replacement lamp (PowerLite D6250/D6155W) V13H010L64 Genuine Epson Replacement lamp (PowerLite D6150) V13H010L61 Replacement air filter V13H134A30 Wireless LAN module (ELPAP07) V12H418P12 Quick Wireless Connection USB key (ELPAP08) V12H005M08 Epson DC-11 document camera V12H377020 Epson DC-10s document camera ELPDC10S BrightLink Solo interactive module V12H415020 BrightLink Solo interactive module with RM Easiteach V12H415020RM

Option or part Part number

AP-60 Projector Sound Solution V12H329020 Universal projector ceiling mount ELPMBPJF Adjustable suspended ceiling channel kit ELPMBP01 False ceiling plate kit ELPMBP02 Structural Round ceiling plate ELPMBP03 Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01 Kensington security lock ELPSL01 Accolade Duet portable projector screen ELPSC80 ES-3000 Ultra portable projector screen V12H002S3Y 50-inch portable screen ELPSC06 Component-to-VGA video cable (ELPKC19) V12H005C19 Remote control 1541653 1-Year Extended Depot Repair Service Plan EPPFTPB1 1-Year Extended Exchange Warranty EPPEXPB1 2-Year Extended Depot Repair Service Plan EPPFTPB2

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty brochure that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States or Canada. See the Extra Care Road Service brochure for details.

Register your product online using the projector CD or at this site: www.epson.com/webreg Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector during a presentation? Here's where to look for help:

• Built-in help system Press the Help button on the remote control or projector to get quick solutions to common problems.

• www.epson.com/support (U.S) or www.epson.ca/support (Canada) View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24

hours a day.

• For detailed instructions on using your projector in a network environment, see the EasyMPNetwork Projection Operation Guide installed with this manual from your projector CD.

• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector Related references

Where to Get Help

Projector Parts Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent (with shutter) 2 Projector status lights 3 Remote receiver 4 Zoom/focus ring cover 5 Foot release lever 6 Front adjustable foot 7 Lens cover glass 8 Speaker 9 Air intake vent (air filter) 10 Optional wireless LAN module indicator light 11 Zoom ring

12 Focus ring 13 Cable cover 14 Control panel 15 Lamp cover

Parent topic: Projector Parts Locations

Projector Parts - Rear

1 Optional wireless LAN module port and stopper 2 Cable cover screw holes 3 RS-232C port 4 Monitor Out port 5 Audio Out port 6 A/C input port 7 Cable clip holes 8 Security slot 9 Security lock port 10 Network (LAN) port

11 USB TypeA port 12 USB TypeB port 13 Computer2 port 14 Audio2 port 15 Computer1 port 16 Audio1 port 17 L-Audio-R audio ports 18 S-Video port 19 Video port 20 HDMI port 21 Trigger out port

Parent topic: Projector Parts Locations

Projector Parts - Base

1 Mounting bracket holes 2 Alternate mounting bracket holes

3 Front adjustable foot

Parent topic: Projector Parts Locations

Projector Parts - Control Panel

1 Power button 2 Source Search button (searches for connected sources) 3 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons 4 Horizontal keystone adjustment buttons (adjust screen shape) and arrow buttons 5 Help button (accesses projector help information) 6 Esc button (cancels/exits functions) 7 Enter button (selects options) 8 Menu button (accesses projector menu system)

Parent topic: Projector Parts Locations Related references

Projector Light Status

Projector Parts - Remote Control

1 Power button 2 Computer button (cycles through connected computer sources) 3 Video button (cycles through connected video sources)

4 Split button (splits the screen) 5 Numeric buttons (enter numbers) 6 A/V Mute button (turns off picture and sound) 7 Freeze button (stops video action) 8 Auto button (automatically adjusts position, tracking, and sync settings) 9 Aspect button (selects the image aspect ratio) 10 Page Up/Down buttons (control presentation slides) 11 E-Zoom +/– buttons (zoom into and out of the image) 12 Menu button (accesses projector menu system) 13 Arrow buttons (move through on-screen options and control wireless mouse functions) 14 Enter button (selects options and controls wireless mouse functions) 15 Esc button (cancels/exits functions and controls wireless mouse functions) 16 Volume up and down buttons (adjust speaker volume) 17 Pointer button (activates on-screen pointer) 18 Help button (accesses projector help information) 19 Color Mode button (selects display modes) 20 Num button (switches buttons to number function for entering numbers) 21 ID button (selects projector and remote control ID numbers) 22 User button (customizable for different functions) 23 USB button (cycles through connected USB sources) 24 LAN button (switches to available network sources) 25 Source Search button (searches for connected sources)

Parent topic: Projector Parts Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Attaching and Removing the Cable Clips Attaching and Removing the Cable Cover Installing Batteries in the Remote Control

Projector Placement

You can place the projector on almost any flat surface to project your presentation. You can also install the projector in a ceiling mount if you want to use it in a fixed location. Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within 6feet (2 m) of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector to view presentations in the following ways: Front

Rear

Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

PowerLite D6150/D6250 4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

30 inches (76 cm) 32 to 53 inches –1.9 inches (–5 cm)

(82 to 135 cm)

40 inches (102 cm) 44 to 71 inches –2.5 inches (–6 cm)

(111 to 181 cm)

50 inches (127 cm) 55 to 90 inches –3.1 inches (–8 cm)

(139 to 228 cm)

60 inches (152 cm) 66 to 108 inches –3.8 inches (–10 cm)

(168 to 274 cm)

80 inches (203 cm) 88 to 144 inches –5 inches (–13 cm)

(225 to 367 cm)

100 inches (254 cm) 111 to 181 inches –6.3 inches (–16 cm)

(282 to 459 cm)

150 inches (381 cm) 167 to 272 inches –9.4 inches (–24 cm)

(425 to 691 cm)

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

200 inches (508 cm) 223 to 363 inches –12.5 inches (–32 cm)

(567 to 922 cm)

250 inches (635 cm) 280 to 454 inches –15.6 inches (–40 cm)

(710 to 1154 cm)

300 inches (762 cm) 336 to 545 inches –18.8 inches (–48 cm)

(853 to 1385 cm)

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

28 inches (71 cm) 33 to 54 inches 0.4 inch (1 cm)

(83 to 137 cm)

30 inches (76 cm) 35 to 58 inches 0.4 inch (1 cm)

(90 to 148 cm)

40 inches (102 cm) 48 to 78 inches 0.5 inch (1 cm)

(121 to 198 cm)

50 inches (127 cm) 60 to 98 inches 0.7 inch (2 cm)

(152 to 248 cm)

60 inches (152 cm) 72 to 118 inches 0.8 inch (2 cm)

(183 to 299 cm)

80 inches (203 cm) 92 to 157 inches 1.1 inch (3 cm)

(245 to 400 cm)

100 inches (254 cm) 121 to 197 inches 1.4 inches (3 cm)

(307 to 501 cm)

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

150 inches (381 cm) 182 to 296 inches 2 inches (5 cm)

(463 to 753 cm)

200 inches (508 cm) 243 to 396 inches 2.7 inches (7 cm)

(618 to 1005 cm)

250 inches (635 cm) 305 to 495 inches 3.4 inches (9 cm)

(774 to 1257 cm)

275 inches (699 cm) 335 to 545 inches 3.7 inches (10 cm)

(852 to 1383 cm)

PowerLite D6155W 16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

29 inches (74 cm) 33 to 55 inches –0.4 inch (–1 cm)

(84 to 139 cm)

40 inches (102 cm) 46 to 76 inches –0.5 inch (–1 cm)

(117 to 193 cm)

50 inches (127 cm) 58 to 95 inches –0.7 inch (–2 cm)

(148 to 242 cm)

60 inches (152 cm) 70 to 114 inches –0.8 inch (–2 cm)

(178 to 291 cm)

80 inches (203 cm) 94 to 153 inches –1.1 inch (–3 cm)

(238 to 389 cm)

100 inches (254 cm) 118 to 192 inches –1.3 inches (–3 cm)

(299 to 487 cm)

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

150 inches (381 cm) 177 to 288 inches –2 inches (–5 cm)

(450 to 732 cm)

200 inches (508 cm) 237 to 385 inches –2.6 inches (–7 cm)

(602 to 978 cm)

250 inches (635 cm) 296 to 482 inches –3.3 inches (–8 cm)

(753 to 1223 cm)

280 inches (711 cm) 332 to 539 inches –3.7 inches (–9 cm)

(844 to 1370 cm)

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

25 inches (64 cm) 32 to 53 inches –0.4 inch (–1 cm)

(82 to 135 cm)

30 inches (76 cm) 39 to 64 inches –0.5 inch (–1 cm)

(99 to 163 cm)

40 inches (102 cm) 52 to 86 inches –0.6 inch (–2 cm)

(133 to 218 cm)

50 inches (127 cm) 66 to 108 inches –0.8 inch (–2 cm)

(168 to 274 cm)

60 inches (152 cm) 79 to 130 inches –0.9 inch (–2 cm)

(202 to 330 cm)

80 inches (203 cm) 106 to 173 inches –1.2 inch (–3 cm)

(270 to 441 cm)

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

100 inches (254 cm) 133 to 217 inches –1.5 inches (–4 cm)

(339 to 552 cm)

120 inches (305 cm) 160 to 261 inches –1.8 inches (–5 cm)

(407 to 663 cm)

150 inches (381 cm) 201 to 327 inches –2.3 inches (–6 cm)

(510 to 830 cm)

200 inches (508 cm) 268 to 436 inches –3 inches (–8 cm)

(682 to 1107 cm)

250 inches (635 cm) 336 to 545 inches –3.8 inches (–10 cm)

(853 to 1385 cm)

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1) Offset from lens center (2)

Wide to Tele

28 inches (71 cm) 33 to 54 inches 0.4 inch (1 cm)

(83 to 137 cm)

30 inches (76 cm) 35 to 58 inches 0.4 inch (1 cm)

(90 to 148 cm)

40 inches (102 cm) 48 to 78 inches 0.5 inch (1 cm)

(121 to 198 cm)

50 inches (127 cm) 60 to 98 inches 0.7 inch (2 cm)

(152 to 248 cm)

60 inches (152 cm) 72 to 118 inches 0.8 inch (2 cm)

(183 to 299 cm)

Screen or image size Projection distance (1) Offset from lens center (2)

80 inches (203 cm) 97 to 157 inches 1.1 inch (3 cm)

100 inches (254 cm) 121 to 197 inches 1.4 inches (3 cm)

150 inches (381 cm) 182 to 296 inches 2 inches (5 cm)

200 inches (508 cm) 243 to 396 inches 2.7 inches (7 cm)

250 inches (635 cm) 305 to 495 inches 3.4 inches (9 cm)

275 inches (699 cm) 335 to 545 inches 3.7 inches (10 cm)

Parent topic: Projector Placement

Projector Connections

Wide to Tele

(245 to 400 cm)

(307 to 501 cm)

(463 to 753 cm)

(618 to 1005 cm)

(774 to 1257 cm)

(852 to 1383 cm)

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• Connect any type of computer that has a standard video output (monitor) port or an HDMI port.

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and camera phones with compatible video output ports.

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

• For presentations or slide shows without a computer, you can connect USB devices (such as a flash drive or camera) or an optional document camera.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources

Connecting to Video Sources Connecting to an External Computer Monitor Connecting to External Speakers Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector Related references

Projector Setup Settings - Extended Menu Product Box Contents

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable. Note: To connect a Macintosh that includes only a Mini DisplayPort or Mini-DVI port for video output,

you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

1 Computer1 or Computer2 port

4. Tighten the screws on the VGA connectors.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

1. Make sure the projector and your computer are turned off.

2. Connect the HDMI cable to your computer's HDMI output port.

3. Connect the other end to the projector's HDMI port.

1 HDMI port

Parent topic: Connecting to Computer Sources

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer or HDMI port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control computer presentations at a distance from your computer. To do this, connect the projector to your computer using a USB cable.

1. Connect the USB cable to your projector's USB TypeB port.

1 USB TypeB port

2. Connect the other end to any available USB port on your computer.

3. If necessary, configure your computer to work with an external USB mouse. See your computer

documentation for details.

Parent topic: Connecting to Computer Sources Related references

Projector Parts - Remote Control

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it using the projector's HDMI port, you can still play sound through the projector's speaker system. Just connect an optional 3.5 mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or

audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

1 Audio1 or Audio2 port

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component-to-VGA Video Source Connecting to a Composite Video Source Connecting to an S-Video Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable.

1. Make sure the projector and your video source are turned off.

2. Connect the HDMI cable to your video source's HDMI output port.

3. Connect the other end to the projector's HDMI port.

1 HDMI port

Parent topic: Connecting to Video Sources

Connecting to a Component-to-VGA Video Source

If your video source has component video ports, you can connect it to the projector using a componentto-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Make sure the projector and your video source are turned off.

2. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

3. Connect the VGA connector to the projector's Computer port.

1 Computer1 or Computer2 port

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's

Signal menu. Parent topic: Connecting to Video Sources Related references

Input Signal Settings - Signal Menu

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Make sure the projector and your video source are turned off.

2. Connect the cable with the yellow connector to your video source's yellow video output port.

3. Connect the other end to the projector's Video port.

1 Video port

Parent topic: Connecting to Video Sources

Connecting to an S-Video Video Source

If your video source has an S-Video port, you can connect it to the projector using an optional S-Video cable.

1. Make sure the projector and your video source are turned off.

2. Connect the S-Video cable to your video source's S-Video output port.

3. Connect the other end to the projector's S-Video port.

1 S-Video port

Parent topic: Connecting to Video Sources

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using a Computer port, connect the projector to the video source using an

optional stereo mini-jack audio cable. If you are projecting video using the Video or S-Video port, connect the projector to the video source

using an optional stereo mini-jack adapter cable (with one 3.5 mm mini-plug and two RCA plugs).

1. Connect the audio cable to your video source's audio-out ports.

2. Do one of the following:

• Connect the other end of the cable to the projector's Audio port that corresponds to the Computer port you are using for video.

• Connect the red and white plugs on the other end of the cable to the projector's L-Audio-R ports.

1 Audio1 or Audio2 port

2 L-Audio-R ports

Parent topic: Connecting to Video Sources

Connecting to an External Computer Monitor

If you connected the projector to a computer using a Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

Note: Monitors that use a refresh rate less than 60 MHz may not be able to display images correctly.

1. Make sure your computer or video source is connected to the projector's Computer port. If there are two computer ports, make sure you use the Computer1 port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

1 Monitor Out port

Parent topic: Projector Connections

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external speakers with built-in amplifiers. You can control the volume using the projector's remote control.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pinjack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

1 Audio Out port

Parent topic: Projector Connections

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector:

• USB flash drive

• Digital camera or camera phone

• USB hard drive

• Multimedia storage viewer

• USB memory card reader

Note: Digital cameras or camera phones must be USB-mounted devices, not TWAIN-compliant devices. You can project slide shows from image files on a connected USB device or memory card reader.

Parent topic: Connecting to External USB Devices Related topics

Projecting a Slide Show

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB Type A port and use it to project a slide show or presentation.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive or USB memory card reader) into the projector's USB TypeA port shown here.

1 USB TypeA port

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to a USB Type A port.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB button on the remote control.

3. Press the button again to cycle through other USB sources, if available.

Parent topic: Connecting to External USB Devices

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. Exit from any software running your slide show or presentation from the device.

2. If the device has a power button, be sure to turn off and unplug the device.

3. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

Connecting to a Document Camera

You can connect a compatible Epson document camera to your projector's USB Type A port to project images viewed by the camera.

Note: You may be able to connect different Epson document camera models to your projector's Computer ports.

1. Locate the USB cable that came with the document camera.

2. Connect the USB cable to the projector's USB TypeA port.

3. Connect the other end of the cable to the document camera's USB Type B port.

1 USB TypeA port

Parent topic: Projector Connections Related references

Optional Equipment and Replacement Parts

Attaching and Removing the Cable Clips

You can install the cable clips that came with your projector to provide additional support to the power and HDMI cables.

1. Plug in the power and HDMI cables.

2. Insert each guide into the cable clip holes near the power inlet and HDMI port.

3. Attach the cable clips to the power and HDMI cables. Be sure to leave the clamps unlocked.

4. Slide each cable clip onto the guides and lock the clamps onto the connectors as shown.

To remove the cable clips, open the clamps and disconnect the cables. Then pinch the sides of each guide and carefully pull them out of the cable clip holes.

Parent topic: Setting Up the Projector

Attaching and Removing the Cable Cover

You can attach the cable cover that came with your projector to hide the attached cables from view.

1. Bundle the cables together using a band or other fastener (not provided).

2. Place the cable cover on the projector as shown, guiding the cables through the notch on the base of the cable cover.

3. Tighten both cable cover screws.

To remove the cover, loosen both screws and take the cover off of the projector.

Parent topic: Setting Up the Projector

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

1. Open the battery cover as shown.

2. Insert the batteries with the + and – ends facing as shown.

3. Close the battery cover and press it down until it clicks into place.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Crestron RoomView Support

Wired Network Projection

You can send images to your projector through a wired network. To do this, you connect the projector to your network, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the Epson Projector Software CD-ROM on your computer. Use the following software and documentation to set up, control, and monitor network projection:

• EasyMP Network Projection software sets up your computer for network projection. See the

EasyMP Network Projection Operation Guide installed from your projector CD for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and select your projector.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network router.

2. Connect the other end of the cable to the projector's LAN port.

1 LAN port

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from multiple computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button on the remote control.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password letsyou enter a password up to 8 alphanumeric characters long for

accessing the projector over the web.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can send images to your projector through a wireless network. To do this, you must install the optional Epson 802.11b/g/n wireless LAN module, and then set up your projector and computer for wireless projection.

There are two ways to connect the projector to your wireless network:

• Using the optional Epson Quick Wireless Connection USB key (Windows only)

• Configuring the connection manually using the projector's Network menus

After installing the module and setting up the projector, install the network software from the Epson Projector Software CD on your computer. Use the following software and documentation to set up, control, and monitor wireless projection:

• EasyMP Network Projection software sets up your computer for wireless network projection. See the

EasyMP Network Projection Operation Guide installed from your projector CD for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and select your projector.

Installing the Wireless LAN Module Using Quick Wireless Connection (Windows Only) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings in Mac OS Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network Related references

Optional Equipment and Replacement Parts

Installing the Wireless LAN Module

To use the projector over a wireless network, install the optional Epson 802.11b/g/n wireless LAN module. Do not install any other type of wireless LAN module.

Caution: Never remove the module while its indicator light is green or flashing, or while you are projecting wirelessly. You may damage the module or lose data.

1. Turn off the projector and unplug the power cord.

2. Remove the screw securing the wireless LAN module stopper, then remove the stopper.

3. Insert the wireless LAN module into the port.

4. Replace the wireless LAN module stopper and secure it using the screw you removed.

5. Plug in and turn on the projector.

Parent topic: Wireless Network Projection Related references

Optional Equipment and Replacement Parts

Using Quick Wireless Connection (Windows Only)

You can use the optional Epson Quick Wireless Connection USB key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

1. Turn on the projector.

2. Remove the USB key.

3. Now connect the USB key to a USB port on your computer or notebook.

Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchU3.exe, then select Allow on the next screen.

4. Follow the on-screen instructions to install the Quick Wireless Connection driver.

Note: If you see a Windows Firewall message, click Yes to disable the firewall.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN button on your projector remote control or restart your computer.

5. Run your presentation as necessary.

6. When you finish projecting wirelessly, remove the USB key from your computer.

Note: You may need to restart your computer to reactivate your wireless interface.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button on the remote control.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password letsyou enter a password up to 8 alphanumeric characters long for

accessing the projector over the web.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wireless LAN menu and press Enter.

8. Select the settings on the Wireless LAN menu as necessary for your network.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Note: See your projector's EasyMP Network Projection Operation Guide for details on selecting these

settings.

Setting Options Description Wireless LAN Power On Turns on wireless LAN support

Off

Setting Options Description Connection Mode Quick Selects the type of wireless

Advanced

connection: Quick: lets you quickly connect

to one computer or use the optional Epson Quick Wireless Connection USB key to connect

Advanced: lets you connect to multiple computers via a wireless network access point

Channel 1ch In Quick connection mode,

6ch 11ch

selects the frequency band (channel) used by the wireless LAN

Wireless LAN Sys. 802.11b/g Sets the type of wireless LAN

802.11b/g/n

system the projector is connecting to

SSID Auto Setting On Turns on automatic SSID

Off

searching in Quick connection mode; set to Off when connecting to multiple projectors at the same time

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

IP Settings DHCP (On or Off) Selects DHCP if your network

IP Address Subnet Mask Gateway Address

assigns addresses automatically, or turns off DHCP so you can enter the network's IP address, subnet mask, and gateway address as needed

SSID Display On Selects whether to display the

Off

SSID on the network standby screen

Setting Options Description IP Address Display On Selects whether to display the IP

Off

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the SSID you assigned to the projector.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in Mac OS

Before connecting to the projector, select the correct wireless network on your Macintosh.

address on the network standby screen

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the SSID you assigned to the projector.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:

• WEP encryption

• WPA security

Note: Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button on the remote control.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Security menu and press Enter.

5. Select the security settings as necessary to match your network settings.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Wireless Security Menu Settings

Parent topic: Wireless Network Projection

Wireless Security Menu Settings

Settings on the Security menu let you select the type of security and security settings that match the network you are connecting the projector to.

Setting Options Description Security WEP and WPA types available Selects the type of security used

on the wireless network

Setting Options Description WEP Encryption 128Bit For WEP security, selects the

64Bit

Format ASCII For WEP security, selects the

HEX

Key ID 1 to 4 For WEP security, selects the

Encryption Key 1 to Variouscharacters depending on For the selected WEP Key ID Encryption Key 4

selected WEP Encryption and setting, enter the key used for Format settings WEP encryption:

type of encryption coding

encryption input method:

ASCII: enables text input HEX: enables hexadecimal input

WEP encryption key ID

128 bit ASCII: 13 alphanumeric characters

128 bit HEX: 26 characters (0 to 9 and A to F)

64 bit ASCII: 5 alphanumeric characters

64 bit HEX: 10 characters (0 to 9 and A to F)

Authentication Type Open For WEP security, selects the

Shared

PSK Various keys from 8 to 32 For WPA-PSK or WPA-2-PSK

characters security, selects the pre-shared

Parent topic: Setting Up Wireless Network Security

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button on the remote control.

type of WEP authentication used

key used on the network

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Mail menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server option. Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a

number from 0 to 255).

7. Select a number for the SMTP server Port Number, from 1 to 65535 (default is 25).

8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses.

Note: Your e-mail address can be up to 32 alphanumeric characters long.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• EPSON Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert. Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button on the remote control.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field. Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a

number from 0 to 255).

6. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

7. If your network environment uses a Crestron RoomView controller, turn on the RoomView setting to allow the projector to be detected.

8. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: If you set Standby Mode to Communication On, you can use a Web browser to select settings

and control projection even if the projector is in standby mode. You cannot select all of the projector menu settings or control all projector functions using a web browser.

1. Make sure the projector is turned on.

2. Start your web browser on a computer connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key. You see the Web Control screen.

4. To select projector menu settings, select the name of the menu and follow the on-screen instructions to select settings.

5. To control the projection remotely, select the Web Remote option. You see this screen:

1 Power button control 2 Selects Computer port source 3 Selects Video, S-Video, and HDMI port sources 4 Freeze button control 5 A/V Mute button control

6 Page Up and Page Down button controls 7 Searches for sources 8 Selects the network source 9 Selects the USB device source 10 Volume button controls

6. Select the icon corresponding to the projector function you want to control.

Parent topic: Using the Projector on a Network

Crestron RoomView Support

If you are using the Crestron RoomView network monitoring and control system, you can set up your projector for use on the system. Crestron RoomView lets you control and monitor your projector using a web browser.

Note: You cannot use the Epson Web Control feature or the Message Broadcasting plug-in for EasyMP Monitor when you use Crestron RoomView.

For additional information on Crestron RoomView, contact Crestron.

Setting Up Crestron RoomView Support Controlling a Networked Projector Using Crestron RoomView

Parent topic: Using the Projector on a Network

Setting Up Crestron RoomView Support

To set up your projector for monitoring and control using a Crestron RoomView system, make sure your computer and projector are connected to the network. If you are connecting wirelessly, set up the projector using the Advanced network connection mode.

1. Press the Menu button on the remote control.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the RoomView setting to On to allow the projector to be detected.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Turn off the projector, then turn it on again to enable the RoomView setting.

Parent topic: Crestron RoomView Support

Controlling a Networked Projector Using Crestron RoomView

Once you have set up your projector to use Crestron RoomView, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key. You see this screen:

3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the Configuration menu

5. To view information about the projector, click the Info tab.

6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

7. When you finish selecting settings, click Exit to exit the program.

Parent topic: Crestron RoomView Support

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Adjusting the Image Height Image Shape Resizing the Image With the Zoom Ring Focusing the Image Using the Focus Ring Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume With the Volume Buttons Projecting a Slide Show

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet. The projector's power light turns orange. This indicates that the projector is receiving power, but is

not yet turned on. Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

3. Press the power button on the projector or the remote control to turn on the projector. The projector beeps and the power light flashes green as the projector warms up. After about 30

seconds, the power light stops flashing and turns green. Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is

especially dangerous for children and pets.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media, and press the Play button (if necessary).

• Press the Source Search button on the projector or remote control to detect the video source.

Parent topic: Using Basic Projector Features Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the power button on the projector or the remote control. The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the power light turns orange.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away.

Caution: Do not turn the projector on immediately after turning it off. Turning the projector on and off frequently may shorten the life of the lamp.

3. To transport or store the projector, make sure the power light is orange (but not flashing), then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the power light is green or flashing orange.

Parent topic: Using Basic Projector Features

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Press the down arrow button to select the Extended menu and press Enter.

Note: The Network menu does not appear on non-network projector models.

4. Press the down arrow button to select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable foot.

1. Turn on the projector and display an image.

2. To adjust the front foot, pull up on the foot release lever and lift the front of the projector.

The foot extends from the projector.

3. Release the lever to lock the foot.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features Related concepts

Image Shape

Related references

Projector Feature Settings - Settings Menu

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

Correcting Image Shape With Quick Corner Correcting Image Shape With the Keystone Buttons

Parent topic: Using Basic Projector Features

Correcting Image Shape With Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

1. Turn on the projector and display an image. Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Keystone setting and press Enter.

5. Select the Quick Corner setting and press Enter. You see the Quick Corner adjustment screen.

6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

Parent topic: Image Shape Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape With the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press a keystone button on the projector's control panel.

After correction, your image is slightly smaller. Note: If the projector is installed out of reach, you can also correct the image shape using the

Keystone settings in the projector menus.

Parent topic: Image Shape Related references

Projector Feature Settings - Settings Menu

Resizing the Image With the Zoom Ring

1. Turn on the projector and display an image. Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. To enlarge or reduce the image size, rotate the projector's zoom ring.

Parent topic: Using Basic Projector Features

Focusing the Image Using the Focus Ring

1. Turn on the projector and display an image. Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. To sharpen the image focus, rotate the projector’s focus ring.

Parent topic: Using Basic Projector Features

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m) away. You can point it at the screen, or the front or back of the projector.

Make sure that you aim the remote control at the projector's receivers within the angles listed here.

1 19.7 feet (6 m) 2 60º 3 30º 4 10º (no reception) 5 70º 6 60º

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or

the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

Using the Remote Control as a Wireless Mouse Using the Remote Control as a Presentation Pointer

Parent topic: Using Basic Projector Features Related tasks

Replacing the Remote Control Batteries

Using the Remote Control as a Wireless Mouse

You can use the projector's remote control as a wireless mouse so you can control your computer presentation from a distance.

1. Connect the projector to a computer using the projector's Computer or HDMI port.

2. Using a USB cable, connect the projector's USB TypeB port to a USB port on your computer (for wireless mouse support).

3. Start your presentation.

4. Use the following buttons on the remote control to control your presentation:

• To move through slides or pages, press the Up and Down Page buttons.

• To move the cursor on the screen, use the arrow buttons.

• To left-click, press the Enter button once (press it twice to double-click).

• To right-click, press the Esc button.

• To drag-and-drop, hold the Enter button as you move the cursor with the arrow buttons, then

release Enter at the destination.

Parent topic: Remote Control Operation

Using the Remote Control as a Presentation Pointer

You can use the projector's remote control as a pointer to help you call out important information during a presentation. The default pointer shape is an arrow, but you can select an alternative shape using the Settings menu.

1. Press the Pointer button on the remote control.

2. Use the arrow buttons on the remote control to move the pointer on the screen.

3. Press Esc to clear the pointer from the screen.

Parent topic: Remote Control Operation

Related references

Projector Feature Settings - Settings Menu

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press Play (if necessary).

3. Do one of the following:

• Press the Source Search button on the projector or remote control until you see the image from

the source you want.

• Press the button for the source you want on the remote control. If there is more than one port for

that source, press the button again to select the other source.

1 Computerport sources 2 Videoand HDMI sources 3 USBport sources (external devices) 4 Networksource

4. If you see a blank screen or a "No Signal" message, try the following:

• Check that the device cables are securely connected to the projector and the device.

• Make sure the projector is turned on.

• For laptop computers, make sure you have set up your laptop to output its display properly.

Parent topic: Using Basic Projector Features

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

• Front (default setting) lets you project from a table in front of the screen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

• Rear flips the image horizontally to project from behind a translucent screen.

• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and the

rear. You can change the projection mode using the remote control or by changing a menu setting.

Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Remote Control

You can change the projection mode to flip the image over top-to-bottom.

1. Turn on the projector and display an image.

2. Hold down the A/V Mute button on the remote control for five seconds.

The image disappears briefly and reappears flipped top-to-bottom.

3. To change projection back to the original mode, hold down the A/V Mute button for five seconds

again.

Parent topic: Projection Modes

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Projection setting and press Enter.

5. Select a projection mode and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.

Changing the Image Aspect Ratio Available Image Aspect Ratios

Parent topic: Using Basic Projector Features Related references

Image Quality Settings - Image Menu

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Aspect button on the remote control.

The shape and size of the displayed image changes, and the name of the aspect ratio appears briefly on the screen.

3. To cycle through the available aspect ratios for your input signal, press the Aspect button

repeatedly.

Parent topic: Image Aspect Ratio

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source. Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect

ratio and resolution of your input signal.

PowerLite D6150/D6250

Aspect ratio setting Description Auto Automatically sets the aspect ratio according to the input signal.

Aspect ratio setting Description Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

4:3 Displays images using the full projection area at 4:3 aspect ratio. 16:9 Converts the aspect ratio of the image to 16:9.

PowerLite D6155W

Aspect ratio setting Description Auto Automatically sets the aspect ratio according to the input signal. Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

16:9 Converts the aspect ratio of the image to 16:9. Full Displays images using the full width of the projection area, but does

not maintain the aspect ratio.

Zoom Displays images using the full width of the projection area and

maintains the aspect ratio of the image.

Native Displays images as is (aspect ratio and resolution are maintained).

Note: The Auto aspect ratio setting is available only for HDMI image sources. Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.

If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.

Changing the Color Mode Available Color Modes Turning On Auto Iris

Parent topic: Using Basic Projector Features Related references

Image Quality Settings - Image Menu

Changing the Color Mode

You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and

press the Play button, if necessary.

3. Press the Color Mode button on the remote control to change the Color Mode.

The image quality changes and the name of the Color Mode appears briefly on the screen.

4. To cycle through all the available Color Modes for your input signal, press the Color Mode button

repeatedly.

Parent topic: Color Mode

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

Color Mode Description Presentation Best for color presentations in a bright room

Color Mode Description Dynamic Best for projecting in a bright room Theatre Best for movies projected in a dark room Sports Best for television images in a bright room sRGB Best for standard sRGB computer displays Blackboard Best for presentations onto a green chalkboard (adjusts the colors

Whiteboard Best for presentations onto a whiteboard (adjusts the colors

Photo Best for still images projected in a bright room Customized Best for customizing a color mode using manual Color

Parent topic: Color Mode

Turning On Auto Iris

In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

accordingly)

Adjustment settings in the Image menu

2. Press the Menu button.

3. Select the Image menu and press Enter.

4. Select the Auto Iris setting and select On.

5. Press Menu or Esc to exit the menus.

Parent topic: Color Mode

Controlling the Volume With the Volume Buttons

You can use the Volume buttons on the remote control to adjust the volume as you project a presentation with audio. The volume buttons control the projector’s internal speaker system or any external speakers you connected to the projector.

You must adjust the volume separately for each connected input source.

1. Turn on the projector and start a presentation that includes audio.

2. Press the Volume buttons as necessary to lower or raise the volume.

A volume gauge appears on the screen.

3. To set the volume to a specific level for an input source, you can set the volume using a projector

menu.

Parent topic: Using Basic Projector Features Related references

Projector Feature Settings - Settings Menu

Projecting a Slide Show

You can use your projector's Slideshow feature whenever you connect a USB device that contains compatible image files. This lets you quickly and easily display a slide show or presentation, and control it using the projector's remote control.

Slideshow Presentations Supported Slideshow File Types Starting a Slide Show or Presentation

Parent topic: Using Basic Projector Features Related concepts

USB Device Projection

Related tasks

Connecting a USB Device or Camera to the Projector

Slideshow Presentations

Your projector's Slideshow feature lets you do the following:

• Display individual images

• Present a slide show of all images in a folder

Parent topic: Projecting a Slide Show

Supported Slideshow File Types

You can project these types of files using the projector's Slideshow feature. Note: For best results, place your files on media that is formatted in FAT16/32.

File contents File type Details

(extension)

Image .jpg Make sure the file is not:

• CMYK format

• Progressive format

• Highly compressed

• Above 8192 × 8192 resolution .bmp Make sure the file resolution is not above 1280 × 800 .gif Make sure the file is not:

• Above 1280 × 800 resolution

• Animated .png Make sure the file resolution is not above 1280 × 800

Parent topic: Projecting a Slide Show

Starting a Slide Show or Presentation

After connecting a USB device to the projector, you can switch to the USB input source and start your slide show or presentation.

Note: You can change the Slideshow operation options or add special effects by highlighting Option at the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control. The Slideshow screen appears.

2. Do the following as necessary to locate your files:

• If you need to display files in a subfolder on your device, press the arrow buttons to highlight the

folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional images in a folder, highlight Next page or Previous page and press Enter.

3. Do one of the following to start your slide show or presentation:

• To display an individual image, press the arrow buttons to highlight the image and press Enter.

(Press the Esc button to return to the file list screen.)

• To display a slide show of all the images in a folder, press the arrow buttons to highlight the

Slideshow option at the bottom of the screen and press Enter.

4. While projecting, use the following commands to control the display as necessary:

• To rotate a displayed image, press the up or down arrow button.

• To move to the next or previous image, press the left or right arrow button.

5. To stop the display, follow the on-screen instructions or press the Esc button.

Slideshow Display Options

Parent topic: Projecting a Slide Show Related tasks

Disconnecting a USB Device or Camera From the Projector

Slideshow Display Options

You can select these display options when using the projector's Slideshow feature.

Option Available settings Description Display order Name order Displays files in name order

Sort Order In Ascending Sorts files in first-to-last order

Date order Displays files in date order

In Descending Sorts files in last-to-first order

Continuous Play On Displays a slide show continuously

Off Displays a slide show one time through

Screen switching No Does not display the next file automatically time

1Sec. to 60Sec. Displays files for the selected time (in

seconds) and switches to the next file automatically

Effect Wipe Transitions between images with a wipe effect

Dissolve Transitions between images with a dissolve

effect

Random Transitions between images using a random

variety of effects

Parent topic: Starting a Slide Show or Presentation

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Projector Security Features Projector Identification System for Multiple Projector Control Projecting Two Images Simultaneously

Shutting Off the Picture and Sound Temporarily

You can temporarily turn off the projected picture and sound if you want to redirect your audience's attention during a presentation. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

If you want to display an image such as a company logo or picture when the presentation is stopped, you can set up this feature using the projector's menus.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

2. To turn the picture and sound back on, press A/V Mute again.

Parent topic: Adjusting Projector Features Related references

Projector Setup Settings - Extended Menu

Stopping Video Action Temporarily

You can temporarily stop the action in a video or computer presentation and keep the current image on the screen. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

1. Press the Freeze button on the remote control to stop the video action.

2. To restart the video action in progress, press Freeze again.

Parent topic: Adjusting Projector Features

Zooming Into and Out of Images

You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it on the screen.

1. Press the E-Zoom + button on the remote control.

You see a crosshair on the screen indicating the center of the zoom area.

2. Use the following buttons on the remote control to adjust the zoomed image:

• Use the arrow buttons to position the crosshair in the image area you want to zoom into.

• Press the E-Zoom + button repeatedly to zoom into the image area, enlarging it up to four times.

• To pan around the zoomed image area, use the arrow buttons.

• To zoom out of the image, press the E-Zoom – button as necessary.

• To return to the original image size, press Esc.

Parent topic: Adjusting Projector Features

Projector Security Features

You can secure your projector to prevent theft or unintended use by setting up the following security features:

• Password security to prevent the projector from being turned on, and prevent changes to the startup

screen and other settings.

• Button lock security to block operation of the projector using the buttons on the control panel.

• Security cabling to physically cable the projector in place.

Password Security Types Locking the Projector's Buttons

Installing a Security Cable

Parent topic: Adjusting Projector Features

Password Security Types

You can set up these types of password security using one shared password:

• Power On Protect password prevents anyone from using the projector without first entering a

password.

• User's Logo Protect password prevents anyone from changing the custom screen the projector can

display when it turns on or when you use the A/V Mute feature. The presence of the custom screen discourages theft by identifying the projector’s owner.

• Network Protect password prevents anyone from changing the network settings in the projector

menus.

Setting a Password Selecting Password Security Types Entering a Password to Use the Projector Saving a User's Logo Image to Display

Parent topic: Projector Security Features

Setting a Password

To use password security, you must set a password.

1. Hold down the Freeze button on the remote control until you see the Password Protect menu. This takes about five seconds.

2. Press the down arrow to select Password and press Enter.

You see the prompt "Change the password?".

3. Select Yes and press Enter.

4. Hold down the Num button on the remote control and use the numeric buttons to set a four-digit password.

The password displays as **** as you enter it. Then you see the confirmation prompt.

5. Enter the password again. You see the message "Password accepted."

6. Press Esc to return to the Password Protect menu.

7. Make a note of the password and keep it in a safe place in case you forget it.

Parent topic: Password Security Types

Selecting Password Security Types

After setting a password, you see the Password Protect menu. Select the password security types you want to use.

If you do not see this menu, hold down the Freeze button on the remote control for five seconds until the menu appears.

1. To prevent unauthorized use of the projector, select Power On Protect, press Enter, select On, press Enter again, and press Esc.

2. To prevent changes to the User's Logo screen or related display settings, select User's Logo Protect, press Enter, select On, press Enter again, and press Esc.

3. To prevent changes to network settings, select Network Protect, press Enter, select On, press Enter again, and press Esc.

You can attach the Password Protect sticker to the projector as an additional theft deterrent. Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the

password required to use the projector.

Parent topic: Password Security Types

Entering a Password to Use the Projector

If a password is set up and a Power On Protect password is enabled, you see a prompt to enter a password whenever you turn on the projector.

You must enter the correct password to use the projector.

1. Hold down the Num button on the remote control while you enter the password using the numeric buttons.

The password screen closes.

2. If the password is incorrect, the following may happen:

• You see a "wrong password" message and a prompt to try again. Enter the correct password to

proceed.

• If the password is incorrect three times, you see a message that the projector is locked and a

request code. Write down the code, turn the projector off, and disconnect the power cord from the projector. Then reconnect the power cord, turn the projector back on, and enter the password again.

• If the password is incorrect 30 times in a row, the projector remains locked. You must contact

Epson for service and provide the request code displayed with the locking message.

Parent topic: Password Security Types

Saving a User's Logo Image to Display

You can transfer an image to the projector and then display it whenever the projector turns on. You can also display the image when the projector is not receiving an input signal or when you temporarily stop projection (using the A/V Mute feature). This transferred image is called the User's Logo screen.

The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by setting up password protection for it.

1. Display the image you want to project as the User's Logo.

2. Press the Menu button, select the Extended menu, and press Enter.

3. Select the User's Logo setting and press Enter. You see a prompt asking if you want to use the displayed image as a user's logo.

4. Select Yes and press Enter. You see a selection box overlaying your image.

5. Use the arrow buttons on the remote control to surround the image area you want to use as the User's Logo and press Enter.

You see a prompt asking if you want to select this image area.

6. Select Yes and press Enter. (If you want to change the selected area, select No, press Enter, and repeat the last step.)

You see the User's Logo zoom factor menu.

7. Select a zoom percentage and press Enter. You see a prompt asking if you want to save the image as the User's Logo.

8. Select Yes and press Enter. Note: It takes a few moments for the projector to save the image; do not use the projector, its remote

control, or any connected equipment until it is finished. You see a completion message.

9. Press Esc to exit the message screen.

10. Select the Extended menu and press Enter.

11. Select Display and press Enter.

12. Select when you want to display the User's Logo screen:

• To display it whenever there is no input signal, select Display Background and set it to Logo.

• To display it whenever you turn the projector on, select Startup Screen and set it to On.

• To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.

To prevent anyone from changing the User's Logo settings without first entering a password, set a password and enable User's Logo security.

Parent topic: Password Security Types

100

Epson PowerLite D6150, PowerLite D6155W, PowerLite D6250 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Projector Parts Locations

Projector Parts - Front/Top

Projector Parts - Rear

Projector Parts - Base

Projector Parts - Control Panel
