Epson PowerLite 92, PowerLite 93+ Quick Setup Guide

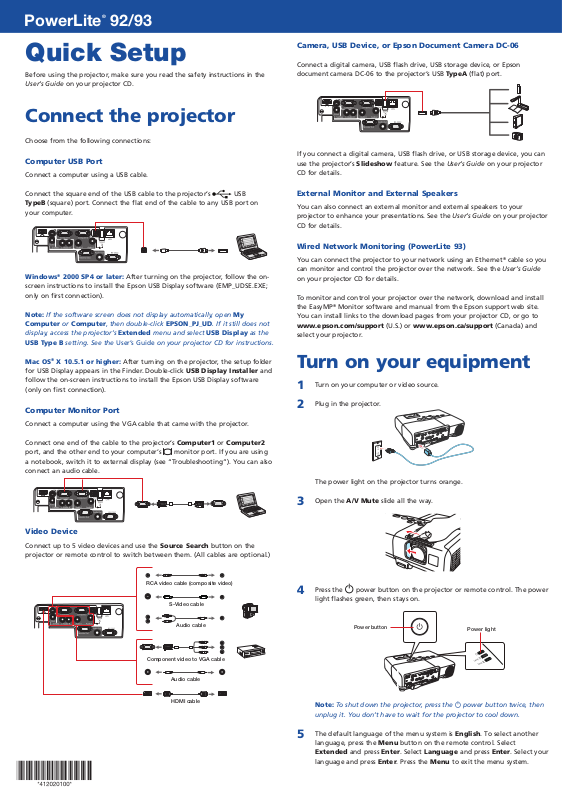

PowerLite® 92/93

Camera, USB Device, or Epson Document Camera DC-06

Quick Setup

Before using the projector, make sure you read the safety instructions in the
User’s Guide on your projector CD.

Connect the projector

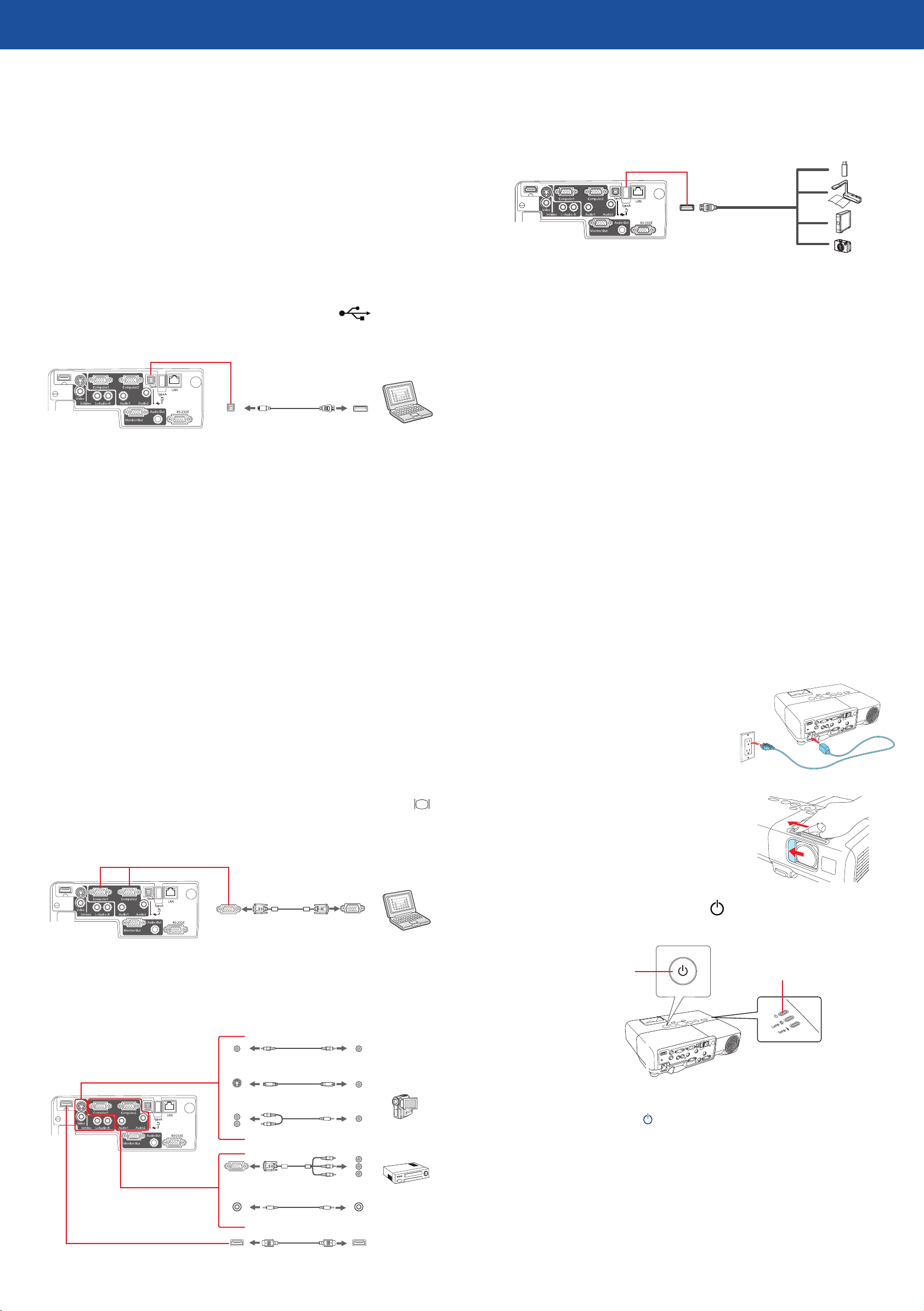

Choose from the following connections:

Computer USB Port

Connect a computer using a USB cable.

Connect the square end of the USB cable to the projector’s
TypeB (square) port. Connect the flat end of the cable to any USB port on
your computer.

USB

Connect a digital camera, USB flash drive, USB storage device, or Epson
document camera DC-06 to the projector’s USB TypeA (flat) port.

If you connect a digital camera, USB flash drive, or USB storage device, you can
use the projector’s Slideshow feature. See the User’s Guide on your projector
CD for details.

External Monitor and External Speakers

You can also connect an external monitor and external speakers to your
projector to enhance your presentations. See the User’s Guide on your projector
CD for details.

Wired Network Monitoring (PowerLite 93)

Windows® 2000 SP4 or later: After turning on the projector, follow the on-

screen instructions to install the Epson USB Display software (EMP_UDSE.EXE;
only on first connection).

Note: If the software screen does not display automatically, open My
Computer or Computer, then double-click EPSON_PJ_UD. If it still does not
display, access the projector’s Extended menu and select USB Display as the
USB Type B setting. See the User’s Guide on your projector CD for instructions.

Mac OS

for USB Display appears in the Finder. Double-click USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software
(only on first connection).

®

X 10.5.1 or higher: After turning on the projector, the setup folder

Computer Monitor Port

Connect a computer using the VGA cable that came with the projector.

Connect one end of the cable to the projector’s Computer1 or Computer2
port, and the other end to your computer’s
a notebook, switch it to external display (see “Troubleshooting”). You can also
connect an audio cable.

monitor port. If you are using

You can connect the projector to your network using an Ethernet® cable so you
can monitor and control the projector over the network. See the User’s Guide
on your projector CD for details.

To monitor and control your projector over the network, download and install
the EasyMP
You can install links to the download pages from your projector CD, or go to
www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and
select your projector.

®

Monitor software and manual from the Epson support web site.

Turn on your equipment

Turn on your computer or video source.

1

Plug in the projector.

2

The power light on the projector turns orange.

Video Device

Connect up to 5 video devices and use the Source Search button on the
projector or remote control to switch between them. (All cables are optional.)

RCA video cable (composite video)

S-Video cable

Audio cable

Component video to VGA cable

Audio cable

Open the A/V Mute slide all the way.

3

Press the power button on the projector or remote control. The power

4

light flashes green, then stays on.

Power button

Power light

HDMI cable

Note: To shut down the projector, press the power button twice, then

unplug it. You don’t have to wait for the projector to cool down.

The default language of the menu system is English. To select another

5

language, press the Menu button on the remote control. Select
Extended and press Enter. Select Language and press Enter. Select your
language and press Enter. Press the Menu to exit the menu system.

Adjust the image

Troubleshooting

If you don’t see an image, press the Source Search button on the

1

projector or remote control to select the image source.

Note: If you still see a blank screen or have other display problems, see

the troubleshooting tips on the right.

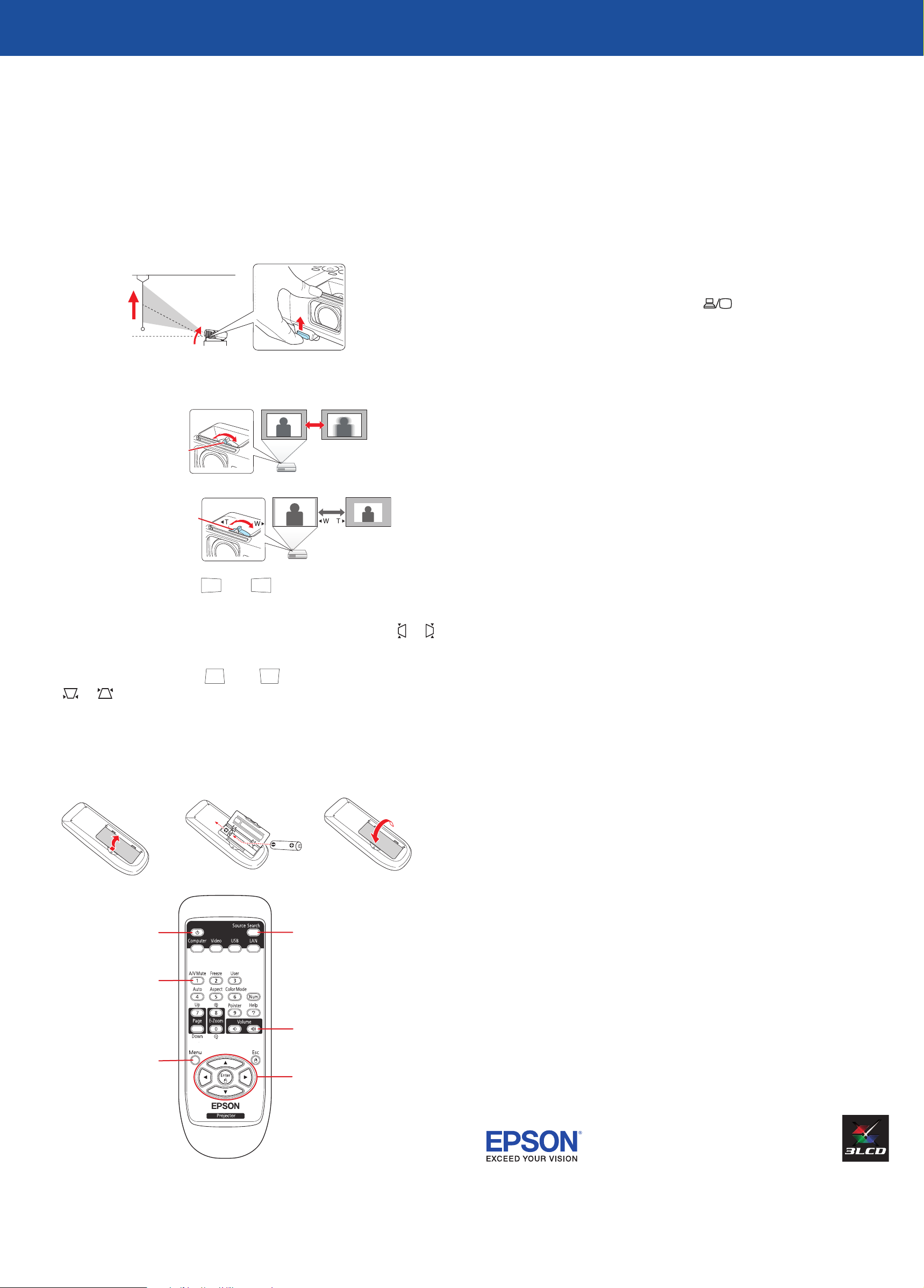

To raise the image, press the foot release button and lift the front of the

2

projector. Release the button to lock the foot in position.

Turn the focus ring to sharpen the image, and the zoom ring to enlarge

3

or reduce it.

If you see a blank screen or the No signal message after turning on your
computer or video device, check the following:

Make sure the power light on the projector is green and not flashing,

•

and the A/V Mute slide is open.

Press the Source Search button on the projector or the remote control

•

to select the computer as the image source.

If you’re using a Windows notebook, press the function key on your

•

keyboard that lets you display on an external monitor. It may be labeled

CRT/LCD or have an icon such as . You may have to hold down the
Fn key while pressing it (such as Fn + F7).

On a Macintosh®, select the Mirror Displays setting in the System

•

Preferences Displays utility.

Where to get help

Focus ring

Zoom ring

If your image looks like or , you’ve placed the projector off to

4

one side of the screen at an angle. Place it directly in front of the center
of the screen, facing the screen squarely. Or press the or buttons on
the projector to correct it.

If your image looks like or , press the or buttons on the

5

projector to correct it.

Using the remote control

Make sure the batteries are installed as shown (two AA batteries).

Manual

For more information about using the projector, install the manual from your
projector CD. View the guide by clicking the icon for it on your computer
desktop.

Telephone Support Services

To use the Epson PrivateLine® Support service, call [phone] and enter
the PIN on the Epson PrivateLine Support card included with your projector.
This service is available 6
the duration of your warranty period. You may also speak with a projector
support specialist by dialing:

US: [phone], 6 AM to 8 PM, Pacific Time, Monday through Friday, and
7 AM to 4 PM, Pacific Time, Saturday

Canada: [phone], 6 AM to 8 PM, Pacific Time, Monday through Friday

Days and hours of support are subject to change without notice. Toll or long
distance charges may apply.

AM to 6 PM, Pacific Time, Monday through Friday, for

Internet Support

Visit www.epson.com/support (U.S.) or www.epson.ca/support
(Canada) for solutions to common problems. You can download utilities and
documentation, get FAQs and troubleshooting advice, or e-mail Epson.

Turn projector

on and off

Turn off projector

display and sound

Access projector

menus

Choose which source
to display

Control projector
volume

Navigate projector
menus

Registration

Register today to get product updates, special promotions and customer-only
offers. You can use the CD included with your projector, or register online at

www.epson.com/webreg.

Optional accessories

For a list of optional accessories, see the User’s Guide on your projector CD.

For more information on using the remote control, see the User’s Guide on your
projector CD.
