Epson PowerLite 700U User Manual

PowerLite 700U User's Guide

PowerLite 700U User's Guide................................................................................................................... 11

Introduction to Your Projector ................................................................................................................. 12

Setting Up the Projector ........................................................................................................................... 29

Projector Features.............................................................................................................................. 12

Product Box Contents.................................................................................................................... 13

Additional Components ................................................................................................................ 14

Optional Equipment and Replacement Parts................................................................................. 15

Warranty and Registration Information .......................................................................................... 16

Notations Used in the Documentation ................................................................................................ 16

Where to Go for Additional Information .............................................................................................. 16

Additional Projector Software and Manuals........................................................................................ 17

Projector Part Locations ..................................................................................................................... 18

Projector Parts - Front/Side ........................................................................................................... 19

Projector Parts - Top/Side ............................................................................................................. 20

Projector Parts - Back Panel.......................................................................................................... 22

Projector Parts - Base.................................................................................................................... 24

Projector Parts - Control Panel ...................................................................................................... 25

Projector Parts - Remote Control................................................................................................... 26

Projector Placement........................................................................................................................... 29

Projector Setup and Installation Options ....................................................................................... 29

Projection Distance........................................................................................................................ 31

Removing and Attaching the Cable Cover.......................................................................................... 34

Projector Connections........................................................................................................................ 35

Connecting to Computer Sources.................................................................................................. 36

Connecting to a Computer for USB Video and Audio................................................................ 36

Connecting to a Computer for VGA Video and Audio................................................................ 37

Connecting to a Computer for HDMI Video and Audio.............................................................. 38

Connecting to a Computer for Sound........................................................................................ 39

Connecting to Video Sources ........................................................................................................ 40

Connecting to an HDMI Video Source ...................................................................................... 40

Connecting to an MHL-Compatible Device ............................................................................... 41

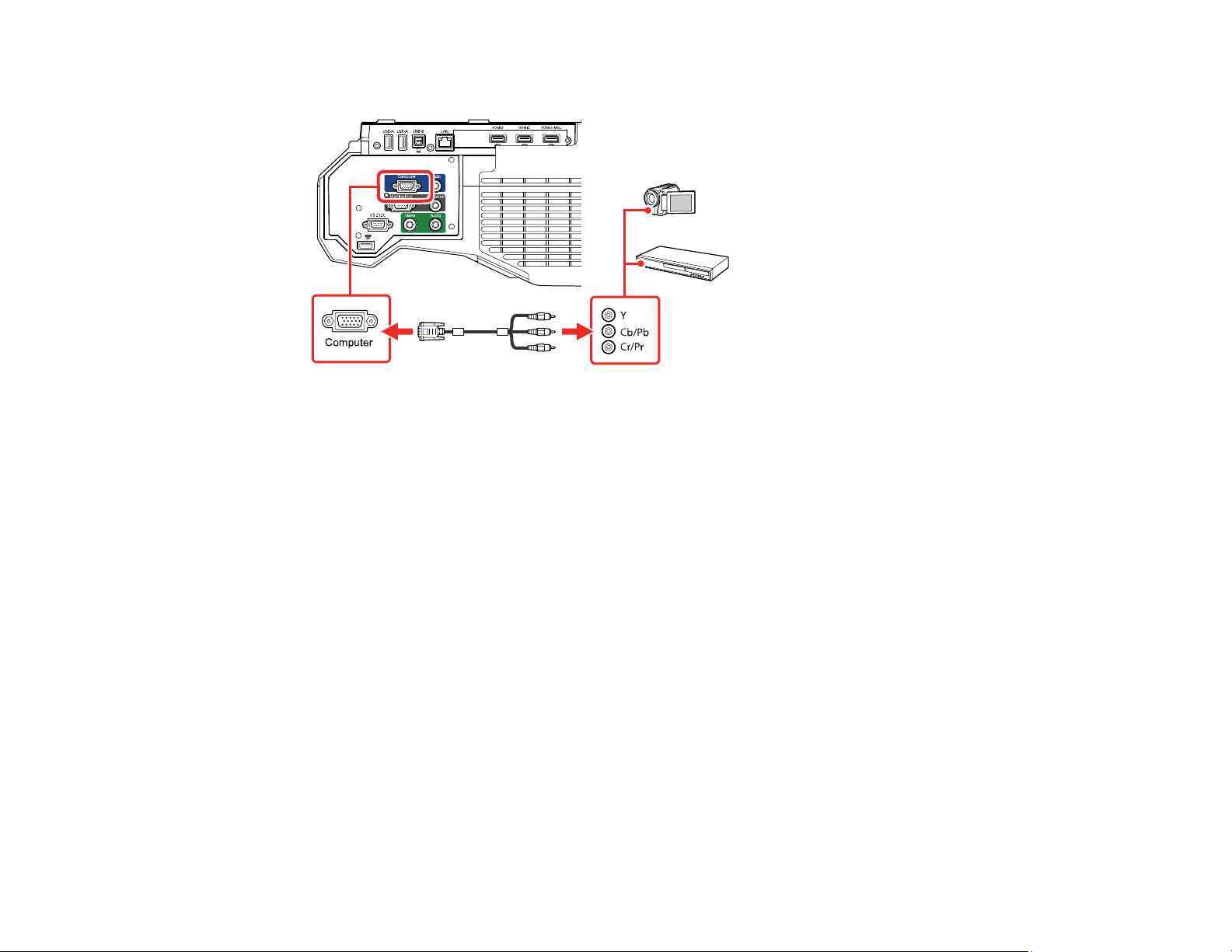

Connecting to a Component Video Source ............................................................................... 42

Connecting to a Composite Video Source ................................................................................ 43

Connecting to a Video Source for Sound .................................................................................. 44

Connecting External Output Devices............................................................................................. 45

Connecting to an External Computer Monitor ........................................................................... 45

Connecting to External Speakers.............................................................................................. 46

Connecting to External USB Devices ............................................................................................ 47

USB Device Projection.............................................................................................................. 47

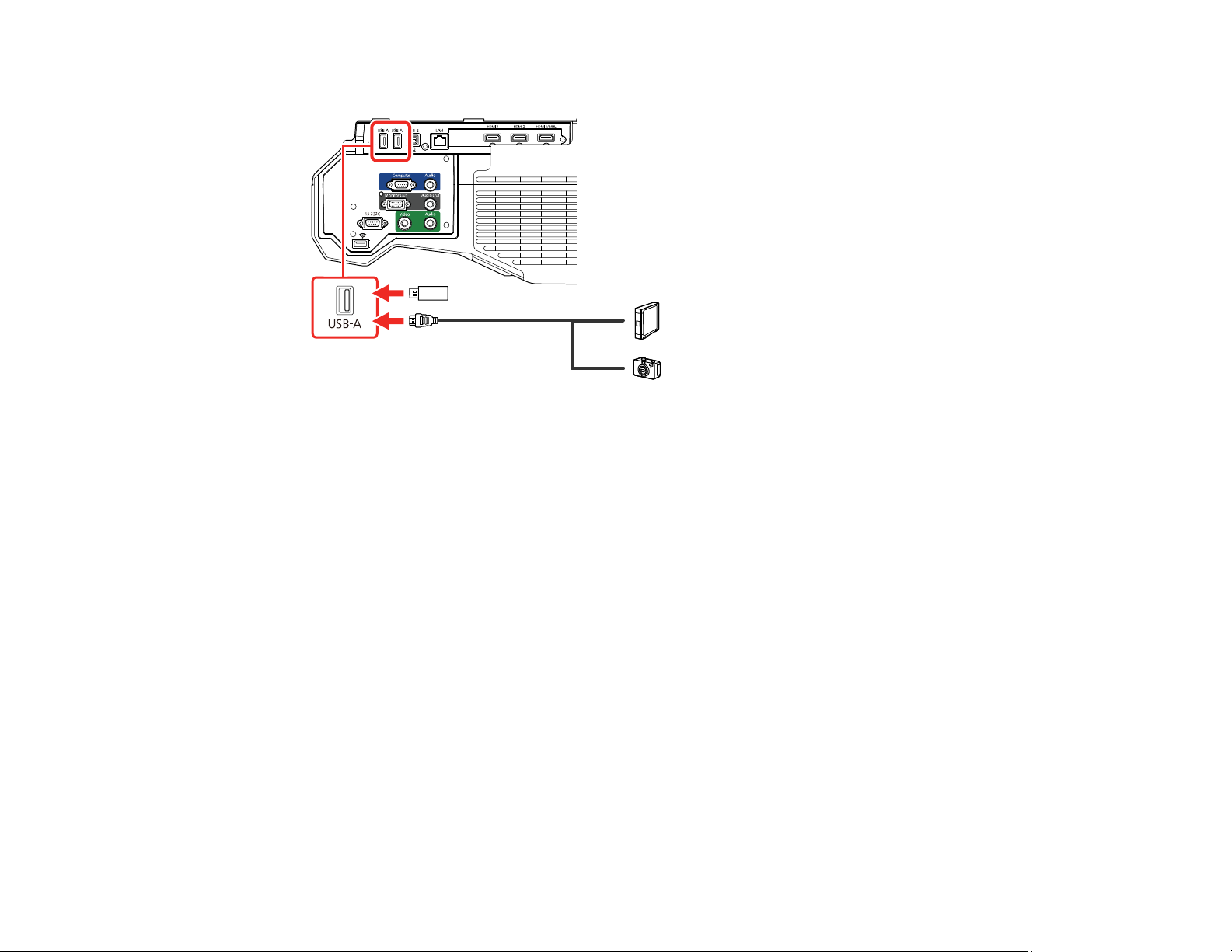

Connecting a USB Device or Camera to the Projector.............................................................. 48

Selecting the Connected USB Source ...................................................................................... 49

Disconnecting a USB Device or Camera From the Projector .................................................... 50

Connecting to a Document Camera .............................................................................................. 50

Installing Batteries in the Remote Control .......................................................................................... 51

Using the Projector on a Network ............................................................................................................ 53

Wired Network Projection................................................................................................................... 53

Connecting to a Wired Network ..................................................................................................... 53

Selecting Wired Network Settings ................................................................................................. 54

Wireless Network Projection .............................................................................................................. 57

Installing the Wireless LAN Module ............................................................................................... 58

Connecting Directly to a Smartphone or Tablet ............................................................................. 60

Using Quick Wireless Connection (Windows)................................................................................ 63

Selecting Wireless Network Settings Manually.............................................................................. 64

Wireless LAN Menu Settings .................................................................................................... 68

Selecting Wireless Network Settings in Windows.......................................................................... 70

Selecting Wireless Network Settings on Mac ................................................................................ 70

Setting Up Wireless Network Security ........................................................................................... 71

Setting Up Projector Network E-Mail Alerts ........................................................................................ 72

Network Projector E-mail Alert Messages ..................................................................................... 73

Setting Up Monitoring Using SNMP ................................................................................................... 74

Controlling a Networked Projector Using a Web Browser .................................................................. 76

Crestron RoomView Support.............................................................................................................. 79

Setting Up Crestron RoomView Support ....................................................................................... 80

Controlling a Networked Projector Using Crestron RoomView ...................................................... 81

Registering a Digital Certificate on the Projector ................................................................................ 82

Importing a Web Server Certificate Using the Projector Menus..................................................... 82

Registering Digital Certificates from a Web Browser ..................................................................... 84

Digital Certificate Types................................................................................................................. 85

Using Basic Projector Features ............................................................................................................... 87

Turning On the Projector .................................................................................................................... 87

Using the Home Screen................................................................................................................. 89

Turning Off the Projector .................................................................................................................... 91

Selecting the Language for the Projector Menus................................................................................ 92

Setting the Date and Time.................................................................................................................. 93

Image Shape...................................................................................................................................... 94

Correcting Image Shape with the Keystone Buttons...................................................................... 94

Correcting Image Shape with Quick Corner .................................................................................. 97

Correcting Image Shape with Arc Correction................................................................................. 99

Adjusting the Image Height .............................................................................................................. 100

Resizing the Image with the Wide and Tele Buttons ........................................................................ 102

Adjusting the Image Position............................................................................................................ 103

Focusing the Image.......................................................................................................................... 104

Remote Control Operation ............................................................................................................... 105

Using the Remote Control as a Wireless Mouse ......................................................................... 107

Using the Remote Control as a Pointer........................................................................................ 108

Selecting an Image Source .............................................................................................................. 109

Projection Modes ............................................................................................................................. 110

Changing the Projection Mode Using the Remote Control .......................................................... 111

Changing the Projection Mode Using the Menus......................................................................... 111

Image Aspect Ratio .......................................................................................................................... 112

Changing the Image Aspect Ratio ............................................................................................... 112

Available Image Aspect Ratios .................................................................................................... 113

Color Mode....................................................................................................................................... 114

Changing the Color Mode............................................................................................................ 114

Available Color Modes................................................................................................................. 115

Turning On Automatic Luminance Adjustment ............................................................................ 116

Controlling the Volume with the Volume Buttons.............................................................................. 116

Projecting a PC Free Presentation ................................................................................................... 117

Supported PC Free File Types .................................................................................................... 117

Starting a PC Free Slide Show .................................................................................................... 118

Starting a PC Free Movie Presentation ....................................................................................... 120

PC Free Display Options ............................................................................................................. 122

Adjusting Projector Features ................................................................................................................. 124

Projecting Two Images Simultaneously............................................................................................ 125

Input Sources for Split Screen Projection .................................................................................... 127

Using Multiple Projectors ................................................................................................................. 127

Projector Identification System for Multiple Projector Control ...................................................... 128

Setting the Projector ID........................................................................................................... 128

Setting the Remote Control ID ................................................................................................ 129

Adjusting Color Uniformity ........................................................................................................... 130

Adjusting the Projector's Brightness Level................................................................................... 132

Matching the Image Colors ......................................................................................................... 134

Adjusting RGBCMY .................................................................................................................... 136

Shutting Off the Picture and Sound Temporarily .............................................................................. 139

Stopping Video Action Temporarily .................................................................................................. 139

Zooming Into and Out of Images ...................................................................................................... 140

Scheduling Projector Events ............................................................................................................ 141

Saving a Scheduled Event........................................................................................................... 141

Viewing Scheduled Events .......................................................................................................... 142

Editing a Scheduled Event........................................................................................................... 143

Projector Security Features.............................................................................................................. 144

Password Security Types ............................................................................................................ 145

Setting a Password ................................................................................................................. 145

Selecting Password Security Types........................................................................................ 147

Entering a Password to Use the Projector............................................................................... 148

Saving a User's Logo Image to Display................................................................................... 149

Locking the Projector's Buttons ................................................................................................... 151

Unlocking the Projector's Buttons ........................................................................................... 153

Installing a Security Cable ........................................................................................................... 153

Creating a User Pattern to Display ................................................................................................... 154

Copying Menu Settings Between Projectors .................................................................................... 155

Saving Settings to a USB Flash Drive.......................................................................................... 156

Transferring Settings from a USB Flash Drive ............................................................................. 157

Saving Settings to a Computer .................................................................................................... 158

Transferring Settings from a Computer ....................................................................................... 159

Adjusting the Menu Settings .................................................................................................................. 162

Using the Projector's Menus............................................................................................................. 162

Image Quality Settings - Image Menu .............................................................................................. 164

Input Signal Settings - Signal Menu.................................................................................................. 167

Projector Feature Settings - Settings Menu...................................................................................... 169

Projector Setup Settings - Extended Menu....................................................................................... 173

Projector Network Settings - Network Menu..................................................................................... 178

Projector Setup Settings - ECO Menu .............................................................................................. 180

Projector Information Display - Info Menu ........................................................................................ 183

Event ID Code List....................................................................................................................... 184

Projector Reset Options - Reset Menu............................................................................................. 186

Maintaining and Transporting the Projector ......................................................................................... 187

Projector Maintenance ..................................................................................................................... 187

Cleaning the Projection Window.................................................................................................. 187

Cleaning the Obstacle Sensor..................................................................................................... 188

Cleaning the Projector Case ........................................................................................................ 189

Air Filter and Vent Maintenance ....................................................................................................... 189

Cleaning the Air Filter and Vents ................................................................................................. 190

Replacing the Air Filter ................................................................................................................ 193

Replacing the Remote Control Batteries .......................................................................................... 196

Transporting the Projector................................................................................................................ 198

Solving Problems .................................................................................................................................... 199

Projection Problem Tips ................................................................................................................... 199

Projector Light Status ....................................................................................................................... 200

Using the Projector Help Displays .................................................................................................... 203

Solving Image or Sound Problems ................................................................................................... 203

Solutions When No Image Appears............................................................................................. 204

Solutions When Image is Incorrect Using the USB Display Function .......................................... 205

Solutions When "No Signal" Message Appears........................................................................... 205

Displaying From a PC Laptop ................................................................................................. 206

Displaying From a Mac Laptop ............................................................................................... 207

Solutions When "Not Supported" Message Appears ................................................................... 207

Solutions When Only a Partial Image Appears............................................................................ 207

Solutions When the Image is Not Rectangular ............................................................................ 208

Solutions When the Image Contains Noise or Static ................................................................... 209

Solutions When the Image is Fuzzy or Blurry .............................................................................. 209

Solutions When the Image Brightness or Colors are Incorrect .................................................... 210

Solutions to Sound Problems ...................................................................................................... 211

Solving Projector or Remote Control Operation Problems ............................................................... 212

Solutions to Projector Power or Shut-Off Problems..................................................................... 212

Solutions to Problems with the Remote Control........................................................................... 213

Solutions to Password Problems ................................................................................................. 214

Solving Network Problems ............................................................................................................... 215

Solutions When Wireless Authentication Fails ............................................................................ 215

Solutions When You Cannot Access the Projector Through the Web ......................................... 215

Solutions When Network Alert E-Mails are Not Received............................................................ 216

Solutions When the Image Contains Static During Network Projection ....................................... 216

Where to Get Help............................................................................................................................ 217

Technical Specifications ........................................................................................................................ 218

General Projector Specifications ...................................................................................................... 218

Projector Light Source Specifications............................................................................................... 220

Remote Control Specifications ......................................................................................................... 220

Projector Dimension Specifications.................................................................................................. 221

Projector Electrical Specifications .................................................................................................... 221

Projector Environmental Specifications............................................................................................ 222

Projector Safety and Approvals Specifications................................................................................. 222

Supported Video Display Formats.................................................................................................... 222

USB Display System Requirements................................................................................................. 225

Notices ..................................................................................................................................................... 226

Recycling.......................................................................................................................................... 226

Important Safety Information ............................................................................................................ 226

Laser Safety Information .................................................................................................................. 227

Important Safety Instructions............................................................................................................ 229

Restriction of Use ........................................................................................................................ 231

List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 232

FCC Compliance Statement............................................................................................................. 235

Binding Arbitration and Class Waiver ............................................................................................... 236

Trademarks...................................................................................................................................... 239

Copyright Notice............................................................................................................................... 240

A Note Concerning Responsible Use of Copyrighted Materials................................................... 240

Copyright Attribution.................................................................................................................... 240

PowerLite 700U User's Guide

Welcome to the PowerLite 700U User's Guide.

For a printable PDF copy of this guide, click here.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Additional Projector Software and Manuals Projector Part Locations

Projector Features

The PowerLite 700U projector includes these special features:

Bright, high-resolution projection system

• Up to 4000 lumens of color brightness (color light output) and white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• Native resolution of 1920 × 1200 pixels (WUXGA)

Flexible connectivity

• Three HDMI ports (including one MHL-compatible port) for computer or video device connection

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• Wired and wireless network support for projection

• Projector monitoring and control via remote network computer

• PC Free photo slide shows via connected USB memory devices or Epson document camera

• Use Epson iProjection (Windows/Mac) to simultaneously project up to four images from network computers or mobile devices using the Epson iProjection app

• Projection from iOS or Android devices with the optional wireless LAN module and free Epson iProjection app; visit epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information

Innovative display and operation features

• Long-life laser light source

• Support for side-by-side projector mounting

• High digital zoom ratio for larger images in shorter projection distances

• 2500000:1 contrast ratio and Dynamic Contrast control for sharp, detailed images

• Built-in closed captioning decoder

• Powerful 16 W speaker system with audio out port for connecting external speakers

• Epson's Direct Power On and Auto Power On features for quick and easy setup

• Support for Crestron RoomView network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (2 AA alkaline)

4 Power cord

5 VGA computer cable

6 Projector feet

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

Composite video RCA-style video or A/V cable

Component video D-sub, 15-pin, component-to-VGA video cable or adapter

HDMI Compatible HDMI cable

MHL MHL-compatible device or device with an integrated MHL connector or

Audio from certain ports Commercially available audio cable compatible with your device

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller.

Note: Older Mac computers (2009 and earlier) may not support HDMI audio.

HDMI cable and MHL adapter compatible with your device

Available for purchase from Epson or an authorized Epson reseller.

Signal or connection type

USB Compatible USB cable

Parent topic: Projector Features

Additional component necessary

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Replacement air filter (ELPAF43) V13H134A43

Ultra-short throw wall mount (ELPMB53) V12H902020

Wireless LAN module (ELPAP10) V12H731P02

Epson DC-06 document camera (ELPDC06) V12H321005

Epson DC-07 document camera (ELPDC07) V12H759020

Epson DC-11 document camera (ELPDC11) V12H377020

Epson DC-12 document camera (ELPDC12) V12H594020

Epson DC-13 document camera (ELPDC13) V12H757020

Epson DC-20 document camera (ELPDC20) V12H500020

Epson DC-21 document camera (ELPDC21) V12H758020

Active speakers (ELPSP02) V12H467020

10 ft. (3.0 m) Component-to-VGA video cable ELPKC19

10 ft. (3.0 m) HD-TV cable ELPKC22

In addition to the accessories listed above, 1-year and 2-year extended service plans are available.

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• Built-in help system

Press the Home button on the remote control or projector, press the arrow buttons to select the help icon, and press Enter to get quick solutions to common problems.

• epson.com/support (U.S.) or epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Additional Projector Software and Manuals

After connecting and setting up the projector, download the projector software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Projector software Manual Description

Epson Projector Management (Windows only)

Epson iProjection (Windows/Mac)

EasyMP Network Updater (Windows only)

Epson Projector Management Guide

Epson iProjection Operation Guide

EasyMP Network Updater Operation Guide

Lets you monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you project the computer screens of users over a network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you update firmware for a projector over a wired LAN.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Projector software Manual Description

Epson iProjection app Instructions are included

— Open Source Software

Parent topic: Introduction to Your Projector

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Side Projector Parts - Top/Side Projector Parts - Back Panel Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

with the app

License

Lets you project from an iOS device, Android device, or Chromebook if your projector is connected to a network that includes a wireless access point.

Visit epson.com/iprojection (U.S.) or

epson.ca/iprojection (Canada) for more

information.

You can download this document from the Epson web site. Go to epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector. (Document available only in English.)

Parent topic: Introduction to Your Projector

Projector Parts - Front/Side

1 Remote control receiver

2 Status lights

3 Speaker

4 Exhaust vent

5 Cable cover screws

6 Cable cover

Parent topic: Projector Part Locations

Projector Parts - Top/Side

1 Air filter cover latch

2 Wireless LAN light

3 Obstacle sensors

4 Remote receiver

5 Projection window

6 Control panel

7 Security cable installation slot

8 Air filter cover

9 Focus lever

10 Air intake vent (air filter)

Parent topic: Projector Part Locations

Related references

Projector Light Status

Projector Parts - Back Panel

1 Monitor Out port

2 Video port

3 Audio port for use with the Video port

4 Audio Out port

5 Audio port for use with the Computer port

6 Power inlet

7 HDMI 1/MHL port

8 HDMI 2 port

9 HDMI 3 port

10 Network (LAN) port

11 USB-B port for computer connection

12 USB-A ports for USB memory device or document camera

13 Computer port

14 RS-232C port

15 Wireless LAN module port

Parent topic: Projector Part Locations

Related concepts

Projector Connections

Projector Parts - Base

1 Ceiling mount holes (4)

2 Rear foot holes (2)

3 Security cable attachment point

4 Wall mounting plate holes (4)

5 Front foot hole

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 Source Search button (searches for connected video sources)

2 (Enter) button (selects options)

3 Vertical keystone adjustment buttons (display the adjustment screen and adjust screen shape)

and arrow buttons

4 Esc button (cancels/exits functions)

5 W/T (Wide/Tele) buttons (adjust projected image size) and arrow buttons

6 Menu button (accesses projector menu system)

7 Home button (accesses projector Home screen)

8 Power button

Parent topic: Projector Part Locations

Projector Parts - Remote Control

1 Power button

2 Computer button

3 HDMI/Video button (cycles through connected HDMI and video sources)

4 Numeric buttons

5 Auto button (automatically adjusts position, tracking, and sync settings)

6 Aspect button (selects the image aspect ratio)

7 Num button (when held down, switches numeric buttons to number function)

8 Menu button (accesses projector menu system)

9 Arrow buttons (move through on-screen options and control wireless mouse functions)

10 Enter button (selects options and controls wireless mouse functions)

11 User button (customizable for different functions)

12 Page up/down buttons (control presentation slides)

13 E-Zoom +/– buttons (zoom into and out of the image)

14 A/V Mute button (turns off picture and sound)

15 Split button (splits the screen between two image sources)

16 Strap attachment point

17 Home button (accesses projector Home screen)

18 Freeze button (stops video action)

19 Volume up/down buttons (adjust speaker volume)

20 Pointer button (activates on-screen pointer)

21 Esc button (cancels/exits functions and controls wireless mouse functions)

22 Pen Mode button (not supported on this model)

23 ID button (selects a projector to use with the remote control)

24 Color Mode button (selects display modes)

25 Link Menu button (displays settings or performs functions for the device connected to the HDMI

port)

26 LAN button (connects to a network source)

27 USB button (cycles between USB Display and USB-A ports)

28 Source Search button (searches for connected sources)

29 Remote control emitter

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Removing and Attaching the Cable Cover Projector Connections Installing Batteries in the Remote Control

Projector Placement

Your ultra-short throw projector is designed to be installed on a wall (with a wall mount).

You can also place the projector on a flat surface such as a desk or table to project in a portable setup.

Keep these considerations in mind as you select a projector location:

• Follow the instructions in the Installation Guide provided with your mounting hardware to install the projector using the included mounting equipment.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

• If installing on a wall, the wall mount (V12H902020) is required.

• If the projector is not mounted, place it on a sturdy, level surface.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Mounted on the wall or ceiling

Mounted on the wall or ceiling and projecting from behind a translucent screen

Front projection from a table or portable cart

Rear projection from a table or portable cart behind a translucent screen

Wherever you set up the projector, make sure to position it squarely in front of the screen, not at an angle.

If you project from a table or portable cart, or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean) .

1 Projection distance

2 Distance from the top of the projector to the top of the image (when projecting from a wall or table

mount) or base of the image (when projecting from a flat surface)

3 Distance from the top of the projector to the base of the image (when projecting from a wall or

table mount) or top of the image (when projecting from a flat surface)

4 Distance from the center of the lens to the rear of the projector: 13.7 inches (34.9 cm)

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

70 inches (177.8 cm) 15.9 to 22 inches

Offset from lens center (2)

Offset from lens center (3)

5.1 inches (12.9 cm) 42.2 inches (107.2 cm)

(40.5 to 55.8 cm)

75 inches (190.5 cm) 17.1 to 23.6 inches

5.6 inches (14.3 cm) 45.4 inches (115.3 cm)

(43.6 to 60.1 cm)

80 inches (203.2 cm) 18.4 to 25.3 inches

6.2 inches (15.7 cm) 48.6 inches (123.4 cm)

(46.7 to 64.3 cm)

90 inches (228.6 cm) 20.8 to 28.6 inches

7.3 inches (18.6 cm) 55 inches (139.7 cm)

(53.0 to 72.8 cm)

100 inches (254 cm) 23.3 inches (59.3 cm)* 8.4 inches (21.4 cm) 61.4 inches (156.0 cm)

110 inches (279.4 cm) 25.8 inches (65.6 cm)* 9.5 inches (24.2 cm) 67.8 inches (172.2 cm)

120 inches (304.8 cm) 28.3 inches (71.9 cm)* 10.6 inches (27.0 cm) 74.2 inches (188.5 cm)

130 inches (330.2 cm) 30.7 inches (78.1 cm)* 11.7 inches (29.8 cm) 80.6 inches (204.8 cm)

*Wide resolution only

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

70 inches (177.8 cm) 18.2 to 25 inches

Offset from lens center (2)

Offset from lens center (3)

6.1 inches (15.5 cm) 48.1 inches (122.2 cm)

(46.3 to 63.7 cm)

80 inches (203.2 cm) 21 to 28.8 inches

7.3 inches (18.7 cm) 55.3 inches (140.6 cm)

(53.4 to 73.3 cm)

90 inches (228.6 cm) 23.8 inches (60.5 cm)* 8.6 inches (21.9 cm) 62.6 inches (159.0 cm)

100 inches (254 cm) 26.6 inches (67.6 cm)* 9.8 inches (25.1 cm) 69.8 inches (177.5 cm)

110 inches (279.4 cm) 29.4 inches (74.7 cm)* 11.1 inches (28.2 cm) 77.1 inches (195.9 cm)

*Wide resolution only

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

70 inches (177.8 cm) 16.4 to 22.6 inches

(41.7 to 57.5 cm)

80 inches (203.2 cm) 18.9 to 26 inches

(48.1 to 66.2 cm)

90 inches (228.6 cm) 21.5 to 29.5 inches

(54.6 to 74.9 cm)

100 inches (254 cm) 24 inches (61.0 cm)* 11.4 inches (29.1 cm) 60.4 inches (153.6 cm)

110 inches (279.4 cm) 26.5 inches (67.5 cm)* 12.8 inches (32.6 cm) 66.7 inches (169.6 cm)

125 inches (317.5 cm) 30.4 inches (77.2 cm)* 14.9 inches (38 cm) 76.2 inches (193.6 cm)

*Wide resolution only

Parent topic: Projector Placement

Removing and Attaching the Cable Cover

Before you can connect equipment to your projector, you need to remove the cable cover.

Offset from lens center (2)

7.2 inches (18.3 cm) 41.5 inches (105.5 cm)

8.6 inches (21.9 cm) 47.8 inches (121.5 cm)

10 inches (25.5 cm) 54.1 inches (137.6 cm)

Offset from lens center (3)

1. Use a screwdriver to remove both of the cable cover screws.

2. Slide off the cable cover.

To attach the cable cover, slide it into position and tighten the screws with a screwdriver.

Parent topic: Setting Up the Projector

Projector Connections

See these sections to connect the projector to a variety of projection sources.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode

to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting External Output Devices Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu Additional Components

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video and Audio Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

Note: A USB connection may cause a delay for content requiring high bandwidth, such as movies. An HDMI connection is recommended for projecting movies, video games, and other home entertainment content.

1. Turn on your computer.

2. Connect the cable to your projector's USB-B port.

3. Connect the other end to any available USB port on your computer.

4. To use USB Display, do one of the following:

• Windows 10/Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.exe in the dialog box that appears to install the Epson USB Display software.

• Windows 7/Windows Vista: Select Run EMP_UDSE.exe in the dialog box that appears to install the Epson USB Display software.

• Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources

Related references

Projector Setup Settings - Extended Menu

Connecting to a Computer for VGA Video and Audio

You can connect the projector to your computer using a VGA computer cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers. (Make sure the HDMI audio playback device on your computer's audio settings is set to EPSON PJ.)

Note: If you have problems hearing audio through the HDMI connection, you can use one of the projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to one of the projector's audio ports and the other end to your computer's audio out port. Then select the audio port you connected to as the HDMI1 Audio Output, HDMI2 Audio Output or

HDMI3 Audio Output setting in the Extended menu.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to the projector's USB-B or an HDMI port, you can still play sound through the projector's speaker system. Just connect an optional

3.5 mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to an MHL-Compatible Device Connecting to a Component Video Source Connecting to a Composite Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Note: If you have problems hearing audio through the HDMI connection, you can use one of the projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to one of the projector's audio ports and the other end to your video source's audio out port. Then select the audio port you connected to as the HDMI1 Audio Output, HDMI2 Audio Output or

HDMI3 Audio Output setting in the Extended menu.

Parent topic: Connecting to Video Sources

Related references

Projector Setup Settings - Extended Menu

Connecting to an MHL-Compatible Device

If you have an MHL-compatible smartphone or tablet, you can connect it to the projector using an HDMI cable with a device-compatible MHL adapter. If you have a device with a built-in MHL connector, plug it directly into the HDMI 1/MHL port.

Note: Some connected devices may not charge when using an MHL adapter.

1. Connect the MHL cable or adapter to your device's Micro-USB port.

2. If you are using an MHL adapter, connect it to an MHL-compatible HDMI cable.

3. Connect the other end of the cable to the projector's HDMI 1/MHL port.

Parent topic: Connecting to Video Sources

Connecting to a Component Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to the Computer port on the projector.

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources

Related references

Input Signal Settings - Signal Menu

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using the Video or Computer port, connect the projector to the video source using an optional stereo mini-jack audio cable.

Note: If you connected your video source to the projector using an HDMI cable, the audio signal is transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's Audio port that corresponds to the port you are using for video.

Parent topic: Connecting to Video Sources

Connecting External Output Devices

See these sections to connect the projector to external output devices.

Connecting to an External Computer Monitor Connecting to External Speakers

Parent topic: Projector Connections

Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select

Always On as the A/V Output setting in the projector's Extended menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

Parent topic: Connecting External Output Devices

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers.

If you want to output audio from the external speakers when the projector is turned off, you need to select Always On as the A/V Output setting in the projector's Extended menu.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pinjack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Connecting External Output Devices

Related references

Projector Setup Settings - Extended Menu

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

Related tasks

Starting a PC Free Slide Show

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector:

• USB flash drive

• Digital camera or smartphone

• USB hard drive

• Multimedia storage viewer

Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.

Note: USB hard drives must meet these requirements:

• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)

• Formatted in FAT or FAT32

• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)

• Does not have multiple partitions

You can project slide shows from image files on a connected USB device.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive) to the projector's USB-A port.

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not

operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to one of the USB-A ports. To display the connected USB device, select the USB1 source.

Note: If you have connected a document camera, select the USB2 source.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the Source Search button on the remote control and select the USB1 or USB2 source.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera.

Note: If you connect a document camera to one of the USB-A ports on the projector, select the USB2 source to display the image. You cannot simultaneously connect two document cameras to the USB-A ports.

Depending on your Epson document camera model, do one of the following to connect the document camera to your projector:

• For the Epson DC-06 document camera, locate the USB cable that came with the camera and

connect it to the projector's USB-A port and to the document camera's USB Type B port.

• For the Epson DC-07 document camera, locate the USB cable that came with the camera and

connect it to the projector's USB-A port and to the document camera's USB Type B port.

• For the Epson DC-11 document camera, connect it to the projector's Computer or Video port and to

the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-12 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-13 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-20 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-21 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.

Parent topic: Projector Connections

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Crestron RoomView Support Registering a Digital Certificate on the Projector

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, download and install the network software and manuals as necessary.

Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen in Epson Web Control. (Default user name is EPSONREMOTE; default password is guest .)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the Epson iProjection software to access the projector.

• Display Keyword lets you select whether or not to display a projector keyword on the projected

image when using the Epson iProjection software to access the projector.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.

To connect wirelessly to your projector, configure the connection using the projector's Network menus.

After setting up the projector as described here, download the network software and manuals as necessary.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Installing the Wireless LAN Module Connecting Directly to a Smartphone or Tablet Using Quick Wireless Connection (Windows) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals Optional Equipment and Replacement Parts

Installing the Wireless LAN Module

To use the projector over a wireless network, install the Epson 802.11b/g/n wireless module in the projector. Do not install any other type of wireless module.

Caution: Never remove the module while its indicator light is blue or flashing, or while you are projecting wirelessly. You may damage the module or lose data.

Note: The wireless LAN module is not included with your projector.

1. Turn off the projector and unplug the power cord.

2. Unscrew and remove the cable cover if it is attached (screwdriver not included).

3. Insert the wireless LAN module into the port shown here.

4. Replace the cable cover and tighten the screws.

5. Plug in and turn on the projector.

Parent topic: Wireless Network Projection

Connecting Directly to a Smartphone or Tablet

You can display a QR code on the screen and use it to connect a single smartphone or tablet to your projector with the Epson iProjection app.

1. Download the latest version of Epson iProjection from the App Store or Google Play and install it on your smartphone or tablet.

2. Press the Menu button on the projector or the remote control.

3. Select the Network menu and press Enter.

4. Select On as the Wireless LAN Power setting, if necessary.

5. Select Network Configuration and press Enter.

6. Select the Wireless LAN menu and press Enter.

7. Select Connection Mode and press Enter.

8. Select Quick and press Enter, then press Enter again.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

10. Press the Home button on the projector or the remote control.

11. Select the QR code icon and press Enter.

Your projector displays a QR code on the projection surface.

12. Open the Epson iProjection app on your smartphone or tablet.

13. Use the QR code reader feature to read the QR code and connect your device to the projector.

Note: The projector and the smartphone must be on the same wireless network in order to establish a connection.

Your smartphone or tablet is now connected to your projector. Visit epson.com/iprojection (U.S.) or

epson.ca/iprojection (Canada) for information on controlling your projector with the Epson iProjection

app.

Parent topic: Wireless Network Projection

Using Quick Wireless Connection (Windows)

You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

Note: A USB flash drive is not included with your projector.

1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows/Mac) software.

Note: See the online Epson iProjection Operation Guide for instructions.

2. Make sure the wireless LAN module is installed in your projector.

3. Turn on the projector.

4. Press the LAN button on the remote control.

The LAN standby screen is displayed.

5. Verify the SSID and IP address.

6. Insert the USB key into the projector's USB-A port.

You see a projected message that the network information update is complete.

7. Remove the USB key.

8. Insert the USB key into a USB port on your computer.

Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allow on the next screen.

9. Follow the on-screen instructions to install the Epson iProjection (Windows/Mac) software.

Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administrator authority to install the software. If it is not installed automatically, double-click MPPLaunch.exe in the USB key.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.

10. Run your presentation as necessary.

11. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You can share the USB key with other computers without disconnecting your computer. You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Related references

Additional Projector Software and Manuals

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Make sure the Wireless LAN Power setting is set to On.

5. Select Network Configuration and press Enter.

6. Select the Basic menu and press Enter.

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen in the Epson Web Control. (Default user name is EPSONREMOTE; default password is guest .)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with Epson iProjection software or the Epson iProjection app.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. The projector displays a random keyword that you must enter from a computer using the Epson iProjection software or an iOS or Android device using the Epson iProjection app.

• Display Keyword lets you display a keyword on the projected image when accessing the

projector from a computer using the Epson iProjection software or an iOS or Android device using the Epson iProjection app.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices with Epson iProjection (Windows/Mac) software or the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

8. Select the Wireless LAN menu and press Enter.

9. Select the settings on the Wireless LAN menu as necessary for your network.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: Check your network security settings after completing the wireless settings.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you directly connect to multiple devices and computers using the projector's wireless network (requires the optional wireless LAN module).

Advanced: lets you connect to multiple devices and computers via a wireless network access point

Search Access Point To Search View Search for available wireless

network access points in

Advanced connection mode

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

Setting Options Description

Security Open

WPA2-PSK

WPA/WPA2-PSK

WPA2-EAP

WPA/WPA2-EAP

Passphrase Various passphrases from 8 to

32 characters (from a web browser, the maximum is 63 characters)

Selects the type of security used on the wireless network

WPA2-PSK: uses WPA2 security with AES for encryption. Use the Passphrase value to establish a connection from a computer

WPA/WPA2-PSK: uses WPA personal mode; encryption is dependent on the access point settings; Passphrase must be the same as the access point

WPA2-EAP: uses WPA2 security with AES for encryption

WPA/WPA2-EAP: uses WPA enterprise mode; encryption is dependent on the access point settings

Selects the pre-shared key used on the network; passphrases are case-sensitive. If the network settings are reset after the passphrase has been changed more than once, the first passphrase is restored.

EAP Method EAP Type

User name

Password

Client Certificate

Verify Server Cert.

CA Certificate

RADIUS Server Name

Sets the EAP settings for WPA2EAP and WPA/WPA2-EAP security

Setting Options Description

Channel 1ch

6ch

11ch

IP Settings DHCP (On or Off)

IP Address

Subnet Mask

Gateway Address

SSID Display On

Off

IP Address Display On

Off

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

In Quick connection mode, selects the frequency band (channel) used by the wireless LAN

Selects DHCP if your network assigns IP addresses automatically, or turns off DHCP so you can enter the network's IP address, subnet mask, and gateway address as needed

Selects whether to display the SSID on the network standby screen and Home screen

Selects whether to display the IP address on the network standby screen and Home screen

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect .

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network:

• WPA2-PSK

• WPA2-EAP*

• WPA/WPA2-PSK*

• WPA/WPA2-EAP*

* Only available for Advanced connection mode.

Note: Contact your network administrator for guidance on entering the correct information.

1. If you want to set up WPA2-EAP or WAP/WAP2-EAP security, make sure your digital certificate file is compatible with projector registration and placed directly on the USB storage device.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Wireless LAN menu and press Enter.

6. Select the Security setting and press Enter.

7. Select the security settings for your network.

8. When you finished, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

8. Enter the sender's email address as the From setting.

9. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses. Your e-mail address can be up to 32 alphanumeric characters long.

10. If you are using the PJLink protocol for projector control, turn on the PJLink Notification setting and enter the IP address where you want to receive PJLink notifications as the Notified IP Address setting.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• The email address entered as the From setting

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on the SNMP setting.

6. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address setting, using 0 to 255 for each address field.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Select the Others menu and press Enter.

8. If you want to use the Secure HTTP protocol to encrypt communication when using Web Control, turn on the Secure HTTP setting and import the web server certificate using the Web Server Cert. setting.

9. If available, select the Priority Gateway setting for your network.

10. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

11. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView setting to allow the projector to be detected.

12. If you are using the projector with a Control 4 Simple Device Discovery Protocol (SDDP) automation system, turn on the Control4 SDDP setting.

13. If you want this projector to receive broadcast messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Epson Projector Management software.

14. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later, Microsoft Edge, Google Chrome, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On in the ECO menu, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

Note: If you attempt to connect to the Web Control screen via a proxy server, the screen will not be displayed. Make a direct connection to the Web Control screen.

You see the Web Control screen.

4. To control projection remotely, select the Basic Control option from the Web Control screen.

Note: If you see a log in window, enter your user name and password. (The default user name is EPSONREMOTE and the default password is guest.)

You see a screen like this:

1 Power button control

2 Selects an HDMI port source

3 Selects a Video port source

4 Selects the USB Display source

5 Selects the network source

6 A/V Mute button control

7 Freeze button control

8 Page Up and Page Down button controls

9 Displays a QR code for connecting with iOS or Android devices using the Epson iProjection

app

10 Displays closed captions

11 Volume button controls

12 Selects the USB device source

13 Selects the Computer port source

14 Searches for connected sources

5. Select the icon corresponding to the projector function you want to control.

6. To select projector menu settings, select Advanced on the Web Control screen.

Note: If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

7. Select the name of the menu and follow the on-screen instructions.

Parent topic: Using the Projector on a Network

Crestron RoomView Support

If you are using the Crestron RoomView network monitoring and control system, you can set up your projector for use on the system. Crestron RoomView lets you control and monitor your projector using a web browser.

Note: You cannot use the Epson Web Control feature or the Message Broadcasting tool for Epson Projector Management when you use Crestron RoomView.

For additional information on Crestron RoomView, contact Crestron.

Setting Up Crestron RoomView Support Controlling a Networked Projector Using Crestron RoomView

Parent topic: Using the Projector on a Network

Setting Up Crestron RoomView Support

To set up your projector for monitoring and control using a Crestron RoomView system, make sure your computer and projector are connected to the network. If you are connecting wirelessly, set up the projector using the Advanced network connection mode.

Note: If you want to use the Crestron RoomView system when the projector is turned off, you need to adjust the Standby Mode setting in the ECO menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron RoomView setting to On to allow the projector to be detected.

Note: Enabling Crestron RoomView disables the Epson Message Broadcasting feature in the Epson Projector Management software.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Crestron RoomView Support

Related references

Projector Setup Settings - ECO Menu

Controlling a Networked Projector Using Crestron RoomView

Once you have set up your projector to use Crestron RoomView, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see this screen:

3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

5. To view information about the projector, click the Info tab.

6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

7. When you finish selecting settings, click Exit to exit the program.

Parent topic: Crestron RoomView Support

Registering a Digital Certificate on the Projector

Follow the instructions here if you need to install a digital certificate on the projector to provide security for your presentation files.

Note: You can register a digital certificate over a network. However, be sure to register just once or the certificate may not install correctly.

Importing a Web Server Certificate Using the Projector Menus Registering Digital Certificates from a Web Browser Digital Certificate Types

Parent topic: Using the Projector on a Network

Importing a Web Server Certificate Using the Projector Menus

You can create your web server certificate and import it using the projector menus and a USB flash drive.

Note: You can also register digital certificates from your web browser. Make sure to only register once, or the certificate may not install correctly.

1. Make sure your digital certificate file is compatible with projector registration and saved in the root directory of the USB flash drive.

2. Press the Menu button on the projector or remote control.

3. Select the Network menu and press Enter.

4. Select the Network Configuration setting and press Enter.

5. Select the Others menu and press Enter.

6. Select On as the Secure HTTP setting.

7. Select the Web Server Cert. setting and press Enter.

8. Select Register and press Enter.

9. Follow the on-screen instructions to connect a USB flash drive to the projector's USB-A port.

10. Press Enter to display the certificate list.

11. Select the certificate you want to import from the displayed list.

A message is displayed prompting you to enter the password for the certificate.

12. Enter the password and press Enter.

The certificate is imported and a completion message appears.

Parent topic: Registering a Digital Certificate on the Projector

Registering Digital Certificates from a Web Browser

You can register the digital certificates on the projector for wireless LAN authentication.

1. Make sure your digital certificate file is compatible with projector registration.

2. Make sure the projector is turned on.

3. Start your web browser on a computer connected to the network.

4. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen.

5. Select Advanced.

6. Enter the following information in uppercase or lowercase letters, exactly as shown:

• For the user ID, enter EPSONWEB. (You cannot change the user ID.)

• For the password, enter the default password admin. (You can change the Web Control password

using the projector's Network menu.)

7. Under Network, select the Certificate option.

You see a screen like this:

8. Select the certificate file you want to register.

9. Enter a password in the Password box, then click Send.

10. When you finish registering the certificate, click Apply to finalize your changes and complete the registration.

Parent topic: Registering a Digital Certificate on the Projector

Digital Certificate Types

You can register these types of digital certificates.

Client Certificate (PEAP-TLS/EAP-TLS)

Specification Description

Format PKCS#12

Extension PFX/P12

Specification Description

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Password Up to 32 alphanumeric characters; required

CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-Fast)

Specification Description

Format X509v3

Extension DER/CER/PEM

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Encoding BASE64/Binary

Web Server Certificate (Secure HTTP)

Specification Description

Format PKCS#12

Extension PFX/P12

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Common name Network host name

Organization Optional

Password Up to 32 alphanumeric characters; required

Parent topic: Registering a Digital Certificate on the Projector

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Setting the Date and Time Image Shape Adjusting the Image Height Resizing the Image with the Wide and Tele Buttons Adjusting the Image Position Focusing the Image Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Projecting a PC Free Presentation

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet.

The projector's On/Standby light turns blue. This indicates that the projector is receiving power.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

3. Press the power button on the projector, or remote control to turn on the projector.

The projector beeps and the Status light flashes blue as the projector warms up. After about 30 seconds, the Status light stops flashing and turns blue.

Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is especially dangerous for children and pets.

Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the

lens for an extended time can melt and light that is reflected back into the lens can cause the projector to malfunction.

Note: If the Auto Source Search setting in the Extended menu is enabled, the projector automatically detects the input signal when you turn it on.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Press the Source Search button on the projector, or remote control to detect the video source.

• Change the screen output from the computer when using a laptop.

• Press the button for the video source on the remote control.

• If the Home screen is displayed, select the source you want to project.

Using the Home Screen

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Using the Home Screen

You can select input sources and other frequently used options from the Home screen.

1. To display the Home screen, do one of the following:

• Press the Home button on the control panel or remote control.

• Turn on the projector with the Home Screen Auto Disp setting enabled.

• Turn on the projector when no signal is received from the selected input source.

2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press Enter to select an option.

1 Selects the source you want to project

2 Displays a QR code for device connection

3 Displays the on-screen help

4 Hides the Home screen

5 Displays the settings assigned to Home screen in the projector's Extended menu

6 Projects two images from different image sources simultaneously by splitting the projected

screen

7 Displays the brightness for the light source

Note: You can modify the customizable menu options using the Custom Setting L1 through Custom Setting R3 settings in the Extended menu.

3. Press the Home button or press the icon to hide the Home screen.

Parent topic: Turning On the Projector

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the power button on the projector or remote control.

The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.)

The projector beeps twice, the laser turns off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

Caution: Do not turn the projector on immediately after turning it off. Turning the projector on and off frequently may shorten the life of the laser.

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or laser, never unplug the power cord when the Status light is on or flashing.

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Setting the Date and Time

You can set the date and time for the projector.

1. Press the Menu button.

2. Select the Extended menu and press Enter.

3. Select the Operation setting and press Enter.

4. Select the Date & Time setting and press Enter.

5. Select the Date & Time setting and press Enter.

6. Select your date and time settings. Then select Set and press Enter to confirm your changes.

7. When you are finished, press the Menu button to exit.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

You see a screen like this:

Correcting Image Shape with the Keystone Buttons Correcting Image Shape with Quick Corner Correcting Image Shape with Arc Correction

Parent topic: Using Basic Projector Features

Correcting Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

Note: You can use the keystone buttons to correct the image up to ± 3° horizontally or vertically. If the projector is mounted on the wall, use the adjustment dials on the wall mount to correct the screen image before using any other digital correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press one of these keystone buttons on the control panel to display the Keystone adjustment screen.

3. Press a keystone button on the projector's control panel to adjust the image shape.

Note: The horizontal keystone adjustment buttons are labeled W and T.

After correction, your image is slightly smaller.

Note: If the projector is installed out of reach, you can also correct the image shape with the remote control using the H/V-Keystone settings in the projector menus.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

Note: If the projector is mounted on the wall, use the adjustment dials on the wall mount to correct the screen image before using any other digital correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Geometry Correction setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again.

You see the Quick Corner adjustment screen:

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes.

6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the area selection screen.

8. When you are finished, press Esc.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Arc Correction

You can use the projector's Arc Correction setting to adjust the curve or arc of the sides of your image.

Note: If the projector is mounted on the wall, use the adjustment dials on the wall mount to correct the screen image before using any other digital correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Geometry Correction setting and press Enter.

5. Select the Arc Correction setting and press Enter. Then press Enter again.

You see the Arc Correction adjustment screen:

Note: To reset your adjustments, press the Esc button for at least 2 seconds to display a reset screen, and select Yes.

6. Use the arrow buttons on the projector or the remote control to select the corner or side of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

9. To save your adjusted image position, select Save Memory and select an entry. You can save up to three image positions.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Attach the projector feet.

2. Turn on the projector and display an image.

100

Epson PowerLite 700U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Additional Projector Software and Manuals

Projector Part Locations

Projector Parts - Front/Side

Projector Parts - Top/Side

Projector Parts - Back Panel
