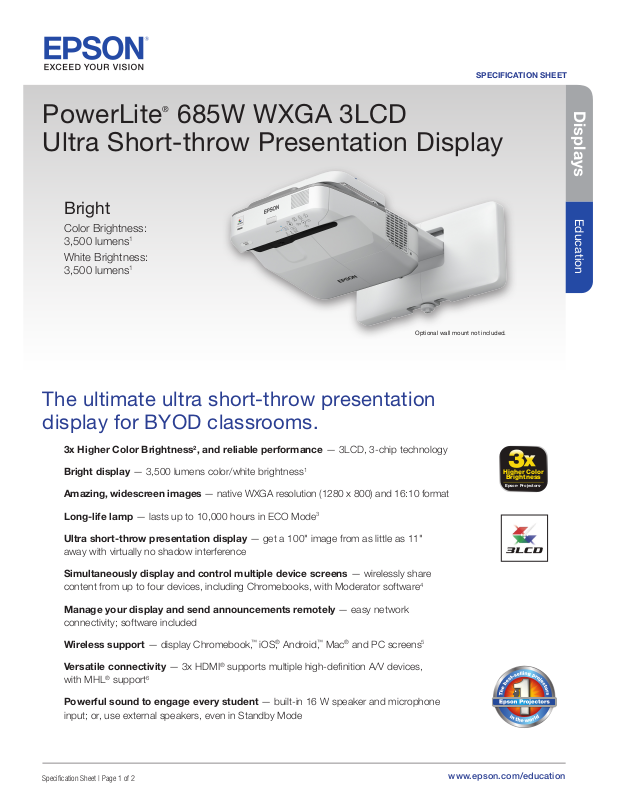

Epson PowerLite 685W Product Sheet
SPECIFICATION SHEET
PowerLite® 685W WXGA 3LCD
Ultra Short-throw Presentation Display
Displays
Bright
Color Brightness:
3,500 lumens
White Brightness:
3,500 lumens
1
1
Optional wall mount not included.
The ultimate ultra short-throw presentation
display for BYOD classrooms.
3x Higher Color Brightness2, and reliable performance — 3LCD, 3-chip technology
Bright display — 3,500 lumens color/white brightness1
Amazing, widescreen images — native WXGA resolution (1280 x 800) and 16:10 format
Higher Color
Brightness
Epson® Projectors
Education
2
Long-life lamp — lasts up to 10,000 hours in ECO Mode
Ultra short-throw presentation display — get a 100" image from as little as 11"
away with virtually no shadow interference
Simultaneously display and control multiple device screens — wirelessly share
content from up to four devices, including Chromebooks, with Moderator software
Manage your display and send announcements remotely — easy network
connectivity; software included
Wireless support — display Chromebook,™ iOS,® Android,™ Mac® and PC screens
Versatile connectivity — 3x HDMI® supports multiple high-definition A/V devices,
with MHL® support
Powerful sound to engage every student — built-in 16 W speaker and microphone
input; or, use external speakers, even in Standby Mode
Specification Sheet | Page 1 of 2
6
3
4
5
www.epson.com/education
PowerLite® 685W WXGA 3LCD
Ultra Short-throw Presentation Display
Displays
Specifications
Projection System 3LCD, 3-chip technology
Projection Method Front/rear/wall mount/table
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 1,024,000 dots (1280 x 800) x 3
Color Brightness1 Color Light Output: 3,500 lumens
White Brightness1 White Light Output: 3,500 lumens
Aspect Ratio 16:10
Native Resolution 1280 x 800 (WXGA)
Resize 640 x 480 (VGA); 800 x 600 (SVGA); 1024 x 768 (XGA);
1280 x 960 (SXGA2); 1280 x 1024 (SXGA3); 1366 x 768 (WXGA
60-2); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1600 x 900
(WXGA++); 1600 x 1200 (UXGA)
Lamp Type
Lamp Life3
Up to 10,000 hours (ECO Mode)
Up to 5,000 hours (Normal Mode)
Throw Ratio Range
Size (Projected Distance) 60" – 100" (0.34 – 0.60 m)
Keystone Correction (Manual)
Vertical: ±3 degrees
Horizontal: ±3 degrees
Mac Connectivity
to HDMI or VGA adapter (not included); DP to HDMI or VGA
adapter (not included)
Contrast Ratio
Color Reproduction Up to 1.07 billion colors
250 W UHE
0.28 – 0.37
Projector is Mac compatible via USB; DVI
Up to 14,000:1
Projection Lens
Type Digital zoom/Manual focus
F-number 1.6
Focal Length 3.7 mm
Zoom Ratio Digital zoom: 1.0 – 1.35
Other
Display Performance
NTSC: 480 lines
PAL: 576 lines (Depends on observation of the multi-burst pattern)
Input Signal
SECAM
Speaker
Operating Temperature 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)
Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz
Power Consumption
373 W (Normal Mode)
324 W (ECO Mode)
2.2 W Standby (Communication On)
0.23 W Standby (Communication Off)
Fan Noise
35 dB (Normal Mode)
29 dB (ECO Mode)
Security
cable hole, Password-protect Function
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/
16 W (mono)
Kensington-style lock provision, padlock and security
Interfaces
Wireless LAN Port 802.11(USB) b/g/n
(Optional – module sold separately)
Microphone: 1x
RS-232c: 1x
Video: 1x
Audio in: 3x Mini Stereo
USB (Type B): 1x
USB (Type A Power): 1x
Audio-out: 1x
Monitor-out: 1x / Computer 2
Computer: 2x
Network: 1x RJ-45
3x HDMI (1x MHL)
Dimensions (W x D x H)
Including Feet 14.5" x 15.8" x 7.4"
Excluding Feet 14.5" x 15.8" x 5.9"
Weight 12.6 lb
Remote Control
Features Source Search, HDMI/Video, LAN, Computer, USB,
Power, Aspect, Color Mode, Volume, E-zoom, A/V Mute, Freeze,
Menu, Page Up and Down, Home, Auto, Mouse Functions, User,
Split Screen
Operating Distance Front/rear: 19.7 ft (6 m)
7
Eco Features
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner
8
9
Support
Epson ConnectionSM
Pre-sales support
U.S. and Canada: 800-463-7766
www.epson.com
Service Programs
Road Service program, PrivateLine® dedicated toll-free support
and 90-day limited lamp warranty
2-year projector limited warranty, Epson
What’s in the Box
PowerLite 685W projector, 15' power cord, projector remote
control, batteries, user manual CD, projector software CDs, Quick
Setup Sheet, Installation Guide, template sheet, projector feet
Ordering Information
PowerLite 685W V11H744520
Genuine Epson Lamp V13H010L91
Air Filter (ELPAF49) V13H134A49
PowerLite Pilot™ 2 (ELPCB02) V12H614020
Active Speakers (ELPSP02) V12H467020
Wireless 802.11b/g/n LAN Unit (ELPAP10) V12H731P02
Epson DC-21 Document Camera (ELPDC21) V12H758020
100" Whiteboard V12H831000
Ultra Short-throw Wall Mount (ELPMB46) V12H777020
Education
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accor
output measured in accordance with ISO 21118. | 2 Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLP projectors, based on NPD sales
data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013. | 3 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp
brightness decreases over time. | 4 Moderator feature is part of EasyMP
must be congured on a network, either through the Ethernet port on the projector (check model specications for availability) or via a wireless connection. Check your owner’s manual to
determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not
support all les and formats. See www.epson.com for details. | 6 Includes one Mobile High-Denition Link
8 For convenient and reasonable recycling options, visit www.epson.com/recycle | 9 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces
greenhouse gases and other air pollutants and improves fuel efciency.
eco.epson.com
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Specications and terms are subject to change without notice. EPSON, EasyMP and PowerLite are registered trademarks,
EPSON Exceed Your Vision is a registered logomark and Better Products for a Better Future and Epson iProjection are
trademarks of Seiko Epson Corporation. PrivateLine is a registered trademark, Pilot is a trademark and Epson Connection is
a service mark of Epson America, Inc. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. Android
and Chromebook are trademarks of Google Inc. SmartWay is a registered trademark of the U.S. Environmental Protection
Agency. All other product and brand names are trademarks and/or registered trademarks of their respective companies. Epson
disclaims any and all rights in these marks. Copyright 2016 Epson America, Inc. Com-SS-Oct-13 CPD-52821 12/16
Epson Canada Limited
185 Renfrew Drive, Markha m, Onta rio L3R 6 G3
®
Multi-PC Projection software. | 5 For wireless functionality, including via the Epson iProjection™ App, the projector
®
(MHL) HDMI port. | 7 Consult your user manual for input combinations. |
