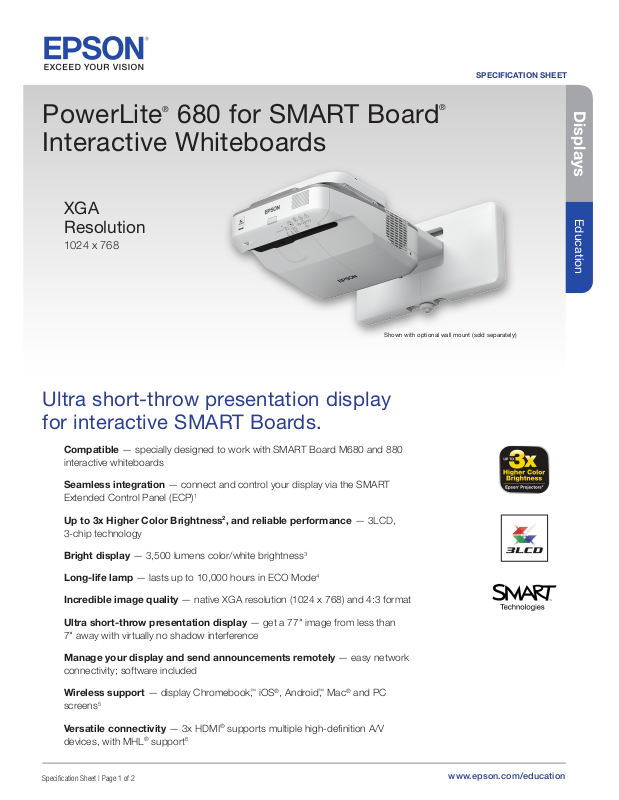

Epson PowerLite 680 SMART Product Sheet

PowerLite® 680 for SMART Board®
Interactive Whiteboards

SPECIFICATION SHEET

Displays

XGA
Resolution

1024 x 768

Shown with optional wall mount (sold separately)

Ultra short-throw presentation display
for interactive SMART Boards.

Compatible — specially designed to work with SMART Board M680 and 880
interactive whiteboards

Seamless integration — connect and control your display via the SMART
Extended Control Panel (ECP)

1

Education

2

Up to 3x Higher Color Brightness2, and reliable performance — 3LCD,
3-chip technology

Bright display — 3,500 lumens color/white brightness3

Long-life lamp — lasts up to 10,000 hours in ECO Mode

Incredible image quality — native XGA resolution (1024 x 768) and 4:3 format

Ultra short-throw presentation display — get a 77" image from less than

7" away with virtually no shadow interference

Manage your display and send announcements remotely — easy network
connectivity; software included

Wireless support — display Chromebook,™ iOS®, Android,™ Mac® and PC
screens5

Versatile connectivity — 3x HDMI® supports multiple high-definition A/V
devices, with MHL® support

Specification Sheet | Page 1 of 2

6

4

www.epson.com/education

PowerLite® 680 for SMART Board®
Interactive Whiteboards

Displays

Specifications

Projection System 3LCD, 3-chip technology
Projection Method Front/rear/wall mount/table
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 786,432 dots (1024 x 768) x 3
Color Brightness3 Color Light Output: 3,500 lumens
White Brightness3 White Light Output: 3,500 lumens
Aspect Ratio 4:3
Native Resolution 1024 x 768 (XGA)
Resize 640 x 480 (VGA); 800 x 600 (SVGA); 1152 x 864 (SXGA);

1280 x 800 (WXGA); 1280 x 960 (SXGA2); 1280 x 1024 (SXGA3);
1280 x 768 (WXGA 60-1); 1366 x 768 (WXGA 60-2); 1440 x 900
(WXGA+); 1400 x 1050 (SXGA+); 1600 x 900 (WXGA++);
1600 x 1200 (UXGA)

Lamp Type
Lamp Life4

Up to 10,000 hours (ECO Mode)
Up to 5,000 hours (Normal Mode)

Throw Ratio Range
Size (Projected Distance)

55.4" – 92.7" (0.34 – 0.60 m)

Keystone Correction (Manual)

Vertical: ±3 degrees
Horizontal: ±3 degrees

Mac Connectivity

to HDMI or VGA adapter (not included); DP to HDMI or VGA
adapter (not included)

Contrast Ratio
Color Reproduction Up to 1.07 billion colors

250 W UHE

0.32 – 0.43

Projector is Mac compatible via USB; DVI

Up to 14,000:1

Projection Lens

Type Digital zoom/Manual focus
F-number 1.6
Focal Length 3.7 mm
Zoom Ratio Digital zoom: 1.0 – 1.35

Other

Display Performance
NTSC: 480 lines
PAL: 576 lines (Depends on observation of the multi-burst pattern)

Input Signal

SECAM

Speaker
Operating Temperature 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)
Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz
Power Consumption

373 W (Normal Mode)
324 W (ECO Mode)

2.2 W Standby (Communication On)

0.23 W Standby (Communication Off)

Fan Noise

35 dB (Normal Mode)
30 dB (ECO Mode)

Security

cable hole, Password-protect Function

NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/

16 W (mono)

Kensington-style lock provision, padlock and security

Interfaces

Wireless LAN Port 802.11(USB) b/g/n
(Optional – module sold separately)
Microphone: 1x
RS-232c: 1x
Video: 1x
Audio in: 3x Mini Stereo
USB (Type B): 1x
USB (Type A Power): 1x
Audio-out: 1x
Monitor-out: 1x / Computer 2
Computer: 2x
Network: 1x RJ-45
3x HDMI (1x MHL)

Dimensions (W x D x H)

Including Feet 14.5" x 15.8" x 7.4"
Excluding Feet 14.5" x 15.8" x 5.9"
Weight 12.6 lb

Remote Control

Features Source Search, HDMI/Video, LAN, Computer, USB,
Power, Aspect, Color Mode, Volume, E-zoom, A/V Mute, Freeze,
Menu, Page Up and Down, Home, Auto, Mouse Functions, User,
Split Screen

Operating Distance Front/rear: 19.7 ft (6 m)

7

Eco Features

RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner

8

9

Support

Epson ConnectionSM

Pre-sales support
U.S. and Canada: 800-463-7766

www.epson.com

Service Programs

Road Service program, PrivateLine® dedicated toll-free support
and 90-day limited lamp warranty

2-year projector limited warranty, Epson

What’s in the Box

PowerLite 680 projector for SMART, 15' power cord, projector
remote control, batteries, user manual CD, projector software
CDs, Quick Setup Sheet, Installation Guide, template sheet,
projector feet

Ordering Information

PowerLite 680 for SMART V11H746520
Genuine Epson Lamp V13H010L91
Air Filter (ELPAF49) V13H134A49

PowerLite Pilot™ 2 (ELPCB02) V12H614020
Active Speakers (ELPSP02) V12H467020
Wireless 802.11b/g/n LAN Unit (ELPAP10) V12H731P02
Epson DC-21 Document Camera (ELPDC21) V12H758020
100" Whiteboard V12H831000
Ultra Short-throw Wall Mount (ELPMB46) V12H777020
Adapter for SMART

UF55/65/70/75 series mounts V12H870001

Education

1 Existing SMART Board M680 and 880 installations require the SMART Cable Adapter Kit, sold separately. | 2 Color brightness (color light output) in brightest mode, measured by a third-party
lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA
Research sales data for Dec. 2015 through Nov. 2016. | 3 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output
measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. | 4 Lamp life will vary depending upon mode selected, environmental conditions and usage.
Lamp brightness decreases over time. | 5 For wireless functionality, including via the Epson iProjection™ App, the projector must be congured on a network, either through the Ethernet port on
the projector (check model specications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable
a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all les and formats. See www.epson.com for details. | 6 Includes one
Mobile High-Denition Link
9 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efciency.
