PowerLite 1980MWU
User Manual
233 pgs3.68 Mb0

Epson PowerLite 1985WU, PowerLite 1970W, PowerLite 1980MWU, PowerLite 1975W, PowerLite 1980WU User Manual

Download
Page 1
PowerLite
®
1970W/1975W/1980WU/1985WU
User's Guide
Page 2
Page 3
Contents
PowerLite 1970W/1975W/1980WU/1985WU User's Guide........................................................................ 9
Introduction to Your Projector ................................................................................................................. 10
Product Box Contents.................................................................................................................... 11
Additional Components ................................................................................................................ 13
Optional Equipment and Replacement Parts................................................................................. 13
Warranty and Registration Information.......................................................................................... 14
Where to Go for Additional Information .............................................................................................. 15
Projector Parts - Front/Top............................................................................................................ 16
Projector Parts - Rear.................................................................................................................... 17
Projector Parts - Base.................................................................................................................... 18
Projector Parts - Control Panel...................................................................................................... 19
Projector Parts - Remote Control................................................................................................... 20
Setting Up the Projector ........................................................................................................................... 22
Projector Placement........................................................................................................................... 22
Projector Setup and Installation Options ....................................................................................... 22
Projection Distance........................................................................................................................ 24
Projector Connections........................................................................................................................ 25
Connecting to Computer Sources.................................................................................................. 26
Connecting to a Computer for USB Video and Audio................................................................ 26
Connecting to a Computer for VGA Video................................................................................. 27
Connecting to a Computer for HDMI Video and Audio.............................................................. 28
Connecting to a Computer for USB Mouse Control................................................................... 28
Connecting to a Computer for Sound........................................................................................ 29
Connecting to Video Sources........................................................................................................ 29
Connecting to an HDMI Video Source ...................................................................................... 29
Connecting to an MHL-Compatible Device............................................................................... 30
Connecting to a Component-to-VGA Video Source.................................................................. 31
3
Page 4
Connecting to a Composite Video Source ................................................................................ 31
Connecting to a Video Source for Sound.................................................................................. 32
Connecting to an External Computer Monitor................................................................................ 32
Connecting to External Speakers.................................................................................................. 33
Connecting to External USB Devices............................................................................................ 34
USB Device Projection.............................................................................................................. 34
Connecting a USB Device or Camera to the Projector.............................................................. 35
Selecting the Connected USB Source...................................................................................... 35
Disconnecting a USB Device or Camera From the Projector.................................................... 35
Connecting to a Document Camera .............................................................................................. 36
Using the Projector on a Network............................................................................................................ 40
Connecting to a Wired Network..................................................................................................... 41
Selecting Wired Network Settings ................................................................................................. 41
Installing the Wireless LAN Module............................................................................................... 45
Using Quick Wireless Connection (Windows Only)....................................................................... 47
Selecting Wireless Network Settings Manually.............................................................................. 48
Wireless LAN Menu Settings .................................................................................................... 50
Searching for a Wireless Network ................................................................................................. 52
Selecting Wireless Network Settings in Windows.......................................................................... 54
Selecting Wireless Network Settings in OS X................................................................................ 54
Setting Up Wireless Network Security........................................................................................... 55
Wireless Security Menu Settings .............................................................................................. 56
Wireless Network Projection from a Mobile Device (Screen Mirroring) .............................................. 56
Screen Mirroring Restrictions........................................................................................................ 57
Selecting Screen Mirroring Settings .............................................................................................. 57
Connecting for Screen Mirroring Using Windows 8.1 .................................................................... 58
Connecting for Screen Mirroring Using Windows 7/Windows 8..................................................... 59
Connecting for Screen Mirroring with Miracast.............................................................................. 60
4
Page 5
Network Projector E-mail Alert Messages ..................................................................................... 62
Setting Up Monitoring Using SNMP ................................................................................................... 62
Controlling a Networked Projector Using a Web Browser .................................................................. 63
Crestron RoomView Support.............................................................................................................. 65
Setting Up Crestron RoomView Support ....................................................................................... 65
Controlling a Networked Projector Using Crestron RoomView...................................................... 66
Using Basic Projector Features ............................................................................................................... 68
Selecting the Language for the Projector Menus................................................................................ 72
Automatically Correcting Image Shape With Screen Fit................................................................ 75
Correcting Image Shape with the Keystone Buttons...................................................................... 76
Correcting Image Shape with Quick Corner .................................................................................. 77
Resizing the Image with the Zoom Ring............................................................................................. 79
Focusing the Image Using the Focus Ring......................................................................................... 80
Focusing the Image with Focus Help.................................................................................................. 80
Using the Remote Control as a Wireless Mouse ........................................................................... 84
Using the Remote Control as a Pointer.......................................................................................... 85
Changing the Projection Mode Using the Remote Control ............................................................ 87
Changing the Projection Mode Using the Menus........................................................................... 88
Image Aspect Ratio............................................................................................................................ 88
Changing the Image Aspect Ratio................................................................................................. 89
Available Image Aspect Ratios...................................................................................................... 89
Changing the Color Mode.............................................................................................................. 90
Available Color Modes................................................................................................................... 91
Turning On Auto Iris....................................................................................................................... 92
Controlling the Volume with the Volume Buttons................................................................................ 93
5
Page 6
Projecting a PC Free Presentation..................................................................................................... 93
Supported PC Free File Types ...................................................................................................... 94
Starting a PC Free Slide Show...................................................................................................... 95
Starting a PC Free PDF File Presentation..................................................................................... 96
Starting a PC Free Movie Presentation ......................................................................................... 98
PC Free Display Options............................................................................................................... 99
Adjusting Projector Features................................................................................................................. 101
Shutting Off the Picture and Sound Temporarily .............................................................................. 101
Stopping Video Action Temporarily.................................................................................................. 102
Zooming Into and Out of Images...................................................................................................... 102
Projector Security Features.............................................................................................................. 103
Password Security Types............................................................................................................ 103
Setting a Password................................................................................................................. 104
Selecting Password Security Types........................................................................................ 105
Entering a Password to Use the Projector............................................................................... 106
Saving a User's Logo Image to Display................................................................................... 107
Locking the Projector's Buttons ................................................................................................... 109
Unlocking the Projector's Buttons........................................................................................... 110
Installing a Security Cable........................................................................................................... 110
Projector Identification System for Multiple Projector Control........................................................... 110
Setting the Projector ID................................................................................................................ 111
Setting the Remote Control ID..................................................................................................... 112
Matching Multiple-Projector Display Quality................................................................................ 112
Projecting Two Images Simultaneously............................................................................................ 114
Scheduling Projector Events............................................................................................................ 115
Saving a Scheduled Event........................................................................................................... 115
Viewing Scheduled Events.......................................................................................................... 116
Editing a Scheduled Event........................................................................................................... 117
Adjusting the Menu Settings.................................................................................................................. 119
Using the Projector's Menus............................................................................................................. 119
Image Quality Settings - Image Menu .............................................................................................. 120
Input Signal Settings - Signal Menu.................................................................................................. 122
Projector Feature Settings - Settings Menu...................................................................................... 125
6
Page 7
Projector Setup Settings - Extended Menu....................................................................................... 127
Projector Network Settings - Network Menu..................................................................................... 131
Projector Setup Settings - ECO Menu.............................................................................................. 133
Projector Information Display - Info Menu ........................................................................................ 135
Event ID Code List....................................................................................................................... 136
Projector Reset Options - Reset Menu............................................................................................. 137
Maintaining and Transporting the Projector......................................................................................... 139
Projector Maintenance..................................................................................................................... 139
Cleaning the Lens........................................................................................................................ 139
Cleaning the Projector Case........................................................................................................ 140
Air Filter and Vent Maintenance .................................................................................................. 140
Cleaning the Air Filter and Vents............................................................................................. 141
Replacing the Air Filter............................................................................................................ 141
Projector Lamp Maintenance....................................................................................................... 143
Replacing the Lamp................................................................................................................ 144
Resetting the Lamp Timer....................................................................................................... 148
Replacing the Remote Control Batteries ..................................................................................... 149
Transporting the Projector................................................................................................................ 150
Solving Problems.................................................................................................................................... 151
Projection Problem Tips................................................................................................................... 151
Projector Light Status....................................................................................................................... 152
Using the Projector Help Displays.................................................................................................... 155
Solving Image or Sound Problems................................................................................................... 156
Solutions When No Image Appears............................................................................................. 156
Solutions When Image is Incorrect Using the USB Display Function .......................................... 157
Solutions When "No Signal" Message Appears........................................................................... 157
Displaying From a PC Laptop................................................................................................. 158
Displaying From a Mac Laptop ............................................................................................... 158
Solutions When "Not Supported" Message Appears................................................................... 159
Solutions When Only a Partial Image Appears............................................................................ 159
Solutions When the Image is Not Rectangular ............................................................................ 160
Solutions When the Image Contains Noise or Static ................................................................... 160
Solutions When the Image is Fuzzy or Blurry.............................................................................. 161
7
Page 8
Solutions When the Image Brightness or Colors are Incorrect .................................................... 162
Solutions to Sound Problems ...................................................................................................... 163
Solving Projector or Remote Control Operation Problems ............................................................... 163
Solutions to Projector Power or Shut-Off Problems..................................................................... 164
Solutions to Problems with the Remote Control........................................................................... 164
Solutions to Password Problems................................................................................................. 165
Solutions When You Cannot Access the Projector Through the Web.............................................. 165
Solutions When Network Alert E-Mails are Not Received ................................................................ 166
Where to Get Help............................................................................................................................ 166
Technical Specifications ........................................................................................................................ 168
General Projector Specifications...................................................................................................... 168
Projector Lamp Specifications.......................................................................................................... 170
Remote Control Specifications......................................................................................................... 171
Projector Dimension Specifications.................................................................................................. 171
Projector Electrical Specifications.................................................................................................... 171
Projector Environmental Specifications............................................................................................ 172
Projector Safety and Approvals Specifications................................................................................. 173
Supported Video Display Formats.................................................................................................... 173
USB Display System Requirements................................................................................................. 176
Notices ..................................................................................................................................................... 177
Recycling.......................................................................................................................................... 177
Important Safety Information............................................................................................................ 177
Important Safety Instructions............................................................................................................ 178
Restriction of Use........................................................................................................................ 180
FCC Compliance Statement............................................................................................................. 181
Wireless Telegraphy Act Regulations............................................................................................... 182
Trademarks...................................................................................................................................... 182
Open Source Software License........................................................................................................ 182
Copyright Notice............................................................................................................................... 232
A Note Concerning Responsible Use of Copyrighted Materials................................................... 232
Copyright Attribution.................................................................................................................... 232
8
Page 9
PowerLite 1970W/1975W/1980WU/1985WU User's Guide
Welcome to the PowerLite 1970W/1975W/1980WU/1985WU User's Guide.
9
Page 10
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations
Projector Features
The PowerLite 1970W, 1975W, 1980WU, and 1985WU projectors include these special features:
Bright, high-resolution projection system
• PowerLite 1980WU: Up to 4400 lumens of color brightness (color light output) and 4400 lumens of white brightness (white light output)
PowerLite 1985WU: Up to 4800 lumens of color brightness (color light output) and 4800 lumens of white brightness (white light output)
PowerLite 1970W/1975W: Up to 5000 lumens of color brightness (color light output) and 5000 lumens of white brightness (white light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
• PowerLite 1970W/1975W: Native resolution of 1280 × 800 pixels (WXGA) PowerLite 1980WU/1985WU: Native resolution of 1920 × 1080 pixels (WUXGA)
Flexible connectivity
• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup
• Wired and wireless (PowerLite 1970W/1975W/1985WU) network support for projection, monitoring, and control via remote network computer
• HDMI 1/MHL and HDMI 2 ports for computer or video device connection
• WiDi and Miracast screen mirroring for laptops and mobile devices (PowerLite 1975W/1985WU)
• PC Free slide shows and presentations via connected USB memory devices or Epson document camera
10
Page 11
• Dual VGA ports for connections by multiple presenters
• Ports for connecting an external monitor and external speakers
Easy-to-use setup and operation features
• Real-time, automatic vertical and horizontal keystone correction always displays a rectangular screen
• Epson's Instant Off and Direct Power On features for quick setup and shut down
• Screen Fit feature automatically resizes images for your projection screen
• Support for Crestron RoomView network monitoring systems
• Network message broadcast system to project timely messages to all networked projectors (Windows only)
• Powerful 10W speaker system
Note: Availability of models varies by country.
Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information
Parent topic: Introduction to Your Projector Related concepts
Projector Part Locations
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.
11
Page 12
Make sure your projector box included all of these parts:
1 Projector 2 Remote control 3 Remote control batteries (two AA alkaline) 4 Power cord 5 VGA computer cable 6 Projector documentation CD 7 Projector software CD
Parent topic: Projector Features
12
Page 13
Additional Components
Depending on how you plan to use the projector, you may need to obtain the following additional components:
• To receive a composite video signal, you need an RCA-style video or A/V cable. See your local computer or electronics dealer for purchase information.
• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.
• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or an authorized Epson reseller.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.
• To receive an HDMI signal via MHL, you need an MHL-compatible device, an MHL cable or an HDMI cable and an MHL adapter compatible with your device. Devices with an integrated MHL connector may not require a cable.
• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.
Parent topic: Projector Features
Optional Equipment and Replacement Parts
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Genuine Epson Replacement lamp (ELPLP77) V13H010L77 Air filter replacement (ELPAF41) V13H134A41 Quick Wireless Connection USB Key (ELPAP09; PowerLite V12H005M08
1975W/1985WU) Wireless LAN module (ELPAP07; PowerLite 1975W/1985WU) V12H418P12
13
Page 14
Option or part Part number
Epson DC-06 document camera (ELPDC06) V12H321005 Epson DC-11 document camera V12H377020 Epson DC-12 document camera (ELPDC12) V12H594020 Epson DC-20 document camera (ELPDC20) V12H500020 Accolade Duet portable projector screen ELPSC80 Universal projector ceiling mount ELPMBPJF Adjustable suspended ceiling channel kit ELPMBP01 False ceiling plate kit ELPMBP02 Component-to-VGA video cable (ELPKC19) V12H005C19 VGA video cable 1.8 m length ELPKC02 VGA video cable 3.0 m length ELPKC09 VGA video cable 20 m length ELPKC10 Kensington security lock ELPSL01 Soft carrying case V12H001K65 1-Year Extended Service Program - Exchange Service EPPEXPA1 1-Year Extended Service Program - Depot Repair Service EPPFTPA1 2-Year Extended Service Program - Depot Repair Service EPPFTPA2
Parent topic: Projector Features
Warranty and Registration Information
Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.
In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.
Register your product online using the projector CD or at this site: epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and services.
14
Page 15
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• epson.com/support (U.S) or epson.ca/support (Canada) View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• For detailed instructions on using your projector in a network environment, see the EasyMP Network Projection Operation Guide.
• For detailed instructions on monitoring your projector in a network environment (Windows only), see the EasyMP Monitor Operation Guide.
• For detailed instructions on using your projector to hold interactive meetings in a network environment, see the EasyMP Multi PC Projection Operation Guide.
• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".
Parent topic: Introduction to Your Projector Related references
Where to Get Help
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top Projector Parts - Rear
15
Page 16
Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
Projector Parts - Front/Top
1 Exhaust vent 2 A/V Mute slide lever 3 Foot release lever 4 Front adjustable foot 5 A/V Mute slide 6 Remote receiver 7 Screen Fit sensor 8 Wireless LAN indicator light (PowerLite 1975W/1985WU) 9 Air filter cover 10 Air filter cover latch 11 Illumination sensor
16
Page 17
12 Control panel 13 Focus help button 14 Zoom ring 15 Screen Fit button 16 Focus ring 17 Lamp cover 18 Status lights (on the side of the projector)
Parent topic: Projector Part Locations
Projector Parts - Rear
1 Network (LAN) port 2 Monitor Out port 3 RS-232C port 4 Audio Out port 5 Computer2 port 6 Audio1 port 7 Audio2 port 8 Power inlet 9 L-Audio-R ports
17
Page 18
10 Security slot 11 Remote receiver 12 HDMI 2 port 13 HDMI 1/MHL port 14 Video port 15 Computer1 port 16 USB-B port 17 USB-A port
Parent topic: Projector Part Locations
Projector Parts - Base
1 Mounting bracket holes 2 Security cable attachment point 3 Rear feet 4 Front adjustable foot
18
Page 19
Parent topic: Projector Part Locations
Projector Parts - Control Panel
1 Power button 2 Source Search button (searches for connected sources) 3 Enter button (selects options) 4 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons 5 Help button (accesses projector help information) 6 Esc button (cancels/exits functions) 7 Volume adjustment buttons (adjust speaker volume), horizontal keystone adjustment buttons
(adjust screen shape), and arrow buttons
8 Menu button (accesses projector menu system)
Parent topic: Projector Part Locations Related references
Projector Light Status
19
Page 20
Projector Parts - Remote Control
1 Power button 2 Computer button (cycles through connected computer sources) 3 Video button (cycles through connected video sources) 4 Screen Fit button (adjusts image shape) 5 Numeric buttons (enter numbers) 6 Auto button (automatically adjusts position, tracking, and sync settings)
20
Page 21
7 Aspect button (selects the image aspect ratio) 8 Num button (when held down, switches numeric buttons to number function) 9 Menu button (accesses projector menu system) 10 Arrow buttons (move through on-screen options and control wireless mouse functions) 11 Enter button (selects options and controls wireless mouse functions) 12 User button (customizable for different functions) 13 Page up/down buttons (control presentation slides) 14 E-Zoom +/– buttons (zoom into and out of the image) 15 A/V Mute button (turns off picture and sound) 16 Split button (splits the screen) 17 Help button (accesses projector help information) 18 Freeze button (stops video action) 19 Volume up/down buttons (adjust speaker volume) 20 Pointer button (activates on-screen pointer) 21 Esc button (cancels/exits functions and controls wireless mouse functions) 22 ID button (selects projector and remote control ID numbers ) 23 Color Mode button (selects display modes) 24 MHL Menu button (displays settings or performs functions for the MHL device) 25 LAN button (cycles between network and optional Quick Wireless Connection USB Key sources) 26 USB button (cycles through connected USB sources) 27 Source Search button (searches for connected sources)
Parent topic: Projector Part Locations
21
Page 22
Setting Up the Projector
Follow the instructions in these sections to set up your projector for use.
Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover
Projector Placement
You can place the projector on almost any flat surface to project an image. You can also install the projector in a ceiling mount if you want to use it in a fixed location. Keep these considerations in mind as you select a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible mount.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.
• Position the projector within reach of a grounded electrical outlet or extension cord.
Projector Setup and Installation Options Projection Distance
Parent topic: Setting Up the Projector
Projector Setup and Installation Options
You can set up or install your projector in the following ways: Front
22
Page 23
Rear
Front Ceiling
Rear Ceiling
Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.
If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.
Parent topic: Projector Placement
23
Page 24
Related references
Projector Setup Settings - Extended Menu
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)
PowerLite 1970W/1975W 16:10 Aspect Ratio Image or Screen
Screen or Projection distance image size
Wide to Tele
1 50 inches 57.5 to 95.9 inches (146.7 to 243.5 cm) 2 80 inches 92.9 to 154.2 inches (235.9 to 391.7 cm) 3 100 inches 116.5 to 193.1 inches (295.8 to 490.6 cm) 4 150 inches 175.4 to 290.4 inches (445.6 to 737.6 cm)
PowerLite 1980WU/1980WU 16:10 Aspect Ratio Image or Screen
24
Page 25
Screen or Projection distance image size
Wide to Tele
1 50 inches 57.5 to 95.9 inches (146.1 to 243.5 cm) 2 80 inches 92.9 to 154.2 inches (235.9 to 391.7 cm) 3 100 inches 116.5 to 193.1 inches (295.8 to 490.6 cm) 4 150 inches 175.4 to 290.4 inches (445.6 to 737.6 cm)
Parent topic: Projector Placement
Projector Connections
You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.
• Connect any type of computer that has a USB port, standard video output (monitor) port, or HDMI port.
• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and smartphones with compatible video output ports.
• If your presentation or video includes sound, you can connect audio input cables, if necessary.
• For slide shows or presentations without a computer, you can connect USB devices (such as a flash drive or camera) or an optional Epson document camera.
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.
Connecting to Computer Sources Connecting to Video Sources Connecting to an External Computer Monitor Connecting to External Speakers Connecting to External USB Devices Connecting to a Document Camera
Parent topic: Setting Up the Projector Related references
Product Box Contents Projector Setup Settings - Extended Menu
25
Page 26
Connecting to Computer Sources
Follow the instructions in these sections to connect a computer to the projector.
Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound
Parent topic: Projector Connections

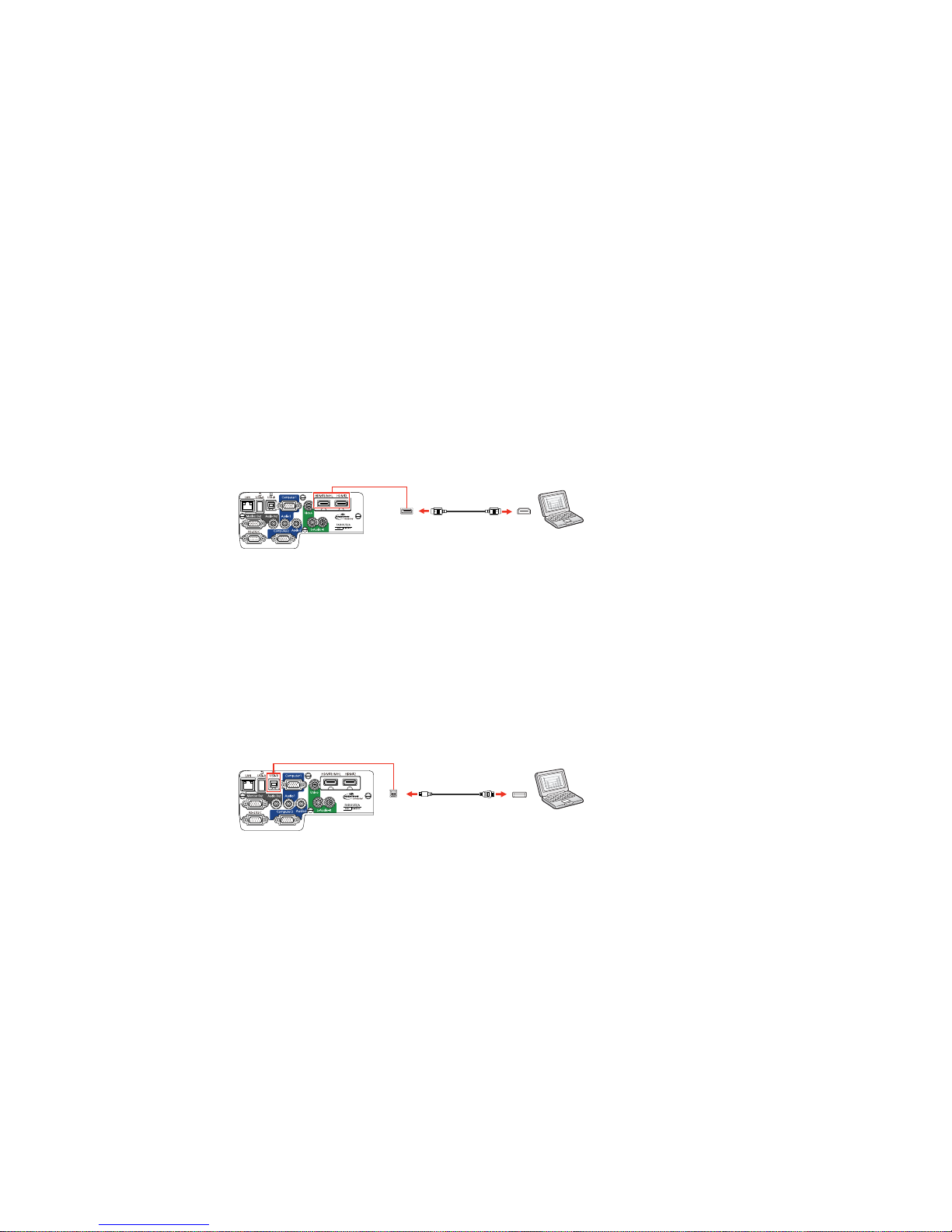

Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.
Note: An HDMI connection is recommended for projecting content requiring high bandwidth.
1. Turn on your computer.
2. Connect the cable to your projector's USB-B port.
3. Connect the other end to any available USB port on your computer.
4. Do one of the following:
• Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.
• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.
• Windows XP: Wait as messages appear on your computer screen and the projector installs the Epson USB Display software on your computer.
26
Page 27
• OS X: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.
Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.
Note: If you are using Windows XP and you see a message asking if you want to restart your computer, select No.
The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.
Parent topic: Connecting to Computer Sources Related references
Projector Setup Settings - Extended Menu USB Display System Requirements
Connecting to a Computer for VGA Video
You can connect the projector to your computer using a VGA computer cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.
1. If necessary, disconnect your computer's monitor cable.
2. Connect the VGA computer cable to your computer's monitor port.
3. Connect the other end to a Computer port on the projector.
4. Tighten the screws on the VGA connector.
Parent topic: Connecting to Computer Sources
27
Page 28
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.
1. Connect the HDMI cable to your computer's HDMI output port.
2. Connect the other end to one of the projector's HDMI ports.
Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for USB Mouse Control
If you connected your computer to a Computer, USB-B, or HDMI port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control projection at a distance from your computer. To do this, connect the projector to your computer using a USB cable, if it is not connected already.
1. Connect the USB cable to your projector's USB-B port.
2. Connect the other end to any available USB port on your computer.
28
Page 29
3. If necessary, configure your computer to work with an external USB mouse. See your computer documentation for details.
Parent topic: Connecting to Computer Sources Related tasks
Using the Remote Control as a Wireless Mouse
Connecting to a Computer for Sound
If your computer presentation includes sound and you did not connect it to the projector's USB-B or HDMI port, you can still play sound through the projector's speaker system. Just connect an optional
3.5 mm stereo mini-jack audio cable as described here.
1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.
2. Connect the other end to the Audio port that corresponds to the Computer port you are using.
Parent topic: Connecting to Computer Sources
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the projector.
Connecting to an HDMI Video Source Connecting to an MHL-Compatible Device Connecting to a Component-to-VGA Video Source Connecting to a Composite Video Source Connecting to a Video Source for Sound
Parent topic: Projector Connections
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.
1. Connect the HDMI cable to your video source's HDMI output port.
29
Page 30
2. Connect the other end to one of the projector's HDMI ports.
Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Parent topic: Connecting to Video Sources
Connecting to an MHL-Compatible Device
If you have an MHL-compatible smartphone or tablet, you can connect it to the projector using either an MHL cable or an HDMI cable with a device-compatible MHL adapter. If you have a device with a built-in MHL connector, plug it directly into the HDMI 1/MHL port.
Note: Some connected devices may not charge when using an MHL adapter.
1. Connect the MHL cable or adapter to your device's Micro-USB port.
2. If you are using an MHL adapter, connect it to an MHL-compatible HDMI cable.
3. Connect the other end of the cable to the projector's HDMI 1/MHL port.
Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Parent topic: Connecting to Video Sources
30
Page 31
Connecting to a Component-to-VGA Video Source
If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.
1. Connect the component connectors to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.
2. Connect the VGA connector to a Computer port on the projector.
3. Tighten the screws on the VGA connector.
If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.
Parent topic: Connecting to Video Sources Related references
Input Signal Settings - Signal Menu Optional Equipment and Replacement Parts
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.
1. Connect the cable with the yellow connector to your video source's yellow video output port.
2. Connect the other end to the projector's Video port.
31
Page 32
Parent topic: Connecting to Video Sources
Connecting to a Video Source for Sound
You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using a Computer port, connect the projector to the video source using an
optional stereo mini-jack audio cable or an RCA audio cable. If you are projecting video using the Video port, connect the projector to the video source using an RCA
audio cable. Note: If you connected your video source to the projector using an HDMI cable, the audio signal is
transferred with the video signal; you do not need an additional cable for sound.
1. Connect the audio cable to your video source's audio-out ports.
2. Do one of the following:
• Connect the other end of the cable to the projector's Audio port that corresponds to the
Computer port you are using for video.
• Connect the red and white plugs on the other end of the cable to the projector's L-Audio-R ports.
Parent topic: Connecting to Video Sources Related references
Projector Setup Settings - Extended Menu
Connecting to an External Computer Monitor
If you connected the projector to a computer using a Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.
If you want to output images to an external monitor when the projector is turned off, you need to select Communication On as the Standby Mode setting and Always On as the A/V Output setting in the projector's menu system.
32
Page 33
Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.
1. Make sure your computer is connected to the projector's Computer port.
2. Connect the external monitor's cable to your projector's Monitor Out port.
Parent topic: Projector Connections
Connecting to External Speakers
To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.
You can also connect the projector to an amplifier with speakers. If you want to output audio from the external speakers when the projector is turned off, you need to
select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's Extended menu.
Note: The projector's built-in speaker system is disabled when you connect external speakers.
1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.
2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin­jack cable, or another type of cable or adapter.
3. Connect one end of the cable to your external speakers as necessary.
4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.
33
Page 34
Parent topic: Projector Connections
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to the projector.
USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector
Parent topic: Projector Connections
USB Device Projection
You can project images and other content without using a computer or video device by connecting any of these devices to your projector:
• USB flash drive
• Digital camera or smartphone
• USB hard drive
• Multimedia storage viewer
• USB memory card reader
Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.
Note: USB hard drives must meet these requirements:
• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)
• Formatted in FAT or FAT32
• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)
• Avoid using hard drives with multiple partitions
You can also use the EasyMP PC Free feature to create your own slide shows containing converted PowerPoint files and image files, and project them from a connected USB device or memory card reader.
Parent topic: Connecting to External USB Devices
34
Page 35
Related topics
Projecting a PC Free Presentation
Connecting a USB Device or Camera to the Projector
You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.
1. If your USB device came with a power adapter, plug the device into an electrical outlet.
2. Connect the USB cable (or USB flash drive or USB memory card reader) to the projector's USB-A port shown here.
Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.
3. Connect the other end of the cable (if applicable) to your device.
Parent topic: Connecting to External USB Devices Related topics
Projecting a PC Free Presentation
Selecting the Connected USB Source
You can switch the projector's display to the source you connected to the USB-A port.
1. Make sure the connected USB source is turned on, if necessary.
2. Press the USB button on the remote control.
3. Press the button again to cycle through other USB sources, if available.
Parent topic: Connecting to External USB Devices
Disconnecting a USB Device or Camera From the Projector
When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.
1. If the device has a power button, turn off and unplug the device.
35
Page 36
2. Disconnect the USB device or camera from the projector.
Parent topic: Connecting to External USB Devices
Connecting to a Document Camera
You can connect a document camera to your projector to project images viewed by the camera. Depending on your Epson document camera model, do one of the following to connect the document
camera to your projector:
• For the Epson DC-06 document camera, locate the USB cable that came with the camera and
connect it to the to the projector's USB-A port and to the document camera's USB Type B port.
• For the Epson DC-11 document camera, connect it to the projector's Computer or Video port and to
the corresponding port on the document camera. See the document camera manual for details.
• For the Epson DC-12 document camera, connect it to the projector's HDMI, Computer, or Video port
and to the corresponding port on the document camera. See the document camera manual for details.
• For the Epson DC-20 document camera, connect it to the projector's HDMI, Computer, or Video port
and to the corresponding port on the document camera. See the document camera manual for details.
Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.
Parent topic: Projector Connections Related references
Optional Equipment and Replacement Parts
Installing Batteries in the Remote Control
The remote control uses the two AA batteries that came with the projector. Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
36
Page 37
1. Open the battery cover.
2. Insert the batteries with the + and – ends facing as shown.
37
Page 38
3. Close the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.
Parent topic: Setting Up the Projector
Opening the Lens Cover
1. To open the projector's lens cover, slide the A/V Mute slide lever until it clicks into the open position.
2. To cover the lens or temporarily turn off the projected picture and sound, slide the A/V Mute slide cover closed.
38
Page 39
Parent topic: Setting Up the Projector
39
Page 40
Using the Projector on a Network
Follow the instructions in these sections to set up your projector for use on a network.
Wired Network Projection Wireless Network Projection Wireless Network Projection from a Mobile Device (Screen Mirroring) Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Crestron RoomView Support
Wired Network Projection
You can send images to your projector through a wired network. To do this, you connect the projector to your network, and then set up your projector and computer for network projection.
After connecting and setting up the projector as described here, install the network software from the Epson Projector Software CD or download the software as necessary. Use the following software and documentation to set up, control, and monitor network projection:
• EasyMP Network Projection software sets up your computer for network projection. See the EasyMP
Network Projection Operation Guide for instructions.
• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the
network. You can download the latest software and documentation from the Epson web site. Go to
epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.
• EasyMP Multi PC Projection software allows you to hold interactive meetings by projecting the
computer screens of users over a network. See the EasyMP Multi PC Projection Operation Guide for instructions.
• EasyMP Network Updater software (Windows only) allows you to update firmware for a projector over
a wired LAN. See the EasyMP Network Updater Operation Guide for instructions. You can download the latest software and documentation from the Epson web site. Go to epson.com/support (U.S.) or
epson.ca/support (Canada) and select your projector.
Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the EasyMP Network Projection software.
40
Page 41
Connecting to a Wired Network Selecting Wired Network Settings
Parent topic: Using the Projector on a Network
Connecting to a Wired Network
To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.
1. Connect one end of the network cable to your network hub, switch, or router.
2. Connect the other end of the cable to the projector's LAN port.
Parent topic: Wired Network Projection
Selecting Wired Network Settings
Before you can project from computers on your network, you must select the network settings for the projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
1. Turn on the projector.
2. Press the Menu button.
41
Page 42
3. Select the Network menu and press Enter.
4. Select Network Configuration and press Enter.
5. Select the Basic menu and press Enter.
6. Select the following basic options as necessary:
• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the
projector over the network.
42
Page 43
• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the
PJLink protocol for projector control.
• Web Control Password lets you enter a password up to 8 alphanumeric characters long for
accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)
• Projector Keyword lets you turn on a security password to prevent access to the projector by
anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.
Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.
7. Select the Wired LAN menu and press Enter.
8. If necessary, select IP Settings and press Enter.
9. Select your IP Settings as necessary:
• If your network assigns addresses automatically, turn on the DHCP setting.
• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet
Mask, and Gateway Address as needed.
Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter.
43
Page 44
10. To prevent display of the IP address on the standby screen, turn off IP Address Display.
11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wired Network Projection
Wireless Network Projection
You can send images to your projector through a wireless network (PowerLite 1970W/1975W/1985WU). To do this, you must install the Epson 802.11b/g/n wireless LAN module, and then set up your projector and computer for wireless projection.
Note: The wireless LAN module is not included with your projector. Note: If your projector is connected via a LAN cable to a network that includes a wireless access point,
you can connect to the projector wirelessly using the EasyMP Network Projection software. There are two ways to connect the projector to your wireless network:
• Using the optional Quick Wireless Connection USB Key (Windows only)
• Configuring the connection manually using the projector's Network menus
After installing the module and setting up the projector, install the network software from the Epson Projector Software CD or download the software, as necessary. Use the following software and documentation to set up, control, and monitor wireless projection:
• EasyMP Network Projection software sets up your computer for wireless network projection. See the
EasyMP Network Projection Operation Guide for instructions.
• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the
network. You can download the latest software and documentation from the Epson web site. Go to
epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.
• EasyMP Multi PC Projection software allows you to hold interactive meetings by projecting the
computer screens of users over a network. See the EasyMP Multi PC Projection Operation Guide for instructions.
• Projection from iOS or Android devices with the wireless LAN module and free Epson iProjection app;
visit epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more information.
Installing the Wireless LAN Module Using Quick Wireless Connection (Windows Only) Selecting Wireless Network Settings Manually
44
Page 45
Searching for a Wireless Network Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings in OS X Setting Up Wireless Network Security
Parent topic: Using the Projector on a Network Related references
Optional Equipment and Replacement Parts
Installing the Wireless LAN Module
To use the projector over a wireless network, install the optional Epson 802.11b/g/n wireless LAN module (PowerLite 1970W/1975W/1985WU). Do not install any other type of wireless LAN module.
Caution: Never remove the module while its indicator light is green or flashing, or while you are projecting wirelessly. You may damage the module or lose data.
1. Turn off the projector and unplug the power cord.
2. Slide the air filter cover latch and open the air filter cover.
45
Page 46
3. Remove the screw securing the wireless LAN module stopper, then remove the stopper.
4. Insert the wireless LAN module into the port.
46
Page 47
5. Replace the wireless LAN module stopper and secure it using the screw you removed.
6. Close the air filter cover.
7. Plug in and turn on the projector.
Parent topic: Wireless Network Projection Related references
Optional Equipment and Replacement Parts
Using Quick Wireless Connection (Windows Only)
You can use the Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.
Note: The Quick Wireless Connection USB Key is not included with your projector.
1. Turn on the projector.
2. Connect the USB key to the projector's USB-A port. You see a projected message that the network information update is complete.
3. Remove the USB key.
4. Connect the USB key to a USB port on your computer or laptop.
Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchU3.exe, then select Allow on the next screen.
47
Page 48
5. Follow the on-screen instructions to install the Quick Wireless Connection driver. Note: If you see a Windows Firewall message, click Yes to disable the firewall. After a few minutes, your computer image is displayed by the projector. If it does not appear, press
the LAN button on your remote control or restart your computer.
6. Run your presentation as necessary.
7. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.
Note: You may need to restart your computer to reactivate your wireless LAN connection.
Parent topic: Wireless Network Projection Related references
Optional Equipment and Replacement Parts
Selecting Wireless Network Settings Manually
Before you can project from your wireless network, you must select the network settings for the projector using its menu system.
1. Turn on the projector.
2. Press the Menu button.
3. Select the Network menu and press Enter.
48
Page 49
4. Set the Wireless Mode setting to Wireless LAN On and press Enter.
5. Select Network Configuration and press Enter.
6. Select the Basic menu and press Enter.
7. Select the following basic options as necessary:
• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the
projector over the network.
• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the
PJLink protocol for projector control.
• Web Control Password lets you enter a password up to 8 alphanumeric characters long for
accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)
• Projector Keyword lets you turn on a security password to prevent access to the projector by
anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.
Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.
49
Page 50
8. Select the Wireless LAN menu and press Enter.
9. Select the settings on the Wireless LAN menu as necessary for your network.
10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
After you complete the wireless settings for your projector, you need to select the wireless network on your computer.
Wireless LAN Menu Settings
Parent topic: Wireless Network Projection
Wireless LAN Menu Settings
Setting Options Description Connection Mode Quick Selects the type of wireless
connection:
Advanced
Quick: lets you quickly connect
to one computer or use the optional Quick Wireless Connection USB key to connect
Advanced: lets you connect to multiple computers via a wireless network access point
50
Page 51
Setting Options Description Channel 1ch In Quick connection mode,
selects the frequency band
6ch
(channel) used by the wireless
11ch
LAN
SSID Auto Setting On TurnsonautomaticSSID
searching in Quick connection
Off
mode; set to Off when connecting to multiple projectors at the same time
SSID Up 32 alphanumeric characters Sets the SSID (network name) of
the wireless LAN system the projector is connecting to
Wi-Fi Protected Setup Setup Select Setup to start the WPS
Connection Setup utility
Wireless LAN System 802.11b/g Sets the type of wireless LAN
system the projector is
802.11b/g/n
connecting to
Search Access Point To Search View Search for available wireless
network access points in
Advanced connection mode
IP Settings DHCP Select DHCP if your network
assigns addresses automatically,
IP Address
or manually enter the network's
Subnet Mask
IP Address, Subnet Mask, and Gateway Address
Gateway Address
SSID Display On Selects whether to display the
SSID on the network standby
Off
screen
IP Address Display On Selects whether to display the IP
address on the network standby
Off
screen
Parent topic: Selecting Wireless Network Settings Manually
51
Page 52
Searching for a Wireless Network
You can use your projector's site survey function to quickly locate and connect to available wireless networks.
1. Turn on the projector.
2. Press the Menu button on the remote control.
3. Select the Network menu and press Enter.
4. Select Network Configuration and press Enter.
52
Page 53
5. Select the Wireless LAN menu and press Enter.
6. Select Advanced as the Connection Mode setting and press Enter.
7. Select Search Access Point and press Enter.
8. Select the name of the wireless network you want to connect to and press Enter.
9. If the network has security enabled, enter the wireless password.
53
Page 54
You see a screen like this:
10. Select the settings on the security menu as necessary for your network.
11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings in Windows
Before connecting to the projector, select the correct wireless network on your computer.
1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.
2. Do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
3. Click Connect.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings in OS X
Before connecting to the projector, select the correct wireless network in OS X.
54
Page 55
1. Click the AirPort icon on the menu bar at the top of the screen.
2. Make sure AirPort is turned on, then do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
Parent topic: Wireless Network Projection
Setting Up Wireless Network Security
You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:
• WPA/WPA2-PSK security (Advanced connection mode)
• WPA2-PSK security (Advanced and Quick connection mode)
Note: TKIP and AES encryption are supported.
Note: Check with your network administrator for guidance on entering the correct information.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Security menu and press Enter.
55
Page 56
5. Select the security settings for your network. Note: WPA authentication via an authentication server is not supported.
6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Wireless Security Menu Settings
Parent topic: Wireless Network Projection
Wireless Security Menu Settings
Settings on the Security menu let you select the type of security and security settings that match the network you are connecting the projector to.
Setting Options Description Security WPA2-PSK and WPA types Selects the type of security used
available on the wireless network
Passphrase Various keys from 8 to 32 Selects the pre-shared key used
characters onthe network
Parent topic: Setting Up Wireless Network Security
Wireless Network Projection from a Mobile Device (Screen Mirroring)
You can send images to your projector from mobile devices such as laptops, smartphones, and tablets using Intel WiDi (version 3.5 or later) and Miracast technology (PowerLite 1975W/1985WU).
If your device supports Intel WiDi or Miracast, you do not need to install any additional software.
Screen Mirroring Restrictions Selecting Screen Mirroring Settings Connecting for Screen Mirroring Using Windows 8.1 Connecting for Screen Mirroring Using Windows 7/Windows 8 Connecting for Screen Mirroring with Miracast
Parent topic: Using the Projector on a Network
56
Page 57
Screen Mirroring Restrictions
Note the following when using Screen Mirroring features:
• You cannot play audio with more than 3 channels.
• You cannot project images with a resolution above 1920 × 1080 and a frame rate above 50 fps.
• You cannot play 3D video.
• Extended Miracast features on Windows 8.1 are not supported.
• The extended Intel WiDi version 4 features are not supported.
• You may not be able to view contents with copyright protection with a Miracast connection.
Parent topic: Wireless Network Projection from a Mobile Device (Screen Mirroring)
Selecting Screen Mirroring Settings
You can select Screen Mirroring settings for your projector and then project images from your mobile device.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Screen Mirroring On as the Wireless Mode setting.
4. Select Screen Mirroring Settings and press Enter.
5. Select these Screen Mirroring settings as necessary:
• Display Name lets you enter a name up to 32 alphanumeric characters long to identify the
projector from a list of available devices.
57
Page 58
• Wireless LAN Sys. lets you select the type of wireless LAN system the projector is connected to.
• Adjust Image Quality lets you adjust the screen mirroring speed/quality. Select a small number
to improve the quality and select a large number to increase the speed.
• Connection Mode lets you select the type of WPS (Wi-Fi Protected Setup) you are using.
• PIN Code Notice lets you select whether the PIN code is displayed on the projected image while
projecting from sources other than the Screen Mirroring source.
6. When you finish selecting settings, select Set and press Enter.
Parent topic: Wireless Network Projection from a Mobile Device (Screen Mirroring)
Connecting for Screen Mirroring Using Windows 8.1
You can set up your computer for wireless projection from Devices menu in Windows 8.1.
1. Select the Screen Mirroring Settings on your projector as necessary.
2. Press the LAN button on the remote control to switch to the Screen Mirroring source. You see the Screen Mirroring standby screen.
3. On your computer, navigate to the Apps screen.
4. Select PC settings.
5. Select PC and devices.
6. Select Devices.
7. Click Add a device. You see a list of available devices.
58
Page 59
8. Select your projector from the list.
9. If you see the PIN entry screen on your computer or mobile device, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image and click Next.
The projector displays the image from your computer or mobile device. Note: It may take some time to establish the connection. Do not disconnect the projector's power
cord while it is connecting to your device. This may cause your device to freeze or malfunction.
Parent topic: Wireless Network Projection from a Mobile Device (Screen Mirroring)
Connecting for Screen Mirroring Using Windows 7/Windows 8
If you are using Windows 7 or Windows 8, you can use the Intel WiDi software to connect to the projector wirelessly and project images and audio.
1. Select the Screen Mirroring Settings on your projector as necessary.
2. Press the LAN button on the remote control to switch to the Screen Mirroring source. You see the Screen Mirroring standby screen.
3. On your computer or mobile device, open the Intel WiDi software. You see a list of available devices.
4. Select your projector's Display Name from the list.
5. If you see the PIN entry screen on your computer or mobile device, enter the PIN code displayed on the projector's Screen Mirroring standby screen or at the bottom right of the projected image.
The projector displays the image from your mobile device.
59
Page 60
Note: It may some time to establish the WiDi connection. Do not disconnect the projector's power cord while it is connecting to your device. This may cause your device to freeze or malfunction.
Parent topic: Wireless Network Projection from a Mobile Device (Screen Mirroring)
Connecting for Screen Mirroring with Miracast
If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images and sound.
1. Select the Screen Mirroring Settings on your projector as necessary.
2. Press the LAN button on the remote control to switch to the Screen Mirroring source. You see the Screen Mirroring standby screen.
3. On your mobile device, use the Miracast function to search for the projector. Note: See your mobile device's documentation for information on accessing the Miracast function. You see a list of available devices.
4. Select your projector from the list.
5. If you see the PIN entry screen on your mobile device, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.
The projector displays the image from your mobile device. Note: It may some time to establish the connection. Do not disconnect the projector's power cord
while it is connecting to your device. Doing so may cause your device to freeze or malfunction. Depending on the mobile device, you may need to delete a device when connecting. Follow the on-
screen instructions on your device.
Parent topic: Wireless Network Projection from a Mobile Device (Screen Mirroring)
Setting Up Projector Network E-Mail Alerts
You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.
1. Press the Menu button.
2. Select the Network menu and press Enter.
60
Page 61
3. Select Network Configuration and press Enter.
4. Select the Mail menu and press Enter.
5. Turn on Mail Notification.
6. Enter the IP address for the SMTP Server option. Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a
number from 0 to 255).
7. Select a number for the SMTP server Port Number, from 1 to 65535 (default is 25).
8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses.
Note: Your e-mail address can be up to 32 alphanumeric characters long.
9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Network Projector E-mail Alert Messages
Parent topic: Using the Projector on a Network
61
Page 62
Network Projector E-mail Alert Messages
When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:
• Epson Projector on the subject line
• The name of the projector experiencing a problem
• The IP address of the affected projector
• Detailed information about the problem
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert. Parent topic: Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Others menu and press Enter.
62
Page 63
5. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field. Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a
number from 0 to 255).
6. If available, select the Priority Gateway setting for your network.
7. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.
8. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView setting to allow the projector to be detected.
9. If you are connecting to a network using Bonjour, turn on the Bonjour setting.
10. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Message Broadcasting plug-in for EasyMP Monitor (Windows only).
11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Using the Projector on a Network
Controlling a Networked Projector Using a Web Browser
Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.
Note: The web setup and control features support Microsoft Internet Explorer 8.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.
Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.
1. Make sure the projector is turned on.
2. Start your web browser on a computer connected to the network.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key. You see the Web Control screen.
63
Page 64
Note: You may need to log in before you see the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)
4. To select projector menu settings, select the name of the menu and follow the on-screen instructions to select settings.
5. To control projection remotely, select the Web Remote option. You see a screen like this:
1 Power button control 2 Selects Computer port source 3 Selects Video and HDMI port sources 4 Freeze button control 5 A/V Mute button control 6 Page Up and Page Down button controls 7 Searches for sources 8 Selects the network source 9 Selects the USB Display or USB device source
64
Page 65
10 Volume button controls 11 Closed Caption control
6. Select the icon corresponding to the projector function you want to control.
Parent topic: Using the Projector on a Network
Crestron RoomView Support
If you are using the Crestron RoomView network monitoring and control system, you can set up your projector for use on the system. Crestron RoomView lets you control and monitor your projector using a web browser.
Note: You cannot use the Epson Web Control feature or the Message Broadcasting plug-in for EasyMP Monitor when you use Crestron RoomView.
For additional information on Crestron RoomView, contact Crestron.
Setting Up Crestron RoomView Support Controlling a Networked Projector Using Crestron RoomView
Parent topic: Using the Projector on a Network
Setting Up Crestron RoomView Support
To set up your projector for monitoring and control using a Crestron RoomView system, make sure your computer and projector are connected to the network.
Note: If you want to use the Crestron RoomView system when the projector is turned off, you need to adjust the Standby Mode settings in the ECO menu.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
65
Page 66
4. Select the Others menu and press Enter.
5. Set the Crestron RoomView setting to On to allow the projector to be detected.
6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
7. Turn off the projector, then turn it on again to enable the setting.
Parent topic: Crestron RoomView Support
Controlling a Networked Projector Using Crestron RoomView
Once you have set up your projector to use Crestron RoomView, you can control and monitor projection using a compatible web browser.
1. Start your web browser on a computer connected to the network.
2. Type the projector's IP address into the browser's address box and press the computer's Enter key.
66
Page 67
You see this screen:
3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.
4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.
Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:
• OK acts as the Enter button
• Menu displays the projector's menu
5. To view information about the projector, click the Info tab.
6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.
7. When you finish selecting settings, click Exit to exit the program.
Parent topic: Crestron RoomView Support
67
Page 68
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Adjusting the Image Height Image Shape Resizing the Image with the Zoom Ring Focusing the Image Using the Focus Ring Focusing the Image with Focus Help Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Projecting a PC Free Presentation
Related references
Projector Setup Settings - Extended Menu
Turning On the Projector
Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.
68
Page 69
1. Open the projector's lens cover.
2. Connect the power cord to the projector's power inlet.
3. Plug the power cord into an electrical outlet. Note: With Direct Power On turned on, the projector turns on as soon as you plug it in. The projector's power light turns blue. This indicates that the projector is receiving power.
69
Page 70
4. Press the power button on the projector or the remote control to turn on the projector. The projector beeps and the Status light flashes blue as the projector warms up. Once the projector
is warmed up, the Status light stops flashing and turns blue. Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is
especially dangerous for children.
If you do not see a projected image right away, try the following:
• Verify the lens cover is open all the way.
• Turn on the connected computer or video device.
• Insert a DVD or other video media and press the play button, if necessary.
• Press the Source Search button on the projector or remote control to detect the video source.
• Press the button for the video source on the remote control.
Parent topic: Using Basic Projector Features
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Note: When using the A/V Mute feature, the projector lamp is still on. To turn off the lamp, turn off the projector.
1. Press the power button on the projector or the remote control. The projector displays a shutdown confirmation screen.
70
Page 71
2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the Status light turns off.
Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).
3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.
Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing.
71
Page 72
4. Close the projector's lens cover.
Parent topic: Using Basic Projector Features
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language, you can change the Language setting.
1. Turn on the projector.
2. Press the Menu button.
72
Page 73
3. Select the Extended menu and press Enter.
4. Select the Language setting and press Enter.
5. Select the language you want to use and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting the Image Height
If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.
1. Turn on the projector and display an image.
73
Page 74
2. To adjust the front foot, pull up on the foot release lever and lift the front of the projector.
The foot extends from the projector.
3. Release the lever to lock the foot.
4. If the image is tilted, rotate the rear feet to adjust their height.
If the projected image is unevenly rectangular, you need to adjust the image shape.
Parent topic: Using Basic Projector Features Related concepts
Image Shape
Related references
Projector Feature Settings - Settings Menu
74
Page 75
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.
When you turn on automatic keystone correction in your projector's Settings menu, your projector automatically corrects keystone effects when you reposition the projector.
Automatically Correcting Image Shape With Screen Fit Correcting Image Shape with the Keystone Buttons Correcting Image Shape with Quick Corner
Parent topic: Using Basic Projector Features
Automatically Correcting Image Shape With Screen Fit
You can use the projector's Screen Fit feature to automatically correct the shape and position of images to fit on your screen.
The projector's sensor can detect the screen size and shape in these conditions:
• Projector is not mounted on the ceiling
• Screen size is 100 inches (254 cm) or less
• Projection distance is about 4 feet (1.2 m) to 10 feet (3 m) (PowerLite 1970W/1975W)
• Projection distance is about 5 feet (1.5 m) to 10 feet (3 m) (PowerLite 1980WU/1985WU)
• Projection angle is about 20° right or left, or 30° up or down
• The room is not too dark
• The projection surface is not patterned and does not deflect the sensor in some way
1. Press the Screen Fit button on the projector or remote control. You see a message on the screen.
2. Move the projector as necessary to display the message in the middle of the screen.
3. Zoom into the image until its yellow frame extends beyond the edges of the screen.
4. Press the Screen Fit button again.
75
Page 76
Two displays flash briefly, then this message appears:
5. Fine-tune the image shape as necessary using the arrow buttons on the control panel.
6. When you are finished, press Esc.
Now, if necessary, you can correct the image corners individually using Quick Corner by pressing the arrow buttons on the control panel.
Parent topic: Image Shape Related tasks
Correcting Image Shape with Quick Corner
Correcting Image Shape with the Keystone Buttons
You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test
pattern is assigned to this button).
76
Page 77
2. Press one of these keystone buttons on the control panel to display the Keystone adjustment screen.
3. Press a keystone button on the projector's control panel to adjust the image shape.
After correction, your image is slightly smaller. Note: If the projector is installed out of reach, you can also correct the image shape with the remote
control using the Keystone settings in the projector menus.
Parent topic: Image Shape Related references
Projector Feature Settings - Settings Menu
Correcting Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.
77
Page 78
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test
pattern is assigned to this button).
2. Press the Menu button.
3. Select the Settings menu and press Enter.
4. Select the Keystone setting and press Enter.
5. Select the Quick Corner setting and press Enter. Then press Enter again.
78
Page 79
You see the Quick Corner adjustment screen:
6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust. Then press Enter.
7. Press the arrow buttons to adjust the image shape as necessary.
8. When you are finished, press Esc.
Parent topic: Image Shape Related references
Projector Feature Settings - Settings Menu
Resizing the Image with the Zoom Ring
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test
pattern is assigned to this button).
79
Page 80
2. To enlarge or reduce the image size, rotate the projector's zoom ring.
Parent topic: Using Basic Projector Features
Focusing the Image Using the Focus Ring
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test
pattern is assigned to this button).
2. To sharpen the image focus, rotate the projector’s focus ring.
Parent topic: Using Basic Projector Features
Focusing the Image with Focus Help
You can use the projector's Focus Help feature to focus the image.
80
Page 81
Focus Help works in these conditions:
• Screen size is 100 inches (254 cm) or less
• The room is not too bright
• Projector is positioned within the distances and angles listed here:
PowerLite 1980WU/1985WU
1 5 to 10 feet (1.5 to 3 m) 2 20º 3 30º
PowerLite 1970W/1975W
1 3 to 10 feet (0.9 to 3 m) 2 20º 3 30º
1. Press the Focus Help button on the projector.
81
Page 82
You see a screen like this:
2. Turn the focus ring until the green number matches the orange number as closely as possible.
3. When you are finished, press Esc.
Parent topic: Using Basic Projector Features
Remote Control Operation
The remote control lets you control the projector from almost anywhere in the room, up to 26 feet (8 m) away. You can point it at the screen, or the front or back of the projector.
82
Page 83
Make sure that you aim the remote control at the projector's receivers within the angles listed here.
1 26 feet (8 m) 2 45° 3 30° 4 15°
Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.
Using the Remote Control as a Wireless Mouse Using the Remote Control as a Pointer
Parent topic: Using Basic Projector Features Related tasks
Replacing the Remote Control Batteries
83
Page 84
Using the Remote Control as a Wireless Mouse
You can use the projector's remote control as a wireless mouse so you can control projection at a distance from the computer.
1. Connect the projector to a computer using the projector's USB-B, Computer, or HDMI port to display video.
2. If you connected your computer to the Computer or HDMI port, also connect a USB cable to the projector's USB-B port and to a USB port on your computer (for wireless mouse support).
3. Start your presentation.
4. Use the following buttons on the remote control to control your presentation:
• To move through slides or pages, press the up or down Page buttons.
• To move the cursor on the screen, use the arrow buttons.
• To left-click, press the button once (press it twice to double-click).
• To right-click, press the Esc button.
• To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release
at the destination.
Parent topic: Remote Control Operation Related references
Projector Setup Settings - Extended Menu
84
Page 85
Using the Remote Control as a Pointer
You can use the projector's remote control as a pointer to help you call out important information on the screen. The default pointer shape is an arrow, but you can select an alternative shape using the Settings menu.
1. Press the Pointer button on the remote control.
2. Use the arrow buttons on the remote control to move the pointer on the screen.
3. Press Esc to clear the pointer from the screen.
Parent topic: Remote Control Operation Related references
Projector Feature Settings - Settings Menu
Selecting an Image Source
If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.
1. Make sure the connected image source you want to use is turned on.
2. For video image sources, insert a DVD or other video media and press its play button, if necessary.
85
Page 86
3. Do one of the following:
• Press the Source Search button on the projector or remote control until you see the image from
the source you want.
• Press the button for the source you want on the remote control. If there is more than one port for
that source, press the button again to cycle through the sources.
1 Computer port sources 2 Video, HDMI, and MHL sources 3 USB port sources (computer display and external devices)
86
Page 87
4 Network and Screen Mirroring sources
Parent topic: Using Basic Projector Features
Projection Modes
Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.
• Front (default setting) lets you project from a table in front of the screen.
• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.
• Rear flips the image horizontally to project from behind a translucent screen.
• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind
a translucent screen.
Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus
Parent topic: Using Basic Projector Features
Changing the Projection Mode Using the Remote Control
You can change the projection mode to flip the image over top-to-bottom.
1. Turn on the projector and display an image.
2. Hold down the A/V Mute button on the remote control for five seconds.
The image disappears briefly and reappears flipped top-to-bottom.
87
Page 88
3. To change projection back to the original mode, hold down the A/V Mute button for five seconds again.
Parent topic: Projection Modes
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select the Projection setting and press Enter.
5. Select a projection mode and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Projection Modes
Image Aspect Ratio
The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.
88
Page 89
If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.
Changing the Image Aspect Ratio Available Image Aspect Ratios
Parent topic: Using Basic Projector Features Related references
Input Signal Settings - Signal Menu
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image to resize it.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Aspect button on the remote control.
The shape and size of the displayed image changes, and the name of the aspect ratio appears briefly on the screen.
3. To cycle through the available aspect ratios for your input signal, press the Aspect button repeatedly.
Parent topic: Image Aspect Ratio
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the input signal from your image source. Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect
ratio and resolution of your input signal.
89
Page 90
Aspect ratio setting Description Normal Displays images using the full projection area and maintains the
aspect ratio of the image.
16:9 Converts the aspect ratio of the image to 16:9. Full Displays images using the full width of the projection area, but does
not maintain the aspect ratio.
Zoom Displays images using the full width of the projection area and
maintains the aspect ratio of the image.
Native Displays images as is (aspect ratio and resolution are maintained).
Note: The Auto aspect ratio setting is available only for HDMI and MHL image sources. Parent topic: Image Aspect Ratio
Color Mode
The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.
If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.
Changing the Color Mode Available Color Modes Turning On Auto Iris
Parent topic: Using Basic Projector Features Related references
Image Quality Settings - Image Menu
Changing the Color Mode
You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment.
1. Turn on the projector and switch to the image source you want to use.
2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.
90
Page 91
3. Press the Color Mode button on the remote control to change the Color Mode.
The image appearance changes and the name of the Color Mode appears briefly on the screen.
4. To cycle through all the available Color Modes for your input signal, press the Color Mode button repeatedly.
Parent topic: Color Mode
Available Color Modes
You can set the projector to use these Color Modes, depending on the input source you are using:
Color Mode Description Presentation Best for color presentations in a bright room Dynamic Best for projecting in a bright room Theatre Best for movies projected in a dark room Sports Best for television images in a bright room sRGB Bestfor standard sRGB computer displays Blackboard Bestfor presentations onto a green chalkboard (adjusts the colors
accordingly)
Whiteboard Best for presentations onto a whiteboard (adjusts the colors
accordingly)
Photo Best for still images projected in a bright room DICOM SIM Best for projecting X-ray photographs and other medical images
91
Page 92
Note: The DICOM SIM Color Mode is for reference purposes only and should not be used to make medical diagnoses.
Parent topic: Color Mode
Turning On Auto Iris
In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
3. Select the Image menu and press Enter.
4. Select the Auto Iris setting and select On. Note: You can turn Auto Iris on or off for each Color Mode that supports the feature. You cannot
change the Auto Iris setting when you are using a Closed Caption setting.
5. Press Menu or Esc to exit the menus.
Parent topic: Color Mode
92
Page 93
Controlling the Volume with the Volume Buttons
You can use the Volume buttons on the projector or the remote control to adjust the volume as you project a presentation with audio. The volume buttons control the projector’s internal speaker system or any external speakers you connected to the projector.
You must adjust the volume separately for each connected input source.
1. Turn on the projector and start a presentation that includes audio.
2. To lower or raise the volume, press the Volume buttons on the remote control or these buttons on the control panel.
A volume gauge appears on the screen.
3. To set the volume to a specific level for an input source, use the projector menus.
Parent topic: Using Basic Projector Features
Projecting a PC Free Presentation
You can use your projector's PC Free feature whenever you connect a USB device that contains compatible presentation files. This lets you quickly and easily display a presentation and control it using the projector's remote control.
Supported PC Free File Types Starting a PC Free Slide Show Starting a PC Free PDF File Presentation Starting a PC Free Movie Presentation PC Free Display Options
Parent topic: Using Basic Projector Features
93
Page 94
Related concepts
USB Device Projection
Related tasks
Connecting a USB Device or Camera to the Projector
Supported PC Free File Types
You can project these types of files using the projector's PC Free feature. Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble
projecting from media formatted for non-Windows file systems, try formatting the media for Windows instead. You may not be able to use the security features on certain USB storage devices with PC Free features.
File contents File type Details
(extension)
Image .jpg Make sure the file is not:
• CMYK format
• Progressive format
• Highly compressed
• Above 8192 × 8192 resolution .bmp Make sure the file resolution is not above 1920 × 1080 .gif Make sure the file is not:
• Above 1920 × 1080 resolution
• Animated .png Makesure the file resolution is not above 1920 × 1080
Scenario .fse MainformatforfilesconvertedfromPowerPointusingEasyMPSlide
Converter
PDF .pdf Make sure the file is not:
• Saved in PDF version 1.8 or later format
• Encrypted
94
Page 95
File contents File type Details
(extension)
Movie .avi Make sure the file is not:
• Saved with an audio codec other than linear PCM or ADPCM
• Above 1280 × 720 resolution
• Larger than 2GB
Parent topic: Projecting a PC Free Presentation
Starting a PC Free Slide Show
After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your slide show.
Note: You can change the PC Free operation options or add special effects by highlighting Option at the bottom of the screen and pressing Enter.
1. Press the USB button on the projector remote control. The PC Free screen appears.
95
Page 96
2. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press the Enter button.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next page or Previous page and press Enter.
3. Do one of the following:
• To display an individual image, press the arrow buttons to highlight the image and press Enter.
(Press the Esc button to return to the file list screen.)
• To display a slide show of all the images in a folder, press the arrow buttons to highlight the
Slideshow option at the bottom of the screen and press Enter.
Note: If any file names are longer than 8 characters or include unsupported symbols, the file names
may be shortened or changed only in the screen display.
4. While projecting, use the following commands to control the display as necessary:
• To rotate a displayed image, press the up or down arrow button.
• To move to the next or previous image, press the left or right arrow button.
5. To stop the display, follow the on-screen instructions or press the Esc button.
Parent topic: Projecting a PC Free Presentation Related tasks
Disconnecting a USB Device or Camera From the Projector
Starting a PC Free PDF File Presentation
After connecting a USB device to the projector, you can switch to the USB input source and start your PDF file presentation.
Note: You cannot do the following while presenting a PDF file from a USB device:
• Release a password
• Display e-signatures, JPEG2000 images, transparent effects, 3D artwork, or comments
• Play multimedia content
1. Press the USB button on the projector remote control.
96
Page 97
The PC Free screen appears.
2. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press the Enter button.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next page or Previous page and press Enter.
3. To display the first page of a PDF file at full size, press the arrow buttons to highlight the file and press Enter. (Press the Esc button to return to the file list screen.)
Note: If any file names are longer than 8 characters or include unsupported symbols, the file names may be shortened or changed only in the screen display. If a PDF file extension is not .pdf, the file does not appear in the file list.
4. While projecting a PDF file, use the following commands to control the display as necessary:
• To move to the next or previous page, press the up or down arrow button.
97
Page 98
• To display a menu of pages to select from, press the Esc button. Then press the left or right arrow
button to select a page and press Enter.
• To enlarge the view of a page to fit the screen, press Enter. Press Enter again to return to
standard size display.
• To rotate a displayed page, press the left or right arrow button.
5. To stop the display, press the Esc button, press the up or down arrow button to highlight EXIT, and press Enter.
Parent topic: Projecting a PC Free Presentation
Starting a PC Free Movie Presentation
After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your movie.
Note: You can change the PC Free operation options by highlighting Option at the bottom of the screen and pressing Enter.
1. Press the USB button on the projector remote control. The PC Free screen appears.
98
Page 99
2. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press the Enter button.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next page or Previous page and press Enter, or
press the Page up or down buttons on the remote control.
3. To play back a movie, press the arrow buttons to highlight the file and press Enter. Note: If any file names are longer than 8 characters or include unsupported symbols, the file names
may be shortened or changed only in the screen display. If you want to play back all the movies in a folder in sequence, select the Slideshow option at the bottom of the screen.
4. To stop movie playback, press the Esc button, highlight Exit, and press Enter.
Parent topic: Projecting a PC Free Presentation Related tasks
Disconnecting a USB Device or Camera From the Projector
PC Free Display Options
You can select these display options when using the projector's PC Free feature.
99
Page 100
Setting Options Description Display Order Name Order Displays files in name order
Date Order Displays files in date order
Sort Order In Ascending Sorts files in first-to-last order
In Descending Sorts files in last-to-first order
Continuous Play On Displays a slide show continuously
Off Displaysa slide show one time through
Screen Switching No Does not display the next file automatically Time
1 Second to 60 Seconds Displays files for the selected time and
switches to the next file automatically; high resolution images may switch at a slightly slower rate
Effect Wipe Transitions between images with a wipe effect
Dissolve Transitions between images with a dissolve
effect
Random Transitions between images using a random
variety of effects
Parent topic: Projecting a PC Free Presentation
100
