Epson PowerLite 1915, PowerLite 1925W Network Guide
PowerLite® 1915/1925W
Network and PC Free Operation Guide
Contents
2
Before Using the Wireless LAN Unit
Precautions When Using the Wireless LAN Unit . . . . . . . . . . . . . . . . . 7
Precautions on Handling and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Precautions Regarding Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wireless Telegraphy Act Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Precautions Regarding International Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Notes on Security when Using Wireless LANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wireless LAN Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Conditions for connecting to compatible Wireless LAN cards
and access points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Specifications for this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Making Effective Use of Your Projector
Effective Functions for Projector Use . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Various Screen and Audio Transfers by Network Connection
(EasyMP Network Projection) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Monitor, Configure, and Control the Projector from a Remote Location . . 11
Project images from your computer using "Network Projector"
in Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Projecting directly from saved files on a USB device (PC Free) . . . . . . . . . . . . 12
Connect a USB Cable to Your Computer and Project Images from the
Computer Screen (USB Display) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Software Supplied. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting with EasyMP Network Projection
EasyMP Network Projection Summary . . . . . . . . . . . . . . . . . . . . . . . . . 16
Two Connection Modes and their Main Functions . . . . . . . . . . . . . . . . . . . . . . . 16
Advanced Connection Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Quick Connection Mode (only when the supplied or
optional Wireless LAN unit is installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Main functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Steps for Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preparing to Connect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Preparing the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
For Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
For Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting to a Projector on a Network and Projecting . . . . . . . . . 20
Operating the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the Connection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using the Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
EasyMP Network Projection Functions
Projecting Only a PowerPoint Slide Show (Presentation Mode) . . 28
Projecting Movies from a Computer (Movie Sending Mode) . . . . . 29
Supported File Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Playing Back a Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using Multi-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Example of Adjusting the Virtual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Procedure Before Using the Multi-screen Display Function. . . . . . . . . . . . . . . 33
3
Setting the Virtual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Enable the virtual display driver (Windows only) . . . . . . . . . . . . . . . . . . . . . . 33
Adjusting the Virtual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Allocating the Image to be Projected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Projecting the Allocated Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Connecting to a Projector on a Different Sub-net
Connecting to a Projector on a Different Subnet . . . . . . . . . . . . . . . 41
Searching by IP Address and Projector name
(Advanced Connection Mode only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

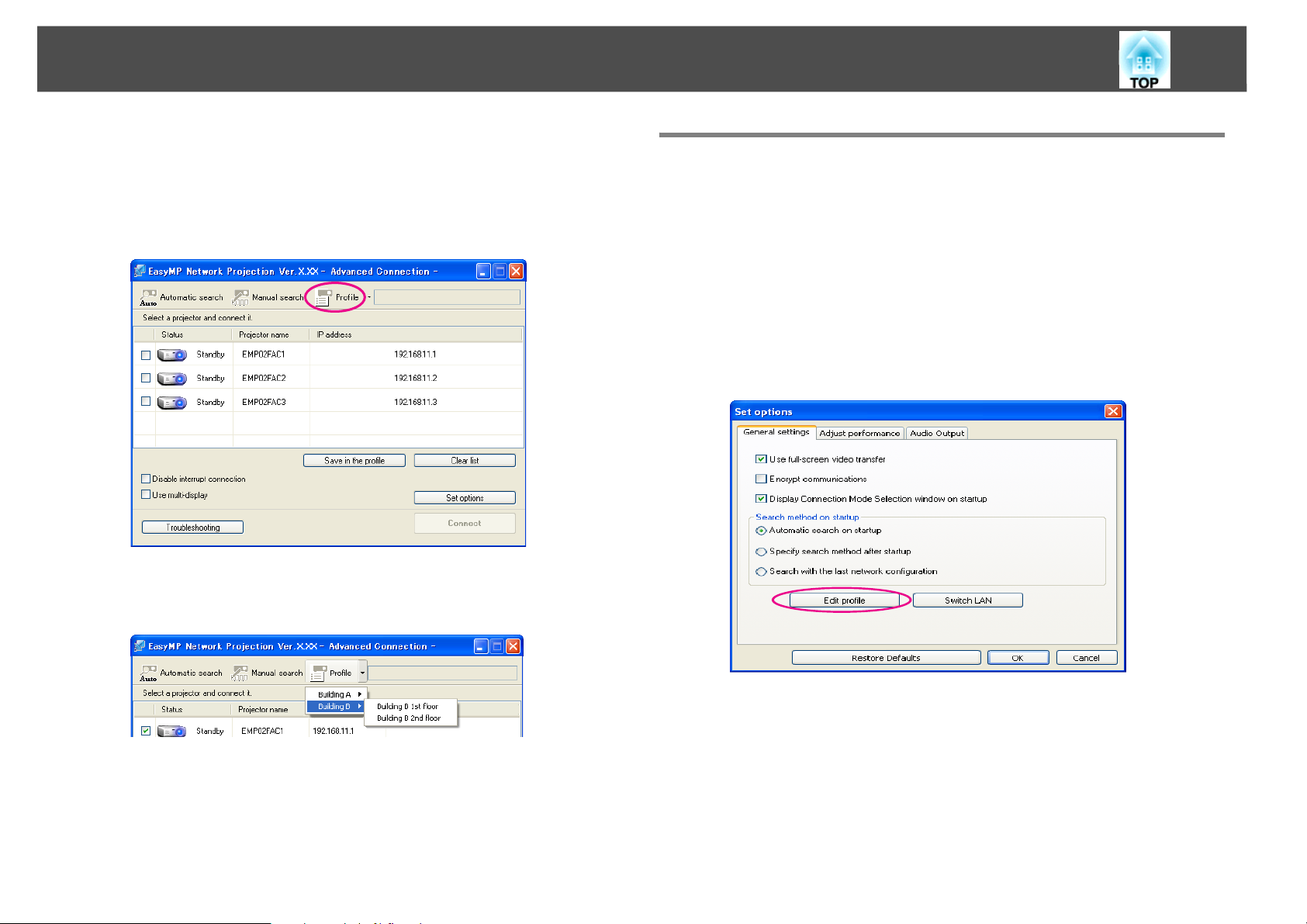

Performing a Search with a Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Making a Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Searching by Specifying a Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Managing a Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Selecting EasyMP Network Projection Options
Using Set options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting Each Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
General settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Adjust performance tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Audio Output tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using a Computer to Set Up, Monitor, and Control
Projectors
Changing Settings Using a Web Browser (Web Control) . . . . . . . . 52
Displaying Web Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Entering the IP address of the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Projector Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Items in the Configuration menu that cannot be set by
the web browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Items that can only be set in the Web browser . . . . . . . . . . . . . . . . . . . . . . . . 53
Using the Mail Notification Function to Report Problems . . . . . . . 54
Management Using SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Projecting PC Free Presentations
Files that can be Projected Using PC Free . . . . . . . . . . . . . . . . . . . . . . 57
Specifications for Files that can be Projected Using PC Free . . . . . . . . . . . . . . 57
Supported movie files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
PC Free Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Projecting images and movies stored on USB storage
and other devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Projecting a PowerPoint Slide Show without connecting
to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
PC Free Basic Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

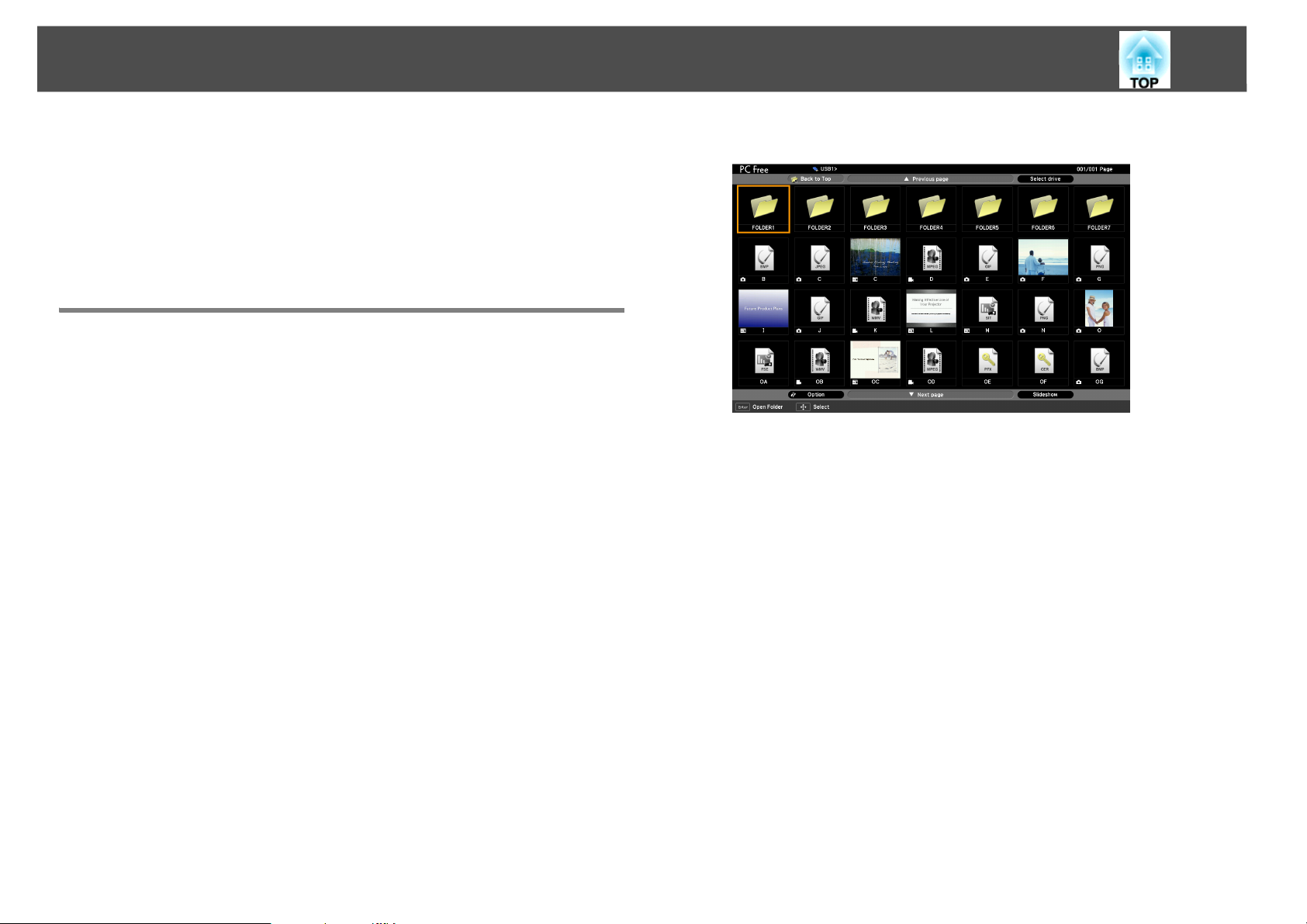

Starting and Closing PC Free. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Starting PC Free . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Closing PC Free . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
PC Free Basic Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Rotating the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
4
Projecting Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Creating and Editing a Scenario . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Basic SIT file editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Playing a Scenario . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Operating a Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

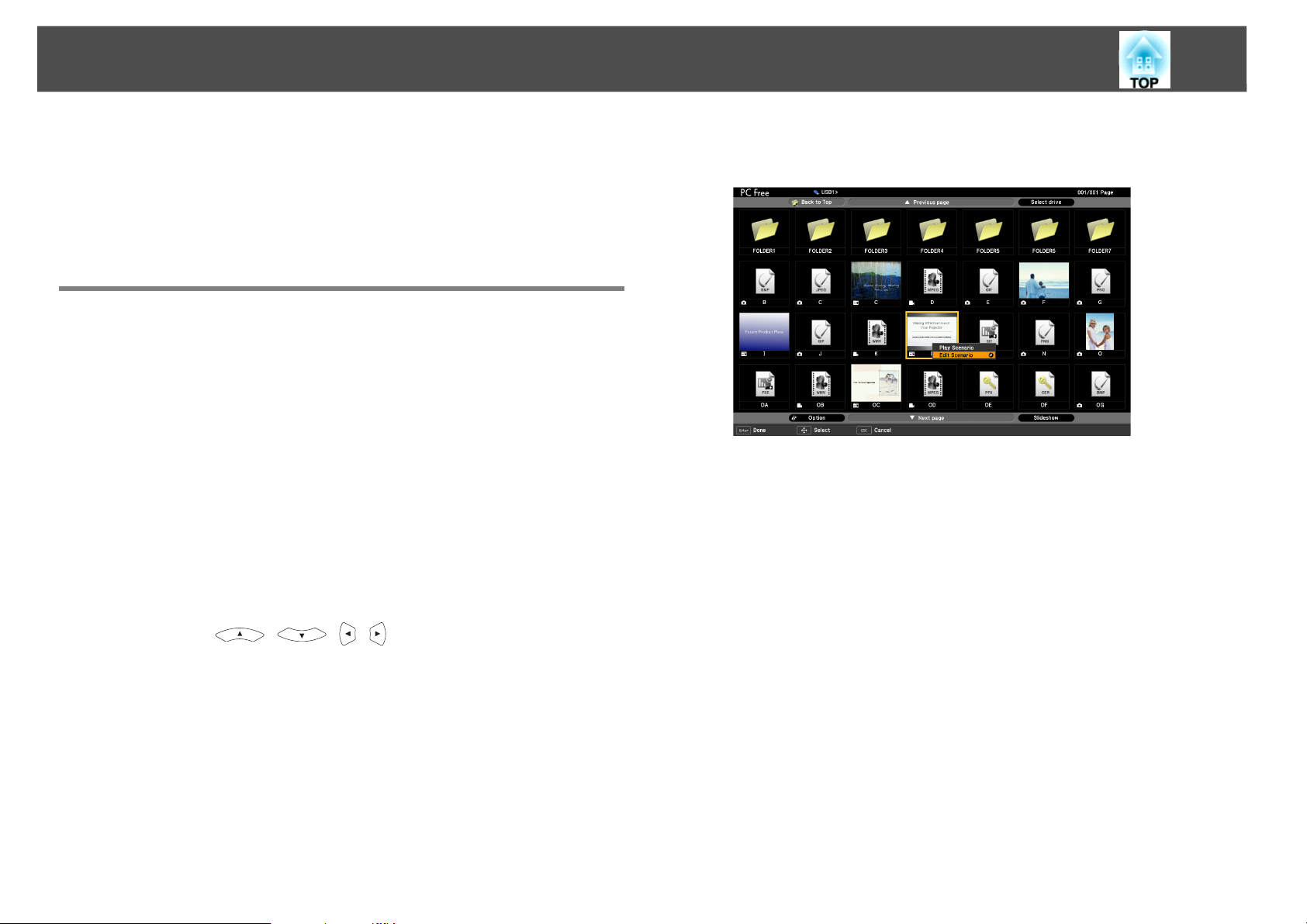

Projecting Image and Movie Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Projecting Movies and Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Projecting all Image and Movie Files in a Folder in Sequence (Slideshow). 67
Setting File Display Conditions and Slideshow Operations. . . . . . 68

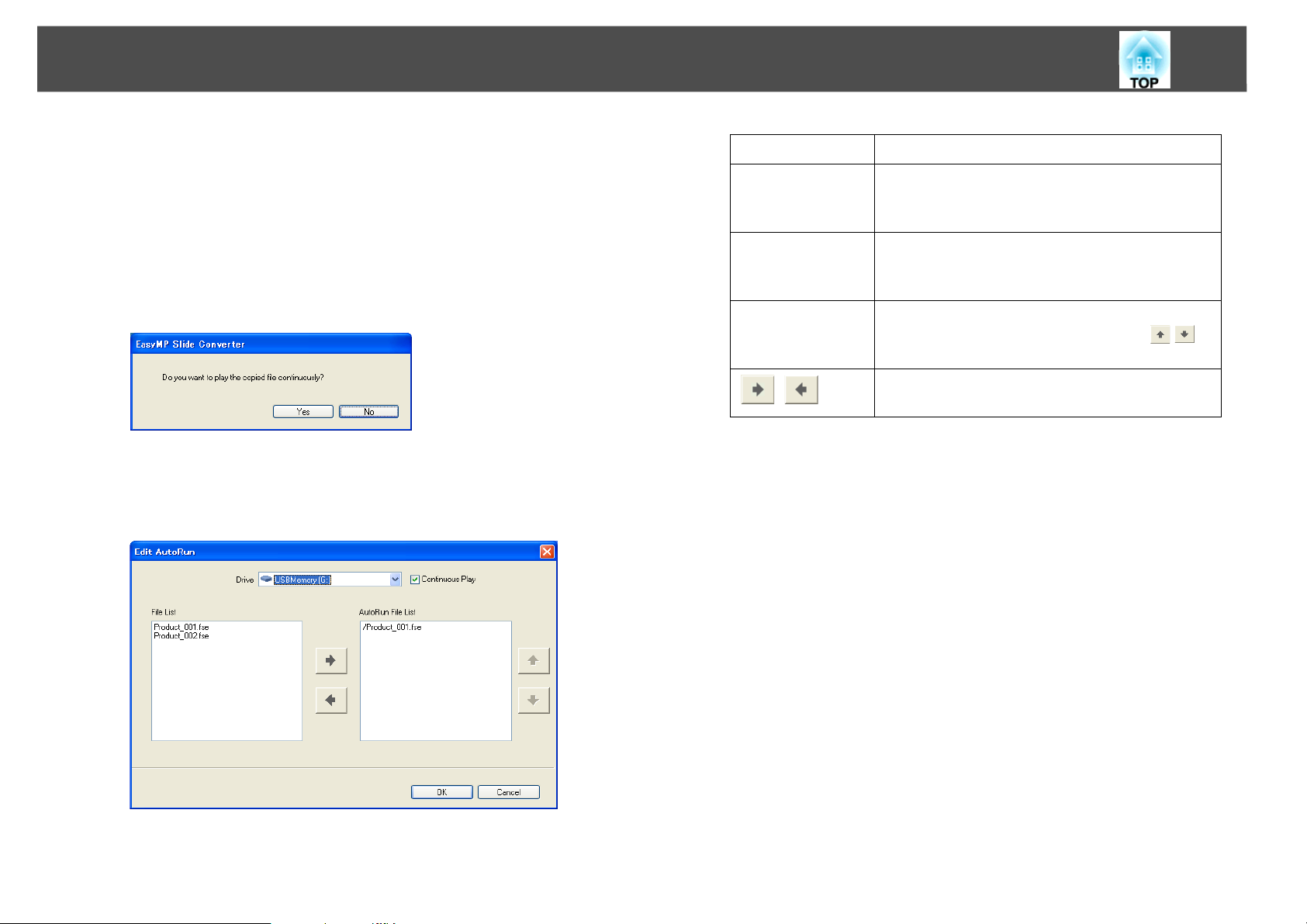

Preparing a Scenario (Using EasyMP Slide Converter)

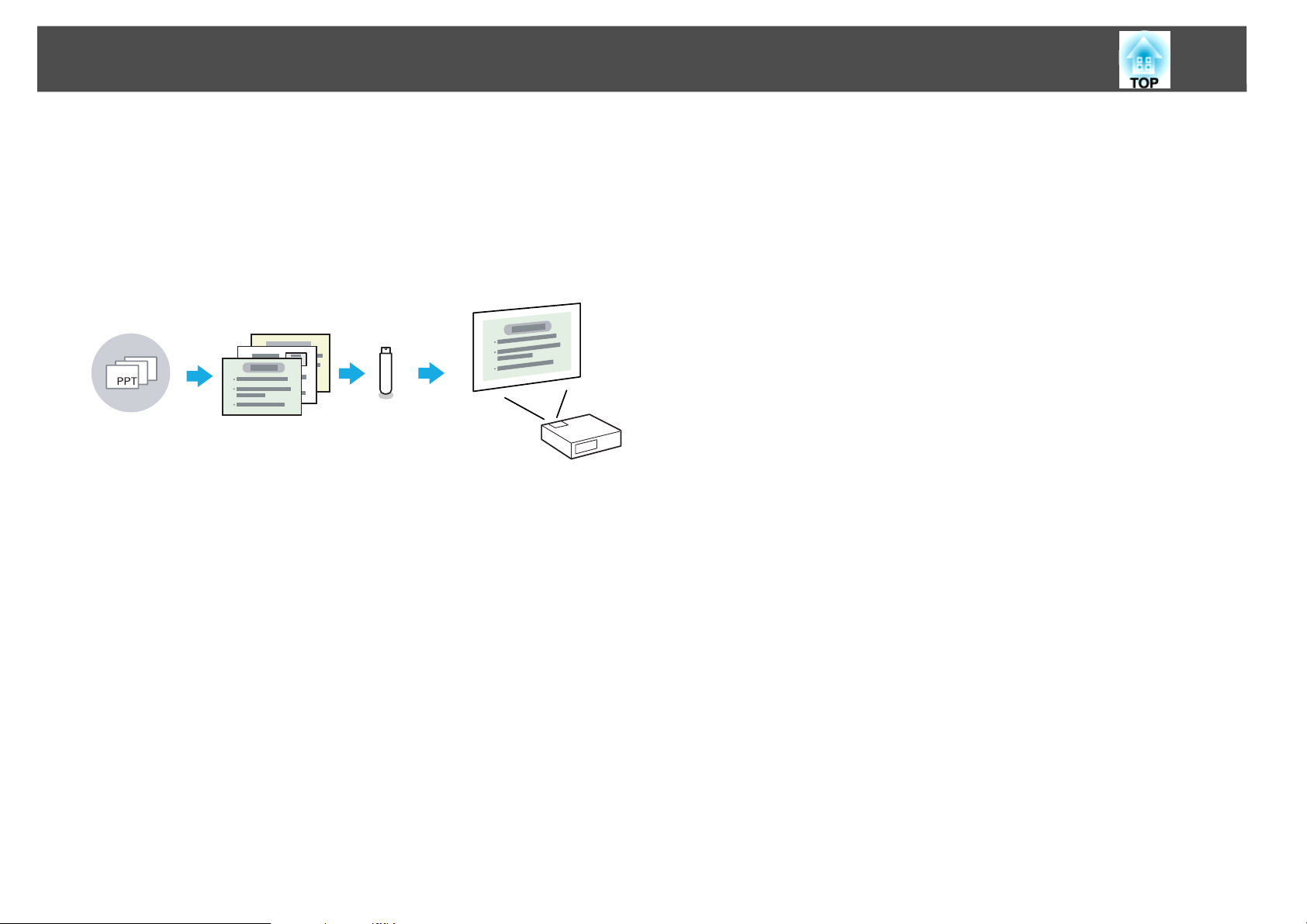

Scenario Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Converting PowerPoint Files to Scenarios . . . . . . . . . . . . . . . . . . . . . 71
Convertible PowerPoint Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Scenario Conversion Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Explanation of the Main Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Converting to a Scenario . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Converting Directly from a PowerPoint File to a Scenario . . . . . . . . . . . . . . . . 77
Appendix
Connection Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Supported Resolutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Display Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Number of Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
When Using Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Limitations when projecting from Windows Photo Gallery . . . . . . . . . . . . 80
Limitations in Windows Aero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Registering a Digital Certificate to the Projector. . . . . . . . . . . . . . . . 81
Registering a Client Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Registering a CA Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Problems Concerning Network Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Cannot connect using EasyMP Network Projection. . . . . . . . . . . . . . . . . . . . 84
When connected using EasyMP Network Projection,
a connection cannot be made from another computer. . . . . . . . . . . . . . . . 84
The projector is not found when EasyMP Network Projection
is started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Cannot connect in Advanced Connection Mode or
Wired LAN connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
The Slide Show does not display when the multi-screen
display function is used.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Applications no longer display from the computer when
the multi-screen display function is used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
The mouse cursor is not displayed on the computer screen. . . . . . . . . . . . 87
The movies in EasyMP Network Projection have display or
audio problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
No audio from the projector when connecting with
EasyMP Network Projection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
When connected using EasyMP Network Projection,
a PowerPoint Slide Show does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
When connected using EasyMP Network Projection, the screen
does not refresh in an Office application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Error message when starting up EasyMP Network Projection . . . . . . . . . . 88
Network settings are not restored after disconnecting from
EasyMP Network Projection.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Problems operating PC Free . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Cannot play back or display files in PC Free . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Problems operating EasyMP Slide Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Error message when starting up EasyMP Slide Converter . . . . . . . . . . . . . . 91
"Convert to FSE" is not displayed in the PowerPoint right click menu. . . 92
Problems Concerning Monitoring and Control . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Mail is not sent even if a problem occurs in the projector. . . . . . . . . . . . . . 92
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
General Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Copyright Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
5
Before Using the Wireless LAN Unit
Please read this chapter before using the optional supplied or optional Wireless LAN unit.
6
Precautions When Using the Wireless LAN Unit
Precautions When Using the Wireless LAN Unit
Note the following points when the optional supplied or optional
Wireless LAN unit is installed in the projector and used.
To help you use the product safely and correctly, symbols are applied in
the User's Guide and on the product to indicate possible harm to the user
or to others and the risk of damage to property. The indications and their
meaning are as follows. Make sure you understand them properly before
reading the guide.
Warning This indicates information that, if ignored, could
possibly result in death or personal injury due to
incorrect handling.
Caution This indicates information that, if ignored, could
possibly result in personal injury or physical
damage due to incorrect handling.
Warning:
• May exert electromagnetic interference on, and cause malfunction of, cardiac
pacemakers. Before use, ensure that electromagnetic interference does not occur.
• May exert electromagnetic interference on, and cause malfunction of, sensitive
medical equipment. Before use, ensure that electromagnetic interference does not
occur.
• Use of this product on aircraft may be restricted in some countries. Use of this
product is based on due diligence with regard to regulations.
Caution:
• This unit should only be used with Epson projectors. If it is installed on a device such
as a computer, it could result in computer failure, damage, or malfunction.
• Do not disassemble or remodel this unit. Otherwise you could be burned.
7
Precautions on Handling and Storage
• Do not store in locations with high temperatures or high humidity. In
particular it may be damaged or deformed by leaving it in a vehicle with
the windows shut, or placing it for extended periods in locations with
unusually high temperatures such as in direct sunlight.
• Do not get it wet. This may cause malfunctions to occur.
• Do not use near microwave ovens. Wireless communication may be
interrupted by the electromagnetic interference generated by
microwave ovens.
• Do not drop it, subject it to impacts, or place heavy objects on it.
Precautions Regarding Frequency
The frequency band for this unit is 2.4 GHz/5 GHz. This band is used for
industrial, scientific, and medical devices such as microwave ovens, and
it is also used by the premises of a radio station for mobile unit
identification (RF-ID) systems in the factory line (license required) and
specified low-power radio stations (no license required). Before using
this unit, check that there are no radio stations for mobile unit
identification or specified low-power radio station premises nearby. In
the event that this unit should interfere electromagnetically with the
premises of a radio station used for mobile unit recognition, cease use
immediately and stop generating the electromagnetic field. Contact
Epson if this unit interferes electromagnetically with a special low-power
radio station used for mobile unit identification or causes similar
problems.
Precautions When Using the Wireless LAN Unit
8
Wireless Telegraphy Act Regulations
The following acts are prohibited by the Wireless Telegraphy Act.
• Modifying and disassembling (including the antenna)
• Removing the label of conformance
• IEEE 802.11a (5 GHz band) external use
Precautions Regarding International Travel
Wireless devices are designed to conform to the channel and frequency
limits of the intended country of use. This unit is based on the
specifications of the country of sale. If this unit is used outside the
country of sale, check with a local dealer for more information.
Notes on Security when Using Wireless LANs
(Important information on customer rights (maintaining privacy))
• Unauthorized access to the network
A third party could access an individual or intra-company network
without permission and carry out any of the following activities.
• Retrieve personal data or other secret information (leaking
information)
• Pose as another user and send inappropriate data
(impersonation)
• Overwrite the contents of intercepted data and resend it
(falsification)
• Introduce a computer virus which could cause data loss or system
crashes (damage)
Initially, the possibility that such problems could occur through settings
concerning the security of the wireless LAN product and by using the
product are decreased, because the wireless LAN card and the access
point have security measures to deal with these problems. We
recommend that you use this product after making security settings
using your own judgment and assuming full responsibility, and with
your full understanding of problems that may occur if you do not make
any security settings.
The advantage of using a wireless LAN over a LAN cable is that, because
information is exchanged using radio signals, you can easily connect to
the network if you are within range of the radio signals. A disadvantage
of this is that within a certain range, the electromagnetic signals can pass
through barriers such as walls, so that if security countermeasures are not
implemented in some way, problems such as the following may occur.
• Communicated data can be intercepted
A third party may be able to receive wireless transmissions without
authorization, and they could obtain personal information from these
transmissions such as IDs, passwords, or credit card numbers, or they
could intercept the contents of personal e-mail messages.
See the projector User's Guide for more information on security settings.
Wireless LAN Unit Specifications
Conditions for connecting to compatible Wireless LAN
cards and access points
This unit can be connected to the following products in accordance with
IEEE 802.11g, 802.11b, and 802.11a.
• Wireless LAN card
Precautions When Using the Wireless LAN Unit
• Computers with a built-in wireless LAN function
• Access points
However, you are unlikely to be able to make an ad hoc connection for
wireless LAN equipment used with a computer in IEEE 802.11g. For
more details on wireless LAN equipment see the specifications.
Specifications for this unit
9
Frequency band
*1
Modulation
Potential Interference
IEEE 802.11b/g: 2.4 GHz band (1 to 11 Ch),
IEEE 802.11a: 5.15 to 5.25 GHz (W52), 5.25 to
5.35 GHz (W53)
IEEE 802.11b: DS-SS
IEEE 802.11a/g: OFDM
Less than 20 m
*2
Range
Propriety of Frequency
Modulation
*1
You cannot use IEEE 802.11a in the People's Republic of China or the Russian
Federation.
*2
You can only connect to the W53 band using Advanced Connection.
Can use all bands, and can avoid "licensed"
and "unlicensed" bands.
Making Effective Use of Your Projector
This chapter provides information on functions that allow you to use your projector more effectively.
10
Effective Functions for Projector Use
11
Effective Functions for Projector Use
This projector is equipped with many useful functions to improve
usability. As well as a computer cable, you can connect using various
other interfaces such as a USB cable, a USB storage device, or a LAN
connection. This allows for a wide range of image input sources
depending on your usage environment.
Various Screen and Audio Transfers by Network Connection (EasyMP Network Projection)
You can hold efficient meetings and presentations by connecting the
projector to a network.
Various screen and audio transfer functions
• Distribution function s p.16
• Switching function s p.16
• Multi-screen display s p.31
• Movie Sending Mode s p.29
• Presentation Mode s p.28
Monitor, Configure, and Control the Projector from a Remote Location
The following convenient functions collectively manage projectors in
various conference rooms.
• Receive an e-mail notification if a problem occurs s p.54
• Monitor and detect problems from SNMP Manager on the
networks p.55
• Set and control the projector by using a standard computer Web
browser s p.52
Smooth progress
If the projector is connected to a network, you can share the projector
from computers on the network. When projecting data from different
computers during a meeting or presentation, you can progress smoothly
without changing the signal cable between each computer.
Even a distance between the projector and the computer does not cause
any problems.
Project images from your computer using "Network Projector" in Windows Vista
In Windows Vista you can use the standard feature "Network Projector"
to connect the projector to a computer via a network and then project.
This lets you make presentations via a network by simply using a
standard OS function without installing any software.
Effective Functions for Projector Use
Projecting directly from saved files on a USB device (PC Free)
By connecting a USB memory or a digital camera compatible with USB
mass storage devices to the projector, you can directly project images,
movies, and scenarios stored on the USB device.s p.58
Connect a USB Cable to Your Computer and Project Images from the Computer Screen (USB Display)
By simply using the supplied USB cable to connect to a Windows
computer, you can project images from the computer.
12
Installing the Software
13
Installing the Software
You can find the software for using the projector effectively on the
supplied "EPSON Projector Software for Meeting & Presentation"
CD-ROM. Install the software on the computer you are using.
The PC Free and USB Display functions are already built-in to the
projector. They can be used as they are without being installed from the
CD-ROM.
Software Supplied
You can find the following software on the "EPSON Projector Software
for Meeting & Presentation" CD-ROM.
• EasyMP Network Projection
Software for sending computer screen images to a projector via a
network connection.
• EasyMP Slide Converter
Software for converting PowerPoint files into scenario files that can be
projected directly with PC Free.
• EasyMP Monitor
Software that lists the current status of Epson projectors connected to
the network, and monitors and controls those projectors. You can
collectively manage multiple projectors by using EasyMP Monitor. For
details on using EasyMP Monitor, see the EasyMP Monitor Operation
Guide.
Check the system requirements for each software application from
Software Requirements in the projector User's Guide.
Installing
• When using the following OS, you must have administrator authority
to install EasyMP Network Projection.
• Windows 2000 • Windows XP • Windows Vista
• To install EasyMP Slide Converter, PowerPoint 2002 or later and
Visual Basic for Applications (VBA) must be installed.
• When using the following OS, you must have administrator authority
to install EasyMP Monitor.
• Windows 2000 • Windows NT4.0
• Windows XP • Windows Vista
• Make sure that you close all running applications before starting
installation.
• When the language selected for the installation varies from that of the
OS being used, the screens may not be displayed correctly.
CAUTION
• For current users of EMP NS Connection software
The EasyMP Network Projection software that came on your new projector
software CD-ROM provides updated networking features and is
backward-compatible with existing networks running Epson projectors. To use your
new projector on the network, you must uninstall EMP NS Connection and install
EasyMP Network Projection software as described in this manual.
• For current users of EMP Monitor software
The Easy Management® EasyMP Monitor software that came on your new projector
software CD-ROM provides updated network monitoring features. To monitor
your new projector on the network, you must uninstall EMP Monitor and install
EasyMP Monitor. First save a copy of your current setting information data file,
EMPMonitor.dat, in a separate folder. This will retain your current registered
projector settings. Then uninstall EMP Monitor and install EasyMP Monitor as
described in the EasyMP Monitor Operation Guide. After installation, replace the
new EMPMonitor.dat file with your saved copy.
Make sure you check the following points before starting installation.
Installing the Software
14
Procedure
For Windows
A Turn on your computer.
B Insert the "EPSON Projector Software for Meeting &
Presentation" CD-ROM into the computer.
The installer starts automatically.
C Click "Easy Install".
To select software and install it individually, select Custom Install.
To change the language in which the software is displayed, click
Language".
D Check the applications to be installed, and then click
"Install".
E When the License Agreement screen is displayed, click "Yes".
F When the Add-Remove EPSON Virtual Display screen is
displayed, click "OK".
A Turn on your computer.
B Insert the "EPSON Projector Software for Meeting &
Presentation" CD-ROM into the computer.
C Double-click the "Installer for Mac OS X" icon in the EPSON
window.
Installation starts.
D Click "Exit" to complete the installation.
q
• When installation does not start automatically (Windows only)
Select Start - Run, and in the Run dialog box, type the letter for your
CD-ROM drive followed by :\EPsetup.exe and then click OK.
• Uninstalling
For Windows
Select Start - Settings - Control Panel - Add-Remove Programs or Add or
Remove Programs and then remove EasyMP Network Projection.
For Macintosh
From Applications, delete the EasyMP Network Projection folder.
To use Multi-screen display you need to set up EPSON Virtual Display. If you do not want to set it up now, you can do so
later.s p.33
G Click "Exit" to complete the installation.
When EasyMP Slide Converter or EasyMP Monitor is selected, installation begins.
For Macintosh
EasyMP Slide Converter and EasyMP Monitor are not compatible with
Macintosh computers.
Connecting with EasyMP Network Projection
This chapter explains how to connect the computer and the projector via a network, and the procedure for projecting images from your computer's screen
with the projector.
15
EasyMP Network Projection Summary
16
EasyMP Network Projection Summary
There are two methods of connecting a computer and the projector via a
network by using EasyMP Network Projection.
Two Connection Modes and their Main Functions
Advanced Connection Mode
Advanced Connection Mode is an infrastructure connection, and
connects to an existing network system via a network cable.
When connecting to a network via Wired LAN, connect the projector to
the network hub with a commercially available LAN cable.
If you install the optional supplied or optional Wireless LAN unit in the
projector, you can connect to the network via a wireless LAN access
point.
Quick Connection Mode (only when the supplied or
optional Wireless LAN unit is installed)
Quick Connection Mode only runs when you install the supplied or
optional Wireless LAN unit in the projector.
Quick Connection Mode temporarily assigns the projector's SSID to a
computer creating an ad hoc connection, and restores the computer's
network settings after disconnecting.s p.19
• You can easily connect to a computer and project images from the
computer without making network settings.
• You can monitor and control projectors on a network from the
computer.
• This lets you connect easily without a connector cable, and you can
even connect if the projector and the computer are at remote locations.
Main functions
You can make meetings and presentations by using the following
convenient functions.
EasyMP Network Projection Summary
17
• Multi-screen display
You can project different images from up to four projectors from one
computer, allowing you to project landscape images such as
spreadsheets and so on as one continuous image.
• Movie file transfer (Movie Sending Mode)
By using Movie Sending Mode, movies can be projected more
smoothly than when being sent from an application running on a PC.
• Switching function
By using the meeting switching function, if EasyMP Network
Projection is installed on all of the computers, the presenters can take
turns and project their own images without changing cables.
Steps for Connecting
Use the following steps to connect the computer to the projector and
project in EasyMP Network Projection.
• Audio Transfer
You can play back by transferring the computer's audio to the projector
on a one to one basis.
• Presentation Mode
This function can project a PowerPoint Slide Show running on a
computer. You can give stylish presentations by projecting a black
screen while making preparations and so on, and when not performing
a Slide Show.
• Distribution function
The screen being displayed by a remote computer can be
simultaneously displayed by up to four projectors on the same network.
EasyMP Network Projection Summary
You need to perform steps 1 to 4 only the first time you connect.
1. Install EasyMP Network Projection on the computer to be connected.
s p.13
*
Make network settings on the computer and put it into network
2.
connection status. s p.19
3. For Quick Connection Mode: Install the supplied or optional
Wireless LAN unit in the projector (if already installed, go to step 5).
For Advanced Connection Mode: Enable the Wired LAN adapter in
"Port Configurations". s See your computer documentation.
4. Make network settings on the projector and put it into network
connection status.s See your projector User’s Guide.
18
5. Start EasyMP Network Projection on the computer and connect with
the projector. s p.20
* When the computer you are using is normally connected to the network,
you do not need to make network settings on the computer.
Preparing to Connect
Preparing to Connect
Use the following procedure to prepare the computer and the projector
for connection.
Preparing the Computer
For Windows
Make network settings for the computer by using the utility software
supplied with the LAN adapter. For more information on the utility
software, see the User's Guide supplied with your LAN adapter.
For example, as shown in the following illustration, when a red cross (^)
is displayed over the network icon on the taskbar, you cannot connect to
the projector.
19
For Macintosh
Set the network port and communication status. For more details on
setting the communication status, see the User’s Guides for your
computer or the AirPort card.
Connecting to a Projector on a Network and Projecting
Connecting to a Projector on a Network and Projecting
Operating the Computer
20
Operating the Projector
Before connecting, put the projector into connection standby status.
Make sure the projector network settings are complete, and the projector
is connected to network equipment such as a network hub via a
commercially available network cable.
Procedure
A Press the [t] button on the remote control to turn the power
on.
B Press the LAN button on the Remote Control.
The LAN standby screen is displayed.
In the following explanations, unless otherwise noted, Windows screen
shots are used. You see the same screens even when using Macintosh.
Procedure
A Start EasyMP Network Projection.
For Windows
Select Start - Programs (or All Programs) - EPSON Projector EasyMP Network Projection.
For Macintosh
Double-click the Applications folder of the hard drive volume in
which EasyMP Network Projection is installed, and then double-click the EasyMP Network Projection icon.
B Select "Quick Connection Mode" (Only when the supplied or
optional Wireless LAN unit is installed) or "Advanced
Connection Mode" and then click "OK".
The projector search results are displayed. To always connect using
the same Connection Mode, select Set the selected Connection
Mode as the default mode for future connections.
C Select the projector you want to connect to, and then click
"Connect".
If the projector you want to connect to is not displayed in the search
results, click the Automatic search button. The search takes about
30 seconds.
For details on the connection screen, see "Using the Connection
Screen".s p.22
Connecting to a Projector on a Network and Projecting
D When Projector keyword is set to "On" from the projector,
the Keyword entry screen is displayed. Enter the keyword
displayed on the LAN standby screen, and then click "OK".
When the connection is complete, the computer screen is projected. The following EasyMP Network Projection toolbar is displayed
on the computer screen. You can use this toolbar to operate the
projector and make settings, and to disconnect the network connection. For details on using the toolbar, see "Using the
Toolbar".s p.24
21
q
When connecting from another computer, such as when changing
presenters, start EasyMP Network Projection from the computer you want
to connect. The computer that is currently connected is disconnected, and
the projector is then connected with the computer that is trying to connect
now.
Connecting to a Projector on a Network and Projecting
22
Using the Connection Screen
Start EasyMP Network Projection to display the following screen. The
operation of each button or item is described in the following table.
When the system starts in Advanced Connection Mode.
When the system starts in Quick Connection Mode.
1 Automatic search
In Advanced Connection Mode, you can search for available
projectors on the network system to which the computer is
connected.
In "Quick Connection Mode", you can search for the projector
based on the SSID.
2 Manual search
In Advanced Connection Mode, you can search for a projector
based on a specified IP address or Projector name.
In Quick Connection Mode, you can search for the projector
based on the SSID selected from a list.
Connecting to a Projector on a Network and Projecting
23
3 Status
The following six icons indicate the status of the detected projectors.
Standby Select for connecting.
Busy Select for connecting. When you click
Connect, the computer currently
connected is disconnected and your
computer is connected.
Busy (Disable
interrupt
connection)
Currently in
use by
another
application
Searching Displayed while running Manual
Not found. Displayed when a projector cannot be
4 Projector name
The projector's name is displayed.
5 Disable interrupt connection
Check the box to prevent an interrupt connection by other computers
while connected to the selected projector.
6 Use multi-display
Check the box to use the Multi-screen display function. When this is
selected, Display layout and Display properties are displayed at the
bottom of the screen.
Cannot be selected. Disable
interrupt connection is set on
another computer which is already
connected.
The projector's Configuration Menu is
open.You can select it after closing
the Configuration menu and running
the search again.
search or Profile.
found as a result of Manual search or
Profile.In Quick Connection Mode,
you can only select multiple
projectors with the same SSID.
7 Troubleshooting
If there is a problem and you cannot have a connection, press this
button to open the EasyMP Network Projection Troubleshooting
screen.
8 Connect
Connect to the projector you selected from the search results list.
When a connection is made with a projector, a toolbar is displayed.
9 Set options
You can make general setting options such as the processing method
when starting up EasyMP Network Projection. For details, see Set
options
10 Save in the profile
Saves the results of a network projector search as a Profile.
11 Clear list
Deletes all search results.
12 IP address (Advanced Connection Mode only)
The projector's IP address is displayed.
13 Display
Select the number displayed (when Use multi-display is selected).
14 Profile
You can search for a projector on the network using a Profile
saved using Save in the profile.
15 SSID (Quick Connection Mode only)
The projector's SSID is displayed.
16 Signal intensity
This is displayed when the connection is made in Quick Connection
Mode. As the Signal intensity increases, so does the number of lit
indicators.
17 Update list (Quick Connection Mode only)
Updates Status and Signal intensity.
Connecting to a Projector on a Network and Projecting
24
Using the Toolbar
The toolbar is displayed on the computer screen after EasyMP Network
Projection starts and a connection is made with the projector. You can
use this toolbar to operate and make settings for the projector.
Select target projector
Click to limit the projectors operated from the toolbar when
projecting from multiple projectors using the distribution
function or Multi-screen display. The indication below the
icon shows the projectors that can be controlled.
ALL indicates that all of the connected projectors can be
controlled.
For example, when "1, 3" is displayed, projectors No. 1 and No.
3 can be controlled.
Click to display the following screen.
1 Select the projector to be controlled.
2 Indicates the No. of an allocated projector. This No.
indicates the No. of the projector that you can control
from the toolbar.
3 Indicates the status of the projector.
Connecting to a Projector on a Network and Projecting
25
Stop
Stops projection while connected to the projector. A black
screen is projected while stopped. Audio does not stop. To
stop the audio, or to display a User's Logo while projection is
stopped, use A/V Mute.
Show
Releases Stop or Pause.
Pause
Pauses projected images while connecting to the projector.
Audio does not Pause.
Presentation Mode
Each time this is clicked, Presentation Mode switches
between enabled/disabled.
Projector control
While the projector is connected to the network, the
projector's A/V Mute, Switch PC source and Switch video
source functions can be controlled from both the Remote
Control and the projector's Control panel.
Click to display the following toolbar.
A/V Mute
A/V Mute
The same function as the A/V Mute button on
the Remote Control.
s See your projector User’s Guide.
Switch PC source
Switch PC source
The Source alternates between Computer1,
Computer2, USB Display, USB1, USB2 and LAN
each time you click.
Switch video source
Switch video source
The Source alternates between S-Video, Video,
and HDMI each time you click.S-Video does not
switch if the cable is not connected.
Connecting to a Projector on a Network and Projecting
26
Screen Preview
Displays the multi-screen preview screen.
Click to display a preview with the settings you have
made. Click the displays to enlarge each Screen Preview to
full-screen.
Set options
Transmission performance during the transfer of computer
images can be adjusted.
Movie Sending Mode
Used to immediately play back a movie file.
Disconnect
Disconnects the connection to the projector.
Switch toolbar display
The toolbar display is switched as follows. The toolbar display
remains as is until switched again.
Full
Normal
Simple
Signal intensity
This is displayed when a connection is made in Quick
Connection Mode. As the Signal intensity increases, so does
the number of lit indicators.
EasyMP Network Projection Functions
This chapter explains those functions that may be useful during meetings or when making a presentation, such as the ability to send a movie file directly
to a projector for playback (Movie Sending Mode) or that which allows you to send images to multiple projectors from a single computer (Multi-Screen
Display).
27
Projecting Only a PowerPoint Slide Show (Presentation Mode)
Projecting Only a PowerPoint Slide Show (Presentation Mode)
In Presentation Mode, the images are only displayed when performing a
PowerPoint Slide Show on a computer.When you stop Slide Show, the
projector displays a black screen. This is useful when you only want to
display the Slide Show.
In addition to PowerPoint, Keynote is compatible with Presentation
Mode for Macintosh.
Procedure
A If necessary, select another projector to be
controlled.s p.24
B Click the button on the toolbar.
Presentation Mode begins.
C Click the button again to exit Presentation Mode.
28
Projecting Movies from a Computer (Movie Sending Mode)
Projecting Movies from a Computer (Movie Sending Mode)
In Movie Sending Mode, movie files can be sent directly to a projector.
As a result, a movie can be projected much more smoothly than when it
is being sent from an application running on a PC.
Playing Back a Movie
Procedure
29
Also, because the audio is sent at the same time as the movie, there is no
need for an audio cable between the computer and the projector. You can
set to play back selected multiple files repeatedly and in order.
q
• Movie Sending Mode is valid for one projector only.
It is not possible to apply Movie Sending Mode to more than one projector.
• Depending on the communication method and the available reception, the
image and sound may skip or stall.
Supported File Types
The file types supported by Movie Sending Mode are listed in the
following table.
File Type
(Extension)
.mpg
.mpeg
.mp4 MPEG-4 ASP
Video Codec Audio Codec Recording
Quality
MPEG-2 MPEG-1 Layer1/2
MPEG contents with no
sound can be played back.
Linear PCM and AC-3 audio
cannot be played back.
MPEG-4
Highest frame
rate: 30 fps
Maximum
resolution:
720×576
A Click the button on the toolbar.
The projector selection screen is displayed.
B Select the projector you want to use to playback the movie
and click "OK".
The Movie Sending Mode screen appears.
C Click "Select file".
MPEG-4 AVC
.wmv
.asf
Files to which DRM (Digital Rights Management) is applied cannot be
projected.
WMV8
WMV9
AAC-LC
WMA
Loading...
