Epson PowerLite 1286, PowerLite 1266 User Manual

PowerLite 1266/1286 User's Guide

PowerLite 1266/1286 User's Guide ............................................................................................................ 9

Introduction to Your Projector ................................................................................................................. 10

Setting Up the Projector ........................................................................................................................... 25

Projector Features.............................................................................................................................. 10

Product Box Contents.................................................................................................................... 11

Additional Components ................................................................................................................ 13

Additional Projector Software and Manuals................................................................................... 13

Optional Equipment and Replacement Parts................................................................................. 15

Warranty and Registration Information.......................................................................................... 15

Notations Used in the Documentation................................................................................................ 16

Where to Go for Additional Information .............................................................................................. 16

Projector Part Locations..................................................................................................................... 16

Projector Parts - Front/Top............................................................................................................ 17

Projector Parts - Rear.................................................................................................................... 18

Projector Parts - Base.................................................................................................................... 19

Projector Parts - Control Panel...................................................................................................... 20

Projector Parts - Remote Control................................................................................................... 22

Projector Placement........................................................................................................................... 25

Projector Setup and Installation Options ....................................................................................... 25

Projection Distance........................................................................................................................ 27

Projector Connections........................................................................................................................ 29

Connecting to Computer Sources.................................................................................................. 29

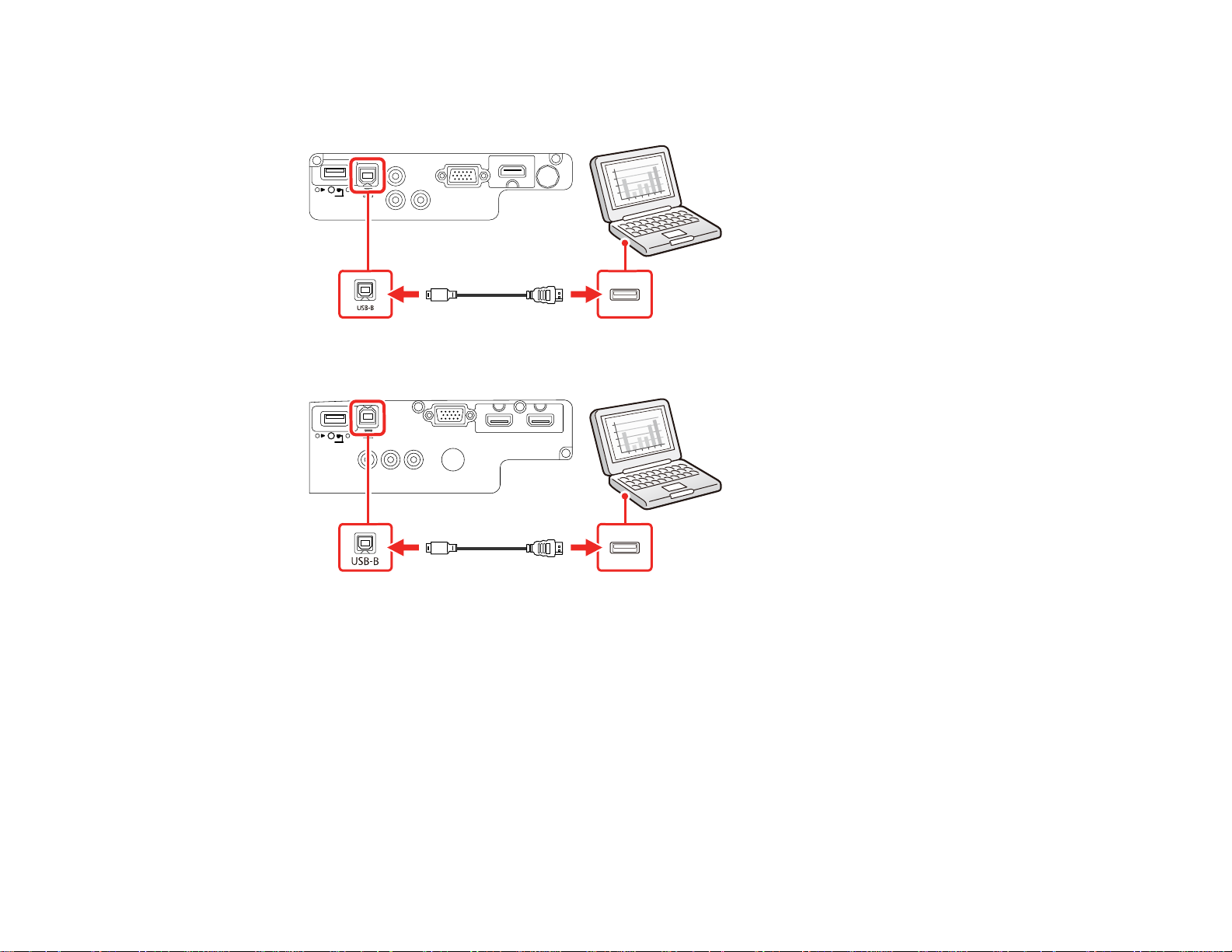

Connecting to a Computer for USB Video and Audio................................................................ 29

Connecting to a Computer for VGA Video................................................................................. 31

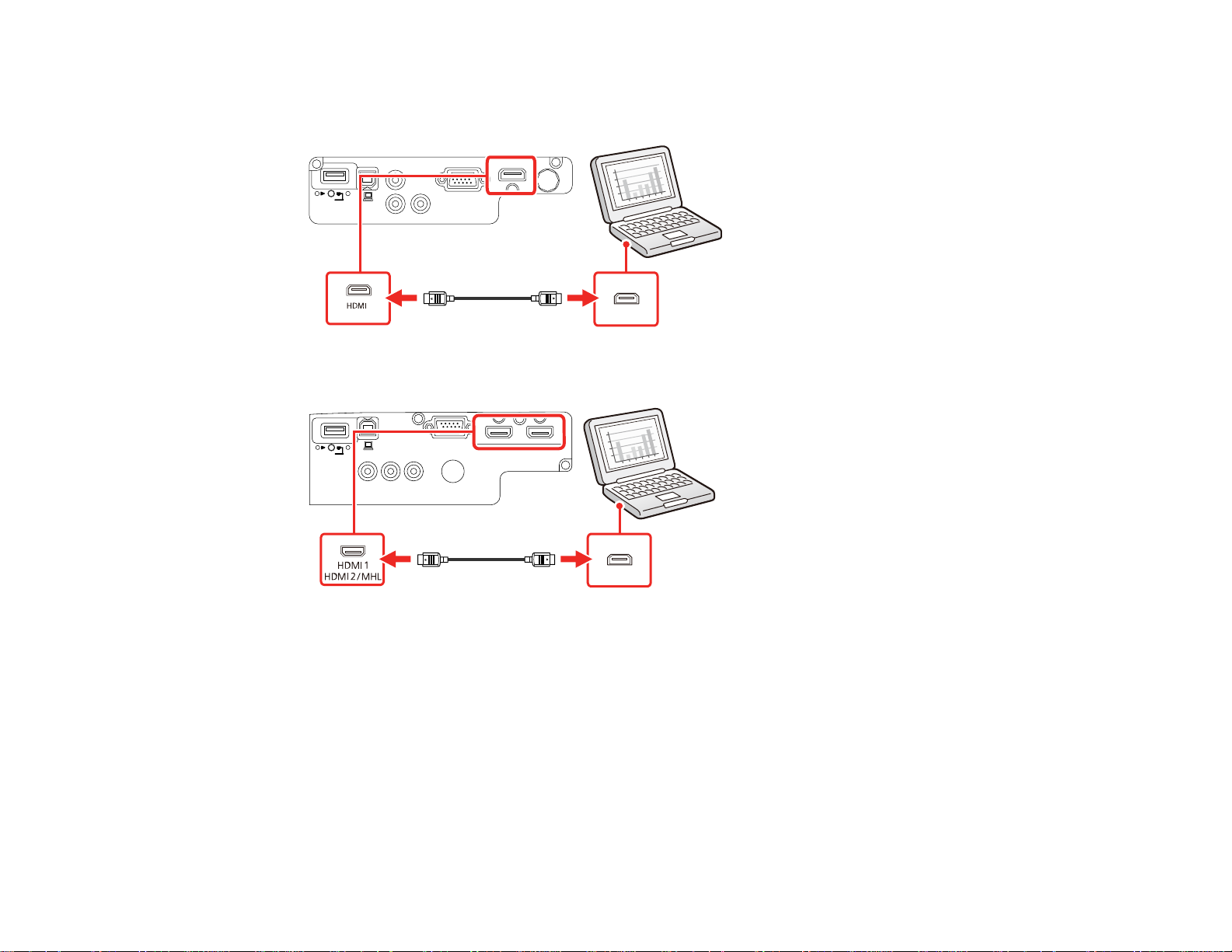

Connecting to a Computer for HDMI Video and Audio.............................................................. 32

Connecting to a Computer for USB Mouse Control................................................................... 33

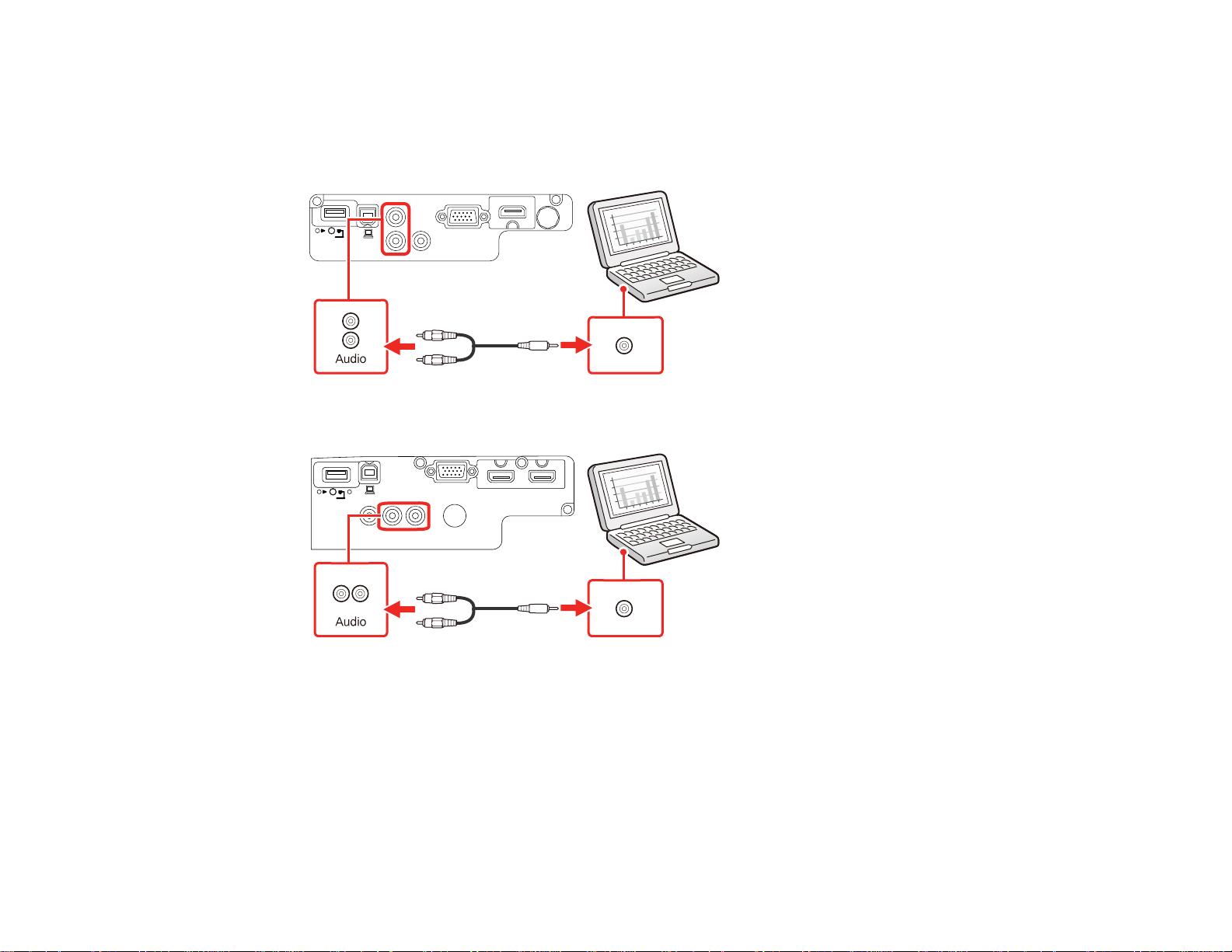

Connecting to a Computer for Sound........................................................................................ 34

Connecting to Video Sources........................................................................................................ 35

Connecting to an HDMI Video Source ...................................................................................... 36

Connecting to an MHL-Compatible Device............................................................................... 37

Connecting to a Component Video Source............................................................................... 38

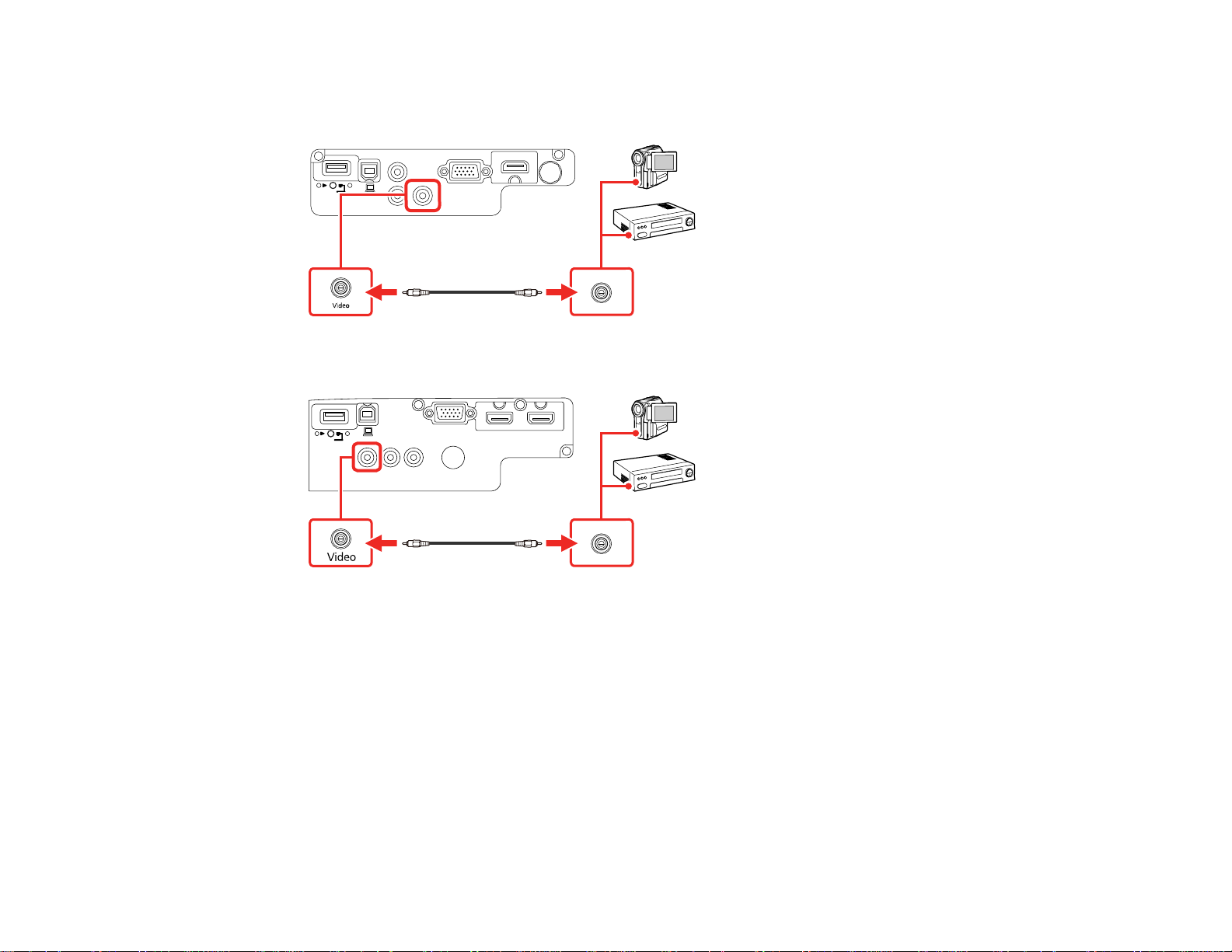

Connecting to a Composite Video Source ................................................................................ 39

Connecting to a Video Source for Sound.................................................................................. 40

Connecting to External USB Devices............................................................................................ 41

USB Device Projection.............................................................................................................. 42

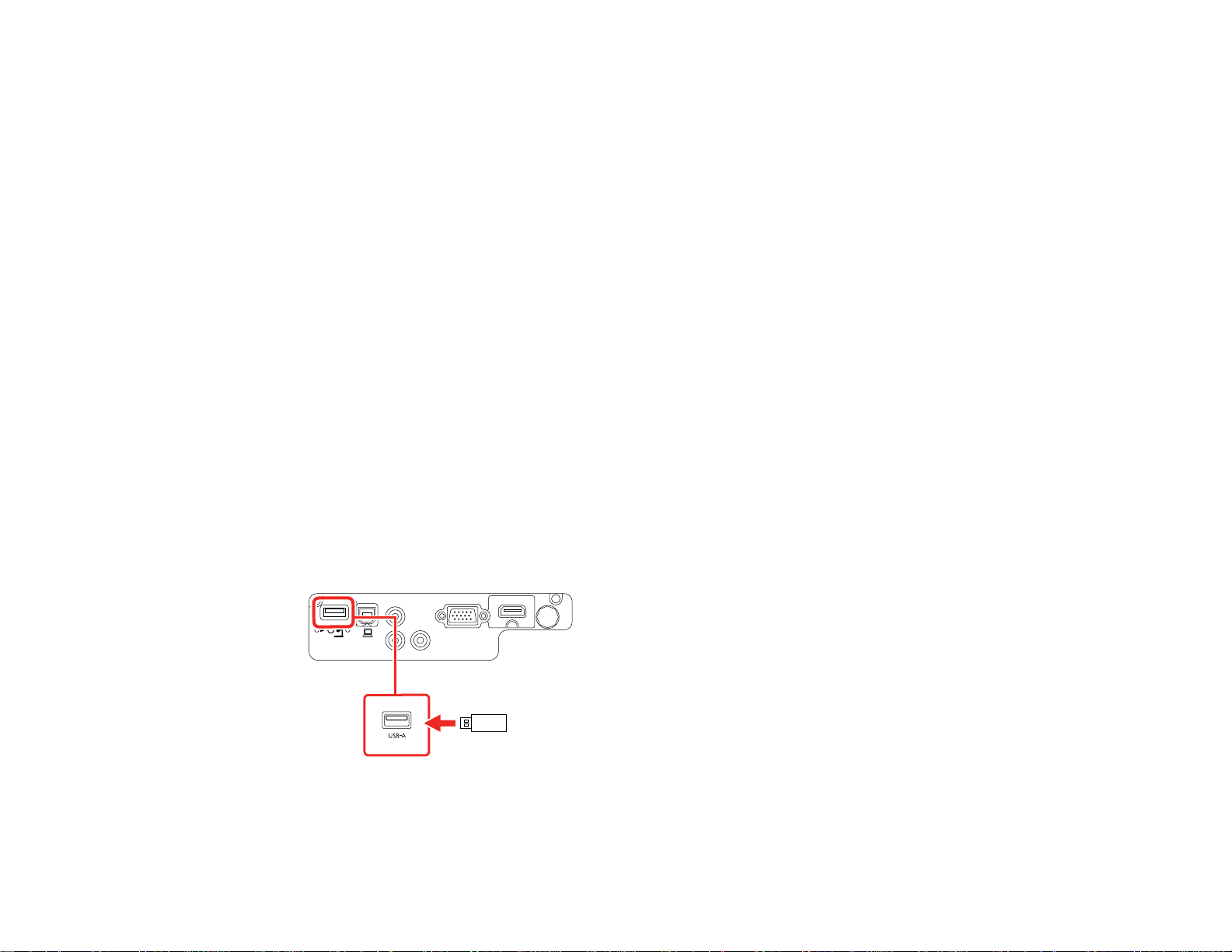

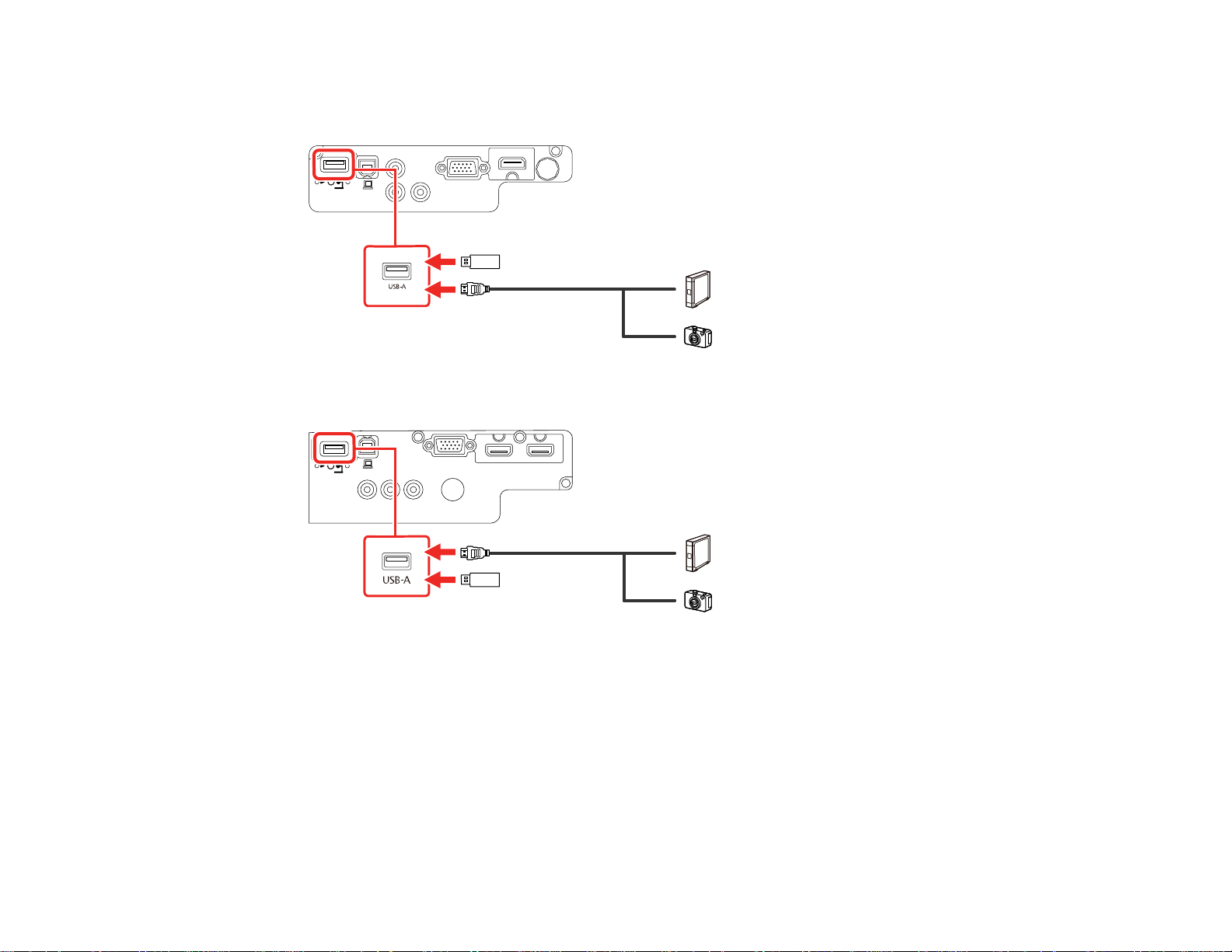

Connecting a USB Device or Camera to the Projector.............................................................. 42

Selecting the Connected USB Source...................................................................................... 43

Disconnecting a USB Device or Camera From the Projector.................................................... 44

Connecting to a Document Camera .............................................................................................. 44

Installing Batteries in the Remote Control .......................................................................................... 44

Opening the Lens Cover .................................................................................................................... 46

Using the Projector on a Network............................................................................................................ 47

Wireless Network Projection .............................................................................................................. 47

Using a QR Code to Connect a Mobile Device.............................................................................. 47

Using Quick Wireless Connection (Windows)................................................................................ 50

Selecting Wireless Network Settings Manually.............................................................................. 52

Wireless LAN Menu Settings .................................................................................................... 55

Selecting Wireless Network Settings in Windows.......................................................................... 56

Selecting Wireless Network Settings on Mac ................................................................................ 56

Setting Up Wireless Network Security........................................................................................... 57

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) ..... 58

Screen Mirroring Restrictions.................................................................................................... 58

Selecting Screen Mirroring Settings.......................................................................................... 58

Connecting for Screen Mirroring with Miracast ......................................................................... 60

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer........................... 60

Setting Up Projector Network E-Mail Alerts........................................................................................ 61

Network Projector E-mail Alert Messages ..................................................................................... 62

Setting Up Monitoring Using SNMP ................................................................................................... 63

Controlling a Networked Projector Using a Web Browser .................................................................. 64

Using Basic Projector Features ............................................................................................................... 68

Turning On the Projector.................................................................................................................... 68

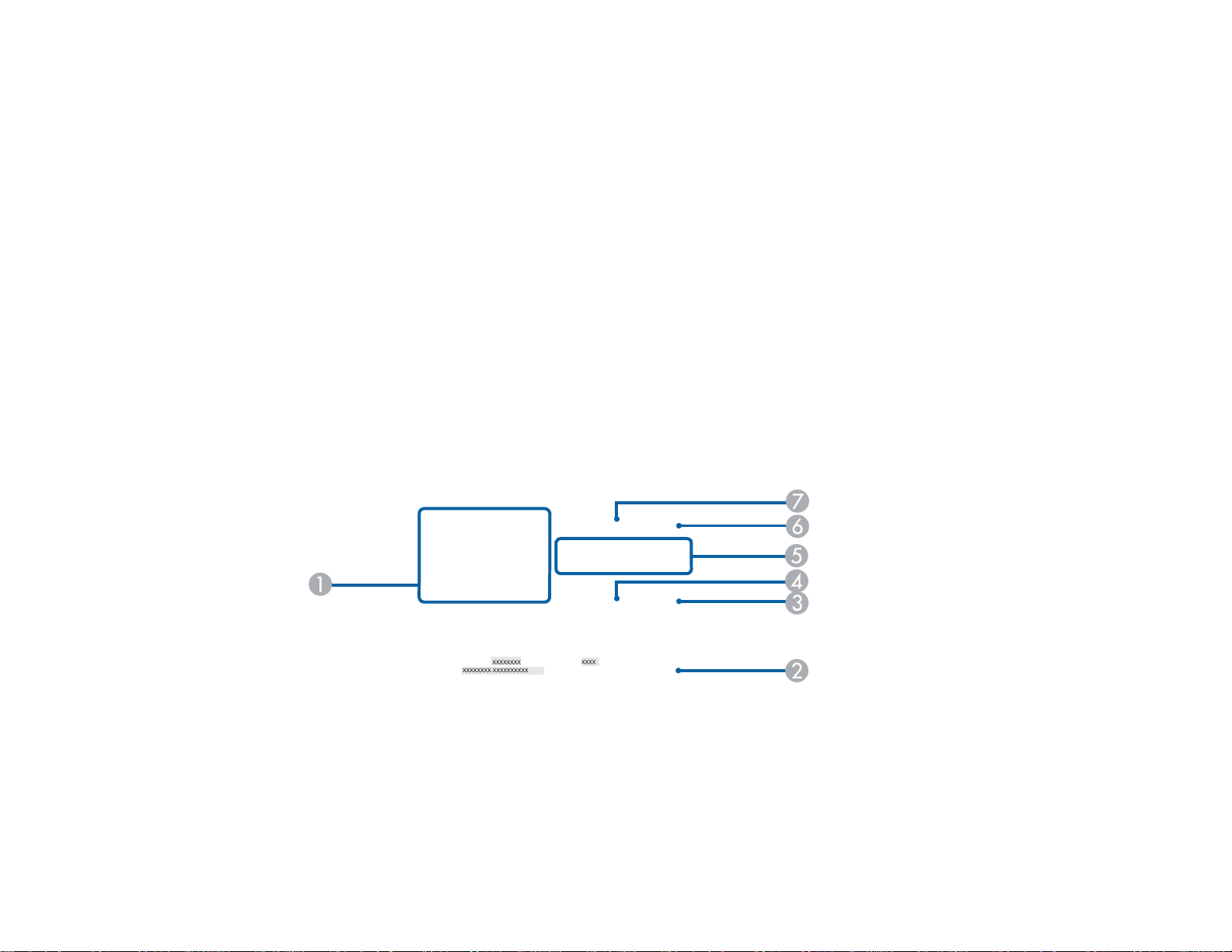

Using the Home Screen................................................................................................................. 70

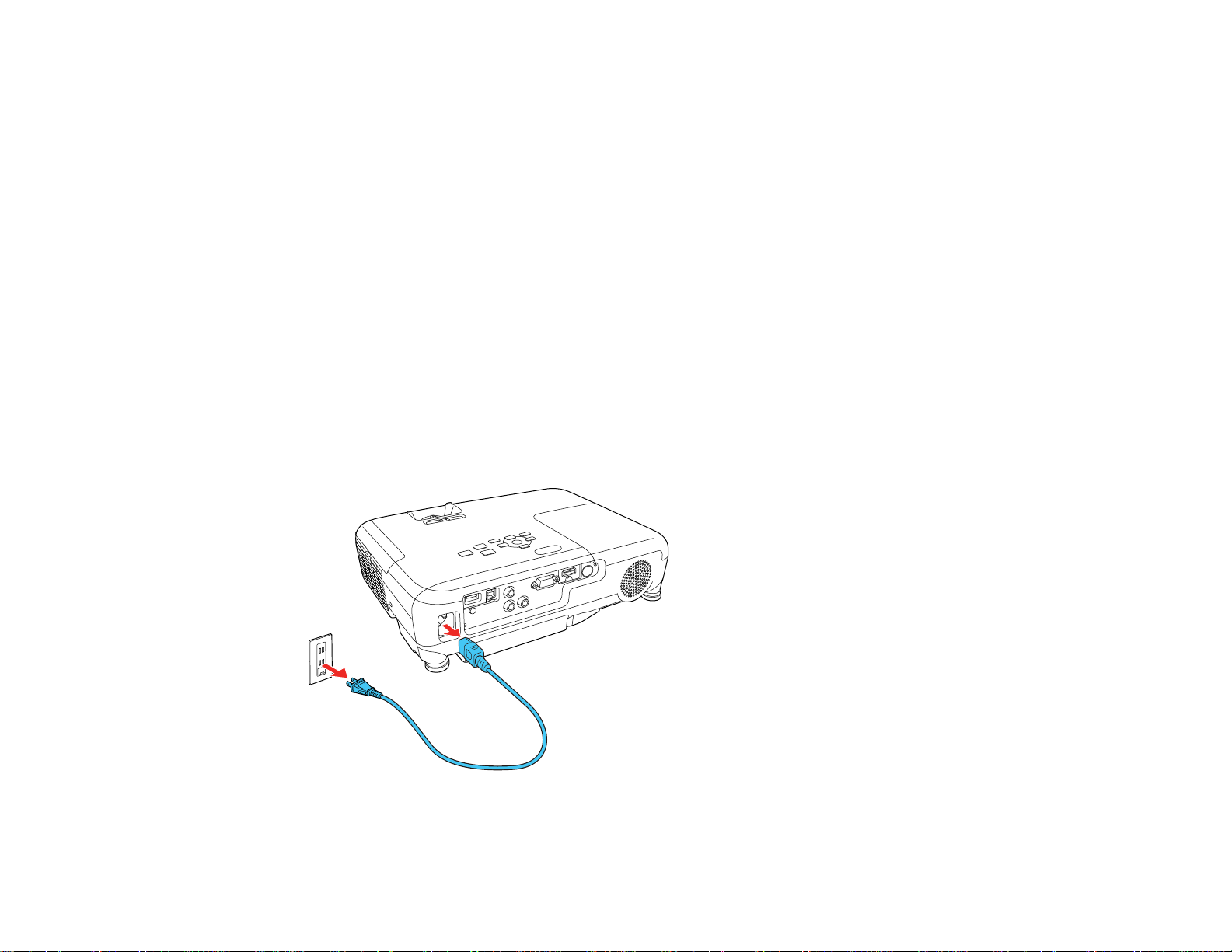

Turning Off the Projector.................................................................................................................... 71

Selecting the Language for the Projector Menus................................................................................ 73

Adjusting the Image Height ................................................................................................................ 74

Image Shape...................................................................................................................................... 75

Correcting Image Shape with the Horizontal Keystone Slider ....................................................... 75

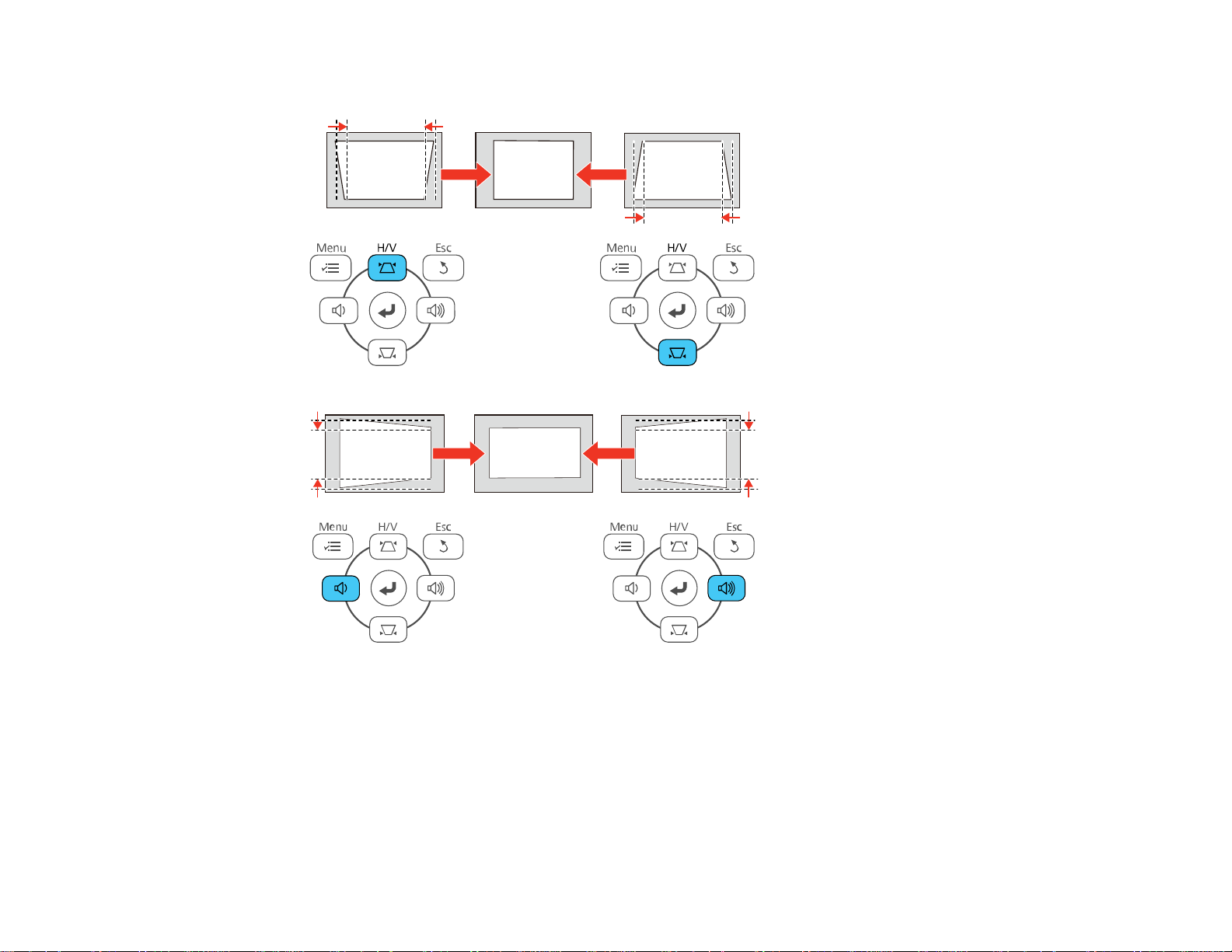

Correcting Image Shape with the Keystone Buttons...................................................................... 76

Correcting Image Shape with Quick Corner .................................................................................. 79

Resizing the Image............................................................................................................................. 81

Focusing the Image Using the Focus Ring......................................................................................... 81

Remote Control Operation ................................................................................................................. 82

Using the Remote Control as a Wireless Mouse ........................................................................... 83

Using the Remote Control as a Pointer.......................................................................................... 84

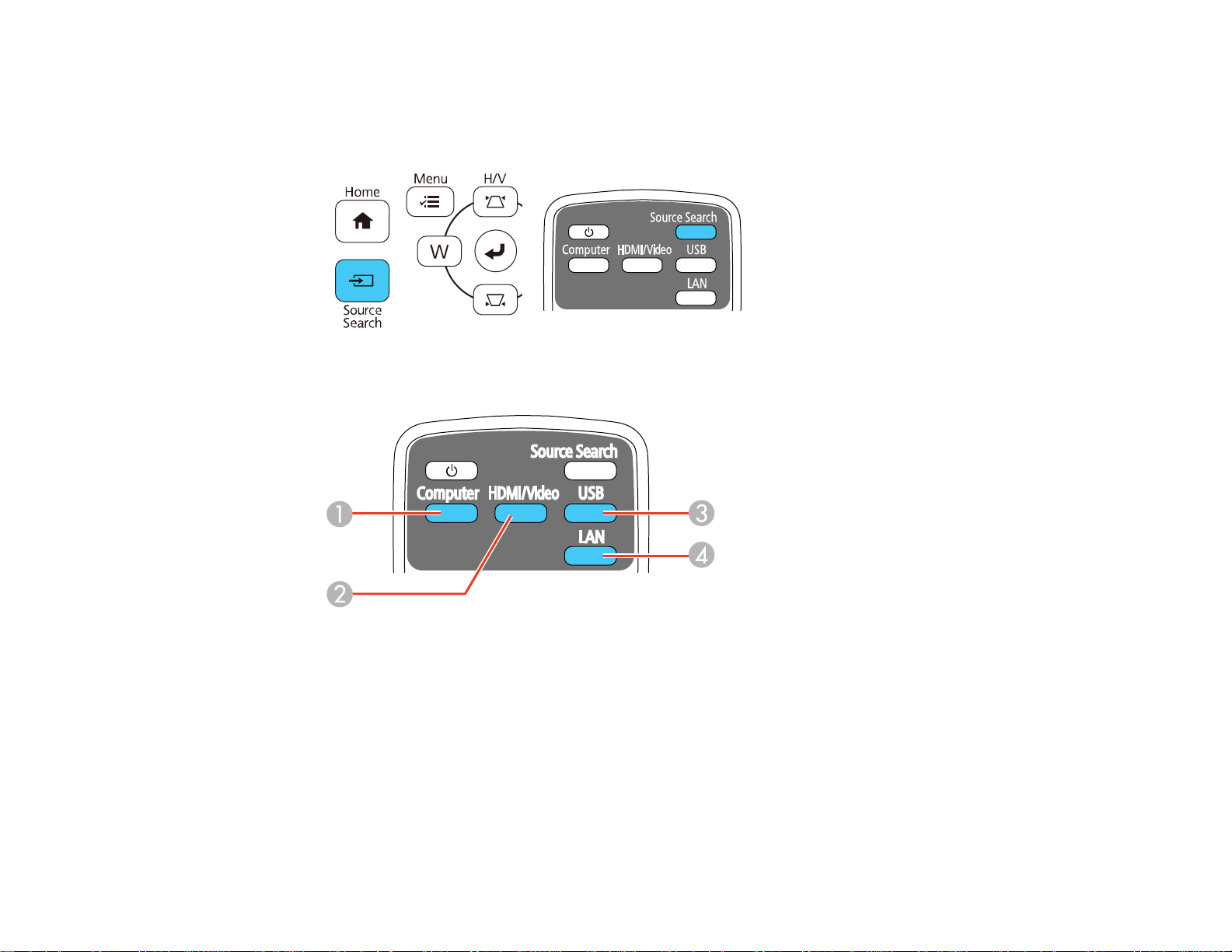

Selecting an Image Source ................................................................................................................ 85

Projection Modes ............................................................................................................................... 87

Changing the Projection Mode Using the Remote Control ............................................................ 88

Changing the Projection Mode Using the Menus........................................................................... 88

Image Aspect Ratio............................................................................................................................ 89

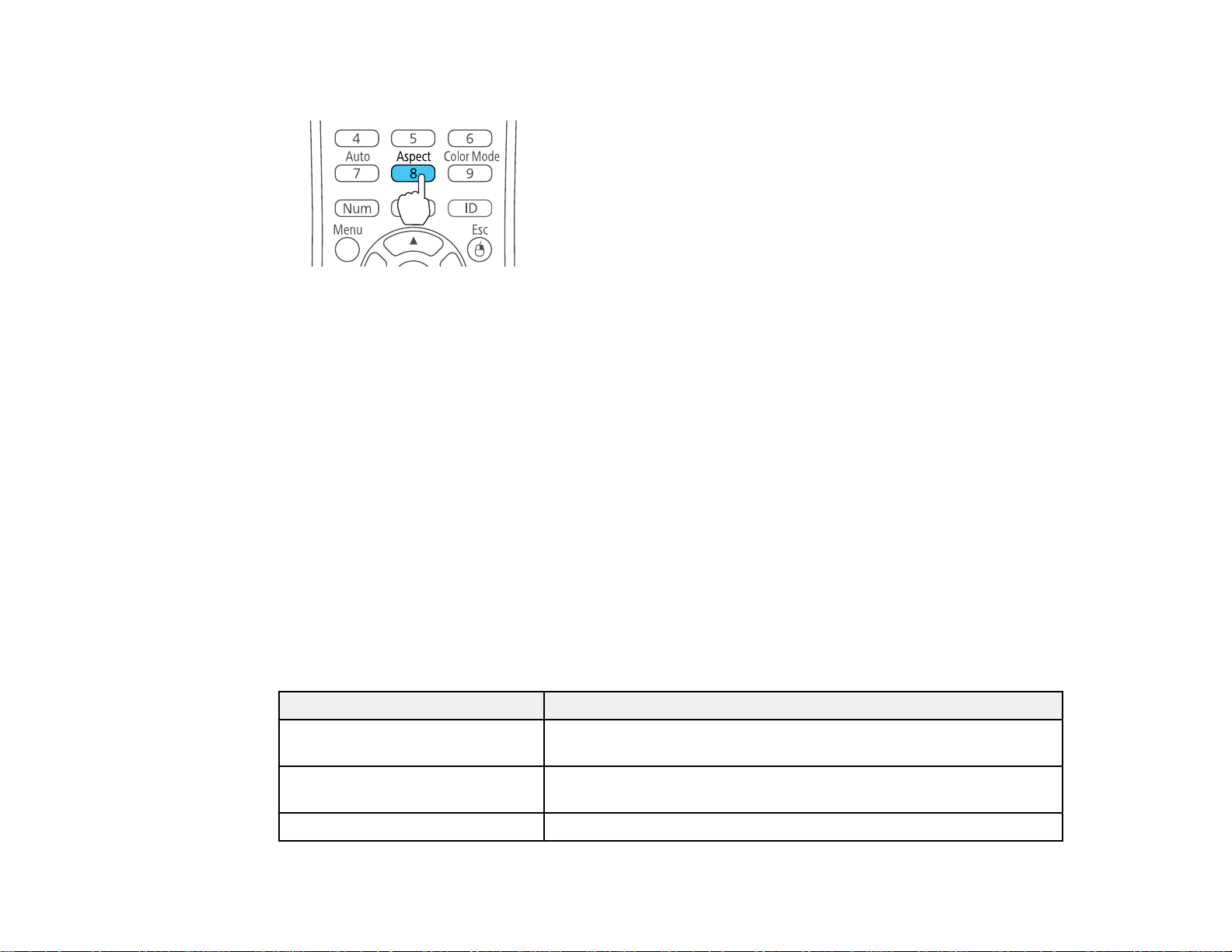

Changing the Image Aspect Ratio................................................................................................. 89

Available Image Aspect Ratios...................................................................................................... 90

Color Mode......................................................................................................................................... 91

Changing the Color Mode.............................................................................................................. 91

Available Color Modes................................................................................................................... 92

Turning On Auto Iris....................................................................................................................... 92

Controlling the Volume with the Volume Buttons................................................................................ 93

Projecting a PC Free Presentation..................................................................................................... 94

Supported PC Free File Types...................................................................................................... 94

Starting a PC Free Slide Show...................................................................................................... 95

Starting a PC Free Movie Presentation ......................................................................................... 97

PC Free Display Options............................................................................................................... 98

Adjusting Projector Features................................................................................................................. 100

Shutting Off the Picture and Sound Temporarily .............................................................................. 100

Stopping Video Action Temporarily.................................................................................................. 101

Zooming Into and Out of Images...................................................................................................... 102

Projector Security Features.............................................................................................................. 103

Password Security Types............................................................................................................ 103

Setting a Password................................................................................................................. 103

Selecting Password Security Types........................................................................................ 105

Entering a Password to Use the Projector............................................................................... 106

Saving a User's Logo Image to Display................................................................................... 107

Locking the Projector's Buttons ................................................................................................... 109

Unlocking the Projector's Buttons........................................................................................... 110

Installing a Security Cable........................................................................................................... 110

Projector Identification System for Multiple Projector Control........................................................... 111

Setting the Projector ID................................................................................................................ 111

Setting the Remote Control ID..................................................................................................... 112

Matching Multiple-Projector Display Quality................................................................................ 113

Projecting Two Images Simultaneously............................................................................................ 115

Copying Menu Settings Between Projectors.................................................................................... 117

Saving Settings to a USB Flash Drive.......................................................................................... 117

Transferring Settings from a USB Flash Drive............................................................................. 119

Saving Settings to a Computer.................................................................................................... 121

Transferring Settings from a Computer ....................................................................................... 123

Adjusting the Menu Settings.................................................................................................................. 127

Using the Projector's Menus............................................................................................................. 127

Image Quality Settings - Image Menu .............................................................................................. 129

Input Signal Settings - Signal Menu.................................................................................................. 132

Projector Feature Settings - Settings Menu...................................................................................... 134

Projector Setup Settings - Extended Menu....................................................................................... 137

Projector Network Settings - Network Menu..................................................................................... 140

Projector Setup Settings - ECO Menu.............................................................................................. 142

Projector Information Display - Info Menu ........................................................................................ 144

Event ID Code List....................................................................................................................... 145

Projector Reset Options - Reset Menu............................................................................................. 147

Maintaining and Transporting the Projector......................................................................................... 149

Projector Maintenance..................................................................................................................... 149

Cleaning the Lens........................................................................................................................ 149

Cleaning the Projector Case........................................................................................................ 150

Air Filter and Vent Maintenance .................................................................................................. 150

Cleaning the Air Filter and Vents............................................................................................. 151

Replacing the Air Filter............................................................................................................ 151

Projector Lamp Maintenance....................................................................................................... 153

Replacing the Lamp................................................................................................................ 154

Resetting the Lamp Timer....................................................................................................... 158

Replacing the Remote Control Batteries ..................................................................................... 159

Transporting the Projector................................................................................................................ 161

Solving Problems.................................................................................................................................... 162

Projection Problem Tips................................................................................................................... 162

Projector Light Status....................................................................................................................... 163

Using the Projector Help Displays.................................................................................................... 166

Solving Image or Sound Problems................................................................................................... 167

Solutions When No Image Appears............................................................................................. 167

Solutions When Image is Incorrect Using the USB Display Function .......................................... 168

Solutions When "No Signal" Message Appears........................................................................... 169

Displaying From a PC Laptop................................................................................................. 170

Displaying From a Mac Laptop ............................................................................................... 170

Solutions When "Not Supported" Message Appears................................................................... 170

Solutions When Only a Partial Image Appears............................................................................ 171

Solutions When the Image is Not Rectangular ............................................................................ 171

Solutions When the Image Contains Noise or Static ................................................................... 172

Solutions When the Image is Fuzzy or Blurry.............................................................................. 173

Solutions When the Image Brightness or Colors are Incorrect .................................................... 174

Solutions to Sound Problems ...................................................................................................... 174

Solving Projector or Remote Control Operation Problems ............................................................... 175

Solutions to Projector Power or Shut-Off Problems..................................................................... 175

Solutions to Problems with the Remote Control........................................................................... 176

Solutions to Password Problems................................................................................................. 177

Solving Network Problems............................................................................................................... 177

Solutions When Wireless Authentication Fails ............................................................................ 178

Solutions When You Cannot Access the Projector Through the Web ......................................... 178

Solutions When You Cannot Connect Using Screen Mirroring.................................................... 179

Solutions When the Image Contains Static During Network Projection....................................... 179

Solutions When Network Alert E-Mails are Not Received............................................................ 180

Where to Get Help............................................................................................................................ 180

Technical Specifications ........................................................................................................................ 182

General Projector Specifications...................................................................................................... 182

Projector Lamp Specifications.......................................................................................................... 184

Remote Control Specifications......................................................................................................... 184

Projector Dimension Specifications.................................................................................................. 184

Projector Electrical Specifications.................................................................................................... 185

Projector Environmental Specifications............................................................................................ 186

Projector Safety and Approvals Specifications................................................................................. 186

Supported Video Display Formats.................................................................................................... 187

USB Display System Requirements................................................................................................. 189

Notices ..................................................................................................................................................... 191

Recycling.......................................................................................................................................... 191

Important Safety Information............................................................................................................ 191

Important Safety Instructions............................................................................................................ 192

Restriction of Use........................................................................................................................ 195

List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 195

FCC Compliance Statement............................................................................................................. 199

Binding Arbitration and Class Waiver............................................................................................... 199

Trademarks...................................................................................................................................... 203

Copyright Notice............................................................................................................................... 203

A Note Concerning Responsible Use of Copyrighted Materials................................................... 204

Copyright Attribution.................................................................................................................... 204

PowerLite 1266/1286 User's Guide

Welcome to the PowerLite 1266/1286 User's Guide. For a printable PDF copy of this guide, click here.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

Your projector includes these special features:

Bright, high-resolution projection system

• Up to 3600 lumens of color brightness (color light output) and 3600 lumens of white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• PowerLite 1266: Native resolution of 1280 × 800 pixels (WXGA)

• PowerLite 1286: Native resolution of 1920 × 1200 pixels (WUXGA)

Flexible connectivity

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• Wireless network support for projection, monitoring, and control via remote

• Projection from iOS or Android devices and free Epson iProjection app; visit epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information

• PC Free photo slide shows via connected USB memory devices or Epson document camera

• Two HDMI ports for multiple high-definition AV devices, including MHL support (PowerLite 1286)

• HDMI/MHL port for computer or video device connection, including MHL support (Powerlite 1266)

• Miracast screen mirroring for laptops and mobile devices (PowerLite 1286)

Easy-to-use setup and operation features

• Epson's quick-connect on-screen QR code feature for easy wireless setup

• Low total cost of ownership with longer lamp life

• Automatic vertical keystone correction and innovative horizontal keystone correction slider for flexible projector placement

• Epson's Instant Off and Direct Power On features for quick setup and shut down

• Built-in closed captioning decoder (composite NTSC input signal only)

Note: The Powerlite 1266 is shown in most illustrations in this manual, unless noted otherwise.

Product Box Contents Additional Components Additional Projector Software and Manuals Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector boxes included all of these parts:

1 Projector 2 Remote control 3 Remote control batteries (two AA alkaline) 4 Power cord 5 VGA computer cable 6 USB cable 7 Carrying case 8 Projector documentation CD

Parent topic: Projector Features

Related concepts

Projector Connections

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components. Note: To connect a Mac that does not include a compatible video output port, you need to obtain an

adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

Composite video RCA-style video or A/V cable Component video D-sub, 15-pin, component-to-VGA video cable or adapter

HDMI Compatible HDMI cable

MHL MHL-compatible device or device with an integrated MHL connector, MHL

Audio from certain ports Commercially available audio cable compatible with your device

Parent topic: Projector Features

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller.

Available for purchase from Epson or an authorized Epson reseller. Note: Older Mac computers (2009 and earlier) may not support HDMI

audio.

cable, or HDMI cable and MHL adapter compatible with your device Available for purchase from Epson or an authorized Epson reseller.

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software from the included software CD, or download the software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Projector software Manual Description

Epson Projector Management (Windows

Epson Projector Management Guide

only)

Epson iProjection (Windows/Mac)

Epson iProjection Operation Guide

Epson iProjection app Instructions are included

with the app

— Open Source Software

License

Lets you monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector. Lets you hold interactive meetings by

projecting the computer screens of users over a network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector. Lets you project from an iOS device, Android

device, or Chromebook if your projector is connected to a network that includes a wireless access point.

Visit epson.com/iprojection (U.S.) or

epson.ca/iprojection (Canada) for more

information. You can download this document from the

Epson web site. Go to epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson replacement lamp (ELPLP96) V13H010L96 Replacement air filter (ELPAF32) V13H134A32 Universal projector mount (ELPMBPJG) V12H808001 Soft carrying case (ELPKS69) V12H001K69 Accolade Duet portable projector screen ELPSC80 Epson DC-07 USB document camera (ELPDC07) V12H759020 Epson DC-13 document camera (ELPDC13) V12H757020 Epson DC-21 document camera (ELPDC21) V12H758020 HDMI audio video cable 3 feet (0.9 m) length AV22300-03 HDMI audio video cable 6 feet (1.8 m) length AV22300-06 1-Year Extended Exchange Service Plan EPPEXPA1 2-Year Extended Exchange Service Plan EPPEXPA2

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Register your product online using the projector CD or at this site: epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• Built-in help system Press the Home button on the remote control or projector, select Help, and press Enter to get quick

solutions to common problems.

• epson.com/support (U.S.) or epson.ca/support (Canada) View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24

hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent 2 A/V Mute slide lever 3 Foot release lever 4 Lens cover 5 Front adjustable foot 6 Lens 7 Remote control receiver 8 Horizontal keystone slider 9 Air filter/intake vent 10 Air filter cover 11 Kensington security lock slot 12 Control panel 13 Zoom ring

14 Focus ring 15 Lamp cover

Parent topic: Projector Part Locations

Projector Parts - Rear

PowerLite 1266

PowerLite 1286

1 AC input 2 Audio ports 3 Video port 4 Remote receiver

5 Speaker 6 HDMI/MHL port (PowerLite 1266); HDMI1 and HDMI2/MHL ports (PowerLite 1286) 7 Computer port 8 USB-B port 9 USB-A port

Parent topic: Projector Part Locations

Projector Parts - Base

1 Ceiling mount holes (3) 2 Security cable attachment point

3 Rear feet 4 Front adjustable foot

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 Source Search button (searches for connected video sources) 2 Enter button (selects options) 3 Vertical keystone adjustment buttons (displays the adjustment screen and adjusts screen shape)

and arrow buttons 4 Esc button (cancels/exits functions) 5 Volume buttons (adjust speaker volume), horizontal keystone adjustment buttons, and arrow

buttons 6 Menu button (accesses projector menu system) 7 Home button (displays Home screen) 8 Power button 9 Status lights

Parent topic: Projector Part Locations Related references

Projector Light Status

Related tasks

Using the Projector Help Displays

Projector Parts - Remote Control

1 Power button

2 Computer button (cycles through connected computer sources) 3 HDMI/Video button (cycles through connected HDMI/video sources) 4 Numeric buttons (enter numbers) 5 Auto button (automatically adjusts position, tracking, and sync settings when projecting from a

computer using a VGA cable) 6 Aspect button (selects the image aspect ratio) 7 Num button (when held down, switches numeric buttons to number function) 8 Menu button (accesses projector menu system) 9 Arrow buttons (move through on-screen options and control wireless mouse functions) 10 Enter button (selects options and controls wireless mouse functions) 11 User button (customizable for different functions) 12 Page up/down buttons (control presentation slides) 13 E-Zoom +/– buttons (zoom into and out of the image) 14 A/V Mute button (turns off picture and sound) 15 Split button (splits the screen between two image sources) 16 Home button (accesses source selection, projector help information, and other features) 17 Freeze button (stops video action) 18 Volume up/down buttons (adjust speaker volume) 19 Pointer button (activates on-screen pointer) 20 Esc button (cancels/exits functions and controls wireless mouse functions) 21 ID button (selects which projector you want to control) 22 Color Mode button (selects display modes) 23 MHL Menu button (displays settings or performs functions for the MHL device) 24 LAN button (cycles through connected network sources) 25 USB button (cycles through connected USB sources) 26 Source Search button (searches for connected sources) 27 Remote control signal emitter (emits remote control signals)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover

Projector Placement

You can place the projector on almost any flat surface to project an image. You can also install the projector in a ceiling mount if you want to use it in a fixed location. Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways: Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).

1 Projection distance 2 Distance from the center of the lens to the base of the image 3 Center of lens

PowerLite 1266

16:10 Aspect Ratio Image or Screen Screen or image size Projection distance (1)

Wide to Tele

50 inches 55 to 66 inches

(139 to 168 cm)

80 inches 88 to 106 inches

(225 to 270 cm)

100 inches 111 to 133 inches

(281 to 338 cm)

150 inches 167 to 200 inches

(424 to 509 cm)

PowerLite 1286

16:10 Aspect Ratio Image or Screen Screen or image size Projection distance (1)

Wide to Tele

50 inches 58 to 71 inches

(148 to 180 cm)

Offset from lens center (2)

–2.4 inch (–6 cm)

–3.8 inches (–10 cm)

–4.7 inches (–12 cm)

–7.1 inches (–18 cm)

Offset from lens center (2)

–2.4 inch (–6 cm)

80 inches 94 to 114 inches

(238 to 291 cm)

100 inches 118 to 143 inches

(299 to 364 cm)

150 inches 177 to 216 inches

(450 to 548 cm)

Parent topic: Projector Placement

–3.9 inches (–10 cm)

–4.8 inches (–12 cm)

–7.2 inches (–18 cm)

Projector Connections

See these sections to connect the projector to a variety of projection sources. Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode

to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector Related references

Projector Setup Settings - Extended Menu

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

Note: An HDMI connection is recommended for projecting content requiring high bandwidth.

1. Turn on your computer.

2. Connect the cable to your projector's USB-B port.

PowerLite 1266

PowerLite 1286

3. Connect the other end to any available USB port on your computer.

4. Do one of the following:

• Windows 10/Windows 8.x: Click EPSON_PJ_UD when it appears on the desktop, then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

PowerLite 1266

PowerLite 1286

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources Related tasks

Connecting to a Computer for Sound

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI port.

PowerLite 1266

PowerLite 1286

Note: The projector converts the digital audio signal sent from your computer into a mono analog signal

for the internal speaker.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer, USB-B, or HDMI port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control projection at a distance from your computer. To do this, connect the projector to your computer using a USB cable, if it is not connected already.

1. Connect the USB cable to your projector's USB-B port.

PowerLite 1266

PowerLite 1286

2. Connect the other end to any available USB port on your computer.

3. If necessary, configure your computer to work with an external USB mouse. See your computer documentation for details.

Parent topic: Connecting to Computer Sources Related tasks

Using the Remote Control as a Wireless Mouse

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it using the projector's USB-B or HDMI port, you can still play sound through the projector's speaker system. Connect an optional stereo

mini-jack adapter cable (with one 3.5 mm mini-plug and two RCA plugs).

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.

2. Connect the other end to the projector's Audio ports.

PowerLite 1266

PowerLite 1286

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to an MHL-Compatible Device Connecting to a Component Video Source

Connecting to a Composite Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to the projector's HDMI port.

PowerLite 1266

PowerLite 1286

Note: The projector converts the digital audio signal sent from your video source into a mono analog

signal for the internal speaker.

Parent topic: Connecting to Video Sources

Connecting to an MHL-Compatible Device

If you have an MHL-compatible smartphone or tablet, you can connect it to the projector using either an MHL cable or an HDMI cable with a device-compatible MHL adapter. If you have a device with a built-in MHL connector, plug it directly into the HDMI/MHL (Powerlite 1266) or HDMI2/MHL (PowerLite 1286) port.

Note: Some connected devices may not charge when using an MHL adapter.

1. Connect the MHL cable or adapter to your device's Micro-USB port.

2. If you are using an MHL adapter, connect it to an MHL-compatible HDMI cable.

3. Connect the other end of the cable to the projector's HDMI/MHL (Powerlite 1266) or HDMI2/MHL (PowerLite 1286) port.

PowerLite 1266

PowerLite 1286

Note: The projector converts the digital audio signal sent from your video source into a mono analog

signal for the internal speaker.

Parent topic: Connecting to Video Sources

Connecting to a Component Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to the Computer port on the projector.

PowerLite 1266

PowerLite 1286

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources Related references

Input Signal Settings - Signal Menu

Related tasks

Connecting to a Video Source for Sound

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port. PowerLite 1266

PowerLite 1286

Parent topic: Connecting to Video Sources Related tasks

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. Connect the projector to the video source using an RCA audio cable.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's Audio port or ports. PowerLite 1266

PowerLite 1286

Parent topic: Connecting to Video Sources

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector:

• USB flash drive

• Digital camera or smartphone

• USB hard drive

• Multimedia storage viewer

Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.

Note: USB hard drives must meet these requirements:

• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)

• Formatted in FAT or FAT32

• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)

• Does not have multiple partitions

You can project slide shows from image files on a connected USB device.

Parent topic: Connecting to External USB Devices

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive) to the projector's USB-A port. PowerLite 1266

PowerLite 1286

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not

operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to the USB-A port.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB button on the remote control.

Parent topic: Connecting to External USB Devices

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera. Depending on your Epson document camera model, do one of the following to connect the document

camera to your projector:

• For the Epson DC-07 document camera, locate the USB cable that came with the camera and

connect it to the projector's port and to the document camera's USB Type B port.

• For the Epson DC-13 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-21 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.

Parent topic: Projector Connections

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector. Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,

or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Opening the Lens Cover

To open the projector's lens cover, slide the A/V Mute slide lever until it clicks into the open position.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

After setting up the projector as described here, install the network software from the included CD or download the software and manuals as necessary.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Using a QR Code to Connect a Mobile Device Using Quick Wireless Connection (Windows) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Setting Up Wireless Network Security Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

Parent topic: Using the Projector on a Network Related references

Additional Projector Software and Manuals Optional Equipment and Replacement Parts

Using a QR Code to Connect a Mobile Device

After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Basic menu and press Enter.

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Do one of the following:

• Press the LAN button on the remote control.

• Select Display the QR Code in the projector's Network menu.

Your projector displays the QR code on the projection surface. Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.

8. Start Epson iProjection on your mobile device.

9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for instructions.

Parent topic: Wireless Network Projection

Using Quick Wireless Connection (Windows)

You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

Note: A USB flash drive is not included with your projector.

1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows/Mac) software.

Note: See the Epson iProjection Operation Guide for instructions.

2. Turn on the projector.

3. Insert the USB key into the projector's USB-A port.

PowerLite 1266

PowerLite 1286

You see a projected message that the network information update is complete.

4. Remove the USB key.

5. Insert the USB key into a USB port on your computer.

Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allow on the next screen.

6. Follow the on-screen instructions to install the Epson iProjection (Windows/Mac) software. Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need

administrator authority to install the software. If it is not installed automatically, double-click MPPLaunch.exe in the USB key.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.

7. Run your presentation as necessary.

8. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You can share the USB key with other computers without disconnecting your computer. You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Make sure the Wireless Mode setting is set to Wireless LAN On.

5. Select Network Configuration and press Enter.

6. Select the Basic menu and press Enter.

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen in the Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with Epson iProjection.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. The projector displays a random keyword that you must enter using the Epson iProjection app.

• Display Keyword lets you display a keyword on the projected image when accessing the

projector using Epson iProjection.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

8. Select the Wireless LAN menu and press Enter.

9. Select the settings on the Wireless LAN menu as necessary for your network.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you connect to multiple smartphones, tablets, or computers directly

Advanced: lets you connect to multiple smartphones, tablets, or computers via a wireless network access point

Search Access Point To Search View Search for available wireless

network access points in

Advanced connection mode

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

Security Open

WPA2-PSK WPA/WPA2-PSK

Selects the type of wireless security used in the wireless network (some options are only available when the Connection

Mode setting is set to Advanced)

Passphrase Between 8 to 63 alphanumeric

characters

Enter a paraphrase for the wireless network

Channel 1ch

6ch 11ch

IP Settings DHCP

IP Address Subnet Mask Gateway Address

In Quick connection mode, selects the frequency band (channel) used by the wireless LAN

Turns on DHCP if your network assigns addresses automatically; set to Off to manually enter the network's IP Address, Subnet

Mask, and Gateway Address

Setting Options Description SSID Display On

Off

IP Address Display On

Off

IPv6 Settings IPv6

Auto Configuration Use Temporary Address

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Selects whether to display the SSID on the network standby screen

Selects whether to display the IP address on the network standby screen

Selects the IPv6 settings when you connect the projector to the network using IPv6

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:

• WPA/WPA2-PSK security (Advanced connection mode)

• WPA2-PSK security (Advanced and Quick connection mode)

Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Wireless LAN menu and press Enter.

5. Select the Security setting and press Enter.

6. Select the security settings for your network.

7. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

You can send images to your projector from mobile devices such as laptops, smartphones, and tablets using Miracast technology or from a Windows computer (PowerLite 1286). If your device supports Miracast, you do not need to install any additional software.

Screen Mirroring Restrictions Selecting Screen Mirroring Settings Connecting for Screen Mirroring with Miracast Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer

Parent topic: Wireless Network Projection

Screen Mirroring Restrictions

Note the following when using Screen Mirroring features (PowerLite 1286):

• You cannot project an interlaced image.

• You cannot play audio with more than 3 channels.

• You cannot project images with a resolution above 1920 × 1080 and a frame rate above 30 fps.

• You cannot project 3D video.

• You cannot use extended Miracast features on Windows 8.1.

• You may not be able to view contents with copyright protection using a Miracast connection.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Selecting Screen Mirroring Settings

You can select Screen Mirroring settings for your projector and then project images from your mobile device or computer (PowerLite 1286).

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Set the Wireless Mode setting to Screen Mirroring On.

4. Select Screen Mirroring Settings and press Enter.

5. Select the Screen Mirroring Settings options as necessary.

6. When you finish selecting settings, select Set and follow the on-screen instructions to save your settings and exit the menus.

7. Press the Home button on the control panel or remote control. You see the Display Name on the Home screen

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Connecting for Screen Mirroring with Miracast

If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images and sound (PowerLite 1286).

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source. You see the Screen Mirroring standby screen.

3. On your mobile device, use the Miracast function to search for the projector. Note: See your mobile device's documentation for information on accessing the Miracast function. You see a list of available devices.

4. Select your projector from the list.

5. If you see the PIN entry screen on your mobile device, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your mobile device. Caution: It may take some time to establish the connection. Do not disconnect the projector's power

cord while it is connecting to your device. Doing so may cause your device to freeze or malfunction. Note: Depending on the mobile device, you may need to delete a device when connecting. Follow

the on-screen instructions on your device.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer

You can set up your computer to wirelessly project images and play sound using Screen Mirroring (PowerLite 1286).

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source. You see the Screen Mirroring standby screen.

3. Do one of the following:

• Windows 10: Open Action Center and select Connect.

• Windows 8.x: Select Devices > Project > Add a wireless display.

4. Select your projector's Display Name from the list.

5. If you see the PIN entry screen on your computer, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your computer or mobile device. Note: It may take some time to establish the connection. Do not disconnect the projector's power

cord while it is connecting to your device. This may cause your device to freeze or malfunction.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

8. Enter the sender's email address as the From setting.

9. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses. Your e-mail address can be up to 32 alphanumeric characters long.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• The email address entered as the From setting

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert. Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on the SNMP setting.

6. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. If you want this projector to receive broadcasted messages over the network, select the Others menu and turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using Epson Projector Management (Windows only).

8. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On in the ECO menu, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen.

4. To select projector menu settings, select Advanced to bring up a list of options. Note: You may need to log in to access some of the options on the Web Control screen. If you see a

5. To control projection remotely, select the Basic Control option from the Web Control screen.

Note: If you see a log in window, enter your user name and password. (The default user name is EPSONREMOTE and the default password is guest.)

You see a screen like this:

1 Power button control 2 Select an HDMI port source 3 Selects the USB Display source 4 Selects the USB device source 5 A/V Mute button control 6 Freeze button control 7 Page Up and Page Down button controls 8 Displays a QR code 9 Volume button controls

10 Selects the network source 11 Selects the Screen Mirroring source (PowerLite 1286) 12 Selects the Computer port source 13 Selects a Video port source 14 Searches for connected sources

6. Select the icon corresponding to the projector function you want to control.

Parent topic: Using the Projector on a Network Related references

Projector Setup Settings - ECO Menu

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Adjusting the Image Height Image Shape Resizing the Image Focusing the Image Using the Focus Ring Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Projecting a PC Free Presentation

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Open the projector's lens cover.

2. Connect the power cord to the projector's power inlet.

3. Plug the power cord into an electrical outlet. Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

4. Press the power button on the projector or the remote control to turn on the projector. The projector beeps and the Status light flashes blue as the projector warms up. Once the projector

is warmed up, the Status light stops flashing and turns blue. Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is

especially dangerous for children.

If you do not see a projected image right away, try the following:

• Verify the lens cover is open all the way.

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Change the screen output from the computer when using a laptop.

• Press the Source Search button on the projector or remote control to detect the video source.

• Press the button for the video source on the remote control.

• If the Home screen is displayed, select the source you want to project.

Using the Home Screen

Parent topic: Using Basic Projector Features Related tasks

Selecting an Image Source

Using the Home Screen

You can select input sources and other frequently used options from the Home screen.

1. To display the Home screen, do one of the following:

• Press the Home button on the control panel or remote control.

• Turn on the projector with the Home Screen Auto Disp setting enabled.

• Turn on the projector when no signal is received from the selected input source.

2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press Enter to select an option.

1 Select the video source you want to project 2 Display the Connection Guide

3 Display the Help screen 4 Display the projector's menus 5 Select customizable menu options 6 Depending on the projector, select to project two images from different image sources

simultaneously or change the Power Consumption setting

7 Correct the image shape

Note: Your Home screen may look different from the illustration shown here. You can select the customizable menu options using the Custom Function 1 and Custom Function 2 settings in the Extended menu.

3. Press the Home button to hide the Home screen.

Parent topic: Turning On the Projector Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

Note: When using the A/V Mute feature, the projector lamp is still on. To turn off the lamp, turn off the projector.

1. Press the power button on the projector or the remote control.

The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

3. To transport or store the projector, make sure Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing.

4. Close the projector's lens cover.

Parent topic: Using Basic Projector Features Related references

Projector Light Status

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turn on the projector and display an image.

2. To adjust the front foot, pull up on the foot release lever and lift the front of the projector.

3. Release the lever to lock the foot.

4. If the image is tilted, rotate the rear feet to adjust their height.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

The foot extends from the projector.

When you turn on automatic keystone correction in your projector's Settings menu, your projector automatically corrects vertical keystone effects when you reposition the projector.

Correcting Image Shape with the Horizontal Keystone Slider Correcting Image Shape with the Keystone Buttons Correcting Image Shape with Quick Corner

Parent topic: Using Basic Projector Features

Correcting Image Shape with the Horizontal Keystone Slider

You can use the projector's horizontal keystone slider to correct the shape of an image that is unevenly rectangular horizontally, such as when the projector is placed to the side of the projection area.

Note: To provide the best possible image quality, adjust the projector's position to correct the image

shape. If this isn't possible, use the horizontal keystone slider on the projector to correct the image shape.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. Adjust the slider until the image is evenly rectangular.

After correction, your image is slightly smaller.

Parent topic: Image Shape

Correcting Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

Note: To provide the best possible image quality, adjust the projector's position to correct the image shape. If this isn't possible, use the keystone correction buttons on the projector to correct the image shape.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. Press one of these keystone buttons on the control panel to display the Keystone adjustment screen.

3. Press a keystone button on the projector's control panel to adjust the image shape.

After correction, your image is slightly smaller. Note: If the projector is installed out of reach, you can also correct the image shape with the remote

control using the H/V-Keystone settings in the projector menus.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

Note: To provide the best possible image quality, adjust the projector's position to correct the image shape. If this isn't possible, use the Quick Corner setting to correct the image shape.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Keystone setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again. You see the Quick Corner adjustment screen:

6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

Parent topic: Image Shape

Resizing the Image

You can resize the image using the projector's zoom ring or the Wide and Tele buttons, depending on the projector model.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

• If the projector includes a zoom ring, rotate it to enlarge or reduce the image size.

• If the projector includes Wide and Tele buttons, press the Wide button on the projector's control panel

to enlarge the image size. Press the Tele button to reduce the image size.

Parent topic: Using Basic Projector Features

Focusing the Image Using the Focus Ring

You can correct the focus using the focus ring.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. To sharpen the image focus, rotate the projector’s focus ring.

Parent topic: Using Basic Projector Features

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room. You can point it at the screen, or the front or back of the projector.

Make sure that you aim the remote control at the projector's receivers within the distance and angles listed here.

1 30° 2 19.7 feet (6 m) 3 15°

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

Using the Remote Control as a Wireless Mouse Using the Remote Control as a Pointer

Parent topic: Using Basic Projector Features

Using the Remote Control as a Wireless Mouse

You can use the projector's remote control as a wireless mouse so you can control projection at a distance from the computer.

Note: This function does not work when you project from a device connected using an MHL cable.

1. Connect the projector to a computer using the projector's USB-B, Computer, or HDMI port to display video.

2. If you connected your computer to a port other than the projector's USB-B port, also connect a USB cable to the projector's USB-B port and to a USB port on your computer (for wireless mouse support).

3. Start your presentation.

4. Use the following buttons on the remote control to control your presentation:

• To move through slides or pages, press the up or down Page buttons.

• To move the cursor on the screen, use the arrow buttons.

• To left-click, press the button once (press it twice to double-click).

• To right-click, press the Esc button.

• To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release

at the destination.

Parent topic: Remote Control Operation Related tasks

Connecting to a Computer for USB Mouse Control

Using the Remote Control as a Pointer

You can use the projector's remote control as a pointer to help you call out important information on the screen. The default pointer shape is an arrow, but you can select an alternative shape using the Settings menu.

1. Press the Pointer button on the remote control.

2. Use the arrow buttons on the remote control to move the pointer on the screen.

3. Press Esc to clear the pointer from the screen.

Parent topic: Remote Control Operation Related references

Projector Feature Settings - Settings Menu

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

Note: If you turned on the Auto Source Search setting in the Extended menu, the projector automatically switches to another detected image source if the signal to the current image source is lost.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button, if necessary.

3. Do one of the following:

• Press the Source Search button on the projector or remote control until you see the image from

the source you want.

• Press the button for the source you want on the remote control.

1 Computer port sources 2 Video, HDMI, and MHL sources 3 USB port sources (computer display and external devices) 4 Network source [LAN and Screen Mirroring (PowerLite 1286)]

• Press the Home button on the remote control or projector and select your image source.

Note: Your Home screen may look different from the illustration shown here.

Parent topic: Using Basic Projector Features

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

• Front (default setting) lets you project from a table in front of the screen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

• Rear flips the image horizontally to project from behind a translucent screen.

• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind

a translucent screen.

Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Remote Control

You can change the projection mode to flip the image over top-to-bottom.

1. Turn on the projector and display an image.

2. Hold down the A/V Mute button on the remote control for five seconds.

The image disappears briefly and reappears flipped top-to-bottom.

3. To change projection back to the original mode, hold down the A/V Mute button for five seconds again.

Parent topic: Projection Modes

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Projection setting and press Enter.

5. Select a projection mode and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.

Changing the Image Aspect Ratio Available Image Aspect Ratios

Parent topic: Using Basic Projector Features

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Aspect button on the remote control.

The shape and size of the displayed image changes, and the name of the aspect ratio appears briefly on the screen.

3. To cycle through the available aspect ratios for your input signal, press the Aspect button repeatedly.

Note: If you are projecting from a computer and parts of the image are cut off, set the Resolution setting to Wide or Normal in the Signal menu.

Parent topic: Image Aspect Ratio Related references

Input Signal Settings - Signal Menu

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source. Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect

ratio and resolution of your input signal.

Aspect ratio setting Description Auto Automatically sets the aspect ratio according to the input signal and

Normal Displays images using the full projection area and maintains the

16:9 Convertsthe aspect ratio of the image to 16:9.

the Resolution setting.

aspect ratio of the image.

Aspect ratio setting Description Full Displays images using the full width of the projection area, but does

Zoom Displays images using the full width of the projection area and

Native Displays images as is (aspect ratio and resolution are maintained).

Note: The Auto aspect ratio setting is available only for HDMI image sources. Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.

If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.

Changing the Color Mode Available Color Modes Turning On Auto Iris

not maintain the aspect ratio.

maintains the aspect ratio of the image.

Parent topic: Using Basic Projector Features

Changing the Color Mode

You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.

3. Press the Color Mode button on the remote control to change the Color Mode.

The image appearance changes and the name of the Color Mode appears briefly on the screen.

4. To cycle through all the available Color Modes for your input signal, press the Color Mode button repeatedly.

Parent topic: Color Mode

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

Color Mode Description Presentation Best for color presentations in a bright room Dynamic Best for video games in a bright room Cinema Best for movies projected in a dark room sRGB Best for standard sRGB computer displays Blackboard Best for presentations onto a green chalkboard (adjusts the colors

Parent topic: Color Mode

Turning On Auto Iris

In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

accordingly)

3. Select the Image menu and press Enter.

4. Select the Auto Iris setting and choose one of the following:

• High Speed to adjust brightness as soon as the scene changes.

• Normal for standard brightness adjustment.

Note: You can set Auto Iris for each Color Mode that supports the feature. You cannot change the Auto Iris setting when you are using a Closed Caption setting.

5. Press Menu or Esc to exit the menus.

Parent topic: Color Mode Related references

Projector Setup Settings - Extended Menu

Controlling the Volume with the Volume Buttons

You can use the Volume buttons on the remote control to adjust the volume as you project a presentation with audio. You can also use the volume buttons on the projector's control panel.

The volume buttons control the projector’s internal speaker system. You must adjust the volume separately for each connected input source.

1. Turn on the projector and start a presentation that includes audio.

2. Press the Volume buttons as necessary to lower or raise the volume. A volume gauge appears on the screen.

3. To set the volume to a specific level for an input source, use the projector menus.

Parent topic: Using Basic Projector Features

Projecting a PC Free Presentation

You can use your projector's PC Free feature whenever you connect a USB device that contains compatible files. This lets you quickly and easily display the contents of the files and control their display using the projector's remote control.

Supported PC Free File Types Starting a PC Free Slide Show Starting a PC Free Movie Presentation PC Free Display Options

Parent topic: Using Basic Projector Features

Supported PC Free File Types

You can project these types of files using the projector's PC Free feature. Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble

projecting from media formatted for non-Windows file systems, try formatting the media for Windows instead. You may not be able to use the security features on certain USB storage devices with PC Free features. When connecting a USB-compatible hard drive, connect the AC adapter supplied with the drive.

File type and extension

Image (.jpg) Make sure the file is not:

Image (.bmp) Make sure the file resolution is not above 1280 × 800

Details

• CMYK format

• Progressive format

• Highly compressed

• Above 8192 × 8192 resolution

File type and extension

Image (.gif ) Make sure the file is not:

Image (.png) Make sure the file resolution is not above 1280 × 800

Details

• Above 1280 × 800 resolution

• Animated

• Interlaced

Motion JPEG movie (.avi)

Parent topic: Projecting a PC Free Presentation

Supports only AVI 1.0 Make sure the file is not:

• Saved with an audio codec other than PCM or ADPCM

• Above 1280 × 720 resolution

• Larger than 2GB

Starting a PC Free Slide Show

After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your slide show.

Note: You can change the PC Free operation options or add special effects by highlighting Option at the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control.

The PC Free screen appears.

2. Do the following as necessary to locate your files:

• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight

the folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional files in a folder, highlight Next page or Previous page and press Enter. (You

can also press the Page up or down buttons on the remote control.)

3. Do one of the following:

• To display an individual image, press the arrow buttons to highlight the image and press Enter.

(Press the Esc button to return to the file list screen.)

• To display a slide show of all the images in a folder, press the arrow buttons to highlight the

Slideshow option at the bottom of the screen and press Enter.

Note: If any file names are longer than 8 characters or include unsupported symbols, the file names

may be shortened or changed only in the screen display.

4. While projecting, use the following commands to control the display as necessary:

• To rotate a displayed image, press the up or down arrow button.

• To move to the next or previous image, press the left or right arrow button.

5. To stop the display, follow the on-screen instructions or press the Esc button.

Parent topic: Projecting a PC Free Presentation

Starting a PC Free Movie Presentation

After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your movie.

Note: You can change the PC Free operation options by highlighting Option at the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control. The PC Free screen appears.

2. Do the following as necessary to locate your files:

• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight

the folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional files in a folder, highlight Next page or Previous page and press Enter. (You

can also press the Page up or down buttons on the remote control.)

3. To play back a movie, press the arrow buttons to highlight the file and press Enter. Note: If any file names are longer than 8 characters or include unsupported symbols, the file names

may be shortened or changed only in the screen display. If you want to play back all the movies in a folder in sequence, select the Slideshow option at the bottom of the screen.

4. To stop movie playback, press the Esc button, highlight Exit, and press Enter.

Parent topic: Projecting a PC Free Presentation

PC Free Display Options

You can select these display options when using the projector's PC Free feature.

Setting Options Description Display Order Name Order Displays files in name order

Date Order Displays files in date order

Sort Order In Ascending Sorts files in first-to-last order

In Descending Sorts files in last-to-first order

Continuous Play On Displays a slide show continuously

Off Displaysa slide show one time through

Screen Switching Time

No Does not display the next file automatically

1 Second to 60 Seconds Displays files for the selected time and

switches to the next file automatically; high resolution images may switch at a slightly slower rate

Effect Wipe Transitions between images with a wipe effect

Dissolve Transitions between images with a dissolve

effect

Random Transitions between images using a random

variety of effects

Parent topic: Projecting a PC Free Presentation

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Projector Security Features Projector Identification System for Multiple Projector Control Projecting Two Images Simultaneously Copying Menu Settings Between Projectors

Shutting Off the Picture and Sound Temporarily

You can temporarily turn off the projected picture and sound if you want to redirect your audience's attention during a presentation. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

If you want to display an image such as a company logo or picture when the presentation is stopped, you can set up this feature using the projector's menus.

Note: If the picture and sound are off for more than 30 minutes, the power automatically turns off. You can turn this setting on and off using the projector's ECO menu.

Note: The lamp is still lit while using A/V Mute and the lamp hours will continue to accumulate.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

2. To turn the picture and sound back on, press the A/V Mute button again.

100

Epson PowerLite 1286, PowerLite 1266 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Additional Projector Software and Manuals

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Projector Part Locations

Projector Parts - Front/Top

Projector Parts - Rear

Projector Parts - Base

Projector Parts - Control Panel
