Epson PowerLite E20, PowerLite X49, PowerLite W49, PowerLite 118, PowerLite 119W User Manual

...

Download

PowerLite

E20/X49/W49/118/119W/982W/992F/1288

User's Guide

PowerLite E20/X49/W49/118/119W/982W/992F/1288 User's Guide ....................................................... 11

Introduction to Your Projector ................................................................................................................. 12

Setting Up the Projector ........................................................................................................................... 27

Projector Features.............................................................................................................................. 12

Product Box Contents.................................................................................................................... 13

Additional Components ................................................................................................................ 14

Additional Projector Software and Manuals................................................................................... 15

Optional Equipment and Replacement Parts................................................................................. 16

Warranty and Registration Information .......................................................................................... 17

Notations Used in the Documentation ................................................................................................ 18

Where to Go for Additional Information .............................................................................................. 18

Projector Part Locations ..................................................................................................................... 18

Projector Parts - Front/Top ............................................................................................................ 19

Projector Parts - Rear .................................................................................................................... 20

Projector Parts - Base.................................................................................................................... 22

Projector Parts - Control Panel ...................................................................................................... 23

Projector Parts - Remote Control................................................................................................... 25

Projector Placement........................................................................................................................... 27

Projector Setup and Installation Options ....................................................................................... 27

Projection Distance........................................................................................................................ 29

Projector Connections........................................................................................................................ 36

Connecting to Computer Sources.................................................................................................. 36

Connecting to a Computer for USB Video and Audio................................................................ 36

Connecting to a Computer for VGA Video and Audio................................................................ 37

Connecting to a Computer for HDMI Video and Audio.............................................................. 38

Connecting to Video Sources ........................................................................................................ 39

Connecting to an HDMI Video Source ...................................................................................... 39

Connecting to a Component Video Source ............................................................................... 40

Connecting to a Composite Video Source ................................................................................ 41

Connecting to a Video Source for Sound .................................................................................. 42

Connecting External Output Devices............................................................................................. 42

Connecting to an External Computer Monitor ........................................................................... 43

Connecting to External Speakers.............................................................................................. 43

Connecting a Microphone ......................................................................................................... 44

Connecting to External USB Devices ............................................................................................ 45

USB Device Projection.............................................................................................................. 45

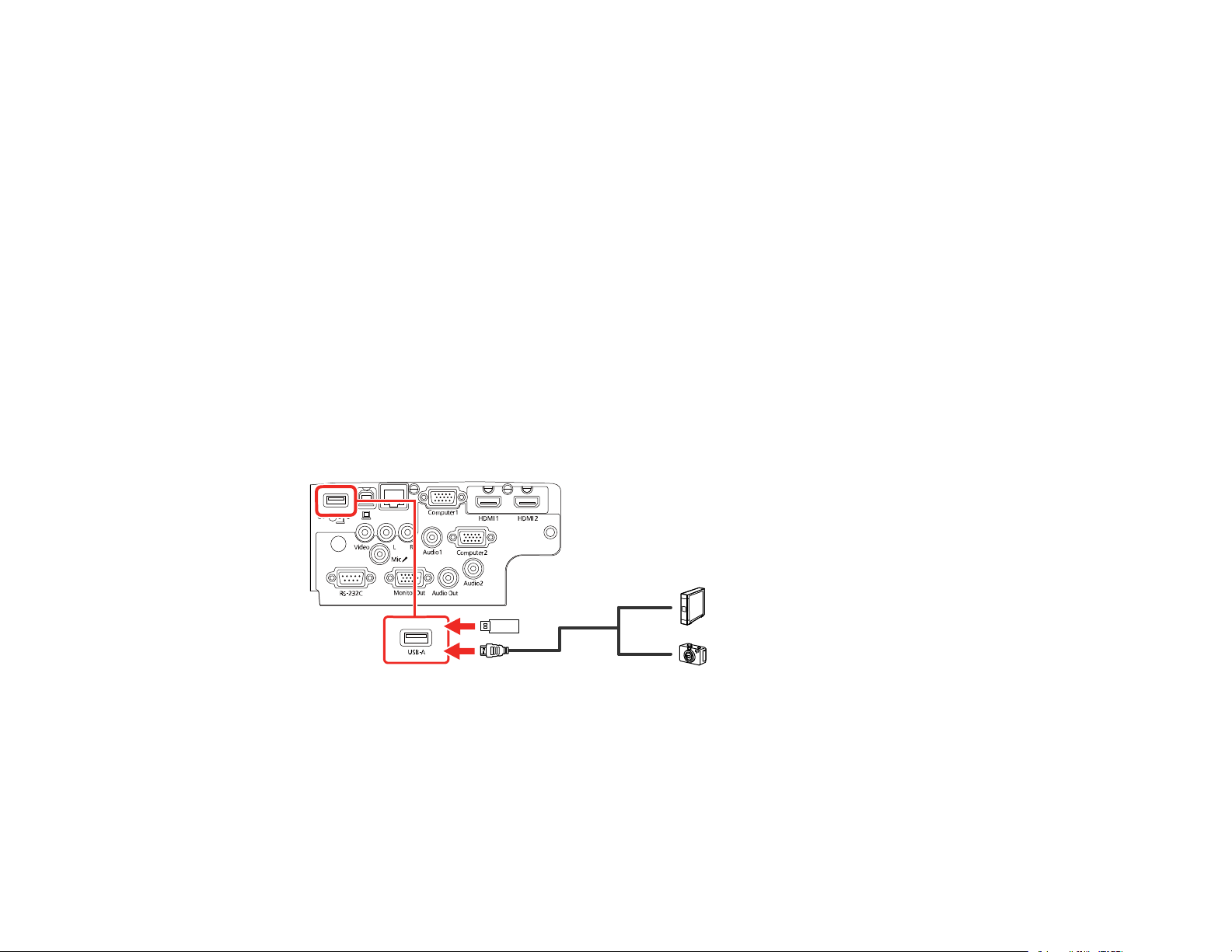

Connecting a USB Device or Camera to the Projector.............................................................. 46

Selecting the Connected USB Source ...................................................................................... 47

Disconnecting a USB Device or Camera From the Projector .................................................... 47

Connecting to a Document Camera .............................................................................................. 47

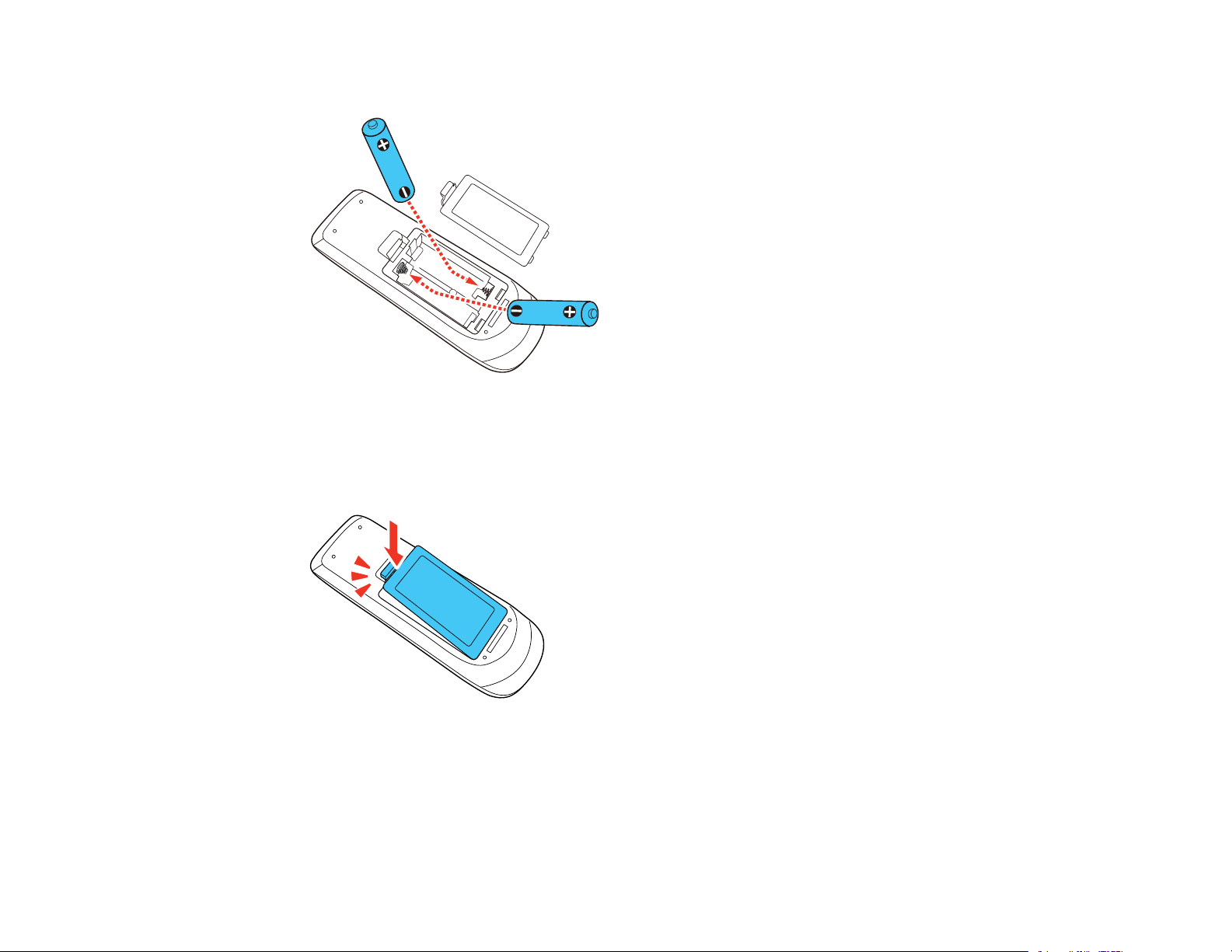

Installing Batteries in the Remote Control .......................................................................................... 48

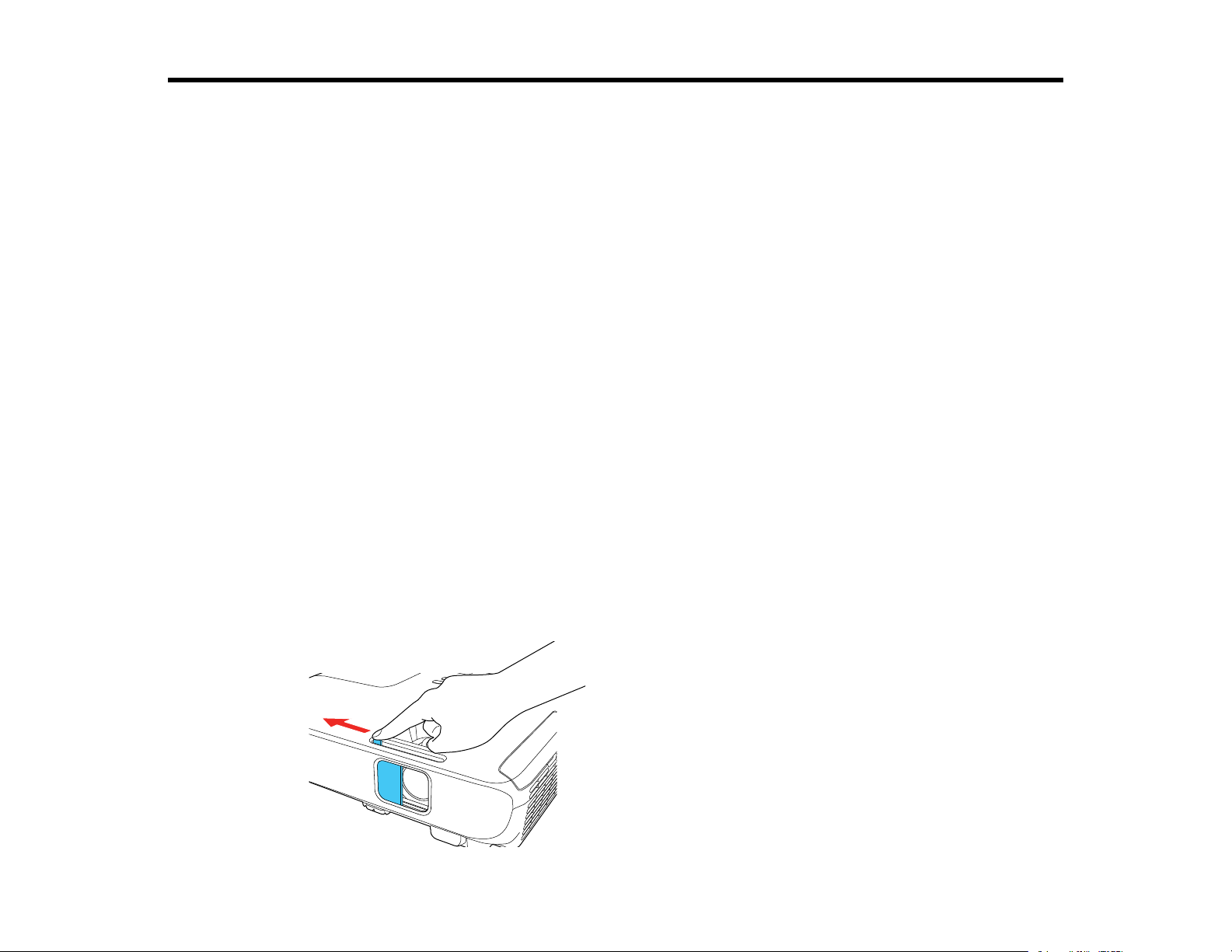

Opening the Lens Cover .................................................................................................................... 50

Using the Projector on a Network ............................................................................................................ 51

Wired Network Projection................................................................................................................... 51

Connecting to a Wired Network ..................................................................................................... 51

Selecting Wired Network Settings ................................................................................................. 52

Wireless Network Projection .............................................................................................................. 56

Installing the Wireless LAN Module ............................................................................................... 56

Using a QR Code to Connect a Mobile Device .............................................................................. 58

Using Quick Wireless Connection (Windows)................................................................................ 60

Selecting Wireless Network Settings Manually.............................................................................. 62

Wireless LAN Menu Settings .................................................................................................... 65

Selecting Wireless Network Settings in Windows.......................................................................... 66

Selecting Wireless Network Settings on Mac ................................................................................ 67

Setting Up Wireless Network Security ........................................................................................... 67

Setting Up Projector Network E-Mail Alerts ........................................................................................ 68

Network Projector E-mail Alert Messages ..................................................................................... 70

Setting Up Monitoring Using SNMP ................................................................................................... 70

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) .......... 72

Screen Mirroring Restrictions ........................................................................................................ 72

Selecting Screen Mirroring Settings .............................................................................................. 72

Connecting for Screen Mirroring with Miracast .............................................................................. 74

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer ............................... 74

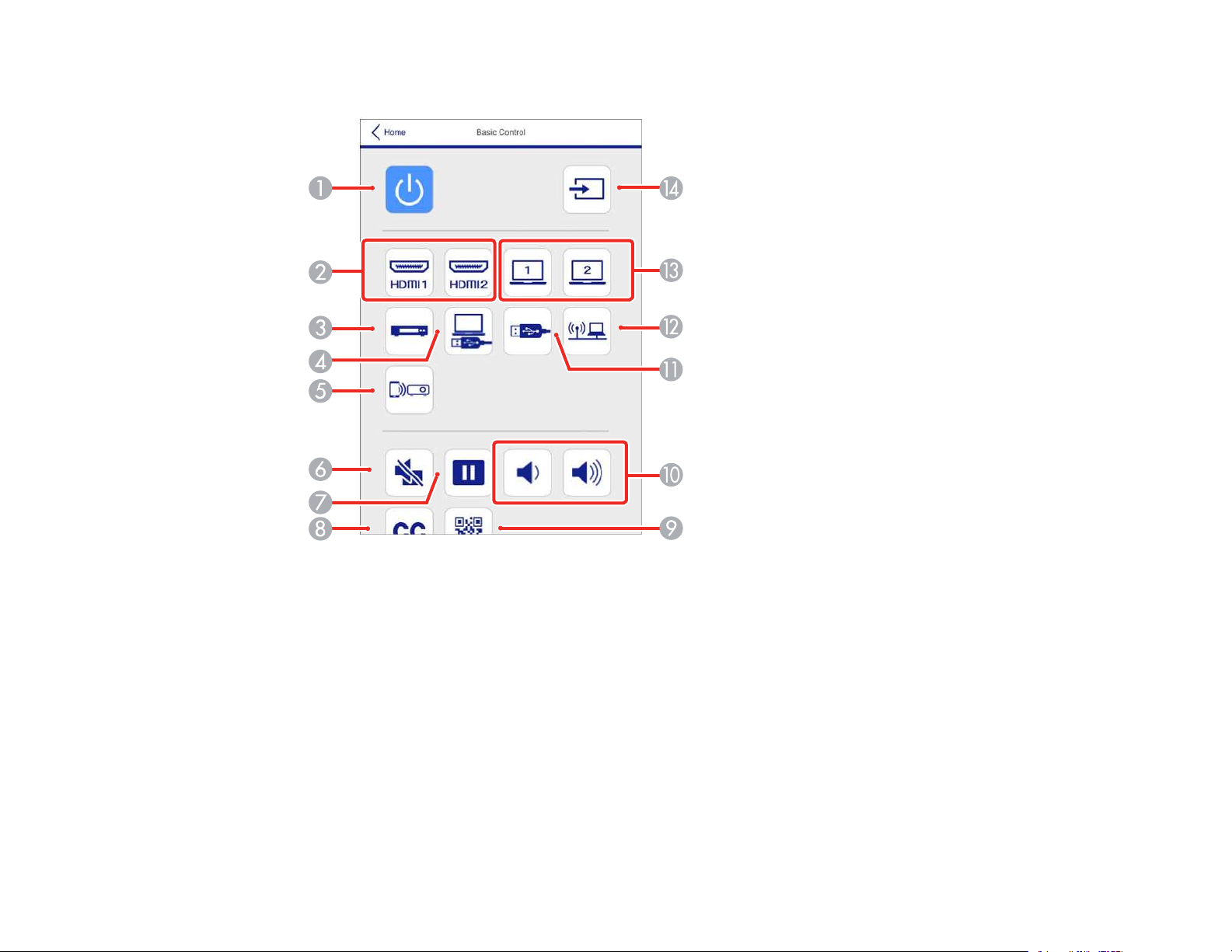

Controlling a Networked Projector Using a Web Browser .................................................................. 75

Using Crestron Connected................................................................................................................. 78

Setting Up Crestron Connected..................................................................................................... 78

Controlling a Networked Projector Using Crestron Connected...................................................... 79

Registering a Digital Certificate on the Projector ................................................................................ 82

Importing a Web Server Certificate Using the Projector Menus..................................................... 82

Registering Digital Certificates from a Web Browser ..................................................................... 83

Digital Certificate Types................................................................................................................. 85

Using Basic Projector Features ............................................................................................................... 87

Turning On the Projector .................................................................................................................... 87

Using the Home Screen................................................................................................................. 89

Turning Off the Projector .................................................................................................................... 90

Setting the Date and Time.................................................................................................................. 92

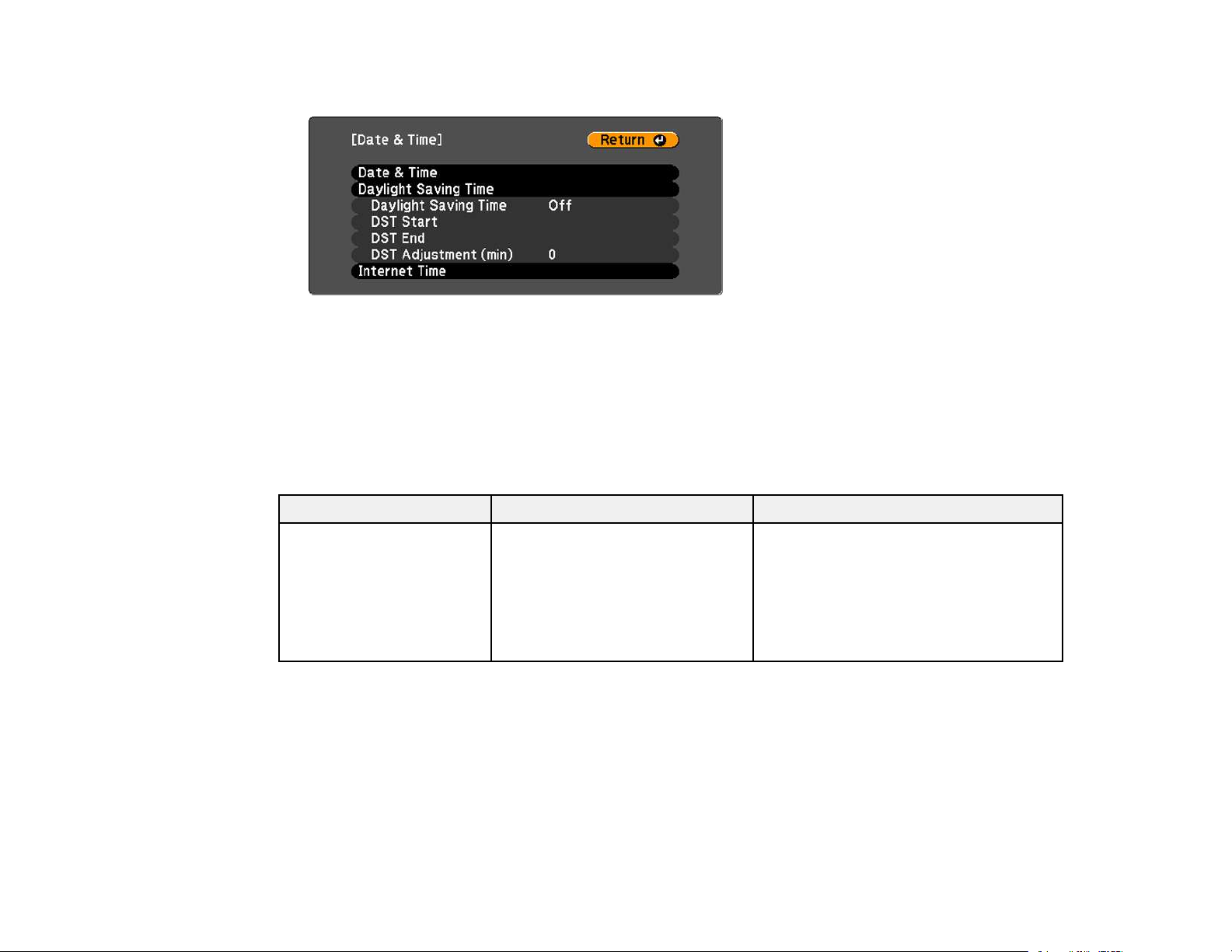

Date and Time Settings ................................................................................................................. 93

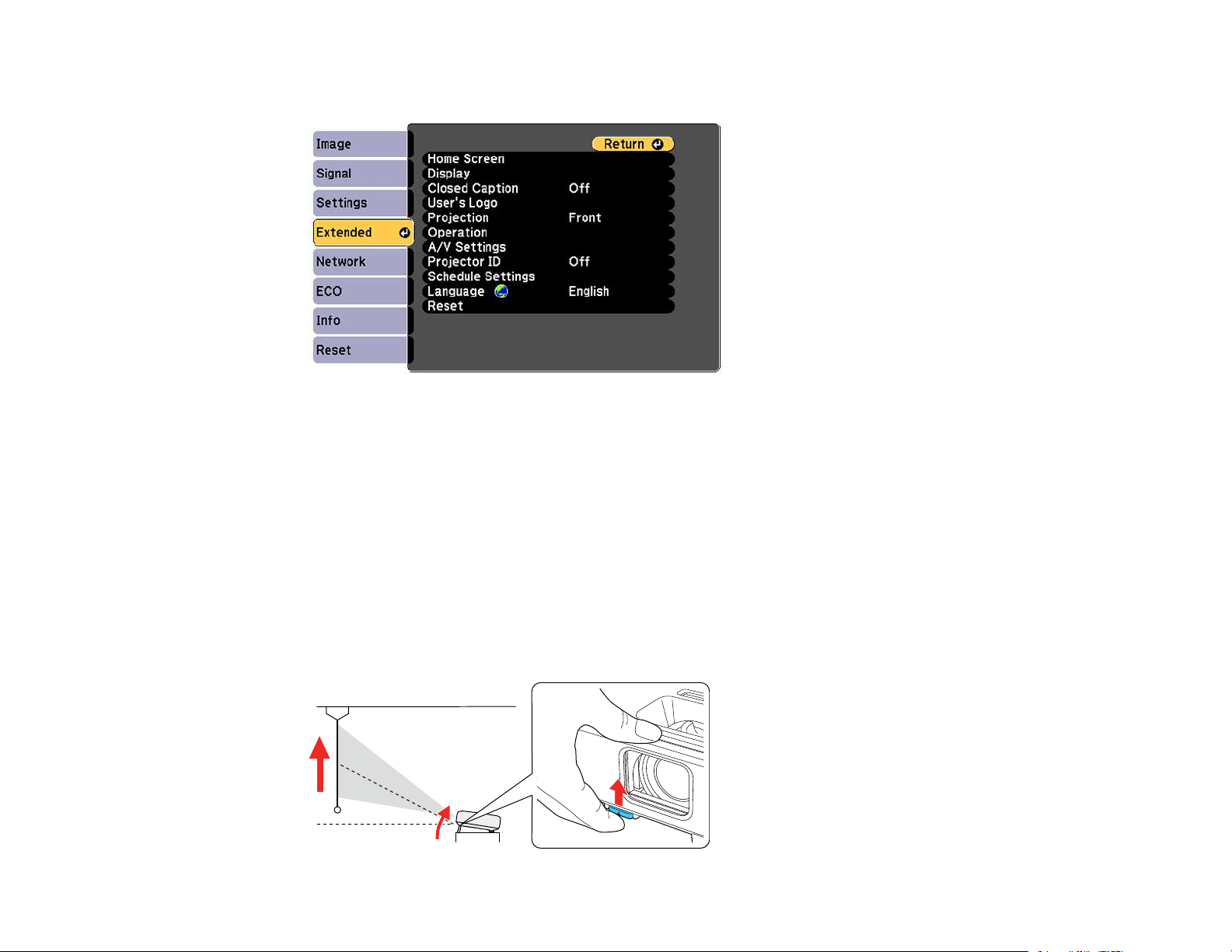

Selecting the Language for the Projector Menus................................................................................ 94

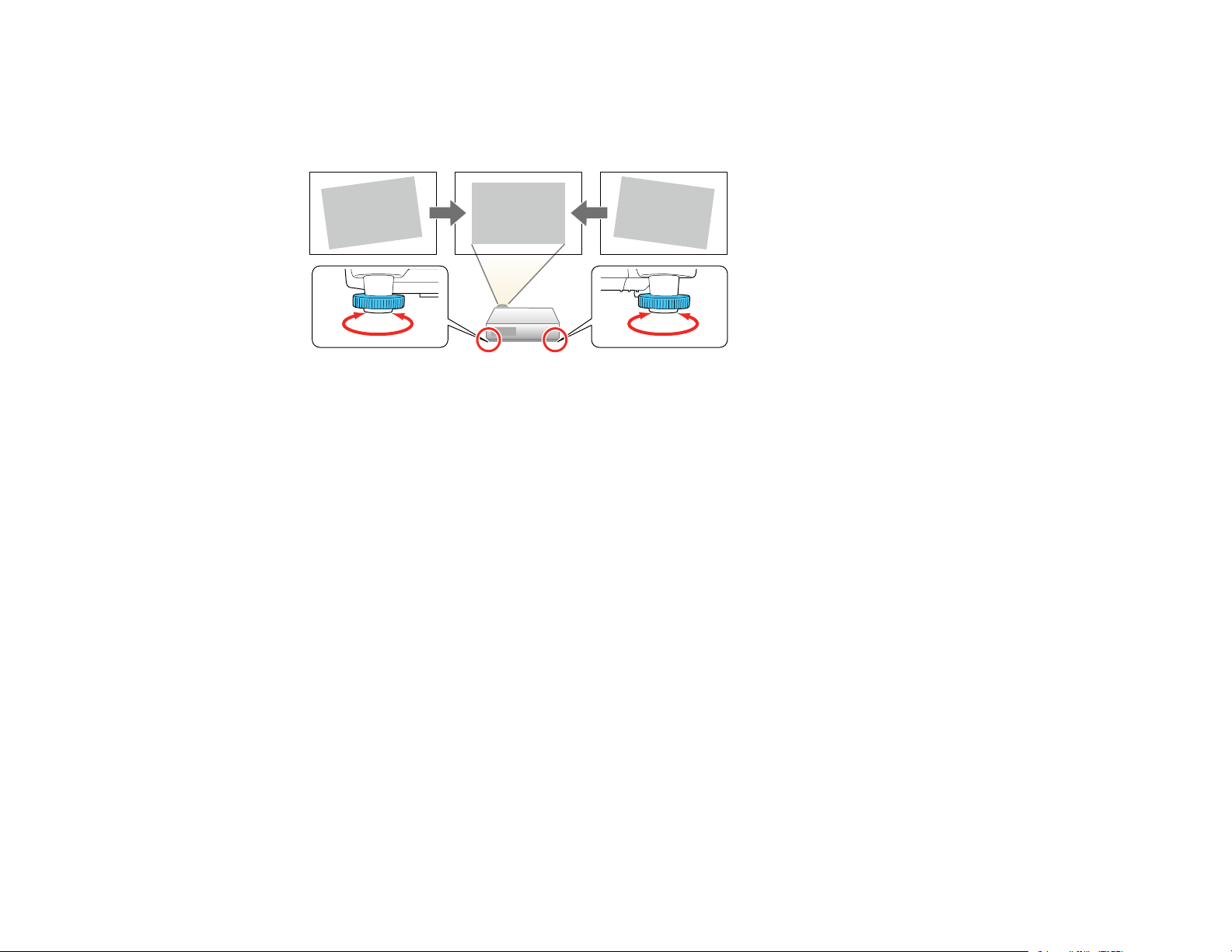

Adjusting the Image Height ................................................................................................................ 95

Image Shape...................................................................................................................................... 96

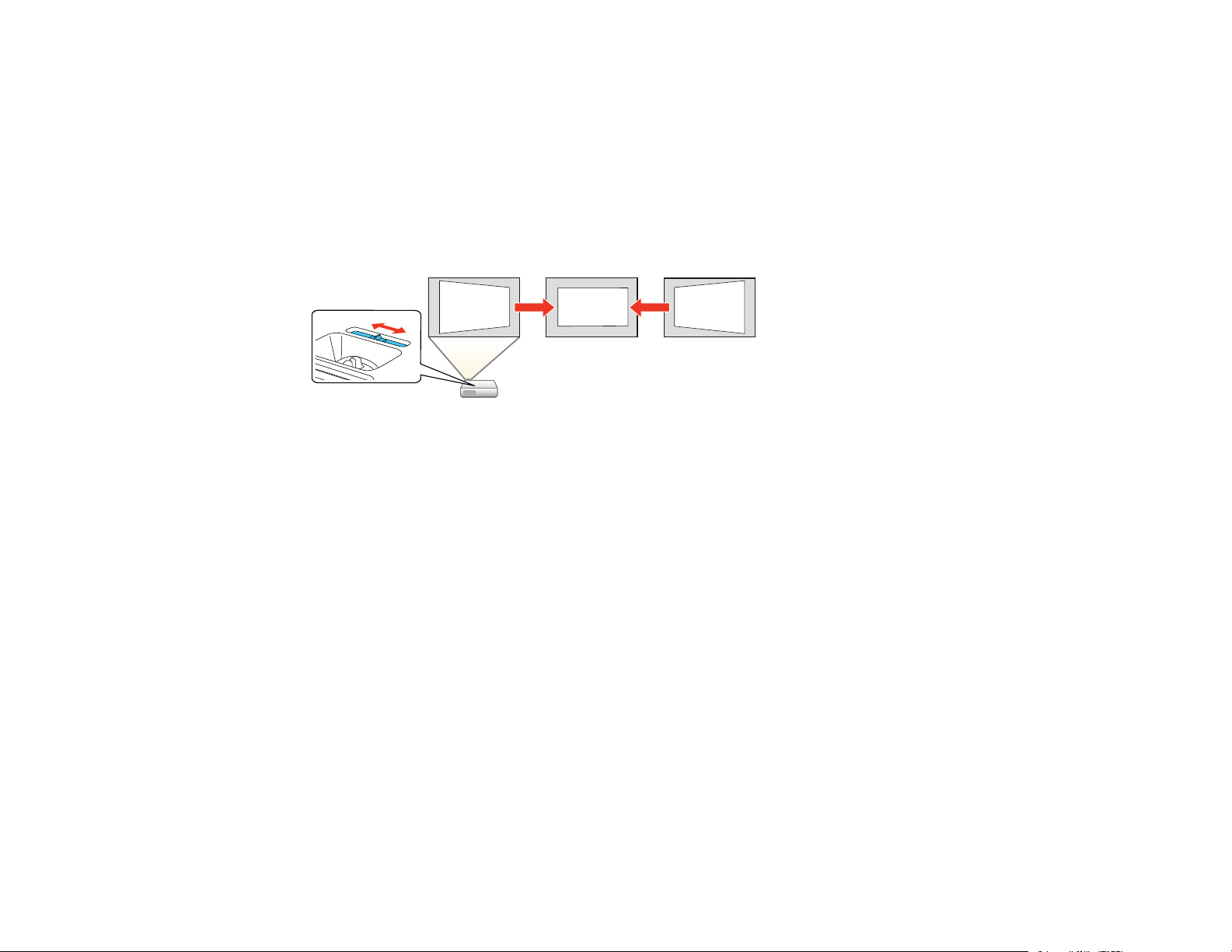

Correcting Image Shape with the Horizontal Keystone Slider ....................................................... 96

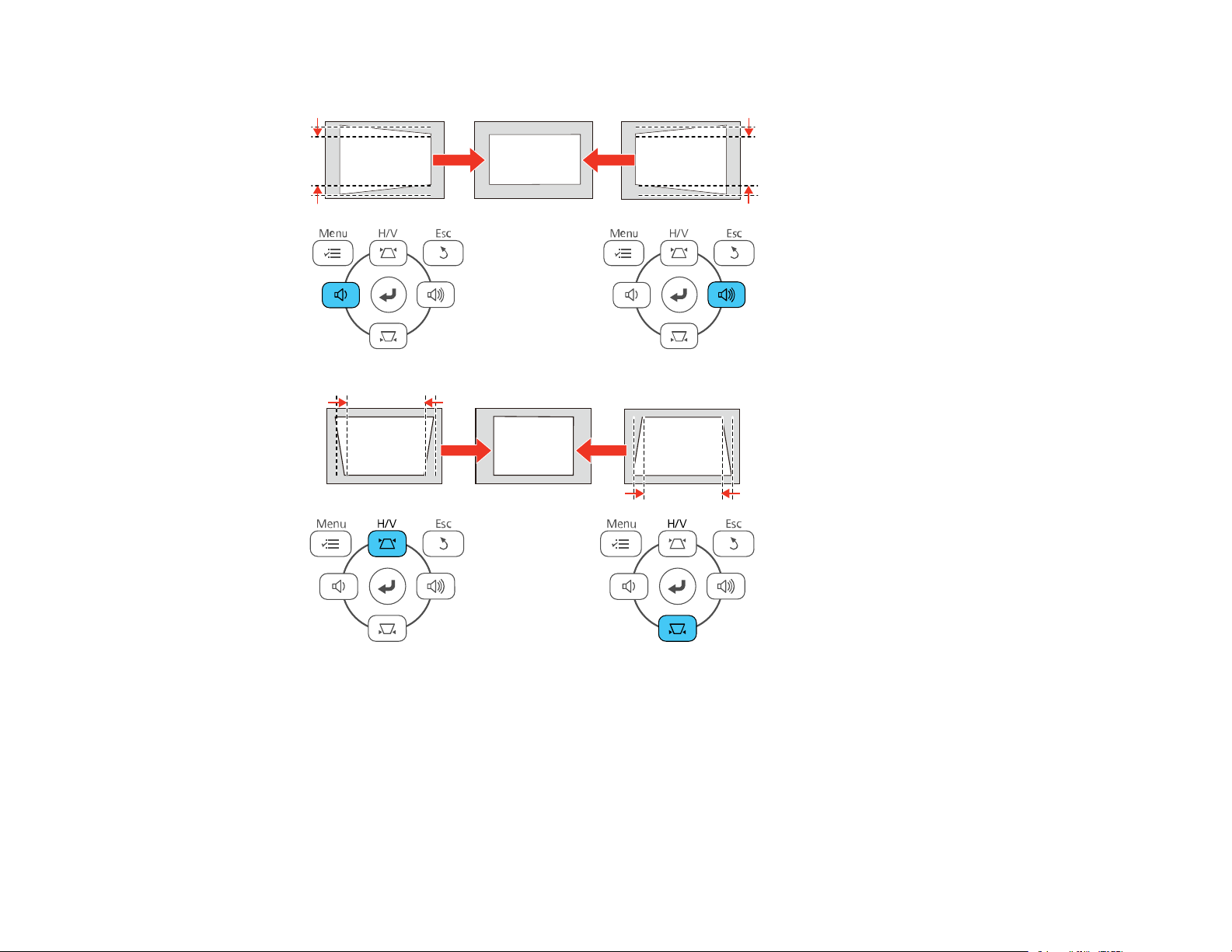

Correcting Image Shape with the Keystone Buttons...................................................................... 97

Correcting Image Shape with Quick Corner ................................................................................ 100

Resizing the Image with the Zoom Ring ........................................................................................... 102

Focusing the Image Using the Focus Ring....................................................................................... 102

Remote Control Operation ............................................................................................................... 103

Selecting an Image Source .............................................................................................................. 104

Projection Modes ............................................................................................................................. 106

Changing the Projection Mode Using the Remote Control .......................................................... 106

Changing the Projection Mode Using the Menus......................................................................... 107

Image Aspect Ratio .......................................................................................................................... 108

Changing the Image Aspect Ratio ............................................................................................... 108

Available Image Aspect Ratios .................................................................................................... 109

Color Mode....................................................................................................................................... 110

Changing the Color Mode............................................................................................................ 110

Available Color Modes................................................................................................................. 111

Turning On Auto Iris..................................................................................................................... 111

Controlling the Volume with the Volume Buttons.............................................................................. 112

Projecting a PC Free Presentation ................................................................................................... 113

PC Free Precautions ................................................................................................................... 113

Supported PC Free File Types .................................................................................................... 114

Starting a PC Free Slide Show .................................................................................................... 115

Starting a PC Free Movie Presentation ....................................................................................... 117

PC Free Display Options ............................................................................................................. 118

Adjusting Projector Features ................................................................................................................. 120

Shutting Off the Picture and Sound Temporarily .............................................................................. 120

Stopping Video Action Temporarily .................................................................................................. 121

Zooming Into and Out of Images ...................................................................................................... 122

Projector Security Features.............................................................................................................. 123

Password Security Types ............................................................................................................ 123

Setting a Password ................................................................................................................. 123

Selecting Password Security Types........................................................................................ 125

Entering a Password to Use the Projector............................................................................... 126

Saving a User's Logo Image to Display................................................................................... 127

Locking the Projector's Buttons ................................................................................................... 129

Unlocking the Projector's Buttons ........................................................................................... 130

Installing a Security Cable ........................................................................................................... 130

Projector Identification System for Multiple Projector Control........................................................... 130

Setting the Projector ID................................................................................................................ 131

Setting the Remote Control ID..................................................................................................... 132

Matching Multiple-Projector Display Quality ................................................................................ 132

Projecting Two Images Simultaneously............................................................................................ 134

Scheduling Projector Events ............................................................................................................ 136

Saving a Scheduled Event........................................................................................................... 136

Viewing Scheduled Events .......................................................................................................... 138

Editing a Scheduled Event........................................................................................................... 139

Copying Menu Settings Between Projectors .................................................................................... 140

Saving Settings to a USB Flash Drive.......................................................................................... 140

Transferring Settings from a USB Flash Drive ............................................................................. 142

Saving Settings to a Computer .................................................................................................... 143

Transferring Settings from a Computer ....................................................................................... 145

Adjusting the Menu Settings .................................................................................................................. 148

Using the Projector's Menus............................................................................................................. 148

Image Quality Settings - Image Menu .............................................................................................. 150

Input Signal Settings - Signal Menu.................................................................................................. 153

Projector Feature Settings - Settings Menu...................................................................................... 155

Projector Setup Settings - Extended Menu....................................................................................... 158

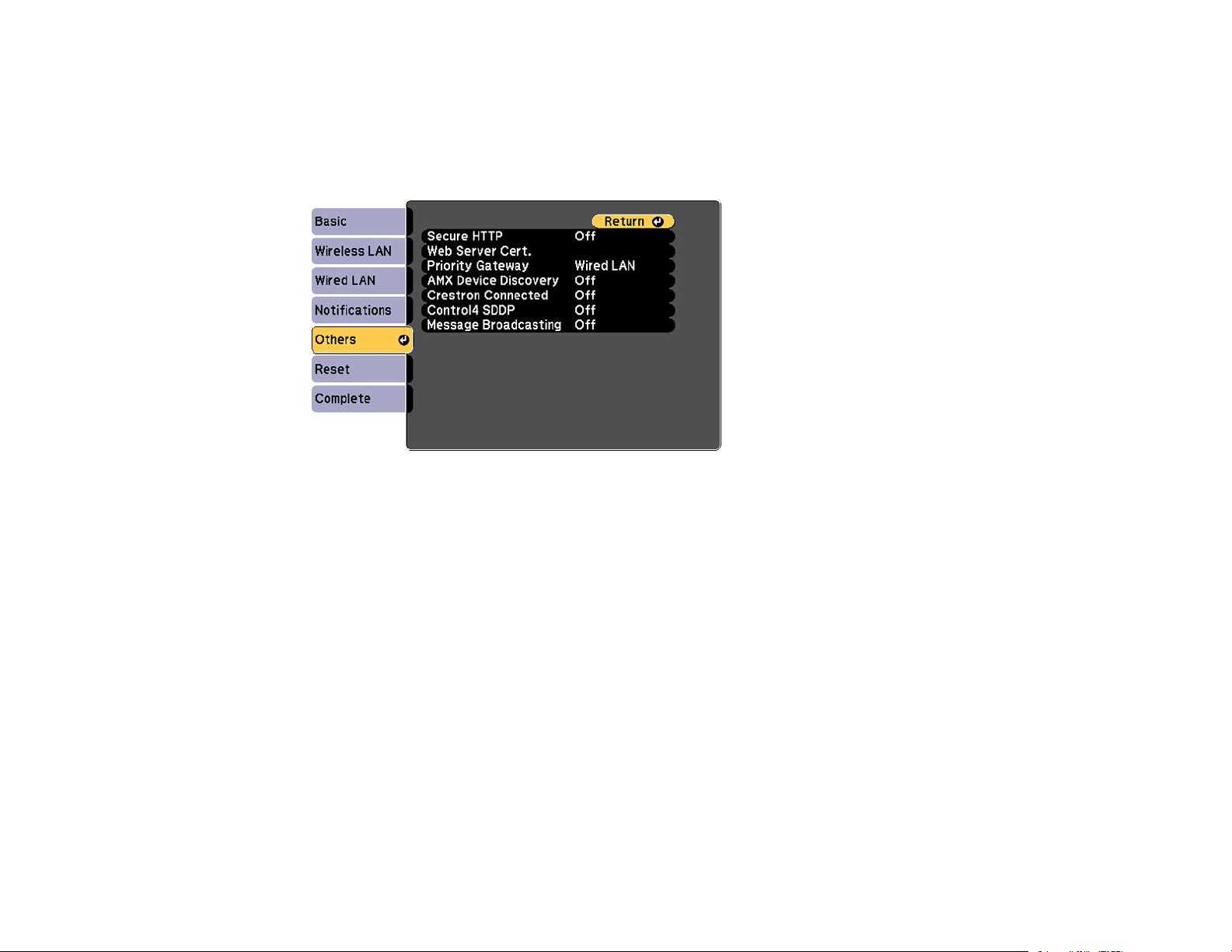

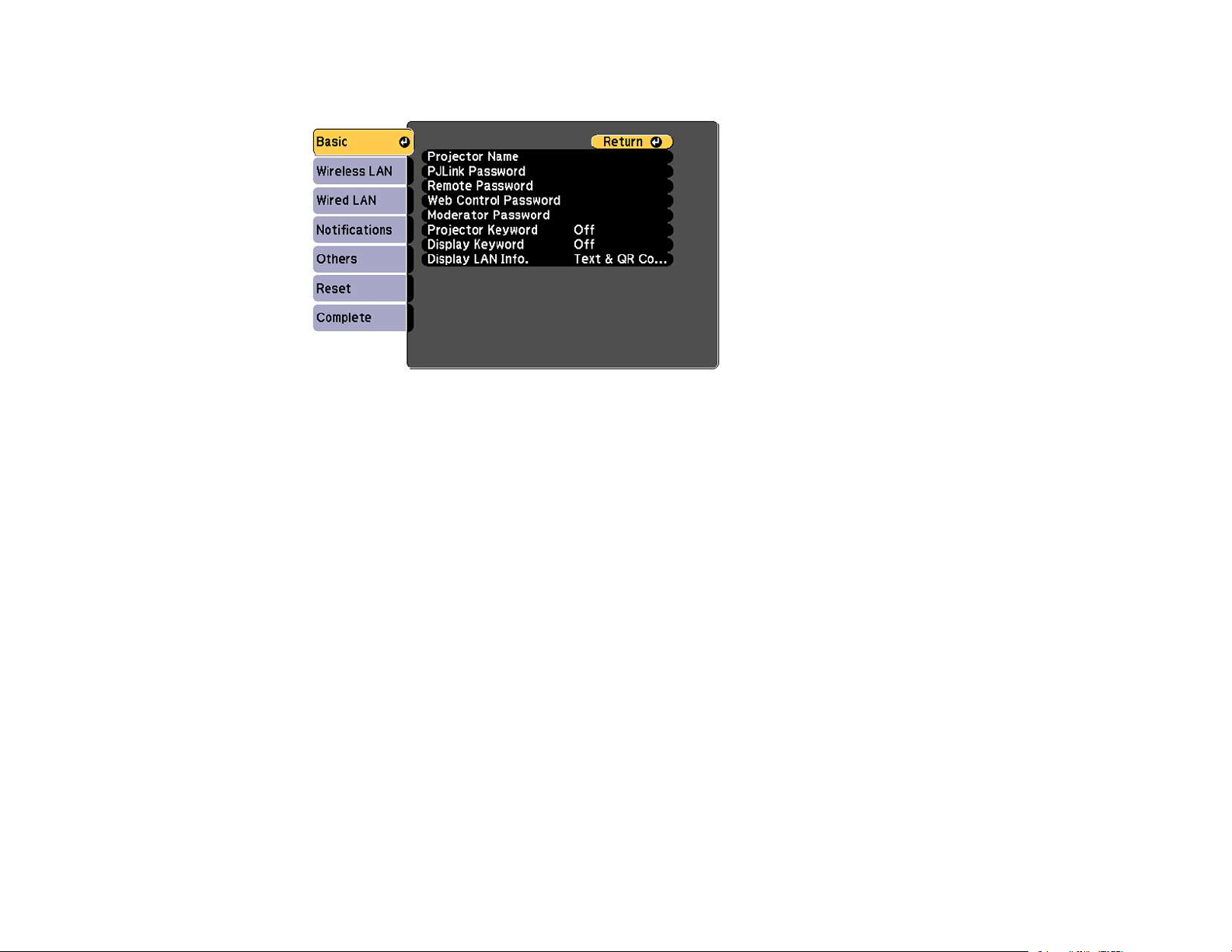

Projector Network Settings - Network Menu..................................................................................... 161

Projector Setup Settings - ECO Menu .............................................................................................. 164

Projector Information Display - Info Menu ........................................................................................ 166

Event ID Code List....................................................................................................................... 167

Projector Reset Options - Reset Menu............................................................................................. 168

Maintaining and Transporting the Projector ......................................................................................... 170

Projector Maintenance ..................................................................................................................... 170

Cleaning the Lens........................................................................................................................ 170

Cleaning the Projector Case ........................................................................................................ 171

Air Filter and Vent Maintenance .................................................................................................. 171

Cleaning the Air Filter and Vents............................................................................................. 172

Replacing the Air Filter ............................................................................................................ 172

Projector Lamp Maintenance....................................................................................................... 175

Replacing the Lamp ................................................................................................................ 176

Resetting the Lamp Timer....................................................................................................... 180

Replacing the Remote Control Batteries ..................................................................................... 181

Transporting the Projector................................................................................................................ 183

Solving Problems .................................................................................................................................... 184

Projection Problem Tips ................................................................................................................... 184

Projector Light Status ....................................................................................................................... 184

Using the Projector Help Displays .................................................................................................... 188

Solving Image or Sound Problems ................................................................................................... 189

Solutions When No Image Appears............................................................................................. 189

Solutions When Image is Incorrect Using the USB Display Function .......................................... 190

Solutions When "No Signal" Message Appears........................................................................... 191

Displaying From a PC Laptop ................................................................................................. 192

Displaying From a Mac Laptop ............................................................................................... 192

Solutions When "Not Supported" Message Appears ................................................................... 192

Solutions When Only a Partial Image Appears............................................................................ 193

Solutions When the Image is Not Rectangular ............................................................................ 193

Solutions When the Image Contains Noise or Static ................................................................... 194

Solutions When the Image is Fuzzy or Blurry .............................................................................. 195

Solutions When the Image Brightness or Colors are Incorrect .................................................... 196

Solutions to Sound Problems ...................................................................................................... 196

Solving Projector or Remote Control Operation Problems ............................................................... 197

Solutions to Projector Power or Shut-Off Problems..................................................................... 198

Solutions to Remote Control Problems........................................................................................ 198

Solutions to Password Problems ................................................................................................. 199

Solutions When a Battery Message Appears ................................................................................... 200

Solving Network Problems ............................................................................................................... 200

Solutions When Wireless Authentication Fails ............................................................................ 200

Solutions When You Cannot Access the Projector Through the Web ......................................... 201

Solutions When Network Alert E-Mails are Not Received............................................................ 201

Solutions When You Cannot Connect Using Screen Mirroring.................................................... 202

Solutions When the Image Contains Static During Network Projection ....................................... 202

Solutions When the Image or Sound Contains Static During Screen Mirroring ........................... 203

Where to Get Help............................................................................................................................ 203

Technical Specifications ........................................................................................................................ 205

General Projector Specifications ...................................................................................................... 205

Projector Lamp Specifications.......................................................................................................... 212

Remote Control Specifications ......................................................................................................... 214

Projector Dimension Specifications.................................................................................................. 214

Projector Electrical Specifications .................................................................................................... 215

Projector Environmental Specifications............................................................................................ 215

Projector Safety and Approvals Specifications................................................................................. 216

Supported Video Display Formats.................................................................................................... 216

USB Display System Requirements................................................................................................. 218

Notices ..................................................................................................................................................... 220

Recycling.......................................................................................................................................... 220

Important Safety Information ............................................................................................................ 220

Important Safety Instructions............................................................................................................ 221

Restriction of Use ........................................................................................................................ 224

List of Safety Symbols and Instructions............................................................................................ 224

FCC Compliance Statement............................................................................................................. 228

Binding Arbitration and Class Waiver ............................................................................................... 229

Trademarks...................................................................................................................................... 232

Copyright Notice............................................................................................................................... 233

A Note Concerning Responsible Use of Copyrighted Materials................................................... 233

Copyright Attribution.................................................................................................................... 234

PowerLite E20/X49/W49/118/119W/982W/992F/1288 User's Guide

Welcome to the PowerLite E20/X49/W49/118/119W/982W/992F/1288 User's Guide.

For a printable PDF copy of this guide, click here.

Note: The PowerLite 992F is shown in most illustrations in this manual, unless noted otherwise.

Note: Availability of products in this guide varies by country.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

Your projector includes these special features:

Bright, high-resolution projection system

• PowerLite E20: Up to 3400 lumens of color brightness (color light output) and 3400 lumens of white brightness (white light output)

• PowerLite X49: Up to 3600 lumens of color brightness (color light output) and 3600 lumens of white brightness (white light output)

• PowerLite W49/118: Up to 3800 lumens of color brightness (color light output) and 3800 lumens of white brightness (white light output)

• PowerLite 119W/992F/1288: Up to 4000 lumens of color brightness (color light output) and 4000 lumens of white brightness (white light output)

• PowerLite 982W: Up to 4200 lumens of color brightness (color light output) and 4200 lumens of white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• PowerLite E20/X49/118: Native resolution of 1024 × 768 pixels (XGA)

• PowerLite W49/119W/982W: Native resolution of 1280 × 800 pixels (WXGA)

• PowerLite 992F/1288: Native resolution of 1920 × 1080 pixels (Full HD)

Flexible connectivity

• Plug-and-play USB projection for instant setup

• Wireless network support for projection, monitoring, and control via remote (requires the optional wireless LAN module for PowerLite X49/W49/118/119W/982W; not available on PowerLite E20)

• Projection from iOS devices, Android devices, and Chromebooks with the free Epson iProjection app; visit epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information (requires the optional wireless LAN module for PowerLite X49/W49/118/119W/982W; not available on PowerLite E20)

• PC Free photo slide shows via connected USB memory devices or Epson document camera (not available on PowerLite E20)

• Two HDMI ports for multiple high-definition AV devices

• Miracast screen mirroring for laptops and mobile devices (PowerLite 992F/1288)

Easy-to-use setup and operation features

• Epson's quick-connect on-screen QR code feature for easy wireless setup

• Low total cost of ownership with longer lamp life

• Automatic vertical keystone correction (not available on PowerLite E20) and innovative horizontal keystone correction slider for flexible projector placement

• Epson's Instant Off and Direct Power On features for quick setup and shut down

• Built-in closed captioning decoder (composite NTSC input signal only)

Note: The PowerLite 992F is shown in most illustrations in this manual, unless noted otherwise.

Product Box Contents Additional Components Additional Projector Software and Manuals Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector boxes included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (two AA alkaline)

4 Power cord

5 VGA computer cable

6 Wireless LAN module cover (PowerLite X49/W49/118/119W/982W)

Note: Your projector may include an HDMI cable instead of a VGA computer cable. The wireless LAN module cover may be provided with the optional wireless LAN module instead of the projector.

Parent topic: Projector Features

Related concepts

Projector Connections

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you

to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

Component video D-sub, 15-pin, component-to-VGA video cable or adapter

HDMI Compatible HDMI cable

USB Compatible USB cable

Audio from certain ports Commercially available audio cable compatible with your device

Parent topic: Projector Features

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller.

Note: Older Mac computers (2009 and earlier) may not support HDMI audio.

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software as necessary. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Projector software Manual Description

Epson Projector Management (Windows only)

Epson iProjection (Windows/Mac)

Epson iProjection app Instructions are included

— Open Source Software

Epson Projector Management Operation Guide

Epson iProjection Operation Guide (Windows/Mac)

with the app

License

Lets you monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.), epson.ca/support

(Canada), or latin.epson.com/support (Caribbean) and select your projector.

Lets you project the computer screens of users over a network.

You can download the latest software and documentation from the Epson web site.

Lets you project from an iOS device, Android device, or Chromebook if your projector is connected to a network that includes a wireless access point.

Visit for more information.

You can download this document from the Epson web site. Go to epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada, or visit latin.epson.com (Caribbean). Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Note: Availability of accessories varies by country.

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson replacement lamp (ELPLP97) V13H010L97

Replacement air filter (ELPAF32) for PowerLite E20/X49/W49/118/119W

Replacement air filter (ELPAF54) for PowerLite 982W/992F/1288 V13H134A54

Wireless LAN module (ELPAP11) for PowerLite X49/W49/118/119W/982W

Universal projector mount (ELPMBPJG) V12H808001

Soft carrying case (ELPKS70) V12H001K70

Active speakers (ELPSP02) V12H467020

Epson DC-07 USB document camera (ELPDC07) V12H759020

Epson DC-13 document camera (ELPDC13) V12H757020

Epson DC-21 document camera (ELPDC21) V12H758020

HDMI audio video cable 3 feet (0.9 m) length AV22300-03

HDMI audio video cable 6 feet (1.8 m) length AV22300-06

1-Year Extended Exchange Service Plan EPPEXPA1

2-Year Extended Exchange Service Plan EPPEXPA2

Parent topic: Projector Features

V13H134A32

V12H005A02

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Note: Availability varies by region.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• Built-in help system

Press the Home button on the remote control, select Help, and press Enter to get quick solutions to common problems.

• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Note: The PowerLite 992F is shown in most illustrations in this manual, unless noted otherwise.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base

Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent

2 A/V Mute slide lever

3 Foot release lever

4 Lens cover

5 Front adjustable foot

6 Lens

7 Remote control receiver

8 Horizontal keystone slider

9 Air filter/intake vent

10 Air filter cover

11 Kensington security lock slot

12 Control panel

13 Zoom ring

14 Focus ring

15 Lamp cover

Parent topic: Projector Part Locations

Projector Parts - Rear

1 AC input

2 RS-232C port

3 Video port

4 Mic port

5 L and R audio ports

6 Monitor Out port

7 Audio1 port

8 Audio Out port

9 Audio2 port

10 Computer2 port

11 Speaker

12 HDMI1 and HDMI2 ports

13 Computer1 port

14 LAN (network) port

15 USB-B port

16 USB-A port

17 Wireless LAN module cover screw

18 Remote receiver

Note: The availability of some ports depends on your projector model.

Parent topic: Projector Part Locations

Projector Parts - Base

1 Ceiling mount holes (3)

2 Security cable attachment point

3 Rear feet

4 Front adjustable foot

Note: Use M4×9mm screws for mounting the projector.

Parent topic: Projector Part Locations

Projector Parts - Control Panel

PowerLite E20

PowerLite X49/W49/118/119W/982W/992F/1288

1 Source Search button (searches for connected video sources)

2 Enter button (selects options)

3 Vertical keystone adjustment buttons (displays the adjustment screen and adjusts screen shape)

and arrow buttons

4 Esc button (cancels/exits functions)

5 Volume buttons (adjust speaker volume), horizontal keystone adjustment buttons, and arrow

buttons

6 Menu button (accesses projector menu system)

7 Home button (displays Home screen)

8 Power button

9 Status lights

Parent topic: Projector Part Locations

Related references

Projector Light Status

Related tasks

Using the Projector Help Displays

Projector Parts - Remote Control

1 Power button

2 HDMI button (cycles through connected HDMI sources)

3 Computer button (cycles through connected computer sources)

4 Numeric buttons (enter numbers when you hold down the Num button)

5 Auto button (automatically adjusts position, tracking, and sync settings when projecting from a

computer using a VGA cable)

6 Num button (when held down, switches numeric buttons to number function)

7 Menu button (accesses projector menu system)

8 Arrow buttons (move through on-screen options)

9 Enter button (selects options)

10 User button (customizable for different functions)

11 Color Mode button (selects display modes)

12 Aspect button (selects the image aspect ratio)

13 E-Zoom +/– buttons (zoom into and out of the image)

14 A/V Mute button (turns off picture and sound)

15 Split button (splits the screen between two image sources)

16 Home button (accesses source selection, projector help information, and other features)

17 Freeze button (stops video action)

18 Volume up/down buttons (adjust speaker volume)

19 Default button (returns a selected setting to its default)

20 Esc button (cancels/exits functions and controls wireless mouse functions)

21 ID button (selects which projector you want to control)

22 LAN button (cycles through connected network sources)

23 USB button (cycles through connected USB sources)

24 Source Search button (searches for connected sources)

25 Remote control signal emitter (emits remote control signals)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover

Projector Placement

You can place the projector on almost any flat surface to project an image.

You can also install the projector in a ceiling mount if you want to use it in a fixed location.

Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Place the projector parallel to the screen.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).

1 Projection distance

2 Distance from the center of the lens to the base of the image

3 Center of lens

PowerLite E20

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

30 inches 34 to 46 inches

(87 to 118 cm)

Offset from lens center (2)

Wide to Tele

–2 inches (–5 cm)

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

50 inches 57 to 78 inches

(146 to 198 cm)

60 inches 69 to 94 inches

(176 to 238 cm)

70 inches 81 to 109 inches

(205 to 278 cm)

80 inches 93 to 125 inches

(235 to 318 cm)

100 inches 116 to 157 inches

(294 to 398 cm)

150 inches 174 to 235 inches

(442 to 598 cm)

200 inches 232 to 314 inches

(590 to 797 cm)

300 inches 349 inches

Offset from lens center (2)

Wide to Tele

–3.2 inches (–8 cm)

–3.9 inches (–10 cm)

–4.7 inches (–12 cm)

–5.5 inches (–14 cm)

–6.7 inches (–17 cm)

–9.8 inches (–25 cm)

–13.4 inches (–34 cm)

–20.1 inches (–51 cm)

(886 cm)

350 inches 407 inches

(1034 cm)

–23.2 inches (–59 cm)

PowerLite X49/118

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

30 inches 35 to 42 inches

(89 to 107 cm)

40 inches 47 to 56 inches

(119 to 143 cm)

50 inches 59 to 71 inches

(150 to 180 cm)

60 inches 71 to 85 inches

(180 to 217 cm)

80 inches 95 to 114 inches

(241 to 290 cm)

100 inches 119 to 143 inches

(302 to 363 cm)

150 inches 179 to 215 inches

(454 to 546 cm)

200 inches 239 to 287 inches

Offset from lens center (2)

Wide to Tele

–2 inches (–5 cm)

–2.8 inches (–7 cm)

–3.2 inches (–8 cm)

–3.9 inches (–10 cm)

–5.5 inches (–14 cm)

–6.7 inches (–17 cm)

–9.8 inches (–25 cm)

–13.4 inches (–34 cm)

(607 to 729 cm)

250 inches 299 to 359 inches

(759 to 912 cm)

300 inches 359 to 431 inches

(912 to 1095 cm)

–16.5 inches (–42 cm)

–20.1 inches (–51 cm)

PowerLite W49/119W

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

33 inches 36 to 43 inches

(91 to 110 cm)

35 inches 38 to 46 inches

(97 to 117 cm)

40 inches 44 to 53 inches

(111 to 134 cm)

50 inches 55 to 66 inches

(139 to 168 cm)

60 inches 66 to 80 inches

(168 to 202 cm)

80 inches 89 to 106 inches

(225 to 270 cm)

100 inches 111 to 133 inches

(281 to 338 cm)

150 inches 167 to 200 inches

Offset from lens center (2)

Wide to Tele

–1.6 inches (–4 cm)

–2 inches (–5 cm)

–2.4 inches (–6 cm)

–2.8 inches (–7 cm)

–3.9 inches (–10 cm)

–4.7 inches (–12 cm)

–7.1 inches (–18 cm)

(424 to 509 cm)

200 inches 223 to 268 inches

(566 to 680 cm)

320 inches 357 to 429 inches

(907 to 1089 cm)

–9.4 inches (–24 cm)

–15.4 inches (–39 cm)

PowerLite 982W

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

29 inches 33 to 55 inches

(85 to 140 cm)

35 inches 41 to 67 inches

(97 to 117 cm)

40 inches 46 to 76 inches

(118 to 193 cm)

50 inches 59 to 96 inches

(149 to 243 cm)

60 inches 70 to 115 inches

(179 to 292 cm)

80 inches 94 to 154 inches

(239 to 390 cm)

100 inches 118 to 192 inches

(300 to 438 cm)

150 inches 178 to 289 inches

Offset from lens center (2)

Wide to Tele

–0.4 inches (–1 cm)

–0.8 inches (–2 cm)

–1.2 inches (–3 cm)

–2 inches (–5 cm)

(451 to 733 cm)

200 inches 237 to 385 inches

(603 to 979 cm)

280 inches 333 to 540 inches

(845 to 1371 cm)

–2.8 inches (–7 cm)

–3.5 inches (–9 cm)

PowerLite 992F/1288

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

30 inches 34 to 56 inches

(87 to 142 cm)

40 inches 46 to 75 inches

(116 to 190 cm)

50 inches 57 to 94 inches

(146 to 238 cm)

60 inches 69 to 113 inches

(176 to 286 cm)

80 inches 93 to 150 inches

(235 to 382 cm)

100 inches 116 to 188 inches

(295 to 478 cm)

150 inches 174 to 283 inches

(443 to 719 cm)

200 inches 233 to 378 inches

Offset from lens center (2)

Wide to Tele

0 inches (0 cm)

0.4 inches (1 cm)

(591 to 959 cm)

250 inches 291 to 472 inches

(740 to 1200 cm)

300 inches 350 to 567 inches

(888 to 1441 cm)

Parent topic: Projector Placement

0.4 inches (1 cm)

Projector Connections

See these sections to connect the projector to a variety of projection sources.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting External Output Devices Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu Additional Components

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video and Audio Connecting to a Computer for HDMI Video and Audio

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

Note: An HDMI connection is recommended for projecting content requiring high bandwidth.

1. Turn on your computer.

2. Connect the cable to your projector's USB-B port.

3. Connect the other end to any available USB port on your computer.

4. Do one of the following:

• Windows 10/Windows 8.x: Click EPSON_PJ_UD when it appears on the desktop, then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for VGA Video and Audio

You can connect the projector to your computer using a VGA computer cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

5. Connect an audio cable to your laptop's headphone or audio out jack, or your desktop's speaker or audio out port.

6. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers. (Make sure the HDMI audio playback device on your computer's audio settings is set to EPSON PJ.)

Note: If you have problems hearing audio through the HDMI connection, connect one end of an optional

3.5 mm stereo mini-jack audio cable to the projector's Audio port and the other end to your computer's

audio out port. Then select the audio port you connected to as the HDMI Audio Output setting in the Extended menu.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component Video Source Connecting to a Composite Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

Note: Your projector may include an HDMI cable.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Note: If you have problems hearing audio through the HDMI connection, you can use the Audio port instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to the projector's Audio port and the other end to your computer's audio out port. Then select Audio as the

HDMI Audio Output setting in the Extended menu.

Parent topic: Connecting to Video Sources

Connecting to a Component Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to a Computer port on the projector.

3. Tighten the screws on the VGA connector.

Parent topic: Connecting to Video Sources

Related references

Input Signal Settings - Signal Menu

Related tasks

Connecting to a Video Source for Sound

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources

Related tasks

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. Connect the projector to the video source using an RCA audio cable.

Note: Make sure the audio cable is labeled "No Resistance."

Note: If you connected your video source to the projector using an HDMI cable, the audio signal is

transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's L and R audio ports.

Parent topic: Connecting to Video Sources

Connecting External Output Devices

See these sections to connect the projector to external output devices.

Connecting to an External Computer Monitor Connecting to External Speakers Connecting a Microphone

Parent topic: Projector Connections

Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select

Always On as the A/V Output setting in the projector's Extended menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer port. If there are two computer ports, make sure you use the Computer1 port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

Parent topic: Connecting External Output Devices

Related references

Projector Setup Settings - Extended Menu

Connecting to External Speakers

You can connect the projector to external self-powered speakers and control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers.

If you want to output audio from the external speakers when the projector is turned off, you need to select Always On as the A/V Output setting in the projector's Extended menu.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pinjack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Connecting External Output Devices

Related references

Projector Setup Settings - Extended Menu

Connecting a Microphone

You can connect a microphone to the projector's Mic port to provide audio support during presentations (PowerLite 118/119W/982W/992F).

Note: If you want to output audio from the microphone when the projector is off, select Always On as the A/V Output setting in the Extended menu.

1. Connect the microphone cable to the projector's Mic port.

2. Turn on the microphone, if necessary.

3. If you hear a crackling noise or the volume is too high or low, adjust the Mic Input Level setting in the Settings menu.

Parent topic: Connecting External Output Devices

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector:

• USB flash drive

• Digital camera or smartphone

• USB hard drive

Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices,

and must be USB Mass Storage Class-compliant.

Note: USB hard drives must meet these requirements:

• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)

• Formatted in FAT or FAT32

• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)

• Does not have multiple partitions

You can project slide shows from image files on a connected USB device.

Parent topic: Connecting to External USB Devices

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive) to the projector's USB-A port.

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to the USB-A port.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB button on the remote control.

Parent topic: Connecting to External USB Devices

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera.

Depending on your Epson document camera model, do one of the following to connect the document camera to your projector:

• For the Epson DC-07 document camera, locate the USB cable that came with the camera and

connect it to the projector's USB-A port and to the document camera's USB Type B port.

• For the Epson DC-13 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-21 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

Note: For additional features supported by software, connect your document camera to your computer

instead of the projector. See the document camera manual for details.

Parent topic: Projector Connections

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not

inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Opening the Lens Cover

To open the projector's lens cover, slide the A/V Mute slide lever until it clicks into the open position.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) Controlling a Networked Projector Using a Web Browser Using Crestron Connected Registering a Digital Certificate on the Projector

Wired Network Projection

You can project through a wired network (not supported on PowerLite E20/1288). To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen in Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the Epson iProjection (Windows/Mac) software to access the projector.

• Display Keyword lets you select whether or not to display a projector keyword on the projected

image when using the Epson iProjection (Windows/Mac) software to access the projector.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter. Or, press and hold the Num button on the remote control while entering the desired numbers.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then select the Auto Configuration and Use Temporary Address settings as necessary.

12. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network (not supported on PowerLite E20). To do this, you must set up your projector and computer for wireless projection.

Note: The Epson 802.11b/g/n wireless LAN module is optional for PowerLite X49/W49/118/119W/982W. The wireless module is built-in for PowerLite 992F/1288.

There are two ways to connect to your projector wirelessly:

• Creating a Quick Wireless Connection USB Key (Windows only) using the Epson iProjection software

• Configuring the connection manually using the projector's Network menus

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Installing the Wireless LAN Module Using a QR Code to Connect a Mobile Device Using Quick Wireless Connection (Windows) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals Optional Equipment and Replacement Parts

Installing the Wireless LAN Module

To use the projector over a wireless network, install the Epson 802.11b/g/n wireless LAN module in the projector (PowerLite X49/W49/118/119W/982W). Do not install any other type of wireless module.

Note: The wireless LAN module is not included with your projector and is optional.

Note: You do not need the wireless LAN module for the PowerLite 992F/1288 since the wireless

functionality is built-in.

1. Remove the wireless LAN module cover screw.

2. Insert the wireless LAN module into the USB-A port.

3. Attach the wireless LAN module cover and secure it using the screw you removed.

Note: The wireless LAN module cover may be provided with the optional wireless LAN module instead of the projector.

The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.

Caution: Never remove the wireless LAN module while its indicator is blue or flashing, or while you are projecting wirelessly. This could damage the module or lose data.

Parent topic: Wireless Network Projection

Related references

Optional Equipment and Replacement Parts

Using a QR Code to Connect a Mobile Device

After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit

epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean)

for more information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Basic menu and press Enter.

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Do one of the following:

• Press the LAN button on the remote control.

• Select Display the QR Code in the projector's Network menu.

Your projector displays the QR code on the projection surface.

Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.

8. Start Epson iProjection on your mobile device.

9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit

epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection

(Caribbean) for instructions.

Parent topic: Wireless Network Projection

Using Quick Wireless Connection (Windows)

You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

Note: A USB flash drive is not included with your projector.

1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows/Mac) software.

Note: See the online Epson iProjection Operation Guide (Windows/Mac) for instructions.

2. Turn on the projector.

3. Remove the wireless LAN module from the USB-A port (PowerLite X49/W49/118/119W/982W).

4. Insert the USB key into the projector's USB-A port.

You see a projected message that the network information update is complete.

5. Remove the USB key.

6. Reinsert the wireless LAN module into the projector (PowerLite X49/W49/118/119W/982W).

7. Insert the USB key into a USB port on your computer.

Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allow on the next screen.

8. Follow the on-screen instructions to install the Epson iProjection (Windows/Mac) software.

Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administrator authority to install the software. If it is not installed automatically, double-click MPPLaunch.exe in the USB key.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.

9. Run your presentation as necessary.

10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You can share the USB key with other computers without disconnecting your computer. You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Related references

Additional Projector Software and Manuals

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Make sure the Wireless LAN Power setting is set to On.

5. Select Network Configuration and press Enter.

6. Select the Basic menu and press Enter.

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen in the Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device using the Epson iProjection app.

• Display Keyword lets you display a keyword on the projected image when accessing the

projector from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device using the Epson iProjection app.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices with the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

8. Select the Wireless LAN menu and press Enter.

9. Select the settings on the Wireless LAN menu as necessary for your network.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you directly connect to multiple devices and computers using the projector's wireless network; requires the optional wireless LAN module

Advanced: lets you connect to multiple smartphones, tablets, or computers via a wireless network access point

Search Access Point To Search View Search for available wireless

network access points in

Advanced connection mode

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

Security Open

WPA3-PSK

WPA2/WPA3-PSK

WPA3-EAP

Selects the type of wireless security used in the wireless network (some options are only available when the Connection

Mode setting is set to Advanced)

WPA2/WPA3-EAP

Passphrase Between 8 to 63 alphanumeric

characters

Enter a paraphrase for the wireless network

Setting Options Description

EAP Method EAP Type

User name

Password

Client Certificate

Verify Server Cert.

CA Certificate

RADIUS Serv. Name

Channel Various channels available In Quick connection mode,

IP Settings DHCP

IP Address

Subnet Mask

Gateway Address

SSID Display On

Off

Sets the EAP for WPA2-EAP and WPA/WPA2-EAP security

selects the frequency band (channel) used by the wireless LAN

Turns on DHCP if your network assigns addresses automatically; set to Off to manually enter the network's IP Address, Subnet Mask, and Gateway Address

Selects whether to display the SSID on the network standby screen and the Home screen

IP Address Display On

Off

IPv6 Settings IPv6

Auto Configuration

Use Temporary Address

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

Selects whether to display the IP address on the network standby screen and the Home screen

Selects the IPv6 settings when you connect the projector to the network using IPv6

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:

• WPA2-PSK security (Quick connection mode)

• WPA3-PSK security (Advanced connection mode)

• WPA2/WPA3-PSK security (Advanced connection mode)

• WPA3-EAP security (Advanced connection mode)

• WPA2/WPA3-EAP security (Advanced connection mode)

Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Wireless LAN menu and press Enter.

5. Select the Security setting and press Enter.

6. Select the security settings for your network.

Note: If you select an EAP security method, select EAP Method on the Wireless LAN menu and change the settings as necessary.

7. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255).

7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

8. Enter the sender's email address as the From setting.

9. Choose an Address Setting field, enter the e-mail address, and select or deselect the alerts you want to receive there. Your e-mail address can be up to 32 alphanumeric characters long. Repeat for up to three addresses.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• The email address entered as the From setting

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on the SNMP setting.

6. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Enter a community name. You can enter up to 32 single-byte alphanumeric characters.

8. If you want this projector to receive broadcasted messages over the network, select the Others menu and turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using Epson Projector Management (Windows only).

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

You can send images to your projector from mobile devices such as laptops, smartphones, and tablets using Miracast technology or from a Windows computer (PowerLite 992F/1288). If your device supports Miracast, you do not need to install any additional software.

Screen Mirroring Restrictions Selecting Screen Mirroring Settings Connecting for Screen Mirroring with Miracast Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer

Parent topic: Using the Projector on a Network

Screen Mirroring Restrictions

Note the following when using Screen Mirroring features (PowerLite 992F/1288):

• You cannot project an interlaced image.

• You cannot play audio with more than 3 channels.

• You cannot project images with a resolution above 1920 × 1080 and a frame rate above 30 fps.

• You cannot project 3D video.

• You cannot use extended Miracast features on Windows 8.1.

• You may not be able to view contents with copyright protection using a Miracast connection.

• Do not change the projector's Screen Mirroring settings during Screen Mirroring projection. Doing so

may cause the projector to disconnect and delay reconnection.

• Do not turn off the electrical supply to the projector during Screen Mirroring projection.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Selecting Screen Mirroring Settings

You can select Screen Mirroring settings for your projector and then project images from your mobile device or computer (PowerLite 992F/1288).

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Set the Screen Mirroring setting to On.

4. Select Screen Mirroring Settings and press Enter.

5. Select the Screen Mirroring Settings options as necessary.

6. When you finish selecting settings, select Set and follow the on-screen instructions to save your settings and exit the menus.

7. Press the Home button on the control panel or remote control.

You see the Display Name you created on the Home screen.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Connecting for Screen Mirroring with Miracast

If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images and sound (PowerLite 992F/1288).

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source.

You see the Screen Mirroring standby screen.

3. On your mobile device, use the Miracast function to search for the projector.

Note: See your mobile device's documentation for information on accessing the Miracast function.

You see a list of available devices.

4. Select your projector from the list.

5. If you see the PIN entry screen on your mobile device, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your mobile device.

Caution: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. Doing so may cause your device to freeze or malfunction.

Note: Depending on the mobile device, you may need to delete a device when connecting. Follow the on-screen instructions on your device.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Related tasks

Selecting Screen Mirroring Settings

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer

You can set up your computer to wirelessly project images and play sound using Screen Mirroring (PowerLite 992F/1288).

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source.

You see the Screen Mirroring standby screen.

3. Do one of the following:

• Windows 10: Open Action Center and select Connect.

• Windows 8.x: Select Devices > Project > Add a wireless display.

4. Select your projector's Display Name from the list.

5. If you see the PIN entry screen on your computer, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your computer or mobile device.

Note: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. This may cause your device to freeze or malfunction.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Related tasks

Selecting Screen Mirroring Settings

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later, Microsoft Edge, Chrome, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On in the ECO menu, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen.

4. To select projector menu settings, select Advanced to display a list of options.

Note: You may need to log in to access some of the options on the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

5. To control projection remotely, select the Basic Control option from the Web Control screen.

Note: If you see a log in window, enter your user name and password. (The default user name is EPSONREMOTE and the default password is guest.)

You see a screen like this:

1 Power button control

2 Select an HDMI port source

3 Selects a Video port source

4 Selects the USB Display source

5 Selects the Screen Mirroring source (PowerLite 992F/1288)

6 A/V Mute button contol

7 Freeze button control

8 Closed Captioning control

9 Displays a QR code

10 Volume button controls

10 Selects the network source

11 Selects the USB device source

12 Selects the network source

13 Selects a Computer port source

14 Searches for connected sources

6. Select the icon corresponding to the projector function you want to control.

Parent topic: Using the Projector on a Network

Related references

Projector Setup Settings - ECO Menu Solutions When You Cannot Access the Projector Through the Web

Using Crestron Connected

If you are using the Crestron Connected network monitoring and control system, you can set up your projector for use on the system. Crestron Connected lets you control and monitor your projector using a web browser.

Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software when you use Crestron Connected.

For additional information on Crestron Connected, contact Crestron.

Setting Up Crestron Connected Controlling a Networked Projector Using Crestron Connected

Parent topic: Using the Projector on a Network

Setting Up Crestron Connected

To set up your projector for monitoring and control using a Crestron Connected system, make sure your computer and projector are connected to the network.

Note: If you want to use the Crestron Connected system when the projector is turned off, you need to adjust the Standby Mode settings in the Extended menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron Connected setting to On to allow the projector to be detected.

Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson Projector Management software.

6. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Using Crestron Connected

Related tasks

Selecting Wireless Network Settings Manually

Controlling a Networked Projector Using Crestron Connected

Once you have set up your projector to use Crestron Connected, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Epson Web Control screen:

3. Select Crestron Connected.

You see a screen like this:

4. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

5. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

6. To view information about the projector, click the Info tab.

7. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

8. When you finish selecting settings, click Exit to exit the program.

Parent topic: Using Crestron Connected

Registering a Digital Certificate on the Projector

Follow the instructions here if you need to install a digital certificate on the projector to provide security for your presentation files.

Note: You can register a digital certificate over a network or from a connected USB device. However, be sure to register just once from either a USB device or network, or the certificate may not install correctly.

Importing a Web Server Certificate Using the Projector Menus Registering Digital Certificates from a Web Browser Digital Certificate Types

Parent topic: Using the Projector on a Network

Importing a Web Server Certificate Using the Projector Menus

You can create your web server certificate and import it using the projector menus and a USB flash drive.

Note: You can also register digital certificates from your web browser. Make sure to only register once, or the certificate may not install correctly.

1. Make sure your digital certificate file is compatible with projector registration and saved in the root directory of the USB flash drive.

2. Press the Menu button on the remote control.

3. Select the Network menu and press Enter.

4. Select the Network Configuration setting and press Enter.

5. Select the Others menu and press Enter.

6. Select On as the Secure HTTP setting.

7. Select the Web Server Cert. setting and press Enter.

8. Select Register and press Enter.

9. Remove the screw securing the wireless LAN module port cover, then remove the port cover.

10. Insert a USB flash drive into the projector's USB-A port. If the wireless LAN module is installed, remove it before inserting the USB flash drive.

11. Press Enter to display the certificate list.

12. Select the certificate you want to import from the displayed list.

A message is displayed prompting you to enter the password for the certificate.

13. Enter the password and press Enter.

The certificate is imported and a completion message appears.

14. Remove the USB flash drive, then re-insert the wireless LAN module and secure the port cover.

Parent topic: Registering a Digital Certificate on the Projector

Registering Digital Certificates from a Web Browser

You can register the digital certificates on the projector for wireless LAN authentication.

1. Make sure your digital certificate file is compatible with projector registration.

2. Make sure the projector is turned on.

3. Start your web browser on a computer or mobile device connected to the network.

4. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen:

5. Select Advanced.

6. Under Network, select Certificate.

7. Click the Choose File button, select the certificate file, and click Open.

8. Enter a password in the Password box and click Send.

9. When you finish registering the certificate, click Apply to finalize your changes and complete the registration.

Parent topic: Registering a Digital Certificate on the Projector

Digital Certificate Types

You can register these types of digital certificates.

Client Certificate (PEAP-TLS/EAP-TLS)

Specification Description

Format PKCS#12

Extension PFX/P12

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Password Up to 32 alphanumeric characters; required

CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)

Specification Description

Format X509v3

Extension DER/CER/PEM

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Encoding BASE64/Binary

Web Server Certificate (Secure HTTP)

Specification Description

Format PKCS#12

Extension PFX/P12

Specification Description

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Common name Network host name

Organization Optional

Password Up to 32 alphanumeric characters; required

Parent topic: Registering a Digital Certificate on the Projector

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Setting the Date and Time Selecting the Language for the Projector Menus Adjusting the Image Height Image Shape Resizing the Image with the Zoom Ring Focusing the Image Using the Focus Ring Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Projecting a PC Free Presentation

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Open the projector's lens cover.

2. Connect the power cord to the projector's power inlet.

3. Plug the power cord into an electrical outlet.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

The projector's power light turns blue. This indicates that the projector is receiving power.

4. Press the power button on the projector or the remote control to turn on the projector.

The projector beeps and the Status light flashes blue as the projector warms up. Once the projector is warmed up, the light stops flashing and turns blue.

Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children.

Caution: Turning the power on and off frequently may shorten the lamp's operating life.

If you do not see a projected image right away, try the following:

• Verify the lens cover is open all the way.

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Change the screen output from the computer when using a laptop.

• Press the Source Search button on the projector or remote control to detect the video source.

• Press the button for the video source on the remote control.

• If the Home screen is displayed, select the source you want to project.

Using the Home Screen

Parent topic: Using Basic Projector Features

Related tasks

Selecting an Image Source

Using the Home Screen

You can select input sources and other frequently used options from the Home screen.

1. To display the Home screen, do one of the following:

• Press the Home button on the remote control.

• Turn on the projector with the Home Screen Auto Disp setting enabled.

• Turn on the projector when no signal is received from the selected input source.

2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press

Enter to select an option.

1 Select the video source you want to project

2 Display the Connection Guide

3 Display the Help screen

4 Display the projector's menus

5 Select customizable menu options

6 Select to project two images from different image sources simultaneously

7 Correct the image shape

Note: Your Home screen may look different from the illustration shown here. You can select the customizable menu options using the Custom Function 1 and Custom Function 2 settings in the Extended menu.

3. Press the Home button to hide the Home screen.

Parent topic: Turning On the Projector

Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

Note: When using the A/V Mute feature, the projector lamp is still on. To turn off the lamp, turn off the projector.

1. Press the power button on the projector or the remote control.

The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.)

The projector beeps twice, the lamp turns off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status

light is on or flashing.

4. Close the projector's lens cover.

Parent topic: Using Basic Projector Features

Related references

Projector Light Status

Setting the Date and Time

You can set the date and time for the projector (PowerLite 992F/1288).

Note: If the Schedule Protection setting in the Password Protection screen is enabled, you cannot change the date and time settings.

1. Press the Menu button.

2. Select the Extended menu and press Enter.

3. Select the Operation setting and press Enter.

4. Select the Date & Time setting and press Enter.

You see a screen like this:

5. Select your date and time settings. Then select Set and press Enter to confirm your changes.

6. When you are finished, press the Menu button to exit.

Date and Time Settings

Parent topic: Using Basic Projector Features

Date and Time Settings

Settings Options Description

Date & Time Date

Time

Time Difference (UTC)

Adjusts the projector's date and time settings

Date and Time: sets the date and time

Time Difference (UTC): sets the time

difference from Coordinated Universal Time

Settings Options Description

Daylight Saving Time Daylight Saving Time

DST Start

DST End

DST Adjustment (min)

Internet Time Internet Time

Internet Time Server

Parent topic: Setting the Date and Time

Selecting the Language for the Projector Menus

Adjusts the daylight saving time settings

Daylight Saving Time: enables or disables daylight saving time

DST Start and DST End: sets the date and time to start or end daylight saving time

DST Adjustment (min): sets the difference between standard and daylight saving time

Automatically adjusts the time through an Internet connection

Internet Time: turn on this setting to update the date and time automatically through an Internet time server

Internet Time Server: sets the IP address for the Internet time server

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turn on the projector and display an image.

2. To adjust the front foot, pull up on the foot release lever and lift the front of the projector.

3. Release the lever to lock the foot.

4. If the image is tilted, rotate the rear feet to adjust their height.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

The foot extends from the projector.

When you turn on automatic keystone correction in your projector's Settings menu, your projector automatically corrects vertical keystone effects when you reposition the projector.

Correcting Image Shape with the Horizontal Keystone Slider Correcting Image Shape with the Keystone Buttons Correcting Image Shape with Quick Corner

Parent topic: Using Basic Projector Features

Correcting Image Shape with the Horizontal Keystone Slider

You can use the projector's horizontal keystone slider to correct the shape of an image that is unevenly rectangular horizontally, such as when the projector is placed to the side of the projection area.

Note: To provide the best possible image quality, adjust the projector's position to correct the image

shape. If this isn't possible, use the horizontal keystone slider on the projector to correct the image shape.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Adjust the slider until the image is evenly rectangular.

After correction, your image is slightly smaller.

Parent topic: Image Shape

Correcting Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

Note: To provide the best possible image quality, adjust the projector's position to correct the image shape. If this isn't possible, use the keystone correction buttons on the projector to correct the image shape.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press one of these keystone buttons on the control panel to display the Keystone adjustment screen.

3. Press a keystone button on the projector's control panel to adjust the image shape.

After correction, your image is slightly smaller.

Note: If the projector is installed out of reach, you can also correct the image shape with the remote control using the H/V-Keystone settings in the projector menus.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

Note: To provide the best possible image quality, adjust the projector's position to correct the image shape. If this isn't possible, use the Quick Corner setting to correct the image shape.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press the Menu button.

100

Epson PowerLite E20, PowerLite X49, PowerLite W49, PowerLite 118, PowerLite 119W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

PowerLite E20/X49/W49/118/119W/982W/992F/1288 User's Guide

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Additional Projector Software and Manuals

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Projector Part Locations

Projector Parts - Front/Top

Projector Parts - Rear

Projector Parts - Base

Projector Parts - Control Panel

Projector Parts - Remote Control

Setting Up the Projector

Projector Placement

Projector Setup and Installation Options

Projection Distance

Projector Connections

Connecting to Computer Sources

Connecting to a Computer for USB Video and Audio

Connecting to a Computer for VGA Video and Audio

Connecting to a Computer for HDMI Video and Audio

Connecting to Video Sources

Connecting to an HDMI Video Source

Connecting to a Component Video Source

Connecting to a Composite Video Source

Connecting to a Video Source for Sound

Connecting External Output Devices

Connecting to an External Computer Monitor

Connecting to External Speakers

Connecting a Microphone

Connecting to External USB Devices

USB Device Projection

Connecting a USB Device or Camera to the Projector

Selecting the Connected USB Source

Disconnecting a USB Device or Camera From the Projector

Connecting to a Document Camera

Installing Batteries in the Remote Control

Opening the Lens Cover

Using the Projector on a Network

Wired Network Projection

Connecting to a Wired Network

Selecting Wired Network Settings

Wireless Network Projection

Installing the Wireless LAN Module

Using a QR Code to Connect a Mobile Device

Using Quick Wireless Connection (Windows)

Selecting Wireless Network Settings Manually

Wireless LAN Menu Settings

Selecting Wireless Network Settings in Windows

Selecting Wireless Network Settings on Mac

Setting Up Wireless Network Security

Setting Up Projector Network E-Mail Alerts

Network Projector E-mail Alert Messages

Setting Up Monitoring Using SNMP

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

Screen Mirroring Restrictions

Selecting Screen Mirroring Settings

Connecting for Screen Mirroring with Miracast

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer

Controlling a Networked Projector Using a Web Browser

Using Crestron Connected

Setting Up Crestron Connected

Controlling a Networked Projector Using Crestron Connected

Registering a Digital Certificate on the Projector

Importing a Web Server Certificate Using the Projector Menus

Registering Digital Certificates from a Web Browser

Digital Certificate Types

Using Basic Projector Features

Turning On the Projector

Using the Home Screen

Turning Off the Projector
