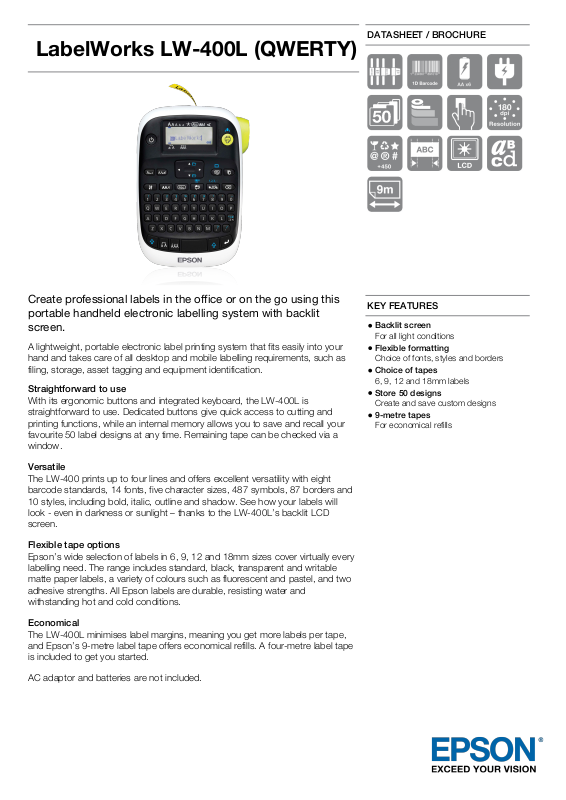

LabelWorks LW-400L (QWERTY)

DATASHEET / BROCHURE

Create professional labels in the office or on the go using this
portable handheld electronic labelling system with backlit
screen.

A lightweight, portable electronic label printing system that fits easily into your
hand and takes care of all desktop and mobile labelling requirements, such as
filing, storage, asset tagging and equipment identification.

Straightforward to use

With its ergonomic buttons and integrated keyboard, the LW-400L is
straightforward to use. Dedicated buttons give quick access to cutting and
printing functions, while an internal memory allows you to save and recall your
favourite 50 label designs at any time. Remaining tape can be checked via a
window.

Versatile

The LW-400 prints up to four lines and offers excellent versatility with eight
barcode standards, 14 fonts, five character sizes, 487 symbols, 87 borders and
10 styles, including bold, italic, outline and shadow. See how your labels will
look - even in darkness or sunlight – thanks to the LW-400L’s backlit LCD
screen.

Flexible tape options

Epson’s wide selection of labels in 6, 9, 12 and 18mm sizes cover virtually every
labelling need. The range includes standard, black, transparent and writable
matte paper labels, a variety of colours such as fluorescent and pastel, and two
adhesive strengths. All Epson labels are durable, resisting water and
withstanding hot and cold conditions.

KEY FEATURES

Backlit screen

For all light conditions

Flexible formatting

Choice of fonts, styles and borders

Choice of tapes

6, 9, 12 and 18mm labels

Store 50 designs

Create and save custom designs

9-metre tapes

For economical refills

Economical

The LW-400L minimises label margins, meaning you get more labels per tape,
and Epson’s 9-metre label tape offers economical refills. A four-metre label tape
is included to get you started.

AC adaptor and batteries are not included.

PRODUCT SPECIFICATIONS

PRINTING

Printing technology Thermal transfer
Tape width 6 mm, 9 mm, 12 mm, 18 mm
Printing resolution 180 dpi
Printable Dot Numbers 64 dot numbers
Print height 9 mm
Print speed 6 mm/sec
Number of printable lines 4 Lines
Maximum text length 80 characters per line

PRINT SETTINGS

Barcodes Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, ITF, UPC-A, UPC-E
Repeat printing 1 - 9 (Cut mark)
Auto increment Yes, 0-9, a-z, A-Z
Enlargement printing No
Mirror printing Yes
Vertical printing Yes
Wire wrap Yes
Flag Yes
Margin setting 10mm, Fixed
Fixed Length Auto / 30 mm - 400 mm ( 1 " - 15 ")
Setting Area Whole Label

FONTS & STYLES

Fonts BR, Bold Gotic, CB, CL Roman, Gothic, Gyosho, Mincho, Reisho, Roman, Sans serif, Sans

serif HG, Sans serif ST, Script PL, US Roman
Font Size 5
Frames 87 Frames
Tables 2 Tables
Style Bold, Bold & Italic, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Shadow
Layout Alignment Left

GENERAL

Product dimensions 110 x 170 x 56 mm (Width x Depth x Height)
Product weight 420 g

MEMORY

Memory alphanumeric 62
Memory accent 185
Accent learning Yes
Symbols 457
Memory file (saved labels) 50
Last label Yes

HARDWARE

Cutter Manual

OTHER

Warranty 36 months Carry in

Optional warranty extension available

LabelWorks LW-400L (QWERTY)

WHAT'S IN THE BOX

Main unit
User manual
Quick Memo Guide
Supplies Catalogue
Warranty Documents
1 x 4m Tape
