Page 1

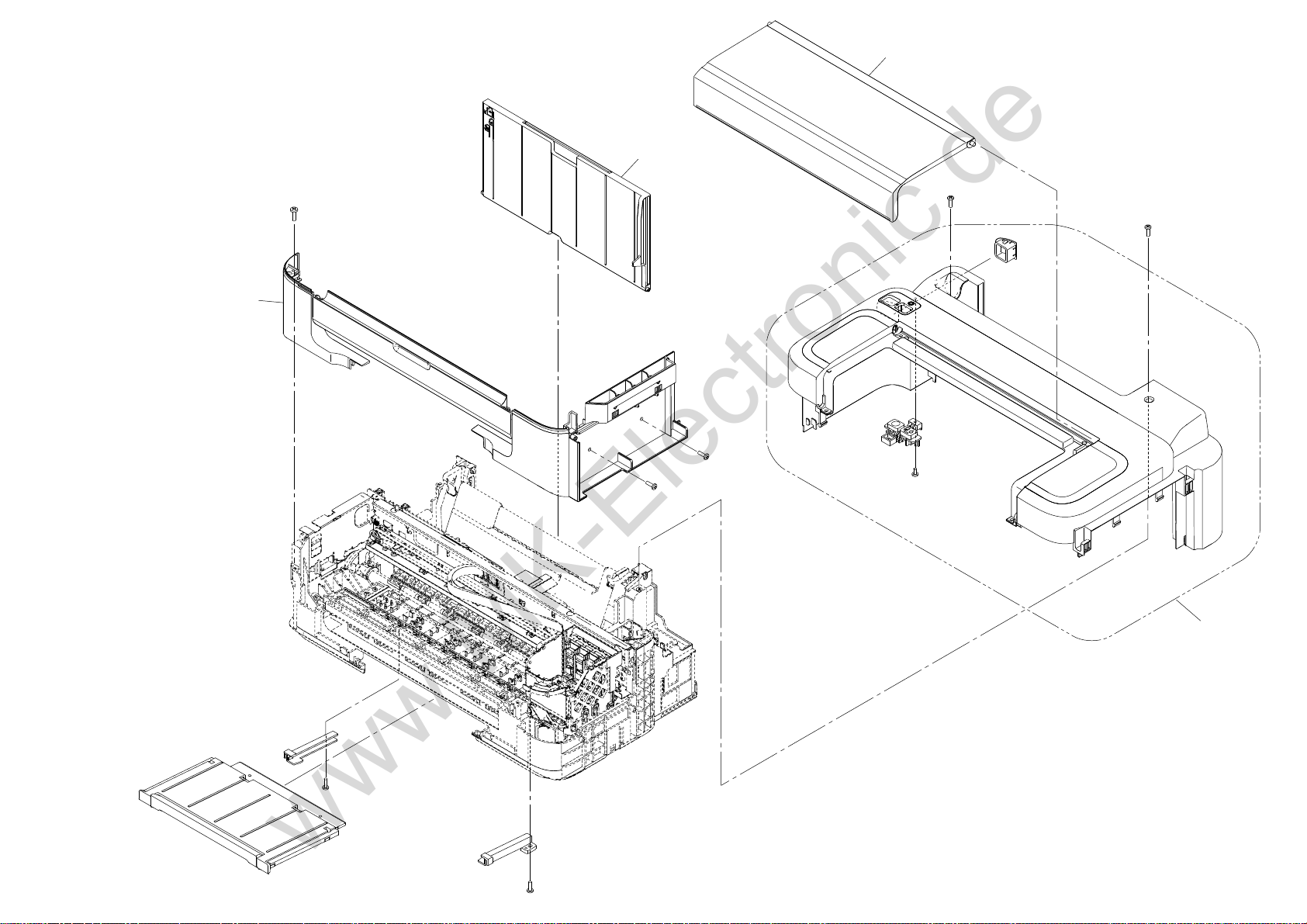

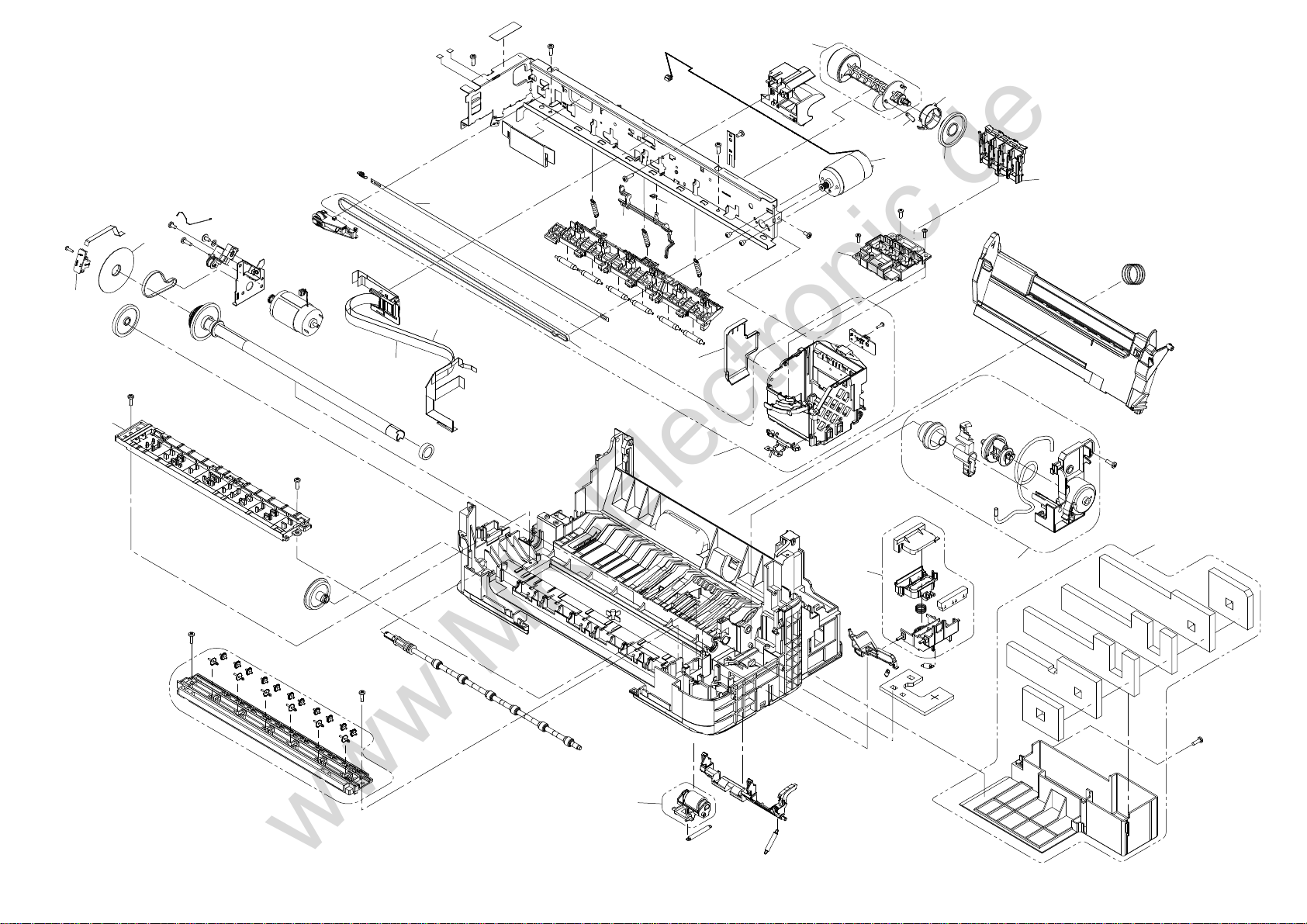

Only numbered Service Parts are available.
www MK-Electronic de
101
102
105
L130 / L132 No.2
100
Rev.01 CE58-CASE-011

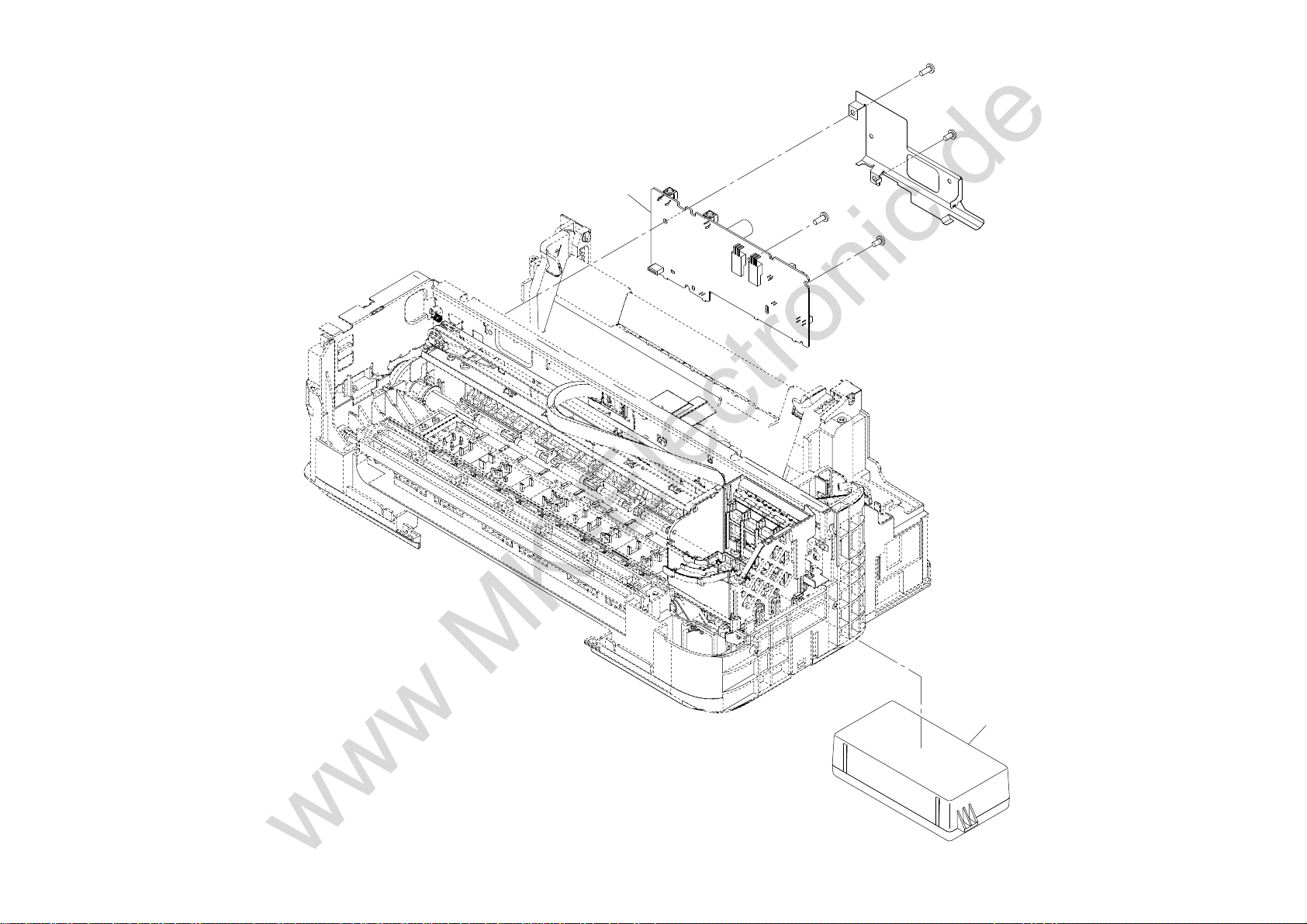

Page 2
Only numbered Service Parts are available.
www MK-Electronic de
200
No.3L130 / L132
300
Rev.01 CE58-ELEC-011
Page 3
Only numbered Service Parts are available.
www MK-Electronic de
521
505
511
519
501
530
510
700
529
515
527
528
701
514
518
523
706
517
513
703
508
507
L130 No.4
Rev.01 CE58-MECH-011

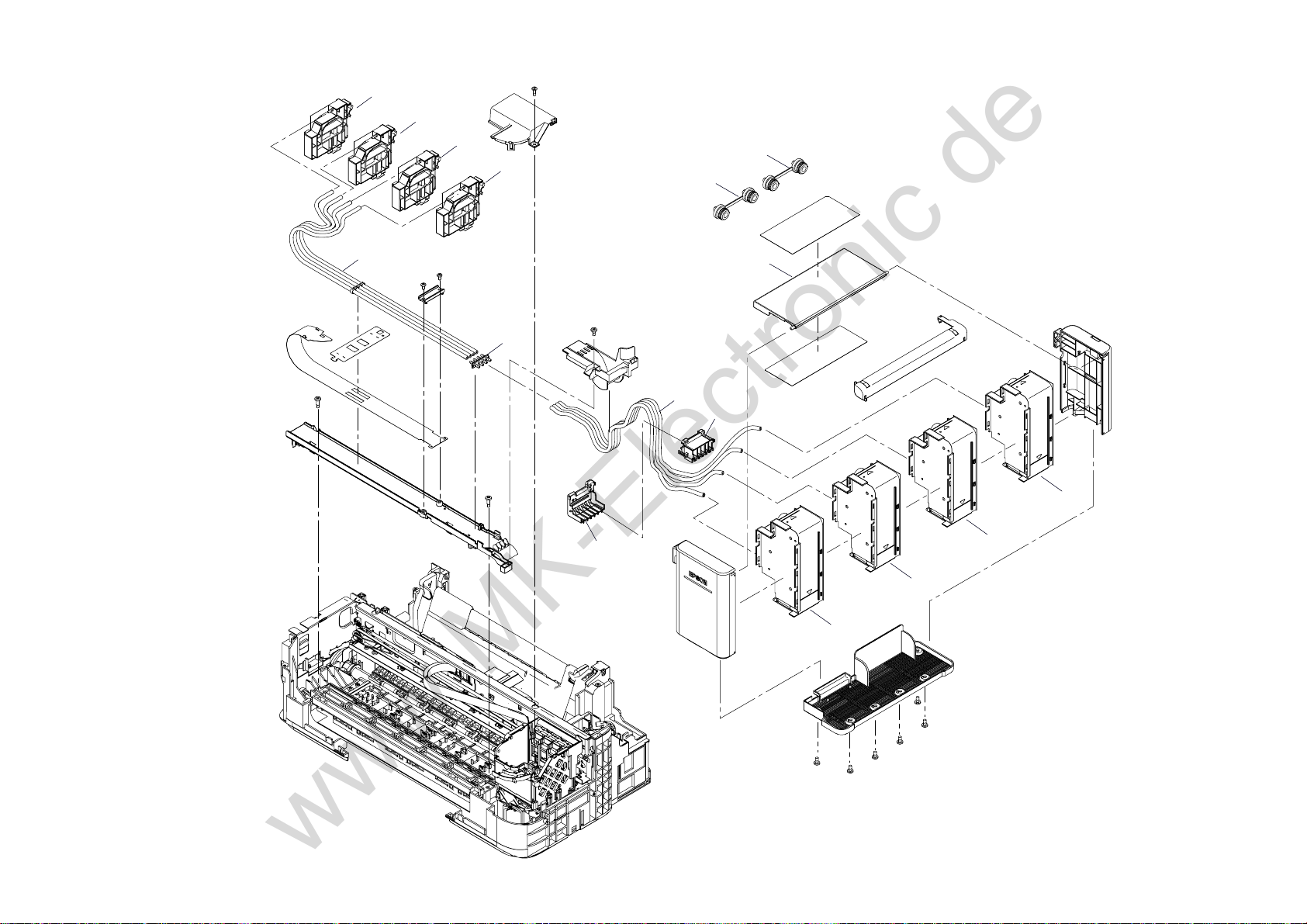

Page 4
709
www MK-Electronic de
709
709
709
Only numbered Service Parts are available.
704
704
725
726
710
721
713
708
708
712
708
708
L130 / L132 No.4
Rev.01 CE58-MECH-021
Page 5
Part Code Part Name Ref No. Category
www MK-Electronic de
1610434 INK BOTTLE BOXED,BK,DYE;716C,70,CIS,AS NON FIG Accessories 1
1610436 INK BOTTLE BOXED,C,DYE;716C,70,CIS,AS NON FIG Accessories 1
1610437 INK BOTTLE BOXED,M,DYE;716C,70,CIS,AS NON FIG Accessories 1
1610438 INK BOTTLE BOXED,Y,DYE;716C,70,CIS,AS NON FIG Accessories 1
2121764 POWER CABLE NON FIG Accessories 1
1610768 HOUSING UPPER ASSY.,CC27;ASP 100 Case 1
1572352 HOUSING,FRONT 101 Case 1
1646154 COVER,PRINTER;H 102 Case 1
1569307 PAPER SUPPORT ASSY.,CC11;EPPI 105 Case 1
2166064 BOARD ASSY.,MAIN 200 Electronic Parts 1
2147874 POWER SUPPLY UNIT 300 Electronic Parts 1
1572338 LEVER,DETECTOR,PE,HD 501 Mechanism Parts 1
2158910 BOARD ASSY.,ENCORDER,PF;B 505 Mechanism Parts 1
1569311 HOLDER RETURD ASSY.,CC05;EPPI 507 Mechanism Parts 1
1576550 FRAME PUMP ASSY,;CC03;EPPI 508 Mechanism Parts 1
1569314 SHAFT ROLLER LD ASSY.;CC05;EPPI 510 Mechanism Parts 1
Qty
1593349 SCALE,CR 511 Mechanism Parts 1
1610666 CAP ASSY.,CC86;EPPI;ASP 513 Mechanism Parts 1
1567187 PAPER GUIDE,FRONT,F2 514 Mechanism Parts 1
1598331 MOTOR ASSY,CR 515 Mechanism Parts 1
1665534 CR ASSY.,CE58;EPPI;ASP 517 Mechanism Parts 1
2145558 CABLE,HEAD,F2 518 Mechanism Parts 1
1616017 CABLE ENCODER F2 CISS ASSY.,CC26;EPPI 519 Mechanism Parts 1
1548518 SCALE,PF 521 Mechanism Parts 1
1577172 TIMING BELT,CR 523 Mechanism Parts 1
1548528 CLUTCH 527 Mechanism Parts 1
1548529 SPUR GEAR,37.2 528 Mechanism Parts 1
1548530 EXTENSION SPRING,0.137 529 Mechanism Parts 1
1548494 EXTENSION SPRING,0.067 530 Mechanism Parts 1
FA04000 PRINT HEAD,ID1510 700 Mechanism Parts 1
1591209 HOLDER,BOARD,CISS 701 Mechanism Parts 1
1627961 TRAY POROUS PAD ASSY.,CISS;EPPI 703 Mechanism Parts 1
1597513 CAP,TANK;B 704 Mechanism Parts 2
1567193 COVER,CABLE,HEAD,F2 706 Mechanism Parts 1
1653520 TANK SUPPLY INK ASSY;B.CE54;EPPI;ASP 708 Mechanism Parts 4
1624320 ADAPTER,ASSY;B;CD76;EPPI 709 Mechanism Parts 4
1538442 JOINT,TUBE 710 Mechanism Parts 1
1632618 HOLDER,TUBE,REAR 712 Mechanism Parts 1
1632617 HOLDER,TUBE,FRONT 713 Mechanism Parts 1
1572393 TUBE,SUPPLY,INK 721 Mechanism Parts 1
Page 6
1588413 TUBE ADAPTER ASSY.,ASP 725 Mechanism Parts 1
www MK-Electronic de
1632234 COVER,TANK,TOP 726 Mechanism Parts 1
1033657 GREASE G-45 NON FIG Tools 1
1409257 GREASE G-74 NON FIG Tools 1
1462531 I/P,DPIC009BSP,110,PRINTING NON FIG Tools 1
1480655 GREASE G-71(BLUE) NON FIG Tools 1
1556135 CAP,AIR RELEASE HOLE NON FIG Tools 4
1640645 SONIC TENSION METER U508 NON FIG Tools 1
6104713 SHIPPING CLEANING LIQUID,CR06A,1kg NON FIG Tools 1
6104714 SHIPPING CLEANING LIQUID,CR06A,18kg NON FIG Tools 1
