Welcome
W
The EPSON
high resolution document camera that can be connected to all types of
projectors and display devices. From boardrooms to auditoriums, you
can show fine detail in a large variety of presentation materials.

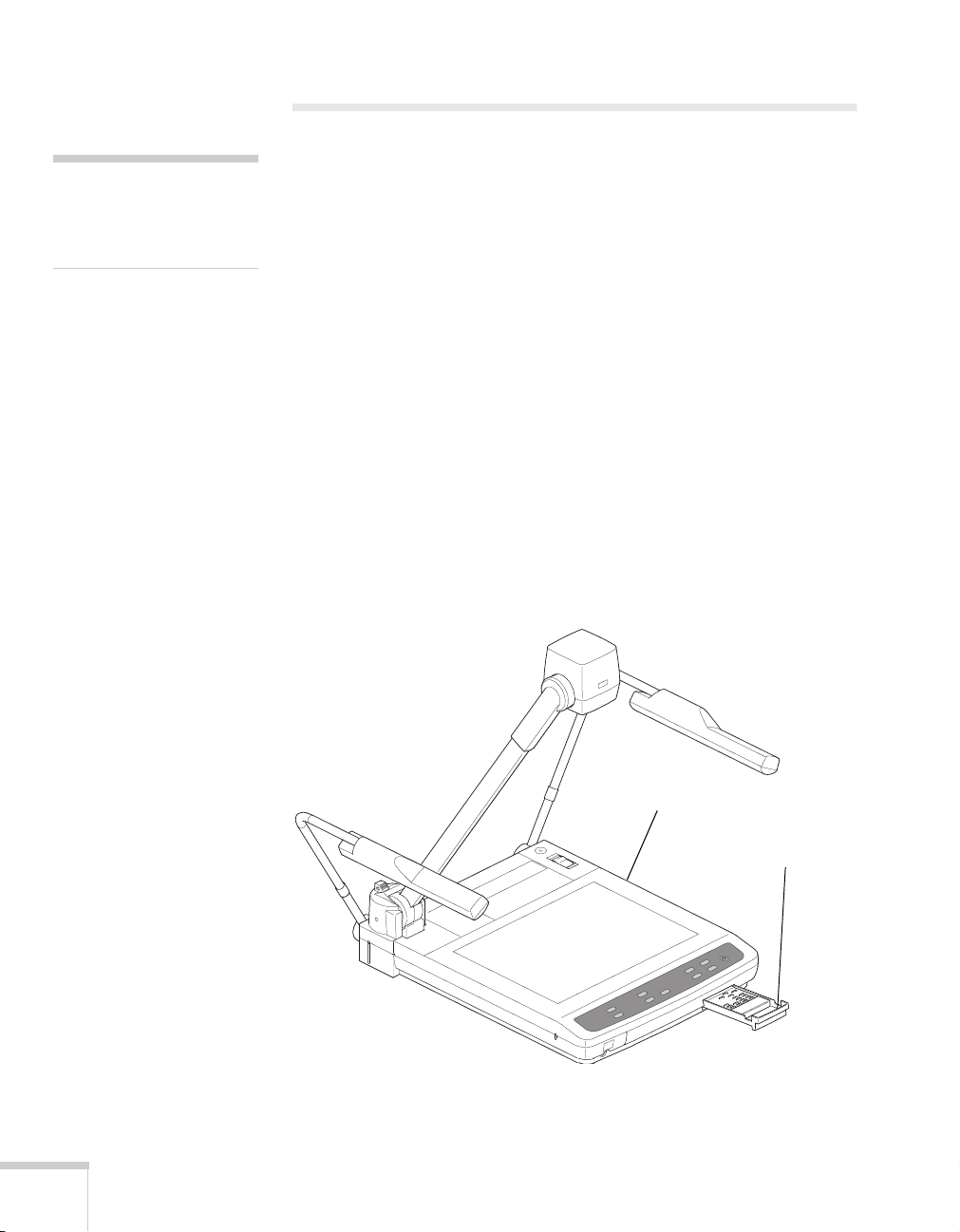

The document camera’s upper lamps provide ample lighting for
printed material and 3-D objects, while its base lamps offer
illumination for overhead transparencies and film negatives.
Your document camera captures images at a resolution of
1024 × 768 pixels with a maximum shooting area of 13.8 × 10.2 in.
(350 × 260 mm). With its 10× zoom capability and true XGA
resolution, even 10 point type can be read clearly. And the document
camera’s support for S-Video and composite video provides additional
versatility.
You can connect the document camera to a wide range of computers,
including IBM
Power Macintosh
PowerBook
high-end workstations such as the Sun
computers can be connected simultaneously.
®
computers, many iMac™ and iBook™ series systems, and
®
ELPDC02 High Resolution Document Imager is a
®
compatible PCs and laptops, Apple® Macintosh,®
™
series (including G3 and G4 systems),
®
SPARCstation.™ Up to two
Welcome 1
Getting the Most from Your Document Camera
Depending on your presentation, you can take advantage of any or all
of these options:
■
Connecting to a projector or monitor
The document camera requires an output device, such as a
projector or monitor, to display its image. To connect the
document camera to these devices, see page 11.
■
Connecting to a laptop or other computer

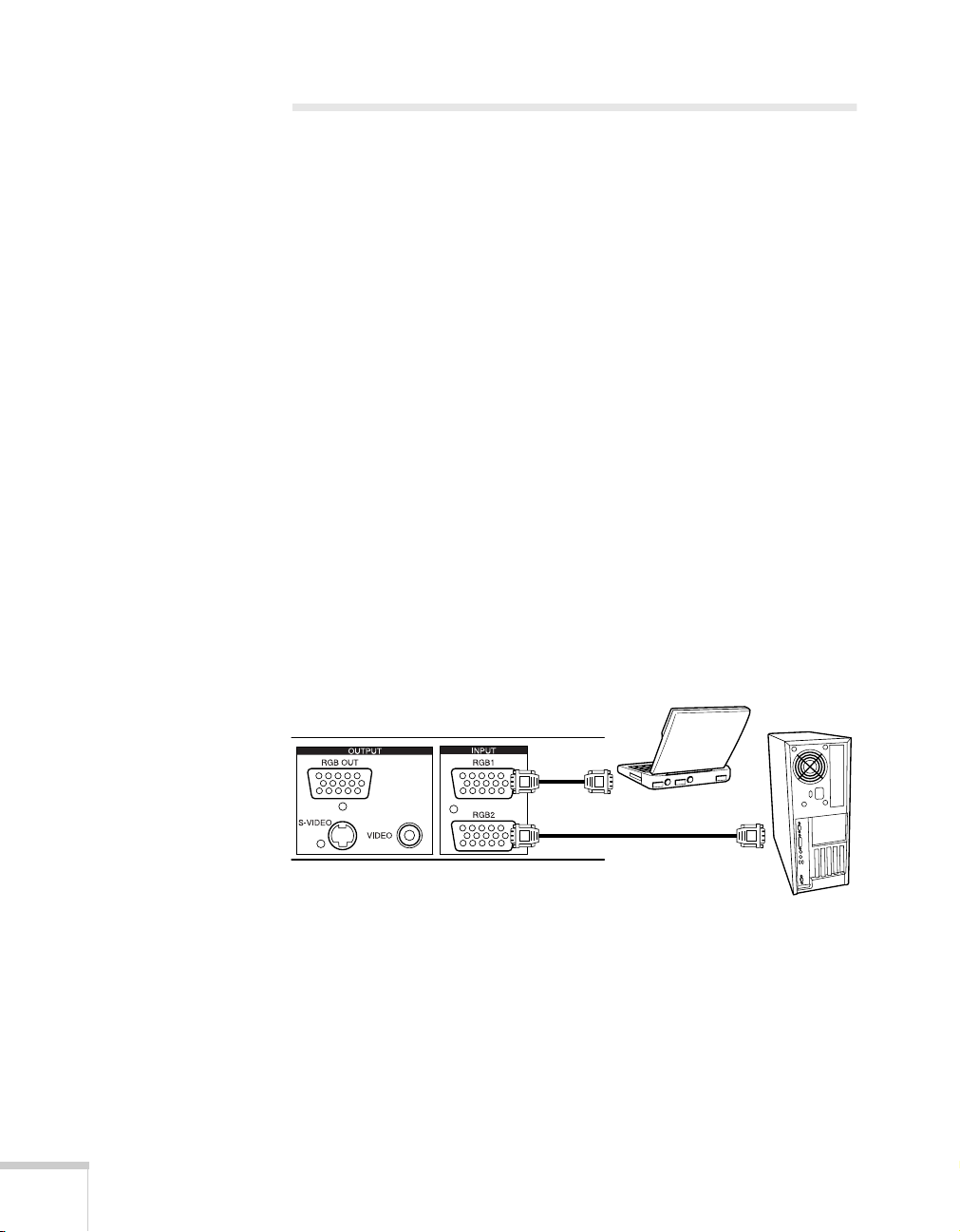

You can connect up to two other video output sources, such as a
laptop and desktop computer. This is especially useful if your
projector has only one video input port. See page 14 for more
information.
■
Using the remote control

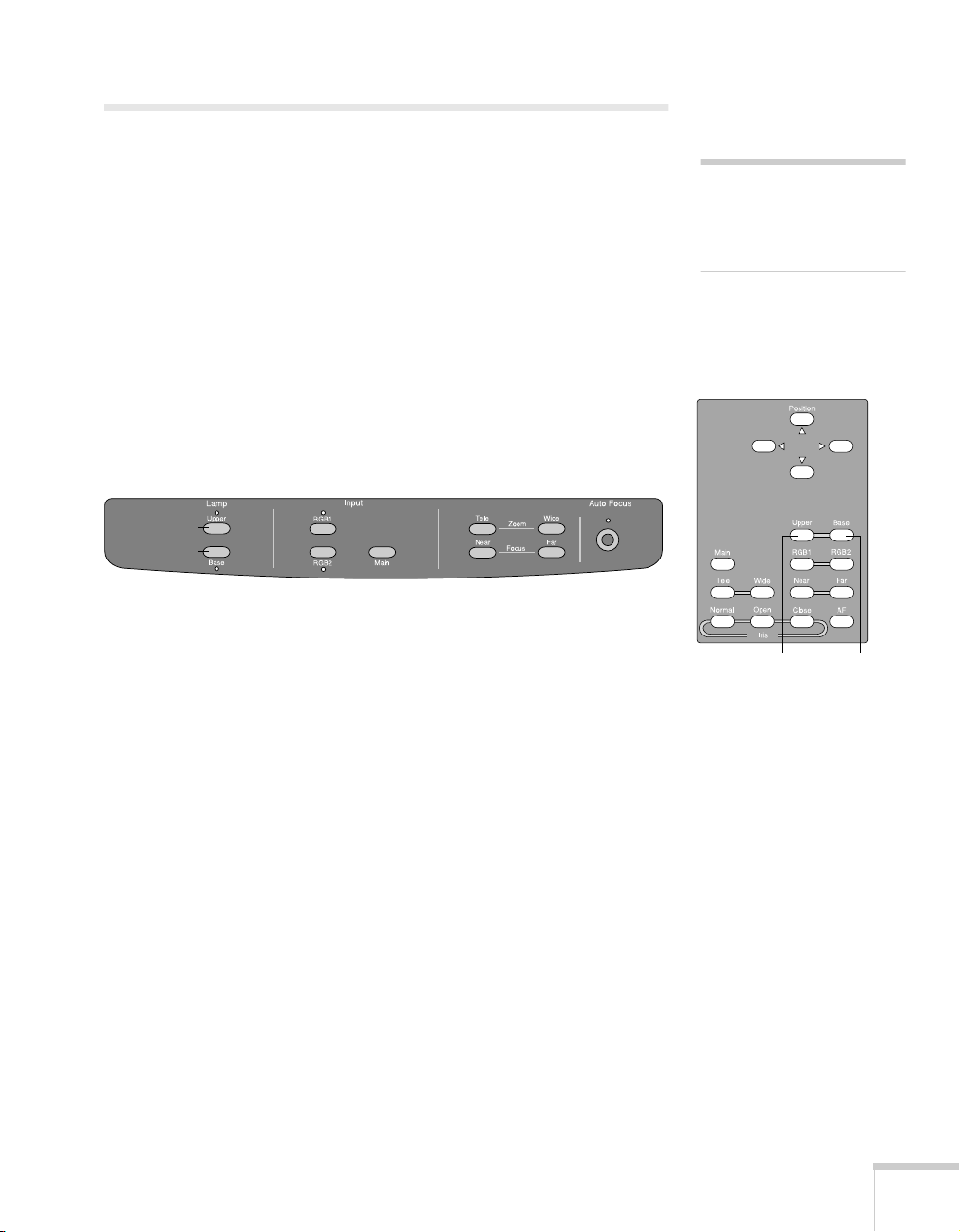

The remote control lets you control the lamps, zoom and focus
your image, and switch the display from the camera to a
computer. See Chapter 2 for details.
2 Welcome
Using Your Documentation
This book contains all the information you need to set up and use
your document camera. Please follow these guidelines as you read
through it:
■
Warnings must be followed carefully to avoid bodily injury.
■
Cautions must be observed to avoid damage to your equipment.
■
Notes contain important information about your document
camera.
Getting More Information
Need tips on giving presentations? More information about your
document camera? Here’s where you can look for help:
■
http://www.presentersonline.com
Includes a library of articles covering presentation tips, tricks, and
technology. The site provides templates, clip art, and sound clips,
as well as Presenters Services to use on the road. Even more
resources and services are available if you register to join the
Presenters Club
■
http://support.epson.com
Download FAQs and e-mail your questions to EPSON support.
If you still need help after checking this User’s Guide and the sources
listed above, you can use the EPSON PrivateLine
get help fast. Call (800) 637-7661 and enter the PIN on the card
included with your document camera. Or take advantage of EPSON’s
electronic support services 24 hours a day. See page 32 for more
information.
®
—and it’s free.
®
Support service to
Registration
To register, simply fill out and return the enclosed registration card.
Welcome 3
4 Welcome
Setting Up the
1
Document Camera
This chapter tells you how to set up the document camera for a video
presentation.
You’ll find instructions for the following in this chapter:
Unpacking the document camera
■
Installing batteries in the remote control
■
Unfolding the document camera
■
Positioning the document camera
■
Connecting to a projector or monitor
■
Adjusting the camera head switches
■
Connecting to a computer
■
Setting Up the Document Camera 5
Unpacking the Document Camera
After unpacking the document camera, make sure you have all the
items shown below:
document camera
batteries
remote control
RCA cableRGB video cable S-Video cable
power cord
Save all packaging in case you need to ship the document camera.
Always use the original packaging (or the equivalent) when you need
to send the document camera to another location. For transportation
instructions, see page 28.
6 Setting Up the Document Camera
Installing Batteries in the Remote Control
Before using the remote control, you need to install its batteries as
described below.
1. Press down on the ridged
area and remove the battery
compartment cover.
2. Insert two AAA batteries as
shown.
3. Replace the battery
compartment cover.
ridged
area
caution
When replacing batteries,
take the following
precautions:
■
Don’t mix old and new
batteries.
■
Replace batteries as soon as
they run out. If the
batteries leak, wipe away
battery fluid with a soft
cloth. If fluid gets on your
hands, wash them
immediately.
■
Don’t expose batteries to
heat or flame.
■
Dispose of used batteries
according to local
regulations.
■
Remove batteries if you
won’t be using the
document camera for a
long period of time.
Setting Up the Document Camera 7
Unfolding the Document Camera
Follow the steps below to unfold the document camera.
1. Unfold the first lighting unit arm (1) and then the second (2) as
shown until they stop.
2
1
8 Setting Up the Document Camera
2. Press the camera arm lock release button (3) and raise the camera
arm (4) until the button returns to its original position and you
hear a click. Make sure the camera arm is securely locked.
camera head
lighting unit
3
4
lighting unit

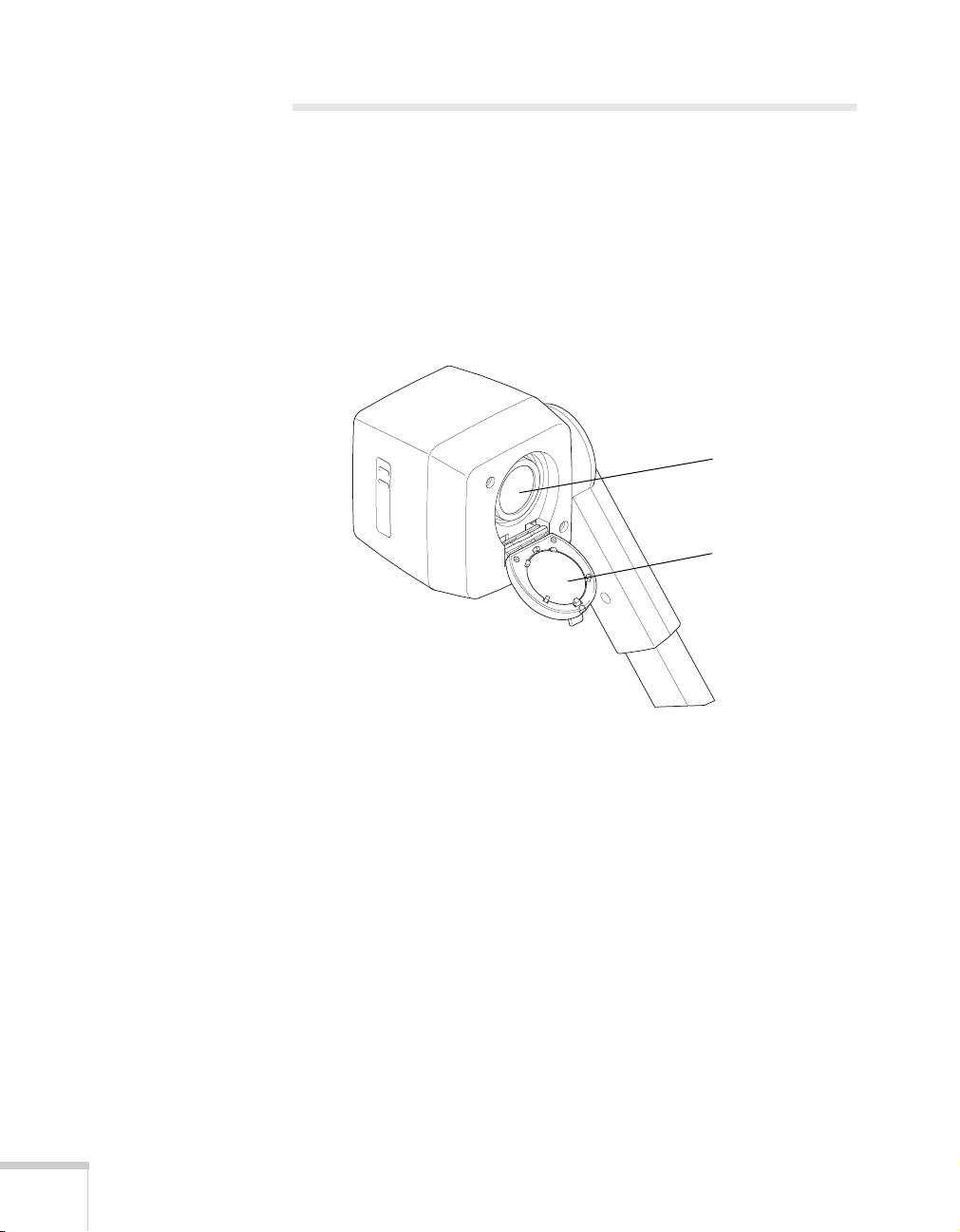

3. Rotate the camera head so that the lens faces the stage
(downward).
4. Rotate the lighting units so that the lamps face the stage.
Setting Up the Document Camera 9
caution
Don’t hold or lift the
document camera by the
camera head or lighting unit
arms, or you may damage
them.
Positioning the Document Camera
Before connecting the document camera, you need to decide where to
place it. Wherever you place it, be sure to follow these guidelines:
■
Place the document camera on a sturdy, level surface.
■
Make sure there is plenty of space for ventilation around and
under the document camera.
■
Make sure the document camera is within 10 feet (3 m) of a
grounded electrical outlet or extension cord, and within 5 feet
(1.5 m) of your output source.
■
Make sure you are within 23 feet (7 m) of the front or back of the
document camera to use the remote control.
■

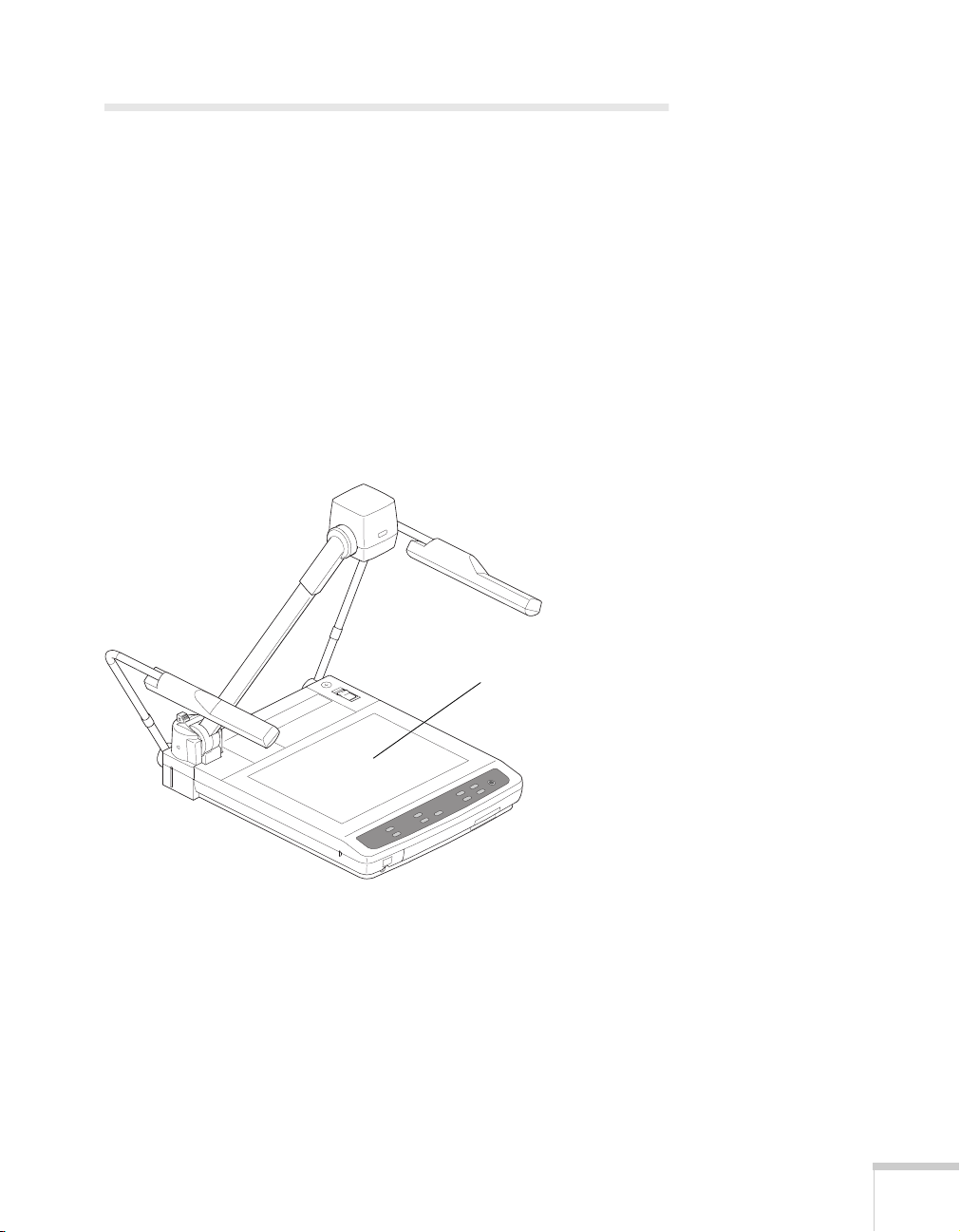

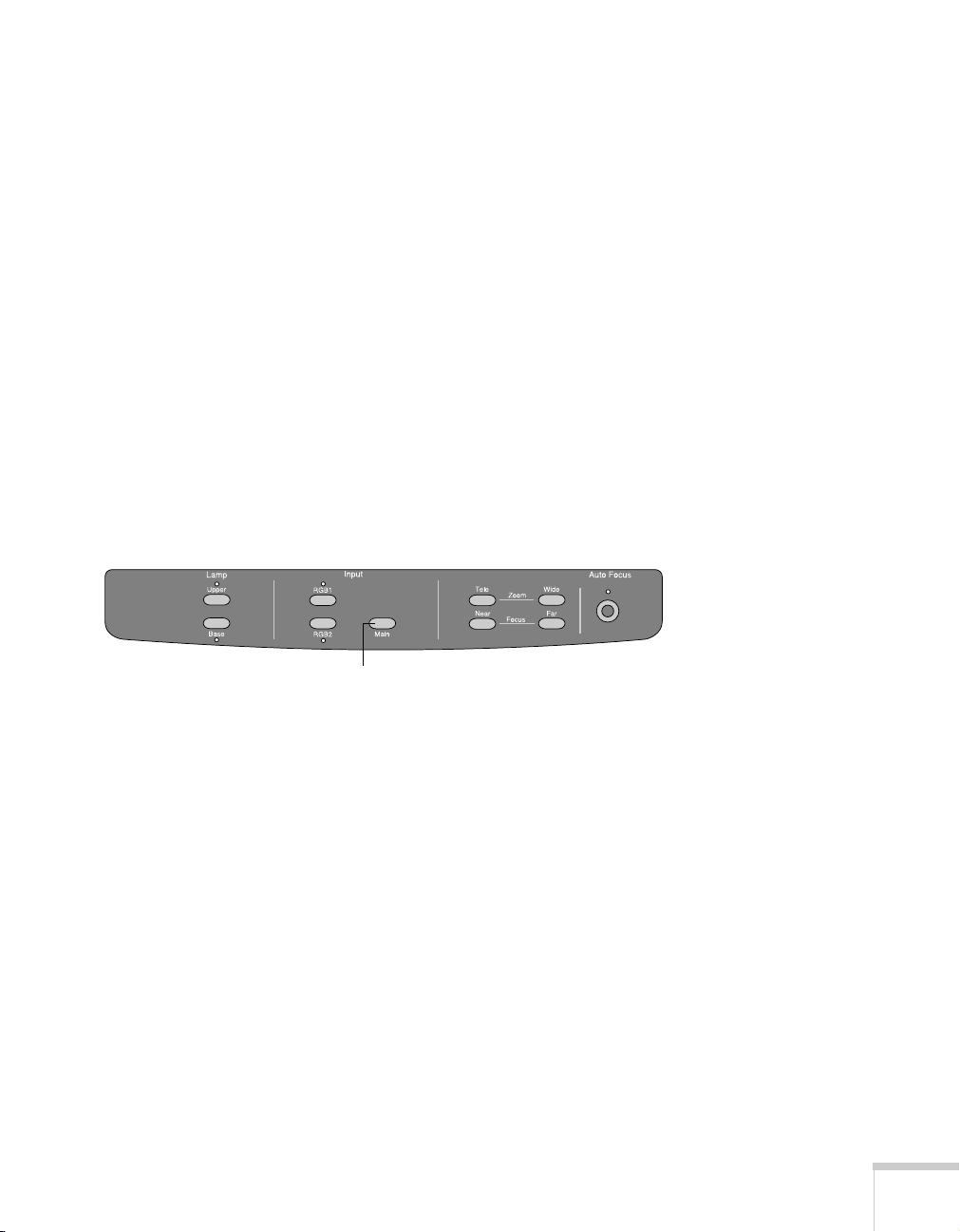

With the control panel facing you, place the document camera
directly in front of you. Otherwise, items you place on the stage
may appear upside-down.
Most presenters find it convenient to place the document camera in
front of the audience. This lets the presenter stand in the front of the
room, face the audience, and remain close enough to the equipment to
be able to control it.
10 Setting Up the Document Camera
stage
control panel

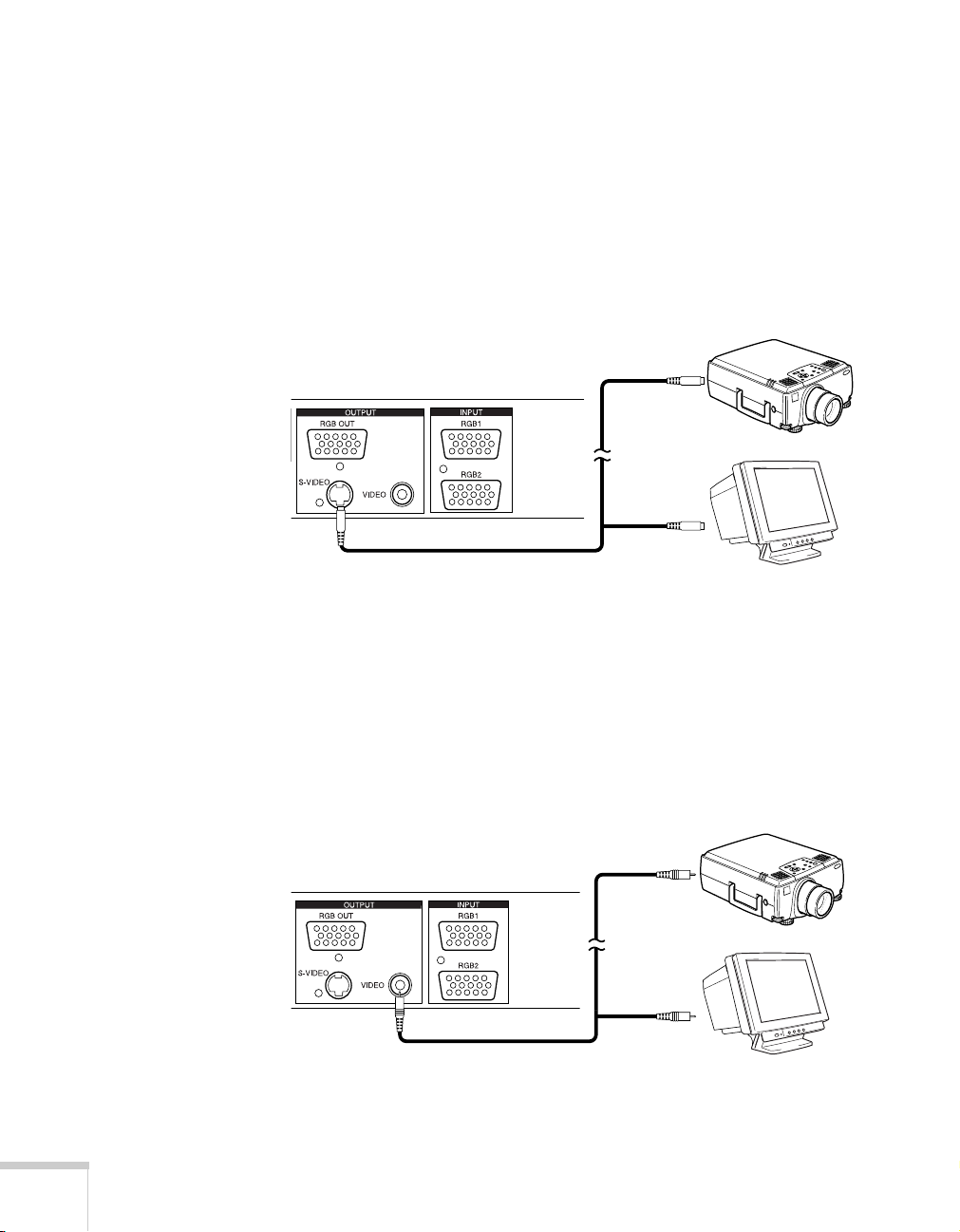

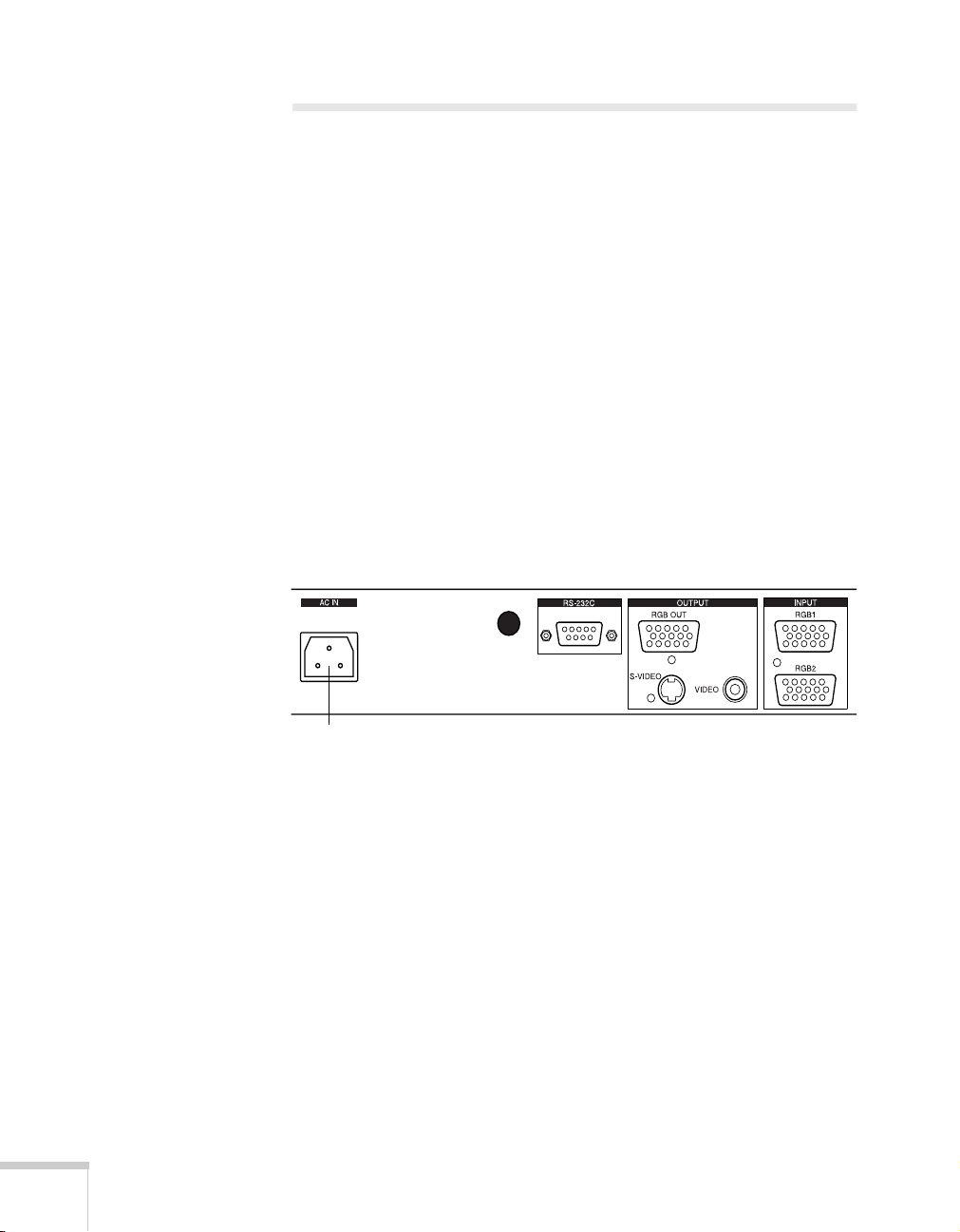

Connecting to a Projector or Monitor
You can connect the document camera to any projector or monitor
that has a standard RGB video, composite video, or S-Video input
port. EPSON projectors support all three connections. Most
computer monitors support only RGB video, while many television
monitors support S-Video and composite video.
RGB video provides the highest quality, with true XGA resolution.
S-Video offers the next best quality, followed by composite video.
Connecting the RGB Video Cable
Before you start, make sure your document camera and projector or
monitor are turned off.
1. Connect one end of the RGB video cable to the document
camera’s
RGB OUT
port.
2. Connect the other end of the RGB video cable to RGB video
input port on the projector or monitor.
or
3. Tighten the screws on the connectors.
note
The RGB video input port on
the projector or monitor may
be labeled computer,
component video, or video in.
Setting Up the Document Camera 11
Loading...
