Contents
2
Notations Used in This Guide 5
Introduction to Your Projector 8
Projector Parts and Functions .......................................................... 9
Projector Parts - Front/Side.......................................................................................................... 9
Projector Parts - Top/Side .......................................................................................................... 10

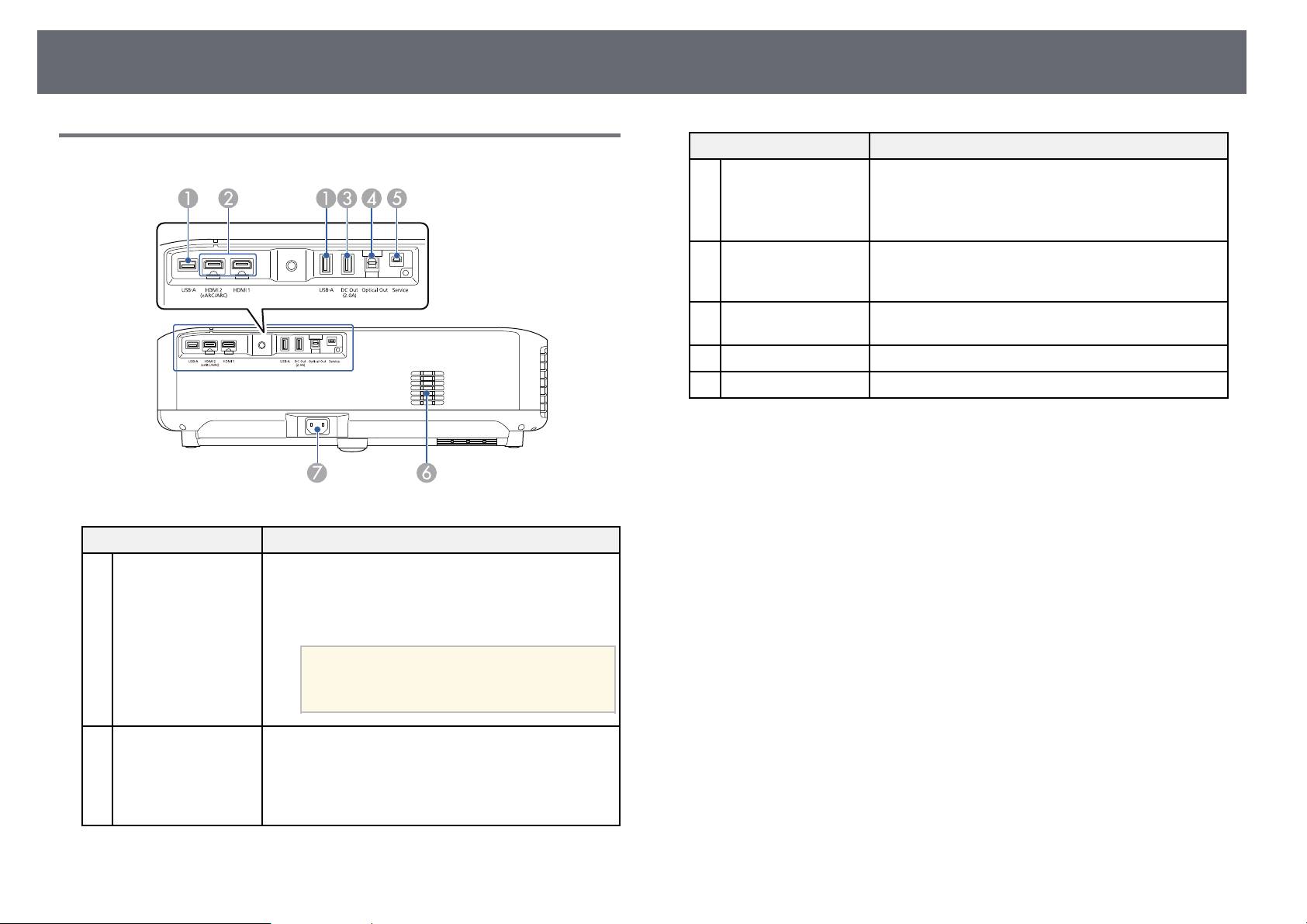

Projector Parts - Rear.................................................................................................................... 11

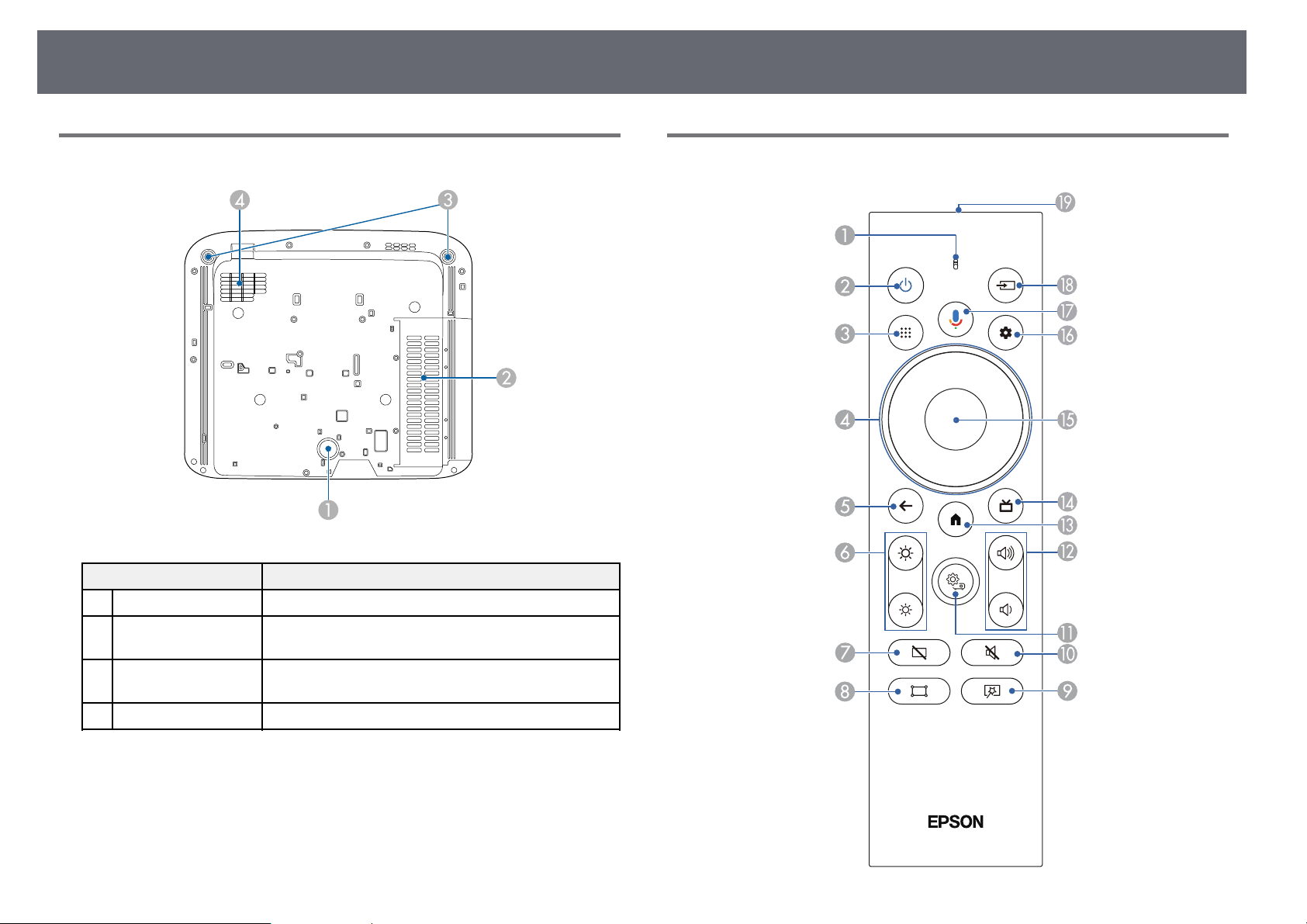

Projector Parts - Base ................................................................................................................... 12

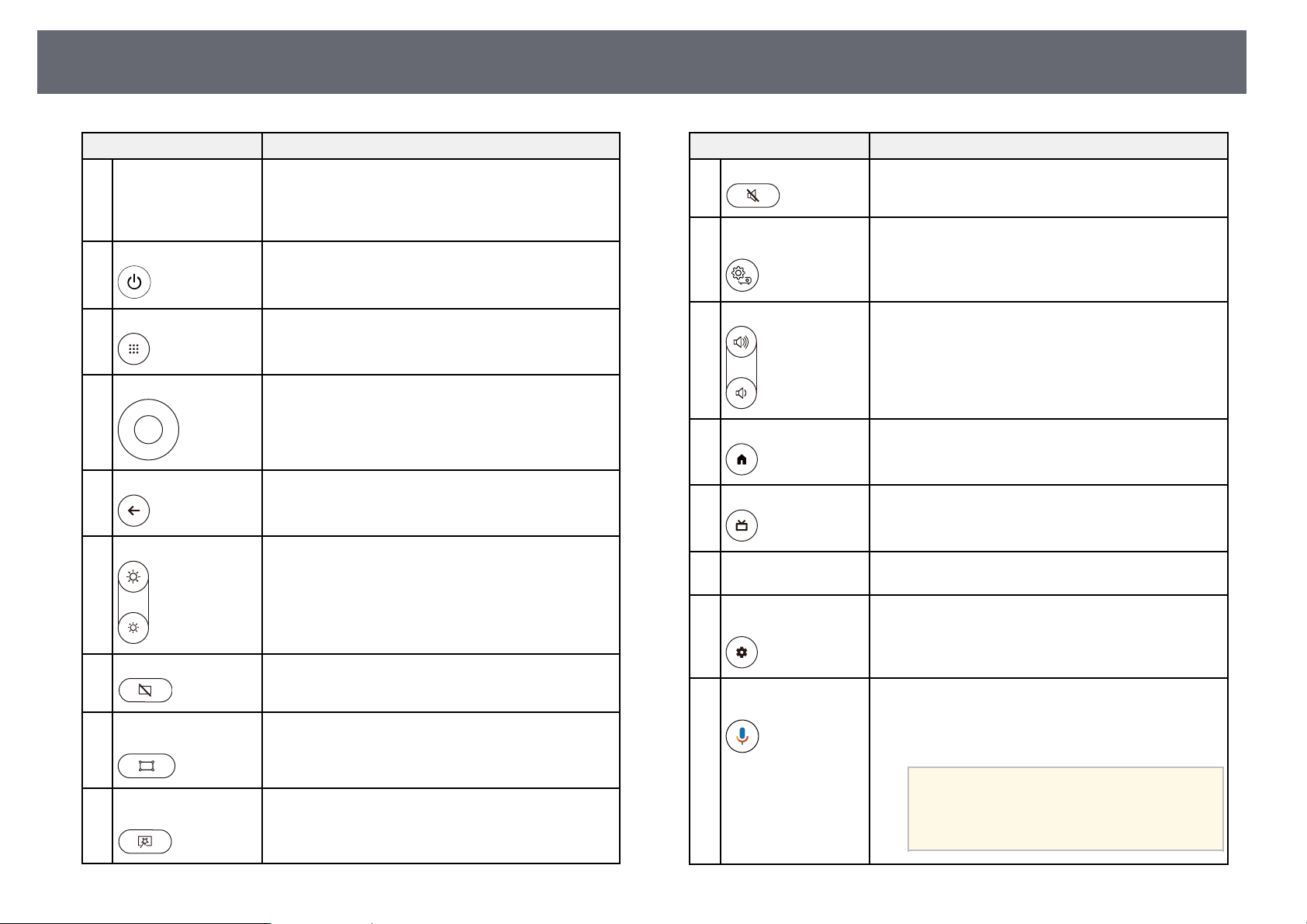

Projector Parts - Projector Remote Control ......................................................................... 12
Setting Up the Projector 15
Projector Placement ........................................................................ 16

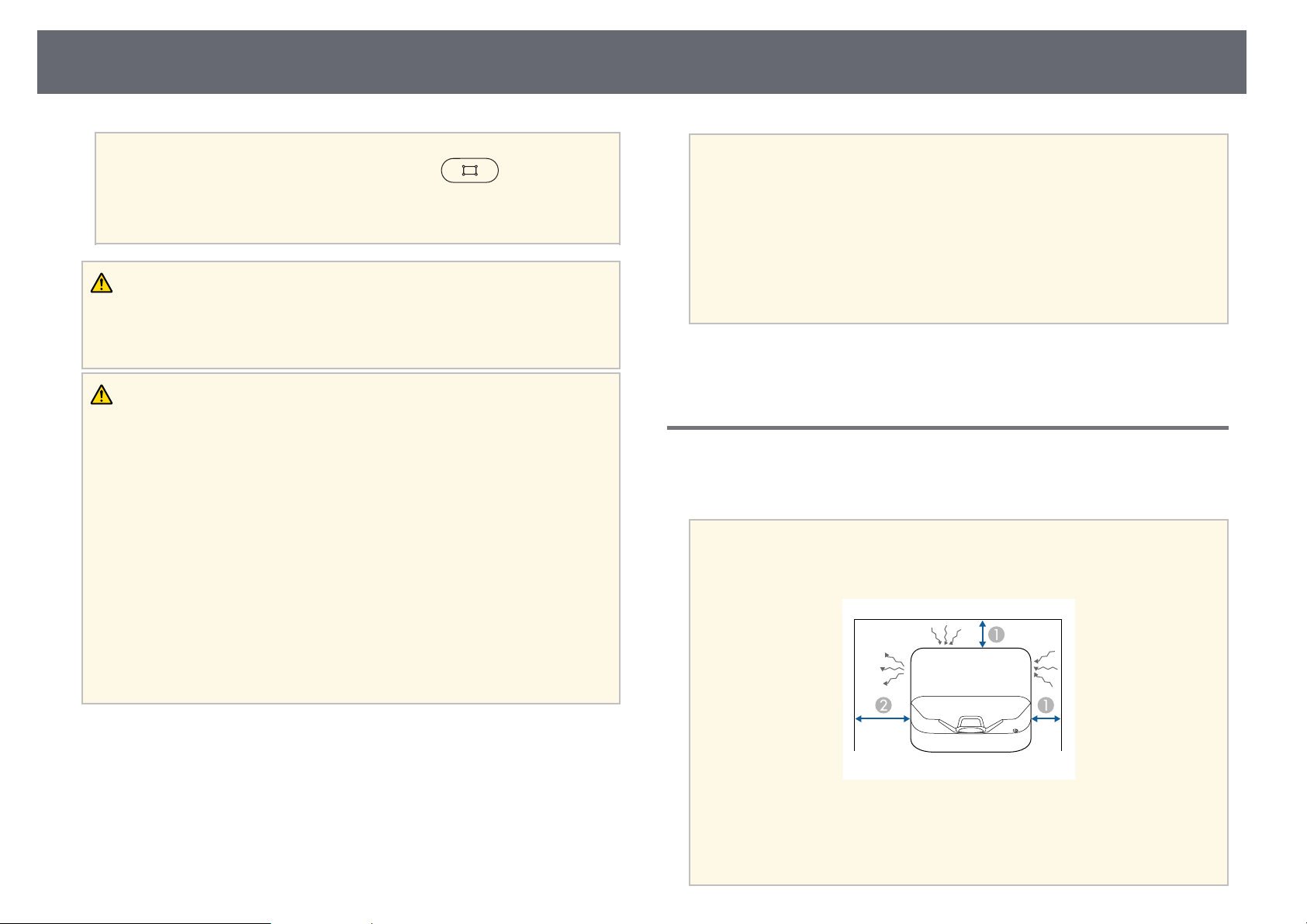

Precautions on Installation ........................................................................................................ 17
Projector Connections ..................................................................... 18

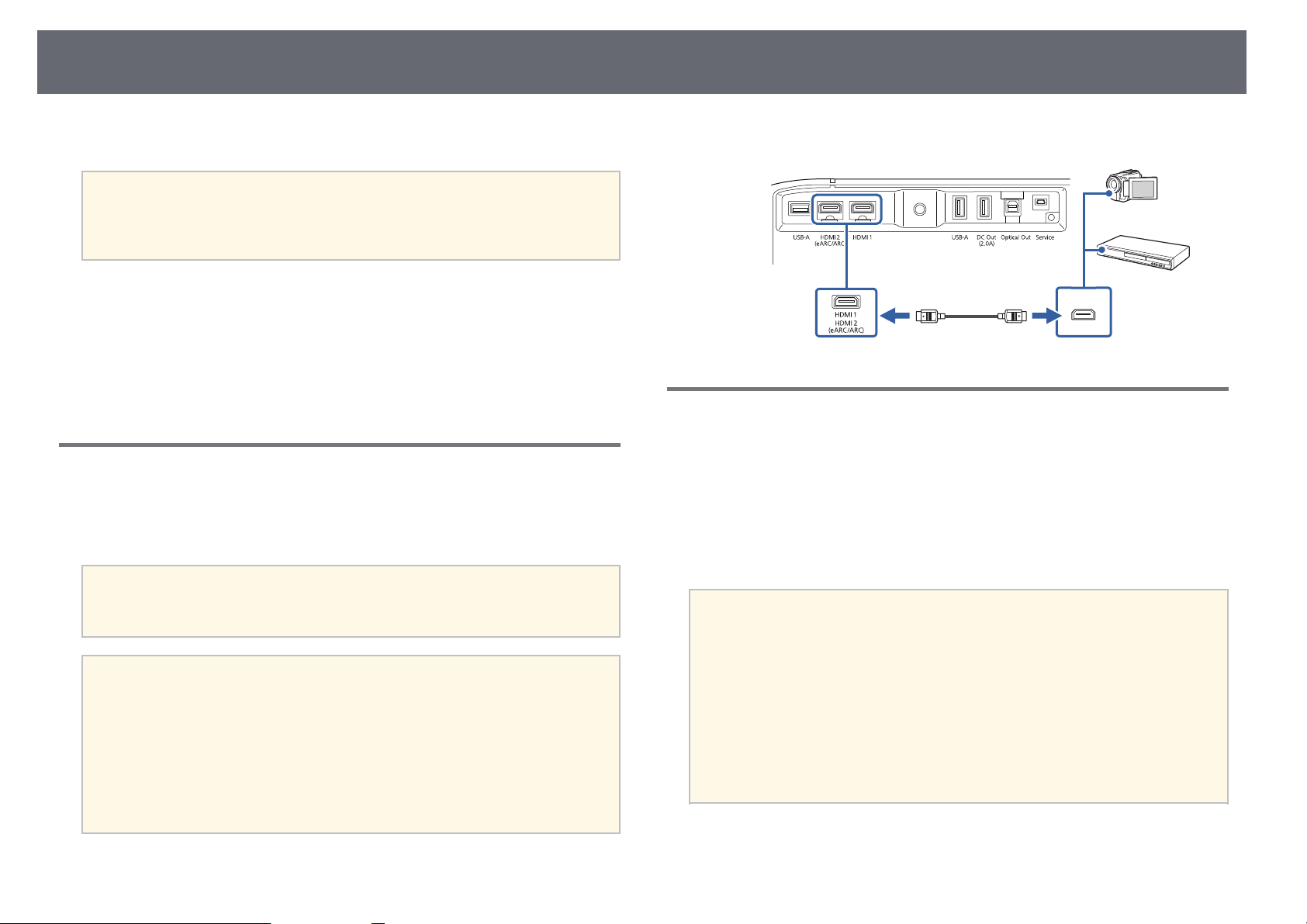

Connecting to Video Sources ................................................................................................... 18
Connecting to External USB Devices ..................................................................................... 18
Connecting to External Audio Devices ................................................................................. 19
Connecting to a Streaming Media Player ............................................................................ 19
Connecting to an eARC/ARC Compatible AV System ..................................................... 20

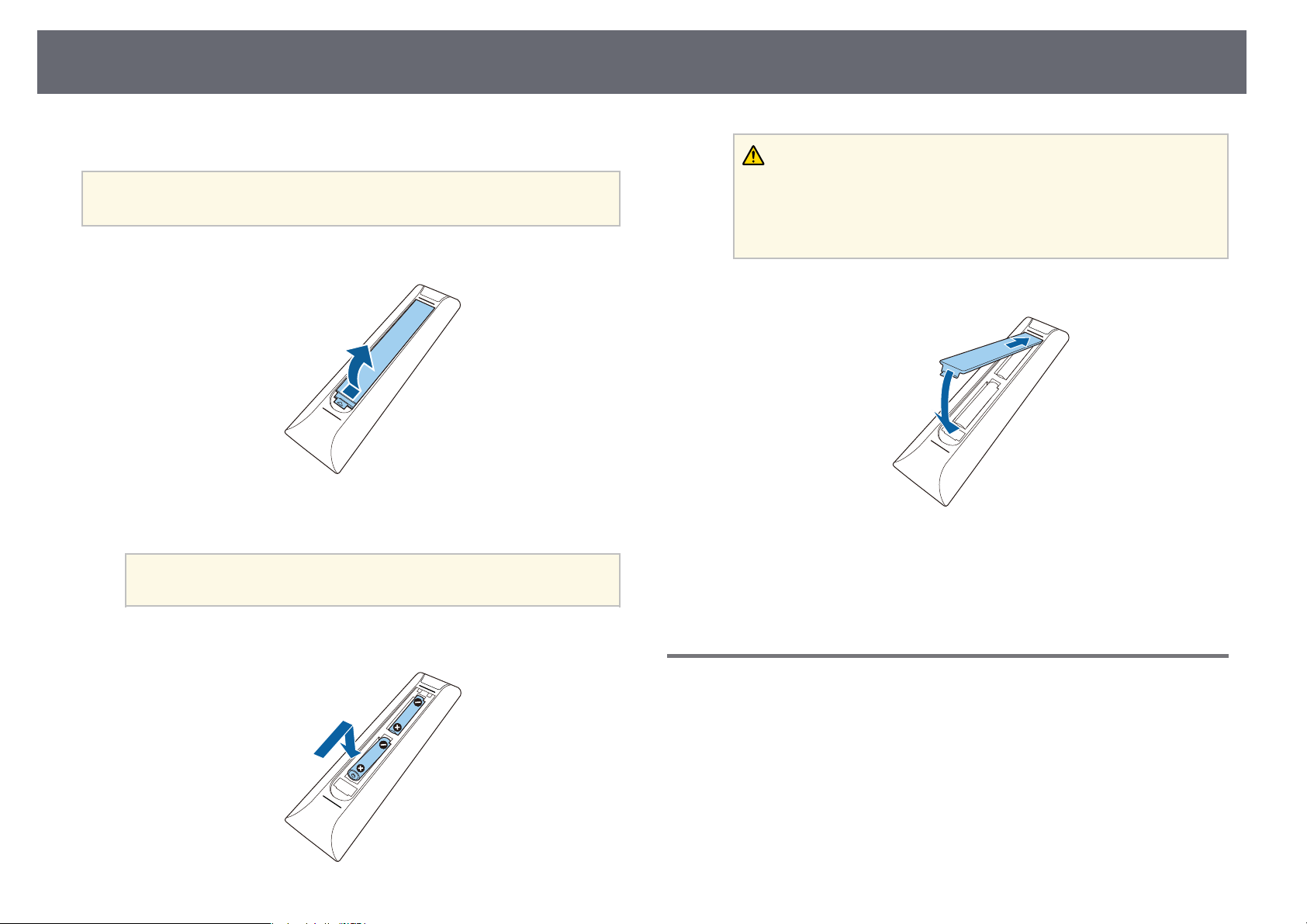

Installing Batteries in the Remote Control.................................... 21
Remote Control Operation ........................................................................................................ 21

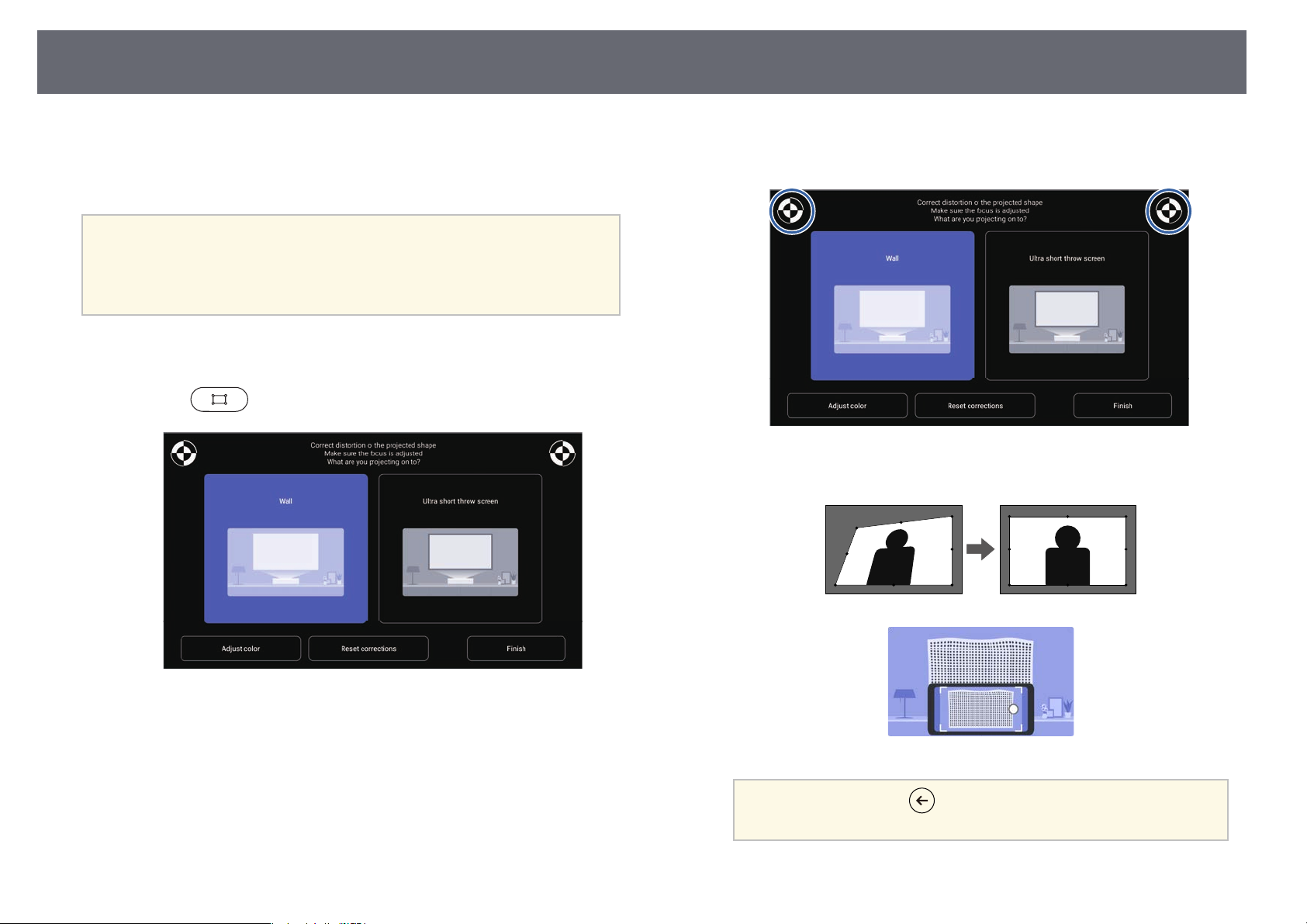

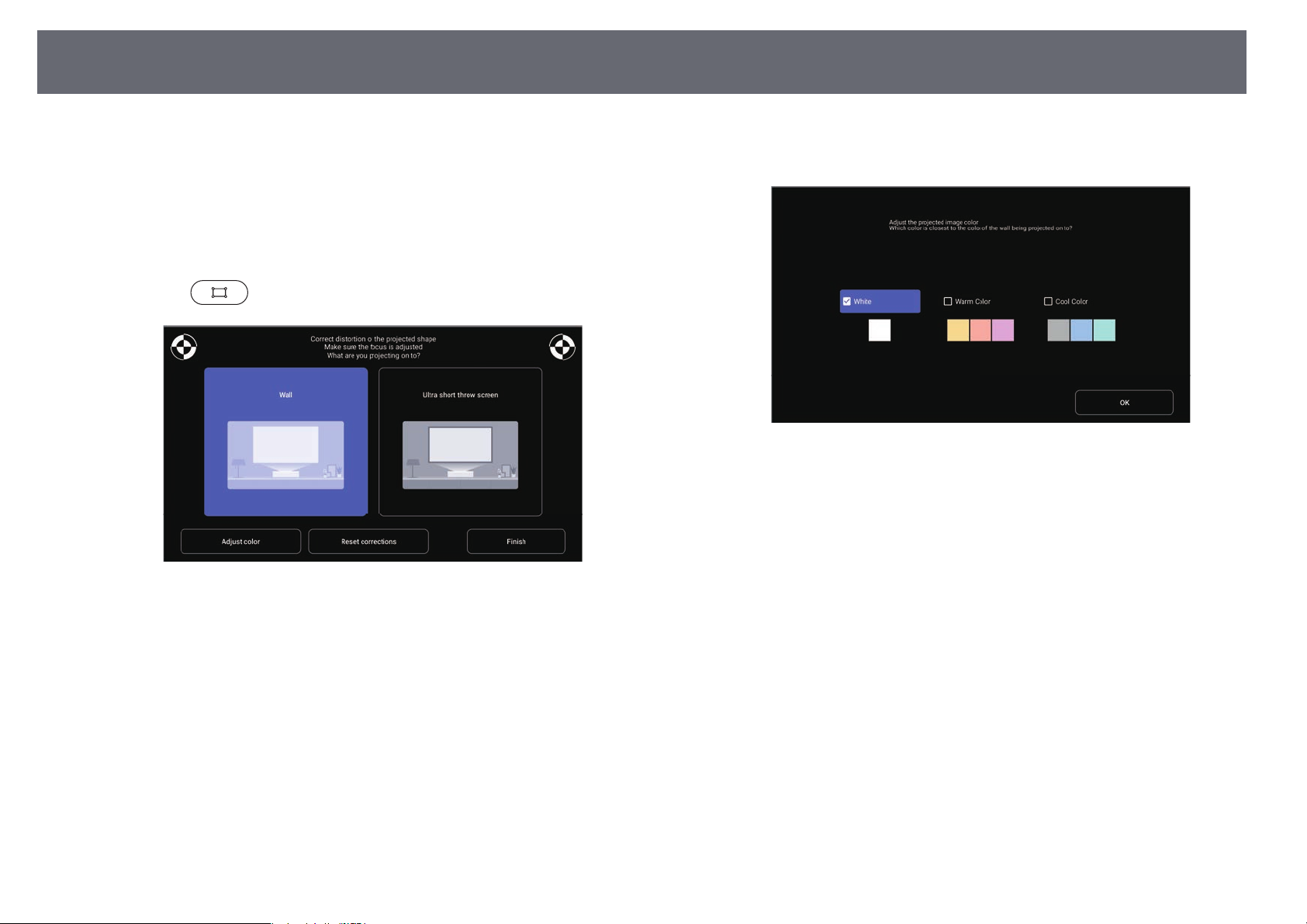

Correcting Distortion in the Image ................................................ 29
Adjusting Image Color..................................................................... 31
Adjusting the Light Source Brightness Manually ......................... 32
Adjusting Contrast Based on the Brightness of the Content ...... 33
Selecting an Image Source .............................................................. 34
Image Aspect Ratio .......................................................................... 35
Changing the Image Aspect Ratio.......................................................................................... 35
Available Image Aspect Ratios ................................................................................................. 36
Color Mode ....................................................................................... 37
Changing the Color Mode ......................................................................................................... 37
Available Color Modes................................................................................................................. 38

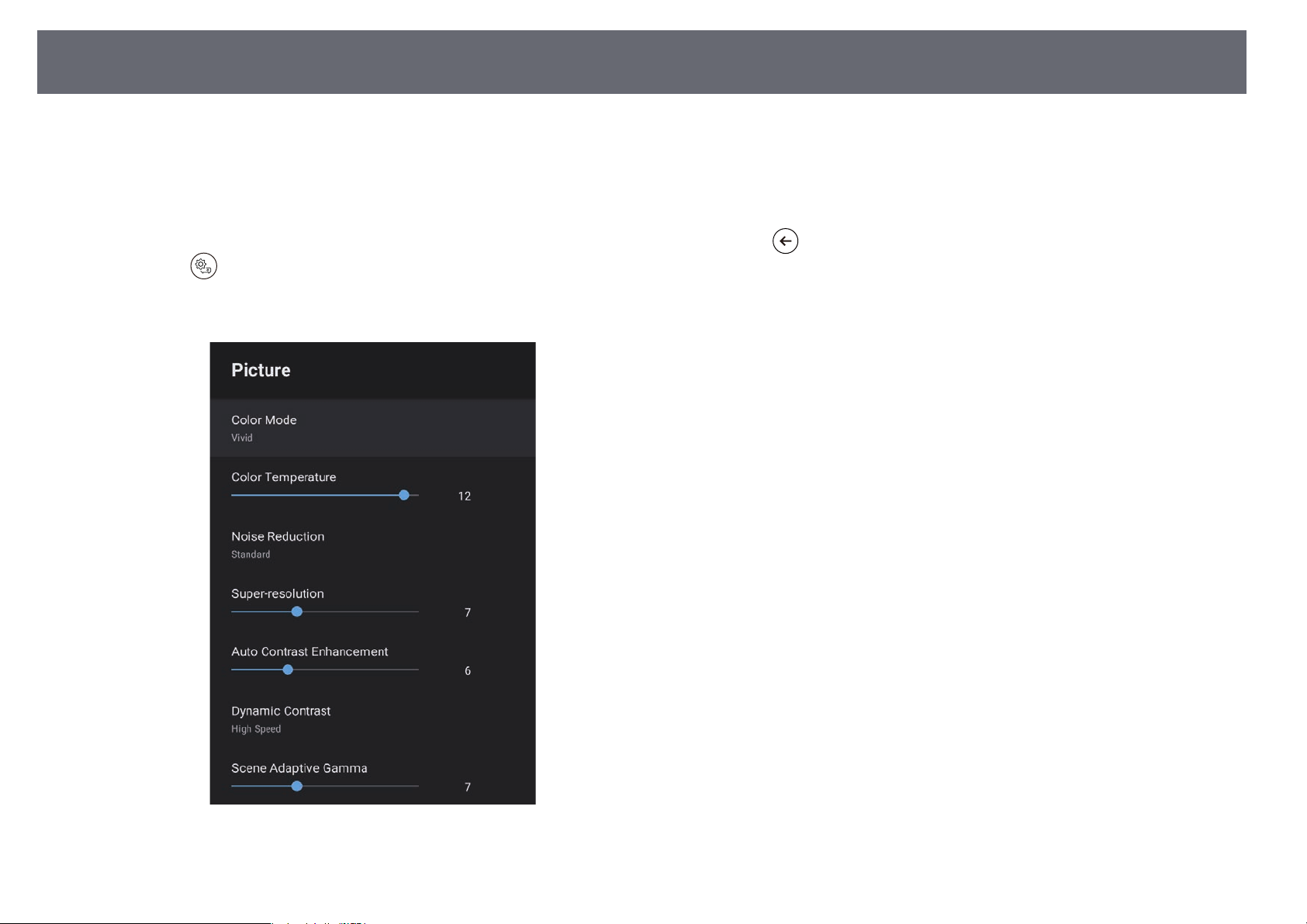

Adjusting the Image Quality........................................................... 39
Adjusting Image Quality in Detail........................................................................................... 39
Adjusting the Image Resolution .............................................................................................. 40

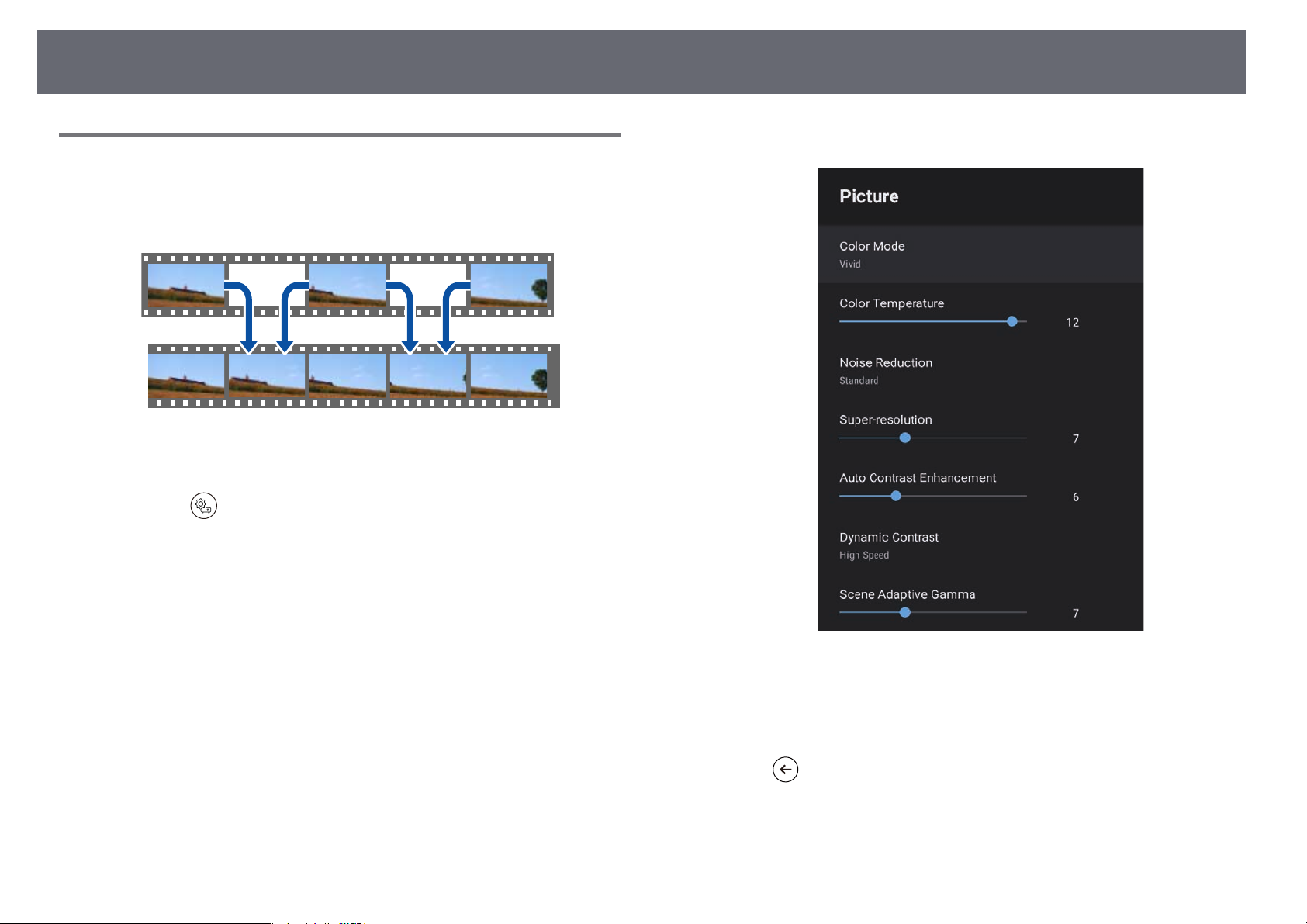

Setting Frame Interpolation...................................................................................................... 41
Controlling the Volume with the Volume Buttons ....................... 42

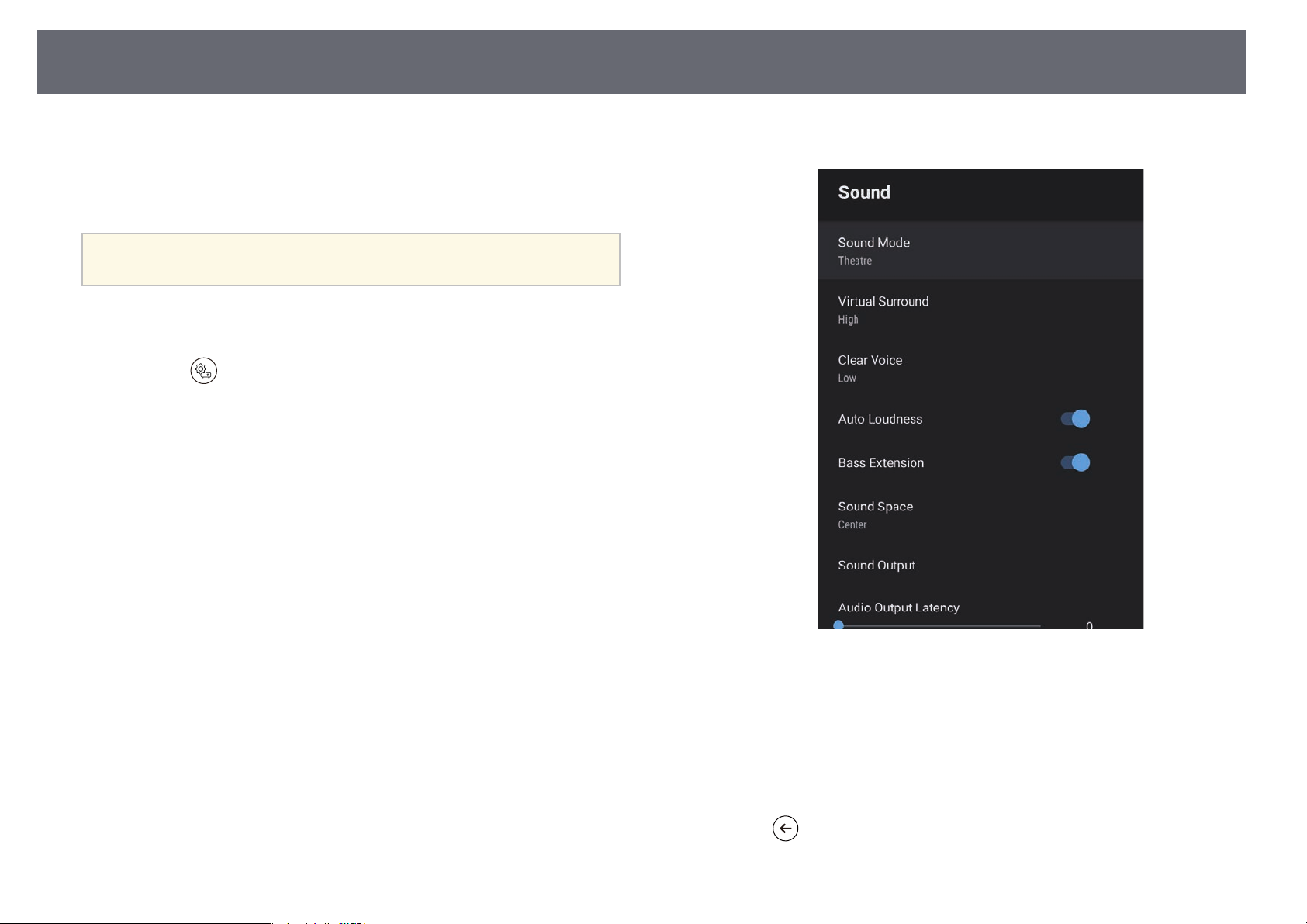

Adjusting the Sound Settings (Sound Mode) ............................... 43
Available Sound Modes .............................................................................................................. 44
Detailed Sound Settings............................................................................................................. 44

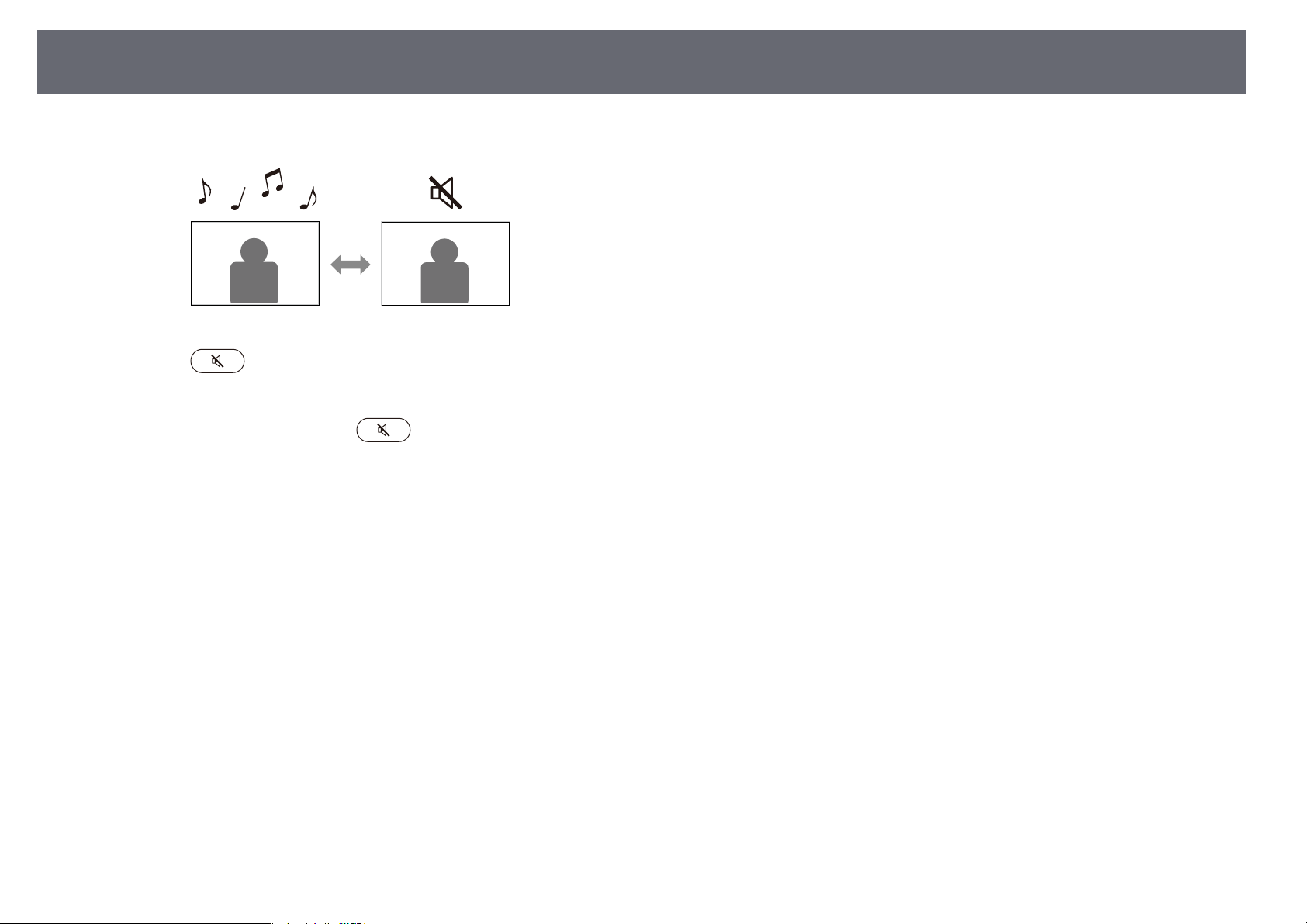

Turning Off the Sound Temporarily (Audio Mute) ....................... 46

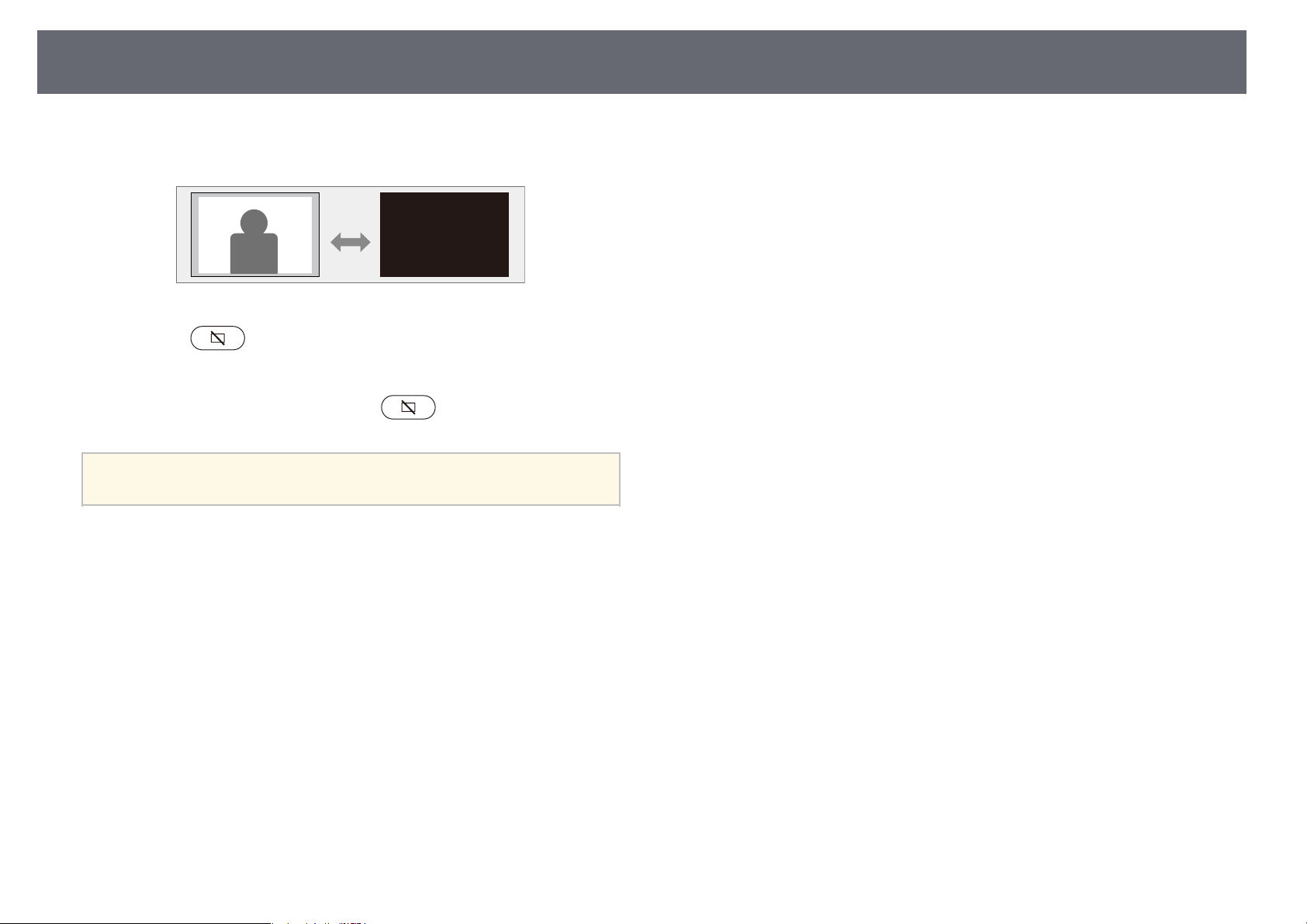

Shutting Off the Image Temporarily (Blank)................................. 47

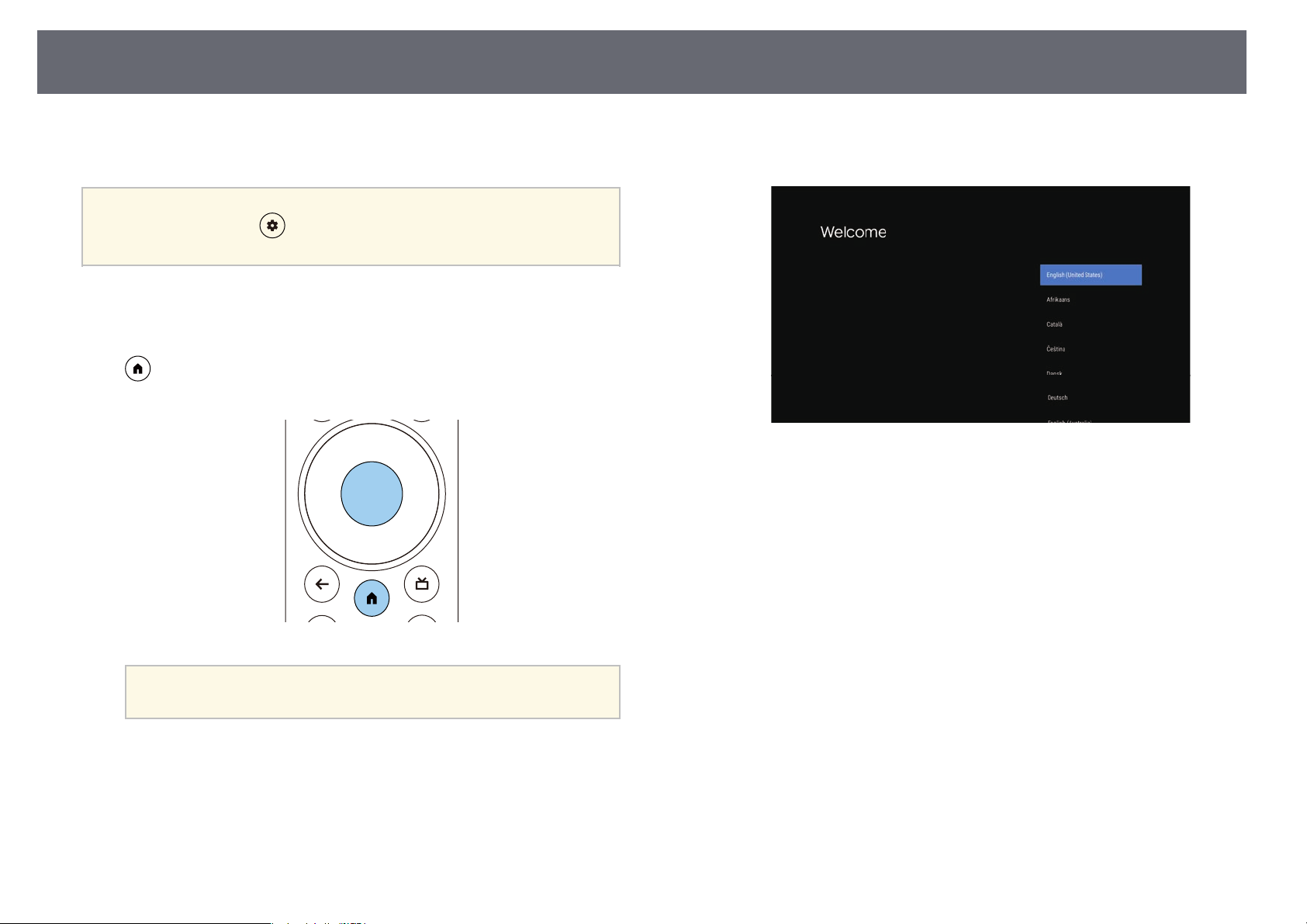

Setting Up Android TV on the Projector ....................................... 23

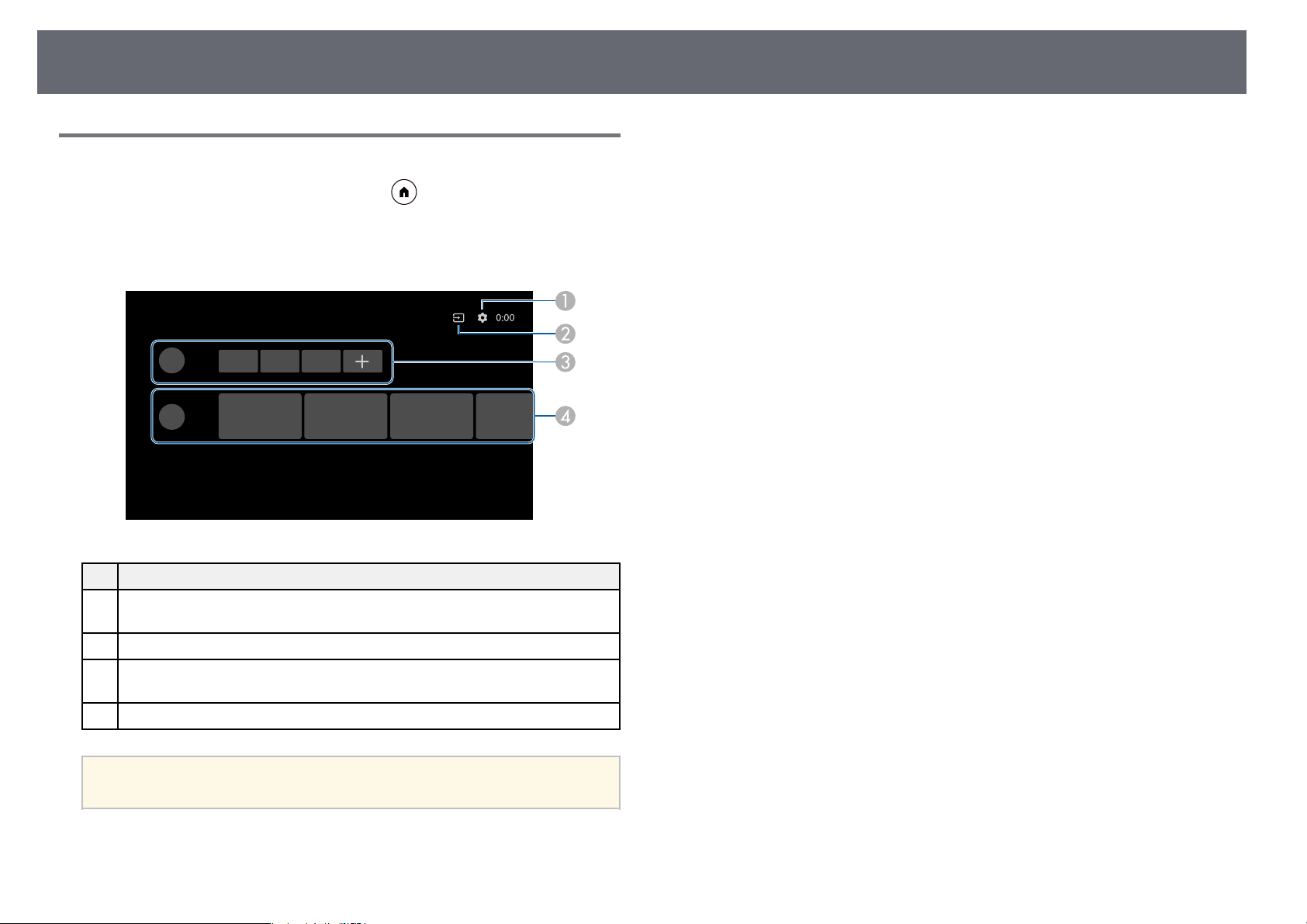

Android TV Home Screen ........................................................................................................... 24
Using Basic Projector Features 25
Turning On the Projector ................................................................ 26
Turning Off the Projector ................................................................ 27

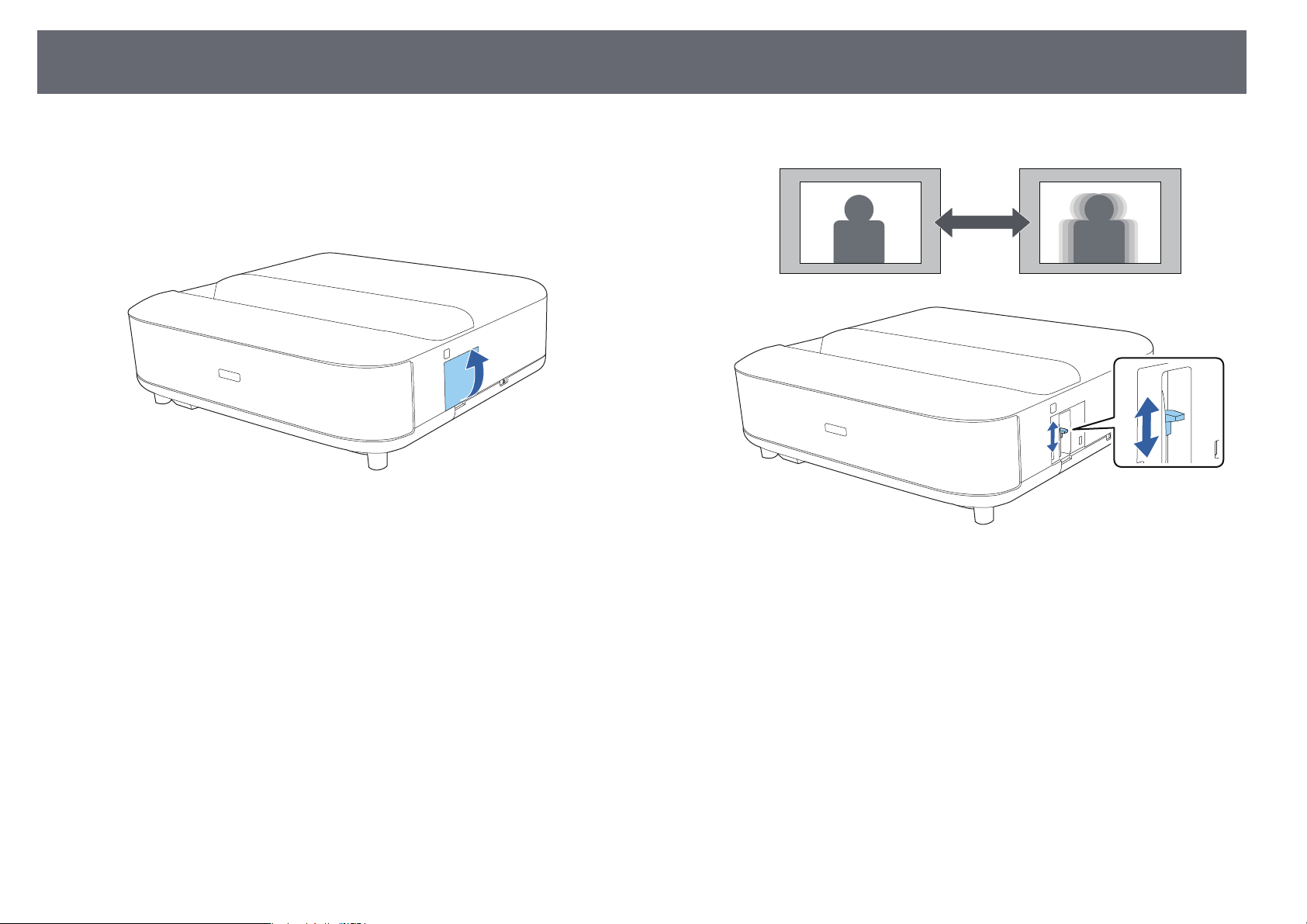

Focusing the Image Using the Focus Lever ................................... 28
Adjusting Projector Features 48
Changing the Image Size or Position (Flexible Picture)............... 49
Flipping the Image Horizontally (Flexible Picture)....................... 50

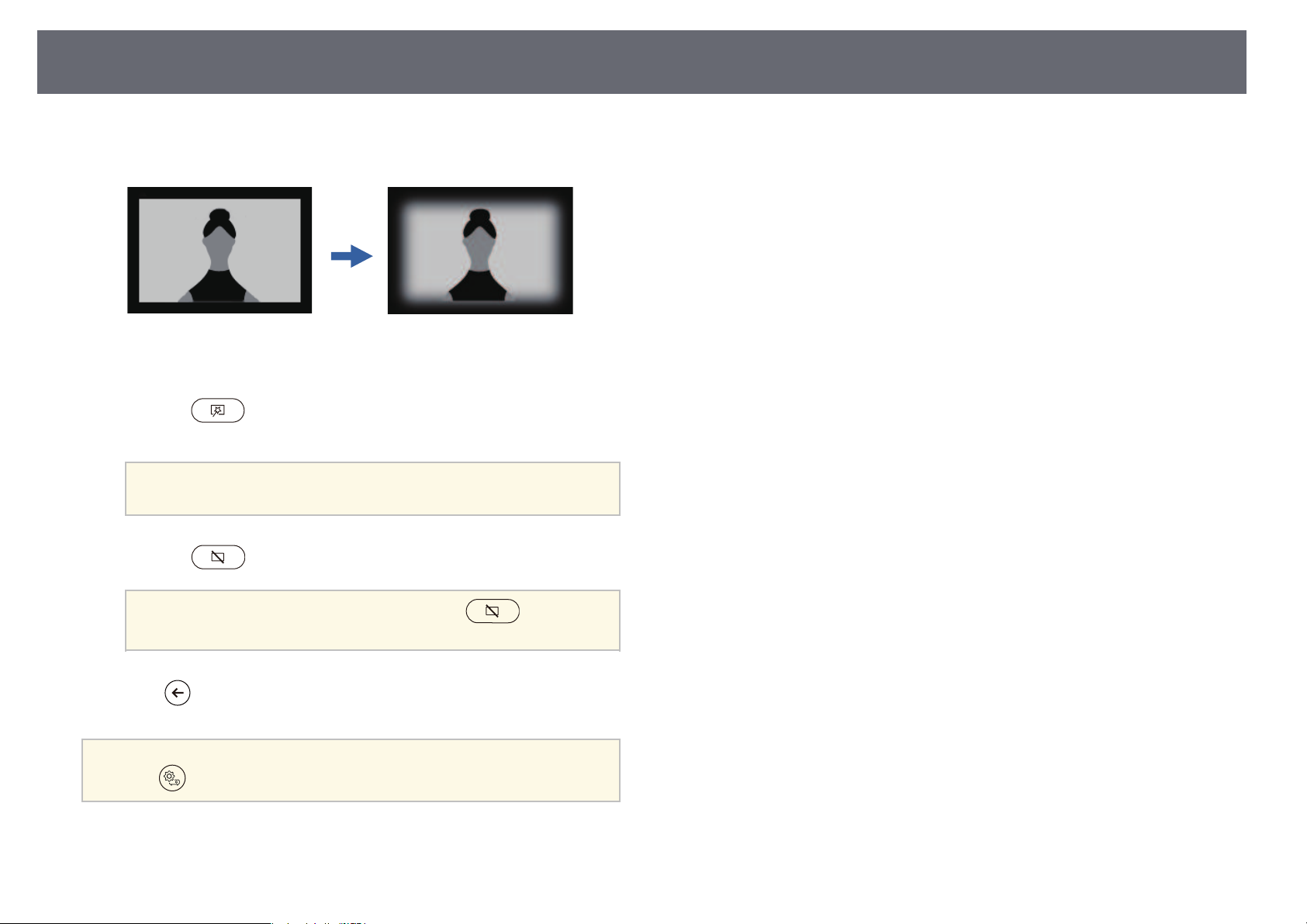

Blurring the Edges of the Image (Flexible Picture) ...................... 51
Using the Projector as a Bluetooth Speaker ................................. 52
Bluetooth Specifications............................................................................................................. 52
Page 3
Contents
3
Using Chromecast built-in™............................................................. 54
HDMI CEC Features .......................................................................... 55
Operating Connected Devices Using the HDMI CEC Features .................................... 55
Installing a Security Cable............................................................... 57
Updating Projector Firmware ......................................................... 58
Initializing the Projector.................................................................. 59
Adjusting the Menu Settings 60

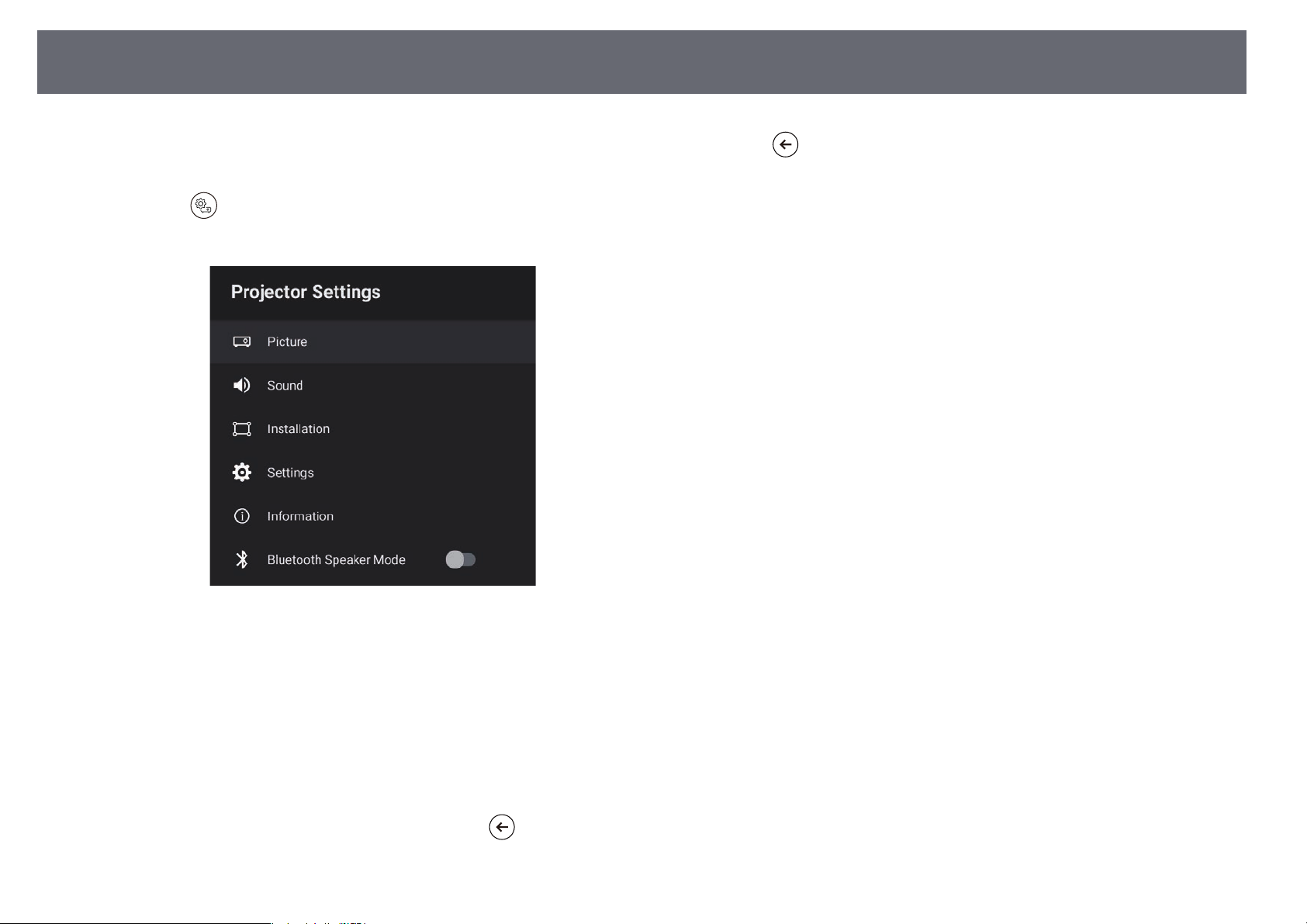

Using the Projector Settings ........................................................... 61

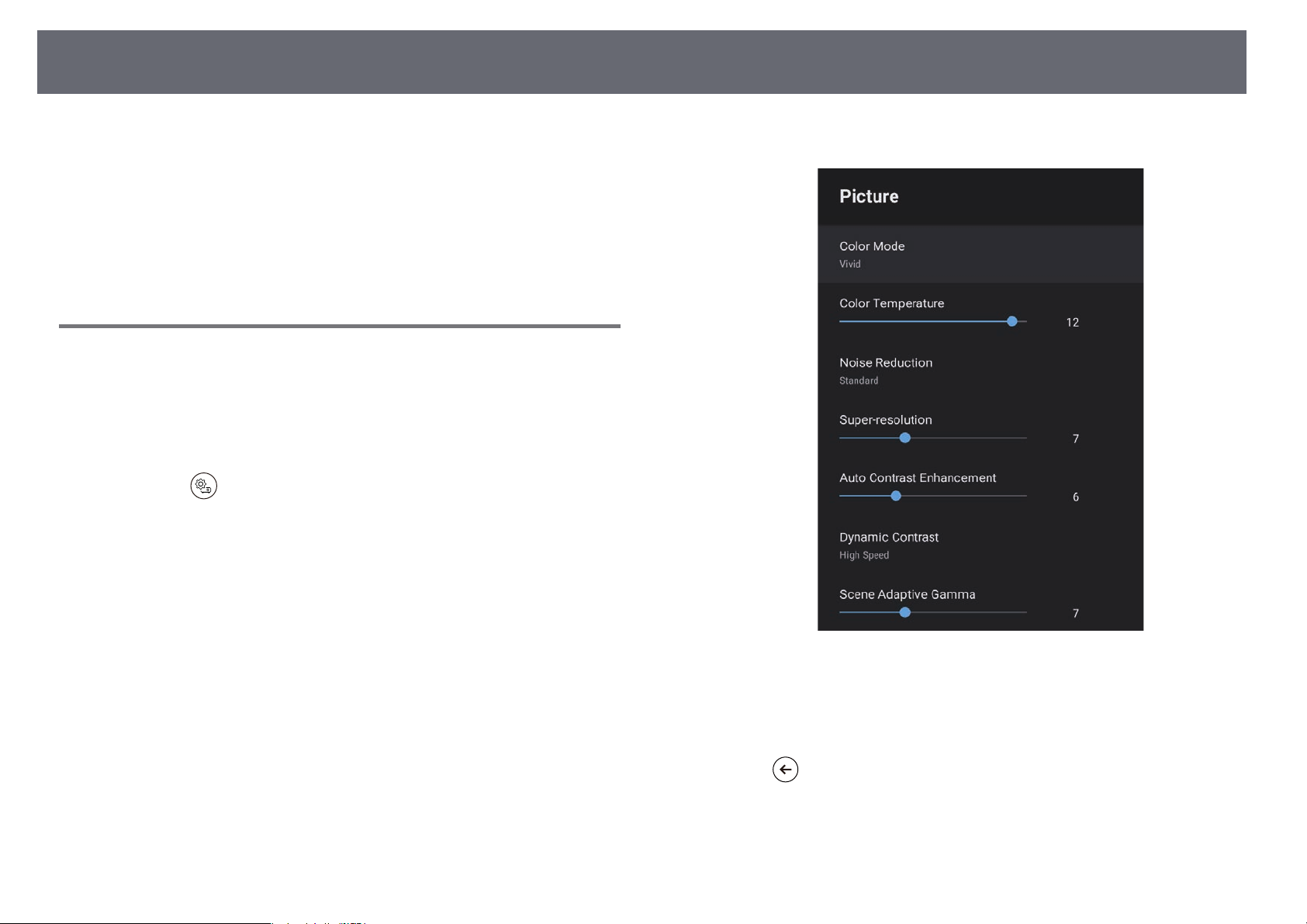

Image Quality Settings - Picture Menu .......................................... 62
Sound Quality Settings - Sound Menu........................................... 64
Projector Installation Settings - Installation Menu....................... 66

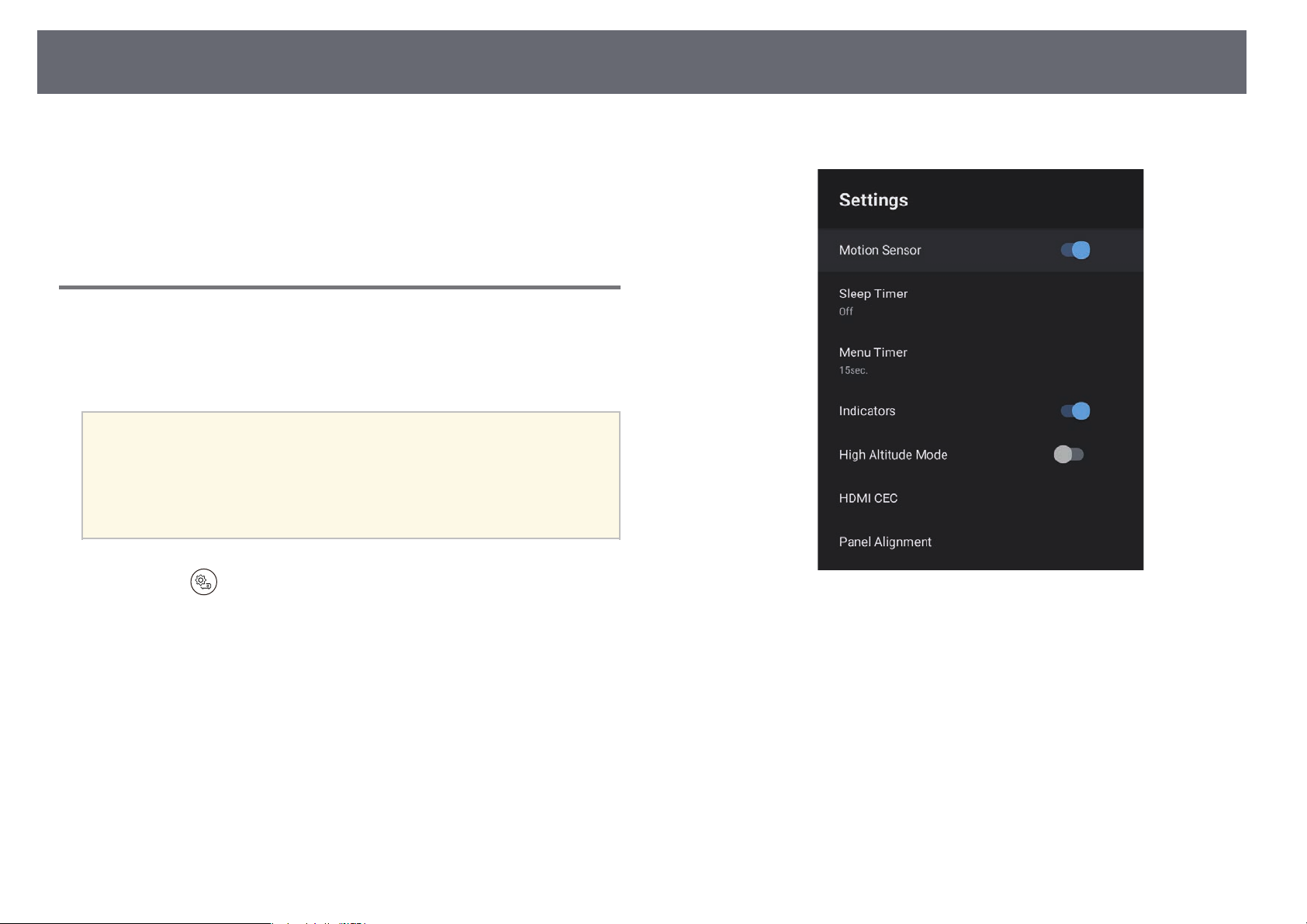

Projector Feature Settings - Settings Menu .................................. 67

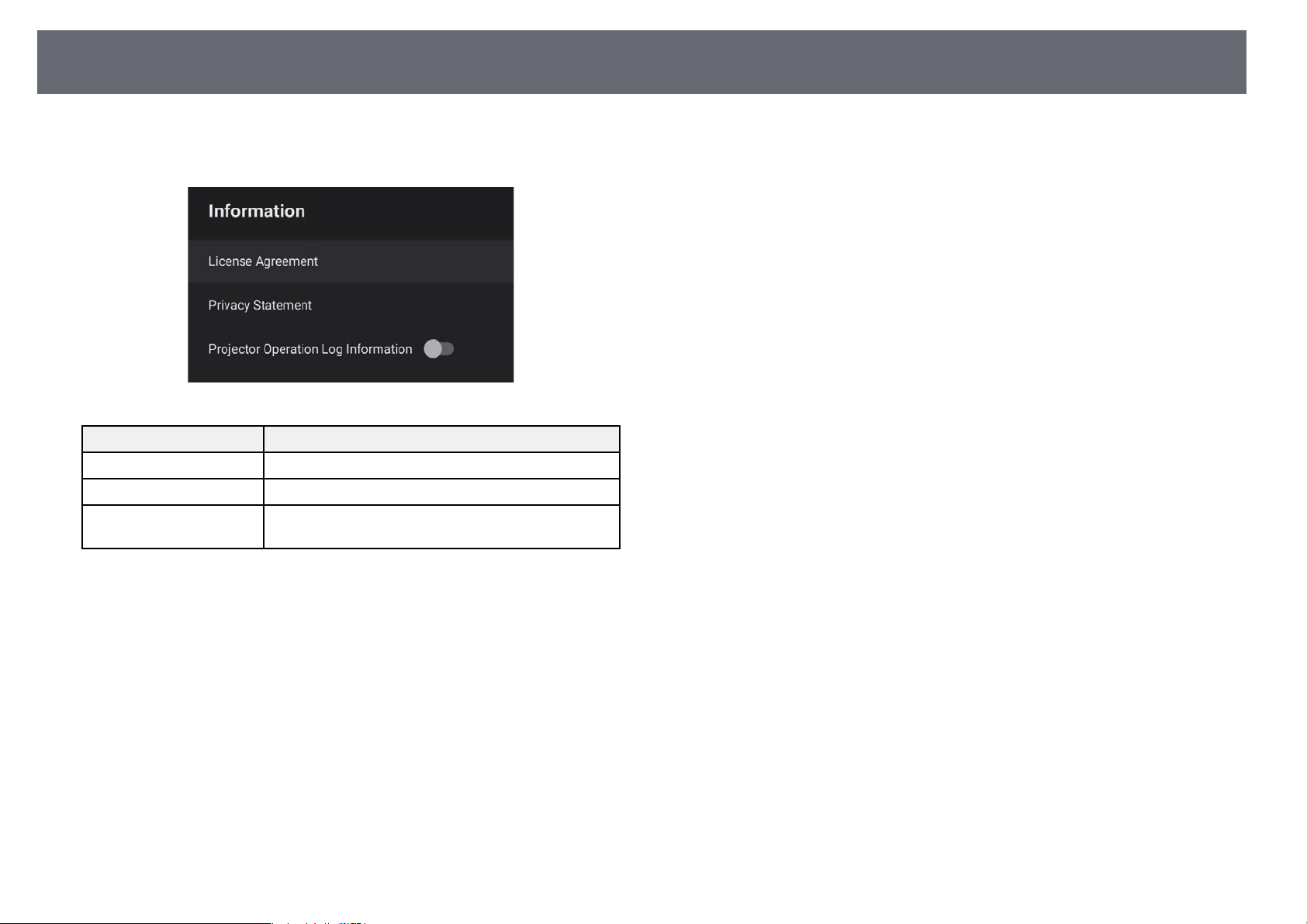

Projector Information Display - Information Menu...................... 68
Projector Bluetooth Speaker Settings - Bluetooth Speaker
Mode Menu ....................................................................................... 69
Maintaining the Projector 70
Projector Maintenance .................................................................... 71
Cleaning the Projection Window .................................................... 72
Cleaning the Motion Sensor............................................................ 73
Cleaning the Projector Case ............................................................ 74
Air Filter and Air Intake Vent Maintenance .................................. 75

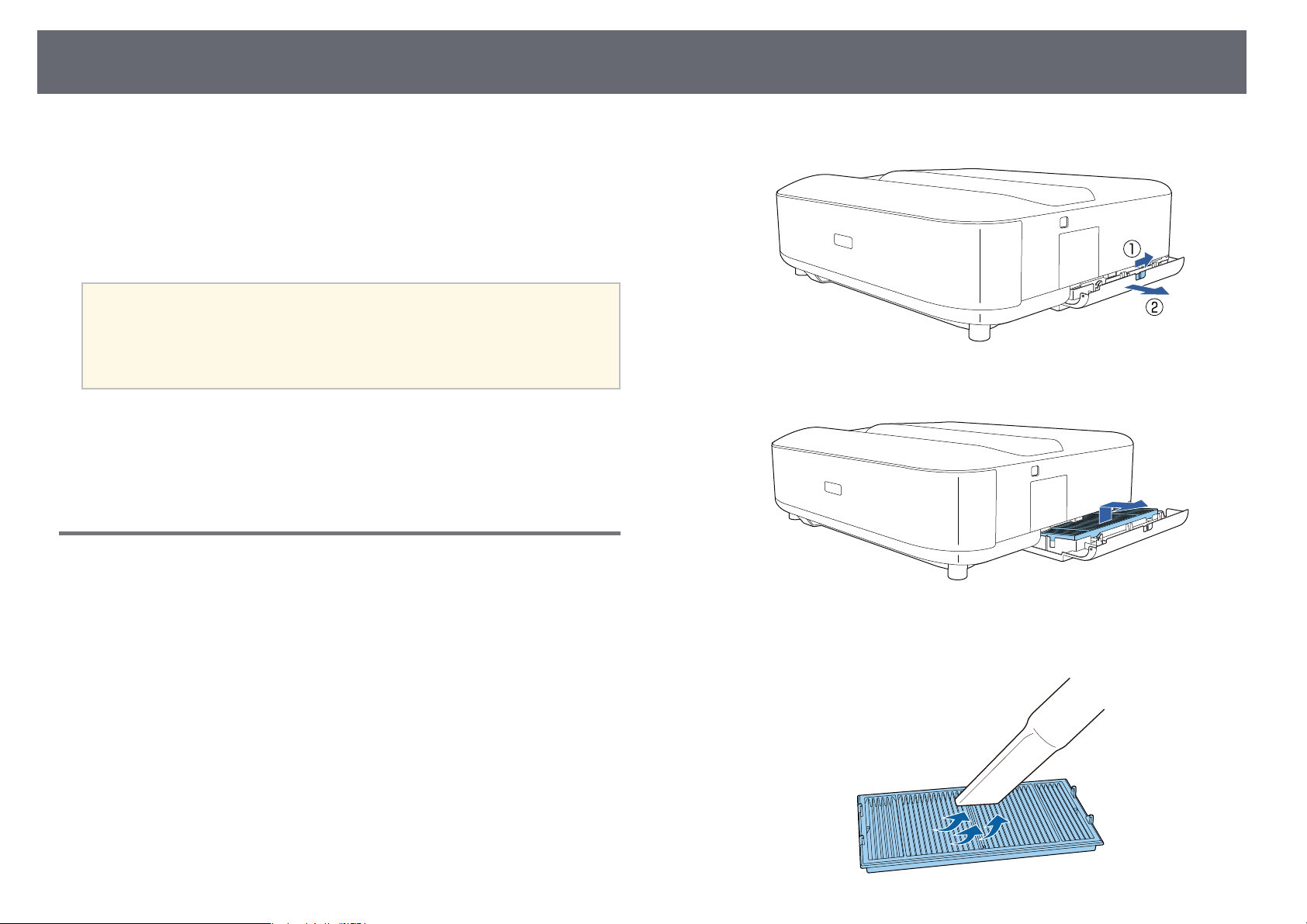

Cleaning the Air Filter ................................................................................................................. 75

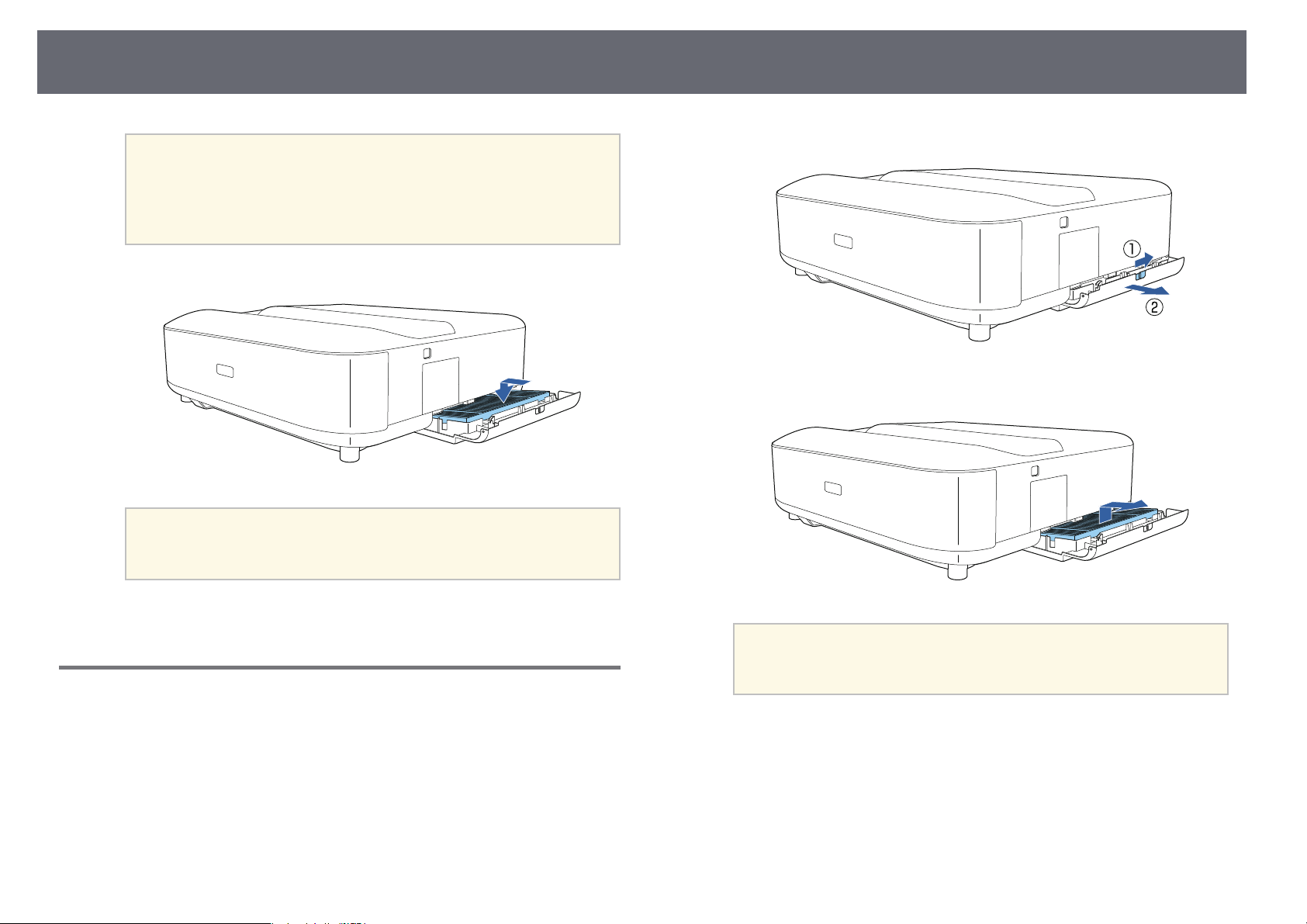

Replacing the Air Filter................................................................................................................ 76
Cleaning the Air Intake Vents .................................................................................................. 77

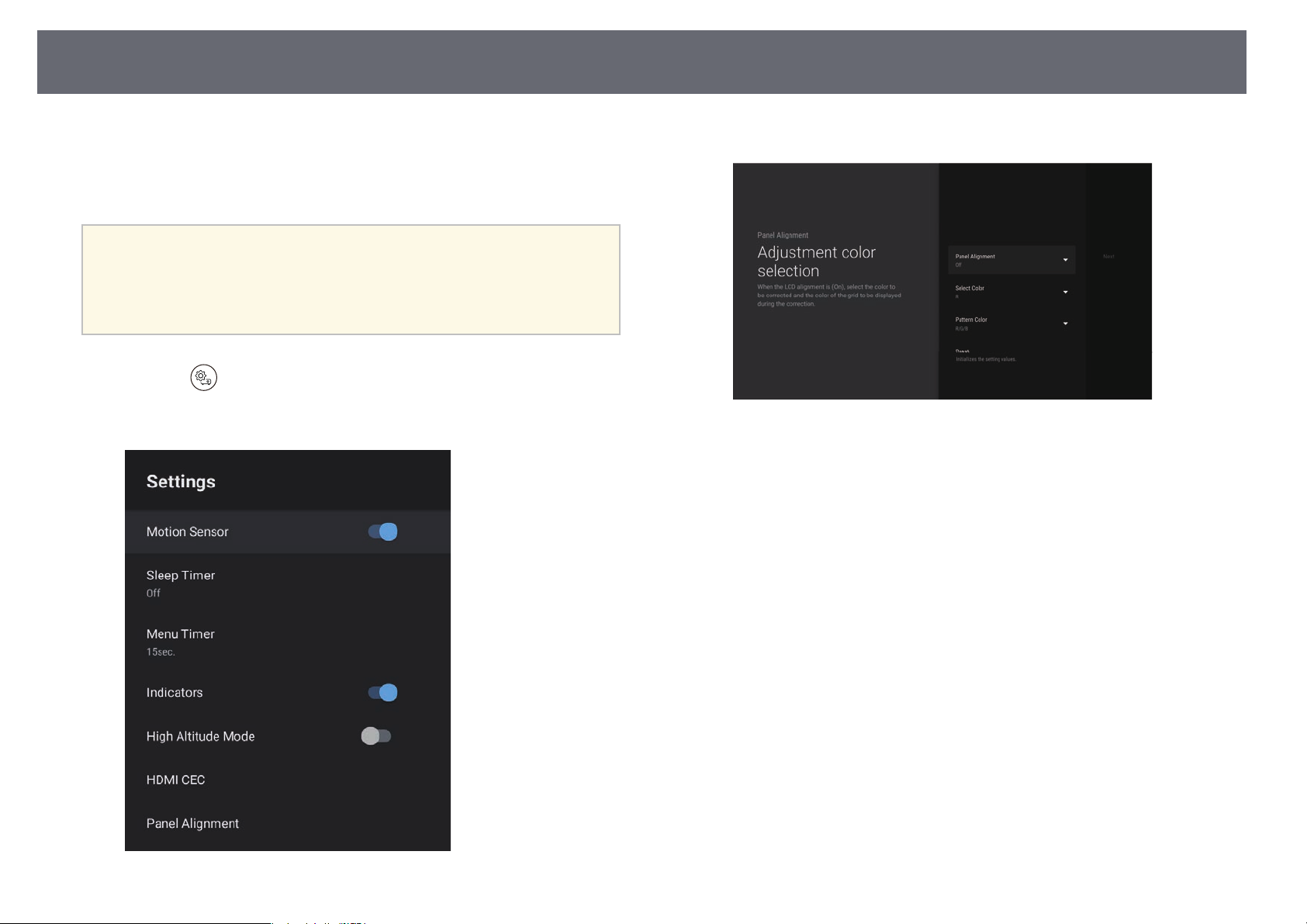

Adjusting the Color Convergence (Panel Alignment) .................. 78
Solving Problems 80
Projection Problems......................................................................... 81
Projector Indicator Status .............................................................. 82
Solving Projector Power-On or Power-Off Problems ................... 84
Solving Projector Power Problems ......................................................................................... 84
Solving Projector Shutdown Problems ................................................................................. 84
Solving Image Problems ................................................................. 85
Solving Missing Image Problems ............................................................................................ 85
Solving Curved or Not Rectangular Image Problems...................................................... 86
Solving Flipped Image Problems ............................................................................................ 86
Solving Small Image Problems................................................................................................. 86
Adjusting a Fuzzy or Blurry Image .......................................................................................... 86
Fixing Partial Image Problems.................................................................................................. 87
Adjusting an Image that Contains Noise or Static............................................................ 87
Adjusting an Image with Incorrect Brightness or Colors ............................................... 87
Solving Sound Problems ................................................................. 89
Solving Missing or Low Audio Problems.............................................................................. 89
Solving Bluetooth Speaker Mode Problems ....................................................................... 89
Solving Remote Control Operation Problems............................... 91
Solving HDMI CEC Problems ........................................................... 92
Solving Wi-Fi Network Problems .................................................... 93
Solving Android TV Problems......................................................... 94
Appendix 95
Optional Accessories and Replacement Parts............................... 96
External Devices............................................................................................................................. 96
Screens .............................................................................................................................................. 96
Page 4
Contents
Replacement Parts ........................................................................................................................ 96

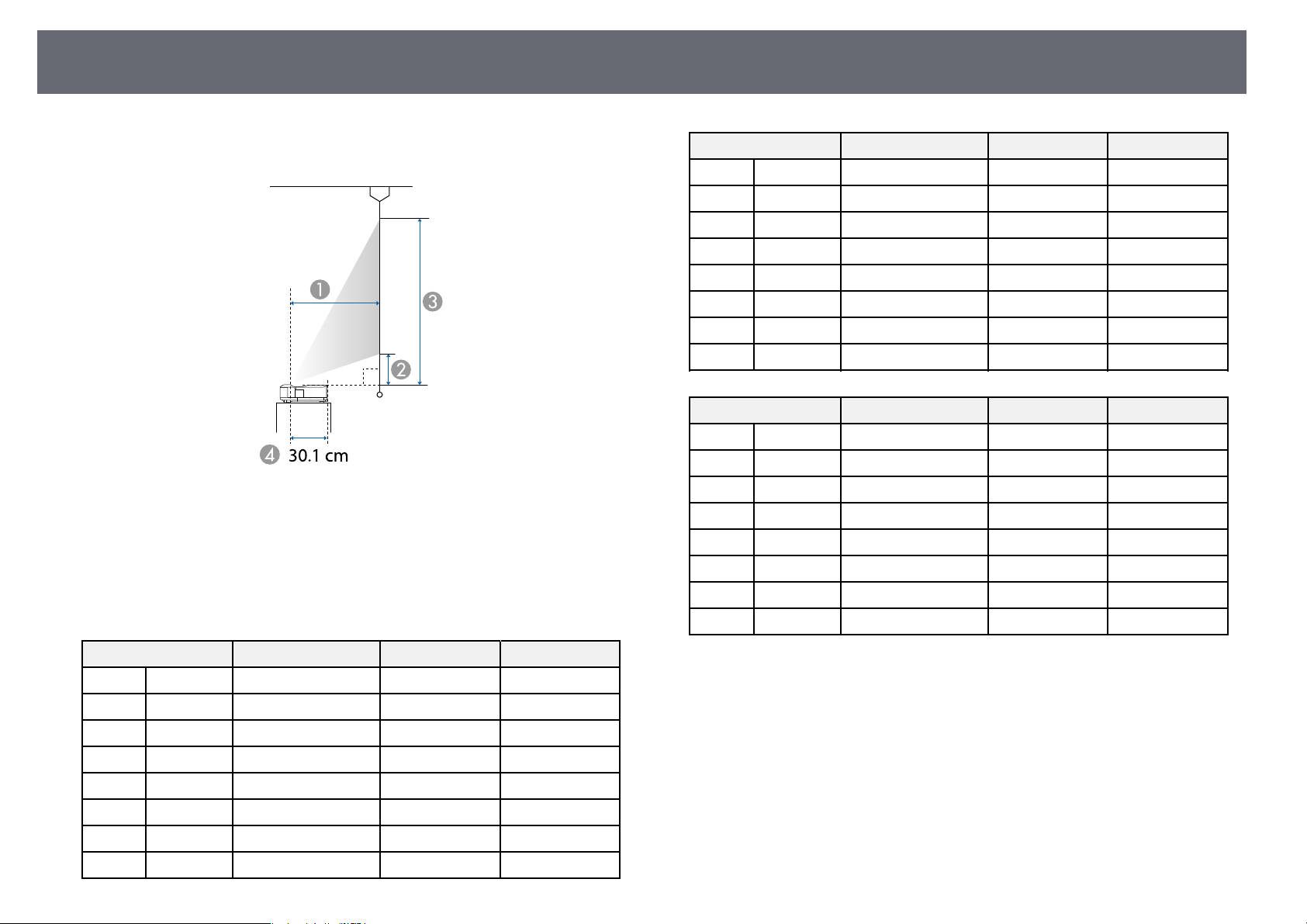

Screen Size and Projection Distance .............................................. 97
Supported Monitor Display Resolutions........................................ 98
Projector Specifications................................................................... 99
Connector Specifications............................................................................................................ 99

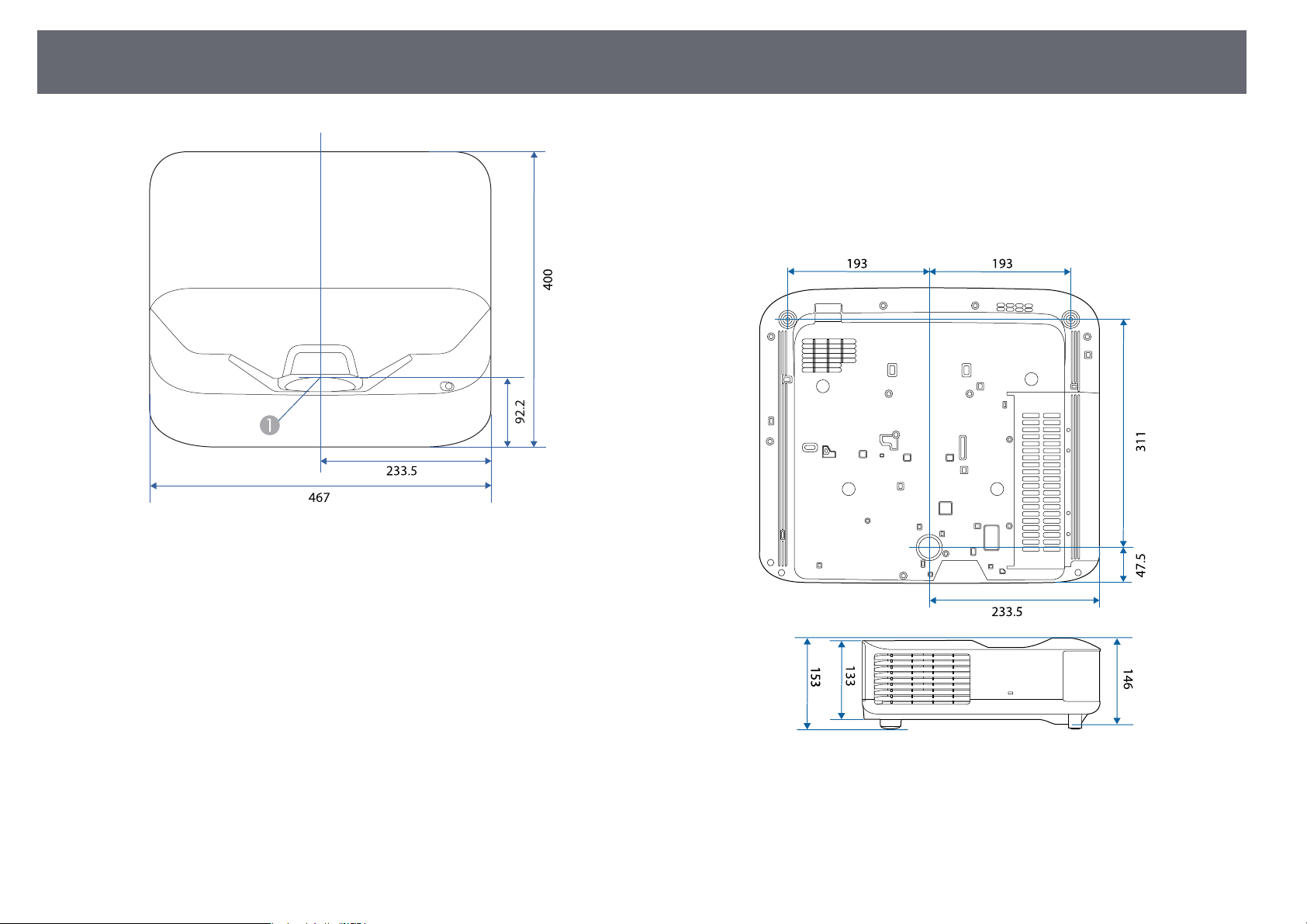

External Dimensions ...................................................................... 100
List of Safety Symbols and Instructions ...................................... 101
Laser Safety Information............................................................... 103
Laser Warning Labels................................................................................................................. 103
Glossary .......................................................................................... 105
Notices ............................................................................................ 106
FCC Compliance Statement.................................................................................................... 106
Indication of the manufacturer and the importer in accordance with
requirements of EU directive.................................................................................................. 107
Indication of the manufacturer and the importer in accordance with
requirements of United Kingdom directive...................................................................... 107
Restriction of Use ........................................................................................................................ 107
Trademarks.................................................................................................................................... 107
Copyright Notice ......................................................................................................................... 108
Copyright Attribution................................................................................................................ 108
4
Page 5
Notations Used in This Guide
Safety Symbols
The projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely.
Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property.
This symbol indicates information that, if ignored, could possibly result in personal injury or even death.
Warning
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
Caution
General Information Notations
This label indicates procedures that may result in damage or injury if sufficient care is not taken.
Attention
This label indicates additional information that may be useful to know.
button
Menu/Setting name Indicates projector menu and setting names.
s
Using the Manual to Search for Information
The PDF manual allows you to search for information you are looking for by keyword, or jump directly to specific sections using the bookmarks. You can also print only
the pages you need. This section explains how to use a PDF manual that has been opened in Adobe Reader X on your computer.
Indicates the buttons on the remote control or the control panel.
Example: button
Example:
Select the Image menu.
s Image > Color
This label indicates links to the related pages.
This label indicates the projector's current menu level.
Page 6

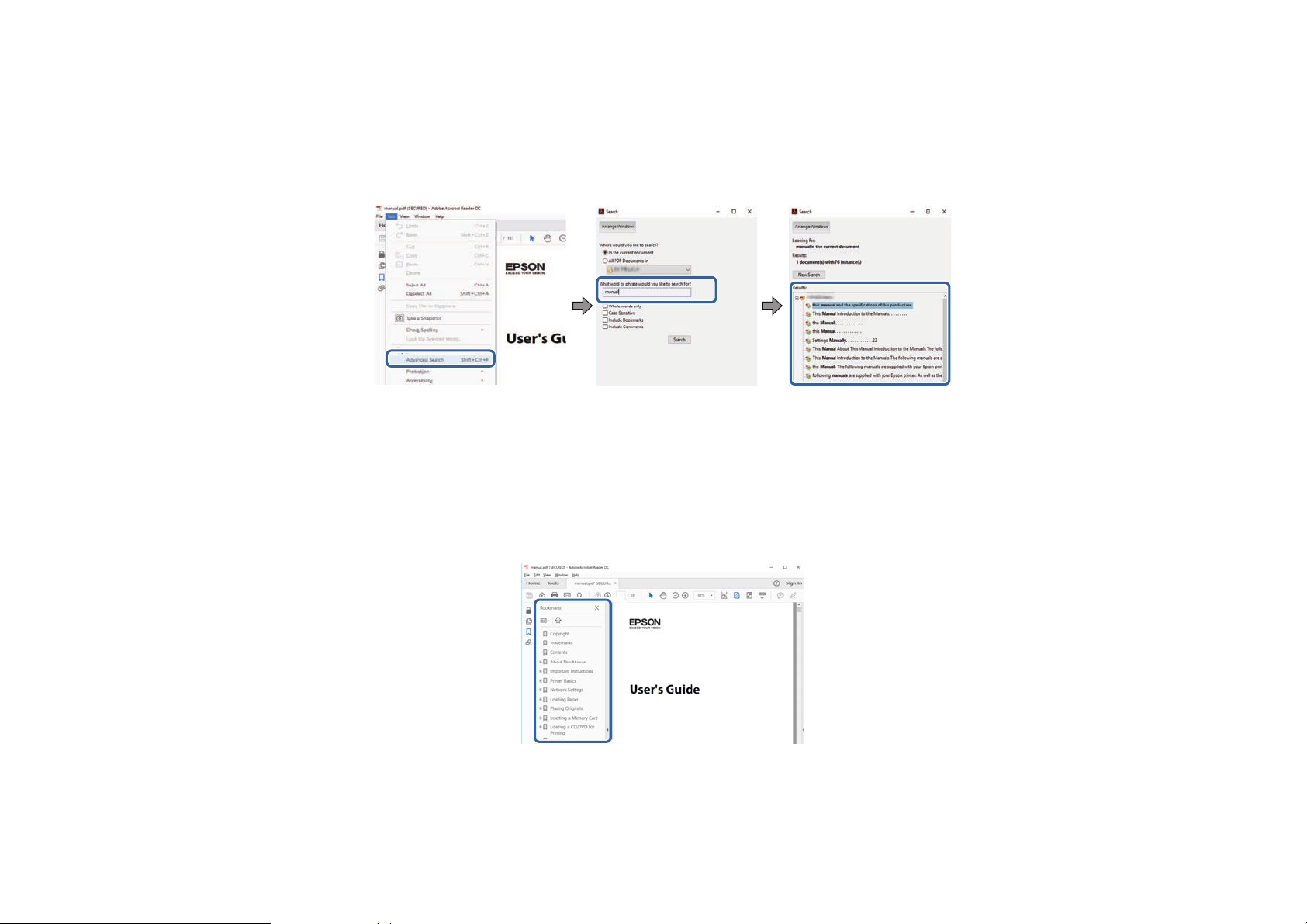

Searching by keyword
Click Edit > Advanced Search. Enter the keyword (text) for information you want to find in the search window, and then click Search. Hits are displayed as a list. Click
one of the displayed hits to jump to that page.
Jumping directly from bookmarks
Click a title to jump to that page. Click + or > to view the lower level titles in that section. To return to the previous page, perform the following operation on your
keyboard.
• Windows: Hold down Alt, and then press ←.
• Mac OS: Hold down the command key, and then press ←.

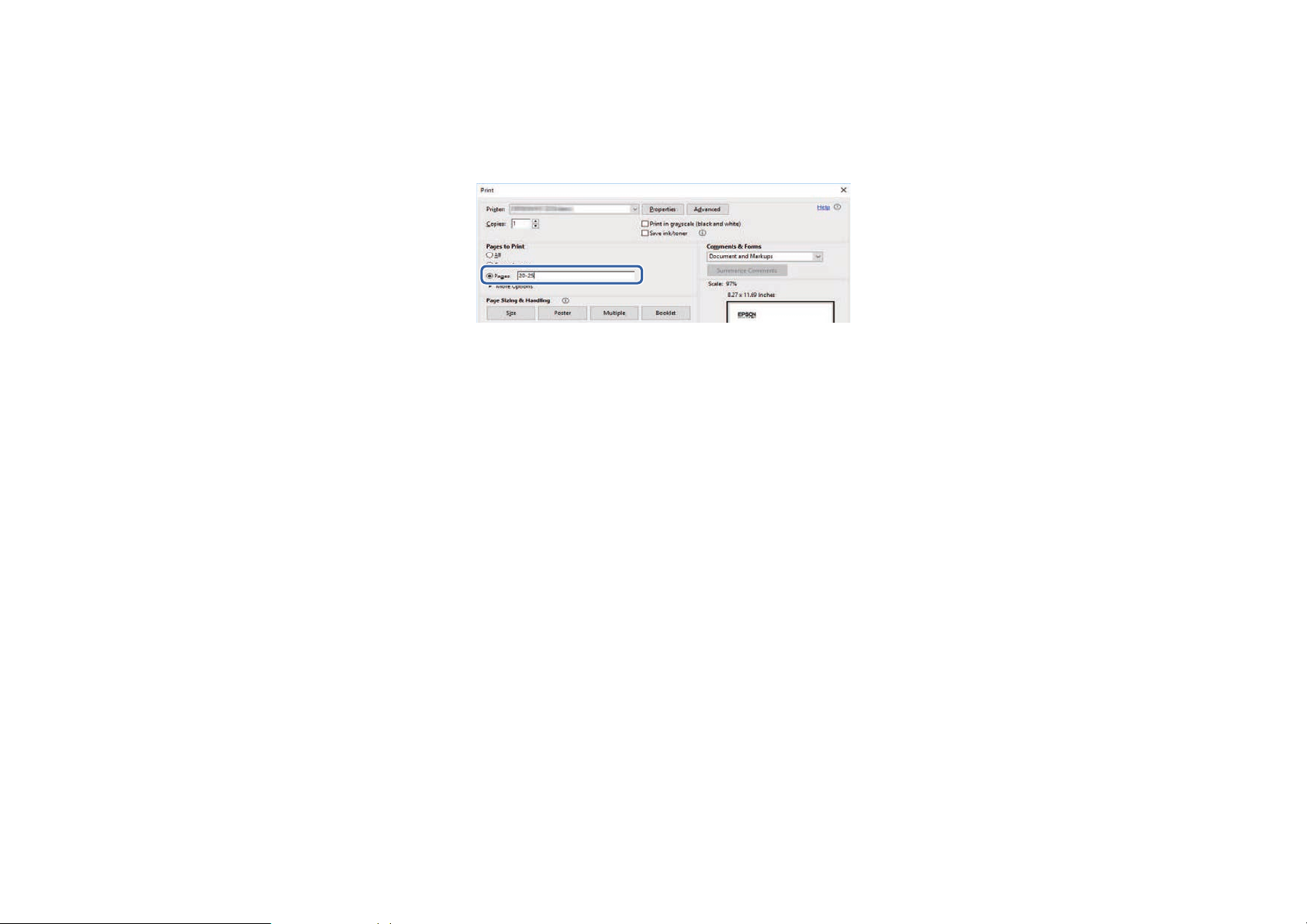

Printing only the pages you need
You can extract and print only the pages you need. Click Print in the File menu, and then specify the pages you want to print in Pages in Pages to Print.
• To specify a series of pages, enter a hyphen between the start page and the end page.
Example: 20-25
Page 7
• To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15
Page 8
Introduction to Your Projector
See these sections to learn more about your projector.
gg Related Links
• "Projector Parts and Functions" p.9
Page 9
Projector Parts and Functions
9
The following sections explain the projector parts and their functions.
gg Related Links
• "Projector Parts - Front/Side" p.9
• "Projector Parts - Top/Side" p.10
• "Projector Parts - Rear" p.11
• "Projector Parts - Base" p.12
• "Projector Parts - Projector Remote Control" p.12

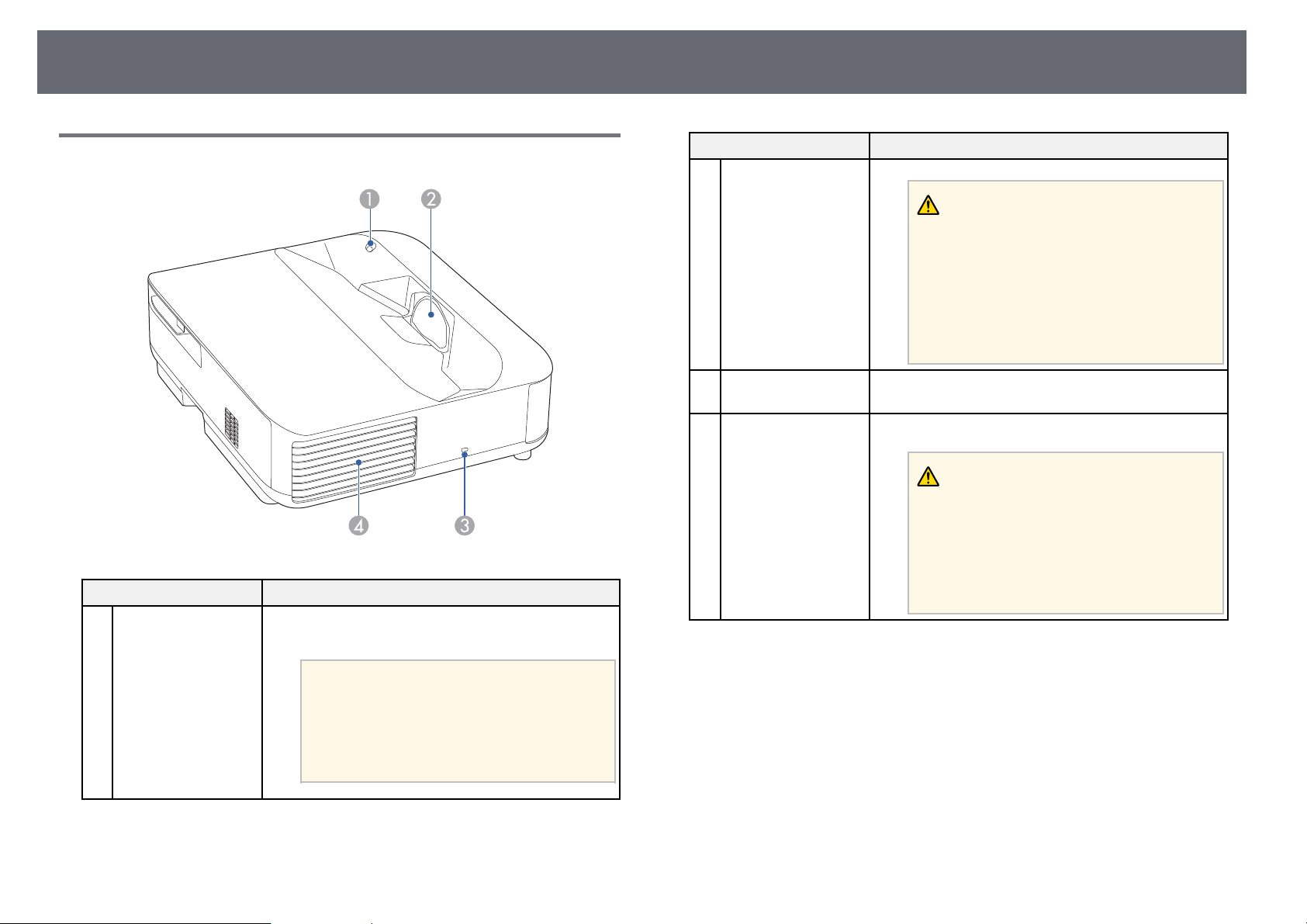

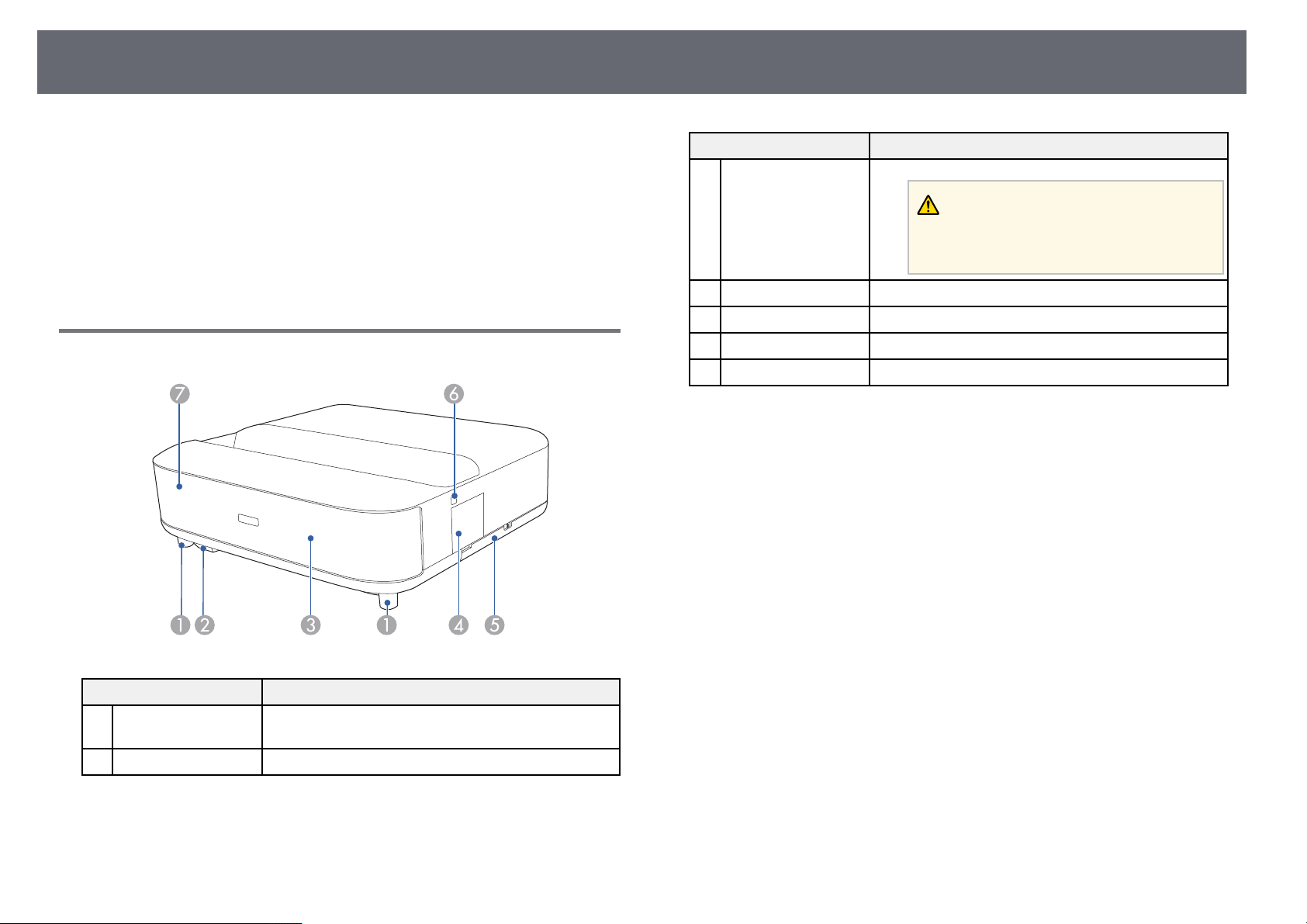

Projector Parts - Front/Side
Name Function
Speaker Outputs audio.
C
Caution
Do not hold or hit this part as doing so may
cause it to deform.
Focus lever cover Open to access the focus lever.
D
Air filter cover Open to access the air filter.
E
Power button Turns the projector on or off.
F
Status indicator Indicates the projector's status.
G
gg Related Links
• "Air Filter and Air Intake Vent Maintenance" p.75
• "Remote Control Operation" p.21
• "Projector Indicator Status" p.82
• "Turning On the Projector" p.26
• "Focusing the Image Using the Focus Lever" p.28
Name Function
Front adjustable feet When setup on a surface such as a desk, turn to extend
A
Remote receiver Receives signals from the remote control.
B
and retract the feet to adjust the horizontal tilt.
Page 10
Projector Parts and Functions
10
Projector Parts - Top/Side
Name Function
Motion sensor Detects movement near the projection window and
A
reduces the brightness of the light source for safety.
a
• The detection range may vary
depending on the temperature of
the surroundings.
• Movement may not be detected
through transparent material such
as glass.
Name Function
Projection window Images are projected from the lens inside the projector.
B
Warning
• Do not look into the projection window
while projecting.
• Do not place any objects or put your hand
near the projection window. It could cause
burns, fire, or the object to warp because this
area reaches a high temperature due to the
concentrated projection light.
Security slot The security slot is compatible with the Microsaver
C
Air exhaust vent Exhaust vent for air used to cool the projector
D
Security System manufactured by Kensington.
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
gg Related Links
• "Air Filter and Air Intake Vent Maintenance" p.75
• "Cleaning the Motion Sensor" p.73
• "Cleaning the Projection Window" p.72
• "Installing a Security Cable" p.57
Page 11
Projector Parts and Functions
11
Projector Parts - Rear
Name Function
USB-A port Connects a commercially available USB device such as
A
a webcam, external HDD, or keyboard.
Connects a commercially available RJ45 adapter to
enable wired LAN connections.
Name Function
DC Out (2.0A) port Provides a connection for an optional or commercially
C
Optical Out port Outputs audio from the current input source to an
D
Service port This port is used by service technicians and should not
E
Air intake vent Takes in air to cool the projector internally.
F
Power inlet Connects the power cord to the projector.
G
available streaming media player allowing you to power
it.
USB data transfer is not available.
external audio device by connecting an optical digital
audio cable.
normally be used.
gg Related Links
• "Connecting to Video Sources" p.18
• "Connecting to External USB Devices" p.18
• "Connecting to External Audio Devices" p.19
• "Connecting to a Streaming Media Player" p.19
• "Connecting to an eARC/ARC Compatible AV System" p.20
HDMI1 port
B
HDMI2 (eARC/ARC)
port
This port is not guaranteed to
a
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with HDCP 2.3.
The HDMI2 port is compatible with HDMI eARC and
ARC.
operate for all devices that support
USB.
Page 12
Projector Parts and Functions
12
Projector Parts - Base
Name Function
Rear foot Stabilizes the projector on a surface such as a desk.
A
Air intake vent (air
B
filter)
Front adjustable feet When setup on a surface such as a desk, turn to extend
C
Air intake vent Takes in air to cool the projector internally.
D
Takes in air to cool the projector internally.
and retract the feet to adjust the horizontal tilt.
Projector Parts - Projector Remote Control
gg Related Links
• "Air Filter and Air Intake Vent Maintenance" p.75
Page 13
Projector Parts and Functions
13
Name Function
Indicator/MicrophoneTurns on when outputting signals from the remote
A
Power button Turns the projector on or off.
B
Apps button Displays a list of applications.
C
Directional pad Selects menu items while displaying the projector's
D
Esc button Stops the current function.
E
Brightness buttons Adjusts the brightness of the projected image.
F
control.
Detects audio when you press the Google Assistant
button.
Hold down this button to display menus for turning off
and restarting.
menu.
Moves back to the previous menu level while
displaying the projector's menu.
Name Function
Audio mute button Turns the audio on or off temporarily.
J
Projector Settings
K
button
Volume buttons Adjusts the volume of the speaker and headphones.
L
Home button Displays the Android TV™home screen.
M
Live Guide button Displays the library of movies.
N
[Enter] button Enters the current selection and moves to the next level
O
Android TV Settings
P
button
Displays the projector's menu. You can use the
projector's menu to adjust the settings that control how
your projector works.
while displaying the projector's menu.
Displays the Android TV menu.
Blank button Turns the video off temporarily to output sound only.
G
Corner Adjustment
H
button
Flexible Picture menu
I
button
Displays the wizard for correcting distortion in the
projected image.
Displays the Flexible Picture menu where you can
change the image size and position, flip the image
horizontally, or blur the edges of the image.
Google Assistant
Q
button
Press the Google Assistant button on your remote to
quickly search 500,000+ movies and shows, get
recommendations to match your mood, control smart
home devices, and more.
Google Assistant is not available in
a
certain languages and countries.
Availability of services varies by
country and language.
Page 14
Projector Parts and Functions
Name Function
Source Search button Displays a list of available input sources for HDMI1
R
and HDMI2.
14
Remote control light
S
emitting area
Outputs remote control signals.
gg Related Links
• "Color Mode" p.37
• "Remote Control Operation" p.21
• "Android TV Home Screen" p.24
• "Turning On the Projector" p.26
• "Turning Off the Projector" p.27
• "Correcting Distortion in the Image" p.29
• "Adjusting the Light Source Brightness Manually" p.32
• "Selecting an Image Source" p.34
• "Controlling the Volume with the Volume Buttons" p.42
• "Turning Off the Sound Temporarily (Audio Mute)" p.46
• "Shutting Off the Image Temporarily (Blank)" p.47
• "Changing the Image Size or Position (Flexible Picture)" p.49
• "Flipping the Image Horizontally (Flexible Picture)" p.50
• "Blurring the Edges of the Image (Flexible Picture)" p.51
• "Using the Projector Settings" p.61
Page 15
Setting Up the Projector
Follow the instructions in these sections to set up your projector.
gg Related Links
• "Projector Placement" p.16
• "Projector Connections" p.18
• "Installing Batteries in the Remote Control" p.21
• "Setting Up Android TV on the Projector" p.23
Page 16

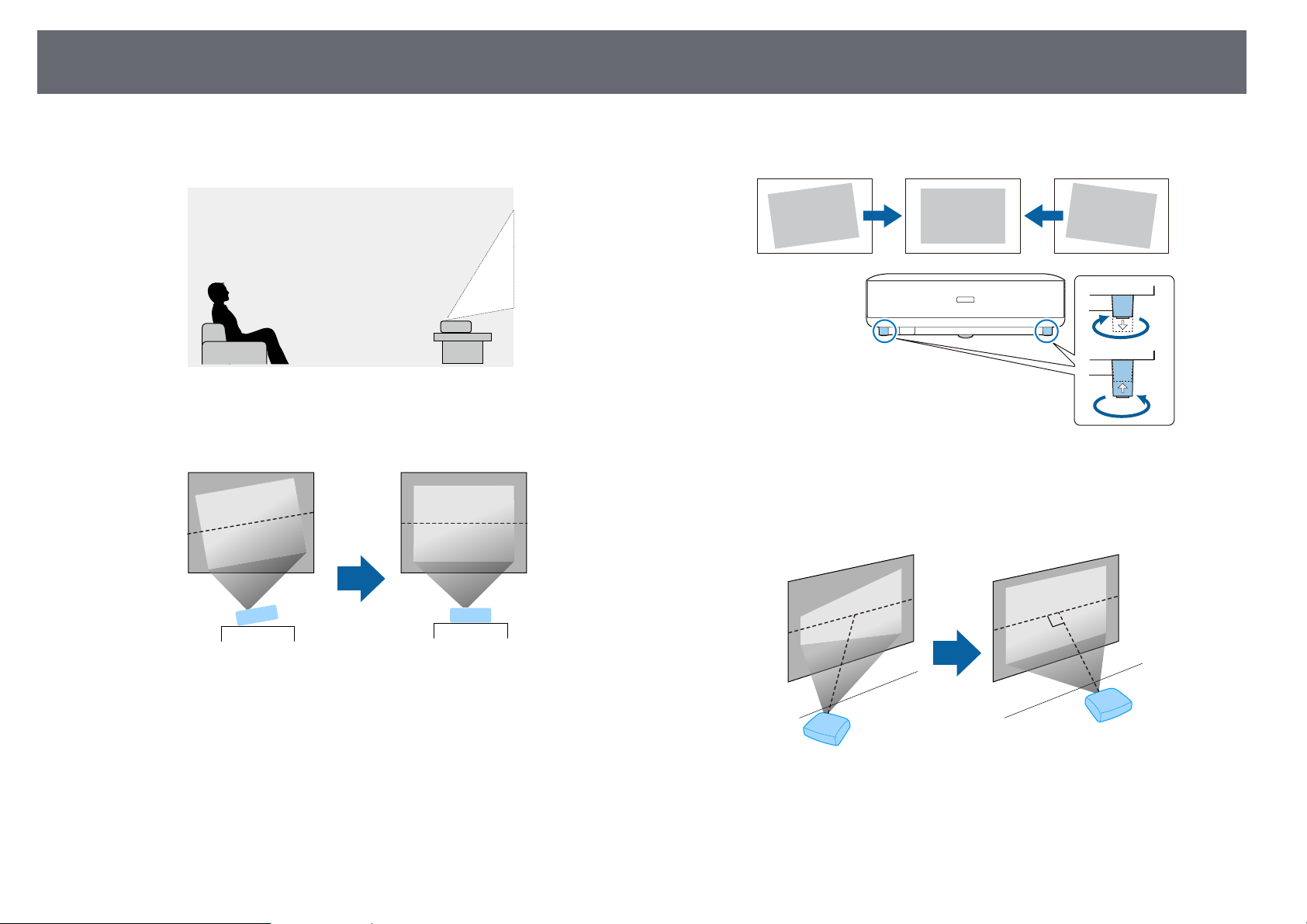

Projector Placement
16
Install the projector on a table in your living room or on a low shelf to project
images.
Note the following points when selecting a projector location:
• Place the projector on a sturdy and level surface.
• If the image is tilted, rotate the front feet to adjust their height.
• Leave plenty of space around and under the projector for ventilation, and
do not place it on top of or next to anything that could block the vents.
• Place the projector so it squarely faces the screen, not at an angle.
Page 17
Projector Placement
17
If you cannot install the projector squarely facing the screen, correct
a
any resulting keystone distortion using the button on the
remote control. For the best quality images, we recommend adjusting
the installation position of the projector to achieve the correct image
size and shape.
Warning
Do not install the projector in a location subject to high levels of dust or humidity,
or in a location subject to smoke or steam. Otherwise, it could cause a fire or
electric shock to occur.
Warning
• Do not cover the projector's air intake or air exhaust vents. If the vents are
covered, the internal temperature could rise and cause a fire.
• Do not use or store the projector in locations where it will be subject to dust or
dirt. Otherwise, the quality of the projected image may decline, or the air filter
may become clogged, resulting in a malfunction or fire.
• Do not install the projector on an unstable surface or in a location beyond the
weight specifications of the projector. Otherwise, it could fall or topple causing
an accident and injury.
• When installing the projector in a high position, take measures to prevent falling
by using wires to ensure safety in an emergency, such as an earthquake, and to
prevent accidents. If it is not installed correctly, it could fall causing an accident
and injury.
• Do not install in locations where salt damage could occur, or in locations subject
to corrosive gas such as sulphuric gas from hot springs. Otherwise, corrosion
could cause the projector to fall. It could also cause the projector to malfunction.
Attention
• Make sure you do not operate the projector in the following positions.
• Do not operate the projector on its side.
• Do not project images straight up or straight down.
• Do not tilt the projector right or left.
• If you are using the projector at altitudes above 1,500 m, set the High Altitude
Mode setting to On in the projector's menu to ensure the projector's internal
temperature is regulated properly.
s Settings > High Altitude Mode
gg Related Links
• "Precautions on Installation" p.17
Precautions on Installation
Installation space
Attention
Be sure to leave the following amount of space around the projector so as not to
block the air exhaust and intake vents.
A
B
10 cm
30 cm
Page 18
Projector Connections
18
See these sections to connect the projector to a variety of projection sources.
Attention
• Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or
your projector could be damaged or could malfunction.
gg Related Links
• "Connecting to Video Sources" p.18
• "Connecting to External USB Devices" p.18
• "Connecting to External Audio Devices" p.19
• "Connecting to a Streaming Media Player" p.19
• "Connecting to an eARC/ARC Compatible AV System" p.20
Connecting to Video Sources
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
• If the port on the device you connect has an unusual shape, use the
a
Connect the HDMI cable to your video source's HDMI output port.
a
cable supplied with the device or an optional cable to connect to the
projector.
• Some video equipment is capable of outputting different types of
signals. See your video equipment manual to confirm what type of
signals can be output.
• When sending 18 Gbps images such as 4K 60Hz 4:4:4, use an HDMI
cable (premium-high speed). If you use an incompatible cable,
images may not be displayed correctly.
Connect the other end to the projector's HDMI port.
b

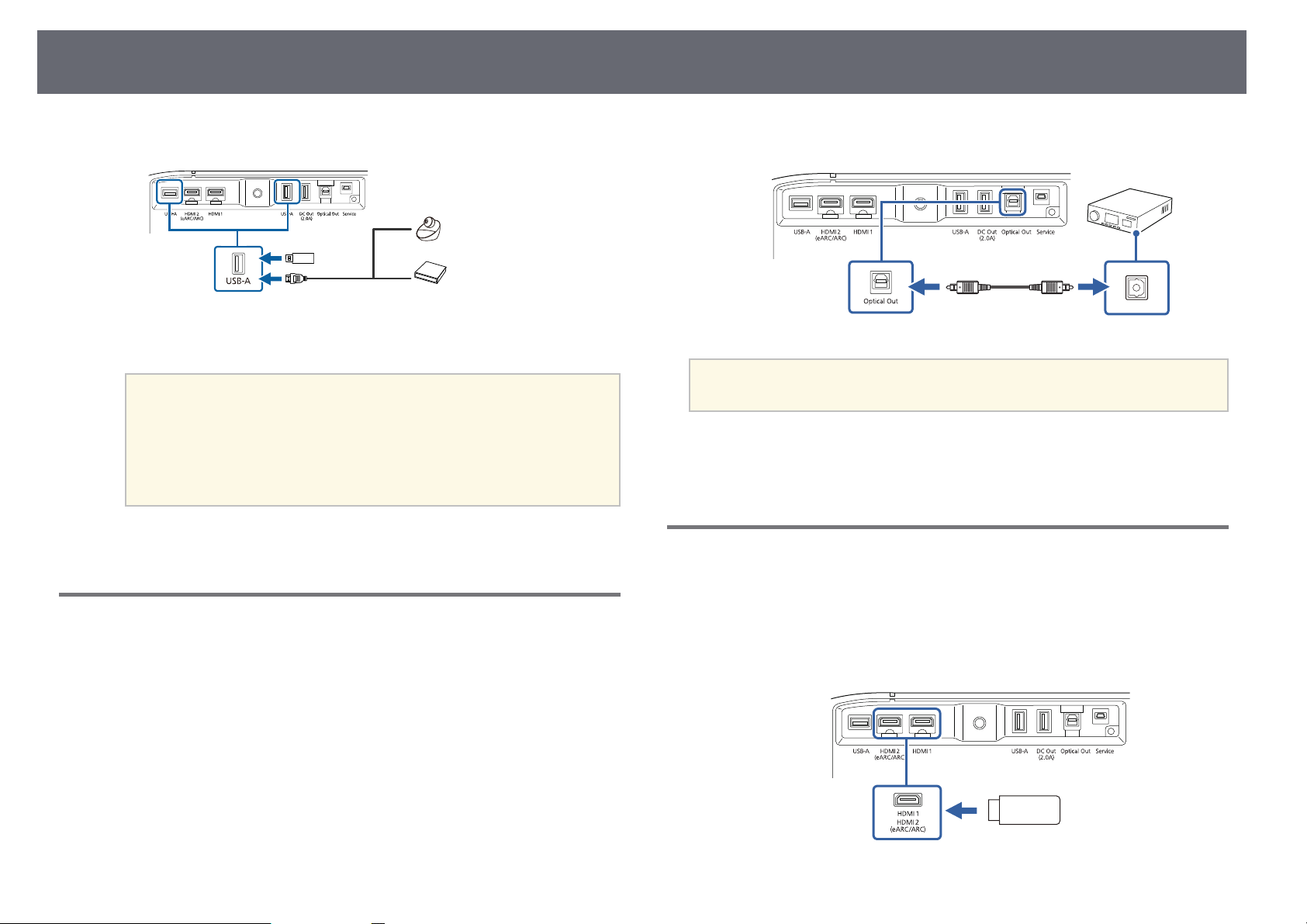

Connecting to External USB Devices
By connecting any of these devices to your projector, you can project images
and other content or play audio without using a video device.
• Microphone
• USB flash drive
• Digital camera
• USB hard drive
• USB-A port is not guaranteed to operate all devices that support
a
If your USB device came with a power adapter, plug the device into an
a
electrical outlet.
USB.
• You may need an app to project content from your USB device.
• USB hard drives must meet these requirements:
• USB Mass Storage Class-compliant (not all USB Mass Storage
Class devices are supported)
• Formatted in FAT16/32
• Self-powered by their own AC power supplies (bus-powered hard
drives are not recommended)
• Avoid using hard drives with multiple partitions
Page 19
Projector Connections
19
Connect the USB device to the projector's USB-A port as shown.
b
Attention
• Use the USB cable supplied with or specified for use with the device.
• If the USB cable is too long, the device may not operate correctly. We
recommend using a USB cable that is three meters or less.
• If you use a USB hub, the device may not operate correctly. We
recommend checking the operation in advance.
Connect the other end to your device, if necessary.
c
Connecting to External Audio Devices
Connect the other end to the projector's Optical Out port.
b
To change the audio settings, you can set Sound Output in the
a
gg Related Links
• "Detailed Sound Settings" p.44
projector's Sound menu.
Connecting to a Streaming Media Player
You can connect your streaming media player to the projector's HDMI port.
By connecting the power supply USB cable, you can power the streaming
media player from the projector.
If your amplifier or speaker has an optical digital audio input port, you can
connect it to the projector using an optical digital audio cable and project
audio from the image source.
Connect the optical digital audio cable to your audio device's optical
a
digital audio input port.
Connect your streaming media player to the projector's HDMI port.
a
Page 20
Projector Connections
20
Connect the power supply USB cable to the projector's DC Out port.
b
Connect the other end to the streaming media player.
c
Attention
Use the cable supplied with or specified for use with the media streaming
device.
Connecting to an eARC/ARC Compatible AV System
If your AV system or speakers, such as a sound bar, has an HDMI port, you
can connect them to the projector using an HDMI cable (with Ethernet) to
output audio to these devices.
Connect the HDMI cable to your AV system's HDMI output port
a
(eARC or ARC compatible).
Connect the other end to the projector's HDMI2 (eARC/ARC) port.
b
• To output audio from the projector's HDMI2 (eARC/ARC) port, set
a
HDMI2 ARC to On and Sound Output to ARC (Auto) or eARC in
the projector's menu.
s Settings > HDMI CEC > CEC Control > HDMI2 ARC
s Sound > Sound Output
• If you want to output higher quality audio from the projector's
HDMI2 (eARC/ARC) port, set Sound Output to ARC (Auto) in the
projector's Sound menu.
• When playing Android TV contents, audio is output in 2 ch (LPCM).
• See the Supplemental A/V Support Specification for eARC/ARC audio
supported formats.
gg Related Links
• "Detailed Sound Settings" p.44
Page 21
Installing Batteries in the Remote Control
The remote control uses the two AAA batteries that came with the projector.
21
Warning
Attention
Make sure you read the Safety Instructions before handling the batteries.
Remove the battery cover as shown.
a
Remove the old batteries, if necessary.
b
Dispose of used batteries according to local regulations.
a
Check the positions of the (+) and (–) marks inside the battery holder to
ensure the batteries are inserted the correct way. If the batteries are not used
correctly, they could explode or leak causing a fire, injury, or damage to the
product.
Replace the battery cover and press it down until it clicks into place.
d
gg Related Links
• "Remote Control Operation" p.21
• "Remote Control Operation" p.21
Insert the batteries with the + and – ends facing as shown.
c
Remote Control Operation
The remote control lets you control the projector from almost anywhere in
the room.
Page 22
Installing Batteries in the Remote Control

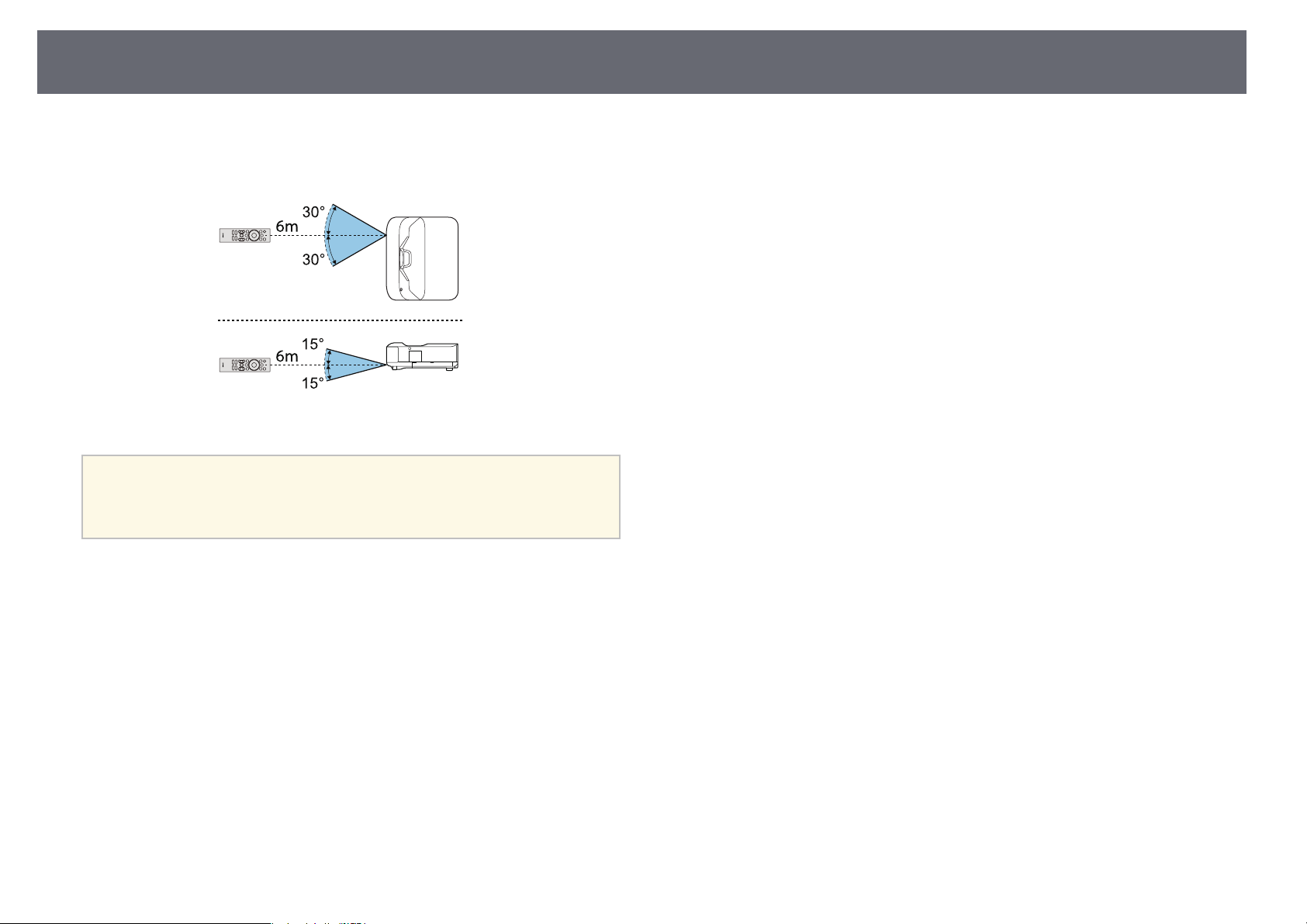

It is recommended that you aim the remote control at the projector's receivers
within the distance and angles listed here.
The projector may not respond to commands if you use the remote
a
control in conditions with bright fluorescent lights or in direct
sunlight. If you are not going to use the remote control for a long time,
remove the batteries.
22
Page 23
Setting Up Android TV on the Projector
23
When you turn on the projector for the first time, you need to setup Android
TV.
You can change each of the settings even after completing the initial
a
a
b
setup. Press the button on the remote control to display the menu
and change the settings.
Turn on the projector.
When the paring screen is displayed, hold down the [Enter] button and
button on the remote control at the same time to pair the remote
control and the projector.
When the language selection screen is displayed, select the language
d
you want to use.
When the Wi-Fi setting screen is displayed, select the wireless network
e
you want to use, and then follow the on-screen instructions to make
necessary settings.
• An internet connection is required to view online content. Make sure
you can use the Wi-Fi service.
• The customer is responsible for any communication charges incurred
when downloading the app or watching online content.
When pairing starts, the indicator on the remote control flashes.
a
When pairing ends, follow the on-screen instructions to make the
c
necessary settings.
When pairing is complete, the indicator turns off.
When the login screen is displayed, sign in using your Google Account.
f
• You can download various popular apps and games on Google Play
by signing in with your Google Account.
• You can also create a Google Account on your computer or smart
device.
When you have finished the initial setup, the home screen is displayed.
gg Related Links
• "Android TV Home Screen" p.24
Page 24
Setting Up Android TV on the Projector
Android TV Home Screen
When you turn on the projector or press the button on the remote
control, the Android TV home screen is displayed.
You can easily access online content, applications, and projector settings from
the home screen.
24
Description
Displays the Settings menu. You can select various settings such as Wi-Fi
A
setting, language setting, and Google Account information.
Displays a list of available input sources.
B
Displays the applications downloaded on the projector. You can add
C
applications to this list by selecting the + icon.
Displays the online content recommended by the applications.
D
The content of the home screen may change depending on the version
a
of the Android TV.
Page 25
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
gg Related Links
• "Turning On the Projector" p.26
• "Turning Off the Projector" p.27
• "Focusing the Image Using the Focus Lever" p.28
• "Correcting Distortion in the Image" p.29
• "Adjusting Image Color" p.31
• "Adjusting the Light Source Brightness Manually" p.32
• "Adjusting Contrast Based on the Brightness of the Content" p.33
• "Selecting an Image Source" p.34
• "Image Aspect Ratio" p.35
• "Color Mode" p.37
• "Adjusting the Image Quality" p.39
• "Controlling the Volume with the Volume Buttons" p.42
• "Adjusting the Sound Settings (Sound Mode)" p.43
• "Turning Off the Sound Temporarily (Audio Mute)" p.46
• "Shutting Off the Image Temporarily (Blank)" p.47
Page 26
Turning On the Projector
When you connect the video equipment to the projector, turn on the video
equipment you want to use after you turn on the projector.
26
Warning

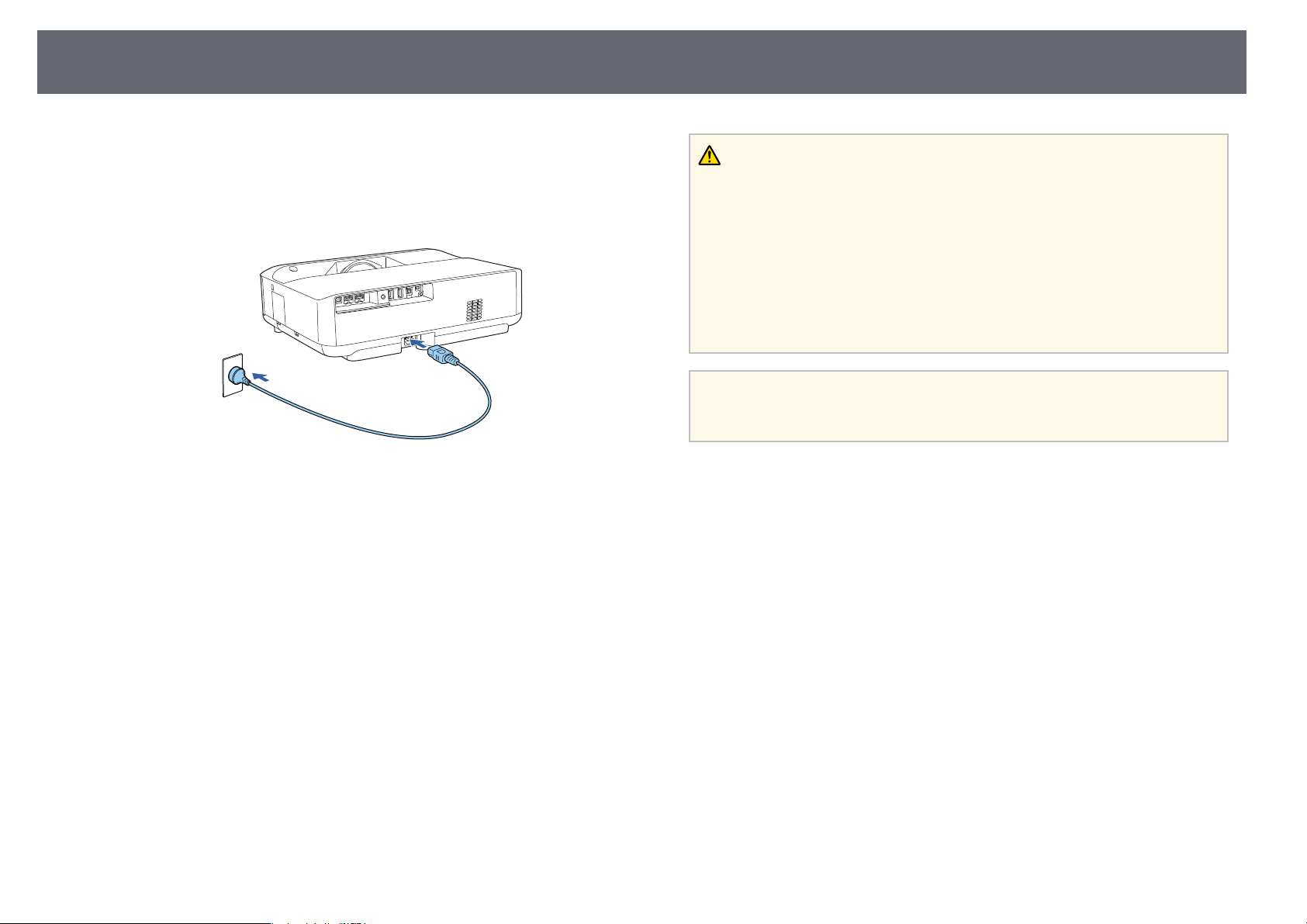

Connect the power cord to the projector's power inlet and plug it into
a
an electrical outlet.
The projector enters standby mode. This indicates that the projector is
receiving power, but is not yet turned on.
Press the power button on the projector or remote control to turn on
b
the projector.
The status indicator flashes blue as the projector warms up. Once the
projector is warmed up, the status indicator stops flashing and turns
blue.
• Never look into the projector lens when the light source is on. This can damage
your eyes and is especially dangerous for children.
• When turning on the projector at a distance using the remote control, make sure
there is no one looking into the lens.
• During projection, do not block the light from the projector with a book or other
objects. If the light from the projector is blocked, the area on which the light
shines becomes hot which could cause it to melt, burn, or start a fire. Also, the
lens may get hot due to the reflected light which could cause the projector to
malfunction. To stop projection, turn off the projector.
When using at an altitude of 1,500 m or more, set High Altitude Mode
a
gg Related Links
• "Projector Feature Settings - Settings Menu" p.67
• "Setting Up Android TV on the Projector" p.23
• "Projector Parts and Functions" p.9
to On.
s Settings > High Altitude Mode
The first time you turn on the projector, the remote control pairing
screen and initial setup screen are displayed. Follow the on-screen
instructions to complete the settings.
Page 27
Turning Off the Projector
Turn off the projector after use.
• Turn off this product when it is not in use to prolong the life of the
a
Hold and press the power button on the projector or remote control.
a
Select Power Off on the displayed screen.
The light source turns off, and the status indicator turns off.
To transport or store the projector, make sure the status indicator on
b
the projector is off, and then unplug the power cord.
projector. Light source life varies depending on the mode selected,
environmental conditions, and usage. Brightness decreases over time.
A short press of the power button puts the projector into
a
suspended mode, and it will continue to operate under minimal
power even if the power is turned off. This lets the projector start
quickly the next time you turn it on.
27
gg Related Links
• "Projector Parts and Functions" p.9
Page 28
Focusing the Image Using the Focus Lever
28
You can correct the focus using the focus lever.
Turn on the projector and display an image.
a
Open the focus lever cover.
b
Move the focus lever to adjust the focus.
c
Close the focus lever cover.
d
Page 29
Correcting Distortion in the Image
29
When the projected image is curved or not rectangular, you can correct
distortion in the projected image by following the on-screen instructions.
After correction, your image is slightly smaller.
To correct distortion more easily, you can use the Epson Setting
a
a
b
Assistant application on a smart phone or tablet that has a camera
function. Install the application by using the QR code displayed on the
projected screen. The customer is responsible for any communication
charges incurred when downloading the app.
Turn on the projector and display an image.
Press the button on the remote control.
While looking at the marks at the upper right and upper left of the
c
screen, adjust the focus using the focus lever.

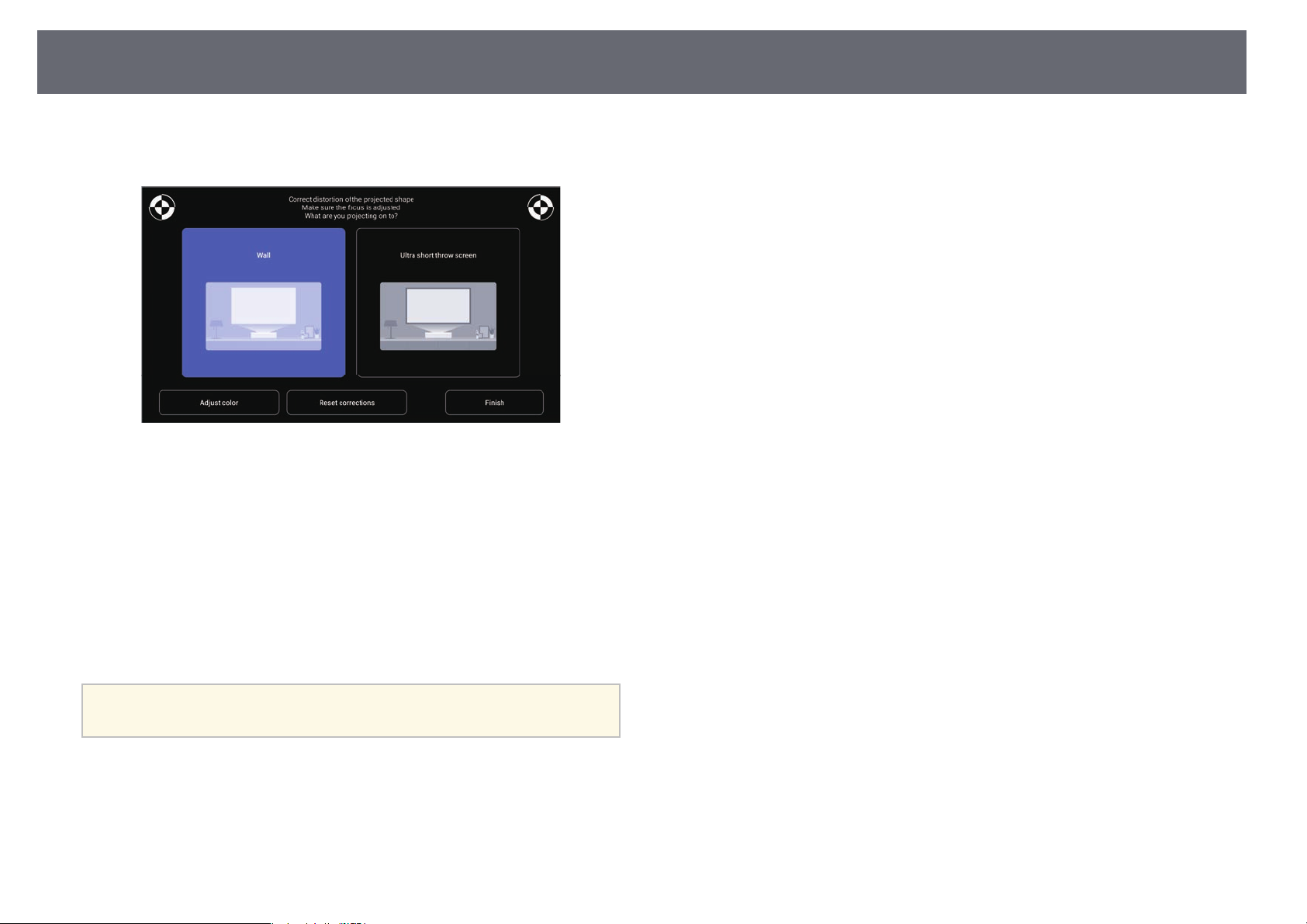

Follow the on-screen instructions to correct distortion in the image.
d
a
You can use the button on the remote control to close the
menus.
Page 30
Correcting Distortion in the Image
gg Related Links
• "Projector Installation Settings - Installation Menu" p.66
• "Focusing the Image Using the Focus Lever" p.28
30
Page 31
Adjusting Image Color
31
When projecting on to a wall, you can use the preset color correction to
compensate for the color of the wall.
You can make further detailed color adjustments in the projector's Picture
menu.
Turn on the projector and display an image.
a
Press the button on the remote control.
b
Select the color that is closest to the color of the wall, select OK, and
d
then press the [Enter] button.
gg Related Links
• "Image Quality Settings - Picture Menu" p.62
Select Adjust color and press the [Enter] button.
c
Page 32
Adjusting the Light Source Brightness Manually
You can adjust the brightness of your projector's light source.
This function is not available when a problem has occurred.
a
Turn on the projector and display an image.
a
To decrease or increase the light output, press the or button on
b
the remote control.
A light output gauge is displayed on the screen.
32
Page 33
Adjusting Contrast Based on the Brightness of the Content
33
You can turn on Dynamic Contrast to automatically optimize the image
luminance. This improves the image contrast based on the brightness of the
content you project.
Turn on the projector and display an image.
a
Press the button on the remote control.
b
Select the Picture menu and press the [Enter] button.
c
Select one of the following options and press [Enter]:
e
• High Speed to adjust brightness as soon as the scene changes.
• Normal for standard brightness adjustment.
Press to exit the menus.
f
gg Related Links
• "Image Quality Settings - Picture Menu" p.62
Select Dynamic Contrast and press [Enter].
d
Page 34
Selecting an Image Source
When multiple image sources are connected to the projector, you can switch
from one image source to the other.
Make sure the connected image source you want to use is turned on.
a
For video image sources, insert a DVD or other video media and press
b
play.
Do one of the following:
c
• If you want to switch the image source to HDMI1 or HDMI2, press
the button on the remote control.
Next, select the source you want to use from the screen displayed.
• If you want to switch the image source to the Android TV home
screen, press the button on the remote control.
When no image signal is detected, check the cable connections
a
between the projector and the image source.
34
gg Related Links
• "Projector Connections" p.18
• "Projector Parts - Projector Remote Control" p.12
• "Sound Quality Settings - Sound Menu" p.64
Page 35
Image Aspect Ratio
35
The projector can display images in different width-to-height ratios called
aspect ratios. Normally, the input signal from your video source determines
the image's aspect ratio. However, you can change the aspect ratio for certain
images to fit your screen.
If you always want to use a particular aspect ratio for a certain video input
source, you can select it using the projector's Picture menu.
gg Related Links
• "Changing the Image Aspect Ratio" p.35
• "Available Image Aspect Ratios" p.36
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image.
Turn on the projector and display an image.
a
Press the button on the remote control.
b
Select the Picture menu and press the [Enter] button.
c
Select Aspect Ratio and press [Enter].
d
Select one of the available aspect ratios for your input signal and press
e
[Enter].
Press to exit the menus.
f
Page 36
Image Aspect Ratio
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the input
signal from your image source.
• Note that using the aspect ratio function of the projector to reduce,
a
Aspect mode Description
Normal Displays images using the full projection area and
Full Displays images using the full size of the projection
Zoom Displays images using the full width of the projection
enlarge, or split the projected image for commercial purposes or for
public viewing may infringe upon the rights of the copyright holder
of that image based on copyright law.
maintains the aspect ratio of the image.
area, but does not maintain the aspect ratio.
area and maintains the aspect ratio of the image.
36
Page 37
Color Mode
37
The projector offers different color modes to provide optimum brightness,
contrast, and color for a variety of viewing environments and image types.
You can select the mode designed to match your image and environment, or
experiment with the available modes.
gg Related Links
• "Changing the Color Mode" p.37
• "Available Color Modes" p.38
Changing the Color Mode
You can change the projector's Color Mode using the remote control to
optimize the image for your viewing environment.
Turn on the projector and display an image.
a
Press the button on the remote control.
b
Select the Picture menu and press the [Enter] button.
c
Select Color Mode and press [Enter].
d
Select the color mode you want to use from the list and press [Enter].
e
Press to exit the menus.
f
gg Related Links
• "Image Quality Settings - Picture Menu" p.62
Page 38
Color Mode
Available Color Modes
You can set the projector to use these color modes, depending on your
environment and image types.
Color mode Description
Dynamic This is the brightest mode. Best for prioritizing
brightness.
Vivid Best for enjoying content with bright colors.
Cinema Best for enjoying content such as movies.
Natural Reproduces natural colors. This is the best option
when you want to adjust the image color.
38
Page 39
Adjusting the Image Quality
39
You can fine-tune various aspects of the quality of your projected images.
gg Related Links
• "Adjusting Image Quality in Detail" p.39
• "Adjusting the Image Resolution" p.40
• "Setting Frame Interpolation" p.41
Adjusting Image Quality in Detail
You can fine-tune various aspects of how quality and colors are displayed in
your projected images.
To optimize the color tone according to the scene, and to obtain a
a
a
b
more vivid image, correct the image by adjusting the Scene Adaptive
Gamma setting.
Turn on the projector and display an image.
Press the button on the remote control.
Select the Picture menu and press the [Enter] button.
c
Select Custom Settings and press [Enter].
d
Select one of the following options:
e
• To adjust the overall color brightness of the color, adjust the
Brightness setting.
• To adjust the difference between light and dark areas of the image,
adjust the Contrast setting.
• To adjust the overall vividness of the color, adjust the Saturation
setting.
Page 40
Adjusting the Image Quality
40
• To adjust the balance of green to magenta tones in the image, adjust
the Tint setting.
• To adjust the outline of the image, adjust the Sharpness setting.
Press to exit the menus.
f
You can set the overall color tone by adjusting the Color Temperature
a
gg Related Links
• "Image Quality Settings - Picture Menu" p.62
setting in the Picture menu if the image is too bluish or reddish.
Adjusting the Image Resolution
You can adjust the resolution of the image to reproduce a clear image with an
emphatic texture and material feel.
Turn on the projector and switch to the image source you want to use.
a
Select the Picture menu and press the [Enter] button.
c
Press the button on the remote control.
b
Adjust each setting in the projector's Picture menu individually as
d
necessary.
• To reduce flickering in images, adjust the Noise Reduction setting.
• To reduce blurring appeared when projecting low resolution image,
adjust the Super-resolution setting.
• To create a clearer and sharper image by automatically adjusting the
contrast, adjust the Auto Contrast Enhancement setting.
Press to exit the menus.
e
Page 41
Adjusting the Image Quality
41
Setting Frame Interpolation
You can use the projector's Frame Interpolation feature to smooth fastmoving video by comparing consecutive image frames and inserting an
intermediate image frame between them.
Turn on the projector and switch to the image source you want to use.
a
Press the button on the remote control.
b
Select the Picture menu and press the [Enter] button.
c
Select Frame Interpolation, and press [Enter].
d
Select the level of interpolation and press [Enter].
e
Press to exit the menus.
f
Page 42
Controlling the Volume with the Volume Buttons
You can control the volume with the volume buttons.
Turn on the projector and start a video.
a
To lower or raise the volume, press the or button on the
b
remote control.
A volume gauge appears on the screen.
Caution
Do not start a playback at a high volume setting. Sudden loud noises may cause
hearing loss.
Always lower the volume before powering off, so that you can power on and then
gradually increase the volume.
gg Related Links
• "Projector Feature Settings - Settings Menu" p.67
42
Page 43
Adjusting the Sound Settings (Sound Mode)
43
The projector offers various sound settings to fine-tune the sound quality for
a variety of listening environments.
You can select the mode designed to match your image, or experiment with
the available modes.
Sound settings explained in the following section are only available for
a
a
b
sound that is being output from the projector's speaker.
Turn on the projector and start a video.
Press the button on the remote control.
Select the Sound menu and press the [Enter] button.
c
Select Sound Mode and press [Enter].
d
Select your sound mode and press [Enter].
e
Select detailed sound settings such as surround-sound effect and make
f
settings according to your listening environment as necessary.
Press to exit the menus.
g
Page 44
Adjusting the Sound Settings (Sound Mode)
44
gg Related Links
• "Available Sound Modes" p.44
• "Detailed Sound Settings" p.44
• "Sound Quality Settings - Sound Menu" p.64
Available Sound Modes
You can set the following sound modes in the projector's Sound menu.
Sound mode Description
Theatre The surround effect recreates the acoustic
environment of a movie theater. Allows you to enjoy
realistic and powerful sound.
TV Plays back voice clearly. This is ideal for watching
news, documentaries, and other TV shows.
Studio With a wide frequency range of playback and
balanced sound quality, this feature reproduces the
sound intended by creators and artists.
Stadium This realistically reproduces the atmosphere of
stadiums and crowds, providing you with clear, live
voice play back. Allows you to enjoy watching sports
in a realistic atmosphere.
Concert This reproduces the echoes and expanse of a concert
venue, giving you a true sense of elation.
Karaoke Mode This is ideal for playing back karaoke content as it
reproduces the echoes and expanse of a concert venue.
Allows you to play songs without sacrificing the vocal
effects provided by karaoke apps and microphones.
Setting Description
Virtual Surround Adjusts the strength of the surround effect. This setting
is saved for each Sound Mode.
Clear Voice Adjusts the voice so that it can be heard clearly. This
setting is saved for each Sound Mode.
Auto Loudness Even when playing at low volumes, this automatically
corrects the balance between high and low tones in the
audio so that they are not out of balance.
Bass Extension Emphasizes the bass levels to reproduce a powerful
bass.
Sound Space Adjusts the sound quality to suit your viewing position.
Sound Output Select the input source and audio output device.
• Speaker/Optical (PCM): Outputs sound in PCM
format (2 ch) to an external audio device connected
to the Optical Out port and the projector's speakers.
• Speaker/Optical (Auto): Outputs higher quality
sound to the external audio device connected to the
Optical Out port and the projector's speakers.
• ARC (PCM): Outputs sound in PCM format (2 ch) to
an ARC compatible external audio device connected
to the HDMI2 (eARC/ARC) port.
• ARC (Auto): Outputs higher quality sound to an
ARC compatible external audio device connected to
the HDMI2 (eARC/ARC) port.
• eARC: Outputs higher quality sound to an eARC
compatible external audio device connected to the
HDMI2 (eARC/ARC) port.
Auto supports the following audio codecs:
• L-PCM (2 ch)
• AC-3 (up to 5.1 ch)
• DTS (up to 5.1 ch)
Detailed Sound Settings
You can set the projector to use these detailed sound menus depending on
your listening environment.
a
• If sound is not output correctly,
select PCM.
• When playing Android TV
contents, audio is output in 2 ch
(L-PCM).
Page 45
Adjusting the Sound Settings (Sound Mode)
Setting Description
Audio Output Latency Adjusts the audio latency. If the audio is fast, select a
higher value.
This item is only available for the following types of
audio.
• audio output from the projector's speaker
• audio output from the HDMI2 (eARC/ARC) port
• audio output from the Optical Out port
45
Page 46
Turning Off the Sound Temporarily (Audio Mute)
You can temporarily mute the sound.
Press the button on the remote control to temporarily mute
a
the sound.
To turn the sound back on, press again.
b
46
Page 47
Shutting Off the Image Temporarily (Blank)
You can temporarily turn off the projected image. This feature is useful when
you want to use the projector as a speaker.
Press the button on the remote control to temporarily stop
a
projection.
To turn the image back on, press the button again.
b
Any video action continues to run, however, so you cannot resume
a
projection at the point that you turn off the projected image.
47
Page 48
Adjusting Projector Features
Follow the instructions in these sections to use your projector's adjustment features.
gg Related Links
• "Changing the Image Size or Position (Flexible Picture)" p.49
• "Flipping the Image Horizontally (Flexible Picture)" p.50
• "Blurring the Edges of the Image (Flexible Picture)" p.51
• "Using the Projector as a Bluetooth Speaker" p.52
• "Using Chromecast built-in™" p.54
• "HDMI CEC Features" p.55
• "Installing a Security Cable" p.57
• "Updating Projector Firmware" p.58
• "Initializing the Projector" p.59
Page 49

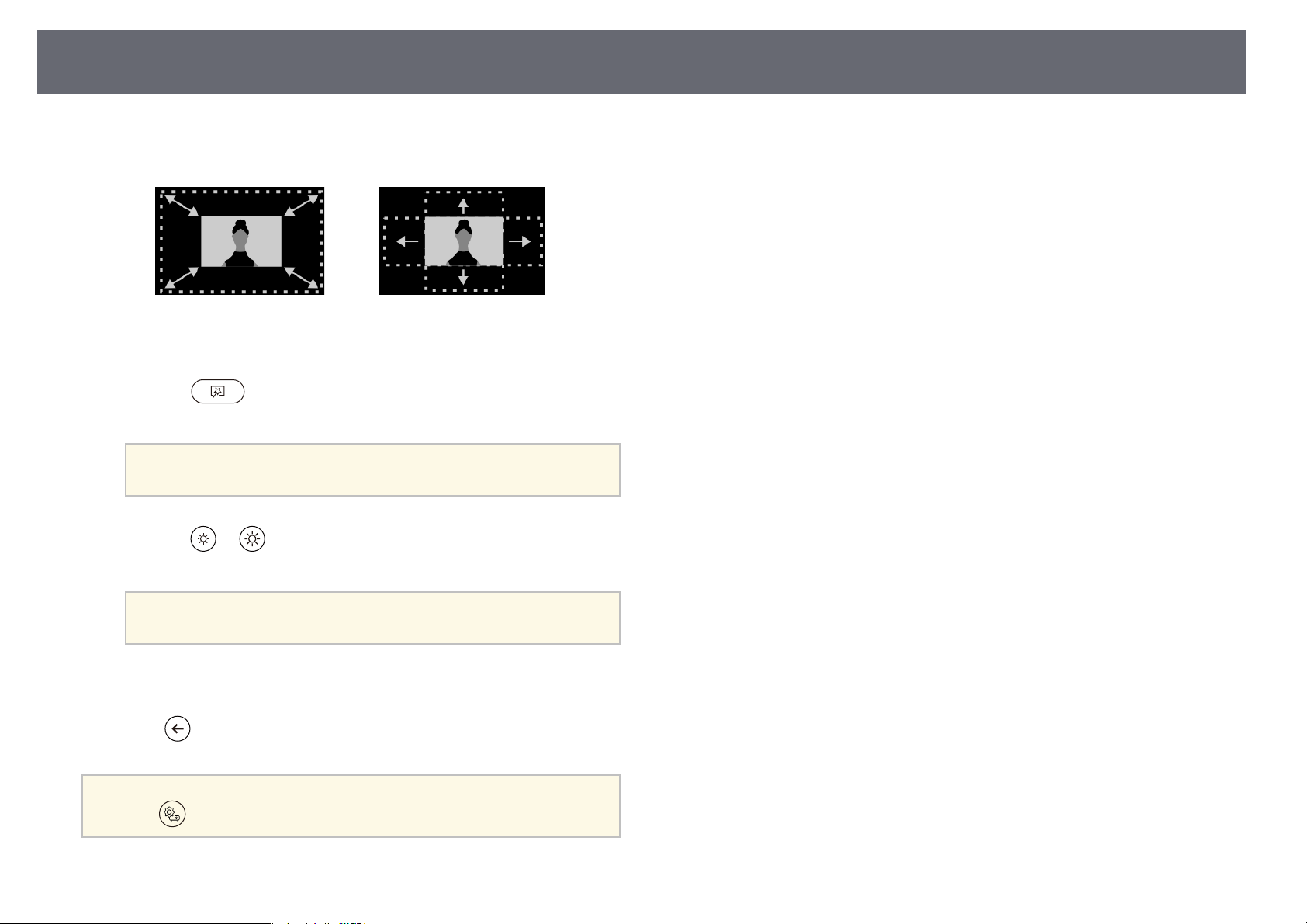

Changing the Image Size or Position (Flexible Picture)
You can reduce the projected image size and change the position of the image
without moving the projector.
Turn on the projector and display an image.
a
Press the button on the remote control to display the Flexible
b
Picture menu.
You cannot use this button when displaying the Installation
a
menu.
49
Press the or button on the remote control to adjust the image
c
size.
You can reduce the image size to 30%.
a
Use the directional pad to change the position of the image.
d
Press to close the Flexible Picture menu.
e
You can reset all settings in the Flexible Picture menu by pressing the
a
button while displaying the Flexible Picture menu.
Page 50

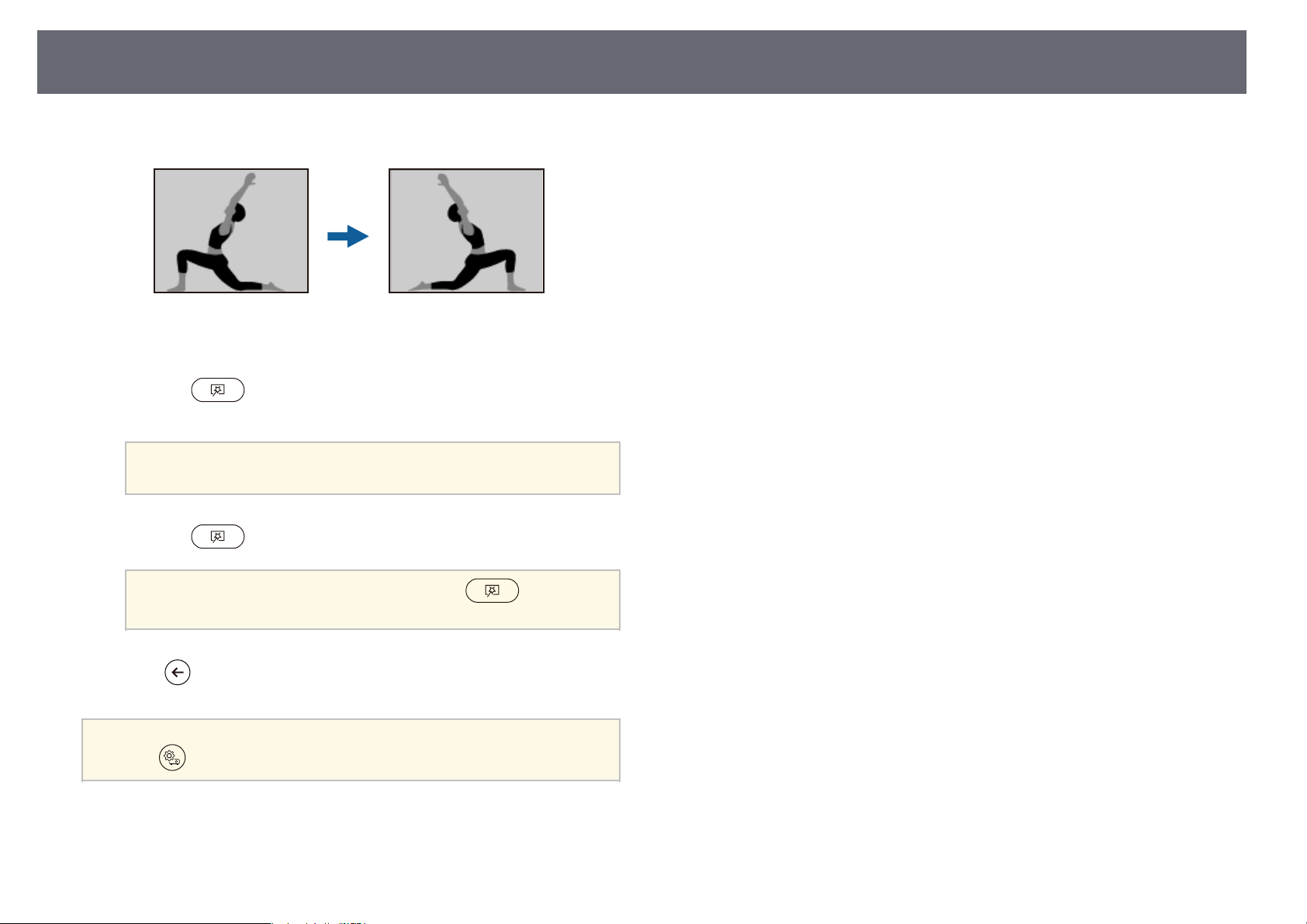

Flipping the Image Horizontally (Flexible Picture)
You can flip the projected image horizontally.
Turn on the projector and display an image.
a
Press the button on the remote control to display the Flexible
b
Picture menu.
You cannot use this button when displaying the Installation
a
menu.
50
Press the button again to flip the projected image horizontally.
c
a
Press to close the Flexible Picture menu.
d
a
You can reset the function by pressing the button
again.
You can reset all settings in the Flexible Picture menu by pressing the
button while displaying the Flexible Picture menu.
Page 51
Blurring the Edges of the Image (Flexible Picture)
You can blur the edges of the projected image so that the image blends into
the wall you are projecting on to.
Turn on the projector and display an image.
a
Press the button on the remote control to display the Flexible
b
Picture menu.
You cannot use this button when displaying the Installation
a
menu.
51
Press the button to blur the edges of the projected image.
c
a
Press to close the Flexible Picture menu.
d
a
You can reset the function by pressing the button
again.
You can reset all settings in the Flexible Picture menu by pressing the
button while displaying the Flexible Picture menu.
Page 52

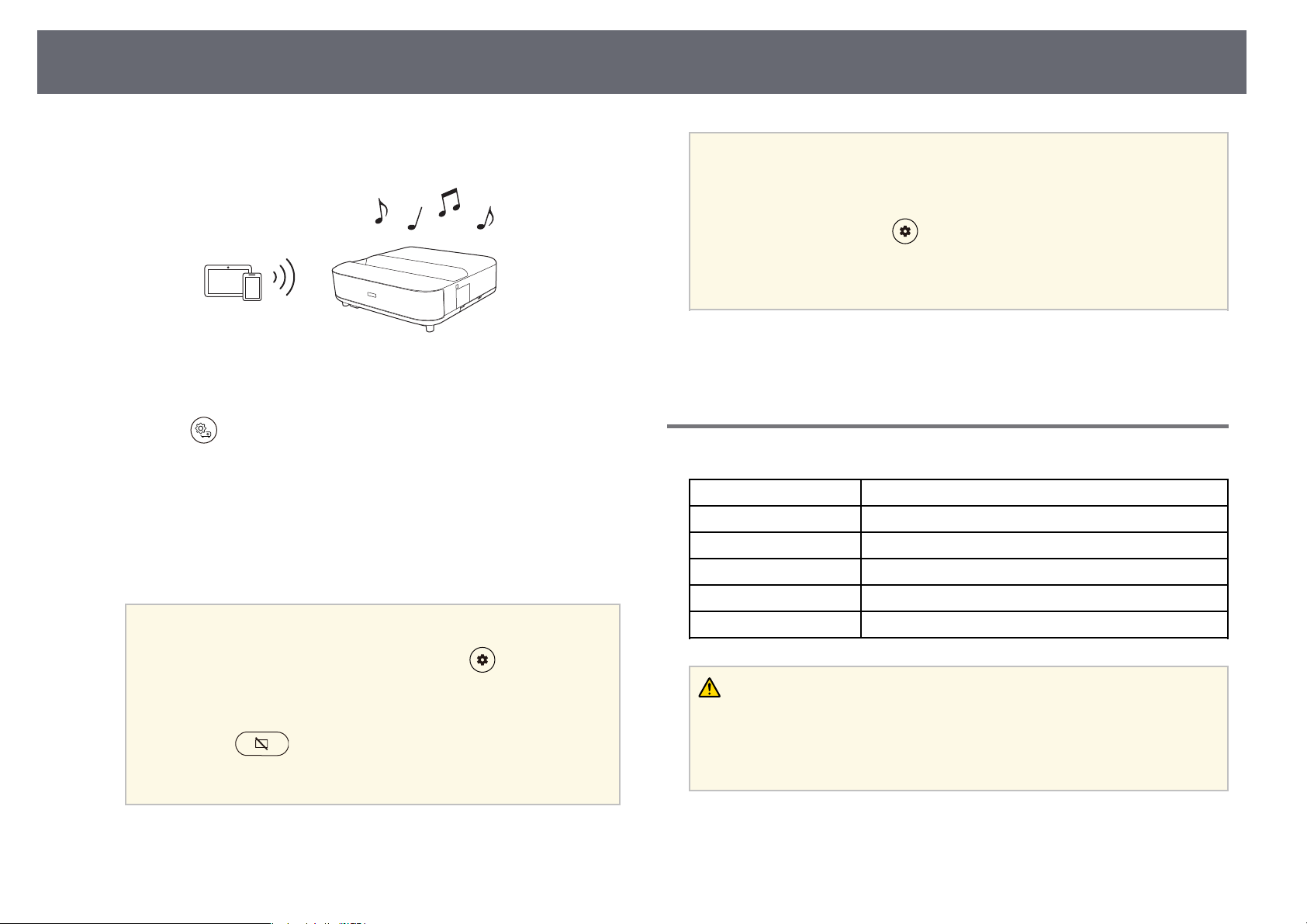

Using the Projector as a Bluetooth Speaker
52
You can use the projector's speaker to output audio from a device connected
by Bluetooth.
Turn on the projector and display an image.
a
Press the button on the remote control.
b
Select the Bluetooth Speaker Mode menu and press [Enter] to enable
c
the setting.
Enable the Bluetooth function on the device you want to connect and
d
select Projector from the available device list. See the documentation
supplied with the device for more information.
• By default, the name of the projector is Projector. You can
a
select another name or use a custom name from Device
Preferences displayed when pressing the button on the
remote control.
• When you want to enjoy the sound only from the projector,
you can temporarily turn off the projected image by pressing
the button on the remote control.
• To cancel a Bluetooth connection, disconnect from the
connected device.
• There is a slight delay in the audio output from any Bluetooth device.
a
gg Related Links
• "Bluetooth Specifications" p.52
• You cannot connect multiple devices by Bluetooth at the same time.
• You can also connect the projector to Bluetooth audio devices, such
as speakers or headphones, to output the projector's audio from these
devices. Press the button on the remote control and perform
pairing from the menu displayed. (Audio from the HDMI input
source cannot be output from a Bluetooth compatible device.)
• Bluetooth devices are not supported in some countries and regions.
Bluetooth Specifications
Version Bluetooth Ver. 5.0
Output Class 1
Communication distance Approx. 10 m
Supported profiles A2DP, AVRCP
Frequency used 2.4 GHz band (2.402 to 2.480 GHz)
Supported codecs SBC
Warning
Do not use the device near any medical equipment or equipment that is
automatically controlled, such as automatic doors or fire alarms. Electromagnetic
interference from the device may cause such equipment to malfunction and cause
an accident.
To exit Bluetooth Speaker Mode, set it to Off.
e
Page 53
Using the Projector as a Bluetooth Speaker
• You may not be able to connect depending on the standard and type
a
of device.
• Even when connecting within the specified communication distance,
connections can be lost due to the status of the signal.
• The communication method for Bluetooth uses the same frequency
(2.4 GHz) as wireless LAN (IEEE802.11b/g) or microwave ovens.
Therefore, if these devices are used at the same time, radio wave
interference may occur, the audio may be interrupted, or
communication may not be possible. If you do need to use these
devices at the same time, make sure there is enough distance between
them and the Bluetooth device.
53
Page 54
Using Chromecast built-in™
Your projector has Chromecast built-in, allowing you to cast content from
Chromecast-enabled apps.
Connect your device or computer to the same wireless network as the
a
projector.
Open the Chromecast-enabled app and press .
b
Select your projector from the list of devices.
c
By default, the name of the projector is Projector. To select
a
another name or use a custom name, press the button on the
remote control.
The app connects and starts casting to the projector.
To stop casting, press in the app and choose the disconnect option.
d
54
Page 55
HDMI CEC Features
55
When an audio/video source that meets the HDMI CEC standard is
connected to the projector's HDMI port, you can use the projector's remote
control to control certain features of the linked device.
gg Related Links
• "Operating Connected Devices Using the HDMI CEC Features" p.55
Operating Connected Devices Using the HDMI CEC Features
You can control connected audio/video devices using the HDMI CEC
features.
• You must also configure the connected device. See the
a
Press the button on the remote control.
a
documentation supplied with the device for more information.
• Some connected devices or functions of those devices may not
operate properly even if they meet the HDMI CEC standard. See the
documentation supplied with the device for more information.
• Use a cable that supports the HDMI standard.
Select the Settings menu and press the [Enter] button.
b
Select HDMI CEC and press [Enter].
c
Set HDMI CEC to On.
d
Adjust the following HDMI CEC settings as necessary.
e
• To automatically turn off the connected device when you turn off the
projector, set Device Auto Power Off to On.
• To automatically switch the language settings of the connected
device according to the projector's language settings, set Auto
Language Change to On.
• To output audio to an HDMI eARC/ARC compatible AV system, set
HDMI2 ARC to On.
Page 56
HDMI CEC Features
Press to exit the menus.
f
You can use the projector's remote control to control the linked device such
as playback, stop, or adjust the volume.
56
Page 57
Installing a Security Cable
You can use the security slot on the projector to attach a Kensington
Microsaver Security system as a theft deterrent.
For more details on the Microsaver Security System, see
a
gg Related Links
• "Projector Parts and Functions" p.9
http://www.kensington.com/.
57
Page 58
Updating Projector Firmware
You can get the latest version of the projector firmware over a network.
When the latest projector firmware is available, a notification is
a
a
b
c
automatically displayed on the screen. Follow the on-screen
instructions to update the firmware.
Press the button on the remote control.
Select from the application list and press the [Enter] button.
Follow the on-screen instructions to update the firmware.
Caution
Do not turn off the projector while updating the firmware.
58
Page 59
Initializing the Projector
You can reset all of the projector settings to their default values.
If you initialize the projector, all the information such as installed
a
a
b
c
applications, Google Account login information, and Projector
Settings are deleted. Write down the settings you do not want to lose
before performing initialization.
Press the button on the remote control.
Select Device Preferences and select the reset menu.
Follow the on-screen instructions to start initializing the projector.
59
Page 60
Adjusting the Menu Settings
Follow the instructions in these sections to access the projector menu system and change projector settings.
gg Related Links
• "Using the Projector Settings" p.61
• "Image Quality Settings - Picture Menu" p.62
• "Sound Quality Settings - Sound Menu" p.64
• "Projector Installation Settings - Installation Menu" p.66
• "Projector Feature Settings - Settings Menu" p.67
• "Projector Information Display - Information Menu" p.68
• "Projector Bluetooth Speaker Settings - Bluetooth Speaker Mode Menu" p.69
Page 61
Using the Projector Settings
61
You can use the projector's menus to adjust the settings that control how your
projector works. The projector displays the menus on the screen.
Press the button on the remote control.
a
You see the Projector Settings on the screen.
Press to exit the menus.
g
Use the directional pad to move through the menus listed on the
b
screen.
To change settings in the displayed menu, press the [Enter] button.
c
Use the directional pad to move through the settings.
d
Change the settings using the buttons as necessary.
e
When you finish changing settings on a menu, press .
f
Page 62

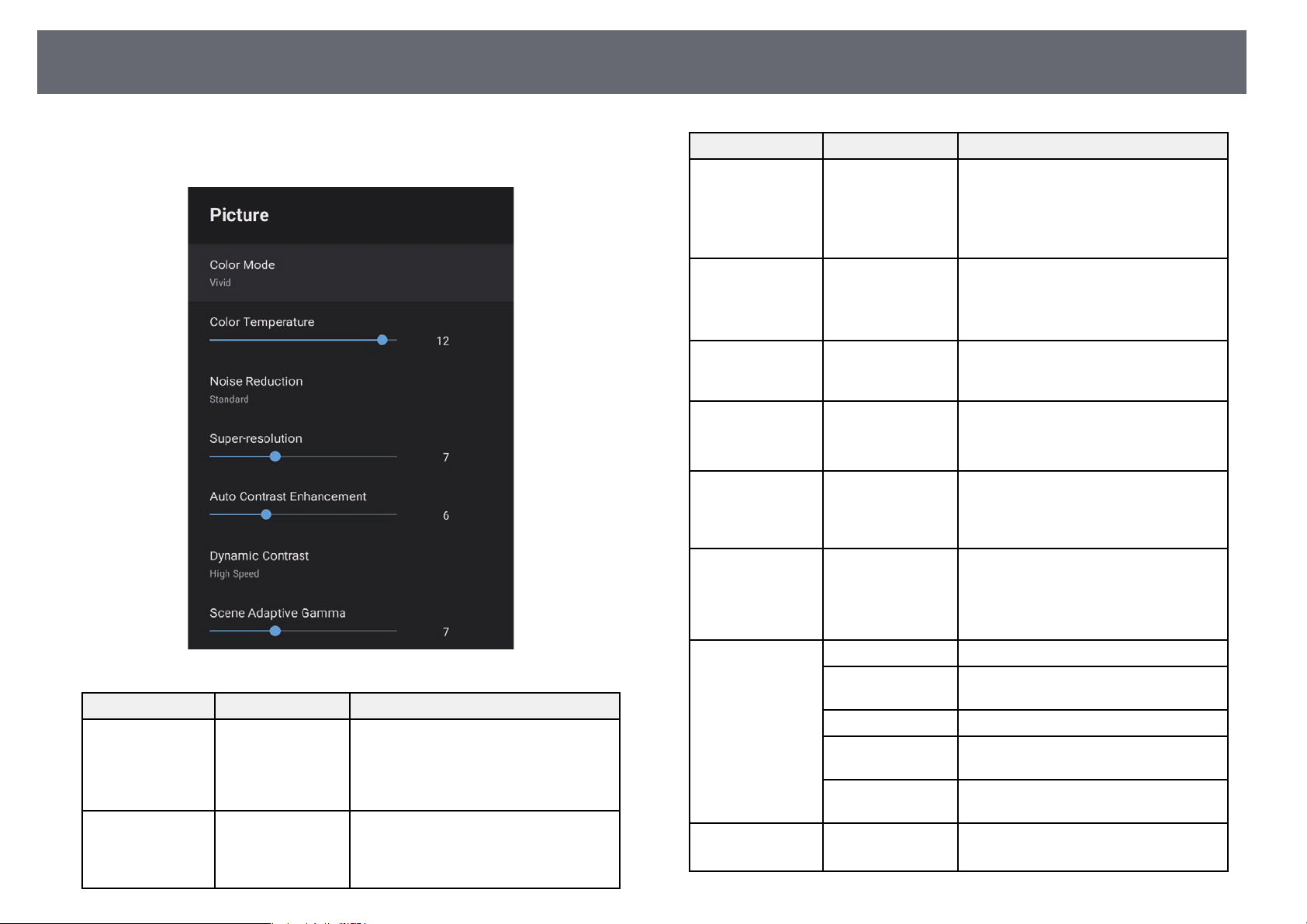

Image Quality Settings - Picture Menu
62
Settings on the Picture menu let you adjust the quality of your image for the
input source you are currently using.
Setting Options Description
Color Mode Dynamic
Vivid
Cinema
Natural
Color Temperature Varying levels
available
Selects the color mode suitable for the
contents you are projecting.
Sets the color temperature according to
the color mode you selected. Higher
values tint the image blue and lower
values tint the image red.
Setting Options Description
Noise Reduction Strong
Standard
Weak
Off
Super-resolution Varying levels
available
Auto Contrast
Enhancement
Dynamic Contrast High Speed
Scene Adaptive
Gamma
Frame
Interpolation
Custom Settings Brightness Lightens or darkens the overall image.
Dynamic Tone
Mapping
Varying levels
available
Normal
Off
Varying levels
available
Off
Low
Normal
High
Contrast Adjusts the difference between light and
Saturation Adjusts the overall vividness of the color.
Tint Adjusts the balance of green to magenta
Sharpness Adjusts the sharpness or softness of the
On
Off
Reduces flickering in analog images.
Select the intensity of the Noise
Reduction.
When Image Processing is set to Fast,
this setting is not available.
Reduces blurring when projecting low
resolution images.
When Image Processing is set to Fast,
this setting is not available.
Creates a clearer and sharper image by
automatically adjusting the contrast of
the projected image.
Adjusts the projected luminance based
on the image brightness for each Color
Mode.
Adjusts the coloring according to the
scene, and obtains a more vivid image.
Select a large number to enhance
contrast.
Adjusts the smoothness of image
movement.
When Image Processing is set to Fast,
this setting is not available.
dark areas of the image.
tones in the image.
image for each Color Mode.
Automatically adjusts to the optimum
HDR level according to the scene.
Page 63
Image Quality Settings - Picture Menu
Setting Options Description
HDR Varying levels
available
Aspect Ratio Normal
Full
Zoom
HDMI Video
Range
Auto
Full
Limited
Changes the range of dark and bright
areas in images.
When Dynamic Tone Mapping is set to
On, this setting is not available.
Sets the aspect ratio (width-to-height
ratio) for the input source.
Sets the video range to match the setting
of the device connected to the HDMI
port.
63
Image Processing Fast
Fine
EDID HDMI1
HDMI2
Improves the response speed for images
projected at high speed.
If you select Fast, the following functions
are disabled to speed up the response
speed.
• Noise Reduction
• Frame Interpolation
• Super-resolution
If you select Fast, do not input interlaced
signals as doing so will distort the image.
Describes the display capabilities of your
projector. Change this setting as
necessary according to the resolution of
the current input source.
You can select the EDID settings for
individual input sources without
changing the input source.
gg Related Links
• "Color Mode" p.37
• "Available Color Modes" p.38
• "Adjusting the Light Source Brightness Manually" p.32
• "Adjusting Contrast Based on the Brightness of the Content" p.33
• "Adjusting Image Quality in Detail" p.39
Page 64
Sound Quality Settings - Sound Menu
64
Settings on the Sound menu provide optimum sound for a variety of image
types. You can select the mode designed to match your image, or experiment
with the available modes.
Setting Options Description
Virtual Surround High
Low
Off
Clear Voice High
Low
Off
Auto Loudness On
Off
Bass Extension On
Off
Sound Space Right
Center
Left
Sound Output Select the input source and sound output
Adjusts the strength of the surround
effect. This setting is saved for each
Sound Mode.
Adjusts the voice so that it can be heard
clearly. This setting is saved for each
Sound Mode.
Even when playing at low volumes, this
automatically corrects the balance
between high and low tones in the audio
so that they are not out of balance.
Emphasizes the bass levels to reproduce a
powerful bass.
Adjusts the sound quality to suit your
viewing position.
device.
Setting Options Description
Sound Mode Theatre
TV
Studio
Stadium
Concert
Karaoke Mode
Select your favorite mode for sound
output from the projector's speaker
system according to the playback
contents.
Page 65
Sound Quality Settings - Sound Menu
65
Setting Options Description
Speaker/Optical
(PCM)
Speaker/Optical
(Auto)
ARC (PCM) Outputs sound in PCM format (2 ch) to
ARC (Auto) Outputs higher quality sound to an ARC
eARC Outputs higher quality sound to an
Auto supports the following audio codecs:
• L-PCM (2 ch)
• AC-3 (up to 5.1 ch)
• DTS (up to 5.1 ch)
Outputs sound in PCM format (2 ch) to
an external audio device connected to the
Optical Out port and the projector's
speakers.
Outputs higher quality sound to an
external audio device connected to the
Optical Out port and the projector's
speakers.
an ARC compatible external audio device
connected to the HDMI2 (eARC/ARC)
port.
compatible external audio device
connected to the HDMI2 (eARC/ARC)
port.
eARC compatible external audio device
connected to the HDMI2 (eARC/ARC)
port.
Setting Options Description
Audio Output
Latency
Varying levels
available
Adjusts the audio latency. If the audio is
fast, select a higher value.
This item is only available for the
following types of audio.
• audio output from the projector's
speaker
• audio output from the HDMI2
(eARC/ARC) port
• audio output from the Optical Out
port
• If sound is not output correctly, select PCM.
• When playing Android TV contents, audio is output in 2 ch
(L-PCM).
Page 66
Projector Installation Settings - Installation Menu
You can correct distortion in the projected image by following the on-screen
instructions from the Installation menu.
You can make the following corrections to the image shape and the projected
image from this menu.
66
• Correct distortion in the projected image quickly using the Epson Setting
Assistant app.
• Correct the position of the four corners of the projected image or fine-tune
point correction using a remote control.
• Correct the top of the projected image so that it is straight by using a
remote control.
• Compensate the color of the projected image to match colored walls.
When you use the Epson Setting Assistant app, the Flexible Picture
a
gg Related Links
• "Correcting Distortion in the Image" p.29
setting will be reset.
Page 67
Projector Feature Settings - Settings Menu
67
Options on the Settings menu let you customize various projector features.
Setting Options Description
Motion Sensor On
Off
Sleep Timer Off to 120 minutes Sets the interval of time before the
Menu Timer Off to 240 seconds Sets the interval of inactivity before
Indicators On
Off
Select On to automatically reduce the
brightness of the light source when
someone comes close to the projector
light while projecting.
projector turns off automatically.
closing the projector's menu
automatically.
Set to Off to turn off the indicator lights
on the projector except when an error or
warning occurs.
Setting Options Description
High Altitude
Mode
HDMI CEC CEC Control Enables CEC Control features when an
Panel Alignment Panel Alignment Set to On to correct color misalignment
On
Off
Select Color Selects the color to correct.
Pattern Color Selects the pattern used for correction.
Regulates the projector’s operating
temperature at altitudes above 1,500 m.
audio/video device that meets the HDMI
CEC standard is connected to the
projector's HDMI port.
HDMI CEC: Select On to control the
connected audio/video device using the
projector's remote control.
When this is set to On, the projector
automatically turns on when you turn on
the connected device, or when you start
playback on the connected device.
Device Auto Power Off: Select On to
automatically turn off the connected
audio/video device when you turn off the
projector.
Auto Language Change: Select On to
automatically switch the language
settings of the connected audio/video
device according to the projector's
language settings.
HDMI2 ARC: Select On to enable
HDMI ARC on the HDMI2
(eARC/ARC) port.
in the projected image.
The pattern color that can be selected
changes depending on the color selected
in Select Color.
gg Related Links
• "HDMI CEC Features" p.55
• "Adjusting the Color Convergence (Panel Alignment)" p.78
Page 68
Projector Information Display - Information Menu
You can display information about the licenses and privacy statements, and
set whether or not to allow the acquisition of operation logs.
Information item Description
License Agreement Displays the license agreement.
Privacy Statement Displays the privacy statement.
Projector Operation Log
Information
Sets whether or not to allow Epson to acquire projector
operation logs.
68
Page 69
Projector Bluetooth Speaker Settings - Bluetooth Speaker Mode Menu
You can use the projector's speaker to output audio from an external device
connected by Bluetooth.
Options Description
On
Off
gg Related Links
• "Using the Projector as a Bluetooth Speaker" p.52
Select On to use the projector as a Bluetooth speaker.
69
Page 70
Maintaining the Projector
Follow the instructions in these sections to maintain your projector.
gg Related Links
• "Projector Maintenance" p.71
• "Cleaning the Projection Window" p.72
• "Cleaning the Motion Sensor" p.73
• "Cleaning the Projector Case" p.74
• "Air Filter and Air Intake Vent Maintenance" p.75
• "Adjusting the Color Convergence (Panel Alignment)" p.78
Page 71
Projector Maintenance
You may need to clean the projection window and motion sensor periodically,
and clean the air filter and air vents to prevent the projector from overheating
due to blocked ventilation.
The only parts you should replace are the air filter and remote control
batteries. If any other part needs replacing, contact Epson or an authorized
Epson servicer.
Warning
Before cleaning any part of the projector, turn it off and unplug the power cord.
Never open any cover on the projector, except as specifically explained in this
manual. Dangerous electrical voltages in the projector can injure you severely.
71
Page 72
Cleaning the Projection Window
Clean the projection window periodically, or whenever you notice dust or
smudges on the surface.
• To remove dust or smudges, gently wipe the projection window with clean
and dry lens-cleaning paper.
• If the projection window is dusty, blow off dust using a blower, and then
wipe the projection window.
Warning
• Before cleaning the projection window, turn off the projector and unplug the
power cord.
• Do not use any flammable gas sprays such as air dusters to blow off dust. The
high heat generated by the projector may cause a fire.
Attention
• Do not wipe the projection window right after you turn off the projector.
Doing so could damage the projection window.
• Do not use any harsh materials to clean the projection window and do not
subject the projection window to any impacts; otherwise, it could be damaged.
72
Page 73

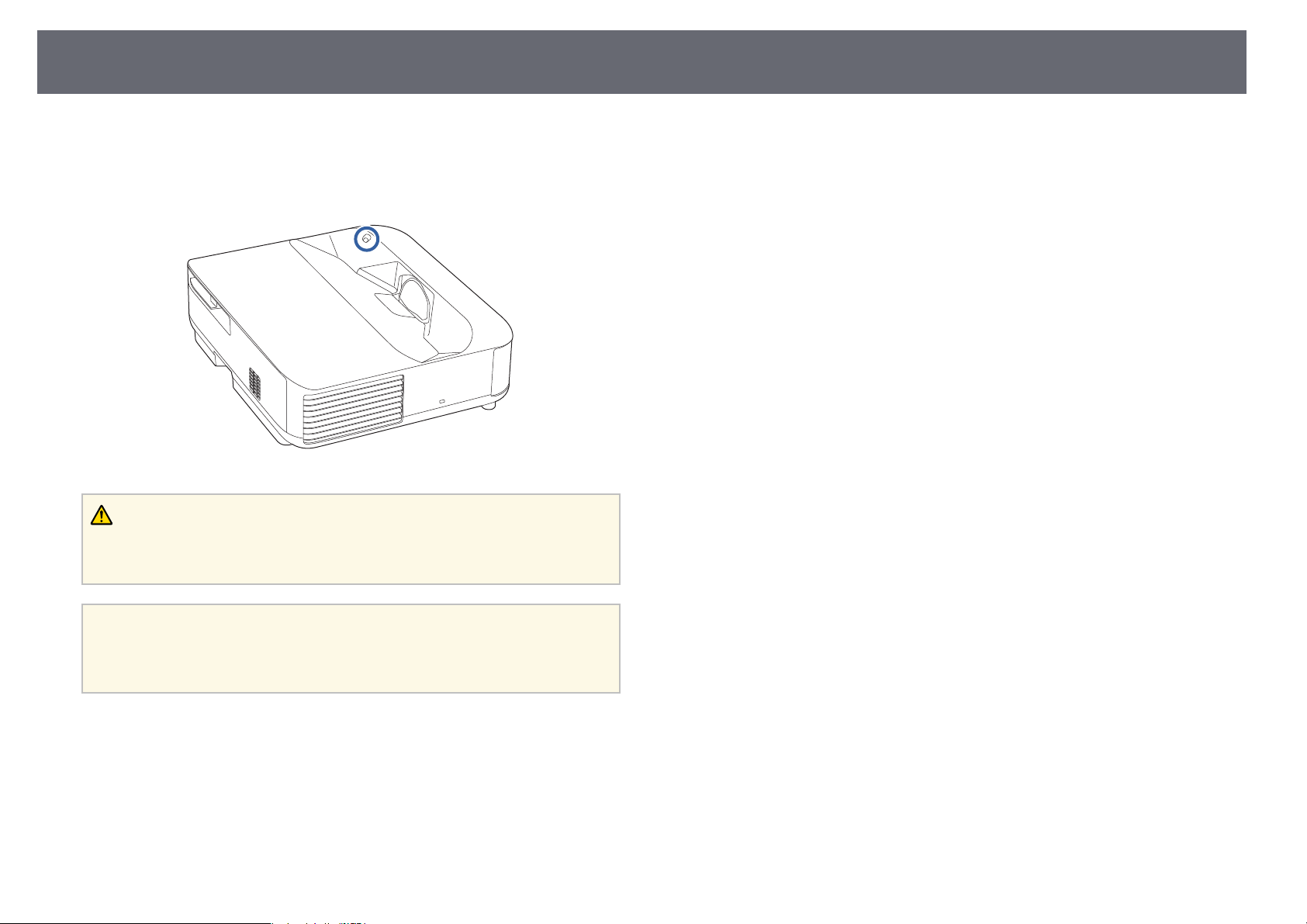

Cleaning the Motion Sensor
Clean the projector's motion sensor periodically, or if you see a message
telling you to remove any obstacles that are interfering with the projection
area. To remove dust or smudges, gently wipe the sensors with lens-cleaning
paper.
73
Warning
Do not use a lens cleaner that contains flammable gas to clean the motion sensor.
The high heat generated by the projector may cause a fire.
Attention
Do not use glass cleaner or any harsh materials to clean the sensors and do not
subject the sensors to any impacts. Damage to the surface of the sensors may cause
malfunctions.
Page 74
Cleaning the Projector Case
Before cleaning the projector case, turn off the projector and unplug the
power cord.
• To remove dust or dirt, use a soft, dry, lint-free cloth.
• To remove stubborn dirt, use a soft cloth moistened with water and mild
soap. Do not spray liquid directly on the projector.
Attention
Do not use wax, alcohol, benzene, paint thinner, or other chemicals to clean the
projector case. These can damage the case. Do not use canned air, or the gases
may leave a flammable residue.
74
Page 75
Air Filter and Air Intake Vent Maintenance
75
Regular filter maintenance is important to maintain your projector. Clean the
air filter when a message appears telling you the temperature inside the
projector has reached a high level. It is recommended that you clean these
parts over a 12,000 hour period. Clean them more often than this if you use
the projector in an environment that is dustier than expected. (Assuming the
projector is used in an atmosphere in which airborne particulate matter is less
than 0.04 to 0.2 mg/m3.)
Attention
If regular maintenance is not performed, your Epson projector will notify you
when the temperature inside the projector has reached a high level. Do not wait
until this warning appears to maintain your projector filter as prolonged exposure
to high temperatures may reduce the life of your projector.
gg Related Links
• "Cleaning the Air Filter" p.75
• "Replacing the Air Filter" p.76
• "Cleaning the Air Intake Vents" p.77
Cleaning the Air Filter
You need to clean the projector's air filters in the following situations:
• The filter or vents get dusty.
Turn off the projector and unplug the power cord.
a
Slide the air filter cover latch and pull out the air filter cover.
b
Pull the air filter out of the air filter cover.
c
Vacuum the front of the air filter (the side with the tabs) to remove any
d
remaining dust.
Page 76
Air Filter and Air Intake Vent Maintenance
76
Attention
• Do not rinse the air filter in water, or use any detergent or solvent to
clean it.
• Do not use canned air. The gases may leave a flammable residue or push
dust and debris into the projector's optics or other sensitive areas.
Place the air filter with the four tabs facing down as shown.
e
Attention
Do not force the air filter cover to close with the tabs on the air filter facing
up. Doing so could damage the projector.
Slide the air filter cover latch and open the air filter cover.
b
Pull the air filter out of the projector.
c
Close the air filter cover until it clicks into place.
f
Replacing the Air Filter
You need to replace the air filter in the following situations:
• The air filter is torn or damaged.
Turn off the projector and unplug the power cord.
a
a
Dispose of used air filters according to local regulations.
• Filter frame: Polypropylene
• Filter: Polypropylene, PET
Page 77
Air Filter and Air Intake Vent Maintenance
77

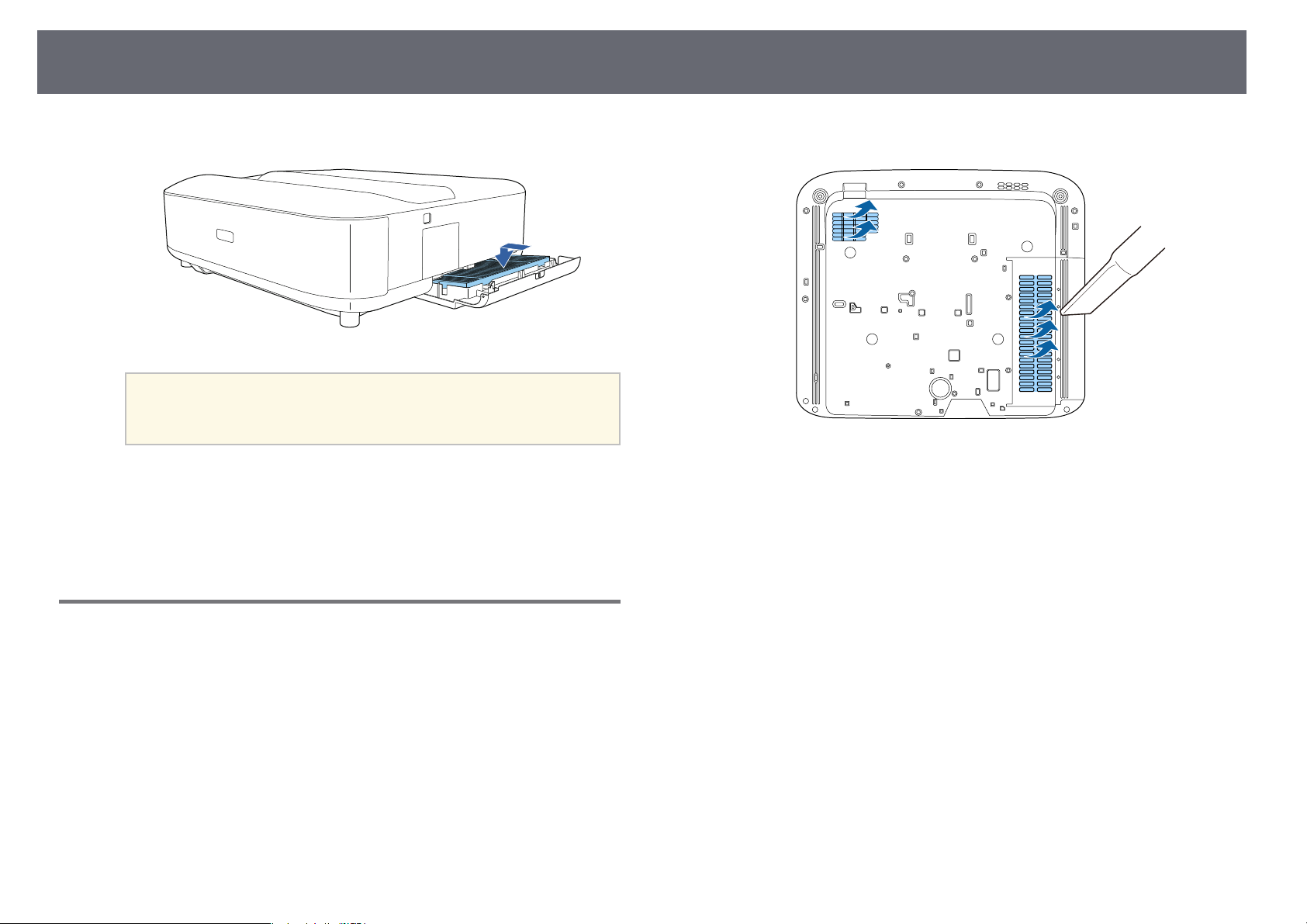

Place the new air filter with the four tabs facing down as shown.
d
Attention
Do not force the air filter cover to close with the tabs on the air filter facing
up. Doing so could damage the projector.
Close the air filter cover until it clicks into place.
e
gg Related Links
• "Replacement Parts" p.96
Carefully remove the dust using a vacuum cleaner or a brush.
c
Cleaning the Air Intake Vents
Clean the projector's air intake vents periodically, or whenever you notice
dust on the surface of the vents to prevent the projector from overheating due
to blocked ventilation.
Turn off the projector and unplug the power cord.
a
Turn the projector upside down.
b
Page 78
Adjusting the Color Convergence (Panel Alignment)
78
You can use the Panel Alignment feature to manually adjust the color
convergence (the alignment of the red and blue colors) in the projected image.
You can adjust the pixels horizontally and vertically in increments of 0.125
pixels within a range of ± 3 pixels.
• You can adjust only the red or blue color convergence. Green is the
a
Press the button on the remote control.
a
Select the Settings menu and press [Enter].
b
standard color panel and cannot be adjusted.
• Image quality may decline after performing Panel Alignment.
• Images for pixels that extend beyond the edge of the projected screen
are not displayed.
Select Panel Alignment and press [Enter].
c
Select Panel Alignment and set it to On.
d
Select Select Color and choose one of the following:
e
• R to adjust the red color convergence.
• B to adjust the blue color convergence.
Select Pattern Color and choose the grid color displayed when making
f
adjustments. The available color varies depending on the Select Color
setting.
• R/G/B to display the grid color in white.
• R/G to display the grid color in yellow. R/G is only displayed when
Select Color is set to R.
• G/B to display the grid color in cyan. G/B is only displayed when
Select Color is set to B.
Select Next and press [Enter].
g
Select Select Method and choose one of the following options:
h
• Select Whole Panel to adjust the entire panel at the same time and
go to the next step.
Page 79
Adjusting the Color Convergence (Panel Alignment)
• Select Four Corners to adjust the corners of the panel one at a time
and go to step 11.
Use the directional pad on the remote control to adjust the color
i
alignment selected in Select Color, and then press [Enter].
Adjustment affects the grid lines in the entire screen.
a
Select one of the following options:
j
• Select Four Corners to fine-tune your adjustments.
• Select Exit to finish adjustments.
Use the directional pad on the remote control to adjust the color
k
alignment of the screen corner, and then press [Enter].
When you are finished adjusting each corner of the screen, press
l
[Enter].
79
Select one of the following options:
m
• If your projector needs additional panel alignment, select Fine
Adjustment. Use the directional pad on the remote control to
highlight the corner of any misaligned box on the screen, press
[Enter], make any necessary adjustments, and then press [Enter]
again. Repeat this step as necessary for the other intersections.
• Select Exit to finish adjustments.
Page 80
Solving Problems
Check the solutions in these sections if you have any problems using the projector.
gg Related Links
• "Projection Problems" p.81
• "Projector Indicator Status" p.82
• "Solving Projector Power-On or Power-Off Problems" p.84
• "Solving Image Problems" p.85
• "Solving Sound Problems" p.89
• "Solving Remote Control Operation Problems" p.91
• "Solving HDMI CEC Problems" p.92
• "Solving Wi-Fi Network Problems" p.93
• "Solving Android TV Problems" p.94
Page 81
Projection Problems
If the projector is not working properly, turn it off, unplug it, and then plug it
back in and turn it on.
If this does not solve the problem, check the following:
• The indicators on the projector may indicate the problem.
• The solutions in this manual can help you solve many problems.
If none of these solutions help, contact Epson for technical support.
After repairing the projector, Epson may return the projector to you in
a
its initial status. Make sure you make a note of the account information
of each online service before you contact your local dealer or the
nearest Epson repair center.
81
Page 82

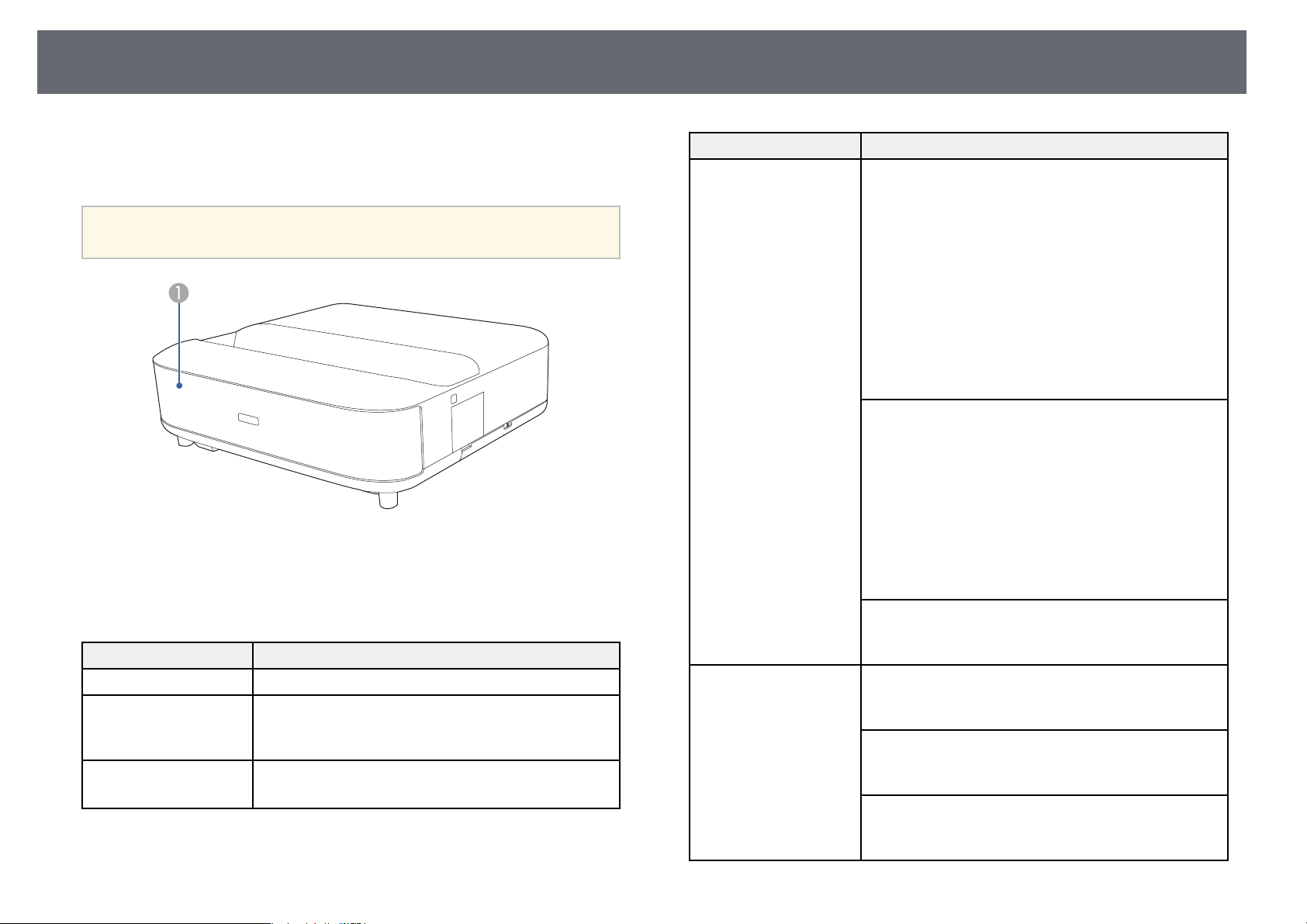

Projector Indicator Status
82
The indicators on the projector indicate the projector status and let you know
when a problem occurs. Check the status and color of the indicators and then
refer to this table for a solution.
If the indicators display a pattern not listed in the table below, turn the
a
A
projector off, unplug it, and contact Epson for help.
Status indicator
Projector status
Indicator status Problem and solutions
Lit blue Normal operation.
Flashing blue Warming up or shutting down the projector.
Remote control operations may be disabled when the
indicator is flashing blue.
Off Standby mode.
When you press the power button, projection starts.
Indicator status Problem and solutions
Lit orange Projector has overheated and turned off. Leave it turned
off to cool down for 5 minutes.
• Make sure that the vents and air filter are not clogged
with dust or obstructed by nearby objects.
• Make sure the environmental temperature is not too
hot.
• Clean or replace the air filter.
• If operating the projector at high altitude, set the High
Altitude Mode setting to On in the projector's menu.
s Settings > High Altitude Mode
• If the problem persists, unplug the projector and
contact Epson for help.
Movement detection warning.
A beep sounds, and the message "Playback has been
stopped for safety reasons. Move away from the lens or
remove any obstacles around the lens." is displayed.
The brightness of the light source is reduced.
• Make sure that there are no one looking into the
projection window. Move away from the projection
window.
• Clean the motion sensor if there is no one near the
projection window.
Laser warning.
Turn the projector off, unplug it, and contact Epson for
help.
Flashing orange Laser has a problem.
Turn the projector off, unplug it, and contact Epson for
help.
A fan or sensor has a problem.
Turn the projector off, unplug it, and contact Epson for
help.
Internal projector error.
Turn the projector off, unplug it, and contact Epson for
help.
Page 83
Projector Indicator Status
gg Related Links
• "Projector Feature Settings - Settings Menu" p.67
• "Cleaning the Air Filter" p.75
• "Replacing the Air Filter" p.76
• "Cleaning the Air Intake Vents" p.77
83
Page 84
Solving Projector Power-On or Power-Off Problems
84
Check the solutions in these sections if the projector does not turn on when
you press the power button or it turns off unexpectedly.
gg Related Links
• "Solving Projector Power Problems" p.84
• "Solving Projector Shutdown Problems" p.84
Solving Projector Power Problems
If the projector does not turn on when you press the power button, try the
following steps until the problem is solved.
Make sure the power cord is securely connected to the projector and to
a
a working electrical outlet.
If you are using the remote control, check the batteries of the remote
b
control.
The power cord may be defective. Disconnect the cord and contact
c
Epson for help.
After waking the projector, Sleep Timer is automatically set to
a
When the status indicator is lit orange, the projector has overheated
b
and turned off.
a
Make sure that there are no obstacles interfering with the projection
c
window. Remove any obstacles.
gg Related Links
• "Projector Feature Settings - Settings Menu" p.67
Off.
The cooling fans may run in standby status depending on the
projector settings. Also, when the projector wakes from standby
status, the fans may cause an unexpected noise. This is not a
malfunction.
gg Related Links
• "Turning On the Projector" p.26
• "Installing Batteries in the Remote Control" p.21
Solving Projector Shutdown Problems
If the projector turns off unexpectedly, try the following steps until the
problem is solved.
The projectors may have entered standby mode after the interval of
a
time specified in Sleep Timer in the projector's Settings menu has
passed. Press the power button on the projector or remote control to
wake the projector.
Page 85
Solving Image Problems
85
Check the solutions in these sections if you have any problems with projected
images.
gg Related Links
• "Solving Missing Image Problems" p.85
• "Solving Curved or Not Rectangular Image Problems" p.86
• "Solving Flipped Image Problems" p.86
• "Solving Small Image Problems" p.86
• "Adjusting a Fuzzy or Blurry Image" p.86
• "Fixing Partial Image Problems" p.87
• "Adjusting an Image that Contains Noise or Static" p.87
• "Adjusting an Image with Incorrect Brightness or Colors" p.87
Solving Missing Image Problems
If no image is displayed, try the following steps until the problem is solved.
Check the projector's status:
a
• Press the button on the remote control to see if the image
was temporarily turned off.
• Check the status indicator to confirm that the projector is in normal
operating status.
• Press the projector's power button to wake it from standby mode.
s Settings > Sleep Timer
Check the cable connection:
b
• Make sure all necessary cables are securely connected and the power
is on for the projector.
Make sure you have selected the appropriate EDID setting in the
c
projector's Picture menu, according to the standards supported by the
video equipment, image signals, and HDMI cables.
Check the status of your video source:
d
• If you are projecting from a streaming media player, make sure it is
powered by the power supply USB cable on the projector.
• Turn on the connected streaming media player or video source, and
press the play button to start a video, if necessary.
• Make sure the connected device meets the HDMI CEC standard. See
the documentation supplied with the device for more information.
• If you are projecting from a laptop computer, make sure it is set up
to display on an external monitor.
Check the following items:
e
• You need an Internet connection to view online content. Make sure
your Wi-Fi is on.
• Turn off the projector and the connected streaming media player or
video source, and then turn them back on.
• Turn off the projector and the connected video source, and then turn
them back on.
• Set the CEC function for the connected device again and restart the
device.
• Make sure the computer's display resolution does not exceed the
projector's resolution and frequency limits. If necessary, select a
different display resolution for your computer. (See your computer
manual for details.)
• Resets all of the projector settings to their default values.
• Connect the video source directly to the projector.
• Replace the HDMI cable with the shorter one.
• When sending 18 Gbps images such as 4K 60Hz 4:4:4, use an HDMI
cable (premium-high speed).
gg Related Links
• "Projector Feature Settings - Settings Menu" p.67
Page 86
Solving Image Problems
86
Solving Curved or Not Rectangular Image Problems
If the projected image is curved or not evenly rectangular, try the following
steps until the problem is solved.
Place the projector directly in front of the center of the screen, facing it
a
squarely, if possible.
Correct the distortion in the projected image, press the button
b
on the remote control, and then follow the on-screen instructions.
gg Related Links
• "Correcting Distortion in the Image" p.29
Solving Flipped Image Problems
If the projected image is flipped horizontally, try the following steps until the
problem is solved.
If you flipped the projected image using the Reverse Flip Picture
a
function, press the button on the remote control to display the
If you adjusted the size of the projected image, press the
a
button on the remote control to display the Flexible Picture menu, and
then press the button until the projected image is the right size.
gg Related Links
• "Changing the Image Size or Position (Flexible Picture)" p.49
Adjusting a Fuzzy or Blurry Image
If the projected image is fuzzy or blurry, try the following steps until the
problem is solved.
Adjust the image focus using the focus lever.
a
Position the projector close enough to the screen.
b
Clean the projection window.
c
To avoid condensation on the lens after bringing the projector in
a
from a cold environment, let the projector warm up to room
temperature before using it.
Flexible Picture menu, and then press the button again to
disable the function.
gg Related Links
• "Flipping the Image Horizontally (Flexible Picture)" p.50
Solving Small Image Problems
If the projected image is too small, try the following steps until the problem is
solved.
Adjust the Sharpness setting in the projector's Picture menu to
d
improve image quality.
s Picture > Custom Settings > Sharpness
If you have blurred the edges of the projected image using the Edge
e
Blur function, press the button on the remote control to
display the Flexible Picture menu, and then press the button
to disable the function.
If you are projecting from a computer, use a lower resolution or select a
f
resolution that matches the projector's native resolution.
Page 87
Solving Image Problems
87
gg Related Links
• "Image Quality Settings - Picture Menu" p.62
• "Focusing the Image Using the Focus Lever" p.28
• "Blurring the Edges of the Image (Flexible Picture)" p.51
• "Cleaning the Projection Window" p.72
Fixing Partial Image Problems
If only a partial computer image is displayed, try the following steps until the
problem is solved.
If you adjusted the size of the projected image, press the
a
button on the remote control to display the Flexible Picture menu, and
then press the button until the projected image is the right size.
If Aspect Ratio in the Picture menu is set to Zoom, change it to
b
Normal.
Check your computer display settings to disable dual display and set the
c
resolution within the projector's limits. (See your computer manual for
details.)
Check the cables connecting your video source to the projector. They
a
should be:
• Separated from the power cord to prevent interference
• Securely connected at both ends
• Not connected to an extension cable
Adjust the Noise Reduction setting in the projector's Picture menu.
b
If you adjusted the image shape using the projector controls, try
c
decreasing the Sharpness setting in the projector's Picture menu to
improve image quality.
s Picture > Custom Settings > Sharpness
Make sure you have selected the appropriate EDID setting in the
d
projector's Picture menu, according to the standards supported by the
video equipment, image signals, and HDMI cables.
If you connected an extension power cable, try projecting without it to
e
see if it caused interference in the signal.
Select a computer video resolution and refresh rate that are compatible
f
with the projector.
gg Related Links
• "Projector Feature Settings - Settings Menu" p.67
• "Changing the Image Size or Position (Flexible Picture)" p.49
Adjusting an Image that Contains Noise or Static
If the projected image contains electronic interference (noise) or static, try the
following steps until the problem is solved.
gg Related Links
• "Image Quality Settings - Picture Menu" p.62
Adjusting an Image with Incorrect Brightness or Colors
If the projected image is too dark or bright, or the colors are incorrect, try the
following steps until the problem is solved.
Try different color modes for your image and environment by selecting
a
the Color Mode setting in the projector's Picture menu.
Page 88
Solving Image Problems
Check your video source settings.
b
Adjust the following settings in the Picture menu for the current input
c
source.
• Scene Adaptive Gamma
• Custom Settings
• Color Temperature
• Frame Interpolation
• Dynamic Contrast
• Noise Reduction
• Super-resolution
• Auto Contrast Enhancement
• Aspect Ratio
Make sure you selected the correct HDMI Video Range, HDR or
d
EDID setting in the projector's Picture menu, if available for your
image source.
88
When you are projecting your image onto a wall, try different wall
e
color types for the image and environment by selecting the Adjust
color setting in the projector's Installation menu.
Make sure all the cables are securely connected to the projector and
f
your video equipment. If you connected long cables, try connecting
shorter cables.
Position the projector close enough to the screen.
g
gg Related Links
• "Image Quality Settings - Picture Menu" p.62
Page 89
Solving Sound Problems
89
Check the solutions in these sections if you have any problems with projected
sound.
gg Related Links
• "Solving Missing or Low Audio Problems" p.89
• "Solving Bluetooth Speaker Mode Problems" p.89
Solving Missing or Low Audio Problems
If there is no sound or the volume is too low, try the following steps until the
problem is solved.
Adjust the projector's volume settings using the or button on
a
the remote control.
Check the cable connection between the projector and your video
b
source.
Press the button on the remote control to resume audio if it
c
was temporarily muted.
• Make sure the sound is output from the projector's speaker or
Optical Out port.
• Set HDMI CEC to On in the Settings menu.
s Settings > HDMI CEC > CEC Control
• Set HDMI2 ARC to On in the Settings menu.
s Settings > HDMI CEC > CEC Control
• Set Sound Output to ARC (PCM) in the Sound menu.
• Make sure you are using an HDMI cable (with Ethernet).
When outputting audio to an external audio device that does not
a
If you want to output audio to an external audio device using an optical
g
digital audio cable, check that the Sound Output setting is correct in
the Sound menu.
gg Related Links
• "Sound Quality Settings - Sound Menu" p.64
support HDMI ARC using an HDMI cable, set HDMI CEC to
Off in the Settings menu.
Check the following settings on your video equipment:
d
• Check your video source to make sure the volume is turned up and
the audio output is set for the correct source.
• Set the connected device to PCM output.
If you want to output audio from the projector's speaker, check that the
e
Sound Output setting is correct in the Sound menu.
If you want to output audio to an external audio device using an HDMI
f
cable, try the following solutions:
• Make sure the HDMI cable is connected to the projector's HDMI2
(eARC/ARC) port.
Solving Bluetooth Speaker Mode Problems
If you cannot connect a Bluetooth audio device to the projector, try the
following solutions.
Set Bluetooth Speaker Mode to On in the projector's menu.
a
Select Projector from the available Bluetooth device list displayed on
b
your device.
Make sure only one Bluetooth device is connected to the projector.
c
You cannot connect multiple Bluetooth audio devices to the projector
at the same time.
Page 90
Solving Sound Problems
Make sure the device meets the projector's Bluetooth specifications.
d
Check the following items:
e
• Check for obstacles between the Bluetooth audio device and the
projector, and change their positions to improve communication.
• Make sure the connected Bluetooth audio device is within the
specified communication distance.
• Avoid using the projector near wireless networks, microwave ovens,
2.4 GHz cordless phones, or other devices that use the 2.4 GHz
frequency band. These devices can interfere with the signal between
the projector and the Bluetooth audio device.
gg Related Links
• "Bluetooth Specifications" p.52
• "Using the Projector as a Bluetooth Speaker" p.52
90
Page 91
Solving Remote Control Operation Problems
If the projector does not respond to remote control commands, try the
following steps until the problem is solved.
If you lose the remote control, you can order another one from Epson.
a
Check that the remote control batteries are installed correctly and have
a
power. If necessary, replace the batteries.
Check to see if a button on the remote control is stuck down, causing it
b
to enter standby mode. Release the button to wake the remote control
up.
Make sure you are operating the remote control within the reception
c
angle and range of the projector.
Check the status indicator to confirm that the projector is in normal
d
operating status.
91
Strong fluorescent lighting, direct sunlight, or infrared device signals
e
may be interfering with the projector's remote receivers. Dim the lights
or move the projector away from the sun or interfering equipment.
If the pairing screen is displayed, perform pairing again by holding
f
down the [Enter] button and button on the remote control at the
same time for about three seconds.
gg Related Links
• "Projector Parts - Projector Remote Control" p.12
• "Remote Control Operation" p.21
• "Projector Indicator Status" p.82
• "Installing Batteries in the Remote Control" p.21
Page 92
Solving HDMI CEC Problems
If you cannot operate the connected devices from the projector, try the
following steps until the problem is solved.
Make sure the cable meets the HDMI CEC standard.
a
Make sure the connected device meets the HDMI CEC standard. See
b
the documentation supplied with the device for more information.
Set HDMI CEC to On in the Settings menu.
c
s Settings > HDMI CEC > CEC Control
Make sure all the cables are securely connected to the projector and
d
your video equipment.
Make sure you connect the HDMI cable to the projector's
a
Make sure the connected devices are turned on and in standby status.
e
See the documentation supplied with the device for more information.
HDMI2 (eARC/ARC) port.
92
If you connect a new device or change the connection, set the CEC
f
function for the connected device again and restart the device.
gg Related Links
• "Projector Feature Settings - Settings Menu" p.67
• "Operating Connected Devices Using the HDMI CEC Features" p.55
Page 93
Solving Wi-Fi Network Problems
If you cannot connect to a Wi-Fi network, try the following solutions.
Make sure your Wi-Fi router and modem are working properly.
a
Rebooting these devices may solve the network connection problem.
Check for obstacles between the Wi-Fi router and the projector, and
b
change their positions to improve communication.
You can check the network settings from the menu displayed when you
c
press button on the remote control.
If you initialize the projector, you need to select the network settings
d
again on the initial setup screen.
gg Related Links
• "Initializing the Projector" p.59
93
Page 94
Solving Android TV Problems
See the following page for issues regarding Android TV.
https://support.google.com/androidtv/
94
Page 95
Appendix
Check these sections for the technical specifications and important notices about your product.
gg Related Links
• "Optional Accessories and Replacement Parts" p.96
• "Screen Size and Projection Distance" p.97
• "Supported Monitor Display Resolutions" p.98
• "Projector Specifications" p.99
• "External Dimensions" p.100
• "List of Safety Symbols and Instructions" p.101
• "Laser Safety Information" p.103
• "Glossary" p.105
• "Notices" p.106
Page 96
Optional Accessories and Replacement Parts
The following optional accessories and replacement parts are available. Please
purchase these products as and when needed.
The following list of optional accessories and replacement parts is current as
of: June 2023.
Details of accessories are subject to change without notice and availability
may vary depending on the country of purchase.
gg Related Links
• "External Devices" p.96
• "Screens" p.96
• "Replacement Parts" p.96
External Devices
Streaming Media Player ELPAP12
Use this streaming media player to watch online content.
96
Screens
Ultra Short Throw Screen ELPSC35 (100")
Ultra Short Throw Screen ELPSC36 (120")
Screens to be installed on a wall. (Aspect ratio 16:9)
Replacement Parts
Air filter ELPAF60
Use as a replacement for used air filters.
gg Related Links
• "Replacing the Air Filter" p.76
Page 97
Screen Size and Projection Distance
97
Check the table here to determine how far to place the projector from the
screen based on the size of the projected image.
Projection distance (cm)
A
Distance from the projector to the bottom of the screen (cm)
B
Distance from the projector to the top of the screen (cm)
C
Distance from the center of the lens to the rear of the projector (cm)
D
4:3 screen size
50" 102 × 76 33.2 11.9 88.1
55" 112 × 84 37.1 13.7 97.5
60" 122 × 91 41.0 15.5 107.0
65" 132 × 99 44.8 17.4 116.4
70" 142 × 107 48.7 19.2 125.9
75" 152 × 114 52.5 21.0 135.3
80" 163 × 122 56.4 22.8 144.7
98" 199 × 149 70.3 29.4 178.7
16:10 screen size
56" 121 × 75 32.8 11.7 87.1
60" 129 × 81 35.6 13.0 93.8
65" 140 × 88 39.0 14.6 102.1
70" 151 × 94 42.4 16.2 110.4
80" 172 × 108 49.2 19.4 127.1
90" 194 × 121 56.0 22.6 143.8
100" 215 × 135 62.8 25.9 160.5
111" 239 × 149 70.3 29.4 178.8
A B C
A B C
16:9 screen size
60" 133 × 75 32.5 11.5 86.3
65" 144 × 81 35.6 13.0 94.0
70" 155 × 87 38.8 14.5 101.7
75" 166 × 93 42.0 16.0 109.4
80" 177 × 100 45.1 17.5 117.1
90" 199 × 112 51.4 20.5 132.5
100" 221 × 125 57.7 23.5 148.0
120" 266 × 149 70.3 29.4 178.8
A B C
gg Related Links
• "Changing the Image Size or Position (Flexible Picture)" p.49
Page 98
Supported Monitor Display Resolutions
See the Supplemental A/V Support Specification for detailed information on
compatible refresh rates and resolutions for each compatible video display
format.
98
Page 99
Projector Specifications
99
Product name EH-LS650W/EH-LS650B
Dimensions 467 (W) × 133 (H) × 400 (D) mm (not including raised
section)
LCD panel size 0.62"
Display method Poly-silicon TFT active matrix
Number of pixels Full HD (1,920 (W) × 1,080 (H) dots) × 3
Screen resolution 4,147,200 pixels*
Focus adjustment Manual
Light source Laser diode
Light source output power Up to 73 W
Wavelength 449 to 461 nm
Light source life ** Approx. 20,000 hours
Max. audio output 20 W
Speaker 2.1ch (Speaker × 2, Woofer × 1)
Power supply 100-240V AC±10% 50/60Hz 2.8 - 1.3 A
Power consumption (100
to 120 V area)
Power consumption (220
to 240 V area)
Standby power
consumption
Operating altitude Altitude 0 to 3,048 m
Operating temperature Altitude of 0 to 2,286 m: +5 to +35°C (Humidity of 20
Storage temperature -10 to +60°C (Humidity of 10 to 90%, No condensation)
Operating power consumption (When the light source
brightness is 100%): 278 W
Operating power consumption (When the light source
brightness is 50%): 186 W
Operating power consumption (When the light source
brightness is 100%): 264 W
Operating power consumption (When the light source
brightness is 50%): 178 W
Communication On: 2.0 W
Communication Off: 0.5 W
to 80%, No condensation)
Altitude of 2,287 to 3,048 m: +5 to +30°C (Humidity of
20 to 80%, No condensation)
Mass Approx. 7.4 kg
* Pixel shifting technology achieves 4K resolution on screen.
** Approximate time until the light source brightness decreases to half of its
original value. (Assuming the projector is used in an atmosphere in which
airborne particulate matter is less than 0.04 to 0.2mg/m3. The estimated time
varies depending on the projector usage and operating conditions.)
The rating label is attached on the bottom surface of the projector.
This product is also designed for IT power distribution system with phase-tophase voltage 230V.
gg Related Links
• "Connector Specifications" p.99
Connector Specifications
HDMI1 port 1 HDMI
HDMI2 (eARC/ARC) port 1 HDMI
USB-A port 2 USB connector (Type A)
Service port 1 USB connector (Mini-B)
Optical Out port 1 Optical digital audio connector (S/PDIF)
DC Out (2.0A) port 1 USB connector (Type A)
USB-A port supports USB 2.0. However, USB ports are not guaranteed
a
to operate all devices that support USB.
Page 100
External Dimensions
Center of the projection window
A
100
The unit in these illustrations is mm.
Loading...
