Epson EB-X12, EB-W12 User Manual

User’s Guide

Notations Used in This Guide

• Safety indications

The documentation and the projector use graphical symbols to show how to use the projector safely. Please understand and respect these caution symbols in order to avoid injury to persons or property.

Warning

Caution

• General information indications

Attention

s Indicates a page where detailed information regarding a topic can be found.

[Name] Indicates the name of the buttons on the remote control or the control panel.

Menu Name Indicates Configuration menu items.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Indicates procedures which may result in damage or injury if sufficient care is not taken.

Indicates additional information and points which may be useful to know regarding a topic.

Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary" section of the "Appendix".

s "Glossary" p.109

Example: [Esc] button

Example: Select Brightness from Image. Image - Brightness

Notations Used in This Guide ........................ 2

Introduction

Projector Features .......................................... 7

List of Functions by Model........................................7

Quick and Easy Set up, Projection, and Storage ..........................8

Connecting with a USB cable and projecting (USB Display)................ 8

Detecting projector movements and automatically correcting image distortion

(EB-X14/EB-W12/EB-X12/EB-S12/EB-X11 only) .........................8

Horizontal keystone adjuster (EB-X14/EB-W12/EB-X12/EB-S12/EB-X11 only) . . . . . 8

Useful Functions for Projecting Images ................................ 8

Increasing projection content in wide (WXGA) screen (EB-W12 only) ..........8

Making the most of the remote control.............................9

Enlarge and project your files with the Document Camera.................9

Enhanced security functions..................................... 9

Part Names and Functions .................................. 10

Front/Top ...................................................10

Rear.......................................................11

Base ...................................................... 13

Control Panel................................................14

Remote Control...............................................15

Replacing the remote control batteries............................. 17

Remote control operating range.................................18

Preparing the Projector

Installing the Projector ..................................... 20

Installation Methods ...........................................20

Installation methods .........................................20

Screen Size and Approximate Projection Distance.......................21

Connecting Equipment ..................................... 23

Connecting a Computer ......................................... 23

Connecting Image Sources.......................................24

Connecting USB Devices.........................................26

Connecting External Equipment (EB-S12/EB-X11/EB-S11 only)...............27

Basic Usage

Projecting Images ......................................... 30

From Installation to Projection.....................................30

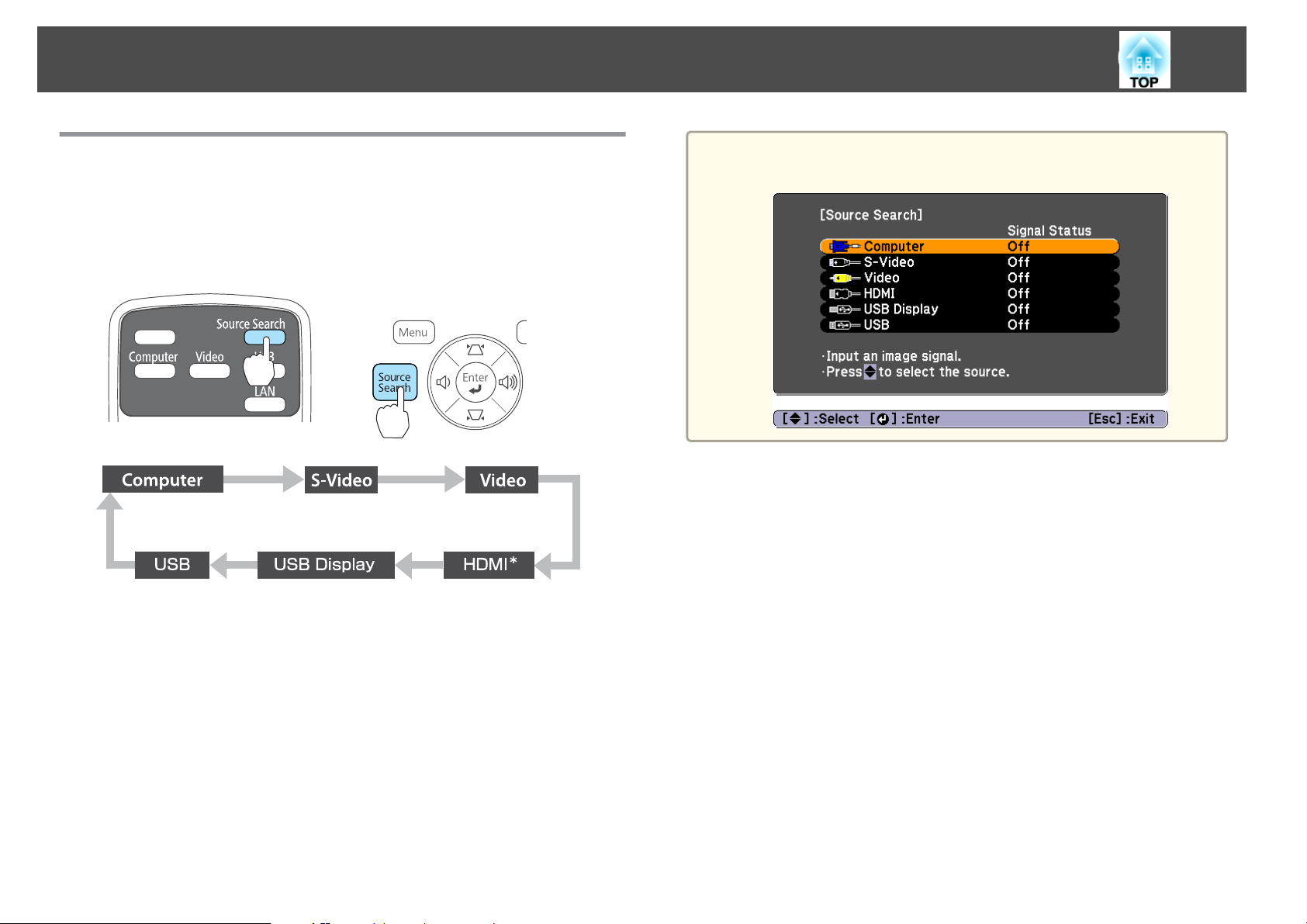

Automatically Detect Input Signals and Change the Projected Image (Source Search)

.......................................................... 31

Switching to the Target Image by Remote Control ....................... 32

Projecting with USB Display......................................32

System requirements......................................... 32

Connecting for the first time ....................................33

Uninstalling...............................................34

Adjusting Projected Images ................................ 36

Correcting Keystone Distortion .................................... 36

Correcting automatically ......................................36

Correcting manually.........................................37

Adjusting the Image Size ........................................ 40

Adjusting the Image Position ..................................... 40

Adjusting the Horizontal Tilt......................................41

Correcting the Focus...........................................41

Adjusting the Volume..........................................41

Selecting the Projection Quality (Selecting Color Mode) ...................41

Setting Auto Iris ..............................................42

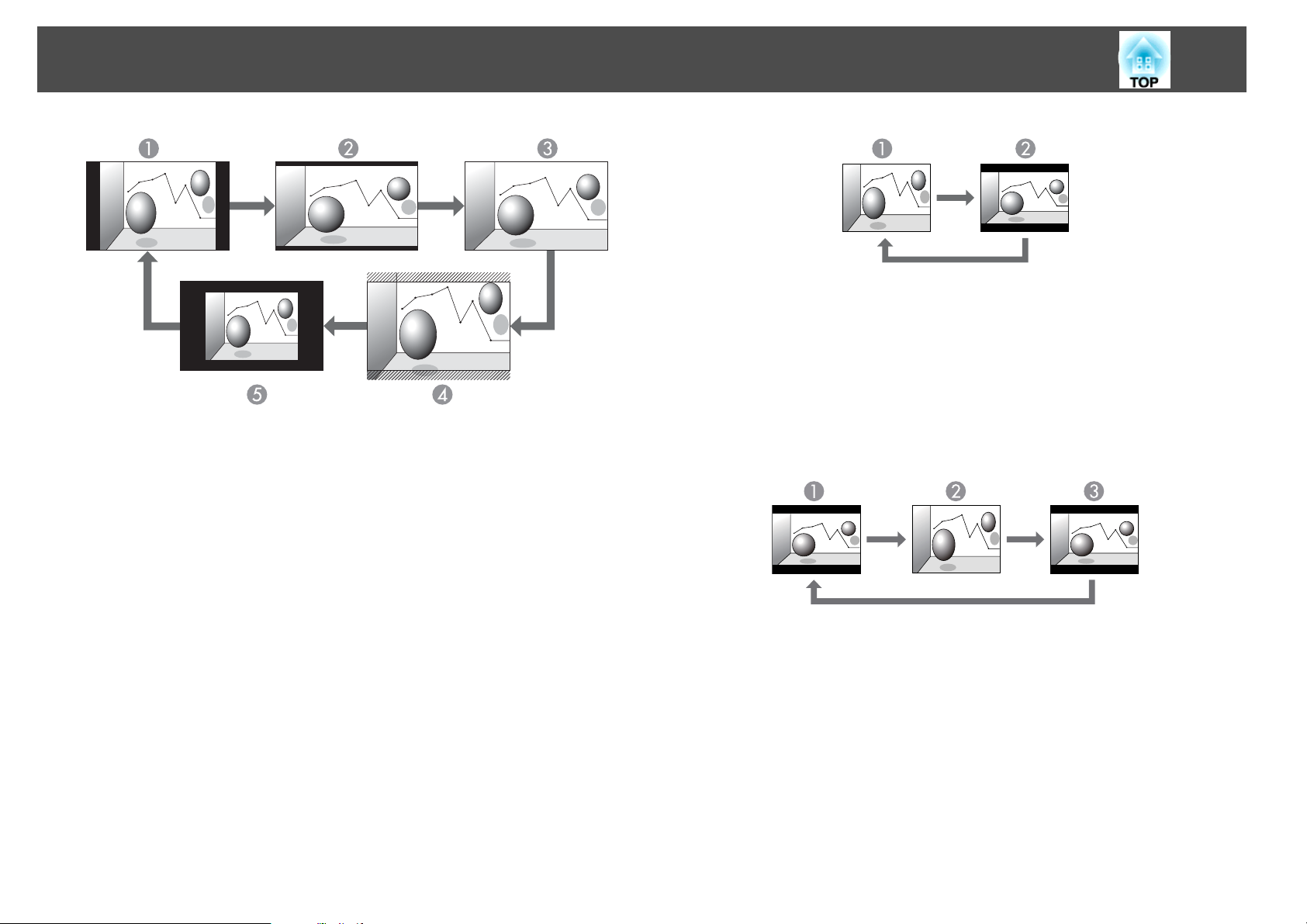

Changing the Aspect Ratio of the Projected Image ......................43

Changing methods ..........................................43

Changing the aspect mode .....................................43

Useful Functions

Projection Functions ....................................... 47

Projecting Without a Computer (Slideshow) ...........................47

Specifications for files that can be projected using Slideshow..............47

Contents

Slideshow examples .........................................47

Slideshow operating methods...................................47

Projecting the selected image...................................49

Projecting image files in a folder in sequence (Slideshow) ................ 50

Image file display settings and Slideshow operation settings..............51

Hiding the Image and Sound Temporarily (A/V Mute).....................52

Freezing the Image (Freeze) ......................................52

Pointer Function (Pointer) ........................................53

Enlarging Part of the Image (E-Zoom) ................................ 54

Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse) . . . . . . 55

Saving a User's Logo ........................................... 56

Security Functions ......................................... 58

Managing Users (Password Protect)................................. 58

Kinds of Password Protect ......................................58

Setting Password Protect......................................58

Entering the Password ........................................59

Restricting Operation (Control Panel Lock)............................ 60

Anti-Theft Lock ............................................... 61

Installing the wire lock ........................................61

Monitoring and Controlling ................................ 62

ESC/VP21 Commands ........................................... 62

Before starting.............................................62

Command list.............................................. 62

Communications protocol.....................................63

Configuration Menu

Using the Configuration Menu .............................. 65

Info Menu (Display Only) ........................................72

Reset Menu .................................................73

Troubleshooting

Using the Help ............................................. 75

Problem Solving ........................................... 76

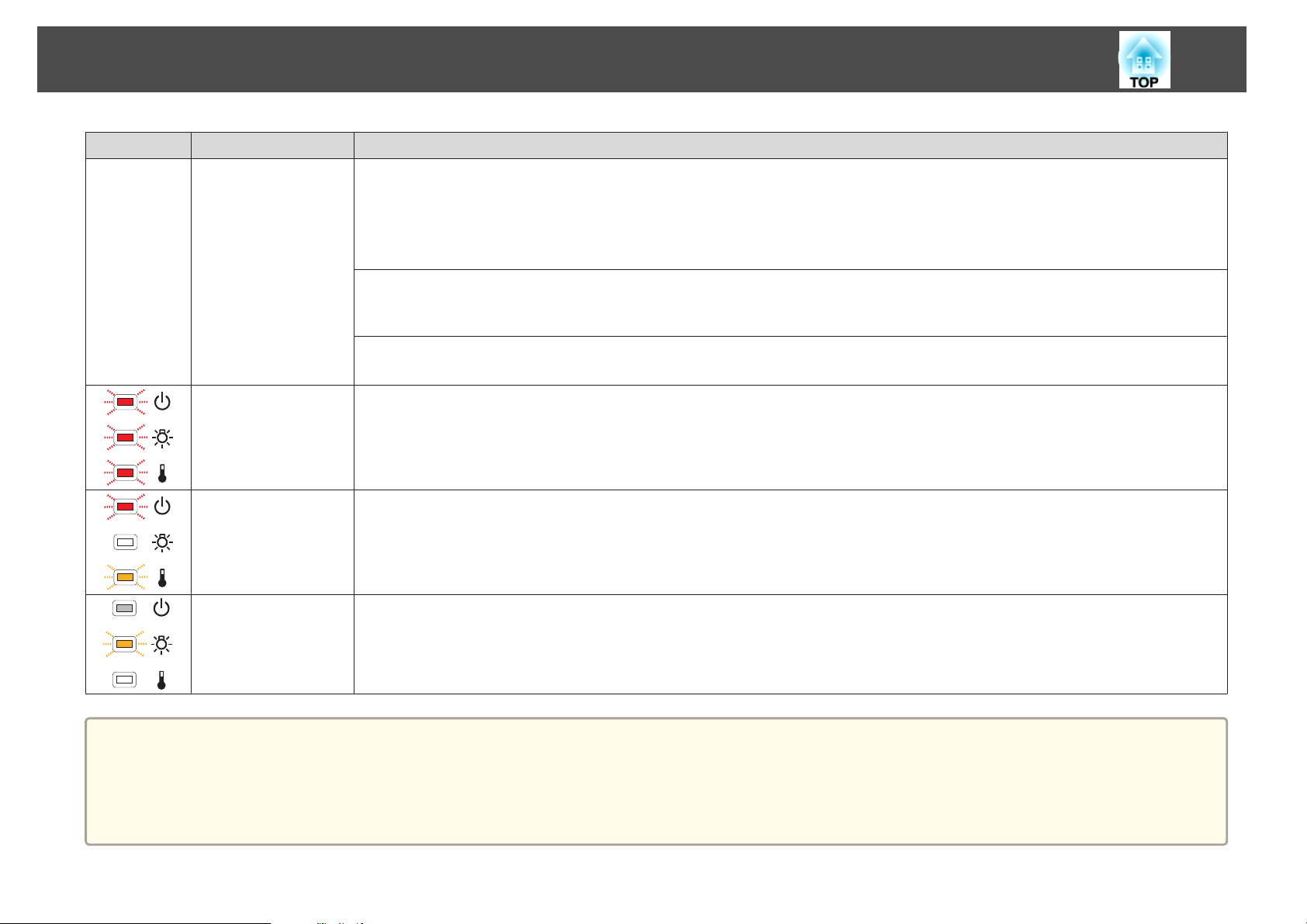

Reading the Indicators.......................................... 76

When the Indicators Provide No Help ................................79

Problems Relating to Images ...................................... 80

No images appear...........................................80

Moving images are not displayed (only the moving image portion turns black)

........................................................ 81

Projection stops automatically ................................... 81

The message Not supported is displayed............................81

The message No Signal is displayed................................81

Images are fuzzy, out of focus, or distorted ..........................82

Interference or distortion appear in images..........................83

The image is truncated (large) or small, or the aspect is not suitable . . . . . . . . . 83

Image colors are not right ...................................... 84

Images appear dark.......................................... 85

Problems when Projection Starts...................................85

The projector does not turn on..................................85

Other Problems...............................................86

No sound can be heard or the sound is faint.........................86

The remote control does not work................................86

I want to change the language for messages and menus................. 87

Image file names are not displayed correctly in Slideshow................ 87

List of Functions ........................................... 66

Configuration Menu Table.......................................66

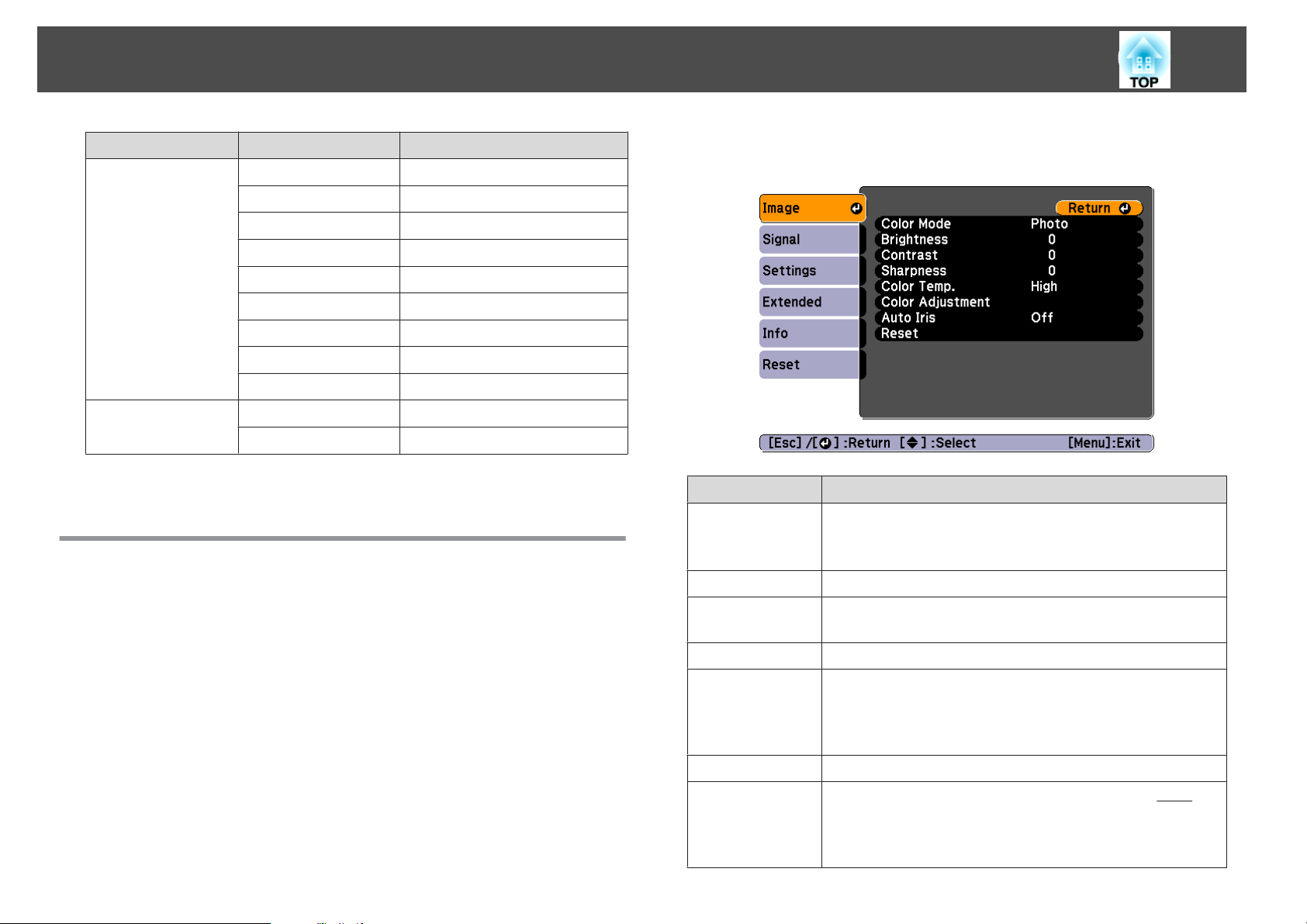

Image Menu................................................. 67

Signal Menu ................................................. 68

Settings Menu ................................................70

Extended Menu ...............................................71

Maintenance

Cleaning .................................................. 89

Cleaning the Projector's Surface...................................89

Cleaning the Lens ............................................. 89

Cleaning the Air Filter...........................................89

Contents

Replacing Consumables .................................... 91

Replacing the Lamp............................................91

Lamp replacement period ......................................91

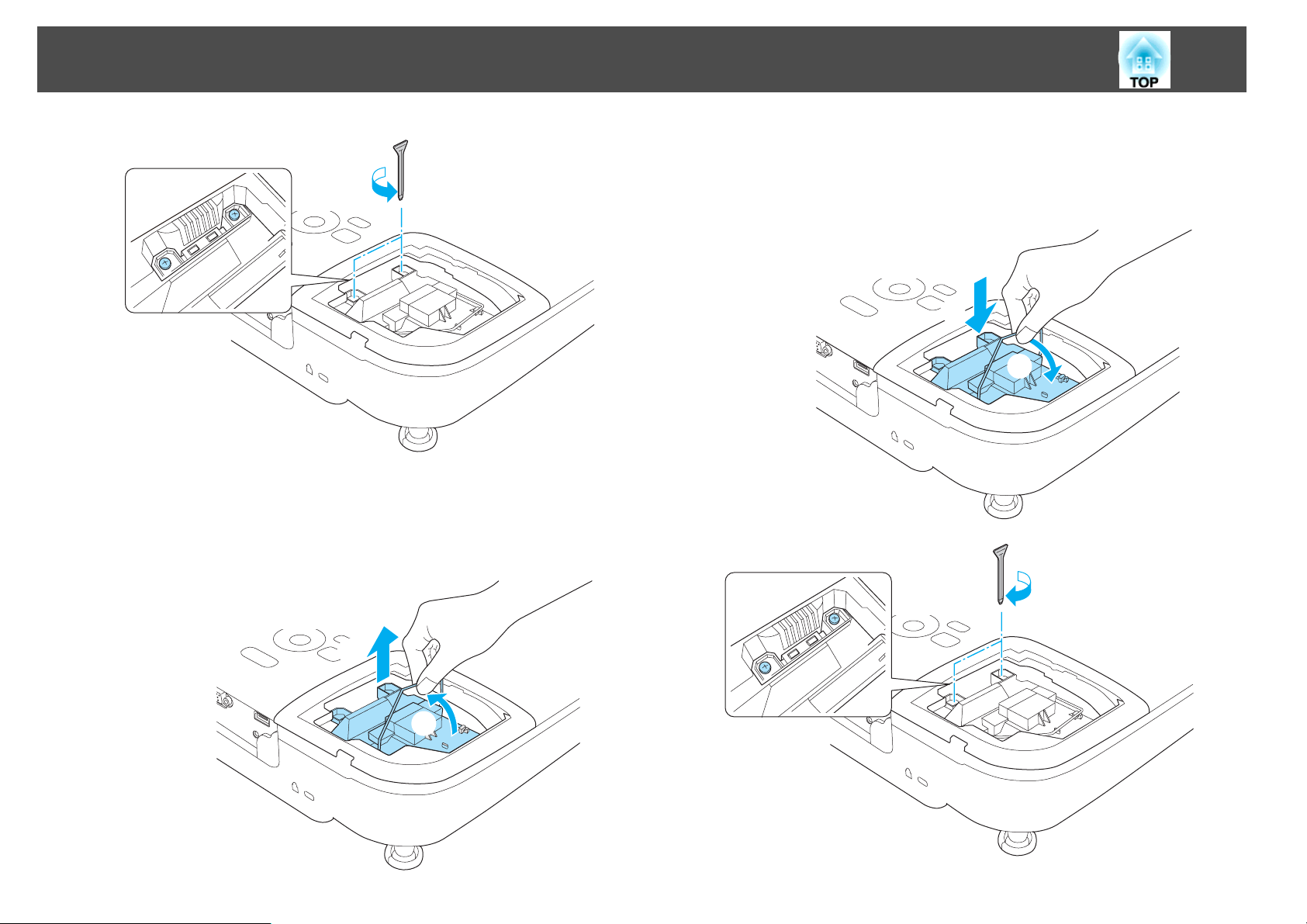

How to replace the lamp ......................................91

Resetting the lamp hours ......................................94

Replacing the Air Filter ..........................................94

Air filter replacement period ....................................94

How to replace the air filter .....................................94

Appendix

Optional Accessories and Consumables ...................... 97

Optional Accessories ...........................................97

Consumables ................................................97

Screen Size and Projection Distance ......................... 98

Projection Distance (For EB-W12) ................................... 98

Projection Distance (For EB-X14/EB-X12/EB-X11) ........................99

Projection Distance (For EB-S12/EB-S11) ............................. 100

Supported Monitor Displays ............................... 102

Supported Resolutions ......................................... 102

Computer signals (analog RGB) ................................. 102

Component Video .......................................... 103

Composite video ........................................... 103

Input signal from the HDMI port (EB-X14/EB-W12/EB-X12 only)........... 103

Index .................................................... 112

Specifications ............................................ 104

Projector General Specifications...................................104

Appearance .............................................. 108

Glossary ................................................. 109

General Notes ............................................ 111

About Notations ............................................. 111

General Notice: .............................................. 111

Introduction

This chapter explains the projector's features and the part names.

Projector Features

List of Functions by Model

Available functions differ depending on the model being used. See the table below for a list of the functions available for each model.

Function EB-X14 EB-W12 EB-X12 EB-S12 EB-X11 EB-S11

USB Display

HDMI Connection ---

External Equipment Connection

Auto V-Keystone -

H-Keystone Adjuster

Quick Corner

Slideshow

Depending on the area of purchase, this may not be available.

*1 *2 Although the horizontal keystone adjuster is not installed for this model, you can perform H-Keystone from the control panel or the Configuration menu.

---

Projector Features

Quick and Easy Set up, Projection, and Storage

• Turn the projector on and off by simply plugging in or unplugging.

• Project onto large screens from a short distance.

• Make easy height adjustments with one lever.

• No cool down delay makes it easy to put away.

Connecting with a USB cable and projecting (USB Display)

By simply connecting a USB cable, you can project images from a computer's screen without a computer cable.

s "Projecting with USB Display" p.32

Detecting projector movements and automatically correcting image distortion (EB-X14/EB-W12/EB-X12/EB-S12/EB-X11 only)

This projector automatically corrects vertical keystone distortion which occurs when positioning or moving the projector.

"Correcting automatically" p.36

Horizontal keystone adjuster (EB-X14/EB-W12/EB-X12/EB-S12/EBX11 only)

This allows you to quickly correct horizontal distortion in the projected image. This is useful if you cannot install the projector parallel to the screen.

"Correcting manually" p.37

Useful Functions for Projecting Images

Increasing projection content in wide (WXGA) screen (EB-W12 only)

With a computer that has a 16:10 WXGA wide LCD display, the image can be projected in the same aspect. You can use whiteboards and other landscape format screens.

s "Changing the Aspect Ratio of the Projected Image " p.43

Projector Features

Making the most of the remote control

You can use the remote control to perform operations such as enlarging part of the image. You can also use the remote control as a pointer during presentations or as a mouse for the computer.

"Pointer Function (Pointer)" p.53

"Enlarging Part of the Image (E-Zoom)" p.54

"Using the Remote Control to Operate the Mouse Pointer (Wireless

Mouse)" p.55

Enlarge and project your files with the Document Camera

You can project paper documents and objects using the optional Document Camera. Image focus is automatically adjusted using the auto focus function. You can also enlarge images using digital zoom.

"Optional Accessories" p.97

Enhanced security functions

• Password Protect to restrict and manage users

By setting a Password you can restrict who can use the projector.

"Managing Users (Password Protect)" p.58

• Control Panel Lock restricts button operation on the control panel

You can use this to prevent people changing projector settings without permission at events, in schools, and so on.

"Restricting Operation (Control Panel Lock)" p.60

• Equipped with various anti-theft devices

The projector is equipped with the following types of anti-theft security devices.

• Security slot

• Security cable installation point

s "Anti-Theft Lock" p.61

Part Names and Functions

All of the features in this guide are explained using illustrations of EB-W12 unless otherwise mentioned.

Front/Top

Name Function

Foot adjust lever

Front adjustable foot

A/V mute slide

Remote receiver

Focus ring

Zoom ring

(EB-X14/EB-W12/EBX12/EB-X11 only)

Air intake vent

(air filter)

Press the foot adjust lever to extend and retract the front adjustable foot.

s "Adjusting the Image Position" p.40

When setup on a surface such as a desk, extend the foot to adjust the position of the image.

s "Adjusting the Image Position" p.40

Close when not using the projector to protect the lens. By closing during projection you can hide the image and the sound.

s "Hiding the Image and Sound Temporarily (A/V Mute)" p.52

Receives signals from the remote control.

Adjusts the image focus. s "Correcting the Focus" p.41

Adjusts the image size. s "Adjusting the Image Size" p.40

Takes in air to cool the projector internally. s "Cleaning the Air Filter" p.89

Name Function

Air exhaust vent

A/V mute slide knob

Exhaust vent for air used to cool the projector internally.

Caution

While projecting, do not put your face or hands near the air exhaust vent, and do not place objects that may become warped or damaged by heat near the vent.

Slide the knob to open and close the A/V mute slide.

Air filter cover

Speaker

Indicators

Control panel

Horizontal keystone

adjuster (EB-X14/EB-W12/EBX12/EB-S12/EB-X11 only)

Opens and closes the air filter cover. s "Replacing the Air Filter" p.94

Outputs audio.

Indicates the projector's status. s "Reading the Indicators" p.76

Operates the projector. s "Base" p.13

Corrects horizontal distortion in the projected image. s "Correcting manually" p.37

Part Names and Functions

Lamp cover

Name Function

Open when replacing the projector's lamp. s "Replacing the Lamp" p.91

Rear

EB-X14/EB-W12/EB-X12

EB-S12/EB-X11/EB-S11

Name Function

Remote receiver

Power inlet

Video port

Receives signals from the remote control.

Connects the power cable to the projector. s "From Installation to Projection" p.30

Inputs composite video signals from video sources.

Part Names and Functions

Name Function

Security slot

Lamp Cover Fixing

Screw

HDMI port (EB-X14/

EB-W12/EB-X12 only)

Computer port

USB(TypeB) port

USB(TypeA) port

The Security slot is compatible with the Microsaver Security System manufactured by Kensington.

s "Anti-Theft Lock" p.61

Screw to fix the lamp cover in place.

Inputs video signals from HDMI compatible video equipment and computers. This projector is compatible with

s "Connecting Equipment" p.23

Inputs image signals from a computer and component video signals from other video sources.

• Connects the projector to a computer via the USB cable, and the image on the computer is projected.

"Projecting with USB Display" p.32

• Also use this port to connect to a computer via the USB cable to use the Wireless Mouse function. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.55

• Connects a USB memory device or a digital camera, and projects images as a Slideshow. s "Projecting Without a Computer (Slideshow)"

p.47

• Connects the optional Document Camera.

HDCPg.

Name Function

Audio Output port

(EB-S12/EB-X11/EBS11 only)

RS-232C port

(EB-X11/EB-S11 only)

Depending on the area of purchase, the Monitor Out port and the Audio

Output port may not be available for EB-S12.

Outputs the sound of the image currently being projected to external speakers.

When controlling the projector from a computer, connect it to the computer with an RS-232C cable. This port is for control use and should not normally be used.

s "ESC/VP21 Commands" p.62

S-Video port

Audio-L/R port

Monitor Out port

(EB-S12/EB-X11/EBS11 only)

For S-video signals from video sources.

Inputs audio from equipment connected to the Computer port, the S-Video port, or the Video port.

Outputs analog RGB signals input from the Computer port to an external monitor. You cannot output signals input from other ports or component video signals.

Part Names and Functions

Base

Name Function

Front adjustable foot

Security cable

installation point

When setup on a surface such as a desk, extend the foot to adjust the position of the image.

s "Adjusting the Image Position" p.40

Pass a commercially available wire lock through here and lock it in place.

s "Installing the wire lock" p.61

Name Function

Ceiling mount fixing

points (three points)

Rear feet

Attach the optional Ceiling Mount here when suspending the projector from a ceiling.

s "Installing the Projector" p.20 s "Optional Accessories" p.97

When setup on a surface such as a desk, turn to extend and retract to adjust the horizontal tilt.

s "Adjusting the Horizontal Tilt" p.41

Part Names and Functions

Control Panel

Name Function

[t] button

[Source Search]

button

[Enter] button

[

]

Turns the projector power on or off. s "From Installation to Projection" p.30

Changes to the next input source that is sending an image. s "Automatically Detect Input Signals and Change the

Projected Image (Source Search)" p.31

• When the Configuration menu or the Help screen is displayed, it accepts and enters the current selection and moves to the next level.

• If pressed while projecting analog RGB signals from the Computer port, you can automatically optimize Tracking, Sync., and Position.

[w][v] buttons

[Help] button

[Esc] button

[a][b] buttons

or [Wide][Tele] buttons

Name Function

• Displays the Keystone screen allowing you to correct keystone distortion in vertical and horizontal directions. s "Correcting manually" p.37

• If pressed when the Configuration menu or the Help screen is displayed, these buttons select menu items and setting values.

s "Using the Configuration Menu" p.65 s "Using the Help" p.75

Displays and closes the Help screen which shows you how to deal with problems if they occur.

s "Using the Help" p.75

• Stops the current function.

• If pressed when the Configuration menu is displayed, it

moves to the previous menu level. s "Using the Configuration Menu" p.65

• For EB-X14/EB-W12/EB-X12/EB-X11 [a] Decreases the volume. [b] Increases the volume. s "Adjusting the Volume" p.41

• For EB-S12/EB-S11 [Wide]: Enlarges the size of the projected image. [Tele]: Reduces the size of the projected image. s "Adjusting the Image Size" p.40

• Corrects keystone distortion in the horizontal direction when the Keystone screen is displayed. s "H/V-Keystone" p.37

• If pressed when the Configuration menu or the Help screen is displayed, these buttons select menu items and setting values.

s "Using the Configuration Menu" p.65 s "Using the Help" p.75

[Menu] button

Displays and closes the Configuration menu. s "Using the Configuration Menu" p.65

Part Names and Functions

Remote Control

Name Function

[t] button

[Computer] button

[Video] button

Numeric buttons

[Auto] button

[Aspect] button

[Num] button

Turns the projector power on or off. s "From Installation to Projection" p.30

Changes to images from the Computer port.

• For EB-X14/EB-W12/EB-X12 Each time the button is pressed, the image cycles through the S-Video, Video, and HDMI ports.

• For EB-S12/EB-X11/EB-S11 Each time the button is pressed, the input changes between images from the S-Video port to the Video port.

Enter the Password. s "Setting Password Protect" p.58

If pressed while projecting analog RGB signals from the Computer port, you can automatically optimize Tracking, Sync., and Position.

Each time the button is pressed, the aspect mode changes. s "Changing the Aspect Ratio of the Projected Image "

p.43

Hold down this button and press the numeric buttons to enter passwords and numbers.

s "Setting Password Protect" p.58

[Menu] button

Displays and closes the Configuration menu. s "Using the Configuration Menu" p.65

Part Names and Functions

Name Function

[ ][ ][ ][ ]

buttons

[ ] button

[User] button

• When the Configuration menu or the Help screen is displayed, pressing these buttons selects menu items and setting values. s "Using the Configuration Menu" p.65

• When projecting a Slideshow, pressing these buttons displays the previous/next image, rotates the image, and so on. s "Slideshow operating methods" p.47

• During Wireless Mouse function, the mouse pointer moves in the direction of the button that was pushed. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.55

• When the Configuration menu or the Help screen is displayed, it accepts and enters the current selection and moves to the next level. s "Using the Configuration Menu" p.65

• Acts as a mouse's left button when using the Wireless Mouse function. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.55

Select any frequently used item from the five available Configuration menu items, and assign it to this button. By pressing the [User] button, the assigned menu item selection/adjustment screen is displayed, allowing you to make one-touch settings/adjustments.

s "Settings Menu" p.70 Power Consumption is assigned as the default setting.

Name Function

[Page] buttons

[[][]]

[E-Zoom] buttons

[z][x]

[A/V Mute] button

[Help] button

[Freeze] button

[Volume] buttons

[a][b]

Changes pages in files such as PowerPoint files when using the following projection methods.

• When using the Wireless Mouse function

s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.55

• When using USB Display

s "Projecting with USB Display" p.32

When projecting images using Slideshow, pressing these buttons displays the previous/next screen.

Enlarges or reduces the image without changing the projection size.

s "Enlarging Part of the Image (E-Zoom)" p.54

• Turns the video and audio on or off.

s "Hiding the Image and Sound Temporarily (A/V Mute)" p.52

• You can change the Projection mode as follows by pressing the button for about five seconds.

FrontWFront/Ceiling RearWRear/Ceiling

Displays and closes the Help screen which shows you how to deal with problems if they occur.

s "Using the Help" p.75

Images are paused or unpaused. s "Freezing the Image (Freeze)" p.52

[a] Decreases the volume. [b] Increases the volume. s "Adjusting the Volume" p.41

[Pointer] button

Displays the on-screen pointer. s "Pointer Function (Pointer)" p.53

Part Names and Functions

Name Function

[Esc] button

[Color Mode] button

[LAN] button

[USB] button

[Source Search]

button

• Stops the current function.

• If pressed when the Configuration menu is displayed, it

moves to the previous level. s "Using the Configuration Menu" p.65

• Acts as a mouse's right button when using the Wireless Mouse function. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.55

Each time the button is pressed, the Color Mode changes. s "Selecting the Projection Quality (Selecting Color

Mode)" p.41

Not available for this projector.

Each time the button is pressed, it cycles through the following images:

• USB Display

• Images from the device connected to the USB(TypeA)

port

Changes to the next input source that is sending an image. s "Automatically Detect Input Signals and Change the

Projected Image (Source Search)" p.31

Replacing the remote control batteries

If delays in the responsiveness of the remote control occur or if it does not operate after it has been used for some time, it probably means that the batteries are becoming flat. When this happens, replace them with new batteries. Have two AA size manganese or alkaline batteries ready. You cannot use other batteries except for the AA size manganese or alkaline.

Attention

Make sure you read the following manual before handling the batteries. s Safety Instructions

Remove the battery cover.

While pushing the battery compartment cover catch, lift the cover up.

Remote control light-

emitting area

Outputs remote control signals.

Replace the old batteries with new batteries.

Part Names and Functions

Caution

Check the positions of the (+) and (-) marks inside the battery holder to ensure the batteries are inserted the correct way.

Remote control operating range

Replace the battery cover.

Press the battery compartment cover until it clicks into place.

Preparing the Projector

This chapter explains how to install the projector and connect projection sources.

Installing the Projector

Installation Methods

The projector supports the following four different projection methods. Install the projector according to the conditions of the installation location.

• Project images from in front of the screen. (Front projection)

• Suspend the projector from the ceiling and project images from in front of a screen. (Front/Ceiling projection)

• Project images from behind a translucent screen. (Rear projection)

• Suspend the projector from the ceiling and project images from behind a translucent screen. (Rear/Ceiling projection)

Warning

• A special method of installation is required when suspending the projector from a ceiling (ceiling mount). If it is not installed correctly, it could fall causing an accident and injury.

• If you use adhesives on the Ceiling mount fixing points to prevent the screws from loosening, or if you use things such as lubricants or oils on the projector, the projector case may crack causing it to fall from its ceiling mount. This could cause serious injury to anyone under the ceiling mount and could damage the projector. When installing or adjusting the ceiling mount, do not use adhesives to prevent the screws from loosening and do not use oils or lubricants and so on.

Attention

• Do not use the projector on its side. This may cause malfunctions to occur.

• Do not cover the projector's air intake vent or air exhaust vent. If either of

the vents are covered, the internal temperature could rise and cause a fire.

• An optional Ceiling mount is required when suspending the

projector from a ceiling. s "Optional Accessories" p.97

• The default Projection setting is Front. You can change from Front to Rear from the Configuration menu.

s Extended - Projection p.71

• You can change the Projection mode as follows by pressing down the [A/V Mute] button on the remote control for about five seconds.

FrontWFront/Ceiling RearWRear/Ceiling

Installation methods

Install the projector as follows.

Installing the Projector

• Install the projector so that it is parallel to the screen. If the projector is installed at an angle to the screen, keystone distortion occurs in the projected image.

• Place the projector on a level surface. If the projector is tilted the projected image is also tilted.

• See the following if you cannot install the projector parallel to the

screen. s "Correcting Keystone Distortion" p.36

• See the following if you cannot install the projector on a level surface.

s "Adjusting the Horizontal Tilt" p.41

"Correcting Keystone Distortion" p.36

When you correct keystone distortion, the projected image may be

16:10 Screen Size

EB-W12

4:3 Screen Size

EB-X14/EB-X12/EB-X11

reduced.

50”

(110×67cm)

100”

(220×130cm)

80”

(170×110cm)

150”

(320×200cm)

Screen Size and Approximate Projection Distance

Projection size is determined by the distance from the projector to the screen. See the illustrations on the right to select the best position according to the screen size. The illustrations show the approximate shortest distance at maximum zoom. See the following for more information on the projection distance.

"Screen Size and Projection Distance" p.98

Installing the Projector

EB-S12/EB-S11

Connecting Equipment

Illustrations in this section are of EB-X14/EB-W12/EB-X12 or EB-X11/EB-S11.

The port name, location, and connector orientation differ depending on the source being connected.

Connecting a Computer

To project images from a computer, connect the computer using one of the following methods.

When using the supplied computer cable

Connect the computer's display output port to the projector's Computer port. You can output audio from the projector's speaker by connecting the audio output port on the computer to the projector's Audio Input port using a commercially available audio

cable.

When using the supplied or commercially available USB cable

Connect the computer's USB port to the projector's USB(TypeB) port. You can send the computer's audio with the projected image.

When using a commercially available HDMI cable (EB-X14/EB-W12/EB-X12 only)

Connect the computer's HDMI port to the projector's HDMI port. You can send the computer's audio with the projected image.

Connecting Equipment

• You can use a USB cable to connect the projector to a computer to project images from the computer. This function is called USB Display.

s "Projecting with USB Display" p.32

• Depending on the model used and the area of purchase, the USB cable may not be supplied with the projector.

Connecting Image Sources

To project images from DVD players or VHS video and so on, connect to the projector using one of the following methods.

When using a commercially available video or S-video cable

Connect the video output port on the image source to the projector's Video port. Or, connect the S-video output port on the image source to the projector's S-Video port. You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio Input port using a commercially available audio

cable.

When using the optional component video cable

s "Optional Accessories" p.97

Connect the component output port on the image source to the projector's Computer input port. You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio Input port using a commercially available audio

cable.

When using a commercially available HDMI cable (EB-X14/EB-W12/EB-X12 only)

Connect the HDMI port on the image source to the projector's HDMI port. You can send the image source's audio with the projected image.

Connecting Equipment

Attention

• If the input source is on when you connect it to the projector, it could cause a malfunction.

• If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction.

• If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projector.

• When using a commercially available 2RCA(L/R)/stereo mini-pin audio cable, make sure it is labeled "No resistance".

Connecting Equipment

Connecting USB Devices

You can connect devices such as USB memory, the optional Document Camera, and USB compatible hard disks and digital cameras.

Using the USB cable supplied with the USB device, connect the USB device to the USB(TypeA) port on the projector.

When the USB device is connected, you can project image files on the USB memory or digital camera using Slideshow.

"Slideshow examples" p.47

If the Document Camera is connected while projecting images from another input port, press the [USB] button on the remote control, or the [Source Search] button on the control panel, to switch to images from the Document Camera.

"Automatically Detect Input Signals and Change the Projected Image (Source Search)" p.31

Attention

• If you use a USB hub, the connection may not operate correctly. Devices such as digital cameras and USB devices should be connected to the projector directly.

• When connecting and using a USB-compatible hard disk, make sure you connect the AC adaptor supplied with the hard disk.

• Connect a digital camera or hard disk to the projector using the USB cable provided with the device.

• Use a USB cable less than 3 m in length. If the cable exceeds 3 m, Slideshow may not function correctly.

Connecting Equipment

Removing USB devices

After finishing projecting, remove USB devices from the projector. For devices such as digital cameras or hard disks, turn off the device and then remove it from the projector.

Connecting External Equipment (EB-S12/EB-X11/EB-S11 only)

You can output images and audio by connecting an external monitor or speaker.

When outputting images to an external monitor

Connect the external monitor to the projector's Monitor Out port using the cable supplied with the external monitor.

When outputting audio to an external speaker

Connect the external speaker to the projector's Audio Out port using a commercially available audio cable.

Connecting Equipment

• If you set Standby Mode to Communication On, you can output images to an external monitor even if the projector is in standby mode.

s Extended - Standby Mode p.71

• Only analog RGB signals from the Computer port can be output to an external monitor. You cannot output signals input from other ports or component video signals.

• Setting gauges for functions such as Keystone, Configuration Menu, or Help screens are not output to the external monitor.

• When the audio cable jack is inserted into the Audio Out port, audio stops being output from the projector's built-in speakers and switches to external

output.

• Depending on the area of purchase, the external equipment connection may not be available for EB-S12.

Basic Usage

This chapter explains how to project and adjust images.

Projecting Images

From Installation to Projection

This section explains the procedure for connecting the projector to a computer with the computer cable and projecting images.

Connect the projector to an electrical outlet with the power cable.

If the image is not projected, you can change the projected image using one of the following methods.

• Press the [Source Search] button on the control panel or the remote

• Press the button for the target port on the remote control.

Change the computer's screen output.

When using a laptop computer, you need to change the screen output from the computer.

Hold down the Fn key (function key), and press the b key.

The method for changing differs depending on the computer

control.

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

"Switching to the Target Image by Remote Control" p.32

being used. See the documentation supplied with the computer.

After projecting the image, adjust the image if necessary.

s "Correcting Keystone Distortion" p.36 s "Correcting the Focus" p.41

b c d e

Connect the projector to the computer with the computer cable.

Turn on the projector.

Slide open the A/V mute slide.

Turn on your computer.

Projecting Images

Automatically Detect Input Signals and Change the Projected Image (Source Search)

Press the [Source Search] button to project images from the port currently receiving an image.

Using the remote control Using the control panel

The following screen is displayed while no image signals are input.

Example: EB-X14/EB-W12/EB-X12

* (EB-X14/EB-W12/EB-X12 only)

When two or more image sources are connected, press the [Source Search] button until the target image is projected.

When your video equipment is connected, start playback before beginning this operation.

Projecting Images

Switching to the Target Image by Remote Control

You can change directly to the target image by pressing the following buttons on the remote control.

Remote control

Changes to images from the Computer port.

Each time the button is pressed, it cycles through the images being input

from the following sources.

• S-Video port

• Video port

• HDMI port (EB-X14/EB-W12/EB-X12 only)

Each time the button is pressed, it cycles through the images being input

from the following sources.

• USB Display

• Images from the device connected to the USB(TypeA) port

Projecting with USB Display

You can use a USB cable to connect the projector to a computer to project images from the computer.

You can send the computer's audio with the projected image.

For EB-X14/EB-W12/EB-X12/EB-S12, set USB Type B to USB Display from the Configuration menu.

Extended - USB Type B p.71

System requirements

For Windows

Windows 2000

Windows XP

Windows Vista Ultimate 32 bit

Windows 7 Ultimate 32/64 bit

Professional 32 bit Home Edition 32 bit Tablet PC Edition 32 bit

Enterprise 32 bit Business 32 bit Home Premium 32 bit Home Basic 32 bit

Enterprise 32/64 bit Professional 32/64 bit Home Premium 32/64 bit Home Basic 32 bit Starter 32 bit

CPU

Mobile Pentium III 1.2 GHz or faster Recommended: Pentium M 1.6 GHz or faster

Projecting Images

Amount of Memory

Hard Disk Space

Display

*1 Service Pack 4 only *2 Except for Service Pack 1

For Mac OS

CPU

Amount of Memory

Hard Disk Space

Display

256 MB or more Recommended: 512 MB or more

20 MB or more

Resolution of no less than 640x480 and no higher than 1600x1200.

Display color in 16-bit color or greater

Mac OS X 10.5.x Mac OS X 10.6.x

Power PC G4 1GHz or faster Recommended: Core Duo 1.83GHz or faster

512 MB or more

20 MB or more

Resolution of no less than 640x480 and no higher than 1600x1200.

Display color in 16-bit color or greater

Connecting for the first time

The first time you connect the projector and the computer using the USB cable, the driver needs to be installed. The procedure is different for Windows and Mac OS.

• You do not need to install the driver the next time you connect.

For Windows

• When inputting images from multiple sources, change the input source to USB Display.

• If you use a USB hub, the connection may not operate correctly. Connect the USB cable directly to the projector.

• Depending on the model used and the area of purchase, the USB cable may not be supplied with the projector.

Connect the computer's USB port to the projector's USB(TypeB) port using a USB cable.

For Windows 2000 or Windows XP, a message asking you if

For Windows 2000

Double-click Computer, EPSON PJ_UD, and then EMP_UDSE.EXE.

you want to restart your computer may be displayed. Select No.

For Windows XP

Driver installation starts automatically.

For Windows Vista/Windows 7

When the dialog box is displayed, click Run EMP_UDSE.exe.

When the License Agreement screen is displayed, click Agree.

Projecting Images

Computer images are projected.

It may take a while before computer images are projected. Until computer images are projected, leave the equipment as it is and do not disconnect the USB cable or turn off the power to the projector.

Disconnect the USB cable when you finish projection.

When disconnecting the USB cable, there is no need to use Safely Remove Hardware.

• If it is not installed automatically, double-click My Computer

- EPSON_PJ_UD - EMP_UDSE.EXE on your computer.

• If nothing is projected for some reason, click All Programs EPSON Projector - Epson USB Display - Epson USB Display Vx.xx on your computer.

• When using a computer running Windows 2000 under user authority, a Windows error message is displayed and you may not be able to use the software. In this case, try updating Windows to the latest version, restart, and then try to connect again.

For more details, contact your local dealer or the nearest address provided in the following document.

s Epson Projector Contact List

When the License Agreement screen is displayed, click Agree.

Enter the administrator authority password and start the installation.

When the installation is complete, the USB Display icon is displayed in the Dock and menu bar.

Computer images are projected.

It may take a while before computer images are projected. Until computer images are projected, leave the equipment as it is and do not disconnect the USB cable or turn off the power to the projector.

When you finish projection, select Disconnect from the USB Display icon menu on the menu bar or Dock, and then remove

the USB cable.

• If the USB Display setup folder is not displayed automatically

in the Finder, double-click EPSON PJ_UD - USB Display Installer on your computer.

• If nothing is projected for some reason, click the USB Display icon in the Dock.

• If there is no USB Display icon in the Dock, double-click USB Display from the Applications folder.

• If you select Exit from the USB Display icon menu on the Dock, USB Display does not start automatically when you connect the USB cable.

For Mac OS

Connect the computer's USB port to the projector's USB(TypeB) port using a USB cable.

The Setup folder of USB Display is displayed in the Finder.

Double-click the USB Display Installer icon.

b c

Follow the on-screen instructions to install.

Uninstalling

For Windows 2000

Click Start, select Settings, and then click Control Panel.

Double-click Add/Remove Programs.

Click Change or Remove Programs.

Select Epson USB Display and click Change/Remove.

Projecting Images

For Windows XP

Click Start, and then click Control Panel.

Double-click Add or Remove Programs.

Select Epson USB Display and click Remove.

For Windows Vista/Windows 7

Click Start, and then click Control Panel.

a b

Click Uninstall a program under Programs.

Select Epson USB Display and click Uninstall.

For Mac OS

Open the Applications folder, double-click USB Display, and then double-click Tool.

Run USB Display UnInstaller.

Adjusting Projected Images

Correcting Keystone Distortion

You can correct keystone distortion using one of the following methods.

• Correcting automatically (Auto V-Keystone) (EB-X14/EB-W12/EB-X12/ EB-S12/EB-X11 only) Automatically corrects vertical keystone distortion.

• Correcting manually (H-Keystone Adjuster) (EB-X14/EB-W12/EB-X12/ EB-S12/EB-X11 only)

Manually corrects horizontal keystone distortion using the horizontal keystone adjuster.

• Correcting manually (H/V-Keystone) Manually correct distortion in the horizontal and vertical directions independently.

• Correcting manually (Quick Corner) Manually correct the four corners independently.

When you correct keystone distortion, the projected image may be

reduced.

Correcting automatically

Auto V-Keystone (EB-X14/EB-W12/EB-X12/EB-S12/EB-X11 only)

When the projector detects any movement, for example when it is installed, moved, or tilted, it automatically corrects vertical keystone distortion. This function is called Auto V-Keystone.

When the projector remains still for about two seconds after it detects movement, it displays a screen for adjustment and then automatically corrects the projected image.

You can use Auto V-Keystone to correct the projected image under the following conditions.

Correction angle: approx. 30˚ up and down

Adjusting Projected Images

• Auto V-Keystone works only when Projection is set to Front from

Correcting manually

You can manually correct keystone distortion.

You can use H/V-Keystone to correct the projected image under the following conditions.

Correction angle: approx 30˚ right and left/approx. 30˚ up and down

H-Keystone Adjuster (EB-X14/EB-W12/EB-X12/EB-S12/EB-X11 only)

Move the horizontal keystone adjuster to the right or left to perform horizontal keystone correction.

the Configuration menu. s Extended - Projection p.71

• If you do not want to use Auto V-Keystone, set Auto V-Keystone to Off.

s Settings - Keystone - H/V-Keystone - Auto V-Keystone

p.70

• When using horizontal keystone adjuster, set H-Keystone Adjuster

H/V-Keystone

Manually correct distortion in the horizontal and vertical directions independently.

to On. s Settings - Keystone - H/V-Keystone - H-Keystone Adjuster

p.70

• You can also correct keystone distortion in the horizontal direction using H/V-Keystone.

Press the [w] or [v] buttons on the control panel during projection to display the Keystone screen.

Press the following buttons to correct keystone distortion.

Press the [

] or [v] buttons to correct vertical distortion.

Adjusting Projected Images

Press the [a]/[b] buttons or the [Wide]/[Tele] buttons to correct horizontal distortion.

Press the [Menu] button while projecting.

"Using the Configuration Menu" p.65

Using the remote control Using the control panel

Select Keystone from Settings.

You can also set H/V-Keystone from the Configuration menu.

Quick Corner

This allows you to manually correct each of the four corners of the projected image separately.

s Settings - Keystone - H/V-Keystone p.70

Select Quick Corner, and then press the [ ] button.

Adjusting Projected Images

Using the [ ], [ ], [ ], and [ ] buttons on the remote control,

or the [ on the control panel, select the corner to correct, and then press the [

Using the [ ], [ ], [ ], and [ ] buttons on the remote control,

or the [ on the control panel, correct the position of the corner.

When you press the [ displayed.

If the message "Cannot adjust any further." is displayed while adjusting, you cannot adjust the shape any further in the direction indicated by the gray triangle.

], [v], [a], and [b] buttons (or the [Wide]/[Tele] buttons)

] button.

], [v], [a], and [b] buttons (or the [Wide]/[Tele] buttons)

] button, the screen shown in step 4 is

Repeat procedures 4 and 5 as needed to adjust any remaining corners.

When you are done, press the [Esc] button to exit the correction menu.

Because Keystone was changed to Quick Corner, the corner selection screen shown in step 4 is displayed the next time you press the [

] or [v] buttons on the control panel. Change Keystone to

H/V-Keystone if you want to perform horizontal and vertical

correction using the [

Settings - Keystone - H/V-Keystone p.70

] or [v] buttons on the control panel.

Adjusting Projected Images

If the [Esc] button is held down for about two seconds while

the corner selection screen from step 4 is displayed, the following screen is displayed.

Reset Quick Corner: Resets the result of Quick Corner corrections.

Switch to H/V-Keystone: Switches the correction method to H/V-Keystone.

s "Settings Menu" p.70

Adjusting the Image Size

EB-X14/EB-W12/EB-X12/EB-X11

Adjusting the Image Position

Press the foot adjust lever to extend and retract the front adjustable foot. You can adjust the position of the image by tilting the projector up to 12 degrees.

Turn the zoom ring to adjust the size of the projected image.

EB-S12/EB-S11

Adjust by using the [Wide]/[Tele] buttons on the control panel.

Wide: Enlarges the size of the projected image.

Tele: Reduces the size of the projected image.

The larger the angle of tilt, the harder it becomes to focus. Install the projector so that it only needs to be tilted at a small angle.

Adjusting Projected Images

Adjusting the Horizontal Tilt

Extend and retract the rear feet to adjust the projector's horizontal tilt.

Extend the rear foot.

Retract the rear foot.

Correcting the Focus

You can correct the focus using the focus ring.

EB-X14/EB-W12/EB-X12/EB-X11

Adjusting the Volume

You can adjust the volume using one of the following methods.

• Press the [Volume] button on the control panel or the remote control to adjust the volume. [

] Decreases the volume.

] Increases the volume.

[

Using the remote control Using the control panel

(EB-X14/EB-W12/EB-X12/EB-X11 only)

• Adjust the volume from the Configuration menu.

Settings - Volume p.70

Caution

Do not start at high volume. A sudden excessive volume may cause loss of hearing. Always lower the volume before powering off, so that you can power on and then gradually increase the volume.

EB-S12/EB-S11

Selecting the Projection Quality (Selecting Color Mode)

You can easily obtain the optimum image quality simply by selecting the setting that best corresponds to your surroundings when projecting. The brightness of the image varies depending on the mode selected.

Adjusting Projected Images

Mode Application

Dynamic

Presentation

Theatre


Sports

sRGB

Blackboard

Whiteboard

This selection is only available when the input signal is RGB or when the

source is USB Display or USB.

*2 This selection is only available when the input signal is component video, or

when the input source is Video or S-Video.

Ideal for use in a bright room. This is the brightest mode, and reproduces shadow tones well.

Ideal for making presentations using color materials in a bright room.

Ideal for watching films in a dark room. Gives images a natural tone.

Ideal for projecting still pictures, such as photos, in a bright room. The images are vivid and brought into contrast.

Ideal for watching TV programmes in a bright room. The images are vivid and brought to life.

Ideal for images that conform to the standard.

Even if you are projecting onto a blackboard (greenboard), this setting gives your images a natural tint, just like when projecting onto a screen.

Ideal for making presentations using a whiteboard.

sRGBg color

Each time you press the [Color Mode] button, the Color Mode name is displayed on the screen and the Color Mode changes.

Remote control

You can set Color Mode from the Configuration menu.

s Image - Color Mode p.67

Setting Auto Iris

By automatically setting the luminance according to the brightness of the displayed image, it lets you enjoy deep and rich images.

Press the [Menu] button.

"Using the Configuration Menu" p.65

Using the remote control Using the control panel

Select Auto Iris from Image.

Adjusting Projected Images

Changing methods

Each time you press the [Aspect] button on the remote control, the aspect mode name is displayed on the screen and the aspect ratio changes.

Remote control

Select On.

The setting is stored for each Color Mode.

Press the [Menu] button to finish making settings.

Auto Iris can only be set when the Color Mode is Dynamic or

Changing the Aspect Ratio of the Projected Image

You can change the Aspect Ratiog of the projected image to suit the type, the ratio of height and width, and the resolution of the input signals.

Available aspect modes vary depending on the image signal currently being projected.

Theatre.

You can set the aspect ratio from the Configuration menu.

Changing the aspect mode

Projecting images from video equipment or from the HDMI port (for EB-W12)

Each time the [Aspect] button is pressed, the aspect mode changes in the order Normal or Auto, 16:9, Full, Zoom, and Native.

Example: 1080p signal input (resolution: 1920x1080, aspect ratio: 16:9)

s Signal - Aspect p.68

Adjusting Projected Images

Normal or Auto

16:9

Full

Zoom

Native

4:3

16:9

Projecting images from the HDMI port (for EB-X14/EB-X12)

Each time the Aspect button is pressed, the aspect mode changes in the order Auto, 4:3, and 16:9.

Example: 1080p signal input (resolution: 1920x1080, aspect ratio: 16:9)

Projecting images from video equipment (for EB-X14/EB-X12/EB-S12/EB-X11/EB-S11)

Each time the [Aspect] button is pressed, the aspect mode changes in the order 4:3 and 16:9.

When inputting a 720p/1080i signal and the aspect mode is set to 4:3, a 4:3 zoom is applied (the right and left sides of the image are cut off).

Example: 720p signal input (resolution: 1280x720, aspect ratio: 16:9)

Auto

4:3

16:9

Projecting images from a computer

The following shows projection examples for each aspect mode.

Adjusting Projected Images

EB-W12

Aspect Mode Input Signal

XGA 1024X768(4:3) WXGA 1280X800(16:10)

Normal

16:9

Full

Zoom

EB-X14/EB-X12/EB-S12/EB-X11/EB-S11

Aspect Mode Input Signal

XGA 1024X768(4:3) WXGA 1280X800(16:10)

Normal

4:3

16:9

If parts of the image are missing, set the Resolution setting to Wide

or Normal from the Configuration menu, according to the size of the computer panel.

s Signal - Resolution p.68

Native

Useful Functions

This chapter explains useful tips for giving presentations, and the Security functions.

Projection Functions

Projecting Without a Computer (Slideshow)

By connecting a USB storage device such as a USB memory or a USB hard disk to the projector, you can project the files stored on the device without using a computer. This function is called Slideshow.

• You may not be able to use USB storage devices that incorporate

Specifications for files that can be projected using Slideshow

Type File Type (Ex-

Image .jpg The following cannot be projected.

security functions.

• You cannot correct keystone distortion while projecting a Slideshow,

even if you press the [w] and [v] buttons on the control panel.

Notes

tension)

- CMYK color mode formats

- Progressive formats

- Images with a resolution greater than 8192x8192 Due to the characteristics of JPEG files, images may

not be projected clearly if the compression ratio is too high.

• When connecting and using a USB-compatible hard disk, make sure

you connect the AC adaptor supplied with the hard disk.

• The projector does not support some file systems, so use media that has been formatted in Windows.

• Format the media in FAT16/32.

Slideshow examples

Projecting images stored on USB storage

"Projecting the selected image" p.49

"Projecting image files in a folder in sequence (Slideshow)" p.50

.bmp Cannot project images with a resolution greater

than 1280x800.

.gif • Cannot project images with a resolution greater

than 1280x800.

• Cannot project animated GIFs.

.png Cannot project images with a resolution greater

than 1280x800.

Slideshow operating methods

Although the following steps are explained based on the remote control, you can perform the same operations from the control panel.

Starting Slideshow

Change the source to USB.

"Switching to the Target Image by Remote Control" p.32

Projection Functions

* When it cannot be displayed as a thumbnail, it is displayed as an icon.

Connect the USB storage device or digital camera to the projector.

"Connecting USB Devices" p.26

Slideshow starts and the file list screen is displayed.

• JPEG files are displayed as thumbnails (file contents are displayed as small images).

• Other files or folders are displayed as icons as shown in the following table.

Icon File Icon File

JPEG files

GIF files PNG files

BMP files

• You can also insert a memory card into a USB card reader and then connect the reader to the projector. However, some commercially available USB card readers may not be compatible with the projector.

• If the following screen (Select Drive screen) is displayed, press the

[

], [ ], [ ], and [ ] buttons to select the drive you want to

use, and then press the [

• To display the Select Drive screen, position the cursor on Select Drive at the top of the file list screen, and then press the [

button.

] button.

]

Projecting images

Use the [ ], [ ], [ ], and [ ] buttons to select the file or

folder you want to project.

Projection Functions

If not all of the files and folders are displayed on the current screen, press the []] button on the remote control, or position the cursor on Next Page at the bottom of the screen and press the [

To return to the previous screen, press the [[] button on the remote control, or position the cursor on Previous Page at the top of the screen and press the [

] button.

While projecting, press the [ ] or [ ] button.

Stopping Slideshow

To close Slideshow, disconnect the USB device from the USB port on the projector. For digital cameras, hard disks, and so on, turn off the power to the device and then remove.

Press the [ ] button.

The selected image is displayed.

When a folder is selected, the files in the selected folder are displayed. To return to the previous screen, position the cursor on Back to Top and press the [

Rotating images

You can rotate the played images in 90˚ increments. The rotating function is also available during Slideshow.

Play images, or run Slideshow.

] button.

Projecting the selected image

Attention

Do not disconnect the USB storage device while it is being accessed. Slideshow may not operate correctly.

Start Slideshow.

The file list screen is displayed.

"Starting Slideshow" p.47

Projection Functions

Press the [ ], [ ], [ ], and [ ] buttons to select the image file

you want to project.

Press the [ ] button.

The image is displayed.

Projecting image files in a folder in sequence (Slideshow)

You can project the image files in a folder in sequence, one at a time. This function is called Slideshow. Use the following procedure to run Slideshow.

To change files automatically when you run Slideshow, set Screen

Switching Time from Option in Slideshow to anything other than No. The default setting is 3 seconds.

s "Image file display settings and Slideshow operation settings"

p.51

Start Slideshow.

The file list screen is displayed.

"Starting Slideshow" p.47

Use the [ ], [ ], [ ], and [ ] buttons to position the cursor

over the folder for the Slideshow that you want to run, and then press the [

] button.

Press the [Esc] button to return to the file list screen.

Press the [ ][ ] buttons to move to the next or previous

image file.

Select Slideshow at the bottom right of the file list screen, and then press the [

Slideshow starts, and the image files in the folder are automatically projected in sequence, one at a time.

When the last file is projected, the file list is displayed again automatically. If you set Continuous Play to On in the Option window, projection starts again from the beginning when it reaches the end.

"Image file display settings and Slideshow operation settings"

p.51

You can proceed to the next screen, return to the previous screen, or stop playback while projecting a Slideshow.

] button.

Projection Functions

If Screen Switching Time on the Option screen is set to No, files do

You can use the following functions when projecting an image file with Slideshow.

• Freeze

• A/V Mute

• E-Zoom

Image file display settings and Slideshow operation settings

You can set the file display order and Slideshow operations on the Option screen.

not change automatically when you select Play Slideshow. Press the

[

] button, the [ ] button, or the []] button to continue to the

next file.

"Freezing the Image (Freeze)" p.52

"Hiding the Image and Sound Temporarily (A/V Mute)" p.52

"Enlarging Part of the Image (E-Zoom)" p.54

Press the [ ], [ ], [ ] and [ ] buttons to position the cursor

over the folder where you want to set display conditions and press the [Esc] button. Select Option from the submenu displayed, then press the [

When the following Option screen is displayed, set each of the items.

Enable settings by positioning the cursor on the target item and pressing the [

The following table shows the details for each item.

] button.

Display Order

Sort Order

Continuous Play

Screen Switching Time

Effect

When you have finished making settings, use the [ ], [ ], [ ],

and [

the [

The settings are applied.

If you do not want to apply the settings, position the cursor on Cancel, and then press the [

] buttons to position the cursor over OK, and then press

] button.

You can select to display the files in Name Order or Date Order.

You can select to sort the files In Ascending or In Descending order.

You can set whether to repeat the Slideshow.

You can set the time for a single file to be displayed in Slideshow. You can set a time between No (0) to 60 Seconds. When you set No, auto play is disabled.

You can set the screen effects when changing slides.

] button.

Projection Functions

Hiding the Image and Sound Temporarily (A/V Mute)

You can use this when you want to focus the audience's attention on what you are saying, or if you do not want to show details such as when you are changing between files during presentations from a computer.

Each time you press the [A/V Mute] button, or open/close the lens cover A/V Mute turns on or off.

Remote control Projector

• When projecting moving images, the images and sound continue to

be played back while A/V Mute is on. It is not possible to resume projection from the point where A/V Mute was activated.

• You can select the screen displayed when the [A/V Mute] button is pressed from the Configuration menu.

s Extended - Display - A/V Mute p.71

• When the A/V mute slide is closed for approximately 30 minutes, Lens Cover Timer activates and the power is automatically turned off. If you do not want Lens Cover Timer to activate, set Lens Cover Timer to Off.

Extended - Operation - Lens Cover Timer p.71

• The lamp is still lit during A/V Mute, so the lamp hours continue to accumulate.

Freezing the Image (Freeze)

When Freeze is activated on moving images, the frozen image continues to project on the screen, so you can project a moving image one frame at a time like a still photo. Also, you can perform operations such as changing between files during presentations from a computer without projecting any images if the Freeze function is activated beforehand.

Each time you press the [Freeze] button, Freeze turns on or off.

Remote control

Projection Functions

• Audio does not stop.

• When projecting moving images, the images continue to be played back while the screen is frozen. It is not possible to resume projection from the point where the screen was frozen.

• If the [Freeze] button is pressed while the Configuration menu or the Help screen is displayed, the menu or the Help screen that is displayed is closed.

• Freeze still works while E-Zoom is being used.

Pointer Function (Pointer)

This allows you to move a Pointer icon on the projected image, and helps you draw attention to the area you are talking about.

Move the Pointer icon ( ).

Remote control

When any pair of adjacent [ ], [ ], [ ], or [ ] buttons are

pressed at the same time, the pointer can be moved diagonally.

You can select the shape of the pointer icon from the

Configuration menu. s Settings - Pointer Shape p.70

Display the Pointer.

Each time you press the [Pointer] button, the pointer appears or disappears.

Remote control

Projection Functions

Enlarging Part of the Image (E-Zoom)

This is useful when you want to expand images to see them in greater detail, such as graphs and tables.

Start E-Zoom.

Press the [

] button to display the Cross ( ).

Remote control

Move the Cross ( ) to the area of the image that you want to

enlarge.

Remote control

When any pair of adjacent [ ], [ ], [ ], or [ ] buttons are

pressed at the same time, the pointer can be moved diagonally.

Enlarge.

Remote control

[z] button: Expands the area each time it is pressed. You can expand quickly by holding the button down.

[x] button: Reduces images that have been enlarged.

[Esc] button: Cancels E-Zoom.

• The enlargement ratio appears on the screen. The selected area can be enlarged to between 1 to 4 times in 25 incremental steps.

• During enlarged projection, press the [

[

] buttons to scroll the image.

], [ ], [ ], and

Projection Functions

Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)

You can control the computer's mouse pointer from the projector's remote control. This function is called Wireless Mouse.

The following operating systems are compatible with Wireless Mouse.

Windows Mac OS

* It may not be possible to use the Wireless Mouse function under some

versions of the operating systems.

Use the following procedure to enable the Wireless Mouse function.

Connect the projector to the computer with the USB cable.

"Connecting a Computer" p.23

Windows 98 Windows 98SE Windows Me Windows 2000 Windows XP Windows Vista Windows 7

Mac OS X 10.3.x Mac OS X 10.4.x Mac OS X 10.5.x Mac OS X 10.6.x

Once set, the mouse pointer can be controlled as follows.

Moving the mouse pointer

[ ][ ][ ][ ] buttons:

Moves the mouse pointer.

Mouse clicks

[Esc] button: Right click.

[

] button: Left click. Press quickly

twice to double-click.

Drag and drop

While holding down the [ ] button,

press the [

buttons.

Release the [ desired location.

], [ ], [ ], and [ ]

] button to drop at the

• USB Display

• Computer

• HDMI

Change the source to one of the following.

"Switching to the Target Image by Remote Control" p.32

Page Up/Down

[[] button: Moves to the previous page. []] button: Moves to the next page.

Projection Functions

• When any pair of adjacent [ ], [ ], [ ], or [ ] buttons are

pressed at the same time, the pointer can be moved diagonally.

• If the mouse button settings are set to reverse on the computer, the operation of the remote control buttons will also be reversed.

• The Wireless Mouse function does not work under the following conditions.

- When the Configuration menu or a Help screen is displayed

- When operating functions other than the Wireless Mouse function (such as adjusting the volume)

However, when using the E-Zoom or Pointer function, the page up or down function is available.

Saving a User's Logo

You can save the image that is currently being projected as a User's Logo.

Once a User's Logo has been saved, the logo cannot be returned to the

factory default.

Project the image you want to save as the User's Logo, and then press the [Menu] button.

"Using the Configuration Menu" p.65

Using the remote control Using the control panel

Select User's Logo from Extended.

Projection Functions

• When User's Logo Protect from Password Protect is set to

When the message "Choose this image as the User's Logo?" is displayed, select Yes.

Move the box to select the part of the image to use as the User's Logo.

You can perform the same operations from the projector's control panel.

On, a message is displayed and the User's Logo cannot be changed. You can make changes after setting User's Logo Protect to Off.

s "Managing Users (Password Protect)" p.58

• If User's Logo is selected when Keystone, E-Zoom, Aspect, or

Adjust Zoom are being performed, the function currently being performed is temporarily cancelled.

When you press the [ ] button on the remote control or the control panel, the screen size may change depending on the

signal to match the actual resolution of the image signal.

Remote control

When you press the [ ] button and the message "Select this image?" is displayed, select Yes.

Select the zoom factor from the zoom setting screen.

When the message "Save this image as the User's Logo?" is displayed, select Yes.

The image is saved. After the image has been saved, the message "Completed." is displayed.

• When a User's Logo is saved, the previous User's Logo is

erased.

• It takes a while to save. Do not operate the projector or any connected equipment while it is saving, otherwise malfunctions may occur.

You can save at 400x300 dots in size.

Security Functions

The projector has the following enhanced security functions.

• Password Protect You can limit who can use the projector.

• Control Panel Lock You can prevent people changing the settings on the projector without

permission.

"Restricting Operation (Control Panel Lock)" p.60

• Anti-Theft Lock The projector is equipped with the following anti-theft security device.

"Anti-Theft Lock" p.61

Managing Users (Password Protect)

When Password Protect is activated, people who do not know the password cannot use the projector to project images even if the projector power is on. Furthermore, the user's logo that is displayed when you turn on the projector cannot be changed. This acts as an anti-theft function as the projector cannot be used even if it is stolen. At the time of purchase, Password Protect is not activated.

• User's Logo Protect

Even if someone tries to change the User's Logo set by the owner of the projector, it cannot be changed. When User's Logo Protect is set to On, the following setting changes for the User's Logo are prohibited.

• Capturing a User's Logo

• Setting Display Background, Startup Screen, or A/V Mute from

Display

Extended - Display p.71

Setting Password Protect

Use the following procedure to set Password Protect.

During projection, hold down the [Freeze] button for about five seconds.

The Password Protect setting menu is displayed.

Remote control

Kinds of Password Protect

The following two kinds of Password Protect settings can be made according to how the projector is being used.

• Power On Protect

When Power On Protect is On, you need to enter a preset password after the projector is plugged in and turned on (this also applies to Direct Power On). If the correct password is not entered, projection does not start.

• If Password Protect is already activated, you must enter the password. If the password is entered correctly, the Password Protect setting menu is displayed.

s "Entering the Password" p.59

• When the password is set, stick the password protect sticker in a visible position on the projector as a further theft deterrent.

s Password Protect Sticker

Security Functions

Select the type of Password Protect you want to set, and then press the [

Select On, and then press the [ ] button.

Press the [Esc] button, the screen displayed in step 2 is displayed again.

Set the password.

(1)

Select Password, and then press the [

(2)

When the message "Change the password?" is displayed, select Yes and then press the [ this to your own desired Password. If you select No, the screen displayed in step 2 is displayed again.

(3) While holding down the [Num] button, enter a four digit number using

the numeric buttons. The number entered is displayed as "* * * *". When you enter the fourth digit, the confirmation screen is displayed.

] button.

] button. The default password is set to "0000". Change

Remote control

(4) Re-enter the password.

The message "Password accepted." is displayed. If you enter the password incorrectly, a message is displayed prompting

you to re-enter the password.

Entering the Password

When the password entry screen is displayed, enter the password using the remote control.

While holding down the [Num] button, enter the password by pressing the numeric buttons.

When you enter the correct password, Password Protect is temporarily released.

Security Functions

Attention

• If an incorrect password is entered three times in succession, the message "The projector's operation will be locked." is displayed for approximately five minutes, and then the projector switches to standby mode. If this happens, disconnect the power plug from the electrical outlet and then reinsert it and turn the projector's power back on. The projector displays the password entry screen again so that you can enter the correct password.

• If you have forgotten the password, make a note of the "Request Code: xxxxx" number that appears on the screen and contact the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

• If you continue to repeat the above operation and enter the wrong password thirty times in succession, the following message is displayed and the projector does not accept any more password entries. "The projector's operation will be locked. Contact Epson as described in your documentation."

s Epson Projector Contact List

Restricting Operation (Control Panel Lock)

Perform one of the following to lock the operation buttons on the control panel.

Press the [Menu] button while projecting.

"Using the Configuration Menu" p.65

Using the remote control Using the control panel

Select Control Panel Lock from Settings.

• Full Lock All of the buttons on the control panel are locked. You cannot perform

any operations from the control panel, including turning the power on or off.

• Partial Lock All of the buttons on the control panel, except for the [ locked.

This is useful at events or shows when you want to deactivate all buttons during projection or at schools when you want to limit button operation. The projector can still be operated using the remote control.

] button, are

Select either Full Lock or Partial Lock according to your purpose.

Security Functions

Select Yes when the confirmation message is displayed.

The control panel buttons are locked according to the setting you chose.

You can release the control panel lock by one of the following

two methods.

• Select Off from Control Panel Lock. Settings - Control Panel Lock p.70

• Press and hold down the [

for about seven seconds, a message is displayed and the lock is released.

] button on the control panel

Anti-Theft Lock

The projector is equipped with the following types of anti-theft security devices.

• Security slot The security slot is compatible with the Microsaver Security System

manufactured by Kensington. See the following for more details on the Microsaver Security System.

http://www.kensington.com/

• Security cable installation point A commercially available theft-prevention wire lock can be passed

through the installation point to secure the projector to a desk or pillar.

Installing the wire lock

Pass an anti-theft wire lock through the installation point.

See the documentation supplied with the wire lock for locking instructions.

Monitoring and Controlling

ESC/VP21 Commands

You can control the projector from an external device using ESC/VP21.

Before starting

EB-X14/EB-W12/EB-X12/EB-S12

Install the USB communication driver (EPSON USB-COM Driver) to your computer. For information about the EPSON USB-COM Driver, contact your local dealer or the nearest address provided in the Epson Projector Contact List.

Epson Projector Contact List

Set USB Type B to Link 21L from the Extended menu.

Extended - USB Type B p.71

Connect the computer's USB port to the projector's USB (Type B) port with a USB cable.

Start from step 2 from the second time.

• Projector input port name: RS-232C

<At the projector> (PC serial cable) <At the computer>

Signal Name Function

GND Signal wire ground

EB-X11/EB-S11

Connect the computer's serial port (D-Sub 9pin) to the projector's RS-232C port with a PC serial cable.

• Connector shape: D-Sub 9-pin (male)

TD Transmit data

RD Receive data

Command list

When the power ON command is transmitted to the projector, the power turns on and it enters warm-up mode. When the projector's power has turned on, a colon ":" (3Ah) is returned.

When a command is input, the projector executes the command and returns a ":", and then accepts the next command.

Monitoring and Controlling

If the command being processed terminates abnormally, an error message is output and a ":" is returned.

The main contents are listed below.

Item Command

Power ON/OFF On PWR ON

Off PWR OFF

Signal selection Computer Auto SOURCE 1F

RGB SOURCE 11

Component SOURCE 14

HDMI SOURCE 30

Video SOURCE 41

S-Video SOURCE 42

USB Display SOURCE 51

USB SOURCE 52

A/V Mute On/Off On MUTE ON

Off MUTE OFF

• Flow control: None

Add a Carriage Return (CR) code (0Dh) to the end of each command and transmit.

For more details, contact your local dealer or the nearest address provided in the Epson Projector Contact List.

Epson Projector Contact List

Communications protocol

• Default baud rate setting: 9600 bps

• Data length: 8 bit

• Parity: None

• Stop-bit: 1 bit

Configuration Menu

This chapter explains how to use the Configuration menu and its functions.

Using the Configuration Menu

This section explains how to use the Configuration menu.

Although steps are explained using the remote control as an example, you can perform the same operations from the control panel. Check the guide under the menu for the available buttons and their operations.

Display the Configuration menu screen.

Select a top menu item.

Select a submenu item.

Change settings.

Press the [Menu] button to finish making settings.

List of Functions

Configuration Menu Table

Settable items vary depending on the model being used and the image signal and source being projected.

Top Menu Name Submenu Name Items or Setting Values

Image menu s p.67

Signal menu s p.68

Color Mode Dynamic, Presentation, Theatre,

Photo, Sports, sRGB, Blackboard, and Whiteboard

Brightness -24 to 24

Contrast -24 to 24

Color Saturation -32 to 32

Tint -32 to 32

Sharpness -5 to 5

Color Temp. High, Medium, and Low

Color Adjustment Red: -16 to 16

Green: -16 to 16 Blue: -16 to 16

Auto Iris On and Off

Auto Setup On and Off

Resolution Auto, Wide, and Normal

Tracking -

Sync. 0 to 31

Position Up, Down, Left, and Right

Progressive Off, Video, and Film/Auto (EB-

X14/EB-W12/EB-X12 only) On and Off (EB-S12/EB-X11/EB-

S11 only)

Noise Reduction Off, NR1, and NR2

HDMI Video Range Auto, Normal, and Expanded

Input Signal Auto, RGB, and Component

Top Menu Name Submenu Name Items or Setting Values

Video Signal Auto, NTSC, NTSC4.43, PAL,

M-PAL, N-PAL, PAL60, and SECAM

Aspect Normal, Auto, 4:3, 16:9, Full,

Zoom, and Native

Overscan Auto, Off, 4%, and 8%

Settings menu s p.70

Extended menu s p.71

Keystone H/V-Keystone and Quick Corner

Zoom -

Control Panel Lock Full Lock, Partial Lock, and Off

Pointer Shape Pointer 1, 2, and 3

Power Consumption Normal and ECO

Volume 0 to 10

Remote Receiver Front/Rear, Front, Rear and Off

User Button Brightness Control, Info,

Progressive, Test Pattern, Resolution

Test Pattern -

Display Messages, Display Background,

Startup Screen, and A/V Mute

User's Logo -

Projection Front, Front/Ceiling, Rear, and

Rear/Ceiling

Operation Direct Power On, Sleep Mode,

Sleep Mode Timer, Lens Cover Timer, and High Altitude Mode

Standby Mode Communication On and

Communication Off

USB Type B USB Display and Link 21L

Language 15 or 35 languages

List of Functions

Top Menu Name Submenu Name Items or Setting Values

Info menu s p.72

Lamp Hours -

Source -

Input Signal -

Resolution -

Video Signal -

Refresh Rate -

Sync Info -

Status -

Serial Number -

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

Reset menu s p.73

*1 The number of supported languages differs depending on the region where the

projector is used.

Reset All -

Reset Lamp Hours -

Image Menu

Settable items vary depending on the image signal and source currently being projected. Setting details are saved for each image signal.

Submenu Function

Color Mode

Brightness

Contrast

Color Saturation

Tint

Sharpness

Color Temp.

You can select the quality of the image to suit your surroundings. s "Selecting the Projection Quality (Selecting Color Mode)"

p.41

You can adjust the image brightness.

You can adjust the difference between light and dark in the images.

You can adjust the color saturation for the images.

(Adjustment is possible when a component video signal is being input. If a composite video or S-video signal is input, adjustment is only possible when NTSC signals are being input.)

You can adjust the image tint.

You can adjust the image sharpness.

(This item cannot be selected if Color Mode is set to You can adjust the overall tint of the image. You can adjust tints

in three stages from High, Medium, and Low. The image is tinted blue when High is selected and tinted red when Low is selected.

sRGBg.)

List of Functions

Submenu Function

Color Adjustment

(This item cannot be selected if Color Mode is set to You can adjust the color strength for Red, Green, and Blue

individually.

sRGBg.)

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

Auto Iris

Reset

(This item can be set only if Color Mode is set to Dynamic or Theatre.)

Set to On to adjust the iris to obtain the optimum light for images being projected.

The setting is stored for each Color Mode. s "Setting Auto Iris" p.42

You can reset all adjustment values for the Image menu to their default settings. See the following to return all menu items to their default settings.

s "Reset Menu" p.73

Signal Menu

Settable items vary depending on the image signal and source currently being projected. Setting details are saved for each image signal.

You cannot make settings on the Signal menu when the source is USB Display or USB.

Submenu Function

Auto Setup

Resolution

Tracking

Set to On to automatically adjust Tracking, Sync., and Position to the optimum state when the input signal changes.

Set to Auto to automatically identify the resolution of the input signal. If images are not projected correctly when set to Auto, for example if some of the image is missing, adjust to Wide for wide screens, or set to Normal for 4:3 or 5:4 screens depending on the connected computer.

You can adjust computer images when vertical stripes appear in the images.

Sync.

Position

You can adjust computer images when flickering, fuzziness, or interference appear in the images.

You can adjust the display position up, down, left, and right when a part of the image is missing so that the whole image is projected.

List of Functions

Submenu Function

Progressive

Noise Reduction (EB-X14/EBW12/EB-X12 only)

HDMI Video Range (EB-X14/EBW12/EB-X12 only)

Input Signal

(This setting can only be adjusted when a component video or RGB video with an interlaced signal (480i/576i/1080i) is input. This cannot be set when a digital RGB signal is input.)

Interlaceg (i) signal is converted to Progressiveg (p). (IP conversion)

• For EB-X14/EB-W12/EB-X12

Off: Ideal for images with a large amount of movement. Video: Ideal for general video images. Film/Auto: This is ideal for movie films, computer

graphics, and animation.

• For EB-S12/EB-X11/EB-S11

On: Ideal for still images. Off: Ideal for images with a large amount of movement.

(This cannot be set when a digital RG B si gn al i s i np ut , o r w he n an interlace signal is being displayed when Progressive is set to Off.)

Smoothes out rough images. There are two modes. Select your favorite setting. It is recommended that this is set to Off when viewing image sources in which noise is very low, such as for DVDs.

When the projector's HDMI port is connected to a DVD player, the projector's video range is set according to the DVD player's video range setting.

You can select input signal from Computer port. If set to Auto, the input signal is set automatically according to

the connected equipment. If colors do not appear correctly when set to Auto, select the

appropriate signal according to the connected equipment.

Submenu Function

Aspect

Overscan

Reset

You can set the s "Changing the Aspect Ratio of the Projected Image " p.43

Changes the output image ratio (the range of the projected image). You can set the cropping range to Off, 4%, or 8%. When the source is HDMI, Auto is available (EB-X14/EB-W12/EBX12 only). When Auto is selected, it automatically changes to Off or 8% according to the input signal.

You can reset all adjustment values on the Signal menu to their default settings, except for Input Signal.

See the following to return all menu items to their default settings.

s "Reset Menu" p.73

aspect ratiog for projected images.

Video Signal

You can select the input signal from the Video port. If this is set to Auto, video signals are recognized automatically. If interference appears in the image or a problem occurs such as no image is being projected when set to Auto, select the appropriate signal depending on the connected equipment.

List of Functions

Settings Menu

Submenu Function

Keystone

Zoom (EB-S12/EB-S11 only)

Control Panel Lock

You can correct keystone distortion.

• When H/V-Keystone is selected: Adjust V-Keystone and H-Keystone to correct horizontal and vertical keystone distortion. You can also set Auto V-Keystone and H-Keystone Adjuster to On or Off. (EB-X14/EB-W12/EB-X12/EB-S12/ EB-X11 only)

• When Quick Corner is selected: Select and correct the four corners of the projected image. s "Quick Corner" p.38

Adjusts the size of the projected image.

You can use this to restrict operation of the projector's control panel.

s "Restricting Operation (Control Panel Lock)" p.60

Submenu Function

Pointer Shape

Power Consumption

Volume

Remote Receiver

User Button

You can select the shape of the pointer.

Pointer 1:

Pointer 2:

Pointer 3:

s "Pointer Function (Pointer)" p.53

You can set the lamp brightness to one of two settings. Select ECO if the images being projected are too bright, such as

when projecting images in a dark room or onto a small screen. When ECO is selected, the power consumption and the lamp's operating life are changed as follows, and fan rotation noise during projection is reduced.

Electrical consumption: about 17.5% decrease, lamp life: about

1.25 times longer When the projector is used at a high altitude or in a location

subject to high temperatures, the ECO setting may be used automatically. If this happens, Power Consumption is grayed out and cannot be adjusted.

You can adjust the volume. Setting values are saved for each source.

You can limit the reception of the operation signal from the remote control.

When set to Off, you cannot perform any operations from the remote control. If you want to make operations from the remote control, hold down the [Menu] button on the remote control for at least 15 seconds to reset the setting to its default value.

You can select and assign an item from the Configuration menu with the remote control's [User] button. Pressing the [User] button directly displays the assigned menu item selection/ adjustment screen, allowing you to make one-touch changes to settings/adjustments. You can assign one of the following items to the [User] button.

Brightness Control, Info, Progressive, Test Pattern, Resolution

List of Functions

Submenu Function

Test Pattern

Reset

Extended Menu

When the projector is set up, a test pattern is displayed so that you can adjust the projection status without connecting equipment. While the test pattern is displayed, zoom, focus adjustments, and keystone correction can be performed. To cancel the test pattern, press the [Esc] button on the remote control or the control panel.

Attention

If a pattern is displayed for a long time, a residual image may be visible in projected images.

You can reset all adjustment values on the Settings menu to their default settings, except for Zoom (EB-S12/EB-S11 only) and User Button.

See the following to return all menu items to their default settings.

s "Reset Menu" p.73

Submenu Function

Display

User's Logo

Projection

You can make settings related to the projector's display. Messages: When set to Off, the following items will not be

displayed. Item names when the Source, Color Mode, or Aspect Ratio

is changed, messages when no signal is being input, and warnings such as High Temp Warning.

Display Background to Black, Blue, or Logo when no image signal is available.

Startup Screen

when projection starts.

A/V Mute remote control's [A/V Mute] button is pressed to Black, Blue, or Logo.

You can change the user's logo that is displayed as a background during Display Background, A/V Mute, and so on.

s "Saving a User's Logo" p.56

Select from one of the following projection methods depending on how the projector is installed.

Front, Front/Ceiling, Rear, and Rear/Ceiling You can change the setting as follows by pressing down

the [A/V Mute] button on the remote control for about five seconds.

FrontWFront/Ceiling RearWRear/Ceiling

s "Installation Methods" p.20

: You can set the screen displayed when the

: You can set the screen background

: Set to On to display the User's Logo

List of Functions

Submenu Function

Operation

Standby Mode

Direct Power On: Set to On to turn on the projector simply by plugging it in.

When the power cable is plugged in, note that the projector turns on automatically in cases such as a power outage being restored.

Sleep Mode: When set to On, this automatically stops projection when no image signal is being input and no operations are carried out.

Sleep Mode Timer: When Sleep Mode is set to On, you can set the time before the projector automatically turns off within a range of 1 to 30 minutes.

Lens Cover Timer: When set to On, this turns off the power automatically 30 minutes after the A/V mute slide is closed.

This is set to On by default. High Altitude Mode: Set to On when using the projector

above an altitude of 1500 m.

If you set Communication On, you can perform the following operations even if the projector is in standby mode.

• Monitoring and controlling the projector from the computer s "Monitoring and Controlling" p.62

• Outputting analog RGB signals from the Computer port to an external monitor (EB-S12/EB-X11/EB-S11 only)

Submenu Function

Reset

*1When User's Logo Protect is set to On in Password Protect, settings related

to user's logo cannot be changed. You can make changes after setting User's Logo Protect to Off.

s "Managing Users (Password Protect)" p.58

*2 Except for High Altitude Mode.

You can reset the adjustment values for Display

Operation

settings. See the following to return all menu items to their default

settings. s "Reset Menu" p.73

from the Extended menu to their default

Info Menu (Display Only)

Lets you check the status of the image signals being projected and the status of the projector. Items that can be displayed vary depending on the source currently being projected. Depending on the model used, some input sources are not supported.

and

USB Type B (EB-X14/EBW12/EB-X12/EBS12 only)

Language

USB Display: Enables USB Display.

s "Projecting with USB Display" p.32

Link 21L: Enables ESC/VP21 commands.

s "ESC/VP21 Commands" p.62

You can set the language for messages and menus.

List of Functions

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

Submenu Function

Lamp Hours

You can display the cumulative lamp operating time When it reaches the lamp warning time, the characters are

displayed in yellow.

Submenu Function

Serial Number

The cumulative use time is displayed as "0H" for the first 10 hours. 10 hours

and above is displayed as "10H", "11H", and so on.

Reset Menu

Displays the projector's serial number.

Source

Input Signal

Resolution

Refresh Rate

Sync Info

Video Signal

Status

You can display the source name for the connected equipment currently being projected.

You can display the content of Input Signal set in the Signal menu according to the source.

You can display the resolution.

You can display the

You can display the image signal information. This information may be needed if service is required.

You can display the settings for Video Signal in the Signal menu.

This is information about errors that have occurred on the projector.

This information may be needed if service is required.

refresh rateg.

Submenu Function

Reset All

Reset Lamp Hours

You can reset all items in the Configuration menu to their default settings.

The following items are not reset to their defaults: Input Signal, User's Logo, Lamp Hours, Language, Password, Zoom (EBS12/EB-S11 only), and User Button.

Clears the cumulative lamp hours use time. Reset when you replace the lamp.

Troubleshooting

This chapter explains how to identify problems and what to do if a problem is found.

Using the Help

If a problem occurs with the projector, the Help screen is displayed to assist you by pressing the Help button. You can solve problems by answering the questions.

Press the [Help] button.

The Help screen is displayed.

Using the remote control Using the control panel

Select a menu item.

Confirm the selection.

Using the remote control Using the control panel

Questions and solutions are displayed as shown on the screen below.

Press the [Help] button to exit the Help.

Using the remote control Using the control panel

See the following if the Help function does not provide a solution to the problem.

s "Problem Solving" p.76

Problem Solving

If you are having a problem with the projector, first check the projector's indicators and refer to "Reading the Indicators" below.

See the following if the indicators do not show clearly what the problem might be.

"When the Indicators Provide No Help" p.79

Reading the Indicators

The projector is provided with the following three indicators that indicate the operating status of the projector.

Power indicator Indicates the operating status.

Standby condition When the [t] button is pressed in this condition, projection starts.

Preparing for monitoring via USB communication/serial connection or cool down in progress All buttons are disabled while the indicator is flashing.

Warming up Warm-up time is about 30 seconds. After warm-up is complete, the indicator stops flashing. The [t] button is disabled during warm-up.

Projecting

Lamp indicator Indicates the projection lamp status.

Temp indicator Indicates the internal temperature status.

Problem Solving

Refer to the following table to see what the indicators mean and how to remedy problems that they indicate.

If all indicators are off, check that the power cable is connected correctly and that the power is being supplied normally.

Sometimes, when the power cable is unplugged, the [

Status Cause Remedy or Status

Internal Error Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the

Epson Projector Contact List. s Epson Projector Contact List

] indicator remains lit for a short period, but this is not a fault.

: Lit : Flashing : Off : Varies according to the projector status

Fan Error Sensor Error

High Temp Error (overheating)

Lamp Error Lamp Failure

Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

Epson Projector Contact List

The lamp turns off automatically and projection stops. Wait for about five minutes. After about five minutes the projector switches to standby mode, so check the following two points.

• Check that the air filter and air exhaust vent are clear, and that the projector is not positioned against a wall.

• If the air filter is clogged, clean or replace it.

s "Cleaning the Air Filter" p.89, "Replacing the Air Filter" p.94

If the error continues after checking the points above, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

When using at an altitude of 1500 m or more, set High Altitude Mode to On. s "Extended Menu" p.71

Check the following two points.

• Take out the lamp and check if it is cracked.

s "Replacing the Lamp" p.91

• Clean the air filter.

s "Cleaning the Air Filter" p.89

Problem Solving

Status Cause Remedy or Status

If the lamp is not cracked: Reinstall the lamp and turn on the power. If the error continues: Replace the lamp with a new one and then turn on the power. If the error continues: Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest

address provided in the Epson Projector Contact List. s Epson Projector Contact List

If the lamp is cracked: Contact your local dealer or the nearest address provided in the Epson Projector Contact List. (Images cannot be projected until the lamp is replaced.)

s Epson Projector Contact List

When using at an altitude of 1500 m or more, set High Altitude Mode to On. s "Extended Menu" p.71

Auto Iris Error Power Err.

High Temp Warning (This is not an abnormality. However, if the temperature rises too high again, projection stops automatically.)

Replace Lamp Replace it with a new lamp.

• See the following if the projector is not operating properly, even though the indicators are all showing normal.

s "When the Indicators Provide No Help" p.79

• If the indicators are in a state not shown in this table, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

• Check that the air filter and air exhaust vent are clear, and that the projector is not positioned against a wall.

• If the air filter is clogged, clean or replace it.

s "Cleaning the Air Filter" p.89, "Replacing the Air Filter" p.94

s "Replacing the Lamp" p.91

If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases. Replace it with a new lamp as soon as possible.

Problem Solving

When the Indicators Provide No Help

If any of the following problems occur and the indicators do not offer a solution, refer to the pages given for each problem.

Problems Relating to Images

• No images appear

Projection does not start, the projection area is completely black, or the projection area is completely blue.

• Moving images are not displayed

Moving images being projected from a computer appear black and nothing is projected.

• Projection stops automatically s p.81

• The message "Not supported" is displayed s p.81

• The message "No Signal" is displayed s p.81

• Images are fuzzy, out of focus, or distorted s p.82

• Interference or distortion appear in images s p.83

• The image is truncated (large) or small, or the aspect ratio is not

suitable

Only part of the image is displayed, or the height and width ratios of the image are not correct.

s p.80

s p.81

s p.83

• The remote control does not work s p.86

• I want to change the language for messages and menus s p.87

• Image file names are not displayed correctly in Slideshow s p.87

• Image colors are not right

The whole image appears purplish or greenish, images are black & white, or colors appear dull.

• Images appear dark s p.85

s p.84

Problems when projection starts

• The projector does not turn on s p.85

Problems Relating to Images

No images appear

Check Remedy

Did you press the [t] button? Press the [t] button to turn the power on.

Are the indicators switched off? The power cable is not connected correctly or power is not being supplied.

Connect the projector's power cable correctly.

"From Installation to Projection" p.30

Check that your electrical outlet or power source is functioning correctly.

Is A/V Mute active? Press the [A/V Mute] button on the remote control to cancel A/V Mute.

s "Hiding the Image and Sound Temporarily (A/V Mute)" p.52

Is the A/V mute slide closed? Open the A/V mute slide.

s "Front/Top" p.10

Are the Configuration menu settings correct? Reset all of the settings.

s Reset - Reset All p.73

Is the image to be projected completely black? (Only when projecting computer images)

Is the image signal format setting correct? (Only when projecting images from a video source)

Is the USB cable connected correctly? (Only when projecting USB Display)

Is Windows Media Center displayed in full screen? (Only when projecting USB Display)

Is an application using the Windows DirectX function displayed? (Only when projecting USB Display)

Some input images, such as screen savers, may be completely black.

Change the setting according to the signal for the connected equipment. s Signal - Video Signal p.68

Check that the USB cable is connected correctly. Reconnect it if it is not connected or not connected properly.

When Windows Media Center is displayed at full screen, you cannot project using USB Display. Reduce the screen size.

Applications using the Windows DirectX function may not display images correctly.

Problem Solving

Moving images are not displayed (only the moving image portion turns black)

Check Remedy

Is the computer's image signal being output to the LCD and the monitor?

(Only when projecting images from a laptop computer or a computer with a built-in LCD screen)

Projection stops automatically

Check Remedy

Is Sleep Mode set to On? Press the [t] button to turn the power on. If you do not want to use Sleep Mode, change the setting to Off.

The message "Not supported" is displayed.

Change the image signal from the computer to external output only. Check your computer's documentation, or contact the computer's manufacturer.

s Extended - Operation - Sleep Mode p.71

Check Remedy

Is the image signal format setting correct? (Only when projecting images from a video source)

Do the image signal resolution and the refresh rate correspond to the mode?

(Only when projecting computer images)

Change the setting according to the signal for the connected equipment. s Signal - Video Signal p.68

Refer to the computer's documentation for how to change the image signal resolution and the refresh rate output from the computer.

s "Supported Monitor Displays" p.102

The message "No Signal" is displayed.

Check Remedy

Are the cables connected correctly? Check that all the cables required for projection are securely connected.

s "From Installation to Projection" p.30

Is the correct port selected? Change the image by pressing the [Source Search] button on the remote control or the control panel.

s "Automatically Detect Input Signals and Change the Projected Image (Source Search)" p.31

Is the power for the computer or video source turned on? Turn the power on for the equipment.

Problem Solving

Check Remedy

Are the image signals being output to the projector? (Only when projecting images from a laptop computer or a

computer with a built-in LCD screen)

Images are fuzzy, out of focus, or distorted

Check Remedy

Is Auto V-Keystone set to Off? (EB-X14/EB-W12/EB-X12/EB-S12/EB-X11 only)

If the image signals are only being output to the computer's LCD monitor or to the accessory monitor, you need to change the output to an external destination as well as the computer's own monitor. For some computer models, when the image signals are output externally, they no longer appear on the LCD monitor or accessory monitor.

If the connection is made while the power of the projector or computer is already turned on, the Fn key (Function key) that changes the computer's image signal to external output may not work. Turn the power for the computer and the projector off and then back on again.

s "From Installation to Projection" p.30 s Computer's documentation

Setting it to On enables Auto V-Keystone. s Settings - Keystone - H/V-Keystone - Auto V-Keystone p.70 If you are using the projector with this setting off, manually adjust the projected image. s "Correcting manually" p.37

Is the focus adjusted correctly? Turn the focus ring to adjust the focus.

s "Correcting the Focus" p.41

Is the projector at the correct distance? Is it projecting outside of the recommended projection distance range?

Setup within the recommended range. s "Screen Size and Projection Distance" p.98

Is the keystone adjustment value too large? Lower the projection angle to reduce the amount of keystone correction.

s "Adjusting the Image Position" p.40

Has condensation formed on the lens? If the projector is suddenly taken from a cold environment to a warm environment, or if sudden ambient temperature

changes occur, condensation may form on the surface of the lens, and this may cause the images to appear fuzzy. Set the projector up in the room about one hour before it is used. If condensation forms on the lens, turn the projector off and wait for the condensation to disappear.

Problem Solving

Interference or distortion appear in images

Check Remedy

Is the image signal format setting correct? (Only when projecting images from a video source)

Are the cables connected correctly? Check that all the cables required for projection are securely connected.

Is an extension cable being used? If an extension cable is used, electrical interference may affect the signals. Use the cables supplied with the projector to

Change the setting according to the signal for the connected equipment.

s Signal - Video Signal p.68

s "Connecting Equipment" p.23

check if the cables you are using may be causing the problem.

Is the correct resolution selected? (Only when projecting computer images)

Are the (Only when projecting computer images)

Is Transfer layered window selected? (Only when projecting USB Display)

Sync.g and Trackingg settings adjusted correctly?

Set the computer so that the signals being output are compatible with the projector.

s "Supported Monitor Displays" p.102 s Computer's documentation

Press the [Auto] button on the remote control or the [ If the images are not adjusted correctly even after performing automatic adjustment, you can also make adjustments

from the Configuration menu. s Signal - Tracking, Sync. p.68

Click All Programs - EPSON Projector - Epson USB Display - Epson USB Display Vx.xx Settings, and then clear the Transfer layered window checkbox.

] button on the control panel to perform automatic adjustment.

The image is truncated (large) or small, or the aspect is not suitable

Check Remedy

Is a wide panel computer image being projected? (Only when projecting computer images)

Is the image still being enlarged by E-Zoom? Press the [Esc] button on the remote control to cancel E-Zoom.

Is the image position adjusted correctly? (Only when projecting analog RGB signals input from the Computer port)

Change the setting according to the signal for the connected equipment.

s Signal - Resolution p.68

s "Enlarging Part of the Image (E-Zoom)" p.54

Press the [Auto] button on the remote control or the [

You can also adjust the position from the Configuration menu. s Signal - Position p.68

] button on the control panel to adjust the position.

Problem Solving

Check Remedy

Is the computer set for dual display? (Only when projecting computer images)

If dual display is activated in the Display Properties of the computer's Control Panel, only about half of the image on the computer screen is projected. To display the entire image on the computer screen, turn off the dual display setting.

s Computer video driver documentation

Is the correct resolution selected? (Only when projecting computer images)

Set the computer so that the signals being output are compatible with the projector. s "Supported Monitor Displays" p.102

Computer's documentation

Image colors are not right

Check Remedy

Do the input signal settings match the signals from the connected device?

Is the image brightness adjusted correctly? Adjust the Brightness setting from the Configuration menu.

Are the cables connected correctly? Check that all the cables required for projection are securely connected.

Is the

contrastg adjusted correctly? Adjust the Contrast setting from the Configuration menu.

Is the color adjustment set correctly? Adjust the Color Adjustment setting from the Configuration menu.

Change the following settings according to the signal for the connected equipment.

• When the image is from a device connected to the Computer port

s Signal - Input Signal p.68

• When the image is from a device connected to the Video or S-Video port.

s Signal - Video Signal p.68

s Image - Brightness p.67

s "Connecting Equipment" p.23

s Image - Contrast p.67

s Image - Color Adjustment p.67

Are the color saturation and tint adjusted correctly? (Only when projecting images from a video source)

Adjust the Color Saturation and Tint settings from the Configuration menu. s Image - Color Saturation, Tint p.67

Problem Solving

Images appear dark

Check Remedy

Is the image brightness set correctly? Adjust the Brightness and Power Consumption settings from the Configuration menu.

s Image - Brightness p.67

Settings - Power Consumption p.70

Is the

contrastg adjusted correctly? Adjust the Contrast setting from the Configuration menu.

s Image - Contrast p.67

Is it time to replace the lamp? When the lamp is nearly ready for replacement, the images become darker and the color quality becomes poorer. When

this happens, replace the lamp with a new lamp. s "Replacing the Lamp" p.91

Is the projector being used at a high altitude or in a location subject to high temperatures?

When the projector is used at a high altitude or in a location subject to high temperatures, the Power Consumption setting may be automatically set to ECO. This may make the screen dark. If this happens, the Power Consumption setting cannot be changed.

Problems when Projection Starts

The projector does not turn on

Check Remedy

Did you press the [t] button? Press the [t] button to turn the power on.

Are the indicators switched off? The power cable is not connected correctly or power is not being supplied.

Disconnect and then reconnect the power cable. s "From Installation to Projection" p.30 Check that your electrical outlet or power source is functioning correctly.

Do the indicators turn on and off when the power cable is touched? There is probably a poor contact in the power cable, or the power cable may be defective. Reinsert the power cable. If this

does not solve the problem, stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

Is the Control Panel Lock set to Full Lock? Press the [t] button on the remote control. If you do not want to use Control Panel Lock, change the setting to Off.

s Settings - Control Panel Lock p.70

Problem Solving

Check Remedy

Is the correct setting for the remote receiver selected? Check the Remote Receiver from the Configuration menu.

s Settings - Remote Receiver p.70

Maintenance

This chapter provides information on maintenance procedures to ensure the best level of performance from the projector for a long time to come.

Cleaning

You should clean the projector if it becomes dirty or if the quality of projected images starts to deteriorate.

Attention

Turn off the projector's power before cleaning.

Cleaning the Projector's Surface

Clean the projector's surface by wiping it gently with a soft cloth.

If the projector is particularly dirty, moisten the cloth with water containing a small amount of neutral detergent, and then firmly wring the cloth dry before using it to wipe the projector's surface.

Attention

Do not use volatile substances such as wax, alcohol, or thinner to clean the projector's surface. The quality of the case may change or become discolored.

Attention

Do not rub the lens with harsh materials or subject the lens to shocks, as it can easily become damaged.

Cleaning the Air Filter

Clean the air filter and the air intake vent when the following message is displayed.

"The projector is overheating. Make sure nothing is blocking the air vent, and clean or replace the air filter."

Attention

• If dust collects on the air filter, it can cause the internal temperature of the projector to rise, and this can lead to problems with operation and shorten the optical engine's service life. Clean the air filter immediately when the message is displayed.

• Do not rinse the air filter in water. Do not use detergents or solvents.

Cleaning the Lens

Use a commercially available cloth for cleaning glasses to gently wipe the lens.

Warning

Do not use sprays that contain flammable gas to remove dust and lint from the lens. The projector may catch fire due to the high internal temperature of the lamp.

Cleaning

• If a message is frequently displayed, even after cleaning, it is time to replace the air filter. Replace it with a new air filter.

s "Replacing the Air Filter" p.94

• It is recommended that you clean these parts at least once every three months. Clean them more often than this if using the projector in a particularly dusty environment.

Replacing Consumables

This section explains how to replace the lamp and the air filter.

Replacing the Lamp

Lamp replacement period

It is time to replace the lamp when:

• The following message is displayed. "Time to replace the lamp. Please contact your Epson projector reseller or

visit www.epson.com to purchase."

The message is displayed for 30 seconds.

• The lamp indicator flashes orange.

• The projected image gets darker or starts to deteriorate.

Attention

• The lamp replacement message is set to appear after the following time periods in order to maintain the initial brightness and quality of the projected images.

When Power Consumption is set to Normal: About 3900 hours When Power Consumption is set to ECO: About 4900 hours s Settings - Power Consumption p.70

• If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases. When the lamp replacement message appears, replace the lamp with a new one as soon as possible, even if it is still working.

• Do not repeatedly turn off the power and immediately back on. Turning the power on and off frequently may shorten the lamp's operating life.

• Depending on the characteristics of the lamp and the way it has been used, the lamp may become darker or stop working before the lamp warning message appears. You should always have a spare lamp unit ready in case it is needed.

How to replace the lamp

The lamp can be replaced even when the projector is suspended from a ceiling.

Replacing Consumables

Warning

• When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is cracked, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently.

• Never disassemble or remodel the lamp. If a modified or disassembled lamp is installed in the projector and used, it could cause a fire, electric shock, or an accident.

Caution

Wait until the lamp has cooled down sufficiently before removing the lamp cover. If the lamp is still hot, burns or other injuries may result. It takes about one hour after the power has been turned off for the lamp to be cool enough.

After you turn off the projector's power and the confirmation buzzer beeps twice, disconnect the power cable.

Wait until the lamp has sufficiently cooled down, and then remove the lamp cover at the top of the projector.

Loosen the Lamp cover fixing screw with the screwdriver supplied with the new lamp unit or a Phillips screwdriver. Then slide the lamp cover straight forward and lift it to remove.

Loosen the two lamp fixing screws.

Replacing Consumables

Take out the old Lamp by pulling the handle.

If the Lamp is cracked, replace it with a new lamp, or contact your local dealer for further advice.

Epson Projector Contact List

Install the new lamp.

Insert the new Lamp along the guide rail in the correct direction so that it fits in place, push in firmly, and once it is fully inserted tighten the two screws.

①

②

①

Replacing Consumables

Replace the lamp cover.

Attention

• Make sure you install the lamp securely. If the lamp cover is removed, the power turns off automatically as a safety precaution. If the lamp or the lamp cover is not installed correctly, the power does not turn on.

• This product includes a lamp component that contains mercury (Hg). Please consult your local regulations regarding disposal or recycling. Do not dispose of it with normal waste.

Replacing the Air Filter

Air filter replacement period

If the message is displayed frequently even though the air filter has been cleaned, replace the air filter.

How to replace the air filter

The air filter can be replaced even when the projector is suspended from a ceiling.

After you turn off the projector's power and the confirmation buzzer beeps twice, disconnect the power cable.

Open the air filter cover.

Resetting the lamp hours

The projector records how long the lamp is turned on and a message and indicator notify you when it is time to replace the lamp. After replacing the lamp, make sure you reset the Lamp Hours from the Reset menu.

Reset - Reset Lamp Hours p.73

Only reset the Lamp Hours after the lamp has been replaced.

Otherwise the lamp replacement period is not indicated correctly.

Replacing Consumables

Remove the air filter.

Grip the air filter cover tab and pull it straight out.

Install the new air filter.

Slide the air filter from the outside and press in until it firmly clicks into place.

Close the air filter cover.

Dispose of used air filters properly in accordance with your

local regulations. Filter frame: ABS Filter: Polyurethane foam

Appendix

Optional Accessories and Consumables

The following optional accessories and consumables are available. Please purchase these products as and when needed. The following list of optional accessories and consumables is current as of: May 2011. Details of accessories are subject to change without notice and availability may vary depending on the country of purchase.

Optional Accessories

Interactive Unit ELPIU01

Use when operating the computer screen on the projection surface.

Document Camera ELPDC06/ELPDC11

Use when projecting images such as books, OHP documents, or slides.

Soft carrying case ELPKS63

A soft case to carry the projector.

50" portable screen ELPSC32

A compact screen that can be carried easily. (Aspect Ratiog 4:3)

60" portable screen ELPSC27 80" portable screen ELPSC28 100" screen ELPSC29

Portable roll-type screens. (aspect ratio 4:3)

70" portable screen ELPSC23 80" portable screen ELPSC24 90" portable screen ELPSC25

Portable roll-type screens. (aspect ratio 16:10)

53" portable screen ELPSC30 64" portable screen ELPSC31

Portable magnetic screens. (aspect ratio 4:3)

Computer cable ELPKC02 (1.8 m - for mini D-Sub15-pin/mini D-Sub 15pin)

Computer cable ELPKC09 (3 m - for mini D-Sub15-pin/mini D-Sub 15pin) Computer cable ELPKC10 (20 m - for mini D-Sub15-pin/mini D-Sub 15pin)

Component video cable ELPKC19 (3 m - for mini D-Sub 15-pin/RCA male

Use to connect a component videog source.

Ceiling pipe (450 mm)* ELPFP13 Ceiling pipe (700 mm)

Use when installing the projector on a high ceiling.

ELPFP14

Ceiling mount* ELPMB23

Use when installing the projector on a ceiling.

Special expertise is required to suspend the projector from a ceiling. Contact

your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

Consumables

Lamp unit ELPLP67

Use as a replacement for used lamps.

Air filter ELPAF32

Use as a replacement for used air filters.

Multi-aspect screen ELPSC26

A portable multi-aspect screen.

Screen Size and Projection Distance

Projection Distance (For EB-W12)

Projection distance

Distance from the center of the lens to the base of the screen

(or to the top of the screen, if suspended from a ceiling)

Center of lens

4:3 Screen Size

30" 61x46 94 - 113 -7

Minimum (Wide) to Maximum

(Tele)

Unit: cm

4:3 Screen Size

60" 120x91 190 - 229 -13

70" 142x107 222 - 267 -15

80" 160x120 255 - 306 -17

100" 200x150 319 - 383 -22

150" 300x230 480 - 577 -33

200" 410x300 641 - 770 -44

280" 570 x 430 898 - 1079 -61

Minimum (Wide) to Maximum

(Tele)

Unit: cm

16:9 Screen Size

35" 78x44 99 - 120 -4

40" 89x50 114 - 137 -5

50" 110x62 143 - 172 -6

60" 130x75 172 - 208 -8

70" 155x87 202 - 243 -9

80" 180x100 231 - 278 -10

100" 220x120 289 - 348 -13

150" 330x190 435 - 523 -19

200" 440x250 582 - 699 -26

310" 690 x 390 903 - 1084 -40

Minimum (Wide) to Maximum

(Tele)

40" 81x61 126 - 152 -9

50" 100x76 158 - 190 -11

Screen Size and Projection Distance

Unit: cm

16:10 Screen Size

35" 76x47 97 - 117 -7

40" 86x54 111 - 134 -8

50" 110x67 139 - 168 -10

60" 130x81 168 - 202 -12

80" 170x110 225 - 270 -15

100" 220x130 281 - 338 -19

150" 320x200 424 - 509 -29

200" 430x270 566 - 680 -38

320" 690 x 430 907 - 1089 -62

Minimum (Wide) to Maximum

(Tele)

Projection Distance (For EB-X14/EB-X12/EB-X11)

Projection distance

Distance from the center of the lens to the base of the screen

(or to the top of the screen, if suspended from a ceiling)

Center of lens

Unit: cm

4:3 Screen Size

30" 61x46 89 - 107 -5

40" 81x61 119 - 143 -7

50" 100x76 150 - 180 -8

Minimum (Wide) to Maximum

(Tele)

Screen Size and Projection Distance

100

4:3 Screen Size

60" 120x91 180 - 217 -10

80" 160x120 241 - 290 -14

100" 200x150 302 - 363 -17

150" 300x230 454 - 546 -25

200" 410x300 607 - 729 -34

250" 510x380 759 - 912 -42

300" 610x460 912 - 1095 -51

Minimum (Wide) to Maximum

(Tele)

Unit: cm

16:9 Screen Size

30" 66x37 97 - 117 1

40" 89x50 130 - 156 1

50" 110x62 163 - 196 1

60" 130x75 196 - 236 1

80" 180x100 263 - 316 2

100" 220x120 329 - 396 2

150" 330x190 495 - 595 3

200" 440x250 661 - 794 5

250" 550x310 827 - 994 6

275" 610x340 910 - 1093 6

Minimum (Wide) to Maximum

(Tele)

Projection Distance (For EB-S12/EB-S11)

Projection distance

Distance from the center of the lens to the base of the screen

(or to the top of the screen, if suspended from a ceiling)

Center of lens

4:3 Screen Size

30" 61x46 88 - 119 -5

Minimum (Wide) to Maximum

(Tele)

Unit: cm

(Wide)

50" 100x76 147 - 200 -8

60" 120x91 177 - 240 -10

Epson EB-X12, EB-W12 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Notations Used in This Guide

Contents

Introduction

Projector Features
