Epson BrightLink Projector EB-725Wi/EB-735Fi User Manual

Download
BrightLink EB-725Wi/EB-735Fi
User's Guide

Contents

BrightLink EB-725Wi/EB-735Fi User's Guide.......................................................................................... 13
Introduction to Your Projector ................................................................................................................. 14
Projector Features.............................................................................................................................. 14
Product Box Contents.................................................................................................................... 16
Warranty and Registration Information (U.S. and Canada) ........................................................... 18
Warranty and Registration Information (Latin America)................................................................. 19
Notations Used in the Documentation ................................................................................................ 19
Where to Go for Additional Information .............................................................................................. 19
Additional Projector Software and Manuals........................................................................................ 20
Projector Part Locations ..................................................................................................................... 21
Projector Parts - Back Panel.......................................................................................................... 24
Projector Parts - Control Panel ...................................................................................................... 26
Projector Parts - Pen Stand .......................................................................................................... 30
Setting Up the Projector ........................................................................................................................... 31
Projector Placement........................................................................................................................... 31
Projector Connections........................................................................................................................ 35
Connecting to a Computer for USB Video and Audio................................................................ 35
Connecting to a Computer for VGA Video and Audio................................................................ 37
Connecting to a Computer for HDMI Video and Audio.............................................................. 37
Connecting to a Computer for Pen and Finger Use................................................................... 38
3
Connecting to a Computer for Sound........................................................................................ 39
Connecting to an HDMI Video Source ...................................................................................... 40
Connecting to a Composite Video Source ................................................................................ 41
Connecting to a Video Source for Sound .................................................................................. 42
Connecting External Output Devices............................................................................................. 43

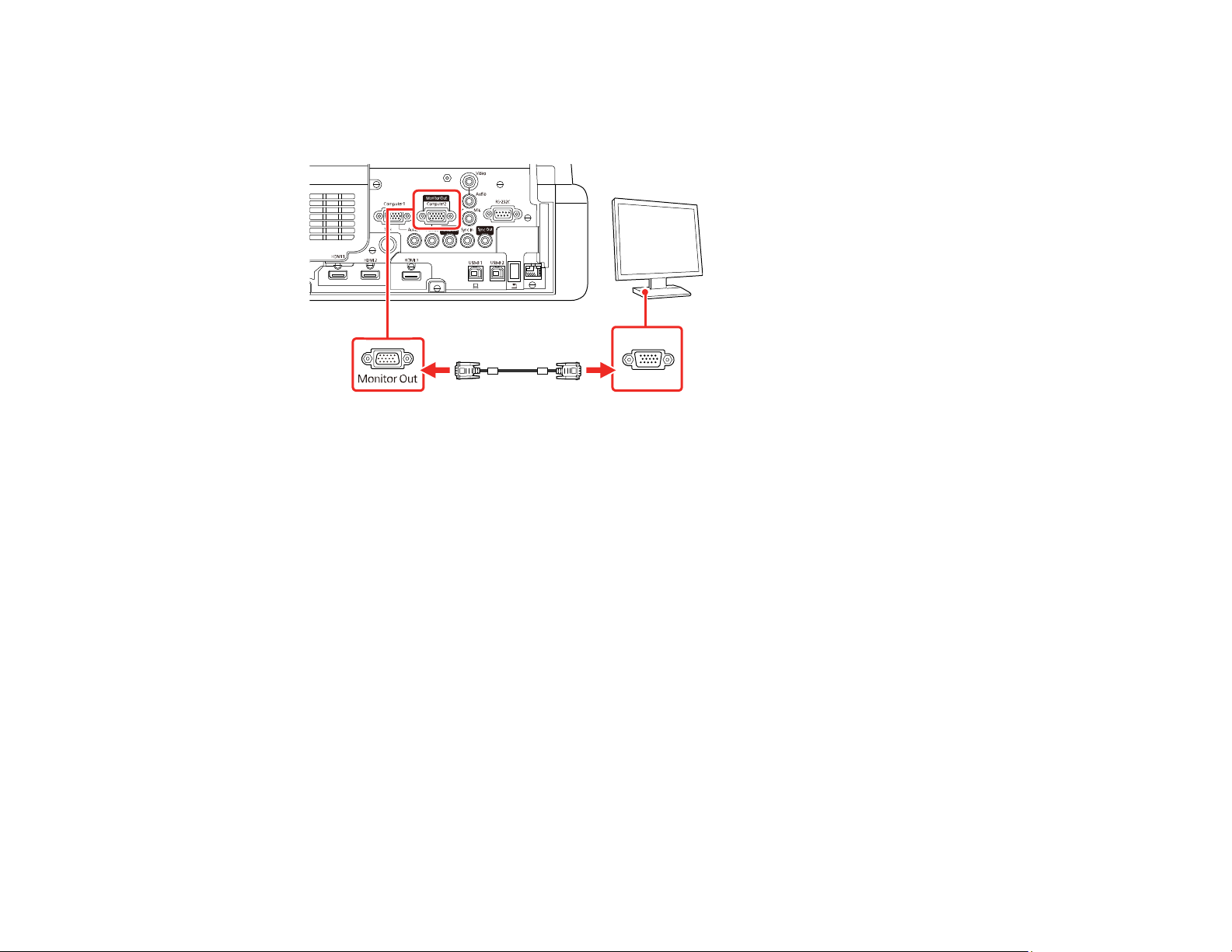

Connecting to an External Computer Monitor ........................................................................... 43
Connecting to External Speakers.............................................................................................. 44
Connecting a Microphone ......................................................................................................... 45
USB Device Projection.............................................................................................................. 46
Connecting a USB Device or Camera to the Projector.............................................................. 47
Selecting the Connected USB Source ...................................................................................... 48
Disconnecting a USB Device or Camera From the Projector .................................................... 48
Connecting to a Document Camera .............................................................................................. 48
Connecting Multiple Projectors of the Same Model ....................................................................... 49
Installing Batteries in the Remote Control .......................................................................................... 51
Installing Batteries in the Pens ........................................................................................................... 52
Using the Projector on a Network ............................................................................................................ 54
Wired Network Projection................................................................................................................... 54
Wireless Network Projection .............................................................................................................. 58
Installing the Additional Wireless LAN Module .............................................................................. 59
Connecting Directly to a Smartphone or Tablet ............................................................................. 60
Using Quick Wireless Connection (Windows)................................................................................ 64
Wireless LAN Menu Settings .................................................................................................... 70
Setting Up Wireless Network Security ........................................................................................... 73
Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) .......... 75
Screen Mirroring Restrictions ........................................................................................................ 75
4
Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer ............................... 78
Connecting for Screen Mirroring with Miracast .............................................................................. 79
Screen Sharing .................................................................................................................................. 80
Setting Up Projector Network E-Mail Alerts ........................................................................................ 82
Setting Up Monitoring Using SNMP ................................................................................................... 83
Controlling a Networked Projector Using a Web Browser .................................................................. 84
Creating an Address Book ................................................................................................................. 87
Using Crestron Connected................................................................................................................. 88
Controlling a Networked Projector Using Crestron Connected...................................................... 89
Registering a Digital Certificate on the Projector ................................................................................ 92
Importing a Web Server Certificate Using the Projector Menus..................................................... 92
Registering Digital Certificates from a Web Browser ..................................................................... 93
Using Basic Projector Features ............................................................................................................... 96
Turning On the Projector .................................................................................................................... 96
Using the Home Screen................................................................................................................. 98
Turning Off the Projector .................................................................................................................. 100
Selecting the Language for the Projector Menus.............................................................................. 102
Setting the Date and Time................................................................................................................ 103
Image Shape.................................................................................................................................... 104
Correcting Image Shape with the Keystone Buttons.................................................................... 104
Correcting Image Shape with Quick Corner ................................................................................ 107
Correcting Image Shape with Arc Correction............................................................................... 110
Correcting Image Shape with Point Correction............................................................................ 113
Correcting Image Shape with Corner Markers............................................................................. 115
Applying Saved Image Shape Settings ....................................................................................... 116
Resizing the Image with the Wide and Tele Buttons ........................................................................ 117
Adjusting the Image Position............................................................................................................ 118
Focusing the Image.......................................................................................................................... 119
5
Remote Control Operation ............................................................................................................... 123
Selecting an Image Source .............................................................................................................. 124
Projection Modes ............................................................................................................................. 126
Changing the Projection Mode Using the Remote Control .......................................................... 127
Changing the Projection Mode Using the Menus......................................................................... 127
Image Aspect Ratio .......................................................................................................................... 128
Changing the Image Aspect Ratio ............................................................................................... 129
Available Image Aspect Ratios .................................................................................................... 129
Color Mode....................................................................................................................................... 130
Changing the Color Mode............................................................................................................ 130
Available Color Modes................................................................................................................. 131
Adjusting the Hue, Saturation, and Brightness................................................................................. 131
Adjusting Gamma............................................................................................................................. 133
Adjusting the Image Resolution........................................................................................................ 135
Adjusting the Projector's Brightness Level ....................................................................................... 137
Constant Brightness Usage Hours .............................................................................................. 139
Turning On Automatic Luminance Adjustment ................................................................................. 141
Controlling the Volume with the Volume Buttons.............................................................................. 142
Selecting a Quick Startup Setting..................................................................................................... 143
Projecting a PC Free Presentation ................................................................................................... 144
PC Free Precautions ................................................................................................................... 145
Supported PC Free File Types .................................................................................................... 145
Starting a PC Free Slideshow...................................................................................................... 147
Starting a PC Free Movie Presentation ....................................................................................... 149
PC Free Display Options ............................................................................................................. 150
Adjusting Projector Features ................................................................................................................. 152
Shutting Off the Picture and Sound Temporarily .............................................................................. 152
Stopping Video Action Temporarily .................................................................................................. 153
Zooming Into and Out of Images ...................................................................................................... 154
Using Multiple Projectors ................................................................................................................. 155
Projector Identification System for Multiple Projector Control ...................................................... 155
Setting the Projector ID........................................................................................................... 155
Setting the Remote Control ID ................................................................................................ 156
6
Adjusting Color Uniformity ........................................................................................................... 157
Projecting Multiple Images Simultaneously...................................................................................... 160
Input Sources for Split Screen Projection .................................................................................... 162
Split Screen Projection Restrictions............................................................................................. 162
Projector Security Features.............................................................................................................. 163
Password Security Types ............................................................................................................ 163
Setting a Password ................................................................................................................. 164
Selecting Password Security Types........................................................................................ 165
Entering a Password to Use the Projector............................................................................... 166
Saving a User's Logo Image to Display................................................................................... 167
Locking the Projector's Buttons ................................................................................................... 169
Unlocking the Projector's Buttons ........................................................................................... 170
Installing a Security Cable ........................................................................................................... 170
Creating a User Pattern to Display ................................................................................................... 171
Saving Settings to Memory and Using Saved Settings .................................................................... 173
Copying Menu Settings Between Projectors .................................................................................... 174
Saving Settings to a USB Flash Drive.......................................................................................... 175
Transferring Settings from a USB Flash Drive ............................................................................. 176
Saving Settings to a Computer .................................................................................................... 177
Transferring Settings from a Computer ....................................................................................... 179
Scheduling Projector Events ............................................................................................................ 180
Saving a Scheduled Event........................................................................................................... 181
Viewing Scheduled Events .......................................................................................................... 183
Editing a Scheduled Event........................................................................................................... 184
Using the Interactive Features ............................................................................................................... 187
Interactive Modes............................................................................................................................. 187
Using the Projected Screen as a Whiteboard (Built-in Whiteboard Mode)................................... 188
Drawing on a Projected Image (Built-in Annotation Mode) .......................................................... 189
Controlling Computer Features from a Projected Screen (PC Interactive Mode)......................... 190
PC Interactive Mode System Requirements ........................................................................... 191
Using the Interactive Pens ............................................................................................................... 192
Using the Pens ............................................................................................................................ 192
Pen Calibration............................................................................................................................ 195
7
Calibrating Automatically ........................................................................................................ 196
Calibrating Manually ............................................................................................................... 197
Using Finger Touch Interactivity ...................................................................................................... 200
Touch Unit Safety Instructions..................................................................................................... 201
Performing Touch Unit Angle Adjustment.................................................................................... 202
Calibrating for Finger Touch Interactivity ..................................................................................... 206
Using Finger Touch Operations................................................................................................... 209
Using BrightLink with a Computer .................................................................................................... 212
Adjusting the Pen Operation Area ............................................................................................... 212
Easy Interactive Tools ................................................................................................................. 214
Windows Pen Input and Ink Tools .................................................................................................... 215
Enabling Windows Pen Input and Ink Tools................................................................................. 215
Using Windows Pen Input and Ink Tools ..................................................................................... 217
Built-in Whiteboard Mode ................................................................................................................. 219
Using the Built-in Whiteboard Toolbar ......................................................................................... 219
The Built-in Whiteboard Toolbar .................................................................................................. 220
Selecting Background Templates................................................................................................ 223
Inserting and Working With Images............................................................................................. 223
Selecting Whiteboard Settings .................................................................................................... 224
Selecting Basic Whiteboard Settings ...................................................................................... 225
Selecting Whiteboard Print Settings........................................................................................ 226
Selecting Settings for Saving Whiteboard Pages.................................................................... 228
Selecting Settings for Emailing Whiteboard Pages ................................................................. 230
Selecting Settings for a Directory Server ................................................................................ 231
Selecting a Networked Device Source ........................................................................................ 234
Saving Pages in Whiteboard Mode ............................................................................................. 234
Printing Whiteboard Pages.......................................................................................................... 236
Emailing Whiteboard Pages ........................................................................................................ 237
Using BrightLink Without a Computer .............................................................................................. 239
Using the Built-in Annotation Mode ............................................................................................. 239
Built-in Tools for Use Without a Computer................................................................................... 240
Controlling an Epson Document Camera .................................................................................... 243
Splitting the Projected Image with Whiteboard Mode ....................................................................... 244
8
Adjusting the Menu Settings .................................................................................................................. 246
Using the Projector's Menus............................................................................................................. 246
Image Quality Settings - Image Menu .............................................................................................. 248
Input Signal Settings - Signal I/O Menu............................................................................................ 253
Installation Settings - Installation Menu ............................................................................................ 257
Display Settings - Display Menu....................................................................................................... 262
Feature Settings - Operation Menu .................................................................................................. 264
Administration Settings - Management Menu................................................................................... 268
Event ID Code List....................................................................................................................... 274
Network Settings - Network Menu .................................................................................................... 277
Pen and Touch Setup Settings - Pen/Touch Menu........................................................................... 279
Interactive Settings - Interactive Menu ............................................................................................. 282
Image Quality Memory Settings - Memory Menu ............................................................................. 284
Setup Settings - ECO Menu ............................................................................................................. 285
Initial Settings and Reset Options - Initial/All Settings Menu ............................................................ 287
Maintaining and Transporting the Projector ......................................................................................... 289
Projector Maintenance ..................................................................................................................... 289
Cleaning the Projection Window.................................................................................................. 289
Cleaning the Obstacle Sensor..................................................................................................... 290
Cleaning the Projector Case ........................................................................................................ 291
Air Filter and Vent Maintenance ....................................................................................................... 291
Cleaning the Air Filter and Vents ................................................................................................. 292
Replacing the Air Filter ................................................................................................................ 294
Replacing the Remote Control Batteries .......................................................................................... 295
Replacing the Hard Pen Tips............................................................................................................ 297
Replacing the Soft Pen Tips ............................................................................................................. 299
Updating the Firmware ..................................................................................................................... 302
Transporting the Projector................................................................................................................ 302
Solving Problems .................................................................................................................................... 303
Projection Problem Tips ................................................................................................................... 303
Projector Light Status ....................................................................................................................... 304
Using the Projector Menu Displays .................................................................................................. 307
Solving Image or Sound Problems ................................................................................................... 307
9
Solutions When No Image Appears............................................................................................. 308
Solutions When Image is Incorrect Using the USB Display Function .......................................... 309
Solutions When "No Signal" Message Appears........................................................................... 310
Displaying From a PC Laptop ................................................................................................. 311
Displaying From a Mac Laptop ............................................................................................... 311
Solutions When "Not Supported" Message Appears ................................................................... 311
Solutions When Only a Partial Image Appears............................................................................ 312
Solutions When the Image is Not Rectangular ............................................................................ 312
Solutions When the Image Contains Noise or Static ................................................................... 313
Solutions When the Image is Fuzzy or Blurry .............................................................................. 314
Solutions When the Image Brightness or Colors are Incorrect .................................................... 315
Solutions When an Afterimage Remains On the Projected Image............................................... 315
Solutions to Sound Problems ...................................................................................................... 316
Solutions to Microphone Problems .............................................................................................. 317
Solving Projector or Remote Control Operation Problems ............................................................... 317
Solutions to Projector Power or Shut-Off Problems..................................................................... 317
Solutions to Remote Control Problems........................................................................................ 318
Solutions to Password Problems ................................................................................................. 319
Solutions When a Battery Message Appears .............................................................................. 319
Solving Network Problems ............................................................................................................... 320
Solutions When Wireless Authentication Fails ............................................................................ 320
Solutions When You Cannot Access the Projector Through the Web ......................................... 320
Solutions When Network Alert E-Mails are Not Received............................................................ 321
Solutions When the Image Contains Static During Network Projection ....................................... 321
Solutions When You Cannot Connect Using Screen Mirroring.................................................... 322
Solutions When the Image or Sound Contains Static When Using Screen Mirroring................... 322
Solutions When the Projected Screen is not Shared Correctly .................................................... 323
Solving Interactive Problems............................................................................................................ 323
Solutions When the Interactive Pens Do Not Work...................................................................... 324
Solutions When the Interactive Pen Position Is Not Accurate...................................................... 325
Solutions When the Interactive Pens Are Slow or Difficult to Use................................................ 325
Solutions When the Interactive Pens Cause Interference or Unwanted Effects .......................... 326
Solutions When Finger Touch Interactivity Does Not Work ......................................................... 326
10
Solutions When You Cannot Operate a Computer from the Projected Screen............................ 327
Solutions for Problems With Capturing, Printing, Saving, or Scanning ........................................ 327
Solutions for Problems with Whiteboard Mode ............................................................................ 328
Where to Get Help (U.S. and Canada) ............................................................................................. 328
Where to Get Help (Latin America)................................................................................................... 329
Technical Specifications ........................................................................................................................ 332
General Projector Specifications ...................................................................................................... 332
Projector Light Source Specifications............................................................................................... 334
Interactive Pen Specifications .......................................................................................................... 335
Remote Control Specifications ......................................................................................................... 335
Projector Dimension Specifications.................................................................................................. 336
Projector Electrical Specifications .................................................................................................... 336
Projector Environmental Specifications............................................................................................ 337
Projector Safety and Approvals Specifications................................................................................. 337
Safety and Approvals Specifications for Latin America .................................................................... 337
Supported Video Display Formats.................................................................................................... 338
USB Display System Requirements................................................................................................. 341
Notices ..................................................................................................................................................... 342
Recycling (U.S. and Canada)........................................................................................................... 342
Important Safety Information ............................................................................................................ 342
Laser Safety Information .................................................................................................................. 343
Laser Light Source Warning ............................................................................................................ 344
Important Safety Instructions............................................................................................................ 345
Restriction of Use ........................................................................................................................ 348
List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 348
FCC Compliance Statement............................................................................................................. 353
Binding Arbitration and Class Waiver ............................................................................................... 354
Trademarks (U.S. and Canada) ....................................................................................................... 357
Trademarks (Latin America) ............................................................................................................. 357
Copyright Notice............................................................................................................................... 358
A Note Concerning Responsible Use of Copyrighted Materials................................................... 359
Copyright Attribution.................................................................................................................... 359
11
BrightLink EB-725Wi/EB-735Fi User's Guide
Welcome to the BrightLink EB-725Wi/EB-735Fi User's Guide.
For a printable PDF copy of this guide, click here.
Note: Availability of products in this guide varies by country.
13

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.
Projector Features Notations Used in the Documentation Where to Go for Additional Information Additional Projector Software and Manuals Projector Part Locations

Projector Features

The BrightLink EB-725Wi-EB-735Fi projectors include these special features:
Unique interactive functions
• Annotation with or without a computer
• Annotation with two pens at the same time (depending on interactive mode, connection method, and operating system)
• Enhanced Easy Interactive toolbar for Windows and Mac
• Touch-based interactivity for as many as six users (optional Touch Unit required)
• Control your computer from the projected screen
• Print, save, and send your presentations without a computer
• Scan and display content from a connected scanner
• Import content from a USB drive
Bright, high-resolution projection system
• BrightLink EB-725Wi: Up to 4000 lumens of color brightness (color light output) and white brightness (white light output)
• BrightLink EB-735Fi: Up to 3600 lumens of color brightness (color light output) and white brightness (white light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
• BrightLink EB-725Wi: Native resolution of 1280 × 800 pixels (WXGA)
14
• BrightLink EB-735Fi: Native resolution of 1920 × 1080 pixels (1080p)
Flexible connectivity
• Three HDMI ports for computer or video device connection
• Plug-and-play USB projection and audio for instant setup
• Wired and wireless network support for projection
• Screen mirroring to connect your mobile device wirelessly using Miracast technology
• Projector monitoring and control via remote network computer
• PC Free photo slide shows via connected USB memory devices or Epson document camera
• Use Epson iProjection (Windows/Mac) to simultaneously project up to four images from network computers or mobile devices using the Epson iProjection app
• Projection from an iOS device, Android device, or Chromebook with the free Epson iProjection app; visit epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean) for more information
Innovative display and operation features
• Long-life laser light source
• High digital zoom ratio for larger images in shorter projection distances
• 2,500,000:1 contrast ratio and Dynamic Contrast control for sharp, detailed images
• Built-in closed captioning decoder
• Powerful 16 W speaker system with audio out port for connecting external speakers
• Epson's Direct Power On and Auto Power On features for quick and easy setup
• Support for Crestron RoomView network monitoring systems
• Network message broadcast system to project timely messages to all networked projectors
Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information (U.S. and Canada) Warranty and Registration Information (Latin America)
Parent topic: Introduction to Your Projector
15

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.
Make sure your projector box included all of these parts:
1 Projector
2 Remote control
3 Remote control and pen batteries (4 AA alkaline)
4 Interactive pens and replacement pen tips (4 soft tips, 2 hard tips)
5 Pen stand
6 16 ft (5 m) USB cable
7 Power cord
8 Auto image adjustment markers and magnets
9 Projector feet
Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.
16
Note: To connect a Mac that does not include a compatible video output port, you need to obtain an
adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.
Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.
Signal or connection type
Composite video RCA-style video or A/V cable
HDMI Compatible HDMI cable
Audio from certain ports Commercially available audio cable compatible with your device
VGA To connect a computer through its VGA port to the projector's VGA video
Multiple BrightLink projectors
Parent topic: Projector Features
Additional component necessary
Available for purchase from Epson or an authorized Epson reseller.
Available for purchase from an authorized Epson reseller (Caribbean).
Note: Older Mac computers (2009 and earlier) may not support HDMI audio.
port, you need a VGA computer cable.
To sync additional BrightLink projectors together, you need a stereo mini cable (commercially available) or the remote control cable set (ELPKC28).
Available for purchase from Epson or an authorized Epson reseller.

Optional Equipment and Replacement Parts

U.S. and Canada: You can purchase screens, other optional accessories, and replacement parts from
an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or
epsonstore.ca (Canadian sales).
Latin America: You can purchase optional accessories and replacement parts from an Epson authorized reseller. To find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as described in "Where to Get Help".
17
Note: Availability of accessories varies by country.
Epson offers the following optional accessories and replacement parts for your projector:
U.S. and Canada:
Option or part Part number
Replacement air filter (ELPAF60) V13H134A60
Ultra-short throw wall mount (ELPMB62) V12HA06A05
Wireless LAN module (ELPAP11) V12H005A02
100” Whiteboard 16:9 Aspect from MooreCo V12H006A02
Epson DC-07 document camera (ELPDC07) V12H759020
Epson DC-13 document camera (ELPDC13) V12H757020
Epson DC-21 document camera (ELPDC21) V12H758020
Active speakers (ELPSP02) V12H467020
USB Extension Cable (ELPKC31) V12H525001
Remote control cable set (ELPKC28) V12H005C28
In addition to the accessories listed above, 1-year and 2-year extended service plans are available.
Latin America:
Option or part Part number
Replacement air filter (ELPAF60) V13H134A60
Ultra-short throw wall mount (ELPMB62) V12HA06A05
Wireless LAN module (ELPAP11) V12H005A02
Parent topic: Projector Features

Warranty and Registration Information (U.S. and Canada)

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty brochure that came with your projector.
Register your product online at this site: epson.com/webreg
18
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features

Warranty and Registration Information (Latin America)

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.
Register your product online at latin.epson.com/support, search for your product, and select Register.
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:
• Built-in help system
• Guidance icon in the Other Tools menu of the interactive toolbar
Select the Guidance icon to display the help screen for toolbar functions.
• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.
• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."
Parent topic: Introduction to Your Projector
19
Related references
Where to Get Help (U.S. and Canada) Where to Get Help (Latin America)

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software as necessary. You may need to install it from a software CD, if included, or download the software and manuals as necessary.
You can install the projector software programs listed here and view their manuals for instructions on using them.
Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."
Projector software Manual Description
Epson Projector Management (Windows only)
Epson iProjection (Windows/Mac)
Epson Projector Management Operation Guide
Epson iProjection Operation Guide (Windows/Mac)
Lets you update firmware and monitor and control your projector through the network.
You can download the latest software and documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support (Caribbean) and select your projector.
Lets you project the computer screens of users over a network.
You can download the latest software and documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support (Caribbean) and select your projector.
20
Projector software Manual Description
Epson iProjection app Instructions are included
— Open Source Software
Parent topic: Introduction to Your Projector

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Side Projector Parts - Top/Side Projector Parts - Back Panel Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control Projector Parts - Interactive Pens Projector Parts - Pen Stand
with the app (instructions included with the app available only in English)
License
Lets you project from an iOS device, Android device, or Chromebook if your projector is connected to a network that includes a wireless access point.
Visit epson.com/support (U.S.),
epson.ca/support (Canada), or latin.epson.com/support (Caribbean) for more
information.
You can download this document from the Epson web site. Go to epson.com/support (U.S.), epson.ca/support (Canada), or
latin.epson.com/support (Caribbean) and
select your projector.
Parent topic: Introduction to Your Projector
21

Projector Parts - Front/Side

1 Status lights
2 Remote control receiver
3 Speaker
4 Exhaust vent
5 Optional wireless LAN module cover
6 Optional wireless LAN module slot
Parent topic: Projector Part Locations
Related references
Projector Light Status
22

Projector Parts - Top/Side

1 Interactive pen receiver
2 Obstacle sensors
3 Projection window
4 Remote receiver
5 Control panel
6 Air filter cover
7 Air filter cover latch
8 Air intake vent (air filter)
9 Focus lever
23
Parent topic: Projector Part Locations

Projector Parts - Back Panel

1 Security slot
2 HDMI 1/HDMI 2/HDMI 3 ports
3 Audio 1/Audio 2 ports for use with the Computer 1/Computer 2 ports
4 Audio Out port
5 USB-B1/USB-B2 ports for computer connection
6 USB-A port for USB memory device or document camera
7 Network (LAN) port
8 SYNC In/Out ports
9 RS-232C port
10 Mic port
11 Audio port for use with Video port
12 Power inlet
13 Video port
24
14 Computer 1 and Computer 2/Monitor Out ports
15 TCH port for the Touch Unit connection cable
Parent topic: Projector Part Locations
Related concepts
Projector Connections

Projector Parts - Base

1 Front foot holes (2)
2 Air intake vent
3 Wall mounting plate holes (8)
4 Security cable attachment point
Parent topic: Projector Part Locations
25

Projector Parts - Control Panel

1 Power button
2
3 Source Search button (searches for connected video sources)
4 Enter button (selects options)
5 Vertical keystone adjustment buttons (display the adjustment screen and adjust screen shape)
6 Esc button (cancels/exits functions)
7 W/T (Wide/Tele) buttons (adjust projected image size) and arrow buttons
8 Menu button (accesses projector menu system)
Parent topic: Projector Part Locations
Home button (accesses projector Home screen)
and arrow buttons
26

Projector Parts - Remote Control

1 Power button
2 HDMI/Video button (cycles through connected HDMI and video sources)
27
3 Computer button
4 Numeric buttons
5 Auto button (automatically adjusts position, tracking, and sync settings)
6 Num button (when held down, switches numeric buttons to number function)
7 Menu button (accesses projector menu system)
8 Arrow buttons (move through on-screen options and control wireless mouse functions)
9 Enter button (selects options and controls wireless mouse functions)
10 User button (customizable for different functions)
11 Color Mode button (selects display modes)
12 Aspect button (selects the image aspect ratio)
13 E-Zoom +/- buttons (zoom into and out of the image)
14 A/V Mute button (turns off picture and sound)
15 Split button (splits the screen between two image sources)
16
Home button (accesses projector Home screen)
17 Freeze button (stops video action)
18 Volume up/down buttons (adjust speaker volume)
19 Default button (returns the current setting to its default)
20 Esc button (cancels/exits functions and controls wireless mouse functions)
21 ID button (selects a projector to use with the remote control)
22 LAN button (connects to a network source)
23 USB button (cycles between USB Display and USB-A ports)
24 Source Search button (searches for connected sources)
25 Remote control emitter
Parent topic: Projector Part Locations
28

Projector Parts - Interactive Pens

1 Pen tip
2 Battery light
3 Function button
4 Attachment for optional strap or cord
5 Battery cover
Parent topic: Projector Part Locations
29

Projector Parts - Pen Stand

1 Front cover
2 Pen tip storage area
3 Pen storage area
4 Battery storage area
5 Wall mounting holes
6 Installation magnet
Parent topic: Projector Part Locations
30

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.
Projector Placement Projector Connections Installing Batteries in the Remote Control Installing Batteries in the Pens

Projector Placement

Your ultra-short throw projector is designed to be installed on a wall (with a wall mount) or vertically on a table (with a table mount) to create an interactive tabletop workspace.
Note: A Touch Unit is optional and must be installed for finger touch operation. Finger touch operation is available only if the projector is installed on a wall (with a wall mount) and projecting from the front of the wall, or vertically on a table (with a table mount) and projecting from the top of the table.
Keep these considerations in mind as you select a projector location:
• Follow the instructions in the online Installation Guide to install the projector.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.
• If you are using the projector at altitudes above 4921 feet (1500 m), set the High Altitude Mode setting to On in the projector's Installation menu to ensure the projector's internal temperature is regulated properly.
• Position the projector within reach of a grounded electrical outlet or extension cord.
• If installing vertically on a table, a commercially available mount compatible with the VESA Mounting Interface Standard (100 x 100 mm) is required.
• If installing on a wall, the wall mount (V12HA06A05) is required.
• For finger touch, make sure the projection surface is flat, smooth, and unwarped with no more than
0.2 inch (5 mm) of unevenness in any direction.
• Place the projector so it squarely faces the screen, not at an angle. If you cannot install the projector squarely facing the screen, correct any resulting image distortion using the projector controls.
• Try not to set up the projector in locations subject to high humidity and dust, or in locations subject to smoke from fires or tobacco smoke.
31
Projector Setup and Installation Options Projection Distance
Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways:
Mounted on the wall or ceiling
Mounted vertically on a table to create an interactive workspace
32
Mounted on the wall or ceiling and projecting from behind a translucent screen (interactive features not supported)
Front projection from a table or portable cart (finger touch not supported)
33
Rear projection from a table or portable cart behind a translucent screen (interactive features not supported)
Wherever you set up the projector, make sure to position it squarely in front of the screen, not at an angle.
If you place the projector vertically, turn on the Vertical Installation setting in the projector's Installation menu.
If you install the projector to a fixed location, turn on the Fixed Installation setting in the projector's Installation menu.
If you project from a table or portable cart, or from the rear, be sure to select the correct Projection option in the projector's menu system.
Note: You cannot use the interactive pens or finger touch when projecting from behind a screen or under a table.
Parent topic: Projector Placement

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Refer to the tables in the online Installation Guide to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).
34
Parent topic: Projector Placement

Projector Connections

See these sections to connect the projector to a variety of projection sources.
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.
Connecting to Computer Sources Connecting to Video Sources Connecting External Output Devices Connecting to External USB Devices Connecting to a Document Camera Connecting Multiple Projectors of the Same Model
Parent topic: Setting Up the Projector
Related references
Additional Components Installation Settings - Installation Menu

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.
Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video and Audio Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for Pen and Finger Use Connecting to a Computer for Sound
Parent topic: Projector Connections
Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.
Note: If you use a USB hub, the connection may not operate properly. Connect the USB cable directly to the projector.
35
Note: This also lets you use the interactive pens with your computer. You need to change the USB Type B setting in the projector's Extended menu before you can project through the USB port. Note that using
USB Display will slow interactive pen function. For the best performance, VGA or HDMI connections are recommended.
Note: A USB connection may cause a delay for content requiring high bandwidth, such as movies. An HDMI connection is recommended for projecting movies, video games, and other home entertainment content.
1. Turn on your computer.
2. Connect a USB cable to your projector's USB-B1 port.
3. Connect the other end to any available USB port on your computer.
4. To use USB Display, do one of the following:
• Windows 10/Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.exe in the dialog box that appears to install the Epson USB Display software.
• Windows 7/Windows Vista: Select Run EMP_UDSE.exe in the dialog box that appears to install the Epson USB Display software.
• Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.
Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.
36
The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.
Parent topic: Connecting to Computer Sources
Related references
Input Signal Settings - Signal I/O Menu
Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer cable.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.
1. If necessary, disconnect your computer's monitor cable.
2. Connect the VGA computer cable to your computer's monitor port.
3. Connect the other end to a Computer port on the projector.
4. Tighten the screws on the VGA connector.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.
37
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.
1. Connect the HDMI cable to your computer's HDMI output port.
2. Connect the other end to one of the projector's HDMI ports.
Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers. (Make sure the HDMI audio playback device on your computer's audio settings is set to EPSON PJ.)
Note: If you have problems hearing audio through the HDMI connection, you can use one of the projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to one of the projector's audio ports and the other end to your computer's audio out port. Then select the audio port you connected to as the HDMI1 Audio Output, HDMI2 Audio Output or
HDMI3 Audio Output setting in the Signal I/O menu.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for Pen and Finger Use
If you connected your computer to a Computer or HDMI port on the projector, you also need to connect the USB cable so you can use the pens and your fingers with your computer.
Note: A Touch Unit is optional and must be installed for finger touch operation.
38
1. Connect the USB cable to your projector's USB-B1 port.
Note: If you are connecting to a mini PC attached to the optional wall mount, connect the USB cable
to the projector's USB-B2 port. You can change the HDMI port associated with the USB-B2 port by changing the USB-B2 setting in the projector's Pen/Touch > PC Interactivity menu. Also connect the mini PC to one of the projector's HDMI ports.
2. Connect the other end to any available USB port on your computer.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for Sound
If your computer presentation includes sound and you did not connect it to the projector's USB-B or an HDMI port, you can still play sound through the projector's speaker system. Just connect an optional
3.5 mm stereo mini-jack audio cable as described here.
1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.
39
2. Connect the other end to the Audio port that corresponds to the Computer port you are using.
Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.
Connecting to an HDMI Video Source Connecting to a Composite Video Source Connecting to a Video Source for Sound
Parent topic: Projector Connections
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.
Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage the projector.
1. Connect the HDMI cable to your video source's HDMI output port.
40
2. Connect the other end to one of the projector's HDMI ports.
Note: The projector converts the digital audio signal sent from your video source into a mono analog
signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Note: If you have problems hearing audio through the HDMI connection, you can use one of the projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to one of the projector's audio ports and the other end to your video source's audio out port. Then select the audio port you connected to as the HDMI1 Audio Output, HDMI2 Audio Output or
HDMI3 Audio Output setting in the Signal I/O menu.
Parent topic: Connecting to Video Sources
Related references
Input Signal Settings - Signal I/O Menu
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.
1. Connect the cable with the yellow connector to your video source's yellow video output port.
41
2. Connect the other end to the projector's Video port.
Parent topic: Connecting to Video Sources
Connecting to a Video Source for Sound
You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using the Video or Computer port, connect the projector to the video source using an optional stereo mini-jack audio cable.
Note: If you connected your video source to the projector using an HDMI cable, the audio signal is transferred with the video signal; you do not need an additional cable for sound.
1. Connect the audio cable to your video source's audio-out ports.
42
2. Connect the other end of the cable to the projector's Audio port that corresponds to the port you are using for video.
Parent topic: Connecting to Video Sources

Connecting External Output Devices

See these sections to connect the projector to external output devices.
Connecting to an External Computer Monitor Connecting to External Speakers Connecting a Microphone
Parent topic: Projector Connections
Connecting to an External Computer Monitor
If you connected a computer to the projector's Computer1 port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.
To output images to an external VGA monitor, set the Monitor Out Port setting to Monitor Out in the projector's Signal I/O menu.
If you want to output images to an external monitor when the projector is turned off, you need to select
Always On as the A/V Output setting in the projector's Signal I/O menu.
Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.
43
1. Make sure your computer is connected to the projector's Computer port. If there are two computer ports, make sure you use the Computer1 port.
2. Connect the external monitor's cable to your projector's Computer2/Monitor Out port.
Note: Content you draw using the built-in interactive features is not displayed on an external monitor unless you draw it using Easy Interactive Tools software.
Parent topic: Connecting External Output Devices
Related references
Input Signal Settings - Signal I/O Menu
Connecting to External Speakers
You can connect the projector to external self-powered speakers and control the volume using the projector's remote control.
You can also connect the projector to an amplifier with speakers.
If you want to output audio from the external speakers when the projector is turned off, you need to select Always On as the A/V Output setting in the projector's Signal I/O menu.
Note: The projector's built-in speaker system is disabled when you connect external speakers.
1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.
44
2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin­jack cable, or another type of cable or adapter.
3. Connect one end of the cable to your external speakers as necessary.
4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.
Parent topic: Connecting External Output Devices
Related references
Input Signal Settings - Signal I/O Menu
Connecting a Microphone
You can connect a microphone to the projector's Mic port to provide audio support during presentations.
Note: The projector does not support plug-in-power microphones. If you want to output audio from the
microphone when the projector is off, select Always On as the A/V Output setting in the Signal I/O menu.
45
1. Connect the microphone cable to the projector's Mic port.
2. Turn on the microphone, if necessary.
3. If you hear a crackling noise or the volume is too high or low, adjust the Mic Input Level setting in the Signal I/O menu.
Parent topic: Connecting External Output Devices

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.
USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector
Parent topic: Projector Connections
Related tasks
Starting a PC Free Slideshow
USB Device Projection
You can project images and other content without using a computer or video device by connecting any of these devices to your projector:
• USB flash drive
• Digital camera or smartphone
46
• USB hard drive
• Multimedia storage viewer
Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.
Note: USB hard drives must meet these requirements:
• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)
• Formatted in FAT or FAT32
• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)
• Does not have multiple partitions
You can project slide shows from image files on a connected USB device.
Parent topic: Connecting to External USB Devices
Related tasks
Starting a PC Free Slideshow
Connecting a USB Device or Camera to the Projector
You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.
1. If your USB device came with a power adapter, plug the device into an electrical outlet.
2. Connect the USB cable (or USB flash drive) to the projector's USB-A port.
47
Note: Use the USB cable supplied with or specified for use with your device. Do not connect a USB
hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.
3. Connect the other end of the cable (if applicable) to your device.
Parent topic: Connecting to External USB Devices
Related tasks
Starting a PC Free Slideshow
Selecting the Connected USB Source
You can switch the projector's display to the source you connected to the USB-A port.
1. Make sure the connected USB source is turned on, if necessary.
2. Press the USB or Source Search button on the remote control.
Parent topic: Connecting to External USB Devices
Related tasks
Starting a PC Free Slideshow
Disconnecting a USB Device or Camera From the Projector
When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.
1. If the device has a power button, turn off and unplug the device.
2. Disconnect the USB device or camera from the projector.
Parent topic: Connecting to External USB Devices
Related tasks
Starting a PC Free Slideshow

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera.
Depending on your Epson document camera model, do one of the following to connect the document camera to your projector:
• For the Epson DC-07 document camera, locate the USB cable that came with the camera and
connect it to the projector's USB-A port and to the document camera's USB Type B port.
• For the Epson DC-11 document camera, connect it to the projector's Computer or Video port and to
the corresponding port on the document camera. See the document camera manual for details.
48
• For the Epson DC-13 document camera, connect it to the projector's HDMI, Computer, or Video port
and to the corresponding port on the document camera. See the document camera manual for details.
• For the Epson DC-20 document camera, connect it to the projector's HDMI, Computer, or Video port
and to the corresponding port on the document camera. See the document camera manual for details.
• For the Epson DC-21 document camera, connect it to the projector's HDMI, Computer, or Video port
and to the corresponding port on the document camera. See the document camera manual for details.
Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.
Parent topic: Projector Connections

Connecting Multiple Projectors of the Same Model

If you use the interactive features of multiple projectors of the same model in the same room, you need to synchronize the projectors. To do this, connect the optional remote control cable set (V12H005C28) or a stereo mini cable to the SYNC port on each projector.
1. Connect one end of the cable to the SYNC In port on one projector, and connect the other end to the
SYNC Out port on the other projector.
49
Note: If you are connecting three or more projectors, connect the projectors in a chain as shown.
2. Press the Menu button.
3. Select the Pen/Touch menu and press Enter.
4. Select Installation of Projectors and press Enter.
5. Select Wired as the Sync of Projectors setting.
6. Press Menu or Esc to exit the menus.
Parent topic: Projector Connections
50

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.
1. Remove the battery cover.
2. Insert the batteries with the + and – ends facing as shown.
51
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.
Parent topic: Setting Up the Projector

Installing Batteries in the Pens

Each pen uses one AA battery.
1. Remove the battery cover as shown.
52
2. Insert the battery with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.
Parent topic: Setting Up the Projector
53

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.
Note: The interactive features may be slower over a network connection than over a USB connection.
Wired Network Projection Wireless Network Projection Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) Screen Sharing Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Creating an Address Book Using Crestron Connected Registering a Digital Certificate on the Projector

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.
After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.
Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.
Connecting to a Wired Network Selecting Wired Network Settings
Parent topic: Using the Projector on a Network
Related references
Additional Projector Software and Manuals
54

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.
1. Connect one end of the network cable to your network hub, switch, or router.
2. Connect the other end of the cable to the projector's LAN port.
Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
1. Turn on the projector.
2. Press the Menu button.
55
3. Select the Network menu and press Enter.
4. Select Network Settings and press Enter.
5. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the projector on a network.
6. Set the Priority Control Interface setting to Wired LAN.
7. Select the Wired LAN menu and press Enter.
8. Select IP Settings and press Enter.
9. Select your IP settings as necessary:
• If your network assigns addresses automatically, turn on the DHCP setting.
• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet
Mask, and Gateway Address as needed.
Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter. Alternatively, press and hold the Num button on the remote control while entering the desired numbers.
56
10. To prevent display of the IP address on the standby screen, turn off IP Address Display in the Wired LAN menu.
11. Select Return and press Enter to return to the Network Settings menu.
12. Select Network Projection and press Enter.
You see a screen like this:
13. Set the Epson iProjection setting to On.
14. Select the following options as necessary:
• SSID Display lets you display the SSID on the network information screen and home screen.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)
57
• Keyword Interrupt Display lets you select whether to display a projector keyword on the
projected image when accessing the projector using Epson iProjection.
Note: Use the displayed keyboard to enter the password and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.
15. When you finish selecting settings, select Return and press Enter to return the Network Settings menu.
16. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wired Network Projection
Related references
Network Settings - Network Menu

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.
To connect wirelessly to your projector, configure the connection using the projector's Network menus.
After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.
Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.
Installing the Additional Wireless LAN Module Connecting Directly to a Smartphone or Tablet Using Quick Wireless Connection (Windows) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Setting Up Wireless Network Security
Parent topic: Using the Projector on a Network
Related references
Additional Projector Software and Manuals
58

Installing the Additional Wireless LAN Module

To use the additional wireless connections, install the optional Epson 802.11b/g/n wireless module in the projector. Do not install any other type of wireless module.
Caution: Never remove the module while its indicator light is blue or flashing, or while you are projecting wirelessly. You may damage the module or lose data.
Note: The wireless LAN module is not included with your projector.
1. Turn off the projector and unplug the power cord.
2. Loosen the screw securing the LAN module cover and lift off the cover, if it is attached.
59
3. Insert the wireless LAN module into the port shown here.
4. Replace the cable cover and tighten the cable cover screws.
5. Plug in and turn on the projector.
Parent topic: Wireless Network Projection

Connecting Directly to a Smartphone or Tablet

You can display a QR code on the screen and use it to connect a single smartphone or tablet to your projector with the Epson iProjection app.
1. Download the latest version of the Epson iProjection app from the App Store or Google Play and install it on your smartphone or tablet.
2. Press the Menu button on the projector or the remote control.
60
3. Select the Management menu and press Enter.
4. Select On as the Wireless LAN Power setting.
61
5. Select the Network menu and press Enter.
6. Select Network Settings and press Enter.
7. Set the Priority Control Interface setting to Wireless LAN.
8. Make sure Simple AP is set to On.
62
9. Select Network Projection and press Enter.
10. Turn on the Projector Keyword setting if you want to prevent access to the projector by anyone not in the room with it.
Note: The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software to access the projector.
11. Select On as the Epson iProjection setting.
12. Select the following settings as necessary:
• SSID Display selects whether to display the SSID on the network standby screen and Home
screen.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.
63
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)
• Keyword Interrupt Display lets you select whether to display a projector keyword on the
projected image when accessing the projector using Epson iProjection.
13. When you finish selecting settings, select Return and press Enter to return to the Network Settings menu
14. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
15. Press the LAN button on the remote control.
Your projector displays a QR code on the projection surface. You can press the Enter button to hide and show the QR code on the screen. If you do not see the QR code, set the Display LAN Info setting to Text & QR Code in the Network menu.
16. Open the Epson iProjection app on your smartphone or tablet.
17. Use the QR code reader feature to read the QR code and connect your device to the projector.
Note: The projector and the smartphone must be on the same wireless network in order to establish a connection.
Your smartphone or tablet is now connected to your projector. Visit epson.com/iprojection (U.S.),
epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean) for information on controlling
your projector with the Epson iProjection app.
Parent topic: Wireless Network Projection
Related references
Network Settings - Network Menu Administration Settings - Management Menu

Using Quick Wireless Connection (Windows)

You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.
Note: A USB flash drive is not included with your projector.
64
1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows) software.
Note: See the online Epson iProjection Operation Guide for instructions.
2. Turn on the projector.
3. Press the LAN button on the remote control.
The LAN standby screen is displayed.
4. Verify the SSID and IP address.
5. Insert the USB key into the projector's USB-A port.
You see a projected message that the network information update is complete.
6. Remove the USB key.
7. Insert the USB key into a USB port on your computer.
8. Follow the on-screen instructions to install the Epson iProjection software.
Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administrator authority to install the software. If it is not installed automatically, double-click MPPLaunch.exe in the USB key.
After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.
9. Run your presentation as necessary.
10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.
Note: You can share the USB key with other computers without disconnecting your computer. You may need to restart your computer to reactivate your wireless LAN connection.
Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.
1. Turn on the projector.
65
2. Press the Menu button.
3. Select the Management menu and press Enter.
4. Select On as the Wireless LAN Power setting.
66
5. Select the Network menu and press Enter.
6. Select Network Settings and press Enter.
7. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the projector on the network.
8. Set the Priority Control Interface setting to Wireless LAN.
9. Select the connection method:
• To connect directly to a wireless device (Simple AP mode), set the Simple AP setting to On and
go to step 17.
• To connect to a device via a wireless network router (infrastructure mode), set the Simple AP
setting to Off and go to the next step.
• If you installed the optional wireless LAN module and want to use both connection methods, set
the Simple AP setting to On and go to the next step.
67
10. Select the Wireless LAN menu and press Enter.
11. Select Search Access Point and press Enter.
The projector searches for wireless networks.
12. Select the network you want to connect to and enter the password, if necessary.
Note: If you need to assign the SSID manually, select SSID to enter the SSID. The SSID and password are case-sensitive. Make sure you enter them in the correct case.
13. Select IP Settings and press Enter.
14. Select your IP settings as necessary:
• If your network assigns addresses automatically, turn on the DHCP setting.
• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet
Mask, and Gateway Address as needed.
Note: Do not use these addresses: 0.0.0.0, 127.x.x.x, 192.0.2.x or 224.0.0.0 through
255.255.255.255 (where x is a number from 0 to 255) for IP Address, 255.255.255.255 or 0.0.0.0 through 254.255.255.255 for Subnet Mask, and 0.0.0.0, 127.x.x.x or 224.0.0.0 through
255.255.255.255 for Gateway Address. For DNS Server addresses, do not use the following IP
68
addresses: 127.x.x.x (where x is a number from 0 to 255). When these settings are not set, DNS server information is acquired using DHCP.
Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter.
15. To prevent display of the IP address on the network information screen, turn off IP Address Display.
16. Select Return and press Enter to return to the Network Settings menu.
17. Select the Network Projection menu and press Enter.
18. Turn on the Projector Keyword setting if you want to prevent access to the projector by anyone not in the room with it.
Note: The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software to access the projector.
69
19. Set the Epson iProjection setting to On.
20. Select the following options as necessary:
• SSID Display lets you select whether to display the projector's SSID on the standby screen and
Home screen.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices with the Epson iProjection app.
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
• Keyword Interrupt Display lets you select whether to display a projector keyword on the
projected image when accessing the projector using Epson iProjection.
Note: Use the displayed keyboard to enter the password and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.
21. When you finish selecting settings, select Return to return to the Network Settings menu.
22. Select Set and follow the on-screen instructions to save your settings and exit the menus.
After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.
Note: You can press the LAN button on the remote control to check your network security settings after completing the wireless settings.
Wireless LAN Menu Settings
Parent topic: Wireless Network Projection
Wireless LAN Menu Settings
Setting Options Description
Search Access Point To Search View Search for available wireless
SSID Up 32 alphanumeric characters Manually set the SSID (network
network access points in Advanced connection mode
name) of the wireless LAN system the projector is connecting to
70
Setting Options Description
Security WPA2/WPA3-PSK
WPA2/WPA3-EAP
WPA3-PSK
WPA3-EAP
Open
Passphrase Various passphrases from 8 to
63 characters
Selects the type of security used on the wireless network
WPA2/WPA3-PSK: uses WPA2/WPA3 personal mode; encryption is dependent on the access point settings; Passphrase must be the same as the access point
WPA2/WPA3-EAP: uses WPA2/WPA3 enterprise mode; encryption is dependent on the access point settings
WPA3-PSK: uses WPA3 security with AES for encryption. Use the Passphrase value to establish a connection from a computer
WPA3-EAP: uses WPA3 enterprise mode; encryption is dependent on the access point settings
Selects the pre-shared key used on the network; passphrases are case-sensitive. If the network settings are reset after the passphrase has been changed more than once, the first passphrase is restored. This setting is only displayed when
Security is set to WPA3-PSK or WPA2/WPA3-PSK.
71
Setting Options Description
EAP Method EAP Type
User name
Sets the EAP settings for WPA3­EAP and WPA2/WPA3-EAP security
Password
Client Certificate
Verify Server Certificate
CA certificate
RADIUS Server Name
IP Settings DHCP (On or Off)
IP Address
Subnet Mask
Gateway Address
Selects DHCP if your network assigns IP addresses automatically, or turns off DHCP so you can enter the network's IP address, subnet mask, and gateway address as needed
DNS Server 1/ DNS Server 2 Various IP addresses Sets the IP address for the DNS
server using 0 to 255 for each address field. The DNS server resolves the host name
IPv6 On
Off
Enables IPv6 to allow monitoring and control of the projector over a network using Epson Web Control and PJLink
Auto Configuration On
Off
Use Temporary Address On
Off
IP Address Display On
Off
Parent topic: Selecting Wireless Network Settings Manually
72
Selects whether to automatically assign addresses according to the Router Advertisement
Enables use of a temporary IPv6 address
Selects whether to display the IP address on the network standby screen and Home screen

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.
1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.
2. Do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
3. Click Connect .
Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.
1. Click the AirPort icon on the menu bar at the top of the screen.
2. Make sure AirPort is turned on, then do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network:
• WPA2-PSK (Simple AP mode only)
• WPA3-PSK
• WPA2/WPA3-PSK
• WPA3-EAP
• WPA2/WPA3-EAP
Note: To set up WPA3-EAP or WAP2/WAP3-EAP security, register your digital certificate file and place it on a USB storage device for connection to your projector.
73
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Settings and press Enter.
4. Do one of the following:
• To connect directly to a wireless device (Simple AP mode), select Passphrase, press Enter,
and enter a passphrase from 8 to 63 characters long. When you are done, return to the Network Settings screen, select Set, and follow the on-screen instructions to save your settings and exit the menus. Skip the rest of these steps.
• To connect to a device via a wireless network router (infrastructure mode), select the Wireless
LAN menu and press Enter. Continue with the next step.
5. Select the Security setting and press Enter.
6. Select the security settings for your network.
7. Do one of the following according to the security you selected:
• WPA3-PSK or WPA2/WPA3-PSK: Select Passphrase, press Enter, and enter a passphrase
from 8 to 63 characters long. Then continue with step 9.
• WPA3-EAP or WPA2/WPA3-EAP: Select EAP Type and press Enter.
74
8. Select the protocol for authentication as the EAP Type setting.
9. When you are finished, select Return and press Enter to return to the Network Settings menu.
10. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wireless Network Projection
Related tasks
Registering Digital Certificates from a Web Browser

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

You can send images to your projector from mobile devices such as laptops, smartphones, and tablets using Miracast technology or from a Windows computer. If your device supports Miracast, you do not need to install any additional software.
The projector detects the input sources as Screen Mirroring1 and Screen Mirroring2.
Screen Mirroring Restrictions Selecting Screen Mirroring Settings Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer Connecting for Screen Mirroring with Miracast
Parent topic: Using the Projector on a Network

Screen Mirroring Restrictions

Note the following when using Screen Mirroring features:
• You cannot project an interlaced image.
• You cannot play audio with more than 3 channels.
• You may not be able to project images depending on the resolution and frame rate.
• You cannot project 3D video.
• You can only play audio saved using the LPCM or AAC-LC audio codec.
• You can only play movies saved using the H.264 or H.265 movie codec (H.265 only supports the Main
Profile)
• You cannot use extended Miracast features on Windows 8.1.
• You may not be able to view contents with copyright protection using a Miracast connection.
75
• Do not change the projector's Screen Mirroring settings during Screen Mirroring projection. Doing so
may cause the projector to disconnect and delay reconnection.
• Do not turn off the electrical supply to the projector during Screen Mirroring projection.
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)

Selecting Screen Mirroring Settings

You can select Screen Mirroring settings for your projector and then project images from your mobile device.
1. Press the Menu button.
2. Select the Management menu and press Enter.
3. Set the Wireless LAN Power setting to On.
76
4. Select the Network menu and press Enter.
5. Select Network Settings and press Enter.
6. Select Priority Control Interface and press Enter.
7. Choose one of the following options:
• If you are casting images over a wired LAN, select Wired LAN.
• If you are casting images wirelessly directly or via a wireless network router, select Wireless LAN.
8. Set the Simple AP setting to On.
9. Select Network Projection and press Enter.
10. Set the Screen Mirroring setting to On.
11. Select these settings as necessary:
• Interrupt Connection lets you switch the screen to another device while projecting using Screen
Mirroring. If you want to connect two Screen Mirroring sources at once, select Off.
• Adjust Image Quality lets you adjust the screen mirroring speed and quality. Select a small
number to improve the quality or a large number to increase the speed.
77
• Capture lets you capture the projected image and paste it on a page in Whiteboard mode.
Note: If you enable the Capture setting, the projector disables HDCP.
• Screen Mirroring Info displays connection information when projecting from a Screen Mirroring
source.
12. When you finish selecting settings, select Return and press Enter to return to the Network Settings screen.
13. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer

You can set up your computer to wirelessly project images and play sound using Screen Mirroring.
Note: If you are using Windows 10, you can cast images over a local area network or from your device to the projector directly. When you cast images over a local area network, the connection is more stable and secure. Connect the projector to the network with an Ethernet cable or install the optional wireless LAN module and set the wireless LAN settings to connect to a wireless network.
1. Select the Screen Mirroring settings on your projector as necessary.
2. Press the LAN button on the remote control to switch to the Screen Mirroring source.
You see the Screen Mirroring standby screen.
3. Do one of the following:
• Windows 10: Open Action Center and select Connect.
• Windows 8.x: Select Devices > Project > Add a wireless display.
4. Select your projector's Display Name from the list.
5. If you see the PIN entry screen on your computer, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.
The projector displays the image from your computer or mobile device.
Note: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. This may cause your device to freeze or malfunction.
78
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)
Related references
Optional Equipment and Replacement Parts Network Settings - Network Menu
Related tasks
Selecting Screen Mirroring Settings

Connecting for Screen Mirroring with Miracast

If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images and sound.
1. Select the Screen Mirroring settings on your projector as necessary.
2. Press the LAN button on the remote control to switch to the Screen Mirroring source.
You see the Screen Mirroring standby screen.
3. On your mobile device, use the Miracast function to search for the projector.
Note: See your mobile device's documentation for information on accessing the Miracast function.
You see a list of available devices.
4. Select your projector from the list.
5. If you see the PIN entry screen on your mobile device, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.
The projector displays the image from your mobile device.
Caution: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. Doing so may cause your device to freeze or malfunction.
Note: Depending on the mobile device, you may need to delete a device when connecting. Follow the on-screen instructions on your device.
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)
Related references
Network Settings - Network Menu
79
Related tasks
Selecting Screen Mirroring Settings

Screen Sharing

You can display the projected screen of other compatible Epson projectors connected to the same network with the screen sharing function.
The screen sharing function is limited by the following:
• You cannot share your projected screen with other projectors. You can only display the projected
screen from projectors with the sharing capability.
• If your projector's firmware version is older than the version installed on other projectors on the
network, you may not be able to display the shared screen and may need to update your projector's firmware.
• You cannot change the projector's Network settings while displaying a shared screen.

Projecting Screen Sharing Images

Parent topic: Using the Projector on a Network
Related concepts
Updating the Firmware
Projecting Screen Sharing Images
You can display shared images from BrightLink 1480Fi/1480Fi+/1485Fi/1485Fi+ projectors connected to the same network.
Note: Make sure your projector is not connected to any devices via Epson iProjection before you use the screen sharing function.
1. Turn on the projector.
2. Connect your projector to the same network as the host projector that is sharing its screen.
3. Press the Menu button on the projector or the remote control.
80
4. Select the Network menu and press Enter.
5. Select Network Settings and press Enter.
6. Select Network Projection and press Enter.
7. Set the Screen Sharing setting to On.
8. When you finish selecting settings, select Return and press Enter to return the Network Settings menu.
9. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
When a projector on the same network shares its screen, the shared screen is automatically displayed on your projector. If it isn't, press the LAN button on the remote control to switch to the screen sharing source. To exit screen sharing, press the Esc button on the remote control.
Parent topic: Screen Sharing
Related references
Network Settings - Network Menu
81

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.
Note: If the Standby Mode setting is set to Communication On in the Operation menu, you can receive e-mail alerts even if the projector is in standby mode (the power is off). The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Settings and press Enter.
4. Select the Mail Notification menu and press Enter.
5. Turn on Mail Notification.
6. Enter the IP address for the SMTP Server setting.
Note: Do not use 127.x.x.x (where x is a number from 0 to 255).
7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).
8. Select a type of Authentication for the SMTP server.
9. Enter a User Name for the SMTP server.
10. Enter a Password for the SMTP server authentication.
11. Enter the sender's email address as the From setting.
12. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses. Your e-mail address can be up to 64 alphanumeric characters long.
82
13. If you are using the PJLink protocol for projector control, turn on the PJLink setting in the Projector Control menu and enter the IP address where you want to receive PJLink notifications as the Notified IP Address setting.
14. When you finish selecting settings, select Return and press Enter to return to the Network Settings menu.
15. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network
Network Projector E-mail Alert Messages
When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:
• The email address entered as the From setting
• Epson Projector on the subject line
• The name of the projector experiencing a problem
• The IP address of the affected projector
• Detailed information about the problem
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.
1. Press the Menu button.
2. Select Network > Network Settings > Projector Control > SNMP > On.
83
3. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address setting, using 0 to 255 for each address field.
Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 224.0.0.0 through 255.255.255.255. This projector
supports SNMP agent version 1 (SNMPv1).
4. Enter the SNMP Community Name (up to 32 alphanumeric characters).
5. When you finish selecting settings, select Return and press Enter to return to the Network Settings menu.
6. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.
Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later, Microsoft Edge, Google Chrome, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.
Note: If you set Standby Mode to Communication On in the Operation menu, you can use a web browser to select settings and control projection even if the projector is in standby mode (the power is off). The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.
1. Make sure the projector is turned on.
2. Start your web browser on a computer or device connected to the network.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key (if you are entering an IPv6 address, wrap the address with [ and ]).
Note: You can find the projector's IP address in the projector's Network menu or on the LAN input screen.
Note: If you attempt to connect to the Web Control screen via a proxy server, the screen will not be displayed. Make a direct connection to the Web Control screen.
84
You see the Web Control screen.
4. To control projection remotely, select the Basic Control option from the Web Control screen.
Note: If you see a log in window, enter your user name and password. (The default user name is EPSONREMOTE and the default password is guest.)
85
You see a screen like this:
1 Returns to the Epson Web Control screen
2 Power button control
3 Selects the input source
4 A/V Mute button control
5 Freeze button control
6 Displays a QR code for connecting with iOS or Android devices using the Epson iProjection
app
7 Volume button controls
8 Searches for connected sources
5. Select the icon corresponding to the projector function you want to control.
86
6. To select projector menu settings, select Advanced on the Web Control screen.
Note: If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)
7. Select the name of the menu and follow the on-screen instructions.
Parent topic: Using the Projector on a Network

Creating an Address Book

When sending e-mails from whiteboard mode, you can choose e-mail addresses from an address book. You can create the address book by loading a text file of up to 999 addresses through the web control page.
Note: Addresses are displayed in the order they appear in the text file.
1. Create the text file containing the list of addresses you want to add to the address book. The file must have the following characteristics:
• Tab-delimited
• Each line must contain a pair of strings separated by a tab: <name> <tab> <email_address>
• Each line can contain up to 256 characters
• Filename with a .txt extension
• Character code must be Unicode (UTF-16 with BOM)
The text file should look something like this:
2. Make sure the projector is turned on.
3. Start your web browser on a computer connected to the network.
4. Type the projector's IP address into the browser's address box and press the computer's Enter key (if you are entering an IPv6 address, wrap the address with [ and ]).
Note: You can find the projector's IP address in the projector's Network menu or on the LAN input screen.
5. Enter the user name and password at the prompts.
6. Select Advanced.
87
Note: If you attempt to connect to the Web Control screen via a proxy server, the screen will not be
displayed. Make a direct connection to the Web Control screen.
You see the Web Control screen.
7. Select Interactive > Mail > Address Book File and browse for the address book file.
8. Select the address book file and select Send.
The address book file is uploaded to the projector.
Note: If you need to delete the address book, select Interactive > Mail > Address Book Settings > Delete Address Book and select Send.
Parent topic: Using the Projector on a Network

Using Crestron Connected

If you are using the Crestron Connected network monitoring and control system, you can set up your projector for use on the system. Crestron Connected lets you control and monitor your projector using a web browser.
Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software when you use Crestron Connected.
For additional information on Crestron Connected, contact Crestron.
Setting Up Crestron Connected Controlling a Networked Projector Using Crestron Connected
Parent topic: Using the Projector on a Network

Setting Up Crestron Connected

To set up your projector for monitoring and control using a Crestron Connected system, make sure your computer and projector are connected to the network.
Note: If you want to use the Crestron Connected system when the projector is turned off, you need to adjust the Standby Mode setting in the Operation menu. The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.
1. Press the Menu button.
88
2. Select the Network menu and press Enter.
3. Select Network Settings and press Enter.
4. Select the Projector Control menu and press Enter.
5. Set the Crestron Connected setting to On to allow the projector to be detected.
Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson Projector Management software.
6. When you are finished selecting settings, select Return and press Enter to return to the Network Settings menu.
7. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
8. Turn off the projector, then turn it on again to enable the setting.
Parent topic: Using Crestron Connected
Related references
Input Signal Settings - Signal I/O Menu Network Settings - Network Menu Feature Settings - Operation Menu

Controlling a Networked Projector Using Crestron Connected

Once you have set up your projector to use Crestron Connected, you can control and monitor projection using a compatible web browser.
1. Start your web browser on a computer connected to the network.
2. Type the projector's IP address into the browser's address box and press the computer's Enter key.
89
You see the Epson Web Control screen:
3. Select Crestron Connected.
90
You see a screen like this:
Note: Sources in the image above vary depending on ports available on your product.
4. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.
5. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.
Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:
• OK acts as the Enter button
• Menu displays the projector's menu
6. To view information about the projector, click the Info tab.
7. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.
8. When you finish selecting settings, click Exit to exit the program.
Parent topic: Using Crestron Connected
91

Registering a Digital Certificate on the Projector

Follow the instructions here if you need to install a digital certificate on the projector to provide security for your presentation files.
Note: You can register a digital certificate over a network. However, be sure to register just once or the certificate may not install correctly.
Importing a Web Server Certificate Using the Projector Menus Registering Digital Certificates from a Web Browser Digital Certificate Types
Parent topic: Using the Projector on a Network

Importing a Web Server Certificate Using the Projector Menus

You can create your web server certificate and import it using the projector menus and a USB flash drive.
Note: You can also register digital certificates from your web browser. Make sure to only register once, or the certificate may not install correctly.
1. Make sure your digital certificate file is compatible with projector registration and saved in the root directory of the USB flash drive.
2. Press the Menu button on the projector or remote control.
3. Select Network > Network Settings > Projector Control > Secure HTTP > On.
4. Select the Web Server Certificate setting and press Enter.
5. Select Save and press Enter.
6. Follow the on-screen instructions to connect a USB flash drive to the USB-A port on the projector.
7. Press Enter to display the certificate list.
8. Select the certificate you want to import from the displayed list.
A message is displayed prompting you to enter the password for the certificate.
9. Enter the password and press Enter.
The certificate is imported and a completion message appears.
Parent topic: Registering a Digital Certificate on the Projector
92

Registering Digital Certificates from a Web Browser

You can register the digital certificates on the projector for wireless LAN authentication.
Note: You can also register the digital certificates in the projector's Network menu. However, be sure to register just once or the certificate may not install correctly.
1. Make sure your digital certificate file is compatible with projector registration.
2. Make sure the projector is turned on.
3. Start your web browser on a computer or mobile device connected to the network.
4. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Web Control screen and a prompt to enter a user ID and password.
5. Select Advanced and enter the following information in uppercase or lowercase letters, exactly as shown:
• For the user ID, enter EPSONWEB. (You cannot change the user ID.)
• For the password, enter the default password admin. (You can change the Web Control password
using the projector's Network Settings menu.)
6. Under Network, select Certificate.
Note: You may need to select the menu icon to find Network, depending on your device.
93
You see a screen like this:
7. Click the Choose File button, select the certificate file, and click Open.
Note: The button name may vary depending on the browser you are using.
8. Enter a password in the Password box and click Send.
9. When you finish registering the certificate, click Apply to finalize your changes and complete the registration.
Parent topic: Registering a Digital Certificate on the Projector

Digital Certificate Types

You can register these types of digital certificates.
Client Certificate (PEAP-TLS/EAP-TLS)
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
94
Specification Description
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Password Up to 64 alphanumeric characters; required
CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)
Specification Description
Format X509v3
Extension DER/CER/PEM
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Encoding BASE64/Binary
Web Server Certificate (Secure HTTP)
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Common name Network host name
Organization Optional
Password Up to 64 alphanumeric characters; required
Parent topic: Registering a Digital Certificate on the Projector
95

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Setting the Date and Time Image Shape Resizing the Image with the Wide and Tele Buttons Adjusting the Image Position Focusing the Image Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Adjusting the Hue, Saturation, and Brightness Adjusting Gamma Adjusting the Image Resolution Adjusting the Projector's Brightness Level Turning On Automatic Luminance Adjustment Controlling the Volume with the Volume Buttons Selecting a Quick Startup Setting Projecting a PC Free Presentation

Turning On the Projector

Turn on the projector before you turn on the computer or video equipment you want to use.
96
1. Connect the power cord to the projector's power inlet.
2. Plug the power cord into an electrical outlet.
The projector's On/Standby light turns blue. This indicates that the projector is receiving power.
Note: With Direct Power On turned on, the projector turns on as soon as you plug it in. If you enable the Auto Power On setting in the projector's Operation menu, the projector turns on when it detects a signal or cable connection from the selected port.
3. Press the power button on the projector or remote control to turn on the projector.
The projector beeps and the Status light flashes blue as the projector warms up. After about 30 seconds, the Status light stops flashing and turns blue.
Note: When Quick Startup is enabled in the projector's Operation menu, the projector becomes ready for use in several seconds the next time you press the power button.
97
Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is
especially dangerous for children and pets.
Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the lens for an extended time can melt and light that is reflected back into the lens can cause the projector to malfunction.
If you do not see a projected image right away, try the following:
• Turn on the connected computer or video device.
• Insert a DVD or other video media and press the play button, if necessary.
• Press the Source Search button on the projector or remote control to detect the video source.
Note: If the Auto Source Search setting in the Operation menu is enabled, the projector automatically detects the input signal when you turn it on.
• Change the screen output from the computer when using a laptop.
• Press the button for the video source on the remote control.
• If the Home screen is displayed, select the source you want to project.

Using the Home Screen

Parent topic: Using Basic Projector Features
Related references
Feature Settings - Operation Menu
Using the Home Screen
You can select input sources and other frequently used options from the Home screen.
Note: A Touch Unit is optional and must be installed to enable finger touch operation.
1. To display the Home screen, do one of the following:
• Press the Home button on the control panel or remote control.
• Turn on the projector with the Home Screen Auto Disp setting enabled.
• Turn on the projector when no signal is received from the selected input source.
98
2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press Enter to select an option. You can also select menu items using the interactive pen or your finger.
1 Selects the source you want to project
A checkmark appears in the upper right corner of the current input source. For most sources, a preview of the input image appears as a thumbnail.
2 Turns off the projector
3 Closes the Home screen
4 Starts Whiteboard mode
5 Projects images from two or four input sources simultaneously in a grid format
6 Receives shared images from other host projectors (BrightLink
1480Fi/1480Fi+/1485Fi/1485Fi+) connected to the same network
7 Displays the Connection Guide
You can view steps for different wireless connection methods depending on the devices you are using, such as smartphones or computers.
99
8 Lets you select the following common projector settings (these settings may vary depending
on other selected settings):
• Color Mode
• Brightness Level
• Volume
• Geometry Correction (H/V-Keystone and Quick Corner are available)
• Auto Calibration
• Aspect
9 Moves to the previous or next page if there are more available input sources
10 Displays the projector name and the projector keyword
11 Displays the current time
Note: The Home screen closes after 10 minutes of inactivity.
3. Press the icon to close the Home screen.
Parent topic: Turning On the Projector

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
1. Press the power button on the projector or remote control.
The projector displays a shutdown confirmation screen.
100
