PowerLite Home Cinema 710HD

User's Guide

Introduction to Your Projector ................................................................................................................... 9

Setting Up the Projector ........................................................................................................................... 20

Projector Features................................................................................................................................ 9

Product Box Contents.................................................................................................................... 10

Additional Components ................................................................................................................ 11

Optional Equipment and Replacement Parts................................................................................. 11

Warranty and Registration Information.......................................................................................... 12

Notations Used in the Documentation ........................................................................................... 12

Where to Go for Additional Information.......................................................................................... 13

Projector Part Locations..................................................................................................................... 13

Projector Parts - Front/Top ............................................................................................................ 14

Projector Parts - Rear.................................................................................................................... 15

Projector Parts - Base.................................................................................................................... 16

Projector Parts - Control Panel ...................................................................................................... 17

Projector Parts - Remote Control................................................................................................... 18

Projector Placement........................................................................................................................... 20

Projector Setup and Installation Options ....................................................................................... 20

Projection Distance........................................................................................................................ 22

Projector Connections........................................................................................................................ 23

Connecting to Video Sources ........................................................................................................ 24

Connecting to an HDMI Video Source ...................................................................................... 24

Connecting to a Component-to-VGA Video Source.................................................................. 25

Connecting to an S-Video Video Source................................................................................... 26

Connecting to a Composite Video Source ................................................................................ 26

Connecting to a Video Source for Sound .................................................................................. 27

Connecting to Computer Sources.................................................................................................. 28

Connecting to a Computer for USB Video and Audio................................................................ 28

Connecting to a Computer for VGA Video ................................................................................ 29

Connecting to a Computer for HDMI Video and Audio.............................................................. 30

Connecting to a Computer for USB Mouse Control................................................................... 30

Connecting to a Computer for Sound........................................................................................ 31

Connecting to External USB Devices ............................................................................................ 31

USB Device Projection.............................................................................................................. 32

Connecting a USB Device or Camera to the Projector.............................................................. 32

Selecting the Connected USB Source ...................................................................................... 33

Disconnecting a USB Device or Camera From the Projector.................................................... 33

Connecting to a Document Camera .............................................................................................. 33

Installing Batteries in the Remote Control .......................................................................................... 34

Opening the Lens Cover .................................................................................................................... 36

Using Basic Projector Features ............................................................................................................... 37

Turning On the Projector .................................................................................................................... 37

Turning Off the Projector .................................................................................................................... 39

Selecting the Language for the Projector Menus................................................................................ 41

Adjusting the Image Height ................................................................................................................ 41

Image Shape...................................................................................................................................... 43

Correcting Image Shape with the Horizontal Keystone Slider ....................................................... 43

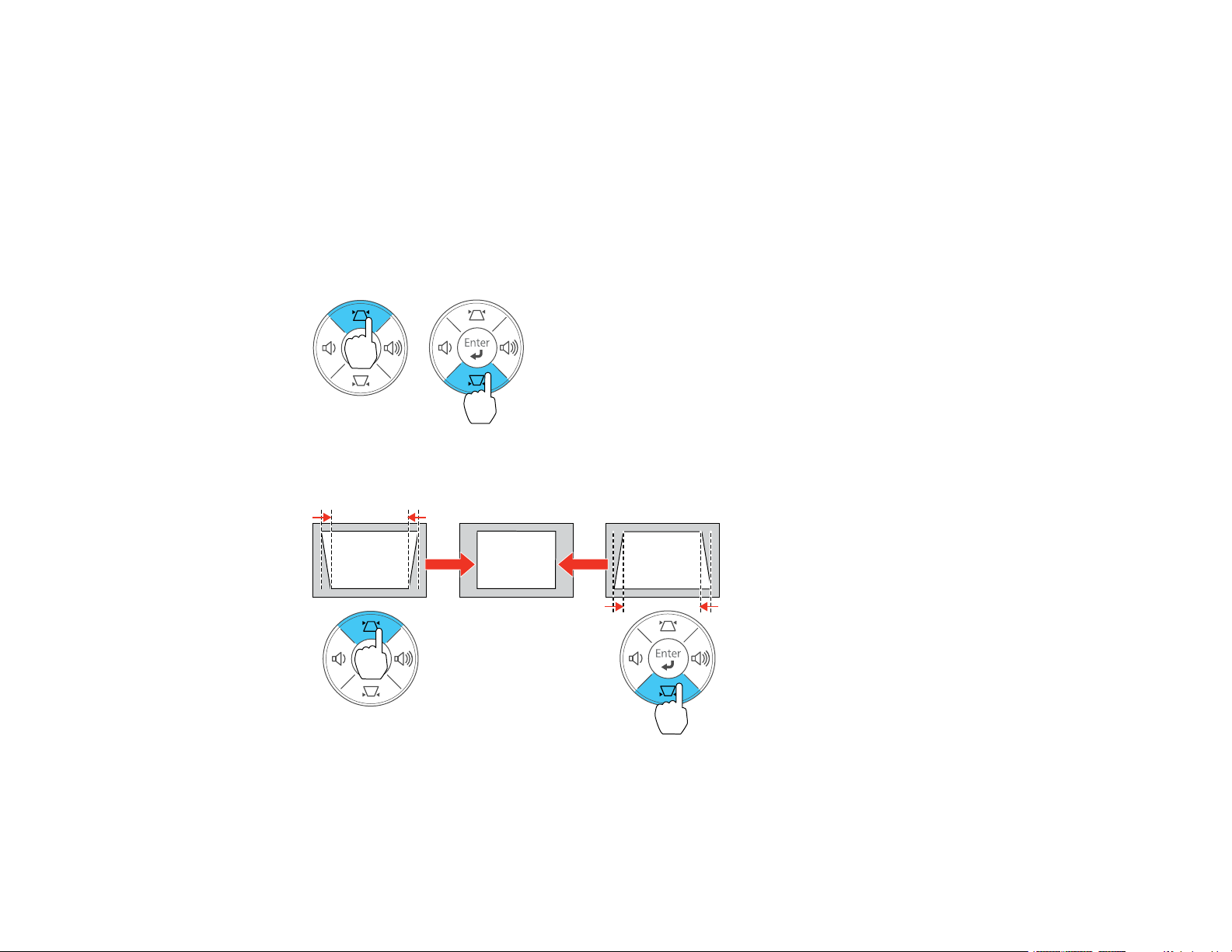

Correcting Image Shape with the Keystone Buttons ..................................................................... 44

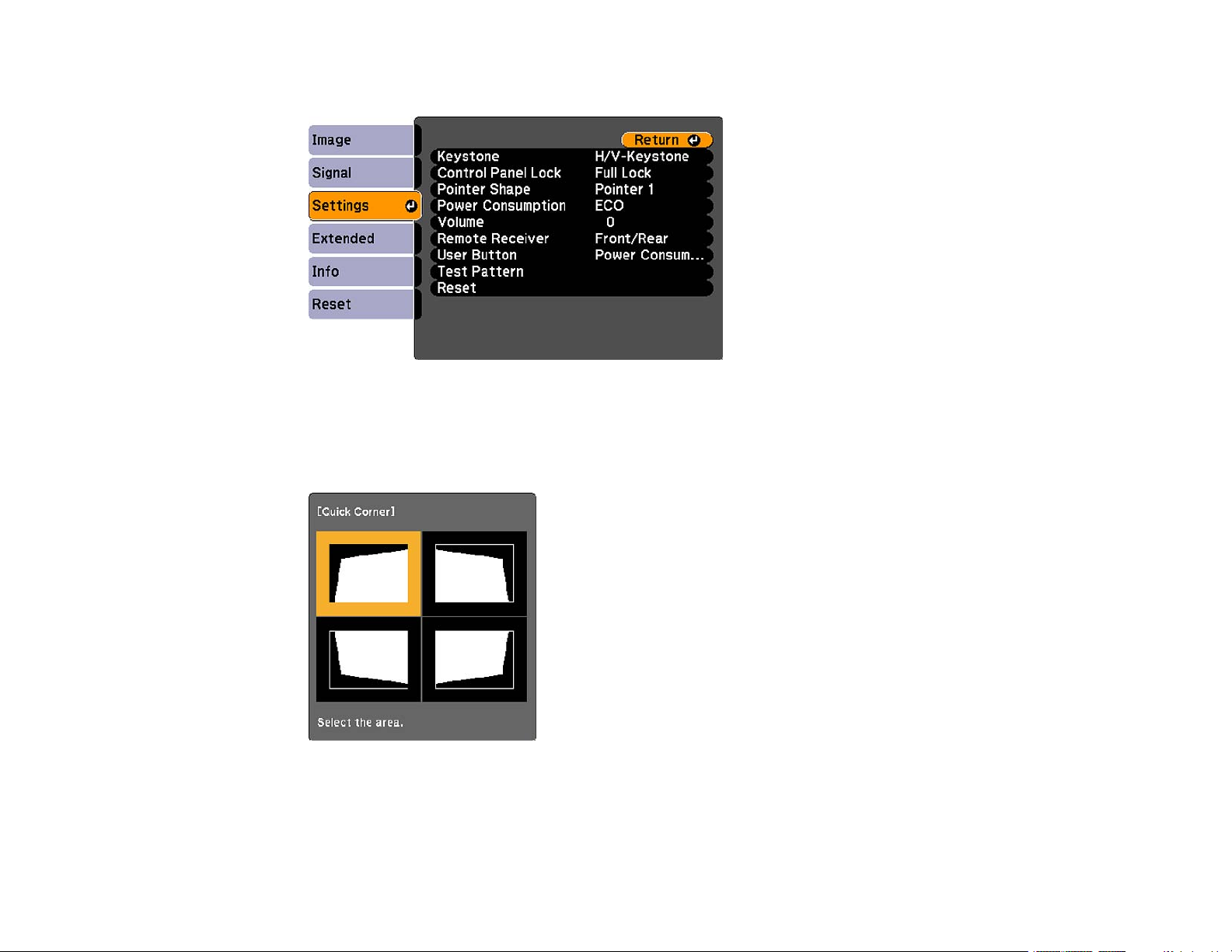

Correcting Image Shape with Quick Corner .................................................................................. 45

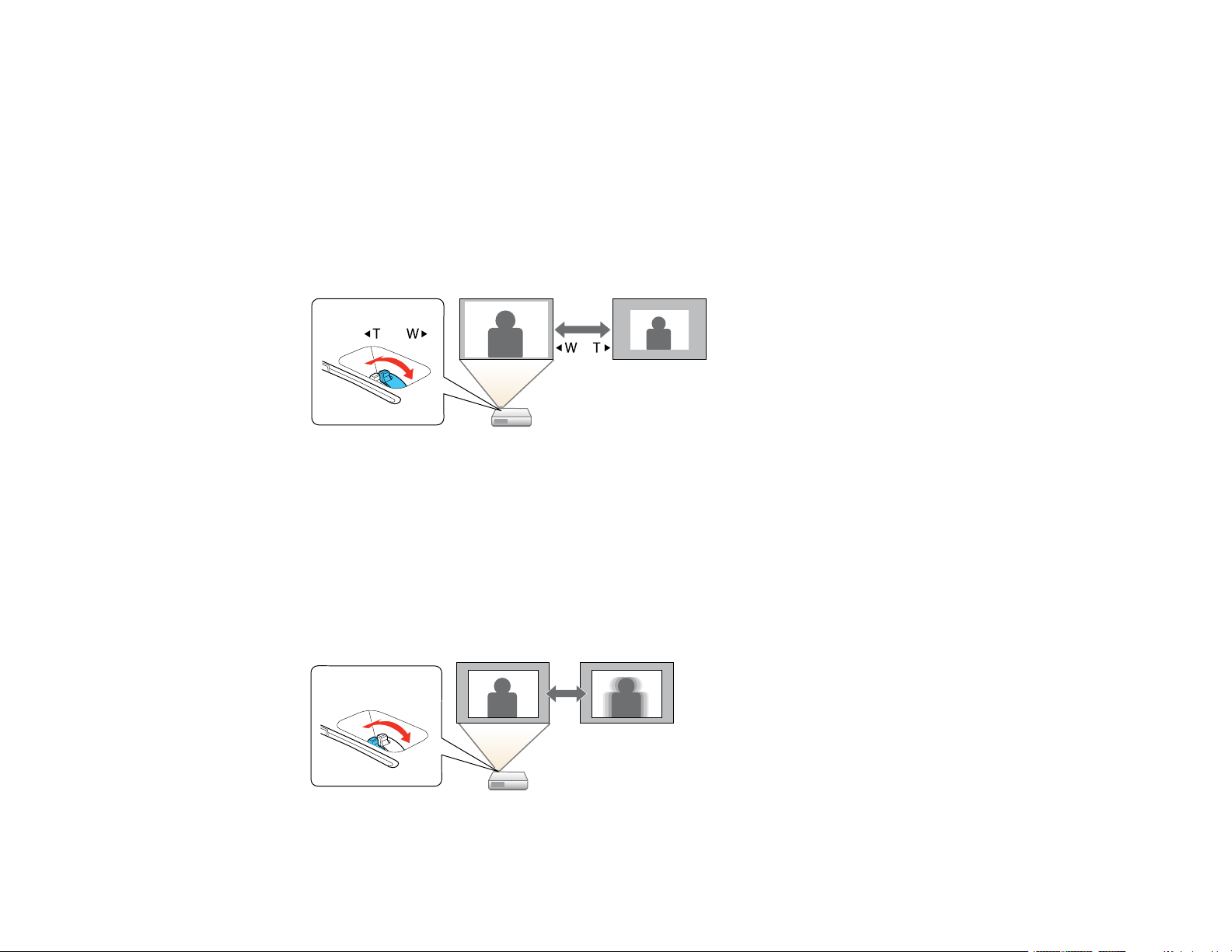

Resizing the Image With the Zoom Ring ............................................................................................ 47

Focusing the Image Using the Focus Ring ......................................................................................... 47

Remote Control Operation ................................................................................................................. 48

Using the Remote Control as a Wireless Mouse ........................................................................... 49

Using the Remote Control as a Presentation Pointer .................................................................... 50

Selecting an Image Source ................................................................................................................ 50

Projection Modes ............................................................................................................................... 52

Changing the Projection Mode Using the Remote Control ............................................................ 52

Changing the Projection Mode Using the Menus........................................................................... 53

Image Aspect Ratio............................................................................................................................ 53

Changing the Image Aspect Ratio ................................................................................................. 54

Available Image Aspect Ratios...................................................................................................... 54

Color Mode......................................................................................................................................... 55

Changing the Color Mode.............................................................................................................. 55

Available Color Modes................................................................................................................... 56

Turning On Auto Iris....................................................................................................................... 57

Controlling the Volume with the Volume Buttons................................................................................ 57

Projecting a Slide Show ..................................................................................................................... 58

Supported Slideshow File Types ................................................................................................... 58

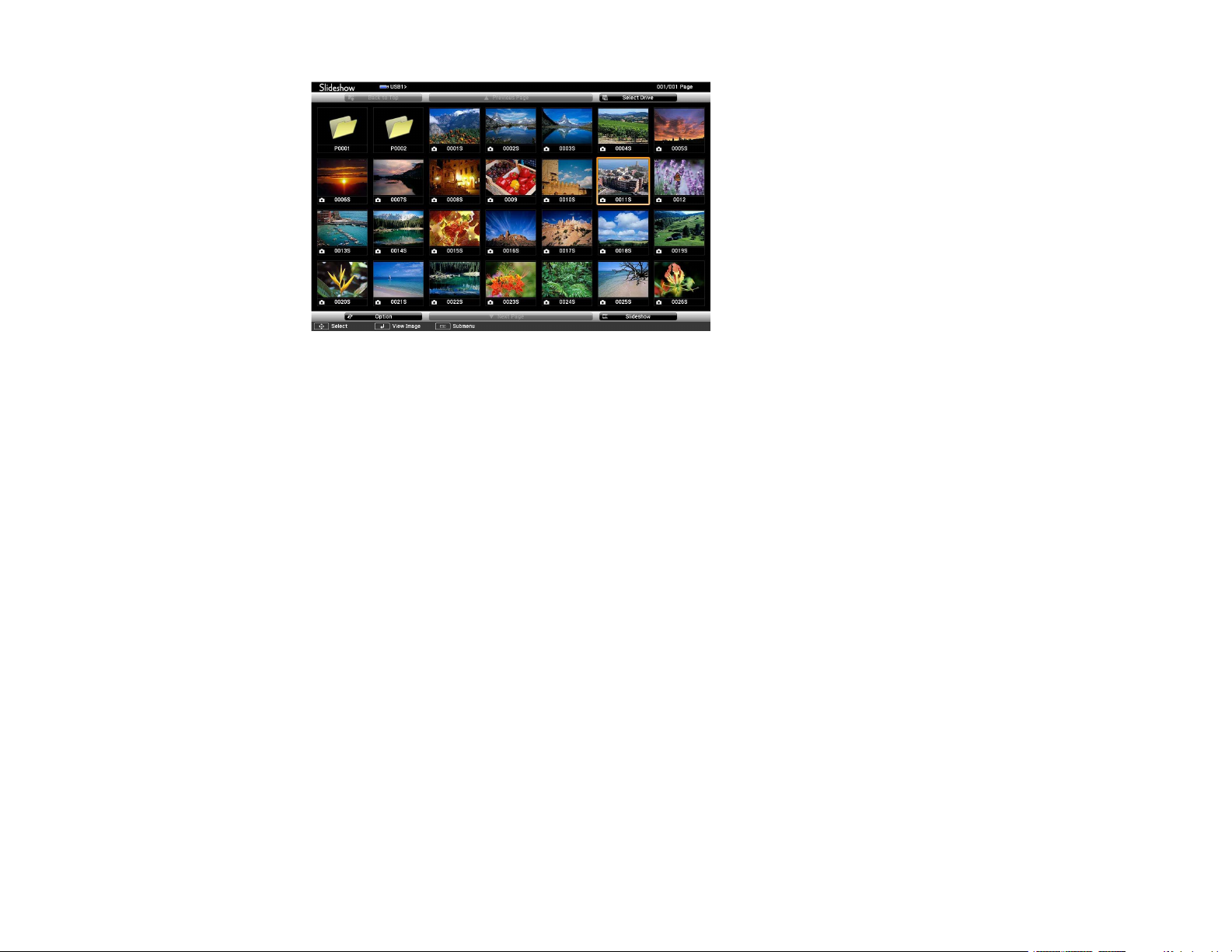

Starting a Slide Show .................................................................................................................... 59

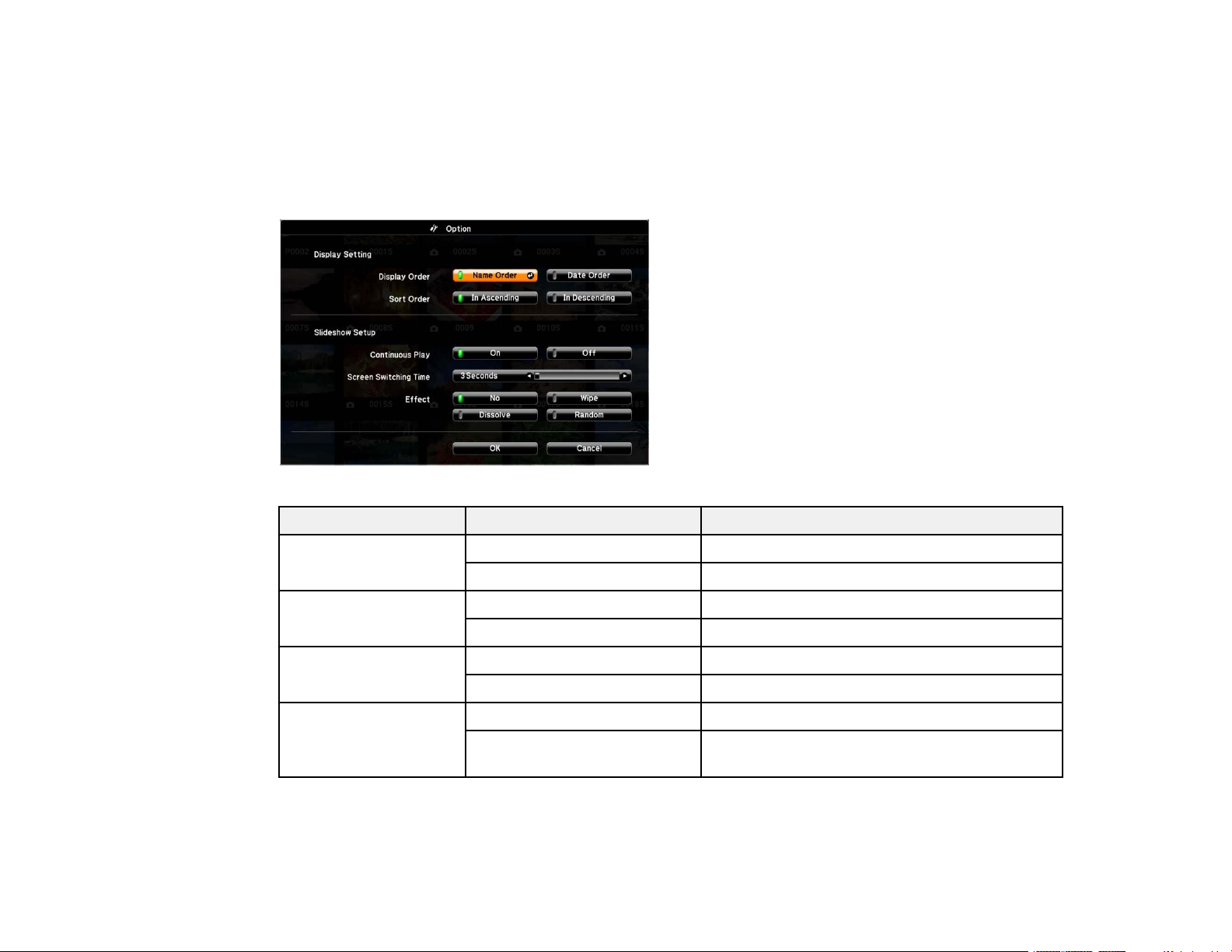

Slideshow Display Options ....................................................................................................... 61

Adjusting Projector Features ................................................................................................................... 63

Shutting Off the Picture and Sound Temporarily ................................................................................ 63

Stopping Video Action Temporarily .................................................................................................... 64

Zooming Into and Out of Images ........................................................................................................ 64

Projector Security Features................................................................................................................ 65

Password Security Types .............................................................................................................. 65

Setting a Password ................................................................................................................... 65

Selecting Password Security Types.......................................................................................... 67

Entering a Password to Use the Projector ................................................................................ 67

Saving a User's Logo Image to Display..................................................................................... 69

Locking the Projector's Buttons ..................................................................................................... 70

Unlocking the Projector's Buttons ............................................................................................. 71

Installing a Security Cable ............................................................................................................. 71

Adjusting the Menu Settings .................................................................................................................... 73

Using the Projector's Menus............................................................................................................... 73

Image Quality Settings - Image Menu ................................................................................................ 74

Input Signal Settings - Signal Menu ................................................................................................... 76

Projector Feature Settings - Settings Menu........................................................................................ 78

Projector Setup Settings - Extended Menu ........................................................................................ 81

Projector Information Display - Info Menu .......................................................................................... 83

Projector Reset Options - Reset Menu............................................................................................... 84

Maintaining and Transporting the Projector ........................................................................................... 86

Projector Maintenance ....................................................................................................................... 86

Cleaning the Lens.......................................................................................................................... 86

Cleaning the Projector Case.......................................................................................................... 87

Air Filter and Vent Maintenance .................................................................................................... 87

Cleaning the Air Filter and Vents............................................................................................... 87

Replacing the Air Filter.............................................................................................................. 88

Projector Lamp Maintenance......................................................................................................... 90

Replacing the Lamp .................................................................................................................. 91

Resetting the Lamp Timer......................................................................................................... 96

Replacing the Remote Control Batteries ....................................................................................... 97

Transporting the Projector.................................................................................................................. 99

Solving Problems .................................................................................................................................... 100

Projection Problem Tips ................................................................................................................... 100

Projector Light Status ....................................................................................................................... 100

Using the Projector Help Displays .................................................................................................... 103

Solving Image or Sound Problems................................................................................................... 103

Solutions When No Image Appears............................................................................................. 104

Solutions When Image is Incorrect Using the USB Display Function .......................................... 105

Solutions When " No Signal" Message Appears........................................................................... 105

Displaying From a PC Laptop ................................................................................................. 106

Displaying From a Mac Laptop ............................................................................................... 106

Solutions When " Not Supported" Message Appears ................................................................... 106

Solutions When Only a Partial Image Appears............................................................................ 107

Solutions When the Image is Not Rectangular ............................................................................ 107

Solutions When the Image Contains Noise or Static ................................................................... 108

Solutions When the Image is Fuzzy or Blurry .............................................................................. 108

Solutions When the Image Brightness or Colors are Incorrect .................................................... 109

Solutions When There is No Sound or Low Volume .................................................................... 110

Solving Projector or Remote Control Operation Problems ............................................................... 110

Solutions to Projector Power or Shut-Off Problems..................................................................... 111

Solutions to Problems with the Remote Control .......................................................................... 111

Solutions to Password Problems................................................................................................. 112

Where to Get Help............................................................................................................................ 112

Technical Specifications ........................................................................................................................ 114

General Projector Specifications...................................................................................................... 114

Projector Lamp Specifications.......................................................................................................... 115

Remote Control Specifications ......................................................................................................... 116

Projector Dimension Specifications.................................................................................................. 116

Projector Electrical Specifications .................................................................................................... 116

Projector Environmental Specifications............................................................................................ 117

Projector Safety and Approvals Specifications................................................................................. 117

Supported Video Display Formats.................................................................................................... 117

USB Display System Requirements................................................................................................. 119

Notices ..................................................................................................................................................... 121

Recycling.......................................................................................................................................... 121

Important Safety Information ............................................................................................................ 121

Important Safety Instructions............................................................................................................ 121

Restriction of Use ........................................................................................................................ 124

FCC Compliance Statement............................................................................................................. 125

Trademarks...................................................................................................................................... 125

Copyright Notice............................................................................................................................... 126

Copyright Attribution.................................................................................................................... 126

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Projector Part Locations

Projector Features

The PowerLite Home Cinema 710HD projector includes these special features:

Bright, high-resolution projection system

• Up to 2800 lumens of brightness (white light output and color light output)

• 720p HD resolution

Flexible connectivity

• HDMI port for computer or video device connection

• Component-to-VGA adapter cable included for quick component video connections to a component video cable

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• PC Free photo slide shows via connected USB memory devices

Easy-to-use setup and operation features

• Innovative horizontal keystone correction slider for flexible projector placement

• Built-in closed captioning decoder

• 1.2× optical zoom ratio for improved zooming capability

• Low total cost of ownership with longer lamp life

• Epson's Instant Off and Direct Power On features for quick setup and shut down

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information Notations Used in the Documentation Where to Go for Additional Information

Parent topic: Introduction to Your Projector

Related concepts

Projector Part Locations

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (two AA alkaline)

4 Power cord

5 Component-to-VGA adapter cable

6 Carrying case

7 Projector documentation CD

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To receive an HDMI signal, you need a compatible HDMI cable. See your local computer or electronics dealer for purchase information.

• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine EPSON Replacement lamp (ELPLP67) V13H010L67

Air filter replacement set (2 filters; ELPAF32) V13H134A32

AP-60 Projector Sound Solution V12H329020

Accolade Duet portable projector screen ELPSC80

ES1000 Ultra Portable Tabletop Projection screen V12H002S4Y

ES3000 Ultra Portable Tabletop Projection screen V12H002S3Y

Universal projector ceiling mount ELPMBPJF

Adjustable suspended ceiling channel kit ELPMBP01

Option or part Part number

False ceiling plate kit ELPMBP02

Structural Round ceiling plate ELPMBP03

Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01

VGA video cable 1.8 m length ELPKC02

VGA video cable 3.0 m length ELPKC09

VGA video cable 20 m length ELPKC10

Kensington security lock ELPSL01

In addition to the accessories listed above, 1-year and 2-year extended service plans are available.

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty brochure that came with your projector.

In addition, Epson offers free Extra Care Home Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Home Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Projector Features

Where to Go for Additional Information

Need quick help on using your projector during a presentation? Here's where to look for help:

• Built-in help system

Press the Help button on the remote control or projector to get quick solutions to common problems.

• www.epson.com/support (U.S) or www.epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and the sources listed above, you can use the EPSON PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Projector Features

Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent

2 Lamp cover

3 Horizontal keystone slider

4 Control panel

5 Projector status lights

6 Speaker

7 Air filter cover

8 Intake vent

9 Zoom ring

10 Focus ring

11 Remote receiver

12 A/V Mute slide

13 Front adjustable foot

14 Foot release lever

15 A/V Mute slide lever

Parent topic: Projector Part Locations

Projector Parts - Rear

1 Remote receiver

2 Audio ports

3 S-Video port

4 USB TypeA/document camera port

5 USB TypeB port

6 Computer port

7 HDMI port

8 Lamp cover screw

9 Kensington security lock slot

10 Video port

11 AC input port

Parent topic: Projector Part Locations

Projector Parts - Base

1 Mounting bracket holes

2 Front adjustable foot

3 Rear feet

4 Security cable attachment point

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 Power button

2 Source Search button (searches for connected sources)

3 Menu button (accesses projector menu system)

4 Enter button (selects options)

5 Volume control buttons, horizontal keystone adjustment buttons (adjust screen shape), and arrow

buttons

6 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons

7 Esc button (cancels/exits functions)

8 Help button (accesses projector help information)

Parent topic: Projector Part Locations

Related references

Projector Light Status

Projector Parts - Remote Control

1 Power button

2 Computer button (cycles through connected computer sources)

3 Video button (cycles through connected video sources)

4 Numeric buttons (enter numbers)

5 Auto button (automatically adjusts position, tracking, and sync settings)

6 Aspect button (selects the image aspect ratio)

7 Num button (when held down, switches numeric buttons to number function)

8 Menu button (accesses projector menu system)

9 Arrow buttons (move through on-screen options and control wireless mouse functions)

10 Enter button (selects options and controls wireless mouse functions)

11 User button (customizable for different functions)

12 Page up/down buttons (control presentation slides)

13 E-Zoom +/– buttons (zoom into and out of the image)

14 A/V Mute button (turns off picture and sound)

15 Help button (accesses projector help information)

16 Freeze button (stops video action)

17 Volume up/down buttons (adjust speaker volume)

18 Pointer button (activates on-screen pointer)

19 Esc button (cancels/exits functions and controls wireless mouse functions)

20 Color Mode button (selects display modes)

21 LAN button (button is not functional)

22 USB button (cycles through connected USB sources)

23 Source Search button (searches for connected sources)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover

Projector Placement

You can place the projector on almost any flat surface to project your presentation.

You can also install the projector in a ceiling mount if you want to use it in a fixed location.

Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector to view presentations in the following ways:

Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

16:10 Aspect Ratio

Screen or Projection distance image size

1 50 inches 55 to 66 inches (139 to 168 cm)

2 80 inches 88 to 106 inches (225 to 270 cm)

3 100 inches 111 to 133 inches (281 to 338 cm)

4 150 inches 167 to 200 inches (424 to 509 cm)

16:9 Aspect Ratio

Wide to Tele

Screen or Projection distance image size

1 50 inches 56 to 68 inches (143 to 172 cm)

2 80 inches 91 to 110 inches (231 to 278 cm)

3 100 inches 114 to 137 inches (289 to 348 cm)

4 150 inches 171 to 206 inches (435 to 523 cm)

4:3 Aspect Ratio

Screen or Projection distance image size

1 50 inches 62 to 75 inches (158 to 190 cm)

2 80 inches 100 to 120 inches (255 to 306 cm)

3 100 inches 126 to 151 inches (319 to 383 cm)

4 150 inches 189 to 227 inches (480 to 577 cm)

Parent topic: Projector Placement

Projector Connections

Wide to Tele

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• Connect any type of computer that has a USB port, standard video output (monitor) port, or HDMI port.

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and camera phones with compatible video output ports.

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

• For slide shows without a computer, you can connect USB devices (such as a flash drive or camera) or an optional EPSON document camera.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Video Sources

Connecting to Computer Sources Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu Product Box Contents

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component-to-VGA Video Source Connecting to an S-Video Video Source Connecting to a Composite Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Note: If you connected a game console, it may take a few seconds for your image to appear. To reduce

the lag time, set your game console's input signal to a progressive signal of 480p or 720p. See your game console documentation for instructions.

Parent topic: Connecting to Video Sources

Connecting to a Component-to-VGA Video Source

If your video source has component video ports, you can connect it to the projector using a componentto-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to the projector's Computer port.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Note: If you connected a game console, it may take a few seconds for your image to appear. To reduce the lag time, set your game console's input signal to a progressive signal of 480p or 720p. See your game console documentation for instructions.

Parent topic: Connecting to Video Sources

Related references

Input Signal Settings - Signal Menu

Related tasks

Connecting to a Video Source for Sound

Connecting to an S-Video Video Source

If your video source has an S-Video port, you can connect it to the projector using an optional S-Video cable.

1. Connect the S-Video cable to your video source's S-Video output port.

2. Connect the other end to the projector's S-Video port.

Parent topic: Connecting to Video Sources

Related tasks

Connecting to a Video Source for Sound

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Note: If you connected a game console, it may take a few seconds for your image to appear. To reduce

the lag time, set your game console's input signal to a progressive signal of 480p or 720p. See your game console documentation for instructions.

Parent topic: Connecting to Video Sources

Related tasks

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. Connect the projector to the video source using an RCA audio cable.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's Audio ports.

Parent topic: Connecting to Video Sources

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

1. In the projector's Extended menu, set the USB Type B setting to USB Display.

2. Turn on your computer.

3. Connect the cable to your projector's USB TypeB port.

4. Connect the other end to any available USB port on your computer.

5. Do one of the following:

• Windows 7/Windows Vista: Select Run EMP_UDSe.exe in the dialog box that appears to install the EPSON USB Display software.

• Windows XP: Wait as messages appear on your computer screen and the projector installs the EPSON USB Display software on your computer.

• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSe.EXE to install the EPSON USB Display software.

• Mac OS X: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the EPSON USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources

Related references

Projector Setup Settings - Extended Menu USB Display System Requirements

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connectors.

Parent topic: Connecting to Computer Sources

Related tasks

Connecting to a Computer for Sound

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer, USB TypeB, or HDMI port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control computer presentations at a distance from your computer. To do this, connect the projector to your computer using a USB cable, if it is not connected already.

1. Connect the USB cable to your projector's USB TypeB port.
