Epson® PowerLite® 61p/81p

Multimedia Projector

User’s Guide

Important Safety Information

WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes. Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small children to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misu se, or abus e of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Appro ved Products by Seiko Epson Corporation.

Trademarks

Epson and 3LCD are registered trademarks of Seiko Epson Corporation. Epson Connection, Epson Store, and Extra Care are service marks; SizeWise is a trademark; and PrivateLine,

Presenters Club, and PowerLite are registered trademarks of Epson America, Inc. Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc. General Notice: Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. Epson disclaims any and all rights in those marks.

CPD-17998R1

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Getting the Most from Your Projector . . . . . . . . . . . . . . . . . 8

Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 9

Getting More Information. . . . . . . . . . . . . . . . . . . . . . . 9

Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 10

Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional Components. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 Setting Up the Projector. . . . . . . . . . . . . . . . . . . . 13

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Other Installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Connecting to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting with the VGA Cable. . . . . . . . . . . . . . . . . 16

Connecting with a VGA-5BNC Cable. . . . . . . . . . . . . 18

Connecting the USB Cable

for Remote Mouse Control . . . . . . . . . . . . . . . . . . 19

Connecting an External Monitor. . . . . . . . . . . . . . . . . 20

Playing Sound Through the Projector . . . . . . . . . . . . . 21

Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting a Composite Video Source . . . . . . . . . . . . 23

Connecting an S-video Source . . . . . . . . . . . . . . . . . . . 24

Connecting an RGB Video Source. . . . . . . . . . . . . . . . 25

Connecting a Component Video Source . . . . . . . . . . . 26

Playing Sound Through the Projector . . . . . . . . . . . . . 27

2 Projecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Turning On Your Equipment . . . . . . . . . . . . . . . . . . . . . . . 30

Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . . 30

Selecting the Image Source. . . . . . . . . . . . . . . . . . . . . . . 32

What To Do If You See a Blank Screen. . . . . . . . . . . . . 33

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Focusing and Zooming Your Image. . . . . . . . . . . . . . . . 36

Adjusting the Height of Your Image . . . . . . . . . . . . . . . 37

Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 38

Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . 39

Correcting Computer Images. . . . . . . . . . . . . . . . . . . . . 39

Adjusting the Color Mode. . . . . . . . . . . . . . . . . . . . . . . 39

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 41

3 Using the Remote Control. . . . . . . . . . . . . . . . . . . 43

Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 44

Switching Between Picture Sources . . . . . . . . . . . . . . . . 44

Turning Off the Picture and Sound. . . . . . . . . . . . . . . . 45

Stopping Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Zooming Your Image. . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Changing the Image’s Aspect Ratio . . . . . . . . . . . . . . . . 46

Using the Remote Control as a Wireless Mouse. . . . . . . . . . 47

Replacing the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4 Fine-tuning the Projector. . . . . . . . . . . . . . . . . . . . 49

Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . . 50

Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . 51

Adjusting Colors and Clarity . . . . . . . . . . . . . . . . . . . . . . . . 53

Adjusting the Input Signal . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 57

Selecting Projector Setup Options . . . . . . . . . . . . . . . . . . . . 59

Viewing Lamp Usage and Other Information. . . . . . . . . . . . 61

Using the Projector’s Security Features. . . . . . . . . . . . . . . . . 62

Creating Your Own Screen Logo. . . . . . . . . . . . . . . . . . 63

Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Turning On the Password and User’s Logo. . . . . . . . . . 65

Starting the Projector with a Password. . . . . . . . . . . . . . 66

Disabling the Projector’s Buttons . . . . . . . . . . . . . . . . . 67

Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . . 68

5 Maintaining and Transporting

the Projector

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Cleaning the Projector Case. . . . . . . . . . . . . . . . . . . . . . . . . 70

Cleaning and Replacing the Air Filter . . . . . . . . . . . . . . . . . 71

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Resetting the Lamp Timer. . . . . . . . . . . . . . . . . . . . . . . . . . 76

Transporting the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . 77

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

6 Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Using On-Screen Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

What To Do When the Lights Flash . . . . . . . . . . . . . . . . . . 81

Solving Problems with the Image or Sound . . . . . . . . . . . . . 83

Solving Password Problems . . . . . . . . . . . . . . . . . . . . . . . . . 90

Solving Problems with the Remote Control. . . . . . . . . . . . . 91

Where To Get Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Telephone Support Services. . . . . . . . . . . . . . . . . . . . . . 92

7 Technical Specifications. . . . . . . . . . . . . . . . . . . . . 95

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Mouse Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Safety and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . . 98

Compatible Computer Display Formats. . . . . . . . . . . . . . . . 99

8 Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . 101

Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . 103

Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . 104

FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . 105

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Welcome

The Epson

PowerLite® 61p and 81p are ultra-portable projectors that offer up to 2000 ANSI lumens of brightness. From classrooms to auditoriums, your full-color presentations and videos will be bright and visible even in ordinary indoor lighting. Additionally, the projector’s built-in amplifier and speaker deliver powerful 5 watt audio, making it perfect for presentations in large rooms.

Images are displayed at a native resolution of 800 × 600 pixels (PowerLite 61p) or 1024 × 768 pixels (PowerLite 81p). Three

0.7-inch LCDs deliver accurate color, superior color saturation, and incredibly vivid images and clear text. Support for S-video contributes to theater-quality performance.

You can connect the projector to a wide range of computers, including

IBM

-compatible PCs and laptops, Apple® Macintosh,® Power Macintosh computers, and many iMac patented SizeWise

series (including G3, G4, and G5 systems), PowerBook®

and iBook® series systems. With Epson’s

™

technology, the projector supports computer

displays ranging from VGA through UXGA. You can use any of the following video sources: HDTV, VCR, DVD

player, gaming console (such as Microsoft PlayStation

2, and Nintendo GameCube™), camcorder, digital

Xbox,™ Sony®

camera, or laser disc player. The projector supports NTSC, PAL, and SECAM video formats.

You can connect up to four devices to the projector at the same time. The source buttons let you easily switch among them, and a dedicated audio port for each source lets you switch sound as well as video. With the projector’s

Source Search button, you don’t even have to

identify your input source. Just press the button until you see the image you want on the screen.

To prevent unauthorized use of the projector, you can assign a password, create a user logo which is displayed at startup to identify the projector, and disable the projector’s buttons through the Operation Lock feature. For more information about security features, see page 62.

Getting the Most from Your Projector

Depending on your presentation, you can take advantage of any or all of these options:

■ Connecting to a laptop or other computer

If you want to connect the projector to a laptop or desktop computer, see page 16. For additional presentation control, you can connect the USB cable to the projector for running slide shows, and connect an external monitor to view the presentation on your computer simultaneously.

■ Connecting to video sources

You can connect a DVD player, VCR, HDTV, camcorder, laser disc player, digital camera, and other video sources to your projector. See page 22 for instructions.

8 Welcome

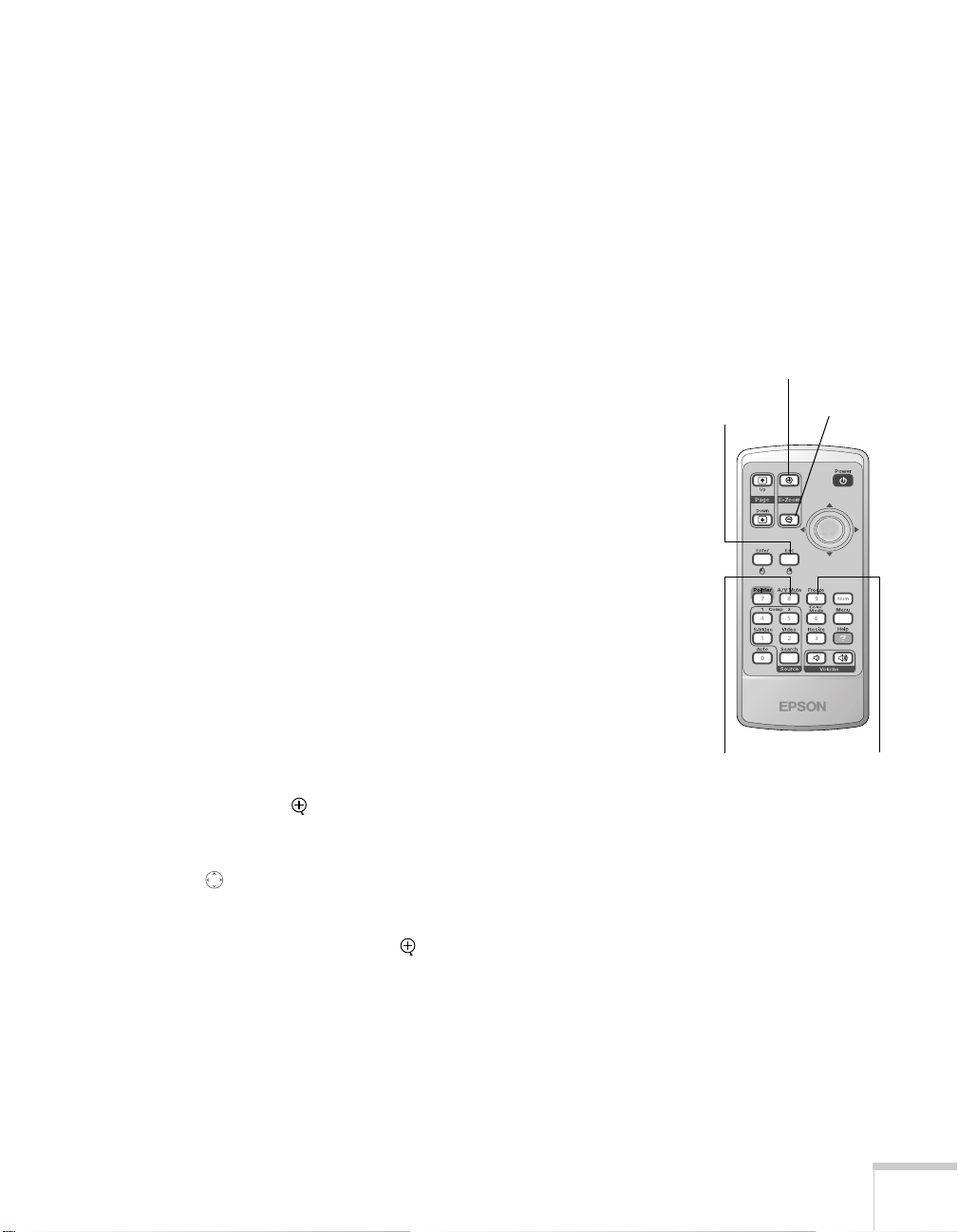

■ Using the remote control

The remote control lets you switch from computer to video sources, zoom in on part of your image, freeze or mute the presentation, and adjust many other projector features. For details, see Chapter 3.

By connecting the USB mouse cable included with your projector, you can also use the remote control as a wireless mouse. This lets you click through computer-based presentations (such as PowerPoint

) from up to 20 feet away. For more information, see

page 47.

■ Including sound in your presentation

If your presentation includes sound, you can connect the audio cable that came with your projector to use t h e pr oje c tor’s built-in speaker. See page 21.

Using Your Documentation

Your documentation includes a Quick Setup sheet, warranty brochures, and Epson PrivateLine

The Quick Setup sheet gives instructions to quickly set up your projector and connect it to a laptop or PowerBook computer.

This book contains all the information you need to set up and use your projector. Please follow these guidelines as you read through it:

■ Warnings must be followed carefully to avoid bodily injury.

■ Cautions must be observed to avoid damage to your equipment.

■ Notes contain important information about your projector.

Getting More Information

Need tips on giving presentations? How about quick steps for setting up your projector? Here’s where you can look for help:

■ www.presentersonline.com

Includes a library of articles covering presentation tips, tricks, and technology. The site provides templates, clip art and sound clips, as well as Presenters Services to use on the road. Even more resources and services are available if you register to join the Presenters Club

—and it’s free.

Support card.

■ built-in help system

Press the Help button on the remote control or projector to get quick solutions for common problems. See page 80 for details.

■ support.epson.com

Download FAQs (frequently-asked questions) and e-mail your questions to Epson support.

If you still need help after checking this User’s Guide and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. Call (800) 637-7661 and enter the PIN on your PrivateLine Support card. See page 92 for more information.

Welcome 9

Registration and Warranty

Your projector comes with a basic carry-in warranty and an international warranty that let you project with confidence anywhere in the world. For details, see page 106 and the warranty brochure that came with your projector.

In addition, Epson offers free Extra Care

Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States or Canada, usually via overnight delivery. See the Extra Care Road Service borchure for details.

To register, complete the registration form that came with your projector and mail it to Epson. Or register your product online at:

http://www.epson.com/webreg

Registering also lets you receive special updates on new accessories, products, and services.

Unpacking the Projector

After unpacking the projector, make sure you have all these items:

Projector

Power cord VGA computer cable

10 Welcome

Remote control

and batteries

Documentation Soft carrying case

Audio adapter

USB cable

Save all packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when you need to send the projector to another location.

If you are moving the projector by hand, use the carrying case included with the projector.

Additional Components

Depending on how you plan to use the projector, you may need additional components:

■ To receive an S-video signal, you need an S-video cable. One is

usually provided with your video device, or you can purchase it from Epson. See page 12.

■ To receive a component video signal from a VCR or other video

device, you need a D-sub, 15-pin, VGA-to-component video cable, which is available from Epson. See page 12.

■ Some older PowerBooks and Macintosh desktop models may

need the Macintosh adapter set shown on page 17 (available from Epson, as described on page 12). Older iMac systems may need a special adapter to provide a VGA output port; see your computer dealer.

Welcome 11

note

To purchase a replacement remote control, call (562) 276-4394 (U.S.) or (905) 709-3839 (for dealer referral in Canada).

Optional Accessories

To enhance your use of the projector, Epson provides the following optional accessories:

Product Product number

Replacement lamp V13H010L30 Air filter set (includes 2 filters) V13H134A06

Samsonite ATA molded hardshell case ELPKS51 Component video cable

S-video cable Macintosh adapter set ELPAP01 Distribution amplifier ELPDA01

wheeled soft case ELPKS35

ELPKC19 ELPSV01

50-inch portable screen 60-inch portable pop-up screen 80-inch portable pop-up screen

83.6-inch hanging pull-down screen Image presentation camera

High resolution document camera

Kensington Ceiling mount

False ceiling plate Suspension adapter Security bracket/cabling for gyro lock mounts Adjustable ceiling channel

security lock ELPSL01

ELPSC06 ELPSC07 ELPSC08 ELPSC09

V12H162020 V12H064020

ELPMB36 ELPMBFCP ELPMBAPL ELPMBSEC ELPMBACC

You can purchase these accessories from your dealer, by calling Epson at (800) 873-7766, or by visiting the Epson Store

at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.

12 Welcome

Setting Up the Projector

This chapter tells you how to set up the projector and connect it to a

computer or video source. You can connect up to four devices simultaneously: four video sources, one computer and three video sources, or two computers and two video sources.

You’ll find instructions for the following in this chapter:

■ Positioning the projector

■ Connecting to a computer

■ Connecting to video sources

Positioning the Projector

Before connecting the projector, you need to decide where to place it. If you’re setting up the projector yourself and it isn’t already installed in the room you’re using, you’ll probably want to place it on a table in front of the screen, as shown.

This lets you stand in the front of the room, face the audience, and remain close enough to the equipment to be able to control it. Try to leave as much space as possible between the projector and the screen to get a good-size image.

Place the projector somewhere between 3 and 35 feet from the screen. Use the figure below to help you determine exactly how far. Image size increases with distance, but can vary depending on how you’ve adjusted the optical zoom and other settings.

note

You can download the Projection Distance Calculator program from the Drivers and Downloads section of Epson’s web site:

http://support.epson.com.

14 Setting Up the Projector

30 to 35.5 feet 5.9 to 6.8 feet 2.9 to 3.4 feet

Also keep these considerations in mind:

■ Place the projector on a sturdy, level surface.

■ Make sure there is plenty of space for ventilation around and

under the projector. Do not set the projector on top of loose papers that could block the vents under the projector.

■ Make sure the projector is within 6 feet of a grounded electrical

outlet or extension cord.

Try to place the projector directly in front of the center of the screen, facing it toward the screen squarely. If the projector isn’t positioned this way, the image will be “keystone” shaped, instead of square or rectangular.

If you place the projector below the level of the screen, you’ll have to tilt it up by extending the front adjustable foot, as described on page 37. This also causes the image to lose its rectangular shape, but the Auto Keystone feature corrects the distortion automatically. If the image does not regain its rectangular shape, the tilt angle is greater than 15° or the Auto Keystone feature may have been disabled. To turn it on, see page 58. To adjust it manually, see page 38.

Other Installations

You can also project from behind the screen or from the ceiling, with the projector mounted upside-down:

Rear projection (using a translucent screen)

Rear/ceiling projection (using a translucent screen)

note

The Auto Keystone feature corrects vertical distortion automatically. For more information, see page38.

Front/ceiling projection

To project from overhead, you’ll need the optional ceiling mount hardware. (See page 12 for ordering information.) You’ll also need to select

Front/Ceiling or Rear/Ceiling for the Projection option in the

Extended menu. To project from the rear, select

Rear. See page 59 for

more information.

Setting Up the Projector 15

Connecting to a Computer

note

If you have an iBook with an RCA video-out port, follow the instructions for connecting to a video device on page 23.

You can connect the PowerLite projector to any computer that has a standard VGA or BNC monitor port, including PC notebook and laptop computers, Macintosh PowerBooks and iBooks, and hand-held devices. You can connect two computers at the same time.

Follow the instructions in this section to:

■ Connect the projector to your computer with the VGA cable

included with the projector.

■ Connect the projector to your computer with a

commercially-available VGA–5BNC cable.

After connecting the projector to your computer, you may also want to:

■ Connect the USB cable that came with your projec tor so that y ou

can use the remote control as a wireless mouse; see page 19

■ Connect a monitor to the projector so you can view your

presentation close-up as well as on-screen (not necessary if you’re using a laptop); see page 20

■ Connect a commercially-available computer audio cable to play

computer audio; see page 21

16 Setting Up the Projector

Connecting with the VGA Cable

Follow these instructions to connect to your computer with the VGA cable that came with your projector. Before you start, make sure your computer and the projector are turned off.

1. If you are connecting the projector to a desktop computer,

disconnect the monitor cable from your computer.

2. Locate the VGA computer cable that

came with the projector.

VGA computer cable

3. Connect one end of the cable to the projector’s

Computer1/Component Video1 or the Computer2/Component Video2 port. If you are going to

connect your computer monitor to the projector for simultaneous display, use the

Computer1/Component Video1 port.

4. Connect the other end of the cable to your computer’s video-out or monitor port.

If you’re using a PowerBook or iBook and you can’t connect the cable, you may need to use the Macintosh desktop adapter as shown below (available from Epson; see page 12).

To use the adapter, remove its cover as shown and set its DIP switches ac cording to the resolution you want to use, such as 16-inch mode. See your Macintosh documentation for instructions.

Replace the cover and connect the adapter to the free end of the computer video cable. Then plug the cable (with the adapter) into the video port on your Macintosh.

5. If you want to view the display simultaneously on your computer monitor and the projector screen, see “Connecting an External Monitor” on page 20.

6. Tighten the screws on the connectors.

Setting Up the Projector 17

VGA-5BNC cable

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

If more than one device is connected to the projector, select the correct source after projection starts by pressing the button on the projector or the

Comp1 or Comp2 button on the

Source Search

remote control. See page 32.

Connecting with a VGA-5BNC Cable

If your computer provides video output through BNC connectors, follow these instructions to connect the projector to your computer with an optional VGA-5BNC cable. Before you start, make sure your computer and the projector are turned off.

1. Disconnect the monitor cable from your computer.

2. Connect the cable’s VGA connector to the projector’s

Computer1/Component Video1 or the Computer2/Component Video2 port. If you are going to

connect your computer monitor to the projector for simultaneous display, use the

Computer1/Component Video1 port.

18 Setting Up the Projector

3. Connect the BNC connectors to your computer’s BNC ports.

4. If you want to view the display simultaneously on your computer monitor and the projector screen, see “Connecting an External Monitor” on page 20.

5. Tighten the screws on the VGA connector.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

If more than one device is connected to the projector, select the correct source after projection starts by pressing the button on the projector or the

Comp1 or Comp2 button on the

Source Search

remote control. See page 32.

Connecting the USB Cable for Remote Mouse Control

Using the remote control as a wireless mouse lets you click through slideshow-style presentations, such as PowerPoint, from up to 20feet away. This makes it easy to deliver your presentation, since you won’t need to stand near your computer.

To use the wireless mouse function, your system must have a USB port and the full version of one of these operating systems:

Windows

Windows 98, 2000, Me, or XP Macintosh OS 8.6 to 9.2, OS X

1. If you are using a desktop computer, disconnect the mouse cable

2. Locate the USB mouse cable that came with the projector and

Macintosh

from your computer.

connect the square end of the cable to the projector’s USB port.

note

For details about using the remote control as a wireless mouse, see page 47.

Setting Up the Projector 19

note

Some LCD monitors may not be able to display the image correctly. If you have trouble displaying the image, connect a multiscan monitor. If you’re projecting computer images, make sure the computer’s refresh rate is set to 65 Hz or greater.

3. Connect the flat end of the cable to an available USB port on your computer.

4. If necessary, configure your laptop to work with an external mouse.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

Connecting an External Monitor

If you want to see your presentation close-up as well as on the projection screen, you can connect an external monitor to the projector. This lets you view images on your computer monitor while the projector is in standby mode (plugged in but not turned on) and check your presentation or switch between picture sources even if you’ve pressed the projection on the screen.

Simultaneous display is possible only when the computer is connected to the projector’s

Make sure the projector and computer are off. Then connect the monitor’s cable to the projector’s

A/V Mute button on the remote control to turn off

Computer1/Component Video1 port.

Monitor Out port, as shown:

20 Setting Up the Projector

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

Playing Sound Through the Projector

Your computer probably has its own sound system; however, it may not be adequate for your presentation. If you need more volume, you can connect a computer audio cable to take advantage of the projector’s built-in amplifier and speaker. You can obtain a computer audio cable (3.5-mm stereo miniplug cable) from a computer or electronics dealer.

1. Connect one end of the audio cable to the

Audio1 jack on the

projector.

2. Connect the other end of the audio cable to your laptop’s headphone jack or audio-out jack, or your desktop’s

speaker or audio-out port.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

note

If you’ve connected two computers to the projector, you can play sound from both. Connect the audio cable for the computer connected to the

Computer 2/Component Video 2 Audio 2 jack on the

projector. Connect the other end of the cable to the second computer.

connector to the

Setting Up the Projector 21

note

The projector does not support TV antenna cable F connectors.

Connecting to Video Sources

You can connect a DVD player, VCR, camcorder, laser disc player, digital camera, gaming console—such as Microsoft Xbox, Sony PlayStation 2, or Nintendo GameCube—or any other compatible video source to your projector. You can connect up to four video devices at one time.

The projector supports HDTV, SDTV, NTSC, PAL, and SECAM, and automatically detects the video format. It can receive composite video, S-video, RGB video, and component video. The type of cable you need depends on the video source:

■ For composite video, use a commercially-available RCA A/V

cable. See page 23.

■ For S-video, use the S-video cable supplied with your video device

or order one from Epson. See page 24.

■ For RGB video, use the VGA computer cable included with the

projector. See page 25.

■ For component video, you’ll need the optional Epson component

video cable. See page 26.

22 Setting Up the Projector

After connecting your video device to the projector, you may want to connect an audio cable to play sound from your video equipment through the projector’s built-in speaker. See page 27 for instructions.

Connecting a Composite Video Source

If you’re connecting a composite video device, use a commercially-available RCA A/V cable. Before starting, make sure the projector and your DVD player or other video source are turned off.

1. Connect the yellow RCA plug on one end of the cable to the

projector’s yellow

2. Connect the yellow plug on the other end of the cable to the

video-out port on your video source.

Video jack as shown below.

3. To play sound through the projector, follow the instructions

beginning on page 27.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

If more than one device is connected to the projector, select

Video as

the input source after projection starts. See page 32 for det ails.

Setting Up the Projector 23

Connecting an S-video Source

If your video source has an S-video jack, you can use it to project a higher quality video image. You’ll need an S-video cable (ELPSV01), which is usually provided with your video source, or you can purchase one from Epson. See page 12 for ordering information.

Before starting, make sure the projector and your DVD player or other video source are turned off.

1. Insert one end of the S-video cable into the projector’s

S-Video

port and the other end into the S-video output port of your video source.

2. To play sound through the projector, follow the instructions beginning on page 27.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

If more than one device is connected to the projector, select

S-Video

as the input source after projection starts. See page 32 for details.

24 Setting Up the Projector

Connecting an RGB Video Source

Follow these instructions to connect the projector to a video player or satellite receiver that has an RGB video output port using the VGA computer cable that came with the projector.

Before starting, make sure the projector and your DVD player or other video source are turned off.

1. Connect one end of the VGA computer cable to the

Computer1/Component Video1 or the Computer2/Component Video2 port on the projector.

2. Connect the other end to the video port on your player.

3. To play sound through the projector, follow the instructions beginning on page 27.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

If more than one device is connected to the projector, select

Computer 1 (RGB) or Computer 2 (RGB) as the source, depending

on which port you used. See page 32 for details.

Setting Up the Projector 25

Connecting a Component Video Source

If your video source has component video connectors, you can use them to project a higher quality video image. You’ll need a component video cable (ELPKC19), which can be purchased from Epson. See page 12 for ordering information.

Before starting, make sure the projector and your DVD player or other video device are turned off.

1. Connect the large end of the component video cable to the projector’s

Computer2/Component Video2 port.

Computer1/Component Video1 or the

26 Setting Up the Projector

2. Insert the three ends of the component video cable into the

R, G, and B ports on your video source.

3. To play sound through the projector, follow the instructions beginning on page 27.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

If more than one device is connected to your projector, select

Computer 1 (Component Video) or Computer 2 (Component Video)

as the source, depending on which port you used. See page 32

for details.

Playing Sound Through the Projector

The projector has a built-in speaker with a maximum output of 5 W. You can play sound from your video equipment through the projector’s speaker if your video device has an audio output port.

For RCA-Style Audio Output Ports

Most video devices have an RCA-style audio output port. In this case, use the audio adapter supplied with the projector to connect the projector to a commercially-available A/V cable, as shown below:

1. Locate the audio adapter that came with your projector.

2. Connect the black audio plug on one end of the adapter to the

Audio jack corresponding to your video source. For example, if

you’ve connected your video device to the projector’s connect the adapter to the

Audio jack next to it.

Video port,

3. Connect the red and white plugs on the other end of the adapter to the red and white plugs on the A/V cable.

4. Connect the red or white plug on the other end of the A/V cable to corresponding color-coded audio output port on your video source.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 30 for instructions.

Audio adapter

note

Each input port has its own dedicated audio output jack. To play sound from a source, you must connect the audio cable to the correct audio output jack.

When you switch the video source, the projector automatically plays sound from the new source.

Setting Up the Projector 27

For Stereo Mini-Jack Audio Output Ports

Some video devices, especially camcorders, may have a stereo mini-jack audio output port. In this case, use a commercially-available stereo mini jack audio cable to connect to the projector, as shown below:

note

Each input port has its own dedicated audio output jack. To play sound from a source, you must connect the audio cable to the correct audio output jack.

When you switch the video source, the projector automatically plays sound from the new source.

1. Connect one end of the audio cable to the

Audio jack

corresponding to your video source. For example, if you’ve connected your video device to the projector’s connect the adapter to the

Audio jack next to it.

S-Video port,

2. Connect the other end to your video device’s audio output port. If you don’t need to make any other connections, you can plug in

your projector and turn it on. See page 30 for instructions.

28 Setting Up the Projector

Projecting

Once you’ve set up the projector, you’re ready to turn it on, adjust

the image, and give your presentation. Although you can operate the projector without it, the remote control

lets you use additional features. See Chapter 3 for instructions on using the remote. This chapter covers the following:

■ Turning on the projector and other equipment

■ Adjusting the image

■ Adjusting the volume

■ Shutting down the projector

caution

Do not use the projector with the lens cap in place. The heat generated by the lamp can damage it.

Turning On Your Equipment

Make sure your projector and other equipment are set up and connected correctly, as described in Chapter 1. Then turn on your projector, as described below.

If you turn on your connected computer or video equipment before starting the projector, the projector automatically detects and displays the image source. If you turn on the projector first, or have multiple pieces of connected equipment, you may have to select the image source manually. See page 32.

Turning On the Projector

Follow these steps to plug in and turn on the projector:

1. Push in the tabs and remove the lens cap.

30 Projecting

2. Connect one end of the power cord to the projector’s power inlet.

3. Connect the other end to an electrical outlet. The power light on top of the projector turns orange, indicating

that the projector is receiving power but not yet turned on. Wait until the light stops flashing but stays orange.

4. Turn on your computer or video source if you have not already.

5. Press the P (You can also press the P

Power button on top of the projector to turn it on.

Power button on the remote control.)

Power button

Projector

Remote control

The projector beeps and the power light flashes green as the projector warms up. The projector lamp comes on in about 45 seconds and the power light stays green.

■ If you’re using a computer, you should see your computer

display projected after a moment or two. If not, you need to select the image source. See page 32.

note

If you are using the remote control for the first time, be sure to insert the batteries as described on the Quick Setup poster.

warning

Never look into the lens when the lamp is on. This can damage your eyes, and is especially dangerous for children.

(Windows only: If you see a message saying that it has found a plug-and-play monitor, click

■ If you’re projecting a video, press the Source Search button

Cancel.)

on the projector or remote control to switch to your video source. Then press the

Play button on your DVD player or

other device.

■ If you are prompted to enter a password, see page 66.

Projecting 31

note

The name of the selected image source appears in the upper right corner of the screen.

To focus and adjust the image, see page 35. If a projected image fails to appear, see “What To Do If You See a Blank Screen” on page 33.

When you’re done with your presentation, shut down the projector as described on page 41. Shutting down the projector correctly prevents premature lamp failure and possible damage from overheating.

Selecting the Image Source

Selecting the image source lets you switch between images input from different pieces of equipment connected to the projector (such as a computer and DVD player). If you don’t see the image you want, press one of the following buttons on the remote control:

■ Comp 1

Press this button to move through the following options:

Computer 1 (Auto), Computer 1 (RGB), and Computer 1 (Component Video)

■ Comp 2

Press this button to move through the following options:

Computer 2 (Auto), Computer 2 (RGB), Computer 2 (Component Video)

32 Projecting

■ S-Video

Press to select S-Video.

■ Video

Press to select Video.

You can also press the

Source Search button on the remote control

or projector until the correct device image is projected. If a projected image fails to appear, see the next section for help.

Once you see your image, turn to page 35 for instructions on focusing and making other image adjustments.

What To Do If You See a Blank Screen

If you see a blank screen or a blue screen with the message No Signal after turning on your computer or video source, try the following:

■ Make sure the cables are connected correctly, as described in

Chapter 1.

■ Make sure the power light is green and not flashing and the lens

cap is off.

■ Make sure you’ve selected the correct image source; see page 32.

Allow a few seconds for the projector to sync up after pressing the button.

■ Check the Signal menu to make sure the correct input source is

selected. See page 55.

If you’re using a PC laptop:

■ Hold down the Fn key and press the function key that lets you

display on an external monitor. It may have an icon such as or it may be labelled projector to sync up after pressing it. Check your laptop’s manual or online help for details.

CRT/LCD. Allow a few seconds for the

On most systems, the or

CRT/LCD key lets you toggle

between the LCD screen and the projector, or display on both at the same time.

■ If you’re projecting from a laptop, and you don’t see the same

image on the projection screen and computer screen, check your monitor settings to make sure both the LCD screen and the external monitor port are enabled.

From the Control Panel, open the

Settings tab, then click Advanced. The method for adjusting

the settings varies by brand; you may need to click a

Display utility. Click the

Monitor tab,

then make sure the external Monitor port is set as your primary display and/or enabled. See your computer’s documentation or online help for details.

Projecting 33

If you’re using a Macintosh laptop with OS X:

You may need to set up your system to display on the projector screen as well as the LCD screen. Follow these steps:

1. From the Apple menu, select

Displays.

System Preferences, then click

2. Select VGA Display or Color LCD, click Arrange or

Arrangement, and make sure Mirror Displays is checked.

Click here

Select Mirror Displays

If you’re using a Macintosh laptop with OS 9.x or earlier:

You may need to set up your system to display on the projector screen as well as the LCD screen. Follow these steps:

1. From the Apple menu, select

Monitors or Monitors and Sound.

Control Panels, then click

34 Projecting

2. Click the Arrange icon.

Click here

Drag one monitor icon on top of the other

3. Drag one monitor icon on top of the other.

Arrange option isn’t available, you may need to select one of

If the the Simulscan resolution settings:

1. Click the

Click here

2. Select a

Monitor icon, if necessary.

Select a Simulscan resolution

Simulscan resolution, as shown. (Allow a few seconds

for the projector to sync up after making the selection.)

Adjusting the Image

Once you see your image, you’ll need to make certain adjustments:

■ To focus or zoom your image, see the next section.

■ If the image is too high or too low, you can reposition it.

See page 37.

■ If the image isn’t square, see page 38.

■ To adjust image brightness, see page 39.

■ If a computer image displays incorrectly, see page 39.

■ To change the color mode for your image and surroundings, see

page 39.

You can make many other adjustments to the image—such as changing the brightness, contrast, and aspect ratio—using the projector’s menu system. See Chapter 4 for more information.

Projecting 35

Focusing and Zooming Your Image

Rotate the focus ring to sharpen the image.

Focus ring

Rotate the zoom ring to reduce or enlarge the image.

Zoom ring

36 Projecting

You can also change the image size by moving the projector closer to or farther away from the screen. You can use the

E-Zoom buttons on

the remote control to zoom in on a portion of the image. See page 45 for instructions.

Adjusting the Height of Your Image

If the image is too low, you can raise it by extending the projector’s front adjustable foot.

1. Stand behind the projector. Press up on the blue foot release lever and lift the front of the projector to extend the front adjustable foot.

2. Once the image is positioned where you want, release the lever to lock the foot in position.

Foot

3. To fine-tune the height of the image, rotate the feet at the back of the projector.

If the image is no longer rectangular after raising it, see the next section.

Projecting 37

Pointer button

Enter button Menu buttton

note

You can also use the buttons on the projector to access the menu system:

Menu button ESC button

Adjusting the Image Shape

The projector automatically corrects images that are distorted when the projector is tilted up or down (up to a 15° tilt). The Keystone window appears on the screen while the projector makes the correction. If the projected image still isn’t rectangular or has a “keystone” shape, do one or more of the following:

■ If your image looks like or , you’ve placed the

projector off to one side of the screen, at an angle. Move it directly in front of the center of the screen, facing the screen squarely.

■ If your image looks like or , the Auto Keystone feature

may have been disabled or you may need to manually adjust the keystone correction value. (Auto Keystone is not available when you’re using ceiling or rear projection.) Follow the directions below:

■ To turn on Auto Keystone, press the Menu button on the

remote control. Use the pointer button on the remote control (or the arrow buttons on the projector) to select the

Setting menu, then press Enter. If Auto Keystone is OFF,

use the pointer button to highlight this option and press

Enter. Select ON in the Auto Keystone window that appears

and press pressing the

■ To manually adjust the keystone correction value, press the

the image. After correction, your image will be slightly smaller.

Enter to save your changes. Exit the menu by

Menu button.

or buttons on the projector to correct the shape of

Enter button Arrow buttons

38 Projecting

You can also make keystone adjustments using the projector’s Setting menu. See page 58.

Adjusting the Brightness

The brightness of an image depends on the source you are projecting and the amount of light in the room. If the image is too bright or not bright enough, here are two ways you can adjust it:

■ Change the Brightness setting in the Image menu. See page54.

■ Select Low or High for the Brightness Control option in the

Setting menu. (See page 58.) Low brightness mode extends the life of the lamp and decreases the fan noise.

Correcting Computer Images

If you’ve connected a computer and the image doesn’t look right, or it doesn’t fit properly on the screen, press the

Auto button on the

remote control. This automatically resets the projector’s tracking, sync, resolution, and position settings. You must be projecting an image for this button to have any effect. Additionally, if the

Setup

option in the Signal menu is set to OFF, the Auto function will

Auto

not work. See page 56.

Adjusting the Color Mode

You may want to adjust the color mode to select a different setting that is appropriate for the image you’re projecting and the environment in which you’re projecting it.

If you’re projecting computer or RGB video images, the default color mode is bright rooms. For other images, the default color mode is which optimizes video images using natural colors.

Presentation, which is appropriate for presentations in

Dynamic,

Color Mode button

Auto button

Projecting 39

The following table lists the six color modes available.

Color mode Description

sRGB Use when projecting computer images conforming to

the sRGB color standard (the default setting when projecting from a computer with analog video).

Dynamic Best for projecting movies with vivid color in bright

rooms.

Presentation Use when you’re projecting a presentation in a bright

room. Theatre Use when projecting movies in a dark room. Living Room Best for playing video games or watching TV in a

bright room. Blackboard Choose this fixed color mode when you need to

project against a green blackboard.

To change the color mode, press the

Color Mode button on the

remote control until you see the mode you want. The currently selected setting appears in the upper right corner of the screen. You can also use the projector menu system to change the color mode in the Image menu (see page 54).

40 Projecting

Adjusting the Volume

You can use the buttons on the remote control or projector to increase or decrease the volume for both the projector’s built-in speaker and external speakers connected to the projector. Press the button to increase the volume, or the button to decrease it. A volume gauge appears on the screen while the volume is being adjusted.

note

You can also adjust the volume using the projector’s Setting menu. See page 57 for details.

Volume controls

Shutting Down the Projector

When you’ve finished using the projector, follow the recommended procedure to shut it down. This extends the life of the lamp and protects the projector from possible overheating.

1. If you’re using a computer, shut it down first; otherwise you may not be able to see your computer’s display to shut it down properly.

2. To turn off the projector, press the P projector or remote control.

You see this confirmation message: (If you don’t want to turn it off, press any other button or wait a few seconds until it disappears.)

Power button on the

You must adjust the volume separately for each input source.

note

When the projector has not received any input signals for 30 minutes, it automatically turns off the projector lamp and enters “sleep mode.” This conserves electricity, cools the projector, and extends the life of the lamp. If you are done using the projector, unplug the power cord. If you want to start projecting again, press the P

Power button. You

can turn sleep mode on or of through the Extended menu. See page 59.

Projecting 41

caution

To avoid damaging the projector or lamp, never unplug the power cord when the power light is green or flashing orange.

3. Press the P

Power button again. The projector beeps twice, the

lamp is turned off, and the power light flashes orange for about 60 seconds as the projector cools down. When the projector has cooled, the light stays orange and the exhaust fan shuts off.

If you want to turn the projector on again, wait until the orange light stops flashing. Then press the P

Power button.

4. Press up on the blue foot release lever and lower the projector to retract the front adjustable foot, as shown.

5. Replace the lens cap and unplug the power cord.

6. Turn off and disconnect any equipment plugged into the projector.

7. If you won’t be using the projector for awhile, store it in the soft case that came with it or in a protective case.

42 Projecting

Using the Remote Control

The remote control lets you access your projector’s features from

anywhere in the room—up to 20 feet away. For example, you can turn the projector on and off, freeze the presentation, zoom in on a portion of your image, and access the menu system. (The projector menus let you adjust many projector settings; see Chapter 4.)

If you’re using a computer and you’ve connected the mouse cable as described in Chapter 1, you can use the remote control as a wireless mouse.

When using the remote control, stand within 20 feet of the projector. Point the remote control either at the front or back of the projector or at the screen (the projector’s front sensor can detect signals bounced off the screen). Press the button for the function you want to use.

This chapter covers the following information:

■ Controlling the picture and sound

■ Using the remote control as a wireless mouse

■ Replacing the remote control batteries

Controlling the Picture and Sound

You can use the remote control to select your source, temporarily turn off the picture and sound, freeze the action, or zoom in on the picture. Make sure you have set up your projector and connected any equipment as described in Chapter 1.

Switching Between Picture Sources

Select a source

Moves through all the input sources in sequence

If you’ve connected your projector to more than one computer and/or video source, you can use the buttons on the remote control to switch between the different sources.

■ Press the Comp1 button to select the computer or video source

connected to the projector’s

Computer1/Component Video1

port.

■ Press the Comp 2 button to select the computer or video source

connected to the projector’s

Computer2/Component Video2

port.

■ Press the S-Video button to select a video source connected to the

projector’s

■ Press the Video button to select a video source connected to the

projector’s

■ Press the Source Search button to move successively through all

S-Video port.

Video port.

of the input sources.

After you select a source, the screen goes dark for a moment before the image appears. The name of the selected source (such as or

S-Video) appears briefly on the screen.

Computer1

44 Using the Remote Control

Turning Off the Picture and Sound

Press the A/V Mute button on the remote control to turn off the image and sound and darken your screen. This is useful if you want to temporarily re-direct your audience’s attention without the distraction of a bright screen.

■ To turn off the picture and sound, press the A/V Mute button.

The screen goes dark.

■ To turn the image and sound back on, press the button again, or

Esc.

press

You can create an image, such as a company logo or a picture, to display on the screen whenever you press the

A/V Mute button. See

page 63 for more information.

Stopping Action

Press the Freeze button to stop the action in your video or computer image and keep the current image on the screen. The sound will continue, however. Also, because the source continues to transmit signals, you won’t resume the action from the point you paused it.

ESC

Zoom in

Zoom out

Press the

Freeze button again or press Esc to restart it.

Zooming Your Image

Follow these steps to zoom in on a portion of the image:

1. Press the You see a crosshair indicating the center of the zoom-in area.

2. Use the pointer button to position the crosshair in th e area you want to enlarge.

3. Continue pressing the area up to 4 times.

E-Zoom button on the remote control.

E-Zoom button to enlarge the selected

FreezeA/V Mute

Using the Remote Control 45

4. While the image is enlarged, you can:

■ Use the pointer button to pan about.

■ Press the E-Zoom button to zoom out.

note

You must be projecting component, composite, or S-video images to change the aspect ratio.

You can also change the aspect ratio using the projector’s Signal menu. See page 55 for details.

5. When you’re done, press the

ESC button to return to the original

size.

Changing the Image’s Aspect Ratio

If you’re projecting a widescreen format image, you can use the

Resize button on the remote control to change the aspect ratio.

Follow these steps:

1. Press the for widescreen format.

2. Press it again to return to 4:3 aspect ratio.

Resize button once to change the aspect ratio to 16:9

46 Using the Remote Control

Using the Remote Control as a Wireless Mouse

When you use the remote control as a wireless mouse, you can control your computer or click through slideshow-style presentations (such as PowerPoint) from up to 20 feet away. This gives you more flexibility, since you don’t need to stand near your computer to change slides.

To control your computer with the remote, make sure you have connected the USB cable as described on page 19.

■ To display the mouse pointer, press the Pointer button.

■ To move the pointer on the screen, aim the remote at the screen

and use the pointer button.

■ To click (or left-click), press the Enter button.

■ To right-click, press the Esc button.

■ To double-click, press the Enter button twice.

■ To click and drag, press down and hold the Enter button and use

the pointer button to move where you want to drag.

■ To advance slides in a PowerPoint presentation in Slide Show

mode, press the Press the

Page up or Enter button on the remote control.

Page down or Esc button to go back a slide.

Left-click or double-click

pointer

Move the pointer

Right-clickDisplay the

Page UpPage Down

Using the Remote Control 47

note

The remote control automatically shuts off when it detects a button being pressed more than 30 seconds. This conserves battery life. It can be helpful, for example, when the remote is in a carrying case and the

Power button is

accidentally pushed.

caution

When replacing batteries, take the following precautions:

■ Replace the batteries as

soon as they run out. If a battery leaks, wipe away battery fluid with a soft cloth. If fluid gets on your hands, wash them immediately.

■ Do not expose batteries to

heat or flame.

■ Dispose of used batteries

according to local regulations.

■ Remove the batteries if you

won’t be using the remote control for a long period of time.

Replacing the Batteries

The remote control uses two AAA alkaline batteries. Follow these steps when you need to replace them:

1. Press in the tab to remove the battery cover.

2. Remove the old batteries, then insert the new ones as shown.

3. Replace the battery cover. (It should click into place.)

48 Using the Remote Control

Fine-tuning the Projector

You can use the Menu button on the projector or remote control to

access on-screen menus to adjust the image, sound, and other features. This chapter covers the following information:

■ Using the menu system

■ Adjusting image colors and clarity

■ Adjusting the input signal

■ Customizing projector features

■ Selecting projector setup options

■ Viewing lamp usage and other information

■ Using the projector’s security features

433

■ Restoring the default settings

Using the Projector’s Menu System

The six projector menus let you adjust and customize the projector features:

■ The Image menu lets you modify the colors of the projected

image and fine-tune brightness, contrast, and sharpness.

■ The Signal menu lets you make adjustments to the input signal.

You can select your input source, change the image position and aspect ratio, and adjust tracking and sync for computer images.

■ The Setting menu lets you customize the way you use the

projector. It allows you to adjust the volume and keystone correction, set lamp brightness to high or low, select the shape of the mouse pointer, and disable buttons on the projector while you are projecting.

■ The Extended menu lets you customize the way you set up the

projector. Among the options, you can select the menu language, set rear or ceiling projection, and record a custom image or logo to be displayed as the startup screen or whenever you press the

A/V Mute button on the remote control.

50 Fine-tuning the Projector

■ The Info menu provides information about lamp status and

computer or video settings.

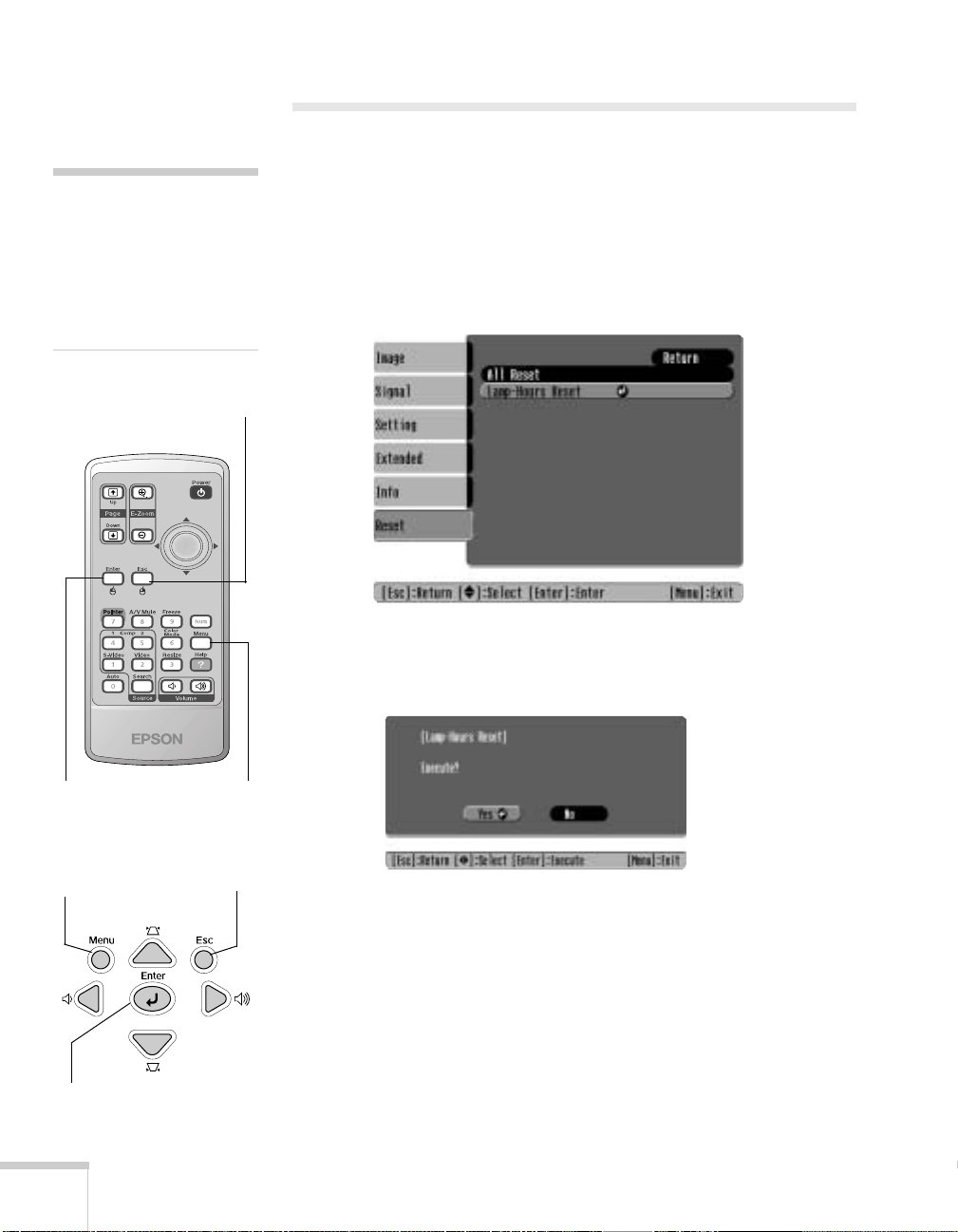

■ The Reset menu lets you restore the projector’s factory default

settings.

Changing Menu Settings

Use the buttons on the remote control to access the menus and change settings. Follow these steps:

1. Press the

Menu button on the remote control or projector to

display the menu screen:

Menu options

Menus

The six menus are listed on the left, and the options available for the highlighted menu are shown on the right.

2. Use the pointer button on the remote control or the up and down arrow buttons on the projector to scroll through the menu list. When you’ve highlighted the desired menu, press the

Enter

button to select it.

Menu button Esc button

Enter button

Arrow buttons

Pointer button

The highlight moves to the first option for that menu.

3. Use the pointer button or the up and down arrow buttons to scroll through the list of options. (The options available depend on which source is selected.)

Esc buttonEnter button

Fine-tuning the Projector 51

4. After highlighting the option you want to adjust, use the pointer button on the remote control or left or right arrow

buttons on the projector to change the setting. In some cases, you may have to press the

Enter button to see a sub-screen for

changing the setting.

■ Press the left or right side of the pointer button or the left

or right arrow buttons on the projector to adjust a slider bar.

■ To select from two or more settings, use the pointer

button or arrow buttons to highlight the desired setting, then press

Enter.

5. Press the

Esc button to return to the previous menu or to close

the menu system if you are at the main menu. Your changes are saved automatically.

6. Press the

Menu button to exit the menu system.

52 Fine-tuning the Projector

Adjusting Colors and Clarity

The Image menu lets you make adjustments to the colors of the projected image and fine-tune brightness, contrast, and sharpness. The options available depend on which image source is selected:

Computer (analog-RGB) and RGB video

Component, composite, and S-video

Follow these steps to adjust the appearance of your image:

1. Press the

2. Press

Menu button. You see the main menu.

Enter to select the Image menu.

Fine-tuning the Projector 53

note

You can also select High or

Low brightness mode in the

Setting menu. See page 58.

3. Use the pointer button (or the up and down arrow buttons)

and press

■ Color Mode

Enter to select any of the following options:

Corrects the vividness of image color. You can select from the following six settings, and save a different one for each computer and/or video source:

Dynamic: For projecting movies or playing video games in

vivid color in a bright room.

Presentation: For presentations in bright rooms. Theatre: For optimizing movie images with natural color in a

dark room (the default for video or S-video display).

Living Room: For playing video games and watching TV in

a bright room.

sRGB: For standard sRGB computer displays (the default

when projecting from a computer with analog video).

Blackboard: Fixed color mode for projecting against a green

blackboard.

■ Brightness

Lightens or darkens the overall image.

■ Contrast

Adjusts the difference between light and dark areas.

54 Fine-tuning the Projector

■ Color Intensity (component, composite, and S-video)

Adjusts the depth or intensity of the image colors.

■ Tint (component, composite, and S-video)

Adjusts the balance of green to magenta in the image.

■ Sharpness

Sharpens or softens the image.

■ Color Adjustment

Adjusts the temperature and intensity of red, green, and blue.

4. When the image is set correctly, press

Esc or Menu. Your settings

are automatically saved.

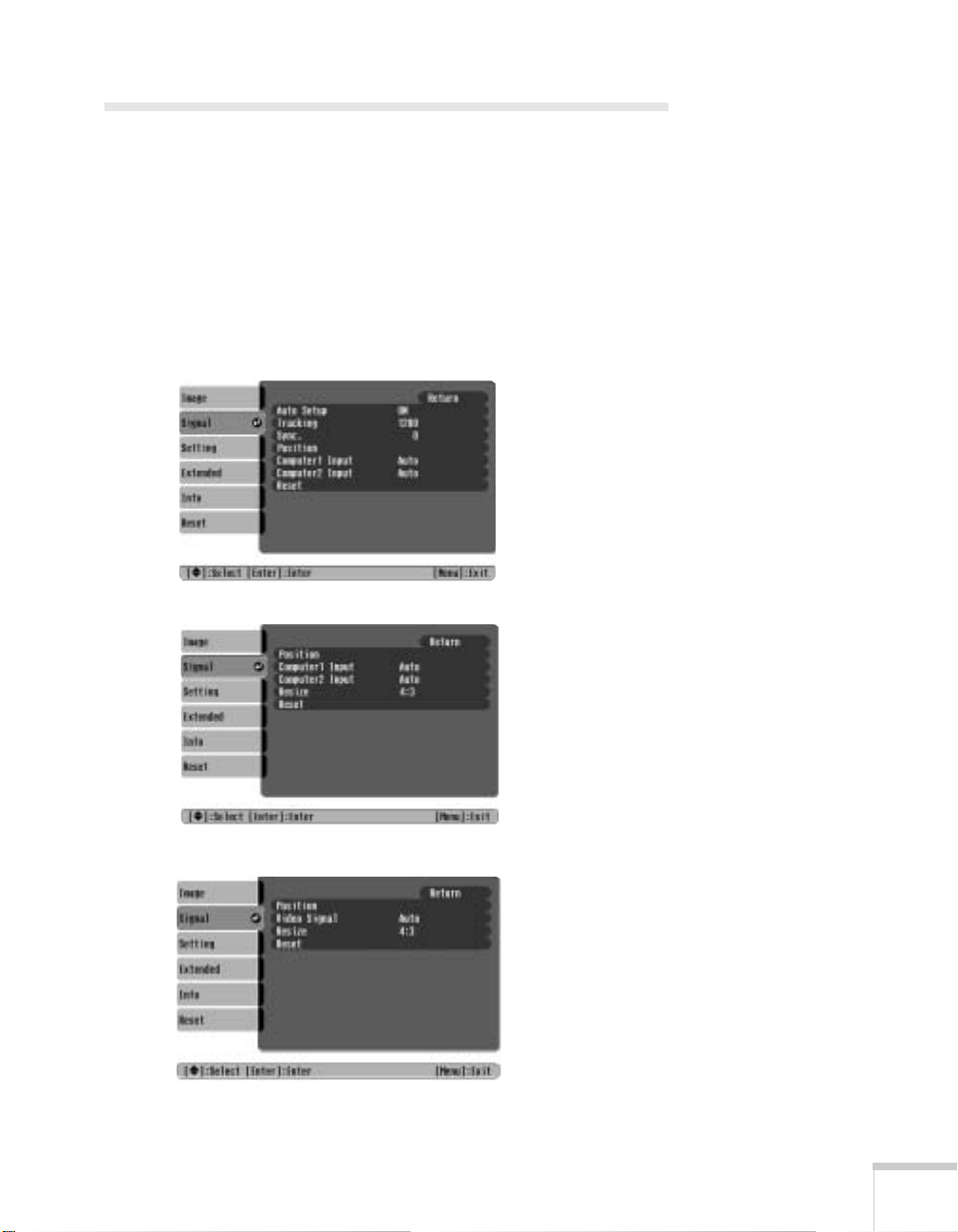

Adjusting the Input Signal

Although the projector normally detects and optimizes the input signal automatically, you can use the Signal menu to make manual adjustments. In addition to changing the position of the projected image, you can correct tracking and sync for computer images, or change the aspect ratio to widescreen format for video images.

1. Press the

2. Select the

Computer (analog RGB) and RGB video

Component video

Menu button. You see the Image menu.

Signal menu. You one of the following screens:

Composite video and S-video

Fine-tuning the Projector 55

note

If you have repositioned the image but then change your mind, you can press the

Auto button on the remote

control to restore the default settings.

3. Press

Enter. Then use the pointer button (or up and down

arrow buttons) and the

Enter button to select any of the

following options:

■ Auto Setup (computer images)

Leave this setting

ON to automatically optimize the computer

image. Turn it off if you want to save adjustments you have made to the video settings.

■ Tracking (computer images)

Removes unwanted vertical lines from a computer image by matching the projector’s internal clock to various computer signals. See page 88 for more information about adjusting the tracking.

■ Sync (computer images)

Corrects fuzziness or screen flicker by synchronizing the projector with the tracking signal sent from the computer. See page 88 for more information about adjusting the sync setting.

■ Position

Use the pointer button or arrow buttons to move the image on the screen left, right, up, or down.

56 Fine-tuning the Projector

■ Computer 1 Input

Selects the signal from equipment connected to the

Computer1/Component Video1 port. If your image colors

look wrong, try changing this setting from following:

Component Video for component video sources.

■ Computer 2 Input

RGB for computer or RGB video sources, or

Auto to one of the

Selects the signal from equipment connected to the

Computer2/Component Video2 port. If your image colors

look wrong, try changing this setting from following:

Component Video for component video sources.

RGB for computer or RGB video sources, or

Auto to one of the

■ Video Signal (composite and S-video)

Leave this setting at system (select

■ Resize (video)

Auto unless you are using a 60-Hz PAL

PAL60).

Sets the image’s aspect ratio (ratio of width to height) to for letterbox video content and to

16:9 for widescreen video

content.

4:3

4. When you’re finished adjusting the signal settings, press

Menu.

Esc or

Customizing Projector Features

The Setting menu lets you customize the way you use the projector, from adjusting lamp brightness and speaker volume to changing the shape of the mouse pointer.

1. Press the

2. Select the

Menu button.

Setting menu.

Fine-tuning the Projector 57

note

To cancel the Operation Lock function from the projector, press the button for about seven seconds.

Enter

3. Press

Enter. Then use the pointer button (or up and down

arrow buttons) and the

■ Keystone

Adjusts a distorted image from a trapezoid shape to rectangular.

■ Auto Keystone

Automatically adjusts a distorted image from a trapezoid shape to rectangular when the projector’s foot is extended or retracted. (Not available when you’re projecting from the ceiling or using rear projection.) Select

■ Operation Lock

When turned on, this function disables all projector buttons except the P effect after you restart the projector. (After you turn off the projector, wait for the Ppower light to turn a steady orange before turning it on again.)

■ Pointer Shape

Lets you select from three different pointer shapes. The Password Protect function must be cancelled first. See page 65.

Enter button to set the following options:

ON or OFF.

Power button. Changes to this setting take

58 Fine-tuning the Projector

■ Brightness Control

Select Low lamp brightness when the projection is too bright for the room. The

Low setting also reduces electricity

consumption and fan noise. Sel ec t maximum brightness. (Also check the the Image menu; see page 54.)

■ Volume

Adjusts the volume for the projector’s speaker.

4. When you’re finished, press

High to project the

Brightness setting in

Esc or Menu.

Selecting Projector Setup Options

Use the Extended menu to customize the way you set up the projector. You can configure the projector for rear and/or ceiling projection, change the language for the menus and messages, set the screen background color, capture and store a custom image or logo for the startup screen, and set up the projector for network use.

1. Press the

2. Select the

Menu button.

Extended menu. You see the features and their settings

on the right side:

3. Press

Enter. Then use the pointer button (or the up and down

arrow buttons) and the

■ Display

Message: Background Color: Sets the screen background to Black,

Blue, or Logo when the A/V Mute button is pressed. Startup Screen: Enables or disables display of the startup

screen when the projector is turned on.

■ User’s Logo

Turn on to display the image or logo you have captured whenever the projector is turned on. See page 63 for more information.

Enter button to set the following options:

Lets you turn screen messages on or off.

note

The Startup Screen option cannot be turned off if the User’s Logo Protect feature has been turned on. See page 65.

Fine-tuning the Projector 59

note

When Direct Power is turned on, press the P

Power button to turn

the projector off, wait until the P power light turns a steady orange, then unplug the power cord.

■ Projection

Projector is in front of the screen.

Front: Front/Ceiling: Projector is in front of the screen, mounted

upside-down from the ceiling.

Rear: Projector is behind the screen. Rear/Ceiling: Projector is behind the screen, mounted

upside-down from the ceiling.

■ Operation

Direct Power:

When this feature is enabled, projection starts as soon as you plug in the power cord. You don’t have to press the P

Sleep Mode: When this feature is enabled, the projector

Power button.

lamp automatically turns off when the projector has not received any input signals for 30 minutes. This conserves electricity, cools the projector, and extends the life of the lamp. To resume projecting, press the P

■ Standby Mode

Power button.

Set to Network ON to monitor your projector over a network and perform other network functions when the projector is in standby mode.

60 Fine-tuning the Projector

■ COM Port

Turn on USB only if you’re controlling the projector from a computer with the EMP Link 21L software. This software can be downloaded from the Epson website at support.epson.com. (You must turn the projector off and then on again to use the new setting.)

■ Language

Select the language to be used for the projector menus.

4. When you’re finished, press

Esc or Menu.

Viewing Lamp Usage and Other Information

Use the Info menu to view information about the display settings of your computer and the number of hours the lamp has been used.

1. Press the the following menus:

Computer (analog RGB, digital RGB, RGB Video/Component video, (YCbCr, YPbPr)

■ Lamp Hours

Menu button and select the Info menu. You see one of

Video (Composite video, S-Video)

Displays the number of hours the lamp has been used. The life span of the lamp ranges from about 2000 hours in brightness mode to about 3000 hours in

Low brightness

High

mode. If the number shown is close to 2000 or the information is displayed in red, make sure you have a spare lamp handy.

note

You can make changes to many of the signal settings on the Signal menu. See page 55 for details.

note

The lamp usage timer doesn’t register until you’ve used the lamp for at least 10 hours.

■ Source

Displays the input source currently being projected.

■ Input Signal (computer, RGB video, and component video)

Displays the input signal setting.

■ Resolution (computer, RGB video, and component video)

Displays the input resolution.

■ Video Signal (composite and S-video)

Displays the video signal format.

Fine-tuning the Projector 61

■ Refresh Rate (computer, RGB video, and component video)

Displays the refresh rate.

■ Sync Info (computer, RGB video, and component video)

Provides information that may be needed by the service technician.

2. When you’re finished, press

Esc or Menu.

Using the Projector’s Security Features

To prevent unauthorized use of the projector, you can do the following:

■ Create an identifying user logo that is displayed at startup and/or

when the

■ Assign a password; this can be disabled for a set period if you want

to loan the projector to someone

■ Disable the projector’s buttons; this is useful, for example, if

you’re projecting in a classroom and you want to ensure that no one touches the projector’s buttons while you’re using the remote control

If you create a user’s logo for the projector, you can lock the logo on so it is displayed as the startup screen and/or AV/Mute screen. Unauthorized users cannot turn it off or change it. This feature is intended to discourage theft and provides a way to identify the projector should it be stolen.

A/V Mute button is pressed

62 Fine-tuning the Projector

If you assign the projector a password, a screen appears requesting the password whenever the projector is turned on. If you enter the password incorrectly three times in succession, the projector’s operation is locked and you’ll need to disconnect the power cord, then reconnect it to redisplay the password screen. If an incorrect password is entered 30 times in a row, the projector is locked and you’ll need to contact Epson to unlock it. See “Where To Get Help” on page 92.

If someone else will be using the projector for awhile but you want to make sure that person returns it by a certain time, you can temporarily disable the password for a set period. When that time has elapsed, the password is reactivated and must be entered before the projector can be used.

When you enable the Operation Lock feature, all of the projector’s buttons are disabled except the P

Power button.

Creating Your Own Screen Logo

You can transfer any image on your computer to the projector, and then use it as the startup screen and/or the screen that is displayed when you press the A/V Mute button. The image can be a company logo, slogan, photograph, or any other image you want to use. The projector considers this image the “User’s Logo.”

note

If you should happen to enable the password before you set one and you see the prompt to enter the password, enter the default password 0000 to proceed.

Follow these steps to capture the image and transfer it to the projector:

1. Display the image you want to use on the projector. You can use an image from either a computer or video source, such as a VCR.

2. Press the

Menu button and select the Extended menu.

note

If the User’s Logo Protect function is message that the logo cannot be recorded. You’ll need to disable the User’s Logo Protect function before you can create or change the User’s Logo. See page65.

Fine-tuning the Projector 63

ON, you see a

3. Use the pointer button (or the down arrow button) and press

Enter to select User’s Logo.

4. When you see a message asking if you want to use the present image as a user’s logo, select

Yes and press Enter. A selection box

displays over the image.

5. Use the pointer button on the remote control or the arrow buttons on the projector to select the area of the image you want to use. Once you have selected the area, press

Enter.

note

The default setting for the

Startup Screen option in

the

Display menu is ON. If

the

Startup Screen is set to

OFF, the logo will not

display at startup. If the User’s Logo Protect

function has been set to the

Background Color

setting cannot be changed. You need to turn the protect function off first. See page 65 for details.

Once you’ve saved a user’s logo, you cannot reset the logo setting to its factory default (no logo).

ON,

6. When you see the message press

Enter. If you want to change the area selected, select No,

press

Enter and repeat steps 4 through 6.

Select this image?, choose Yes and

7. When you see this screen, select a zoom rate (display size), and then press

8. When you see the message

Yes and press Enter. Saving the logo takes a few moments. Do

Enter.

Save image as user’s logo?, select

not use the projector or other sources (computer, video, etc.) while the logo is being saved.

9. When you see the message

Completed, press Esc.

10. To display the logo as the background screen when the A/V Mute button is press, select the

11. Select

Background Color and press Enter. Then select Logo and

press

Enter.

12. When you’re finished, press

Display menu and press Enter.

Menu to exit the menus.

64 Fine-tuning the Projector

Setting a Password

1. Press the Freeze button on the remote control for about 7 seconds until you see the Password Protect menu:

note

If a password has already been set, you see the Password Protect Release screen. See “Starting the Projector with a Password” on page 66.

2. Select

3. Select

4. Hold down the

Password and press Enter. You see the message Change

the password?

Yes and press Enter.

Num key on the remote control and use the

numeric keypad to enter a 4-digit password. The password will be displayed as

****. After you enter the last

digit, a confirmation screen appears. Enter the password again.

5. After you finish setting the password, press the

Esc button to

return to the Password Protect menu.

Make a note of the password and keep it in a safe place in case you forget it.

Turning On the Password and User’s Logo

1. To enable the password, select Power ON Protect and press

Enter. Select ON then press Esc.

2. If you want to disable the password temporarily, select

Enter. Then hold down the Num button while you use the

press numeric keypad to enter the number of hours (from 0 to 9999) that you want the password feature disabled. If you want the projector to request the password every time it is turned on, set the timer to

0H.

Timer and

Hold down this button to activate the numeric keypad

Use these buttons like a numeric keypad to enter the password

Fine-tuning the Projector 65

The countdown for the elapsed time begins as soon as you close the Password Protect menu. (You can check the elapsed time in this menu next to

Time elapsed.)

3. To enable your screen logo, select

Enter. Select ON and press Enter.

User’s Logo Protect and press

When this feature is on the logo appears whenever the projector is turned on (if the

Startup Screen is enabled in the Extended

menu; see page 59) and as the A/V Mute screen (if you selected the

Logo as the Background Color in the Extended menu).

None of the User’s Logo features can be changed when the User’s Logo Protect function is enabled.

4. Press

Menu to close the Password Protect menu.

If you lose the remote control, you will not be able to enter the password, so keep the remote control in a safe place at all times.

When the period defined in the Time-elapsed setting has passed, and the password is entered correctly, the elapsed time will be reset to

and the countdown will start again. Remember to disable or change this setting when you need to.

Starting the Projector with a Password

When the password function is enabled, you see this screen when you turn on the projector:

66 Fine-tuning the Projector

Press down the

Num button on the remote control as you use the

numeric keypad buttons to enter the password. Once yo u have entered the password correctly, the password screen closes, and projection begins.

If the password is not correct, you see the message Wrong password.

Please try again.

succession, you see the message

locked. Request code xxxxx

If you enter an incorrect password three times in

The projector’s operation will be

and the projector switches to standby mode for approximately 5 minutes. Write down the request code. Then disconnect the projector’s power cord from the electrical outlet, reconnect it, and turn the projector back on.

When you see the Password Protect Release screen again, you can try to enter the correct password.

If you have forgotten the password, contact Epson with the request code number that appears in the Password Protect Release screen for assistance. See “Where To Get Help” on page 92.

If you enter an incorrect password 30 times in succession, the projector remains locked and you must contact Epson to unlock it.

Disabling the Projector’s Buttons

When you enable the Operation Lock function, all the projector’s buttons are disabled except for the P

1. Press the

2. Select the

Menu button.

Setting menu and press Enter.

Power button.

note

To cancel Operation Lock, press the projector’s button for seven seconds.

Enter

3. Use the pointer button (or up and down arrow buttons) to

Operation Lock and press the Enter button.

select

4. Select

5. Select

6. Press the

ON and press Enter. Yes and press Enter to confirm the setting.

Menu button.

Fine-tuning the Projector 67

note

The input signal, Video

Signal, User’s Logo, and Language settings do not

return to their defaults when you select the input signal or video signal, use the on the Signal menu; see page 55 for details. To reset the

Language settings, use the Reset option on the

Extended menu; see page 59 for details.

All Reset. To reset

Reset option

User’s Logo and

Restoring the Default Settings

The Reset menu lets you return most projector menu settings to their default values. It also lets you reset the lamp hours to their inital default value; see page 76 for instructions on resetting the lamp timer.

To reset most projector menu settings, select

Enter button to display the confirmation screen. Select Yes to reset all

the default settings or

No to cancel.

All Reset and press the

68 Fine-tuning the Projector

warning

Before you clean any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages in the projector can injure you severely. Do not try to service this product yourself, except as specifically explained in this User’s Guide. Refer all other servicing to qualified service personnel.

Maintaining and Transporting the Projector

Your projector needs little maintenance. All you need to do on a

regular basis is keep the lens clean. Any dirt or smears on the lens may show up on your projected image.

You also need to periodically clean the air filter and the air intake and exhaust vents. A clogged air filter or air vent can block ventilation needed to cool the projector and cause overheating.

The only parts you should replace are the lamp and air filter. If any other part needs replacing, contact your dealer or a qualified servicer.

This chapter covers the following:

■ Cleaning the lens

■ Cleaning the projector case

■ Cleaning and replacing the air filter

■ Replacing the lamp

■ Resetting the lamp timer

■ Transporting the projector

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

■ Use a canister of compressed air to remove dust.

caution

Do not use glass cleaner to clean the lens.

■ To remove dirt or smears on the lens, use lens-cleaning paper. If

necessary, moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Cleaning the Projector Case

Before you clean the case, first turn off the projector and unplug the power cord.

■ To remove dirt or dust, wipe the case with a soft, dry, lint-free

cloth.

■ To remove stubborn dirt or stains, moisten a soft cloth with water

and a mild detergent. Then wipe the case.

■ Do not use wax, alcohol, benzene, paint thinner, or other

chemical detergents. These can damage the case.

70 Maintaining and Transporting the Projector

Cleaning and Replacing the Air Filter

Clean the air filter and air intake and exhaust vents on the bottom and rear of the projector after every 100 hours of use. If they are not cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector. When the filter and vents are clogged, the projector displays the message

To clean the air filter and air vents, follow these steps:

1. Turn off the projector, allow it to cool down, and unplug the

power cord.

2. Clean the air vent on the back of the projector.

3. Turn the projector upside-down and clean the filter and air intake

vents on the base of the projector. To clean the filter and air vents, Epson recommends using a small

vacuum cleaner designed for computers and other office equipment. If you don’t have one, gently clean them using a very soft brush (such as an artist’s brush).

The projector is overheated.

Air vent

Air filter

Air vents

If the dirt is difficult to remove or if the filter is torn, replace it. Contact your dealer or call Epson at (800) 873-7766 to obtain a new one. The air filter set (part number V13H134A06) contains two filters. In Canada, please call (800) 463-7766 to locate a dealer.

Maintaining and Transporting the Projector 71

4. If you need to replace the filter, slide it off, as shown.

5. Align the new filter carefully as you slide it into place. It should click into place.

72 Maintaining and Transporting the Projector

Replacing the Lamp

The projection lamp typically lasts for about 2000 hours of use (in high brightness mode) or 3000 hours (in low brightness mode). It is time to replace the lamp when:

■ The projected image gets darker or starts to deteriorate.

■ The lamp light is flashing orange.

■ The message Replace the Lamp appears on the screen when the

lamp comes on. To maintain projector brightness and image quality, replace the lamp as soon as possible.

Contact your dealer or call Epson at (800) 873-7766 in the United States for a replacement lamp. Request part number V13H010L30. In Canada, please call (800) 463-7766 to locate a dealer.

note

You can check to see how many hours the lamp has been used. See page 61.

Turn the projector off when not in use. Continuous 24-hour-a-day use may reduce the overall life of this product.

Follow these steps to replace the lamp:

1. Press the P Power button twice to turn off the projector. When you hear the projector beep twice, unplug the power cord.

2. If the projector has been on, allow it to cool down for at least an hour (or until the lamp is cool).

3. Use the screwdriver included with the replacement lamp to loosen the screw holding the lamp cover (the lamp cover is located on top of the projector).

4. Slide the cover out, then lift it off.

warning

Let the lamp cool before replacing it. If the lamp breaks, handle the shards carefully to avoid injury.

Maintaining and Transporting the Projector 73

5. Use the screwdriver to loosen the two screws holding the lamp in place. (You can’t remove the screws.)

Don’t remove these screws

warning

This product includes a lamp component that contains mercury (Hg). Please consult your state and local regulations regarding disposal or recycling. Do not put it in the trash.

caution

Do not touch the glass portion of the lamp assembly. Touching the glass could result in premature lamp failure.

6. Hold the lamp as shown and pull it straight out.

7. Gently insert the new lamp. If it doesn’t fit easily, make sure it’s facing the correct way.

74 Maintaining and Transporting the Projector

8. Once the lamp is fully inserted, tighten its screws.

9. Lower the lamp cover into place. (The opening should be almost covered, and the top of the cover should be flush with the top of the projector.) Then slide the cover closed and tighten the sc rews.

note

Be sure to seat the lamp fully and secure the lamp cover. If the lamp is not properly installed or the cover is loose, the lamp will not turn on.

10. Reset the lamp timer as described in the next section.

Maintaining and Transporting the Projector 75

note

Do not reset the lamp timer if you have not replaced the lamp. If you do, the

Hours will not accurately

reflect the number of hours that the lamp has been used.

Lamp

Esc button

Resetting the Lamp Timer

You must reset the lamp timer after replacing the lamp to clear the

Replace the Lamp warning message. Follow these steps:

1. Connect the power cable and turn on the projector.

2. Press the select the

Menu button on the remote control or projector and

Reset menu. Then press Enter. You see the following:

3. Select the

Lamp-Hours Reset option and press Enter. You see

the following:

Enter button Menu buttton

Menu button Esc button

4. Select

5. Press

Yes and press Enter.

Esc to return to the main menu or the Menu button to exit

the menu system.

Enter button

76 Maintaining and Transporting the Projector

Transporting the Projector

The projector contains many glass and precision parts. If you need to transport it, please follow these packing guidelines to prevent damage to the projector:

■ When shipping the projector for repairs, use the original

packaging material if possible. If you do not have the original packaging, use equivalent materials, placing plenty of cushioning around the projector.

■ When transporting the projector as freight or checked luggage,

first put it in the supplied carrying case, then pack it in a firm box, using cushioning around the case.

■ When you are hand-carrying the projector, be sure to use the

supplied carrying case.

note

Epson shall not be liable for any damages incurred during transportation.

Maintaining and Transporting the Projector 77

78 Maintaining and Transporting the Projector

Solving Problems

This chapter helps you solve problems with your projector, and tells

you how to contact technical support for problems you can’t solve yourself. This chapter explains the following:

■ Using the projector’s on-screen help system

■ What to do when the projector’s status lights flash

■ Solving problems with the image or sound

■ Solving password problems

■ Solving problems with the remote control

■ Contacting technical support

Using On-Screen Help

If the image doesn’t look right or your audio isn’t working, you can get help by pressing the control. The following choices are available:

■ No signal or image appears on the screen

■ Problems with sound

■ Language change

? Help button on the projector or remote

Press to return to the last menu

Press to confirm selection

Use to select a problem or solution

Help button

Follow these steps to get help:

1. Press the

? Help button on the remote control or projector. You

see the help menu.

Press to confirm selection

Press to return to the last menu

Help button

Press one of these buttons to select a problem or solution

2. Use the pointer button on the remote control or the up and down arrow buttons on the projector to select an option. Then press the

Enter button to select it.

3. Use the pointer button on the remote control or the up and down arrow buttons on the projector to highlight the problem you want to solve. Then press the

Enter button to view the

solution(s).

80 Solving Problems

4. Highlight a solution (if this choice is available). Then press the

Enter button to select the solution.

Press the

Esc button if you need to back up.

If the solution is to adjust one of the settings, use the pointer button on the remote control or the left and right arrow buttons on the projector to adjust it.

5. To exit the Help system, press the

? Help button.

If none of the suggestions solves your problem, see additional solutions to problems in the following sections.

What To Do When the Lights Flash

The lights on top of the projector indicate the projector’s status and let you know when a problem occurs.

Power light

Lamp light Temperature light

If the projector is not working correctly, first turn it off and unplug it. Then plug the power cord back in and turn on the projector. If this does not solve the problem, check the status lights on top of the projector and try the solutions recommended in the following table.

Solving Problems 81

Power light

Red Flashing red Flashing red There is an internal error in the projector. Turn the

Red Off Flashing red There is a problem with the fan or a sensor. Turn

Red Flashing red Off The lamp is burned out, broken, or not installed

— Flashing orange Off Replace the lamp with a new one as soon as

Red Off Red The projector has overheated and turned itself

Lamp light

Temperature light Description

projector off and unplug it. Contact Epson for help.

the projector off and unplug it. Contact Epson for help.

correctly; or the lamp cover is open. Close the cover or replace or reseat the lamp, if necessary, as described on page 73. If these suggestions don’t work, contact Epson.

possible; see page 73 for instructions. If you continue to use the lamp, there is a risk it may break.

off. Let it cool for about five minutes, then turn it back on. Make sure there is plenty of space around and under the projector for ventilation. Also clean the air filter and air exhaust vents. See page 71. If it continues to overheat, you may need to replace the air filter.

Flashing red Off Flashing orange The projector is too hot. Make sure the

temperature surrounding the projector does not exceed 95 around and under the projector for ventilation. Clean the air filter and air vents, if necessary. See page 71 for instructions.

Orange Off Off The projector is in standby or sleep mode. You

can unplug it or press the P Power button to turn it on.

Flashing green

Green Off Off The projector is operating normally. Flashing

orange

Off Off The projector is warming up. Wait for the image

to appear.

Off Off The projector is cooling down. Wait for the light

to stop flashing and remain orange before unplugging it.

°F (35 °C) and there is plenty of space

82 Solving Problems

Solving Problems with the Image or Sound

No image appears on the screen.

■ Check that the power light is green, not flashing, and the lens cap

is off.

■ The projector may be in standby or sleep mode. If the projector

has not received any input signal for 30 minutes, it turns off the lamp to conserve the lamp life and save energy. If the power light is orange, press the P

■ Press the A/V Mute button to make sure the picture has not been

turned off temporarily.

■ If the power was switched off and then on again, the projector

may still be cooling down. Wait until the power light stops flashing and remains orange; then press the P again.

■ Check the Video Signal or Computer 1 Input or Computer 2

Input

setting in the Signal menu to make sure it is correct for the

selected source. See page 55 for more information.

Power button to turn the projector on.

Power button

■ Have messages been turned off in the Display setting of the

Extended menu? See page 59 for details.

■ Adjust the Brightness setting on the Image menu or select High

for the

Brightness Control setting in the Extended menu. See

page 54 or page 58.

■ The attached computer may be in sleep mode or displaying a

black screen saver. Try pressing a key on the computer.

Solving Problems 83

Nothing appears on the external monitor.

■ Make sure the VGA computer cable is connected to your

computer’s video port and the projector’s

Computer1/Component Video1 port. It will not work if you

connected the computer cable to the projector’s

Computer2/Component Video2 port.

■ Make sure the cable from your monitor is connected to the

projector’s

Monitor Out port.

You see a blue screen with the message No Signal displayed.

■ Make sure the cables are connected correctly, as described in

Chapter 1.

■ Make sure the power to your computer or video source is

turned on.

■ If you’ve connected a computer and one or more video sources,

you may need to press the projector or the

Comp 1, Comp 2, S-video, or Video button on

the remote control to select the correct source. Allow a few seconds for the projector to sync up after pressing the button.

Source Search button on the

84 Solving Problems

■ If you’ve connected a laptop computer, make sure it’s set to

display on an external monitor. See page 33.

If you’re using a PC laptop:

■ Hold down the Fn key and press the function key that lets you

display on an external monitor. It may have an icon such as

, or it may be labelled the projector to sync up after pressing it. Check your laptop’s manual or online help for details.

On most systems, the or between the LCD screen and the projector, or display on both at the same time.

CRT/LCD. Allow a few seconds for

CRT/LCD key lets you toggle

■ Depending on your computer’s video card, you might need to use

the Display utility in the Control Panel to make sure that both the LCD screen and external monitor port are enabled. See your computer’s documentation or online help for details.

If you’re using a PowerBook or iBook with Macintosh OS X:

1. From the Apple menu, select System Preferences, then click

Display.

2. Select

VGA Display or Color LCD, click Arrange or

Arrangement, then put a check mark in Mirror Displays.

If you’re using a PowerBook or iBook with Macintosh OS 9.x:

1. From the Apple menu, select Control Panels, then click

Monitors or Monitors and Sound.

2. Click the Arrange icon.

3. Drag one monitor icon on top of the other. This lets you display on the projector screen as well as the LCD screen.

4. If the

5. Select one of the listed

Arrange icon isn’t available, click the Monitor icon.

Simulscan resolutions. (Allow a few

seconds for the projector to sync up after making the selection.)

The message Not Supported is displayed.

■ Make sure your computer’s resolution doesn’t exceed XGA (for

the PowerLite 81p) or SVGA (for the PowerLite 61p) and the frequency is supported by the projector. See page 98. If necessary, change your computer’s resolution setting as described below.

■ Make sure the correct Video Signal is selected in the Signal

menu. See page 57. It should normally be set to

Auto.

Solving Problems 85

Only part of the computer image is displayed.

■ If you’re projecting from a computer or RGB video device, press

Auto button on the remote control. If this doesn’t work or if

the you’re projecting from a component, composite, or S-video device, you may need to adjust the menu. See page 56 for more information.

■ If you’ve enlarged part of the image using the E-Zoom button

on the remote control, press the and return to full display.

■ Try pressing the Resize button on the remote control to select a

different aspect ratio (ratio of length to height).

■ Make sure your computer’s resolution setting is correct. Ideally,

it should be 1024

× 768 (for the PowerLite 81p) or 800 × 600

(for the PowerLite 61p) to match the projector’s native resolution. If this option isn’t available, select one of the other compatible video formats listed on page 98.

■ Windows:

Right-click the desktop, select tab, and select a different resolution.

Position setting in the Signal

Esc button to cancel zooming

Properties, click the Settings

86 Solving Problems

■ Macintosh OS X:

On the Apple menu, choose click

Display (or Displays for OS X 10.3). Select a different

System Preferences, then

resolution.

■ Macintosh OS 9.x:

On the Apple menu, choose

Monitors or Monitors and Sound. Select a different

Control Panels, then click

resolution.

■ You also may need to modify existing presentation files if you

created them for a different resolution. See your software documentation for specific information.

The image isn’t rectangular, but trapezoid-shaped.

■ Make sure the projector isn’t placed off to one side of the screen,

at an angle, or the image won’t be rectangular. Place it directly in front of the center of the screen, facing the screen squarely.

■ If you’ve tilted the projector upward, the image will be broader at

the top. Turn on Auto Keystone correction as described on page 57 or hold down the or buttons on top of the projector until the image is rectangular.

The image contains static or noise.

■ If you’re using a computer cable longer than 6 feet, or an

extension cable, the image quality may be reduced.

■ Keep your computer and video cables separated from the power

cord as much as possible to prevent interference.

■ The video signal may be split between the computer and the

projector. If you notice a decline in the projected image quality when the image is displayed simultaneously on your laptop computer and the projector, turn off the laptop’s LCD display.

■ If you’re projecting from a composite or S-video source, check the

Video Signal setting in the Signal menu. In most cases, leave it

set at

Auto. If you’re using a 60-Hz PAL video source, change this

setting to

■ Make sure the cables are securely connected at both ends.

■ Select the correct resolution; see “Compatible Video Formats” on

PAL60. See page 57 for details.

page 98.

■ If you’re projecting from a computer, press the Auto button on

the remote control or the

Enter button on the projector to adjust

tracking and sync automatically. If that doesn’t work, try adjusting the

Sync and Tracking settings in the Signal menu. See

page 56.

Solving Problems 87

The image is blurry.

■ Adjust the focus using the focus ring.

■ Make sure the lens cap is off.

■ There may be dirt or smears on the lens. Clean the lens as

described on page 70.

■ Make sure the lens is not fogged by condensation. You may need

to wait before using the projector after moving it from a cold environment.

■ Make sure the projection distance is within the range described on

page 14.

■ Adjust the Sharpness setting on the Image menu (see page 54).

You should be able to see the effect on the screen immediately.

You see vertical stripes or the image still looks blurry after trying the solutions in the previous section.

■ If you’re projecting from a computer and displaying an image that

contains a lot of fine detail, you may notice one or more vertical stripes or bands, or some of the characters may look heavy or blurred. Press the the projector’s tracking and sync settings.

Auto button on the remote control. This resets

88 Solving Problems

■ If further adjustment is needed, you can fine-tune the Tracking

and

Sync settings manually using the Signal menu as described

on page 56.

1. Fill the screen with an image containing fine detail when making these adjustments. For example, in Windows you can select a pattern to appear as your desktop background. Or try projecting black text on a white background.

2. Adjust the

3. Adjust the

Tracking to eliminate vertical stripes. Sync to increase the sharpness of the image.

The colors of the image are not right.

■ Try selecting a different Color Mode. See page 54 for

instructions.

■ If you’re displaying video, adjust the Color Intensity and Tint

settings on the Image menu. See page 54 for instructions.

■ Adjust the Brightness and Contrast settings on the Image

menu. See page 54.

■ Try adjusting the Color Adjustment setting on the Image menu.

See page 54.

■ Make sure the input signal setting on the Signal menu matches

the signal from the connected device. If the image is too purple and you’ve connected a computer or RGB video device to the

Computer1/Component Video1 or Computer2/Component Video2

port, select Computer1 or Computer2 as the input source. If you’ve connected a component video device to one of these ports, select

Component Video1 or Component Video2.

If you’re projecting from a composite video or S-video source, make sure the correct

Video Signal is selected on the Signal

message. See page 55 for details.

■ Check your computer display settings to correct the color balance.

note

Because of the different technologies used, your projected image may not exactly match the colors on your laptop or computer monitor.

■ If the image seems dark, the lamp may be nearing time for

replacement. Check the lamp hours as described on page 61 and replace it, if necessary, as described on page 73.

There is no sound.

■ Press the button on the remote control or projector to turn up

the volume.

■ If you’ve turned off the picture and sound, press the A/V Mute

button on the remote control to turn them on again.

■ If you’re using a VCR or other video source, make sure its volume

is not turned all the way down or muted. Also, make sure the cables are connected correctly, as described in Chapter 1.

Solving Problems 89

■ Make sure the audio cable is connected to the correct Audio port.

See page 21.

■ If your presentation includes computer audio, make sure the

volume control on your computer is not turned all the way down or muted. Make sure the audio cable is securely connected to both the projector and your computer’s headphone jack or

audio out jack. See page 21.

■ The wrong source may be selected. Press the Source Search

button on the projector—or the Comp 1, Comp 2, S-Video, or

Video button on the remote control—to select the correct source.

Solving Password Problems

You have forgotten the password.

■ Write down the request code that appears in the Password Protect

Release screen and contact Epson. See “Where To Get Help” on page 92.

■ If you turned on the password protect feature before setting the

password and no password was set before, try using the default password:

0000.

90 Solving Problems

The remote control is not available.

You must have the remote control to enter the password. If necessary, you can purchase a replacement remote control from Epson. See page 92 for details about ordering.

Solving Problems with the Remote Control

The projector doesn’t respond to remote control commands.

■ Make sure you are within 20 feet of the projector, and within

range of the projector’s front or back sensor (approximately 30° to the left or right and 15° above or below).

■ The remote control batteries may not be installed correctly or may

be low on power. Replace the batteries as described on page 48.

■ Dim the room lights and turn off any fluorescent lights. Make

sure the projector is not in direct sunlight. Strong lighting, especially fluorescent lights, may affect the projector’s infrared receivers.

■ Turn off any nearby equipment that emits infrared energy, such

as a radiant room heater.

You have lost the remote control.

You need the remote control to access many projector features. If you have lost it, you can order another from Epson. See page 92 for details about ordering.

You can’t control the mouse pointer with the remote control.

■ Make sure the USB mouse cable is securely connected to both

your computer’s USB port and the projector’s USB port. For details, see page 19.

■ Make sure RS232C is selected as the COM Port setting in the

Extended menu. See page 60.

■ To use the USB mouse connection on a PC, your system must

have a “clean” installation of Windows 98, Windows Me, Windows XP, or Windows 2000. The connection may not work correctly if your system was upgraded from Windows 95.

Solving Problems 91

■ If you’re running Windows 98 or Me, you may need to install

USB drivers from your Windows CD-ROM. After you install the drivers, restart both the computer and the projector to resynchronize the setup.

Where To Get Help

Epson provides technical assistance through electronic support services 24 hours a day, as listed in the following table.

Service Access

World Wide Web From the Internet, you can reach

Epson’s product support page at http://support.epson.com. After selecting your product, you can access troubleshooting information, download product documentation, and receive technical advice through e-mail.

Presenters Online Access tips, templates, and training for

developing successful presentations at

http://www.presentersonline.com

92 Solving Problems

Telephone Support Services

To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included in your Start Here kit. This is the fastest way of speaking to a live representative, and it’s free. This service is available 6 Pacific Time, Monday through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

■ U.S.: (562) 276-4394, 6AM to 6 PM, Pacific Time, Monday

through Friday

■ Canada: (905) 709-3839, 6AM to 6 PM, Pacific Time, Monday

through Friday

Toll or long distance charges may apply.

AM to 6 PM,

Before you call, please have the following information ready:

■ Product name (Epson PowerLite 61p or PowerLite 81p)

■ Product serial number (located on the bottom of the projector)

■ Computer or video configuration

■ Description of the problem

You can purchase screens, carrying cases, or other accessories from Epson at (800) 8 73-7766 or by visiting the Epson Store at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral

note

To purchase a replacement remote control, call (562) 276-4394 (U.S.) or (905) 709-3839 (for dealer referral in Canada).

Solving Problems 93

94 Solving Problems

Technical Specifications

General

Type of display Poly-silicon TFT active matrix LCD panels (3) Diagonal size: 0.7 inches (17.8 mm) Lens F=1.70 to 1.87, f=21.3 to 25.6 mm Resolution 81p: 1024

61p: 800 Color reproduction Full color, 16.8 million colors Brightness (ANSI) 2000 lumens (High brightness mode)

1500 lumens (Low brightness mode) Contrast ratio 400:1 Image size 30 to 300 inches (0.8 to 7.6 meters) Projection distance 2.9 to 35.5 feet (0.9 to 10.8 meters) Projection methods Front, rear, ceiling Focus adjustment Manual Zoom adjustment Manual Internal sound system 5 W monaural Optical aspect ratio 4:3 (horizontal : vertical) Zoom ratio 1:1.2 Noise level 36 dB (High brightness mode)

30 dB (Low brightness mode) Keystone correction

angle

± 15° vertical (maximum)

× 768 pixels

× 600 pixels

note

Lamp life results vary depending on environmental conditions and usage. Turn the projector off when not in use. Continuous 24-hour-a-day use may reduce the overall life of the product.

Projection Lamp

Power consumption 200 W Lamp life About 2000 hours (High brightness);

3000 hours (Low brightness)

Remote Control

Range 20 feet (6 meters) Batteries (2) Alkaline AAA

Mouse Compatibility

Supports USB

Dimensions

Height 4.3 to 4.8 inches (foot extended)

(109 to 123 mm) Width 13.8 inches (351 mm) Depth 10.7 inches (272 mm) Weight 8.9 lb (4.0 kg)

96 Technical Specifications

Electrical

Rated frequency 50/60 Hz Power supply 100 to 120 VAC, 3.2 A

200 to 240 VAC, 1.6 A Power consumption Operating: 280 W

Standby: 5 W

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (–10 to 60 °C) Humidity Operating: 20 to 80% RH,

non-condensing

Storage: 10 to 90% RH,

non-condensing

Safety and Approvals

United States FCC 47CFR Part15B Class B (DoC)

UL60950 Third Edition

Canada ICES-003 Class B

CSA C22.2 No. 60950 (cUL)

CE Marking Directive 73/23/EEC, 89/336/EEC

IEC60950 Third Edition EN 55022, EN 55024

Pixelworks projector.

™

DNX™ ICs are used in this

Technical Specifications 97

Compatible Video Formats

You can use any of the following video sources: VCR, DVD player, camcorder, digital camera, gaming console, or laser disc player. The projector supports composite video, S-video, component video, and RGB video, and it automatically senses the video format (HDTV, SDTV, NTSC, PAL, or SECAM).

The projector supports these international video standards:

Mode Refresh Rate (Hz)

NTSC NTSC 4:3 PAL PAL 4:3 SECAM SECAM 4:3

HDTV (720p) HDTV (1080i) SDTV (480i)

SDTV (540i) SDTV (480p)

60 60 50 50 50 50

60 60 60

50 60

98 Technical Specifications

Compatible Computer Display Formats

You can connect the projector to a wide range of computers, including PCs and notebooks, Apple Macintosh, Power Macintosh series (including G3, G4 and G5 systems), PowerBook computers, many iMac and iBook series systems, and high-end workstations such as the

Sun

SPARCstation.

Although images are displayed at the projector’s native resolution of 1024 × 768 pixels (PowerLite 81p) or 800 × 600 pixels (PowerLite 61p), Epson’s patented SizeWise chip supports computer display formats ranging from VGA through UXGA.

To project images output from a computer, the computer’s external monitor signal must be set at a refresh rate (vertical frequency) that’s compatible with the projector; see the following table for compatible formats. For best results, the computer’s resolution should be set to match the projector’s native resolution (1024 this resolution isn’t available, select one of the other compatible formats:

■ Windows:

Right-click the desktop, select and select a compatible resolution. (For a notebook displaying through an external monitor port, you’ll need to click the

Advanced button on the Settings tab, then adjust the resolution

of the external monitor.)

™

× 768, or 800 × 600). If

Properties, click the Settings tab,

■ Macintosh OS X:

From the Apple menu, select

Displays. Make sure the VGA Display or Color LCD dialog box

is selected, then click the

System Preferences, then click

Display tab and select a compatible

resolution.

■ Macintosh OS 9.x:

On the Apple menu, choose

Monitors or Monitors and Sound. Click the Monitor tab and

Control Panels, then click

select a compatible resolution for your external monitor.

You may need to modify existing presentation files if you created them for a different resolution. See your software documentation for details.

Technical Specifications 99

The projector supports these monitor display formats:

Mode Refresh Rate (Hz) Resolution

VGA EGA 70 640 × 480 VGA—60

VESA—60 VESA—72 VESA—75 VESA—85

SVGA—56 SVGA—60 SVGA—72 SVGA—75 SVGA—85

XGA—60 XGA—70 XGA—75 XGA—85

SXGA1—70 SXGA1—75 SXGA1—85

SXGA2—60 SXGA2—75 SXGA2—85

SXGA3—60 SXGA3—75 SXGA3—85

60 60

72 75 85

56 60 72 75 85

60 70 75 85

70 75 85

60 75 85

60 75

85 UXGA—60 60 1600 iMAC VGA

iMAC SVGA iMAC XGA MAC13 MAC16 MAC19—60 MAC19 MAC21

SDTV (540i) SDTV (480i) SDTV (480p)

HDTV (720p) HDTV (1080i)

117

640

× 480

640 × 480 640

× 480

640

× 480

640

× 480

800

× 600

800

× 600

800

× 600

800

× 600

800

× 600

1024

× 768

1024

× 768

1024

× 768

1024

× 768

1152

× 864

1152

× 864

1152

× 864

1280

× 960

1280

× 960

1280

× 960

1280

× 1024

1280

× 1024

1280

× 1024 × 1200

640

× 480

800

× 600

1024

× 768

640

× 480

832

× 624

1024

× 768

1024

× 768

1152

× 870

720 × 540 640

× 480

640 × 480

× 720

1280 1920 × 1080

100 Technical Specifications

Epson 61p User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Safety Information

Copyright Notice

Trademarks

Contents

Welcome

Getting the Most from Your Projector

Using Your Documentation

Getting More Information

Registration and Warranty

Unpacking the Projector

Additional Components

Optional Accessories

Setting Up the Projector

Positioning the Projector

Other Installations

Connecting to a Computer

Connecting with the VGA Cable

Connecting with a VGA-5BNC Cable

Connecting the USB Cable for Remote Mouse Control

Connecting an External Monitor

Playing Sound Through the Projector

Connecting to Video Sources

Connecting a Composite Video Source

Connecting an S-video Source

Connecting an RGB Video Source

Connecting a Component Video Source

Playing Sound Through the Projector

Projecting

Turning On Your Equipment

Turning On the Projector

Selecting the Image Source

What To Do If You See a Blank Screen

Adjusting the Image

Focusing and Zooming Your Image

Adjusting the Height of Your Image

Adjusting the Image Shape

Adjusting the Brightness

Correcting Computer Images

Adjusting the Color Mode

Adjusting the Volume

Shutting Down the Projector

Using the Remote Control

Controlling the Picture and Sound

Switching Between Picture Sources

Turning Off the Picture and Sound

Stopping Action

Zooming Your Image

Changing the Image’s Aspect Ratio

Using the Remote Control as a Wireless Mouse

Replacing the Batteries

Fine-tuning the Projector

Using the Projector’s Menu System

Changing Menu Settings

Adjusting Colors and Clarity

Adjusting the Input Signal

Customizing Projector Features

Selecting Projector Setup Options

Viewing Lamp Usage and Other Information

Using the Projector’s Security Features

Creating Your Own Screen Logo

Setting a Password

Turning On the Password and User’s Logo

Starting the Projector with a Password

Disabling the Projector’s Buttons

Restoring the Default Settings

Maintaining and Transporting the Projector

Cleaning the Lens

Cleaning the Projector Case

Cleaning and Replacing the Air Filter

Replacing the Lamp

Resetting the Lamp Timer

Transporting the Projector

Solving Problems

Using On-Screen Help

What To Do When the Lights Flash

Solving Problems with the Image or Sound
