FCC COMPLIANCE STATEMENT FOR AMERICAN USERS

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna

l Increase the separation between the equipment and the receiver l Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected

l Consult the dealer or an experienced radio/TV technician for help.

You may find the following booklet prepared by the Federal Communications

Commission helpful: “Television Interference Handbook.” This booklet is available from the U.S. Government Printing Office, Washington, DC 20402. Stock No. 004-000-00450-7.

Note: If the interference stops, it was probably caused by the computer or its periph-

eral devices. To further isolate the problem: Disconnect the peripheral devices and their input/output cables one at a time. If the

interference stops, it is caused by either the peripheral device or its I/O cable. These devices usually require shielded I/O cables. For Epson peripheral devices, you can obtain the proper shielded cable from your dealer. For non-Epson peripheral devices, contact the manufacturer or dealer for assistance.

WARNING: This equipment has been certified to comply with the limits for a Class B computing device, pursuant to Subpart B of Part 15 of FCC Rules. Only peripherals (computer input/output &vices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this computer. Operation with noncertified peripherals is likely to result in interference to radio and TV reception.

The connection of a nonshielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels that exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not

leave the cables connected to unused interfaces.

DOC COMPLIANCE STATEMENT FOR CANADIAN USERS

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications.

Conformation 1

present appareil numerique n’emet

Les

Normes

dIEmission

pas

Radioelectriques Canadiennes

de bruits radioelectriques depassant

les

limites applicables aux appareils numeriques de Classe B prescrites dans le reglement

sur le brouillage tadiohlectriques &cc& par le Minist&re des

Communications du

Canada.

EPSON

EQUITY™ 386SX PLUS

User’s Guide

IMPORTANT NOTICE

DISCLAIMER OF WARRANTY

Epson America makes no representations or warranties, either express or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties of merchantability and fitness for a particular purpose or for any indirect, special, or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so this exclusion may not apply to you.

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Epson America, Inc. No patent liability is assumed with respect to the use of information contained herein. While every precaution has been taken in the preparation of this publication, Epson America assumes no responsibility for errors or omissions. Nor is

any liability assumed for damages resulting from the use of the information contained herein. Further, this publication and features described herein are subject to change without notice.

TRADEMARKS

Epson is a registered trademark of Seiko Epson Corporation.

Equity is a trademark of Epson America, Inc.

General notice: Other product names used herein are for identification purposes only

and may be trademarks of their respective companies.

Torrance, California

Y705991101

IMPORTANT SAFETY INSTRUCTIONS

Read all of these instructions and save them for later reference.

Follow all warnings and instructions marked on the product.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Do not use this product near water.

Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

Slots and openings in the cabinet and the back or bottom are

provided for ventilation; to ensure reliable operation of the

product and to protect it from overheating, these openings must

not be blocked or covered. The openings should never be

blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

This product should be operated from the type of power source

7. indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

This product is equipped with a 3-wire grounding-type plug, a

8. plug having a third (grounding) pin. This plug will only fit into a

grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

Do not locate this product where the cord will be walked on.

10. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

11. Never push objects of any kind into this product through cabinet slots, as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

12. Except as specifically explained in the User’s Manual, do not attempt to service this product yourself. Opening or removing those covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks. Refer all servicing in those compartments to service personnel.

13. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power cord or plug is damaged or frayed. B.

If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

If the product has been dropped or the cabinet has been damaged.

If the product exhibits a distinct change in performance, indicating a need for service.

Introduction Optional Equipment

Operating Systems and Other Software VGA Utilities How to Use This Manual Where to Get Help

Chapter 1

1 Choosing a Location 2 Removing the Protector Card. 3 Connecting a Monitor

Using the VGA Interface. Using a Display Adapter Card

4 Connecting a Printer or Other Device.

Using the Parallel Interface

Using the Serial Interface 5 Connecting the Keyboard 6 Connecting the Mouse

7 Connecting the Power Cord

8 Turning On the Computer

Turning Off the Computer.

Setting Up Your System

.................................

..................

......................................

.............................

..................................

...............................

.......................

.............................

........................

.....................

.......................

.........................

...........................

.............................

.........................

..........................

.......................

................

2 3 3 5

1-1 1-3 1-3 1-3 1-7 1-8 1-8

1-11 1-12 1-13 1-15 1-16 1-18

Chapter 2 Automatic Configuration

Starting the Setup Program.

Continuing From an Error Message Moving the Cursor Block.

Running the Setup Program

.............................

...........................

.................

........................

2-2 2-2

2-4 2-6

Setting the Display Adapter Type Setting the Power-on Password. Setting the Processor Speed Setting the Speaker and Keyboard Options. Setting the Real-time Clock. Setting the Hard Disk Drive Configuration.

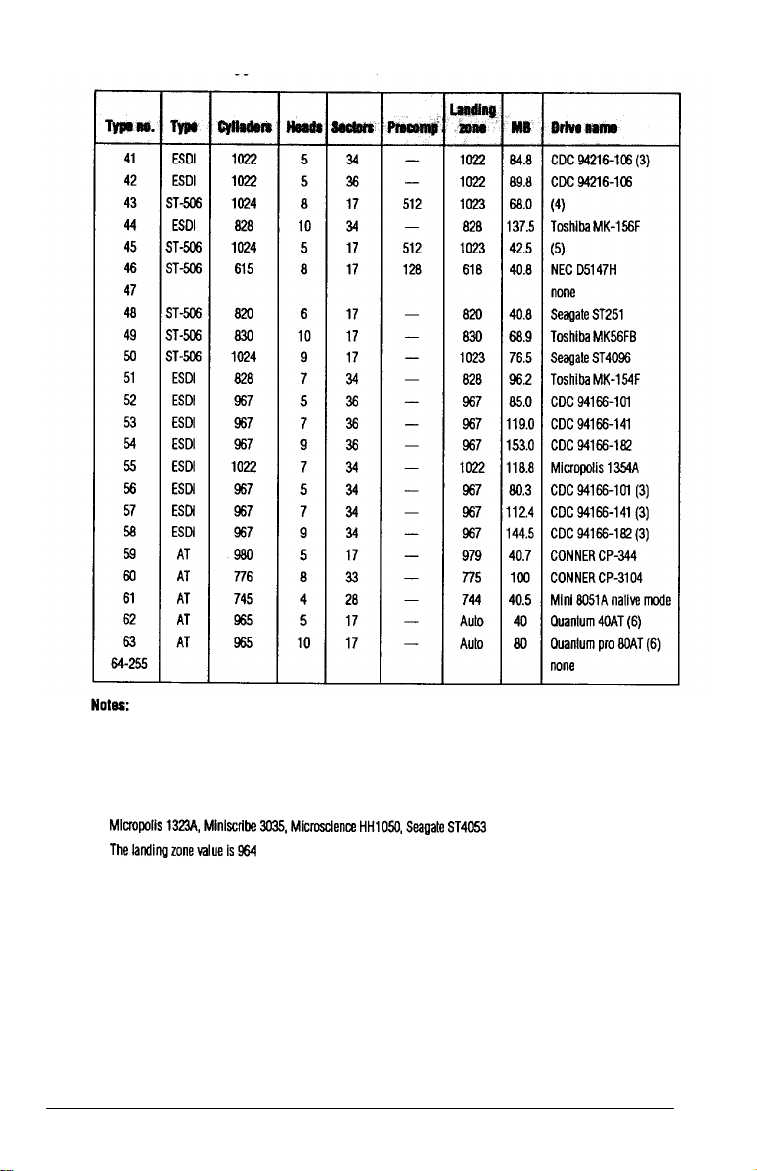

Hard Disk Drive Types

Setting the Diskette Drive Type(s)

Setting the Serial/Parallel Interfaces

Reviewing Your Settings.

Leaving the Setup Program.

.............................

......................

........................

...........................

..............

..........................

..............

.....................

....................

...........................

2-6 2-9 2-11 2-13 2-15 2-18

2-23 2-26 2-28 2-30 2-31

Chapter 3 Installing MS-DOS or Another Operating System

Copying the Reference and Utility Files Special Keys on the Keyboard.

Stopping a Command or Program

Resetting the Computer

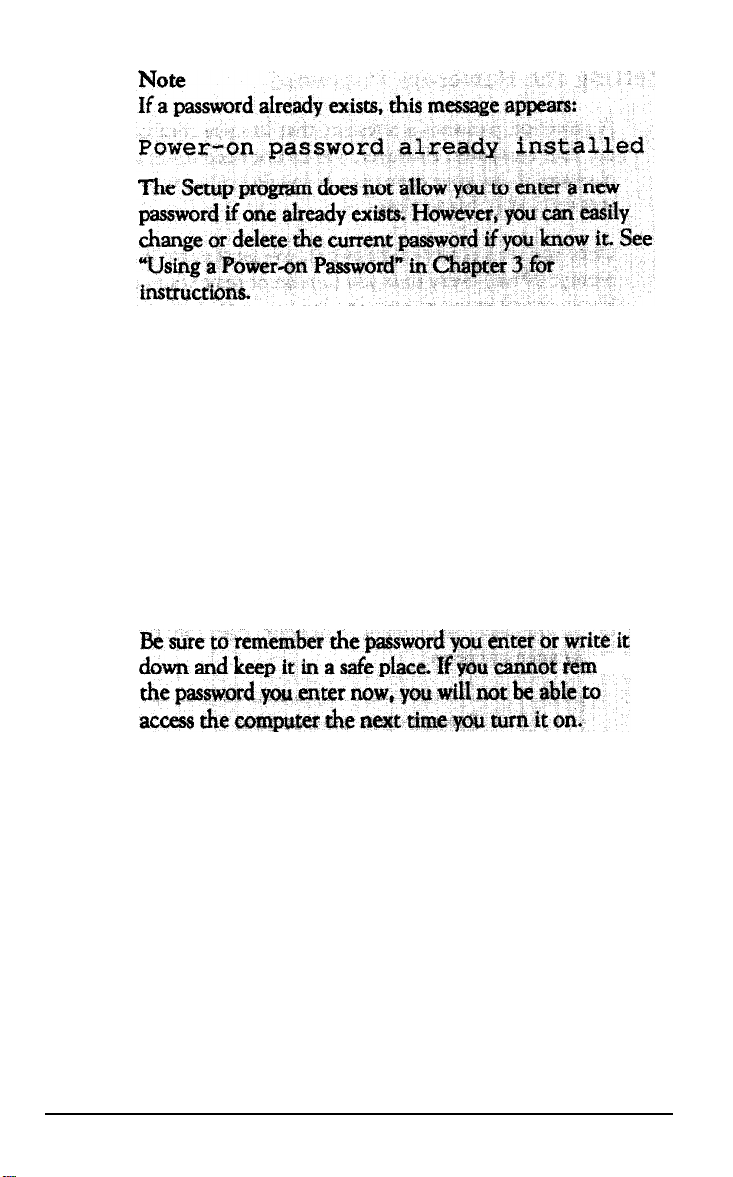

Using a Power-on Password

Changing a Power-on Password

Deleting a Power-on Password

Using Disks and Disk Drives.

How Disks Store Data

Types of Diskette Drives

Caring for Diskettes and Diskette Drives

Write-protecting Diskettes.

Using a Single Diskette Drive System Inserting and Removing Diskettes. Formatting Diskettes Making Backup Copies Using a Hard Disk Drive

Using Your Computer

.................

.........................

......................

..............................

...........................

....................

.....................

..........................

...........................

..........................

.............

.......................

...............

.................

............................

...........................

.........................

.........

3-1 3-2

3-3 3-5 3-5 3-7 3-8 3-9 3-10

3-10 3-12 3-15 3-16 3-18 3-20 3-21 3-22 3-23

Chapter 4

Enhancing System Operations

Using AUTOEXEC.BAT and Other Batch Files Changing the Processor Speed

Entering Keyboard Commands Using the ESPEED Program.

Reassigning the Diskette Drives

Using the AFDD Program

Using Your Computer as a Network Server

Using a Password in Network Server Mode.

Using Expanded Memory Beyond 640KB

Using Special VGA Features

Chapter 5 Removing the Cover

Changing the Jumper Settings

Setting the Jumpers Installing an Option Card Removing an Option Card Adding Memory Modules

Installing Memory Modules

Removing Memory Modules Installing a Math Coprocessor Removing a Math Coprocessor. Replacing the Cover

Post-installation Setup for Memory Cards

Using the CORFIX Program

Post-installation Setup

Installing and Removing Options

.................................

...............................

.........................

....................

......................

........................

...............

................

..........................

.........................

.............................

............................

.............................

.......................

......................

.........................

........................

................

......................

..........

4-1 4-2 4-4 4-5 4-7 4-8 4-10 4-11 4-13

4-14

5-2 5-6 5-9 5-10 5-16 5-17 5-18 5-24 5-29 5-33

5-34 5-36

5-37 5-38

vii

Appendix A Using the VGA Utilities Preparing to Install Drivers or Utilities

Microsoft Windows/286, Versions 2.03 and 2.1. Microsoft Windows/386, Version 2.1. Microsoft/IBM OS/2, Version 1.1 Autodesk AutoCAD, Version 2.62 Autodesk AutoCAD, Version 9.0 Autodesk AutoCAD, Version 10.0

Digital Research GEM, Version 2.2

Digital Research GEM, Version 3.0 Ventura Publisher, Versions 1.0 and 1.1 Ventura Publisher, Version 2.0

.........................

Ashton-Tate Framework II, Release 1.0.

..................

...........

...................

.......................

.....................

......................

.....................

.................

Lotus 1-2-3, Release 2 and Lotus Symphony,

Releases 1.0, 1.1, and 2.0

WordStar, Version 3.3

WordStar, Versions 4.0 and 5.0

WordPerfect, Versions 4.0 and 4.1

WordPerfect, Versions 5.0 and 5.1

VGAMODE Utility Program

SETVGA Utility Program

SNOOZE Utility Program

Microsoft Mouse Driver 7.0 Patch Utility

...........................

...............................

........................

......................

..........................

............................

................

A-3 A-4

A-6 A-7 A-9 A-11 A-14 A-16 A-20 A-23 A-25 A-26

A-28 A-31

A-33 A-35 A-36 A-38 A-40 A-43 A-45

Appendix B Using the Correct Drive Bay

How to Use This Appendix Setting the Hard Disk Drive Jumpers.

Installing and Removing Disk Drives

..........................

...........................

...................

Setting the Jumpers for Two Hard Disk Drives Changing the Jumper Settings.

....................

Installing a Hard Disk in the Vertical Position

Removing the Mounting Frames From the Drive

Removing and Attaching the Mounting Plate

Installing the Drive.

.............................

Connecting the Hard Disk Drive Cables.

viii

........

............

......

........

............

B-2 B-3 B-4 B-5 B-6 B-8 B-8 B-10 B-13 B-18

Removing a Hard Disk From the Vertical Position . . . . . . . . .

Installing or Removing a Disk Drive in the

Horizontal Position . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removing the Subassembly . . . . . . . . . . . . . . . . . . . . . . .

Installing a Disk Drive in the Horizontal Position . . . . .

Replacing the Drive on the Subassembly. . . . . . . . . . . . .

Removing a Disk Drive From the Horizontal Position . .

Replacing the Subassembly . . . . . . . . . . . . . . . . . . . . . . .

B-24 B-27

B-28 B-34

B-42 B-44 B-47

Appendix C Choosing the Type of Format.

Reformatting a Used Disk Formatting a New Disk. Selecting an Option Starting the Formatting Process.

Option 1, Format

Modifying the Defective Track Table

Formatting the Disk Option 2, Destructive Surface Analysis Option 3, Non-destructive Surface Analysis Exiting the Hard Disk Format Menu

Appendix D Troubleshooting

Error Messages The Computer Won’t Start The Computer Does Not Respond Password Problems

Removing a Password

Setting a New Password

Keyboard Problems Monitor Problems Diskette Problems

Diskette Drive Problems

Hard Disk Problems

Physically Formatting a Hard Disk

.........................

........................

..........................

.............................

...................

....................................

...............

.............................

..................

....................

......................................

...........................

......................

..................................

............................

..........................

..................................

...................................

..............................

..................................

..............

C-2 C-3 C-4 C-4 C-4 C-5 C-7 C-9 C-10 C-12 C-13

D-2 D-5 D-6 D-8 D-9 D-11

D-13 D-14 D-16 D-19 D-20

Software Problems. Printer Problems Option Card Problems Mouse Problems Memory Module Problems Math Coprocessor Problems

..................................

....................................

...............................

.....................................

............................

...........................

D-24 D-25

D-27 D-28 D-29 D-30

Appendix E

Starting System Diagnostics Selecting an Option Modifying the Device List. Selecting a Test

Resuming From an Error.

Error Codes and Messages.

Appendix F CPU and Memory

Controllers.

Interfaces Power Supply Mass Storage

Keyboard.. ........................................

Environmental Requirements. Physical Characteristics

Glossary

Performing System Diagnostics

...........................

.................................

............................

.....................................

.........................

............................

Specifications

...................................

........................................

..........................................

.......................................

.........................

..............................

E-2 E-4 E-5

E-6 E-8

E-12

F-1 F-2

F-2 F-3 F-3

F-4 F-4 F-5

Index

Introduction

The Epson® Equity™ 386SX PLUS is a high-performance personal computer which offers exceptional speed and convenience in a compact design. The computer’s 16 MHz 80386SX microprocessor makes all your programs run faster, even when supporting multitasking operations.

Your system includes either 1MB or 2MB of internal memory, a built-in VGA (video graphics array) display adapter, built-in parallel and serial interfaces, an IBM® PS/2™ compatible mouse port, and four standard option slots (three 16.bit and one 8-bit). These interfaces allow you to connect most of your peripheral devices directly to the computer, so you do not have to install option cards. You can use the option slots to install additional devices, such as a modem.

The Equity 386SX PLUS can support up to three internal drives: either two diskette drives and one hard disk drive, or one diskette drive and two hard disk drives.

Optional Equipment

You can easily upgrade your computer by installing additional memory and adding optional devices. You can install just about any optional device that is compatible with the IBM Personal Computer, PC XT,” or PC AT.‘”

You can expand the computer’s memory by adding memory modules to the main system board. Memory modules are

efficient because they allow fast memory access and eliminate the need to use an option slot. If your computer came with 1MB of memory, you can expand it up to 10MB by installing SIMMs; on a 2MB system, you can increase the memory up to 14MB with SIMMs. You can add a memory card, however, if you want to expand your computer’s memory to 16MB.

You may also want to install an 80387SX, 16 MHz math

coprocessor in your computer to speed up mathematical calculations in certain application programs. Check with your authorized Epson dealer to see which options are available.

Operating Systems and Other Software

You probably have a version of MS-DOS: the operating system by Microsoft? to use with your Equity 386SX PLUS. Epson has enhanced MS-DOS by adding two time-saving utilities-HELP and MENU-that make it easier to use. The HELP program lets you display information on the screen about any MS-DOS command. MENU provides an easy way to run many useful MS-DOS commands.

Version 4.01 of MS-DOS also includes the Shell program, which lets you run MS-DOS commands by selecting options from on-screen menus. MS-DOS version 3.3 comes with the XTREE® program. XTREE allows you to use on-screen menus

to perform a wide variety of file and directory operations.

You probably also purchased other software; you can use virtually any application program designed for the IBM PC,

PC XT, PC AT, or compatible computers on your Equity 386SX PLUS. You may also use powerful 32-bit software-such as

Microsoft Windows/386™-with your computer.

VGA Utilities

Epson has provided special VGA device drivers and utilities

that you can use with certain VGA monitors, such as multifrequency monitors. Using these utilities, you can take advantage of extended VGA features such as 16-color graphics mode resolutions up to 800 x 600 and 132-column text mode.

How to Use This Manual

This manual explains how to set up and operate your Equity 386SX PLUS. It also describes how to install options and run diagnostics checks. Although the illustrations show a computer with a 5 using a 3 ‘/z-inch diskette drive as well.

%-inch

diskette drive, instructions are provided for

You do not need to read everything in this book; see the following chapter summaries.

Chapter 1 provides simple step-by-step instructions for setting up your system. On the back cover foldout are illustrations

identifying the different parts of your computer; you can refer to these as you set up your system.

Introduction 3

Chapter 2 describes how to run the Setup program to define your computer’s configuration. You must do this before you use your computer. You may need to do it again later, if you change the configuration.

Chapter 3 provides instructions for performing important

operating procedures, including using and caring for disks and

disk drives.

Chapter 4 describes specialized features you can use to enhance

your system’s performance.

Chapter 5 describes some of the options you can use in your

Equity 386SX PLUS

an contains instructions for removing the

cover, setting jumpers, and installing options.

Appendix A provides instructions for using the VGA device

drivers and utilities. You need to install device drivers only if

you plan to use extended VGA features.

Appendix B describes how to install and remove a hard disk or

diskette drive.

Appendix C describes how to perform a hardware-level format

on a hard disk. You need to do this only if you have installed a new hard disk that has never received this type of low-level format, or if you are having serious problems with the disk.

Appendix D contains troubleshooting tips in case you encounter any problems while using your computer.

Appendix E outlines the system diagnostics checks. If you are

having trouble with any part of the hardware, you may want to

run some of these diagnostics checks. Appendix F gives the technical specifications for the computer. At the end of the manual, you’ll find a glossary and an index.

Where to Get Help

Customer support and service for Epson products are provided

by a network of authorized Epson dealers and Customer Care

Centers throughout the United States. Epson America provides

product information and support to its dealers and Customer

Care Centers.

Therefore, we ask that you contact the business where you

purchased your Epson product to request assistance. If the people there do not have the answer to your question, they can

obtain it through our toll-free dealer support program. Epson is

confident that this policy will provide you with the assistance you need.

Call the Epson Consumer Information Center at

1-800-922-8911 for the following:

The nearest Epson dealer

The nearest Customer Care Center

Information on Epson User Groups.

To locate or purchase accessories or supplies, contact your nearest Epson dealer or call 1-800-873-7766.

Introduction 5

Chapter 1

Setting Up Your System

Setting up your Equity 386SX PLUS personal computer is easy.

Just follow the eight steps in this chapter. As you set up your

computer, you may want to leave this manual’s back cover foldout open so you can refer to the illustrations identifying the different parts.

Choosing a Location

Setting Up Your System

1-1

Before you set up your computer, it’s important to choose a convenient location where it can run properly. Select a location that provides the following:

A large, sturdy desk or table. The surface should be strong enough to easily support the weight of your system and large enough to accommodate all of its components. Select a location that allows plenty of space so you can work comfortably.

A flat, hard surface. Soft surfaces like beds and carpeted floors attract static electricity, which can erase data on your disks and damage the computer’s circuitry. Soft surfaces also prevent proper ventilation.

Good air circulation. Air must be able to move freely under

the system and behind it. Leave several inches of space around the computer.

Moderate environmental conditions. Protect your computer from extremes in temperature, humidity, dust, and smoke. Avoid direct sunlight or any other source of heat. High humidity also hinders operation, so select a cool, dry area.

Appropriate power sources. To prevent static charges,

connect all your equipment to three-prong, 120-volt grounded outlets. You need one outlet for the computer, one for the monitor, and additional outlets for a printer and any other peripherals.

No electromagnetic interference. Locate your system away

from any electrical device, such as a telephone, which

generates an electromagnetic field.

1-2

Setting Up Your System

Removing the Protector Card

If you have a 5 the diskette slot. This card is inserted at the factory to protect the read/write heads in the drive. To remove it, flip the latch up to pop the card out part way, then pull it out, as shown below.

%-inch

diskette drive, there is a protector card in

(If you have a second 5 ‘I+inch diskette drive, be sure to remove the protector card from that drive as well.)

Save the protector card. If you transport your computer, you may want to insert the card into your diskette drive prior to shipping. This will protect the read/write heads during the shipping process.

Setting Up Your System

1-3

Connecting a Monitor

The procedure you use to connect your monitor to the computer depends on the type of monitor you have. If you have

a VGA monitor (or a multi-frequency monitor with an analog

connector), you can connect it to the computer’s built-in VGA

port. See “Using the VGA Interface” below. If you have any

other type of monitor, see “Using a Display Adapter Card”

below.

Using the VGA Interface

Follow these steps to connect your VGA monitor to the VGA port on the computer:

Make sure your monitor is turned off.

Place your monitor on top of or near the computer. For easy access, turn the monitor and computer around so the backs of both components are facing you.

If necessary, connect the monitor cable to the monitor.

(Your monitor may have a permanently attached cable.)

1-4

Setting Up Your System

Examine the connector end of the monitor cable, and

position the plug to match the orientation of the monitor interface (marked with a monitor icon). Then insert the plug into the port (the connector should fit in easily when properly oriented), as shown below.

\//

If the connector has retaining screws, tighten them by hand

or with a screwdriver, depending on the screw type.

Setting Up Your System

retaining screws

1-5

Plug the monitor power cord into the monitor’s power

6. as shown below.

inlet,

Plug the other end of the power cord into an electrical

outlet.

1-6

Setting Up Your System

Using a Display Adapter Card

If you are using a non-VGA monitor, you’ll need to install a display adapter (video) card in one of the computer’s option slots before you can connect the monitor. (Your dealer may have already installed the video card for you.)

If the video card has not yet been installed, you’ll need to follow

the step-by-step instructions in Chapter 5 to install an option

card. But first, check the following table to make sure your display adapter card and monitor are properly matched.

Monitor/video card compatibility

Monitor

Monochrome

Color or EGA

* Color monitors do not support EGA cards.

Video card

Monochrome display adapter (MDA) Multi-mode graphics adapter (MGA) Enhanced graphics adapter (EGA) Hercules® graphics card

Color graphics adapter (CGA) Multi-mode graphics adapter (MGA) Enhanced graphics adapter (EGA)

When you are installing the video card, check to make sure any

switches or jumpers on the card are set properly. For example,

you may need to change a switch setting to select color or

monochrome. See the documentation that came with your

monitor or video card for instructions.

Setting Up Your System

1-7

Once you have installed your video card, return to this section

to connect your monitor to the computer. If your monitor came with its own manual, follow the instructions there. Otherwise,

you can follow the steps in “Using the VGA Interface” above; just insert your monitor plug into the video card port instead of

the built-in VGA port.

Connecting a Printer or Other Device

Your computer has both parallel and serial interfaces. To

connect a printer or other peripheral device to one of these

interfaces, follow the instructions below. Of course, Epson offers

a full range of printers; ask your dealer for more information.

Using the Parallel Interface

The parallel interface on your computer is Centronic®

compatible and uses a DB-25S connector.

To connect your printer and computer, you need an IBM

compatible printer cable. If you are not sure which one you

need, check with your Epson dealer.

1-8

Setting Up Your System

Once you have the correct printer cable, follow these steps:

Place the printer next to the computer with the back panels

facing you.

One end of the printer cable has a 25-pin, D-shell connector. Position the plug to match the orientation of the parallel interface (marked with a special icon). Then insert the connector into the port, as shown below. If the plug has retaining screws, tighten them by hand or with a

screwdriver, depending on the screw type.

Setting Up Your System

1-9

Connect the other end of the cable to the printer, as shown below. To secure the cable, squeeze the clips at each side of the printer port and push them into place.

Plug the printer’s power cord into a three-prong, 120-volt, grounded electrical outlet.

1-10

Setting Up Your System

Using the Serial Interface

If you have a printer, a modem, or other peripheral with a serial interface, you can connect it to the serial (RS-232C) port on the back of the computer.

The serial port uses a DB-9P connector, so be sure you have a

compatible cable. To connect a serial device, follow the same steps as above for connecting a parallel device but insert the connector into the serial port, marked with a special icon, as shown below.

Note You need to ensure that the serial port is set up so it functions properly. If you are using the port for a serial printer, you need to redirect printer output to the serial port

instead of the parallel port. To do this, you can use the

MS-DOS MODE or SETMODE command or the MENU

program. See your MS-DOS Reference Manual for

instructions.

Setting Up Your System

1-11

Connecting the Keyboard

Follow these steps to connect the keyboard:

Hold the keyboard cable connector so the indicator on the

1. housing faces up. Insert the plug into the appropriate

socket, marked with a keyboard icon, as shown below.

1-12

Setting Up Your System

You can raise the keyboard by adjusting the legs on the bottom. To change the angle of the keyboard, turn it over and flip each leg upward until it locks into place, as shown below.

Connecting the Mouse

Your computer has an auxiliary port for an IBM PS/2

compatible mouse that uses a miniature DIN (6-pin) connector.

To connect a mouse to the built-in mouse port, hold the mouse

plug so it is oriented properly with the computer socket. Insert the plug into the appropriate socket, marked with a mouse icon, as shown in the following illustration.

Setting Up Your System

1-13
