Page 1
Start Here
Please read these instructions before using the printer.
1
Unpack
Caution: Do not open ink cartridge packages until you are ready to install the ink.
Cartridges are vacuum packed to maintain reliability.
If anything is missing, contact Epson® as described on the back of this sheet.
2
1 Connect the power cable.
Turn on the printer
2 Press the power button.
Page 2
3
Note: Don’t load paper before installing the ink cartridges.
1 Lift up the printer cover.
2 Open the cartridge cover.
Install ink cartridges
3 Shake the ink cartridges, then unpack them.
4 Remove only the yellow tape from each cartridge.
Caution: Don’t remove any other seals from the cartridges.
5 Insert the cartridges in the holder for each color.
Page 3
Load paper
4
6 Press the cartridges down until they click.
7 Close the ink cartridge cover and press it down until it clicks.
8 Close the printer cover.
9 Press the ink button to charge ink. Charging takes about 2.5 minutes.
Caution: Don’t turn off the printer while the power light is flashing or you’ll
waste ink.

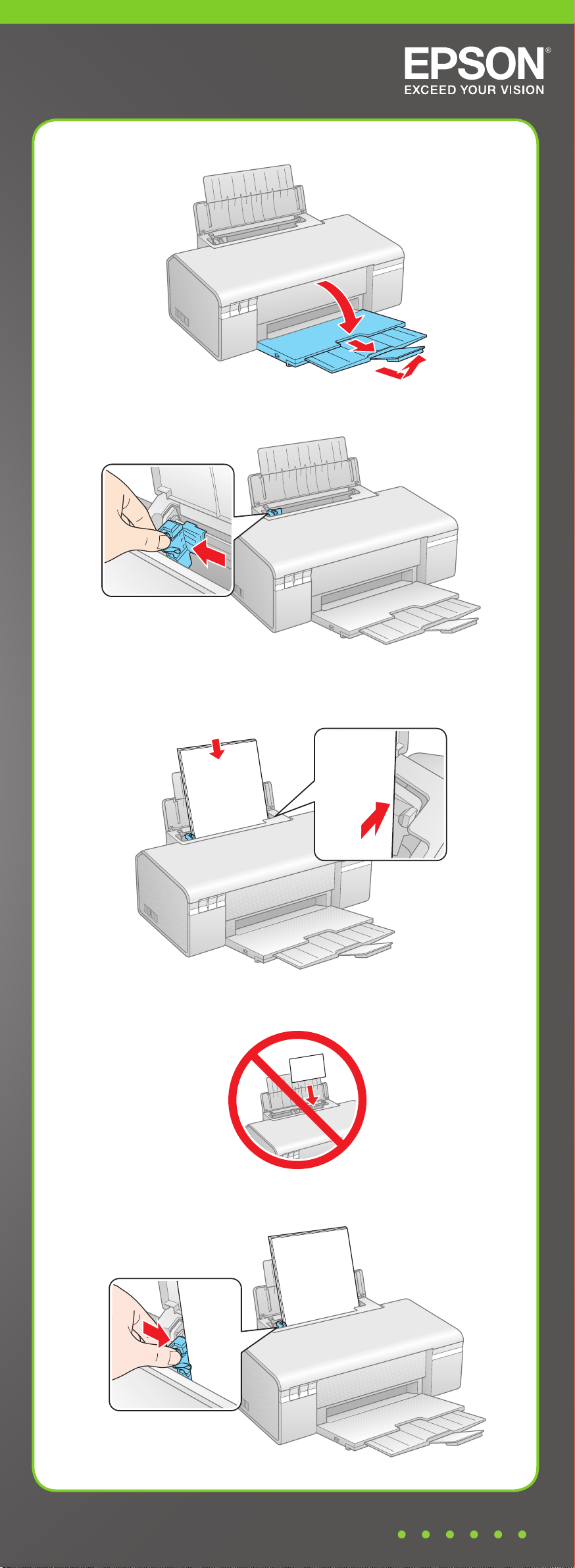

1 Open the paper support.
Page 4
2 Open the output tray and pull out the extensions.
3 Squeeze the edge guide and slide it left.
4 Load paper against the right edge guide and behind the tab, with the
printable side face up.
Note: Don’t load the paper sideways; always load it short edge first.
5 Slide the edge guide over.
Page 5
Your software works with Windows® 2000, XP, XP Professional x64 Edition,
Windows Vista®, and Mac OS® X 10.3.9, 10.4.x, and 10.5.x.
Windows
1 Make sure the printer is NOT CONNECTED to your computer.
Note: If you see a Found New Hardware screen, click Cancel and disconnect
the USB cable. You can’t install your software that way.
2 Insert the WorkForce 30 Series software CD.
With Windows Vista, if you see the AutoPlay
window, click Run EPSETUP.EXE. When you
see the User Account Control screen,
click Continue.
3 Click Install and follow the on-screen instructions.
4 When you see this screen, click the first option and then click Next,
unless the printer is connected to your computer through an external
print server.
If you’re using an external print server, click the second option,
click Next, then skip to step 6.
5 When prompted, connect the USB cable. Use any open USB port on
your computer.
Note: If installation doesn’t continue after a moment, make sure you
securely connected and turned on the printer.
6 When you’re done, remove the CD and restart your computer.
You’re ready to print! See your Quick Guide or online Epson Information
Center for instructions.
5
Install Software
Page 6
Macintosh
®
1 Make sure the printer is NOT CONNECTED to your computer.
2 Insert the WorkForce 30 Series software CD.
3 Double-click the Epson icon.
4 Click Install and follow the on-screen instructions.
5 When prompted, connect the USB cable. Use any open USB port on your
computer.
If you’re using Mac OS X 10.5.x, skip to step 9.
If you’re using Mac OS 10.3.9 or 10.4.x, continue with the next step.
6 When you see this screen, click Open the Printer List.
7 Follow the steps on the right side of the screen to add the printer.
8 Click Next again, if necessary.
9 When you’re done, eject the CD.
You’re ready to print! See your Quick Guide or online Epson Information Center
for instructions.
Page 7
Any questions?
Quick Guide
Basic instructions for printing.
Online Epson Information Center
Click the desktop shortcut.
Note: You will need an Internet connection to view the Epson Information Center. If
you can’t find the desktop shortcut, you can also view the Epson Information Center at
epson.com/support.
Online help with your software
Select Help or ? when you’re using your software.
Technical Support
Internet Support
Visit Epson’s support website at epson.com/support and select your
product for solutions to common problems. You can download drivers and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with
your questions.
Speak to a Support Representative
Call (562) 276-7202 (U.S.), 6 AM to 6 PM, Pacific Time, Monday through Friday.
and 7 AM to 4 PM, Saturday, or (905) 709-2567 (Canada), 6 AM to 6 PM, Pacific
Time, Monday through Friday. Days and hours of support are subject to change
without notice. Toll or long distance charges may apply.
Solving problems
The printer makes noise after ink cartridge installation.
• The first time you install ink cartridges, the printer must charge its print head
for 2.5 minutes or so. Wait until charging finishes (the power light stops
flashing) before you turn off the printer, or it may charge improperly and use
excess ink the next time you turn it on.
• If the printer stops moving or making noise, but the power light is still
flashing after 5 minutes, turn off the printer. If the light is still flashing when
you turn it back on, contact Epson as described in “Any Questions?”.
• Turn off the printer, then make sure the ink cartridges are inserted completely
and the ink cartridge cover is closed completely. Wait a moment, then turn the
printer back on to clear the error.
You’re having problems installing the printer software.
• During software installation, you are prompted to connect the USB cable.
When you connect the cable, make sure your printer is turned on and the
cable is securely connected at both ends.
• Close your other programs, including any screen savers and virus protection
software, and install the software again.
Page 8
Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark, and Supplies
Central is a service mark of Seiko Epson Corporation. DURABrite is a registered trademark and
WorkForce is a trademark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2008 Epson America, Inc. 5/08 CPD-25608
Printed in: XXXXXX
Cut out the card to the
right and keep it with
you when purchasing
replacement ink cartridges.
Printed in XXXXXX
Need paper and ink?
Try Epson paper with DURABrite® Ultra Ink for professional results. For the right
supplies at the right time, you can purchase them at Epson Supplies CentralSM at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766).
Genuine Epson Paper
Epson offers a wide variety of papers to meet your needs; visit Epson Supplies
Central for more information.
Presentation Paper Matte
Ultra smooth, non-glare, instant-drying paper for
scrapbooks, newsletters and graphical presentations.
Premium Photo Paper Glossy
High gloss, instant-drying paper for beautiful, durable
photos made to share or display in an album.
Genuine Epson Inks
Look for the numbers below
to find your cartridges. It’s as easy as
remembering your number!
Note: The 68 High Capacity color ink cartridges are available only online;
visit www.epson.com/highcapacity (U.S. sales) or www.epson.ca (Canadian sales).
Color Standard Capacity High Capacity
Black
69 68
Cyan
69 68
Magenta
69 68
Yellow
69 68
Epson WORKFORCE
TM
30 Series Ink Cartridges
The 68 High Capacity color ink cartridges are available only online;
visit www.epson.com/highcapacity (U.S. sales) or www.epson.ca (Canadian sales).
Color Standard Capacity High Capacity
Black
69 68
Cyan
69 68
Magenta
69 68
Yellow
69 68
