Page 1
SERVICE MANUAL
Sec. 1: Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
Sec. 2: Deck Mechanism Section
I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
Sec. 3: Exploded views
and Parts List Section
I Exploded views
I Parts List
VIDEO CASSETTE RECORDER
27A-664
PAL
Page 2
MAIN SECTION
VIDEO CASSETTE RECORDER
27A-664
Sec. 1: Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Function Indicator Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-11
Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
Page 3
SPECIFICATIONS
Description Unit Minimum Nominal Maximum Remark
1. Video
1-1. Video Output (PB) Vp-p 0.8 1.0 1.2 FL6A
1-2. Video Output (R/P) Vp-p 0.8 1.0 1.2
1-3. Video S/N Y (R/P) dB 40 45
1-4. Video Color S/N AM (R/P) dB 37 41 SP Mode
1-5. Video Color S/N PM (R/P) dB 30 36 SP Mode
1-6. Resolution (PB) Line 230 245 SP Mode
2. Servo
2-1. Jitter Low µsec 0.07 0.12 SP Mode
2-2. Wow & Flutter % 0.3 0.5 SP Mode
3. Normal Audio
3-1. Output (PB) dBV -9 -6 -3 SP Mode
3-2. Output (R/P) dBV -9 -6 -1.5 SP Mode
3-3. S/N (R/P) dB 36 41 SP Mode
3-4. Distortion (R/P) % 1.0 4.0 SP Mode
3-5. Freq. resp (R/P) at 200Hz dB -7 -4 SP Mode
(-20dB ref. 1kHz) at 6kHz dB -10 -4 SP Mode
SP Mode,
W/O Burst
4. Tuner
4-1. Video output Vp-p 0.8 1.0 1.2 E-E Mode
4-2. Video S/N dB 39 42 E-E Mode
4-3. Audio output dB -10 -6 -2 E-E Mode
4-4. Audio S/N dB 40 46 E-E Mode
5. Hi-Fi Audio
5-1. Output dBV -12 -8 -4 SP Mode
5-2. Dynamic Range dB 70 85 SP Mode
5-3. Freq. resp (6dB B.W) Hz 20 ~ 20K SP Mode
Note: Nominal specs represent the design specs. All units should be able to approximate these – some will exceed
and some may drop slightly below these specs. Limit specs represent the absolute worst condition that still might
be considered acceptable; In no case should a unit fail to meet limit specs.
1-1-1 HE450SP
Page 4
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evident from visual inspection, nor can the protection they
give necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a
substitute replacement that does not have the same
safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review
continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory,
our products are carefully inspected to confirm with
the recognized product safety and electrical codes of
the countries in which they are to be sold. However, in
order to maintain such compliance, it is equally important to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the ! symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before soldering.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent
shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete closure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.
1-2-1 H8740SFP
Page 5
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original positions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
AC Line Voltage Clearance Distance (d) (d’)
230 V
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
≥ 3mm(d)
≥ 6 mm(d’)
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
Chassis or Secondary Conductor
Primary Circuit Terminals
dd'
Exposed Accessible Part
Z
One side of
B
Power Cord Plug Prongs
AC Voltmeter
(High Impedance)
Fig. 1
Fig. 2
Table 2: Leakage current ratings for selected areas
AC Line Voltage Load Z Leakage Current (i)
2kΩ RES.
Connected in
parallel
230 V
50kΩ RES.
Connected in
parallel
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
i≤0.7mA AC Peak
i≤2mA DC
i≤0.7mA AC Peak
i≤2mA DC
1-2-2 H8740SFP
One side of power cord plug
prongs (B) to:
RF or
Antenna terminals
A/V Input, Output
Page 6
STANDARD NOTES FOR SERVICING
Circuit Board Indications
a. The output pin of the 3 pin Regulator ICs is indi-
cated as shown.
Top View
Input
Out
b. For other ICs, pin 1 and every fifth pin are indicated
as shown.
In
Pin 1
c. The 1st pin of every male connector is indicated as
shown.
Pin 1
Bottom View
5
10
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Caution:
1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
Hot-air
Flat Pack-IC
Desoldering
CBA
Masking
Tape
Tweezers
Machine
Flat Pack-IC
Fig. S-1-2
1-3-1 NOTE_1
Page 7
With Soldering Iron:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
Flat Pack-IC
Desoldering Braid
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
Soldering Iron
Fig. S-1-3
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
Fig. S-1-4
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5
To Solid
Mounting Point
CBA
Tweezers
Hot Air Blower
or
Iron Wire
Soldering Iron
Fig. S-1-5
Fine Tip
Soldering Iron
Flat Pack-IC
Fig. S-1-6
1-3-2 NOTE_1
Page 8
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2) The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on clothing will not escape through the body grounding band,
be careful to avoid contacting semi-conductors with
your clothing.
< Incorrect >
CBA
Presolder
Flat Pack-IC
Fig. S-1-8
CBA
< Correct >
Grounding Band
1MΩ
CBA
1MΩ
Conductive Sheet or
Copper Plate
1-3-3 NOTE_1
Page 9
PREPARATION FOR SERVICING
How to Enter the Service Mode
About Optical Sensors
Caution:
An optical sensor system is used for the Tape Start
and End Sensors on this equipment. Carefully read
and follow the instructions below. Otherwise the unit
may operate erratically.
What to do for preparation
Insert a tape into the Deck Mechanism Assembly and
press the PLAY button. The tape will be loaded into
the Deck Mechanism Assembly. Make sure the power
is on, connect TP507 (SENSOR INHIBITION) to GND.
This will stop the function of Tape Start Sensor, Tape
End Sensor and Reel Sensors. (If these TPs are connected before plugging in the unit, the function of the
sensors will stay valid.) See Fig. 1.
Note: Because the Tape End Sensors are inactive, do
not run a tape all the way to the start or the end of the
tape to avoid tape damage.
Q505
Q504
TP507
S-INH
Fig. 1
1-4-1 HE470PFS
Page 10
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
[1] Top Case
[2] Front Assembly
[3] VCR Chassis Unit
[4] Jack CBA
[5] Deck Assembly
[6] Main CBA
[7] Cylinder Shield
[8] Jack Board
2. Disassembly Method
REMOVAL
ID/
LOC.
No.
[1] Top Case 1 7(S-1) -
PART
REMOVE/*UNHOOK/
Fig.
UNLOCK/RELEASE/
No.
UNPLUG/DESOLDER
Note
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
Reference Notes
CAUTION: Locking Tabs (L-1) and (L-2) are fragile.
Be careful not to break them.
1. Remove five Screws (S-2), three Screws (S-3) and
Screw (S-4). Then, slowly lift the VCR Chassis Unit
(Deck Assembly, Jack CBA and Main CBA) up.
2. When reassembling, solder wire jumpers as shown
in Fig. 5.
3. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on Main CBA as shown in
Fig. 6. Then, install the Deck Assembly while aligning the hole of Cam Gear with the pin of LD-SW,
the shaft of Cam Gear with the hole of LD-SW as
shown in Fig. 6.
(S-1)
(S-1)
Front
[2]
Assembly
VCR
[3]
Chassis
Unit
[4] Jack CBA 4 Desolder, (S-5) -
Deck
[5]
Assembly
[6] Main CBA 5 *(L-3) -
Cylinder
[7]
Shield
Jack
[8]
Board
↓
(1)
↓
(2)
2 *3(L-1),*4(L-2) -
3 5(S-2), 3(S-3), (S-4), 1
5,6 2(S-6), Desolder 2,3
52(S-7) -
5 ---------- -
↓
(3)
↓
(4)
[1] Top Case
↓
(5)
1-5-1 HE450DC
(S-1)
Fig. 1
Page 11
(L-2)
(S-5)
[4] Jack CBA
Desolder
[2] Front
Assembly
(S-2)
(S-3)
[3]VCR
Chassis
Unit
(L-1)
(S-2)
(S-3)
(L-2)
Fig. 4
Fig. 2
(S-2)
(S-4)
(S-3)
(S-2)
Fig. 3
1-5-2 HE450DC
Page 12
[7] Cylinder Shield
FE Head
Cylinder Assembly
(S-7)
Pin
[8] Jack Board
(L-3)
From
FE Head
From
Cylinder
Assembly
(S-6)
TOP VIEW
From
AC Head
Assembly
AC Head
Assembly
[5] Deck Assembly
[6] Main CBA
(S-6)
From
Capstan Motor
Assembly
Lead with
blue stripe
[6] Main CBA
[5] Deck Assembly
Shaft
Hole
LD-SW
SW507
LD-SW
Cam Gear
Hole
Pin
[6] Main CBA
Fig. 6
Printing
Lead with
blue stripe
Lead connections of Deck Assembly and Main CBA
Lead with
blue stripe
Desolder
from bottom
side
Fig. 5
1-5-3 HE450DC
Page 13
ELECTRICAL ADJUSTMENT INSTRUCTIONS
General Note: "CBA" is an abbreviation for
"Circuit Board Assembly."
NOTE:
1.Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to do these adjustments only after
all repairs and replacements have been completed. Also, do not attempt these adjustments
unless the proper equipment is available.
2.To perform these alignment / confirmation procedures, make sure that the tracking control is set in
the center position: Press either "L5??" or "K" button
on the remote control unit first, then the "PLAY"
button (Front Panel only).
Test Equipment Required
1.Oscilloscope: Dual-trace with 10:1 probe,
V-Range: 0.001~50V/Div.,
F-Range: DC~AC-20MHz
2.Alignment Tape (FL6A)
Head Switching Position Adjustment
Purpose:
To determine the Head Switching point during
playback.
Symptom of Misadjustment:
May cause Head Switching noise or vertical jitter
in the picture.
Test point Adj.Point Mode Input
J23(V-OUT)
TP502(RF-SW)
GND
Tape
FL6A Oscilloscope
Connections of Measurement Equipment
Main CBA
VR501
(Switching Point)
(MAIN CBA)
Measurement
Equipment
J23
GND
TP502
PLAY
(SP)
6.5H±1H
(412.7µs±60µs)
Oscilloscope
-----
Spec.
CH1 CH2
Trig. (+)
Figure 1
EXT. Syncronize Trigger Point
CH1
CH2
Reference Notes:
Playback the Alignment tape and adjust VR501 so that
the V-sync front edge of the CH1 video output waveform is at the 6.5H(412.7µs) delayed position from the
rising edge of the CH2 head switching pulse waveform.
1.0H
6.5H
Switching Pulse
0.5H
V-Sync
1-6-1 HE240EA
Page 14
Servo/System Control Block Diagram
BLOCK DIAGRAMS
Q504
ST-S
SENSOR CBA
Q505
END-S
SENSOR CBA
(DECK ASSEMBLY)
AC HEAD ASSEMBLY
CONTROL
HEAD
CL287
5 5CTL(+)
6 6CTL(-)
CL504
MAIN CBA
END-S
SW507
LD-SW
Q503
T-REEL
AL+5V
PS503TP505
S-REEL
D502
S-LED
TIMER+5V
AL+5V
Q501
RESET
RS501
REMOTE
SENSOR
SW508
RESET
IC501
(SERVO/SYSTEM CONTROL)
REMOCON-IN
14
LD-SW9
95
CTL(+)
CTL(-)
94
10
ST-S
4
END-S
T-REEL
80
S-REEL79
RESET
34
KEY- 1
KEY- 2
DRV-DATA
DRV-STB
DRV-CLK
68
69
70
7
8
KEY
SWITCH
IC561
(FIP DRIVE)
DRV-DATA
28
DRV-STB
2
DRV-CLK
1
TP507
SENS-INH
KEY
SWITCH
S10
G1
G2
G3
G4
S1
S2
S7
S8
S9
23
22
21
20
13
14
16
17
FP562
LED CLOCK
7
8
TU701(TUNER UNIT)
SDA
3
SDA
12
SCL
5
SCL
11
IC503 (MEMORY)
SDA
5
SCL
6
CYLINDER ASSEMBLY CAPSTAN MOTOR
PG
DRUM
MOTOR
SENSOR
M
LOADING
MOTOR
M
CAPSTAN
MOTOR
M
VR501
SW-POINT
CL502
12 P-ON+15V
11
AL+12V(2)
10 GND
D-PG
9
D-CONT
8
LM-FWD/REV
7
GND
6
C-CONT
5
C-F/R
4
C-FG
3
P-ON+5V
2
AL+12V/+20.5V
1
AL+5V
FROM/TO
POWER
SUPPLY
BLOCK
AL+5V
SW506
REC-SAFETY
P-ON+15V
AL+12V
P-ON+5V
AL+12V/+20.5V
C-POW-SW
P-ON-H
P-DOWN-L
PG-DELAY
2
REC-SAF-SW
31
D-PG
90
D-CONT77
LM-FWD/REV
81
C-CONT
76
C-F/R
78
C-FG
87
C-POW-SW
66
P-ON-H
67
P-DOWN-L
86
A-MUTE-H
Hi-Fi-H-SW
A-MODE
LINE-MUTE
IIC-BUS SDA
IIC-BUS SCL
D-REC-H
RF-SW
C-ROTA
D-V SYNC
H-A-SW
H-A-COMP
V-ENV
C-SYNC
DAVN-L
83
19
32
28
72
71
33
18
15
13
16
17
58
20
IIC-BUS SDA
IIC-BUS SCL
A-MUTE-H
IIC-BUS SDA
IIC-BUS SCL
Hi-Fi-H-SW
A-MODE
LINE-MUTE
IIC-BUS SDA
IIC-BUS SCL
D-REC-H
RF-SW
C-ROTA
D-V SYNC
H-A-SW
H-A-COMP
6
V-ENV
C-SYNC
DAVN-L
TO
AUDIO BLOCK
FROM/TO
Hi-Fi AUDIO
BLOCK
FROM/TO
VIDEO BLOCK
1-7-1 1-7-2 HE451BLS
Page 15
Video Block Diagram
REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC
V-OUT1
V-IN1
SERVO/SYSTEM
CONTROL BLOCK
JACK CBA
JK101
Q101
19
20
BUFFER
MAIN CBA
TU701
TU-VIDEO
JK756
V-IN-F
CL101
1
3 3
VIDEO
V-OUT1
V-IN1
V-IN1TO
TU-VIDEO
6
24
CL151
1
Q351
BUFFER
WF1
J23
V-OUT
IC501 (OSD)
OSD
52
CHARACTER
MIX
IC301
(Y/C SIGNAL PROCESS)
48
50
52
54
56
61
63
TUNER
PB/EE
TUNER
IN1
PB/EE
MUTE
IN1
IN2
FRT
IN2
FRT
MUTE
COLOR
-IN
FROM
SERVO/SYSTEM
CONTROL BLOCK
50
55
65
BYPASS
CHARA.
INS.
FBC
AGC VXO
AGC
PR
Y. DELAY
1/2
DAVN-L
IIC-BUS SDA
IIC-BUS SCL
LUMINANCE
SIGNAL
PROCESS
CCD 1H DELAY
CHROMINANCE
SIGNAL
PROCESS
Y/C
MIX
69684643
SERIAL
DECORDER
7978
R
Y
+
C
R P R P
P
REC FM
AGC
IC640 (VPS)
DAVN-L
14
6
IIC-BUS SDA
7
IIC-BUS SCL
VPS-V
16
SP
SP
HEAD
AMP
EP
EP
HEAD
AMP
D-REC-H
C-ROTA/RF-SW
D-V-SYNC
H-A-SW
H-A-COMP
V-ENV
C-SYNC
96
95
93
94
90
89
88
87
80
70
62
71
83
84
67
V-COM
V-COM
WF1
TP502
RF-SW
CL253
V(R)-1
V(L)-1
V(L)-2
V(R)-2
D-REC-H
RF-SW
C-ROTA
D-V-SYNC
H-A-SW
H-A-COMP
V-ENV
C-SYNC
(DECK ASSEMBLY)
CYLINDER ASSEMBLY
1
2
3
4
5
6
FROM/TO SERVO/SYSTEM
CONTROL BLOCK
VIDEO (R)-1
HEAD
VIDEO (L)-1
HEAD
VIDEO (L)-2
HEAD
VIDEO (R)-2
HEAD
V-OUT2
V-IN2
19
20
JK102
Q102
BUFFER
CL102
1
V-OUT2
V-IN2 3
3
CL152
1
58 59
2928
X301
4.433619MHz
21
TP301
C-PB
WF2
1-7-3 1-7-4 HE451BLV
Page 16
Audio Block Diagram
PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC
MAIN CBA
TO Hi-Fi
AUDIO BLOCK
(DECK ASSEMBLY)
ACE HEAD ASSEMBLY
AUDIO
HEAD
AUDIO
ERASE
HEAD
N-A-PB
N-A-REC
CL287
A-PB/REC 4
A-COM 3
AE-H 1
AE-H/FE-H 2
CL504
4 A-PB/REC
3 A-COM
1 AE-H
2 AE-H/FE-H
Q401
Q402
BIAS
OSC
+5V
Q406
IC301
(AUDIO SIGNAL PROCESS) 1513 17
TUNER IN2
INV
R
98
ATT
P
REC
AMP
5
6
1
2
PB-ON
EQ
AMP
SP/LP-ON
AUTO
BIAS
7
3
100
IN1
ALC
DET
ALC
LINE
AMP
REC-ON
MUTE
12
11
FULL
ERASE
HEAD
FE HEAD
SERIAL
DECODER
68 69
71
A-MUTE-H
IIC-BUS SDA
IIC-BUS SCL
TO SERVO/SYSTEM
CONTROL BLOCK
CL501
2 FE-H
1 FE-H-GND
Q405
(PB=ON)
Q403
SWITCHING
D-REC-OFF
+5V
AUDIO HD-SW
CONTROL
16
1-7-5 1-7-6 HE451BLA
Page 17
Hi-Fi Audio Block Diagram
REC-AUDIO SIGNALPB-AUDIO SIGNAL Mode : SP/REC
A-IN1(R)
A-IN1(L)
A-OUT1(R)
A-OUT1(L)
A-IN2(R)
A-IN2(L)
A-OUT2(R)
A-OUT2(L)
JACK CBA
JK101
2
6
1
3
JK102
2
6
1
3
CL101
CL102
10
A-IN1(R)
A-IN1(L) 8
8
6
A-OUT1(R)
A-OUT1(L) 12
12
9
A-IN2(R)
A-IN2(L) 8
8
6
A-OUT2(R)
A-OUT2(L) 11
11
10
6
9
6
CL151
CL152
67
65
(Hi-Fi AUDIO SIGNAL PROCESS)
IC451
SW
SW
ALC
ALC
ALC
MAIN CBA
CN701 CN1
4
TU-AUDIO(R)
TU-AUDIO(L)
5
4
5
AFV CBA
IF SIGNAL
PROCESS
OUTPUT
SELECT
CN1
SIF
CN701
2
MUTE-ON
VCO MUTE
MUTE-ON
73
74
72
76
77
75
CL509
2
A-OUT1(L)
1
A-OUT1(R)
JK751
SUB JACK CBA
TU701
22
SIF
2
AUDIO
A-OUT
(L)
A-OUT
(R)
JK758
A-IN(R)-F
JK757
A-IN(L)-F
TO AUDIO BLOCK
N-A-REC
N-A-PB
52
56
54
50
60
10
78
80
62
70
61 71
47
R-CH
INSEL
2
6
L-CH
8
4
INSEL
+
48
14
15
ALC
R-CH
PNR
L-CH
PNR
P
R
R
P
SW
NOISE
LIM DEV
LIM DEV
SW
NOISE
DO
DET
R-CH
BPF
NOISE
DET
HOLD
PULSE
L-CH
BPF
COMP
VCO
LPF
MIX V/I
LPF
VCO
COMP
LIM
ENV
DET
34 33
LOGIC
LINE-MUTE
R
L
37
38
Q451
21
53
39
24
26
27
IIC-BUS SDA
IIC-BUS SCL
A-MODE
LINE-MUTE
Hi-Fi-H-SW
CL253
Hi-Fi-A(R) 9
Hi-Fi-COM 8
Hi-Fi-A(L) 7
FROM/TO SYSTEM
CONTROL BLOCK
CYLINDER
ASSEMBLY
Hi-Fi
AUDIO
(R) HEAD
Hi-Fi
AUDIO
(L) HEAD
1-7-7 1-7-8
HE451BLH
Page 18
Power Supply Block Diagram
AC001
NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
HOT CIRCUIT. BE CAREFUL.
F001
T1.6A L 250V
L003
LINE
FILTER
D001 - D004
BRIDGE
RECTIFIER
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE T1.6AL/250V FUSE.
T001
Q051
2
4
Q001
12
Q052
13
Q057
14
Q058
15
CAUTION !
Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
MAIN CBA
P-ON+15V
P-ON+32V
P-ON-H
Q053
Q055
Q054
AL+12V/+20.5V
AL+9V
AL+12V
C-POW-SW
AL+5V
TIMER+5V
P-ON+5V
P-DOWN-L
P-OFF-H
HOT
Q003
Q002
7
6
IC001
ERROR
VOLTAGE DET
4
Q004
(SHUNT REGULATOR)
1
23
REG
16
11
17
18
Q059
Q056
COLD
HE451BLP1-7-9 1-7-10
Page 19
FUNCTION INDICATOR SYMBOLS
Note:
The following symbols will appear on the indicator panel to indicate the current mode or operation of the VCR.
On-screen modes will also be momentarily displayed on the tv screen when you press the operation buttons.
Display panel
" H "= LED Light on, " L "= LED Light off
LED MODE INDICATOR ACTIVE
CASSETTE "IN"
CASSETTE "OUT"
CLOCK " 88:88 ON
POWER ON " PWR." ON
REC " REC " ON
REC PAUSE " REC " Blinks at 0.8Hz interval
T- R E C , O T R
When reel and capstan mechanism is not
functioning correctly
When tape loading mechanism is not functioning correctly
When cassette loading mechanism is not
functioning correctly
When the drum is not working properly
P-ON Power safety detection
" "
" "
" "
" "
" 1 "
" "
" 2 "
" "
" 3 "
" "
" 4 "
" "
" 5 "
ON
OFF
ON
(T-REC OFF,T-REC incomplete
Blinks at 0.8Hz interval)
Blinks at 0.8Hz interval
Blinks at 0.8Hz interval
Blinks at 0.8Hz interval
Blinks at 0.8Hz interval
Blinks at 0.8Hz interval
S-INH condition All modes Blinks at 0.8Hz interval
1-7-11 HE450FIS
Page 20
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such features are identified by the mark " ! " in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as specified in the parts list may create shock, fire, or other
hazards.
Capacitor Temperature Markings
Mark
Capacity
change rate
Standard
temperature
Temperature
range
Notes:
1. Do not use the part number shown on these drawings for ordering. The correct part number is shown
in the parts list, and may be slightly different or
amended since these drawings were prepared.
2. All resistance values are indicated in ohms
3
(K=10
3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.
4. All capacitance values are indicated in µF
(P=10
5. All voltages are DC voltages unless otherwise
specified.
6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two digits are not shown for each component. In each
block of the diagram, there is a note such as shown
below to indicate these abbreviated two digits.
, M=106).
-6
µF).
(B)
(F) +30 - 80% 20°C -25~+85°C
(SR)
(Z) +30 - 80% 20°C -10~+70°C
Capacitors and transistors are represented by the following symbols.
±10%
±15%
20°C -25~+85°C
20°C -25~+85°C
CBA Symbols
(Top View) (Bottom View)
+
Electrolytic Capacitor
(Bottom View)
Transistor or Digital Transistor
E C B
(Top View)
(Top View)
Schematic Diagram Symbols
Digital Transistor
E C B
(Top View)
E C B
NPN Transistor
NPN Digital Transistor
PNP Transistor
E C B
(Top View)
PNP Digital
Transistor
E C B
1-8-1 SCPA1
Page 21
LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAG ES :
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F001) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.
3. Note:
(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts
list, and may be slightly different or amended since the drawings were prepared.
(2) To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Wire Connectors
(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).
5. Mode: SP/REC
6. Voltage indications for PLAY and REC modes on the schematics are as shown below:
Unit: Volts
The same voltage for
both PLAY & REC modes
7. How to read converged lines
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to area "D3".
2. "1-B1" means that line number "1" goes to area "B1".
8. Test Point Information
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
5.0
231
5.0
PLAY mode
REC mode
(2.5)
Indicates that the voltage
is not consistent here.
3
AREA D3
2
1
AREA B1
1-D3
ABCD
1-B1
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
1-8-2 SCRK05
Page 22
Main 1/7 Schematic Diagram
1-8-3
1-8-4
HE451SCM1
Page 23
Main 2/7 & Sensor Schematic Diagram
1-8-5
1-8-6
HE451SCM2
Page 24
Main 3/7 Schematic Diagram
1-8-7
1-8-8
HE451SCM3
Page 25
Main 4/7 & Jack Schematic Diagram
1-8-9
1-8-10
HE451SCM4
Page 26
Main 5/7 Schematic Diagram
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
1-8-11
1-8-12
HE451SCM5
Page 27
Main 6/7 Schematic Diagram
1-8-13 1-8-14
HE451SCM6
Page 28
Main 7/7 Schematic Diagram
1-8-15
1-8-16
HE451SCM7
Page 29

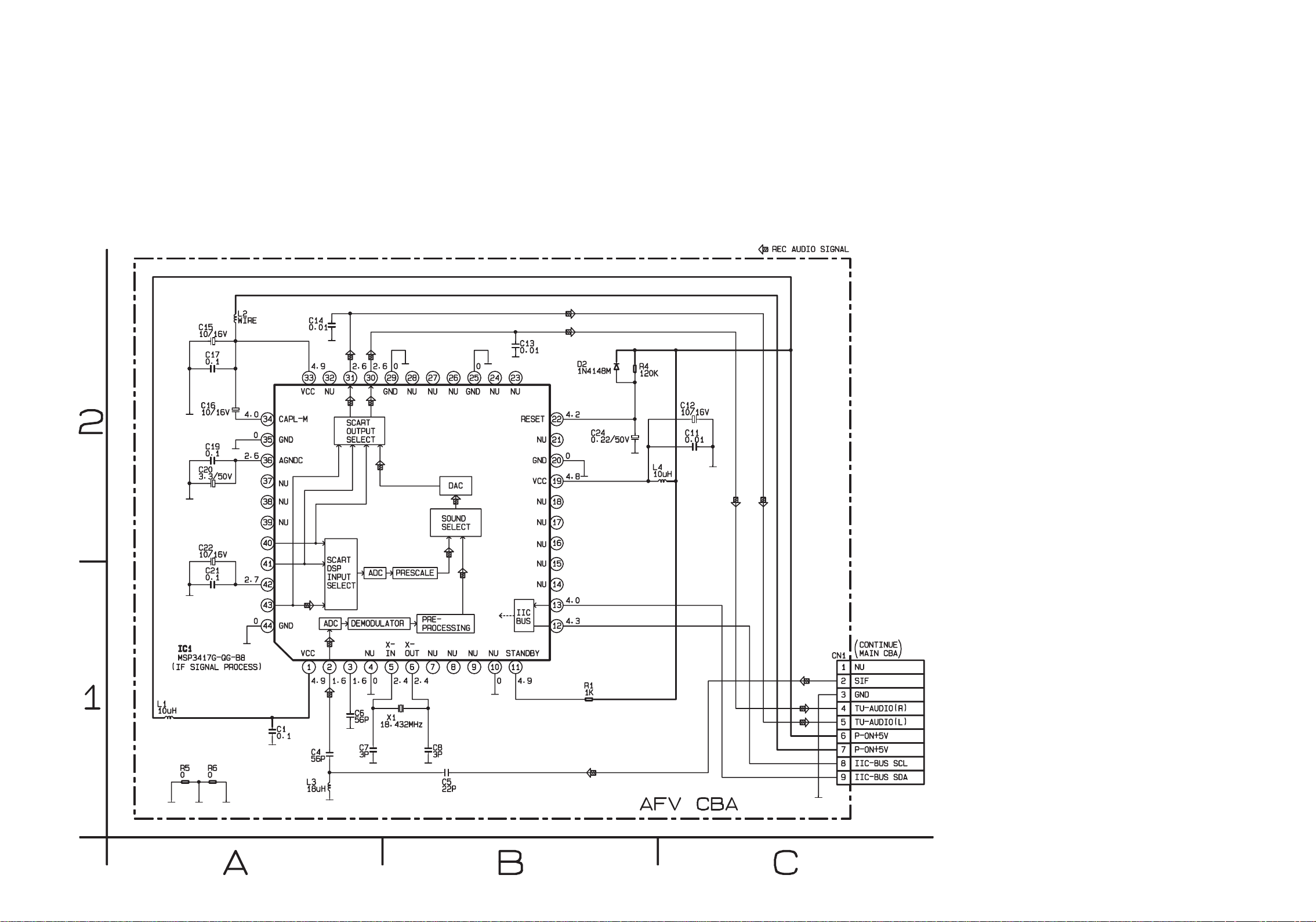

AFV Schematic Diagram
1-8-17
1-8-18
HE451SCAFV
Page 30
Main CBA Top View
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
Sensor CBA Top View
BHB300F01014-A
BHB300F01014-B
BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED.
ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.
WF1
J23
V-OUT
VR501
SW-P
WF2
TP502
RF-SW
1-8-19
1-8-20
TP507
S-INH
TP501
CTL
WF3
TP301
C-PB
BHE470F01013-A
Page 31
Main CBA Bottom View
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED.
ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.
1-8-21
1-8-22
BHE470F01013-A
Page 32
Jack CBA Top View
Jack CBA Bottom View
BHE470F01013-C
1-8-23
1-8-24
Page 33
Sub Jack CBA Top View
Sub Jack CBA Bottom View
BHE470F01013-B
AFV CBA Top View
AFV CBA Bottom View
1-8-25
BHC400F01091
1-8-26
Page 34
WAVEFORMS
WF2
UPPER
(TP301 of Main CBA)
WF1
LOWER
(TP502 of Main CBA)
C-PB 10mV x 10
RF-SW 0.5V x 10
5msec
WF3
UPPER
(J23 of Main CBA)
WF1
LOWER
(TP502 of Main CBA)
V-OUT 0.1V x 10
RF-SW 0.5V x 10
50usec
WF3
(J23 of Main CBA)
V-OUT E-E
10usec 50mV x 10
1-9-1 U27WFPAL
Page 35
WIRING DIAGRAM
FRONT
AC CORD
(DECK ASSEMBLY)
AC HEAD ASSEMBLY
AUDIO
ERASE HEAD
AUDIO HEAD
CONTROL HEAD
FE HEAD
FULL
ERASE HEAD
CYLINDER ASSEMBLY
PG
SENSOR
DRUM
MOTOR
M
VIDEO
(R)1
HEAD
MOTOR
CL287
AE-H
AE-H/FE-H
A-COM
A-PB/REC
CTL(+)
CTL(-)
VIDEOINAUDIO
IN (R)
SENSOR CBA
(BHB300F01014)
SENSOR CBA
(BHB300F01014)
CL504
1
2
3
4
5
6
CAPSTAN MOTOR
MLOADING
M
CAPSTAN
MOTOR
AE-H
1
AE-H/FE-H2
A-COM3
A-PB/REC4
CTL(+)5
6
CTL(-)
CL501
FE-H2
FE-H GND1
CL502
1 AL+12V/+20.5V
P-ON+5V
2
3 C-FG
4
C-F/R
C-CONT5
GND
6
LM-FWD/REV
7
D-CONT8
D-PG9
GND
10
AL+12V(2)
11
P-ON+15V12
AUDIO
IN (L)
MAIN CBA
(BHE470F01013A)
ANT-IN ANT-OUT
CN701 CN1
1 NU
SIF
2
3 GND
4
TU-AUDIO(R)
TU-AUDIO(L)5
P-ON+5V
6
P-ON+5V
7
IIC-BUS SCL8
IIC-BUS SDA9
CL151 CL101
1 V-OUT1
GND
2
3 V-IN1
4
AL+12V(1)
NU5
A-OUT1(R)
6
JK1-8P-OUT
7
A-IN1(L)8
NU9
A-IN1(R)
10
GND
11
A-OUT1(L)12
CL152 CL102
1 V-OUT2
GND
2
3 V-IN2
4
NU
GND5
A-OUT2(R)
6
SC2-IN
7
A-IN2(L)8
A-IN2(R)9
GND
10
A-OUT2(L)
11
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
AFV CBA
(BHC400F01091)
JACK CBA
(BHE470F01013C)
JK101,102
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
VIDEO
(L)1
HEAD
VIDEO
(L)2
HEAD
VIDEO
(R)2
HEAD
Hi-Fi AUDIO
(L) HEAD
Hi-Fi AUDIO
(R) HEAD
CL253
V(R)-11
V-COM2
3 V(L)-1
V(L)-2
4
V-COM5
V(R)-26
Hi-Fi-A(L)7
Hi-Fi-COM8
Hi-Fi-A(R)9
A-OUT1(R)
A-OUT1(L)
GND
CL509
1
SUB JACK CBA
2
(BHE470F01013B)
3
HE451WI1-10-1 1-10-2
AUDIO
OUT(R)
AUDIO
OUT(L)
Page 36
IC PIN FUNCTION DESCRIPTIONS
IC501( SERVO / SYSTEM CONTROL IC )
“H” ≥ 4.5V, “L” ≤ 1.0V
Pin
IN/
No.
OUT
1IN
2IN
3IN
4IN
5IN
6IN
7IN
8IN
9IN
10 OUT
11 -
12 -
13 OUT
14 IN
15 OUT
OUT
16
IN
17
18 OUT
19 OUT
IN
20
21 -
22 -
23 -
24 -
Signal
Name
SC2-IN
PG-DELAY
POW-SAF
END-S
AFC
V-ENV
KEY-1
KEY-2
LD-SW
ST-S
N.U. Not Used
N.U. Not Used
D-V- SYNC
REMOCON-INRemote
C-ROTA
H-A-SW
H-A-COMP
RF-SW
HiFi-H-SW
DAVN-L
N.U. Not Used
N.U. Not Used
N.U. Not Used
N.U. Not Used
Function
Input Signal from
Pin 8 of SCART2
Video Head
Switching Pulse
Signal Adjusted
Voltage
P-ON Power
Detection Input
Signal
Tape End Position
Detect Signal
Automatic
Frequency Control
Signal
Video Envelope
Comparator Signal
Key Scan Input
Signal 1
Key Scan Input
Signal 2
Deck Mode Position
Detector Signal
Tape Start Position
Detector Signal
Dummy V-sync
Output
Control Sensor
Color Phase Rotary
Changeover SIgnal
Video Head Amp
Switching Pulse
Head Amp
Comparator Signal
Video Head
Switching Pulse
HiFi Audio Head
Switching Pulse
VPS/PDC Data
Receive = “L”
Active
Level
H/Hi-
A/D
A/D
A/D
A/D
A/D
A/D
A/D
A/D
A/D
A/D
-
-
z
L
H/L
H/L
H/L
H/L
H/L
L
-
-
-
-
Pin
IN/
No.
OUT
25 -
26 -
27 OUT
28 OUT
29 -
30 -
31 IN
32 IN
33 OUT
34 IN
35 IN
36 OUT
37 -
38 IN
39 OUT
40 -
41 -
42 -
43 IN
44 IN
45 OUT
46 -
47 -
48 IN
49 -
50 IN
51 -
52 OUT
53 -
54 -
Signal
Name
N.U. Not Used
N.U. Not Used
RGBTHROUGH
LINE MUTE
N.U. Not Used
N.U. Not Used
REC-SAF-SW
A-MODE
D-REC-H
RESET
XC-IN Sub Clock
XC-OUT Sub Clock
Vcc Vcc
X-IN Main Clock Input
X-OUT Main Clock Input
Vss Vss(GND)
N.U. Not Used
N.U. Not Used
CLKSEL Clock Select (GND)
IN
OSC
OUT
OSC
NUB Not Used
LP LP
FSC-IN
[4.43MHz]
OSDVss OSDVss
OSD-V-IN
N.U. Not Used
OSD-V-OUT
OSDVcc OSDVcc
HLF
Function
SCART 2 RGB
Through Control
Signal
Audio Mute Control
Signal
Recording Safety
SW Detect (With
Record tab="L"/With
out Record tab="H")
Hi-Fi Tape Detection
Signal
Delayed Record
Signal
System Reset
Signal (Reset=”L”)
Clock Input
for letter size
Clock Output for
letter size
4.43MHz Clock
Input
OSD Video Signal
Input
OSD Video Signal
Output
LPF Connected
Terminal (Slicer)
Active
Level
-
-
H/L
L
-
-
H
L
L
L
-
-
-
-
-
-
-
-
L
-
-
-
-
-
-
L
-
L
-
-
1-11-1 HE451PIN
Page 37
Pin
OUT
No.
55 -
56 -
57 -
58 IN
IN/
Signal
Name
Function
N.U. Not Used
N.U. Not Used
N.U. Not Used
C-SYNC
Composite
Synchronized Pulse
Active
SCART 1 8Pin
59 OUT
8POUT-1
Output Control
Signal
60 -
61 -
N.U. Not Used
N.U. Not Used
62 OUT SD-H SD-H -
63 -
64 -
65 -
66 OUT
67 IN
68 OUT
69 OUT
70 OUT
71 OUT
72
73 OUT
74 -
75 -
76 OUT
77 OUT
N.U. Not Used
N.U. Not Used
N.U. Not Used
C-POWER-SWCapstan Power
Switching Signal
P-ON-H
DRV-DATA
DRV-STB
DRV-CLK
IIC BUS- SCL
IN/
IIC BUS- SDA
OUT
Power On Signal at
High
LED Clock Driver IC
Control Data
LED Clock Driver IC
Chip Select Signal
LED Clock Driver IC
Control Clock
2
C BUS Control
I
Clock
2
I
C BUS Control
Data
P-OFF-H Power Off at High
N.U. Not Used
N.U. Not Used
C-CONT
D-CONT
Capstan Motor
Control Signal
Drum Motor Control
Signal
PWM
PWM
Capstan Motor
78 OUT
C-F/R
FWD/REV Control
Signal (FWD=”L”/
REV=”H”)
79 IN
80 IN
81 OUT
82 -
83 OUT
S-REEL
T- R E E L
LM-FWD/REV
N.U. Not Used
A-MUTE-H
Supply Reel
Rotation Signal
Take Up Reel
Rotation Signal
Loading Motor
Control Signal
Audio Mute Control
Signal (Mute = “H”)
Level
-
-
-
PUL
SE
H/L
-
-
-
-
-
H/L
H
H/L
H/L
H/L
H/L
H/L
L
-
-
H/L
PUL
SE
PUL
SE
H/L/
Hi-z
-
H
Pin
No.
IN/
OUT
Signal
Name
CTL Frequency
84
OUT
FF/REW-L
Characteristics
Switching Signal
(FF/REW=”L”)
85 -
86 IN
N.U. Not Used
P-DOWN-L
Power Voltage Down
Detector Signal
Capstan Motor
87 IN
C-FG
Rotation Detection
Pulse
88 -
89 -
N.U. Not Used
N.U. Not Used
Drum Motor Phase/
90 IN
D-PFG
Frequency
Generator
91 -
92 -
93 -
94 OUT
95 OUT
96 -
97 -
98 -
AMPVREF
OUT
AMPVREF
V-Ref for CTL A M P
IN V-Ref for CTL A M P
P80/C P80/C Terminal
CTL -
CTL +
AMPC
CTLAMPout
Playback/Record
Control Signal (-)
Playback/Record
Control Signal (+)
CTL AMP
Connected Terminal
To Monitor for CTL
AMP Output
AMPVcc AMPVcc
A/D Converter
99 -
AVc c
Power Input/
Standard
Voltage Input
100 IN
AGC
Tuner IF Output
Signal
Notes:
Abbreviation for Active Level:
PWM -----Pulse Wide Modulation
A/D--------Analog - Digital Converter
Function
Active
Level
L
-
L
PUL
SE
-
-
PUL
SE
-
-
-
H/L
H/L
-
PUL
SE
-
-
A/D
1-11-2 HE451PIN
Page 38
LEAD IDENTIFICATIONS
E C B
CAT24WC02JI
BR24C02F-W
8
1
5
4
RN1511(TE85R)
FMG4A T148
C1 C2
BN1L4M-T
BN1F4M-T
BA1F4M-T
KTA1266(GR)
KTC3199(Y,GR,BL)
2SC2785(J.H.F.K)
KRA103M
KRC103M
KRA104M
KTA1281(Y)
28
1
KTA1504GR-RTK
KTA1504Y-RTK
KTC3875Y-RTK
KRC103SRTK
C
E C B
PT-6958-FN-TP
15
14
LC74793JM-TRM
24
2SC1815-BL(TPE2)
2SC1815-Y(TPE2)
2SC1815-GR(TPE2)
2SC3266-Y (TPE2)
2SC2120-Y(TPE2)
KTC3203(Y)
2SC1815-BL(TPE2)
2SA1020(Y)
KTC3205(Y)
2SA1015-GR(TPE2)
PT204-6B-12
MID-32A22
C
E
13
34
LTV-817(B.C)-F
EL817(A,B,C)
A
K
2SK3566
G D S
MSP3407G-QG-B8
MSP3407G-QG-B8-V3
33
C
E
23
22
B1 E B2
61
80
LA72648M-MPB-E
60
1
BE
41
40
21
20
1
80
81
100
1
12
44
QSZAB0RMB153
LA71750EM-MPB-E
1
51
30
31
50
12
11
Note:
A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
S: Source
G: Gate
D: Drain
1-12-1 HE451LE
Page 39
DECK MECHANISM
SECTION
VIDEO CASSETTE RECORDER
27A-664
Sec. 2: Deck Mechanism Section
I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
TABLE OF CONTENTS
Standard Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1-1
Service Fixtures and Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-1
Mechanical Alignment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-1
Disassembly / Assembly Procedures of Deck Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-1
Alignment Procedures of Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-8
Page 40
STANDARD MAINTENANCE
Service Schedule of Components
H: Hours : Check I: Change
Deck Periodic Service Schedule
Ref.No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H
B2 Cylinder Assembly
B3
B8
B587 Tension Lever Assembly
B31
B573,B574
B37 Capstan Motor
B52
*B73
B86 F Brake Assembly (HI) II
B133
B410
B414 M Brake (SP) Assembly (HI) II
Loading Motor Assembly
Pulley Assembly
AC Head Assembly
Reel S, Reel T
Cap Belt
FE Head Assembly
Idler Assembly (HI)
Pinch Arm Assembly
II
I
II
II
I
I
II
II
I
II
II
B416
B525
Notes:
1.Clean all parts for the tape transport (Upper Drum with Video Head / Pinch Roller / Audio Control Head / Full
Erase Head) using 90% lsopropyl Alcohol.
2.After cleaning the parts, do all DECK ADJUSTMENTS.
3.For the reference numbers listed above, refer to Deck Exploded Views.
* B73 ------ Recording Model only
M Brake (TU) Assembly (HI)
LDG Belt
II
II
2-1-1 U27MENHS
Page 41
Cleaning
Cleaning of Video Head
Clean the head with a head cleaning stick or chamois
cloth.
Procedure
1.Remove the top cabinet.
2.Put on a glove (thin type) to avoid touching the
upper and lower drum with your bare hand.
3.Put a few drops of 90% Isopropyl alcohol on the
head cleaning stick or on the chamois cloth and,
by slightly pressing it against the head tip, turn the
upper drum to the right and to the left.
Notes:
1.The video head surface is made of very hard
material, but since it is very thin, avoid cleaning it
vertically.
2.Wait for the cleaned part to dry thoroughly before
operating the unit.
3.Do not reuse a stained head cleaning stick or a
stained chamois cloth.
Cleaning of Audio Control Head
Clean the head with a cotton swab.
Procedure
1.Remove the top cabinet.
2.Dip the cotton swab in 90% isopropyl alcohol and
clean the audio control head. Be careful not to
damage the upper drum and other tape running
parts.
Notes:
1.Avoid cleaning the audio control head vertically.
2.Wait for the cleaned part to dry thoroughly before
operating the unit or damage may occur.
ACE Head
Upper
Cylinder
Do Not !
Video Head
Cleaning Stick
2-1-2 U27MENHS
Page 42

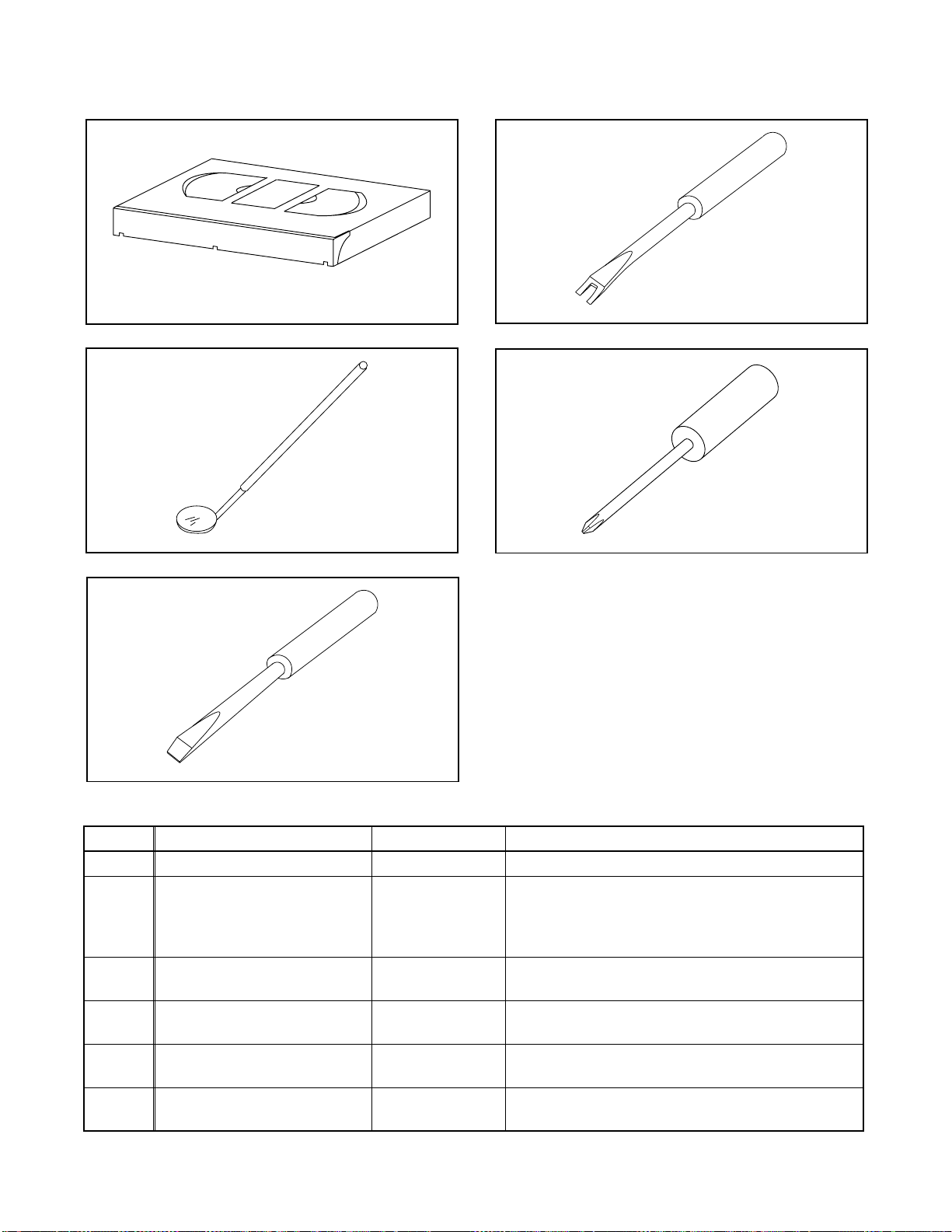

SERVICE FIXTURE AND TOOLS
J-1-1, J-1-2
J-3
J-2
J-4
J-5
Ref. No. Name Part No. Adjustment
J-1-1 Alignment Tape FL6A Head Adjustment of Audio Control Head
J-1-2 Alignment Tape FL6N8
(1 speed only)
FL6NS8
(2 speed only)
J-2 Guide Roller Adj.Screwdriver Available
Locally
J-3 Mirror Available
Locally
J-4 Azimuth Adj.Screwdriver + Available
Locally
J-5 X Value Adj.Screwdriver - Available
Locally
2-2-1 U25PFIX
Azimuth and X Value Adjustment of Audio Control
Head / Adjustment of Envelope Waveform
Guide Roller
Tape Transportation Check
A/C Head Height
X Value
Page 43
MECHANICAL ALIGNMENT PROCEDURES
Explanation of alignment for the tape to correctly run
starts on the next page. Refer to the information below
on this page if a tape gets stuck, for example, in the
mechanism due to some electrical trouble of the unit.
Service Information
A. Method for Manual Tape Loading/Unloading
To load a cassette tape manually:
1. Disconnect the AC plug.
2. Remove the Top Case and Front Assembly.
3. Inser t a cassette tape. Though the tape will not be
automatically loaded, make sure that the cassette
tape is all the way in at the inlet of the Cassette
Holder. To confirm this, lightly push the cassette
tape further in and see if the tape comes back out,
by a spring motion, just as much as you have
pushed in.
4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 for a minute or two to complete
this task.
To unload a cassette tape manually:
1. Disconnect the AC plug.
2. Remove the Top Case and Front Assembly.
3. Make sure that the Moving guide preparations are
in the Eject Position.
4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 until the Moving guide preparations come to the Eject Position. Stop turning when
the preparations begin clicking or can not be
moved further. However, the tape will be left wound
around the cylinder.
5. Turn the LDG Belt in the appropriate direction continuously, and the cassette tape will be ejected.
Allow a minute or two to complete this task.
B. Method to place the Cassette Holder in the tape-
loaded position without a cassette tape
1. Disconnect the AC Plug.
2. Remove the Top Case and Front Assembly.
3. Turn the LDG Belt in the appropriate direction
shown in Fig. M1. Release the locking tabs shown
in Fig. M1 and continue turning the LDG Belt until
the Cassette Holder comes to the tape-loaded
position. Allow a minute or two to complete this
task.
Top View
Moving guide T preparation
(Eject Position)
Moving guide S preparation
(Eject Position)
Push the tape
to load it.
Push the locking tab gently to unlock
when loading without a cassette.
UNLOAD
/EJECT
LOAD
Side View
LDG Belt
Fig. M1
Bottom View
LDG Belt (B)
UNLOAD
/EJECT
Cam Gear
Fig. M2
2-3-1 U27PMAPC
Page 44
1.Tape Interchangeability Alignment
Note:
To do these alignment procedures, make sure that the
Tracking Control Circuit is set to the center position
every time a tape is loaded or unloaded. (Refer to
page 2-3-4, procedure 1-C, step 2.)
Equipment required:
Dual Trace Oscilloscope
VHS Alignment Tape (FL6NS8)
Guide Roller Adj. Screwdriver
X-Value Adj. Screwdriver
Note: Before starting this Mechanical Alignment, do all
Electrical Adjustment procedures.
Flowchart of Alignment for tape traveling
Loading (Use a blank tape.)
Adjust the height of the Guide Rollers
(Supply side and take-up side).
(Use a blank tape.) (pg. 2-3-3)
1-A
Not good
Check to see that the tape is not creasing
and that there is no slack on the supply
and take-up side Guide Rollers.
(Use a blank tape.)
Adjust the X Value for maximum envelope.
(pg. 2-3-3) (Use Alignment Tape.)
Adjust the envelope. (pg. 2-3-4)
Check the envelope.
OK
Adjust the Audio Section.
(Azimuth Alignment) (pg. 2-3-4)
Check the audio output.
OK
1-A
1-B
1-C
1-C
1-D
1-D
Not good
Not good
Do the final tape-traveling test to see that
the tape runs normally in play mode without creasing or slacking.
OK
Completion
1-A
Check the following:
1. X Value (pg. 2-3-3)
2. Envelope (pg. 2-3-4)
OK
1-B, 1-C
Not good
2-3-2 U27PMAPC
Adjust the X value and envelope.
1-B, 1-C
Page 45
1-A. Preliminary/Final Checking and
Alignment of Tape Path
Purpose:
To make sure that the tape path is well stabilized.
Symptom of Misalignment:
If the tape path is unstable, the tape will be damaged.
Note: Do not use an Alignment Tape for this procedure. If the unit is not correctly aligned, the tape may
be damaged.
1. Playback a blank cassette tape and check to see
that the tape runs without creasing at Guide Rollers
[2] and [3], and at points A and B on the lead surface. (Refer to Fig. M3 and M4.)
2. If creasing is apparent, align the height of the guide
rollers by turning the top of Guide Rollers [2] and
[3] with a Guide Roller Adj. Screwdriver. (Refer to
Fig. M3 and M5.)

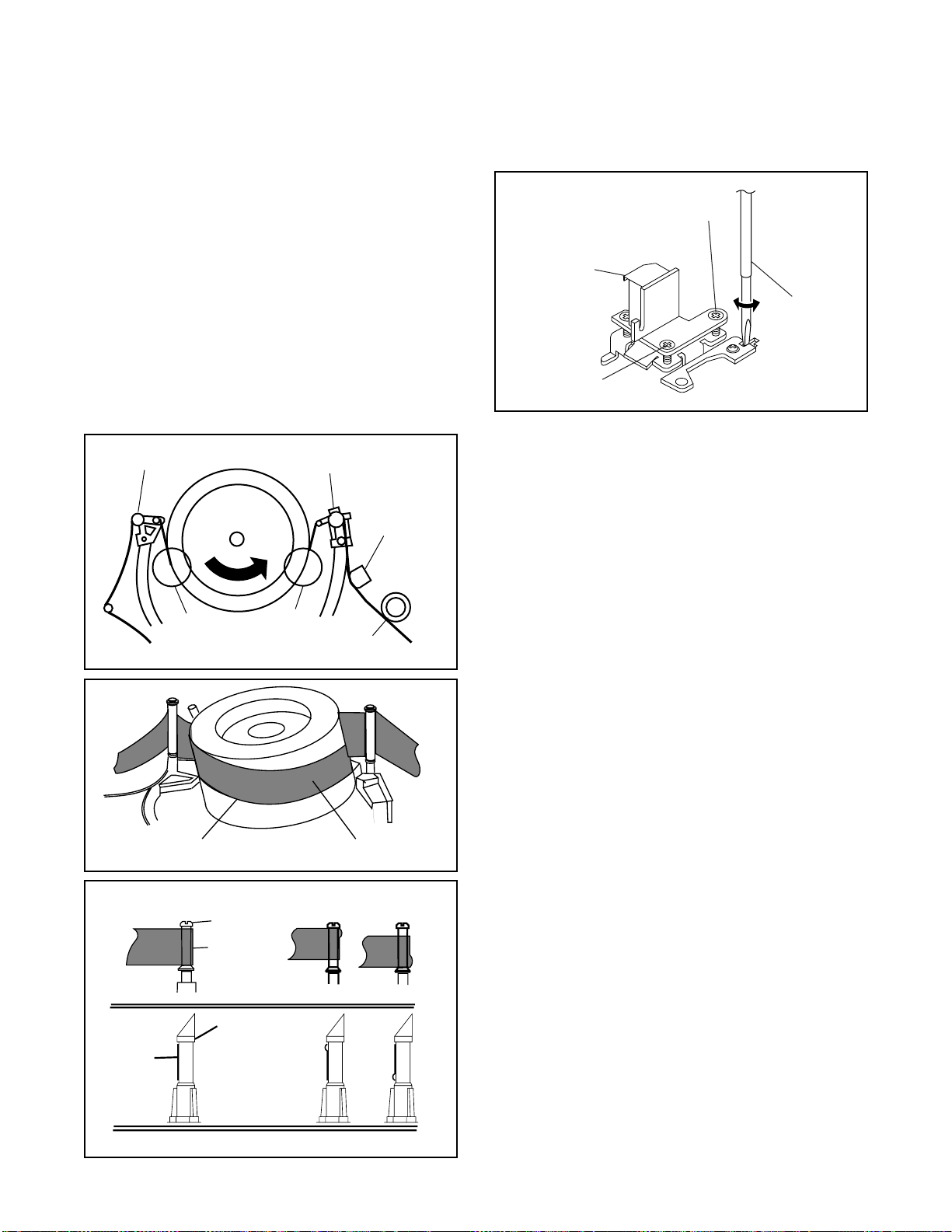

Guide Roller [2]
A
Take-up Guide Post [4]
Lead Surface of Cylinder
Correct
Guide Roller
Tape
Guide Roller [3]
B
Tape
Incorrect
ACE Head
Fig. M3
Fig. M4
3. Check to see that the tape runs without creasing at
Take-up Guide Post [4] or without snaking between
Guide Roller [3] and AC Head. (Fig. M3 and M5)
4. If creasing or snaking is apparent, adjust the Tilt
Adj. Screw of the AC Head. (Fig. M6)
Azimuth Adj. Screw
AC Head
X-Value Adj.
Screwdriver
Tilt Adj. Screw
Fig. M6
1-B. X Value Alignment
Purpose:
To align the Horizontal Position of the Audio/Control/
Erase Head.
Symptom of Misalignment:
If the Horizontal Position of the Audio/Control/Erase
Head is not properly aligned, maximum envelope cannot be obtained at the Neutral position of the Tracking
Control Circuit.
1. Connect the oscilloscope to TP301 (C-PB) and
TP501 (CTL) on the Main CBA. Use TP502 (RFSW) as a trigger.
2. Playback the Gray Scale of the Alignment Tape
(FL6NS8) and confirm that the PB FM signal is
present.
3. Set the Tracking Control Circuit to the center position by pressing CH UP button then “ PLAY ” button
on the unit. (Refer to note on bottom of page
2-3-4.)
4. Use the X-Value Adj. Screwdriver so that the PB
FM signal at TP301 (C-PB) is maximum. (Fig. M6)
5. Press CH UP button on the unit until the CTL waveform has shifted by approx. +2msec. Make sure
that the envelope is simply attenuated (shrinks in
height) during this process so that you will know the
envelope has been at its peak.
Tape
Take-up Guide
Post
Fig. M5
2-3-3 U27PMAPC
Page 46
6. Press CH DOWN button on the unit until the CTL
waveform has shifted from its original position (not
the position achieved in step 5, but the position of
CTL waveform in step 4) by approximately -2msec.
Make sure that the envelope is simply attenuated
(shrinks in height) once CTL waveform passes its
original position and is further brought in the minus
direction.
7. Set the Tracking Control Circuit to the center position by pressing CH UP button and then “ PLAY ”
button.
1-C. Checking/Adjustment of Envelope
Waveform
Purpose:
To achieve a satisfactory picture and precise tracking.
Symptom of Misalignment:
If the envelope output is poor, noise will appear in the
picture. The tracking will then lose precision and the
playback picture will be distorted by any slight variation of the Tracking Control Circuit.
1. Connect the oscilloscope to TP301 (C-PB) on the
Main CBA. Use TP502 (RF-SW) as a trigger.
2. Playback the Gray Scale on the Alignment Tape
(FL6NS8). Set the Tracking Control Circuit to the
center position by pressing CH UP button and then
“ PLAY ” button on the unit. Adjust the height of
Guide Rollers [2] and [3] (Fig. M3, Page 2-3-3)
watching the oscilloscope display so that the envelope becomes as flat as possible. To do this adjustment, turn the top of the Guide Roller with the
Guide Roller Adj. Screwdriver.
3. If the envelope is as shown in Fig. M7, adjust the
height of Guide Roller [2] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.
4. If the envelope is as shown in Fig. M8, adjust the
height of Guide Roller [3] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.
5. When Guide Rollers [2] and [3] (Refer to Fig.M3)
are aligned properly, there is no envelope drop
either at the beginning or end of track as shown in
Fig. M9.
Note: Upon completion of the adjustment of Guide
Rollers [2] and [3] (Refer to Fig. M3), check the X
Value by pushing the CH UP or DOWN buttons alternately, to check the symmetry of the envelope. Check
the number of pushes to ensure center position. The
number of pushes CH UP button to achieve 1/2 level of
envelope should match the number of pushes CH
DOWN button from center. If required, redo the “X
Value Alignment.”
1-D. Azimuth Alignment of Audio/Con-
trol/ Erase Head
Purpose:
To correct the Azimuth alignment so that the Audio/
Control/Erase Head meets tape tracks properly.
Symptom of Misalignment:
If the position of the Audio/Control/Erase Head is not
properly aligned, the Audio S/N Ratio or Frequency
Response will be poor.
1. Connect the oscilloscope to the audio output jack
on the rear side of the deck.
2. Playback the alignment tape (FL6NS8) and confirm
that the audio signal output level is 6kHz.
3. Adjust Azimuth Adj. Screw so that the output level
on the AC Voltmeter or the waveform on the oscilloscope is at maximum. (Fig. M6)

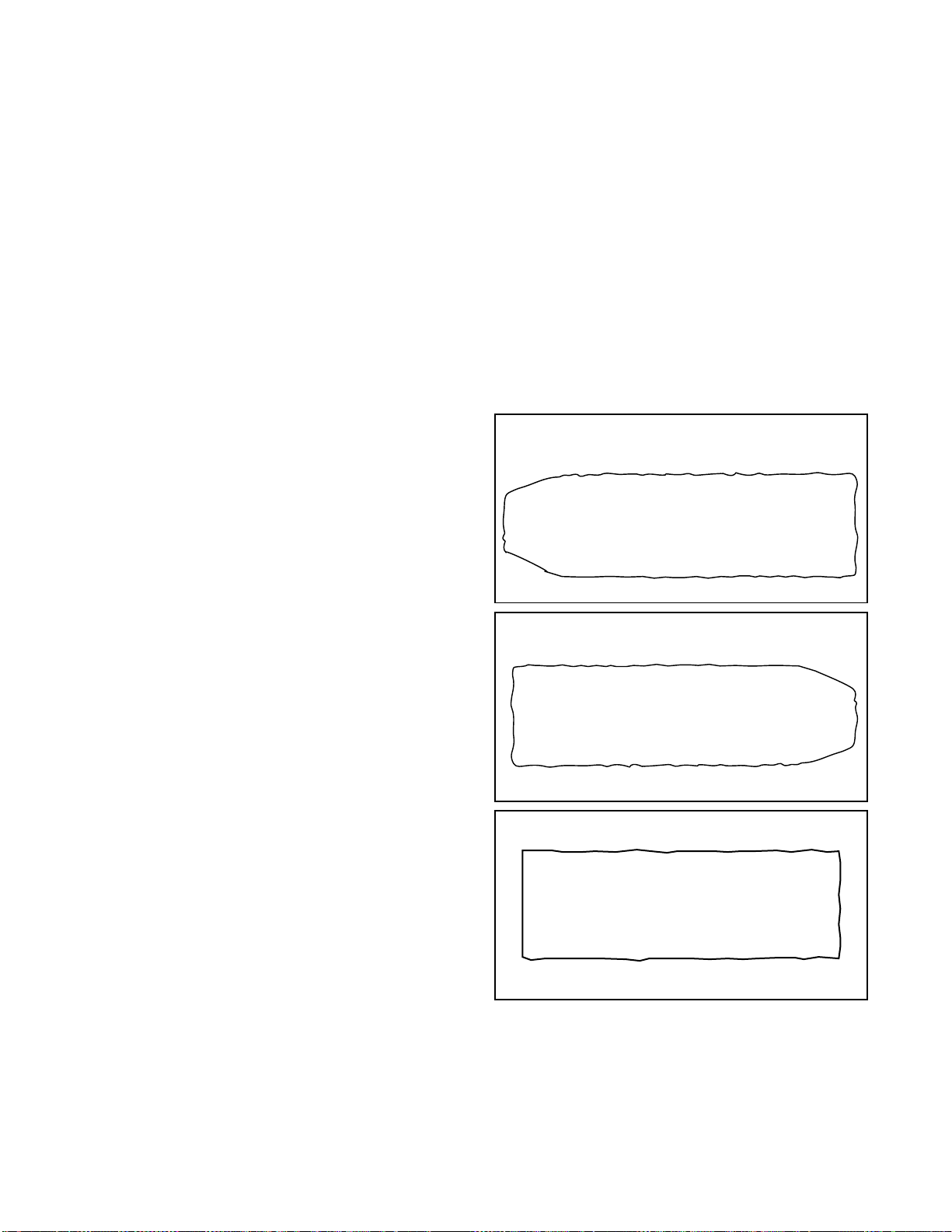

Dropping envelope level at the beginning of track.
Fig. M7
Dropping envelope level at the end of track.
Fig. M8
Envelope is adjusted properly. (No envelope drop)
Fig. M9
2-3-4 U27PMAPC
Page 47
DISASSEMBLY/ASSEMBLY PROCEDURES
OF DECK MECHANISM
Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to
CABINET DISASSEMBLY INSTRUCTIONS on page 1-5-1.)
All the following proc edures, including those for adjustment and replacement of parts, should be done in Ejec t
mode; see the positions of [44] and [45] in Fig.DM1 on page 2-4-3. When reassembling, follow the steps in reverse
order.
STEP
/LOC.
*[22]
START-
ING
No.
[1] [1] Guide Holder A T DM3 2(S-1)
[2] [1] Cassette Holder Assembly T DM4
[3] [2] Slider (SP) T DM5 *(L-1)
[4] [2] Slider (TU) T DM5 *(L-2)
[5] [4] Lock Lever T DM5 *(L-3),*(P-1)
[6] [2] Cassette Plate T DM5 (S-1A)
[7] [7] Cylinder Assembly T DM1,DM6 Desolder, 3(S-2)
[8] [8] Loading Motor Assembly T DM1,DM7
[9] [9] AC Head Assembly T DM1,DM7 (S-4)
[10] [2] Tape Guide Arm Assembly T DM1,DM8 *(P-2)
[11] [10] C Door Opener T DM1,DM8 *(L-4)
[12] [11] Pinch Arm (B) T DM1,DM8 *(P-3)
[13] [12] Pinch Arm Assembly T DM1,DM8
[14] [14] FE Head Assembly T DM1,DM9 (S-5)
[15] [15] Prism T DM1,DM9 (S-6)
[16] [2] Slider Shaft T DM10 *(L-5)
[17] [16] C Drive Lever (SP) T DM10
[18] [16] C Drive Lever (TU) T DM10 (S-7),*(P-4)
[19] [19] Capstan Motor B DM2,DM11 3(S-8), Cap Belt
[20]
[21] [20]
[23] [22]
[24] [22]
[25]
[26]
[27]
[28] [26] TR Gear C B DM2,DM13 (C-5)
[29] [28]
[30] [29]
[31] [31]
[32] [26] Idler Assembly (HI) B DM1,DM14 *(L-9)
[33] [26]
No.
[20]
[22] F Brak e As se mbly (HI ) B DM2,DM12 *(L-6)
[25]
[20],[25]
[22],[23],
[26]
Clutch Assembly (HI) B DM2,DM12 (C-1)
Center Gear B DM12
Worm Holder B DM2,DM13 (S-9),*(L-7),*(L-8)
Pulley Assembly (HI) B DM2,DM13
Mode Gear B DM2,DM13 (C-2)
Mode Lever (HI) B DM2,DM13 (C-3)
Cam Gear (A) (HI) B DM2,DM13 (C-4)
TR Gear Spring B DM13
TR Gear A/B B DM13
FF Arm (HI) B DM1,DM13
BT Arm B DM2,DM14 *(P-5)
PART
Fig. No.
REMOVAL INSTALLATION
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Desolder, LDG Belt,
2(S-3)
ADJUSTMENT
CONDITION
(+)Refer to Alignment
Sec.Pg.2-4-8
2-4-1 U27HSPAL2DA
Page 48
STEP
/LOC.
START-
ING
No.
[34] [26]
[35] [34]
[36] [16],[26]
[37] [2],[26]
[38] [37] Tension Lever Assembly T DM1,DM15
[39] [38] T Lever Holder T DM15 *(L-10)
[40] [40]
[41] [15],[40] Sensor Gear (HI) T DM1,DM15 (C-7)
[42] [36],[40] Reel T T DM1,DM15
[43] [38] Reel S T DM1,DM15
[44] [34],[38]
[45] [35]
[46] [19] TG Post Assembly T DM1,DM16 *(L-11)
[47] [27] Rack Assembly R DM17
[48] [47] F Door Opener R DM17
[49] [49] Cleaner Assembly T DM1,DM6
[50] [49] CL Post T DM6 *(L-12)
↓
(1)
No.
Loading Arm (SP)
Assembly
Loading Arm (TU)
Assembly
M Brake (TU) Assembly
(HI)
M Brake (SP) Assembly
(HI)
M Gear (HI) T DM1,DM15 (C-6)
Moving Guide S
Preparation
Moving Guide T
Preparation
↓
(2)
PART
↓
(3)
Fig. No.
B DM2,DM14
B DM2,DM14
T DM1,DM15
T DM1,DM15 *(P-6)
T DM1,DM16
T DM1,DM16
↓
(4)
↓
(5)
REMOVAL INSTALLATION
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
↓
(6)
ADJUSTMENT
CONDITION
(+)Refer to Alignment
Sec.Pg.2-4-8
(+)Refer to Alignment
Sec.Pg.2-4-8
(+)Refer to Alignment
Sec.Pg.2-4-8
↓
(7)
(1): Follow steps in sequence. When reassembling, follow the steps in reverse order.
These numbers are also used as identification (location) No. of parts in the figures.
(2): Indicates the part to start disassembling with in order to disassemble the part in column (1).
(3):Name of the part
(4): Location of the part: T=Top B=Bottom R=Right L=Left
(5): Figure Number
(6): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered.
P=Spring, W=Washer, C=Cut Washer, S=Screw, *=Unhook, Unlock, Release, Unplug, or Desolder
e.g., 2(L-2) = two Locking Tabs (L-2).
(7): Adjustment Information for Installation
(+):Refer to Deck Exploded Views for lubrication.
.
* [ 22 ] F Brake Assembly (HI) is not used in 2 head model.
2-4-2 U27HSPAL2DA
Page 49
T op View
[14]
[38]
[37]
[45][44] [46][9]
[7] [49] [8]
[32][43] [41] [40][31] [42]
[13]
[11]
[15]
[10]
[12]
[36]
Bottom View
[23]
[24]
[27]
Fig. DM1
[19]
[35]
[34]
[25]
[26]
[33][20][28][22]
Fig. DM2
2-4-3 U27HSPAL2DA
Page 50
(S-1)
[1]
(S-1)
Fig. DM3
(S-1A)
[7]
[3]
(L-1)
[6]
(L-2)
(P-1)
[49]
[4]
(L-3)
[5]
Fig. DM5
Pin D
Pin C
Slots B
First, while pushing the locking tab as
shown in the right, slide and pull up the right
side on [2] to release Pin A and Pin B from
the slots A.
Then, remove Pin C and Pin D on [2] from
the slots B as shown.
[2]
Pin A
Locking tab
2
Pull up
A
1
Slide
Pin B
Slot A
Slot A
View for A
Fig. DM4
Desolder
from bottom
(S-2)
View for A
[50]
(L-12)
A
Lead with
Red Stripe
Fig. DM6
2-4-4 U27HSPAL2DA
Page 51
[9]
)
A
(S-4)
[8]
[14]
(S-5)
(S-6)
[15]
(S-3)
Adj. Screw
[13]
LDG
Belt
Desolder
from bottom
Lead with White Stripe
View for A
[8]
Fig. DM7
[11]
(L-4)
(P-3)
[12]
[10]
Fig. DM9
[17]
(L-5)
[16]
[18]
(P-4)
(P-2
Pin of [12]
View for A
Pin of [10]
Groove of [27]
[27]
A
(S-7)
Fig. DM10
When reassembling [10] and
[12], confirm that pin of [10]
and pin of [12] are in the
groove of [27] as shown.
Fig. DM8
2-4-5 U27HSPAL2DA
Page 52
1
Cap Belt
[19]
(S-8)
Fig. DM1
[24]
[27]
(S-9)
(L-8)
(C-4)
(C-5)
[28]
[29]
[30]
[26]
(L-7)
(C-3)
[23]
(C-2)
[25]
[22]
turn
(L-6)
(C-1)
[21]
Pin on [22]
[20]
[31]
Position of Mode Lever when installed
Pin of [36]
Bottom View
[27]
Pin of [33]
Align [26] and [27] as shown.
First groove on [27]
Pin of [37]
First tooth on [44]
[26]
Position of pin on [22]
[27]
Fig. DM12
[27]
When reassembling [27],
meet the first groove on
[27] to the first tooth on
T op Vie w
[44] as shown.
Fig. DM13
2-4-6 U27HSPAL2DA
Page 53
[33]
(P-5)
[32]
(L-9)
Refer to the Alignment
Section, Page 2-4-8.
[35]
[34]
Fig. DM14
[44]
[45]
[46]
(L-11)
Fig. DM16
(P-6)
[37]
(C-7)
[41]
[39]
turn
(C-6)
[40]
turn
[43]
(L-10)
[42]
[38]
[36]
turn
[48]
[47]
Slide
Fig. DM17
Fig. DM15
2-4-7 U27HSPAL2DA
Page 54
ALIGNMENT PROCEDURES OF MECHANISM
The following procedures describe how to align the
individual gears and levers that make up the tape loading/unloading mechanism. Since information about the
state of the mechanism is provided to the System
Control Circuit only through the Mode Switch, it is
essential that the correct relationship between individual gears and levers be maintained.
All alignments are to be performed with the mechanism in Eject mode, in the sequence given. Each
procedure assumes that all previous procedures have
been completed.
IMPORTANT:
If any one of these alignments is not performed properly, even if off by only one tooth, the unit will unload
or stop and it may result in damage to the mechanical
or electrical parts.
Alignment points in Eject Position
Top View
Alignment 3
Alignment 1
Loading Arm (SP) and (TU) Assembly
Install Loading Arm (SP) and (TU) Assembly so that
their triangle marks point to each other as shown in
Fig. AL2.
Alignment 2
Mode Gear
Keeping the two triangles pointing at each other, install
the Loading Arm (TU) Assembly so that the last tooth
of the gear meets the most inside teeth of the Mode
Gear. See Fig. AL2.
Alignment 1
Triangle Marks
Loading Arm
(SP) Assembly
Last Tooth
Alignment 2
Loading Arm
(TU) Assembly
Most inside teeth
of Mode Gear
Mode Gear
Fig. AL2
Bottom View
Alignment 1
Alignment 2
Fig. AL1
Alignment 3
Cam Gear (A) (HI), Rack Assembly
Install the Rack Assembly so that the first tooth on the
gear of the Rack Assembly meets the first groove on
the Cam Gear (A) (HI) as shown in Fig. AL3.
Top View
First groove
on the Cam Gear (A)
Cam Gear (A)
Alignment 3
First tooth
Gear on Rack Assembly
Fig. AL3
2-4-8 U27HSAPM
Page 55
EXPLODED VIEWS AND
PARTS LIST SECTION
VIDEO CASSETTE RECORDER
27A-664
Sec. 3: Exploded views
and Parts List Section
I Exploded views
I Parts List
TABLE OF CONTENTS
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3-1
Deck Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4-1
Page 56
Front Panel
EXPLODED VIEWS
A1X
3-1-1 HE450FEX
Page 57
Cabinet
2L011
2B9
JACK CBA
2L022
SUB JACK CBA
2B9
2L041
A5
2L022
SENSOR CBA
2L041
2L011
2L012
A4
2L011
2B18
A2
2L021
2L011
2L011
2L021
2L042
2L021
2B5
2L021
2L051
2L021
AFV CBA
MAIN CBA
SENSOR CBA
2B46
A7
2B8
2L031
2B7
2L041
2L099
A10
1B1
A19
A3
3-1-2 HE451CEX
Page 58
Packing
Some Ref. Numbers are not in sequence.
X1
S2
X20BX20A
X3
X2
X4
S2
S3
Unit
A14
S1
3-1-3 HE451PEX
Page 59
DECK EXPLODED VIEWS

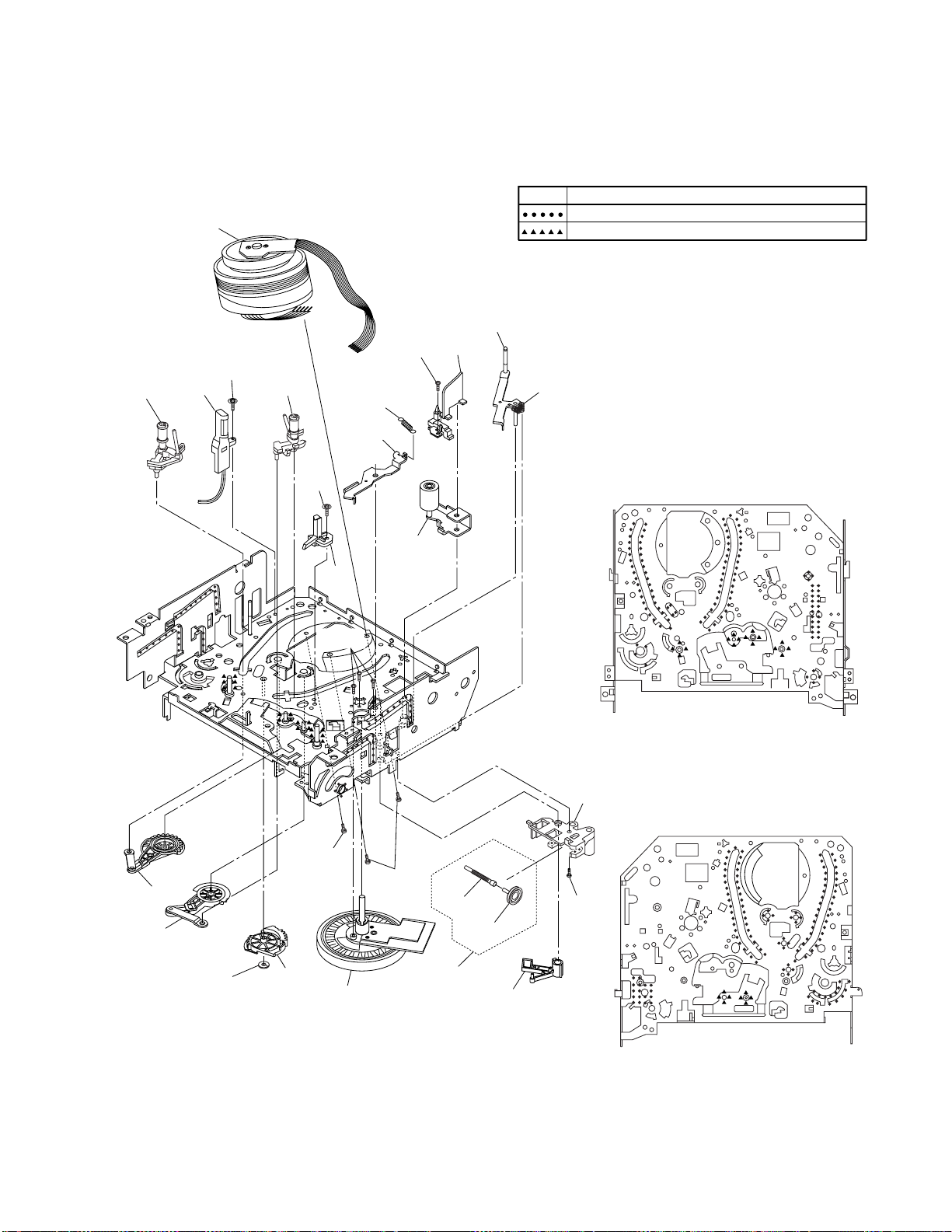

Deck Mechanism View 1
B2
B9
L1191
B73
B10
L1053
B411
B567
L1467
B494
Mark Description
Floil G-684G or Multemp MH-D
SLIDUS OIL #150
B35
B553
(Blue grease)
B12
B11
B571
L1450
B492
B74
L1051
B37
B410
L1450
B121
B8
Chassis Assembly
Top View (Lubricating Point)
B501
L1466
B126
B86
Some Ref. Numbers are not in sequence.
Chassis Assembly
Bottom View (Lubricating Point)
3-1-4 U27HSPA2DEX
Page 60
Deck Mechanism View 2
B487
B587
B416
B521
B591
Mark Description
Floil G-684G or Multemp MH-D
SLIDUS OIL #150
SANKOUL FG84M
(Yellow grease)
(Blue grease)
B508
B414
B572
B565
B499
B417
B568
B573
B585
B574
B518
B564
B584
B590
B148
B592
B31
B522
L1151
L1406
B3
B558
B557
B525
B578
B579
B582
B580
B583
B579
View
for A
Some Ref. Numbers are not in sequence.
A
B581
B559
B516
B133
B52
B551
B507
B488
B491
B513
Bottom Side (Grease point)
Bottom Side
(Grease point)
3-1-5 U27HSPA2DEX
Page 61
Deck Mechanism View 3
L1321
B355
L1341
B347
B482
Mark Description
Floil G-684G or Multemp MH-D
SLIDUS OIL #150
L1321
B354
B483
B425
(Blue grease)
B562
B563
B300
B313
B529
B360
B359
B361
B555
Some Ref. Numbers are not in sequence.
B303
B514
3-1-6 U27HSPA2DEX
Page 62
MECHANICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a !
have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper servicing.
NOTE:
Parts that are not assigned part numbers (---------) are
not available.
Ref. No. Description Part No.
A1X FRONT ASSEMBLY HE451ED 0VM204198
A2 CASE, TOP(ANTHRACITE) HE240ED 0VM101267
A3 CHASSIS(U27F-GMBH) HE240ED 0VM000177
A4 JACK BOARD(U27 FTZ) HE480ED
A5 JACK BOARD(2-21P) HE470ED
A7 PANEL, BOTTOM(RESET) HE240ED 0VM305896
A10! LABEL, RATING HE451ED ----------
A14 LABEL, SERIAL NO. HE240ED or ----------
A19 LABEL, SHOW VIEW H6745EP ----------
1B1 DECK ASSEMBLY CZD012/VM17E0 N17E0FL
2B5 SHEILD, CYLINDER HC460ED 0VM305182
2B7 HEAD SHIELD ASSEMBLY HE470ED
2B8 BUSH, LED(F) H3700UD (See Electrical Parts List)
2B9 CUSHION HC460ED 0VM413251
2B18 FIBER, TOP CASE HC460ED 0VM412906
2B46 ROHM HOLDER H7770JD
2L011 SCREW, P-TIGHT 3X10 BIND HEAD+ GBCP3100
2L012 SCREW, P-TIGHT 3X10 BIND HEAD+ GBCP3100
2L021 SCREW, P-TIGHT M3X10 WASHER HEAD+ GCMP3100
2L022 SCREW, P-TIGHT M3X10 WASHER HEAD+
2L031 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060
2L041 P-TIGHT SCREW 3X8 BIND + GBMP3080
2L042 P-TIGHT SCREW 3X8 BIND + GBMP3080
2L051 SCREW, S-TIGHT M3X5 BIND HEAD+ GBMS3050
2L099 SCREW, P-TIGHT M3X8 BIND HEAD+ GBCP3080
S1 GIFT BOX CARTON HE451ED 0VM306313
S2 STYROFOAM HE470ED 0VM203850
S3 UNIT, BAG V4010PA 0VM406453B
X1 REMOTE CONTROL UNIT 364/CRC005 or N9460ED
X2 DRY BATTERY R6P/2S or XB0M451T0001
X3 RF CORD PAL 1.2M or WPZ0122LG001
X4 ACCESSORY BAG K8092BA 0VM404632
X20A! OWNER'S MANUAL(ENGLISH) HE451ED 0VMN03769
X20B! OWNER'S MANUAL(GERMAN) HE451ED 0VMN03560
(See Electrical Parts List)
(See Electrical Parts List)
LABEL, BAR CODE HE451ED ----------
(See Electrical Parts List)
(See Electrical Parts List)
(See Electrical Parts List)
PACKING
ACCESSORIES
REMOTE CONTROL UNIT 364/CRC007 NA662ED
DRY BATTERY ES-GR6M-C XB0M571GLP01
RF CABLE CC1001020012010 WPZ0122LW001
20030425 3-2-1 HE451CA
Page 63
ELECTRICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
! have special characteristics important to safety.
Before replacing any of these compone nts, read carefully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.
NOTES:
1. Parts that are n ot assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
MCV CBA
Ref. No. Description Part No.
MCV CBA 0VSA14139
Consists of the following
MAIN CBA (MCV -A) ----------- SUB JACK CBA(MCV-B) -----------JACK CBA (MC V - C) -----------SENSOR CBA 0VSA13549
MAIN CBA
Ref. No. Description Part No.
Main CBA ( MCV-A) --- ---- ---Consists of the following
CAPACITO RS
C002! METALLIZED FILM CAP. 0.068µF/275V K or CT2E683HJE06
! METALLIZED FILM CAP. 0.068µF/250V K CT2E683DC011
C003! SAFETY CAP . 2200pF/250V or CCN2EMP0E222
! SAFETY CAP. 2200pF/250V CA2E222MR049
C004 ELECTROL YTIC CAP. 33µF/400V M(L•Z) CA2H330 NC010
C005 CERAMIC CAP . B K 0.01µF/500V CCD2JKP0B103
C006 CERAMIC CAP . SL K 56pF/1KV or CCD3AKPSL560
CERAMIC CAP . SL J 56pF/1KV CCD3AJPSL560
C007 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C008 CERAMIC CAP.(AX) X K 5600pF/16V CCA1CKT0X562
C010 FILM CAP.(P) 0.022µF/50V J or CMA1JJS00223
FILM CAP.(P) 0.022µF/50V J CA1J223MS029
C011 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C012 ELECTROL YTIC CAP. 10µF/50V M H7 CE1JMAVSL100
C014 ELECTROL YTIC CAP. 470µF/35V M or CE1GMASDL471
ELECTROLYTIC CAP. 470µF/35V M CE1GMASTL471
C017 ELECTROL YTIC CAP. 470µF/16V M or CE1CMASDL471
ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471
C018 ELECTROL YTIC CAP. 100µF/16V M or CE1CMASDL101
ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101
C020 ELECTROL YTIC CAP. 1000µF/16V M CE1CMZPTL102
C021 ELECTROL YTIC CAP. 470µF/10V M or CE1AMASDL471
ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471
C025 CERAMIC CAP.(AX) X K 5600pF/16V CCA1CKT0X562
Ref. No. D e scr ip tion Part No.
C026 ELECTROL YTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C053 ELECTRIC DOUBLE LA YER CAP0.047F/5.5V Z orCA0J473NE0 03
ELECTRIC DOUBLE LAYER CAP . 0.047F/5.5V Z CA0J473MS014
C056 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473
CHIP CERAMIC CAP . B K 0.047µF/25V CHD1 EK30B473
C057 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471
CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C060 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C061 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C157 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C158 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102
C251 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C252 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102
C253 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C254 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C302 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223
CHIP CERAMIC CAP . B K 0.022µF/25V CHD1 EK30B223
C303 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C304 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C305 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224
CHIP CERAMIC CAP. FZ Z 0.22µF/25V CHD1EZ3FZ224
C307 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473
CHIP CERAMIC CAP . B K 0.047µF/25V CHD1 EK30B473
C308 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223
CHIP CERAMIC CAP . B K 0.022µF/25V CHD1 EK30B223
C309 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C310 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473
CHIP CERAMIC CAP . B K 0.047µF/25V CHD1 EK30B473
C312 CHIP CERAMIC CAP . B K 8200pF/50V CHD1JK30B822
C313 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C314 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C315 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C316 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C317 ELECTROL YTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C318 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C319 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C320 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C321 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C322 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C323 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C324 CHIP CERAMIC CAP. CH J 68pF/50V or CHD1JJ3CH680
20030414 3-3-1 HE451EL
Page 64
Ref. No. Description Part No.
CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C325 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C326 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680
CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C327 ELECTROL YTIC CAP. 0.47µF/50V M H7 CE1JMAVSL R47
C328 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C329 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680
CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C330 CERAMIC CAP .(AX) F Z 0.1µF/50V CCA1JZTFZ104
C332 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C333 ELECTROL YTIC CAP. 0.47µF/50V M H7 CE1JMAVSL R47
C334 ELECTROL YTIC CAP. 4.7µF/25V M NP H7 CP1EMA VSB4R7
C335 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C336 CHIP CERAMIC CAP . CH J 1000pF/50V or CHD1JJ3CH102
CHIP CERAMIC CAP. CH J 1000pF/25V or CHD1EJ3CH102
CHIP CERAMIC CAP. CG J 1000pF/50V CHD1JJ3CG102
C337 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C338 ELECTROL YTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C339 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C340 CHIP CERAMIC CAP . CH J 120pF/50V or CHD1JJ3CH121
CHIP CERAMIC CAP. CG J 120pF/50V CHD1JJ3CG121
C341 CHIP CERAMIC CAP . CH J 220pF/50V or CHD1JJ3CH221
CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221
C342 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C343 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C345 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680
CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C346 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680
CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C347 CHIP CERAMIC CAP . CH D 10pF/50V or CHD1JD3CH100
CHIP CERAMIC CAP. CG D 10pF/50V CHD1JD3CG100
C351 ELECTROL YTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221
C352 ELECTROL YTIC CAP. 100µF/16V M H7 CE1CMAVSL101
C401 ELECTROL YTIC CAP. 47µF/6.3V M H7 CE0KMA VS L470
C402 ELECTROL YTIC CAP. 220µF/6.3V M H7 CE0KMASSL221
C403 CERAMIC CAP . B K 470pF/100V CCD2AKS0B471
C404 FILM CAP.(P) 0.018µF/100V J or CMA2AJP00183
FILM CAP.(P) 0.018µF/50V J CMA1JJP00183
C411 CHIP CERAMIC CAP . CH J 820pF/50V or CHD1JJ3CH821
CHIP CERAMIC CAP . CH J 820pF/25V or CHD1EJ3CH821
CHIP CERAMIC CAP. CG J 820pF/50V CHD1JJ3CG821
C412 CHIP CERAMIC CAP . B K 1800pF/50V CHD1JK30B182
C414 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C415 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C416 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C417 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C418 CHIP CERAMIC CAP . CH J 33pF/50V or CHD1JJ3CH330
CHIP CERAMIC CAP. CG J 33pF/50V CHD1JJ3CG330
C419 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472
Ref. No. D e scr ip tion Part No.
C421 ELECTROL YTIC CAP. 33µF/6.3V M H7 CE0KMAVSL330
C422 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C424 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMAVSL220
C425 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C428 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221
CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221
C430 ELECTROL YTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C431 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C451 ELECTROL YTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C452 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C453 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C454 ELECTROL YTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C455 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C456 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C457 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C458 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C459 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C460 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472
C461 ELECTROL YTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C462 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C463 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C464 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C465 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C466 ELECTROL YTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221
C467 ELECTROL YTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C468 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472
C469 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C470 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C471 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C472 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C473 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C474 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMAVSL220
C475 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C476 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C477 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C478 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C479 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C480 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C481 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C482 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C483 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
20030414 3-3-2 HE451EL
Page 65
Ref. No. Description Part No.
C484 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C485 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C486 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C489 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
C501 ELECTROL YTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221
C502 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C506 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C508 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C510 ELECTROL YTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C511 ELECTROL YTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C512 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C513 CHIP CERAMIC CAP . CH J 22pF/50V or CHD1JJ3CH220
CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220
C514 CHIP CERAMIC CAP . CH J 22pF/50V or CHD1JJ3CH220
CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220
C515 CHIP CERAMIC CAP . CH J 18pF/50V or CHD1JJ3CH180
CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180
C516 CHIP CERAMIC CAP . CH J 18pF/50V or CHD1JJ3CH180
CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180
C517 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472
C518 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473
CHIP CERAMIC CAP . B K 0.047µF/25V CHD1EK30B473
C519 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C520 CHIP CERAMIC CAP . CH J 100pF/50V or CHD1JJ3CH101
CHIP CERAMIC CAP. CG J 100pF/50V CHD1JJ3CG101
C521 CHIP CERAMIC CAP . CH J 560pF/50V or CHD1JJ3CH561
CHIP CERAMIC CAP. CG J 560pF/50V CHD1JJ3CG561
C522 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMASSL220
C523 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102
C524 CHIP CERAMIC CAP . CH J 330pF/50V or CHD1JJ3CH331
CHIP CERAMIC CAP. CG J 330pF/50V CHD1JJ3CG331
C526 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472
C527 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMASSL220
C529 CERAMIC CAP .(AX) Y M 0.01µF/16V CC A1CM T0Y10 3
C530 CERAMIC CAP .(AX) F Z 0.022µF/25V CCA1EZTFZ223
C531 CERAMIC CAP .(AX) Y M 0.01µF/16V CC A1CM T0Y10 3
C532 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMASSL220
C533 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C535 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C538 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223
CHIP CERAMIC CAP . B K 0.022µF/25V CHD1EK30B223
C540 ELECTROL YTIC CAP. 470µF/6.3V M or CE0KMASDL471
ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C561 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223
CHIP CERAMIC CAP . B K 0.022µF/25V CHD1EK30B223
C562 ELECTROL YTIC CAP. 330µF/6.3V M H7 CE0KMASSL331
C563 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104
C564 CHIP CERAMIC CAP . CH J 100pF/50V or CHD1JJ3CH101
CHIP CERAMIC CAP. CG J 100pF/50V CHD1JJ3CG101
Ref. No. D e scr ip tion Part No.
C640 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C642 SEMICONDUCTOR CAP. SR K 0.018µF/25V CDA1EKS0X183
C643 ELECTROL YTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C644 ELECTROL YTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C645 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C648 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C649 ELECTROL YTIC CAP. 1µF/50V M H7 NP CP1JMAVSB1R0
C701 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473
CHIP CERAMIC CAP . B K 0.047µF/25V CHD1 EK30B473
C702 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C703 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C704 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C706 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102
C707 ELECTROL YTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C708 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C716 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224
CHIP CERAMIC CAP. FZ Z 0.22µF/25V CHD1EZ3FZ224
C717 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224
CHIP CERAMIC CAP. FZ Z 0.22µF/25V CHD1EZ3FZ224
C756 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471
CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C757 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471
CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C851 CHIP CERAMIC CAP. CH J 22pF/50V or CHD1JJ3CH220
CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220
C852 CHIP CERAMIC CAP. CH J 22pF/50V or CHD1JJ3CH220
CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220
C853 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472
C854 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
C855 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C856 CHIP CERAMIC CAP. CH J 180pF/50V or CHD1JJ3CH181
CHIP CERAMIC CAP. CG J 180pF/50V CHD1JJ3CG181
C859 ELECTROL YTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C862 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103
CONNECTOR
CN701 AFV PCB ASSEMBLY CP2500/C460 HC460AFV
DIODES
D001 RECTIFIER DIODE 1N4005 NDQZ001N4005
D002 RECTIFIER DIODE 1N4005 NDQZ001N4005
D003 RECTIFIER DIODE 1N4005 NDQZ001N4005
D004 RECTIFIER DIODE 1N4005 NDQZ001N4005
D005 RECTIFIER DIODE BA159 or NDQZ000BA159
RECTIFIER DIODE ERA22-10 QDPZ0ERA2210
D006 SWITCHING DIODE 1N4148 M or NDTZ01N4148 M
SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133
D007 SWITCHING DIODE 1N4148 M or NDTZ01N4148 M
SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133
D008 SWITCHING DIODE 1N4148 M or NDTZ01N4148 M
SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133
D009 SWITCHING DIODE 1N4148 M or NDTZ01N4148 M
SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133
D011 RECTIFIER DIODE BA158 NDQZ000BA158
D012 RECTIFIER DIODE FR202-B/P NDQZ000FR202
D013 RECTIFIER DIODE FR202-B/P NDQZ000FR202
20030414 3-3-3 HE451EL
Page 66
Ref. No. Description Part No.
D014 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340
D015 ZENER DIODE DZ-8.2BSAT265 or NDTA0DZ8R2BS
ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D018 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D019 ZENER DIODE DZ-5.1BSBT265 or NDTB0DZ5R1BS
ZENER DIODE MTZJT -77 5.1B QDTB0MTZJ5R1
D021 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D051 RECTIFIER DIODE 1N4005 NDQZ001N4005
D052 RECTIFIER DIODE 1N4005 NDQZ001N4005
D053 RECTIFIER DIODE 1N4005 NDQZ001N4005
D054 RECTIFIER DIODE 1N4005 NDQZ001N4005
D055 RECTIFIER DIODE 1N4005 NDQZ001N4005
D056 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS
ZENER DIODE MTZJT -77 5.6C QDTC0MTZJ5R6
D057 ZENER DIODE DZ-10BSBT265 or NDTB00DZ10BS
ZENER DIODE MTZJT-7710B QDTB00MTZJ10
D058 ZENER DIODE DZ-33BSDT265 or NDTD00DZ33BS
ZENER DIODE MTZJT-7733D QDTD00MTZJ33
D153 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
D154 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
D155 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
D156 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
D301 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D501 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D502 LED MIE-534A2 or NPZZM1E534A2
LED SIR-563ST3F P or QPQPS1R563ST
LED SIR-563ST3F Q QPQQS1R563ST
D553 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D701 ZENER DIODE DZ-33BSDT265 or NDTD00DZ33BS
ZENER DIODE MTZJT-7733D QDTD00MTZJ33
ICS
IC001! PHOTOCOUPLER EL817A or NPEA000EL817
! PHOTOCOUPLER EL817B or NPEB000EL817
! PHOTOCOUPLER EL817C o r NPEC000EL817
! PHOTOCOUPLER LTV-817B-F or NPEB0L T V817F
! PHOTOCOUPLER LTV-817C-F NPEC0L TV817F
IC301 IC:Y/C/A LA71750EM-MPB-E QSZBA0RSY020
IC451 IC:HIFI LA72648M-MPB-E QSZBA0RSY033
IC501 MICROCONTROLLER 16BIT M37762MCA-
IC503 IC:EEPROM CAT24WC02JI or NSZBA0SBG001
IC561 IC:LED DRIVER PT6958-FN-TP NSZBA0TG2003
IC640 IC:VPS/PDC SLICER LC74793JM-TRM QSZBA0TSY018
AD3GP
IC:MEMORY BR24C02F-W QSMBA0SRM003
QSZAB0RMB153
COILS
L001 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L002 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L003! LINE FILTER 56MH TLF14CB5630R 2 or LLBG00ZTU022
! LINE FILTER 50MH LF -4D-E5 03 LLBG00ZKQ009
L009 CHOKE COIL 47 µH-K or LLBD00PKV007
CHOKE COIL 47µH-K LLBD00PKV005
L010 CHOKE COIL 47 µH-K or LLBD00PKV007
Ref. No. D e scr ip tion Part No.
CHOKE COIL 47µH-K LLBD00PKV005
L012 INDUCTOR 100µH-J-5FT LLARJCSTU101
L251 INDUCTOR 5.6µH-K-26T LLAXKATTU5R6
L301 INDUCTOR 100µH-K-26T LLAXKA TTU101
L402 CHOKE COIL 47µH-K or LLBD00PKV007
CHOKE COIL 47µH-K LLBD00PKV005
L403 INDUCTOR 47µH-K-5FT LLARKBSTU470
L451 INDUCTOR 47µH-K-5FT LLARKBSTU470
L452 INDUCTOR 27µH-K-5FT LLARKBSTU270
L501 INDUCTOR 100µH-K-26T LLAXKA TTU101
L561 INDUCTOR 68µH-K-26T LLAXKA TT U680
L562 INDUCTOR 56µH-K-26T LLAXKA TT U560
L701 INDUCTOR 10µH-K-26T LLAXKA TT U100
L702 CHOKE COIL 47µH-K or LLBD00PKV007
CHOKE COIL 47µH-K LLBD00PKV005
L703 PCB JUMPER D0.6-P5.0 JW5.0T
L704 INDUCTOR 15µH-K-26T LLAXKA TT U150
L851 INDUCTOR 1.8µH-K-26T LLAXKATTU1R8
TRANSISTORS
Q001 FET 2SK3566 QFWZ02SK3566
Q002 TRANSISTOR KTC3199(BL) or NQS50KTC3199
TRANSISTOR 2SC2785(K) or QQSK02SC2785
TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815
Q003 TRANSISTOR KTC3199(BL) or NQS50KTC3199
TRANSISTOR 2SC2785(K) or QQSK02SC2785
TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815
Q004 TRANSISTOR KTC3199(Y) or NQSY0KTC3199
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(F) or QQSF02SC2785
TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q051 RES. BUILT-IN TRANSIST OR KRA104M or NQSZ0KRA104M
RES. BUILT -IN TRANSIST OR BN1L4M-T QQSZ00BN1L4M
Q052 RES. BUILT-IN TRANSISTO R KRC103M or NQSZ0KRC103M
RES. BUILT -IN TRANSIST OR BA1F4M-T QQSZ00BA1F4M
Q053 TRANSISTOR KTC3199(Y) or NQSY0KTC3199
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(F) or QQSF02SC2785
TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q054 TRANSISTOR KTC3205(Y) or NQSY0KTC3205
TRANSISTOR 2SC3266-Y(TPE2) QQSY02SC3266
Q055 TRANSISTOR KTA1266(GR) or NQS40KT A1266
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q056 RES. BUILT-IN TRANSIST OR KRA103M or NQSZ0KRA103M
RES. BUILT -IN TRANSIST OR BN1F4M-T QQSZ00BN1F4M
Q057 TRANSISTOR KTA1281(Y) or NQSY0KTA1281
TRANSISTOR 2SA1020(Y) QQSY02SA1020
Q058 RES. BUILT-IN TRANSISTO R KRC103M or NQSZ0KRC103M
RES. BUILT -IN TRANSIST OR BA1F4M-T QQSZ00BA1F4M
Q059 RES. BUILT-IN TRANSISTO R KRC103M or NQSZ0KRC103M
RES. BUILT -IN TRANSIST OR BA1F4M-T QQSZ00BA1F4M
Q351 CHIP TRANSISTOR KTA1504GR-R TK or NQ140KTA1504
CHIP TRANSISTOR KTA1 504Y -R TK NQ1Y0KTA1504
Q352 TRANSISTOR KTC3199(Y) or NQSY0KTC3199
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
20030414 3-3-4 HE451EL
Page 67
Ref. No. Description Part No.
TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC278 5(F) or QQSF02SC2785
TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q401 TRANSISTOR KTA1266(GR) or NQS40KTA1266
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q402 TRANSISTOR KTC3203(Y) or NQSY0KTC3203
TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120
Q403 RES. BUILT-IN TRANSIST OR KRA103M or NQSZ0KRA103M
RES. BUILT -IN TRANSIST OR BN1F4M-T QQSZ00BN1F4M
Q405 CHIP TRANSISTOR FMG4A T148 or QQ2Z000FMG4A
CHIP TRANSISTOR RN151 1(TE85R) QQ2Z00RN1511
Q406 CHIP TRANSIST OR KTC 387 5Y-RTK NQ1Y0 KTC38 75
Q451 CHIP TRANSISTOR KRC103S RTK NQ1Z0KRC103S
Q501 TRANSISTOR KTC3199(BL) or NQS50KTC3199
TRANSISTOR 2SC2785(K) or QQSK02SC2785
TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815
Q502 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M
RES. BUILT -IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M
Q503 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12
PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22
Q551 TRANSISTOR KTC3199(BL) or NQS50KTC3199
TRANSISTOR 2SC2785(K) or QQSK02SC2785
TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815
Q552 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M
RES. BUILT -IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M
RESISTORS
R002 METAL OXIDE FILM RES. 1W J 150k Ω or RN01154ZU00 1
METAL OXIDE FI LM RES. 1W J 150k Ω RN01154KE009
R003 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R004 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R005 CARBON RES. 1/6W G 680 Ω or RCX6GATZ0681
CARBON RES. 1/4W G 680 Ω RCX4GATZ0681
R006 METAL OXIDE FILM RES. 1W J 1.8 Ω or RN011R8ZU001
MET AL OXID E FILM RES. 1W J 1.8 Ω RN01 1R8KE009
R007 CARBON RES. 1/6W J 22k Ω or RCX6JAT Z022 3
CARBON RES. 1/ 4W J 22k Ω RCX4JATZ022 3
R008 CARBON RES. 1/6W J 100k Ω or RCX6JATZ010 4
CARBON RES. 1/ 4W J 100k Ω RCX4JAT Z010 4
R009 CARBON RES. 1/6W G 3.3k Ω or RCX6GATZ0 332
CARBON RES. 1/4W G 3.3k Ω RCX4GAT Z033 2
R01 1 CARBON RES. 1/ 4W J 390k Ω RCX4JAT Z039 4
R012 CARBON RES. 1/4W J 390k Ω RCX4JATZ0 394
R013 CARBON RES. 1/6W J 470k Ω or RCX6JATZ047 4
CARBON RES. 1/ 4W J 470k Ω RCX4JAT Z047 4
R014 CARBON RES. 1/6W J 100k Ω or RCX6JATZ010 4
CARBON RES. 1/ 4W J 100k Ω RCX4JAT Z010 4
R015 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R016 CARBON RES. 1/6W J 100k Ω or RCX6JATZ010 4
CARBON RES. 1/ 4W J 100k Ω RCX4JAT Z010 4
R017 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R018 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R021 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R022 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R023 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R024 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R025 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331
R026 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R027 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0 102
CARBON RES. 1/ 4W J 1k Ω RCX4JA TZ0 102
R028 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
Ref. No. D e scr ip tion Part No.
R053 PCB JUMPER D0.6-P5.0 JW5.0T
R054 CHIP RES.(1608) 1/ 10W J 1 80 Ω RRXAJR5Z0181
R058 CARBON RES. 1/6W J 820 Ω or RCX6JATZ0821
CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R060 CARBON RES. 1/6W J 2.7k Ω or RCX6JATZ0272
CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R061 CHIP RES.(1608) 1/ 10W J 2 2k Ω RRXAJR5Z0223
R062 CARBON RES. 1/6W J 10k Ω or RCX6JATZ0103
CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R063 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R064 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R065 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R066 CHIP RES.(1608) 1/ 10W J 4 7k Ω RRXAJR5Z0473
R067 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R068 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R069 CARBON RES. 1/6W J 8.2k Ω or RCX6JATZ0822
CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R070 CARBON RES. 1/6W J 10k Ω or RCX6JATZ0103
CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R071 CARBON RES. 1/6W J 1.8k Ω or RCX6JATZ0182
CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R072 CHIP RES.(1608) 1/ 10W J 6 8k Ω RRXAJR5Z0683
R073 CARBON RES. 1/6W J 1 Ω or RCX6JATZ01R0
CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0
R251 CHIP RES.(1608) 1/ 10W J 2 .2k Ω RRXAJR5Z0222
R252 CHIP RES.(1608) 1/ 10W J 3 9k Ω RRXAJR5Z0393
R301 CHIP RES.(1608) 1/ 10W J 1 .2k Ω RRXAJR5Z0122
R302 CHIP RES.(1608) 1/ 10W J 8 .2k Ω RRXAJR5Z0822
R305 CHIP RES.(1608) 1/ 10W J 3 .9k Ω RRXAJR5Z0392
R307 CHIP RES.(1608) 1/ 10W J 4 .7k Ω RRXAJR5Z0472
R308 CHIP RES.(1608) 1/ 10W J 6 .8k Ω RRXAJR5Z0682
R309 CHIP RES.(1608) 1/ 10W J 1 00 Ω RRXAJR5Z0101
R310 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R31 1 CHIP RE S.(1 608) 1/10 W J 18k Ω RRXAJR5Z0183
R312 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R313 CHIP RES.(1608) 1/ 10W J 1 8k Ω RRXAJR5Z0183
R315 CHIP RES.(1608) 1/ 10W J 2 .2k Ω RRXAJR5Z0222
R316 CHIP RES.(1608) 1/ 10W J 6 .8k Ω RRXAJR5Z0682
R317 CHIP RES.(1608) 1/ 10W J 1 .2k Ω RRXAJR5Z0122
R318 CHIP RES.(1608) 1/ 10W J 4 .7k Ω RRXAJR5Z0472
R319 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R320 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102
R321 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330
CARBON RES. 1/4W J 33 Ω RCX4JATZ0330
R322 CHIP RES.(1608) 1/ 10W J 7 5 Ω RRXAJR5Z0750
R323 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330
CARBON RES. 1/4W J 33 Ω RCX4JATZ0330
R324 CHIP RES.(1608) 1/ 10W J 4 7k Ω RRXAJR5Z0473
R325 CHIP RES.(1608) 1/ 10W J 3 3 Ω RRXAJR5Z0330
R326 CHIP INDUCTOR MLG1608B18NJT000 or LLACJB3TE18N
CHIP INDUCTOR HK1608 18NJ-T LLACJB3TU18N
R330 CHIP RES.(1608) 1/ 10W J 5 .6M Ω RRXAJR5Z0565
R331 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R332 CHIP INDUCTOR MLG1608B18NJT000 or LLACJB3TE18N
CHIP INDUCTOR HK1608 18NJ-T LLACJB3TU18N
R333 CHIP INDUCTOR MLG1608B18NJT000 or LLACJB3TE18N
CHIP INDUCTOR HK1608 18NJ-T LLACJB3TU18N
R334 CHIP RES.(1608) 1/ 10W 0 Ω RRXAZR5Z0000
R351 CHIP RES.(1608) 1/ 10W J 1 80 Ω RRXAJR5Z0181
R352 CHIP RES.(1608) 1/ 10W J 1 50 Ω RRXAJR5Z0151
R355 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
20030414 3-3-5 HE451EL
Page 68
Ref. No. Description Part No.
R357 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R358 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R360 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R361 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R401 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R402 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R403 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R404 CARBON RES. 1/6W J 100 Ω or RCX6JA TZ0 101
CARBON RES. 1/ 4W J 100 Ω RCX4JA TZ0 101
R407 CARBON RES. 1/6W J 820 Ω or RCX6JA TZ0 821
CARBON RES. 1/ 4W J 820 Ω RCX4JA TZ0 821
R408 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R409 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R411 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R412 CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273
R413 CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334
R414 CHIP RES.(1608) 1/10W J 120 Ω RRXAJR5Z0121
R415 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R416 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R417 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R418 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R421 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R422 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R425 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R426 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R429 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R430 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R431 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R451 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R452 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R453 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R454 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R455 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R456 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R457 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R458 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R459 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R460 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R461 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R462 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R463 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R464 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R465 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R466 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R467 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R468 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R469 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R470 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R471 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R472 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R473 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R474 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R475 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R476 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R477 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R478 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R479 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R480 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R481 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R501 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R502 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
Ref. No. D e scr ip tion Part No.
R503 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102
R504 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R505 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R506 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R508 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102
R509 CHIP RES.(1608) 1/ 10W J 4 .7k Ω RRXAJR5Z0472
R510 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R51 1 CHIP RE S.(1 608) 1/10 W J 100 k Ω RRXAJR5Z0104
R513 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182
R514 CHIP RES.(1608) 1/ 10W J 8 20 Ω RRXAJR5Z0821
R515 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0102
CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R516 CHIP RES.(1608) 1/ 10W J 3 30k Ω RRXAJR5Z0334
R517 CHIP RES.(1608) 1/ 10W J 5 60 Ω RRXAJR5Z0561
R518 CHIP RES.(1608) 1/ 10W J 4 70 Ω RRXAJR5Z0471
R520 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R521 CHIP RES.(1608) 1/ 10W J 2 20k Ω RRXAJR5Z0224
R522 CHIP RES.(1608) 1/ 10W J 3 9k Ω RRXAJR5Z0393
R523 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R524 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R525 CHIP RES.(1608) 1/ 10W J 1 .5k Ω RRXAJR5Z0152
R526 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182
R527 CHIP RES.(1608) 1/ 10W J 6 80 Ω RRXAJR5Z0681
R528 CHIP RES.(1608) 1/ 10W J 1 8k Ω RRXAJR5Z0183
R529 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R530 CHIP RES.(1608) 1/ 10W J 1 80 Ω RRXAJR5Z0181
R531 CHIP RES.(1608) 1/ 10W J 6 8k Ω RRXAJR5Z0683
R533 CHIP RES.(1608) 1/ 10W J 3 3k Ω RRXAJR5Z0333
R534 CARBON RES. 1/6W G 3.6k Ω or RCX6GATZ0362
CARBON RES. 1/4W G 3.6k Ω RCX4GATZ0362
R535 CARBON RES. 1/6W G 10k Ω or RCX6GATZ0103
CARBON RES. 1/4W G 10k Ω RCX4GATZ0103
R536 CARBON RES. 1/6W G 470 Ω or RCX6GATZ0471
CARBON RES. 1/4W G 470 Ω RCX4GATZ0471
R537 CARBON RES. 1/6W G 22k Ω or RCX6GATZ0223
CARBON RES. 1/4W G 22k Ω RCX4GATZ0223
R538 CARBON RES. 1/6W G 1.5k Ω or RCX6GATZ0152
CARBON RES. 1/4W G 1.5k Ω RCX4GATZ0152
R539 CARBON RES. 1/6W G 4.7k Ω or RCX6GATZ0472
CARBON RES. 1/4W G 4.7k Ω RCX4GATZ0472
R540 CHIP RES.(1608) 1/ 10W J 3 90k Ω RRXAJR5Z0394
R541 CHIP RES.(1608) 1/ 10W J 3 90k Ω RRXAJR5Z0394
R542 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182
R543 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102
R544 CHIP RES.(1608) 1/ 10W J 2 .7k Ω RRXAJR5Z0272
R545 CHIP RES.(1608) 1/ 10W J 2 .2k Ω RRXAJR5Z0222
R546 CHIP RES.(1608) 1/ 10W J 1 2k Ω RRXAJR5Z0123
R547 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182
R548 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102
R549 CHIP RES.(1608) 1/ 10W J 1 .2k Ω RRXAJR5Z0122
R551 CHIP RES.(1608) 1/ 10W J 1 00 Ω RRXAJR5Z0101
R552 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R556 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R557 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R566 CHIP RES.(1608) 1/ 10W J 5 6k Ω RRXAJR5Z0563
R604 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R605 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R61 1 CHIP RE S.(1 608) 1/10 W J 10k Ω RRXAJR5Z0103
R614 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
R624 CHIP RES.(1608) 1/ 10W 0 Ω RRXAZR5Z0000
R625 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103
20030414 3-3-6 HE451EL
Page 69
Ref. No. Description Part No.
R638 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R641 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R642 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R643 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R644 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R645 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R701 CARBON RES. 1/6W J 1.8k Ω or RCX6JATZ0182
CARBON RES. 1/ 4W J 1.8 k Ω RCX4JA T Z018 2
R702 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0 102
CARBON RES. 1/ 4W J 1k Ω RCX4JA TZ0 102
R703 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0 102
CARBON RES. 1/ 4W J 1k Ω RCX4JA TZ0 102
R706 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R756 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R757 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R758 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R759 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R851 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R852 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R853 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
SWITCHES
SW501 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW502 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW503 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW504 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW505 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW506 LEAF SWITCH MXS01830MVP0 SSC0101MCE03
SW507 ROT ARY MODE SWITCH SSS-50MD or SSR0106KB002
ROTARY MODE SWITCH R8100245 SSR0106U3002
SW508 T ACT SWITCH KSM061 1B SST0101HH004
SW509 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW510 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW511 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
SW512 T ACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF00 1A or SST0101AL041
TA CT SWIT CH TC-1104(H=9.5) SST0101DNG01
MISCELLANEOUS
2B7 HEAD SHIELD ASSEMBL Y HE470ED 0VM414333
2B8 BUSH, LED(F) H3700UD 0VM409508
2B46 ROHM HOLDER H7770JD 0VM304573
A4 JACK BOARD(U27 FTZ) HE480ED 0VM203840
AC001! AC CORD PE8B2CG1H0A-057 WAE0172LW003
F001! FUSE T1.6AL/250V or PAGC20BW3162
! FUSE T1.6AL/250V or 1790994
Ref. No. D e scr ip tion Part No.
! FUSE 50T016H 1.6A/250V PAGH20BHV162
FH001 FUSE HOLDER MSF-015 XH01Z00LY001
FH002 FUSE HOLDER MSF-015 XH01Z00LY001
FP562 LED DISPLAY LFU-4421-2001A NP7Z4212001A
J902 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
JK756 RCA JACK(YELLOW) MSP-281V4-B JXRL010LY003
JK757 RCA JACK(WHITE) MSP-281V1-B JXRL010LY005
JK758 RCA JACK(RED) MSP-281V3-A JYRL010LY002
JW001 FLAT CABLE, 11P AWG26#2651/P1.25/150 WX1HC460-002
JW002 FLAT CABLE, 12P AWG26#2651/P1.25/150 WX1HC460-003
PS503 PHOTO INTERRUPTER RPI-302C70 QPWZP1302C70
RS501 REMOTE RECEIVER MIM-93M9DKF or USESJRSUNT03
REMOTE RECEIVER PIC-37042LQ USESJRSKK038
T001! SWITCHING TRANSFORMER CSA-SW0233A LT T00EPSA135
TP301 PCB JUMPER D0.6-P10.0 JW10.0T
TP501 PCB JUMPER D0.6-P6.0 JW6.0T
TP502 PCB JUMPER D0.6-P5.0 JW5.0T
TP506 PCB JUMPER D0.6-P5.0 JW5.0T
TP507 PCB JUMPER D0.6-P6.0 JW6.0T
TU701 TUNER UNIT TMDG2-631A UTUNPLBAL012
VR501 CARBON P.O.T. 100k Ω B VRCB104HH014
X301 X'T AL 4 .43 3619 MHz or FXC445LLN001
X'TAL 4.433619MHz 181 1388
X501 X'T AL 1 2.0 00MH z FXD126LDS00 1
X502 X'TAL 32.768kHz(20PPM) or FXC323LQUA01
X'TA L 3 2.768 kHz( 20P PM) FXC32 3LDS00 2
SUB JACK CBA
Ref. No. D e scr ip tion Part No.
SUB JACK CBA(MCV-B) -----------
Consists of the following
CAPACITORS
C751 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
C752 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
RESISTORS
R751 CHIP RES.(1608) 1/ 10W J 8 20 Ω RRXAJR5Z0821
R752 CHIP RES.(1608) 1/ 10W J 8 20 Ω RRXAJR5Z0821
MISCELLANEOUS
JK751 RCA JACK MSP-282V -12 PBSN JXRL030LY011
JW004 FLAT CABLE, 3P A WG2 6#2651 /P2.0/ 200 WX1H E480-0 01
JACK CBA
Ref. No. D e scr ip tion Part No.
JACK CBA (MCV-C) -----------
Consists of the following
CAPACITORS
C101 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
C102 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
C103 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471
CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C104 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471
CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C105 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C107 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C108 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102
C109 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
20030414 3-3-7 HE451EL
Page 70
Ref. No. Description Part No.
C110 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
C11 1 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471
CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C112 CHIP CERAMIC CAP . CH J 470pF/50V or CHD1JJ3CH471
CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C113 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222
C115 ELECTROL YTIC CAP. 100µF/16V M H7 CE1CMAVSL101
C116 ELECTROL YTIC CAP. 470µF/6.3V M or CE0KMASDL471
ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C117 ELECTROL YTIC CAP. 470µF/6.3V M or CE0KMASDL471
ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
DIODES
D101 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
D102 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
D103 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
D105 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS
ZENER DIODE MTZJT -7711A QDTA0 0MTZJ11
COILS
L101 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L102 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
TRANSISTORS
Q101 TRANSISTOR KTA1266(GR) or NQS40KTA1266
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q102 TRANSISTOR KTA1266(GR) or NQS40KTA1266
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
RESISTORS
R101 CARBON RES. 1/4W J 820 Ω RCX4JAT Z0821
R103 CARBON RES. 1/4W J 820 Ω RCX4JAT Z0821
R104 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472
CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2
R106 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472
CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2
R108 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680
R109 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R11 0 CARBON RES. 1/ 4W J 820 Ω RCX4JA TZ0 821
R11 2 CARBON RES. 1/ 4W J 820 Ω RCX4JA TZ0 821
R11 3 CARBON RES. 1/ 6W J 4.7 k Ω or RCX6JA T Z0472
CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2
R11 5 CARBON RES. 1/ 6W J 4.7 k Ω or RCX6JA T Z0472
CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2
R11 6 CARBON RES. 1/ 6W J 15k Ω or RCX6JA T Z015 3
CARBON RES. 1/ 4W J 15k Ω RCX4JATZ015 3
R117 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R11 8 CARBON RES. 1/ 4W J 68 Ω RCX4JATZ0680
R119 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R120 CARBON RES. 1/6W J 680 Ω or RCX6JA TZ0 681
CARBON RES. 1/ 4W J 680 Ω RCX4JA TZ0 681
R123 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R125 CARBON RES. 1/6W J 680 Ω or RCX6JA TZ0 681
CARBON RES. 1/ 4W J 680 Ω RCX4JA TZ0 681
R126 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R127 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
MISCELLANEOUS
2L022 SCREW, P-TIGHT M3X10 WASHER HEAD+ GCMP3100
A5 JACK BOARD(2-21P) HE470ED 0VM203835
JK101 RGB CONNECTOR MRC-021V-01 JXGL210LY002
JK102 RGB CONNECTOR MRC-021V-01 JXGL210LY002
SENSOR CBA
Ref. No. D e scr ip tion Part No.
SENSOR CBA 0VSA13549
Consists of the following
TRANSISTORS
Q504 PHOTO TRANSIS TOR P T204- 6B-12 or NPWZT2046B12
PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22
Q505 PHOTO TRANSIS TOR P T204- 6B-12 or NPWZT2046B12
PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22
AFV CBA
Ref. No. D e scr ip tion Part No.
AFV CBA 0 VSA12333
Consists of the following
CAPACITORS
C1 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C4 CHIP CERAMIC CAP. CH J 56pF/50V or CHD1JJ3CH560
CHIP CERAMIC CAP. CG J 56pF/50V CHD1JJ3CG560
C5 CHIP CERAMIC CAP. CH J 22pF/50V or CHD1JJ3CH220
CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220
C6 CHIP CERAMIC CAP. CH J 56pF/50V or CHD1JJ3CH560
CHIP CERAMIC CAP. CG J 56pF/50V CHD1JJ3CG560
C7 CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0
CHIP CERAMIC CAP . CJ C 3pF/50V or CHD1JC3CJ3R0
CHIP CERAMIC CAP . CH D 3pF/50V CHD1JD3CH3R0
C8 CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0
CHIP CERAMIC CAP . CJ C 3pF/50V or CHD1JC3CJ3R0
CHIP CERAMIC CAP . CH D 3pF/50V CHD1JD3CH3R0
C11 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JK30B103
C12 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C13 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JK30B103
C14 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JK30B103
C15 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C16 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C17 CHIP CERAMIC CAP . F Z 0 .1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C19 CHIP CERAMIC CAP . F Z 0 .1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C20 ELECTROLYTIC CAP. 3.3µF/50V M H7 CE1JMASSL3R3
C21 CHIP CERAMIC CAP . F Z 0 .1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C22 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C24 ELECTROLYTIC CAP. 0.22µF/50V M H7 CE1JMASSLR22
CONNECTOR
CN1 ANGLE PIN HEADER, 9P 6029B-1-09Z003-T 5700069
DIODES
D2 SWITCHIN G DIODE 1 N4148 M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133
ICS
IC1 IC:AUDIO PROCESSOR MSP3407G-QG-B8 or NSZBA0SP3001
IC:AUDIO PROCESSOR MSP3407G-QG-B8-V3 NSZBA0SP3004
COILS
L1 INDUCTOR 10µH-K-26T LLAXKA TTU100
L2 PCB JUMPER D0.6-P5.0 JW5.0T
20030414 3-3-8 HE451EL
Page 71
Ref. No. Description Part No.
L3 INDUCTOR 18µH-K-26T LLAXKATTU180
L4 INDUCTOR 10µH-K-26T LLAXKATTU100
RESISTORS
R1 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R4 CHIP RES.(1608) 1/10W J 120k Ω RRXAJR5Z0124
R5 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R6 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
MISCELLANEOUS
X1 X'TAL 18.432MHz FXD186LLN001
20030414 3-3-9 HE451EL
Page 72
DECK PARTS LIST
NOTE:
Four different, but interchangeable, types of B558
(LOADING MOTOR) may be installed in these models.
Please confirm B558 (LOADING MOTOR) type by a
part number on it. B558 (LOADING MOTOR) type varies in combination with L1151. Please see Table 1 for
details and combination.
Table 1 (B558 and L1151 Combination)
LOADING MOTOR (B558) SCREW (L1151)
Description Parts No. Description Parts No.
LOADING MOTOR
M31E-1 R-14 7376
LOADING MOTOR
M31E-1 R-14 7391
LOADING MOTOR
MDB2B80
LOADING MOTOR
MDB2B82
Ref. No. Description Part No.
B2 CYLINDER ASSEMBLY MK12 PAL 4HD HIFI or N1767CYL
CYLINDER ASSEMBLY(V) MK12 PAL 4HD HIFI N1769CYL
B3 LOADING MOTOR ASSEMBLY MK11 TVCR 0VSA13465
B8 PULLEY ASSEMBLY(HI) MK12 0VSA13501
B9 MOVING GUIDE S PREPARATION MK12 0VSA13560
B10 MOVING GUIDE T PREPARATION MK12 0VSA13562
B11 LOADING ARM(TU) ASSEMBLY MK12 0VSA13300
B12 LOADING ARM(SP) ASSEMBLY MK12 0VSA13299
B31 AC HEAD ASSEMBLY MK12 0VSA13275
B35 TAPE GUIDE ARM ASSEMBLY MK12 0VSA13277
B37 CAPSTAN MOTOR 288/VCCM012 N9671CML
B52 CAP BELT MK10 0VM411138
B73 FE HEAD ASSEMBLY MK11 or N9742FEL
FE HEAD ASSEMBLY MK11 or N9743FEL
FE HEAD(MK11) MH-131SF11 or DHVEC01Z0005
FE HEAD(MK11) VTR-1X2ERS11-148 or DHVEC01TE004
FE HEAD(MK12) VTR-1X2ERS11-155 or DHVEC01TE005
FE HEAD(MK12) HVFHP0047A DHVEC01AL007
B74 PRISM MK10 0VM202870
B86 F BRAKE ASSEMBLY(HI) MK12 0VSA13447
B121 WORM MK12 0VM414091
B126 PULLEY MK12 0VM414330B
B133 IDLER ASSEMBLY(HI) MK12 0VSA13451
B148 TG CAP MK6 0VM407664C
B300 C DRIVE LEVER(TU) MK12 0VM203773
B303 F DOOR OPENER MK12 or 0VM203751C
F DOOR OPENER MK12 0VM203751
B313 C DRIVE SPRING MK12 0VM414145
B347 GUIDE HOLDER A MK10 0VM304920
B354 SLIDER(TU) MK12 0VM101172F
B355 SLIDER(SP) MK12 or 0VM101182F
SLIDER(SP) SUB ASSEMBLY MK12 or 0VDM12542
SLIDER(SP) MK12 0VM101182H
B359 CLEANER LEVER MK10 0VM304413
B360 CLEANER ROLLER MK9 0VM410032C
B361 CL POST MK10 0VM411114
B410 PINCH ARM(A) ASSEMBLY(4) MK12 or 0VSA13572
MMDZB12MM003
MMDZB12MM004
MMDZB12SJ008
MMDZB10SJ001
SCREW, SEMS
M2.6X4 PAN HEAD+
SCREW, SEMS
M3X4 PAN HEAD+
CPM39040
CPM33040
Ref. No. Description Part No.
PINCH ARM(A) ASSEMBLY(5) MK12 0VSA13788
B411 PINCH SPRING MK12 0VM414644
B414 M BRAKE(SP) ASSEMBLY(HI) MK12 0VSA13655
B416 M BRAKE(TU) ASSEMBLY(HI) MK12 0VSA13449
B417 TENSION SPG(3002654) MK12 0VM414221E
B425 LOCK LEVER SPRING MK10 0VM411110
B482 CASSETTE PLATE MK12 0VM203749
B483 LOCK LEVER MK12 0VM414095
B487 BAND BRAKE(SP) MK12 0VM305723
B488 MODE LEVER(HI) MK12 0VM101175J
B491 CAM GEAR(A)(HI) MK12 0VM101176
B492 MODE GEAR(LM) MK12 0VM204236
B494 C DOOR OPENER MK12 0VM305719
B499 T LEVER HOLDER MK12 0VM305729
B501 WORM HOLDER MK12 0VM203767
B507 REEL WASHER MK9 5*2.1*0.5 0VM410058
B508 S BRAKE SPRING(HI) MK12 0VM414899
B513 P.S.W F 6*2.55*0.5 0VM402629A
B514 SCREW RACK MK10 0VM411535
B516 REEL WASHER MK9 5*2.1*0.5 0VM410058
B518 P.S.W CUT 1.6X4.0X0.5T 0VM408485A
B521 REV BRAKE SPG(HI) MK12 0VM414943
B522 TG POST ASSEMBLY MK10 0VSA11012
B525 LDG BELT MK11 0VM412804
B529 CLEANER ASSEMBLY MK10 0VSA11161
B551 FF ARM(HI) MK12 0VM306183
B553 REV SPRING MK11 0VM412555
B555 RACK ASSEMBLY MK12 0VSA13289
B557 MOTOR PULLEY U5 or 0VM403205A
MOTOR PULLEY U5 0VM403205A
B558 LOADING MOTOR MDB2B82 or MMDZB10SJ001
LOADING MOTOR MDB2B80 or MMDZB12SJ008
LOADING MOTOR M31E-1 R-14 7376 or MMDZB12MM003
LOADING MOTOR M31E-1 R14 7391 MMDZB12MM004
B559 CLUTCH ASSEMBLY(HI) MK12 0VSA13450
B562 C DRIVE LEVER(SP) MK12 0VM203772
B563 SLIDER SHAFT MK12 0VM305762
B564 M GEAR(HI) MK12 0VM305755
B565 SENSOR GEAR(HI) MK12 0VM305756
B567 PINCH ARM(B) MK12 0VM305718
B568 BT ARM MK12 0VM305728
B571 P.S.W CUT 1.6X4.0X0.5T 0VM408485A
B572 P.S.W CUT 1.6X4.0X0.5T 0VM408485A
B573 REEL S MK11 0VM203436
B574 REEL T MK10 0VM202872C
B578 TR GEAR A MK10 0VM304440
B579 TR GEAR B MK12 0VM305900
B580 TR GEAR C MK12 0VM305743A
B581 CENTER GEAR MK11 0VM305081
B582 TR GEAR SPRING MK10 0VM411187
B583 CAM WASHER MK12 0VM414741
B584 TR GEAR SHAFT MK10 0VM411186
B585 PSW(317505) MK11 0VM413663
B587 TENSION LEVER ASSEMBLY MK12 0VSA13279
B590 BRAKE ARM(TU) MK12 0VM203752E
B591 BAND BRAKE(TU) MK12 0VM305724C
B592 TG POST MK10 0VM411108E
L1051 SCREW, B-TIGHT M2.6X6 PAN HEAD+ GPMB9060
L1053 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080
L1151 SCREW, SEMS M3X4 PAN HEAD + or CPM33040
SCREW, SEMS M2.6X4 PAN HEAD+ CPM39040
20030425 3-4-1 HE451DPL
Page 73
Ref. No. Description Part No.
L1191 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080
L1321 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060
L1341 SCREW, P-TIGHT 2X8 PAN HEAD + GPMP2080
L1406 AC HEAD SCREW MK9 0VM410964
L1450 SCREW, SEMS M2.6X5 PAN HEAD+ CPM39050
L1466 SCREW, S-TIGHT M2.6X6 BIND HEAD+ GBMS9060
L1467 SCREW, S-TIGHT M2.6X5 WASHER HEAD+ GCMS9050
20030425 3-4-2 HE451DPL
Page 74
27A-664
HE451ED
Loading...
