USER MANUAL

ePOS PRINTER T-12

www.eposcom.ru

TABLE OF CONTENTS

1. Parts Identifications 3

2. Setting up the printer 4

2.1 Unpacking 4

2.2 Connecting the cables 5

2.3 Loading the paper 8

2.4 Dip switch setting 10

3. Control panel and other functions 14

3.1 Control panel 14

3.2 Error Indicator 14

4. Self Test 15

5. Hexadecimal Dump 15

6. Specifications 61

6.1. General Specifications 18

6.2. Auto Cutter Specifications 18

6.3. Interface 18

6.4. Electrical Characteristics 18

6.5. Environmental Requirements

6.6. Reliability 19

6.7. Certification 19

7. Command List 02

www.eposcom.ru

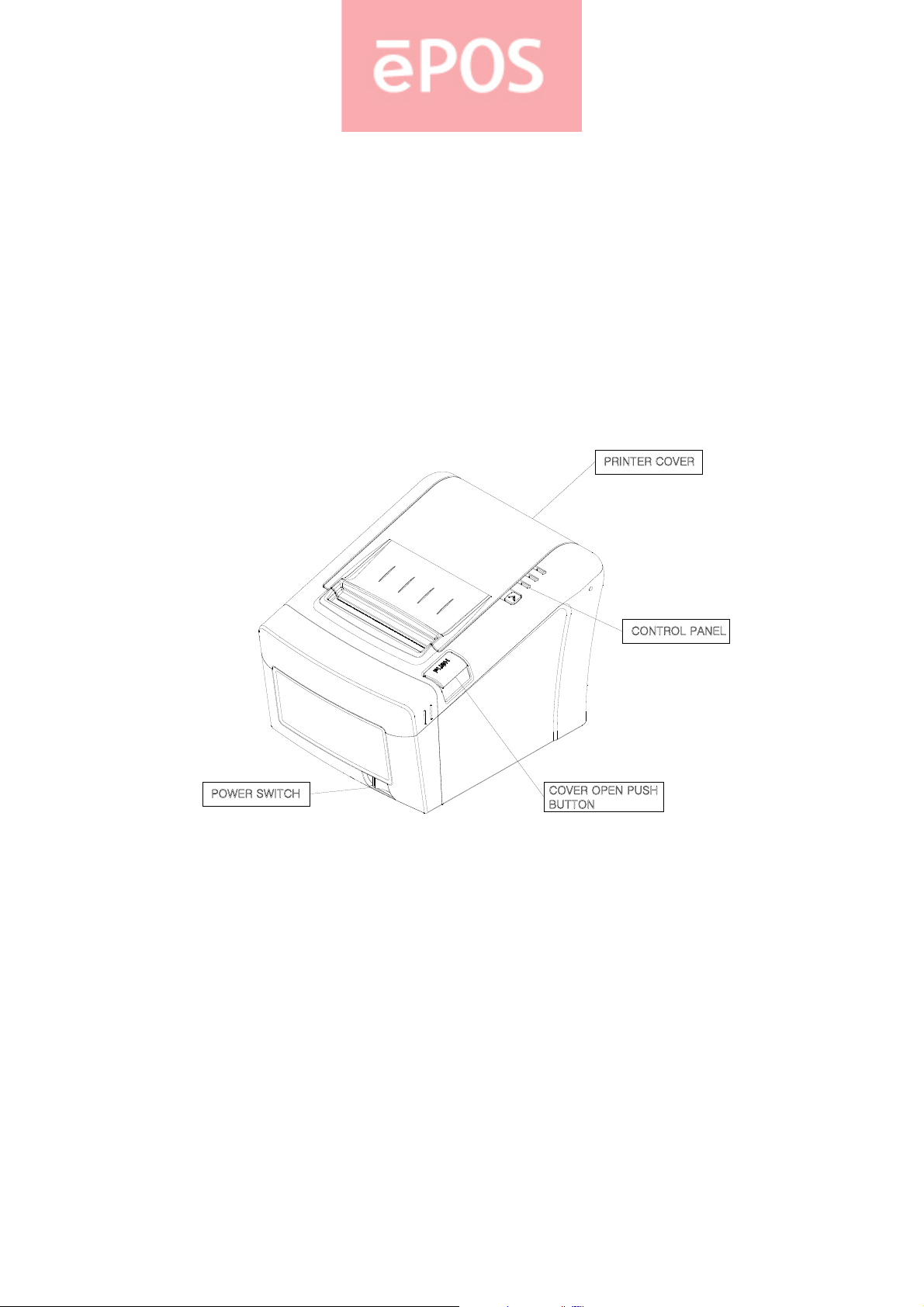

1. Parts Identifications

PRINTER COVER

Open this cover to load or replace paper.

CONTROL PANEL

Features LED indicators to indicate printer status and switches to operate the printer.

POWER SWITCH

Used to turn on/off power to the printer.

COVER OPEN PUSH BUTTON

Push down this button to open the printer cover.

www.eposcom.ru

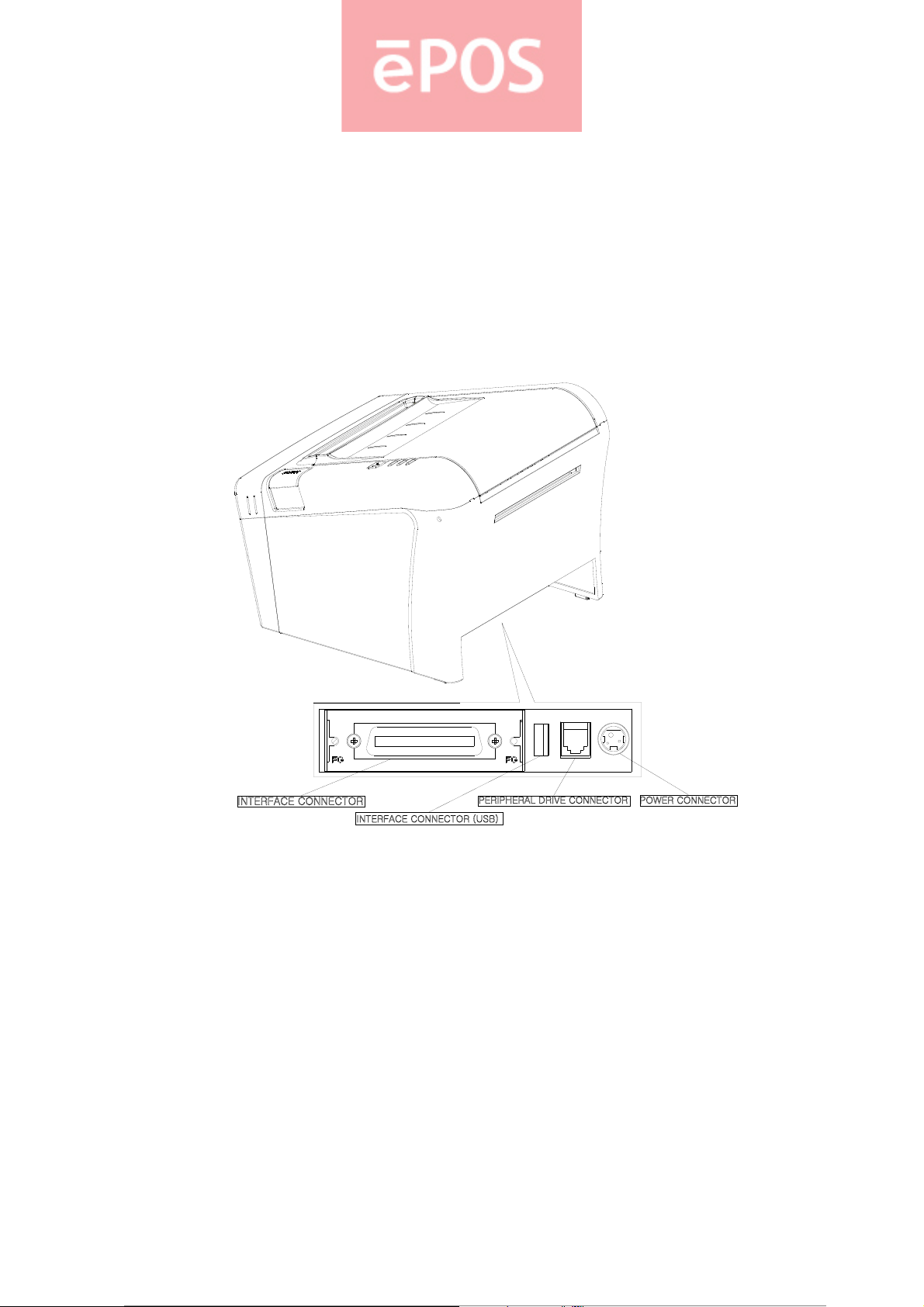

INTERFACE CONNECTOR

INTERFACE CONNECTOR (USB)

PERIPHERAL DRIVE CONNECTOR

POWER CONNECTOR

www.eposcom.ru

2. Setting Up the Printer

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance.

The Printer

Power Adaptor Interface Cable

www.eposcom.ru

2-2. Connecting the Cables

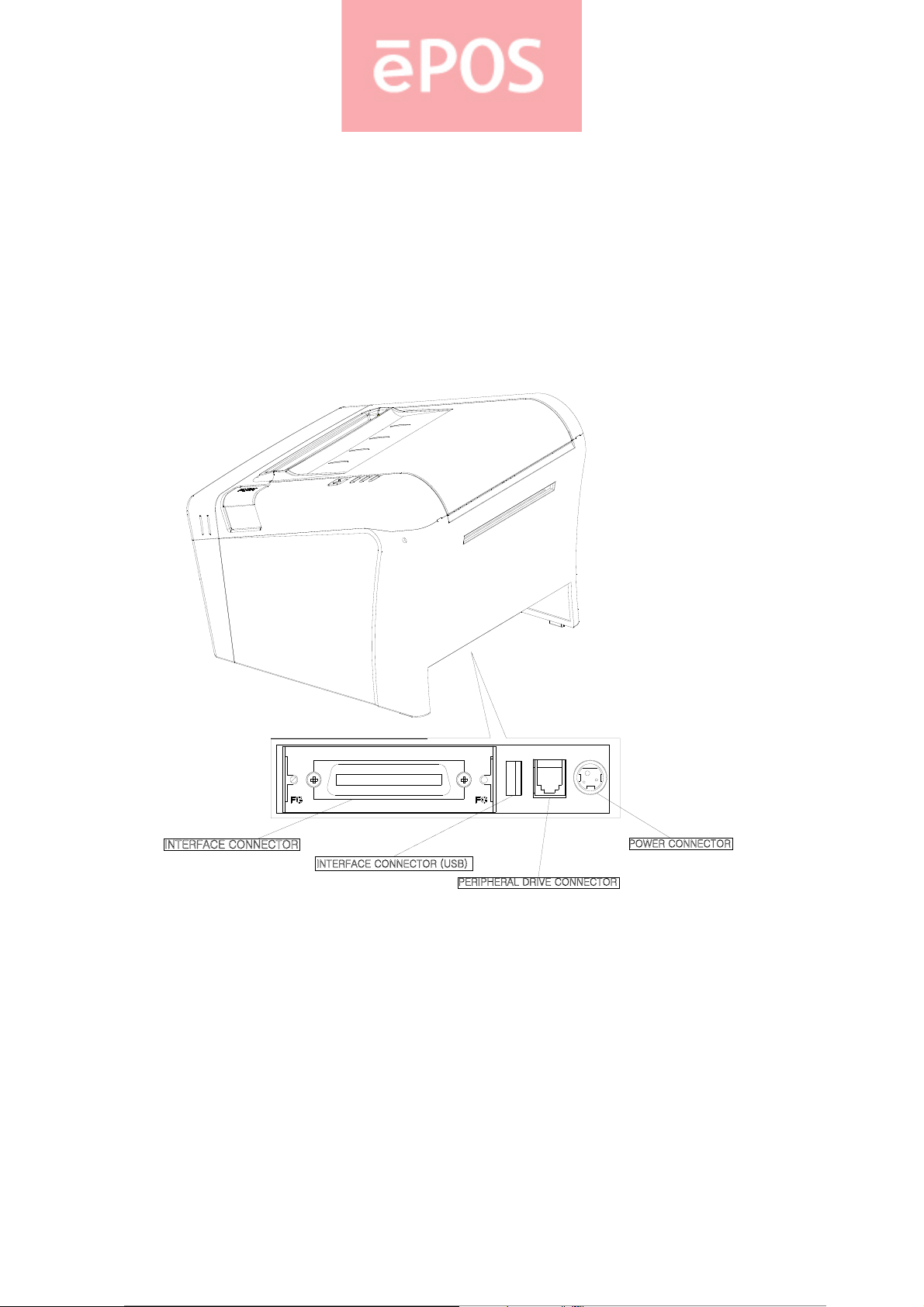

All cables connect to the connector panel on the back of the printer which is shown below:

INTERFACE CONNECTOR

For connection to a host computer.

INTERFACE CONNECTOR (USB)

For connection to a host computer.

PERIPHERAL DRIVE CONNECTOR

Connects to peripheral units such as cash drawer, etc. Do not connect this to a telephone.

POWER CONNECTOR

For connection of the AC adapter. Never unplug the AC adapter while the printer is on.

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

www.eposcom.ru

2-2-1. Interface Connector

- USB Interface

PIN SIGNAL I/O DESCRIPTION

1 +5V - +5V

2 DATA- - Printer transmit data line

3 DATA+ - Printer transmit data line

4 GND - System Ground

- Serial Interface

PIN SIGNAL I/O DESCRIPTION

2 TxD Output Printer transmit data line RS-232C level

3 RxD Input Printer receive data line RS-232C level

4, 20 DTR Output Printer handshake to host line RS-232C level

6 DSR Input Data Send Ready

1, 7 GND - System Ground

www.eposcom.ru

- Centronics Parallel Interface

PIN SIGNAL I/O DESCRIPTION

1 STROBE- Input Synchronize signal Data received 2~9 DATA0~7 Input/Output Data bit Transmitted 0~7 10 ACK- Output Data receiving completed. 11 BUSY Output Impossible to print of data receiving. 12 PE Output Paper empty 13 SELECT Output Printer status for ON/OFF line 14 AUTO FEED- Input Paper auto feed signal 15 GROUND - System ground 16 GROUND - System ground

- CN 71 18 LOGIC-H - +5V 19~30 GROUND - System ground 31 INIT- Input Initialize 32 ERROR- Output Printer error 33 GROUND - System ground

- CN 43 35 +5V - +5V 36 SELLECT IN- Input Printer select signal

- Ethernet Interface

1 2 3 4 5 6 7 8

SIGNAL

Data Out +

Data Out -

GND

Data IN +

Data IN -

N.C N.C N.C

I/O

Output Data +

Output Data -

Ground

Input Data +

Input Data -

www.eposcom.ru

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A for 510ms or less when not printing.

PIN SIGNAL DESCRIPTION

1 Signal GND -

2 Drawer kick-out drive signal 1 Output

3 Drawer open/close signal Input

4 +24V -

5 Drawer kick-out drive signal 2 Output

6 Signal GND -

2-3. Loading the Paper Roll

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.

1. Turn off power switch.

2. Make sure that the printer is not receiving data; Otherwise, data may be lost.

3. Open the paper roll cover by pushing down the cover-open push button.

www.eposcom.ru

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.

5. Note the correct direction that the paper comes off the roll:

6. Pull out a small amount of paper as shown. Then, close the cover.

www.eposcom.ru

7. Tear off the paper as shown.

2-4. DIP SWITCH SETTING

The printer is set up at the factory to be appropriate for almost all users. It does, however, offer some settings for users with special requirements. It has DIP switches that allow you to change communication settings, such as handshaking and parity check, as well as print density. Your printer has two sets of DIP switches. The functions of the switches are shown in the following tables.

Note : Turn power off unplug the printer. Open the Dip Switch cover to change settings.

※

www.eposcom.ru

2-4-1. Serial Interface Specification

DIP Switch Setting (Standard)

SW FUNCTION ON OFF

Baud rate selection

FUNCTION

Low Power

Normal Normal

Dark

Parallel Interface

SW FUNCTION ON OFF

Serial Interface

SW FUNCTION ON OFF

Baud rate selection

FUNCTION

115200 BPS

9600 BPS

19200 BPS

38400BPS

Hexadecimal HEXDUMP NORMAL

Cut Mode Full Cut Partial Cut

Paper Low Mode Paper Low Detect Do not detect

Bi-direction Mode

Handshaking XON/XOFF DTR/DSR

SW-3 SW-4

SW-9 SW-10

Disabled

NO NO

NO FFO

FFO NO

FFO FFO

Enabled

NO NO

NO FFO

FFO NO

FFO FFO

☞CAUTION:

Turn off the printer while removing the DIP switch cover to prevent an electric short, which can damage the printer.

1. Make sure the printer is turned off and unplugged.

2. Remove the DIP switch cover by taking off as shown in the illustration below.

www.eposcom.ru

DIP SWITCH COVER

DIP SWITCH

3. Set the switches using a pointed tool, such as tweezers or a small screwdriver.

4. Replace the DIP switch cover.

The new settings take effect when you turn on the printer.

☞CAUTION:

When the paper cutter is jammed, the top cover might be stuck closed. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the paper jam.

1. Make sure the printer is turned off.

2. Remove cutter cover as shown.

www.eposcom.ru

3. Turn screw with a screwdriver until paper is released from the cutter.

www.eposcom.ru

3. Control panel and other functions.

3-1. Control panel

You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights let you to monitor the printer’s status.

Control Panel

POWER

ERROR

PAPER

FEED

Button

The button can be disabled by the ESC c 5 command.

Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed paper continuously.

3-2. Error Indicator

This section explains the different patterns signaled by the two LED indicators located on the top cover of the printer.

STATUS

Power off OFF OFF OFF Normal power is not supplied to the printer Power on OFF OFF ON Normal power is supplied to the printer

On line OFF OFF ON Normal error-free mode Cover open OFF ON ON Close cover

Paper empty OFF ON ON Insert new paper roll Paper near end ON OFF ON Paper is low Test mode OFF OFF ON Ignored error led

PAPER ERROR POWER

RED RED GREEN

REMARKS

www.eposcom.ru

4. Self Test

The self-test lets you know if your printer is operating properly. It checks the control circuits, printer mechanisms, print quality, ROM version and DIP switch settings.

This test is independent of any other equipment or software.

Running the self test

1. Make sure the printer is turned off and the printer cover is closed properly.

2. While holding down the FEED button, turn on the printer using the switch on the front of the printer to begin the self-test. The Self Test prints the printer settings, cuts the paper, then pauses: (Error LED On)

Self test Printing Please press the PAPER FEED button.

3. Press the FEED button to continue printing. The printer prints a pattern using the built-in character set.

4. The self test automatically ends and cuts the paper after printing the following:

*** Completed ***

The printer is ready to receive data as soon as it completes the self-test.

5. Hexadecimal Dump

This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hex dump hexadecimal format along with a guide section to help you find specific commands.

To use the hex dump feature, follow these steps:

1. After you make sure that the printer is off and Dip s/w 1-2 are set to ON, turn on the printer.

2. Run any software program that sends data to the printer. The printer prints “Hexadecimal Dump” and then all the codes it receives in a two-column format. The first column contains the hexadecimal codes and the second column gives the ASCⅡ characters that correspond to the codes.

Hexadecimal Dump 1B 21 00 1B 26 02 40 40 .!..& . @ @ 1B 25 01 1B 63 34 00 1B .%.. c4 .. 41 42 43 44 45 46 47 48 ABCDEFGH □ A period (.) is printed for each code that has no ASCⅡequivalent.

3. Turn off the printer, and make sure that Dip sw 1-2 are set to off.

4. Turn on the printer.

function, the printer prints all commands and other data in

www.eposcom.ru

6. Specifications

Important!

When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A.

Be careful about installing the printer in an area where there is electrical noise. Take the appropriate measure to protect against electrostatic AC line noise, etc.

6-1. General Specifications

(1) Printing Method Direct line thermal printing.

(2) Print speed 160mm/sec.

(3) Dot density

180 DPI (Hor / Ver) 180 / 180 (0.142mm / 0.142mm dot)

(4) Printing Width

180 DPI Max 72mm (512 dots)

(5) Dot Pitch 0.141mm X 0.141mm

(6) Number of print columns. No. of columns

Font “A” Font “B”

180 DPI 42 56

(7) Paper Roll Refer to chapter 2 for details on loading the Paper. Paper width: 82.5mm Roll diameter: Max. ø83.0mm

(8) Weight 1.7Kg

www.eposcom.ru

(9) Overall dimensions

www.eposcom.ru

6-2. Auto Cutter Specifications

(1) Cutting Frequency Max. 30 cuts per minute

(2) Thickness of paper 0.065 ~ 0.1mm

(3) Cutter Life 1.5 million cuts (if the paper thickness is between 65 and 80µm)

6-3. Interface

RS232 Serial Interface, Centronics Parallel Interface(IEEE1284), USB Interface, Ethernet Interface(10Mbps)

6-4. Electrical Characteristics

(1) Input Voltage DC 24V ± 10%

(2) Current Consumption Operating: Approx. 1.5 A (at ASC Peak : Approx. 10 A (at print duty 100%, For 10 seconds or less) Stand-by : Approx. 0.15 A (3) Power Connector

∥

printing)

www.eposcom.ru

6-5. Environmental Requirements

(1)Operating Temperature 5°C to 40°C Humidity 10% to 90% RH (without condensation)

(2)Transport/Storage (except paper) Temperature -20°C to 60°C Humidity 10% to 90% RH (without condensation)

6-6. Reliability

(1)MCBF 50 million lines (based on an average printing rate of 12.5% with paper thickness in the range 65µm to 75µm) 35 million lines (based on an average printing rate of 12.5% with paper thickness in the range 76µm to 150µm)

(2)Head Life 100 million pulses, 150Km

(3)Cutter Life 1.5 million cuts (if the paper thickness is between 65 and 80µm)

6-7. Certification

(1)FCC PART15 CLASS A (2)CE EMCD/LVD (3)UL/cUL (4)MIC

www.eposcom.ru

7. Command List

No. Command Function REMARKS

1 HT Horizontal tab 2 LF Print and line feed 3 CR Print and carriage return 4 FF Print and return to standard mode(in page mode) 5 CAN Cancel print data in page mode 6 DLE EOT Real-time status transmission 7 DLE ENQ Real-time request to printer 8 DLE DC4 Generate pulse at real-time

9 ESC FF Print data in page mode 10 ESC SP Set right-side character spacing 11 ESC ! Select print mode(s) 12 ESC $ Set absolute print position 13 ESC % Select/cancel user-defined character set 14 ESC & Define user-defined characters 15 ESC * Set bit-image mode 16 ESC - Turn underline mode on/off 17 ESC 2 Select default line spacing 18 ESC 3 Set line spacing 19 ESC = Select peripheral device 20 ESC ? Cancel user-defined characters 21 ESC @ Initialize printer 22 ESC D Set horizontal tab positions 23 ESC E Turn emphasized mode on/off 24 ESC G Turn double-strike mode on/off 25 ESC J Print and feed paper using minimum units 26 ESC L Select page mode 27 ESC M Select character font 28 ESC R Select an international character set 29 ESC S Select standard mode 30 ESC T Select print direction in page mode 31 ESC V Turn 90° clockwise rotation mode on/off 32 ESC W Set printing area in page mode

ESC ＼

33 34 ESC a Select justification 35 ESC c 3 Select paper sensor(s) to output paper-end signals 36 ESC c 4 Select paper sensor(s) to stop printing 37 ESC c 5 Enable/disable panel buttons 38 ESC d Print and feed paper n lines 39 ESC p General pulse 40 ESC t Select character code table 41 ESC { Turn upside-down printing mode on/off 42 FS p Print NV bit image 43 FS q Define NV bit image 44 GS ! Select character size

Set relative print position

www.eposcom.ru

No. Command Function REMARKS

45 GS $ Set absolute vertical print position in page mode 46 GS * Define downloaded bit image

47 GS / Print downloaded bit image 48 GS B Turn white/black reverse printing mode on/off 49 GS H Select printing position of HRI characters 50 GS I Transmit printer ID 51 GS L Set left margin 52 GS P Set horizontal and vertical motion units 53 GS V Select cut mode and cut paper 54 GS W Set printing area width

GS ＼

55 56 GS a Enable/disable Automatic Status Back(ASB) 57 GS f Select font for HRI characters 58 GS h Set bar code height 59 GS k Print bar code 60 GS r Transmit status 61 GS v 0 Print raster bit image 62 GS w Set bar code width

< Add >

1 ESC i Full cut

2 ESC m Partial cut

3 FS ! Set print mode(s) for Kanji characters

4 FS & Select Kanji character mode

5 FS - Turn underline mode on/off for Kanji character

6 FS . Cancel Kanji character mode

7 FS 2 c1 d1…dk Define user-defined Kanji characters

8 FS C Select Kanji character code system

9 FS S 1 2 Set Kanji character spacing 10 FS W Turn quadruple-size mode on/off for Kanji character

Set relative vertical print position in page mode

www.eposcom.ru
