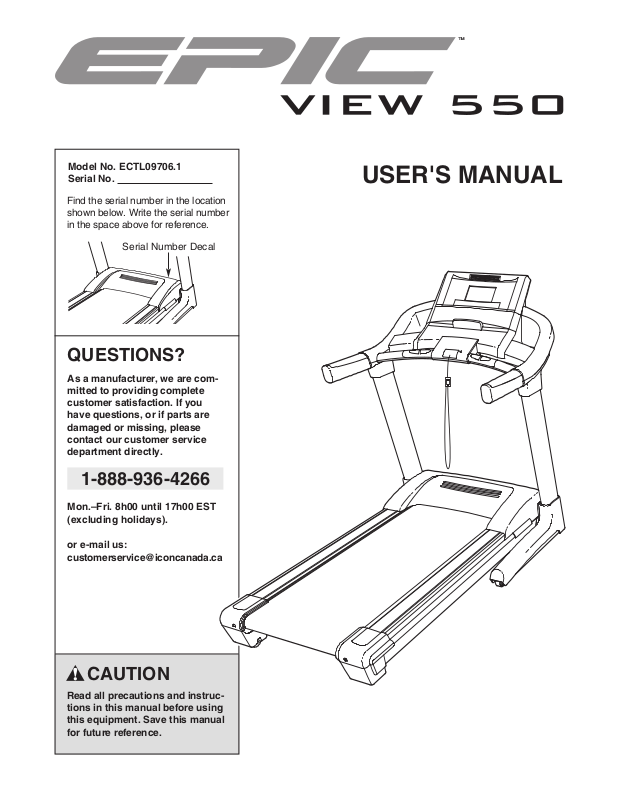

Model No. ECTL09706.1
Serial No.
Find the serial number in the location shown below. Write the serial number in the space above for reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, please contact our customer service department directly.
1-888-936-4266
Mon.–Fri. 8h00 until 17h00 EST (excluding holidays).
or e-mail us: customerservice@iconcanada.ca
CAUTION
Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.
USER'S MANUAL
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.
1.It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2.Use the treadmill only as described.
3.Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4.Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5.Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6.Keep children under the age of 12 and pets away from the treadmill at all times.
7.The treadmill should not be used by persons weighing more than 350 pounds (159 kg).
8.Never allow more than one person on the treadmill at a time.
9.Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10.When connecting the power cord (see page 13), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11.Use only a single-outlet surge suppressor that meets all of the specifications described on page 13. To purchase a surge suppressor, call the toll-free telephone number on the front cover of this manual.
12.Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
13.Keep the power cord and the surge suppressor away from heated surfaces.
14.Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is not working properly.)
15.Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 15).
16.Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.
17.The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
18.The pulse sensor is not a medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
19.Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and switch the reset/off circuit breaker to the “off” position when the treadmill is not in use. (See the drawing on page 6 for the location of the reset/off circuit breaker.)
20.Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 7, and HOW TO FOLD AND MOVE THE TREADMILL on page 21.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
3
21.Do not change the incline of the treadmill by placing objects under the treadmill.
22.When folding or moving the treadmill, make sure that the frame is held securely by the pin on the latch knob.
23.Inspect and properly tighten all parts of the treadmill regularly.
24.Never insert or drop any object into any opening.
25.DANGER: Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
26.The treadmill is intended for in-home use only. Do not use the treadmill in any commercial, rental, or institutional setting.
27.If an outside antenna or cable system is connected, be sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
28.An outside antenna system should not be located in the vicinity of overhead power lines
or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.
29.To reduce the risk of electric shock, do not remove the cover or the back of the television. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
30.Upon completion of any service or repairs to the treadmill or the television, ask the service technician to perform safety checks to confirm that the unit is in proper operating condition.
•Use No. 10 AWG (5.3mm2) copper, No. 8 AWG (8.4mm2) aluminum, No. 17 AWG (1.0mm2) copper-clad steel or bronze wire, or larger as a ground wire.
•Secure an antenna lead-in and ground wires to the house with stand-off insulators spaced from 4 to 6 feet (1.22 to 1.83m) apart.
•Mount an antenna discharge unit as close as possible to where the lead-in enters the house.
•Use a jumper wire not smaller than No. 6 AWG (13.3mm2) copper, or the equivalent when a separate antenna-grounding electrode is used. See NEC Section 810-21 (j).
Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
4
Power Lines |
|
Ground |
|
|
|
Standoff |
|
|
|
Clamp |
|
|
|
Insulators |
|
|
|
|
|
Service |
|
|
|
Entrance |
|
To External Antenna |
Mast |
Conductors |
|
||
|
Terminal of Treadmill |
|
|
|
|
Antenna |
|
|
|
|
|
Service |
|
|
Lead-in Wire |
|
|
|
|
Entrance |
|
Ground |
Antenna |
Equipment |
|
Wire |
Discharge Unit |
Power Service Grounding |
|
|
Ground Wire |
Ground |
|
Ground |
|
Electrode System (e.g. |
Bonding |
||
Interior Metal Water Pipe) |
Clamps |
Jumper |
Clamps |
Optional Antenna Grounding Electrode Driven 8
Feet (2.44m) Into The Earth (If Required By Local
Codes). See NEC Section 810–21 (f).
WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on the treadmill. If a decal is missing or illegible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown. Note: The decals may not be shown at actual size.
5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary EPIC™ VIEW 550 treadmill. The VIEW 550 treadmill offers an impressive selection of features designed to make your workouts at home more enjoyable and effective. And when you’re not exercising, the unique VIEW 550 treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this manual. To help us assist you, please note the product model number and serial number before contacting us. The model number of the treadmill is ECTL09706.1. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
|
Fan |
Personal Television/Console |
Book Holder |
Accessory Tray |
|
Handrail |
|
Pulse Sensor |
Key/Clip |
|
|
|
Reset/Off |
|
Circuit Breaker |
Walking Belt |
|
Foot Rail |
Power Cord |
|
|
|
Cushioned Walking Platform |
Rear Roller |
|
Adjustment Bolts |
|
|
6 |
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key
and your own Phillips screwdriver
. For help identifying the assembly hardware, see the drawings below. The number in parentheses below each drawing is the key number of the part, from the PART LIST on pages 26 and 27. The number following the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part is not in the parts bag, check to see if it has been preassembled. To avoid damaging plastic parts, do not use power tools for assembly.
3/4” Screw (4)–4 |
Handrail Bolt (64)–6 |
|
Star Washer |
|
(90)–10 |
Upright Bolt (72)–4 |
|
1. Make sure that the power cord is unplugged. |
1 |
|
|
With the help of a second person, raise the front |
|
of the treadmill and insert the crossbar on the |
|
Base (83) into the cutout in the cardboard stand. |
|
Have the second person hold the treadmill to |
|
prevent it from moving forward or backward |
|
until assembly step 2 is completed. |
|
WARNING: Serious injury |
|
may occur if the treadmill moves for- |
|
ward or backward and falls off the card- |
|
board stand. A second person must |
|
hold the treadmill until assembly step 2 |
|
is completed to prevent the treadmill |
|
from moving, tipping, or falling. |
83 |
|
|
|
Cardboard |
|
Stand |
|
7 |
2.Identify the Left Upright (73) and the Right Upright (74). Hold the Right Upright near the Right Base Cover (77) as shown. Feed the Upright Wire Harness (75) up into the rectangular hole in the bottom of the Right Upright and out of the top of the Right Upright.
Gently pull up on the Upright Wire Harness (75) as you set the Right Upright (74) on the Base (83) inside the Right Base Cover (77). Be careful not to pinch the Upright Wire Harness.
Attach the Right Upright (74) to the Base (83) with two Upright Bolts (72) and two Star Washers (90). Note: It may be necessary to tip the tops of the Uprights forward slightly as you thread the Upright Bolts (72) into the Uprights.
Hold the Left Upright (73) near the Left Base Cover (76), and insert the TV Cable (49) and the AV Cable (97) up into the rectangular hole in the bottom of the Left Upright and out of the top of the Left Upright. Attach the Left Upright to the Base (83) with two Upright Bolts and two Star Washers (not shown).
With the help of a second person, lower the treadmill off the cardboard stand.
3.Identify the Right Upright Sleeve (96) and the Left Upright Sleeve (95). Slide the Right Upright Sleeve onto the Right Upright (74) and the Left Upright Sleeve onto the Left Upright (73).
2 |
97 |
|
|
|
|
|
49 |
|
73 |
75 |
|
|
|
|
|
|
74 |
|
76 |
|
|
|
77 |
|
|
83 |
|
|
90 |
|
|
72 |
3 |
|
|
73 |
95 |
|
“Left” |
|
|
|
“Right” |
|
|
|
|
|
|
96 |
|
|
74 |
8
4. With the help of a second person, hold the con- |
4 |
Console |
|
sole assembly near the Uprights (73, 74). |
|
||
|
|
Assembly |
|
Connect the Upright Wire Harness (75) to the |
|
|
|
Console Wire Harness (71). Make sure to con- |
|
|
|
nect the connectors properly (see the inset |
|
|
|
drawing). The connectors should slide to- |
|
|
|
gether easily and snap into place. If they do |
|
|
73 |
not, turn one connector and try again. IF THE |
|
|
|
|
|
|
|
CONNECTORS ARE NOT CONNECTED |
|
|
|
PROPERLY, THE CONSOLE MAY BE DAM- |
|
|
|
AGED WHEN THE POWER IS TURNED ON. |
|
|
71 |
|
|
|
75 |
|
|
75 |
74 |
|
|
|
|
5. Connect the TV Cable (49) and the AV Cable |
5 |
|
|
(97) to the cables extending from the console |
|
|
|
|
|
|
|
assembly. Then, insert the connectors down into |
|
99 |
|
the Uprights (73, 74). |
|
|
|
|
|
|
|
Next, insert the brackets on the Handrails (99) |
|
|
49 |
into the Right Upright (74) and the Left Upright |
|
97 |
|
(73). Make sure that no wires are pinched. |
|
|
|
|
|
|
|
|
|
73 |
99 |
|
|
|
|
|
|
|
74 |
6. Finger tighten three Handrail Bolts (64) with |
6 |
|
|
three Star Washers (90) into the Right Upright |
|
|
|
|
|
|
|
(74). Next, finger tighten three Handrail Bolts |
|
|
|
with three Star Washers (not shown) into the |
|
|
|
Left Upright (73). Then, firmly tighten the six |
|
73 |
|
Handrail Bolts. |
|
|
|
|
|
|
64 |
|
|
|
90 |
|
|
|
74 |
|
|
|
90 |
|
|
|
64 |
|
9 |
|
|
