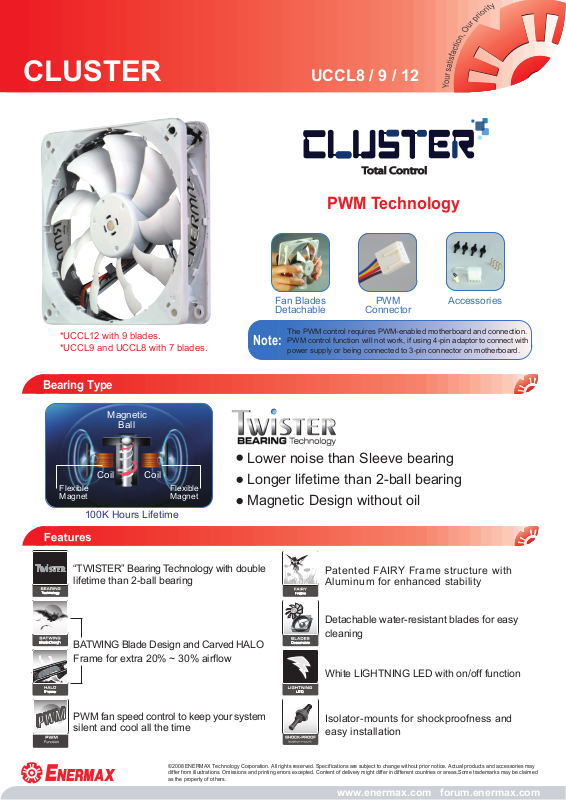

Enermax UCCL8, UCCL9 DATASHEET

CLUSTER

UCCL8 / 9 / 12

Total Control

PWM Technology

*UCCL12 with 9 blades.
*UCCL9 and UCCL8 with 7 blades.

Bearing Type

Magnetic

Ball

Coil Coil

Flexible
Magnet

100K Hours Lifetime

“TWISTER” Bearing Technology with double
lifetime than 2-ball bearing

Flexible
Magnet

Fan Blades
Detachable

Note:

PWM

Connector

The PWM control requires PWM-enabled motherboard and connection.
PWM control function will not work, if using 4-pin adaptor to connect with
power supply or being connected to 3-pin connector on motherboard.

Accessories

Lower noise than Sleeve bearing

Longer lifetime than 2-ball bearing

Magnetic Design without oil

Patented FAIRY Frame structure with
Aluminum for enhanced stability

BATWING Blade Design and Carved HALO
Frame for extra 20% ~ 30% airflow

PWM fan speed control to keep your system
silent and cool all the time

©

2008 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual products and accessories may
differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas.Some trademarks may be claimed
as the property of others.

Detachable water-resistant blades for easy
cleaning

White LIGHTNING LED with on/off function

Isolator-mounts for shockproofness and
easy installation

www.enermax.com forum.enermax.com

CLUSTER

UCCL8 / 9 / 12

BATWING Blade Design

More area available to produce more airflow.

V.S

BATWING Blades Single Blade

HALO Frame

More airflow gets inside of frame through HALO Frame cut-outs.

HALO Frame Normal Frame

Item

Dimension(mm)

Function

Bearing Type

Blades

Noise Level (dBA)

Speed Range (RPM)

(CFM)

Airflow

Air Pressure(mm-H

Lifetime

LED

3

(m /h)

2O)

UCCL8

80(w)x80(h)x25(d)

7 Blades

8 － 19

500 － 2000

11.32 － 32.40

19.23 － 55.05

0.517 － 1.8000

V.S

UCCL9

92(w)x92(h)x25(d)
PWM　Technology

TWISTER Bearing Technology

BATWING Blade Design

7 Blades

8 － 19

500 － 2000

13.23 － 38.30

22.48 － 65.07

0.512 － 1.795

100,000 hrs

White with on/off function

UCCL12

120(w)x120(h)x25(d)

9 Blades

8 － 14

500 － 1200

26.51 － 53.02

45.04 － 90.08

0.483 － 1.073

Certifications

©
