Eneo TER-12N040200A, TER-22N080300A, TER-22N160300A User Manual

EN

User Manual

Hybrid Video Recorder, HD-TVI, 4-16 Chan­nels, 1920x1080, 960H, SD

TER-Series

User’s Manual | 2

Safety Information

The safety information is provided for the wellness of the equipment and for the safety of the
operator.
Please review and observe all instructi ons and warnings in this manual.

Preparations before installation

T o protect your DVR from damage and to optimize performance, be sure to keep the DVR away from dust, humidity , and area
with high voltage equipment such as refrigerator.

Do not install or place equipment in areas where the air vents can be obstructed, such as in tight enclosures or small utility
closet. Keeping the unit in a temperature-controlled room with ample regulated power is highly recommended. Do not
overload the wall outlet, as this can result in the risk of fire or electric shock.

Uninterruptible power devices such as UPS power surge protectors are recommended, and the DVR units must at least be
connected with UL, CUL, or CSA approved power surge protector. Avoid direct sun light and avoid heat.

FCC Information

This equipment has been tested and found to comply with the limits of Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and radiates radio frequency energy, and if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment under FCC rules.

UL Information

- for pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible

- if the battery is placed elsewhere in the equipment, there shall be a marking close to the battery or statement in the servicing
instructions.

C

AUTION RISK OF EXPLOSION IF AN INCORRECT TYPE REPLACES BATTERY.

DISPOSE OF USED BATTERIES ACCO RDING TO THE INSTRUCTION.
THIS EQUIPMENT IS FOR INDOOR USE, AND ALL THE COMMUNICA TION WIRING IS LIMITED TO

INSIDE OF THE BUILDING, OR ANY SIMILAR WORD.

Note : Keep this manual handy every time you operate this equipment. Also, check with your dealer

for further assistance and for the latest revision of this manual. Your dealer might provide you with a
digital version of this manual. We also ask to keep the original box and packing materials in case of

return and for long-term storage of the DVR unit.

3 | Full HD Digital Video Recorder

Contents

DVR USER MANUAL

1 GETTING STARTED 5

1.1 Checking Supplied Items 5

1.2 Connecting Peripheral Device 7

1.3 System Startup and Shutdown 10

2 EXPLANATION FOR EACH FUNCTION 12

2.1 Front Panel 12

2.2 Rear Panel 13

3 OPERATION 15

3.1 User Log-in 15

3.2 Live Display Mode 16

3.3 PTZ Operation 21

3.4 Playback of Recorded Video 22

3.5 Search Recording Image 24

3.6 DST Setting 28

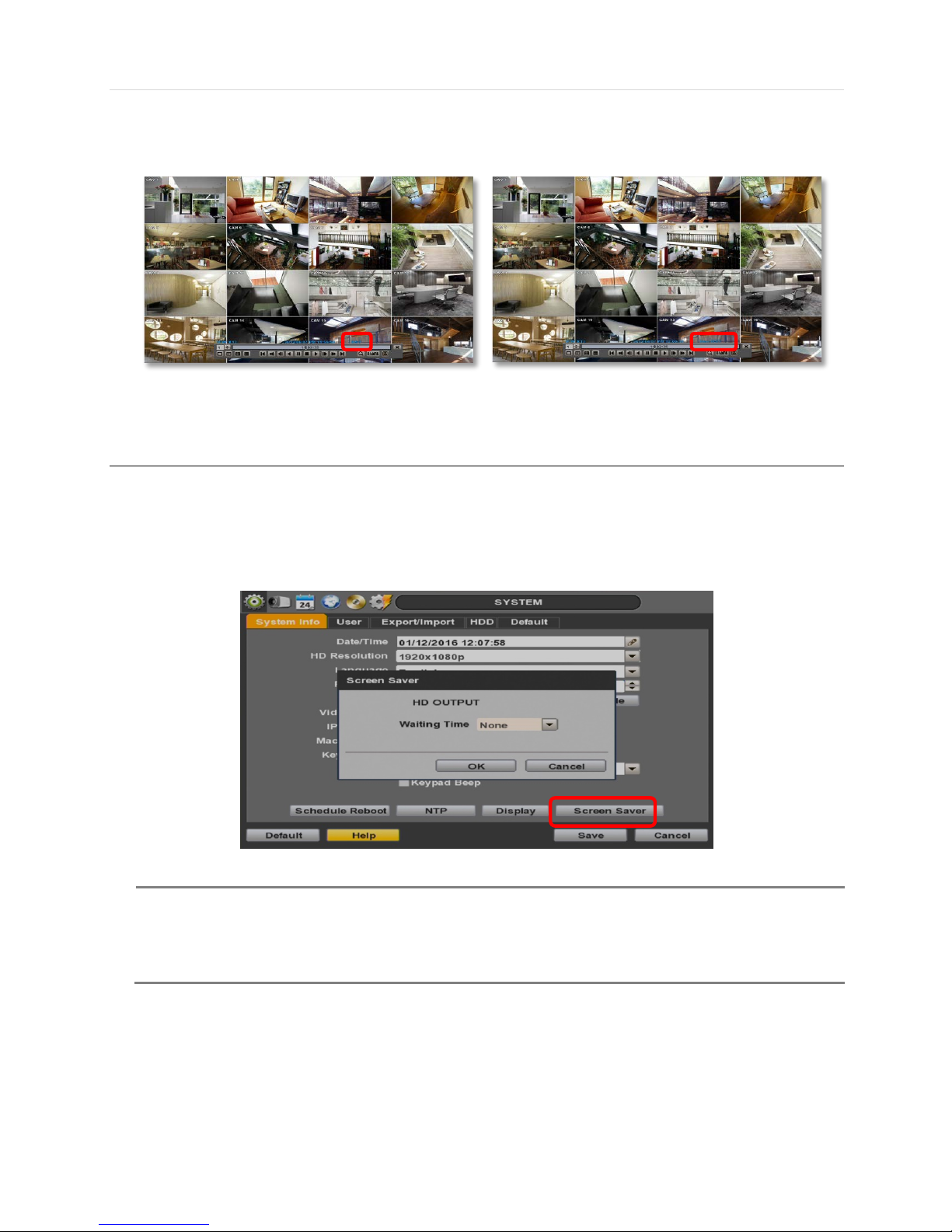

3.7 Screen Saver 29

4 SETTING 30

4.1 System 31

4.2 Device 37

4.3 Record 43

4.4 Network 46

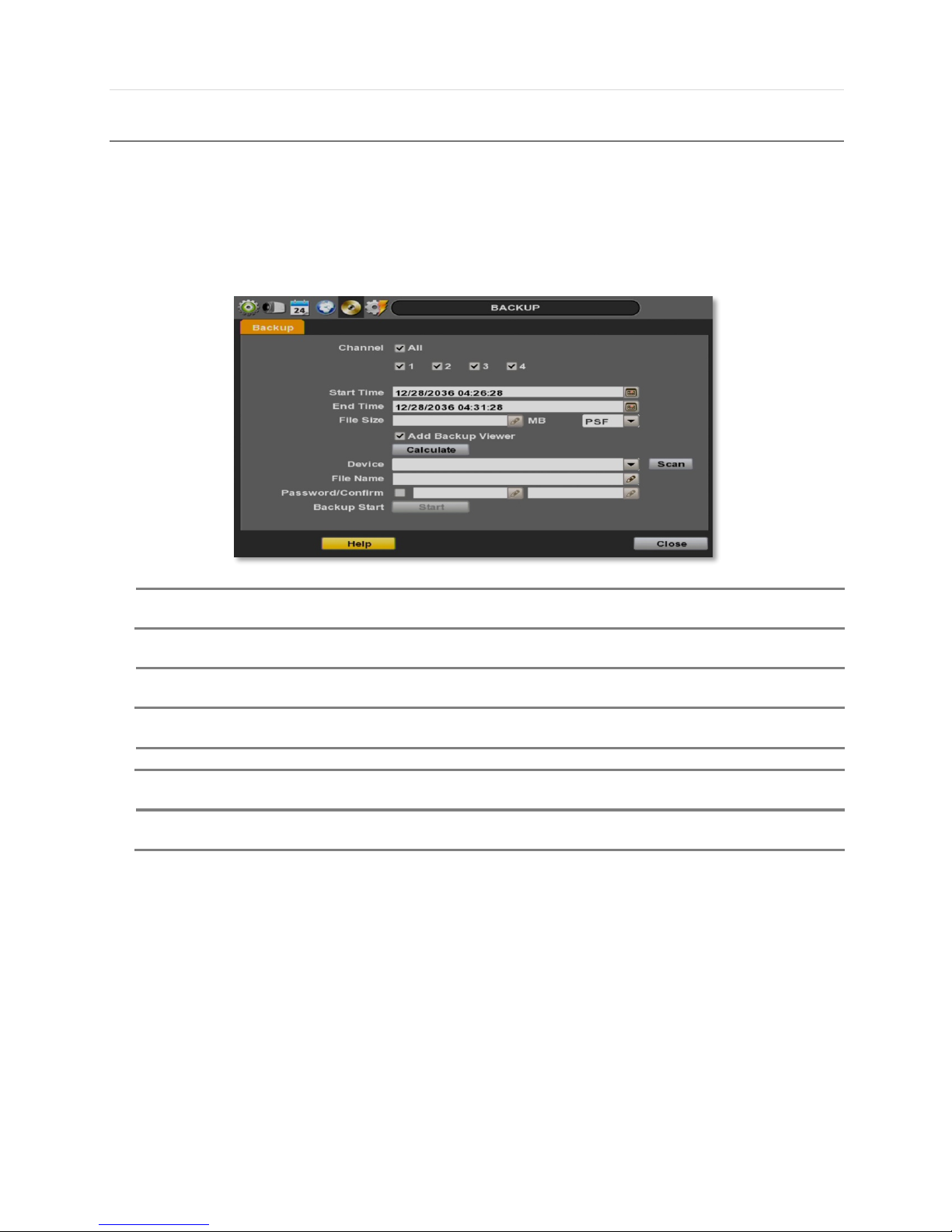

4.5 Backup 51

4.6 Quick Setup 53

5 WEB SURVEILLANCE 54

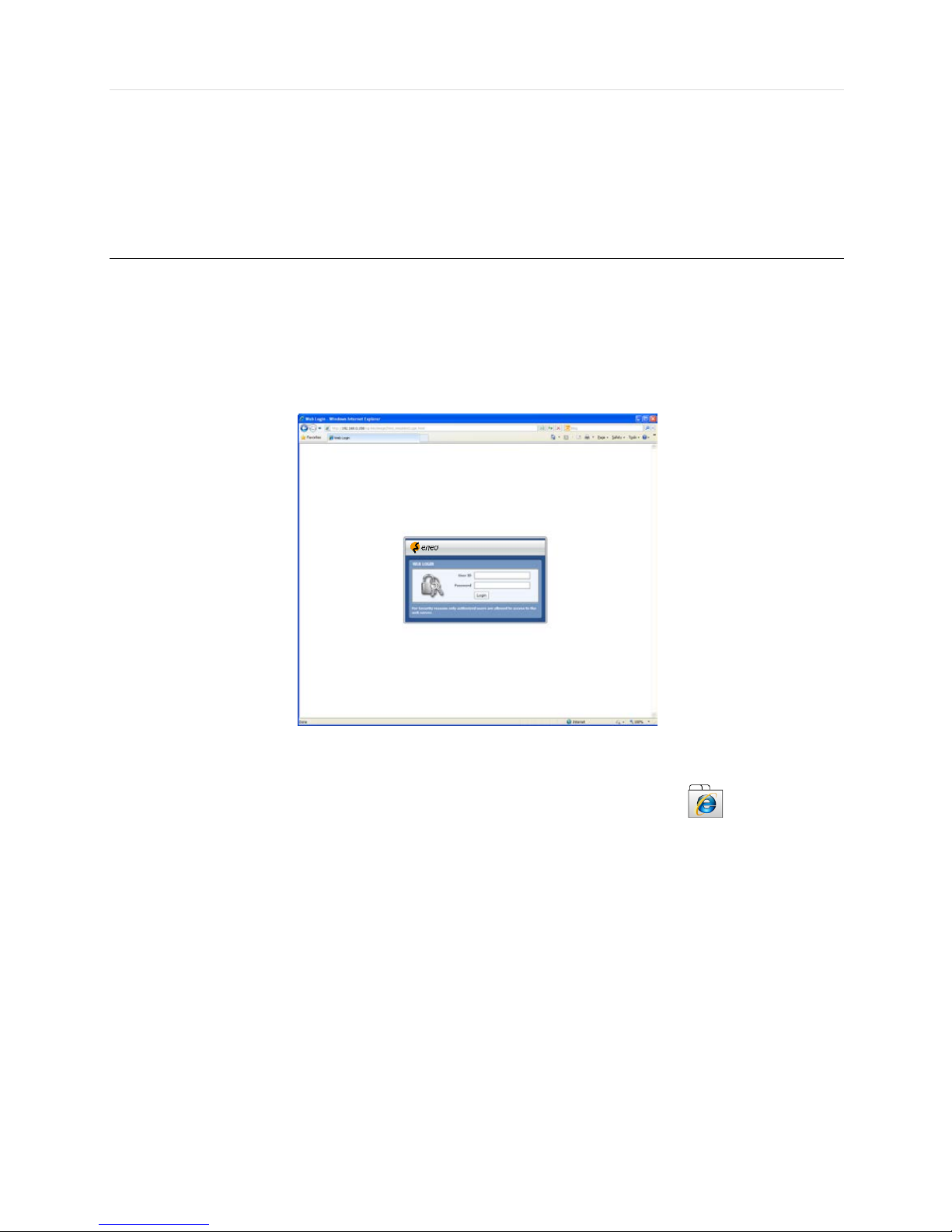

5.1 Web Login 54

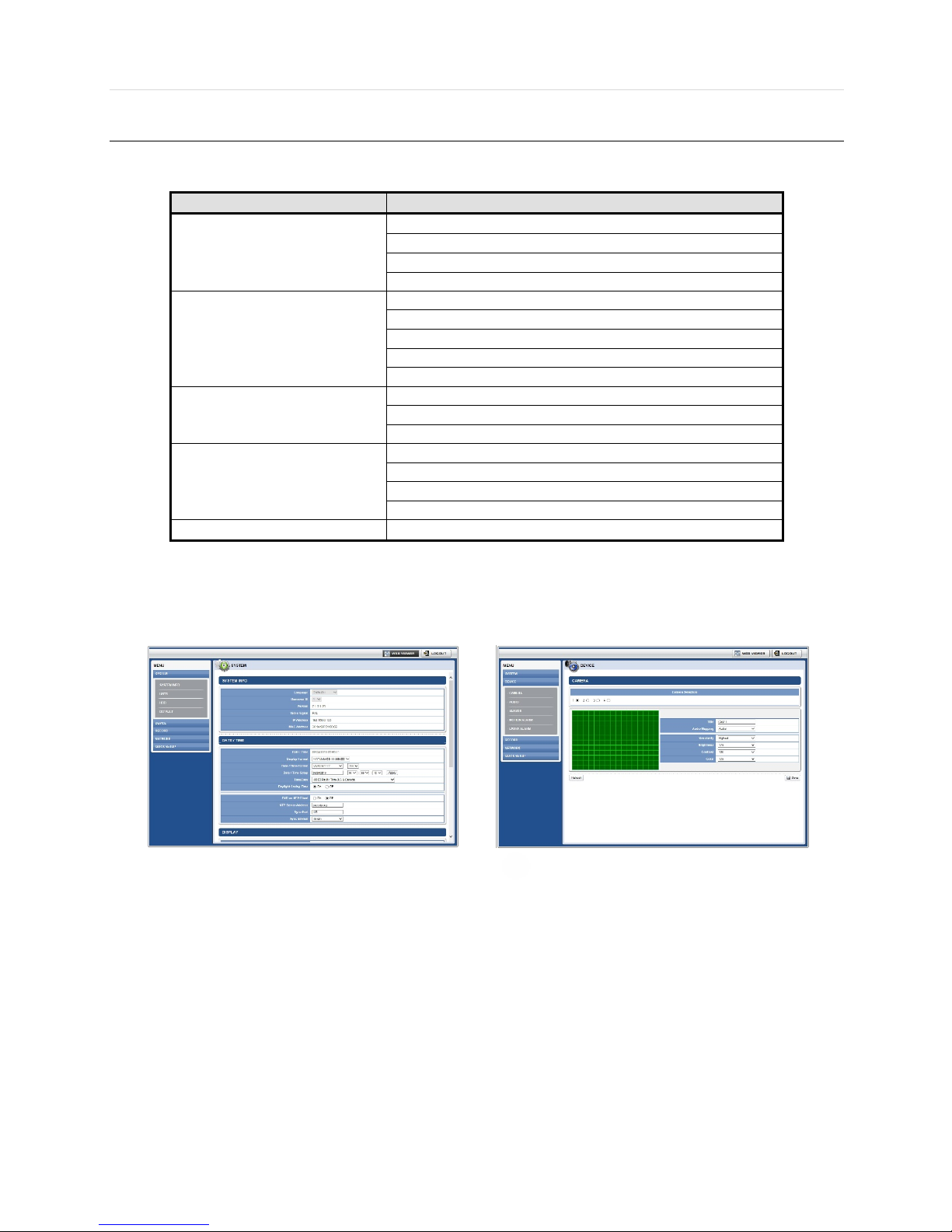

5.2 Web Configuration 55

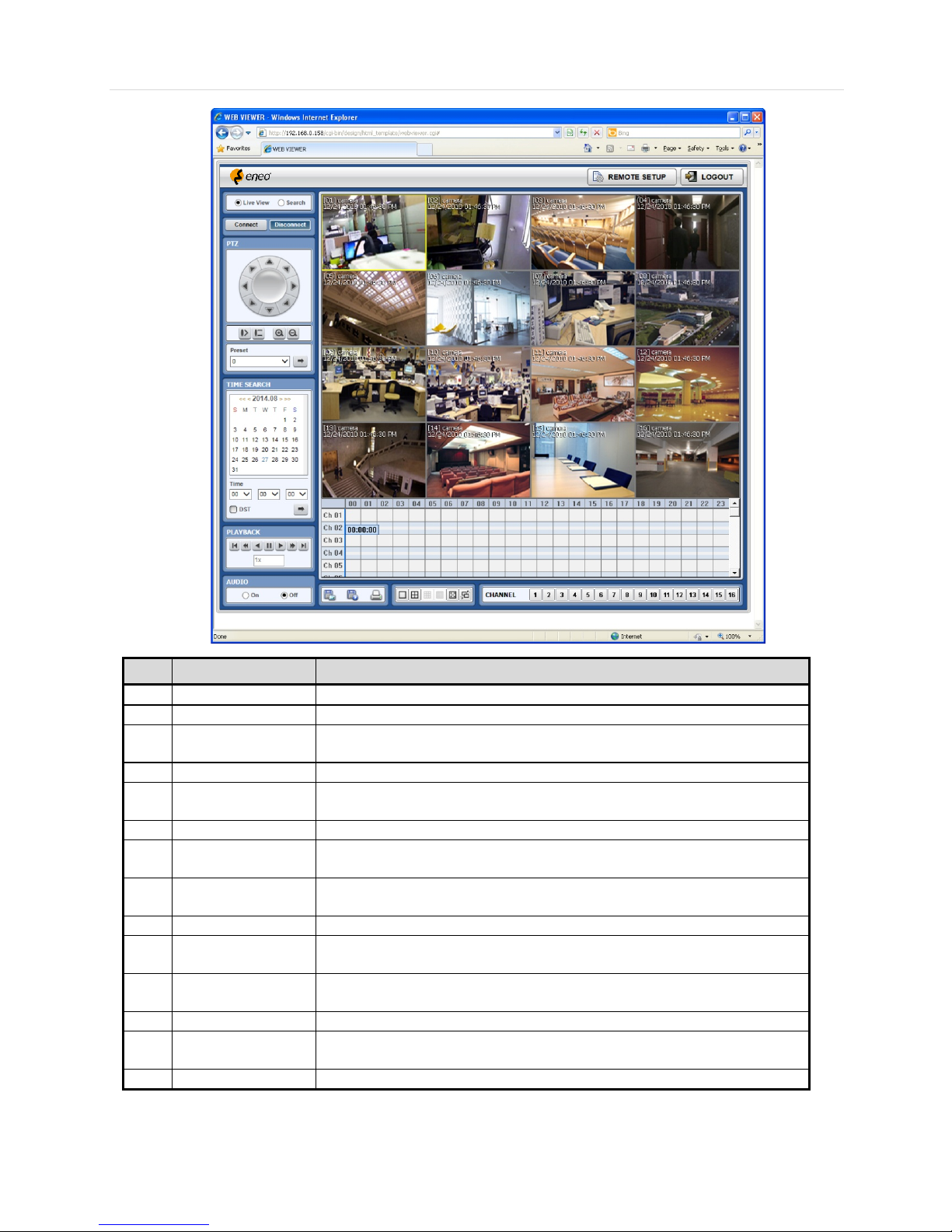

5.3 Web m oni t or i ng 57

5.4 Web Playback 60

6 APPENDIX : NETWORK SETUP FOR EXTERNAL USAGE 61

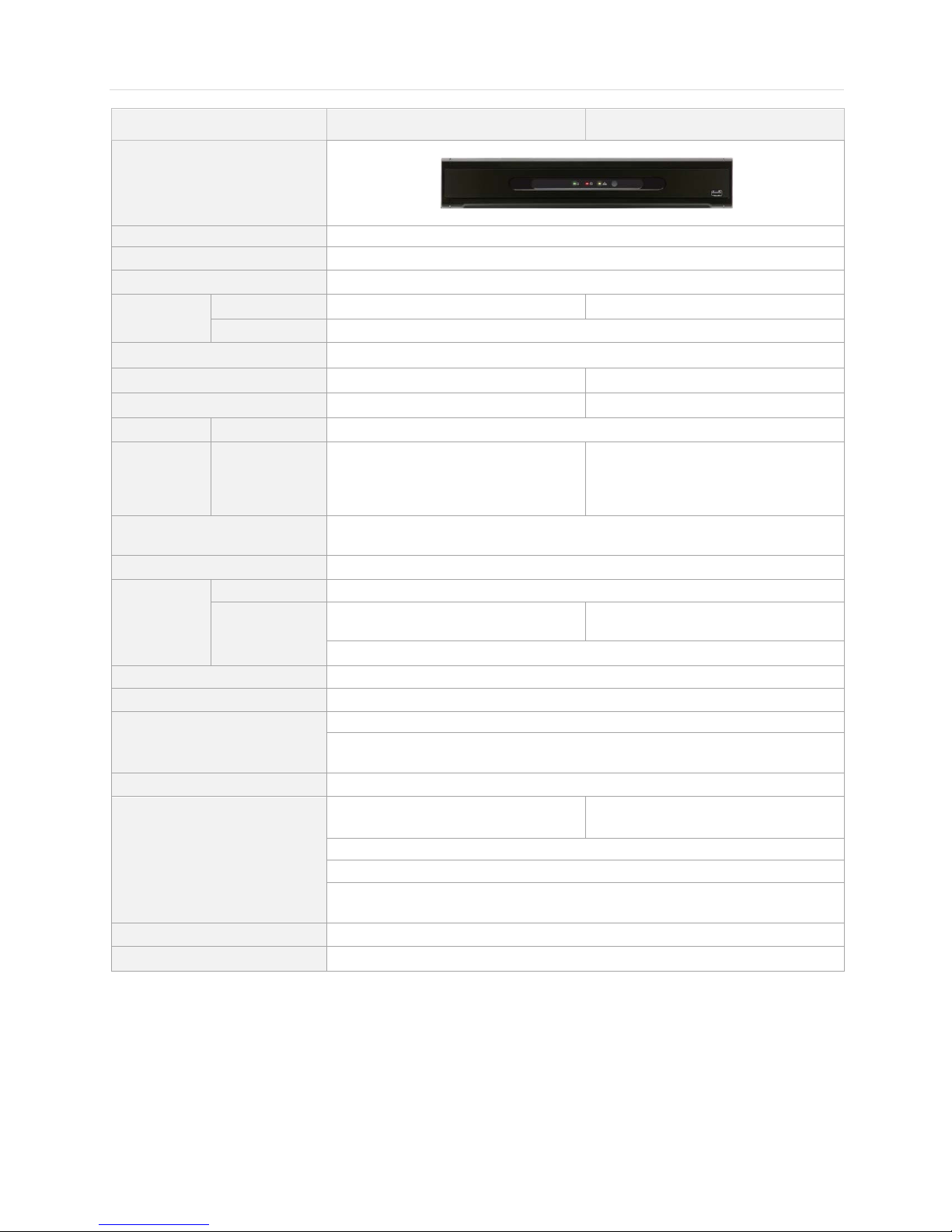

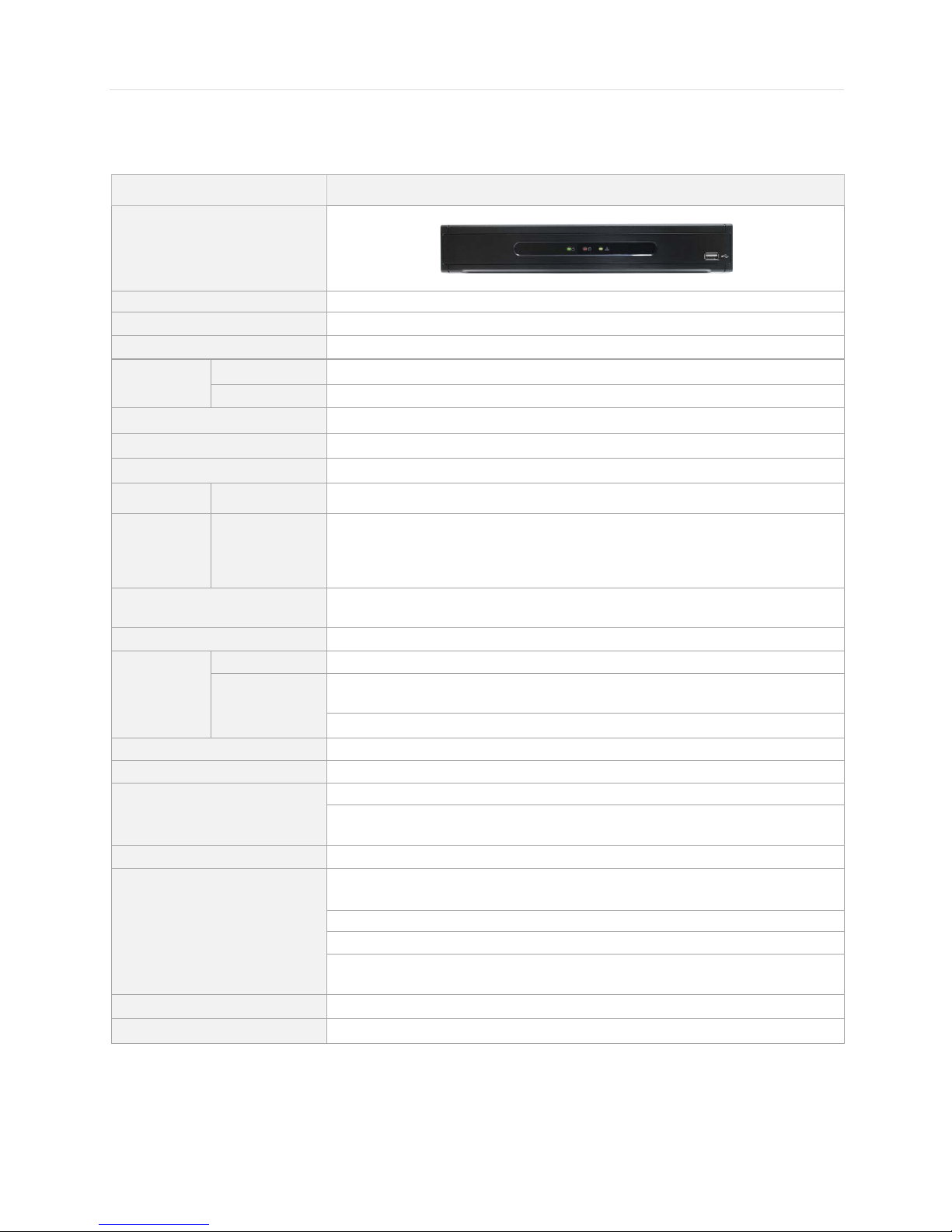

7 APPENDIX : SPECIFICATION 62

.

User’s Manual | 4

DVR USER MANUAL

5 | Full HD Digital Video Recorder

1 GETTING STARTED

1.1 Checking Supplied Items

Make sure that you have the following items supplied with your DVR. If any of these items are missing or damaged, notify your
vendor immediately. Keep the packing utilities for moving or storage purposes afterwards.

Items


Quantity

Quick Start Guide

1 pcs

CD (Manual & Software)

1 pcs

12V DC Adaptor

Power Cable

(4- channel models)

1 Set

12V DC Adaptor

Power Cable

(8- and 16- channel models)

1 Set

USB Mouse

1 pcs

Screws

1 Set

User’s Manual | 6

Remote control

1 pcs

Rack mount 1U size

1set

Rack mount 1.5U size

1set

7 | Full HD Digital Video Recorder

1.2 Connecting Peripheral D evi c e

This section describes how to connect peripheral devices efficiently to the DVR.
Install the DVR on flat surface. If required, attach a rubber mount for installation. If a 19-inch rack is used with 1.5U Height

case, it is recommend to install the system on a shelf and use 2.5~3U (1U=1.75 inch or 4.45 cm) space for proper ventilation.

TER-12N040200A Dimensions: 11.0” W x 1.9” H x 9.6” D

TER-22N080300A D imensions: 14.1” W x 2.6” H x 14” D

NOTE

Install the system in a location with good ventilation to prevent overheating.

User’s Manual | 8

TER-22N160300A Dimensions: 14.1” W x 2.6” H x 14” D

W

ARNING

!

※

When connecting power cord to the system, it is strongly recommended first to plug the power cord to

the system and then plug the other side of power cord into the wall socket.

9 | Full HD Digital Video Recorder

CAMERA CONNECTION

Example 1) All TVI 1080P/720P

Example 2) All AHD 1080P/720P or Analog 960H

Example 3) CH 1, CH 2 : TVI 1080P/720P CH 5, CH 6 : TVI 1080P/720P
CH 3, CH 4 : AHD 1080P/720P or Analog 960H CH 7, CH 8 : AHD 1080P/720P or Analog 960H

N

OTE TVI only Type - Please refer to the example 1)

AHD only Type - Please refer to the example 2)
HYBRID Type - Please refer to the example 3)
In order to set TVI & AHD camera at the same time, the channel combination must

be 2 pairs. (1,2CH +3,4CH +5,6CH +7,8CH…)

User’s Manual | 10

1.3 System Startup and Shutdown

1.3.1 System Startup

After connecting peripheral devices such as cameras, monitors and a mouse to the DVR, power up the DVR by connecting
DC12V 3A adaptor to the power jack on the rear panel. The boot log will display as shown below. Please wait until the boot
process completes.

Login with ‘User Name’ at the login window which will appear as shown below .
There is only one Administrator Account configurable in the DVR system. It is assigned with an unchangeable User ID marked

as ‘admin’. The default password is empty (No Password). Administrator account has full access to the DVR and its
configurable parameters. The Administrator Account also has the ability to create new users and to assign rights to the new
user accounts. Those new users created by ‘admin’ account can also login with a specific password set by ‘admin’ account.

N

OTE Do not forget the administrator’s password that was set for the first time. In case the password is lost,

contact your vendor.

11 | Full HD Digital Video Recorder

1.3.2 System shutdown and change password

Option 1. Click the Shutdown button and input password on pop-up to power off the DVR
Option 2. Click the right button on the mouse and select the Shut Down to power off the DVR.

N

OTE It is not recommended to disconnect the power cable abruptly from the back of the DVR because it may

affect the DVR and Hard Drive.

The default password for ‘admin’ account is none. Therefore, just click ‘Enter’ button on the dial pad. If you changed the
password for ‘admin’ account, please type in the changed password to login.

N

OTE User can type in the password using the virtual keyboard or the numeric buttons on the IR remote

controller.

User’s Manual | 12

2 EXPLANATION FOR EACH FUNCTION

2.1 Front Panel

TER-12N040200A Front Panel

TER-22N080300A / TER-22N160300A Fro nt Panel

No. Items Functions

1 LED Indicator

System status LED indicators
Green = T he system is powered and ON.
Red = The system is currently recording

Yellow = The system is being accessed remotely via the network

13 | Full HD Digital Video Recorder

2.2 Rear Panel

TER-12N040200A Rear Panel

TER-22N080300A Rear Panel

TER-22N160300A Rear Panel

2 USB Port USB Port (Ver. 2.0) for Mouse Operation, Backup Device or Firmware Update

User’s Manual | 14

No.

Name

Description

1

Video-In

Camera inputs (Supports NTSC/PAL)

2

Audio-In

Audio Input Device (with Amplifier)

3

Audio-Out

Audio Output Device (with Amplifier)

4

USB Port

USB 2.0 Port for Mouse Operation, Backu p Device, or Fir mware Update

5

HD OUTPUT

HD OUTPUT

6

LAN Port

1 x 10/100/1000M

7

Power Input

4ch : 12V 2A

8/16ch(2HDD) : 12V 5A

8

Alarm Output

Alarm Output

9

Sensor Input

Sensor Input

10

RS-485 Port

PTZ Dome Camera or External Keyboard Controller connection

11

VGA

D-sub VGA Output

Note

Carefully check whether the specifications of the peripheral devices match the DVR’s specifications.

15 | Full HD Digital Video Recorder

3 OPERATION

3.1 User Log-in

The DVR has various setting categories. The administrator can set the system password and <User> to prevent unauthorized
changes to setting values and alteration of recorded file.

Enter the <Admin> or <User> password which had been set by using the virtual keyboard.

N

OTE 1) <LOGIN> window will be permanently displayed in monitor as above picture until user logs in with the

right ID and password.

2) If it is set as Auto Log-In, DVR does not require LOG-IN. (Please refer to 4.1.2 User.)

User’s Manual | 16

3.2 Live Display Mode

3.2.1 Full HD(1080p) Live Display

Full HD Live Display can be supported in live mode by using its HD output.

NOTE

In playback mode, the maximum resolution is 1080P.

<Full HD Live Display>

17 | Full HD Digital Video Recorder

3.2.2 Channel Selection

Channel selection can be done by following one of the steps below:

1. CH1~CH16 buttons in the IR Remote Control.

2. 1~16 virtual buttons at the bottom of the GUI display.
The display mode can be changed by pressing the ‘MODE’ button on the DVR’s front panel.

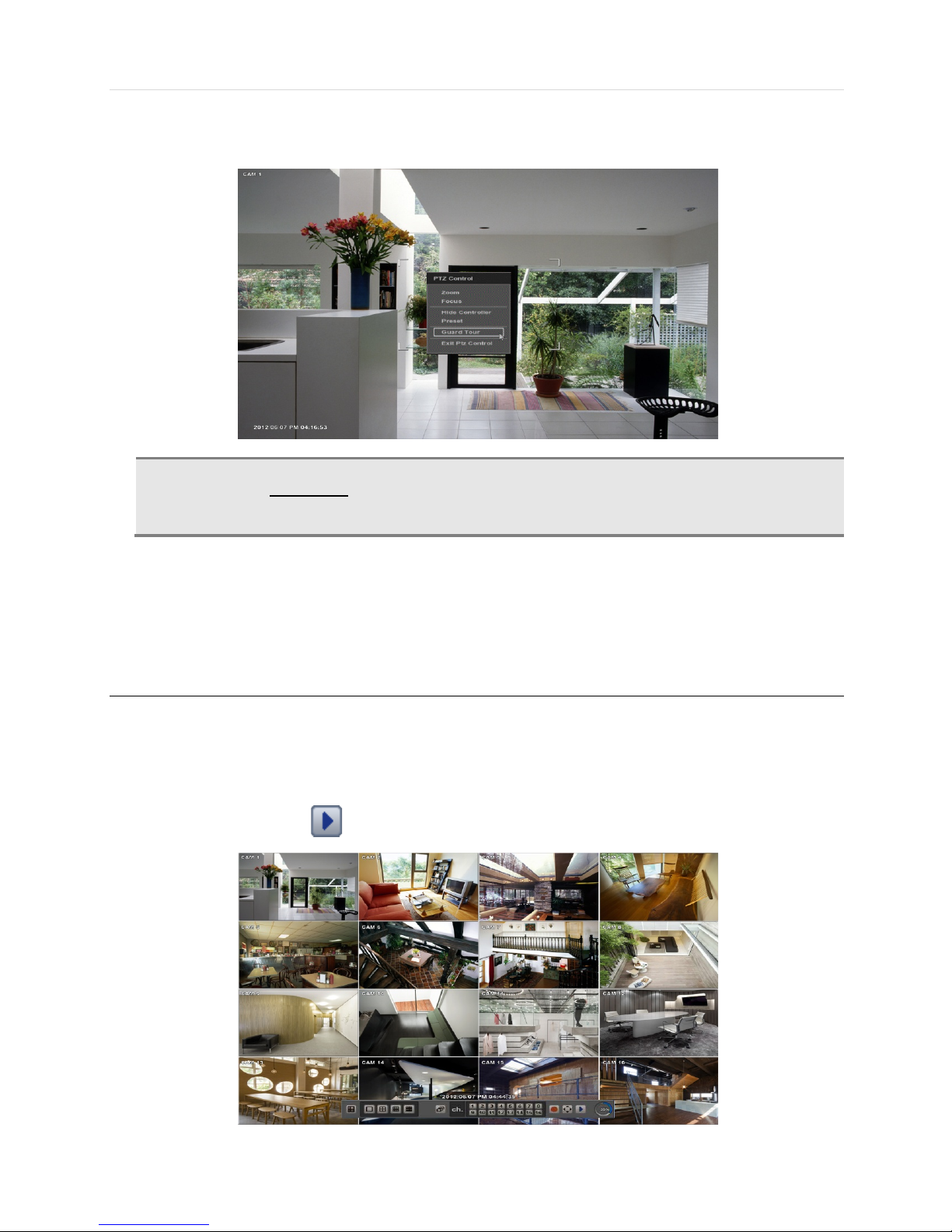

The live images can be displayed in real-time in 1, 4, 9, 16 screen splits. Whenever the left/right arrow button on the front

panel or IR remote controller is pressed, the screen will be sequentially changed.

[1 Ch] [4 Ch]

[9 Ch] [16 Ch]

T o select channel by mouse, click target channel single time to display in full screen. To return to previous display mode,
click the screen again.

T o v iew the pop-up menu, right click anywhere on the display screen.

N

OTE To properly s el ect a channel using the mouse, the user is required to perform a slow and clear click of the

left mouse button.

User’s Manual | 18

3.2.3 Icons

The live mode display’s icons or messages will be indicated on the screen to indicate the system mode or status.
Below are the icon categories that are indicated on the monitor:

Icon to be shown

at Left-upper corner on each channel screen

Icon to be shown

at Left-bottom corner on full screen.

Continuous Recording

Sequence display on

Motion Detection Recording

Digital zoom on

Sensor Activating Recording

Audio Channel

Continuous+ Motion Recording

Continuous + Sensor Activating
Recording

Emergency Recording

N

OTE If you cannot find any colored-mark in the top right corner of the live screen mode, then it means that the

system does not record any image. In this case, you need to check recording schedule or camera of the

main setup menu.

The sliding menu for display will be appeared when mouse cursor move into bottom and right click of mouse enale to access
pop-up menu.

T o show the menu bar, move the mouse’s cursor to the
bottom of the screen. The menu bar will be displayed.

T o hide the menu bar, move the mouse’s cursor away
from the menu bar.

Menu Bar

Menu button. When pressed, System Setup, Search, Backup, Logout will appear.
Screen split options- Select from single channel, 4 channel, 9 channel, or 16 channel display.

Sequence- if pressed, the system will start displaying all the channels in sequence mode.

To stop, press the button again, or right click on the screen and select ‘SEQUENCE’

CH. Buttons- view a specifc channel in full screen mode.

Instant (emergency) recording- The system will record video based on the panic record

settings.

PTZ mode- Control any supported PTZ cameras by moving the mouse pointer.

Go to Instant playback.

HDD usage indicator- Indicates the percentage of your HDD being used. If it shows 60%,

then 60% of HDD space has been used.

19 | Full HD Digital Video Recorder

3.2.4 Pop-up Menu

User can click the right button of the mouse to pop up sub-menu as shown below.

DISPLAY- Select the display split from the available options:

- 1 Screen- Single channel. Automatically displays CH1. If 1 Screen is selected again, next chronological channel will be
displayed.

- 4 Screen- Quad mode. Automatically displays channels 1~4. If 4 Screen is selected again, the next chronological 4
channels (5~8) will be displayed.

- 9 Screen- Automatically displayes channels 1~9. If 9 Screen is selected again, the next cohoronological channels
(10~16+1~2) will be displayed.

- 16 Screen- Displays all 16 channels (available only in 16 channel models)

PTZ CONTROL- Open the DVR’s PTZ control. See section 3.4 PTZ for more information.

SEQUENCE- when selected, icon will appear on the bottom right corner of the screen, and the display screen will

be sequentially changed (Please note, option will be disabled if display area is in 16 channel mode).

ZOOM- Enables/ disables digital zoom function. When enabled, icon will appear and zoomed area will be
displayed on the bottom right corne. The Zoom will automatical y focus on the center of the camera’s display . To adjust ot, go
to the small zoom display at the bottom of the camera display and move the yellow frame to the desired are you would like to
view in zoom. To move the yellow frame, use your mouse to drag the lines of the yellow frame to the desired location. T o go
back to live display mode, right-click on the screen and select “ZOOM” again. This feature is available in single channel mode
only.

INSTANT REC- Start/ Stop Panic Recording.
PLAYBACK- Select playback option:

- 10, 15, 30, 60 seconds- start playback from the selected number of seconds ago.

- 2, 3, 5, minutes- start playback from the selected number of minutes ago.

- Open Playback Mode- automatically go to instant playback.
SEARCH- Select video search options:

- Date/ Time- open calendar search.

- First/ Last Data- Go to the first or last recorded data.

- System/ Event Log- open log search window.

- Bookmarks- open bookmark search.

Backup - Users can archive a video clip recorded for a certain period on a selected channel.
SETUP- open the DVR’s main menu.
SHUT DOWN- Power off the DVR.
LOGOUT- User logout.

User’s Manual | 20

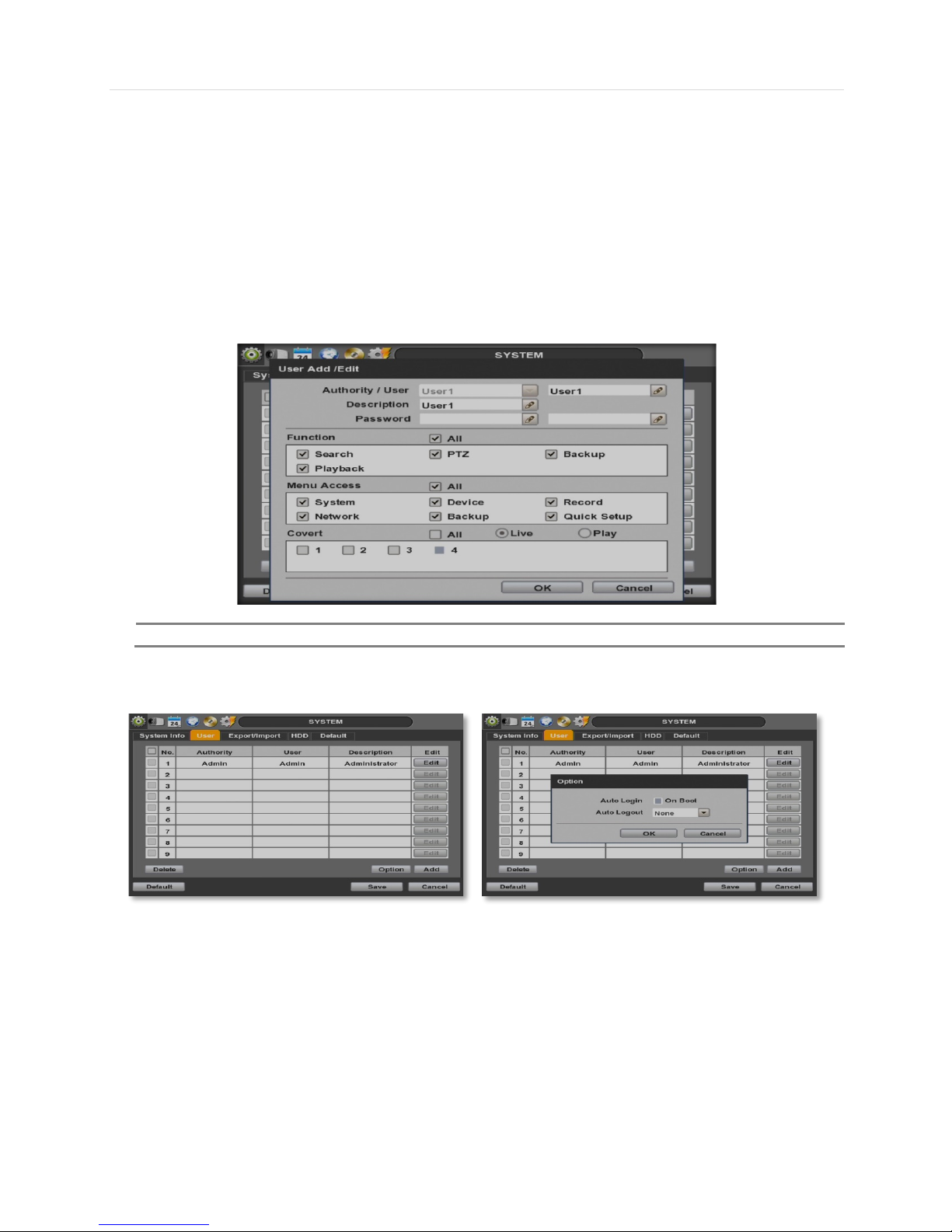

As the Admin user, you can seup up multiple users with different levels of authorization. If a certain user is not allowed to view
a certain camera in live or playback, then no image will appear on the display screen. To create, delete, or modify users, go to
the main menu and select system settings. See section 4.1.2 User for more information.

21 | Full HD Digital Video Recorder

3.3 PTZ Operation

Before starting PTZ control, please make sure the camera you wish to control is a supported PTZ camera and is installed and
configured properly. See section 4.2.6 PTZ for setup information. To enter PTZ mode, follow one of the options below:

1. Right-click on the screen and select PTZ Control.

2. Click on the joystick button in the menu bar located on the bottom of the main screen.

3. Press the PTZ button on the DVR’s front panel, or Press the PTZ button on the IR remote control.

In PTZ mode, user can control PTZ operation with the USB mouse.
While pressing the left button of the mouse, drag the mouse pointer up/down, left/right to move pan/tilt position of the camera

accordingly. The further away from the center of the screen you move the mouse, faster will the camera move. The user can
also zoom-in/out by rolling the wheel of mouse up or down.

N

OTE Full PTZ functions are available by using USB mouse, IR remote control, or keyboard controller and are

available only on supported PTZ cameras.

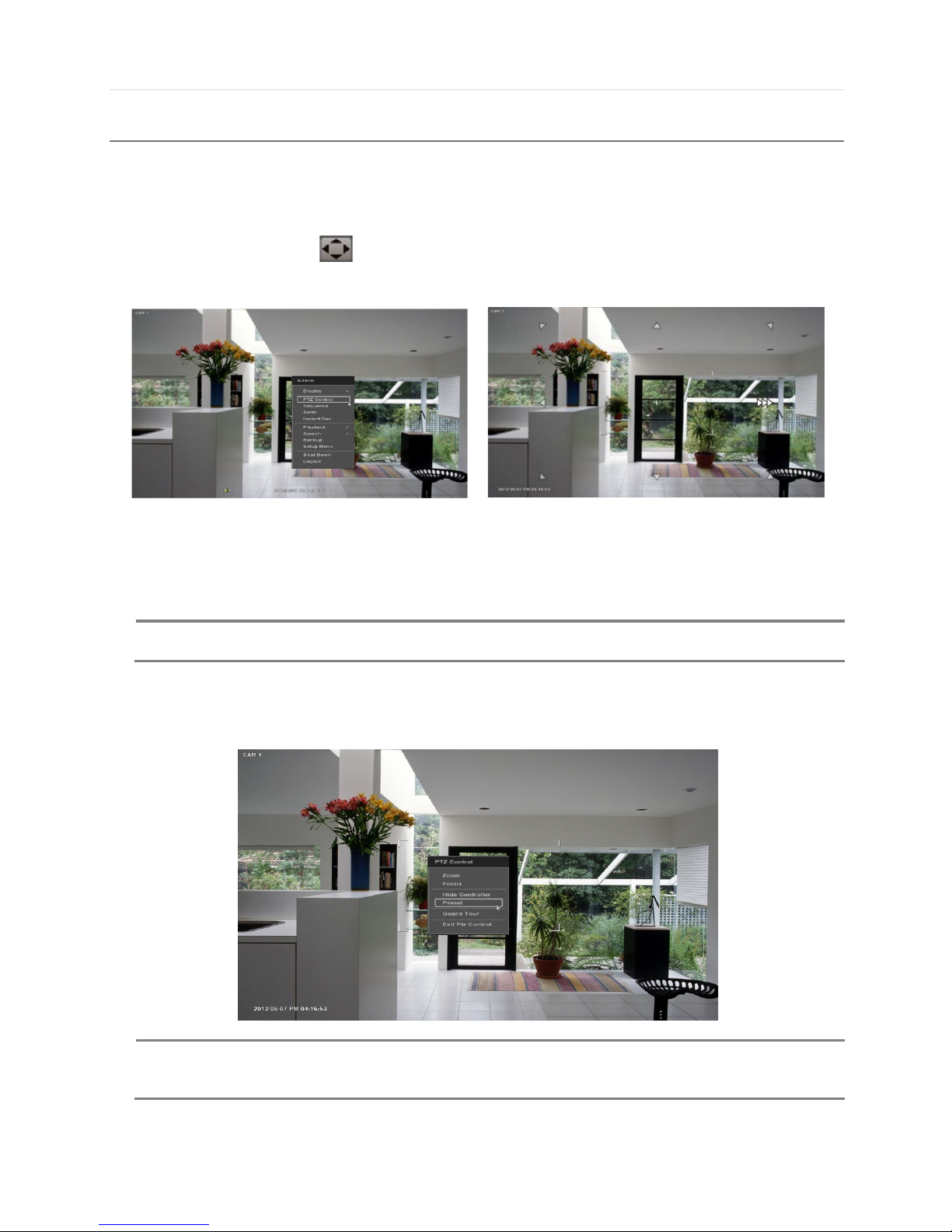

For focus control in PTZ mode, right-click to get the pop-up menu as shown below. Default mode is to “ZOOM”. Select
“FOCUS” to switch the mouse’s wheel function from zoom-in/out to focus near/ far .

The user can also select the preset button to start/ stop a preset, or exit PTZ screen model.

N

OTE User will see numeric pad to select “Preset” number. The preset is defined by setting a PTZ protocol in the

setting menu. The maximum number of preset is 255, but the number of available presets may vary by

camera make and model.

User’s Manual | 22

User can automatically switch PTZ camera positions according to defined presets by using the GUARD TOUR function. The
connected PTZ camera must support touring functions. “GUARD TOUR” on the pop-up menu can be enabled only in full
screen mode. See 4.2.6 PTZ for instructions on how to setup the GUARD TOUR.

3.4 Playback of Recorded Video

T o play a recorded video, press the Play button from the menu bar , or the Instant Play in the DVR’s front panel or on the IR
remote controller .

The recorded files can be seen in rewind or fast forward modes. Press the rewind and fast-forward buttons to control the
playback’s speed ( 2, 4, 8, 16, 32 times real time when playing backwards or forwards).

User can click playback button to automatically play the latest video clip in rewind mode.

C

AUTION Depending on PTZ camera, some preset positions might be skipped if, for example, the PTZ camera

cannot mechanically move or control focus within the interval time required by the DVR. In this case, it
is recommended to increase the interval setting to a value that allows for the cameras to finish its Pan

& Tilt.

23 | Full HD Digital Video Recorder

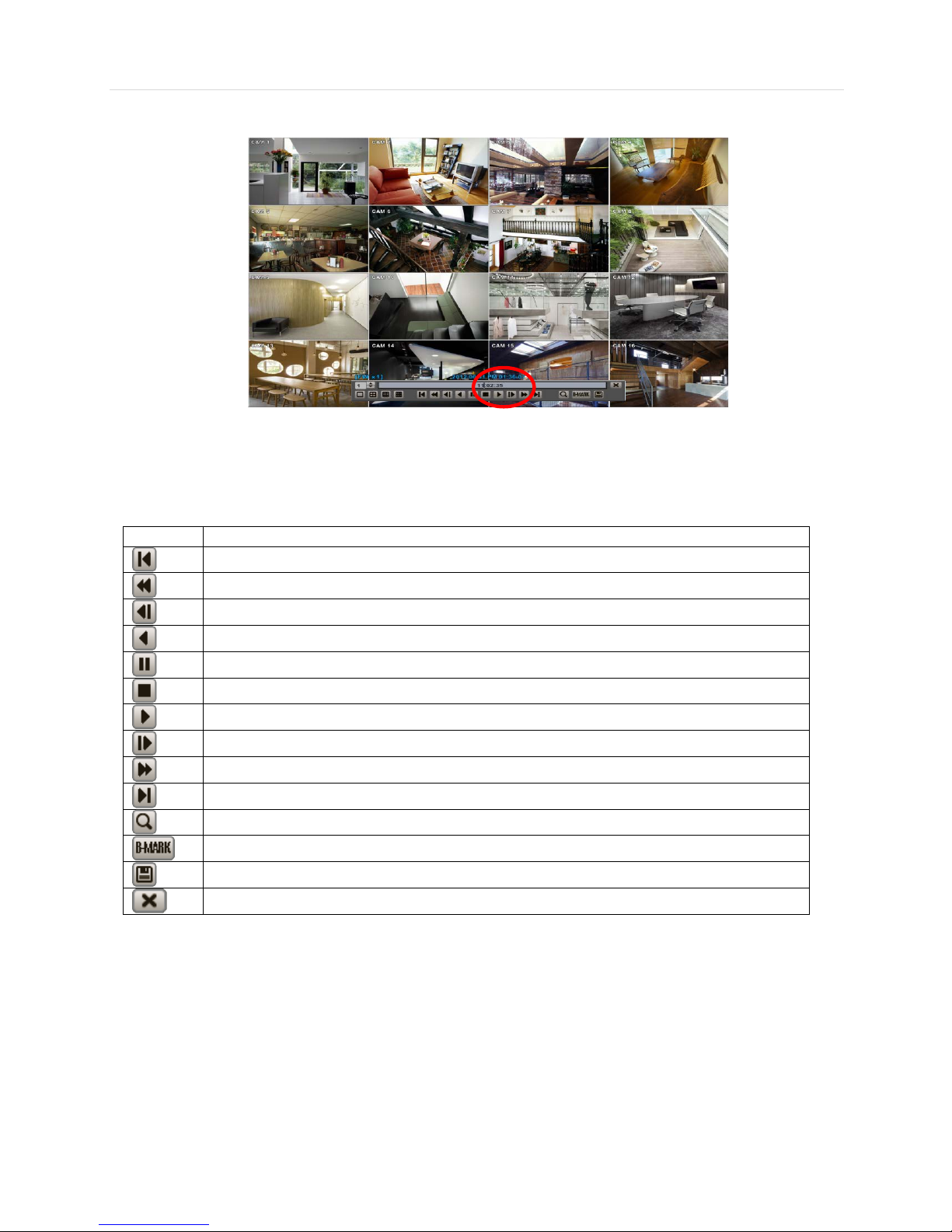

The picture below shows the system playing back a video.

In playback screen, user can make various playback modes, make an instant manual backup (archive), go to calendar search
mode, change channel, and change screen modes. By clicking the left mouse button in the colored-time bar , the user can
jump to a different time in the recording. In addition, user can move the vertical search bar and release by dragging it back and
forth to search the desired time in detail.

Button

Function

Jump to first data. If recording is set to motion, system will jump to previous recorded motion video.

Fast rewind

Frame-by-Frame Rewind

Play video in rewind

Pause video

Exit Playback to Live mode.

Playback video

Frame-by Frame playback

Fast playback

Jump to last data. If recording is set to motion, system will jump to the next recorded motion video.

Go to calendar search

Bookmark Video

Backup

Exit Playback to Live mode.

User’s Manual | 24

3.5 Search Recording Image

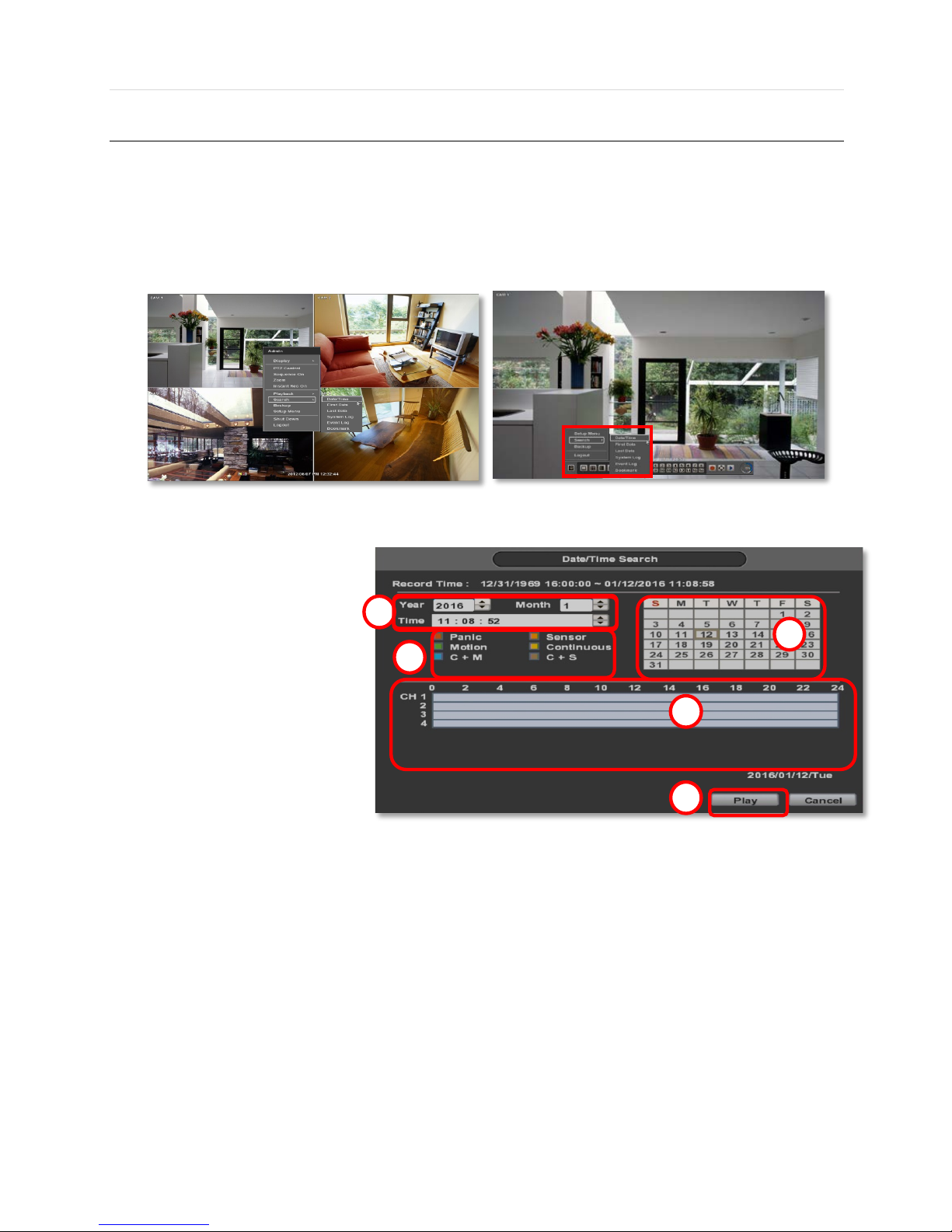

3.5.1 Date/Time Search

T o search your recorded data by date/ time, follow one of the options below:

1. Click the quick Menu button at the left side of the menu bar, select Search  Date/ Time

2. Right-click anywhere on the screen, select Search  Date/ Time

The calendar window will appear, Days with recorded data available will be indicated in RED.

1. Select from the calendar the date.
If necessary, use the manual year
and month options on the left side
to adjust the calendar view.

2. The ‘Intelli-Search Bar’ at the
bottom of the window will display
hours when recorde data is
availablein color code. Once the
recorded video data of the
selected date is shown, user can
adjust the vertical search line to
the time that user wants to search
by dragging a mouse. As the
vertical line is moving back and
forth, user can see “the Search
time” clock is also changing.
When user decides the Search
time, click Play to see the
selected video data.

3. The colors of the time bar are different, depending on the recording mode.

No color - NONE- Cam era has no recorded dat a for the selected time.
Red- Panic recording- recording triggered by the user when pressing the Instant/ Panic Recoreding.
Yellow- Continuous recording.
Green- Motion recording- The system records only when motion is detected.
Orange- Sensor recording- The system records when a sensor is triggered and only during the dwell time as set in

“SENSOR” of the “DEVICE” menu. If “SENSOR” is disabled under the “DEVICE” menu, and recording
schedule is set to “SENSOR”, the system will not record even though a sensor is triggered.

Blue- “Continuous” + “Motion”-The system records continuously and will switch to the motion recording configuration if

motion is detected in the motion area. The system will also send a “motion event” message to the Central
Monitoriong Software over the network. If “MOTION ALARM” is disabled in the “DEVICE” menu, and
recording is set to “CONT + MOT”, the system will record with continuous recording even when motion is
detected in motion area.

Orange- “Continuous” + “Sensor”- The system records continuously and will switch sensor recording if a sensor is

triggered during dwell time. The system will also send a “sensor event” message to the CenPro Software over

1

2 3 4

5

25 | Full HD Digital Video Recorder

the network. If “SENSOR” is disabled in the “DEVICE” menu, and recording mdoe is set to “CONT + SENS”,
the system will record with continuous recording even when a sensor is triggered.

4. T o v iew video from the selected time, follow one of the options below:

a. Use the manual hour option to view specific hours of the day.
b. Using the table, click on the hour you would like to view in playback.

5. Press the ‘Play’ button at the bottom fo the window . The system will display all channels in playback mode,
corresponding to the selected date and time.

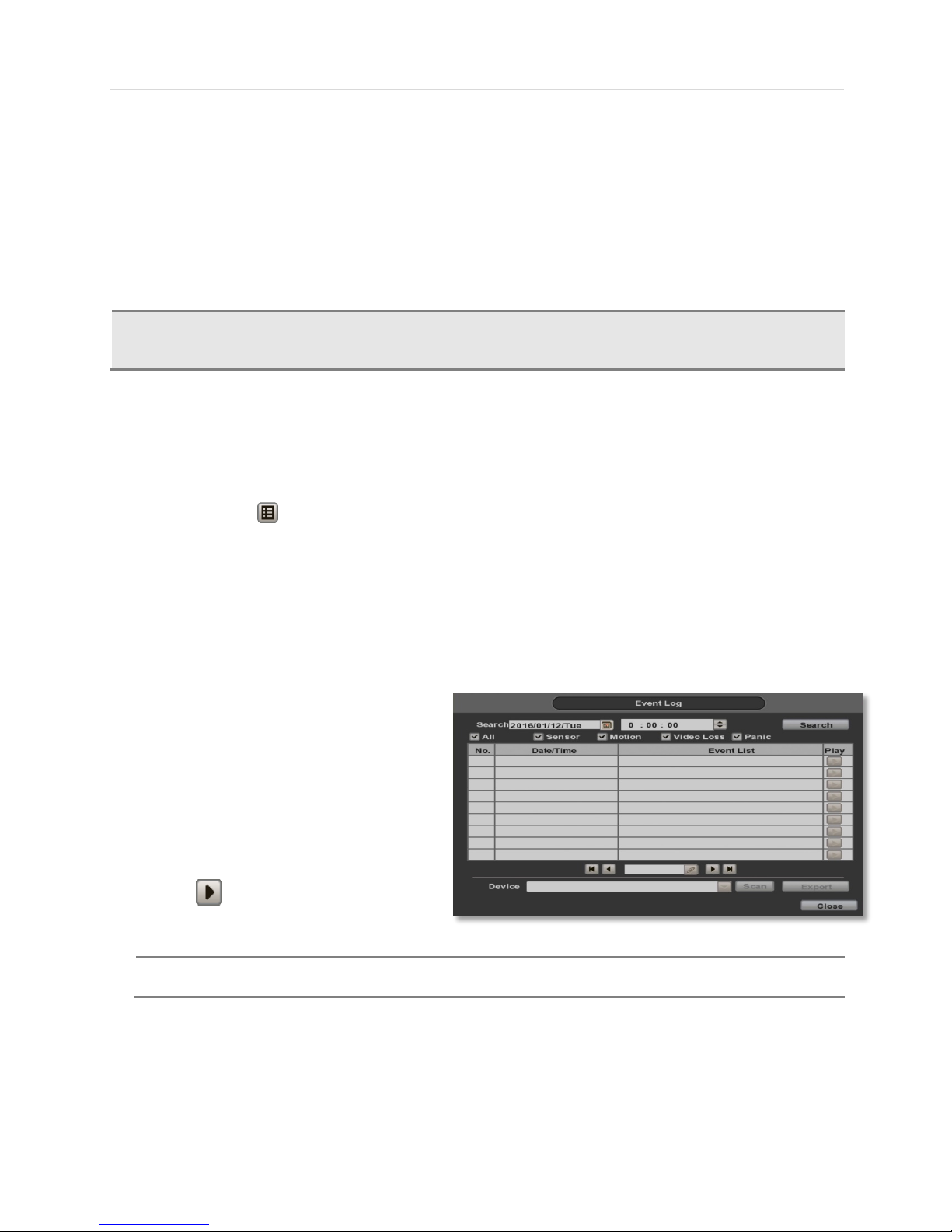

3.5.2 Event Log

The Event log search allows you to search for a particular event, quickly and easily, displaying the search results in a detailed
table format.

1. T o open Event Log Search, perform one of the following options:

a. Click quick menu button, select Search Event Log
b. Right-click anywhere on the screen ans select Search Event Log.

2. Select the date you would like to search.

3. Select which events should be included in the log report. Select from: Sensor, Motion, Video Loss, Panic Recording,
HDD Full, or All.

4. Press ‘Search’. The system will display all search results in the table, starting with the latest events.

5. Use the buttons on the bottom of the window to move between the log report’s pages.

6. If necessary, export this log report to a USB
memory device in text file format.

a. Attach a USB memory stick to the

USB port

b. Press “SCAN” to detect the USB

stick

c. Press “EXPORT” to copy the log

information to the media.

7. Click play icon to play back the selected
event data.

N

OTE If an alarm or event do not appear in the envent log, check the alarm settings, and connection port at the

DVR’s rear panel.

C

AUTION

Dark Blue Color

The data recorded during DST (Daylight Saving Time) will be indicated in Dark Blue color in the

Intelli-Search Bar on playback mode.

User’s Manual | 26

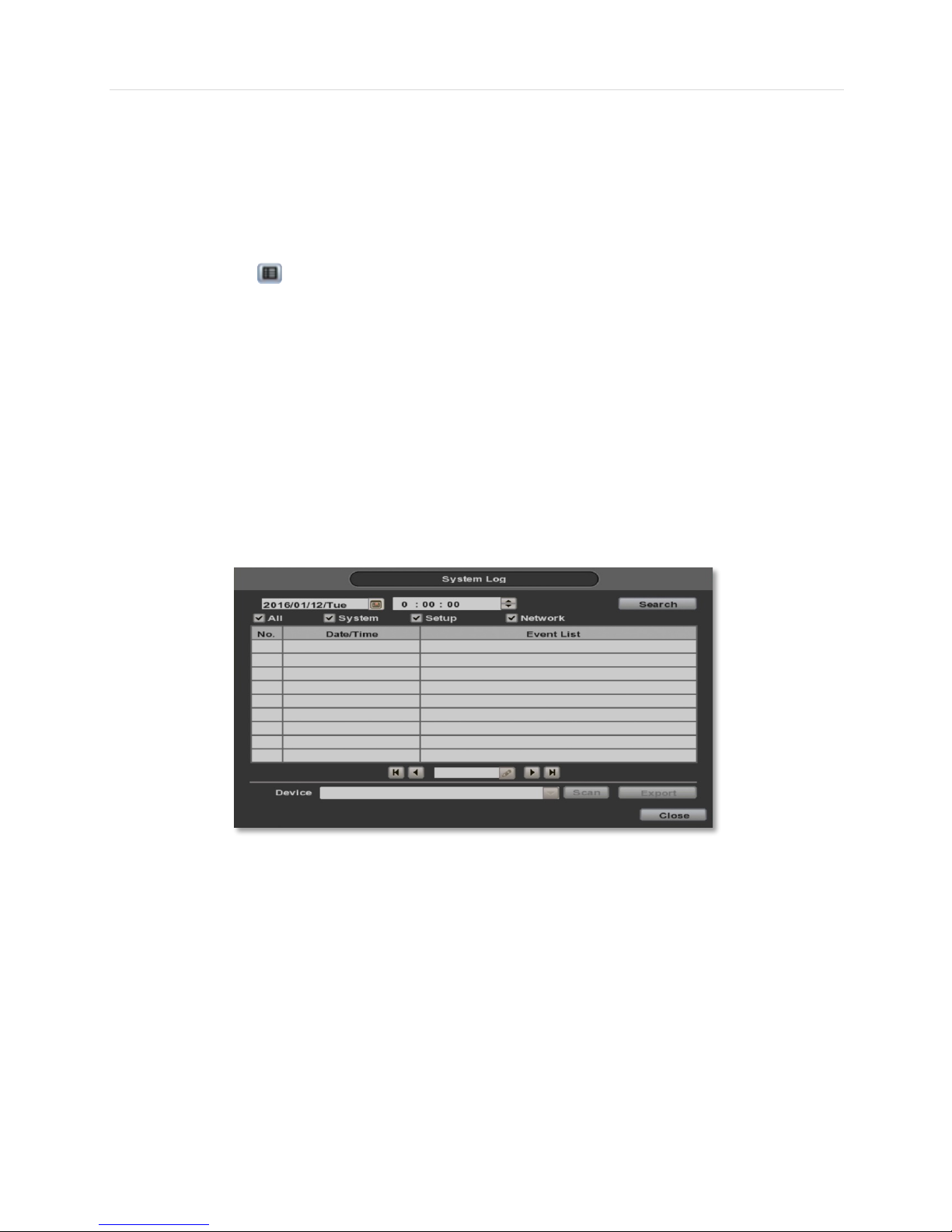

3.5.3 System Log

The system log search allows you to search for any changes made to the system, quickly and easily, displaying the search
results in a detailed table format.

8. T o open System Log Search, perform one of the following options:

a. Click quick menu button, select Search System Log
b. Right-click anywhere on the screen ans select Search System Log.

9. Select the date you would like to search.

10. Select which events should be included in the log report. Select from: System, Setup, Network, or All

11. Press ‘Search’. The system will display all search results in the table, starting with the latest events.

12. Use the buttons on the bottom of the window to move between the log report’s pages.

13. If necessary , export this log report to a USB memory device in text file format.

a. Attach a USB memory stick to the USB port
b. Press “SCAN” to detect the USB stick
c. Press “EXPORT” to copy the log information to the media.

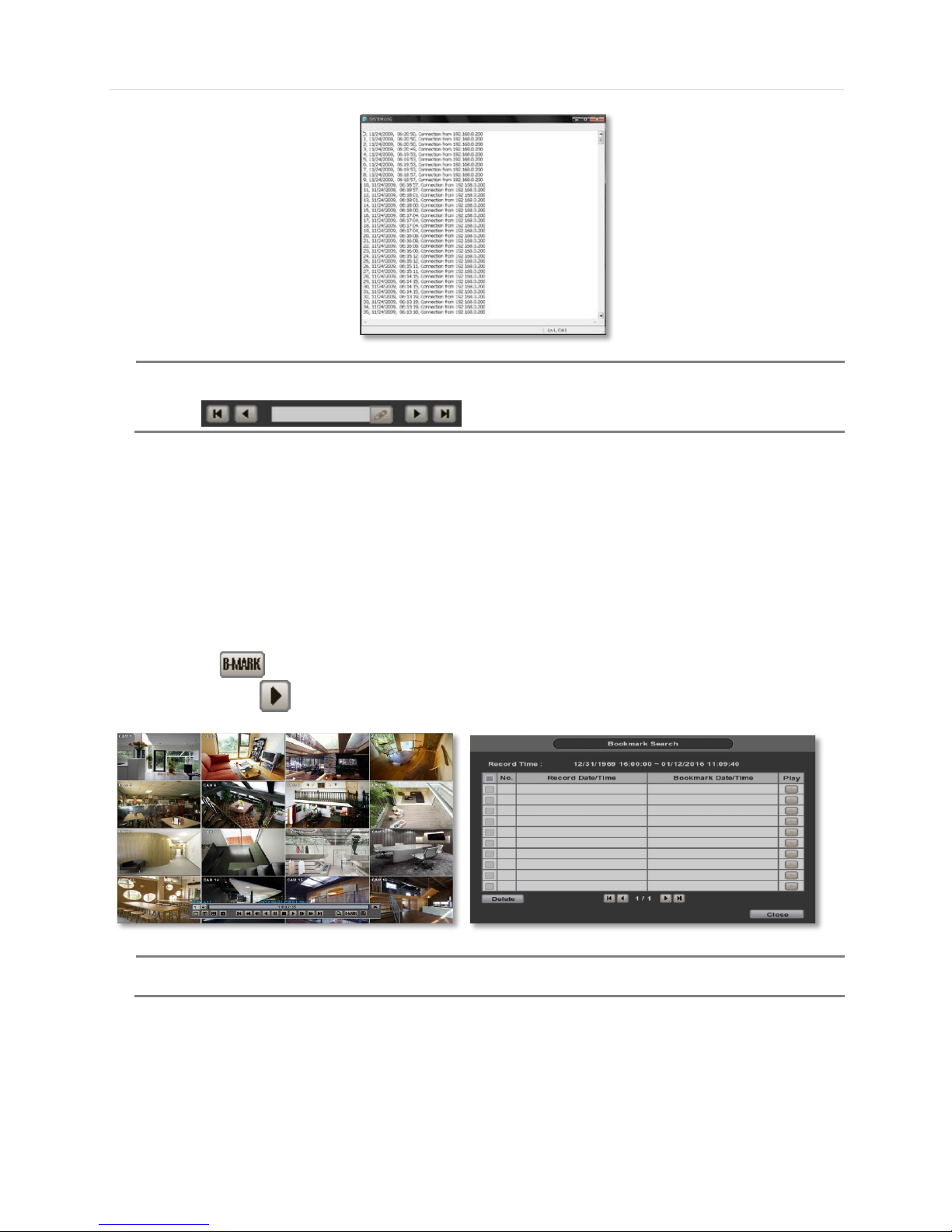

Once export is completed, the user can find a date folder created in USB thumb drive.
There is “system.log” file stored in the date folder.

27 | Full HD Digital Video Recorder

N

OTE 9 numbers of log record will be shown on one page of the <System Log> and <Event Log> window. User

can click the arrow icon to search the log records on another page.

3.5.4 First Data

Go to the first screen of the recorded video. This is the oldest video recorded.

3.5.5 Last Data

Go to the last screen of the recorded video. This is the latest video recorded.

3.5.6 Bookmark

Go to the bookmark list to search the recorded video data in the bookmark list. Users can make their own bookmark list very
simply by click button, during playback. When you do bookmark search, you can easily playback the bookmarked

video data by clicking button, right next to each list.

N

OTE User can press “SEARCH” button on the front panel to get the SEARCH pop-up menu as shown above. In

this menu, full search functionality is controlled using the front panel key buttons.

User’s Manual | 28

3.6 DST Setting

DST starts at 2:00 local time on 2nd Sunday of March, and ends at 2:00 DST on 1st Sunday of November.
During DST (Daylight Saving Time) period, DVR time clock has to be adjusted according to regional time zone. That is, the

DVR time clock will be shifted by one hour after the DST settings start, and the DVR will restore the time clock back to normal
after DST finishes.

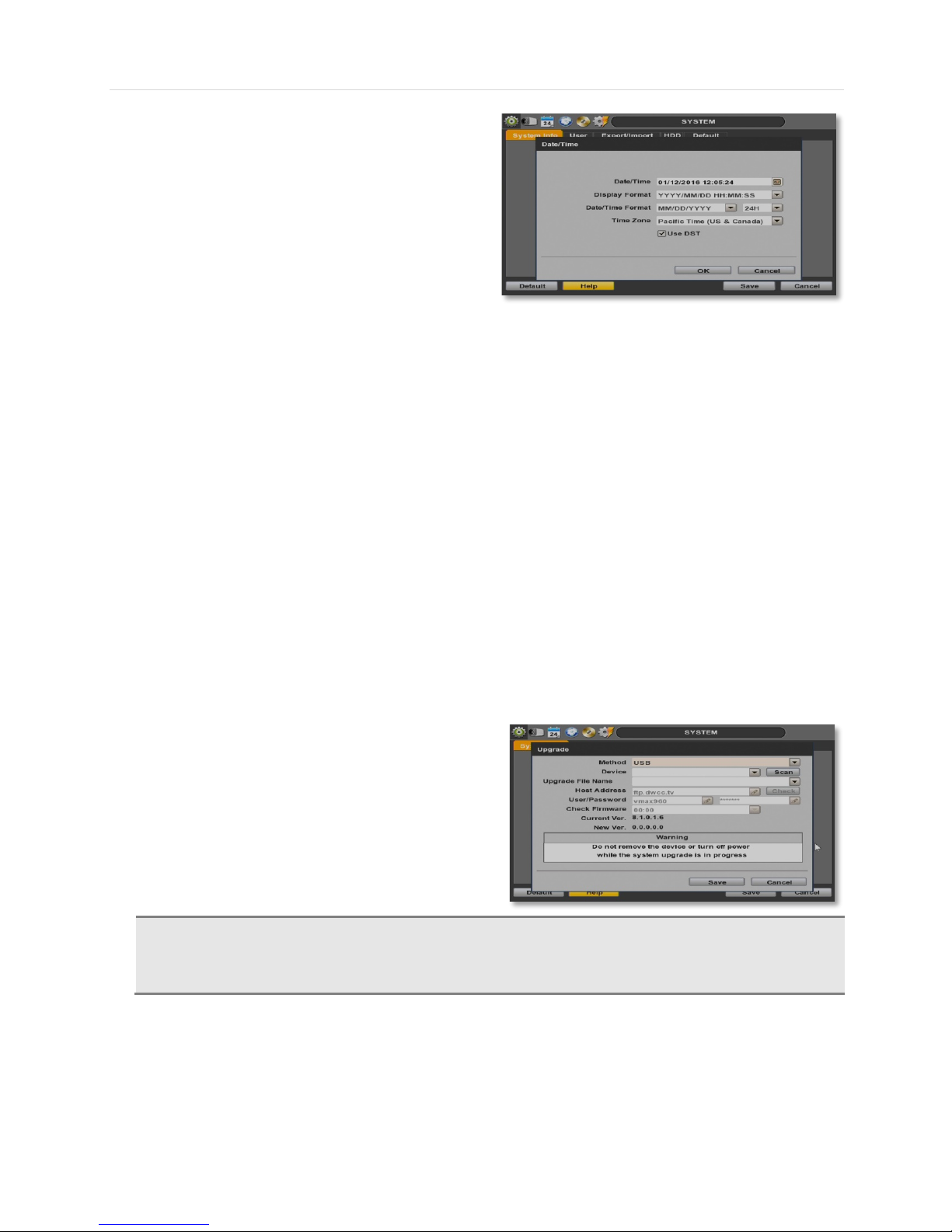

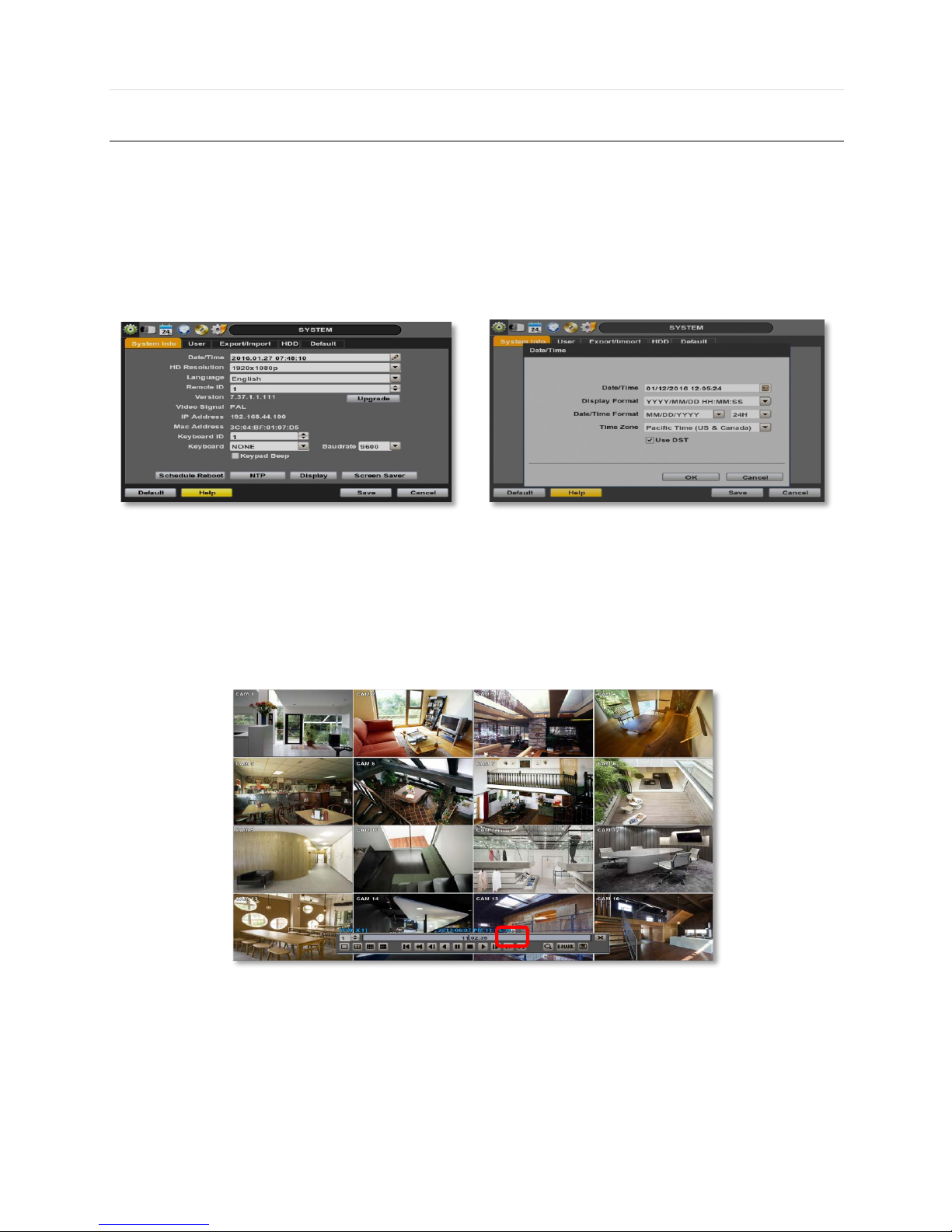

T o make DST setting on the DVR, go to the menu: SYSTEM > SYSTEM INFO and click “DATE/TIME” to get the DST setting
window as shown below. User can setup DST “Begin & End” time after checking “USE DST ” box.

Since the clock jumps from 2:00 to 3:00, when you go to search mode, you can clearly see there is no data in all channels for
one hour due to DST.

DST ends at 2:00 DST, and the clock jumps backward to 1:00 standard time on 1

st

Sunday of November.

When DST finishes, there is an hour of overlapped video. The overlapped time video will be indicated in a blue color in the
Intelli-Search Bar during playback mode.

29 | Full HD Digital Video Recorder

When user click on such overlapped period, a message titled “Recorded video Selection” will pop up. The user can then
select whether to play DST data or Non-DST data.

Click OK to play DST image. Click CANCEL to play Non-DST image.

[“DST” image is displayed on screen] [“Non-DST” im age is displayed on screen]

3.7 Screen Saver

To make SCREEN SAVER se tting on the DVR, go to the menu setup: SYSTEM > SYST EM IN FO and click “SCREEN
SAVER” to get the SCREEN SAVER setting window as shown below . Users can select HD output by checking the boxes.
Users can set the WAITING TIME for when the monitor will automatically turn off.

Users can turn on the selected monitor by clicking a mouse, pressing any frontal key buttons, or pressing any buttons on the
remote controller.

N

OTE WAITING TIME: Users can select the WAITING TIME from NONE, 1,2,3,4,5,6,7,8,9,10,20,30,40,50, and

up to 60 MIN. The SCREEN SAVER will not work when either WAITING TIME is set to “NONE”.
SCREEN SAVER may not work, during system upgrade, HDD format, or data backup process. The system
continues to record while the monitor is turned off.

When i t comes to the “AUTO LOGOFF” setting, please refer to the USER setting.

User’s Manual | 30

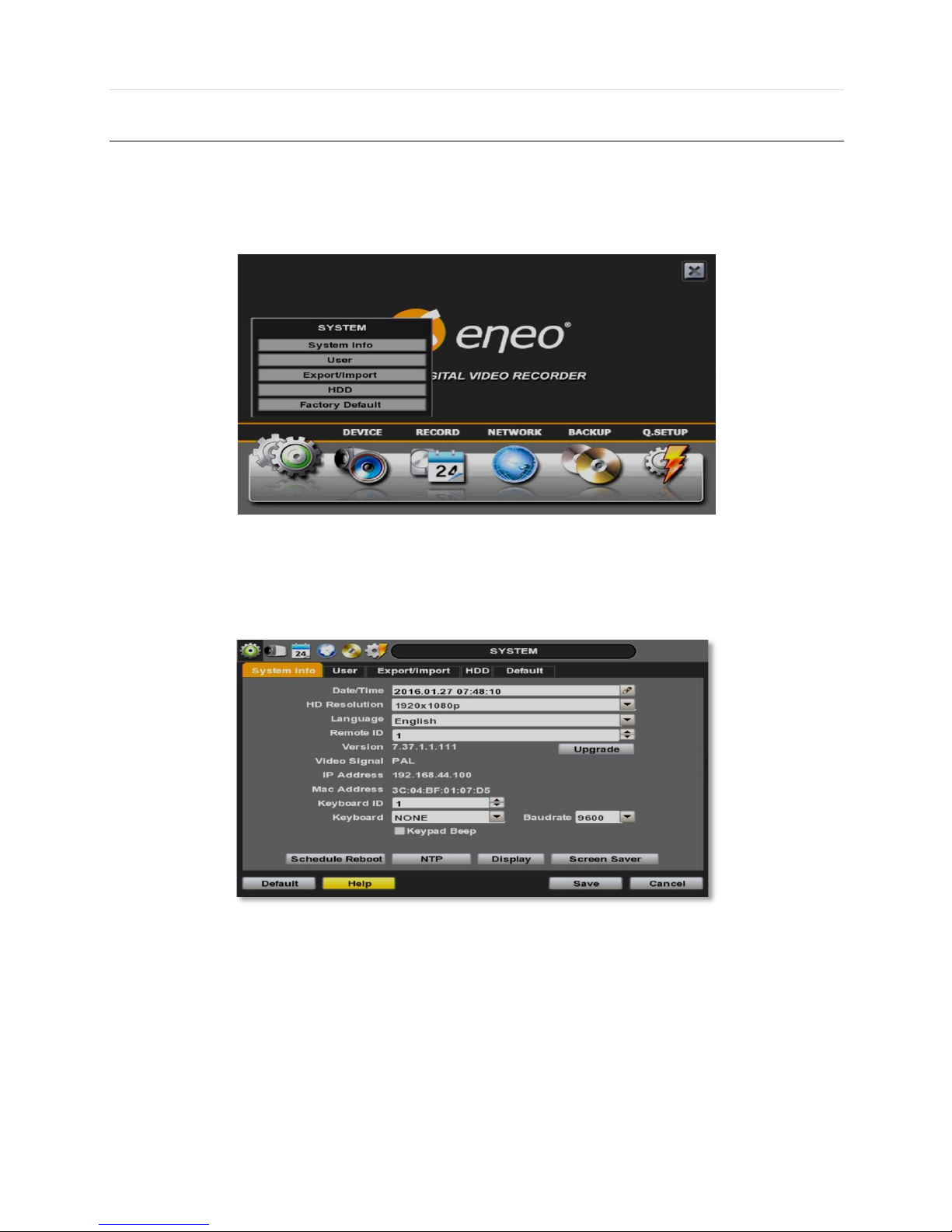

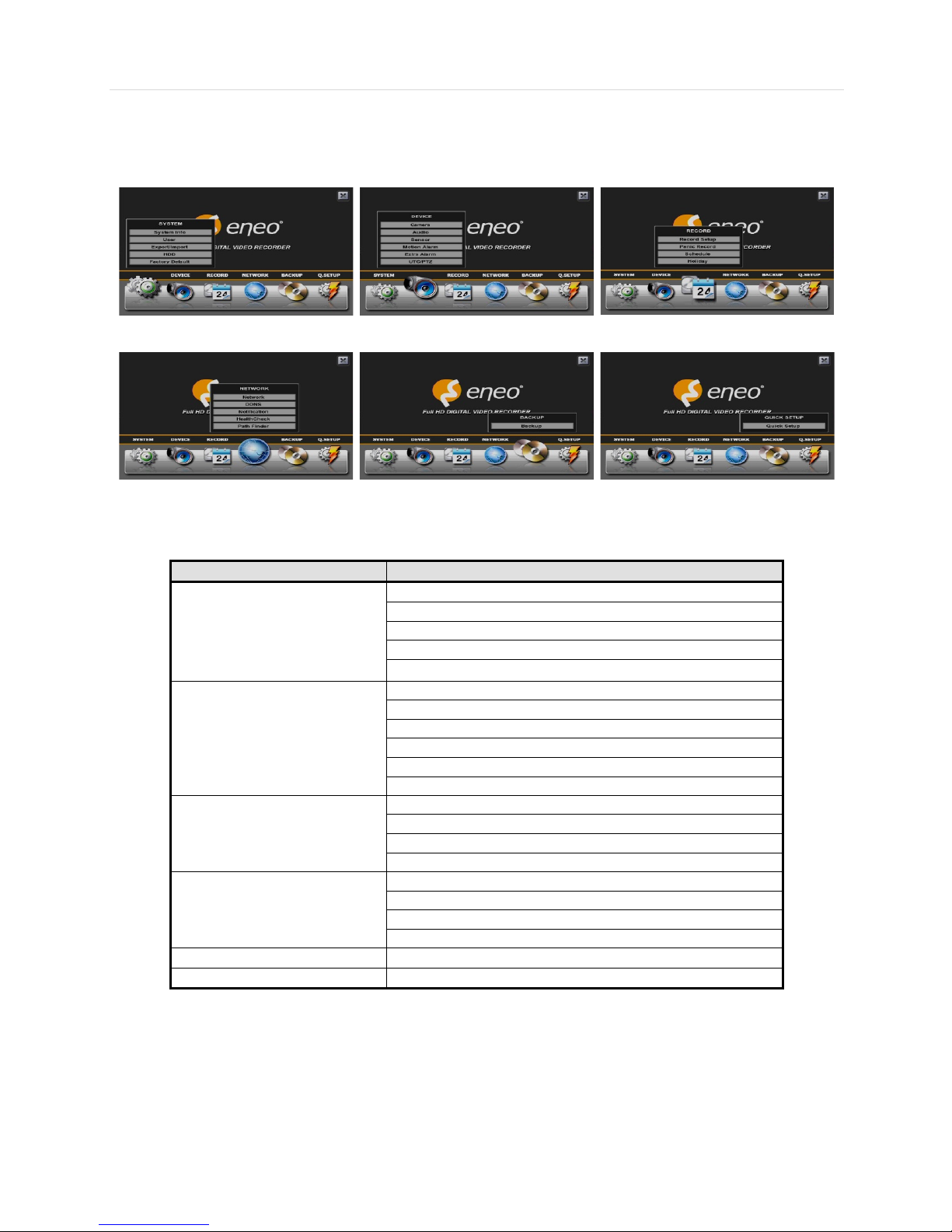

4 SETTING

General setting structure consists of “System”, “Device”, “Record”, “Network”, “Backup,” and ‘Quick Setup” as shown below.

<SYSTEM> <DEVICE> <RECORD>

<NETWORK> <BACKUP> <Q-SETUP>

Main Classification

Sub Classification

SYSTEM

SYSTEM INFO

USER

EXPORT/IMPORT

HDD

FACTORY DEFAULT

DEVICE

CAMERA

AUDIO

SENSOR

MOTION ALARM

EXTRA ALARM

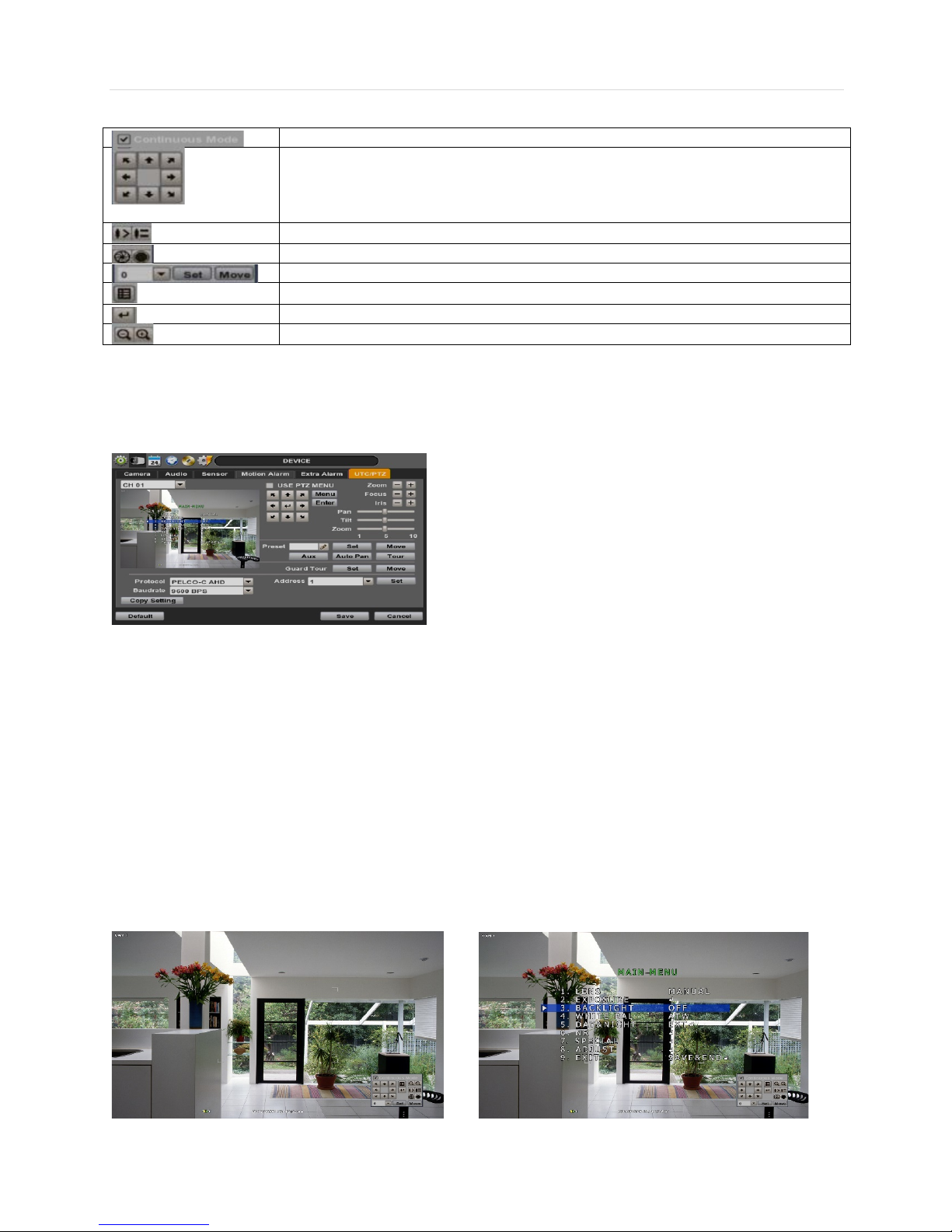

PTZ

RECORD

RECORD SETUP

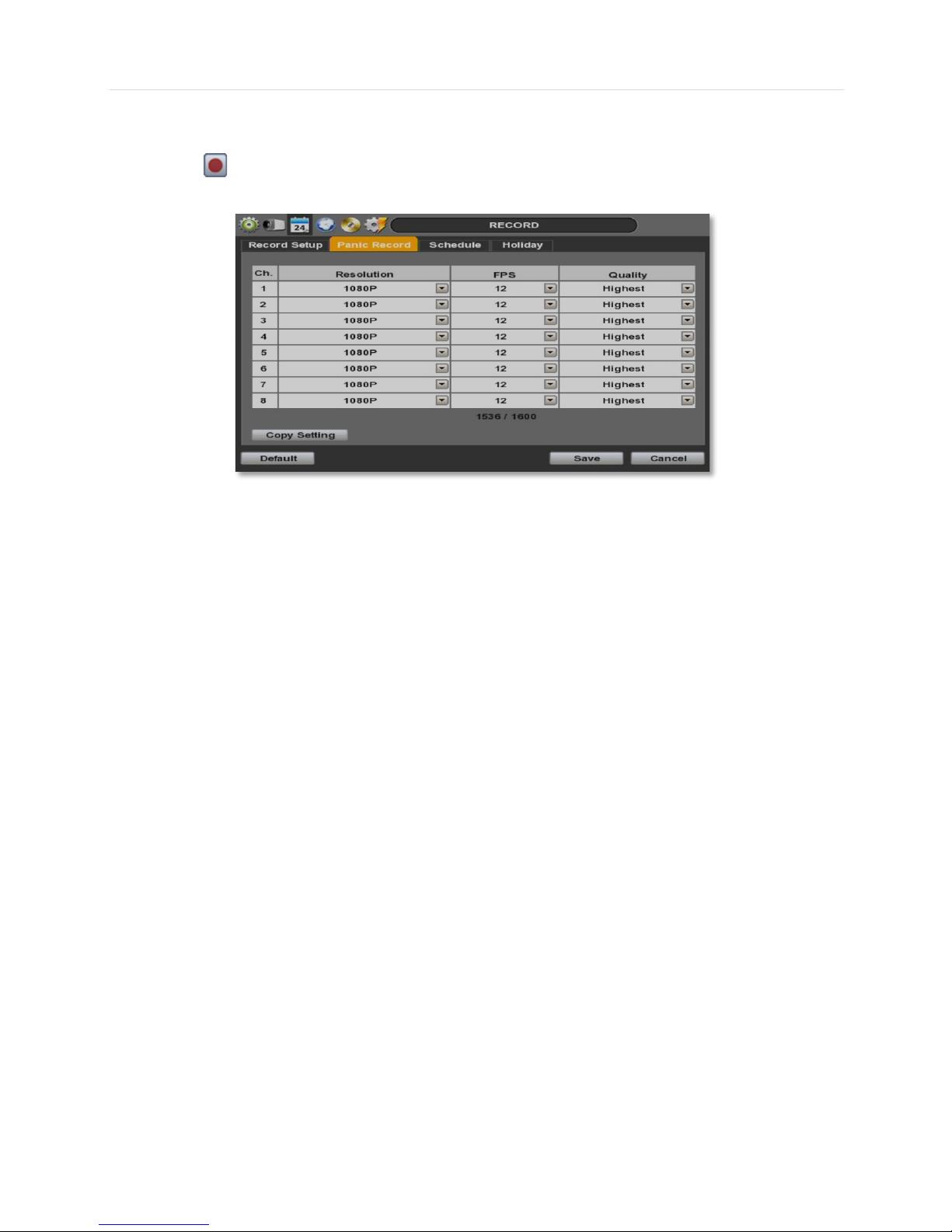

PANIC RECORD

SCHEDULE

HOLIDAY

NETWORK

NETWORK

DDNS

NOTIFICATION

HEALTH CHECK

BACKUP

BACKUP

Q.SETUP

QUICK SETUP

31 | Full HD Digital Video Recorder

4.1 System

The system menu button is selected by clicking “TOOL” on the menu bar or clicking the right mouse button.
Users can move mouse pointer from “System” through “Quick Setup” to instantly look around the sub-menus on the menu

screen. Using the left mouse button, the user can select a desired category for editing.

4.1.1 System Info

The System Info sub-menu includes the following setup options: Date/ Time, HD Resolution, Language, Remote ID, V ersion &
System Upgrade, Video Signal, IP & MAC Addresses, Keyboard Setup, NTP Setup, Display Setup, and Screen Saver Setup.

User’s Manual | 32

- Date/ Time- manually enter the DVR’s date and time,
time zone, and enable/ disabled DST.

Using the available options, manually adjust the date
and time from the calendar, select the display mode for
the time, and the date, and select the appropriate time
zone. If applicable, check the ‘USE DST’ box. See
section 3.12 DST Setting for more information.

- HD Resolution- Select the DVR’s output resolution.
DVRs support the following video resolutions: 1024x768,
1280x1024, 1920x1080.
User must set the proper resolution according to the monitor resolution

- Language- Select the DVR’s display language from the availanle in the drop-down menu.

- Remote ID- Set the DVR’s remote ID. This ID should be the same as the IR Remote Control.

- Firmware Version & system upgrade- when a new version is available, use the easy upgrade menu to upgrade your
DVR to the latest version. To upgrade your system, follow one of the options below:

Upgrading system using USB memory stick:

1. Insert the USB thumb-drive formatted by FAT32 in any USB port of DVR (compatible with USB 2.0)

2. Once the system detects the thumb-drive, user can see its brand or model name in the “DEVICE” field after
pressing the “SCAN” button.

3. Click “OK” to confirm.

Upgrading system using FTP server:

1. Select FTP in the drop-down list and type a given IP address in the Host Address . Username and password
is “none” (Default).
*The FTP server address is subject to change without a prior notice.

2. Click ‘Check’ button then DVR will detect the latest Firmware version from the FTP server. If there is a new
firmware, DVR will ask you whether you want to upgrade it or not.

3. Click ‘OK’ to confirm it and then click ‘START’
to start upgrading.

C

AUTION It is recommended to format the HDD after finishing the firmware upgrade because the data recorded

by previous firmware may cause malfunction of DVR due to different format.
It is highly recommended to check all functions and menus after a firmware upgrade for proper layout

and performance. If necessary, you can return system to its default settings.

- Video Signal- Displays the video out signal from the DVR.

- DVR’s IP & MAC Addresses- This information is necessary when connecting to the DVR via its web viewer or the
CenPro Software. See section 4.4 Network for more information and configuration options.

- Keyboard setup- Setup the DVR’s ID, baudrate and model to match the information of the keyboard you would like to
use. The Keyboard’s ID must match the ID set in the DVR.

33 | Full HD Digital Video Recorder

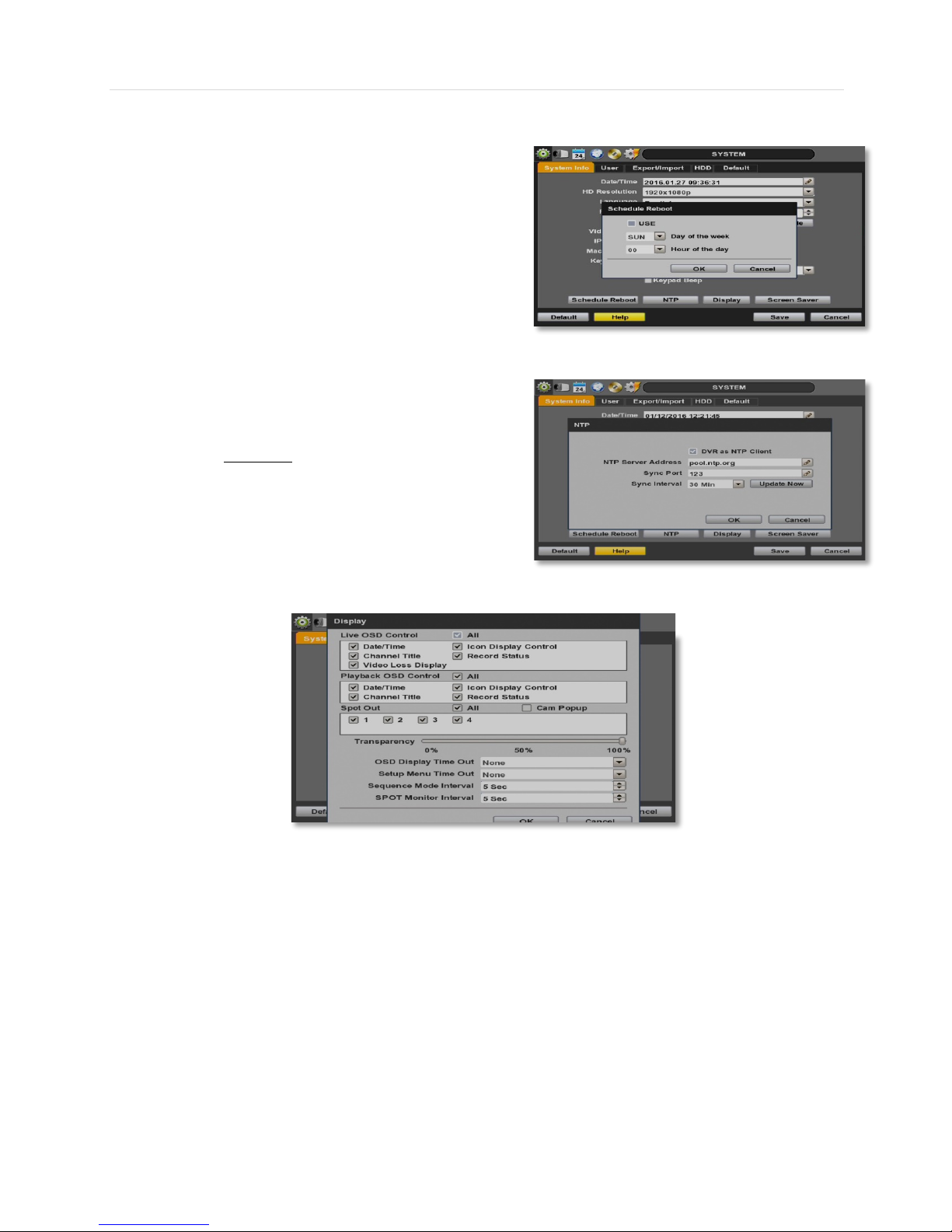

- Schedule Reboot- Reboot the DVR on a designated date and
time. During the long time working, refresh the DVR
automatically

Click the Schedule Reboot button>

Check the 'USE' >Select week>Select day.

- NTP Setup- Setup the DVR to automatically sync with a
Network Time Protocol.
There are two types of TIME SYNC MODE:

o Client Mode- The operating DVR is set as the client

DVR. Enter the IP address or URL of another DVR
or CenPro Software (CenPro), as a Time Sync
Server in “SYNC SERVER”. This will cause your
DVR to sync its time with a Time Sync Server in the
set interval time.

- Display Options- Set sequence dwell time, pop-up camera, and OSD as indicated below:

o OSD:

 Select which information will be displayed in the OSD visible on each channel in Live.
 Select which information will be displayed in the OSD visible on each channel in Playback.
 Set the OSD’s transparency level, the higher the percentage, the more transparent the OSD text

will appear.

 Setup a dwell time for the OSD text, after which, the OSD will automatically disappear.
 Setup a dwell time for the Setup Menu, after which, the Setup Menu will automatically disappear.

o Set sequence dwell time- Setup how long the system will display each channel in Sequence mode, before

switching to the next channel.

o Y ou may select On/Off for Live or Playback status display by checking a check box.

- Screen Saver Setup- See section 3.13 Screen Saver for more information.

User’s Manual | 34

4.1.2 User

Master user of this system is always Admin with factory default of No password. This user cannot be deleted.
It is recommended that the Admin change the password for extra security.
Admin can designate a new user with different permission levels by: functions, menu access, and live & playback.
“Function” options restrict a user’s access to functions such as search, PTZ control, backup, and playback.
“Menu Access” options restrict a user’s access certain menu settings, like system, device, record, network, backup, and quick

setup.

“Live & Playback” options restrict a user’s viewing of the deselected channels. If a channel is deselected, user will not be able to
view live or playback for thet certain camera channel

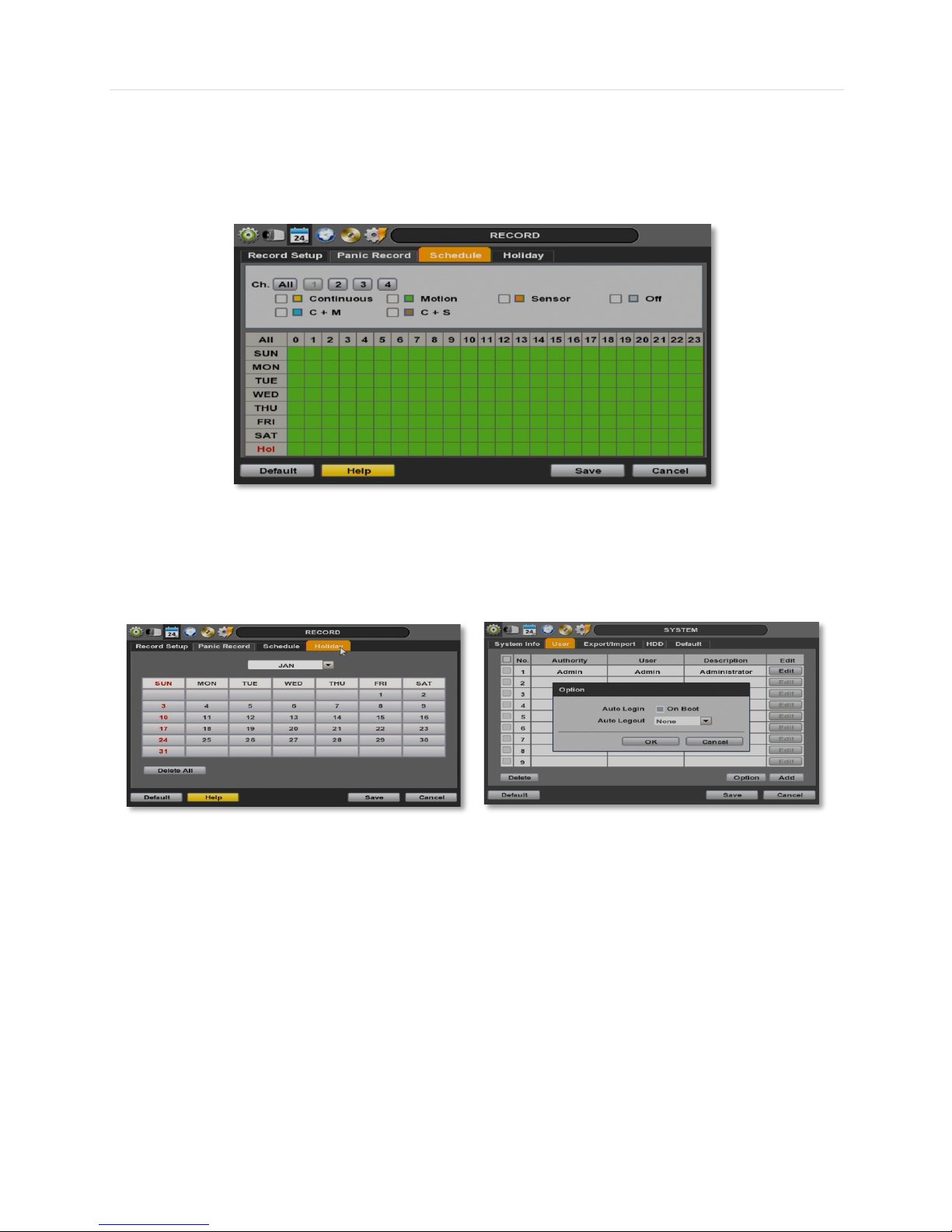

User can change the setting, so the DVR does not require login or lock the DVR control.

If user selects “On Boot”, the DVR will not ask for an ID and Password input again even though the system reboots.
On the contrary, if user selects Auto Log-off and sets the time, the DVR will automatically go to the live display mode that

occurs after the set time. Then, the DVR will ask for an ID and Password input when user wants to control the DVR.

NOTE

Total number of users inc l udi ng administrator is 9 users.

35 | Full HD Digital Video Recorder

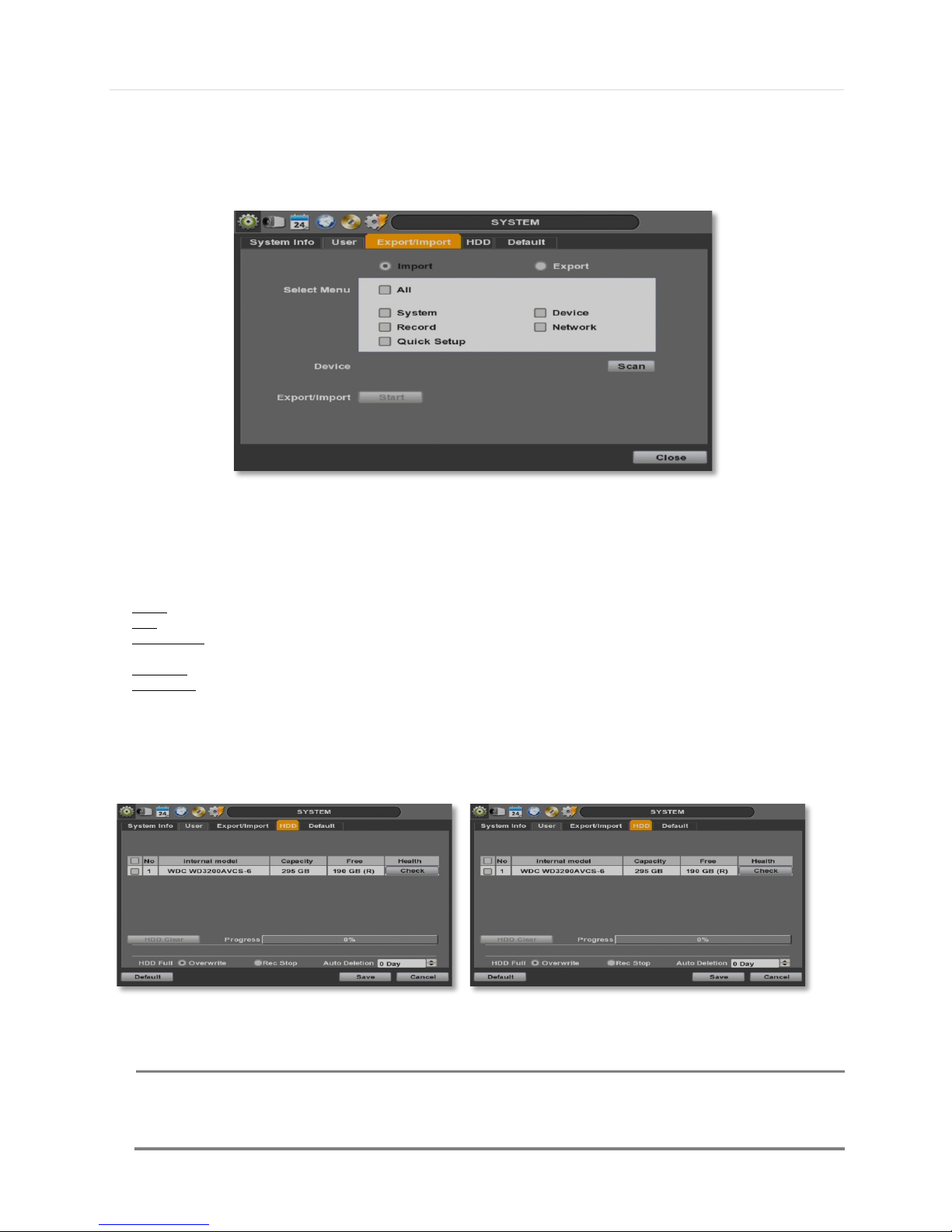

4.1.3 Export/Import

Users can copy and paste the system configuration values in this menu. “Export” allows the user to copy the settings for this
system to USB memory devices. “Import” allows the user to recall the settings saved from other systems using USB memory
devices. During import process, make sure that the firmware version of source DVR is the same as the destination DVR.

4.1.4 HDD

HDD information sub-menu displays all relevant information regarding all HDDs connected to the DVR.
Press the ‘Check’ button next to the HDD’s name to view that HDD’s health status. When pressed, the system will display:
Model: Make and model name of the Hard Drive.

Size: T otal size of the Hard Drive, in KB.
Temperature: Hard Drive’s current Temperature, displayed in Celsius. Normal operating temperatures should be between 30°
and 45° degrees.
Live Time: Remaining estimated hours of operation.
Bad Sector: any unusable areas in the HDD that may affect recording, displayed in percentage of the total HDD.

User can select “Overwrite” or “Rec Stop” when the HDD is full. If ‘Overwrite’ is selected, when the HDD is full, new video will
be recorded OVER older data. If ‘Rec Stop’ is selected, the HDD will stop recording any data once it’s full.

T o format a new HDD or an existing HDD, check the checkbox next to the HDD you would like to format, and click “HDD
Clear”

If system resources are occupied with task, such as making a network connection or performing video playback during the format
process, the format may fail. If the format fails, reboot the system resources and then try to format again.

N

OTE 1) Formatting may take around 40 sec for 320GB, 1 minutes for 500GB, or 7 minutes for 2TB.

2) The system always reserves a maximum of 20GB of space in each built-in HDD to utilize the memory for
archiving effectively.

3) Available 2 HDDs installation on 2 HDD CASE models only.

User’s Manual | 36

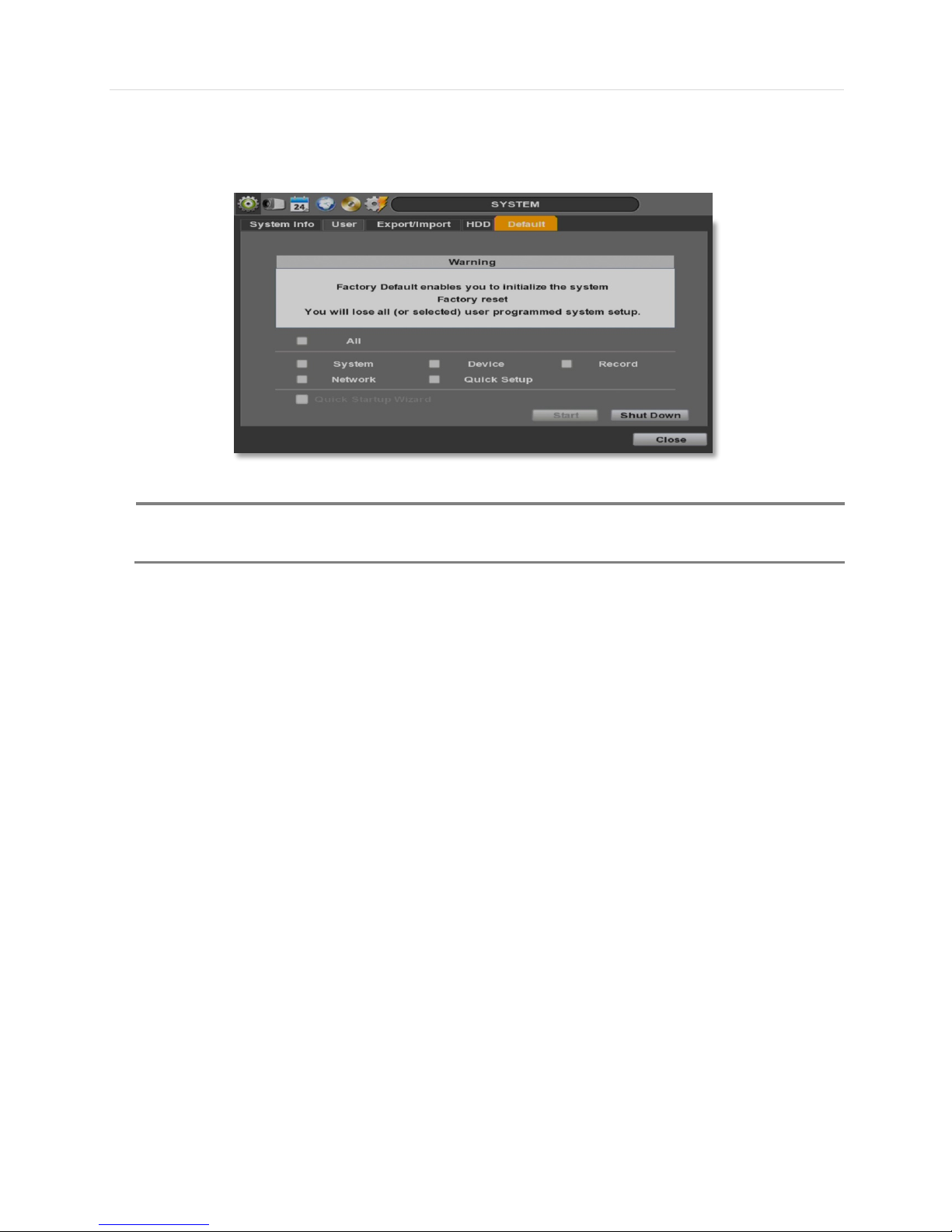

4.1.5 Factory Default

With an authorized password, users can get the system back to factory default configuration.

N

OTE Upon clicking “Start” button and entering the admin password, all the configuration val ues made by the

user will be deleted. The system setting will be sent to factory defaults. The recorded video data will not be

erased.

37 | Full HD Digital Video Recorder

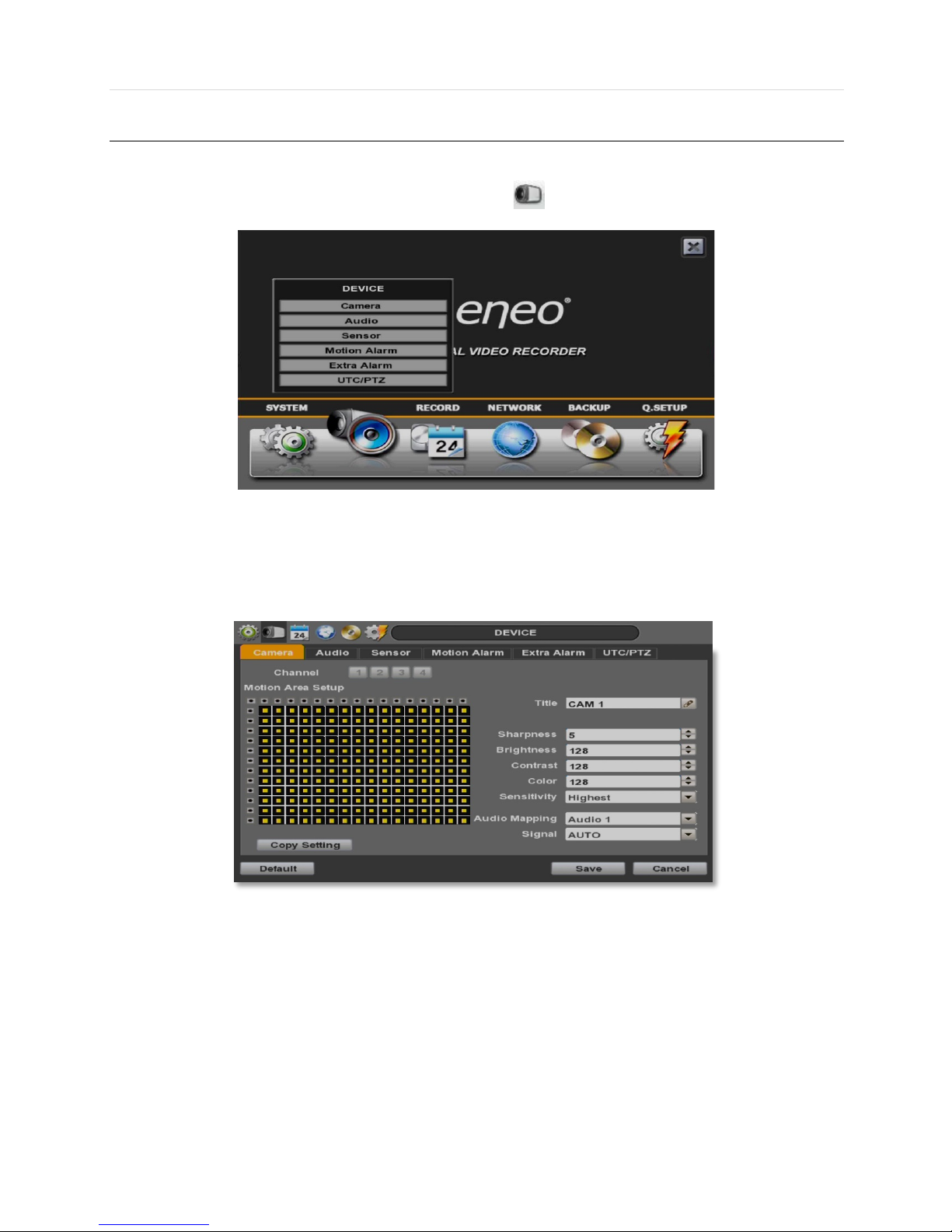

4.2 Device

There are sub menus in the Device menu, such as Camera, Audio, Sensor, Mot i on Alarm, Extra Alarm, and PTZ.
Users can easily move to the “Device” menu by selecting the icon on the top right of the menu screen.

4.2.1 Camera

Users can setup camera title, brightnes s, cont rast, moti on sensitivi ty, and audio mapping for each camera.
The default motion area setup is the entire camera area.

User’s Manual | 38

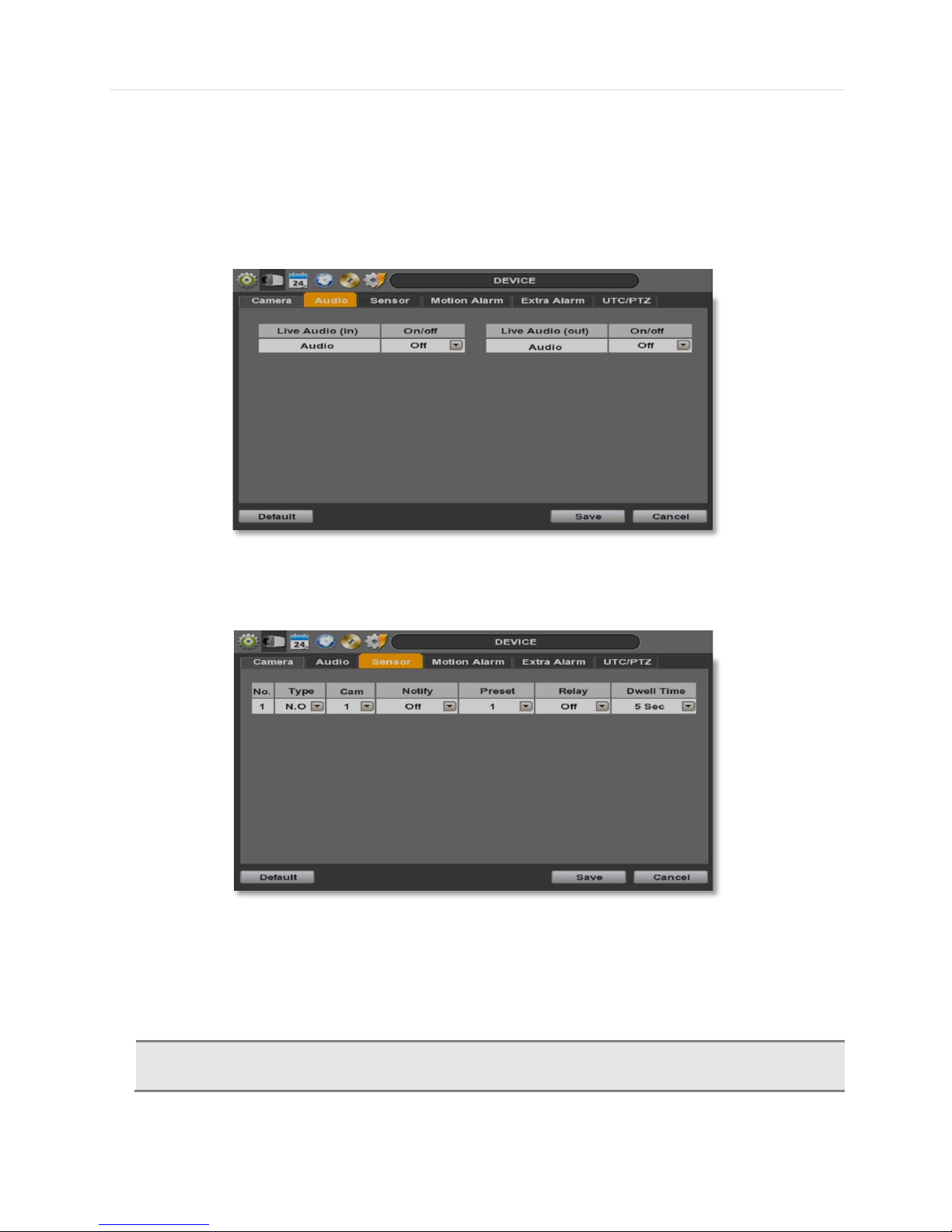

4.2.2 Audio

Users can select the audio input and output during live display and match the audio input to a designated channel. (Please
refer to Section 4.3.1 Camera Record). Adjust the audio volume using the volume control panel, enable or disable audio
recording for each channel, and enable or disable audio during live video.

In addition, users can listen to the audio for both live display and playback mode through the network using Central Monitoring
Software (CenPro), or Internet Explorer web browser.

4.2.3 Sensor

 Type- OFF, N/O (Normal Open) , N/C (Normal Close) The Sensor.
 Cam- Select the associated camera.
 Notify- Users can select how to be alerted when a sensor is activated or motion is triggered by pressing the

“NOTIFY” button. The system can generate a buzzer sound and/or make a pop-up screen for the camera in
alarm.

C

AUTION Relay contact can handle up to 24VDC/1A(or 125VAC/0.5A) of other devices. If connected to a circuit

that is over 24VDC/1A(or 125VAC/0.5A), the system may experience problems.

39 | Full HD Digital Video Recorder

 Preset- User can select the camera to move to a preset position, once the sensor is triggered. (User should

setup preset position in PTZ menu 4.2.6 in advance). In addition, users can set multi-preset with a single PTZ
camera. Therefore, users can cover a multi-preset zone with a single PTZ camera.

 Relay- 1 /Off Relay Output.
 Dwell Time- Set the recording period from the start of sensor input activation. During this period, the

corresponding camera video will record according to the frame and alarm (relay) output set. The recording stops
and alarm output is turned off when the dwell time has elapsed.

NOTE

“Sensor” here means the alarm connected to the DVR, which is triggered by physical sensor input.

N

OTE If the sensor does not operate properly check the setting of the sensor type (N/O or N/C).

The alarm might not function if the actual connecting sensor type and the sensor type in the system setting

are inconsistent.

N

OTE “Camera pop-up” means that multi-screen live video mode will be switched automatically to single channel

mode, when an alarm is triggered. This single channel video will be the channel triggered by alarm.

User’s Manual | 40

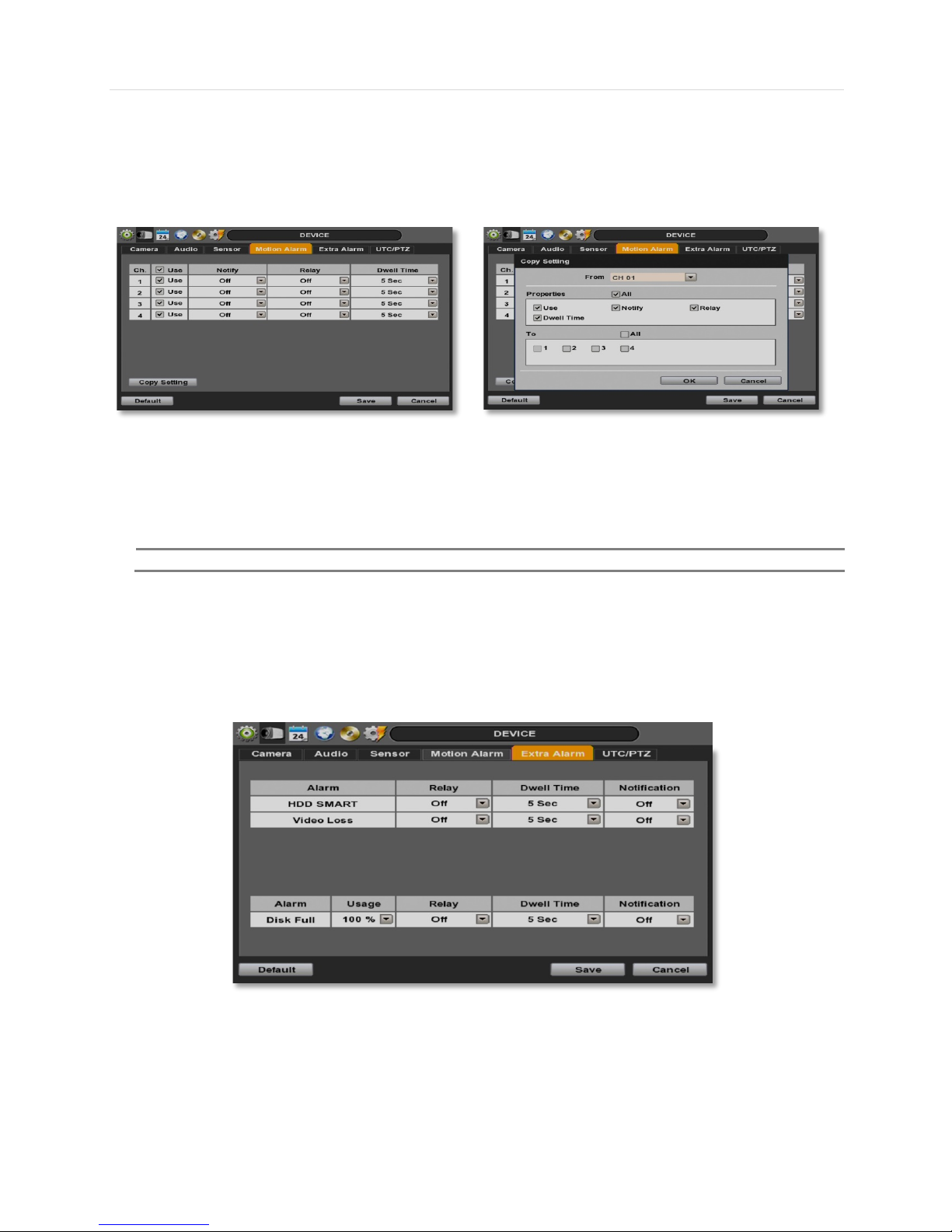

4.2.4 Motion Alarm

Select Motion alarm to record only when motion detection is triggered by DVR S/W upon user’s defined motion area.
An alarm signal is sent via the selected sensor-out channel.

 COPY SETTINGS

Upon pressing Copy Settings button, Copy Settings popup will appear. In this popup, choose the camera the
user wants to copy from at the “From” field. Choose the parameters such as Use, Notify, Relay, and Dwell Time
on the check box. Check on the checkbox next to the sensor numbers to apply the copy setting(s) to another
channel on the “To” box.

4.2.5 Extra A larm

S.M.A.R.T. alarm is an alarm signal triggered when the HDD is about to be out of operation.
This alarm is created by the HDD and captured by DVR. If the HDD does not create this alarm, then the DVR also cannot

capture and output this signal.

Users also set the percentage for HDD Usage. For example, when Usage is 50%, DVR will notify by a camera popup or a
beep sound when HDD is 50% full.

NOTE

“Motion Alarm” here means alarm triggered by motion detection set by motion menu of DVR.

41 | Full HD Digital Video Recorder

4.2.6 PTZ

1) Connect PTZ

Full control and setup of supported PTZ cameras is available in this menu. For more information on controlling PTZ cameras
in live mode, see section 3.4 PTZ. Use this setup menu to setup a PTZ camera, adjust the camera’s zoom, focus and iris (on
supported models), adjust the pan, tilt and zoom control speed, or setup presets pan, tour and guard schedules.

Adding a PTZ camera: Once a PTZ camera is properly connected to the DVR using the RS485 ports, go to the PTZ setup
menu and adjust the following values:

 Protocol- Select the proper protocol of the connected PTZ camera from the supported drop down menu options.

- PELCO-C AHD : All AHD protocol

- PELCO-C TVI 1 : This is PELCO-C protocol and to enter the access by Iris Open.
And the other control is same as PELCO-C TVI 2

- PELCO-C TVI 2 : This is PELCO-C protocol and to enter the access by Preset 95

- TVI-C : Hikvision TVI protocol

 Address- Set the PTZ driver address of the connected camera. This address must match the PTZ’s address.
 Baud rate- User can select the baud rate level from 1,200bps up to 115,200bps.
 Troubleshooting- if the camera is unresponsive, check the following:

1. The protocol of the PTZ camera is correct and matches the one selected on the DVR.

2. The communication settings, including the baud rate, of the PTZ camera are in accordance with the assigned values
on the DVR.

3. The address of the PTZ camera is correct and matches the one selected on the DVR.

4. The wiring to the PTZ controllers are correct and the cables are intact.

2) PTZ set up

 Controlling a PTZ camera: To check the ‘USE PTZ MENU’ mode on the UTC/PTZ tab. Once the camera is properly

connected and configured, use the following setting options as needed:

 Zoom, Focus and Iris- on supported models, use the + and –to adjust the camera’s lens.
 Directional arrows- use these arrows to move the camera to a desired position or control the camera’s OSD menu (on

supported models).

 Pan, Tilt and Zoom speed- Use the bars for each option to adjust the control speed. The higher the number, the more

sensitive the camera will be to control commands from the DVR, and move faster.

User’s Manual | 42

PTZ Control mode

If it checked on the control, it keep move on the way.

Control any supported PTZ cameras by moving the mouse pointer.

Focus

Iris Select the preset number and ‘Set’ button, ‘Move’ button is move to setting area

Activate the PTZ menu

Enter

Zoom In/Out

4.2.7 UTC

1) UTC set up

UTC is remotely set to camera OSD menu in the DVR. Select the proper protocol of the connected camera. Non-check the
‘USE PTZ MENU’ mode, set the menu and adjust as below.

 Menu : Activate the camera OSD menu for setup and adjust

 Up/Down arrow : move to categories

 Right/ Left arrow : Adjust the camera settings

 Enter : Select the camera settings or enter the subcategories

2) To use UTC in the Live Mode

Select the single channel which adjust the camera set and change the PTZ Control mode.
Click the “+” at the center of screen for activating UTC

43 | Full HD Digital Video Recorder

4.3 Record

Users can configure various record settings such as Continuous, Event, and Panic for each individual camera channel in the
Record Setup Menu. Network Stream settings are independently configured from the Record settings in this menu as well.
Therefore, the user can optimize the bandwidth used by configuring the resolution, FPS, and image quality separately.

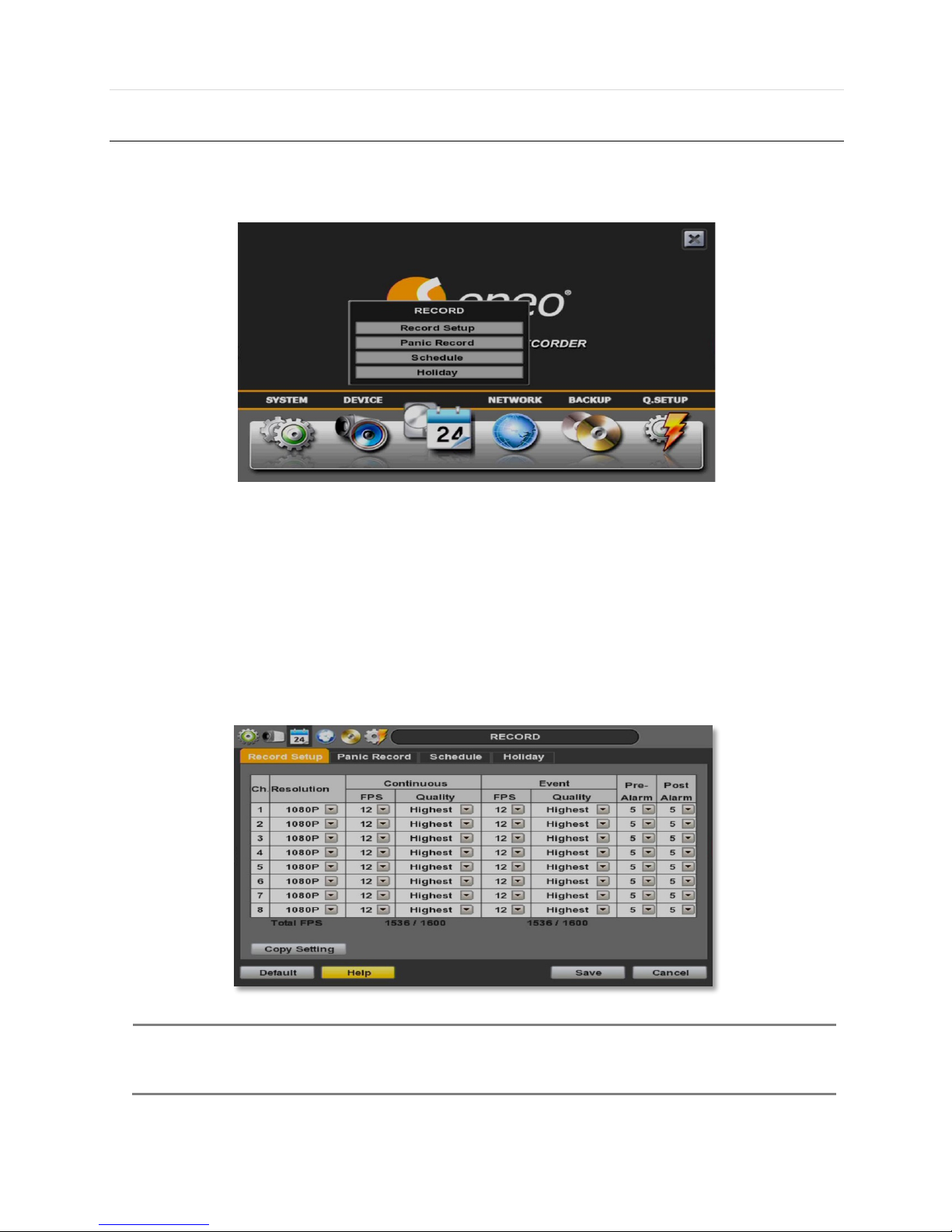

4.3.1 Record Setup

1. Locate RECORD icon from the main menu.

2. On the Record window Click on Record Setup tab.

3. Choose the desired resolution, frame rate, quality and recording type for continuous recording.

4. Choose the desired frame rate, quality and recording type for Event recording.

5. Configured each channel separately, or use the copy settings button to apply one channel’s settings to multiple channels.

NOTE

COPY SETTIN GS- Copy Settings popup allows you to choose the camera you want to copy from in the

“FROM” field. Choose which settings you want to copy , such as Resolution, FPS, Quality , Event FPS, Event
Quality, PreAlarm and PostAlarm. Check the checkbox next to the cameras to apply the copy setting(s) to

another channel on the “To” box. channel on the “To” box.

User’s Manual | 44

Users also have the option to configure Panic Record settings. The Panic Record setting is intended to be used under
emergency situations. You engage Panic recording by pressing the “Instant Record” button on the frontal keypad, or

clicking the icon from the control panel in live mode. It is highly recommended to use the maximum resolution, FPS, and
quality for this record type.

45 | Full HD Digital Video Recorder

4.3.2 Schedule

Y ou can set up the record schedule by applying a various record modes to each date and time. Simply select a record mode
by mouse and drag it to the desired date and time.

4.3.3 Holiday

Users can setup a specific day of a month or day of week as a holiday as shown below . Once holiday is selected, the
recording setup for those holidays will be affected by the schedule setting in the schedule.

User’s Manual | 46

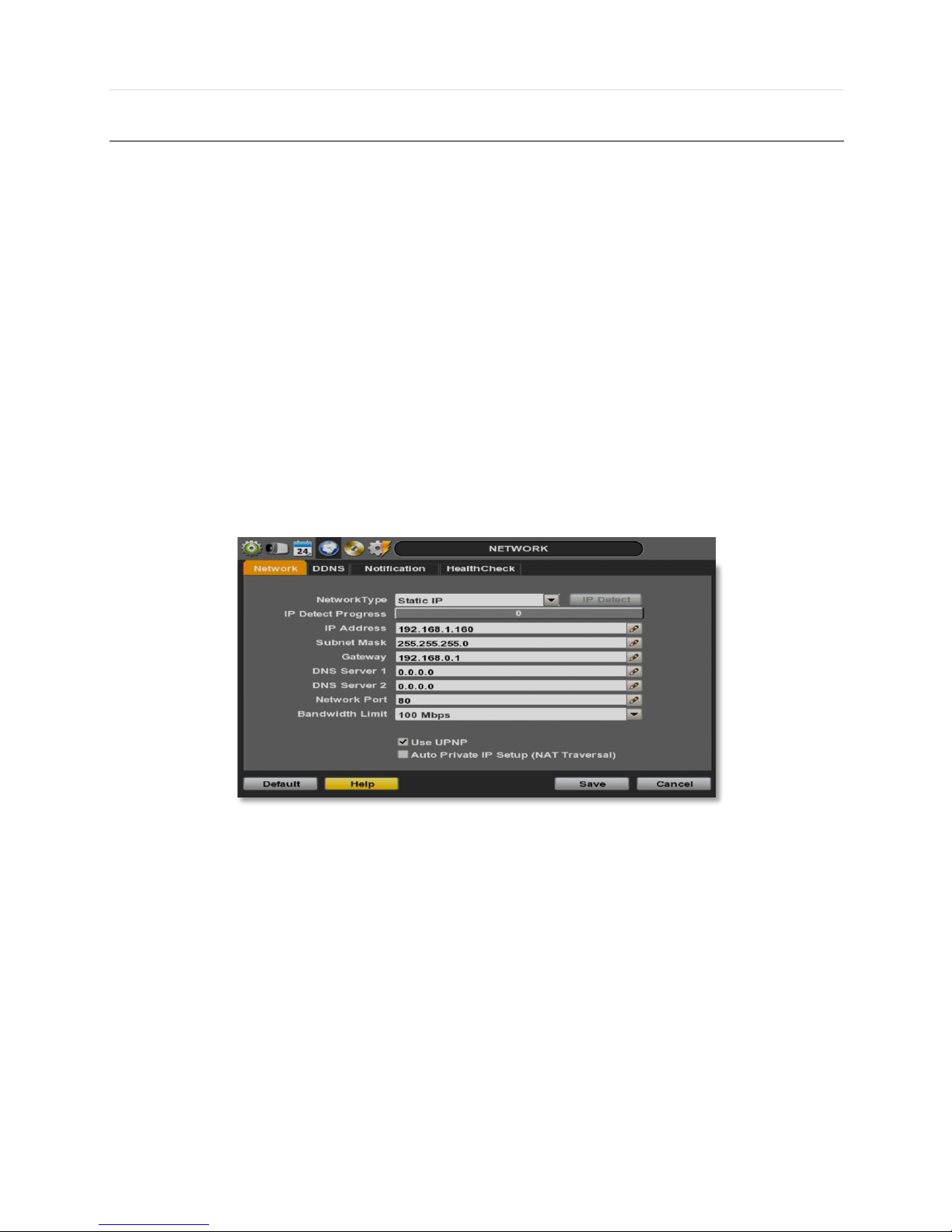

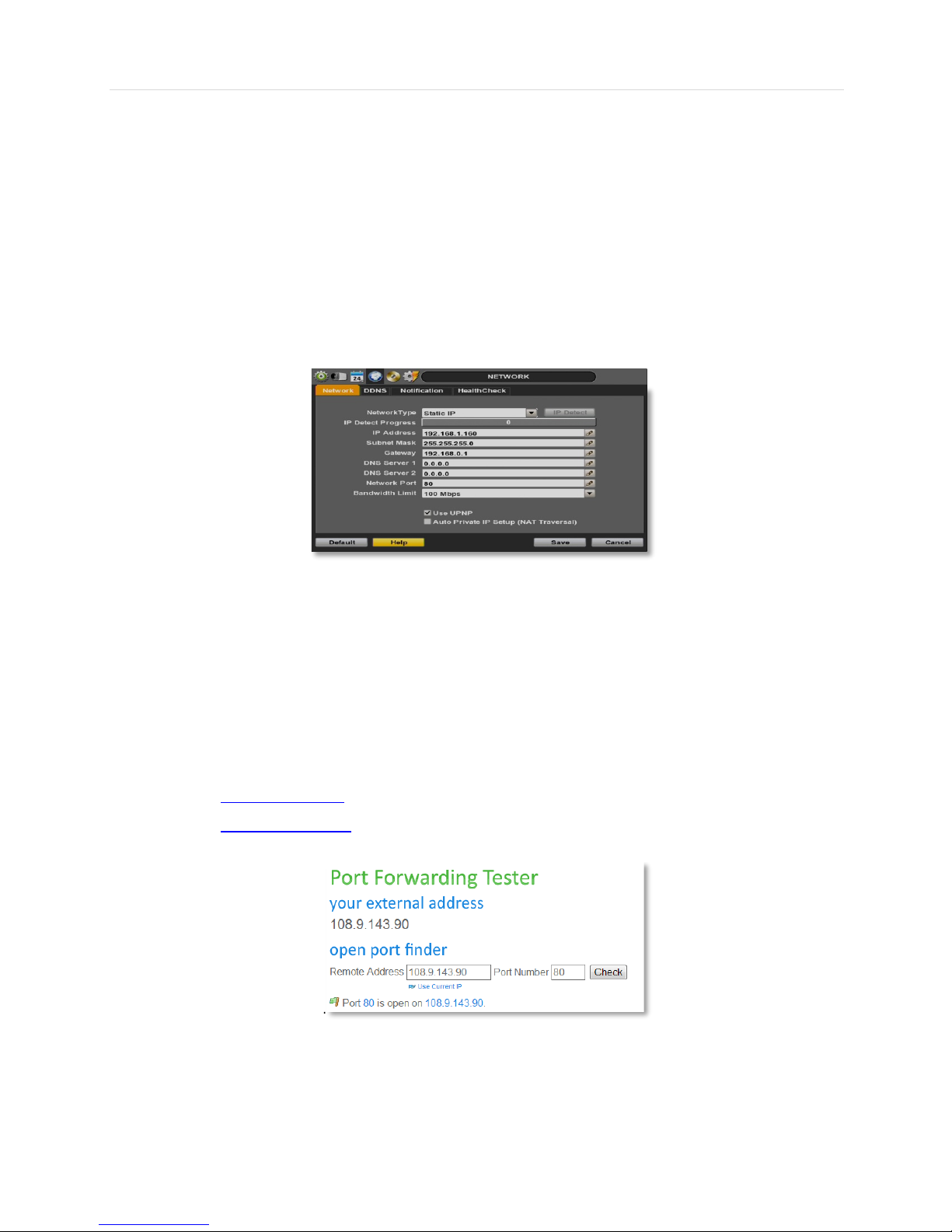

4.4 Network

4.4.1 Network

The system has built-in web server.
 ETHERNET

- DVR network system

- ETHERN ET L AN p ort
 Network Type
Select network connect type. Select either LAN for fixed (Static) IP or DHCP for dynamic IP.

If DHCP is se lect ed, click ‘IP DETECT’ button to detect IP address information.
 Subnet Mask
Subnet Mask address classifies the subnet that the system belongs to. Standard address is 255.255.255.0. For more

information, please consult your network administrator or your internet service provider
 Gateway
This is the IP address of the network router or gateway server. It is required when the user wants to connect through the

external router from the remote. For more information, please consult your network administrator or your internet provider

 DNS Server
Enter the IP address of the Domain Name Server. There are two DNS settings. (The preferred DNS and the alternative DNS)

*Y ou should enter the DNS Server information in order to use internet. (Provided by your ISP)
 Network Port
Enter the port number to use when connecting locally or remotely, or to mobile phones or WebACS.
Enter the port number to use when connecting from the Web Browser.

 UPnP (Universal Plug and Play) and Auto Private IP Setup (NAT Traversal)
UPnP stands for Universal Plug and Play, which is a relatively new technology that indicates a universal protocol for

widespread plug-and-play devices to ease the network implementation. When a PC and a DVR both installed the UPnP
function, the PC can automatically recognize the DVR in the same local area network. The advantage of this function is that a
PC can connect to the DVR directly by clicking on the icon representing the DVR in <My Network Places> folder as shown
below. The first five characters of the file name of a detected DVR is subject to a firmware version

47 | Full HD Digital Video Recorder

DVR-04 DVR-05 DVR -06

Simply double click on the desired icon. Then, it will open an internet browser that connects to the DVR via the remote control
software as shown below. Please type in your User ID and Password to login and click ‘Connect’ button to connect.

 Auto Private IP Setup (NAT Traversal)
The UPnP NAT T raversal function will help to automatically setup a router if the DVR connects to the internet via a router.
When a PC connects to a DVR, which is not in the same local area network, a real IPO address and corresponding port

number is required. However if the DVR is behind a router, the communication between the PC and the DVR will be
transmitted back and forth by the router. The router will need to setup port mapping (Port Forwarding) before images from the
DVR is remotely viewed on the PC. For each individual DVR, the setting needs to be done individually.

If the DVR has UPnP NAT traversal function, the setting of the router will be done automatically when it is enabled.
Just check ‘Auto IP (NAT Traversal)’ check box in the UPnP setup menu. Then it will take care of Auto IP detect by itself.

N

OTE The system transfers video images at real-time over the network even during no record.

For example, user can monitor live video even when motion has not occurred during motion detection

mode.

N

OTE If there is no physical network connection, it may take a few minutes for the system to start working, since

the network configuration in DHCP mode and the DHCP connection cannot be made.

User’s Manual | 48

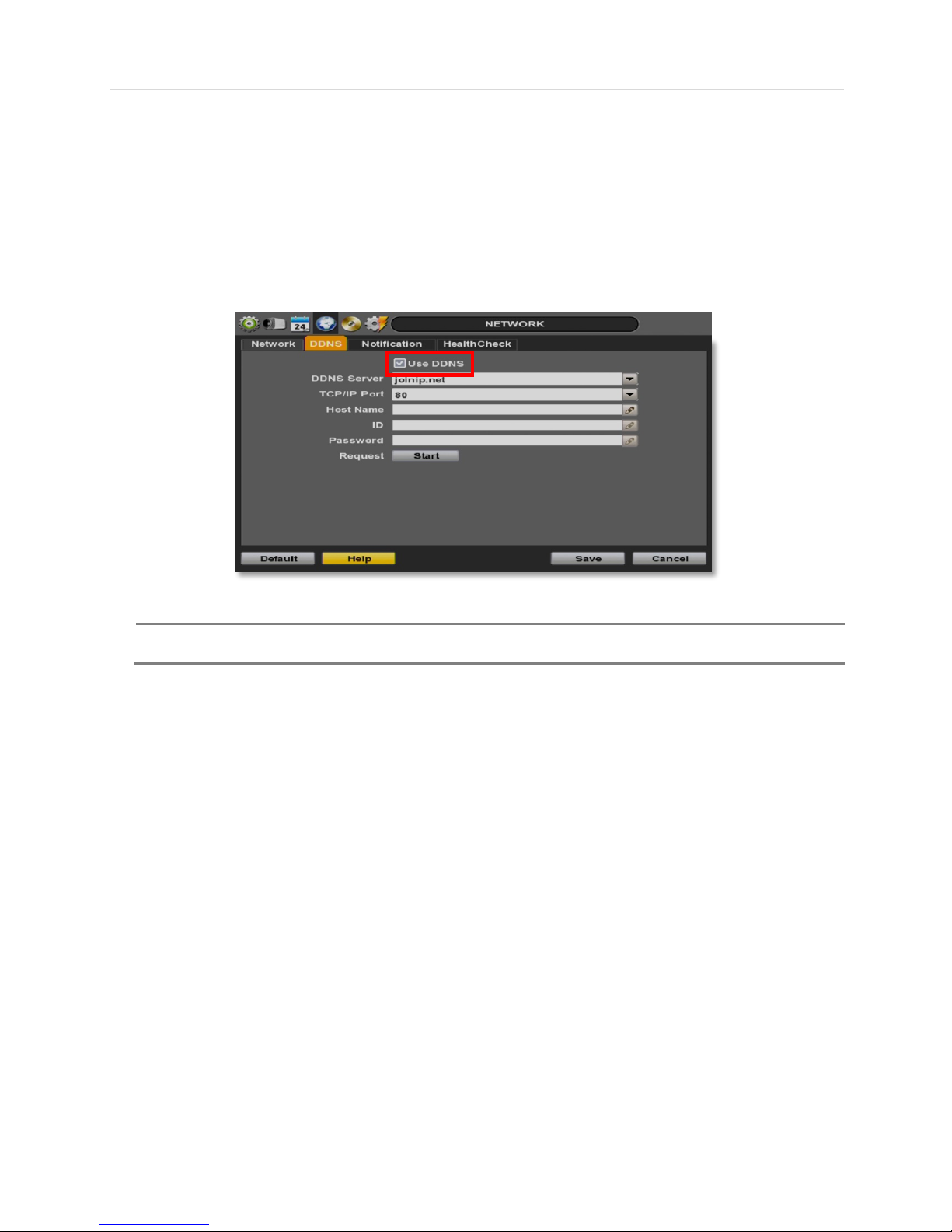

4.4.2 DDNS

The User has to mark the “Use DDNS” check box to use it.

 DDNS Server
Joinip.net or joinip2.net is the fixed domain name of DDNS server
User cannot change the DDNS name.

NOTE

The standard DDNS domain name is joinip.net, and users can use joinip2.net or dyndns.com by

drop-down list.

49 | Full HD Digital Video Recorder

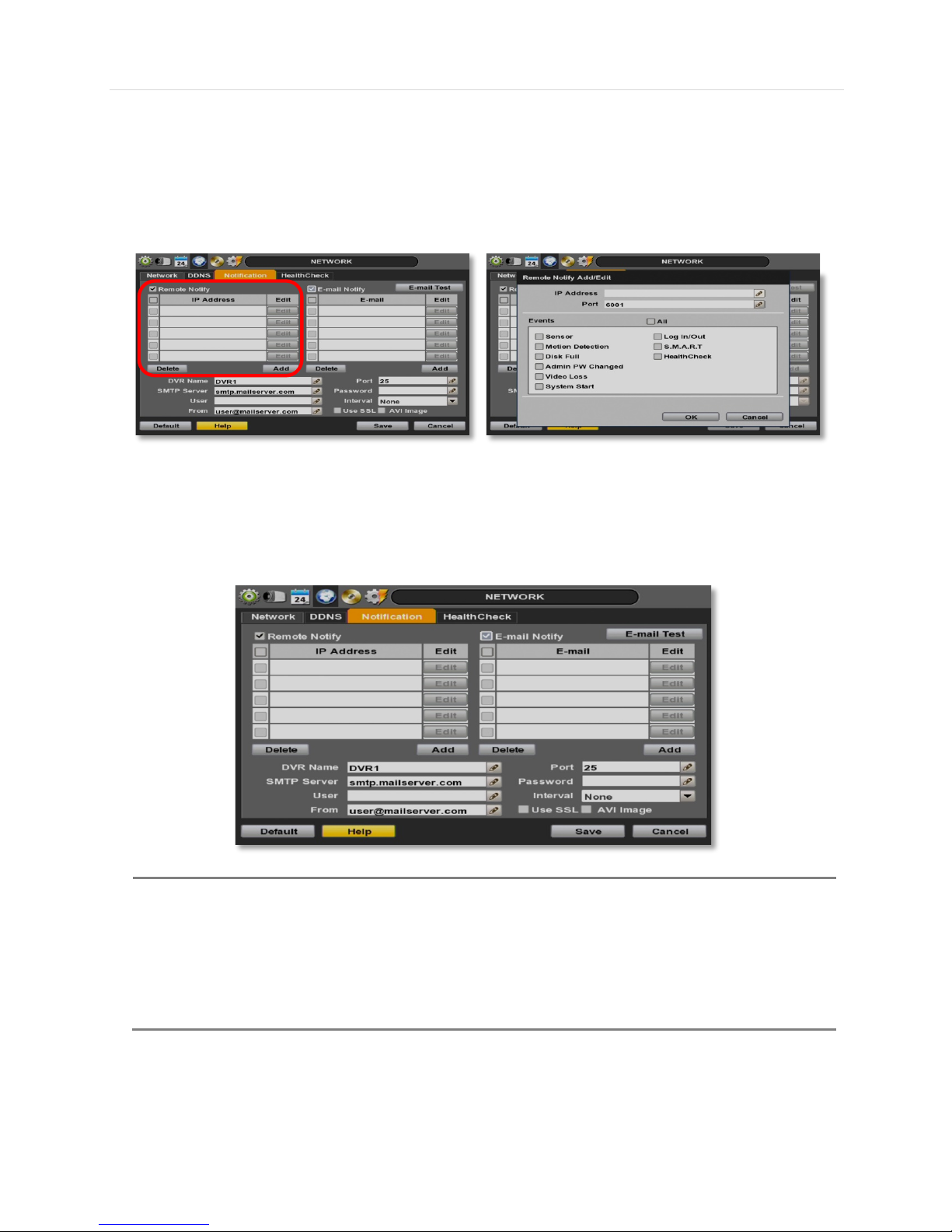

4.4.3 Notification

 Remote Notify
The system can notify an alarm message to the IP address of CenPro Software over the network.
User can choose from a selection of different kinds of alarms by pressing “ADD.” Alarms can be generated by Sensor,

Motion Detection, Disk Full, Admin PW Changed, Video Loss, and System Start.

 E-Mail Not ify
The system can send notification to an Email address the CenPro Software over the network. User can choose from a

selection of different kinds of alarms by pressing “ADD.” Alarms can be generated by Sensor, Motion Detection, Disk Full,
Admin PW Changed, Video Loss, and System Start. By clicking “Use SSL”, users can use a public email address such as
Yahoo, Google, Hotmail accounts. T ype DVR name in the “DVR Name” box. The DVR name will appear in the email so that
users can recognize which DVR sent an email.

N

OTE Configuration’s first priority is always given to “Schedule Setup ” of the “RECORD” menu.

Thus, the system will not send alarm message or email notification upon motion alarm or sensor even
though user marks the checkbox of above event selection, unless user sets the “Schedule Setup” in the
“RECORD” menu.
For example, if user sets “Continuous” only for “Schedule Setup ” of the “RECORD” menu and marks
the “All” checkbox in “REMOTE NOTIFY”, then the system will not send alarm messages. In this case,
user has to set “C + M”, “MOTION”, “SENSOR” or “C+ S” for RE M OTE NOTIFY or E-Mail NOTIFY to

function properly.

User’s Manual | 50

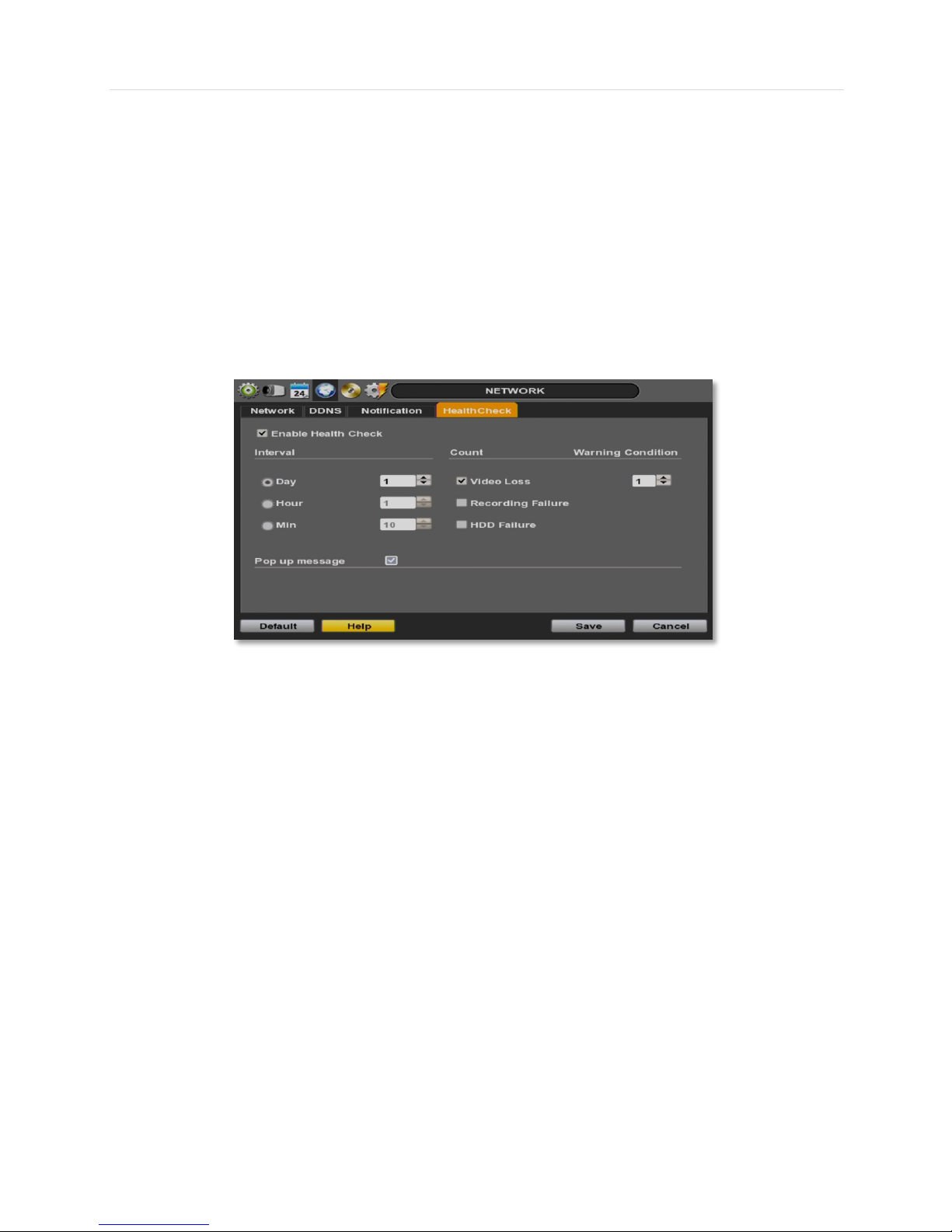

4.4.4 Health Check

The DVR offers a uniquely true DVR health monitoring, with pop-up
messages and e-mail notification on video loss, recording failure, and HDD failure.
To setup:

1. Check the box next to "Enable Health Check"

2. Check the box next to the conditions you would like to be notified on.

3. Set the occurrence intervals.
(For Example: when video loss occurs more than1 time a minute)

4. Select whether to receive a popup message when conditions are met.

5. Go to Network Notifications.

6. Under e-mail notifications, make sure the Health Check option is enabled.
When any of the failures occur beyond the set conditions, the system will display a

popup alert and send an e-mail notification.

51 | Full HD Digital Video Recorder

4.5 Backup

4.5.1 Backup

Users can archive a video clip recorded for a certain period on a selected channel or channels as shown below.
Connect an appropriate USB memory device, like USB thumb drive, USB HDD, or a built-in CD or DVD burner and press

“SCAN” button to get the system to recognize it before archiving. Necessary file size will be shown before burning.

N

OTE Backup device shall be a well-known major brand of USB thumb drives formatted by FAT/FAT32 for proper

backup.

N

OTE User can easily backup video in “Quick Backup” during video playback. Refer to section 3.5 for quick

backup details.

NOTE

User can click the “Calculate” button to learn the backup file size before executing backup.

N

OTE User can rename the backup file name before starting backup process and also put a password in the

backup file for security purpose. In order to playback the file, user should input the password.

User’s Manual | 52

4.5.1 Backup Video Retrieve

There will be a single file after archiving, if “Auto Player” was selected.
User can double click “Player.exe” file to open the video data file (PSF format) in the folder.

User can print out, capture a still image, zoom out, or make an ASF file format, by using the icons located on top of the player
window.

NOTE

User also can play the backup-video clips by CenPro Software.

53 | Full HD Digital Video Recorder

4.6 Quick Setup

Quick Setup helps user make simple configuration for recording resolution, entire recording speed by frame, recording mode,
and recording periods.

The system will put the first priority for configuration on this quick setup and will follow this rule regardless of configurations set
in other menus. Users should not fill in the checkbox of Use Quick Setup if he/she wants to utilize full system configuration
defined in the other menus.

NOTE

Quick setup must be deactivated if the user requires configuration from the other menus.

N

OTE After the user marks “Use Quick Setup” to define settings, the system will ignore all other configurations

set by full menus.

User’s Manual | 54

5 WEB SURVEILLANCE

The DVR has a built-in web server.
Using an ordinary web-browser over a network, users can always stay connected to the system for live monitoring, playback,
or remote configuration without installing any remote client software.

5.1 Web Login

The user is required to input the correct IP address in the web browser after making the web port available in the router.
Please note, if you are connecting to the DVR from a remote network (via the internet), you must port-forward the
corresponding ports in your reouter before you can access your DVR.

For more information, see the Appendix section, and consult your Installer or Internet Service Provider .
After allowing the download of the Active-X file (see page 58 for more information), users can find the login page view seen

below. Default USER ID is “admin” and No password.

It is recommended to use an Internet Explorer web page.
To open the DVR’s web viewer on a Google Chrome web viewer, please install the IE Tab add on option.

Then, simply enter the DVR’s IP address or DDNS address in the address bar and click on the on the tool bar of
the web viewer.

55 | Full HD Digital Video Recorder

5.2 Web Configuration

Menu of Web Configuration

Main Classification

Sub Classification

SYSTEM

SYSTEM INFO

USER

HDD

DEFAULT

DEVICE

CAMERA

AUDIO

SENSOR

MOTION ALARM

EXTRA ALARM

RECORD

RECORD SETUP

PANIC RECORD

SCHEDULE

NETWORK

NETWORK

DDNS

NOTIFICATION

HEALTH CHECK

QUICK SETUP

QUICK SETUP

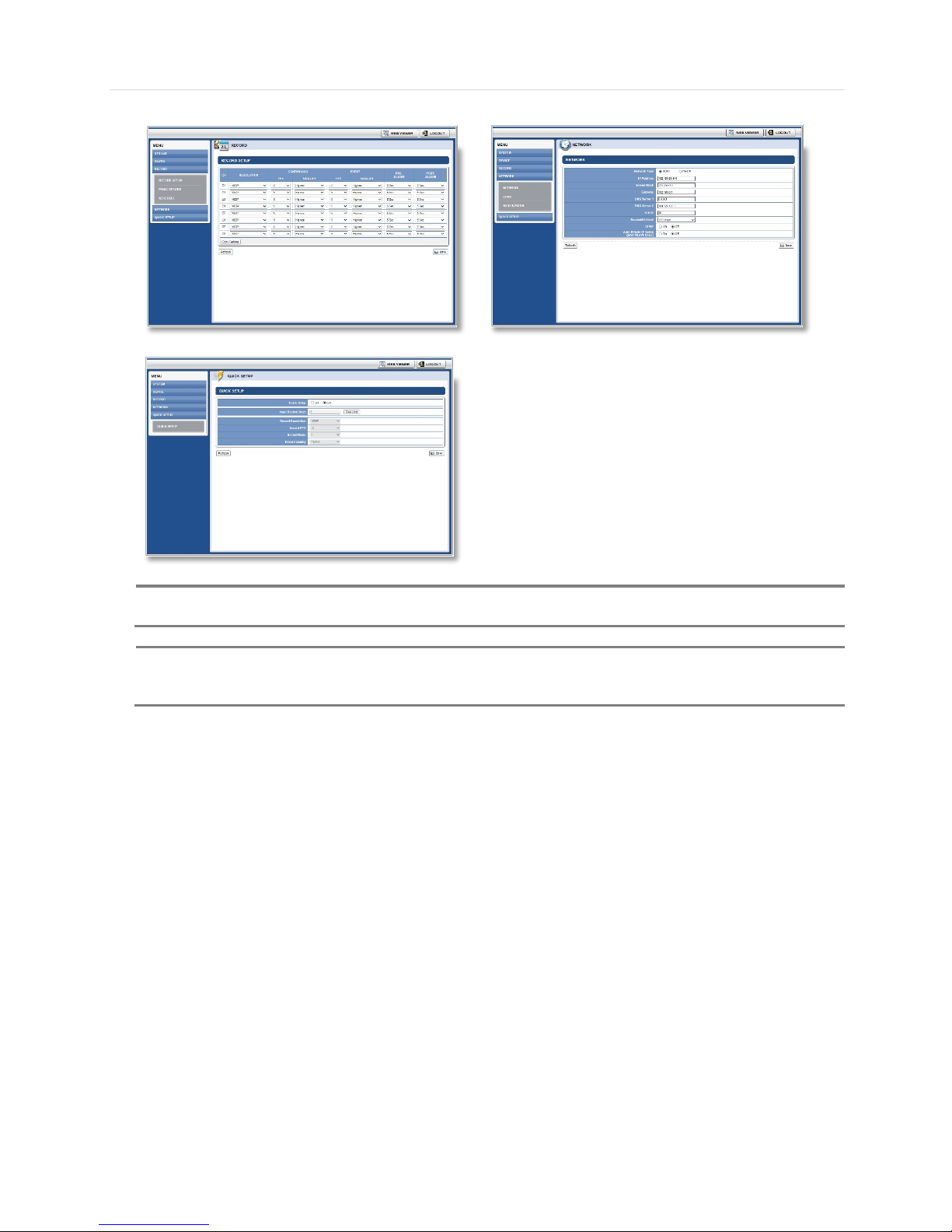

After logging in with the right ID and password, users can make various configuration changes in the Web Configuration
window seen below. This Web Configuration menu is only available to the “admin” account.

[System]

[Device]

User’s Manual | 56

[Record]

[Network]

[Quick Setup]

N

OTE This web CGI screen is directly supported from the built-in web server in the DVR, regardless of Internet

connection.

N

OTE <System Reboot> enables user to reboot the system without any changes to the setup.

When the network is disconnected due to abnormal operation of the system, user can use this function and

try to reconnect. However, the IP number assigned to the system may be changed due to the DHCP mode.

57 | Full HD Digital Video Recorder

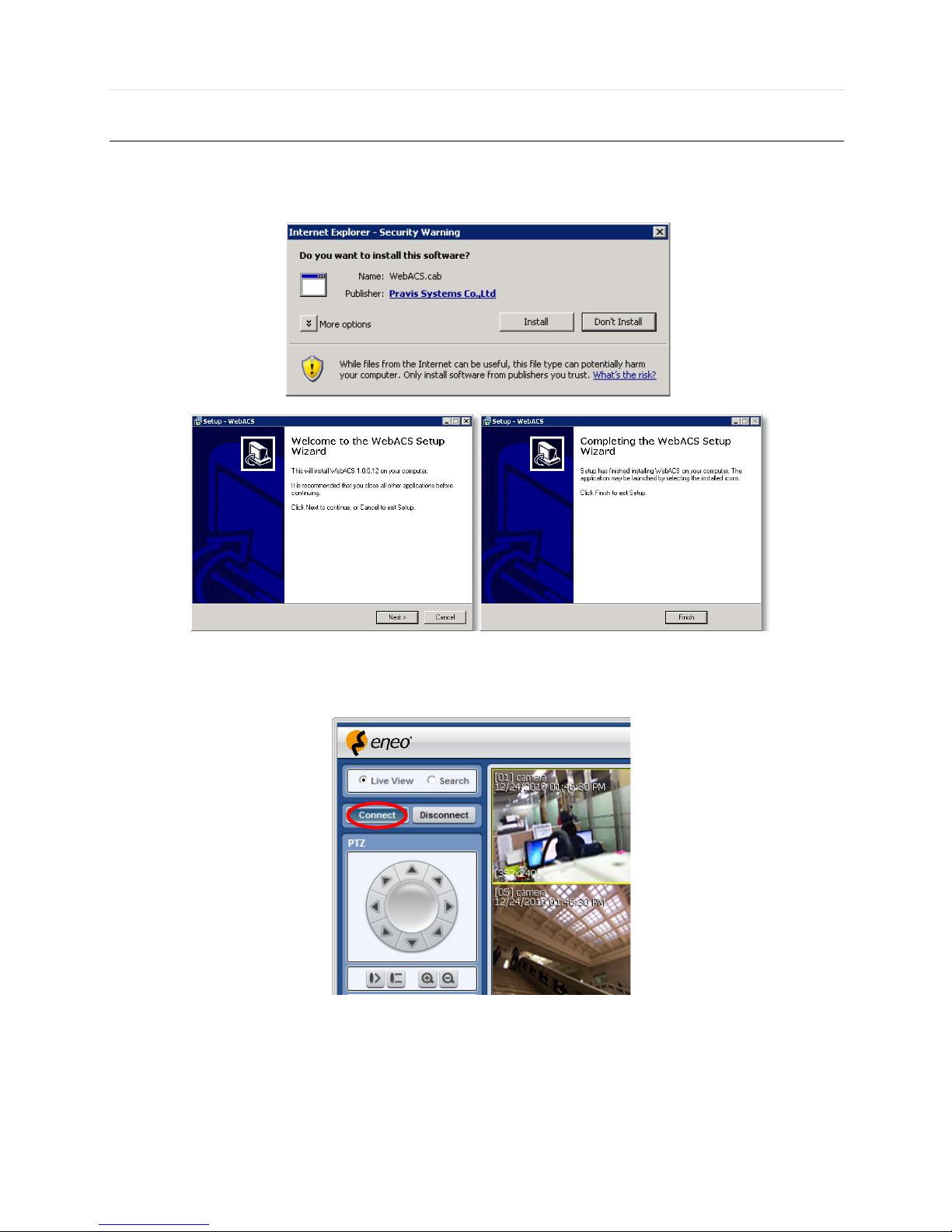

5.3 Web monitoring

The first time you access your DVR via the Web viewer , you will be asked to install Active-X file before monitoring live video.
Please follow the installation process to complete the Active-X installation. Without it, you will not be able to view video from
any of the DVR’s channels.

[Web Active X Install ]

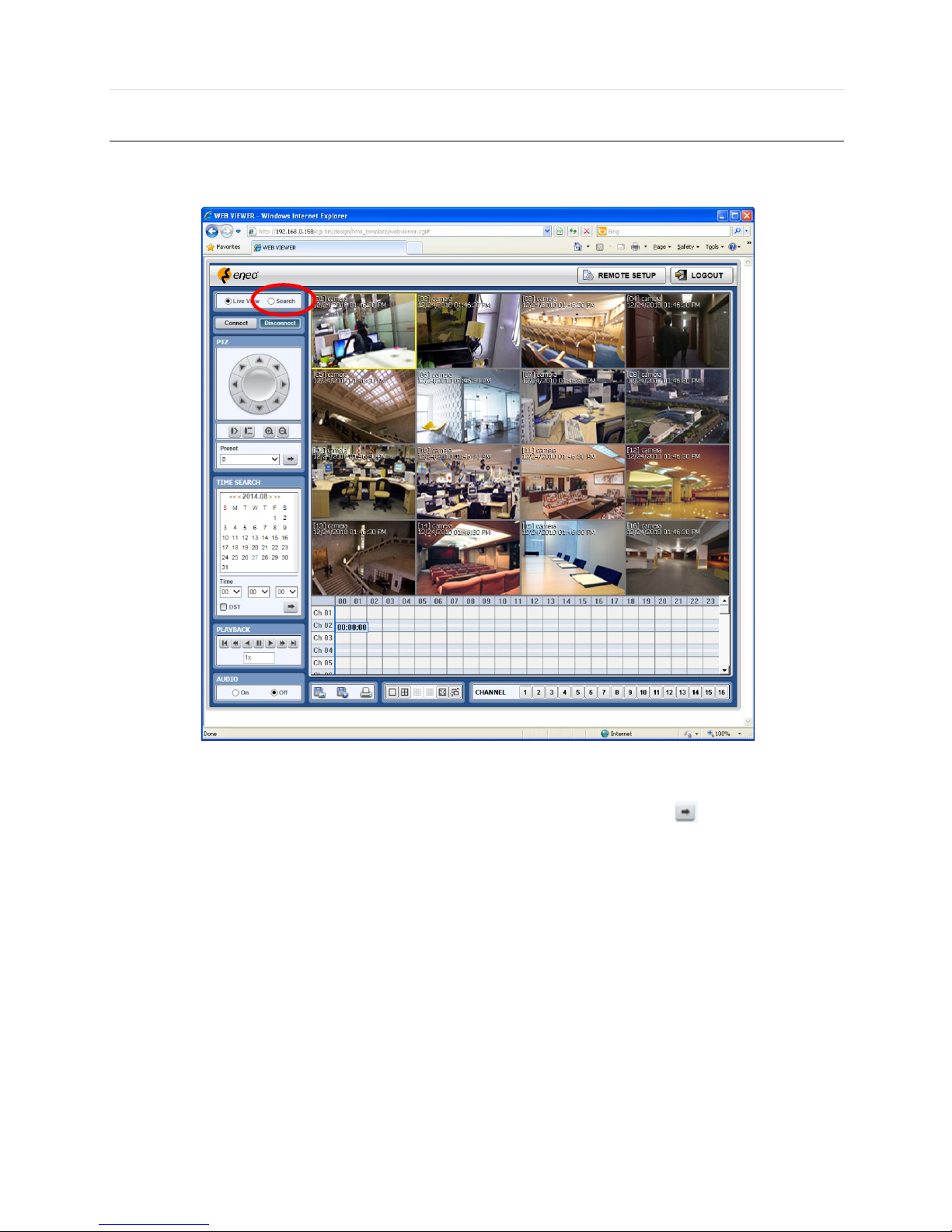

User can get into web monitoring after log in as shown below . In order to connect to DVR, the user has to click
“ Connect ” button which is located at the top left corner.

User’s Manual | 58

No. Title Function

1

Connection Mode

Select to view the DVR in Live or Playback Mode.

2

Connection Option

Select to Connect or Disconnect from the DVR.

3

PTZ

PTZ control options, including: virtual direction arrows, zoom and focus, and

preset.

4

Calendar

Date & Time search.

5

Playback Controllers

First data, fast rewind speed, play rewind, pause, play, fast forward speed, last

data.

6

Audio

Enable/ Disable audio.

7

Export Options

Export a still image, export a video, or print a still image with notes of a selected

channel.

8

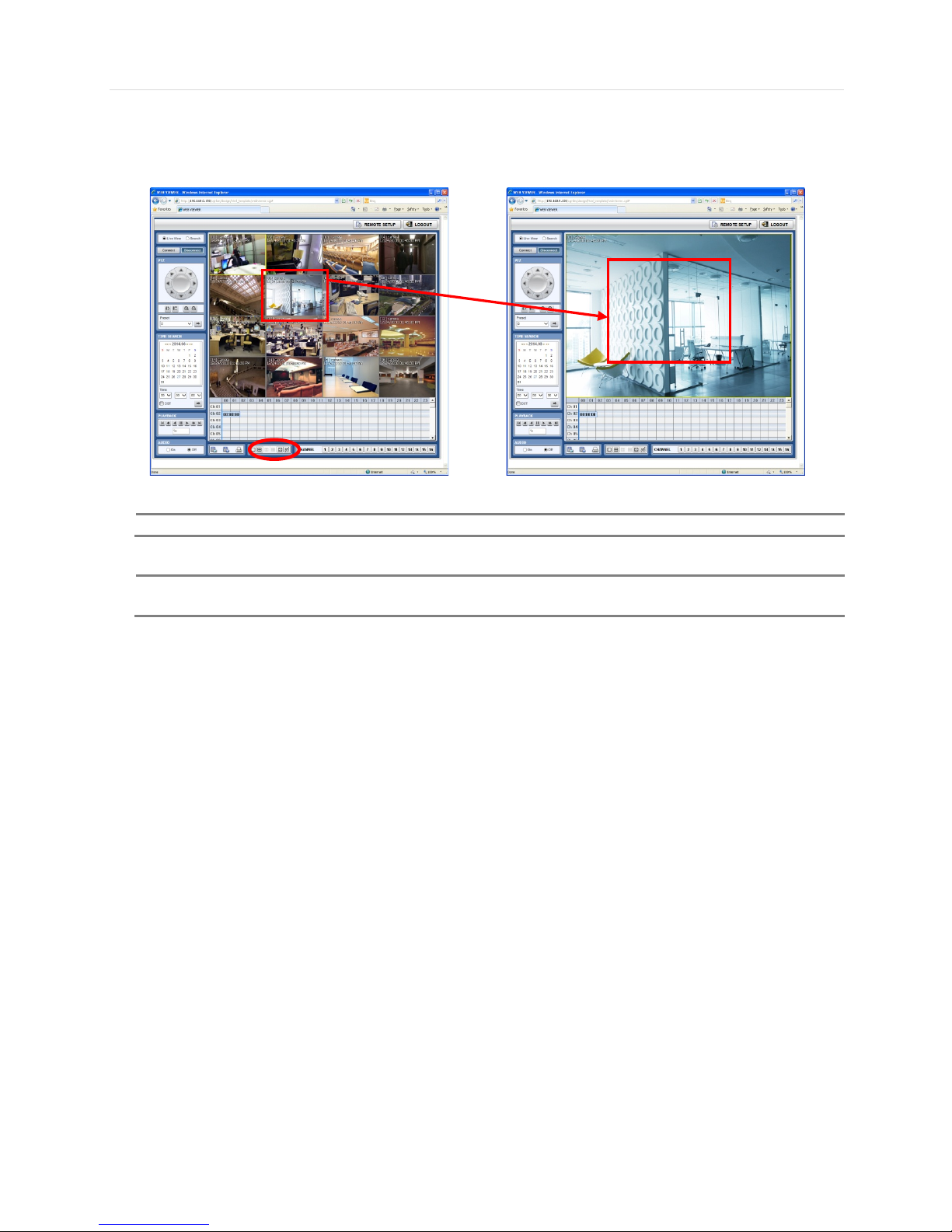

Display Options

Select single, 4-channel mode, 9- channel mode, or 16-

channel mode

(16-channel display will not be available on 8-channel models).

9

Channel Selection

Select manually a specific channel to go to single channel mode.

10

Time bar

In playback mode, indicates available recorded video for each channel for the

24 hours of the selected day.

11

Time indicator

Use the time indicator line to update playback video from a selected channel or

multi-channels.

12

Main Display Area

View live or playback from the selected cameras.

13

Remote Setup

Will open remote setup option (See 5.2 Web Configuration). Available for admin

users only.

14

Logout

Exit connection from the DVR.

①

②

③

④

⑤

⑥

⑦

⑧

⑨

⑩ ⑪

⑫

⑬

⑭

59 | Full HD Digital Video Recorder

User can monitor live video in 1, 4, 9 or 16 screen modes. If user wants to see single channel in full screen, user can
double-click on the left mouse button when the cursor is positioned on the live video screen. User can change to single mode
by clicking the mode icon located at the bottom left.

N

OTE If live image is not properly shown on IE web browser due to network traffic jam or narrow bandwidth, it is

recommended to close and re-open the IE web browser.

User’s Manual | 60

5.4 Web Playback

Users can remotely playback the DVR images by clicking “SEARCH” button in the middle of bottom window. In order to
connect to DVR, the user has to click “ Connect ” button which is located at the top left corner.

 Playback Time

Select the date and time on Time Search, located at the middle of left side of window, and click button.
 Playback Icon
Play/Pause is toggled and playback speed is shown on the left box.
 Play DST
Check this box to play overlapped images during DST (Daylight Saving T ime) period.
For further details, please refer to Section 3.7 (DST Setting and Image Playback)
 Intelli-Search Bar
User can move the blue vertical line to the time that user wants to search.
The colors of the time bar are different by each recording mode. Please, refer to Section 4.3.2 for details on color

61 | Full HD Digital Video Recorder

6 APPENDIX : NETWORK SETUP FOR EXTERNAL USAGE

Please note: The following information are general guidelines. These may vary by networkand router specifications. Contact
your installer or ISP for additional information.

If you are not connecting to your DVR from within the same network, you will have to perform port forwarding on your router to
be able to access the DVR externally, via the internet.

1. In the [Network] menu set “Network Type” to [Dynamic IP] and click [IP DETECT]. The system will automatically
detect the correct settings for the network where the DVR is installed.

2. Once the system generates all the information based on your network requirements, change the Network Type to
Static and save all the changes as static.
A static IP address will not be changed by the network. Contact your Internet Service Provider or Network
Administrator for additional information and to obtain a static IP address from them.

3. Some internet service providers block port 80 in their customer's routers. It is recommended to change the web
port number to 81 or 82.

4. Access your router by entering its external IP address in your web browser . This information can be found by
running an ipconfig command on your computer's Command Prompt. The router's external IP address is the
GATEWAY address.

5. Check the DHCP settings in your router and setup the DVR for external connections by performing port forwarding.
It is highly recommended that you contact your Network Administrator for more information and proper handeling of
your router. Port forwarding will tell the router that all data received via those specific ports, will be redirected to the
DVR. For the DVR, you will need to port forward the two following ports:

a. Network Port:80 (Default)

6. Visit www.portforward.com

for additional information on performing port forwarding on specific router models.

7. Visit www.yougetsignal.com to test whether the ports have been properly opened. Please allow up to five (5)
minutes for the router to update.

.

8. Once the router settings have been configured correctly, open an internet explorer page and enter your router's external IP
address:DVR's port number (Example: 72.243.193.215:81).

Y ou can also connect to the DVR using Google Chrome by installing the ‘IE Tab’ add-on

User’s Manual | 62

7 APPENDIX : SPECIFICATION

Model TER-12N040200A

Front Image

Compression

H.264

HDD Interface

1 x SATA

Operation System

Embedded Linux

Video

Input

4BNC

Output

1 x HD Output (1080p Live Display)

Video Mode

NTSC/PAL

Display Speed

120fps@1080P

Screen Split

1, 4

Video Monitor

1 x HD Output (1080p Live Display)

Recording

Speed

(NTSC/PAL)

Main Stream

Max.60fps@1080P

/ Max. 50fps@1080P

Recording Resolution

NTSC: 480x240, 960x240, 960x480 / 720P, 1080P

PAL: 480x288, 960x288, 960x576 / 720P, 1080P

Recording Modes

Time-Lapse, Event, Pre-Event, Post-Event, Instan(Panic) Record

Play back &

Search

Speed

x1/32, x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32

Function

1, 4 CH

(Multi-Channel Playback)

Date/Time, Record Table, Calendar, Event preview, Bookmark, System log

Audio Input / Output

In: 1 x RCA Jack / Out: 1 x RCA Jack

Alarm Input / Relay Output

4 x In / 1 x Relay Out

PTZ Control and Port

Virtual Joy-Stick Control on screen(by mouse)

RS 485 Port 1ea

(PTZ, Keyboard Controller)

LAN

1 x 10/100/1000Mbps Gigabit Ethernet

Network Transmission

Max.60fps@1080P

Video Dual-Stream (Local Recording & Network Transmission)

Live monitoring, Remote Playback and File Backup (Triplex-on-Remote)

Remote & E-Mail Notification with AVI,

Remote System Reboot by Client(CenPro)

Mobile S/W

Android, iPhone, Kindlefire

Remote PTZ Control

Pan/Tilt/Zoom/Focus/Iris

63 | Full HD Digital Video Recorder

Model TER-12N040200A

Remote

Management

Backup

Device

S/W

Central Management System

Web(IE)

Live monitoring, Playback & System Configuration

Internal

N/A

External

Local backup by USB memory stick (2ea) ,

Network backup by CenPro support

Advanced Function

Multi-Language, System Upgrade by USB & Network,

Help menu on Major Function

Import & Export & Instant File Backup

Warning Alarm for System Over-Temperature

System Operation

Mouse

Power

12V x 2A D/C

Temperature

& Humidity

Storage

-20 ~ 60℃ / 20 ~ 95%RH

Operating

5 ~ 40℃. 20 ~ 80%RH

Cerification

KC, CE, FCC

Dimension(W x H x D)

280 x 48 x 245

User’s Manual | 64

Model TER-22N080300A

TER-22N160300A

Front Image

Compression

H.264

HDD Interface

2 x SATA

Operation System

Embedded Linux

Video

Input

8BNC 16BNC

Output

1 x HD Output (1080p Live Display), 1 x VGA Output

Video Mode

NTSC/PAL

Display Speed

240fps@1080P 480fps@1080P

Screen Split

1, 4, 9 1, 4, 9, 16

Video Monitor

1 x HD Output (1080p Live Display), 1 x VGA Output

Recording

Speed

(NTSC/PAL)

Main Stream

Max.120fps@1080P

/ Max.100fps@1080P

Max.240fps@1080P

/ Max. 200fps@1080P

Recording Resolution

NTSC: 480x240, 960x240, 960x480 / 720P, 1080P

PAL: 480x288, 960x288, 960x576 / 720P, 1080P

Recording Modes

Time-Lapse, Event, Pre-Event, Post-Event, Instan(Panic) Record

Play back &

Search

Speed

x1/32, x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32

Function

1, 4, 9

(Multi-Channel Playback)

1, 4, 9, 16

(Multi-Channel Playback)

Date/Time, Record Table, Calendar, Event preview, Bookmark, System log

Audio Input / Output

In: 1 x RCA Jack / Out: 1 x RCA Jack

Alarm Input / Relay Output

4 x In / 1 x Relay Out

PTZ Control and Port

Virtual Joy-Stick Control on screen(by mouse)

RS 485 Port 2ea

(PTZ, Keyboard Controller)

LAN

1 x 10/100/1000Mbps Gigabit Ethernet

Network Transmission

Max.120fps@1080P Max.240fps@1080P

Video Dual-Stream (Local Recording & Network Transmission)

Live monitoring, Remote Playback and File Backup (Triplex-on-Remote)

Remote & E-Mail Notification with AVI,

Remote System Reboot by Client(CenPro)

Mobile S/W

Android, iPhone, Kindlefire

Remote PTZ Control

Pan/Tilt/Zoom/Focus/Iris

65 | Full HD Digital Video Recorder

Model TER-22N080300A

TER-22N160300A

Remote

Management

Backup

Device

S/W

CenPro Software

Web(IE)

Live monitoring, Playback & System Configuration

Internal

N/A

External

Local backup by USB memory stick (2ea) ,

Network backup by CenPro support

Advanced Function

Multi-Language, System Upgrade by USB & Network,

Help menu on Major Function

Import & Export & Instant File Backup

Warning Alarm for System Over-Temperature

System Operation

Mouse

Power

12V x 5A D/C

Temperature

& Humidity

Storage

-20 ~ 60℃ / 20 ~ 95%RH

Operating

5 ~ 40℃. 20 ~ 80%RH

Cerification

KC, CE, FCC

Dime nsion(W x H x D )

360 x 66 x 356

NOTE

The specifications are subject to change without notice

eneo® is a registered trademark of
VIDEOR E. Hartig GmbH
Exclusive distribution through specialised
trade channels only.

VIDEOR E. Hartig GmbH
Carl-Zeiss-Straße 8
63322 Rödermark/Germany
Tel. [phone] / 888-0
Fax [phone] / 888-100
www.videor.com
www.eneo-security.com

Technical changes reserved

© Copyright by VIDEOR E. Hartig GmbH
Version 01/2016
