Technical Information

TH11 and TH12

General purpose RTD with terminal head or
conductor extension lead wires for process and
laboratory applications

Application

The TH11 and TH12 temperature sensors are RTDs designed for use in the process
industry or factory automation type of environment. They consist of a measurement
probe with a RTD, insulation and sheath. Among other applications the sensors can
be used on:

• Heat exchangers, power & recovery area

• Carbon regeneration furnace or dryers

• Flue Gas, compressor stations

• Process reactors

Head transmitter

All Endress+Hauser transmitters are available with enhanced accuracy and reliability
compared to directly wired sensors. Easy customizing by choosing one of the
following outputs and communication protocols:

• Analog output 4 to 20 mA, with or without HART

• PROFIBUS® PA

• FOUNDATION Fieldbus™

Field transmitter

Temperature field transmitters with HART® or FOUNDATION Fieldbus™ protocol for
highest reliability in harsh industrial environments. Backlit display with large
measured value, bargraph and fault condition indication for ease of reading.

Your benefits

• High flexibility due to modular assembly with standard terminal heads and
customized immersion length

• One source shopping for temperature measurement solutions. World class
transmitter with integrated sensor offering for heavy process industry applications.
Remove and install straight out of the box!

• Improved galvanic isolation on most devices (2 kV)

• Simplified model structure: Competitively priced, offers great value. Easy to order
and reorder. A single model number includes sensor and transmitter assembly for
a complete point solution

• All iTEMP transmitters provide long term stability ≤ 0.05 % per year

• Fast response time with reduced/tapered tip form

Function and system design

TH11
RTD with head
transmitter mounted
inside terminal head

RIA16
field indicator

Power supply
RNS221

= 20...253V DC/AC

» 50/60 Hz

Channel 1

Channel 2

24V DC / 30 mA

Memograph M
Advanced data
manager

Tank

DIN Rail Temp.
Transmitter

TH12

°F

Measuring principle Resistance thermometer (RTD)

These resistance thermometers use a Pt100 temperature sensor according to IEC 60751. The
temperature sensor is a temperature-sensitive platinum resistor with a resistance of 100 Ω at
0 °C (32 °F) and a temperature coefficient α = 0.003851 °C-1.

There are generally two different kinds of platinum resistance thermometers:

• Wire wound (WW): Here, a double coil of fine, high-purity platinum wire is located in a ceramic
support. This is then sealed top and bottom with a ceramic protective layer. Such resistance
thermometers not only facilitate very reproducible measurements but also offer good long-term
stability of the resistance/temperature characteristic within temperature ranges up to
600 °C (1 112 °F). This type of sensor is relatively large in size and it is comparatively sensitive to
vibrations.

• Thin film platinum resistance thermometers (TF): A very thin, ultrapure platinum layer,
approx. 1 μm thick, is vaporized in a vacuum on a ceramic substrate and then structured
photolithographically. The platinum conductor paths formed in this way create the measuring
resistance. Additional covering and passivation layers are applied and reliably protect the thin
platinum layer from contamination and oxidation, even at high temperatures.

The primary advantages of thin film temperature sensors over wire wound versions are their smaller
sizes and better vibration resistance. A relatively low principle-based deviation of the resistance/
temperature characteristic from the standard characteristic of IEC 60751 can frequently be observed
among TF sensors at high temperatures. As a result, the tight limit values of tolerance category A as
per IEC 60751 can only be observed with TF sensors at temperatures up to 200 °C (392 °F).

TH11 and TH12

Measuring system

A0016255-EN

 1 Application example

RIA16 Field indicator

The field indicator records an analog measuring signal and shows this on the display. The LC display
shows the currently measured value digitally and as a bargraph with limit value violation signalling.
The indicator is looped into the 4 to 20 mAcircuit and obtains the required energy from there.
Details see Technical Information. →  19

RNS221 Power supply

The power supply unit (24 VDC, 30 mA) has two galvanically isolated outputs for supplying voltage to
loop powered transmitters. The two channel device has a wide-range input for mains power,
20 to 253 VDC/AC, 50/60 Hz to be used in any electrical circuit. Details see Technical Information.
→  19. The device is an UL recognized component.

2 Endress+Hauser

TH11 and TH12

RSG45 Memograph M, advanced data manager

Multichannel data recording system with multicolor TFT display (178 mm / 7" screen size), internal
memory, external memory (SD card and USB stick), galvanically isolated universal inputs (U, I, TC,
RTD, pulse, frequency), HART® inputs, digital inputs, transmitter power supply, limit relays, digital
and analog outputs, communication interfaces (USB, Ethernet, RS232/485), optionally available
with Modbus, Profibus DP or PROFINET I/O or EtherNet/IP. Details see Technical Information.
→  19

Equipment architecture

Measurement range

Output signal

The single and duplex element RTDs are designed to measure temperature in a variety of process and
laboratory applications. These RTDs are specifically designed for use in two different process
temperature ranges and they will provide accurate and repeatable temperature measurement
through a broad range of –200 to 600 °C (–328 to 1 112 °F). Low range thin film RTDs
–50 to 200 °C (–58 to 392 °F) are constructed using silver plated copper internal leads, PTFE wire
insulations with potting compounds to resist moisture penetration. High range RTDs
–200 to 600 °C (–328 to 1 112 °F) are constructed with nickel internal leads inside swaged MgO
insulated cable to allow higher temperature measurements at the RTD element and to provide
higher temperature lead protection along the sheath.

Construction Model code (class and type of sensor) Maximum range

Low temperature range (TF - thin
film sensor)

High temperature range (WW - wire
wound sensor)

TH11-_ _ _ (A/C/E/G/J/L) _ _ _ _ _ _ –50 to +200 °C

TH12-_ _ _ (A/C/E/G/J/L) _ _ _ _ _ _

TH11-_ _ _ (B/D/F/H/K/M) _ _ _ _ _ _ –200 to +600 °C

TH12-_ _ _ (B/D/F/H/K/M) _ _ _ _ _ _

(–58 to +392 °F)

(–328 to +1 112 °F)

Output

Generally, the measured value can be transmitted in one of two ways:

• Directly-wired sensors - sensor measured values forwarded without a transmitter.

• Via all common protocols by selecting an appropriate Endress+Hauser iTEMP temperature
transmitter. All the transmitters listed below are mounted directly in the terminal head or as field
transmitter and wired with the sensory mechanism.

Family of temperature transmitters

Thermometers fitted with iTEMP transmitters are an installation-ready complete solution to
improve temperature measurement by significantly increasing accuracy and reliability, when
compared to direct wired sensors, as well as reducing both wiring and maintenance costs.

PC programmable head transmitters

They offer a high degree of flexibility, thereby supporting universal application with low inventory
storage. The iTEMP transmitters can be configured quickly and easily at a PC. Endress+Hauser offers
free configuration software which can be downloaded from the Endress+Hauser Website. More
information can be found in the Technical Information.

HART® programmable head transmitters

The transmitter is a 2-wire device with one or two measuring inputs and one analog output. The
device not only transfers converted signals from resistance thermometers and thermocouples, it also
transfers resistance and voltage signals using HART® communication. It can be installed as an
intrinsically safe apparatus in Zone 1 hazardous areas and is used for instrumentation in the
terminal head (flat face) as per DIN EN 50446. Swift and easy operation, visualization and
maintenance using universal device configuration tools like FieldCare, DeviceCare or
FieldCommunicator 375/475. For more information, see the Technical Information.

PROFIBUS® PA head transmitters

Universally programmable head transmitter with PROFIBUS® PA communication. Conversion of
various input signals into digital output signals. High accuracy over the complete ambient
temperature range. The configuration of PROFIBUS PA functions and of device-specific parameters is
performed via fieldbus communication. For more information, see the Technical Information.

FOUNDATION Fieldbus™ head transmitters

Universally programmable head transmitter with FOUNDATION Fieldbus™ communication.
Conversion of various input signals into digital output signals. High accuracy over the complete

Endress+Hauser 3

TH11 and TH12

3

5

6

RTD

3

4

5

6

RTD

1

2

3-wire

4-wire

Power supply
head transmitter and
analog output 4 to 20 mA,
or bus connection

(red) (red)
(red) (red)

(white) (white)

(white)

mA

ambient temperature range. All transmitters are released for use in all important process control
systems. The integration tests are performed in Endress+Hauser's "System World". For more
information, see the Technical Information.

Advantages of the iTEMP transmitters:

• Dual or single sensor input (optionally for certain transmitters)

• Pluggable display (optionally for certain transmitters)

• Unsurpassed reliability, accuracy and long-term stability in critical processes

• Mathematical functions

• Monitoring of the thermometer drift, sensor backup functionality, sensor diagnostic functions

• Sensor-transmitter matching for dual sensor input transmitters, based on Callendar/Van Dusen
coefficients

Field transmitter

Field transmitter with HART® or FOUNDATION Fieldbus™ communication and backlit display. Can
be read easily from a distance, in sunlight and at night. Large measurement value, bargraph and
fault indication displayed. Benefits are: dual sensor input, highest reliability in harsh industrial
environments, mathematic functions, thermometer drift monitoring and sensor back-up
functionality, corrosion detection.

Galvanic isolation

Terminal assignment

Galvanic isolation of Endress+Hauser iTEMP transmitters

Transmitter type Sensor

TMT181 PCP Û = 3.75 kV AC

TMT182 HART® U = 2 kV AC

TMT162 HART® Field transmitter U = 2 kV AC

TMT82 HART®

U = 2 kV ACTMT84 PA

TMT85 FF

Power supply

Type of sensor connection TH11

Head mounted transmitter TMT18x (single input)

A0016433-EN

4 Endress+Hauser

TH11 and TH12

-

+

+

1

-

2

7

6

5

4

3

1

2

7

6

5

4

3

Sensor input 2

Sensor input 1

RTD 4- and 3-wire:

RTD 3-wire:

Bus connection

and supply voltage

Display connection

red

white

red

red

red

white

white

(black)

(black)

(green)

4

3

3

1

1

4

2

2

RTD

RTD

5
6

RTD

4

+

-

1

2

3

5

6

+

-

3

4

S1

3

S2

-

+

+

-

!

(black)
(black)

4-wire

3-wire

Power supply
field transmitter and
analog output 4 to 20 mA
or bus connection

Sensor 1

Sensor 2 (not TMT142)

Sensor 1

Sensor 2 (not TMT142)

(white) (red) (white) (red)

(green)

Head mounted transmitter TMT8x (dual input)

A0029556-EN

Field mounted transmitter

Endress+Hauser 5

A0024961-EN

Terminal block mounted

R1

R1

B6

R1

R3

R2

B5

G4

R3

W5

W3

W6

W4

3-wire single

2 x 3-wire single

Outside screw

4-wire single

W5 = White5

W3 = White3

G4 = Green4

R3 = Red3

R2 = Red2

B6 = Black6

R1 = Red1

R1 = Red1

B5 = Black5

W6 = White6

W4 = White4

R3 = Red3

R1 = Red1

4

+

-

1

2

3

5

6

+

-

3

4

S1

3

S2

-

+

+

-

!

+

Sensor 2

Sensor 1

-

Bus connection and
supply voltage

TH11 and TH12

A0025284-EN

Integrated overvoltage protection

The integrated overvoltage protection module can be ordered as an optional extra

1)

. The module
protects the electronics from damage from overvoltage. Overvoltage occurring in signal cables (e.g.
4 to 20 mA, communication lines (fieldbus systems) and power supply is diverted to ground. The
functionality of the transmitter is not affected as no problematic voltage drop occurs.

Connection data:

Maximum continuous voltage (rated voltage) UC = 42 V

Nominal current I = 0.5 A at T

Surge current resistance

• Lightning surge current D1 (10/350 µs)

• Nominal discharge current C1/C2 (8/20 µs)

• I

• In = 5 kA (per wire)

Temperature range –40 to +80 °C (–40 to +176 °F)

Series resistance per wire 1.8 Ω, tolerance ±5 %

DC

= 80 °C (176 °F)

amb.

= 1 kA (per wire)

imp

In = 10 kA (total)

 2 Electrical connection of the overvoltage protection

1) Available for the field transmitter with HART® 7 specification

6 Endress+Hauser

A0033027-EN

TH11 and TH12

Grounding

The device must be connected to the potential equalization. The connection between the housing and the local
ground must have a minimum cross-section of 4 mm2 (13 AWG) . All ground connections must be secured
tightly.

Wire specifications

TH11

24 AWG, 19 strand silver plated copper with 0.010 in PTFE extruded outer. ¹⁄₈ in sensors have 28
AWG seven strand wires with the same extrusion.

TH12

24 AWG, seven strand silver plated copper with 0.010 in PTFE, then 0.015 in FEP outer jacket, ¹⁄₈ in
sensors are 28 AWG, seven strand SPC, 0.010 in PTEFE, 0.015 in FEP white outer jacket. Flex armor
is 0.272 in nominal OD, 304SS 0.010 in thick, square lock style.

The maximum temperature for the extension cable is +200 °C (+392 °F)

Electrical connection

Flying leads, standard 139.7 mm (5.5 in) for wiring in connection head, head mounted transmitter or terminal
block mounted, and for wiring with TMT162 or TMT142 assemblies

Design of leads

Flying leads 139.7 mm (5.5 in)
with brass crimped sleeves

A0026119

Performance characteristics

Response time

63% response time per ASTM E644

Construction

High temperature range 2 s 2 s 3 s Not available

Low temperature range 3 s 7 s 9 s 6 s

RTD ¹⁄₈" RTD ³⁄₁₆" RTD ¹⁄₄" RTD ³⁄₈ "

reduced ³⁄₁₆"

Response time for the sensor assembly without transmitter.

Endress+Hauser 7

TH11 and TH12

A

AA

-200 -100 0 100 200 300 400 500 600°C

0.5

1.0

1.5

2.0

B

2.5

3.0

- 0.5

- 1.0

- 1.5

- 2.0

- 2.5

- 3.0

B

A

AA

Max. deviation (°C)

Max. deviation (°C)

Accuracy

RTD resistance thermometer as per IEC 60751

Class max. tolerances (°C) Characteristics

Cl. AA, former 1/3

± (0.1 + 0.0017 · |t|

Cl. B

Cl. A ± (0.15 + 0.002 · |t|

Cl. B ± (0.3 + 0.005 · |t|

Temperature ranges for compliance with the
tolerance classes

Wire wound
sensor (WW):

Cl. A Cl. AA

–

100 to +450 °C

Thin-film version
(TF):

Standard

Cl. A

–30 to +300 °C

1)

)

1)

)

1)

)

–50 to +250 °C

Cl. AA

0 to +150 °C

1) |t| = absolute value °C

In order to obtain the maximum tolerances in °F, the results in °C must be multiplied by a factor
of 1.8.

Transmitter long-term stability

Dielectric strength

Self heating

≤ 0.1 °C (0.18 °F)/year or ≤ 0.05% / year

Data under reference conditions; % relates to the set span. The larger value applies.

The units are factory tested with 500 VAC for one minute between live parts (terminals) and exposed
non-current-carrying metal parts (e.g. probe sheath).

RTD elements are passive resistances that are measured using an external current. This
measurement current causes a self-heating effect in the RTD element itself which in turn creates an
additional measurement error. In addition to the measurement current, the size of the measurement

Calibration specifications

error is also affected by the temperature conductivity and flow velocity of the process. This self­heating error is negligible when an Endress+Hauser iTEMP temperature transmitter (very small
measurement current) is connected.

The manufacturer provides comparison temperature calibrations from
–20 to +300 °C (–4 to +572 °F) on the international temperature scale of 1990. Calibrations are
traceable to standards maintained by the National Institute of Standards and Technology (NIST).
Calibration services are in conformance with ASTM E220, IEC 17025 and ANSI/NCSL Z540-1-1994.
The report of calibration is referenced to the serial number of the RTD assembly.

Three point calibrations are provided, given that the specified temperatures are within the
recommended range and the minimum length requirements are met as specified. The minimum
length is 6 in.

A0008588-EN

8 Endress+Hauser

TH11 and TH12

B

A

C

D

X

X

Installation

Orientation

Installation instructions

No restrictions

A0009538

 3 Installation examples

A-B In pipes with a small cross section the sensor tip should reach or extend slightly past the center line of the

pipe (=X).

C-D Tilted installation

Ambient temperature range

The immersion length of the thermometer influences the accuracy. If the immersion length is too
small then errors in the measurement are caused by heat conduction via the process connection and
the container wall. If installing into a pipe then the immersion length should be at least half of the
pipe diameter. A further solution could be an angled (tilted) installation (see C-D). When
determining the immersion length all thermometer parameters and the process to be measured
must be taken into account (e.g. flow velocity, process pressure).

• Installation possibilities: Pipes, tanks or other plant components

• Minimum immersion length should be 10 times the OD of the sheath, nominal.

Environment

Terminal head Temperature in °C (°F)

Without mounted head
transmitter

With mounted head
transmitter

With mounted head
transmitter and display

With mounted field
transmitter

Depends on the terminal head used and the cable gland or fieldbus connector,
see 'Terminal heads' section

–40 to 85 °C (–40 to 185 °F)
SIL mode (HART 7 transmitter): –40 to 70 °C (–40 to 158 °F)

–20 to 70 °C (–4 to 158 °F)

• Without display: –40 to 85 °C (–40 to 185 °F)

• With display and/or integrated overvoltage protection module:
–40 to +80 °C (–40 to +176 °F)

• SIL mode: –40 to +75 °C (–40 to +167 °F)

Shock and vibration resistance

Endress+Hauser 9

4 g/2 to 150 Hz as per IEC 60068-2-6

Process

960

320

400

480

560

640

720

800

160

240

3,000
2,800
2,600

2,400
2,200
2,000
1,800
1,600

3,200

3,400

3,600

3,900

p/T load curve, 0,2 = 100%σ

psi

80

°F

Temperature T

Max. allowed pressure p

max

L = 4 in, v = 3 ft/s

W/S

L = 4 in, v = 30 ft/s

a

L = 6 in, v = 3 ft/s

W/S

L = 6 in, v = 30 ft/s

a

L = 9 in and 12 in, v = 3 ft/s

W/S

L = 9 in, va= 30 ft/s

L = 12 in, va= 30 ft/s

Max. allowed pressure p

max

p/T load curve, 0,2 = 100%σ

3,000
2,800
2,600

2,400
2,200
2,000
1,800
1,600

3,200

3,400

3,600

3,900

psi

1,400

1,200
1,000

800
600

960

320

400

480

560

640

720

800

160

240

80

°F

Temperature T

TH11 and TH12

Process pressure limits

p/T load curve example according to Dittrich

A0026068

L = Insertion length
va = Flow velocity air
v

= Flow velocity water or stream

w/s

Example calculation: Probe = 316SS
Sheath ⌀ = ¼" ; 0.028" wall thickness

Avoid resonance frequency as this will cause damage to the probe!

• L = 4 and 6 in:
Resonance frequency occurs when permanent flow velocity is at 18.1, 22.6 or 27.1 ft/s (air)
for 6 in and/or 40.5, 50.6 or 60.8 ft/s (air) for 4 inch probe (T = 482 °F, p = 2700/2600 psi).

• L = 9 and 12 in:

10 Endress+Hauser

Resonance frequency occurs when permanent flow velocity is at 8.1, 10.1 or 12.1 ft/s (air)
for 9 inch and/or 4.6, 5.7 or 6.8 ft/s (air) for 12 inch probe (T = 482 °F, p = 2600 psi).

The calculation was done for pipes only, for MgO insulated sensors the values might be higher.
In any case for different lengths, other materials, variation in sheath diameter or wall
thicknesses, stress analysis is recommended. Failures are caused by forces imposed by static
pressure, steady state flow, and vibration.

Max. allowable process pressure (PSIG) for instrumentation with one time adjustable compression
fittings.

Temperature ¹⁄₈" NPT and ¼" NPT compression fitting

°C (°F) Sheath ⌀ = ¹⁄₈" Sheath ⌀ = ³⁄₁₆" Sheath ⌀ = ¼" Sheath ⌀ = ³⁄₈"

–28 to 204 °C (–20 to 300 °F) 2 850 3 150 3 350 3 900

204 °C (400 °F) 2 750 3 050 3 250 3 800

260 °C (500 °F) 2 550 2 850 3 000 3 500

316 °C (600 °F) 2 400 2 700 2 850 3 300

371 °C (700 °F) 2 350 2 600 2 750 3 200

A0026069

1)

TH11 and TH12

Immersion length X

Extension leadwire transition with relief spring (400 °F)

Process connection

Sheath diameter

TH11

Immersion length X

Wire length B

TH12

A

A

s

s

L

Immersion
length X

None or

compression fitting

A’

Leadwire termination:
Stripped leads
or stripped leads with spade lugs

Temperature ¹⁄₈" NPT and ¼" NPT compression fitting

°C (°F) Sheath ⌀ = ¹⁄₈" Sheath ⌀ = ³⁄₁₆" Sheath ⌀ = ¼" Sheath ⌀ = ³⁄₈"

427 °C (800 °F) 2 300 2 550 2 650 3 100

482 °C (900 °F) 2 200 2 450 2 600 3 050

538 °C (1 000 °F) 2 100 2 300 2 450 2 850

1) not available with compression fittings ¹⁄₈" NPT

Re-adjustable compression fittings are not intended to be used for pressure retaining
applications and should only be used for the mechanical holding of sensors.

Mechanical construction

1)

Design, dimensions

All dimensions in inches. For the values related to this graphic please refer to the tables and
equations below.

 4 For values related to this graphic please refer to the table below.

Dimensions in inches

Immersion length X Wire length B Sheath

TH11 TH12

4, 6, 9, 12 6, 12, 18, 24 48, 72, 120 ⌀¹⁄₈ 0.014

Specified length: 2 to 96 in ½ in increments Specified length: 12 to 300

Endress+Hauser 11

in 12 in increments

Wall thickness

diameter A

⌀³⁄₁₆ 0.022

⌀¹⁄₄ 0.029

⌀³⁄₈ 0.045

S

A0029335

TH11 and TH12

L

PT

T

L

PT

T

Weight

Material

0.5 to 2.5 kg (1 to 5.5 lb)

Process connections and sheath.

The temperatures for continuous operation specified in the following table are only intended as
reference values for use of the various materials in air and without any significant compressive load.
The maximum operation temperatures are reduced considerably in some cases where abnormal
conditions such as high mechanical load occur or in aggressive media.

Material name Short form Recommended max.

AISI
316/1.4401

X2CrNiMo17-12-2 650 °C (1 200 °F) • Austenitic, stainless steel

Process connection Compression fitting

All dimensions in inch

Re-adjustable compression fittings in stainless steel with FEP ferrule

Type of fitting Tube size - Outer

Properties
temperature for
continuous use in air

• High corrosion resistance in general

• Particularly high corrosion resistance in
chlorine-based and acidic, non-oxidizing
atmospheres through the addition of
molybdenum (e.g. phosphoric and sulfuric
acids, acetic and tartaric acids with a low
concentration)

Process thread (PT)
diameter (T) in
inch

¹⁄₈ ¹⁄₈" NPT 1¹⁄₄

³⁄₁₆ ¹⁄₈" NPT 1¹⁄₄

¹⁄₄ ¹⁄₄" NPT 2¹⁄₂

³⁄₈ ¹⁄₄" NPT 2¹⁄₂

¹⁄₄ ¹⁄₈" NPT 1¹⁄₄

A0026151

¹⁄₈ ¹⁄₄" NPT 1⁹⁄₁₆

³⁄₁₆ ¹⁄₄" NPT 1⁹⁄₁₆

in inch

Length (L) in inch

One-time adjustable compression fittings in stainless steel with SS ferrule

Type of fitting Tube size - Outer

diameter (T) in
inch

¹⁄₈ ¹⁄₈" NPT 1¹⁄₄

³⁄₁₆ ¹⁄₈" NPT 1¹⁄₄

¹⁄₄ ¹⁄₈" NPT 1¹⁄₄

¹⁄₈ ¹⁄₄" NPT 1⁷⁄₁₆

³⁄₁₆ ¹⁄₄" NPT 1¹⁄₂

A0026151

¹⁄₄ ¹⁄₄" NPT 1⁹⁄₁₆

³⁄₈ ¹⁄₄" NPT 1⁵⁄₈

Process thread (PT)

in inch

Length (L) in inch

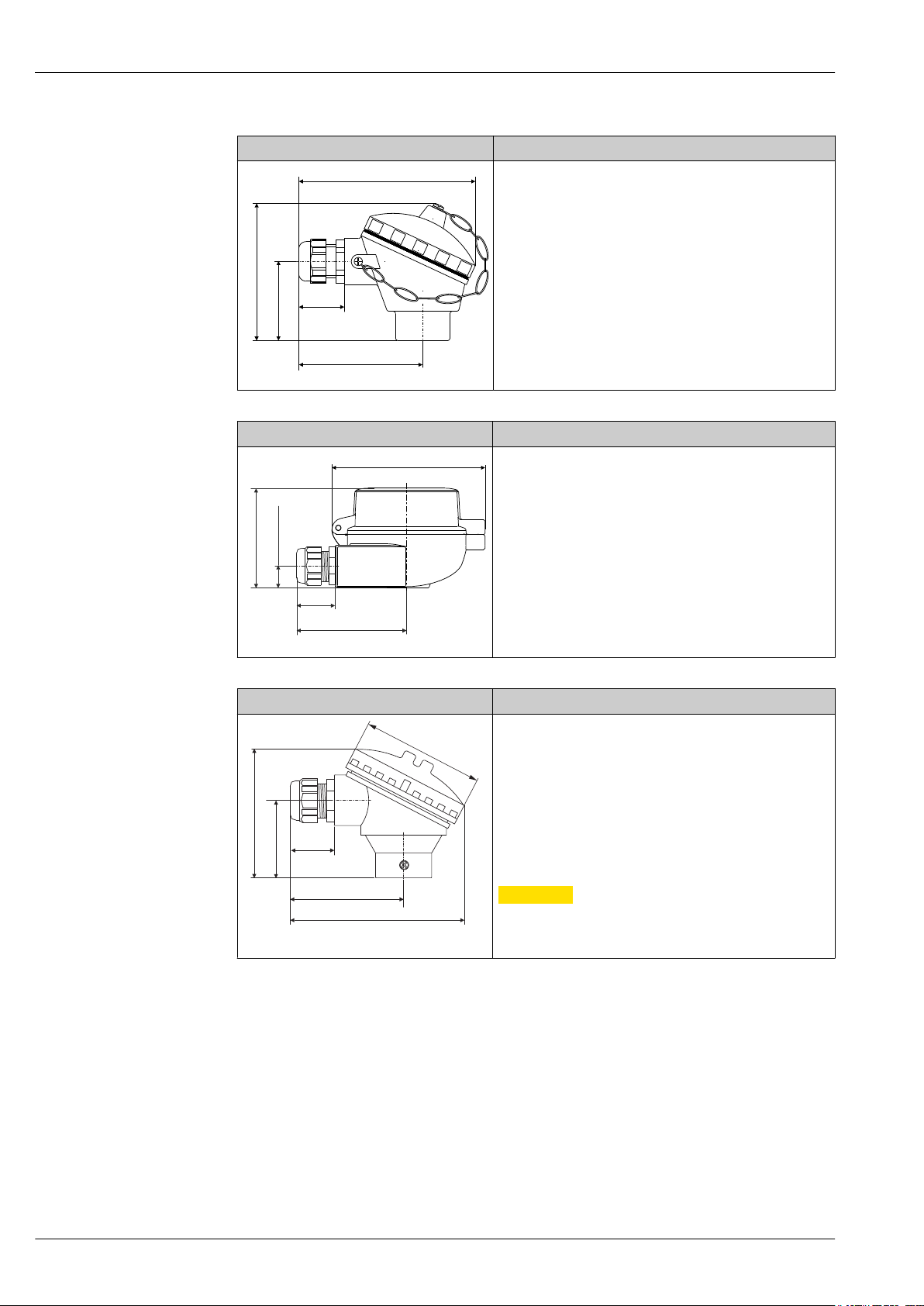

Housing Terminal heads

All terminal heads have an internal shape and size in accordance with DIN EN 50446, flat face and a
thermometer connection with a ½" NPT thread. All dimensions in mm (in). Specifications without
head transmitter installed. For ambient temperatures with head transmitter installed, see the
'Environment' section.

12 Endress+Hauser

TH11 and TH12

125 (4.92)

115 (4.53)

28

(1.1)

78 (3.01)

20.5 (0.8)

64 (2.52)

96 (3.8)

64 (2.52)

71 (2.8)

25 (1)

96 (3.8)*

As a special feature, Endress+Hauser offers terminal heads with optimized terminal accessibility for
easy installation and maintenance.

Some of the specifications listed below may not be available on this product line.

TA30H with display window in cover Specification

• Flameproof (XP) version, explosion-protected, captive screw
cap, available with one or two cable entries

• Degree of protection: IP 66/68, NEMA Type 4x Encl.
Ex-version: IP 66/67

• Temperature: –50 to +150 °C (–58 to +302 °F) for rubber seal
without cable gland (observe max. permitted temperature of
cable gland!)

• Material:
– Aluminum with polyester powder coating
– Stainless steel 316L without coating

• Thread: ½" NPT, ¾" NPT, M20x1.5, G½"

• Extension neck/thermowell connection: ½" NPT

• Color of aluminum head: blue, RAL 5012

• Color of aluminum cap: gray, RAL 7035

• Weight:
– Aluminum: approx. 860 g (30.33 oz)

A0009831

– Stainless steel: approx. 2 900 g (102.3 oz)

• Head transmitter optionally available with TID10 display

TA30R (optionally with display window in
cover)

A0017145

* Dimensions of version with display window
in cover

Specification

• Degree of protection - standard version: IP69K (NEMA Type
4x encl.)
Degree of protection - version with display window: IP66/68
(NEMA Type 4x encl.)

• Temperature: –50 to +130 °C (–58 to +266 °F) without cable
gland

• Material: stainless steel 316L, abrasive-blasted or polished
Seals: EPDM
Display window: polycarbonate (PC)

• Cable entry thread ½" NPT and M20x1.5

• Weight
– Standard version: 360 g (12.7 oz)
– Version with display window: 460 g (16.23 oz)

• Display window in cover optionally for head transmitter with
display TID10

• Protection armature connection: M24x1.5 or ½" NPT

• Ground terminal: internal in standard version; external
terminal optionally available

• Available in conjunction with 3-A marked sensors

Endress+Hauser 13

TU401 Specification

84 (3.3)

95 (3.9)

57 (2.2)

122 (4.8)

28 (1.1)

107.5 (4.23)

68.5 (2.7)

28

(1.1)

78 (3.1)

15.5 (0.6)

122 (4.8)

28

(1.1)

78 (3.1)

50 (1.97)

87 (3.43)

81.7 (3.22)

• Protection class: IP65 (NEMA Type 4x encl.)

• Temperature: –40 to 130 °C (–40 to 266 °F) silicone, up to
100 °C (212 °F) rubber seal without cable gland (observe
max. permitted temperature of the cable gland!)

• Material: aluminum alloy with polyester or epoxy coating,
rubber or silicone seal under the cover

• Cable entry: ½" NPT, ¾" NPT or plug 7/8" FF

• Protection armature connection: M24x1.5, G 1/2" or NPT
1/2"

• Head color: blue, RAL 5012

• Cap color: gray, RAL 7035

• Weight: 300 g (10.58 oz)

A0008669

TU401 (TA30A style) Specification

• Available with one or two cable entries

• Protection class: IP66/68 (NEMA Type 4x encl.)

• Temperature: –50 to +150 °C (–58 to +302 °F) without cable
gland

• Material: aluminum, polyester powder coated
Seals: silicone

• Threaded cable entry: ½" NPT, ¾" NPT or plug 7/8" FF

• Protection armature connection: M24x1.5

• Head color: blue, RAL 5012

• Cap color: gray, RAL 7035

• Weight: 330 g (11.64 oz)

• Ground terminal, internal and external

A0009820

• With 3-A symbol

TH11 and TH12

TU401 (TA30S style) Specification

• Degree of protection: IP65 (NEMA Type 4x encl.)

• Temperature: –40 to +85 °C (–40 to +185 °F) without cable
gland

• Material: polypropylene (PP), FDA-compliant, seals: O-ring
EPDM

• Cable entry thread: ¾" NPT, ½" NPT) or or plug 7/8" FF

• Protective assembly connection: ½" NPT

• Color: white

• Weight: approx. 100 g (3.5 oz)

• Ground terminal: only internal via auxiliary terminal

CAUTION

L

Potential electrostatic charging hazard

Not recommended for use in hazardous (classified)

‣

A0017146

locations.

14 Endress+Hauser

TH11 and TH12

K

E

E

P

T

I

G

H

T

W

H

E

N

C

I

R

C

U

I

T

A

L

I

V

E

I

N

E

X

P

L

O

S

I

V

E

A

T

M

O

S

P

H

E

R

E

°C

10

0

20

30

40

50

60

70

80

90

100

110 (4.33)

112 (4.41)

132.5 (5.22)*

!

114 (4.49)

114 (4.49)

94 (3.7)

Field transmitters

Temperature field transmitter iTEMP TMT162

A0024608

* Dimensions without display = 112 mm (4.41 in)

• Separate electronics compartment and connection compartment

• Protection class: IP67, NEMA type 4x

• Material: Die-cast aluminum housing AlSi10Mg with powder coating on polyester base, 316L

• Display rotatable in 90° increments

• Cable entry: 2x ½" NPT

• Brilliant backlit display with ease of visibility in bright sunshine or pitch darkness

• Gold plated terminals to avoid corrosion and additional measurement errors

• SIL certification as per IEC 61508:2010 (HART-protocol)

Temperature field transmitter iTEMP TMT162 for hygienic applications

* Dimensions without display = 112 mm (4.41 in)

• Material: Stainless steel 1.4435 (AISI 316L) for hygienic applications (T17 housing)

• Separate electronics compartment and connection compartment

• Display rotatable in 90° increments

• Cable entry: 2 x ½" NPT

• Degree of protection (IP69K)

• Brilliant backlit display with ease of visibility in bright sunshine or pitch darkness

• Gold plated terminals to avoid corrosion and additional measurement errors

A0016655

Endress+Hauser 15

Temperature field transmitter iTEMP HART® TMT142

132 (5.2)

135 (5.3)

112 (4.4)

106 (4.2)

121 (4.8)

121 (4.8)

!6.4

(0.25)

0

10

30

40

50

20

°F

• Protection class: IP67, NEMA type 4x

• Material: Die-cast aluminum housing AlSi10Mg with powder coating on polyester base

• Display rotatable in 90° increments

• Cable entry: 3x ½" NPT

• Brilliant blue backlit display with ease of visibility in bright sunshine or pitch darkness

• Gold plated terminals to avoid corrosion and additional measurement errors

TH11 and TH12

A0025824

CE mark

Other standards and guidelines

CSA GP

Certificates and approvals

The measuring system meets the legal requirements of the applicable EC guidelines. These are listed
in the corresponding EC Declaration of Conformity together with the standards applied. The
manufacturer confirms successful testing of the device by affixing to it the CE mark.

• IEC 60529: Degree of protection of housing (IP code)

• IEC/EN 61010-1: Safety requirements for electrical equipment for measurement, control, and
laboratory use.

• ASTM E644: American society for testing and materials, standard test methods for testing
industrial resistance thermometers.

• NEMA - ANSI / NEMA 250: Standardization association for the electrical industry.

• IEC 60751: Industrial platinum resistance thermometer

• ASME PTC 19.3 - 1974: Performance test codes

The installed and assembled transmitters (iTEMP Series) are CSA GP approved.

16 Endress+Hauser

TH11 and TH12

Ordering information

Detailed ordering information is available from the following sources:

• In the Product Configurator on the Endress+Hauser website: www.endress.com -> Click "Corporate"

-> Select your country -> Click "Products" -> Select the product using the filters and search field ->
Open product page -> The "Configure" button to the right of the product image opens the Product
Configurator.

• From your Endress+Hauser Sales Center: www.addresses.endress.com

Product Configurator - the tool for individual product configuration

• Up-to-the-minute configuration data

• Depending on the device: Direct input of measuring point-specific information such as
measuring range or operating language

• Automatic verification of exclusion criteria

• Automatic creation of the order code and its breakdown in PDF or Excel output format

• Ability to order directly in the Endress+Hauser Online Shop

Accessories

Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are
available for the device. Detailed information on the order code in question is available from your
local Endress+Hauser sales center or on the product page of the Endress+Hauser website:

www.endress.com.

Device-specific accessories

Communication-specific accessories

TU301 Threaded compression fitting

Order code: TU301

Mounting bracket SS316L, for tube 1.5...3"

Order code: 51007995

Adapter M20x1.5 - ½" NPT cable entry

Order code: 51004387

Cable gland ½" NPT, D4.5-8.5, IP 68

Order code: 51006845

Integrated overvoltage
protection module

Configuration kit TXU10 Configuration kit for PC-programmable transmitter with setup software and

Commubox FXA195
HART

Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser

The module protects the electronics from overvoltage. Available for TMT162
housing (not T17 hygienic version).

interface cable for PC with USB port
Order code: TXU10-xx

For intrinsically safe HART communication with FieldCare via the USB interface.

For details, see "Technical Information" TI00404F



Common Data Interface) and the USB port of a computer or laptop.

For details, see "Technical Information" TI00405C



Wireless HART adapter
SWA70

Is used for the wireless connection of field devices.
The WirelessHART adapter can be easily integrated into field devices and existing
infrastructures, offers data protection and transmission safety and can be operated
in parallel with other wireless networks with minimum cabling complexity.

For details, see Operating Instructions BA061S



Endress+Hauser 17

Service-specific accessories

TH11 and TH12

Field Xpert SFX350 Field Xpert SFX350 is a mobile computer for commissioning and maintenance. It

enables efficient device configuration and diagnostics for HART and FOUNDATION
Fieldbus devices in the non-Ex area.

For details, see Operating Instructions BA01202S



Field Xpert SFX370 Field Xpert SFX370 is a mobile computer for commissioning and maintenance. It

enables efficient device configuration and diagnostics for HART and FOUNDATION
Fieldbus devices in the non-Ex area and the Ex area.

For details, see Operating Instructions BA01202S



Accessories Description

Applicator Software for selecting and sizing Endress+Hauser measuring devices:

• Calculation of all the necessary data for identifying the optimum measuring
device: e.g. pressure loss, accuracy or process connections.

• Graphic illustration of the calculation results

Administration, documentation and access to all project-related data and
parameters over the entire life cycle of a project.

Applicator is available:

• Via the Internet: https://portal.endress.com/webapp/applicator

• On CD-ROM for local PC installation.

Configurator Product Configurator - the tool for individual product configuration

• Up-to-the-minute configuration data

• Depending on the device: Direct input of measuring point-specific information
such as measuring range or operating language

• Automatic verification of exclusion criteria

• Automatic creation of the order code and its breakdown in PDF or Excel output
format

• Ability to order directly in the Endress+Hauser Online Shop

The Configurator is available on the Endress+Hauser website: www.endress.com ->
Click "Corporate" -> Select your country -> Click "Products" -> Select the product
using the filters and the search field -> Open the product page -> The "Configure"
button to the right of the product image opens the Product Configurator.

W@M Life cycle management for your plant

W@M supports you with a wide range of software applications over the entire
process: from planning and procurement, to the installation, commissioning and
operation of the measuring devices. All the relevant device information, such as
the device status, spare parts and device-specific documentation, is available for
every device over the entire life cycle.
The application already contains the data of your Endress+Hauser device. Endress
+Hauser also takes care of maintaining and updating the data records.

W@M is available:

• Via the Internet: www.endress.com/lifecyclemanagement

• On CD-ROM for local PC installation.

FieldCare SFE500 FDT-based plant asset management tool from Endress+Hauser.

It can configure all smart field units in your system and helps you manage them. By
using the status information, it is also a simple but effective way of checking their
status and condition.

For details, see Operating Instructions BA00027S and BA00065S



18 Endress+Hauser

TH11 and TH12

DeviceCare SFE100 Configuration tool for devices via fieldbus protocols and Endress+Hauser service

protocols.
DeviceCare is the tool developed by Endress+Hauser for the configuration of
Endress+Hauser devices. All smart devices in a plant can be configured via a point­to-point or point-to-bus connection. The user-friendly menus enable transparent
and intuitive access to the field devices.

For details, see Operating Instructions BA00027S



System products

Accessories Description

Field indicator RIA16 Loop-powered field indicator for looping into the 4 to 20 mA current circuit.

Optional with aluminum housing for Ex application

For details, see the "Technical Information", TI00144R/09/EN



Process display RIA15 Process display, digital loop-powered display for 4 to 20 mA circuit, panel

mounting, with optional HART® communication. Displays 4 to 20 mA or up to 4
HART® process variables

For details, see "Technical Information", TI01043K/09/en



Power supply RNS221 Supply of two 2 wire sensors or transmitters, galvanically isolated, valid for non-Ex

areas. Using the HART ® communication sockets bi-directional communication to
SMART transmitters.

For details, see "Technical Information", TI00081R/09/en



Active barrier RN221N Active barrier with power supply for safe separation of 4 to 20 mA standard signal

circuits. Has bidirectional HART® transmission and optional HART® diagnostics if
transmitters are connected with monitoring of 4 to 20 mA signal or HART® status
byte analysis and an E+H-specific diagnostic command.

For details, see "Technical Information", TI00073R/09/en



Advanced data manager
Memograph M, RSG45

A flexible and powerful system for organizing electronic acquisition, display,
recording, analysis, remote transmission and archiving of analog and digital input
signals as well as calculated values.

For details, see "Technical Information", TI01180R/09/en



Documentation

Brief operating instructions

• TH11 RTD temperature sensor, KA00178R/24/EN

• TH12 RTD temperature sensor (with cable), KA179R/24/AE

Technical Information temperature transmitter iTEMP

• HART® TMT82, TI01010T/09/EN

• PROFIBUS PA TMT84, TI00138R/09/EN

• FOUNDATION Fieldbus™ TMT85, TI00134R/09/EN

• Field transmitter:
– TMT162 HART® 5, PROFIBUS PA and FOUNDATION Fieldbus™, TI00086R/09/EN
– TMT162 HART® 7 and SIL certification, TI01344T/09/EN
– HART® TMT142, TI00107R/09/EN

• Pt TMT180, TI00088R/09/EN

• PCP TMTT181, TI00070R/09/EN

• HART® TMT182, TI00078R/09/EN

Endress+Hauser 19

www.addresses.endress.com
