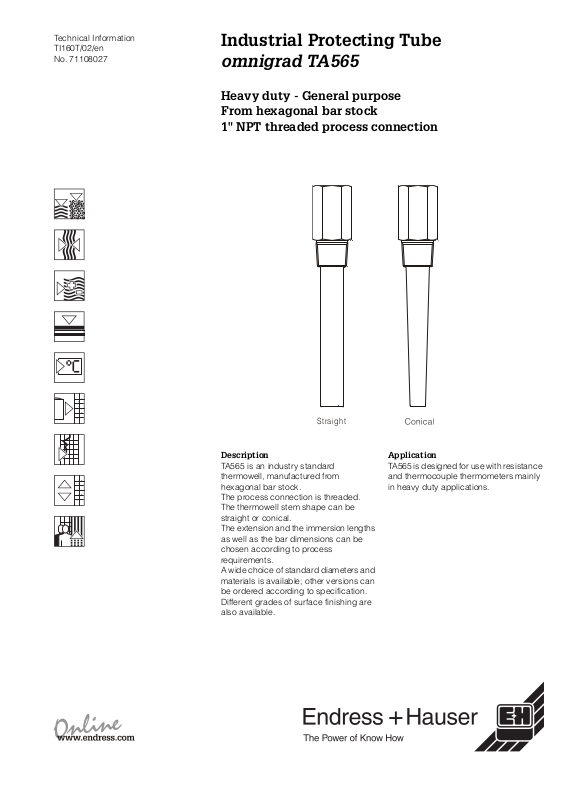

Industrial Protecting Tube
omnigrad TA565
Heavy duty - General purpose
From hexagonal bar stock
1" NPT threaded process connection
Straight
Description
TA565 is an industry standard
thermowell, manufactured from
hexagonal bar stock.
The process connection is threaded.
The thermowell stem shape can be
straight or conical.
The extension and the immersion lengths
as well as the bar dimensions can be
chosen according to process
requirements.
A wide choice of standard diameters and
materials is available; other versions can
be ordered according to specification.
Different grades of surface finishing are
also available.
Application
TA565 is designed for use with resistance
and thermocouple thermometers mainly
in heavy duty applications.
Technical data
Hexagonal bar Wrench: 36 mm
O.D.: < 28 mm
Standard bore diameter: 6.5 รท 10 mm
Standard material: AISI316 Ti, AISI316, AISI316 L
omnigrad TA565
Connection to
thermometer
Process connection Threaded: 1" NPT
Tip Bottom shape: straight or conical
Surface Finishing: 0.8 micron - standard
Threaded: 1/2" NPT - female
Bottom thickness: 6.35 mm
1.6 micron
2 Endress+Hauser
