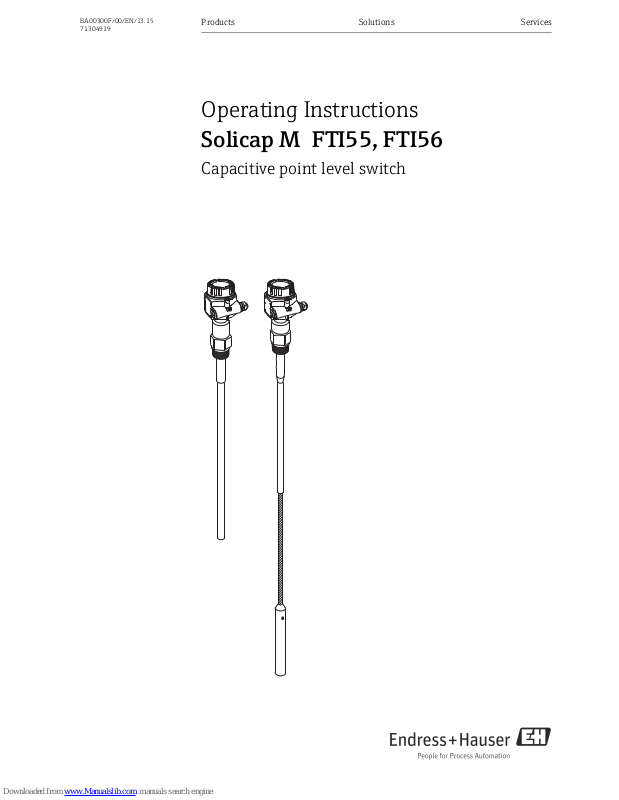

BA00300F/00/EN/13.15 71304919

Operating Instructions

Solicap M FTI55, FTI56

Capacitive point level switch

Page 2

Endress+Hauser

Brief overview

Note! These Operating Instructions describe the installation and initial commissioning of the point level switch. It considers all of the functions that are necessary for a usual measuring task.

For quick and easy commissioning:

Safety instructions

Explanation of the warning symbols

For special instructions, refer to the corresponding location in the respective

chapter. The priority is indicated by the Warning #, Caution " and Note !

symbols.

 ä 8

Installation

This section describes the required steps when installing the device and the

installation conditions (such as dimensions).

 ä 15

Wiring

The device is shipped, for the most part, completely wired and ready to plug in.  ä 36

Display and operating elements

This section provides an overview of the arrangement of the display and

operating elements of the device.

 ä 49

Commissioning

The "Commissioning" chapter shows you how to switch on the device and

check its functions.

 ä 53

Troubleshooting

If faults occur during operation, use the checklist to find the reason.

This section lists measures you can take yourself to remedy any faults that may

occur.

 ä 78

Page 3

Endress+Hauser

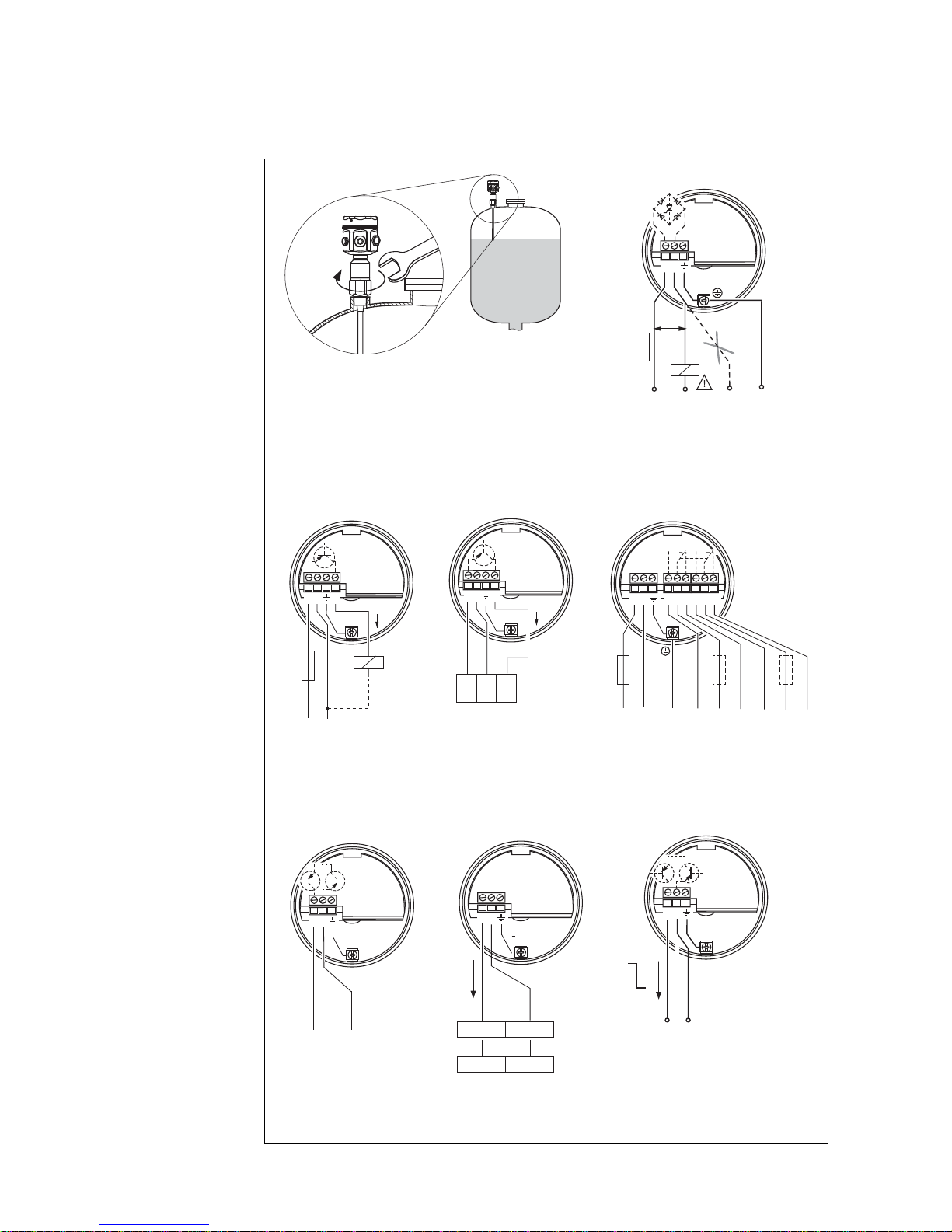

Brief operating instructions

BA299Fen001

11 12 13

–+S

Nivotester FTC325 3-WIRE

12 3

(+)

FEI53

–+

11 12

d4 d2

PFM

FEI57S

FTC325 FTC625

FTC470Z FTC471Z

Nivotester

EEx ia

FEI55

–

U– 11…36 V

12 3

L+ L–

(+)

–

0.5A

FEI52

U– 10…55 V (DC)

…

U~ 19…253 V U– 19…55 V(AC) / (DC)

L1 L+

NL–PE

(Ground)

0.5A

12 678345

FEI54

U~ max. 253 V AC 50/60 Hz

(Masse)

min. 19 V

FEI51

–

FEI58

Isolating amplifier to (NAMUR)

IEC 60947-5-6

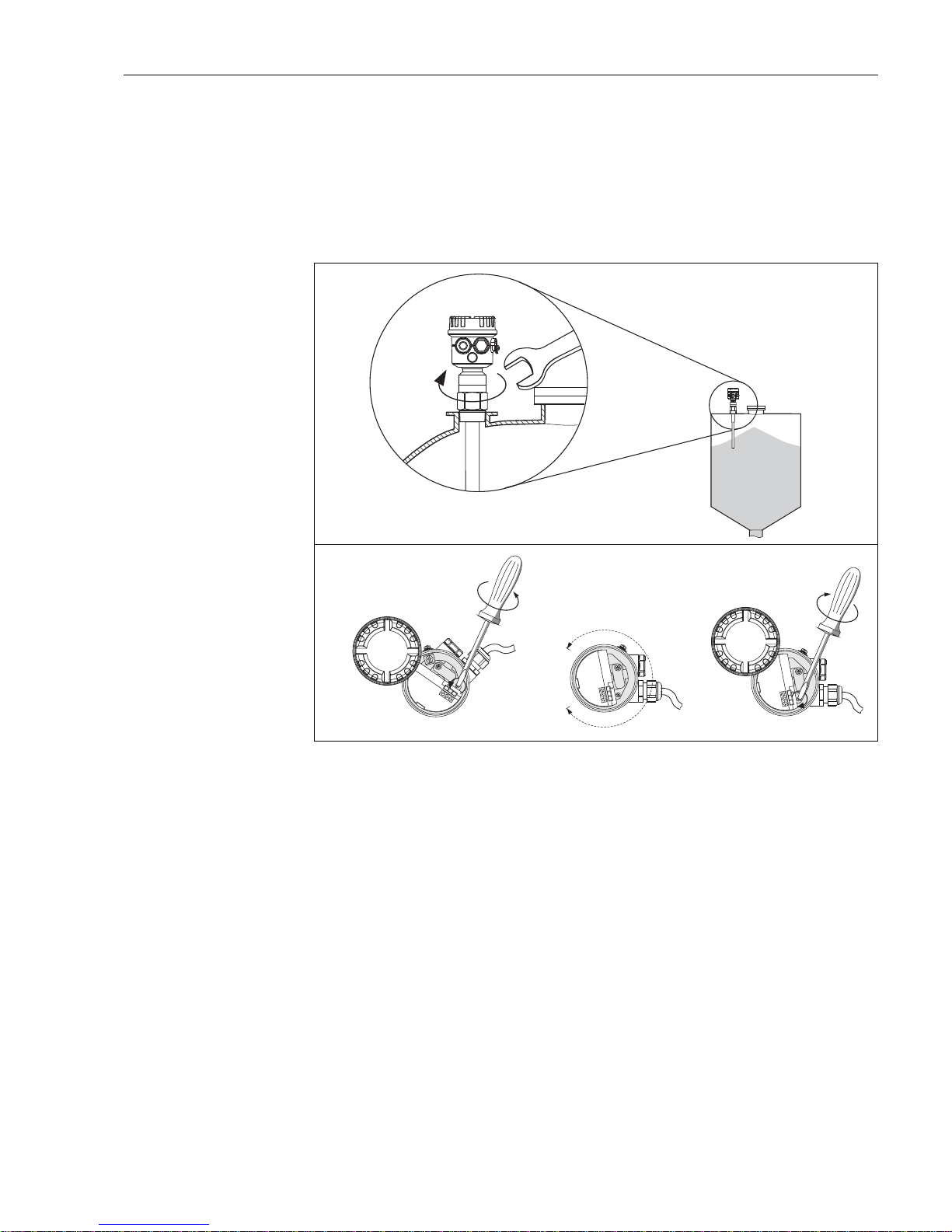

1. Install probe

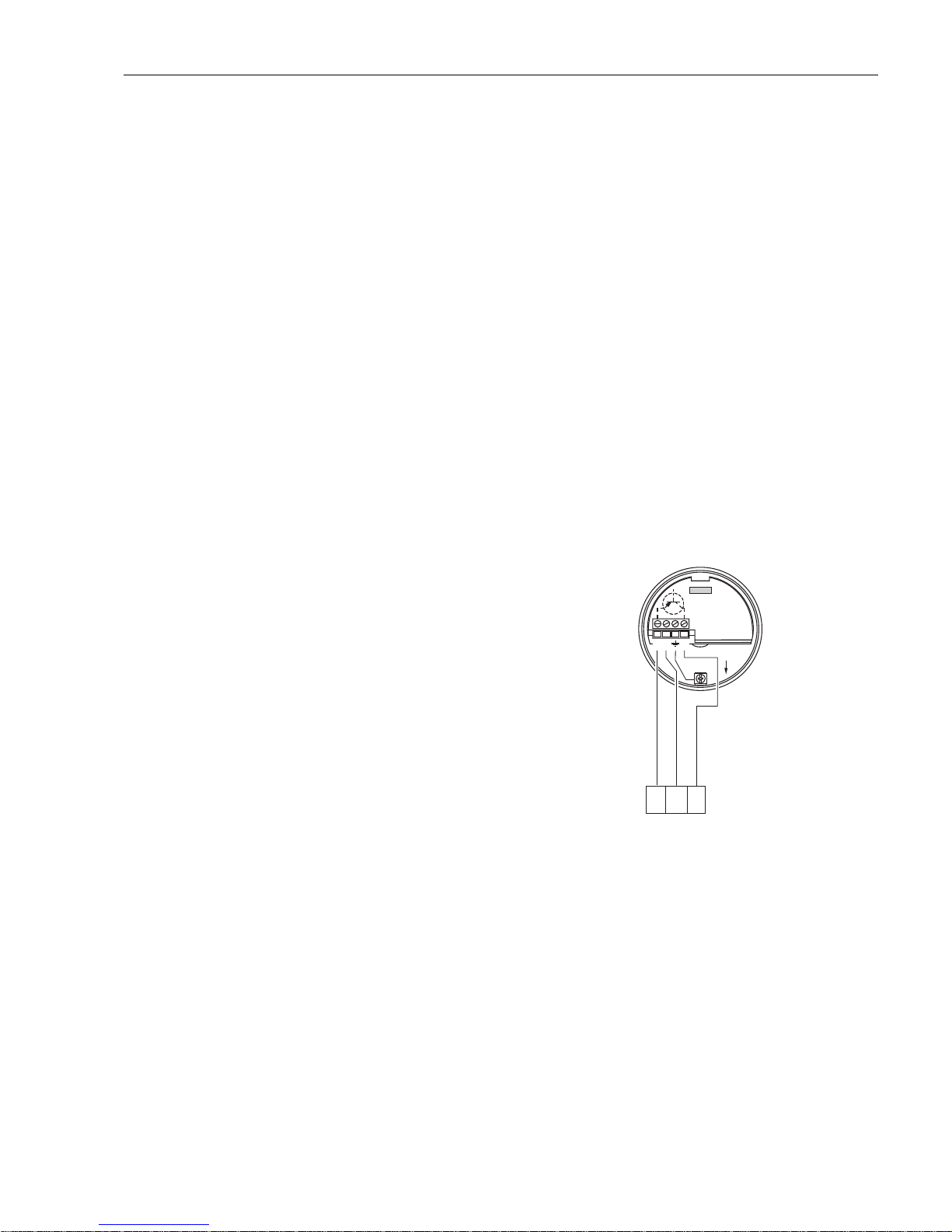

2. Wiring

3. Connect power supply

e.g. PLC

Page 4

Endress+Hauser

4. Switching on the power supply and configuring the device

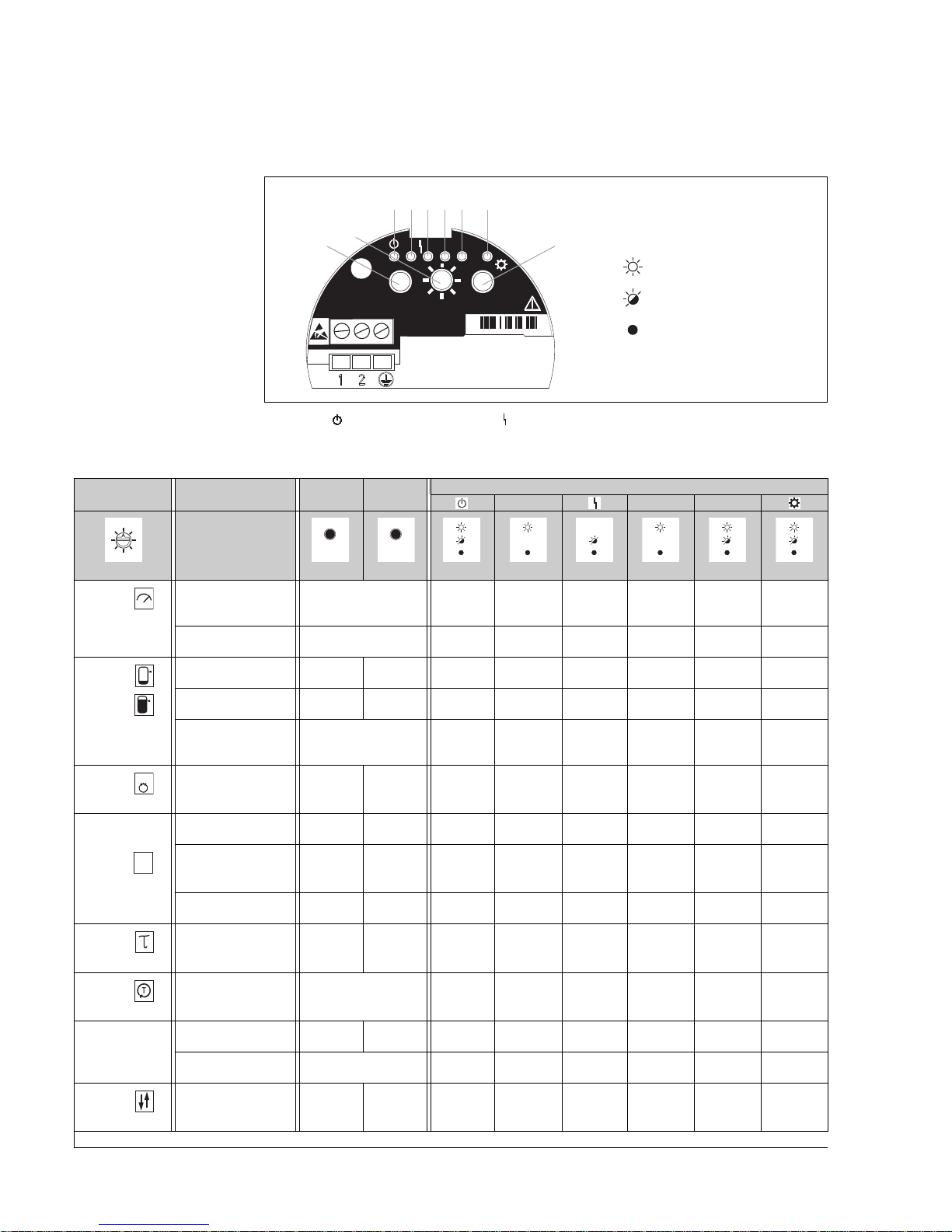

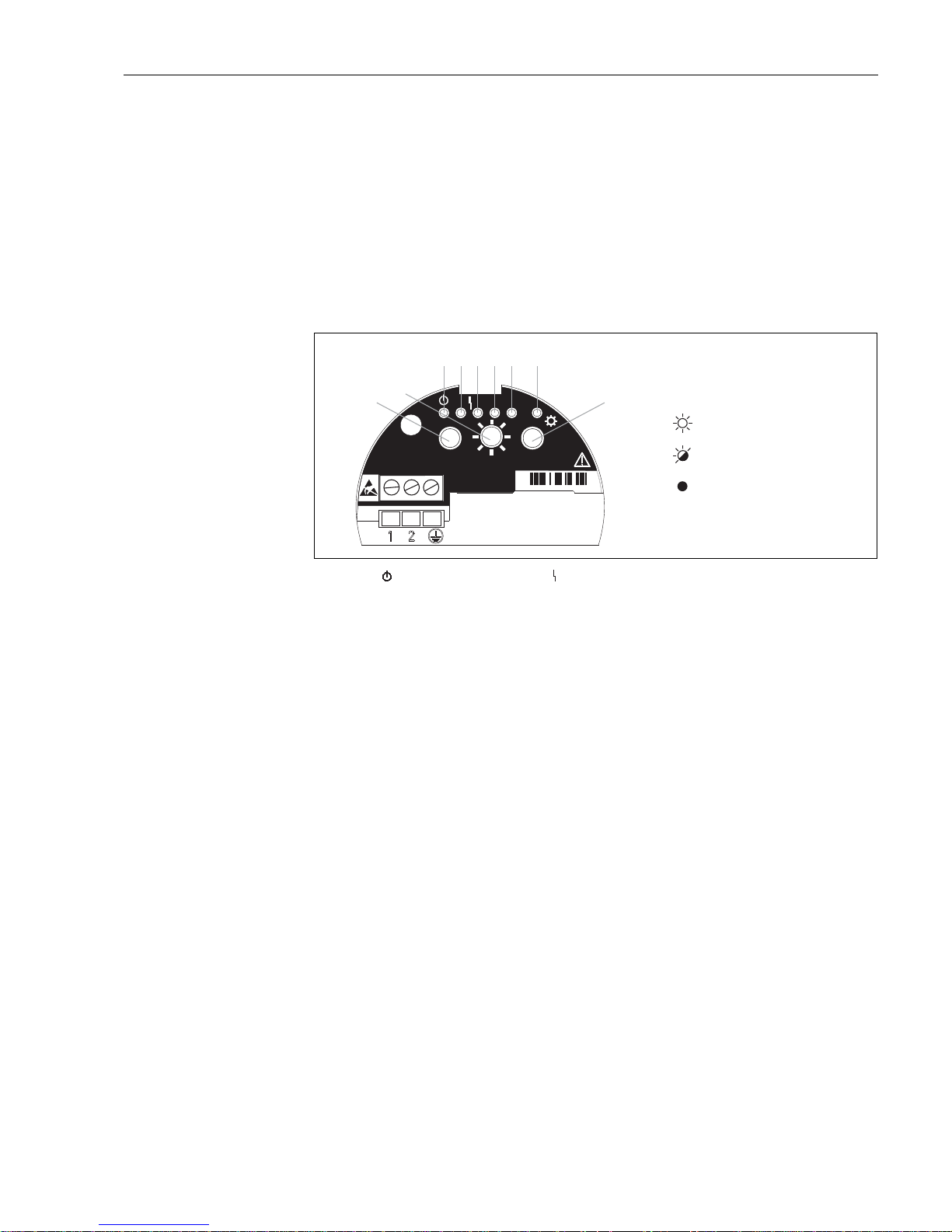

Electronic inserts: FEI51, FEI52, FEI54, FEI55

BA300Fen015

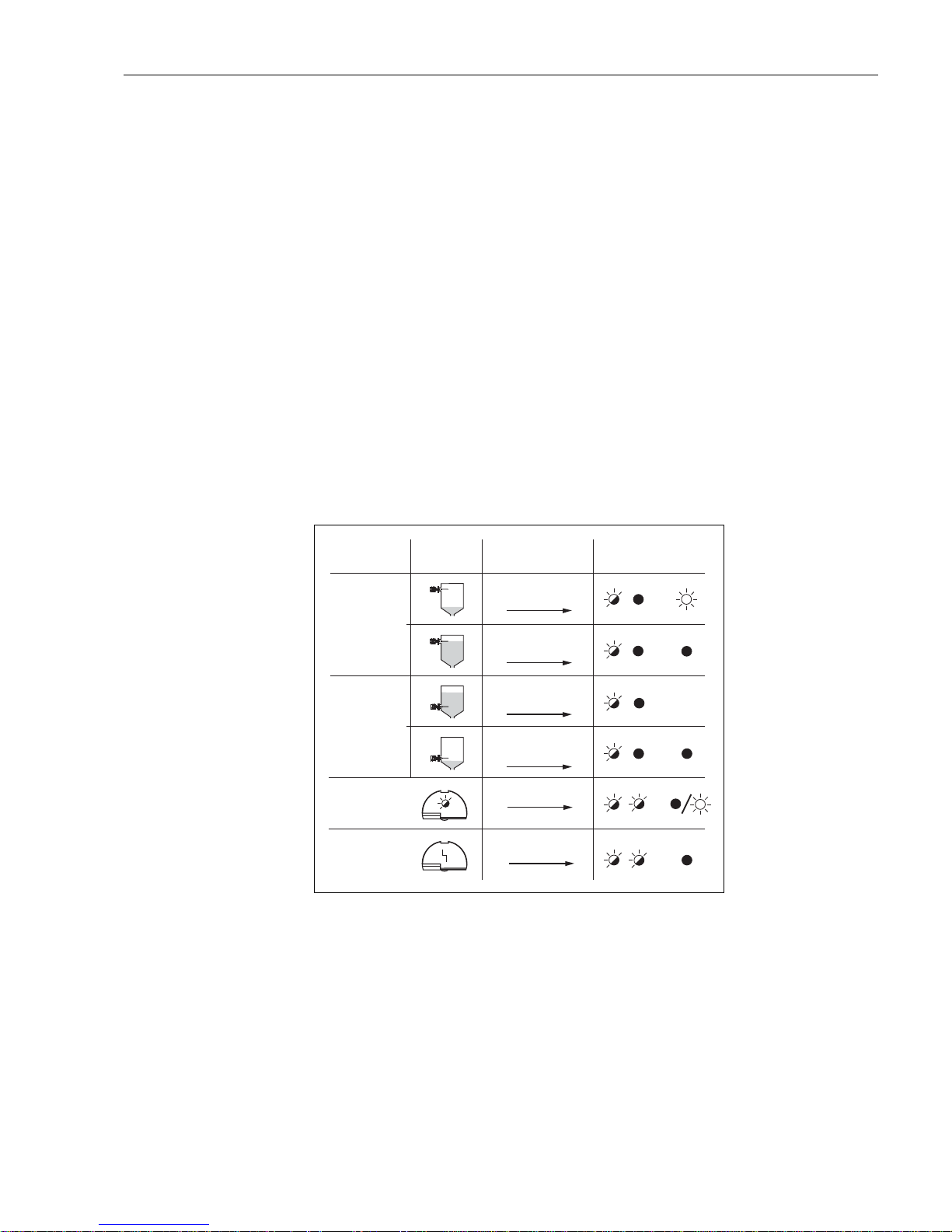

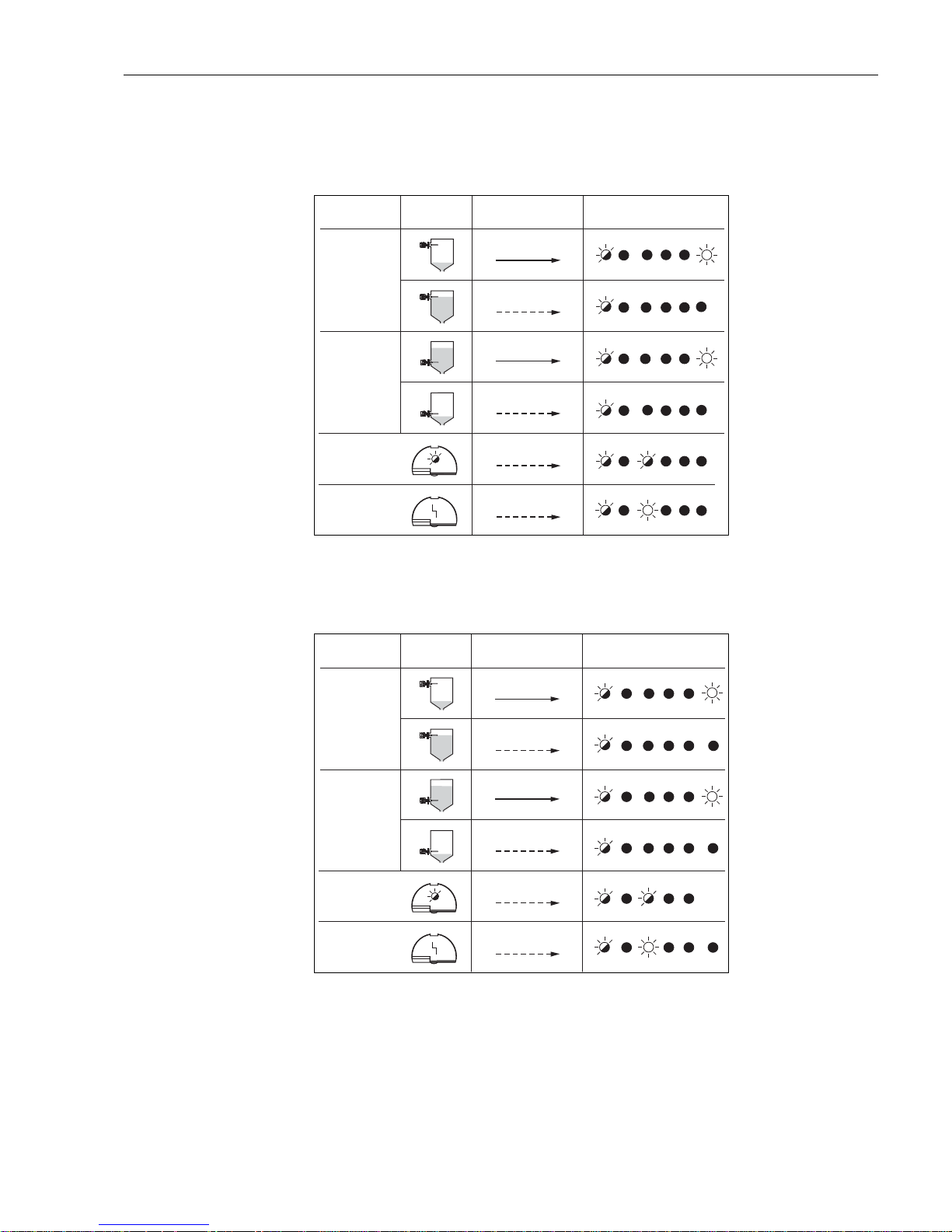

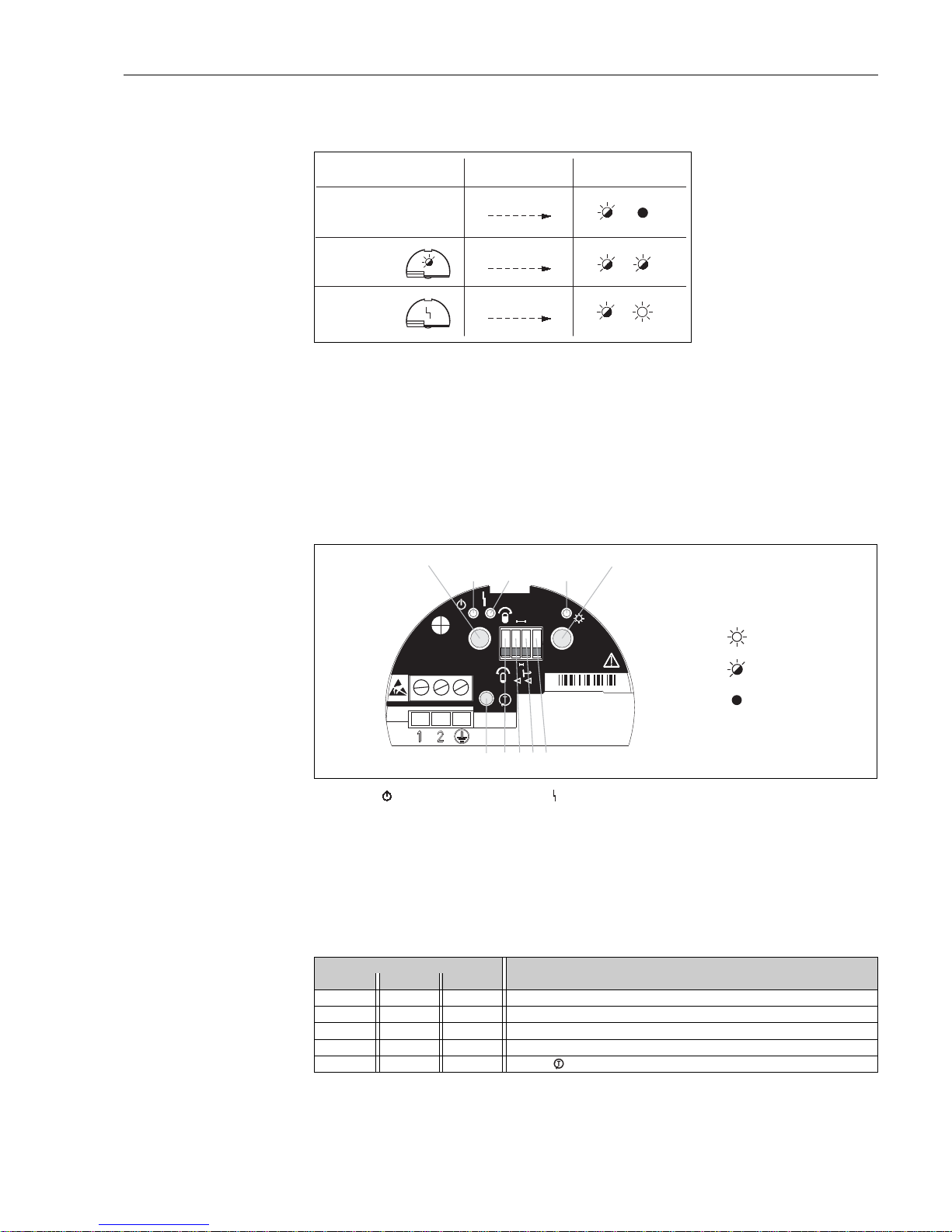

Green LED 1 ( ready for operation), red LED 3 ( error indicated), yellow LED 6 (✲ switching state)

FEI5xFEI5x

2211 33 44 55 66

BB CC

LEDLED

onon

flashingflashing

ofofff

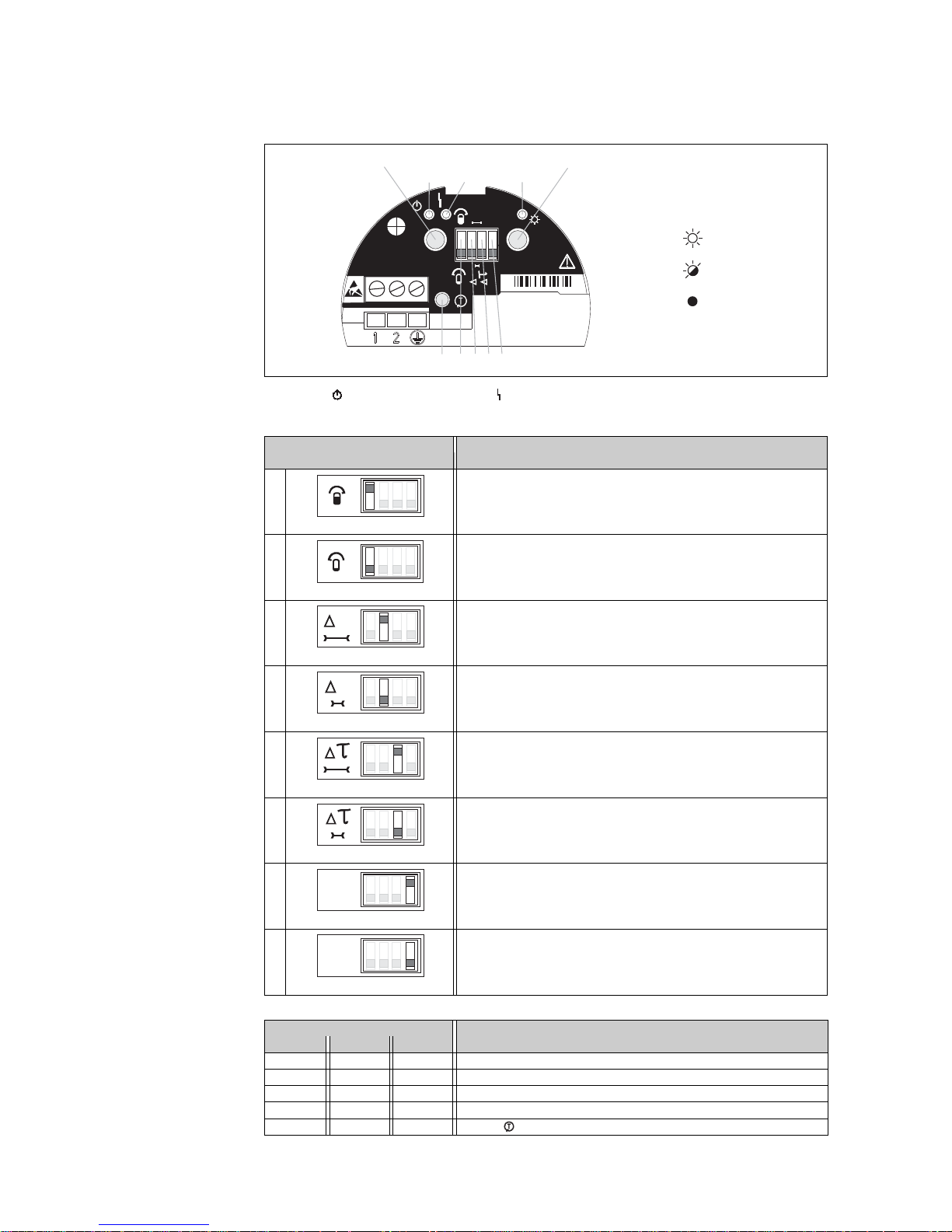

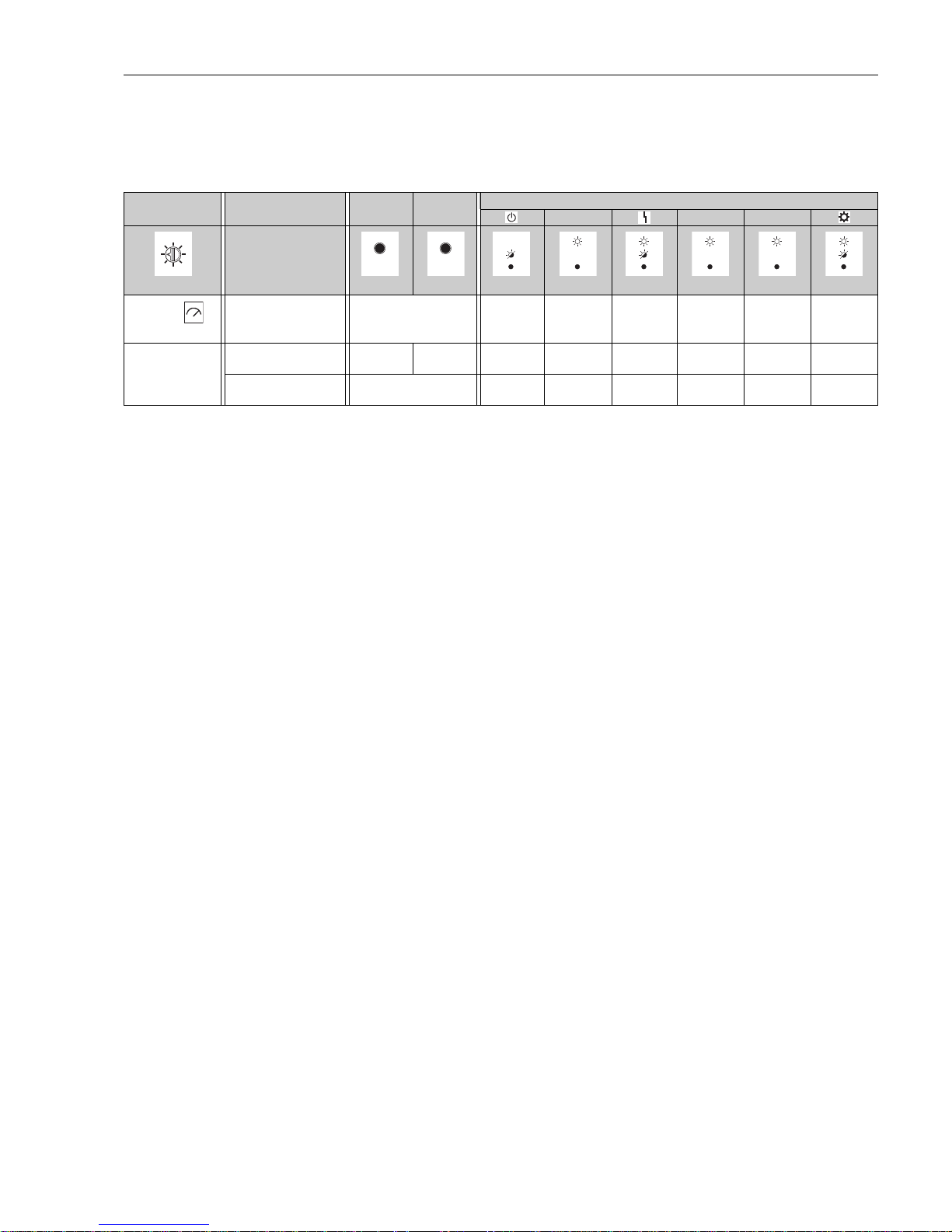

Function switch position

Function – key + key Light emitting diodes (LED signals)

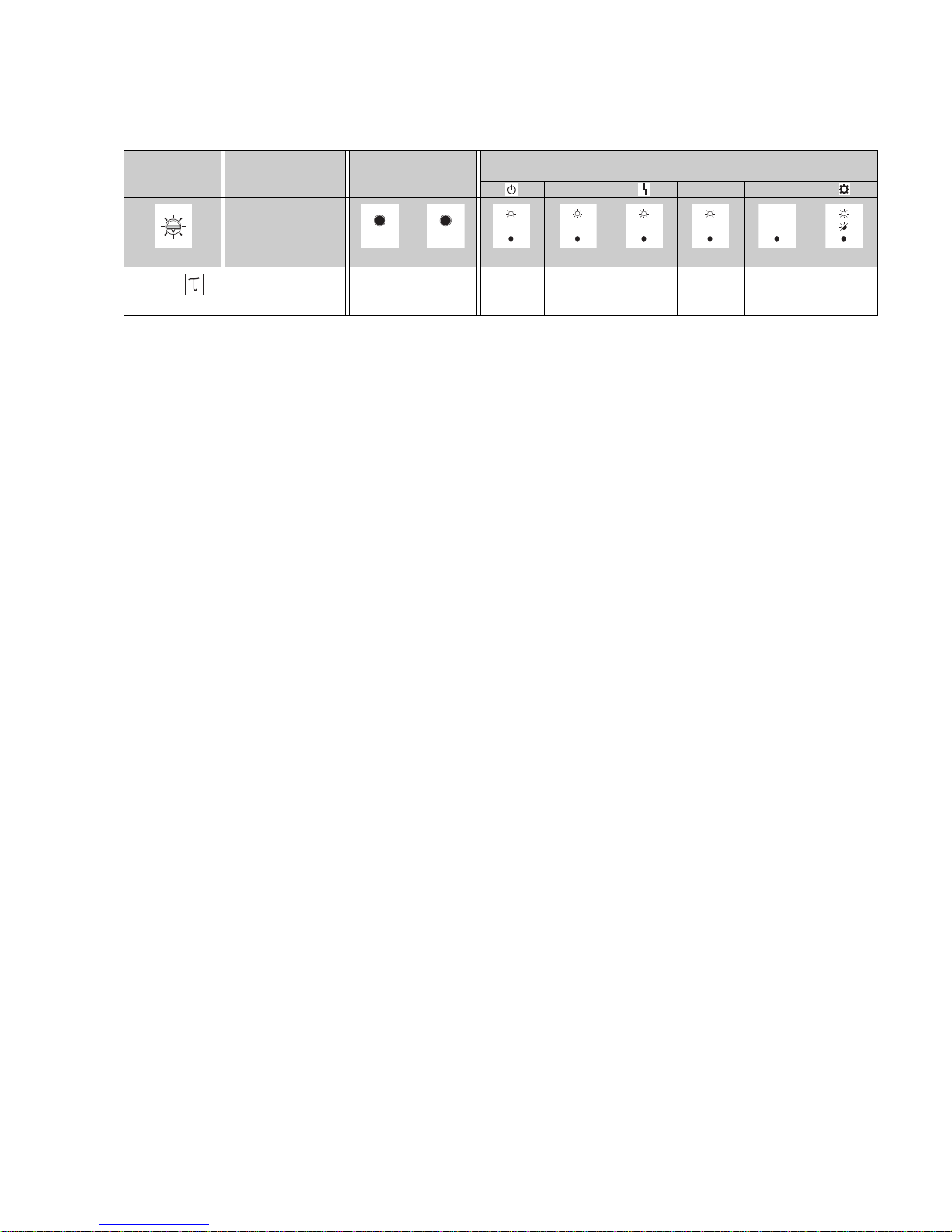

1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Operation Flashes

Operational LED

(MIN-SIL)

Flashes

(warning/ alarm)

(MAX-SIL)

On/off/ flashes

Restore factory setting Press both keys for

approx. 20 s

On –> –> –> –> On/off/

flashes

Empty calibration Press On

(present)

On/off/ flashes

Full calibration Press On

(present)

On/off/ flashes

Reset: Calibration and switch point adjustment

Press both keys for

approx. 10 s

On –> –> –> –> On/off/

flashes

Switch point adjustment Press for < Press for > On

(2 pF)

Off

(4 pF)

Off

(8 pF)

Off

(16 pF)

Off

(32 pF)

On/off/ flashes

Measuring range Press for < On

(500 pF)

Off

(1600 pF)

On/off/ flashes

Two-point control s Press once On On/off/

flashes

buildup mode Press twice On On On/off/

flashes

Switching delay Press for < Press for > Off

(0.3 s)

(1.5 s)

Off

(5 s)

Off

(10 s)

On/off/ flashes

Self-test (function test) Press both keys Off

(inactive)

Flashes

(active)

On/off/ flashes

MIN-/MAX Failsafe mode

Press for MIN

Press for MAX

Off

(MIN)

(MAX)

On/off/ flashes

SIL mode* lock/unlock

Press both keys On

(MIN-SIL)

(MAX-SIL)

On/off/ flashes

Upload/download sensor DAT (EEPROM)

Press for download

Press for upload

Flashes

(download)

Flashes

(upload)

On/off/ flashes

* Only in conjunction with FEI55 electronic insert (SIL).

Page 5

Endress+Hauser

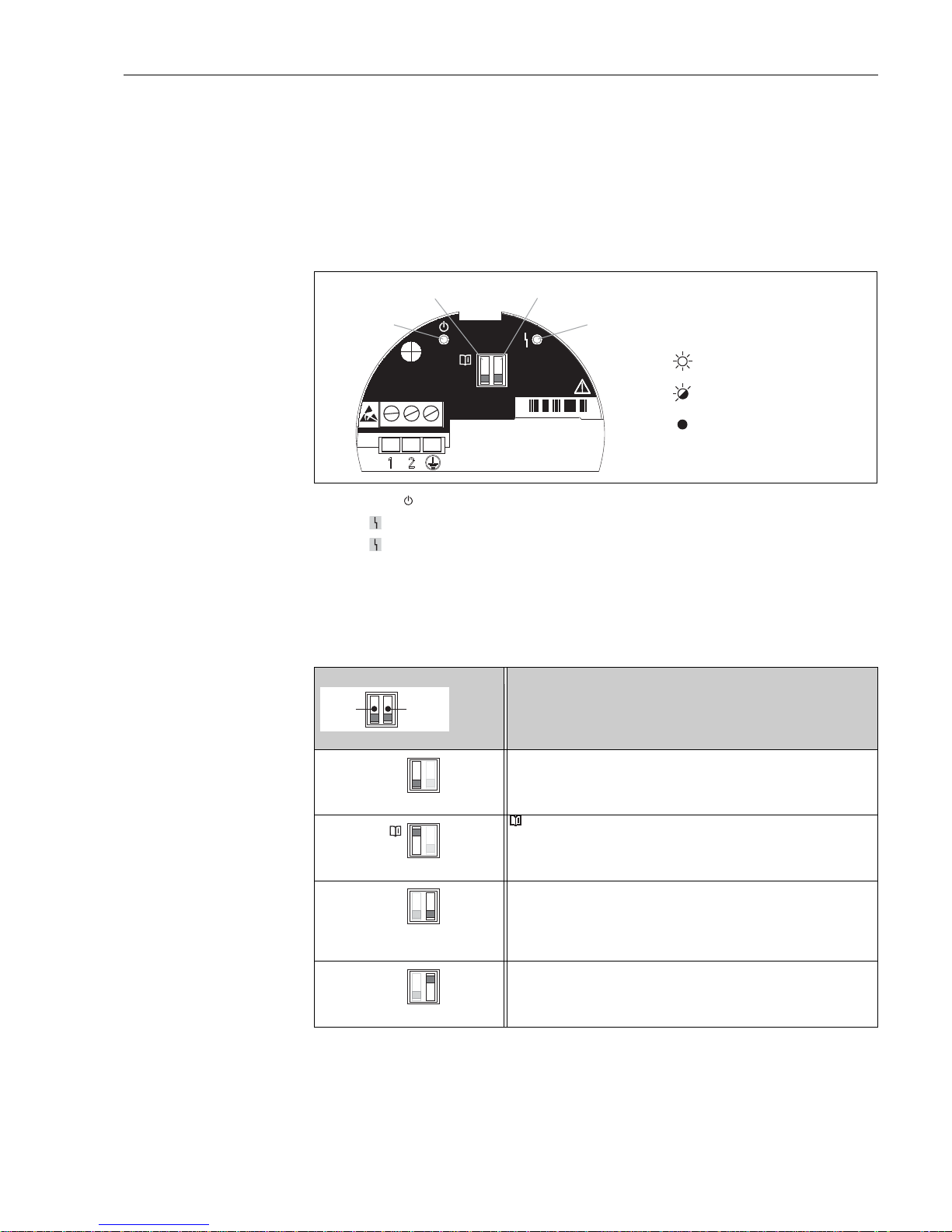

Electronic inserts: FEI53, FEI57S

BA300Fen016

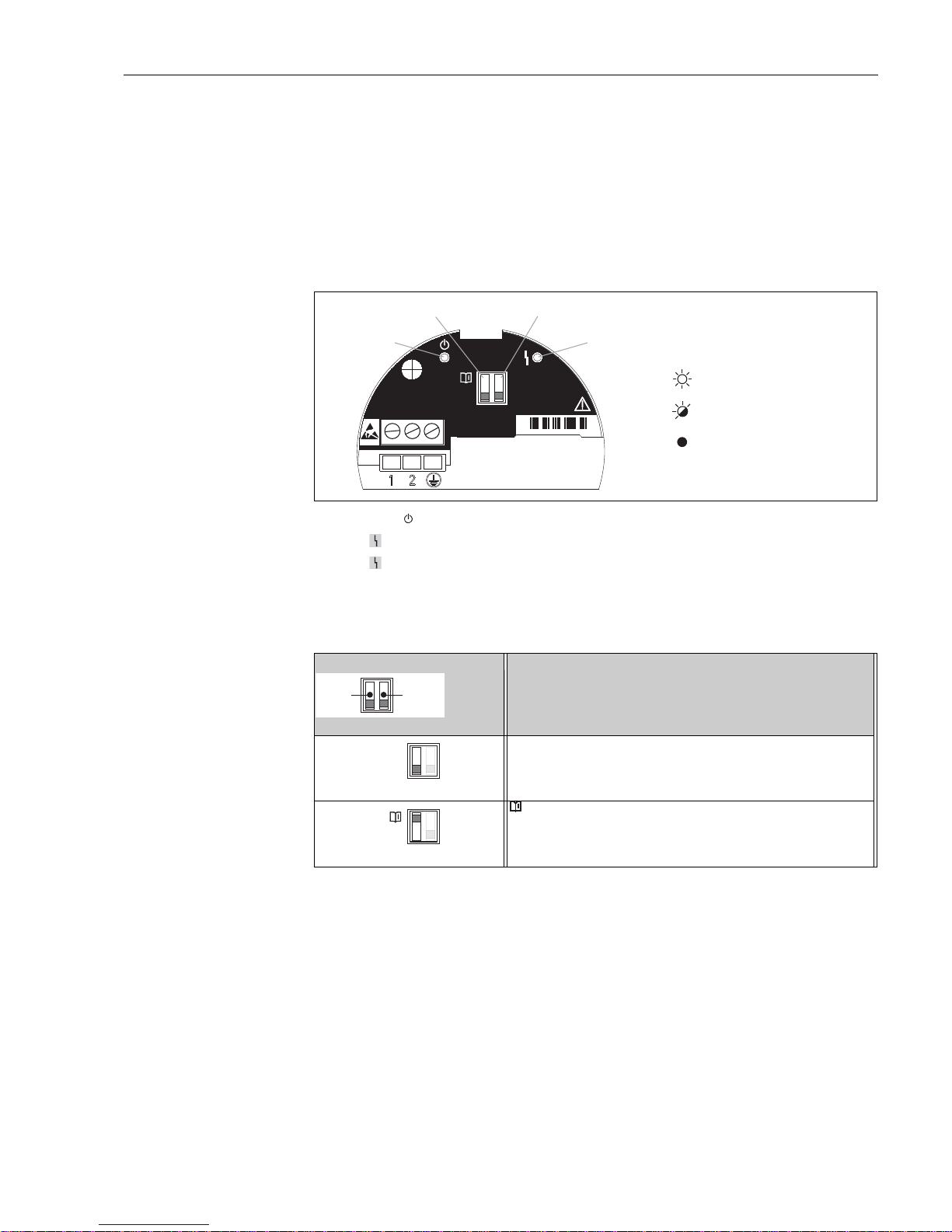

LED 1 operational : Flashes at 5-second intervals.

LED 2 fault : The red LED flashes if there is a fault that you can correct.

LED 2 fault : The red LED lights up continuously if the device has a fault that cannot be corrected. See also Page 78, "Troubleshooting".

FEI5xFEI5x

0.....500pFStandard

0...1600pF

11 22

LEDLED

onon

flashingflashing

ofofff

DIP switch Function

Standard

: If the measuring range is exceeded no alarm is output.

: If the measuring range is exceeded an alarm is output.

Measuring range: The mesasuring range is between 0 to 500 pF. Span: The span is between 5 to 500 pF.

Measuring range: The mesasuring range is between 0 to 1600 pF. Span: The span is between 5 to 1600 pF.

A B

Standard

0.....500pF0.....500pF

0...1600pF0...1600pF

Page 6

Endress+Hauser

Electronic insert: FEI58

BA299Fen016

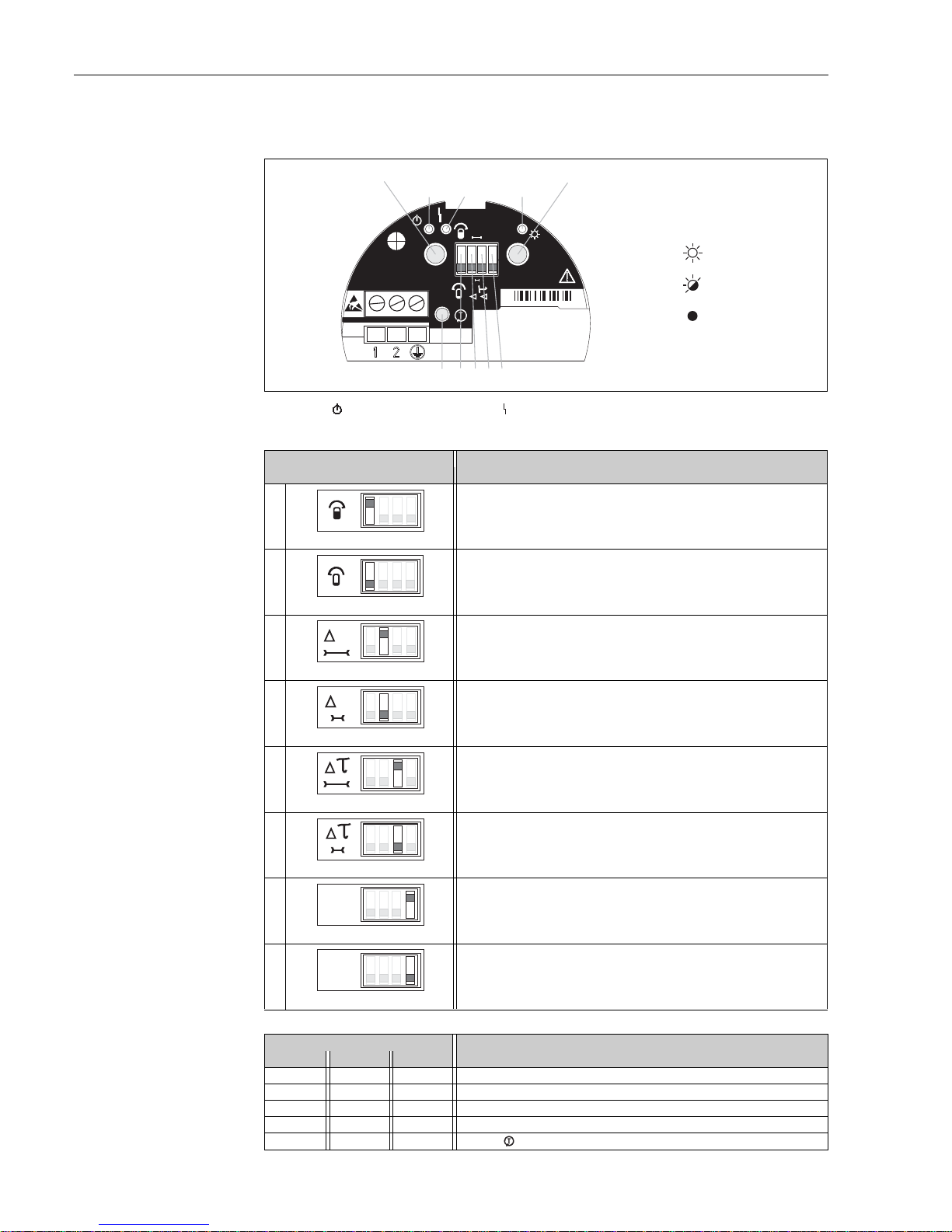

Green LED 1 ( operational status), red LED 2 ( fault message), yellow LED 3 (✲ switching status)

FEI58

NAMUR

IEC 60947-5-6

MIN

>2,2mA

MAX

GD E F

A B

LED

flashing

off

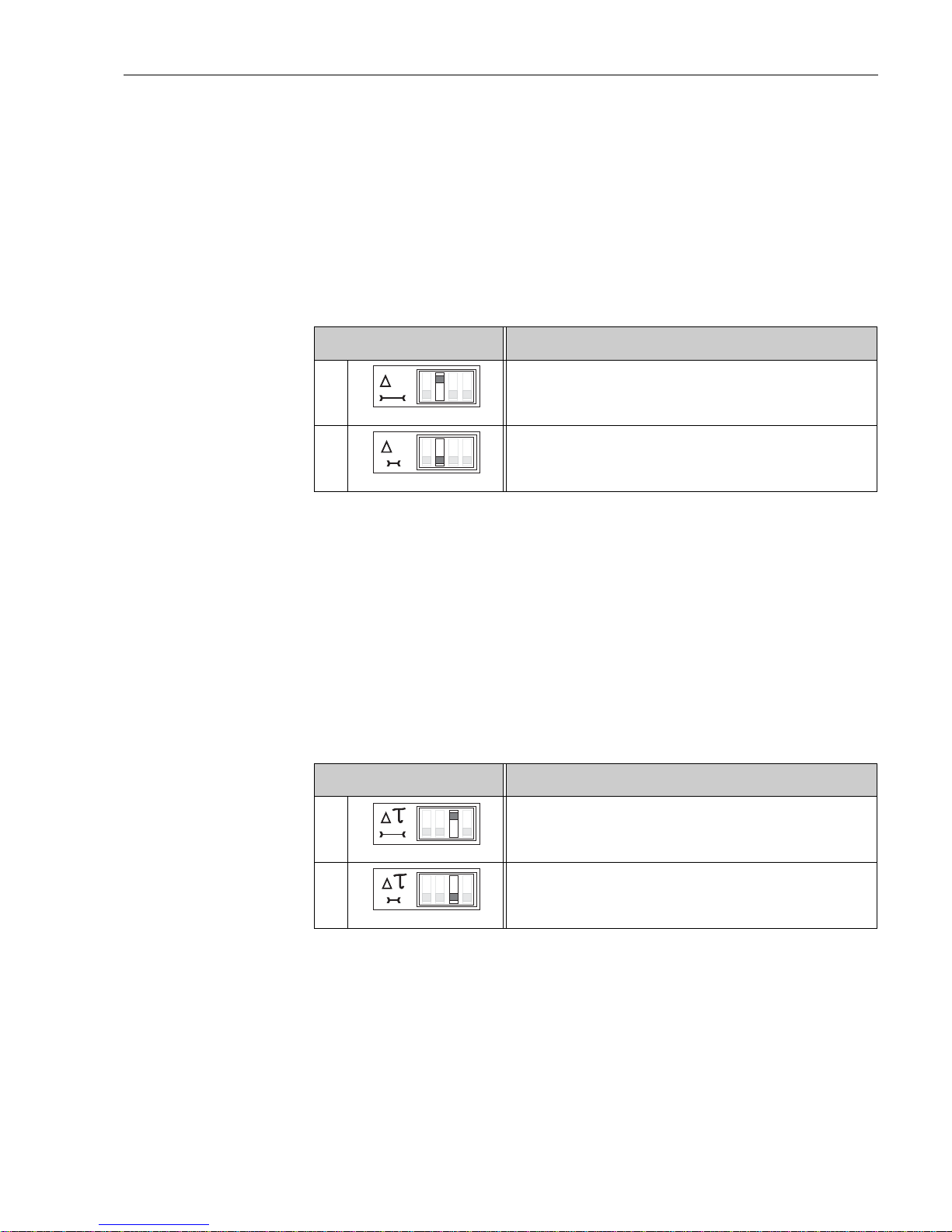

DIP switches (C, D, E, F) Function

The probe is covered during calibration.

The probe is uncovered during calibration.

Switch point adjustment: 10 pF

Switch point adjustment: 2 pF

Switching delay: 5 s

Switching delay: 1 s

Failsafe mode: MIN The output switches safety-oriented when the probe is uncovered (signal on alarm). For use for dry running protection and pump protection for example

Failsafe mode: MAX The output switches safety-oriented when the probe is covered (signal on alarm). For use with overfill protection for example

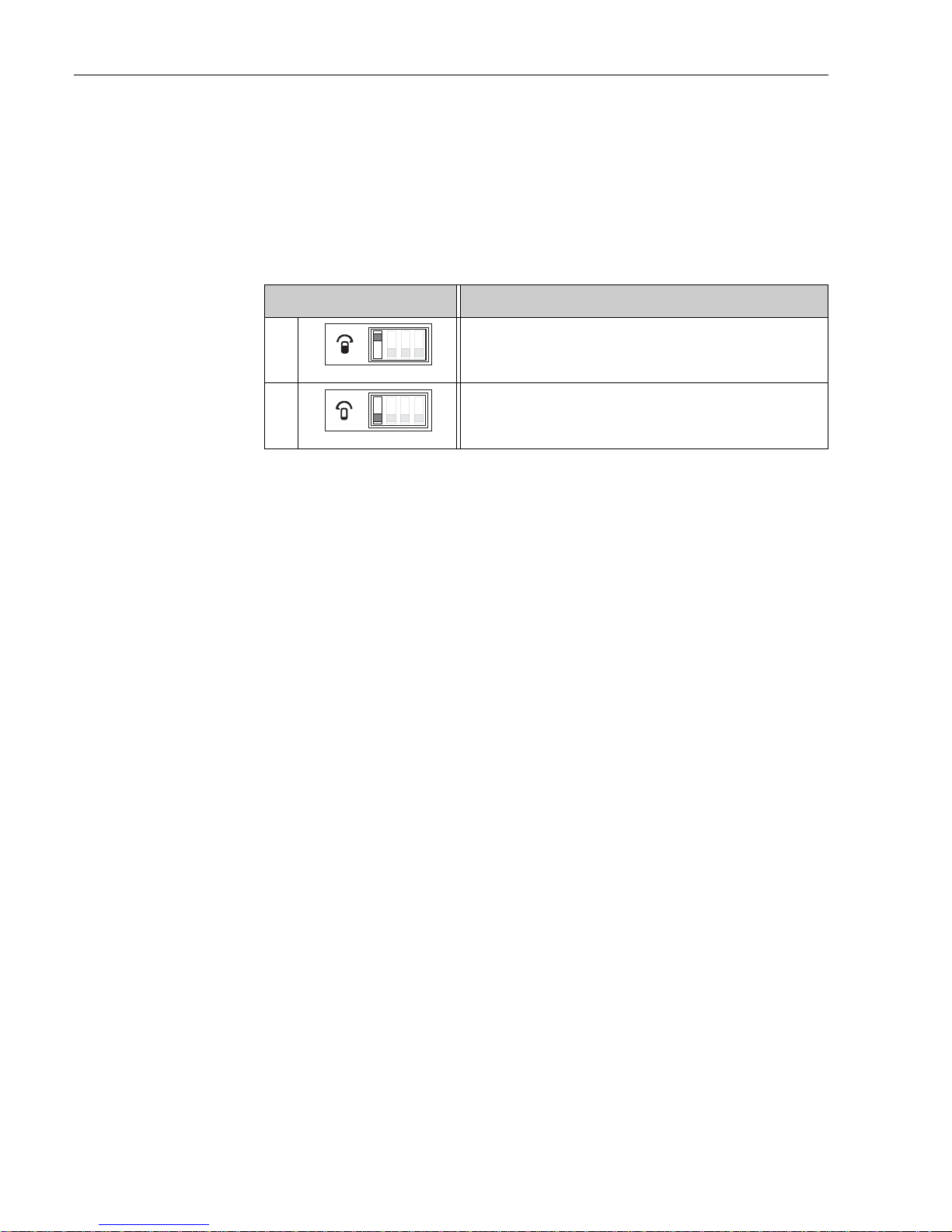

Key Function

A B C

X Display diagnostic code

X Display calibration situation X X Perform calibration (during operation) X X Delete calibration points (during startup)

X Test key , (disconnects the transmitter from the switching unit)

MAXMIN

MAX

Page 7

Solicap M FTI55, FTI56

Endress+Hauser 7

Table of contents

1 Safety instructions . . . . . . . . . . . . . . . . 8

1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.2 Installation, commissioning and operation . . . . . . . . 8

1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.4 Safety conventions and symbols . . . . . . . . . . . . . . . . 9

2 Identification . . . . . . . . . . . . . . . . . . . 10

2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . 14

3 Installation . . . . . . . . . . . . . . . . . . . . . 15

3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 15

3.2 Incoming acceptance, transport, storage . . . . . . . . . 15

3.3 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.4 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.5 Housing heights with adapter . . . . . . . . . . . . . . . . 18

3.6 Process connections and flanges . . . . . . . . . . . . . . . 18

3.7 Rod probes FTI55 . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.8 Rope probes FTI56 . . . . . . . . . . . . . . . . . . . . . . . . 20

3.9 Installation instructions . . . . . . . . . . . . . . . . . . . . . 21

3.10 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.11 With separate housing . . . . . . . . . . . . . . . . . . . . . . 30

3.12 Probe without active buildup compensation . . . . . . 31

3.13 Probe with active buildup compensation . . . . . . . . 33

3.14 Installing bracket for wall and pipe mounting . . . . . 34

3.15 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 35

4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 36

4.1 Connection recommendation . . . . . . . . . . . . . . . . . 36

4.2 Wiring in housing F16, F15, F17, F13 . . . . . . . . . . 38

4.3 Wiring in housing T13 . . . . . . . . . . . . . . . . . . . . . . 39

4.4 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 40

4.5 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 40

4.6 Connecting the electronic insert FEI51 (AC 2-wire) 41

4.7 Connecting the electronic insert FEI52 (DC PNP) . 42

4.8 Connecting the electronic insert FEI53 (3–WIRE) . 43

4.9 Connecting the electronic insert FEI54 (AC/DC with

relay output) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.10 Connecting the electronic insert FEI55 (8/16 mA;

SIL2/SIL3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4.11 Connecting the electronic insert FEI57S (PFM) . . . 46

4.12 Connecting the electronic insert FEI58 (NAMUR) . 47

4.13 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 48

5 Operation . . . . . . . . . . . . . . . . . . . . . . 49

5.1 Human interface and display elements for

FEI51, FEI52, FEI54, FEI55 . . . . . . . . . . . . . . . . . 49

5.2 Human interface and display elements for

FEI53, FEI57S . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

5.3 Human interface and display elements for FEI58 . . 52

6 Commissioning . . . . . . . . . . . . . . . . . . 53

6.1 Installation and function check . . . . . . . . . . . . . . . . 53

6.2 Commissioning the electronic inserts

FEI51, FEI52, FEI54, FEI55 . . . . . . . . . . . . . . . . . . 53

6.3 Commissioning with electronic inserts FEI53 or FEI57S 69

6.4 Commissioning with the electronic insert FEI58 . . . 71

7 Maintenance . . . . . . . . . . . . . . . . . . . . 76

8 Accessories . . . . . . . . . . . . . . . . . . . . . 77

8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . . 77

8.2 Overvoltage protection HAW56x . . . . . . . . . . . . . . 77

9 Troubleshooting . . . . . . . . . . . . . . . . . 78

9.1 Fault diagnostics in the electronic insert . . . . . . . . . 78

9.2 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.3 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.5 Firmware history . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.6 Contact addresses at Endress+Hauser . . . . . . . . . . . 80

10 Technical data . . . . . . . . . . . . . . . . . . 81

10.1 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

10.2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

10.3 Performance characteristics . . . . . . . . . . . . . . . . . . 82

10.4 Operating conditions: Environment . . . . . . . . . . . . 82

10.5 Operating conditions: Process . . . . . . . . . . . . . . . . 84

10.6 Other standards and guidelines . . . . . . . . . . . . . . . 88

10.7 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Page 8

Safety instructions Solicap M FTI55, FTI56

8 Endress+Hauser

1 Safety instructions

1.1 Designated use

The Solicap M FTI55 and FTI56 are compact point level switch devices for capacitive level limit detection in bulk solids.

1.2 Installation, commissioning and operation

The Solicap M's state-of the-art construction meets operating safety requirements and complies with all applicable standards and EU directives. However, if it is used improperly or if it is not put to its intended use, it can be a source of application-related dangers, such as product overflow due to incorrect installation or configuration. Therefore, the installation, electrical connection, commissioning, operation and maintenance of the measuring device only may be carried out by trained specialist personnel authorized by the facility's owner/operator for this purpose. The specialist personnel must have read and understood these Operating Instructions and must follow the instructions they contain. Modifications or repairs to the device can be carried out only if it is expressly stated in the Operating Instructions that these are permitted.

1.3 Operational safety

1.3.1 Hazardous areas

If the measuring system is used in hazardous areas, the corresponding national/federal standards and regulations must be observed. The device is accompanied by separate Ex documentation, which is an integral part of this documentation. Observe the installation instructions, connection data and safety instructions provided there.

• Ensure that the specialists are adequately trained.

• Observe the metrological and technical safety requirements for the measuring points.

Page 9

Solicap M FTI55, FTI56 Safety instructions

Endress+Hauser 9

1.4 Safety conventions and symbols

We have defined the following safety instructions to indicate safety-related or alternative procedures. Each instruction is identified by a corresponding pictogram.

Safety instructions

Warning!

This symbol indicates an action or procedure which, if not performed correctly, can result in serious injury, a safety hazard or the destruction of the device.

Caution!

This symbol indicates an action or procedure which, if not performed correctly, can result in injury or destruction of the device.

Note!

This symbol indicates an action or procedure which, if not performed correctly, can have an indirect effect on operation or trigger an unexpected response on the part of the device.

Type of protection

Explosion-protected, prototype-tested apparatus

If this symbol appears on the nameplate of the device, the device can be used in hazardous or nonhazardous areas according to its approval.

Hazardous areas

In the drawings in these Operating Instructions, this symbol identifies hazardous areas. Devices located in hazardous areas and lines for these devices must have corresponding explosion protection.

Safe areas (non-hazardous areas)

In the drawings in these Operating Instructions, this symbol identifies non-hazardous areas. Devices in the non-hazardous area also must be certified if the connecting lines lead into the hazardous area.

Electrical symbols

Direct current

A terminal at which DC voltage is present or through which DC voltage flows.

Alternating current

A terminal at which AC voltage (sinusoidal) voltage is present or through which AC flows.

)

Ground connection

A grounded terminal which, from the viewpoint of the user, is grounded via a grounding system.

Protective ground connection

A terminal that has to be grounded before other connections can be made.

Equipotential connection

A connection that has to be connected to the grounding system of the plant. This can be a potential equalization line or a radial grounding system depending on national and company codes of practice.

Temperature resistance of the connecting cables

Indicates that the connecting cables must be able to withstand temperatures of at least 85 °C.

t >85°C

Page 10

Identification Solicap M FTI55, FTI56

10 Endress+Hauser

2 Identification

2.1 Device designation

2.1.1 Nameplate

Refer to the nameplate of the device for the following technical data (exmplary):

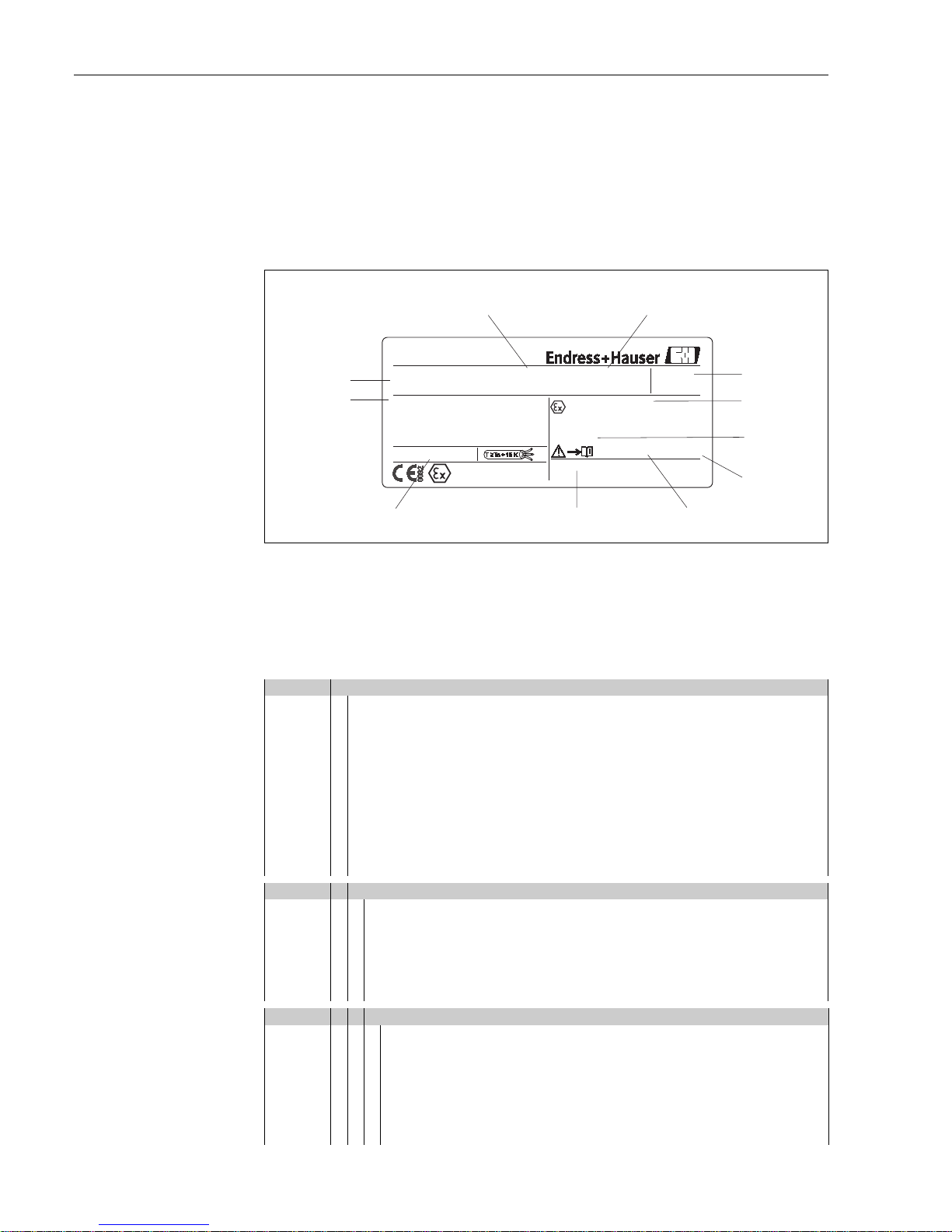

BA300Fen005

Information on the Solicap M nameplate (example)

2.1.2 Device identification

Solicap M FTI55

Z 65.13.xxxZ 65.13.xxx

22 5500000022007755 -- AA

Dat.:Dat.:

IP65/66/IP65/66/ NEMA4XNEMA4X

MWP:MWP:

Solicap MSolicap M

Order Code.:Order Code.: SerSer.No.:.No.:

≤≤

TTaa

≤≤

+70°C+70°C

-40°C-40°C

05/0605/06

MMaaddee iinn GGeerrmmaannyy,, DD-- 7799668899 MMaauullbbuurrgg

30VDC, 4A; 125VDC, 0,2A; 253V30VDC, 4A; 125VDC, 0,2A; 253VAC, 4AAC, 4A

123456789123456789

L1 = 250L1 = 250

mmmm

FEI54FEI54

FTI55 - CAA2RGJ45A1AFTI55 - CAA2RGJ45A1A

U: 19-253VU: 19-253VAC (50/60Hz), 19-55VDCAC (50/60Hz), 19-55VDC

25bar25bar

Pmax.: 1,5WPmax.: 1,5W

LL = 250= 250

mmmm

XAXA 327 F-327 F- AA

AATEX II 1/2G EEx ia IICTEX II 1/2G EEx ia IIC T6T6

BVS 06BVS 06 AATEX E 103 XTEX E 103 X

Order numberOrder number

(see ordering information)(see ordering information)

Approval No.Approval No. AATEXTEX

WHG approvalWHG approval (German W(German Waterater ResourcesResources Act)Act)

Safety informationSafety information

Max. permissible pressureMax. permissible pressure

in tin tankank

Serial numberSerial number

Ambient temperatureAmbient temperature

at housingat housing

Electronic insertElectronic insert

Active porbe lengthActive porbe length

Month and yearMonth and year of productionof production

Protection classProtection class

10 Approval:

A Non-hazardous areas

B ATEX II 1/3 D

C ATEX II 1/2 D

F ATEX II 1 D, 1/2 D, 1/3 D EEx ia D

L CSA/FM IS Cl. I, II, III, Div. 1+2, Gr. A-G

M CSA/FM XP Cl. I, II, III, Div. 1+2, Gr. A-G

N CSA/FM DIP Cl. I, II, III, Div. 1+2, Gr. E-G

S TIIS Ex ia IIC T3

T TIIS Ex d IIC T3

3NEPSI DIP A20

Y Special version, to be specified

20 Inactive length L3:

A Not selected

B Not selected + 125 mm/5 inch

Active buildup compensation

316L

1 .... mm 316L

5 .... inch 316L

9 Special version

30 Active length L1:

A .... mm, steel

B 325 mm, steel

C .... mm, 316L

D 325 mm, 316L

E 600 mm, steel

H .... inch, steel

K 13 inch, steel

M .... inch, 316L

Page 11

Solicap M FTI55, FTI56 Identification

Endress+Hauser 11

N 13 inch, 316L

P 24 inch, steel

Y Special version, to be specified

40 Insulation:

1 fully insulated PE, max. 80 °C

2 75 mm L2, partially insulated PPS, max. 180 °C

3 3 inch L2, partially insulated PPS, max. 180 °C

9 Special version, to be specified

50 Process connection:

AFJ 2", 150 lbs RF 316/316L

AGJ 3", 150 lbs RF 316/316L

AHJ 4", 150 lbs RF 316/316L

BSJ DN80, PN10/16 A 316L EN1092-1 (DIN2527 B)

BTJ DN100, PN10/16 A 316L EN1092-1 (DIN2527 B)

B3J DN50, PN25/40 A 316L EN1092-1 (DIN2527 B)

KFJ 10K 50, RF 316L JIS B2220

KGJ 10K 80, RF 316L JIS B2220

KHJ 10K 100, RF 316L JIS B2220

RGJ NPT 1½, 316L thread ANSI

RG1 NPT 1½, steel thread ANSI

RVJ R 1½, 316L thread DIN2999

RV1 R 1½, steel thread DIN2999

YY9 Special version, to be specified

60 Electronics; output:

1 FEI51; 2-wire 19 to 253VAC

2 FEI52; 3-wire PNP, 10 to 55VDC

3 FEI53; 3-wire, 3 to 12 V signal

4 FEI54; relay DPDT, 19 to 253VAC, 19 to 55VDC

5 FEI55; 8/16 mA, 11 to 36VDC

7 FEI57S; 2-wire PFM

8 FEI58; NAMUR+test key (H-L signal)

W Prepared for FEI5x

Y Special version, to be specified

70 Housing:

1 F15 316L IP66, NEMA4X

2 F16 polyester IP66, NEMA4X

3 F17 aluminum IP66, NEMA4X

4 F13 Alu + gas-tight probe seal IP66, NEMA4X

5 T13 Alu + gas-tight probe seal

+ separate connection compartment

IP66, NEMA4X

9 Special version, to be specified

80 Cable entry:

A M20 Threaded joint

B Thread G ½

C Thread NPT ½

D Thread NPT ¾

G Thread M20

E M12 connector

Y Special version, to be specified

90 Probe design:

1 Compact

2 2000 mm L4 cable > separate housing

3 .... mm L4 cable > separate housing

4 80 inch L4 cable > separate housing

5 .... inch L4 cable > separate housing

9 Special version, to be specified

30 Active length L1:

Page 12

Identification Solicap M FTI55, FTI56

12 Endress+Hauser

100 Additional equipment:

A Basic version

D EN10204-3.1 material (316L wetted), Inspection certificate

E EN10204-3.1 material (316L wetted), NACE

MR0175

Inspection certificate

F SIL Declaration of Conformity

Y Special version, to be specified

FTI55 Product designation

Page 13

Solicap M FTI55, FTI56 Identification

Endress+Hauser 13

Solicap M FTI56

10 Approval:

A Non-hazardous areas

B ATEX II 1/3 D

C ATEX II 1/2 D

F ATEX II 1 D, 1/2 D, 1/3 D EEx ia D

L CSA/FM IS Cl. I, II, III, Div. 1+2, Gr. A-G

M CSA/FM XP Cl. I, II, III, Div. 1+2, Gr. A-G

N CSA/FM DIP Cl. I, II, III, Div. 1+2, Gr. E-G

S TIIS Ex ia IIC T3

T TIIS Ex d IIC T3

3NEPSI DIP A20

Y Special version, to be specified

20 Inactive length L3:

A Not selected

1 .... mm 316L

5 .... inch 316L

9 Special version

30 Active length L1; tensioning weight:

A .... mm, 6 mm rope 316L; 316L

B .... mm, 12 mm rope 316L; 316L

C .... mm, 8 mm rope galvanized steel; steel

D .... mm, 14 mm rope galvanized steel; steel

H .... inch, 0.2" rope 316L; 316L

K .... inch, 0.5" rope 316L, 316L

M .... inch, 0.3" rope galvanized steel; steel

N .... inch, 0.6" rope galvanized steel; steel

Y Special version, to be specified

40 Insulation:

1 fully insulated PA, max. 120 °C

2 500 mm L2, partially insulated

PTFE,

max. 180 °C

9 Special version, to be specified

50 Process connection:

AFJ 2", 150 lbs RF 316/316L

AGJ 3", 150 lbs RF 316/316L

AHJ 4", 150 lbs RF 316/316L

BSJ DN80, PN10/16 A 316L EN1092-1 (DIN2527 B)

BTJ DN100, PN10/16 A 316L EN1092-1 (DIN2527 B)

B3J DN50, PN25/40 A 316L EN1092-1 (DIN2527 B)

KFJ 10K 50, RF 316L JIS B2220

KGJ 10K 80, RF 316L JIS B2220

KHJ 10K 100, RF 316L JIS B2220

RGJ NPT 1½ 316L thread ANSI

RG1 NPT 1½, steel thread ANSI

RVJ R 1½, 316L thread DIN2999

RV1 R 1½, steel thread DIN2999

YY9 Special version, to be specified

60 Electronics; output:

1 FEI51; 2-wire 19 to 253VAC

2 FEI52; 3-wire PNP, 10 to 55VDC

3 FEI53; 3-wire, 3 to 12 V signal

4 FEI54; relay DPDT, 19 to 253VAC, 19 to 55VDC

5 FEI55; 8/16 mA, 11 to 36VDC

7 FEI57S; 2-wire PFM

8 FEI58; NAMUR+test key (H-L signal)

W Prepared for FEI5x

Y Special version, to be specified

Page 14

Identification Solicap M FTI55, FTI56

14 Endress+Hauser

2.2 Scope of delivery

The scope of delivery consists of:

• The mounted device

• Where applicable, accessories (see  ä 77)

Provided documentation:

• Operating Instructions

• Approval documentation, if not included in the Operating Instructions.

2.3 Certificates and approvals

CE mark, Declaration of conformity

The device is designed to meet state-of-the-art operating safety requirements, has been tested, and has left the factory in a condition in which it is safe to operate. The device meets the relevant standards and directives listed in the EC Declaration of Conformity and thus fulfills the legal requirements of the EC Directives. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark.

70 Housing:

1 F15 316L IP66, NEMA4X

2 F16 polyester IP66, NEMA4X

3 F17 aluminum IP66, NEMA4X

4 F13 Alu + gas-tight probe seal IP66, NEMA4X

5 T13 Alu + gas-tight probe seal

+ separate connection compartment

IP66, NEMA4X

9 Special version, to be specified

80 Cable entry:

A M20 Threaded joint

B Thread G ½

C Thread NPT ½

D Thread NPT ¾

G Thread M20

E M12 connector

F7/8" connector

Y Special version, to be specified

90 Probe design:

1 Compact

2 2000 mm L4 cable > separate housing

3 .... mm L4 cable > separate housing

4 80 inch L4 cable > separate housing

5 .... inch L4 cable > separate housing

9 Special version, to be specified

100 Additional equipment:

A Basic version

F SIL Declaration of Conformity

Y Special version, to be specified

FTI56 Product designation

Page 15

Solicap M FTI55, FTI56 Installation

Endress+Hauser 15

3 Installation

Note! All dimensions in mm.

3.1 Quick installation guide

BA300Fxx019

1.) Screw in the device

2. a) Release the securing screw in the housing until the housing rotates easily.

2. b) Align the housing as required.

2. c) Tighten the securing screw (< 1 Nm) until the housing can no longer be turned.

3.2 Incoming acceptance, transport, storage

3.2.1 Incoming acceptance

Check the packaging and the contents for damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

3.2.2 Storage

Pack the device so that is protected against impact for storage and transport. The original packaging provides optimum protection here. The permitted storage temperature is –50°C to +85°C.

a2.

... 270°

Page 16

Installation Solicap M FTI55, FTI56

16 Endress+Hauser

3.3 Overview

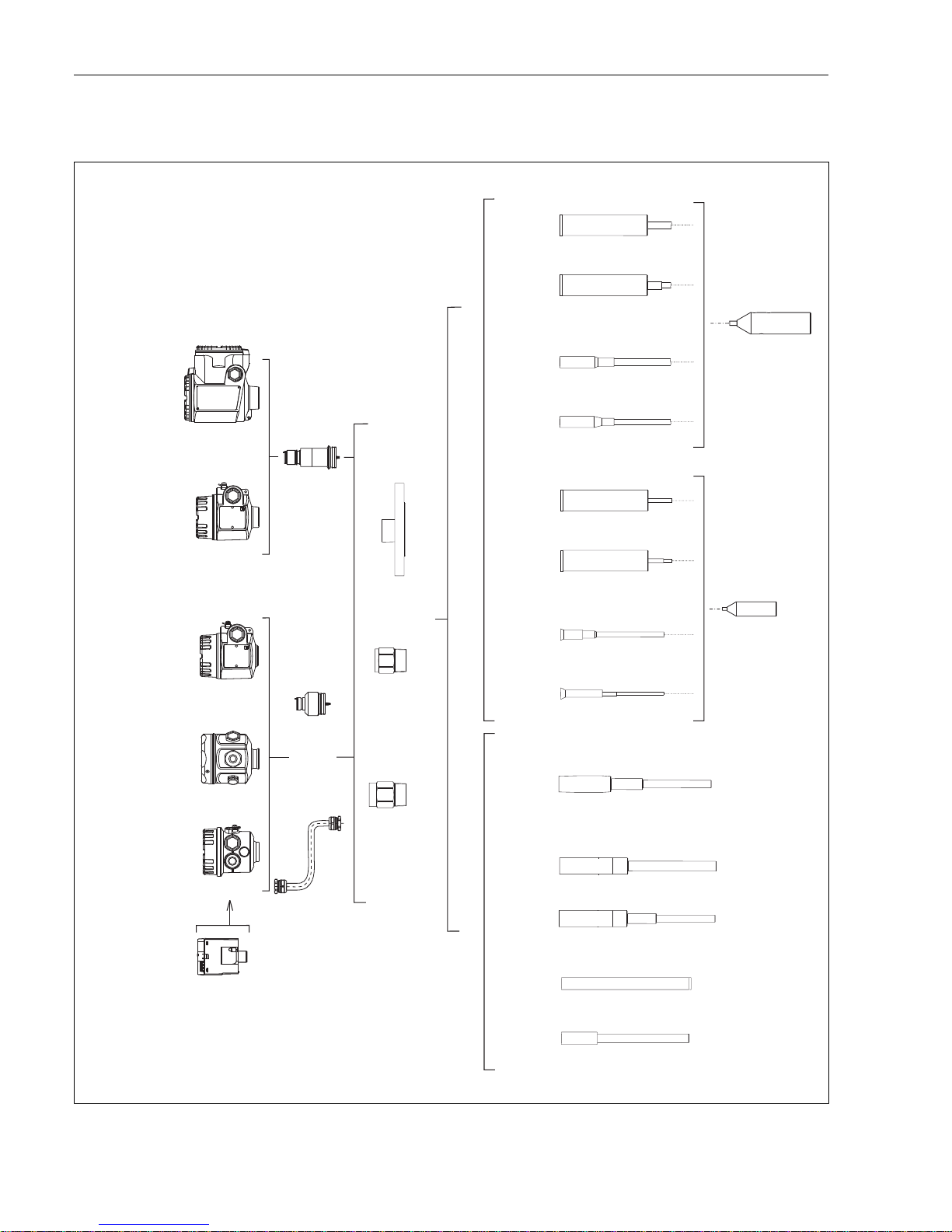

TI418Fen24

R1½

NPT 1½

Polyester housing

F16

Aluminium housing

F17

Stainless steel housing

F15

Aluminium housing

T13

with a separate connection

compartment and gas-tight

process seal

Aluminium housing

F13

with a gas-tight

process seal

Electronics

Rope probe FTI56

Rod probe FTI55

with inactive length

partially

insulated

ø6

fully

insulated

ø8

partially

insulated

ø6

partially

insulated

ø18

fully

insulated

ø8

fully

insulated

ø25

partially

insulated

ø12

fully

insulated

ø14

partially

insulated

ø12

fully

insulated

ø14

partially

insulated

ø18/25

partially

insulated

ø18

with build-up

compensation

with inactive length

tensioning weight

fully

insulated

ø18/25

Flange

seperate housing

Page 17

Solicap M FTI55, FTI56 Installation

Endress+Hauser 17

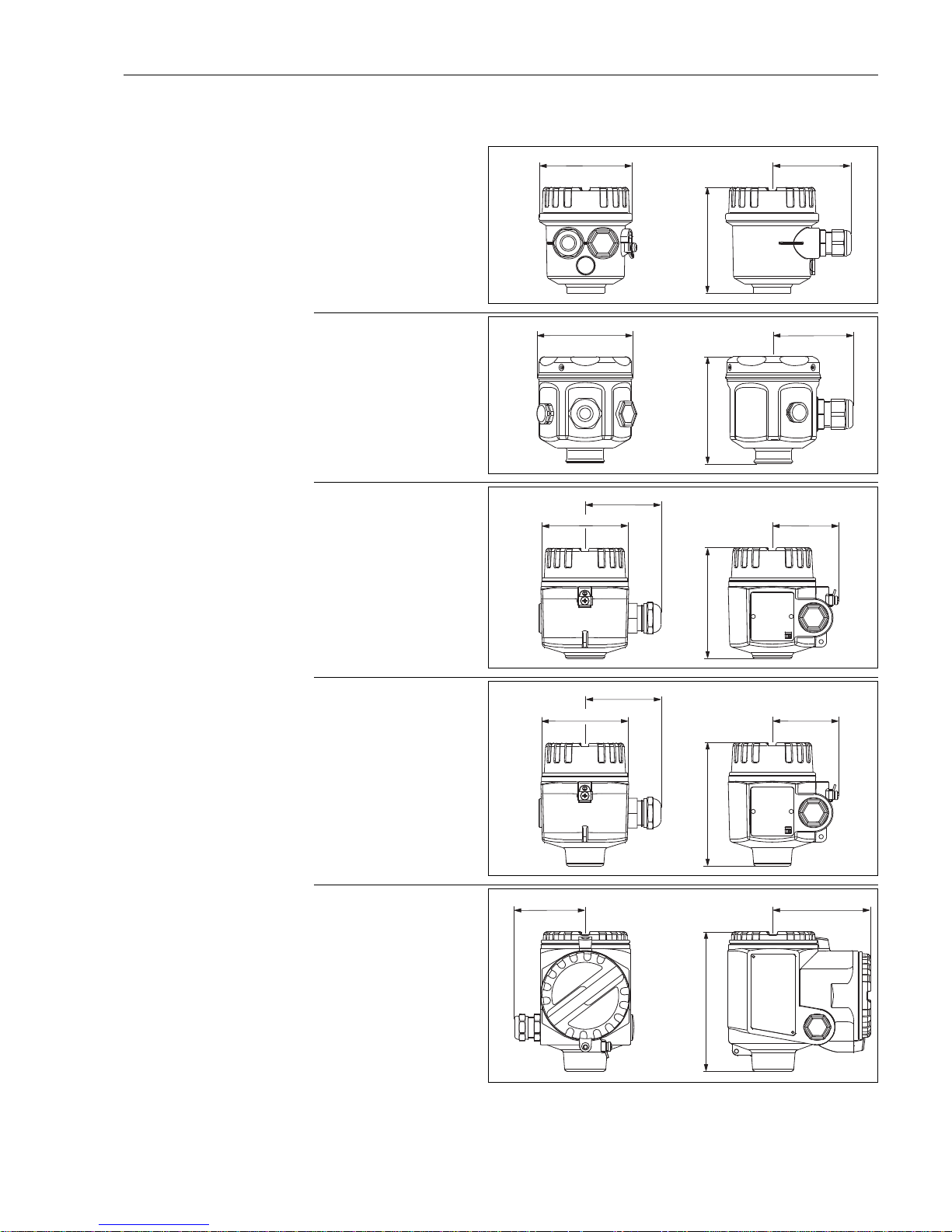

3.4 Housing

Polyester housing F16

TI418F25

Stainless steel housing F15

TI418F26

Aluminum housing F17

TI418F27

Aluminum housing F13

with gas-tight process seal

TI418F28

Aluminum housing T13

with separate connection compartment and gas-tight process seal

TI418F29

ø85ø85

max. 76max. 76

~97~ 97

ø76ø76

max. 64max. 64

~95~ 95

ø80ø80

max. 60max. 60

max. 65max. 65

~ 105~ 105

ø80ø80

max. 60max. 60

max. 65max. 65

~1~ 11818

max. 65max. 65

max. 97max. 97

~ 135~ 135

Page 18

Installation Solicap M FTI55, FTI56

18 Endress+Hauser

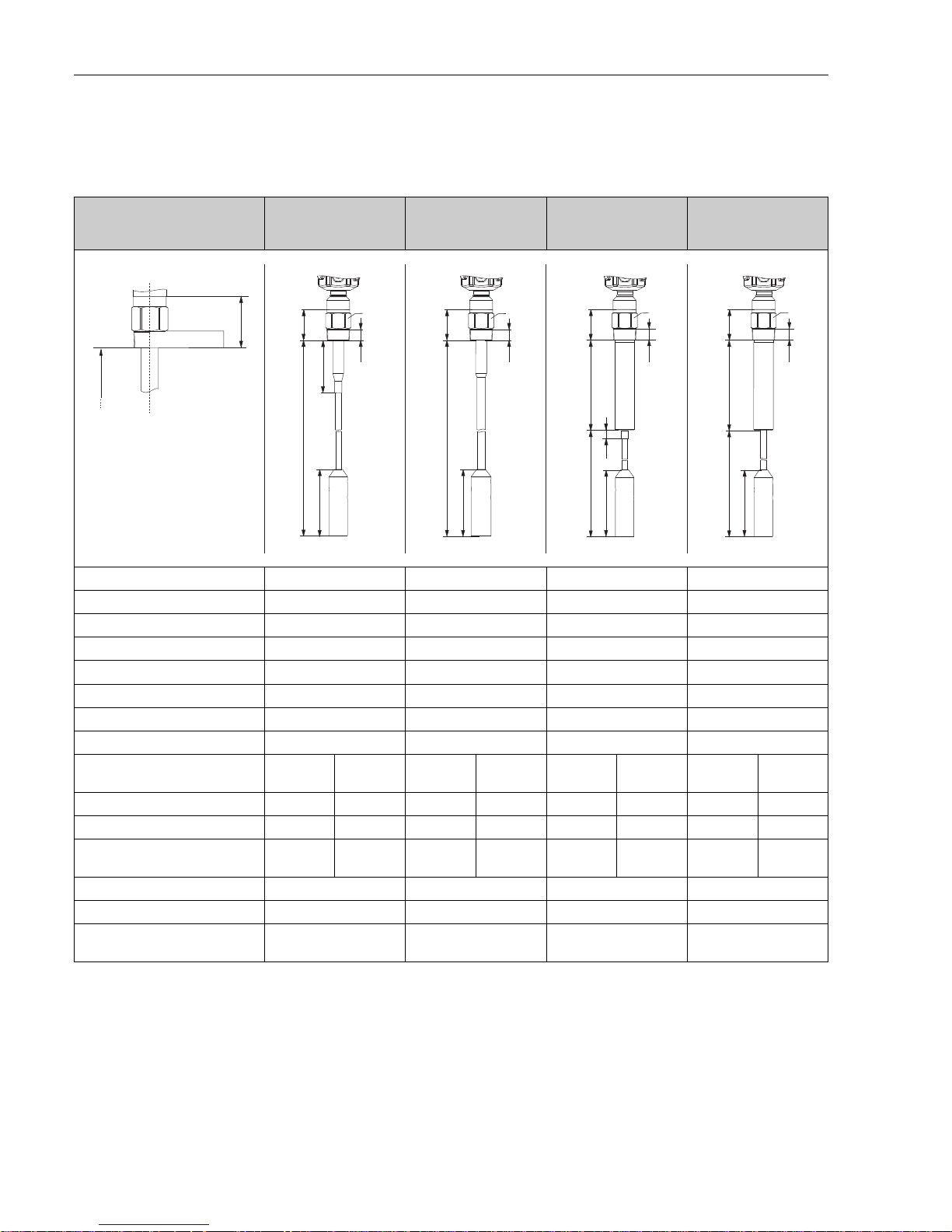

3.5 Housing heights with adapter

3.6 Process connections and flanges

Polyester housing F16

Stainless steel housing F15

Aluminum housing F17

Aluminum housing F13*

Aluminum housing with separate connection compartment T13*

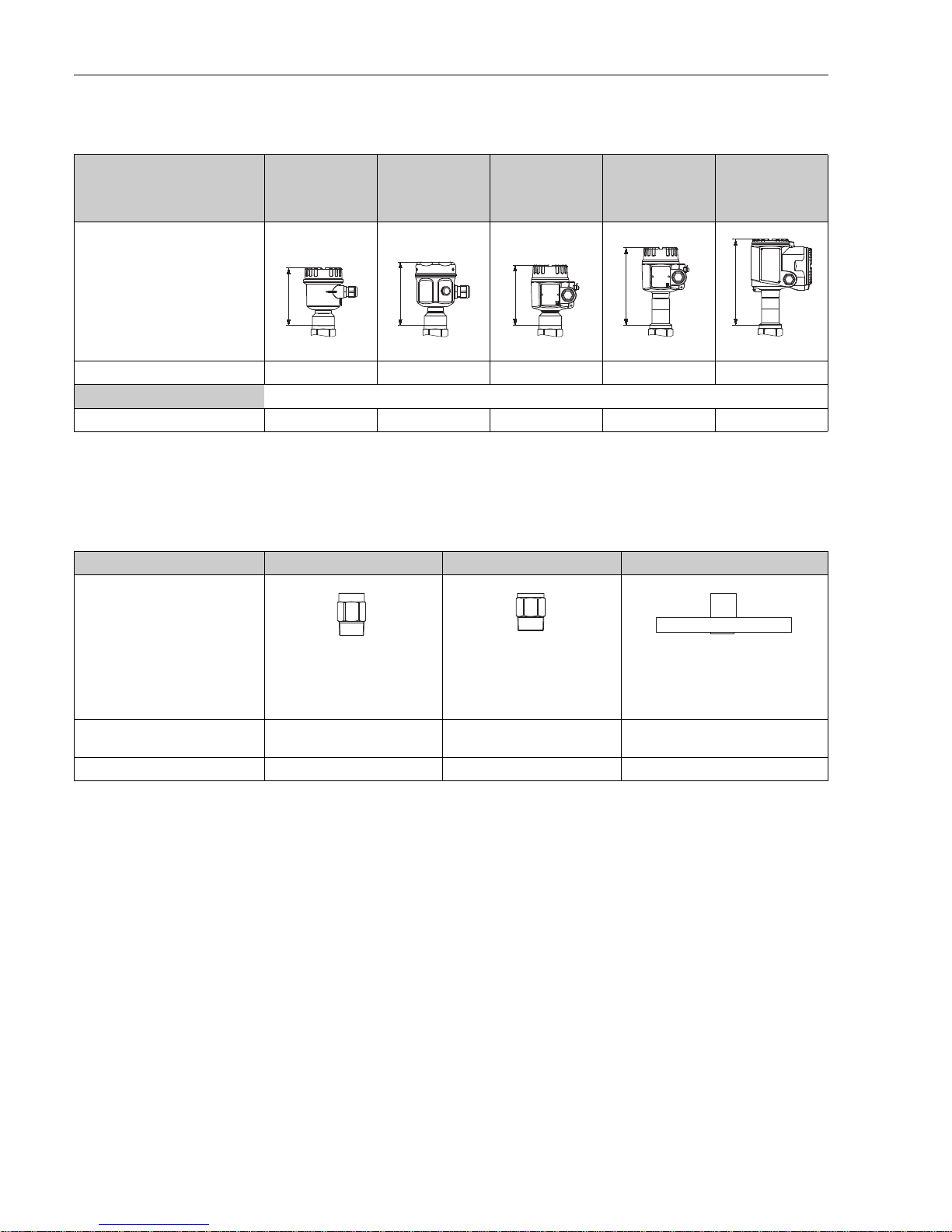

TI418F30 TI418F31 TI418F32 TI418F33 TI418F34

Order code 21345

FTI55, FTI56

H1 125 121 131 177 194

* Housing with gas-tight process seal

H1H1

Thread: R 1½ Thread: NPT 1½ Flanges

TI418Fen35

(DIN EN 10226-1)

TI418Fen36

(ANSI B 1.20.1)

TI418F37

(EN1092-1) (ANSI B 16.5) (JIS B2220)

Order code/material RVJ / 316L

RV1 / steel

RGJ / 316L RG1 / steel

Pressures up to 25 bar 25 bar Depends on flange max. 25 bar

Page 19

Solicap M FTI55, FTI56 Installation

Endress+Hauser 19

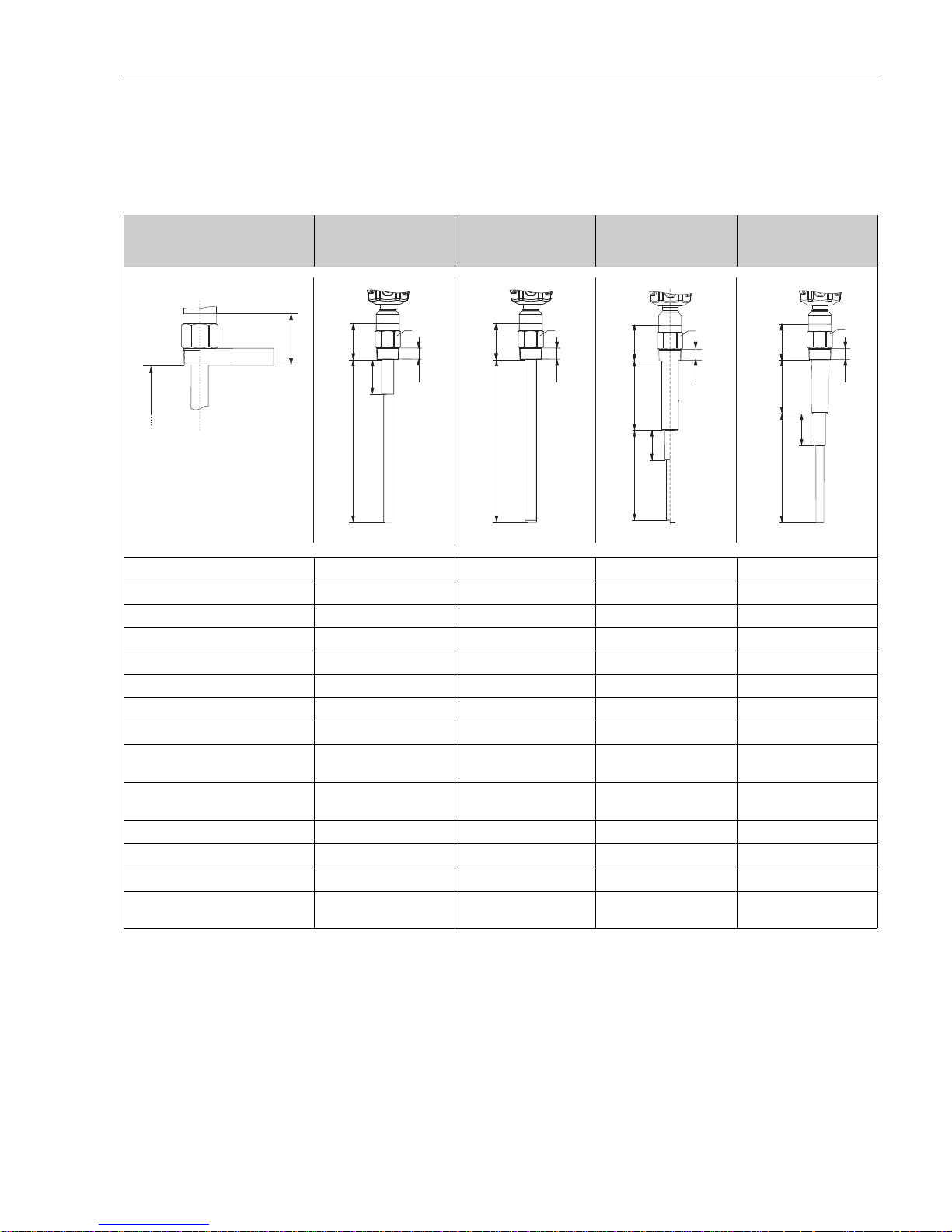

3.7 Rod probes FTI55

Note! Total length of the probe from the start of the thread: L = L1 + L3 (+ 125 mm with active buildup compensation)

Rod probe partially insulated

Rod probe fully insulated

Rod probe with inactive length partially/fully insulated

Rod probe with active buildup compensation partially insulated

TI418Fen39

H2 77 77 66 92

H3 25 25 25 25

Across flats (AF) 50 50 50 50

Total length (L) 200...4000 200...4000 300...6000 225...4000

Active rod length (L1) 200...4000 200...4000 200...4000 200...4000

Inactive rod length (L3) - - 200...2000 -

ø Inactive length - - 43 -

Length of partial insulation (L2) 75 - 75 / - 75

Probe rod diameter (with insulation) 18

(25)

18 (25)

ø Active build-up compensation/ length

- / - - / - - / -

36/ 125

Lateral loading capacity (Nm) at 20 °C 300 300 300 200

Maximum process temperature (°C) 180 80 180/80 180

For use in mounting nozzles - - X -

In the event of condensate on tank ceiling

--XX

X = recommended

L1/L2/L3

NPT / R

125

H2H3H2

H2H2

AF AF AF AF

Length tolerance Up to 1 m: 0 to –5 mm > 1 m to 3 m: 0 to –10 mm > 3 m to 6 m: 0 to –20 mm

Page 20

Installation Solicap M FTI55, FTI56

20 Endress+Hauser

3.8 Rope probes FTI56

Note! Total length of the probe from the start of the thread: L = L1 + L3

Rope probe Partially insulated rope

Rope probe Fully insulated rope

Rope probe with inactive length Partially insulated rope

Rope probe with inactive length Fully insulated rope

TI418F38

TI418Fen40

H2 66 66 66 66

H3 25 25 25 25

Across flats (AF) 50 50 50 50

Total length (L) 500...20000 500...20000 700...20000 700...20000

Active rope length (L1) 500...20000 500...20000 500...19800 500...19800

Length of partial insulation (L2)* 500 - 500 -

Inactive length (L3) - - 200...2000 200...2000

ø Inactive length - - 43 43

Probe rope diameter (with insulation)

6 (8)

12 (14)

6 (8)

12 (14)

6 (8)

12 (14)

6 (8)

12 (14)

ø Tensioning weight** 30 40 30 40 30 40 30 40

Length of tensioning weight (lg) 150 250 150 250 150 250 150 250

Tensile loading capacity (kN) of probe rope at 20 °C

30 60 30 60 30 60 30 60

Maximum process temperature (°C) 180 120 180 120

For use in mounting nozzles - - X X

In the event of condensate on tank ceiling

--XX

X = recommended * The length of the partial insulation extends, at maximum, to the tensioning weight. ** The tensioning weight is always uninsulated.

L1/L2/L3

NPT / R

L1L1

L2L2

lglg

L1L1

AF AF AF AF

Length tolerance Up to 1 m: 0 to –10 mm > 1 m to 3 m: 0 to –20 mm > 3 m to 6 m: 0 to –30 mm > 6 m to 20 m: 0 to –40 mm

Page 21

Solicap M FTI55, FTI56 Installation

Endress+Hauser 21

3.9 Installation instructions

3.9.1 Installation

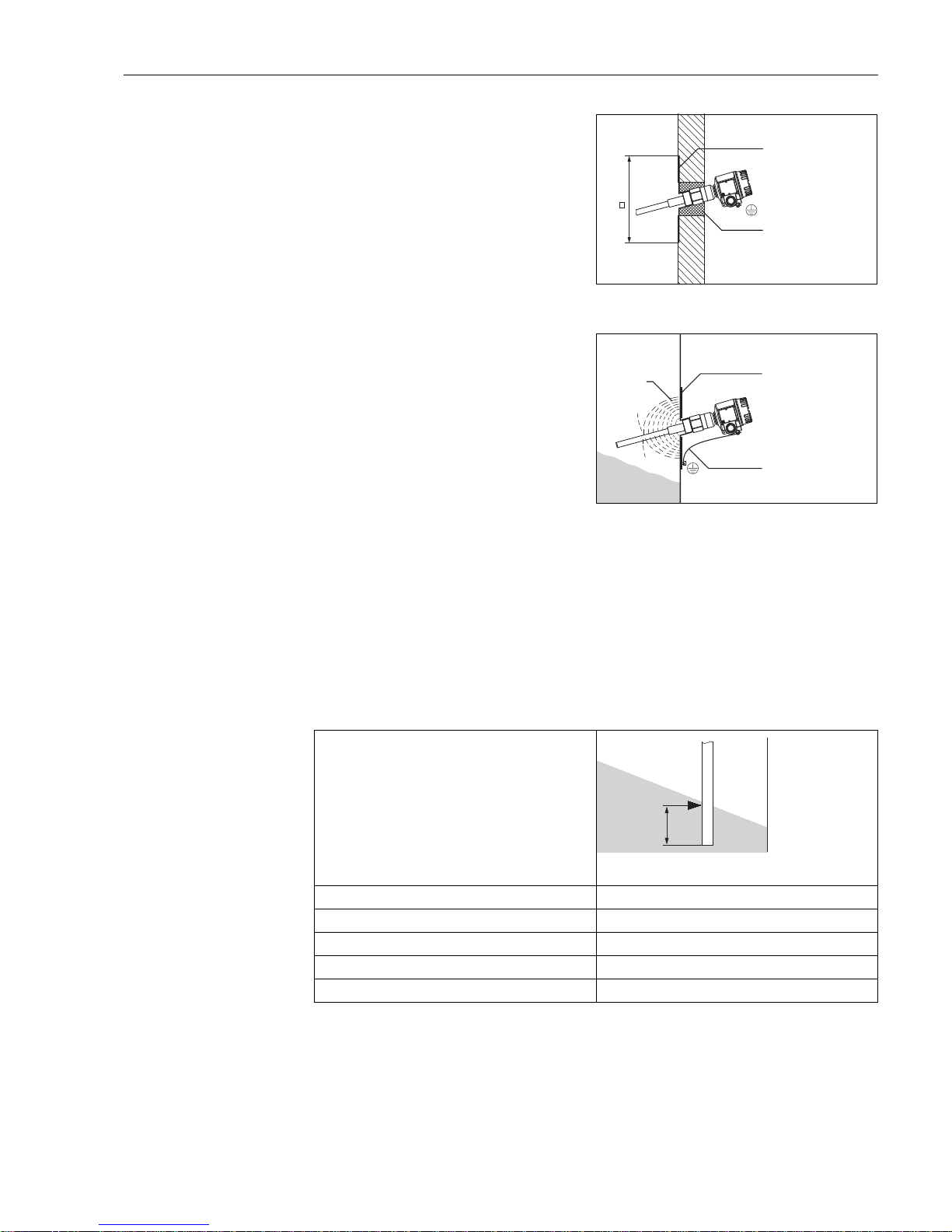

The Solicap M FTI55 (rod probe) can be installed from above and from the side. The Solicap M FTI56 (rope probe) can be installed vertically from above.

Note! The probe may not come into contact with the container wall! Do not install probes in the area of the filling curtain!

3.9.2 General notes

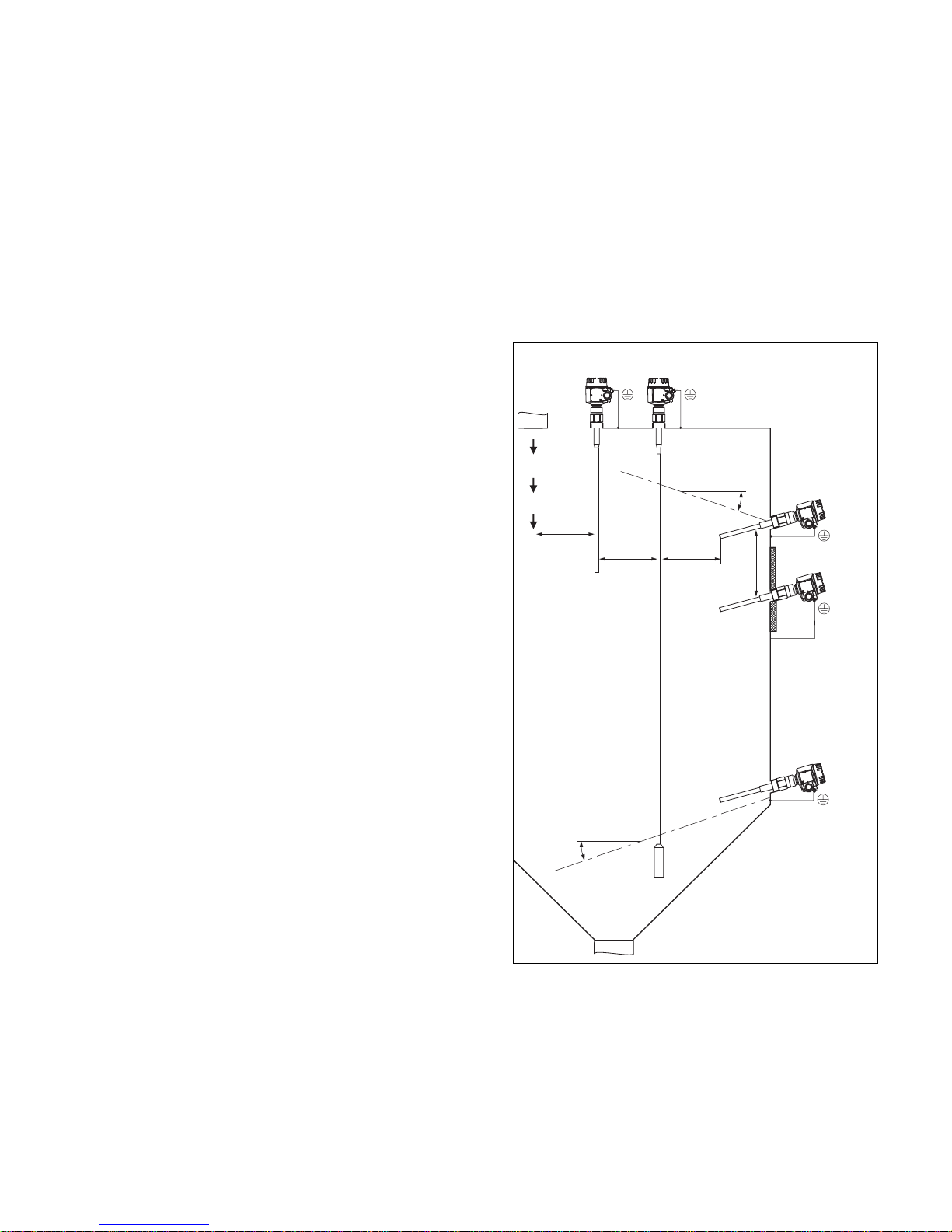

Filling the silo

The filling stream should not be directed onto the probe.

Angle of material flow

Note the expected angle of the material flow or of the outlet funnel when determining the mounting location or probe length.

Distance between probes

When installing several probes in a silo, a minimum distance of

0.5 m between the probes must be observed.

Threaded coupling for mounting

When installing the Solicap M FTI55, FTI56, the threaded coupling should be as short as possible. Condensation or product residue may occur in a long threaded coupling and interfere with the correct operation of the probe.

Heat insulation

In the event of high temperatures in the silo: Insulate the external silo wall to avoid exceeding the permitted temperature of the Solicap M housing. Heat insulation also prevents condensation from forming near the threaded boss in the silo. This reduces buildup and the risk of error switching.

TI418Fen07

FTI55 FTI56

min. 500

min. 500min. 500

FTI55

Angle of slope

Distance

Angle of slope

Page 22

Installation Solicap M FTI55, FTI56

22 Endress+Hauser

3.9.3 Preparing to install rod probes FTI55

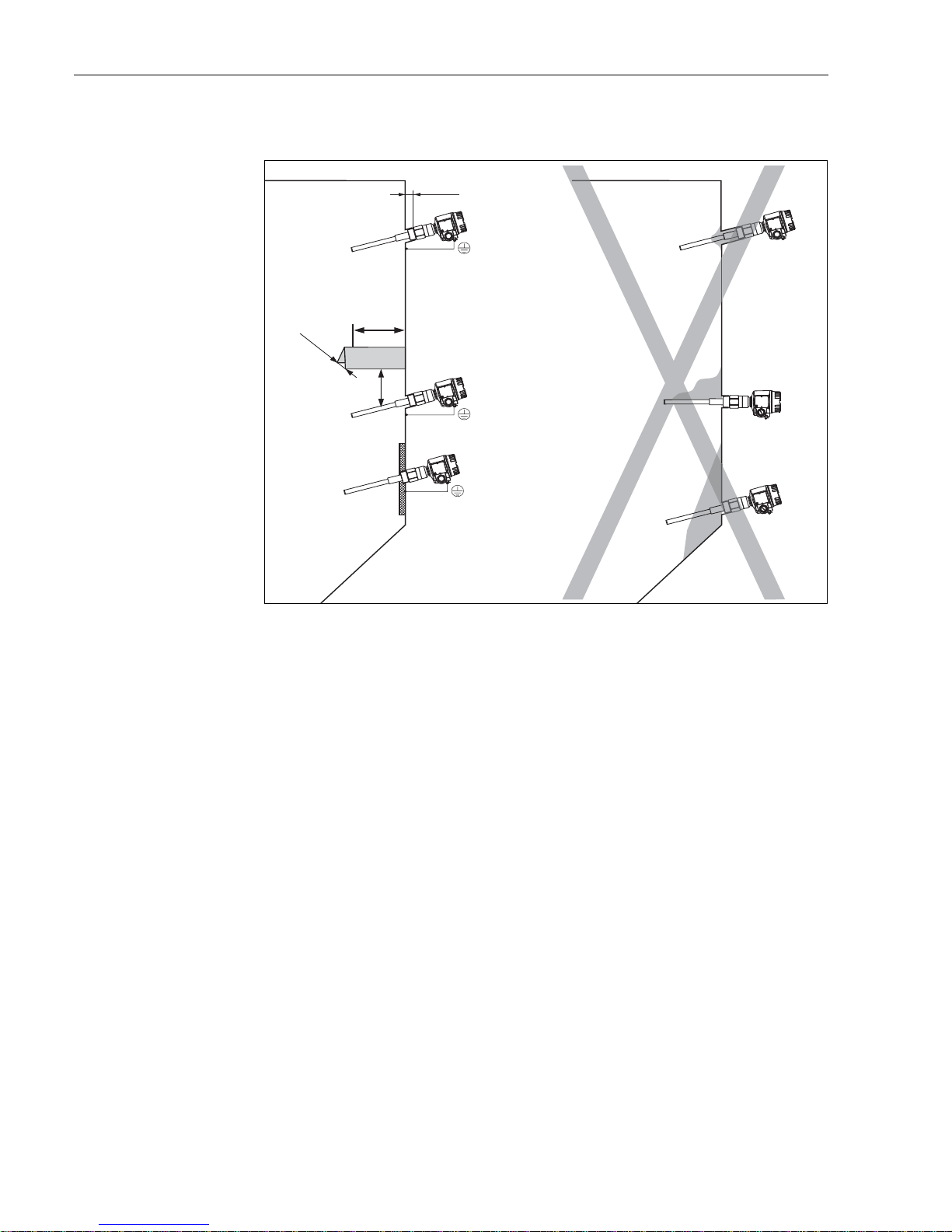

Correct installation

a. For maximum level limit detection, a short threaded coupling is used.

b. For minimum point level detection, a short threaded coupling is used.

The probe tip points slightly downwards so that bulk solids slide off more easily. The protective cover protects the probe rod from collapsing mounds or mechanical strain at the outflow.

c. In the event of light buildup on the silo wall, the threaded coupling is welded internally.

The probe tip points slightly downwards so that bulk solids slide off more easily.

Incorrect installation

d. The threaded coupling is too long. This may cause material to settle inside and result in error

switching.

e. Horizontal mounting means a risk of error switching in the event of heavy buildup on the silo

wall. In this case, the Solicap M FTI55 (rod probe) with inactive length is recommended.

f. In areas where product buildup occurs, the device cannot detect if the silo is "empty".

In this case, the FTI56 (rope probe) should be installed from above.

Correct installation Incorrect installation

TI418Fen08

25 mm

300

200

Page 23

Solicap M FTI55, FTI56 Installation

Endress+Hauser 23

Probe length and minimum coverage

Note!

• When selecting the probe length, pay attention to the dependency between the relative dielectric constant 

and the minimum amount the probe rod needs to be covered (see Table).

• For probe length tolerances see Page 19 ff.

• To ensure problem-free operation, it is important that the difference in capacitance between the covered and uncovered parts of the probe is at least 5 pF.

• If you do not know the dielectric constant of the material, contact us for advice.

In this example, the grounded steel plate forms the counter electrode. Heat insulation prevents condensation and therefore buildup on the steel plate.

TI418Fen09

In a silo with concrete walls

When installing in a silo made of plastic, a sheet metal plate must be attached to the exterior of the silo as a counter electrode. This plate can be either square or round.

– Dimensions in the case of a thin silo wall

with a low dielectric constant: approx. 0.5 m along each side or ø0.5 m;

– Dimensions in the case of a thicker silo wall

or wall with a higher dielectric constant: approx. 0.7 m along each side or ø0.7 m.

TI418Fen10

In a silo with plastic walls

Sheet metal plate with threaded socket

Heat insulation

min. ø300

or 300

Sheet metal plate

Ground connection

Electrical HF field

Product properties, relative dielectric constant 

TI418F12

* Minimum coverage

Electrically conductive 25 mm

Nonconductive

r

> 10 100 mm

r

> 5 to 10 200 mm

r

> 2 to 5 500 mm

Page 24

Installation Solicap M FTI55, FTI56

24 Endress+Hauser

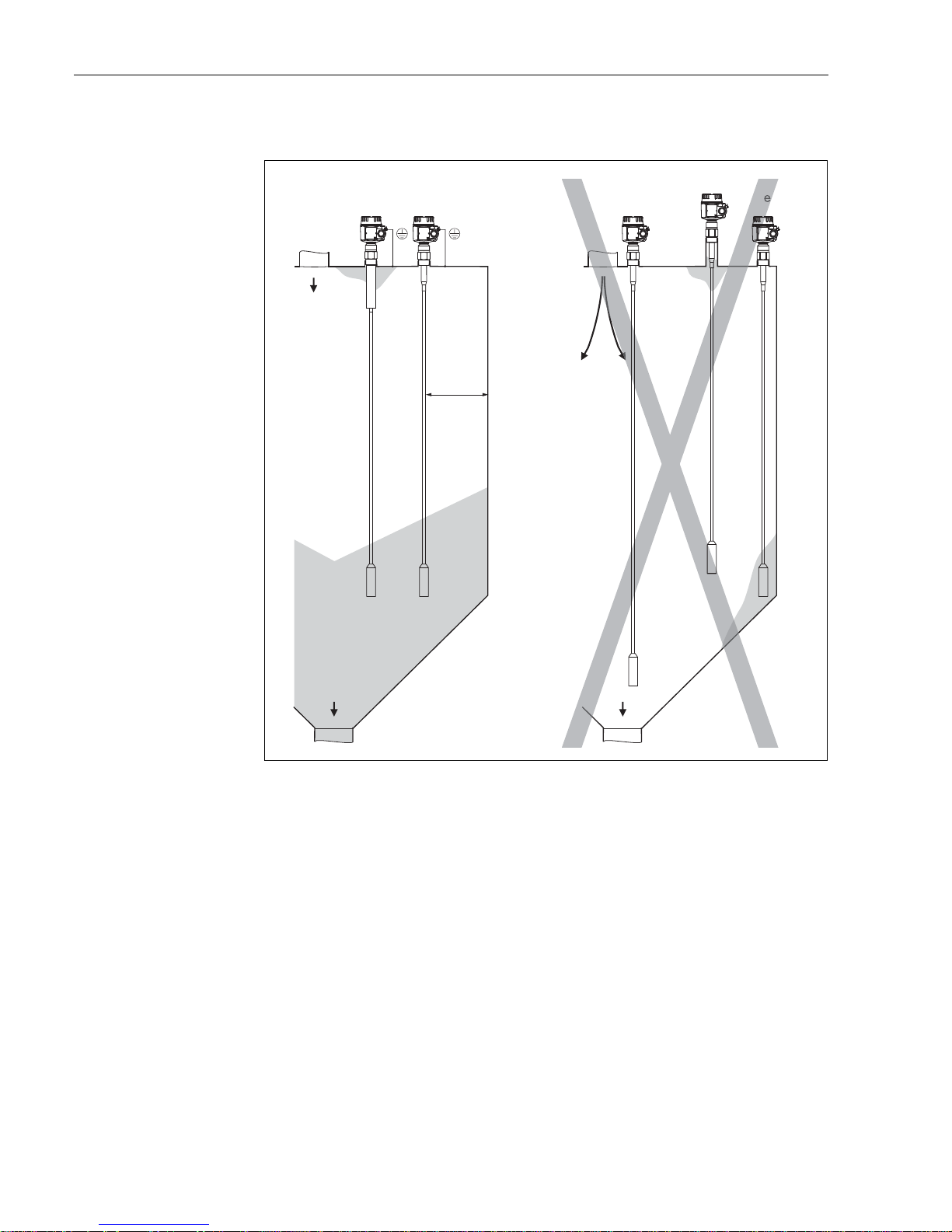

3.9.4 Preparing to install rope probes FTI56

Correct installation

a. Solicap M FTI55, FTI56 with inactive length in the event of condensation and material

buildup on the silo roof.

b. At the correct distance from the silo wall, the material inlet and the material outlet.

Close to the wall, for reliable switching in the case of a low dielectric constant (not for pneumatic filling). For pneumatic filling, the distance from the probe to the wall should not be too short, as the probe may swing.

Incorrect installation

c. If too close to the material inlet, inflowing bulk solids may damage the sensor.

If close to the center of the material outflow, high tensile forces at this point may cause the probe to break off or subject the silo roof to excessive strain.

d. The threaded coupling is too long. This may cause condensation and dust to settle inside which

may result in error switching.

e. If too close to the silo wall, the probe may swing slightly against the wall or come in contact

with buildup.This can result in error switching.

Correct installation Incorrect installation

TI418F13

In a silo with metal walls Distance D between the probe and the wall approx. 10 to 25 % of the silo diameter

a. b. c.

min. 0.2 m

Page 25

Solicap M FTI55, FTI56 Installation

Endress+Hauser 25

Silo roof

Ensure that the silo roof is of a sufficiently stable construction. High tensile forces may occur when material is being extracted, particularly in the case of heavy and powdery bulk solids which have a tendency to form buildup.

Coarse-grained bulk solids

In silos with extremely coarse-grained or extremely abrasive bulk solids, the use of a Solicap M FTI55 or FTI56 is recommended only for maximum detection.

Distance between the rope probes

To rule out mutual probe interference, you must maintain a minimum distance of 0.5 m between the rope probes. This also applies if you are installing several Solicap M units in adjacent silos with nonconductive walls.

In the event of condensation:

Use the Solicap M with inactive length. The inactive length (A) prevents moisture and buildup forming between the active part of the probe and the silo roof.

Or: To reduce the effects of condensation (B) and buildup, the threaded coupling (length: max. 25 mm) must project into the silo. Heat insulation reduces condensation and therefore buildup on the steel plate.

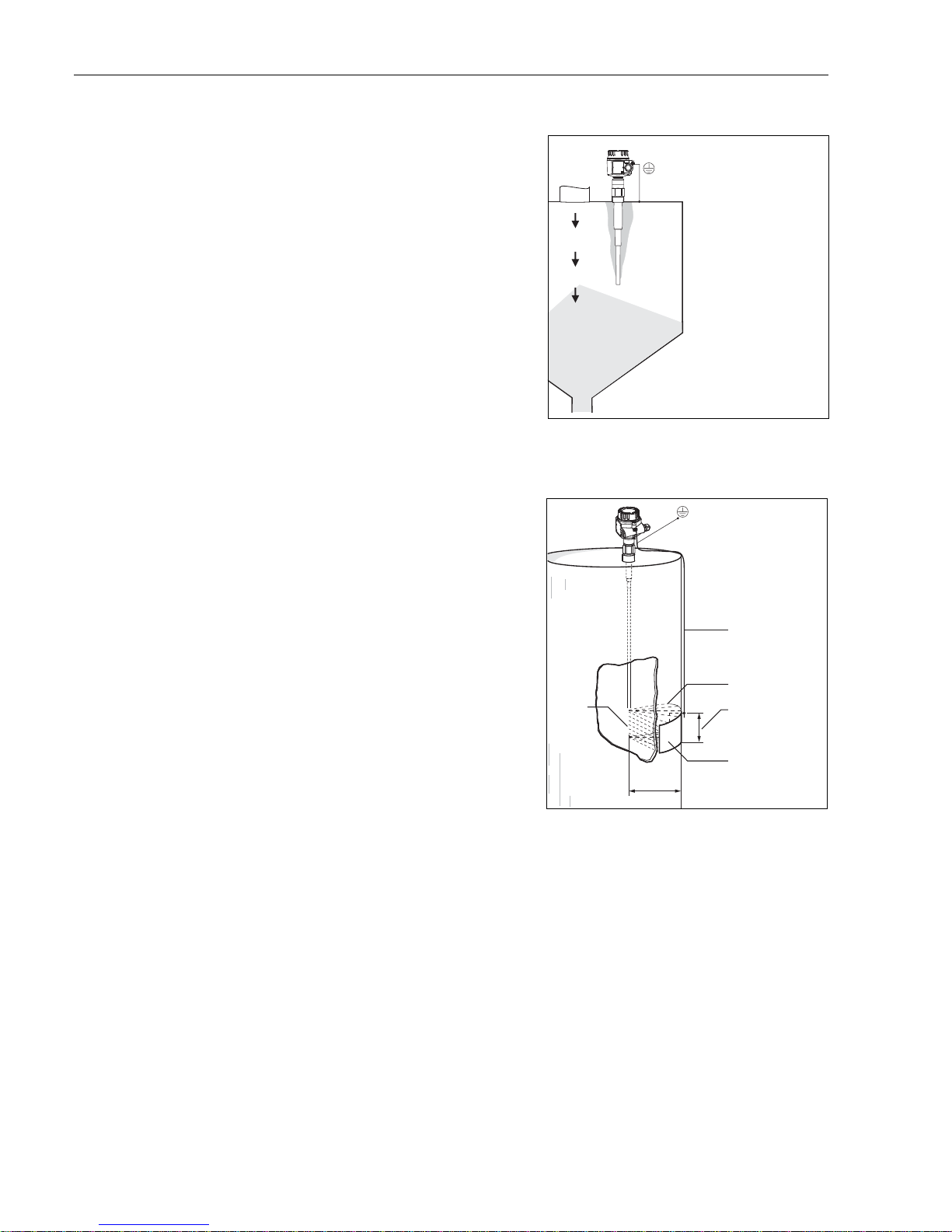

TI418Fen15

Silo with walls that conduct electricity

TI418Fen14

Silo with concrete walls

Active part of probe

Steel plate

Steel plate; connected to the reinforcing steel

Heat insulation

Recommended with condensation:

Page 26

Installation Solicap M FTI55, FTI56

26 Endress+Hauser

Installation in the event of buildup

Installation in plastic tanks

If buildup on the probe rod can be expected when operating the measuring system, the active buildup compensation function prevents the measurement result from becoming distorted. No cleaning work has to be performed on the probe rod.

BA300Fxx020

When installing in a silo made of plastic, a counter electrode must be mounted on the silo exterior at the same height as the tensioning weight. The length of the edge of the counter electrode should be approximately the same length as the distance between the tensioning weight and the silo wall.

TI418Fen16

In a silo with plastic walls

Ground connection

Electrical HF field

Surface area e.g. 1 m²

Counter electrode e.g. sheet metal plate

Weight

Distance

e.g. 1 m

Page 27

Solicap M FTI55, FTI56 Installation

Endress+Hauser 27

Range of sensor lengths

Shortening the probe

Rod probe: The partially insulated version can be shortened at a later stage by the user.

Rope probe: Both versions (partially and fully insulated) may be shortened at a later stage (see next page).

TI418Fen17

Electrically conductive bulk solids (e.g. coal)

Bulk solids with high dielectric constant (e.g. rock salt)

Bulk solids with low dielectric constant (e.g. dried grain)

* L

(covered length): For nonconductive bulk solids with a low dielectric constant, the rope probe must be approx. 5 % (but no less than 250 mm) longer than the distance between the tank roof and the required level limit.

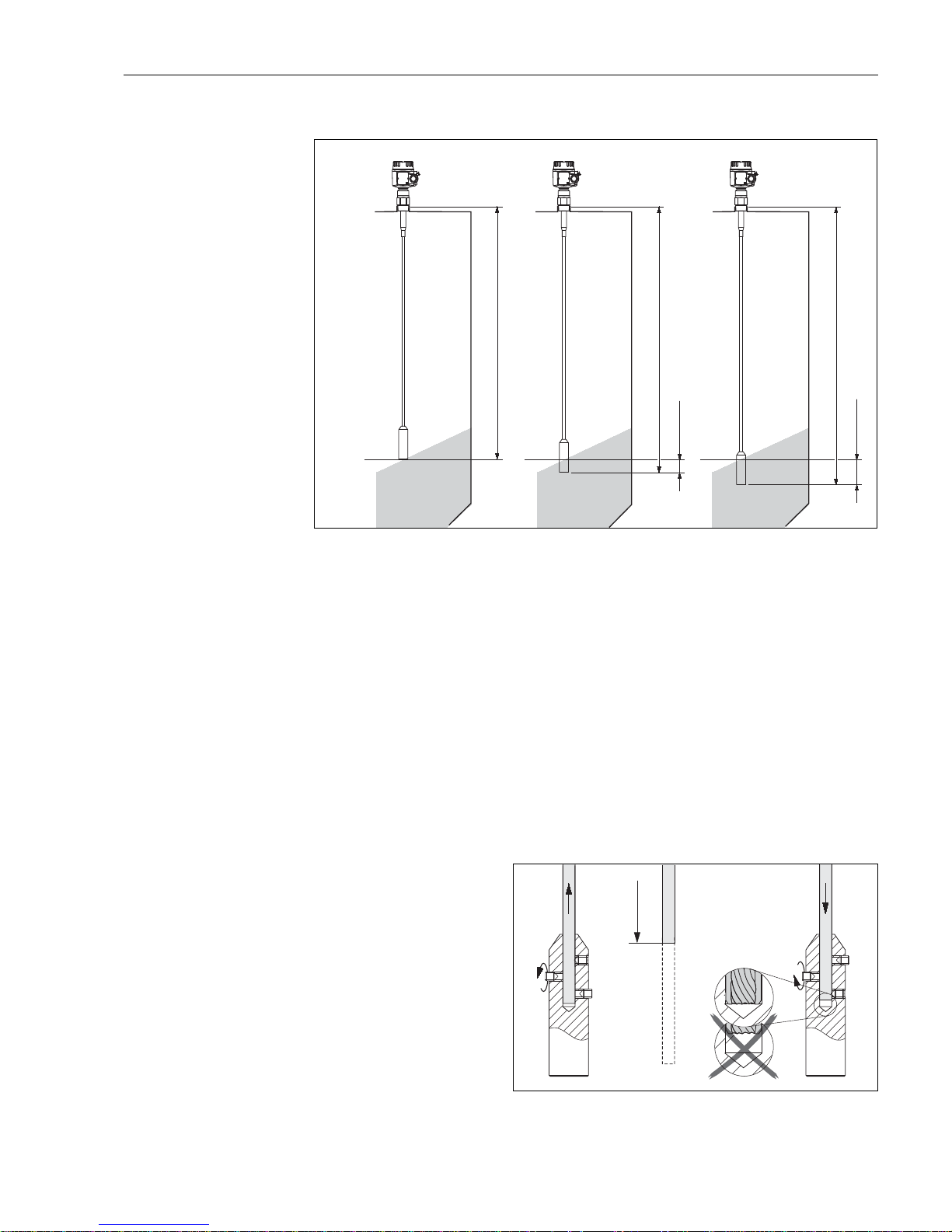

• Release the set screws at the tensioning weight and remove the rope.

• Shorten the probe rope to the desired length.

• In the case of insulated ropes with a diameter of 8 mm, the end of the rope has to be stripped so that it can be guided into the tensioning weight.

• Slide the rope back in, as far as the end of the bore, and secure it using the set screws.

BA300Fxx018

min. 200min.

200

min. 250min.

250

LevelLevel

3.3. 3.3.

1.1. 1.1.

2.2. 2.2.

....

Page 28

Installation Solicap M FTI55, FTI56

28 Endress+Hauser

3.9.5 Measuring conditions

Note!

• When installing in a nozzle, use inactive length (L3).

• To control a screw conveyor (s mode), rod probes and rope probes can be used. The on-value and off-value are determined by the empty and full calibration; – Partially insulated probes are only suitable

for nonconductive bulk solids.

• The minimum capacitance change for level limit detection must be  5 pF.

Minimum probe length for nonconductive media (<1s/cm)

min

= C

min

/ (Cs * [r - 1])

DK > 10 Measuring range up to 4 m 5 < DK < 10 Measuring range up to 12 m 2 < DK < 5 Measuring range up to 20 m

TI418F41

min

= Minimum probe length

C

min

=5 pF

= Probe capacitance in air (see also  ä 81, "Technical data")

r = Dielectric constant e.g. dried grain = 3.0

MIN

OFF

Page 29

Solicap M FTI55, FTI56 Installation

Endress+Hauser 29

3.10 Installation

3.10.1 Probe with thread

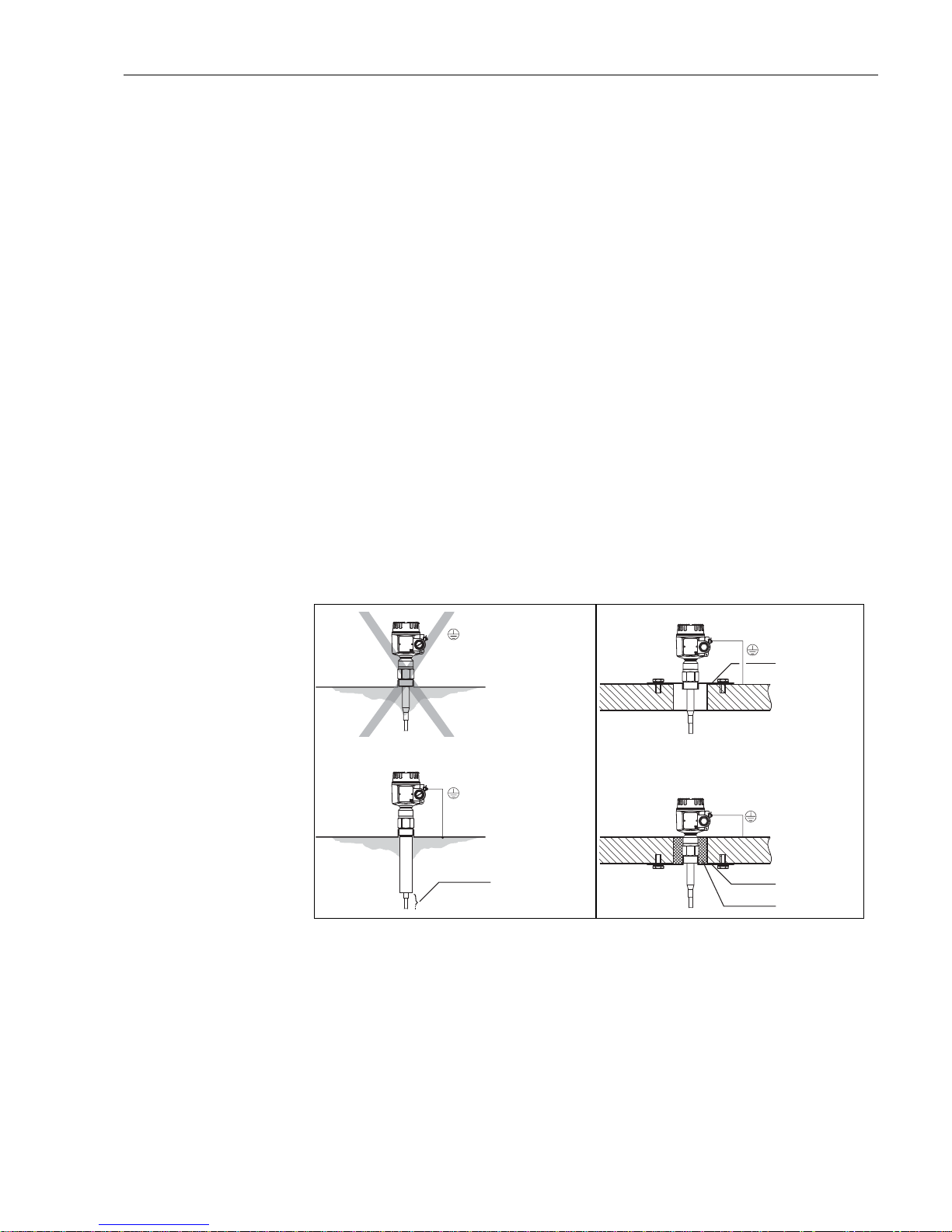

• R 1½ and 1½ NPT (conical): Where necessary, wrap sealing material around the thread. Ensure that the electrical connection between the probe and the tank is correct.

• If the process connection of the probe is insulated from the metal tank (e.g. using seal material), the ground connection on the probe housing must be connected to the tank using a short line.

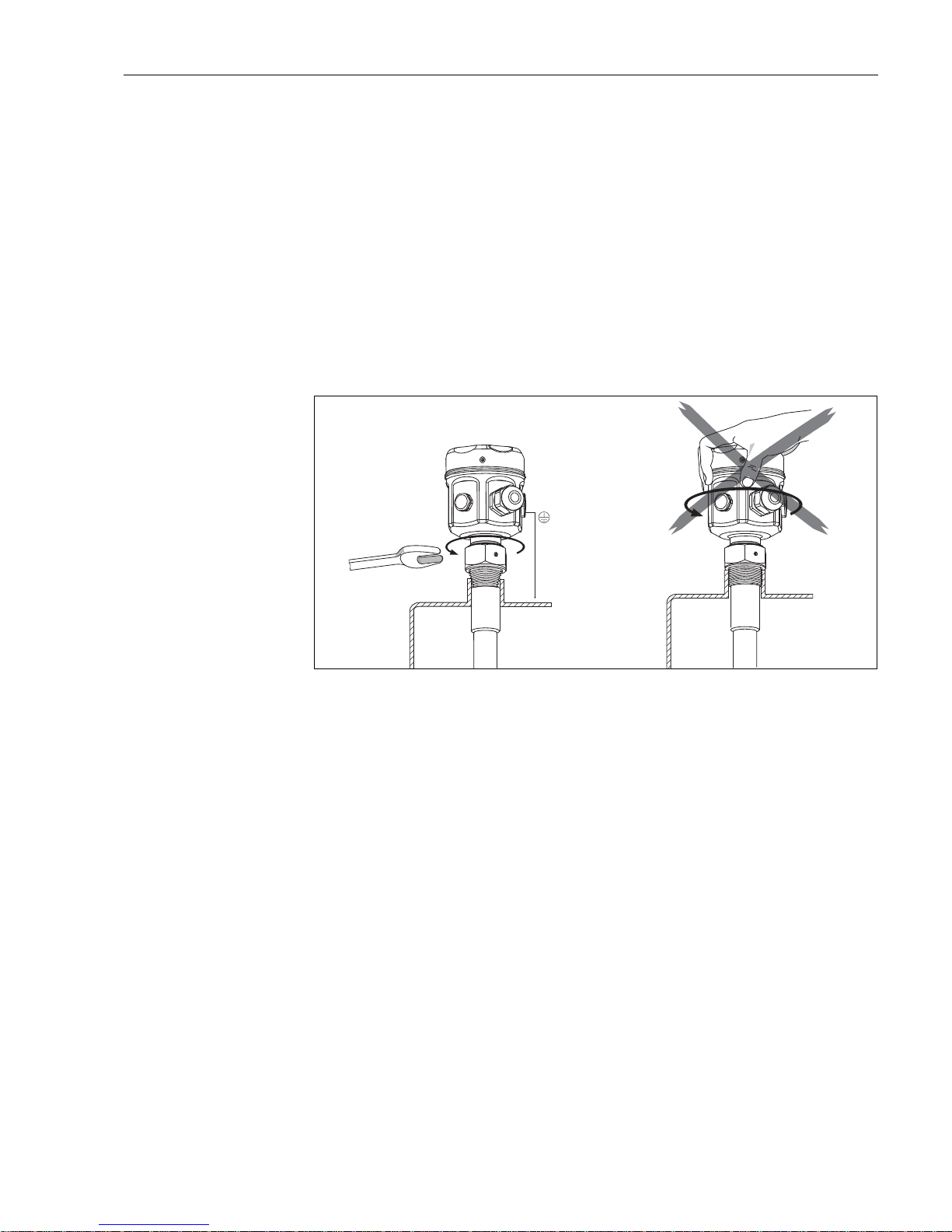

Caution!

• Do not damage the probe insulation during installation.

• Do not turn the housing while screwing in the probe, as otherwise the housing fixture can be damaged.

BA300Fxx007

3.10.2 Installation tools

The following tools are required for installation:

• Tool for mounting flanges

• or a size 50 Allen key for the threaded connection

• and a Phillips-head screwdriver for aligning the cable entry.

Page 30

Installation Solicap M FTI55, FTI56

30 Endress+Hauser

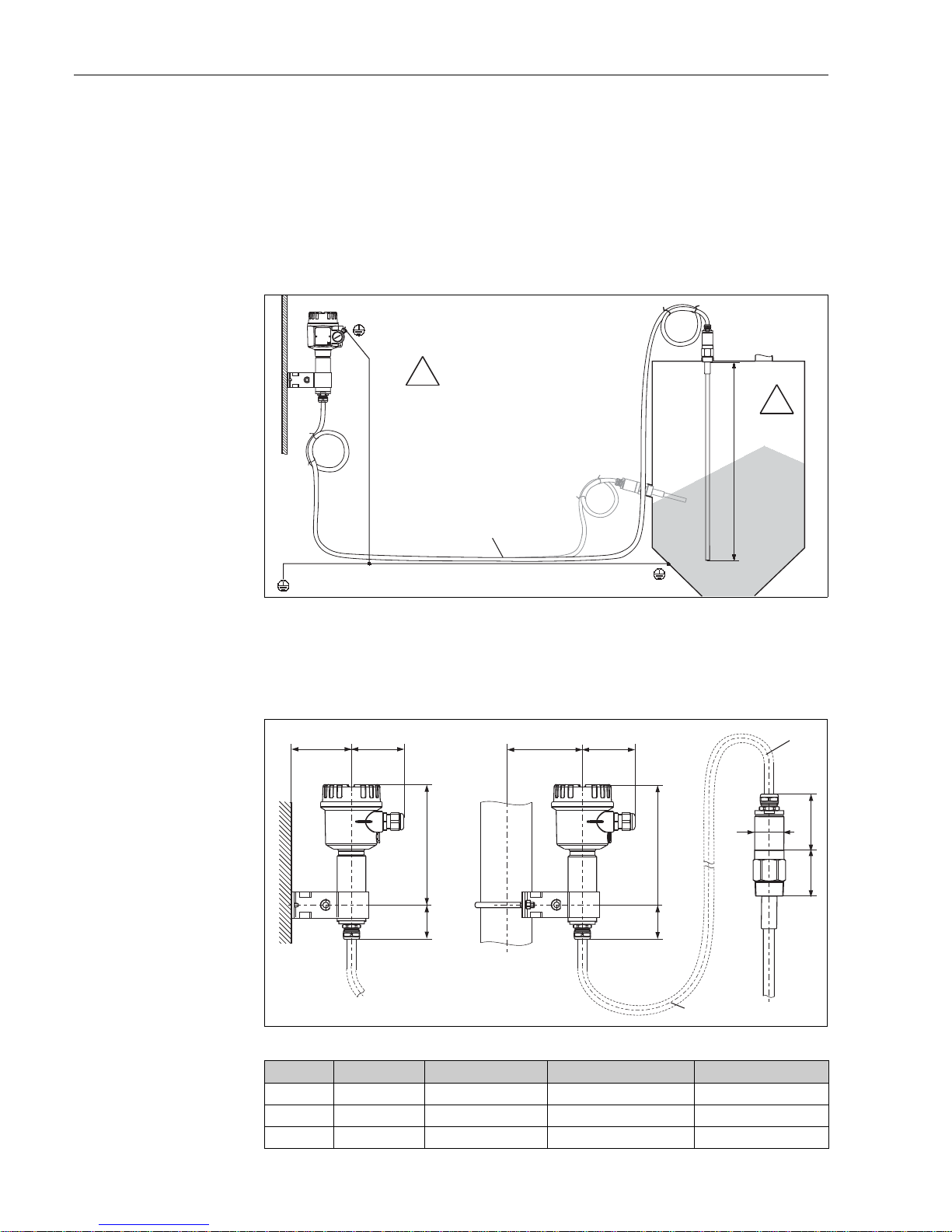

3.11 With separate housing

Note!

• For information on how to order, see also "Ordering information" from Page 10 under "Probe design".

• The maximum connection length between the probe and the separate housing is 6 m (L4). When ordering a Solicap M with a separate housing, the desired length must be specified.

• If the connecting cable is to be shortened or passed through a wall, it must be separated from the process connection. See also Section 3.11.1.

• The cable has a bending radius of r  100 mm. This must be observed as a minimum.

TI418F18

Rod length L1 max. 4 m Rope length L1 max. 19.7 m (the maximum total length of L1 + L4 should not exceed 20 m.)

3.11.1 Extension heights

Zone 1Zone 1

L4L4 6m6 m≤≤

Zone 0Zone 0

L1L1

Housing side: wall mounting Housing side: pipe mounting Sensor side

TI418F19

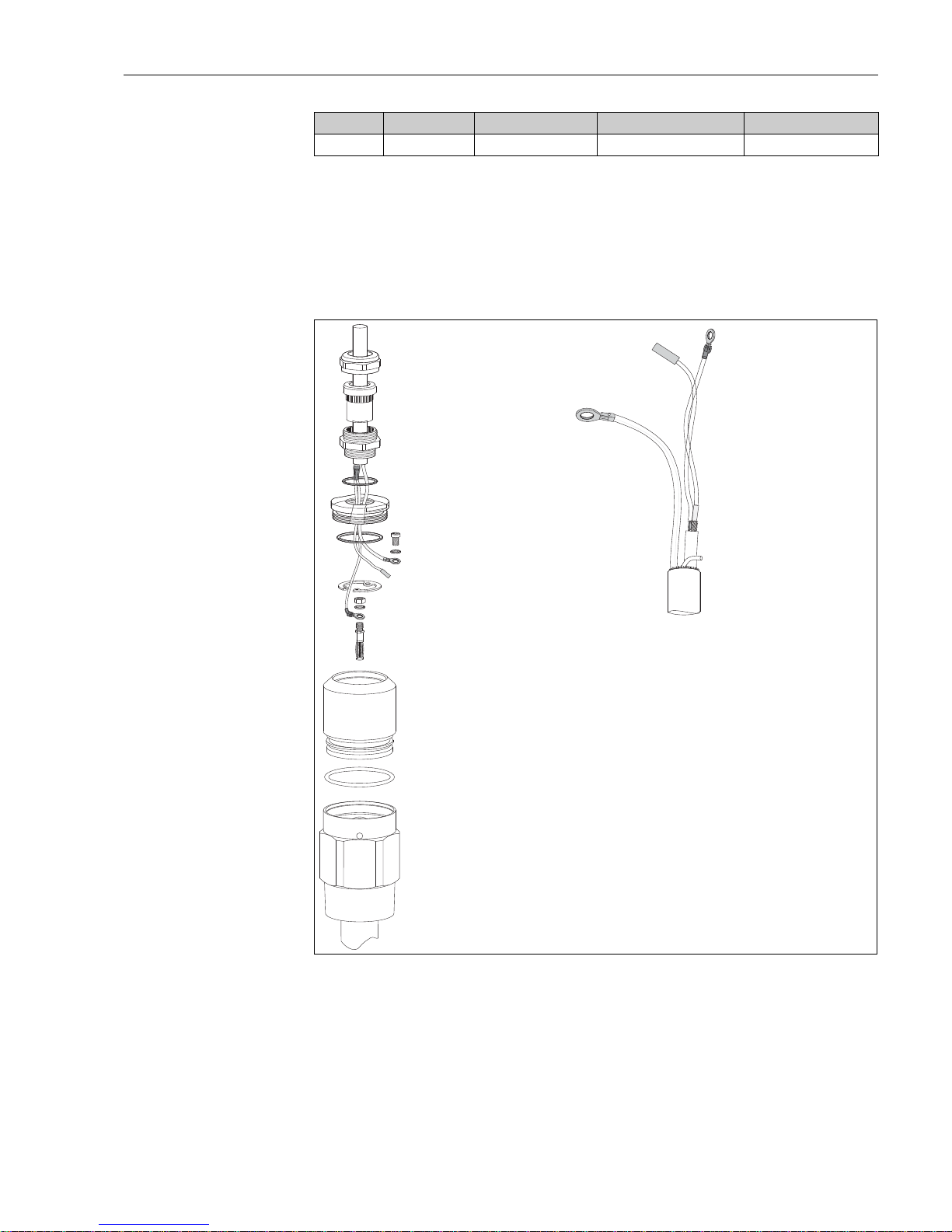

Polyester housing F16 Stainless steel housing F15 Aluminum housing F17

B - 76 64 65

H1 - 172 166 177

D50 - - -

~61

~75

~41

r 100³

Page 31

Solicap M FTI55, FTI56 Installation

Endress+Hauser 31

Note!

• Connecting cable: ø10.5 mm

• Outer jacket: silicone, notch resistance

3.12 Probe without active buildup compensation

BA300Fen009

H4 62 - - -

Polyester housing F16 Stainless steel housing F15 Aluminum housing F17

GN/YE

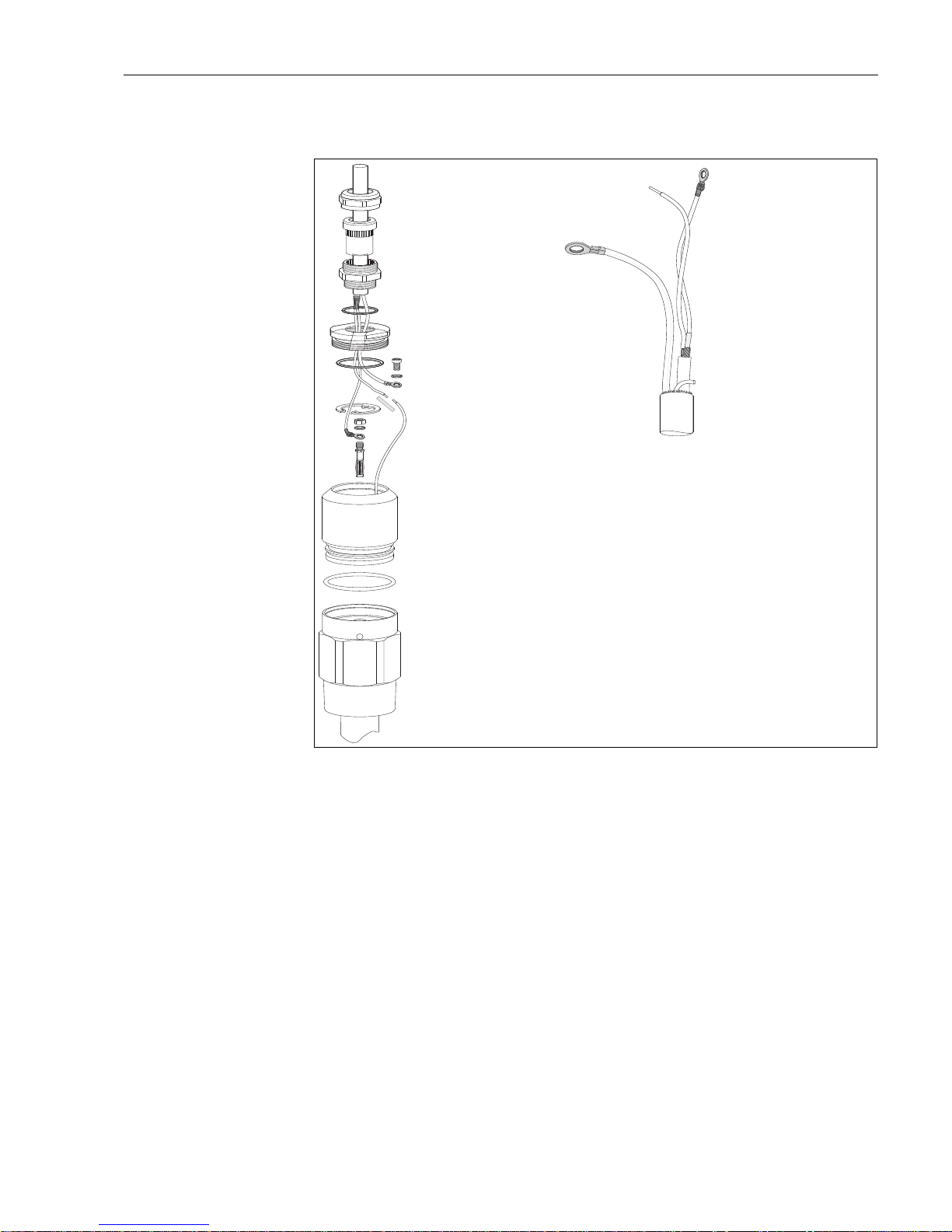

1. Pressing screw

2. Insert seal

3. Cabel gland

4. Heatshrinking sleeve

5. Seal

6. Adapter disk

7. Seal

8. Plug M3

9. Split washer

10. Strand yellow/green (YE/GN) with ring terminal

11. Strand yellow (YE) insulated with a heatshrinking sleeve

12. Snap ring

13. Nut M4

14. Split washer

15. Strand red (RD) with ring terminal insulated with a heatshringking sleeve

16. Blade plug

17. Adapter bushing

19. Process connection

21. Strand black (BK) (not required)

23. Strand yellow/green (YE/GN) with a ring terminal (protective earth)

25. Solder the strand with the central core of the coaxial cable (probe)

red (RD)

24. Isolate strand with heatshringking sleeve

yellow (YE)

20. External screening (not required)

22. Coaxial cable withndcentral core a screening

18. O - Ring

Page 32

Installation Solicap M FTI55, FTI56

32 Endress+Hauser

3.12.1 Shortening the connecting cable

A recalibration must be performed before commissioning  ä 53

Note! The maximum connection length between the probe and the separate housing is 6 m. When ordering a device with a separate housing, the desired length must be specified.

If the connecting cable is to be shortened or guided through a wall, it must be disconnected at the process connection. To do so, proceed as follows:

• Unscrew the pressing screw (1) using a 22mm open-end wrench. If necessary, hold the process connection. In doing so, ensure that neither the connecting cable nor the probe is turned in the process.

• Pull the insert seal (2) out of the cable gland (3).

• Using a 22mm open-end wrench, disconnect the cable gland (3) from the adapter disk. If necessary, hold it against the adapter disk (6) using a 34mm open-end wrench.

• Disconnect the adapter disk (6) from the adapter bushing (18).

• Remove the snap ring with a snap ring pliers.

• Grip the nut (M6) on the blade plug with a pliers and pull out the blade plug.

• Then, shorten the connecting cable to the desired length.

• If the separate housing has to be mounted in a different room than the probe, you can now route the connecting cable through the wall.

• You can now reassemble the device by following the reverse order of steps.

Note!

• If you shorten the connecting cable, we recommend reusing all strands with ring terminals.

• If the strands are not to be reused, the crimp connections of the new ring terminals attached must be insulated with a heat-shrinking sleeve tube, for example (danger of short circuit).

• All soldered joints must be insulated. Use heat-shrinking sleeves to do so.

Page 33

Solicap M FTI55, FTI56 Installation

Endress+Hauser 33

3.13 Probe with active buildup compensation

BA300Fen009

GN/YE

1. Pressing screw

2. Insert seal

3. Cabel gland

4. Heatshrinking sleeve

5. Seal

6. Adapter disk

7. Seal

8. Plug M3

9. Split washer

10. Strand yellow/green (YE/GN) with ring terminal

11. Strand yellow (YE) soldered with the guard strand insulated with a heatshrinking sleeve

12. Snap ring

13. Nut M4

14. Split washer

15. Strand red (RD) with ring terminal insulated with a heatshringking sleeve

16. Blade plug

18. Adapter bushing

20. Process connection

22. Strand black (BK) (not required)

24. Strand yellow/green (YE/GN) with a ring terminal (protective earth)

26. Solder the strand with the central core of the coaxial cable (probe)

red (RD)

25. Solder the strand with the strand (RD) from the tube.

yellow (YE)

guard

21. External screening (not required)

23. Coaxial cable withndcentral core a screening

17. Guard strand (RD)

19. O - Ring

Page 34

Installation Solicap M FTI55, FTI56

34 Endress+Hauser

3.13.1 Shortening the connecting cable

A recalibration must be performed before commissioning  ä 53

Note! The maximum connection length between the probe and the separate housing is 6 m. When ordering a device with a separate housing, the desired length must be specified.

If the connecting cable is to be shortened or guided through a wall, it must be disconnected from the process connection. To do so, proceed as follows:

• Pull the insert seal (2) out of the cable gland (3).

• Using a 22mm open-end wrench, disconnect the cable gland (3) from the adapter disk. If necessary, hold it against the adapter disk (6) using a 34mm open-end wrench.

• Disconnect the adapter disk (6) from the sleeve (17).

• Remove the snap ring with a snap ring pliers.

• Grip the nut (M6) on the blade plug with a pliers and pull out the blade plug.

• Disconnect the yellow strand from the red (guard) strand.

• Then, shorten the connecting cable to the desired length. If the separate housing is in a different room than the probe, you can now route the connecting cable through the wall.

• You can now reassemble the device by following the reverse order of steps.

Note!

• If you shorten the connecting cable, we recommend reusing all strands with ring terminals.

• If the strands are not to be reused, the crimp connections of the new ring terminals attached must be insulated with a heat-shrinking sleeve tube, for example (danger of short circuit).

• All soldered joints must be insulated. Use heat-shrinking sleeves to do so.

3.14 Installing bracket for wall and pipe mounting

3.14.1 Wall holder unit

Note!

• The wall holder unit is part of the scope of supply.

• The wall holder unit has to be screwed to the separate housing before you can use it as a drilling template. The distance between the holes is reduced by screwing it to the separate housing.

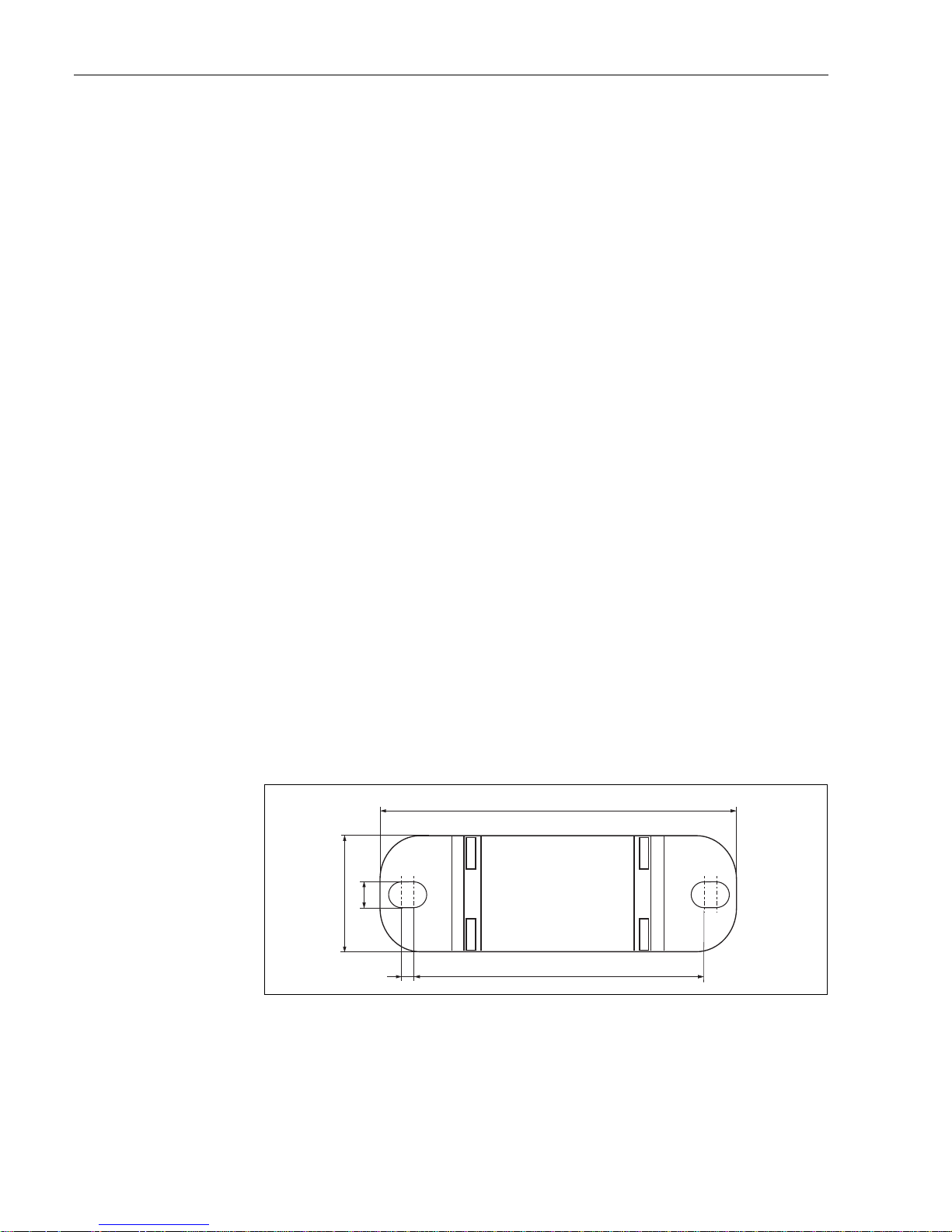

TI418F20

6.2

Page 35

Solicap M FTI55, FTI56 Installation

Endress+Hauser 35

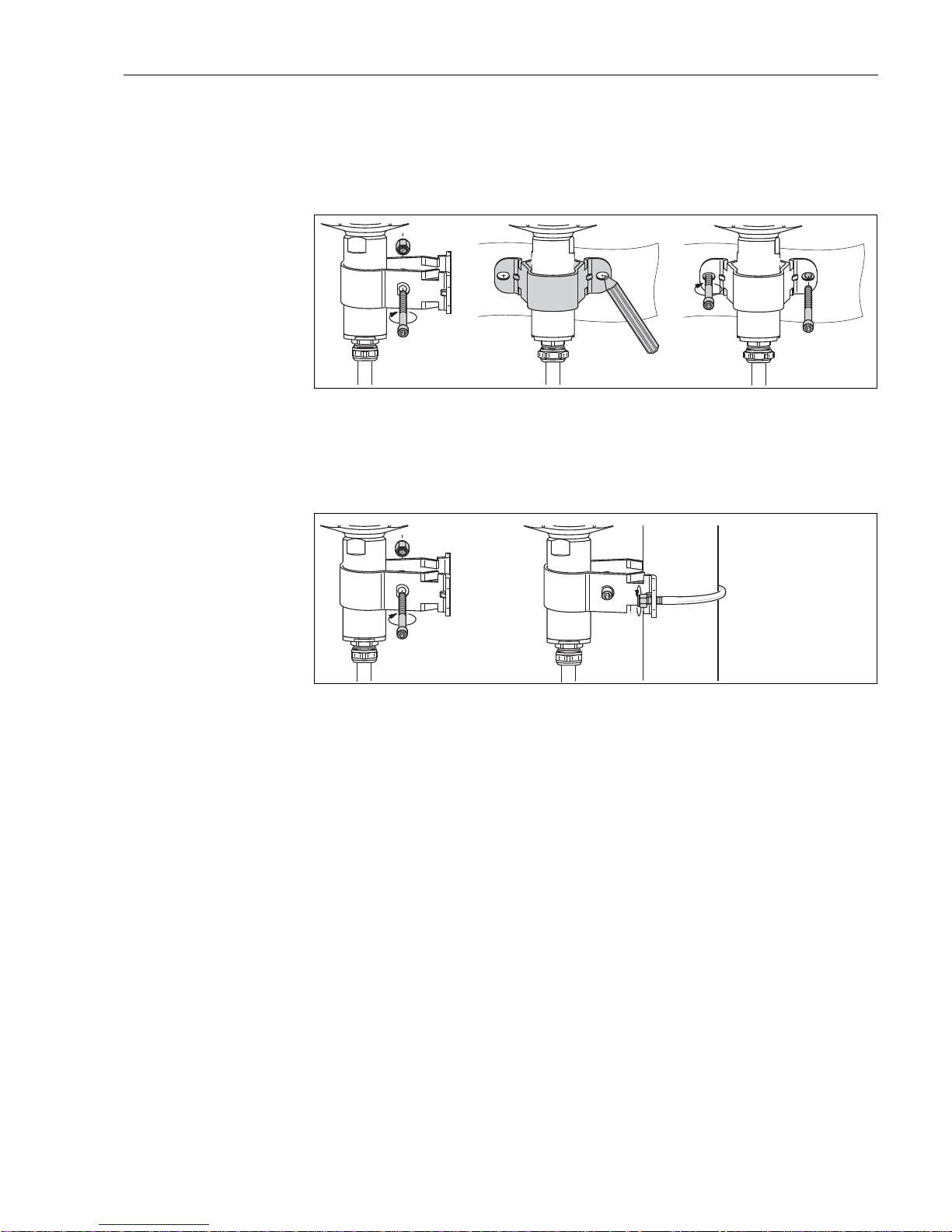

3.14.2 Wall mounting

• Push the bracket onto the sleeve and screw it into place.

• Mark the distance between the holes on the wall, and then drill the holes.

• Screw the separate housing to the wall.

BA300Fxx010

3.14.3 Pipe mounting

• Push the bracket onto the sleeve and screw it into place.

• Screw the separate housing to the pipe (max. 2").

BA300Fxx011

3.15 Post-installation check

After installing the measuring device, carry out the following checks:

• Is the device damaged (visual inspection)?

• Does the device correspond to the measuring point specifications, including process temperature and pressure, ambient temperature, measuring range, etc.?

• Is the process connection tightened with the correct torque?

• Are the measuring point number and labeling correct (visual inspection)?

• Is the measuring device adequately protected from precipitation and direct sunlight?

Page 36

Wiring Solicap M FTI55, FTI56

36 Endress+Hauser

4 Wiring

Caution! Before connecting the supply voltage, note the following:

• The supply voltage must match the information specified on the nameplate (see Page 10).

• Switch off the supply voltage before connecting the device.

• Connect the potential equalization to the ground terminal at the sensor.

Note!

• When using the probe in hazardous areas, the relevant national standards and the information in the safety instructions (XA) must be observed.

• Use the specified cable gland only.

4.1 Connection recommendation

4.1.1 Potential equalization

Connect the potential equalization to the outer ground terminal of the housing (T13, F13, F16, F17). In the case of the stainless steel housing F15, the ground terminal (depending on the version) can also be located in the housing. For additional safety instructions, refer to the separate documentation for applications in hazardous areas.

4.1.2 Electromagnetic compatibility (EMC)

• Interference emission to EN 61326, Electrical Equipment Class B

• Interference immunity in accordance with EN 61326, Appendix A (Industrial) and NAMUR Recommendation NE 21 (EMC).

4.1.3 Cable specification

The electronic inserts can be connected using the usual commercial instrument cables. When using shielded instrument cables, it is recommended to connect the shielding on both sides to optimize the shielding effect (if potential equalization present).

BA300Fxx012

max. 2.5 mm²max. 2.5 mm²

(max.(max. AAWG 14)WG 14)

max. 4 mm²max. 4 mm²

(max.(max. AAWG 12)WG 12)

FEI..FEI..

ø5…9ø5…9

(ø0.2…0.35 in)(ø0.2…0.35 in)

M20x1.5M20x1.5

(/(

/ in)in)

Page 37

Solicap M FTI55, FTI56 Wiring

Endress+Hauser 37

4.1.4 Connector

For the version with a connector M12, the housing does not have to be opened for connecting the signal

line.

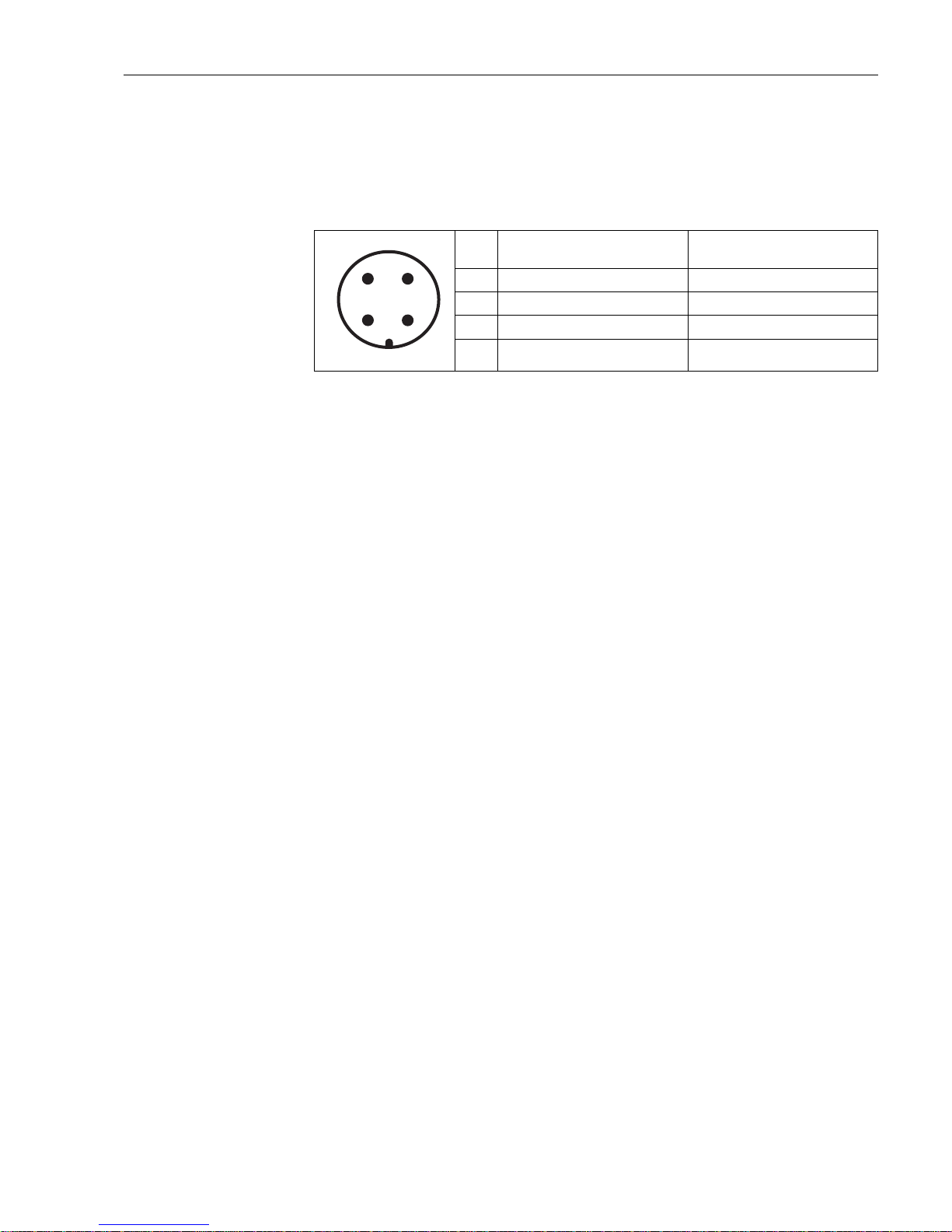

PIN assignment for M12 connector

4.1.5 Cable entry

• Cable gland: M20x1.5 (for EEx d only cable entry M20) Two cable glands included in scope of delivery.

• Cable entry: G ½, NPT ½ and NPT ¾

L00-FTI5xxxx-04-06-xx-xx-015

PIN 2-wire-electronic insert

FEI55, FEI57, FEI58, FEI50H, FEI57C

3-wire-electronic insert FEI52, FEI53

1+ +

2 not used not used

3– –

4 ground external load / signal

Page 38

Wiring Solicap M FTI55, FTI56

38 Endress+Hauser

4.2 Wiring in housing F16, F15, F17, F13

To connect the electronic insert to the power supply, proceed as follows:

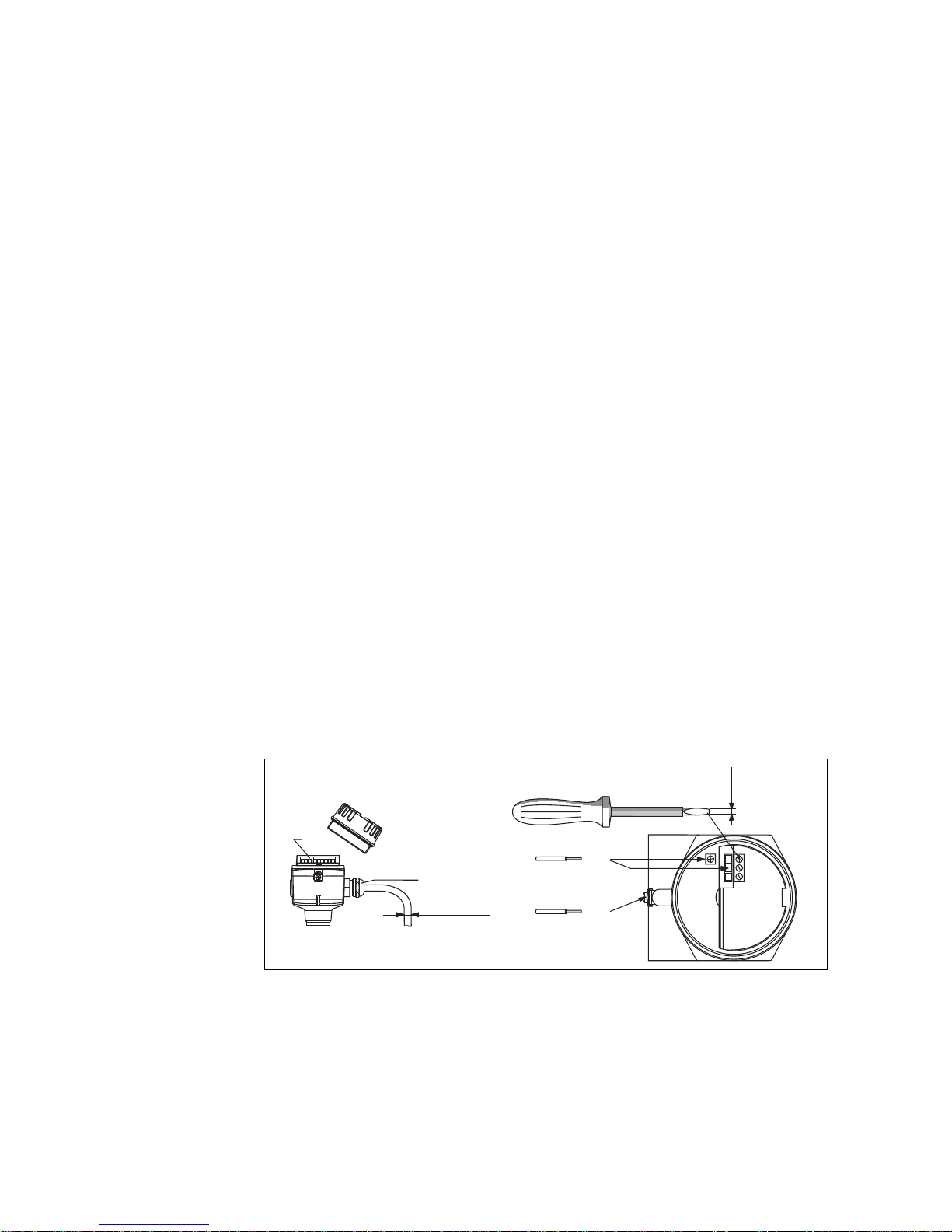

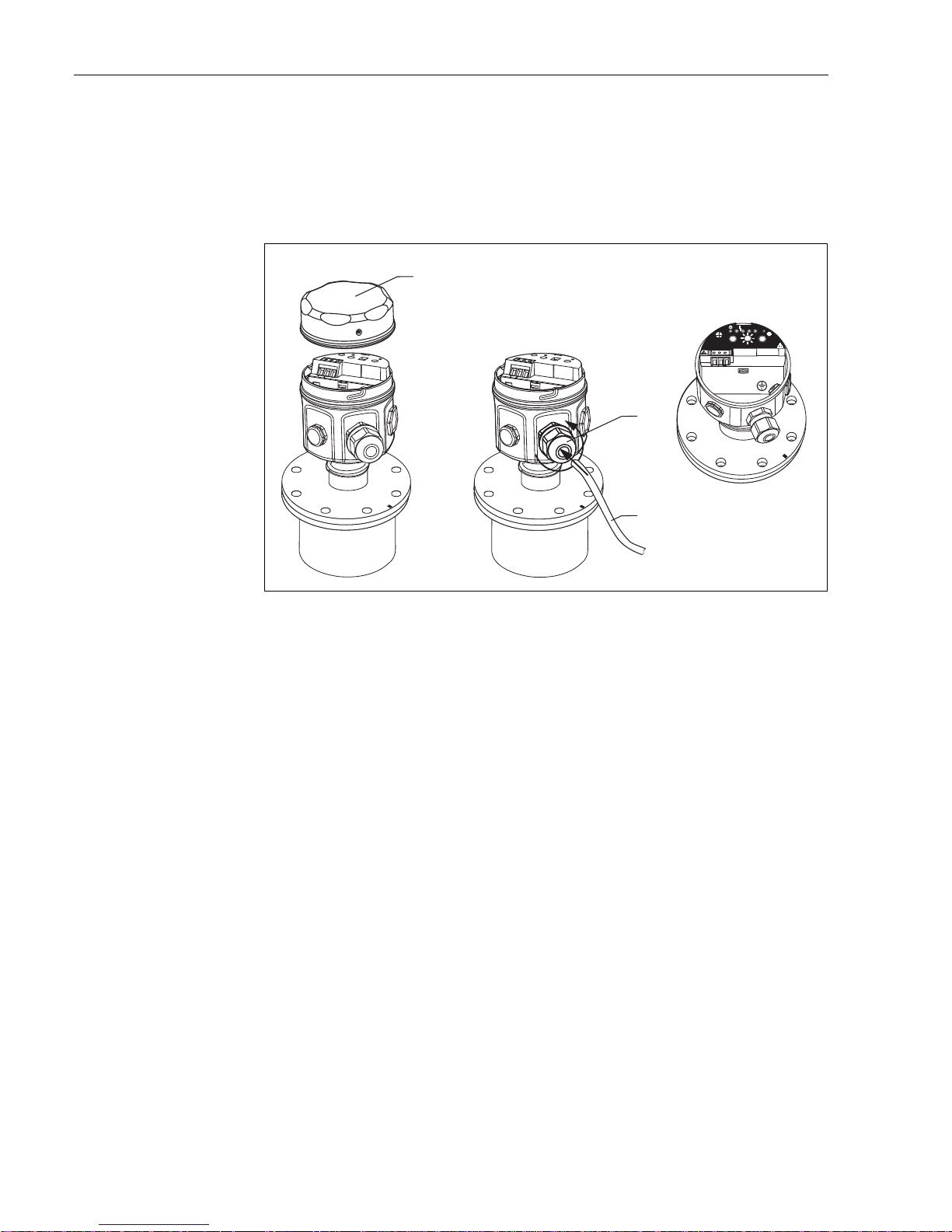

a. Unscrew the housing cover (1).

b. Remove the cable gland (2) and insert the cable (3).

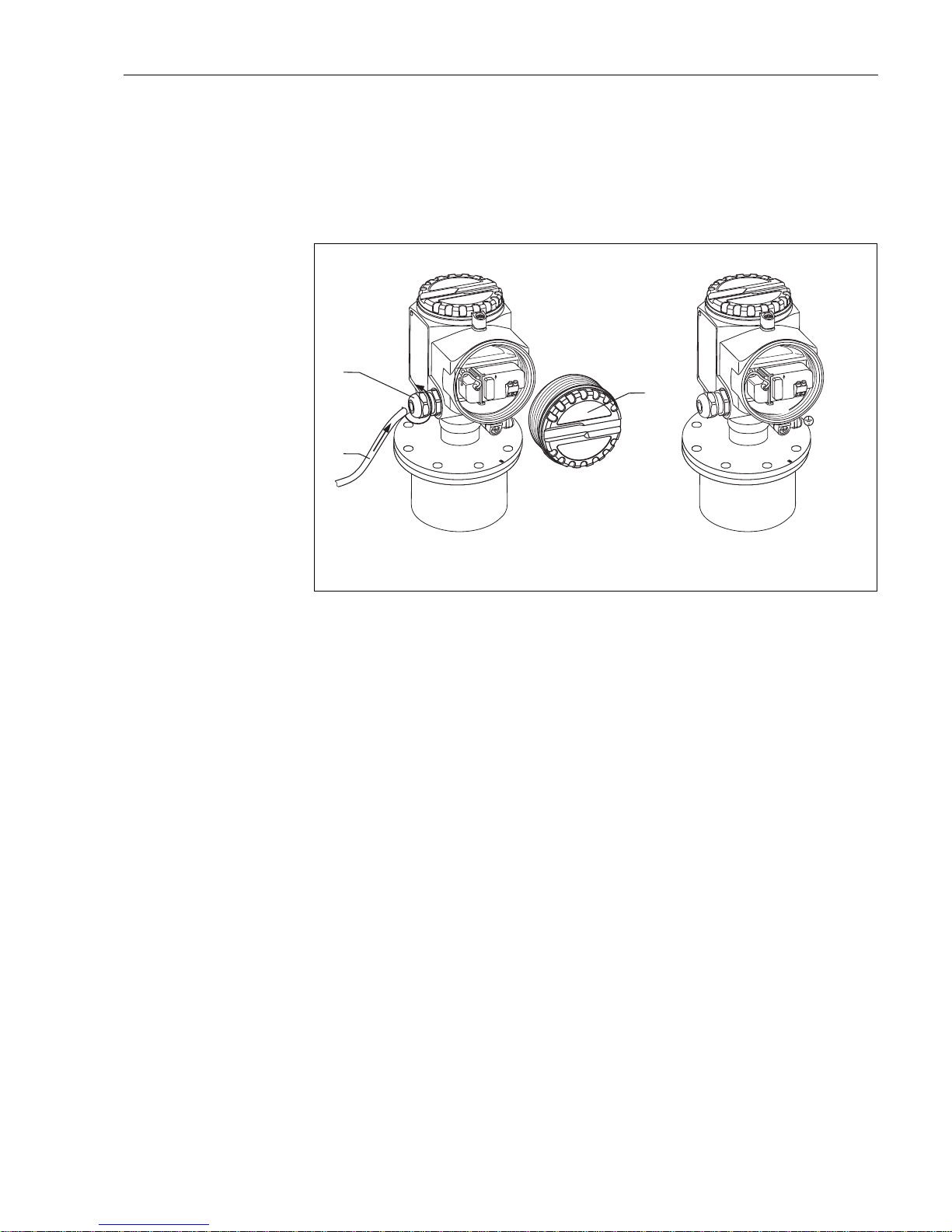

BA300Fxx013

Note!

• Information on the procedure for connecting shielded cables is provided in TI241 "EMC test procedures".

• All further steps depend on the specific electronic inserts used, which are described on the following pages: FEI51  ä 41 FEI52  ä 42 FEI53  ä 43 FEI54  ä 44 FEI55  ä 45 FEI57S  ä 46 FEI58  ä 47

a. b.

–

FEI55

8/16mA

11...36VDC

–

I=16mA

Page 39

Solicap M FTI55, FTI56 Wiring

Endress+Hauser 39

4.3 Wiring in housing T13

To connect the electronic insert to the power supply, proceed as follows:

a. Unscrew the housing cover (1).

b. Remove the cable gland (2) and insert the cable (3).

BA300Fxx014

Note!

• To perform connection work in the separate connection compartment, the same connection instructions apply as for the electronic inserts.

• Information on the procedure for connecting shielded cables is provided in TI241 "EMC test procedures".

–

a.+b.

–

Page 40

Wiring Solicap M FTI55, FTI56

40 Endress+Hauser

4.4 Connecting the device

Connection compartment

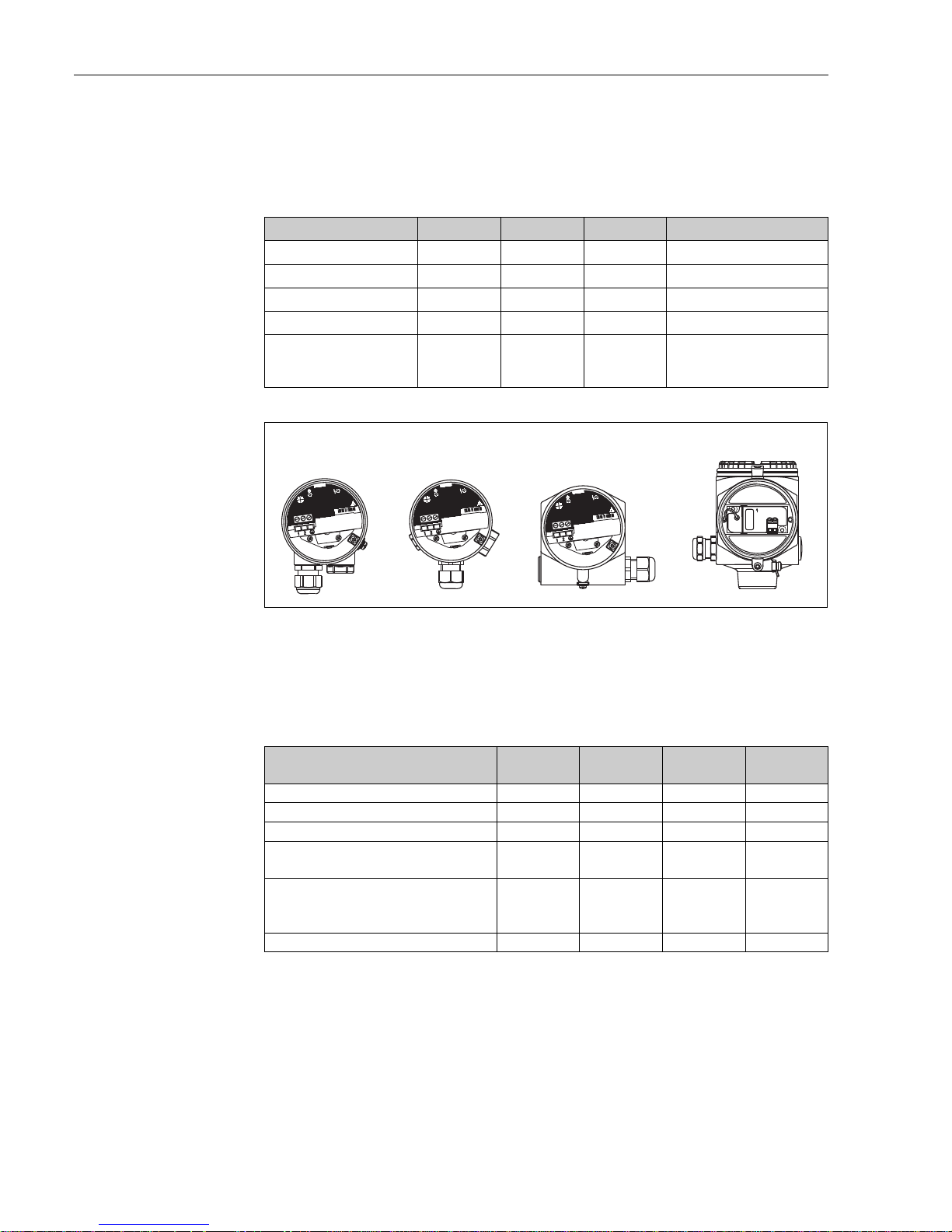

Five types of housing are available:

BA300Fxx017

Note! The nameplate contains important device data.

4.5 Degree of protection

* As per EN60529 ** As per NEMA 250 *** Only with M20 cable entry or G1/2 thread

Standard EEx ia EEx d Gas-tight process seal

Polyester housing F16 X X - -

Stainless steel housing F15 X X - -

Aluminum housing F17 X X - -

Aluminum housing F13 X X X X

Aluminum housing T13 (with separate connection compartment)

XXXX

–+– +

FEI5x

4...20mA4...20 mA

1 2

–

––

T13T13F15F15F16F16 F17/F13F17/F13

IS- GroundIS

Ground

–+– + 121 2

FEI5xFEI5x

IP66* IP67* IP68* NEMA4X*

Polyester housing F16 X X - X Stainless steel housing F15 X X - X Aluminum housing F17 X X - X Aluminum housing F13

with gas-tight process seal

X–X***X

Aluminum housing T13 with gas-tight process seal and separate connection compartment (EEx d)

X–X***X

Separate housing X – X*** X

Page 41

Solicap M FTI55, FTI56 Wiring

Endress+Hauser 41

4.6 Connecting the electronic insert FEI51 (AC 2-wire)

Note! Connect in series with an external load.

Power supply

Supply voltage: 19 to 253 V AC Power consumption: < 1.5 W Residual current consumption: < 3.8 mA Short-circuit protection FEI51 overvoltage protection: overvoltage category II

Signal on alarm

Output signal on power failure or in the event of damage to the sensor: < 3.8 mA

Connectable load

• For relays with a minimum holding power or rated power > 2.5 VA at 253 V AC (10 mA) or >

0.5 VA at 24 V AC (20 mA)

• Relays with a lower holding power or rated power can be operated by means of an RC module connected in parallel.

• For relays with a maximum holding power or rated power < 89 VA at 253 V AC or < 8.4 VA at 24 V AC

• Voltage drop across FEI51 max. 12 V

• Residual current with blocked thyristor max. 3.8 mA

• Load switched directly into the power supply circuit via the thyristor.

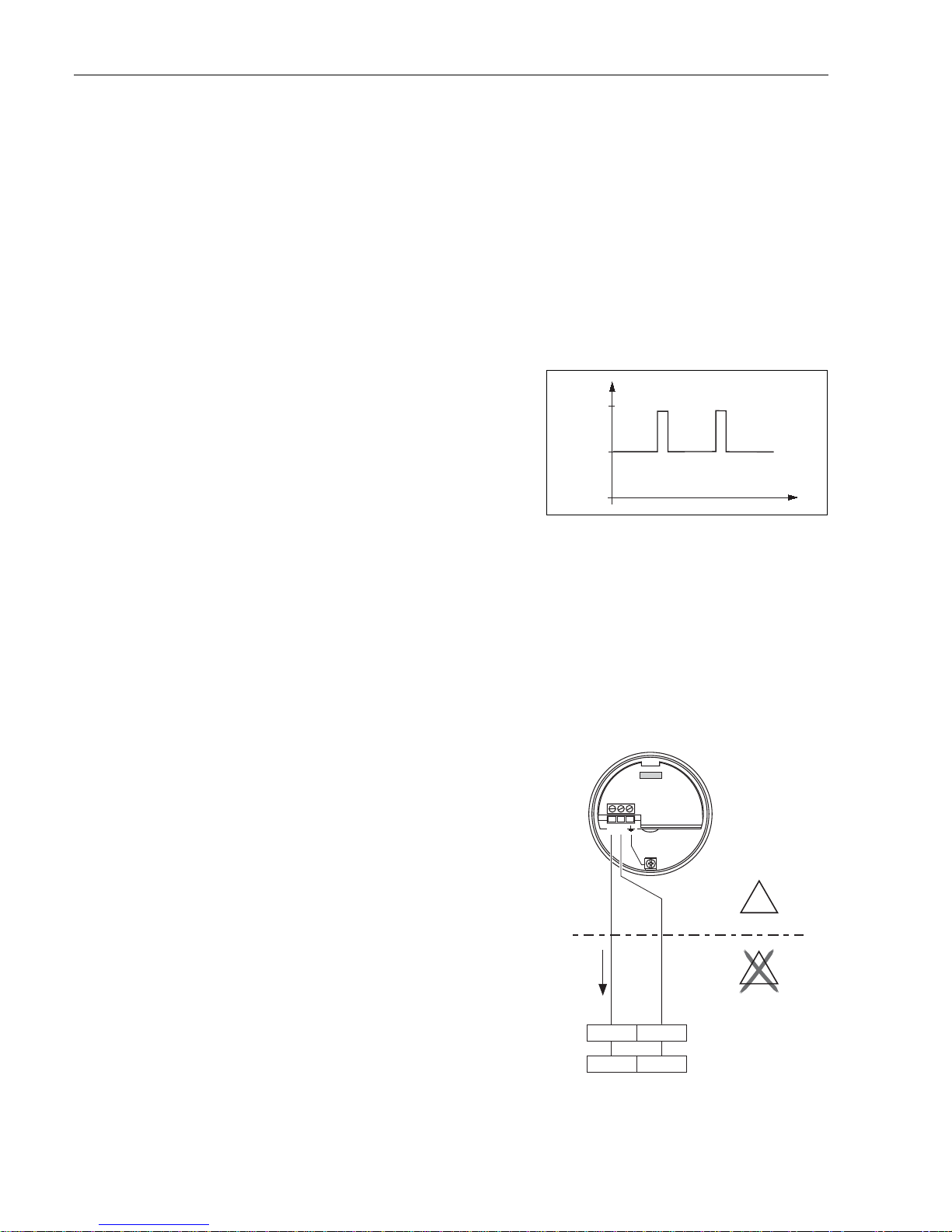

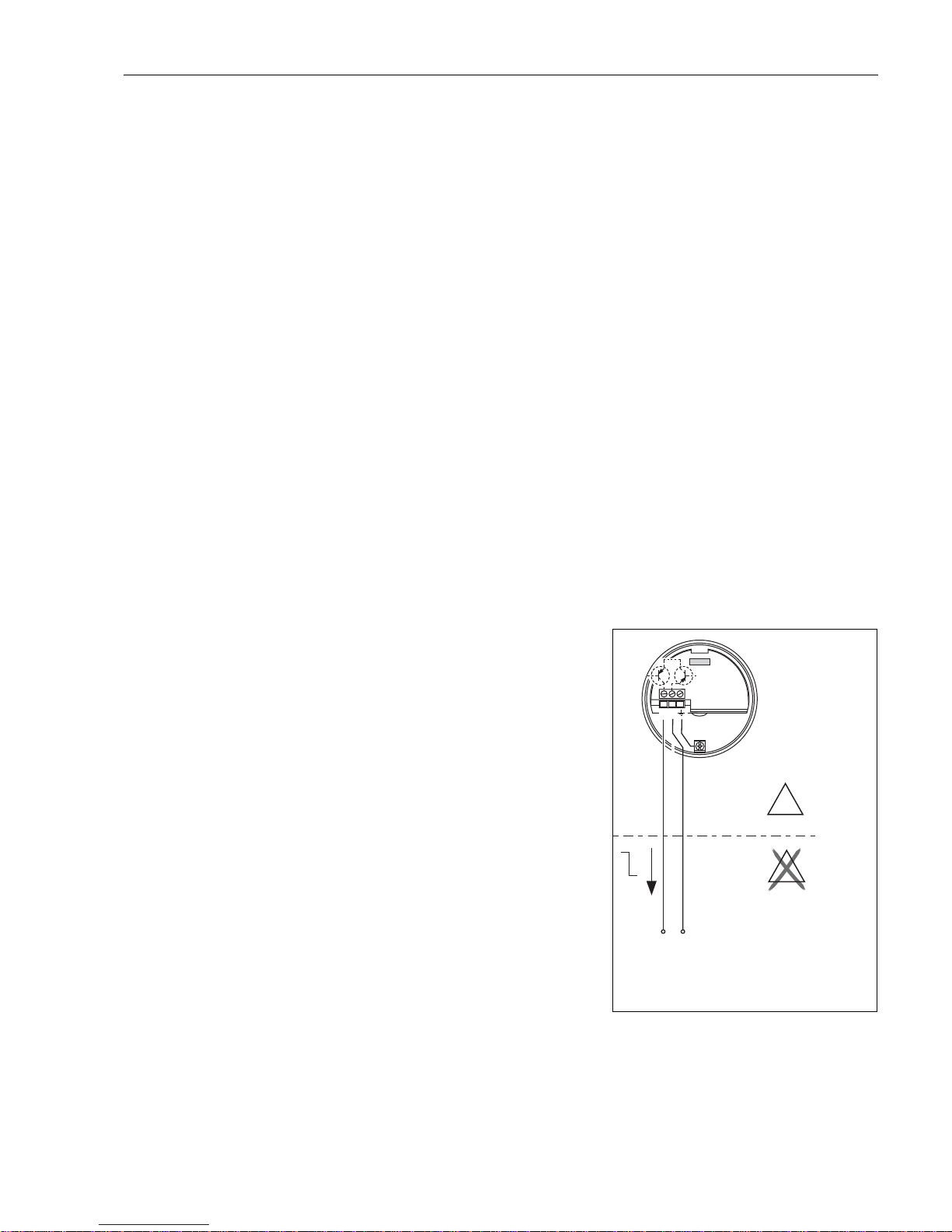

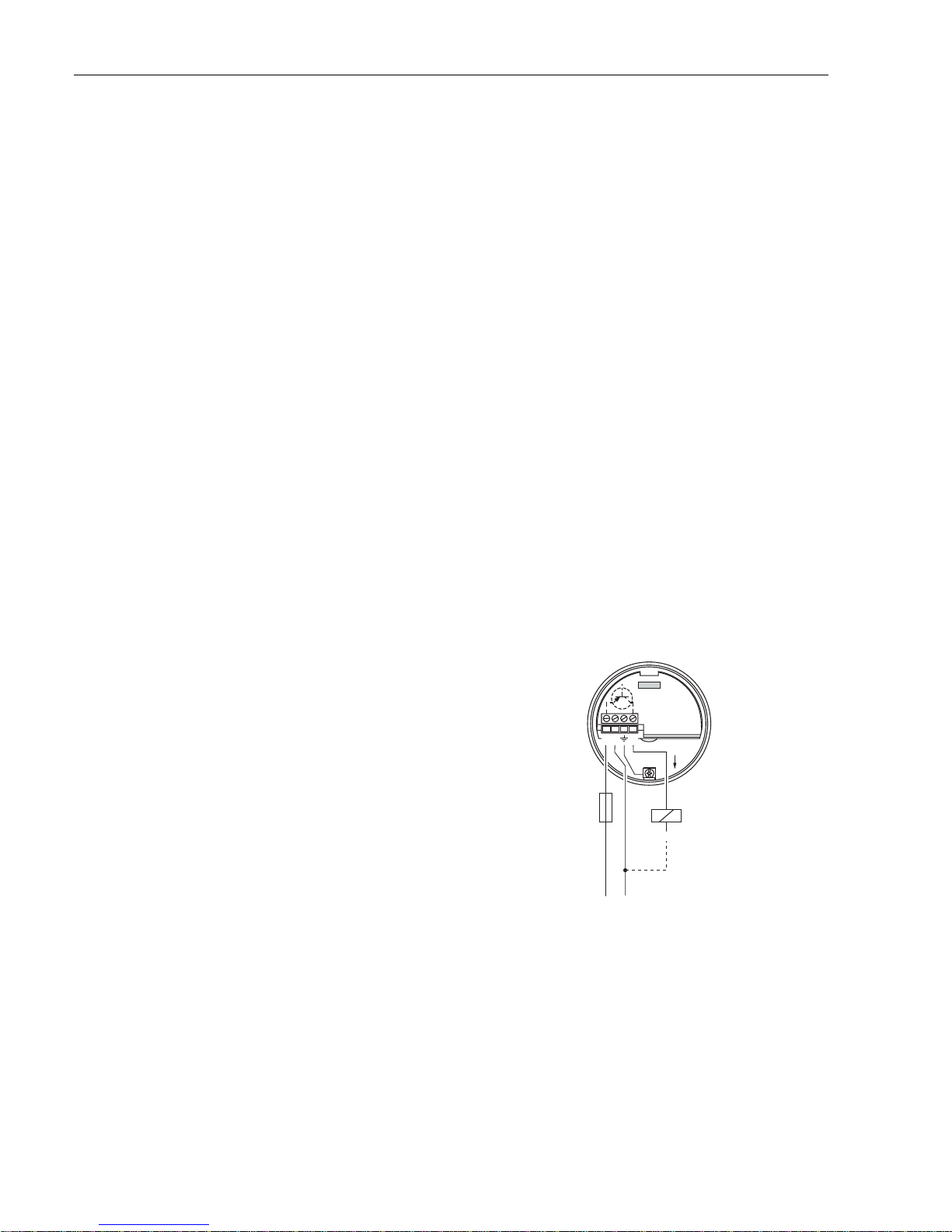

Connect the FEI51 (AC 2-wire) as follows:

1. Make the connection as shown in the

graphic.

2. Tighten the cable gland.

3. Set the function switch (5) to position 1

(operation).

Note! Do not switch on the supply voltage until you have familiarized yourself with the device functions as described in Section 5 "Operation". This will ensure that you do not accidentally trigger any processes by switching on the supply voltage.

4. Switch on the supply voltage.

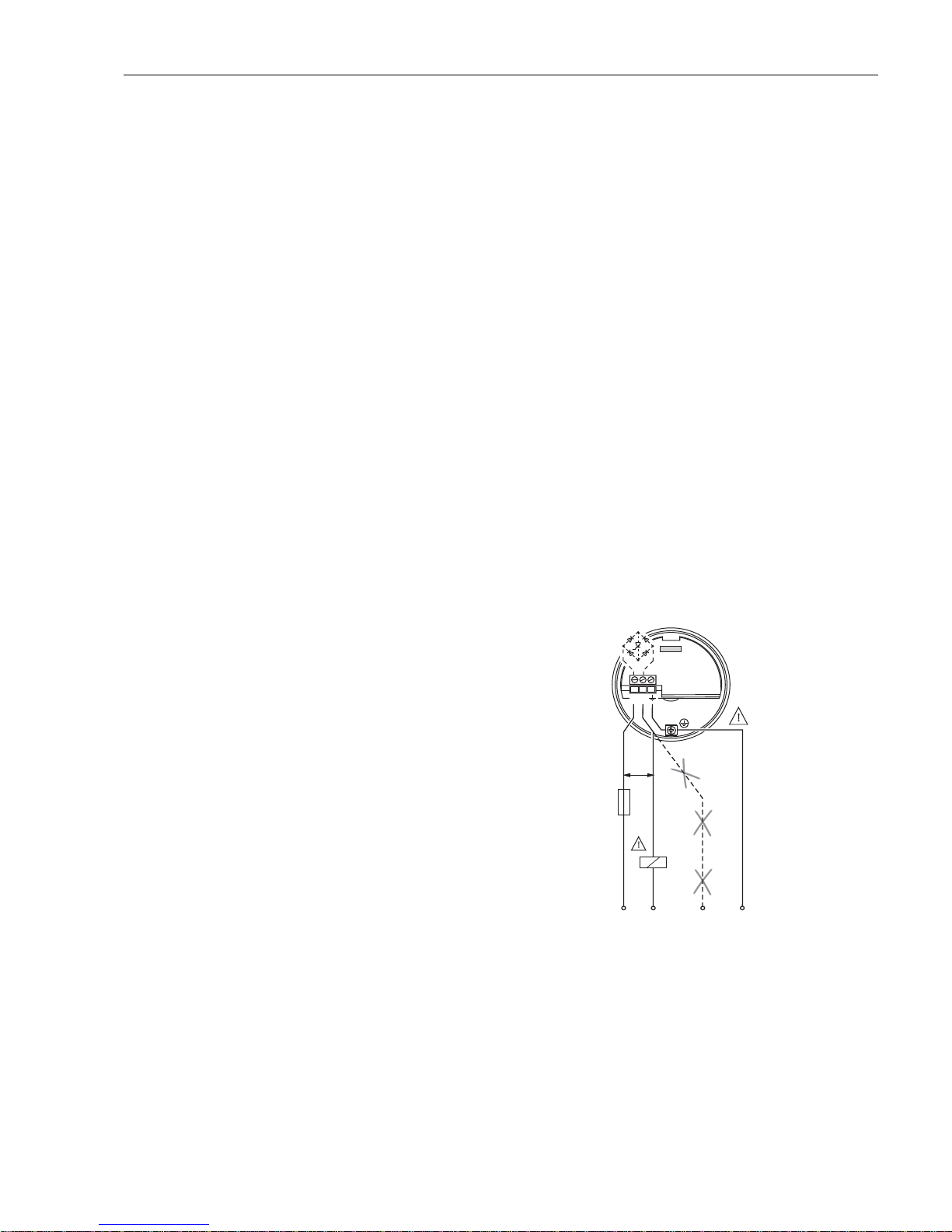

L00-FMI5xxxx-06-05-xx-en-071

U~ max. 253 V AC

50/60 Hz

NNPE

(Masse)

min.

19 V

External load R

be connectedmust

Page 42

Wiring Solicap M FTI55, FTI56

42 Endress+Hauser

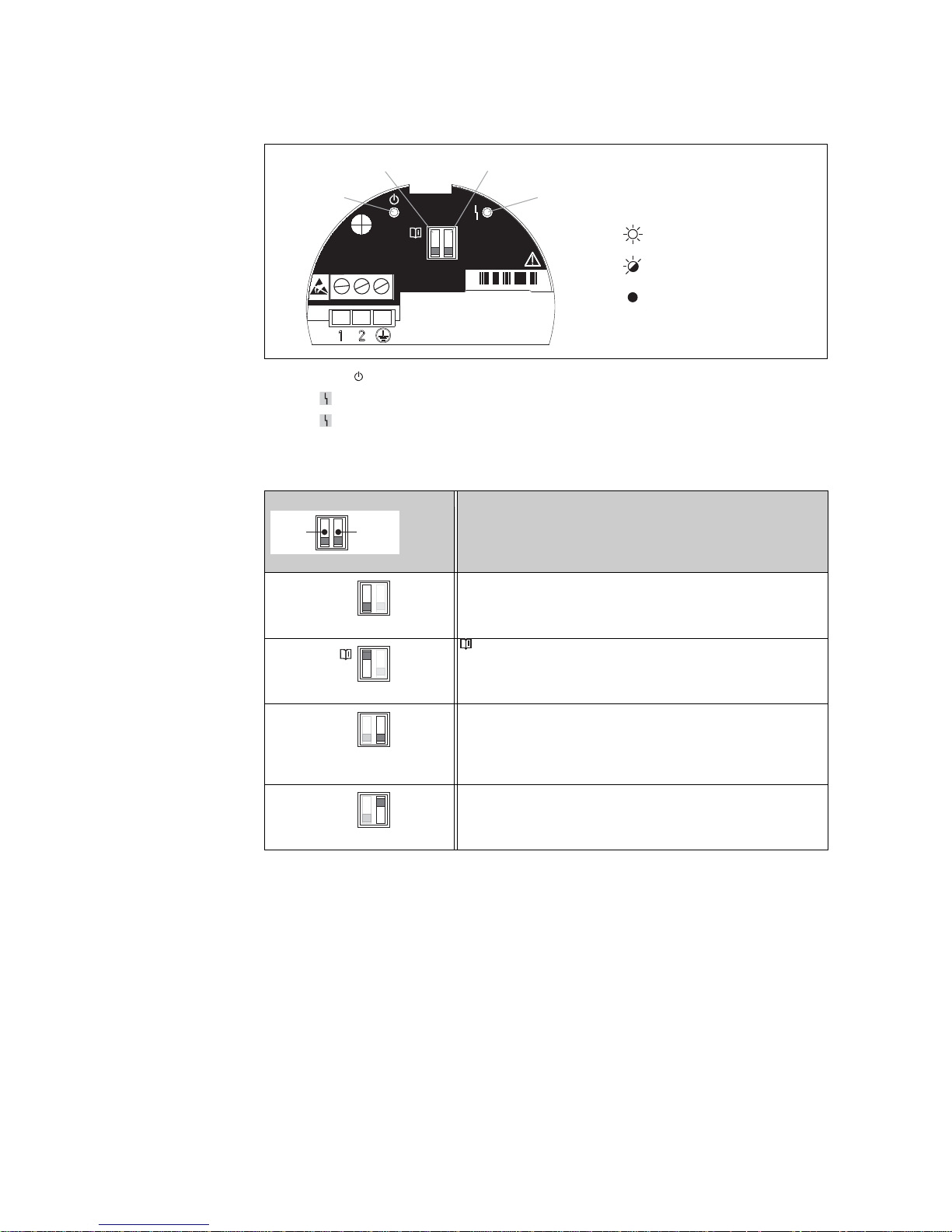

4.7 Connecting the electronic insert FEI52 (DC PNP)

The three-wire DC connection should, wherever possible, be connected as follows:

• To programmable logic controllers (PLCs),

• to DI modules in accordance with EN 61131-2

A positive signal is present at the switch output of the electronic system (PNP).

Power supply

Supply voltage: 10 to 55 V DC Ripple: max. 1.7 V; 0 to 400 Hz Current consumption: < 20 mA Power consumption without load: max. 0.9 W Power consumption with full load (350 mA): 1.6 W Reverse polarity protection: yes Separation voltage: 3.7 kV FEI52 overvoltage protection: overvoltage category II

Signal on alarm

Output signal on power failure or in the event of device failure: I

< 100 μA

Connectable load

• Load switched via transistor and separate PNP connection, max. 55 V

• Load current max. 350 mA (cyclical overload and short-circuit protection)

• Residual current < 100 μA (with transistor blocked)

• Capacitive load max. 0.5 μF at 55 V; max. 1.0 μF at 24 V

• Residual voltage < 3 V (for transistor switched through)

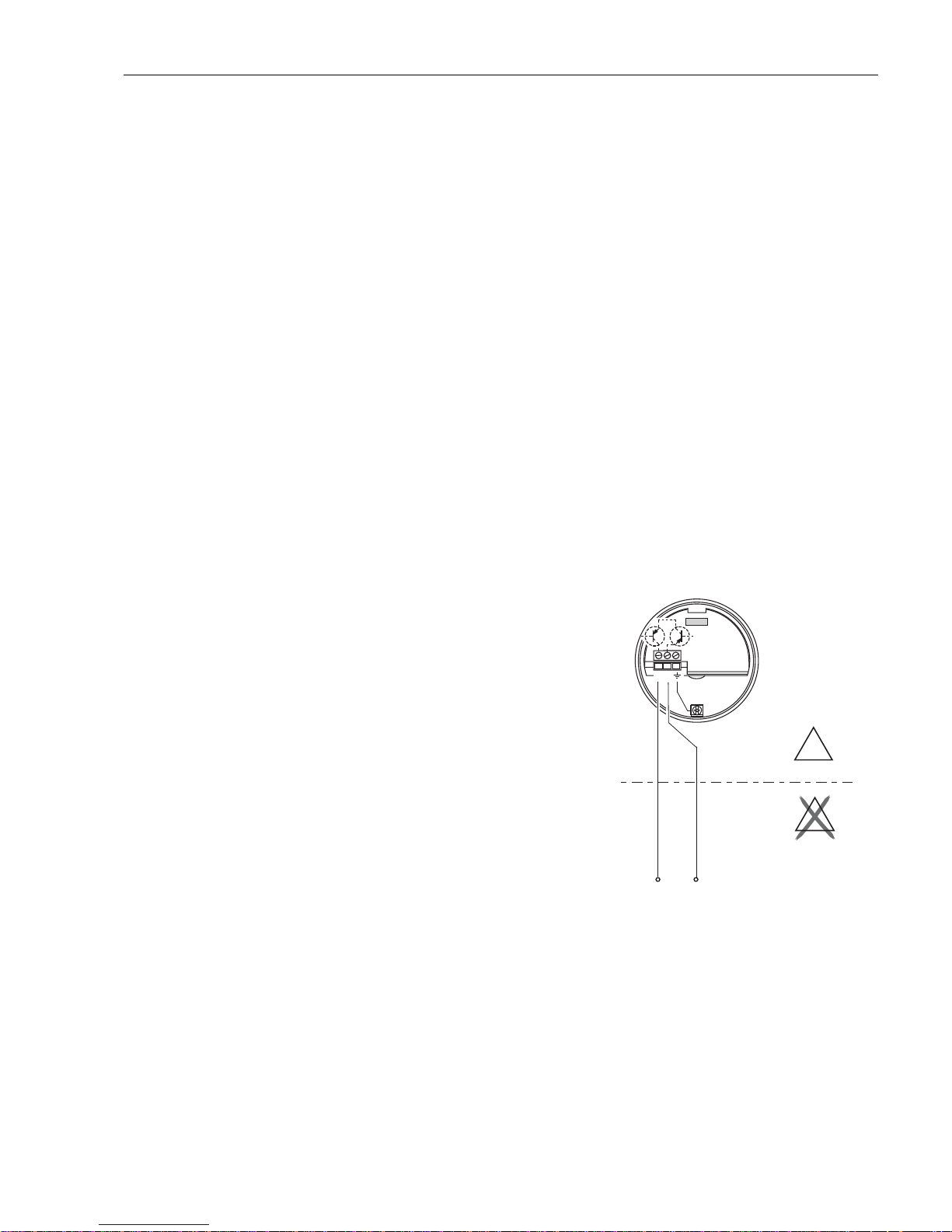

Connect the FEI52 (DC PNP) as follows:

1. Make the connection as shown in the graphic.

2. Turn the cable gland until tight.

3. Set the function switch to position 1 (operation).

Note! Do not switch on the supply voltage until you have familiarized yourself with the device functions as described on Page 49 "Operation". This will ensure that you do not accidentally trigger any processes by switching on the supply voltage.

4. Switch on the supply voltage.

* R = External load (I

max.

350 mA, U

max

55 V DC)

TI418F42

12 3

L+ L–

(+)

–

0.5A R

U – 10…55 V (DC)

…

Page 43

Solicap M FTI55, FTI56 Wiring

Endress+Hauser 43

4.8 Connecting the electronic insert FEI53 (3–WIRE)

The 3-wire DC connection is used in conjunction with the Nivotester switching device FTC325 3–WIRE from Endress+Hauser; the switching device's communication signal operates at 3 to 12 V.

The changeover of failsafe mode (MIN) / (MAX) and the level limit calibration take place on the Nivotester.

Power supply

Supply voltage: 14.5 V DC Current consumption: < 15 mA Power consumption: max. 230 mW Reverse polarity protection: yes Separation voltage: 0.5 kV

Signal on alarm

Voltage at terminal 3 vis-à-vis terminal 1: < 2.7 V

Connectable load

• Floating relay contacts in the connected switching unit Nivotester FTC325 3-WIRE

• For the contact load capacity, refer to the technical data of the switching device.

Connect the FEI53 (3-WIRE) as follows:

1. Make the connection as shown in the graphic.

2. Turn the cable gland until tight.

3. Switch on the supply voltage.

TI418F43

11 12 13

–+S

Nivotester FTC325 3-WIRE

12 3

(+)

Page 44

Wiring Solicap M FTI55, FTI56

44 Endress+Hauser

4.9 Connecting the electronic insert FEI54 (AC/DC with relay output)

The universal voltage connection with relay output (DPDT) operates in two different voltage ranges (AC and DC).

Note! When connecting devices with high inductivity, use a spark suppression system to protect the relay contacts.

Power supply

Supply voltage: 19 to 253 V AC, 50/60 Hz or 19 to 55 V DC Power consumption: max. 1.6 W Reverse polarity protection: yes Separation voltage: 3.7 kV FEI54 overvoltage protection: overvoltage category II

Signal on alarm

Output signal on power failure or in the event of device failure: relay de-energized

Connectable load

• Loads switched via 2 floating changeover contacts (DPDT)

• I~ max. 6 A; U~ max. 253 V; P~ max. 1500 VA at cos  = 1;

P~ max. 750 VA at cos  > 0.7

• I– max. 6 A to 30 V; I– max. 0.2 A to 125 V

• The following applies when connecting a functional low-voltage circuit with double isolation as

per IEC 1010: Sum of voltages of relay output and power supply max. 300 V

Connect the FEI54 (AC/DC relay) as follows:

1. Make the connection as shown in the graphic.

2. Turn the cable gland until tight.

3. Set the function switch to position 1

(operation).

4. Switch on the supply voltage.

* Refer also to Connectable load

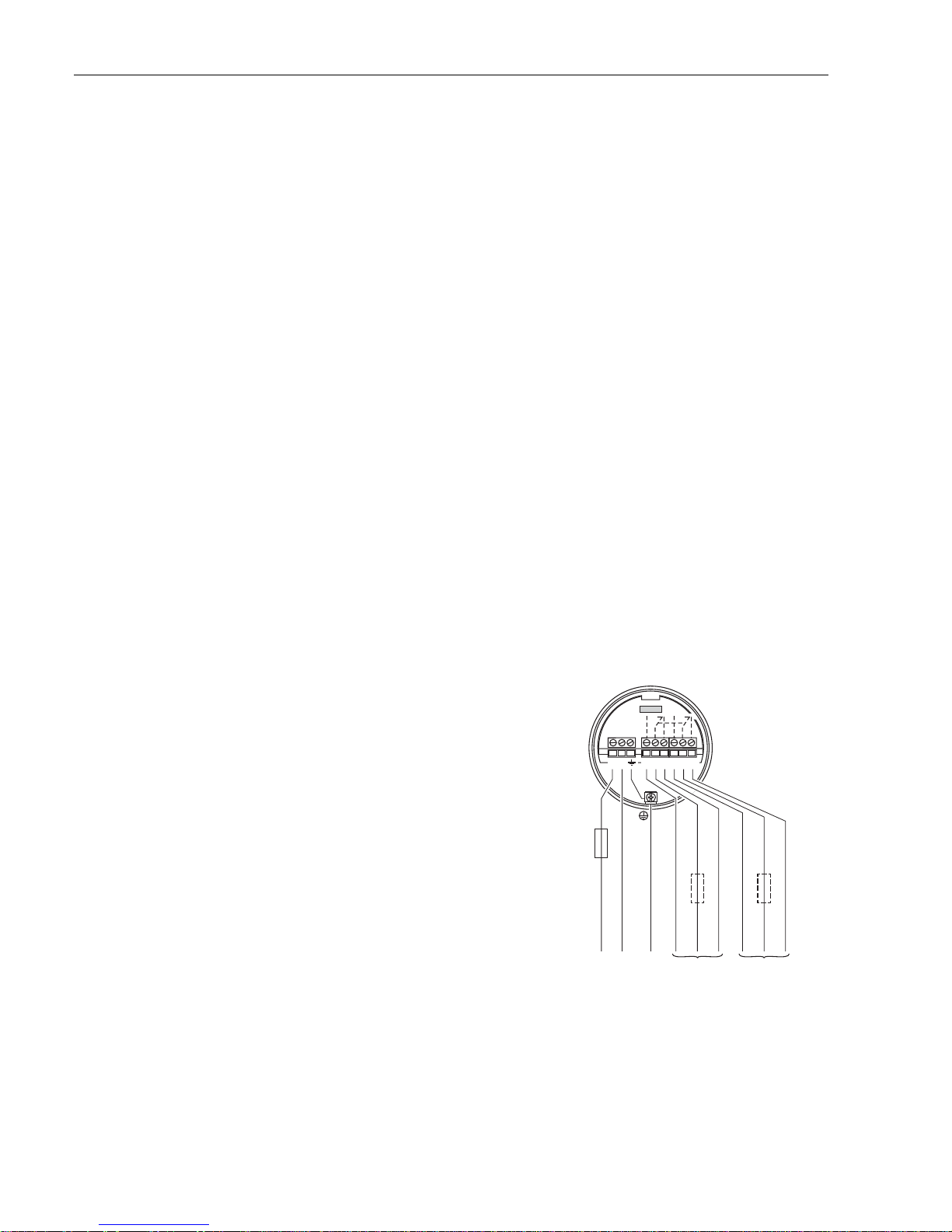

TI418F47

U~ 19…253 V U– 19… 55 V

(AC)

(DC)

L1 L+

NL–PE

(Ground)

0.5A

12 678345

Page 45

Solicap M FTI55, FTI56 Wiring

Endress+Hauser 45

4.10 Connecting the electronic insert FEI55 (8/16 mA; SIL2/SIL3)

The two-wire DC connection should, if possible, be connected as follows:

• To programmable logic controllers (PLCs),

• to AI modules 4 to 20 mA in accordance with EN 61131-2

The level limit signal is sent via an output signal jump from 8 mA to 16 mA.

Power supply

Supply voltage: 11 to 36 V DC Power consumption: < 600 mW Reverse polarity protection: yes Separation voltage: 0.5 kV

Signal on alarm

Output signal on power failure or in the event of device failure: < 3.6 mA

Connectable load

• U = connection DC voltage:

– 11 to 36 V DC (non-hazardous area and Ex ia) – 14.4 to 30 V DC (Ex d)

•I

max

= 16 mA

Functional safety (SIL)

The electronic insert FEI55 meets the requirements of SIL2/SIL3 in accordance with IEC 61508/ IEC 61511-1 and can be used in safety systems with corresponding requirements.

An exact description of the requirements in terms of functional safety can be found in document SD278F/00.

Connect the FEI55 (8/16 mA) as follows:

1. Make the connection as shown in the graphic.

2. Turn the cable gland until tight.

3. Set the function switch to position 1

(operation).

4. Switch on the supply voltage.

TI418Fen50

EEx ia

–

U– 11…36

e.g. PLC

Page 46

Wiring Solicap M FTI55, FTI56

46 Endress+Hauser

4.11 Connecting the electronic insert FEI57S (PFM)

The two-wire DC connection is used in conjunction with one of the following Nivotester switching devices from Endress+Hauser:

• FTC325 PFM,

• FTC625 PFM (from SW V1.4),

• FTC470Z,

• FTC471Z

The PFM signal is between 17 and 185 Hz. The changeover of failsafe mode (MIN) / (MAX) and the level limit calibration take place on the Nivotester.

Power supply

Output signal

PFM 17 to 185 Hz (Endress+Hauser)

Connectable load

• Floating relay contacts in the connected switching unit Nivotester FTC325 PFM, FTC625 PFM (from SW V1.4), FTC470Z, FTC471Z

• For the contact load capacity, refer to the technical data of the switching device.

Supply voltage: 9.5 to 12.5 V DC Power consumption: < 150 mW Reverse polarity protection: yes Separation voltage: 0.5 kV

TI418F52

Frequency: 17 to 185 Hz

Connect the FEI57 (PFM) as follows:

1. Make the connection as shown in the graphic.

2. Turn the cable gland until tight.

3. Switch on the supply voltage.

TI418F53

0mA0 mA

8mA8 mA

16 mA16 mA

PFMPFM

–+

11 1 2

d4 d2

PFM

EEx ia

FTC325 FTC625

FTC470Z FTC471Z

Nivotester

Page 47

Solicap M FTI55, FTI56 Wiring

Endress+Hauser 47

4.12 Connecting the electronic insert FEI58 (NAMUR)

The two-wire connection for a separate switching unit in accordance with NAMUR specifications (IEC 60947-5-6), e.g. FXN421, FXN422, FTL325N, FTL375N from Endress+Hauser. Change in output signal from high to low current in event of limit detection.

(H-L edge)

Additional function: Test key on the electronic insert. Pressing the key breaks the connection to the isolating amplifier.

Note! In the case of Ex-d operation, the additional function can only be used if the housing is not exposed to an explosive atmosphere.

When connecting to Multiplexer: set 3 s as the cycle time at least.

Power supply

Power consumption: < 6 mW at I < 1 mA; < 38 mW at I = 2.2 to 4 mA Interface connection data: IEC 60947-5-6

Signal on alarm

Output signal in the event of damage to the sensor: < 1.0 mA

Connectable load

• See the technical data of the connected isolating amplifier as per IEC 60947-5-6 (NAMUR)

• Connection also to isolating amplifiers which have special safety circuits (I > 3.0 mA)

Connect the FEI58 (NAMUR) as follows:

1. Make the connection as shown in the graphic.

2. Turn the cable gland until tight.

3. Switch on the supply voltage.

L00-FTL5xxxx-04-05-xx-en-002

–

EEx ia

Isolating amplifier to (NAMUR)

IEC 60947-5-6

Page 48

Wiring Solicap M FTI55, FTI56

48 Endress+Hauser

4.13 Post-connection check

After wiring the measuring device, carry out the following checks:

• Is the terminal assignment correct?

• Is the cable gland tightly sealed?

• Is the housing cover screwed on all the way?

• If a power supply is present: If the device is operational, the green LED flashes at 5-second intervals.

Page 49

Solicap M FTI55, FTI56 Operation

Endress+Hauser 49

5Operation

5.1 Human interface and display elements for FEI51, FEI52, FEI54, FEI55

You can operate the electronic inserts FEI51, FEI52, FEI54 and FEI55 via the function switch (A) and the "–" (B) and "+" (C) keys. The function switch A has eight possible positions. Each position has at least one function. The operating status of the device is indicated by light emitting diodes (LEDs 1 to 6) on the electronic insert and depends on the position of the function switch.

BA300Fen015

Green LED 1 ( ready for operation), red LED 2 ( error indicated), yellow LED 3 (✲ switching state)

Note! To select a function, press the keys (– and/or +) for at least 2 seconds. Release the keys when the LED signals change.

FEI5xFEI5x

2211 33 44 55 66

BB CC

LEDLED

onon

flashingflashing

ofofff

Page 50

Operation Solicap M FTI55, FTI56

50 Endress+Hauser

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Operation Flashes

Operational LED

On*** (MIN-SIL)

Flashes

(warning/ alarm)

On*** (MAX-SIL)

On/off/ flashes**

Restore factory setting Press both keys for

approx. 20 s

On –> –> –> –> **

Empty calibration Press On

(present)

Full calibration Press On

(present)

Reset: Calibration and switch point adjustment

Press both keys for

approx. 10 s

On –> –> –> –> **

Switch point adjustment Press for < Press for > On *

(2 pF)

Off

(4 pF)

Off

(8 pF)

Off

(16 pF)

Off

(32 pF)

Measuring range Press for < On *

(500 pF)

Off

(1600 pF)

Two-point control s Press once On

buildup mode Press twice On On **

Switching delay Press for < Press for > Off

(0.3 s)

On *

(1.5 s)

Off

(5 s)

Off

(10 s)

Self-test (function test) Press both keys Off *

(inactive)

Flashes

(active)

MIN-/MAX Failsafe mode

Press for MIN

Press for MAX

Off

(MIN)

On *

(MAX)

SIL mode*** lock/unlock

Press both keys On

(MIN-SIL)

(MAX-SIL)

Upload/download sensor DAT (EEPROM)

Press for download

Press for upload

Flashes

(download)

Flashes

(upload)

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

*** Only in conjunction with electronic insert FEI55 (SIL). The device is in the SIL mode. To change the current settings, the device must be unlocked  ä 64.

Page 51

Solicap M FTI55, FTI56 Operation

Endress+Hauser 51

5.2 Human interface and display elements for FEI53, FEI57S

The electronic inserts FEI53 and FEI57S are used in conjunction with Nivotester switching devices. The functions of the DIP switches (A and B) and the LEDs (1 and 2) are described in the table below.

The operating status of the device is indicated by LEDs (LED 1 and 2) on the electronic insert and provides information on operational readiness (1) and, where applicable, the type of fault (2).

BA300Fen016

LED 1 operational : Flashes at 5-second intervals.

LED 2 fault : The red LED flashes if there is a fault that you can correct.

LED 2 fault : The red LED lights up continuously if the device has a fault that cannot be corrected. See also Page 78, "Troubleshooting".

Note! A description of the human interface and display elements of the Nivotester switching device is provided in the documentation that accompanies the device.

FEI5xFEI5x

0.....500pFStandard

0...1600pF

11 22

LEDLED

onon

flashingflashing

ofofff

DIP switch Function

Standard

: If the measuring range is exceeded no alarm is output.

: If the measuring range is exceeded an alarm is output.

Measuring range: The mesasuring range is between 0 to 500 pF. Span: The span is between 5 to 500 pF.

Measuring range: The mesasuring range is between 0 to 1600 pF. Span: The span is between 5 to 1600 pF.

A B

Standard

0.....500pF0.....500pF

0...1600pF0...1600pF

Page 52

Operation Solicap M FTI55, FTI56

52 Endress+Hauser

5.3 Human interface and display elements for FEI58

BA299Fen016

Green LED 1 ( ready for operation), red LED 2 ( error indicated), yellow LED 3 (✲ switching state)

FEI58

NAMUR

IEC 60947-5-6

MIN

>2,2mA

MAX

GD E F

A B

LED

flashing

off

DIP switches (C, D, E, F) Function

The probe is covered during calibration.

The probe is uncovered during calibration.

Switch point adjustment: 10 pF

Switch point adjustment: 2 pF

Switching delay: 5 s

Switching delay: 1 s

Failsafe mode: MIN The output switches safety-oriented when the probe is uncovered (signal on alarm). For use for dry running protection and pump protection for example

Failsafe mode: MAX The output switches safety-oriented when the probe is covered (signal on alarm). For use with overfill protection for example

Key Function

A B C

X Display diagnostic code

X Display calibration situation X X Perform calibration (during operation) X X Delete calibration points (during startup)

X Test key , (disconnects the transmitter from the switching unit)

MAXMIN

MAX

Page 53

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 53

6 Commissioning

6.1 Installation and function check

Make sure that the post-installation check and final check have been completed before you start your measuring point:

• For the "Post-installation" checklist, refer to  ä 35.

• For the "Post-connection" checklist, refer to  ä 48.

6.2 Commissioning the electronic inserts FEI51, FEI52, FEI54, FEI55

This chapter describes the process for commissioning the device with electronic insert versions FEI51, FEI52, FEI54, FEI55.

Note!

• When you start up the device for the first time, the output is in safe status.

This is signaled by the flashing yellow LED 6.

• The device is not operational until you have carried out a calibration.

To attain maximum operational safety, carry out an empty and a full calibration. This is particularly recommended for critical applications.

Refer to the following subchapters for information on how to carry out the calibration.

6.2.1 Basic settings: overview

BA381Fen027

(optional)

Operation

Carrying out empty calibration chapter 6.2.3

Setting the measuring range, chapter 6.2.2

Carrying out full calibration chapter 6.2.4

Carrying out empty and full calibration chapter 6.2.5

Carrying out switch point adjustment chapter 6.2.7

Reset calibration, two-point control, build-up mode

witching delay, s MIN-/MAX failsafe mode, SIL mode, measuring range p-/download sensor DAT, restore factory setting chapter 6.2.x

s elf-test,

Page 54

Commissioning Solicap M FTI55, FTI56

54 Endress+Hauser

6.2.2 Setting the measuring range

Note!

• The choice of measuring range (0 to 500 pF and 0 to 1600 pF) depends on the function of the probe.

• If the probe is used as a limit switch, you can retain the factory setting of 0 to 500 pF.

• If the probe is used for two-point control, the following recommendations apply for vertical installation: – Measuring range from 0 to 500 pF for probe lengths up to 1 m – Measuring range from 0 to 1600 pF for probe lengths up to 20 m

Partially insulated probes are only suitable for nonconductive bulk solids (see also  Chap. 8 on  ä 77).

To set the range to 0 to 1600 pF, proceed as follows:

1. Turn the function switch to position 4.

2. Press the "–" key for at least 2 seconds until the green LED 2 lights up.

3. Release the "–" key when the green LED 2 lights up.

Turn the function switch to position 2 to continue the calibration.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Measuring range Press for < On *

(500 pF)

Off

(1600 pF)

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 55

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 55

6.2.3 Carrying out empty calibration

Note!

• The empty calibration stores the capacitance value of the probe when the tank is empty. If the measured capacitance value is, for example, 50 pF (empty calibration), a switching threshold of 2 pF is added to this value. The capacitance value of the switch point would, in this case, be 52 pF.

• The switching threshold depends on the value set for the switch point adjustment (for more information, see  ä 59).

To carry out an empty calibration, proceed as follows:

1. Check to make sure that the probe is not covered with product.

2. Turn the function switch to position 2.

3. Press the "–" key for at least two seconds.

4. Release the "–" key when the green LED 1 starts to flash.

The process of saving the empty calibration is finished when the green LED 1 lights up continuously. You can turn the function switch back to position 1 to return to operation.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Empty calibration Press On

(present)

** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 56

Commissioning Solicap M FTI55, FTI56

56 Endress+Hauser

6.2.4 Carrying out full calibration

Note!

• The full calibration measures the capacitance value of the probe when the tank is full. If the measured capacitance value is, for example, 100 pF (full calibration), a switching threshold of 2 pF is subtracted from this value. The capacitance value of the switch point is thus 98 pF.

• The switching threshold depends on the value set for the switch point adjustment (for more information, see  ä 59).

To carry out a full calibration, proceed as follows:

1. Make sure that the probe is covered by the medium up to the desired switch point.

2. Turn the function switch to position 2.

3. Press the "+" key for at least two seconds.

4. Release the "+" key when the green LED 5 starts to flash.

The process of saving the full calibration is complete when the green LED 5 lights up continuously. You can turn the function switch back to position 1 to return to operation.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Full calibration Press On

(present)

** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 57

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 57

6.2.5 Carrying out empty and full calibration

Note!

• An empty and full calibration provides the greatest possible operational security. This is particularly recommended for critical applications.

• The empty and full calibration measures the capacitance values of the probes when the tank is full and when it is empty. If, for example, the measured capacitance value of the empty calibration is 50 pF and that of the full calibration is 100 pF, the average capacitance value, 75 pF, is stored as the switch point.

To carry out an empty calibration, proceed as follows:

1. Check to make sure that the probe is not covered with product.

2. Turn the function switch to position 2.

3. Press the "–" key for at least two seconds.

4. Release the "–" key when the green LED 1 starts to flash.

The process of saving the empty calibration is finished when the green LED 1 lights up continuously. You can turn the function switch back to position 1 to return to operation.

To carry out a full calibration, proceed as follows:

1. Make sure that the probe is covered by the medium up to the desired switch point.

2. Turn the function switch to position 2.

3. Press the "+" key for at least two seconds.

4. Release the "+" key when the green LED 5 starts to flash.

The process of saving the full calibration is complete when the green LED 5 lights up continuously. You can turn the function switch back to position 1 to return to operation.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Empty calibration Press On

(present)

Full calibration Press On

(present)

** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 58

Commissioning Solicap M FTI55, FTI56

58 Endress+Hauser

6.2.6 Reset: Calibration and switch point adjustment

To reset the calibration/switch-point shift (all the other settings remain unchanged), proceed as follows:

1. Turn the function switch to position 2.

2. Press both the "–" and "+" keys for at least 10 seconds.

3. The green LEDs 1-5 light up in succession.

The reset calibration has been carried out and saved. The yellow LED 5 flashes. The device is not operational until you have carried out a new calibration.

The switch point adjustment is reset to the factory setting of 2 pF.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Reset: Calibration and switch point adjustment

Press both keys for

approx. 10 s

On –> –> –> –> **

** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 59

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 59

6.2.7 Setting the switch point adjustment

Note!

• If only one calibration (empty or full) was carried out, and if buildup forms on the rod probe while the probe is in operation, the device may no longer respond to changes in level. A switch point adjustment (e.g. 4, 8, 16, 32 pF) compensates for this condition and ensures that you obtain a constant switch point again.

• For media that do not have a tendency to build up, we recommend a setting of 2 pF, as the probe is most sensitive to changes in level at this setting.

• For media with heavy buildup (e.g. plaster), we recommend using probes with active buildup compensation.

• A switch point adjustment can be carried out only if a full or empty calibration has been carried out first.

• A switch point adjustment is not possible if an empty and a full calibration have been carried out.

• The switch point adjustment is disabled if you switch on the two-point control (as described on  ä 60).

To adjust the switch point, proceed as follows:

1. Turn the function switch to position 3.

The green LED 1 lights up (factory setting).

2. Press the "+" key for at least two seconds to switch to the next higher value. If you press and

hold down the "+" or "–" key, the value changes to the next one every two seconds. The active value is indicated by an LED (1 to 5).

After you have carried out the switch point adjustment, turn the function switch to position 1 to return to operation.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Switch point adjustment Press for < Press for > On *

(2 pF)

Off

(4 pF)

Off

(8 pF)

Off

(16 pF)

Off

(32 pF)

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 60

Commissioning Solicap M FTI55, FTI56

60 Endress+Hauser

6.2.8 Configuring two-point control and buildup mode

Note!

• In the case of non-conductive bulk solids, vertically installed probes can also be used for two-point control. The switchpoints of the empty and full calibration activate, for example, a handling device. If you want to use the two-point control, please note the following: – Set the necessary measuring range. For more information, see  ä 54: "Setting the measuring

range". – Perform empty and full calibration. – Set the failsafe mode (MIN/MAX) in accordance with your requirements. For more

information, see  ä 63.

• If you switch on the two-point control (s mode), the switch point adjustment (as described on

 ä 59) is disabled. The switch points correspond to the calibration points.

• The "Buildup mode" ensures that a safe switch point is output even if the probe is not fully released from the conductive medium (> 1000 μS/cm e.g. gypsum). Deposits or buildup on the rod/rope are compensated for.

To configure the two-point control and/or buildup mode, proceed as follows:

1. Turn the function switch to position 4.

2. Press the "+" key for at least two seconds to switch on the two-point control. The green

LED 5 lights up.

3. Press the "+" key again for at least two seconds to switch on buildup mode. Green LEDs 4

and 5 light up. – Pressing the "+" again for at least two seconds switches off both functions. Green LEDs 4

and 5 are off.

4. After you have configured the desired setting, turn the function switch to position 1 to return

to operation.

You have now completed the settings for the two-point control and buildup mode.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Two-point control s Press once On

buildup mode Press twice On On **

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 61

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 61

6.2.9 Setting the switching delay

Note!

• The switching delay causes the device to signal the level limit after a delay. This is particularly useful in tanks with turbulent medium surfaces caused, for example, by the filling process or by collapsing mounds. By doing so, you ensure that the filling of the tank does not end until the probe is continuously covered by the medium.

• A switching delay that is too short may, for example, cause the filling process to be restarted as soon as the medium surface settles.

Caution! If too long of a switching delay is set, this can cause the tank to overflow.

To set the switching delay, proceed as follows:

1. Turn the function switch to position 5.

2. Press the "+" key for at least two seconds to select the next higher value. Hold the "+" or "–"

keys down to skip from one value to another. The possible values are signaled by the LEDs 1 to 4.

3. Set the desired value.

You have now set the switching delay and can turn the function switch back to position 1 (operation).

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Switching delay Press for < Press for > Off

(0.3 s)

On *

(1.5 s)

Off

(5 s)

Off

(10 s)

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 62

Commissioning Solicap M FTI55, FTI56

62 Endress+Hauser

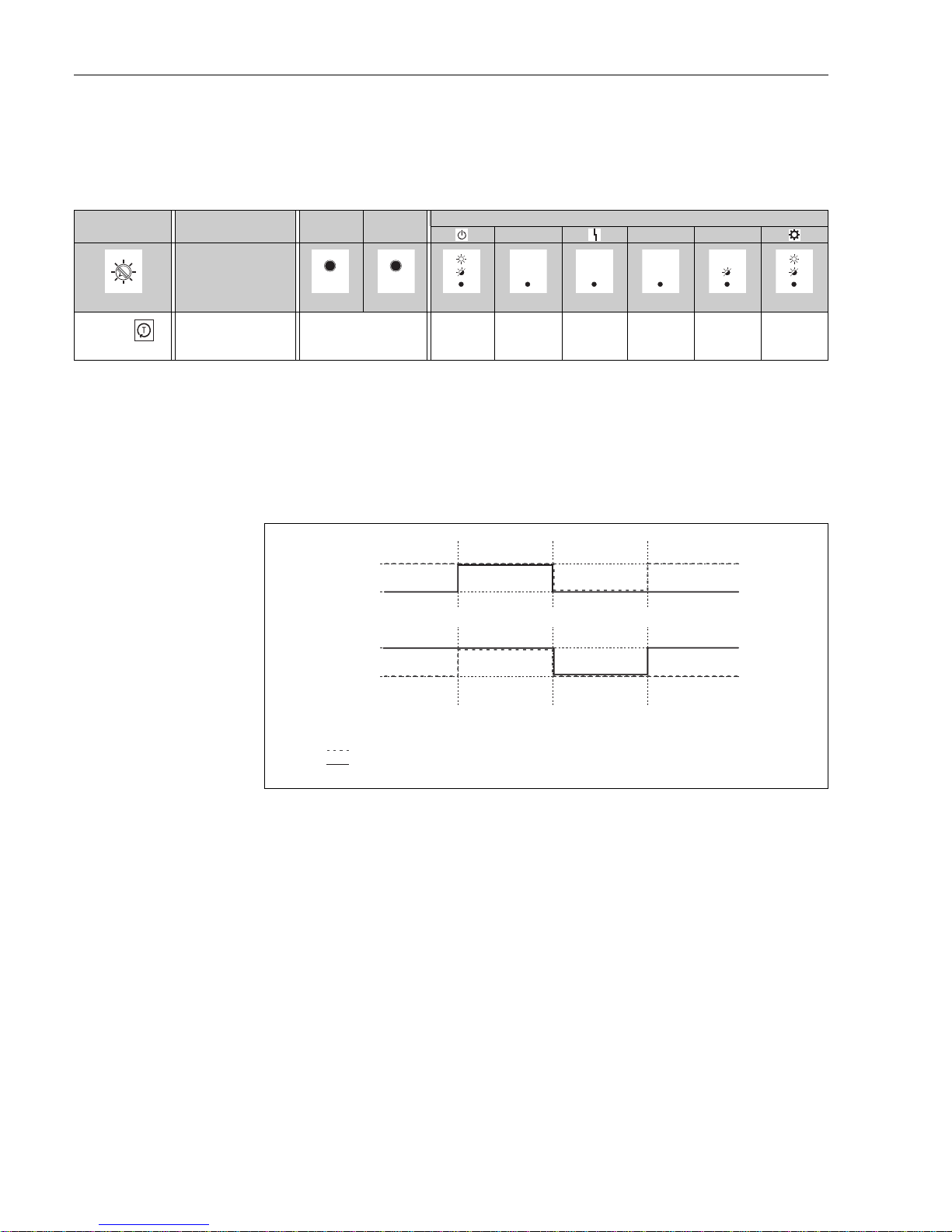

6.2.10 Activating the self-test (function test)

Caution! Make sure that you do not accidentally activate any processes with the self-test! This could result, for example, in overflowing of the tank.

Note! The self-test simulates switching states (probe not covered, probe covered). This allows you to check if the connected devices are activated correctly.

To carry out a self-test, proceed as follows:

1. Turn the function switch to position 6.

2. Press the "+" and "–" keys simultaneously for at least two seconds. The self-test is active when the green LED 5 flashes. The green operational LED 1 is off.

3. After approx. 20 seconds, the test is completed. This is indicated by the lighting up of the operational LED 1.

You have now carried out the self-test and can turn the function switch back to position 1 (operation).

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Self-test (function test) Press both keys Off *

(inactive)

Flashes

(active)

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

16 mA 0,8 mA±

8 mA 0,5 mA±

Start condition: covered

Proof Test START

Proof Test END

Start condition: uncovered

Fail-safe mode MIN

Fail-safe mode MAX

Page 63

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 63

6.2.11 Setting the MIN/MAX and SIL failsafe mode

Note! The SIL mode function is only available in conjunction with electronic insert FEI55.

Note! By selecting the failsafe mode correctly, you ensure that the output always operates safely with quiescent current.

– Minimum failsafe mode (MIN): The output switches if the switch point is undershot (rod/rope

uncovered), a fault occurs or the line voltage fails.

– Maximum failsafe mode (MAX): The output switches if the switch point is exceeded (rod/

rope covered), a fault occurs or the line voltage fails.

To set the MIN or MAX failsafe mode, proceed as follows:

1. Turn the function switch to position 7.

2. Failsafe mode – Press the "–" key for at least two seconds to set the MIN failsafe mode. The green LED 1

starts to light up.

– Press the "+" key for at least two seconds to set the MAX failsafe mode. The green LED 5

starts to light up.

You have now set the failsafe mode and can turn the function switch back to position 1 to resume operation.

Locking the SIL mode (only with electronic insert FEI55)

You can use the "SIL mode" to protect the device settings from being changed accidentally. The device settings can only be changed once the "SIL mode" has been unlocked.

• Turn the function switch to position 7 "locking/unlocking the SIL mode".

• Check the MIN or MAX failsafe mode selected.

• To unlock the selected failsafe mode, proceed as follows:

– Press the "–" and "+" keys simultaneously for approx. 4 seconds and – release the keys when the red LED (fault message) starts to flash.

Note! Locking in the "Lock SIL mode" activates the fault message at the current output (I < 3.6 mA). This is signaled by the red LED 3 lighting up.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Operation Flashes

Operational LED

On*** (MIN-SIL)

Flashes

(warning/ alarm)

On*** (MAX-SIL)

On/off/ flashes**

MIN-/MAX Failsafe mode

Press for MIN

Press for MAX

Off

(MIN)

On *

(MAX)

SIL mode*** lock/unlock

Press both keys On

(MIN-SIL)

(MAX-SIL)

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

*** Only in conjunction with electronic insert FEI55 (SIL). The device is in the SIL mode. To change the current settings, the device must be unlocked.

Page 64

Commissioning Solicap M FTI55, FTI56

64 Endress+Hauser

• Active locking is indicated as follows: – With "MIN-SIL", active locking is indicated by the green LED 2 lighting up. The LED 1 that is

lit goes out.

– With "MAX-SIL", active locking is indicated by the green LED 4 lighting up. The LED 5 that is

lit goes out.

• The set SIL mode is activated by setting the function switch to position 1 "operation". The red LED 3 goes out and the green LED 1 starts flashing. The device is ready for operation!

Unlocking the SIL mode (only with electronic insert FEI55)

• Turn the function switch to position 7 "locking/unlocking the SIL mode".

• To unlock the device, proceed as follows: – Press the "–" and "+" keys simultaneously for approx. 4 seconds and – release the keys when the "MIN-SIL" or "MAX-SIL" LED goes out.

• Turn the function switch to position 1 "operation" to operate the device without the SIL mode.

Page 65

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 65

6.2.12 Upload/download sensor DAT (EEPROM)

Note!

• The customer-specific settings of the electronic insert (e.g. empty/full calibration, switch point adjustment) are stored automatically in the sensor DAT (EEPROM) and in the electronic insert.

• The sensor DAT (EEPROM) is updated automatically each time a parameter is changed in the electronic insert.

• When replacing the electronic insert, all the sensor DAT (EEPROM) data are transferred to the electronic insert by means of a manual upload. No additional settings are required.

• If, for example, you need to transfer the customer-specific settings of an electronic insert to multiple sensor DATs (EEPROMs), you must carry out a manual download after installing the electronic insert.

– Upload: An upload transfers the saved data from the sensor DAT (EEPROM) to the electronic

insert. The electronic insert does not have to be configured any more, and the device is then operational.

– Download: A download transfers the saved data from the electronic insert to the sensor DAT

(EEPROM).

To carry out a sensor upload/download, proceed as follows:

1. Turn the function switch to position 8.

2. Press the "–" key for at least two seconds to carry out a download (the data from the electronic

insert are transferred to the sensor DAT (EEPROM). During the download, the green LED 1 flashes.

3. Press the "+" key for at least two seconds to carry out an upload (the data from the sensor DAT

(EEPROM) are transferred to the electronic insert). The green LED 5 flashes during upload.

You have now transmitted the data and can turn the function switch back to position 1 (operation).

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Upload/download sensor DAT (EEPROM)

Press for download

Press for upload

Flashes

(download)

Flashes

(upload)

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

Page 66

Commissioning Solicap M FTI55, FTI56

66 Endress+Hauser

6.2.13 Restoring factory settings

Note!

• This function allows you to restore the factory settings. This is particularly useful if the device has already been calibrated once and, for example, there is a fundamental change in the medium in the tank.

• After restoring the factory settings, you must repeat the calibration.

To restore the factory settings, proceed as follows:

1. Turn the function switch to position 1.

2. Press the "+" and "–" keys simultaneously for approx. 20 seconds. During the time it takes to

restore the factory settings, the LEDs 1–5 light up consecutively.

3. The factory settings have been successfully restored if the green LED 1 and the yellow LED are

flashing.

You have now restored the factory settings and can continue with setting the measuring range and the calibration.

Function switch position

Function – key + key Light emitting diodes (LED signals)

A B C 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow)

Operation Flashes

Operational LED

On*** (MIN-SIL)

Flashes

(warning/ alarm)

On*** (MAX-SIL)

On/off/ flashes**

Restore factory setting Press both keys for

approx. 20 s

On –> –> –> –> **

* These settings are factory settings. ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.

The LED flashes if a calibration has not yet been carried out.

*** Only in conjunction with electronic insert FEI55 (SIL). The device is in the SIL mode. To change the current settings, the device must be unlocked.

Page 67

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 67

6.2.14 Output signals

Output signal FEI51

BA300Fen017

* See  ä 78, "Troubleshooting"

Output signal FEI52

TI418Fen43

* See  ä 78, "Troubleshooting"

L+ +

< 3,8 mA

MAX

MIN

< 3,8 mA

gn gn rd gn gn ye

Instrument failure

Maintenance required

Safety mode

Level

Output signal

LEDs

L+ +

I/I

MAX

MIN

gn rd

gn gn ye

Instrument failure

Maintenance required

Safety mode

Level

Output signal

LEDs

Page 68

Commissioning Solicap M FTI55, FTI56

68 Endress+Hauser

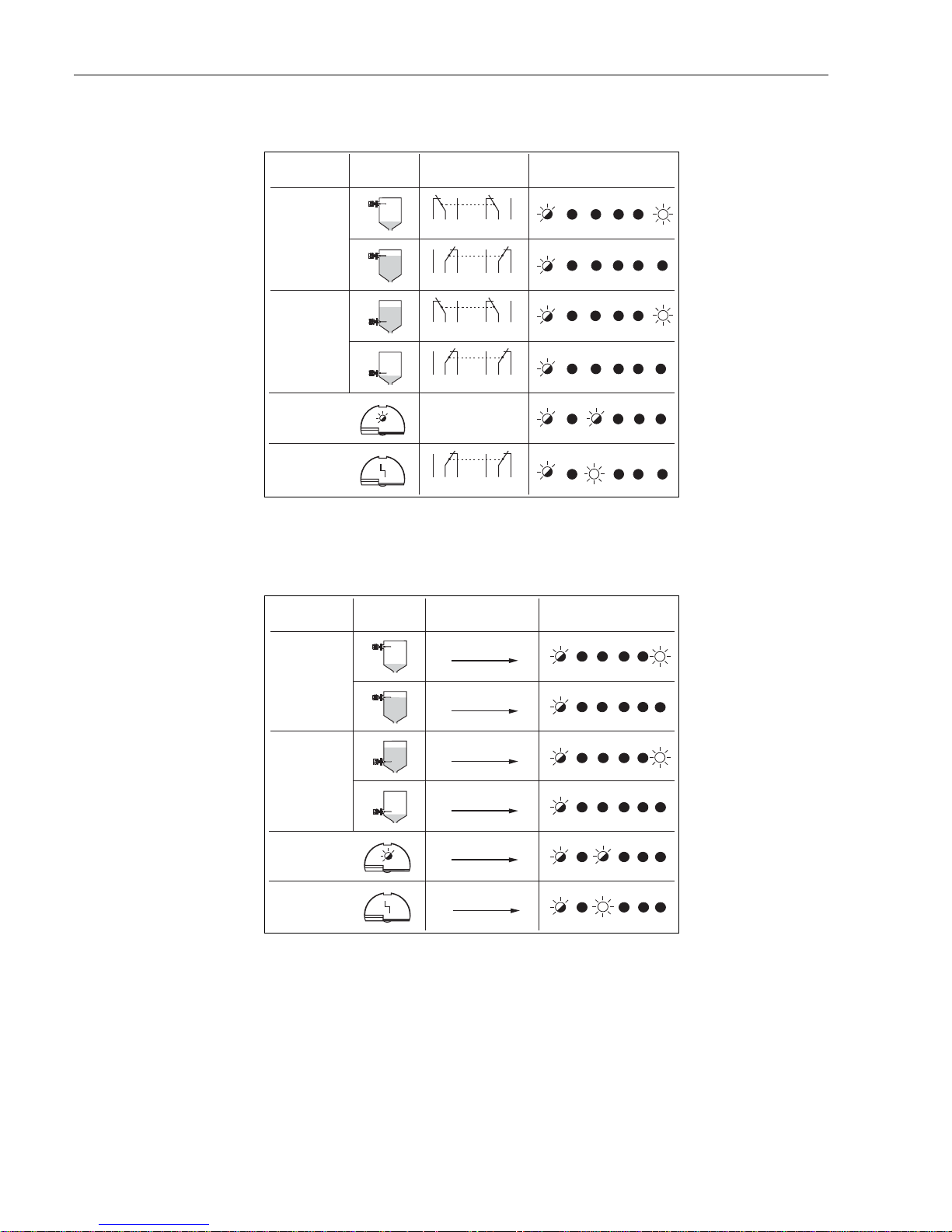

Output signal FEI54

TI418Fen48

* See  ä 78, "Troubleshooting"

Output signal FEI55

TI418Fen51

* See  ä 78, "Troubleshooting"

354687

354

687

354687

MAX

MIN

MAX

MIN

gn gn rd gn gn

Instrument failure

Maintenance required

Safety mode

Level

Output signal

LEDs

MAX

MIN

+ 21

~16 mA

~8 mA

~16 mA

+ 21

8/16 mA

+ 21

< 3.6 mA

gn gn rd gn gn ye

Instrument failure

Maintenance required *

Safety mode

Level

Output signal

LEDs

Page 69

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 69

6.3 Commissioning with electronic inserts FEI53 or FEI57S

This chapter describes the process for commissioning the device with electronic insert versions FEI53 and FEI57S.

Note! The measuring system is not operational until you have carried out a calibration at the switching unit.

For information on how to carry out the calibration, refer to the documentation for the Nivotester switching device FTCxxx.

BA300Fen016

LED 1 operational : Flashes at 5-second intervals.

LED 2 fault : The red LED flashes if there is a fault that you can correct.

LED 2 fault : The red LED lights up continuously if the device has a fault that cannot be corrected. See also Page 78, "Troubleshooting".

6.3.1 Setting the alarm response if the measuring range is exceeded

Note!

• With this setting, you can determine the alarm response of the measuring system If the measuring range is exceeded. You can switch the alarm on or off If the measuring range is exceeded.

• All other settings with regard to the alarm response have to be configured on the respective Nivotester switching device.

FEI5xFEI5x

0.....500pFStandard

0...1600pF

11 22

LEDLED

onon

flashingflashing

ofofff

DIP switch Function

Standard: If the measuring range is exceeded no alarm is output (factory setting).

: If the measuring range is exceeded an alarm is output.

A B

Standard

Page 70

Commissioning Solicap M FTI55, FTI56

70 Endress+Hauser

6.3.2 Setting the measuring range

Note!

• The choice of measuring range (0 to 500 pF and 0 to 1600 pF) depends on the function of the probe.If the probe is used as a limit switch, you can retain the factory setting of 0 to 500 pF.

• If the probe is used for two-point control, the following recommendations apply for vertical installation: – Measuring range from 0 to 500 pF for probe lengths up to 1.0 m – Measuring range from 0 to 1600 pF for probe lengths up to 4.0 m

All other settings must be made on the respective Nivotester switching device.

6.3.3 Output signals

Output signal FEI53

TI418Fen46

* See  ä 78, "Troubleshooting"

DIP switch Function

Measuring range: The mesasuring range is between 0 to 500 pF. Span: The span is between 5 to 500 pF.

Measuring range: The mesasuring range is between 0 to 1600 pF. Span: The span is between 5 to 1600 pF.

A B

0.....500pF

0...1600pF

ModeMode

InstrumentInstrument failurefailure

MaintenanceMaintenance required *required *

Output signalOutput signal

Normal operationNormal operation

< 2,7 V< 2,7 V

33at terminalat terminal

3...12 V3...12 V

at terminal 3at terminal 3

3...12 V3...12 V 33at terminalat terminal

LEDsLEDs

green redgreen red

Page 71

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 71

Output signal FEI57S

TI418Fen54

* See  ä 78 ff., "Troubleshooting"

6.4 Commissioning with the electronic insert FEI58

This chapter describes the process for commissioning the device with electronic insert FEI58.

Note!

• The measuring system is not operational until you have carried out a calibration.

• Additional functions associated with the switching unit are described in the documentation for the switching unit, e.g. Nivotester FTL325N, FTL375N (for devices from Endress+Hauser).

BA299Fen016

Green LED 1 ( ready for operation), red LED 2 ( error indicated), yellow LED 3 (✲ switching state)

6.4.1 Keys (A, B, C) on FEI58

• To prevent unintentional operation of the device, approx. 2 seconds (s) have to elapse before the system evaluates and executes a function commanded when a key is pressed (keys A and B). Test key C disconnects the power supply immediately.

• Both keys have to be pressed simultaneously to trigger switch point adjustment.

121 2

<20Hz< 20 Hz

60...185 Hz60...185 Hz

121 2

60...185 Hz60...185 Hz

ModeMode

InstrumentInstrument failurefailure

MaintenanceMaintenance required *required *

Output signalOutput signal

Normal operationNormal operation

LEDsLEDs

green redgreen red

FEI58

NAMUR

IEC 60947-5-6

MIN

>2,2mA

MAX

GD E F

A B

LED

flashing

off

Key Function

A B C

X Display diagnostic code

X Display calibration situation X X Perform calibration (during operation) X X Delete calibration points (during startup)

X Test key , (disconnects the transmitter from the switching unit)

Page 72

Commissioning Solicap M FTI55, FTI56

72 Endress+Hauser

6.4.2 Performing calibration

Note!

• An empty and full calibration provides the greatest possible operational security. This is particularly recommended for critical applications.

Carrying out empty calibration

To carry out an empty calibration, proceed as follows:

1. Check to make sure that the probe is not covered with product.

2. Before calibrating, select the "uncovered" probe state on DIP switch D.

3. Press keys A and B simultaneously for at least 2 s to save the calibration value.

4. The green LED 1 flashes quickly to indicate that the value has been saved correctly.

The process of saving the empty calibration value is finished once green LED 1 flashes slowly again.

Carrying out full calibration

To carry out a full calibration, proceed as follows:

1. Make sure that the probe is covered by the medium up to the desired switch point.

2. Before calibrating, select the "covered" probe state on DIP switch D.

3. Press keys A and B simultaneously for at least 2 s to save the calibration value.

4. The green LED 1 flashes quickly to indicate that the value has been saved correctly.

The process of saving the empty calibration value is finished once green LED 1 flashes slowly again.

DIP switch: C Function

The probe is covered during calibration.

The probe is uncovered during calibration.

Page 73

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 73

6.4.3 Setting the switch point adjustment

Note the following when selecting switch point adjustment:

• If only one calibration (empty or full) was carried out, and if buildup forms on the rod probe while the probe is in operation, the device may no longer respond to changes in level. A switch point adjustment compensates for this condition and ensures that you obtain a constant switch point again.

• For media that do not have a tendency to build up, we recommend a setting of 2 pF, as the probe is most sensitive to changes in level at this setting.

• For media with heavy buildup (e.g. plaster), we recommend using probes with active buildup compensation and using the setting 10 pF.

6.4.4 Setting the switching delay

Note!

• A switching delay that is too short may, for example, cause the filling process to be restarted as soon as the medium surface settles.

Caution! If too long of a switching delay is set, this can cause the tank to overflow.

DIP switch: D Function

Switch point adjustment: 10 pF (for media with heavy buildup, e.g. sewage sludge)

Switch point adjustment: 2 pF (for media that do not cause buildup e.g. water)

DIP switch: E Function

Switching delay: 5 s

Switching delay: 1 s

Page 74

Commissioning Solicap M FTI55, FTI56

74 Endress+Hauser

6.4.5 MIN/MAX failsafe mode

Note! By selecting the failsafe mode correctly, you ensure that the output always operates safely with quiescent current.

– Minimum failsafe mode (MIN): The output switches if the switch point is undershot (rod/rope

uncovered), a fault occurs or the line voltage fails.

– Maximum failsafe mode (MAX): The output switches if the switch point is exceeded (rod/

rope covered), a fault occurs or the line voltage fails.

6.4.6 Display calibration situation

You can use this function to see what calibrations have been performed on the device. The calibration situation is indicated by the three LEDs.

To query the calibration situation, proceed as follows:

1. Press the B key for at least 2 s.

2. The current calibration situation is indicated by the LEDs (operating/switching status).

6.4.7 Displaying the diagnostic code

This function makes it possible to interpret faults using the three LEDs. If the system detects more than one fault, the fault with the highest priority is shown on the display.

Further information is provided in the "Fault diagnostics" section  ä 79.

DIP switch: F Function

Failsafe mode: MIN The output switches safety-oriented when the probe is uncovered (signal on alarm). For use for dry running protection and pump protection for example

Failsafe mode: MAX The output switches safety-oriented when the probe is covered (signal on alarm). For use with overfill protection for example

Light emitting diodes (LED signals) Calibration situation

Green LED 1

Operational

Red LED 2

Fault

Yellow LED 3

Switching

status

No calibration

On Empty calibration performed

On Full calibration performed

On On Empty and full calibration performed

MAXMIN

MAX

Page 75

Solicap M FTI55, FTI56 Commissioning

Endress+Hauser 75

6.4.8 Test key C (open circuit)

Caution! This test can be used to activate safety-specific measures in the plant (e.g. alarms)!

Pressing test key C disconnects the supply voltage. If the power supply is disconnected, a supply unit such as Nivotester FTL325N from Endress+Hauser reacts in such a way that the alarm relay outputs an error and appropriate responses are triggered in any slave devices connected.

To perform the function test, proceed as follows:

1. Press test key C for the entire duration of the test.

The power supply from the supply unit is disconnected immediately.

2. All the LEDs go out. The safety functions (e.g. error message alarm) configured for the supply

unit are activated.

3. Release test key C again to end the function test.

6.4.9 Output signals

Output signal FEI58

TI418Fen54

* See also  ä 78 ff., "Troubleshooting"

+ 21

2.2 …

3.5 mA

2.2 …

3.5 mA

0.6 …

1.0 mA

0.6 … 1.0 mA

MAX

MIN

+ 21

gn rd ye

0.6 …

1.0 mA

0,5 Hz

2Hz

2.2 … 3.5 mA

Instrument failure

Maintenance required *

Safety mode

Level

Output signal

LEDs

Page 76

Maintenance Solicap M FTI55, FTI56

76 Endress+Hauser

7 Maintenance

No special maintenance work is required for the Solicap M point level switch.

Exterior cleaning

When cleaning the exterior of the Solicap M, make sure that the cleaning agent used does not corrode the housing surface or the seals.

Repair

In accordance with the Endress+Hauser repair principle, the devices have a modular design and repairs can be carried out by the customer. Spare parts are grouped logically into kits along with the respective replacement instructions. In Section 9.2 ( ä 79) you will find a list of all spare parts kits, together with their order numbers, that can be ordered from Endress+Hauser and used to repair the Solicap M. For more information about service and spare parts, contact Endress+Hauser Service.

Repairing Ex-certified devices

The following information also has to be taken into account for repairs of Ex-certified devices:

• Ex-certified devices may be repaired only by experienced, skilled staff or by Endress+Hauser Service.

• Applicable standards, federal/national Ex standards and the Safety Instructions (XA) and certificates must be observed.

• Only genuine spare parts from Endress+Hauser may be used.

• When ordering spare parts, please note the device designation on the nameplate. Parts can only be replaced by the same parts.

• Repairs must be carried out according to the instructions. Following the repair, the individual testing specified for the device must be carried out.

• Certified devices can only be converted into other certified devices by Endress+Hauser Service.

• Every conversion and repair made to the device must be documented.

Replacement

After replacing a Solicap M unit or the electronic insert, the calibration values must be transmitted to the replacement unit.

– If a probe is replaced, the calibration values are transferred to the Sensor DAT (EEPROM) by

means of a manual download in the electronic insert.

– If the electronic insert is replaced, the calibration values are transferred to the electronics by

means of a manual upload in the Sensor DAT (EEPROM).

This means that you can restart the device without having to carry out a new calibration (see also  ä 65).

Page 77

Solicap M FTI55, FTI56 Accessories

Endress+Hauser 77

8 Accessories

8.1 Weather protection cover

For F13 and F17 housing Order number: 71040497

8.2 Overvoltage protection HAW56x

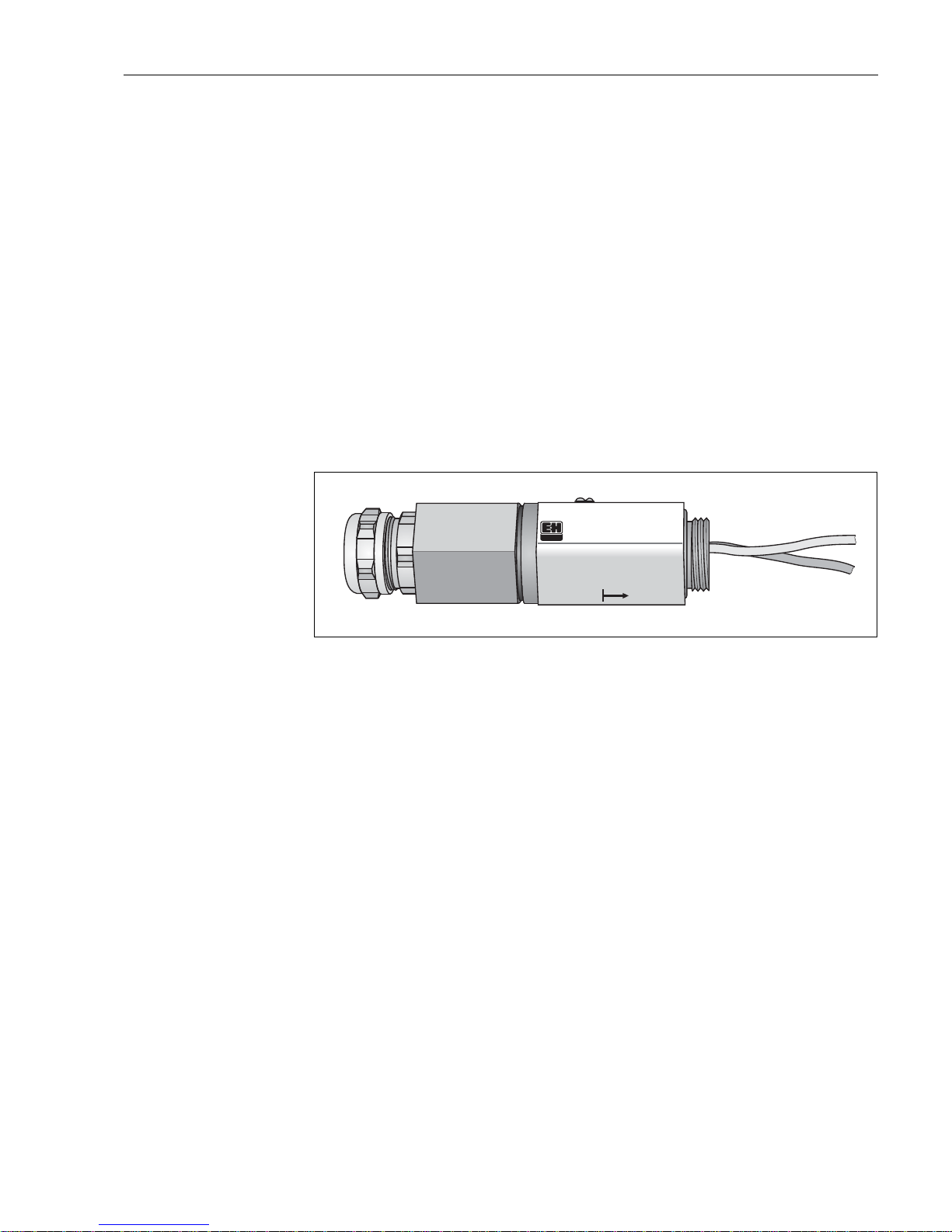

8.2.1 Overvoltage protection (housing)

Note! These two versions can be screwed directly into the housing (M20x1.5).

• HAW569–A11A (non-hazardous)

• HAW569–B11A (hazardous area)

Surge arrester for limiting overvoltage in signal lines and components.

L00-FMI5xxxx-03-05-xx-xx-009

8.2.2 Overvoltage protection (cabinet)

• HAW562Z (hazardous area)

The HAW562Z module can be used if installing in cabinets.

ÜS-Ableiter/Arrester

ENDRESS+HAUSER

HAW569

HAW569-A1 Uc 34.8 V

In 10 kA IL 500 mA

protected

Page 78

Troubleshooting Solicap M FTI55, FTI56

78 Endress+Hauser

9Troubleshooting

9.1 Fault diagnostics in the electronic insert

Note! In the event of faults during commissioning or operation of the device, you have the ability to carry out fault diagnostics on the electronic insert. This function is supported by the electronic inserts FEI51, FEI52, FEI54, FEI55 (see error table 1 and 2 below).

The electronic inserts FEI53, FEI57S and FEI58 signal two types of faults:

• Faults that can be rectified: The red LED flashes.

• Faults that cannot be rectified: The red LED is lit continuously.

For additional information on fault detection and fault elimination, refer to fault table 2 below.

9.1.1 Activating fault diagnostics FEI51, FEI52, FEI54, FEI55

Note! The diagnostics provide information about the operating status of the device. The results of the diagnostics are displayed by LEDs 1, 2, 4 and 5. If the diagnostics detect multiple faults, these are shown according to their priority. A serious fault (e.g. priority 3) is always displayed before a less serious fault (e.g. priority 5).

To activate the fault diagnostics, proceed as follows:

1. Set the function switch to position 1 (operation).

2. Press the "–" key.

3. "Fault table 1" lists possible causes of faults and information on how to eliminate them.

9.1.2 Fault diagnostics FEI53, FEI57S

LEDs for diagnostics Error table 1 (FEI51, FEI52, FEI54, FEI55)

Cause Remedy Priority1 (gree n)

2 (gree n)

3 (red )

4 (gree n)

5 (gree n)

6 (yello w)

No fault On Internal fault Replace electronics. 1

On On Calibration point(s) are outside the measuring

range

Recalibrate 2

On On Calibration points have been accidentally

interchanged

Recalibrate 3

On The calibration point is too close to the measuring

range limit.

Reduce the switch point or select a new mounting location.

On On No calibration has yet been carried out. Carry out empty and/or full calibration. 5

On The DC PNP output is overloaded.* Reduce the connected load. 6

On On The capacitance change from probe "covered" to

probe "not covered" is too small.

Contact Endress+Hauser Service. 7

On On Sensor DAT (EEPROM) data are invalid. Carry out download from the electronic insert. 8

On On On Probe is not detected**. The probe type is not compatible. Use a

Solicap S probe.

On The measured temperature is outside the

permitted temperature range.

Operate the device only in the specified temperature range.

* Applies only to electronic insert FEI52. ** A connection to the Sensor DAT (EEPROM) could not be established.

Cause Remedy

The device does not switch. Check the connection and the supply voltage. Alarm LED flashes. The ambient temperature of the electronics is outside the permitted range or the

connection to the probe is interrupted.

Page 79

Solicap M FTI55, FTI56 Troubleshooting

Endress+Hauser 79

9.1.3 Activating fault diagnostics FEI58

Displaying the diagnostic code

This function makes it possible to interpret faults using the three LEDs. If the system has detected more than one fault, the fault with the highest priority is shown on the display.

To display the diagnostic code, proceed as follows:

1. Press the B key for at least 2 s.

2. The current diagnostics code is indicated by the LEDs (operating/fault/switching status).

9.2 Spare parts

Note!

• You can order spare parts directly from your E+H service organization by quoting the order number (see below).

• The corresponding spare part number is on every spare part. Installation instructions can be found in the form supplied with the spare parts.

• Before ordering, please note that all ordered spare parts must correspond with the indications on your nameplate. Otherwise, the indications on the nameplate will no longer correspond with the instrument version.

9.2.1 Electronic inserts

9.2.2 Housing cover

Error table 3 (FEI58) No. 1 green

operatio nal

2 red fault

3 yellow switching status

Cause Remedy Priority

0 No fault - - - - - 1 On Internal fault The device is defective 1 2 On The calibration point is too close to the

measuring range limit

Reduce the switch point or select a new mounting location

3 On Calibration points have been accidentally

interchanged

Perform uncovered calibration with the probe uncovered, and covered calibration with the probe covered

4 On On No calibration has yet been carried out. Carry out empty and/or full calibration 4 5 On On The change in capacitance from uncovered probe

to covered probe is too small

The capacitance change between the uncovered and covered probe must be greater than 2 pF

6 On On Probe not detected Connect the probe 6 7 On On On The measured temperature is outside

the permitted range

The device may be operated in the specified temperature range only

Electronic insert Parts number

FEI51 71042887 FEI52 71025819 FEI53 71025820 FEI54 71025814 FEI55 71025815 FEI57S 71025816 FEI58 71100895

Cover Parts number For aluminum housing F13: gray with sealing ring 52002698 For stainless steel housing F15: with sealing ring 52027000

Page 80

Troubleshooting Solicap M FTI55, FTI56

80 Endress+Hauser

Seal set for stainless steel housing

• Seal set for stainless steel housing F15 with 5 sealing rings: part number 52028179

9.3 Return

You must take the following measures before returning a measuring device to Endress+Hauser, for example for repair:

• Remove all traces of the medium. Pay particular attention to crevices and grooves for seals into which the medium can penetrate. This is particularly important if the medium is hazardous to health, e.g. combustible, toxic, caustic, carcinogenic etc.

• Always enclose a fully completed "Declaration of contamination" form with the device (a master copy of the "Declaration of contamination" form can be found at the end of these Operating Instructions). Only then can Endress+Hauser check or repair a returned device.

• If necessary, enclose special handling instructions when returning the device, e.g. a safety data sheet in accordance with EN 91/155/EEC.

In addition, specify the following:

• The chemical and physical properties of the medium

• A description of the application

• A description of the fault that occurred

• Operating time of the device

9.4 Disposal

At disposal, ensure that materials are properly separated and the device components are reused.

9.5 Firmware history

9.6 Contact addresses at Endress+Hauser

On the back page of these Operating Instructions, you can find an internet address for Endress+Hauser. The web site provides contact addresses that you can use in case of any questions.

For stainless steel housing F15: with clasp and sealing ring 52028268 For polyester housing F16, flat: gray with sealing ring 52025606 For aluminum housing F17, flat: with sealing ring 52002699 For aluminum housing T13, flat: gray with sealing ring/electronics

compartment

52006903

For aluminum housing T13, flat: gray with sealing ring/connection compartment

52007103

Electronics Release date Software version Software change

FEI51 10/2007 V 01.00.XX Original software FEI52 07/2006 V 01.00.XX Original software FEI53 07/2006 V 01.00.XX Original software FEI54 07/2006 V 01.00.XX Original software FEI55 11/2008 V 02.00.XX Extended to include SIL

functionality FEI57s 07/2006 V 01.00.XX Original software FEI58 01/2010 V 01.00.XX Original software

Cover Parts number

Page 81

Solicap M FTI55, FTI56 Technical data

Endress+Hauser 81

10 Technical data

10.1 Input

10.1.1 Measured variable

Level limit detection of change in capacitance between probe rod and container wall or ground tube, depending on the level of a liquid.

10.1.2 Measuring range (valid for all FEI5x)

• Measuring frequency: 500 kHz

•Span:

C = 5 to 1600 pF C = 5 to 500 pF (with FEI58)

• Final capacitance: C

= max. 1600 pF

• Adjustable initial capacitance: C

= 5 to 500 pF (range 1 = factory setting)

= 5 to 1600 pF (range 2; not with FEI58)

10.1.3 Input signal

Probe covered => high capacitance Probe not covered => low capacitance

10.2 Output

10.2.1 Galvanic isolation

FEI51, FEI52 between rod probe and power supply

FEI54 between rod probe, power supply and load

FEI53, FEI55, FEI57S, FEI58 see connected switching device (functional galvanic isolation in the electronic insert)

10.2.2 Switch behavior

Binary or s mode (controlling a screw conveyor, not with FEI58)

10.2.3 Switch-on behavior

When the power supply is switched on, the switching status of the outputs corresponds to the signal on alarm. The correct switch condition is reached after max. 3 seconds.

10.2.4 Failsafe mode

Minimum/maximum quiescent current safety can be switched at the electronic insert (for FEI53 and FEI57S only at Nivotester FTCxxx)

MIN = minimum safety: The output switches safety-oriented when the probe is uncovered (signal on alarm). For use for dry running protection and pump protection for example

Page 82

Technical data Solicap M FTI55, FTI56

82 Endress+Hauser

MAX = maximum safety: The output switches safety-oriented when the probe is covered (signal on alarm). For use with overfill protection for example

10.2.5 Switching delay

FEI51, FEI52, FEI54, FEI55 Can be adjusted incrementally at the electronic insert: 0.3 to 10 s

FEI53, FEI57S Depends on the connected Nivotester (transmitter): FTC325, FTC625, FTC470Z or FTC471Z

FEI58 Can be adjusted alternately at the electronic insert: 1 s/5 s

10.3 Performance characteristics

10.3.1 Reference operating conditions

• Temperature: +20 °C ±5 °C

• Pressure: 1013 mbar abs. ±20 mbar

• Humidity: 65 % ±20 %

• Medium: water from mains (conductivity  180 S/cm)

10.3.2 Switch point

• Uncertainty as per DIN 61298-2: max ±0.3%

• Non-repeatability (reproducibility) as per DIN 61298-2: max. ±0.1 %

10.3.3 Ambient temperature effect

Electronic insert

< 0.06 % / 10 K related to the full scale value

Separate housing

Capacitance change of connecting cable per meter 0.15 pF/10K

10.4 Operating conditions: Environment

10.4.1 Ambient temperature range

• Ambient temperature of the transmitter (note derating, see  ä 84):

❑ –50 to +70 °C ❑ –40 to +70 °C (with F16 housing)

• A weather protection cover should be used when operating outdoors in strong sunlight. For

further information on the weather protection cover, see  ä 77.

10.4.2 Storage temperature

–50 °C to +85 °C

10.4.3 Climate class

DIN EN 60068-2-38/IEC 68-2-38: test Z/AD

Page 83

Solicap M FTI55, FTI56 Technical data

Endress+Hauser 83

10.4.4 Degree of protection

* As per EN60529 ** As per NEMA 250 *** Only with M20 cable entry or G1/2 thread

10.4.5 Vibration resistance

DIN EN 60068-2-64/IEC 68-2-64: 20 Hz– 2000 Hz; 0.01 g2/Hz

10.4.6 Cleaning

Housing

When cleaning, make sure that the cleaning agent used does not corrode the housing surface or the seals.

Probe

Depending on the application, buildup (contamination and soiling) can form on the probe rod. A high degree of material buildup can affect the measurement result. If the medium tends to create a high degree of buildup, regular cleaning is recommended. When cleaning, it is important to make sure that the insulation of the probe rod is not damaged. If cleaning agents are used make sure the material is resistant to them!

10.4.7 Electromagnetic compatibility (EMC)

• Interference emission to EN 61326, Electrical Equipment Class B Interference immunity in accordance with EN 61326, Appendix A (Industrial) and NAMUR Recommendation NE 21 (EMC)

• A usual commercial instrument cable can be used.

10.4.8 Shock resistance

DIN EN 60068-2-27/IEC 68-2-27: 30g acceleration

IP66* IP67* IP68* NEMA4X**

Polyester housing F16 X X - X Stainless steel housing F15 X X - X Aluminum housing F17 X X - X Aluminum housing F13

with gas-tight process seal

X–X***X

Aluminum housing T13 with gas-tight process seal and separate connection compartment (EEx d)

X–X***X

Separate housing X – X*** X

Page 84

Technical data Solicap M FTI55, FTI56

84 Endress+Hauser

10.5 Operating conditions: Process

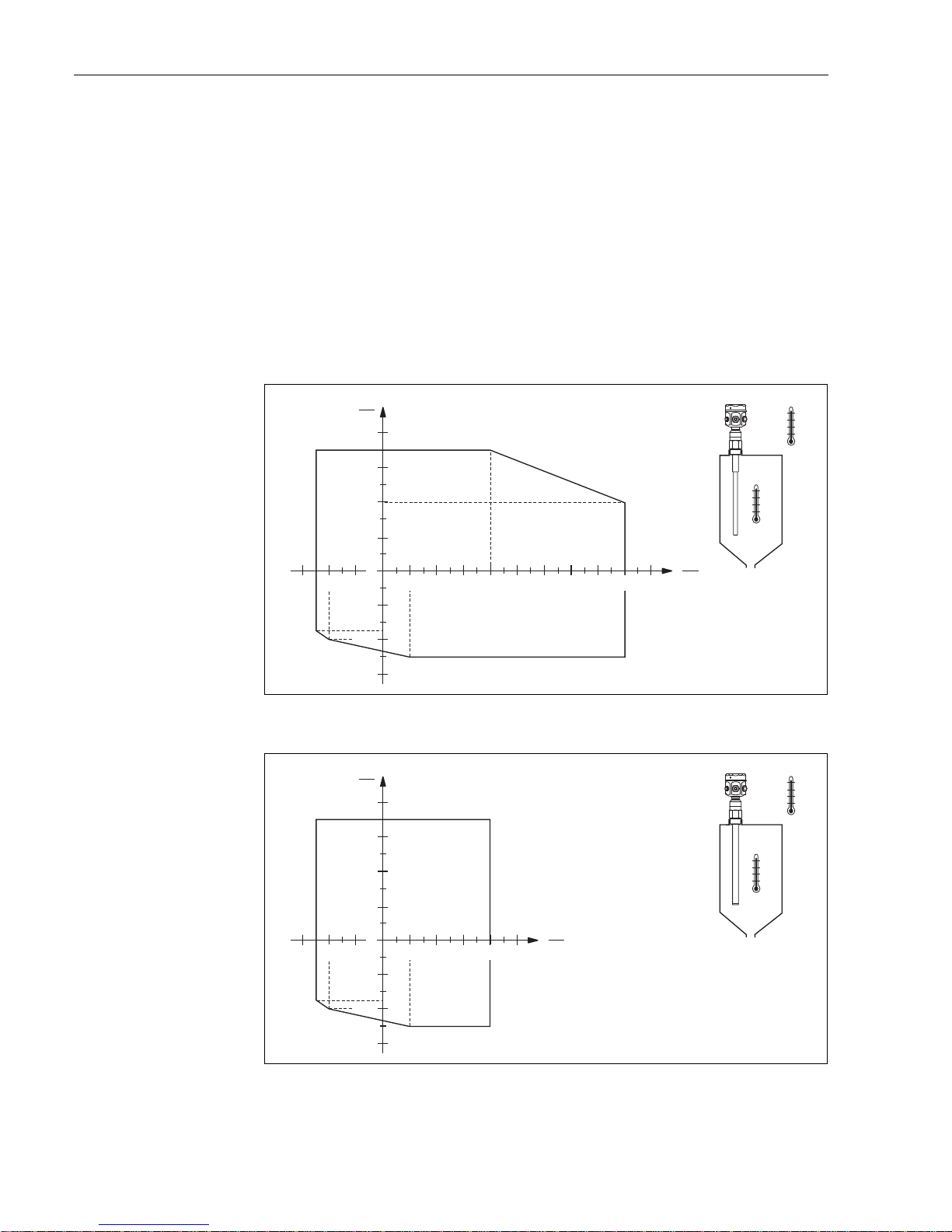

10.5.1 Process temperature range

Note!

• The following process temperature ranges only apply for standard applications outside hazardous areas.

• Regulations for use in hazardous areas are provided in the Supplementary Documentation XA00389F/00.

Permitted ambient temperature T

at the housing depending on the process temperature Tp in the

tank.

Rod probe FTI55

TI418F60

Partially insulated (PPS):

TI418F61

Fully insulated (PE):

Note! Restriction to T

–40 °C for polyester housing F16.

–20–20–60–60

8080 120120 160160 200200

8080

6060

4040

2020

–60–60

–40–40

–20–20

4040 6060 100100 140140 180180

°C°C

2020

–40–40

–20–20–60–60

8080

6060

4040

2020

–60–60

–40–40

–20–20

4040 6060

°C°C

2020

–40–40

100100

°C°C

8080

Page 85

Solicap M FTI55, FTI56 Technical data

Endress+Hauser 85

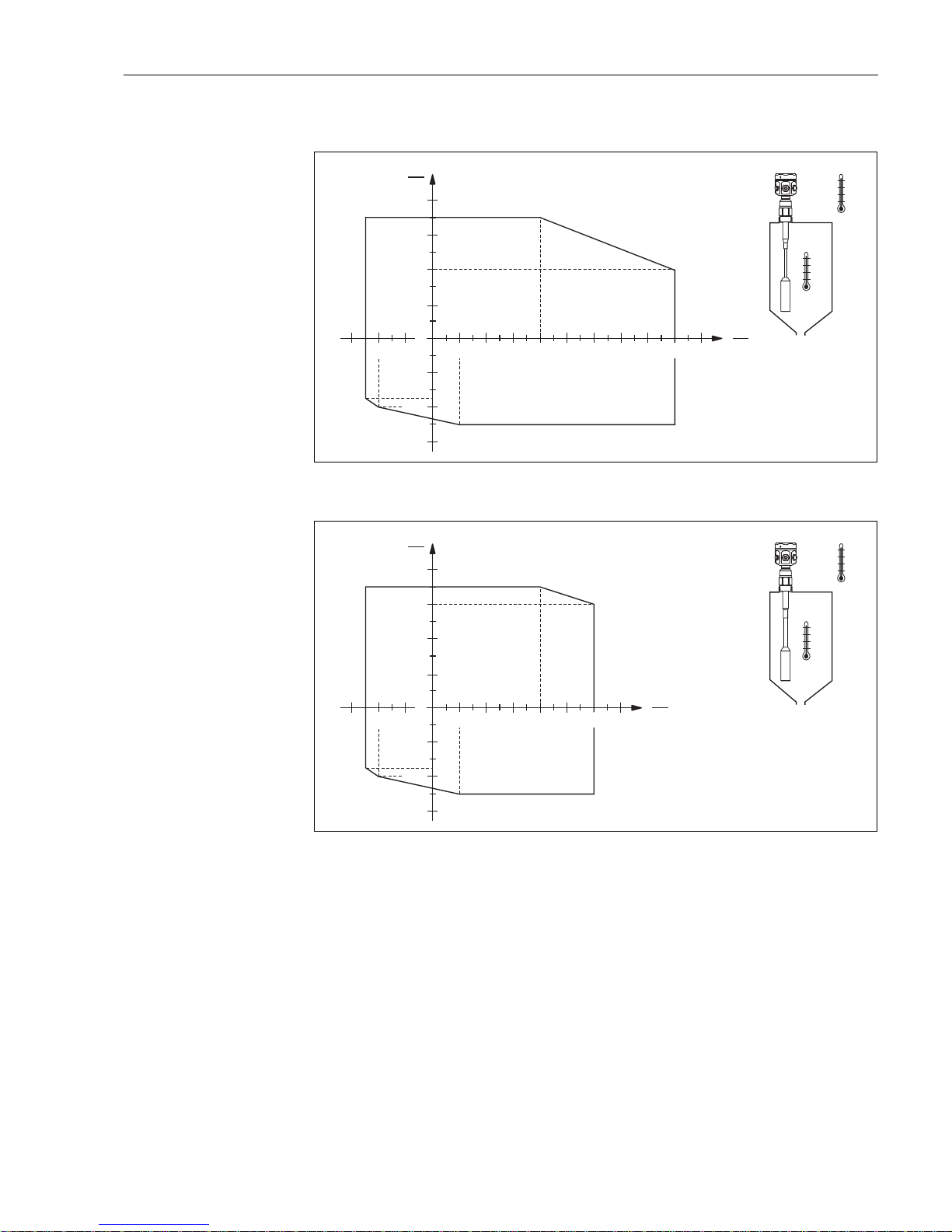

Rope probe FTI56

TI418F62

Partially insulated (PTFE):

TI418F63

Fully insulated (PA):

–20–20–60–60

8080 120120 160160 200200

8080

6060

4040

2020

–60–60

–40–40

–20–20

4040 6060 100100 140140 180180

°C°C

2020

–40–40

–20–20–60–60

8080

6060

4040

2020

–60–60

–40–40

–20–20

4040 6060 100100

°C°C

2020

–40–40

140140

°C°C

120120

Page 86

Technical data Solicap M FTI55, FTI56

86 Endress+Hauser

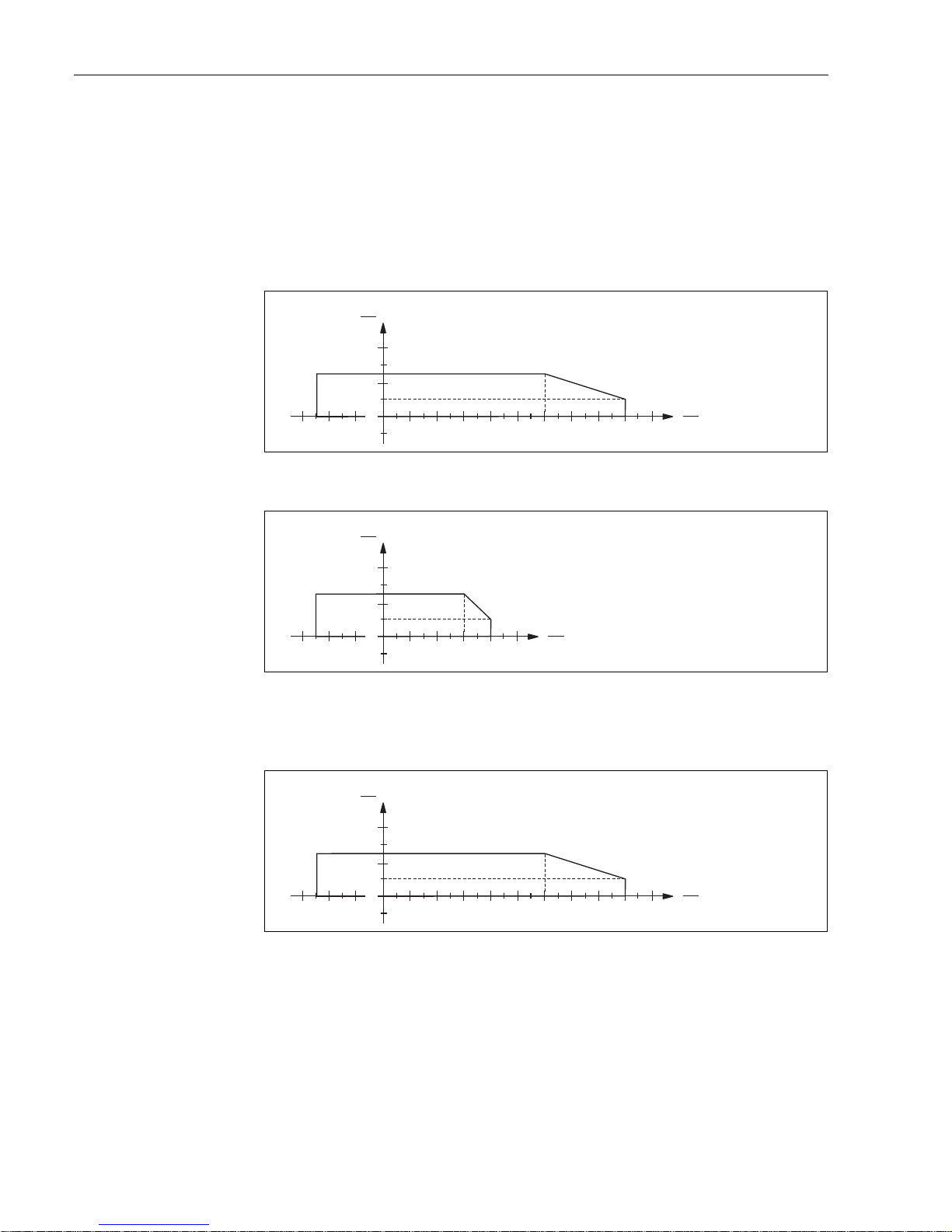

10.5.2 Process pressure and temperature derating

Note!

• The lowest value from the derating curves of the device and the selected flange applies.

• In the case of flange process connections, the maximum pressure is limited by the nominal pressure of the flange.

• See also "Process connections" on Page 18 ff.

Rod probe FTI55

TI418F64

Partially insulated (PPS):

TI418F65

Fully insulated (PE):

Rope probe FTI56

TI418F64

Partially insulated (PTFE):

barbar

–40–40 –20–20–60–60

8080 120120 160160 180180 200200

4040

2020

2020 4040 6060 100100 140140

°C°C

barbar

–40–40 –20–20–60–60

4040

2020

2020 4040 6060 8080 100100

°C°C

barbar

–40–40 –20–20–60–60

8080 120120 160160 180180 200200

4040

2020

2020 4040 6060 100100 140140

°C°C

Page 87

Solicap M FTI55, FTI56 Technical data

Endress+Hauser 87

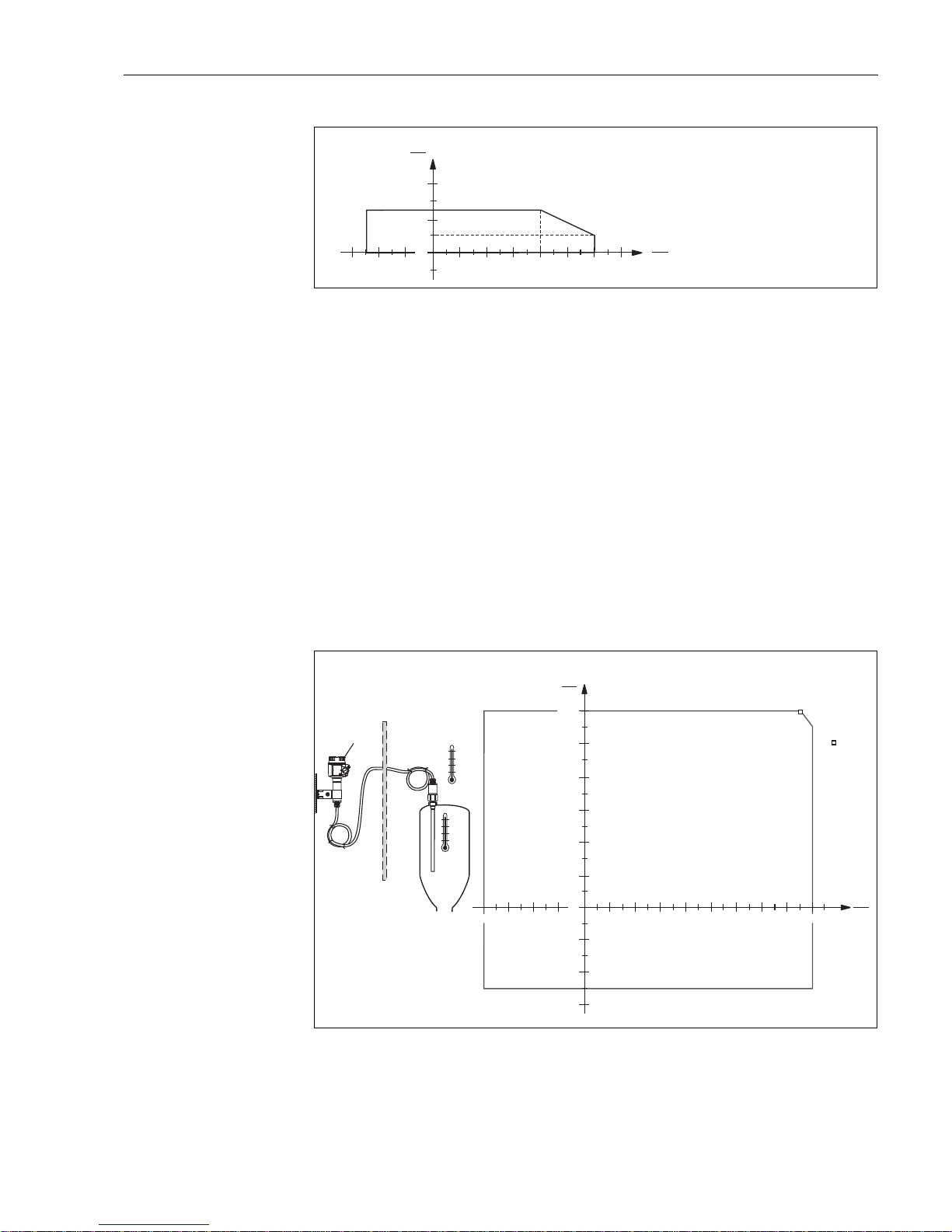

TI418F66

Fully insulated (PA):

Process pressure limits

–1 to 25 bar (observe dependencies => process connections from Page 18 ff. and operating conditions: process from Page 84.) The lowest value from the derating curves of the device and the selected flange applies. Please refer to the following standards for the pressure values permitted at higher temperatures:

• pR EN 1092-1: 2005 Table, Appendix G2 With regard to its resistance/temperature property, the material 1.4435 is identical to 1.4404 (AISI 316L) which is grouped under 13E0 in EN 1092-1 Tab. 18. The chemical makeup of the two materials can be identical.

• ASME B 16.5a- 1998 Tab. 2-2.2 F316

• ASME B 16.5a- 1998 Tab. 2.3.8 N10276

• JIS B 2220

10.5.3 Temperature-derating separate housing

BA300Fxx021

Ta: Ambient temperature T

: Process temperature

* temperature at the separate housing  70 °C

barbar

–40–40 –20–20–60–60

8080 120120

4040

2020

2020 4040 6060 100100 140140

°C°C

–40 –20–60

80 120 160

–80 200

–60

–40

–20

20 40 60 100 140

+180/ +110

+170 +120

°C

120

100

°C

180

Page 88

Technical data Solicap M FTI55, FTI56

88 Endress+Hauser

Note! The maximum connection length between the probe and the separate housing is 6 m (L4). When ordering a device with a separate housing, the desired length must be specified. If the connecting cable is to be shortened or passed through a wall, it must be separated from the process connection. See "Documentation" => "Operating Instructions" on  ä 88.

10.5.4 Application examples

Sand, glass aggregate, gravel, molding sand, lime, ore (crushed), plaster, aluminum shavings, cement, grain, pumice, flour, dolomite, sugar beet, kaolin, fodder and similar bulk solids.

In general: Bulk solids with a relative dielectric constant 

 2.5.

10.6 Other standards and guidelines

EN 60529

Degrees of protection by housing (IP code)

EN 61010

Safety requirements for electrical equipment for measurement, control and laboratory use

EN 61326

Interference emission (Class B equipment), interference immunity (Appendix A – Industrial).

NAMUR

Association for Standards for Control and Regulation in the Chemical Industry

IEC 61508

Functional safety

IEC 60947-5-6 Low-voltage switchgear and control gear; DC interface for proximity sensors and switching amplifiers (NAMUR)

10.7 Documentation

Note! This documentation is available on the product pages at www.endress.com

10.7.1 Technical Information

• Nivotester FTL325N TI00353F/00/en

• Nivotester FTL375N TI00361F/00/en

• Solicap M FTI55, FTI56 TI00418F/00/en

• EMC test procedures TI00241F/00/en

10.7.2 Certificates

Safety information (ATEX)

• Solicap M FTI55, FTI56 ATEX II 1 D Ex tD A20 IP65 T 90 °C, ATEX II 1/2 D Ex tD A20/A21 IP65 T 100 °C XA00389F/00/a3

• Solicap M FTI55, FTI56 DIP A21 T

, T 100°C IP65

Page 89

Solicap M FTI55, FTI56 Technical data

Endress+Hauser 89

NEPSI GYJ071369 XA00426F/00/a3

Control Drawings (for FM and CSA)

• Solicap M FTI55, FTI56 CSA ZD00225F/00/en

• Liquicap M FTI55, FTI56 FM ZD00222F/00/en

Functional safety (SIL2/SIL3)

• Solicap M FTI55, FTI56 SIL SD00278F/00/en

CRN registration

• CRN 0F12978.5

Other

• AD2000 The wetted material (316L) corresponds to AD2000 – W0/W2

10.7.3 Patents

This product is protected by at least one of the patents listed below. Further patents are under development.

• DE 103 22 279, WO 2004 102 133, US 2005 003 9528

• DE 203 13 695, WO 2005 025 015

Page 90

Solicap M FTI55, FTI56

90 Endress+Hauser

Index

Activating fault diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Alarm response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69, 72

Ambient temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . 82

Application examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Basic settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Brief operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Buildup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Buildup mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Cable specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Carrying out empty and full calibration. . . . . . . . . . . . . . . . . 57

Carrying out empty calibration . . . . . . . . . . . . . . . . . . . . . . . 55

Carrying out full calibration. . . . . . . . . . . . . . . . . . . . . . . . . . 56

CE mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Climate class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 48

Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Declaration of contamination . . . . . . . . . . . . . . . . . . . . . . . . 80

Degree of protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Designated use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Device identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Electromagnetic compatibility (EMC) . . . . . . . . . . . . . . 36, 83

Extension heights (separate housing) . . . . . . . . . . . . . . . . . . 30

Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Failsafe mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Firmware history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Functional safety (SIL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Hazardous areas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Incoming acceptance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 29

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installation tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Measuring conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Mechanical construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

MIN/MAX failsafe mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Minimum coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Output signal FEI51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Output signal FEI52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Output signal FEI53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Output signal FEI54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Output signal FEI55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Output signal FEI57S . . . . . . . . . . . . . . . . . . . . . . . . . . . 71, 75

Output signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Pipe mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Plastic tanks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Post-installation check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Potential equalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Preparing to install rod probes FTI55 . . . . . . . . . . . . . . . . . . 22

Preparing to install rope probes FTI56 . . . . . . . . . . . . . . . . . 24

Probe length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 27

Process pressure and temperature derating. . . . . . . . . . . . . . 86

Process temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Reference operating conditions . . . . . . . . . . . . . . . . . . . . . . . 82

Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Repairing Ex-certified devices . . . . . . . . . . . . . . . . . . . . . . . . 76

Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Restoring factory settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Safety conventions and symbols . . . . . . . . . . . . . . . . . . . . . . . 9

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Separate housing (Shortening the connecting cable) . . . 32, 34

Separate housing (wall and pipe mounting) . . . . . . . . . . . . . 34

Setting the measuring range . . . . . . . . . . . . . . . . . . . . . . 54, 70

Shock resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Shortening the connecting cable . . . . . . . . . . . . . . . . . . . . . . 32

Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switch behavior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Switch point adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Switching delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Temperature-derating separate housing . . . . . . . . . . . . . . . . 87

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Troubleshooting instructions. . . . . . . . . . . . . . . . . . . . . . . . . 78

Two-point control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Upload/download sensor DAT . . . . . . . . . . . . . . . . . . . . . . . 65

Page 91

Solicap M FTI55, FTI56

Endress+Hauser 91

User interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Wall holder unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Weather protection cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Page 92

www.addresses.endress.com

71304919
