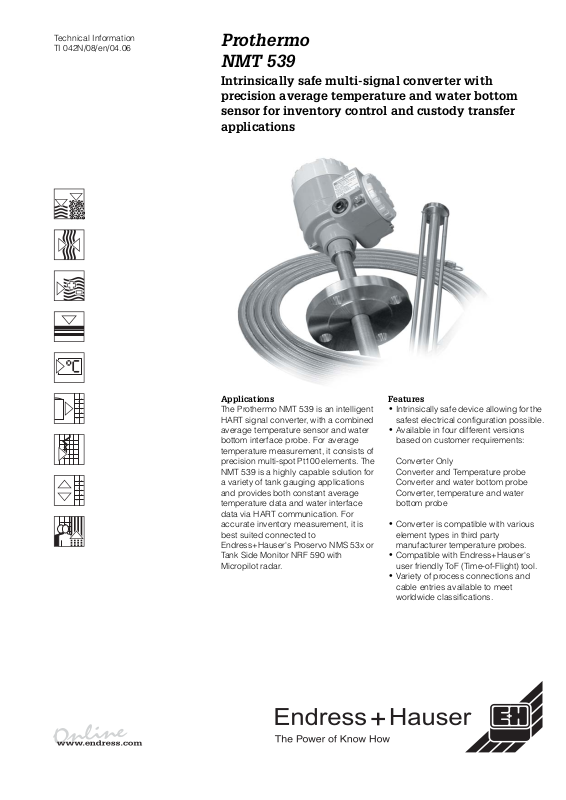

Page 1
Technical Information
TI 042N/08/en/04.06
Prothermo
NMT 539
Intrinsically safe multi-signal converter with
precision average temperature and water bottom
sensor for inventory control and custody transfer
applications
Applications
The Prothermo NMT 539 is an intelligent
HART signal converter, with a combined
average temperature sensor and water
bottom interface probe. For average
temperature measurement, it consists of
precision multi-spot Pt100 elements. The
NMT 539 is a highly capable solution for
a variety of tank gauging applications
and provides both constant average
temperature data and water interface
data via HART communication. For
accurate inventory measurement, it is
best suited connected to
Endress+Hauser's Proservo NMS 53x or
Tank Side Monitor NRF 590 with
Micropilot radar.
Features
• Intrinsically safe device allowing for the
safest electrical configuration possible.
• Available in four different versions
based on customer requirements:
Converter Only
Converter and Temperature probe
Converter and water bottom probe
Converter, temperature and water
bottom probe
• Converter is compatible with various
element types in third party
manufacturer temperature probes.
• Compatible with Endress+Hauser's
user friendly ToF (Time-of-Flight) tool.
• Variety of process connections and
cable entries available to meet
worldwide classifications.
Page 2
Prothermo NMT 539
Converter housing
360mm adjustable
threaded connection
Flange
C/F Module
CPU Module
Power Supply Module
Noise Filter
IS HART
communication
Gas
Pt100 multi-spot elements
up to 16 points
Liquid
Capacitance WB sensor
Max 2 Pt100 elements
can be inserted in
WB sensor
Isolated capacitance
signal data to
C/F module
WB sensor
coaxial signal cable
WB sensor
signal FG
Product type
Measurement system The Prothermo NMT 539 is available in four different versions:
• Converter only
• Converter + Average temperature probe
• Converter + Water bottom (Capacitance) sensor
• Converter + Average temp probe + Water bottom sensor
The converter only version can be retrofitted without modifications onto existing third party
average temperature probes, such as Whessoe Varec 9909 and 1700 and Weed Beacon MW
type probes. The average temperature probe + converter inherits all the functionality of the former
Prothermo NMT 535/536/537 series. The water bottom (WB) + converter provides constant water
interface level data for the host level gauge for determining the multi-layered water bottom level
measurement. The average temperature + WB + converter is the ultimate multi-function sensor,
transmitting temperature and water interface level data along only one pair of HART signal cables
to the host the Proservo NMS 53x or NRF 590 Tank Side Monitor.
NMT 539 +WB operation principle (Converter + Temp + WB probe version)
IS HART
communication
WB sensor
signal FG
Isolated capacitance
signal data to
C/F module
WB sensor
coaxial signal cable
Max 2 Pt100 elements
can be inserted in
WB sensor
Power Supply Module
C/F Module
Noise Filter
CPU Module
Converter housing
360mm adjustable
threaded connection
Flange
Gas
Pt100 multi-spot elements
up to 16 points
Liquid
Capacitance WB sensor
2 Endress+Hauser
Different types of NMT 539, including "Converter only," "Coverter + average temperature" and
"Converter + WB" are simpler versions of the "Converter + WB + temperature" probe.
Note!
Page 3
Connection with Proservo
NMS 53x
Prothermo NMT 539
System diagram
Ex i HART Loop
(Data transmission)
NMT 539 Converter +
Temp. version
Fuels Manager
NXS-310
(MDP-II)
Power (AC/DC)
NMT 539
Ex d HART Loop
(Data transmission
& Remote control)
NMS 53x
Communication
to Host system
NRM
RTU
+24V
CPU
+5V
COMM
+15V
I/O
-15V
ERROR
NR30 (MDP-II I/F)
V1 communication
to Interface
NRS
Liquid Level
Liquid & Gas
Temperature
Power (AC/DC)
NRF560
The Prothermo NMT 539 is the successor of the former NMT 535 Ex i version. For proper
migration, the NMT 539 has inherited all the functionality and specifications of the NMT 535,
including process connections, cable entries and wiring method.
Since the Proservo NMS 53x already provides water interface measurement, the NMT 539
Converter + Average temperature may be the best version when used in combination with the
Proservo. When the Converter + WB + Average temperature version is used in combination with
the Proservo, the product in the tank will be thoroughly managed with level, continuous average
temperature and water interface measurement.
All the necessary configuration and parameter settings for the NMT 539 are performed on both
the Proservo NMS 53x and ToF tool.
The NMT 539 receives liquid level data from the Proservo, then calculates liquic and gas phase
average temperature. Calculated data and basic information, including raw data for each
temperature element and device status, are transmitted to the Proservo.
From the Proservo NMS 53x or NRF 590 Tank Side Monitor, all sensor data are sent to the interface
unit via V1 communication protocol.
Note!
Since the Proservo is a multi-functional device (measurement and data transmission), the
Promonitor NRF 560 acts as a tank side remote data indicator and controller for Proservo. The
standard NRF 560 has no data transmission functionality. For special applications, an optical fiber
transmission version is available. Please consult with your Endress+Hauser representative for
more information.
All gathered data in the interface unit is sent to inventory management software, such as
Endress+Hauser's FuelsManager or NXS-310 (MDP-II program), or directly sent to the customer's
specific DCS or PLC.
Endress+Hauser 3
Page 4
Prothermo NMT 539
Connection with Tank Side
Monitor NRF 590
Ex i HART Loop
(Data transmission)
FuelsManager
NXS-310
(MDP-II)
FMR Power
(DC, Exi
)
FMR 533
Liquid Level
NMT 539
Liquid & Gas
Temperature
Water Interface
(WB)
NRF590
NRM
RTU
+24V
CPU
+5V
COMM
+15V
I/O
-15V
ERROR
NR30 (MDP-II I/F)
Communication
to Host system
NRS
V1 communication
to Interface
Power (AC/DC)
NMT 539 Converter +
Temp. + WB version
The NMT 539 Converter + Temp. + WB is utilised effectively in combination with radar level
gauging. Water interface, temperature and level measurement, with data collection and
calculations via the NRF 590, allows for optimal inventory control. Basic functionality of the NMT
539 is displayed and configured on the NRF 590. Detailed NMT 539 functionality and data access
can be performed by the ToF tool.
The NMT 539 receives radar level data from the NRF 590 and then calculates liquid and gas
phase average temperature. Calculated and standard data, including temperature element raw
data and device status, are transmitted to the NRF 590..
Depending on the size of the tank farm and data processing functionality, measurement data can
be transmitted to various interface units via V1 protocol or other industry standard communication
protocols (please see the NRF 590 technical information).
All gathered data in the interface unit is sent to inventory management software, such as
Endress+Hauser's FuelsManager or NXS-310 (MDP-II program), or directly sent to the customer's
specific DCS or PLC.
4 Endress+Hauser
Page 5
Prothermo NMT 539
Input
Measured variables Liquid and gas temperature range -200 ...+235 °C (-328 ...+455 °F), RTD signal
Water interface level (water bottom) range 1m ...2m (3.3 ...6.6 ft), capacitance signal
Communication 2 wire, Endress + Hauser HART protocol to host commanding gauge
• The Proservo NMS 53x
• The Tank Side Monitor NRF 590
Compatible element
(Converter only version)
Number of elements Maximum of 16 can be connected.
Pt100
Cu90
Cu100
PtCu100
Note!
NMT 539 Converter + Temp. version has only Pt100 elements installed. The element types above
can be utilised in third party temperature probes, such as the Endress+Hauser 9909, 1700 or
Weed Beacon MWR. Other manufacturer multi-resistant and multi-spot average temperature
probes may be compatible.
Please consult your Endress+Hauser representative for further details.
Output
Data transmission Temperature & Water Bottom data via 2 wire intrinsically safe Endress + Hauser HART protocol.
Connection To Endress + Hauser host commanding gauge
• The Proservo NMS 53x
• The Tank Side Monitor NRF 590
Endress+Hauser 5
Page 6
Prothermo NMT 539
Installation

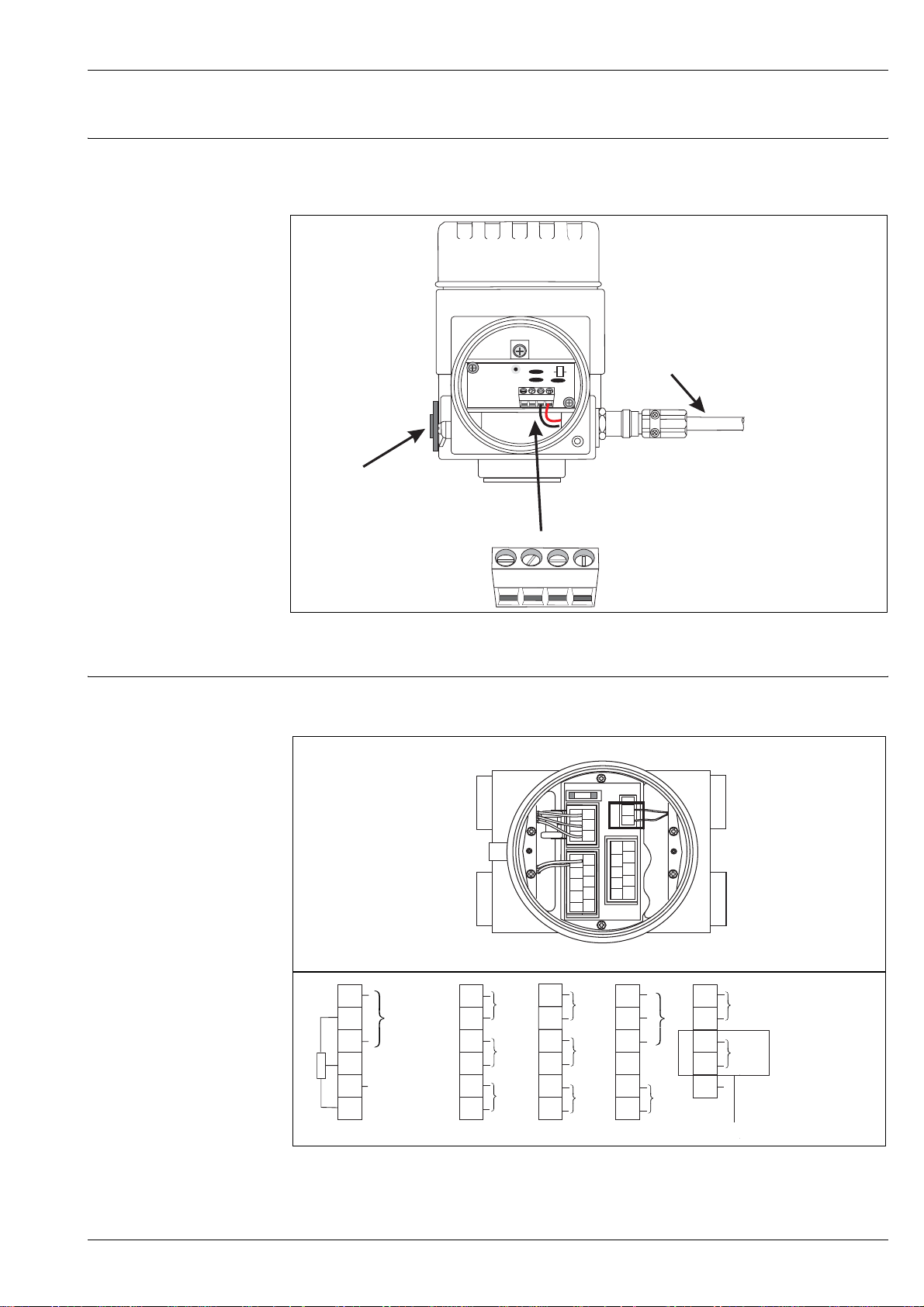

Wiring Wiring of the NMT 539 must meet intrinsically safe requirements.
The following cable entries are available:
• G (PF) 1/2"
• NPT 1/2"
• PG 16
• M 20
Caution!
Please prepare a metal cable gland (not a plastic one) that has shield cable grounding
functionality to meet the condition of EMC certification.
No cable gland is provided with the NMT 539 as standard.
Size and condition of the communication cable must meet the requirements of intrinsically safe
HART communication.

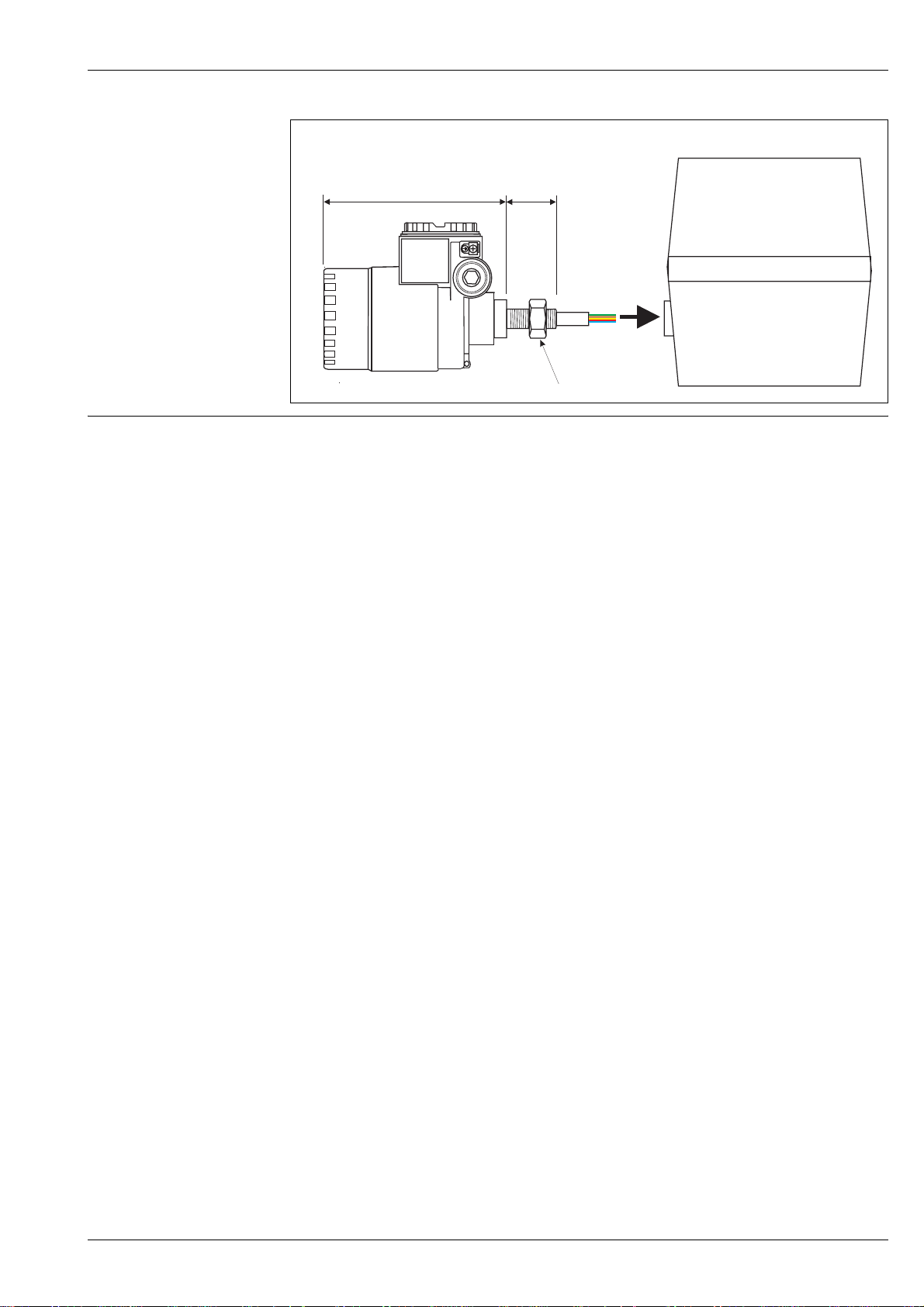

Process connection Converter only version
NMT 539's HART converter can fit onto third party average temperature probes with the following
mechanical connection size and type:
• PF3/4" (equivalent to NPS 3/4") universal coupling.... Housing type 1
• M20 threaded.... housing type 2, specific design to fit to Varec 1700 terminal housing
The installation height
adjuster
Note!
Use seal tape to secure the connection between converter and temperature probe.
Please refer to the NMT 539 instruction manual for the detailed installation procedure.
Converter + Temp. , Converter + WB, Converter + Temp. + WB version
All three versions have the same installation method to fit onto the tank nozzle.
The following flange sizes are available:
• JIS 10K 50A RF... mild carbon
• ANSI 150lb 2" RF... mild carbon
• JPI 150lb 2" RF... mild carbon
• DIN DN50 PN 10RF... mild carbon
Different sizes and materials can be provided depending on the installation conditions. Please
consult your Endress+Hauser representative for the most suitable solution.
An additional feature of the NMT 539, the height adjuster, can be used to adjust installation height
of the NMT 539 within ±180 mm (7") from original height.
Note!
The height adjuster is not included in "Converter only" version.
Caution!
Please tighten the lock nut with seal tape to secure rigidity of the NMT 539 at the end of physical
installation and/or if the height adjuster will be used during operation. A loose lock nut can lead
to improper tank sealing or unexpected leakage into the tank.
WB blocking distance The Water Bottom sensor can be set as low as zero clearance from the tank floor by using height
adjuster. Due to mechanical design of WB sensor, bottom plate has approximately 10mm
thickness. This will become a blocking distance (ineffective measuring range).
Caution!
Calculate vertical movement of NMT 539 installation height prior to setting the WB sensor bottom
clearance. Typical tank shell deformation causes vertical movement at a minimum 20 ~ 30mm
(1"). Excessive weight load of entire NMT 539 on WB sensor by contacting tank floor may cause
critical damage that disables accurate & stable WB level measurement.
6 Endress+Hauser
Page 7
Recommended installation height
Adjusting range
180mm
±
(total 360mm)
Recommended bottom clearance:
with mounting attachment B & D: 400mm from the tank floor
with mounting attachment A & C: 200mm from the tank floor
Prothermo NMT 539
NMT 539
Ordered installation height:
Below flange to end of
Temp probe or WB sensor
Note!
The required bottom clearance of both the temperature probe and WB sensor depends on the
anchoring method. Consider the required bottom clearance when ordering the NMT 539. Please
see the recommended bottom clearance in the above illustration and/or consult your
Endress+Hauser representative for further information.
When ordering the NMT 539 with special element position and bottom clearance, please refer to
"Ordering Information," section 80, Element Spacing. Select 4, Custom element position and
spacing.
The standard location of the lowest temperature element should be set at 500 mm (20") from the
tank bottom regardless of probe type.
The factory setting of the height adjuster is set to the middle of adjustable range. Apply necessary
adjustment during installation for desired height.

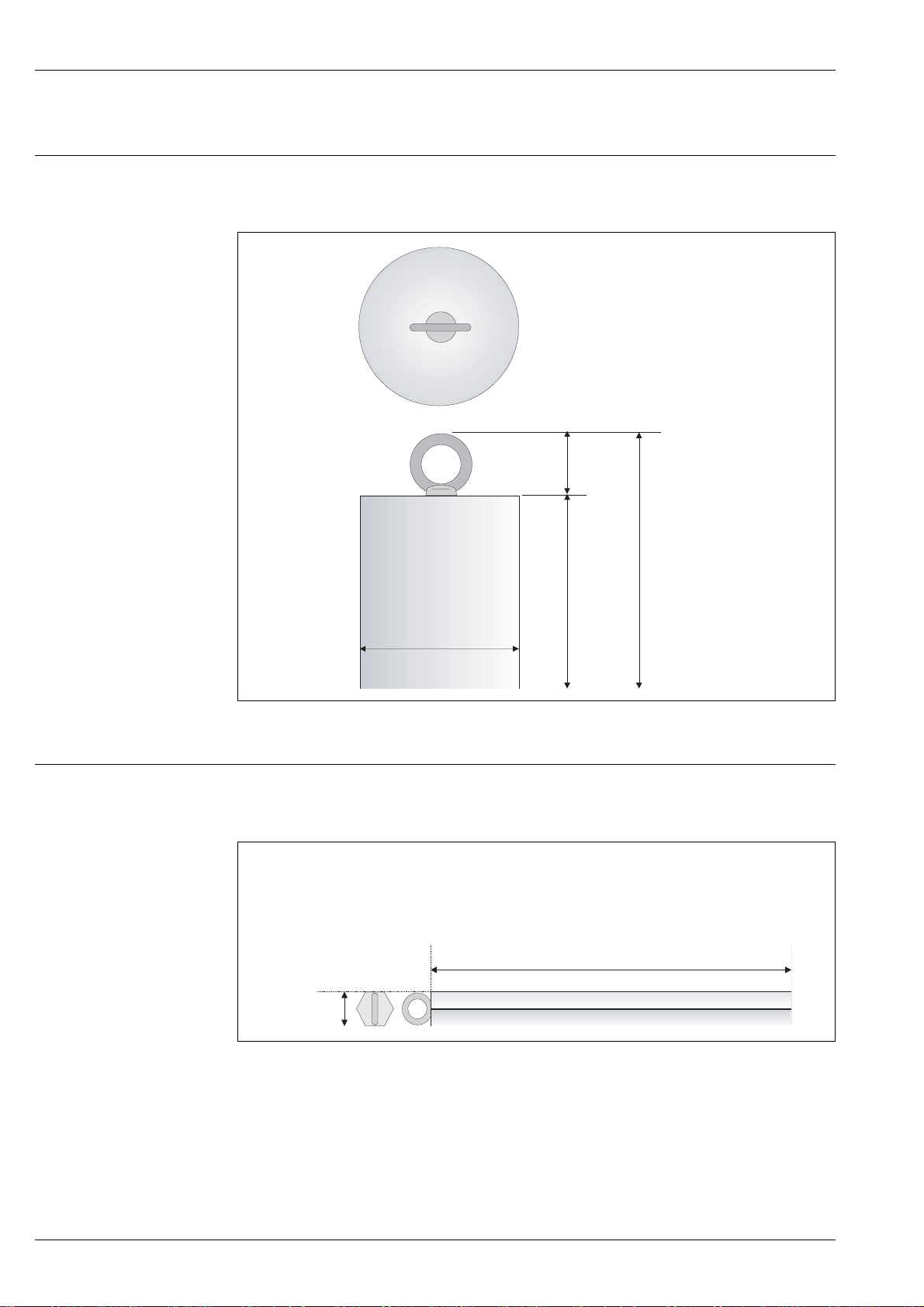

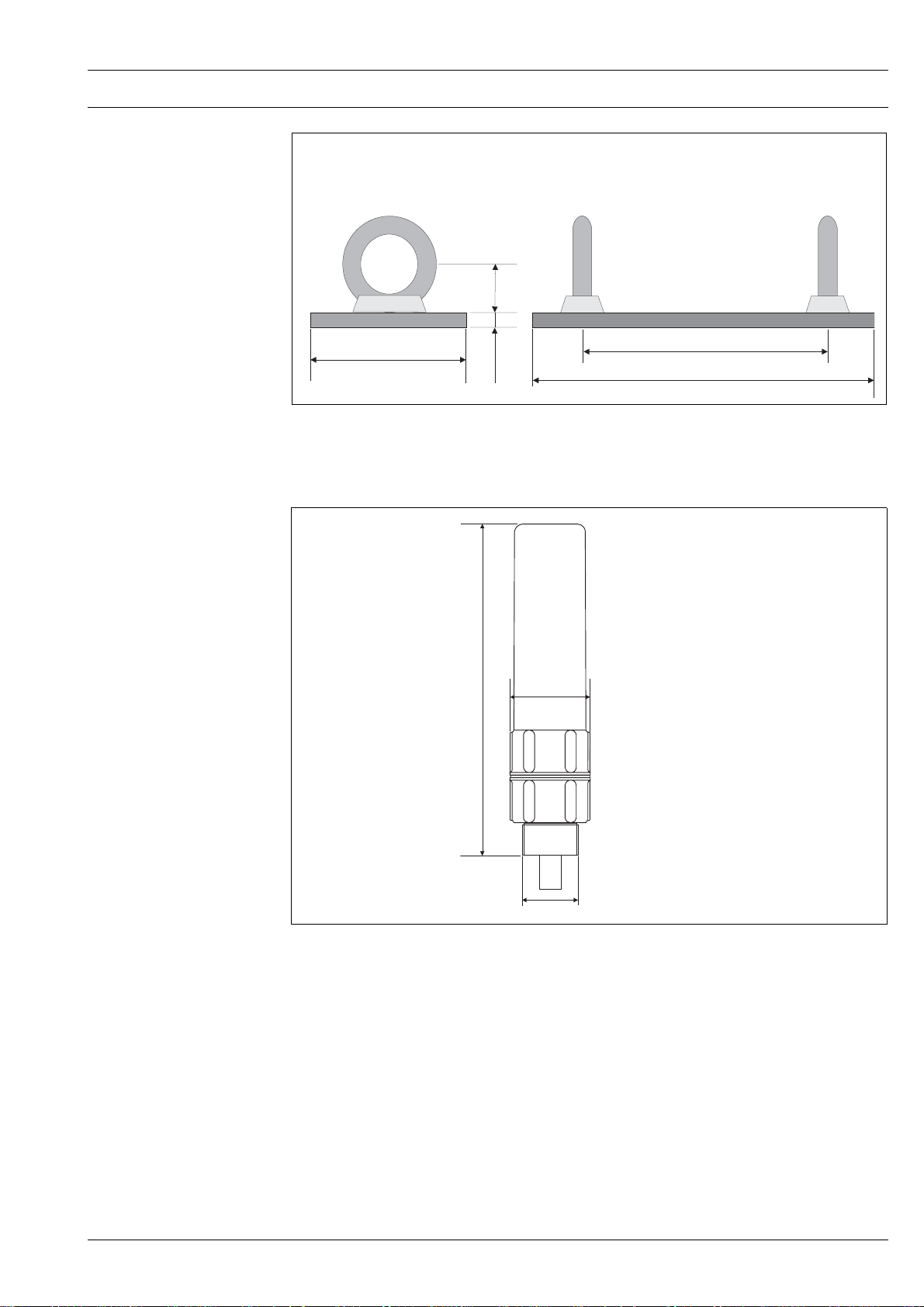

Installation equipment The bottom anchor hook on the WB sensor is not available when "A: no installation material" is
selected. The Converter + Temp. probe version includes the bottom anchor hook as standard,
although, "A: no installation material" is selected.
Contents of anchoring hardware: Based on the choice of "100: Mounting attachment"
D:
Tension wire +
Top anchor
bottom hook
base plate
top anchor
tension wire
bottom hook
base plate
top anchor
tension wire
bottom hook
base plate
top anchor
tension wire
0:
Converter only
1:
Temp. + Converter
2:
WB + Converter
3:
Temp. + WB + Converter
A:
No installation
Material
none none none none
bottom hook bottom hook
none bottom hook
B:
Anchor weight
(Tall profile)
anchor weight
sling wire
anchor weight
sling wire
bottom hook
anchor weight
sling wire
C:
Anchor weight
(Low profile)
bottom hook
anchor weight
sling wire
bottom hook
anchor weight
sling wire
bottom hook
anchor weight
sling wire
Endress+Hauser 7
Page 8
Prothermo NMT 539
Mounting attachment B: "Tall profile anchor" or D: "Wire hook + Top anchor (tension wire
method)"
Element position #1
(Bottom element)
Clearance below
bottom hook
500mm
400mm
Tank floor
Both temperature probe and WB sensor with "Tall profile anchor weight" and "Tension wire anchor"
methods have a recommended clearance below the bottom of the anchor hook of approximately
400 mm (16"). This clearance can be easily changed by turning the height adjuster at the tank top.
Note!
When ordering the NMT 539, please refer to "Ordering Information," section 80, Element Spacing.
Select 4, Custom element position and spacing. This allows you to choose the desired element
position and intervals. Consult with your Endress+Hauser representative for further assistance.
Mounting attachment A: "No installation material" and C: "Low profile anchor"
Element position #1
(Bottom element)
500mm
200mm
Clearance below
WB or Temp sensor
Clearance below
WB sensor
200mm
Element position #1
(Bottom element)
500mm
Low profile type Anchor Weight
Both the temperature probe and WB sensor with "Low profile anchor weight" at 100: Mounting
attachment option (see Ordering Information) should have 200 mm (8") of bottom clearance from
the edge of probes.
Caution!
The lowest possible WB measuring point can be approx. 10 mm from the tank floor with "No
installation material" selected (see Ordering Information). If necessary, use the height adjuster to
set at the desired installation height. No bottom anchor hook is available with the WB sensor and
100: Mounting attachment "A: No installation material".
8 Endress+Hauser
Page 9
Prothermo NMT 539
Technical specifications
General specifications
Manufacturer Endress+Hauser Japan
Designation Prothermo NMT 539
Function RTD average temperature signal to HART conversion
RTD average temperature measurement + HART converter
Capacitance water interface measurement + HART converter
Average temperature & Water interface measurement + HART
converter
Temperature accuracy ±0.1°C or less (at reference condition) *1
Water Bottom accuracy 4mm (±2mm) or better (at reference condition) *2
Power supply
Input 16 .... 30VDC (via HART line from host gauge)
Power consumption 6mA@16VDC (HART converter only)
6mA@16VDC (Temp. probe + HART converter)
12mA@16VDC (WB sensor + HART converter)
12mA@16VDC (Temp. probe + WB sensor + HART converter)
Converter specifications
Compatible element type Pt100, Cu90, Cu100, PtCu100
Housing Aluminum diecast
Process connection PF 3/4" (NPS 3/4") universal coupling
M20 threaded (Varec 1700 connection only)
Cable entry G (PF) 1/2"
NPT 1/2"
PG16
M20
Ambient temperature -40 ...+85 °C (-40 ...+185 °F) (converter housing)
Temperature probe specifications
Temperature element Class A Pt100, IEC PUB 751 1983 and / or JIS 1604 1989
Installation height adjuster ±360mm threaded, (SUS 316)
Probe material SUS 316 flexible tube
SUS 316 flexible tube + SUS316 armored mesh .... pending
Operation temperature -200 ...+235 °C (-328 ...+455 °F)
Process connection JIS 10K 50A RF
ANSI 150lb 2" RF
JPI 150lb 50A RF
DIN DN50 PN 10RF
Endress+Hauser 9
Page 10
Prothermo NMT 539
Water Bottom (capacitance) sensor specifications
Sensor material SUS 316 (center rod SUS 304 & PFA protected)
Operation range 1m (3.3 ft) and 2m (6.6 ft)
Operation temperature -20 ...+100
Data transmission 2.5mm coaxial cable & common ground
°C (-4 ...+212 °F)
Environment
Weather proof IP 65
Explosion proof EEx ia IIB T2 ... T6, ATEX
IS Class 1, Div. 1, Gp. CD .... FM... pending
Class 1, Div. 1, Gp. CD .... CSA
Ex ia IIB T4, TIIS... pending
Reference *1
Accuracy of RTD - Temperature conversion. Accuracy measurement shall be conditioned with
precisely calibrated dial resistor or IEC class A Pt100 ohm temperature element.
Reference*2
Measurement condition is based on 80% span of 1m probe in water / air interface at 25°C.
10 Endress+Hauser
Page 11
Prothermo NMT 539
Performance
New electronics The Prothermo NMT 539 employs a completely new electronic module compared to the previous
NMT 535. The electronics achieve restrictive free multi-drop HART loop configuration with other
sensors for specific tank gauging applications.
NMT 539 NMT 535
CPU Performance 16 bit 8 bit
Clock speed 2.7648 MHz 0.9216 MHz
Memory capacity (RAM) 20K bytes 176 bytes
EEPROM 2K bytes 256 bytes
Flash memory 256K bytes 16K bytes
Total # of print boards 4 (5 with Capacitance board) 5
Current consumption
(Converter + temp. probe)
6mA@16VDC 10mA@16VDC
All-in-one program The powerful processor enables multi-function caculations under a single program. This means
that there is no need for a variety of spare parts.
RTD Temperature calculation
The main CPU board now has all the required data processing functionality, including RTD - HART
conversion. With the NMT 538, various programs were required depending on temperature
element characteristics, such as Pt100, Cu90, Cu100 and PtCu100. The new NMT 539 has all the
programs in one powerful processor.
Capacitance - HART signal conversion
A separate CF (Capacitance - Frequency) board can be connected directly to the CPU board
when NMT 539 is equipped with WB sensor.
Endress+Hauser 11
Page 12
Prothermo NMT 539
NMT 539 functionality and Dimensions
Type 1: Converter only version (Standard PF(NPS) 3/4" universal coupling connection)
Approx. 319 mm
189 mm
48 mm
Type 1 Measuring function The Converter only version is the direct replacement of the previous NMT 538 series. Connection
and compatibility are provided to third party temperature probes with various element types.
Unlike the NMT 538, the powerful processor of the NMT 539 calculates and converts the following
element types without altering the program (EPROM installed software):
• Pt100
• Cu100
• Cu90
• PtCu100
The type 1 converter also enables connection to a dual function average temperature and
capacitance WB probe, such as the Weed Beacon MWR. Wiring, however, requires the isolation
of the RTD temperature signal from the capacitance WB signal on coaxial cable. The wiring of the
temperature signal is exactly the same as Endress+Hauser's 1700, 9909 and other RTD probes.
The coaxial (WB) cable must be routed from the existing auxiliary capacitance to the HART (or 4
- 20 mA) converter via NMT 539's terminal compartment.
Caution!
NMT 539 is only compatible with MRTs (Multi-Resistance Thermometers) and/or MSTs (Multi-Spot
Thermometers). It is not designed to work with "Thermocouple" type thermometers.
The physical connection between probe to NMT 539 is completed by Zinc plated carbon steel PF
3/4" (NPS 3/4") universal threaded coupling. In case a different thread size is required,
Endress+Hauser can provide the simplest and most efficient solution by adapting a variety of
coupling sizes and materials based on existing temperature probe specifications.

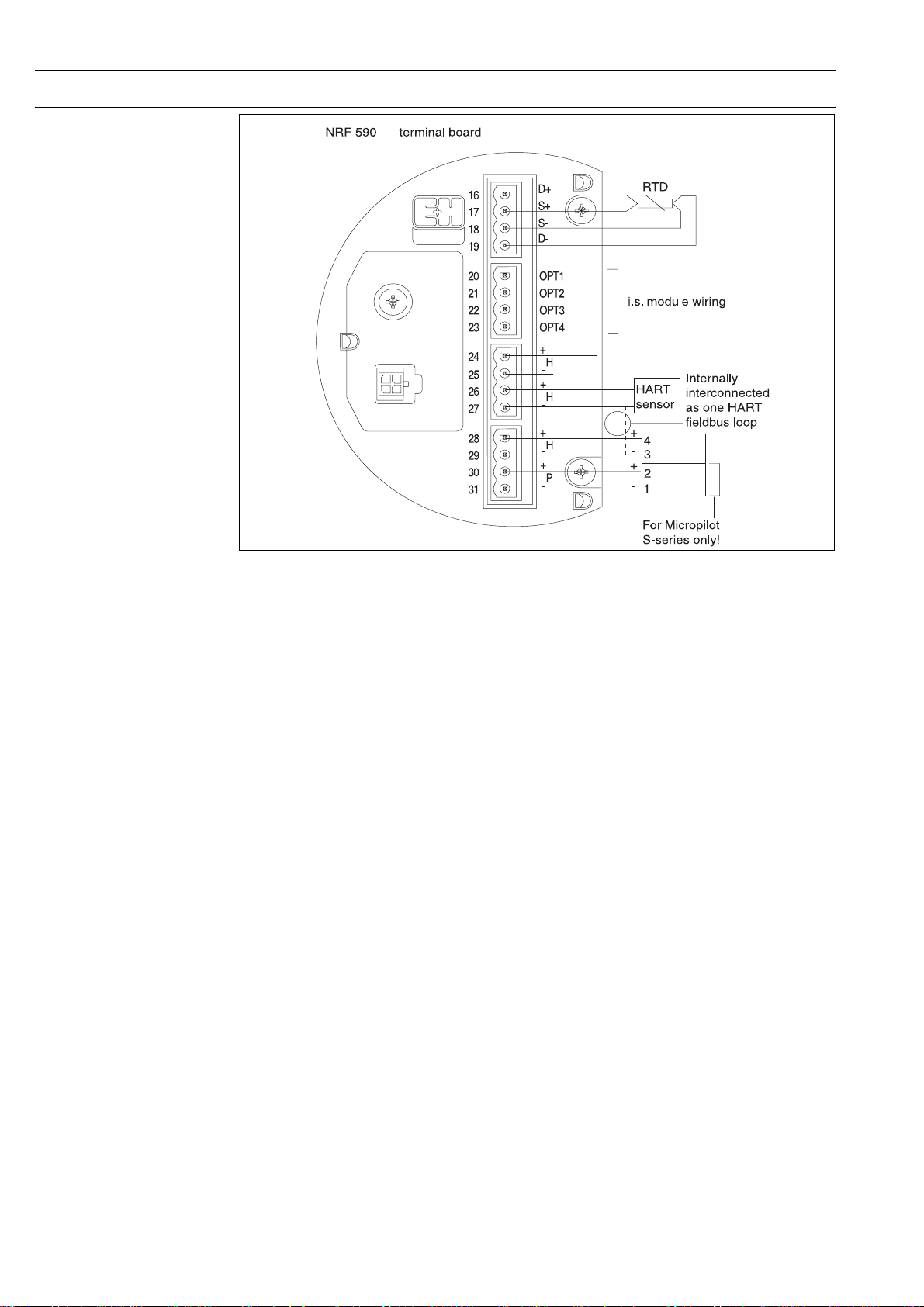

The power supply and data transmission lines are both fed to the host gauge, Proservo NMS 53x
or Tank Side Monitor NRF 590, by one pair of HART loop connections. In addition to the userfriendly display, the NMT 539 can also be configured and operated via the ToF (Time-of-Flight)
tool.
12 Endress+Hauser
Page 13
Prothermo NMT 539

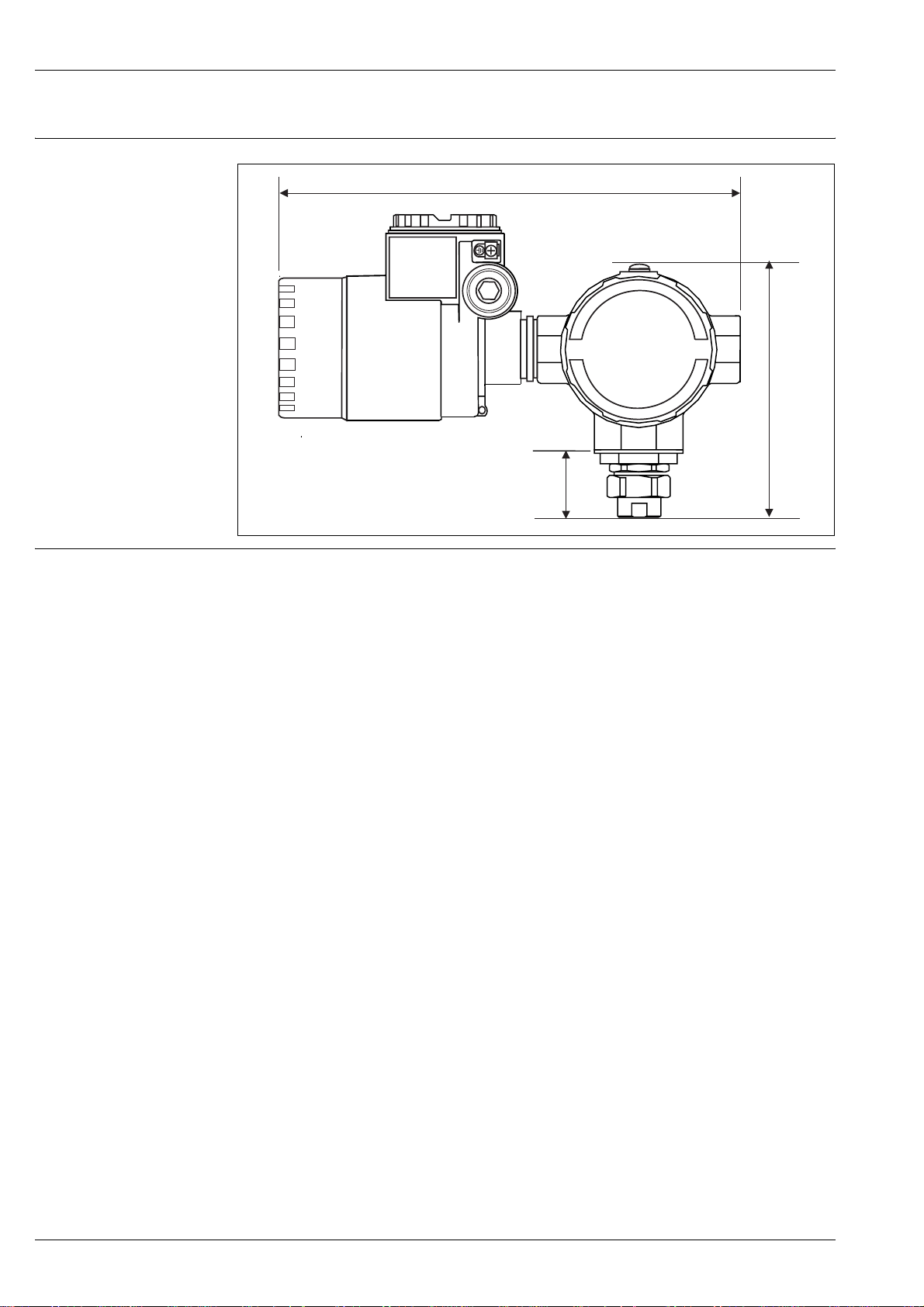

Type 2: Converter only version (for the Varec 1700 win M20 threaded connection)
Terminal Box of
1700 series RTD probe
168mm
32mm
Lock nut
Type 2 Measuring function Basic functionality remains the same, but the special M20 threaded connection allows the NMT
539 converter to fit directly onto the existing terminal housing of the 1700.
Actual wiring of the RTD signal from the probe to the NMT 539 must be executed in the terminal
box of the 1700, not the NMT 539. Therefore, the type 2 converter only has a primary housing that
contains NMT 539 electronics and no secondary housing is included.
Caution!
Secure the threaded connection with seal tape and tighten the lock nut at the actual installation.
A loose connection of the NMT 539 & Varec 1700 terminal housing can cause serious electrical
damage depending on environmental conditions.
Endress+Hauser 13
Page 14
Prothermo NMT 539

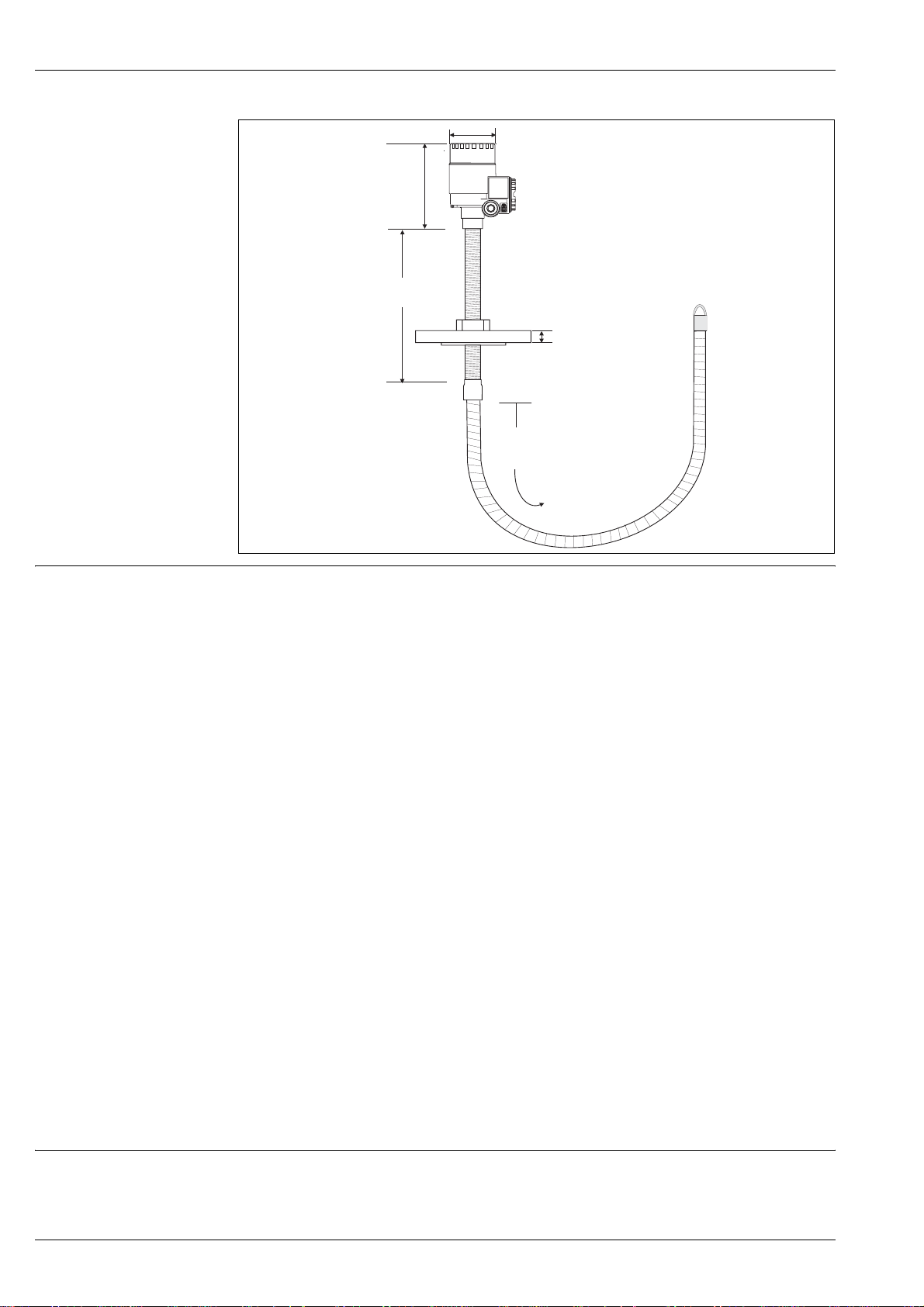

Converter + average temperature probe version
104mm
184.5mm
360mm adjustable
installation height
Flexible tube
depends on the
tank height
15mm
Measuring function The NMT 539 converter and average temperature probe is the direct replacement for the former
NMT 535 Ex i and 537. The W&M approved high accuracy temperature device is well suited for
both custody transfer and inventory control applications. Based on the product temperature
range and specific application, the NMT 539 has 4 different temperature ranges to meet your
application requirements:
• -40 ...+100 °C (-40 ...+212 °F): Most standard temperature range for the custody transfer
application
• -55 ...+235 °C (-67 ...+455 °F) : Capability of high and / or low temperature product application
like sulfur & asphalt and moderate liquid / gas application.
• -200 ...+71 °C (-328 ...160 °F) : Special design for the refrigerated tank application like LNG,
LPG
• -18 ...+80 °C (-0.4 ...176 °F) : Only design to use with W&M certified application.
The NMT 539 converter and average temperature probe consists of up to 16 IEC class A Pt100
elements in the protection tube. The very sensitive sensor elements change resistance values
depending on the surrounding temperature. Therefore, applied voltage through this sensor
deviates based on resistance change at the element. As a specific design to meet intrinsically
safe standards, the NMT 539 converter and temperature version is built with the most efficient
power management concept (compared to existing NMT 535, less than 60 percent of current flow
is required under normal operating conditions).
In order to achieve the highest degree of measurement accuracy and mechanical & electrical
durability, NMT539 employs a powerful processor, large storage capacity, and simple module
structure.
To achieve the user-friendly concept, the newly adopted height adjuster allows the adjustment of
the installation height up to 360 mm (14") at the process connection (flange) depending on the
tank shape and condition.
Various probe protections are available (pending)
• Standard flexible tube
• Steel armored flexible tube
• Nylon or Teflon outer tube (installation must be in protection pipe only)
W &M function The NMT 539 converter and temperature probe is custody transfer approved and provides less
than ±0.1 °C of measurement deviation. Once the NMT 539 is configured to "W&M mode", all the
changeable parameters are frozen by software and mechanical switch protection.
14 Endress+Hauser
Page 15

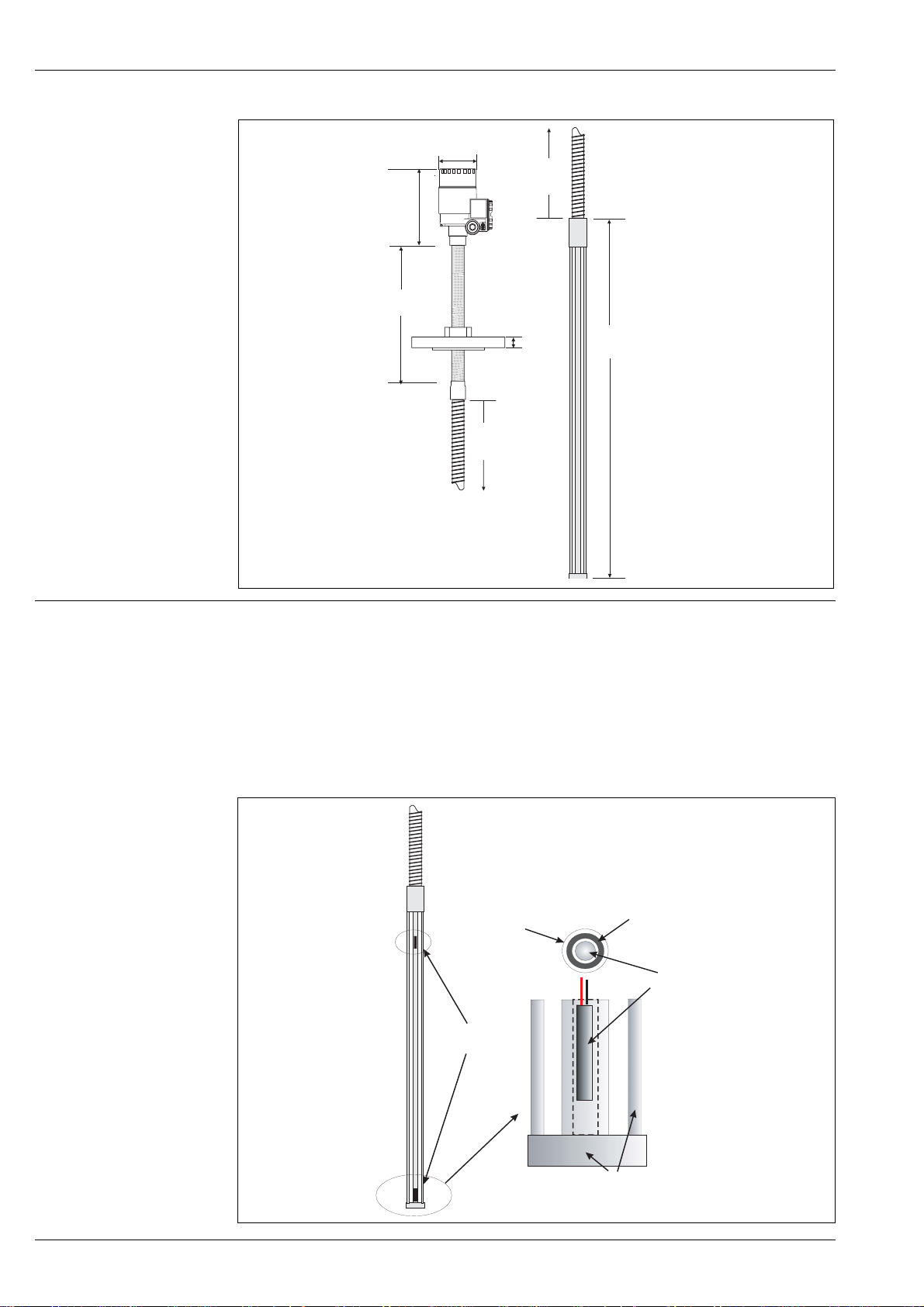

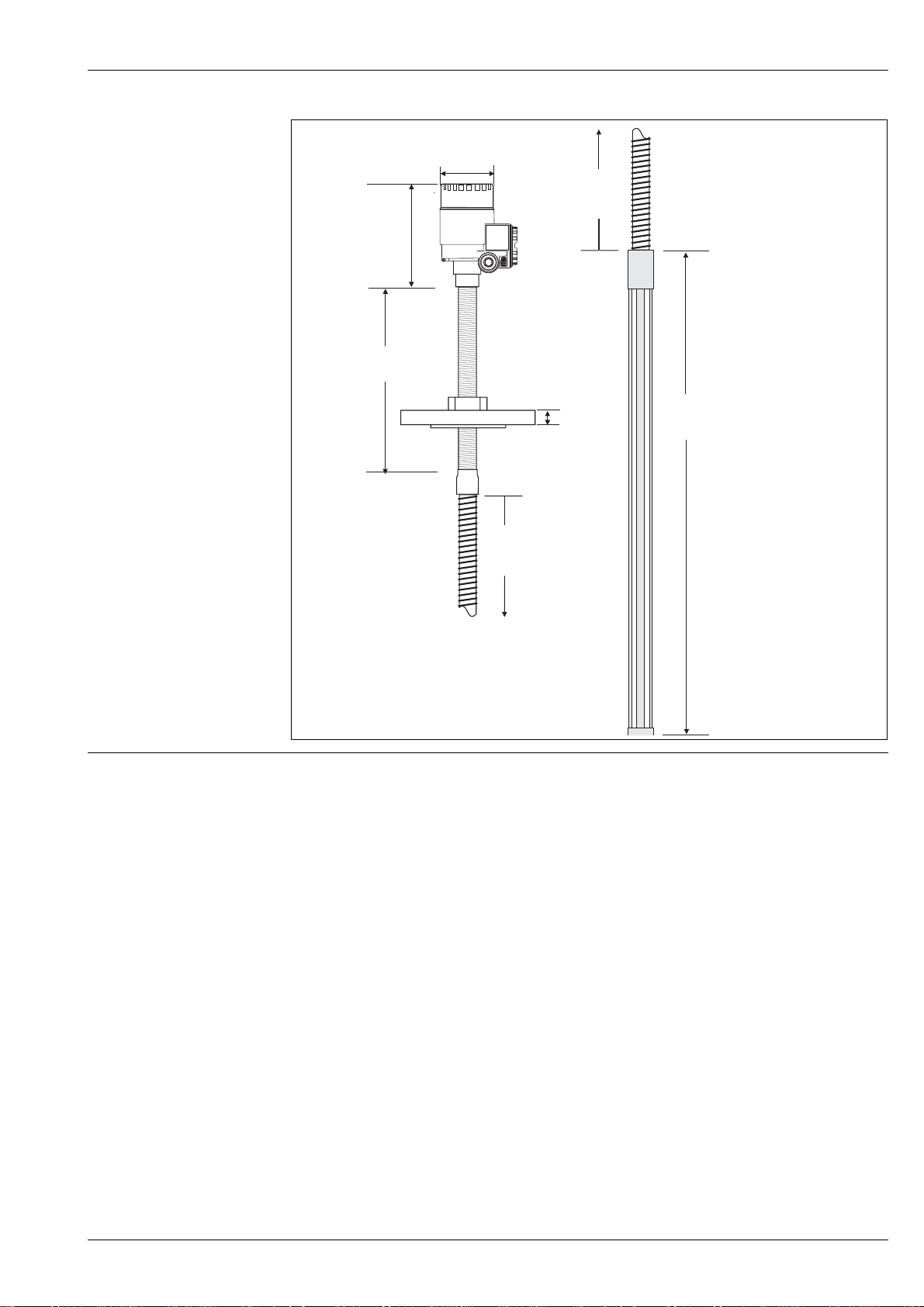

Converter + WB probe version
Prothermo NMT 539
184.5mm
360mm adjustable
installation height
104mm
Flexible tube
depends on the
tank height
Flexible tube
depends on the
tank height
15mm
1000, 2000mm
capacitance WB probe
Measuring function The Prothermo NMT 539 is a temperature measurement device, water interface measuring
capacitance probe and HART signal converter. The capacitance probe is important for the
detection of water below product (mainly crude oil) and determines water level by sensing the
dielectric constant of the product in the tank. Measured data is transmitted via coaxial cable to
the converter housing, and the capacitance signal is converted to a HART signal.
Note!
The HART signal converter and capacitance probe are designed and intended to work together.
Performance based on separate use or connection to other instruments is not guaranteed.
This version appears to have the exact physical dimensions as the Converter + Temp. + WB
version. However, Pt100 elements or signal cables to carry RTD data to the converter are not
integrated in the protection tube. Only a coaxial cable for capacitance signal is inserted.
Caution!
Due to the characteristic of capacitance measurement, precise initial calibration must be
performed in order to achieve the maximum measurement accuracy.
The condition of tank contents (both oil & water), liquid temperature and individual probe
characteristic can greatly effect the measurement performance.
Specific accuracy & repeatability measurement must be taken within the same environment in
order to perform data comparison.
Endress+Hauser 15
Page 16
Prothermo NMT 539
Converter + Temp. + WB probe version
184.5mm
360mm adjustable
installation height
104mm
Flexible tube
depends on the
tank height
15mm
Flexible tube
depends on the
tank height
1000, 2000mm
capacitance WB probe
Measuring function The Prothermo NMT 539 is available in the ultimate all-in-one "Converter + Temp. + WB" version.
Both temperature and WB data are fully accessible on one pair of HART communication lines. All
of the necessary parameters can be configured via Proservo NMS 53x, the Tank Side Monitor NRF
590 or the ToF tool.
The integrated WB sensor (capacitance water interface measurement) is set at the bottom of the
average temperature probe. The standard WB measurement ranges are 1m (3.3 ft) and 2m (6.6
ft). The tube structured WB sensor is made of SUS304 pipe and exterior is protected by an
additional 1mm thick teflon tube. Pt 100 elements are set inside of this tube structure, meaning
that temperature measurement is not disturbed due to the WB functionality.
PFA protection tube
(1mm thickness)
Up to 2 Pt100 element
can be inserted
Center rod
(SUS304 tube)
Pt100 element
Solid structured base plate &
side rods (SUS 316)
16 Endress+Hauser
Page 17
Terminal Connection
Screened twisted pair
or steel armored wire
Standard rubber plug:
to NMS53...
+ terminal 24
- terminal 25
Temp.(and / or WB) data
I.S. HART on NMT 539
+ : H1+ termnal
- : H1- terminal
Multi-drop HART loop
Daisy chain connection
+ : H2+ termnal
- : H2- terminal
to NRF 590
+ terminal 24, 26 or 28
- terminal 25, 27 or 29
Note!
Metal cable gland only:
Shield of HART communication
line must be grounded
Z1
H2-
H2+
H1-
H1+
Z2
Z3
AR1
H2-
H2+
H1-
H1+
NMT 539 terminal Note!
NMT 539 allows an intrinsically safe HART connection only. Please refer to the IS regulation for
establishing wiring & field device layout
.
Standard rubber plug:
Mast be replaced by metal cable gland
for loop terminal connection
Prothermo NMT 539
Screened twisted pair
Z1
AR1
Z2
Z3
H2-
H2+
H1-
H1+
or steel armored wire
Note!
Metal cable gland only:
Shield of HART communication
line must be grounded
to NRF 590
+ terminal 24, 26 or 28
- terminal 25, 27 or 29
to NMS53...
+ terminal 24
- terminal 25
NMS 53x terminal Since the Prothermo NMT 539 is an intrinsically safe instrument, the terminal connection to the
H2-
H2+
H1-
H1+
Temp.(and / or WB) data
+ : H2+ termnal
- : H2- terminal
I.S. HART on NMT 539
+ : H1+ termnal
- : H1- terminal
NMT 539 has convenient Daisy chain HART loop terminals that enable NMT 539 to be a terminal
junction of HART multi-drop instruments.
Ex i side on HART connection is allowed on the NMS terminal housing.
b
26
1
2
3
NRF
46
RC
8
10
12
B
25
P_A-
A
24
P_A+
-
23
22
OT2
OT2+
21
OT1-
20
OT1+
19
N.C.
18
CTR2
17
CTR1
16
COM
AL4
15
14
AL4
16
17
18
19
20
21
COM
HOIST
STOP
+
_
Operation
contact
input
4 ... 20 mA
Channel 1
22
23
24
25
26
+
_
+
Port_A+
A
_
Port_A-
B
b
4 ... 20 mA
Channel 2
IS HART
or
From NMT 539
ARS
L
L
ARS
N
G
GND
ARS
N
NRF-
+
5
A/+
RC
B/-
7
AL1
AL1
9
AL2
AL2
11
AL3
AL3
13
Port_B+
L
1
ARS
2
ARS
3
ARS
Power supply
AC 85 ... 264V 50/60Hz
or
DC 20 ... 62V AC20 ... 55V
N
G
L
G
N
+
4
Non IS HART
to NRF or others
_
5
Port_B-
+
Digital output
6
Rack bus RS485,
Serial pulse,
_
or
7
HART
+
8
Alarm contact
_
9
+
10
11
12
13
14
15
_
+
_
+
_
Alarm contact
Alarm contact
Alarm contact
Note!
Do not connect NMT 539 HART communication on terminal 4 & 5 on the Proservo NMS 53x. These
terminals are designed to connect Ex d HART communication.
Endress+Hauser 17
Page 18
Prothermo NMT 539
NRF 590 terminal
IS
Note!
The Tank Side Monitor NRF 590 has three sets of IS HART terminals. These three pairs are looped
internally.
Caution!
Do not connect signal HART lines from NMT 539 to terminal 30 & 31. They are designed to supply
drive power of FMR 53x series only.
18 Endress+Hauser
Page 19
Prothermo NMT 539
Certificates and approvals
CE approvals By attaching the CE - mark, Endress+Hauser Japan confirms that the instruments pass the
required tests.
Ex approvals See order information
W & M approval To be announced
External standards and
guide lines
Based on IEC 61326, Immunity according to table A-1
EN 61000-4-5
Immunity to surge on data lines
EN 61000-4-4
Immunity to burst on data lines
EN 61000-4-2
Immunity to electrostatic discharge
EN 61000-4-6
Immunity to conducted RF (high frequency) disturbance
EN 61000-4-3
Immunity to electromagnetic field disturbance
EN 61326/CISPR 16
Electromagnetic emission
Endress+Hauser 19
Page 20
Prothermo NMT 539
Ordering Information
Prothermo NMT 539
10 Protection class
0 Protection class IP 65
7 IS class1, Div.1, Gp. CD, FM... pending
8 Class1, Div.1, Gp. CD (Exi), CSA
A Ex ia IIB T4, TIIS... pending
B EEx ia IIB T2 -T6, ATEX
9 Special version
20 Measuring function
0 Converter only
1 Temperature + Converter
2 Water Bottom + Converter
3 Temperature + Water Bottom +Converter
4 Temperature + Converter (PTB, NMi T&W)...pending
5 Temperature + Water Bottom + Converter (PTB, NMi T&W)...pending
9 Special version
30 Temp. measuring range
0 Temp. device not selected
1 -40 ...+100 °C (-40 ...+212 °F)
2 -55 ...+235 °C (-67 ...+455 °F)
3 -200 ...+71 °C (-328 ...+160 °F)...pending
4 -18 ...+80 °C (-0.4 ...+176 °F) (W&M only)...pending
9 Special version
40 WB measuring range
0 WB device not selected
1 1m(3.3 ft)
2 2m(6.6 ft)
9 Special version
50 Cable entry
A G (PF) ½ x1, thread
B NPT ½ x1, thread
C PG16x1, thread
DM20x1, thread
Y Special version
60 Process connection
0 Flange JIS 10K 50A RF, carbon steel
1 Flange ANSI 2" 150Ibs RF, carbon steel
2 Flange DIN DN50 PN10 RF, carbon steel
3 Flange JPI2" 150Ibs RF,carbon steel
4 PF 3/4" (NPS 3/4"), universal coupling...Converter only Type 1
5 M20, thread...Converter only Type 2
9 Special version
70 Number of temp. element
A 2...Pt100 elements
B 3...Pt100 elements
C 4...Pt100 elements
D 5...Pt100 elements
E 6...Pt100 elements
F 7...Pt100 elements
G 8...Pt100 elements
H 9...Pt100 elements
J 10..Pt100 elements
K 11..Pt100 elements
L 12..Pt100 elements
M 13..Pt100 elements
N 14..Pt100 elements
O 15..Pt100 elements
P 16..Pt100 elements
Q Element not selected
Y Special version
NMT 539- Product designation (part 1)
20 Endress+Hauser
Page 21
Prothermo NMT 539
80 Element spacing
1 2000mm (79")
2 1500mm (59")
3 1000mm (39")
4 Custom element position & spacing
5 3000mm (118")
6 Spacing not selected
7 UK standard ( converter only)
9 Special version
90 1 to 30m (30,000mm) probe length (below flange to end of probe)
A ...mm probe Length
B probe not selected
Y Special version
100 Mounting attachment
A No installation material
B Anchor weight (Tall profile)
C Anchor weight (Low profile)
D Tensioning wire + wire hook + top anchor
Y Special version
NMT539- Complete product designation
Endress+Hauser 21
Page 22
Prothermo NMT 539
Accessories
Specific anchoring method only designed for converter & temperature probe version.
Anchor weight (Tall
profile) Mounting
Attachment option: B
Caution!
Installation of anchor weight will cause element position #1 (the lowest temperature measurement
position) to be raised approximately 500mm (20") from the tank floor.
Material
Weight: JIS SS400 mild carbon steel)
I-bolt: JIS SS400 mild carbon steel)
Weight
approx. 16kg
42mm (1.65")
222mm (8.74")
180mm (7.09")
120mm (4.72")
Anchor weight (Low
profile) Mounting
Attachment option: C
Different dimension, weight, and material anchor weight are also available. Consult your Endress
+ Hauser representative for further details.
The low profile anchor weight is mainly designed to stabilize the WB sensor, securing it straight
up without shortening the WB measuring range. There is also a version for an existing tank
installation with a small nozzle opening for converter and temperature version.
Material
Weight: JIS SS400 mild carbon steel)
I-bolt: JIS SS400 mild carbon steel)
Weight
approx. 12kg
1000mm (39.37")
41mm
(1.61")
22 Endress+Hauser
Page 23
Wire hook, Top anchor
Mounting Attachment
option: D
Material
JIS SS400 mild carbon steel)
Weight:
I-bolt:
JIS SS400 mild carbon steel)
Weight
approx. 1.5kg
21mm
(0.83")
Prothermo NMT 539
70 2mm (2.76"±0.08")±
9mm
(0.35")
150 2mm (5.91"±0.08")±
200
2mm (7.87"±0.08") ±
Actual tensioning can be completed with SUS316 stranded 3mm diameter tension wire between
Wire hook and Top anchor. Based on the application and installation variables, type of wire & size,
material, and special coatings are available. Please consult your Endress + Hauser representative
for further details.
Material
Exterior: ADC(aluminium)
Internal parts: Carbon steel
Weight
Approx. 1.2kg
52 ± 02mm
(2.05"± 0.08")
5mm (7.48"± 0.2")
±
190
1"
NPT
Note!
The standard process connection of the Top anchor is PT1" threaded connection. Different thread
size, material, and specification are available. Flange type connection is also available.
Endress+Hauser 23
Page 24
Prothermo NMT 539
Appendix
Stainless Steel
conversion table
The stainless steel material used in products of Endress + Hauser Japan normally have
expressions according to Japanese industrial standards, such as JIS or TIIS. Each countries or
regions may have different expressions place to place.
The following conversion table contains the expression of equivalent stainless steel material
based on the chemical composition and mechanical properties.
Country Standard Expressions
Japan JIS / TIIS SUS304 SUS304L SUS316 SUS316L
Germany DIN 17006 X5 CrNi 18 10
W.N. 17007 1.4301 1.4303 1.4306 1.4401 / 1.4436 1.4404
France AFNOR Z 6 CN 18-09 Z 2CN 18-10 Z 6 CND 17-11 / 17
Italy UNI X5 CrNi 1810 X2 CrNi 1911 X5 CrNiMo 1712 /
U.K. BSI 304S15 / 304S16 304S11 316S31 / 316S33 316S11
U.S.A. AISI 304 304 L 316 316L
U.E. EURONOR
Spai n UNE X6 CrNi 19-10 X2 CrNi 19-10 X6 CrNiMo 17-12-03 X2 CrNiMo 17-12-
Russia GOST 08KH18N10
- ISO 11 10 20 19
- ASME S30400 S30403 S31600 S31603
M
X5 CrNi 18 12
X6 CrNi 1810 X3 CrNi 1810 X6 CrNiMo 17 12 2 /
06KH18N11
X2 CrNi 18 11 X5 CrNiMo 17 12 2 /
03KH18N11 _ 03KH17N14M2
1713 3
12
1713
17 13 3
X2 CrNiMo 17 13
2
Z2 CND 17-12
X2 CrNiMo 1712
X3 CrNiMo 17 12
2
03
Note!
Since each standard carries own mechanical and scientific definition, some expressions may not
have the straight conversion from the Japanese standard. Consult with the local authority or
legislature to ensure the proper comparison with the applied standard prior to determining
specification.
24 Endress+Hauser
Page 25
Prothermo NMT 539
Endress+Hauser Japan Co., Ltd
862-1 Mitsukunugi,
Sakaigawa-cho, Fuefuki-shi,
Yamanashi 406-0846
Japan
Phone: ++81-55-266-4964
Fax: ++81-55-266-4969
www.jp.endress.com
Technical Information
TI042N/08/EN/04.06
Loading...
