Omnigrad M TR11

Modular RTD assembly
protection tube, thread

Application

• Universal range of application

• Measuring range: -200...600 °C (-328...1112 °F)

• Pressure range up to 75 bar (1088 psi)

• Degree of protection: up to IP 68

Head transmitters

All Endress+Hauser transmitters are available with enhanced accuracy and reliability
compared to directly wired sensors. Easy customizing by choosing one of the following
outputs and communication protocols:

• Analog output 4...20 mA

•HART

•PROFIBUS® PA

•FOUNDATION Fieldbus™

Your benefits

• High flexibility due to modular assembly with standard terminal heads and

• Highest possible compatibility with a design according to DIN 43772

• Fast response time with reduced/tapered tip form

• Types of protection for use in hazardous locations:

®

customized immersion length

Intrinsic Safety (Ex ia)
Non-Sparking (Ex nA)

TR11

Function and system design

Measuring principle These resistance thermometers use a Pt100 temperature sensor according to IEC 60751. This temperature

sensor is a temperature-sensitive platinum resistor with a resistance of 100  at 0 °C (32 °F) and a
temperature coefficient  = 0.003851 °C

There are generally two different kinds of platinum resistance thermometers:

• Wire wound (WW): Here, a double coil of fine, high-purity platinum wire is located in a ceramic
support. This is then sealed top and bottom with a ceramic protective layer. Such resistance
thermometers not only facilitate very reproducible measurements but also offer good long-term
stability of the resistance/temperature characteristic within temperature ranges up to 600 °C (1112
°F). This type of sensor is relatively large in size and it is comparatively sensitive to vibrations.

• Thin film platinum resistance thermometers (TF): A very thin, ultrapure platinum layer, approx. 1
μm thick, is vaporized in a vacuum on a ceramic substrate and then structured photolithographically.
The platinum conductor paths formed in this way create the measuring resistance. Additional
covering and passivation layers are applied and reliably protect the thin platinum layer from
contamination and oxidation even at high temperatures.

The primary advantages of thin-film temperature sensors over wire wound versions are their smaller
sizes and better vibration resistance. A relatively low principle-based deviation of the resistance/
temperature characteristic from the standard characteristic of IEC 60751 can frequently be observed
among TF sensors at high temperatures. As a result, the tight limit values of tolerance category A as
per IEC 60751 can only be observed with TF sensors at temperatures up to approx. 300 °C (572 °F). For
this reason, thin-film sensors are generally only used for temperature measurements in ranges below
400 °C (932 °F).

-1

.

Measuring system

a0009536

Example of an application

A Built-in RTD assembly TR11 with head transmitter
B RIA261 Field display

– The display measures an analog measurement signal and indicates this on the display. The display is

connected in a 4 to 20 mA current loop and also derives its supply from the loop. The voltage drop is almost
negligible (< 2.5 V). The dynamic internal resistance (load) makes sure that independently from the loop
current, the maximum voltage drop is never exceeded. The analog signal at the input is digitalized, analyzed,
and shown in the rear illuminated display. For details see Technical Information (see chapter
"Documentation").

C Active barrier RN221N

– The RN221N active barrier (24 V DC, 30 mA) has a galvanically isolated output for supplying voltage to loop

powered transmitters. The power supply has a wide-range input for mains power, 20 to 250 V DC/AC,
50/60 Hz to be used in any electrical circuit. For details see Technical Information (see chapter
"Documentation").

2 Endress+Hauser

TR11

Equipment architecture

Equipment architecture of the Omnigrad M TR11

Various tip shapes - detailed information see chapter ’tip

1 2Insert ( 3 mm, 0.12 in) with mounted head

transmitter, for example
Insert ( 6 mm, 0.24 in) with mounted ceramic
terminal block, for example

3 Terminal head L Immersion length
4 Protection armature IL Insertion length = L + 45 mm (1.8 in)
5 Threads as process connection

6

shape’:

6a

Reduced or tapered for inserts with  3 mm (0.12 in)

6b

Straight or tapered for inserts with  6 mm (0.24 in)

E

Neck tube = 35 mm (1.4 in)

a0009537

The Omnigrad M TR11 RTD assemblies are modular. The terminal head serves as a connection module
for the protection armature in the process as well as for the mechanical and electrical connection of the
measuring insert. The actual RTD sensor element is fitted in and mechanically protected within the
insert. The insert can be exchanged and calibrated even during the process. Either ceramic terminal
blocks or transmitters can be fitted to the internal base washer. TR11 RTD assemblies are constructed
without a neck.

Measurement range -200...+600 °C (-328...+1112 °F)

Performance characteristics

Operating conditions Ambient temperature

Terminal head Temperature in °C (°F)

Without mounted head transmitter Depends on the terminal head used and the cable gland or fieldbus

With mounted head transmitter -40 to 85 °C (-40 to 185 °F)

With mounted head transmitter and dis­play

connector, see 'Terminal heads' section,   10

-20 to 70 °C (-4 to 158 °F)

Endress+Hauser 3

TR11

Process pressure

The pressure values to which the actual protection tube can be subjected at the various temperatures
and maximum permitted flow velocity are illustrated by the figure below. Occasionally, the pressure
loading capacity of the process connection can be considerably lower. The maximum allowable process
pressure for a specific thermometer is derived from the lower pressure value of the thermowell and
process connection.

a0008604-en

Maximum permitted process pressure for tube diameter, limited to 75 bar (1088 psi) by the threaded process connection
– Protection tube diameter 9 x 1 mm (0.35 in) ----------­– Protection tube diameter 12 x 2.5 mm (0.47 in) - - - - - -

A Medium water at T = 50 °C (122 °F) P Process pressure
BLMedium superheated steam at T = 400 °C (752 °F)

Immersion length

Maximum permitted process pressure,

P

max.

limited by the process connection

Maximum flow velocity

The highest flow velocity tolerated by the protection tube diminishes with increasing immersion length
exposed to the stream of the fluid. Detailed information may be taken from the figures below.

a0008605-en

Flow velocity depending on the immersion length
– Protection tube diameter 9 x 1 mm (0.35 in) ----------­– Protection tube diameter 12 x 2.5 mm (0.47 in) - - - - - -

A Medium water at T = 50 °C (122 °F) L Immersion length
B Medium superheated steam at T = 400 °C (752 °F) v Flow velocity

4 Endress+Hauser

TR11

Shock and vibration resistance

Endress+Hauser inserts comply the IEC 60751 requirements stating a shock and vibration resistance
of 3g within a range of 10...500 Hz.
The vibration resistance of the measurement point depends on sensor type and construction. Refer to
the following table:

Sensor type Vibration resistance for the thermowell tip

• Pt100 (WW or TF)) • 30 m/s² (3g)

•iTHERM

•iTHERM

®

StrongSens Pt100 (TF)

®

QuickSens Pt 100 (TF), version Ø 6

mm (0.24 in)

1) Vibration resistance valid also for iTherm Quickneck.

Accuracy RTD corresponding to IEC 60751

1)

• > 600 m/s² (60g)

Class max. Tolerances

(°C)

RTD max. error type TF - range:

Cl. A ± (0,15 + 0,002 · |t|1))

Cl. AA, for-

± (0,1 + 0,0017 · |t|

1)

mer
1/3 Cl. B

1)

Cl. B ± (0,3 + 0,005 · |t|

)

Characteristics

)

a0008588-DE

1) |t| = absolute value °C

For measurement errors in °F, calculate using equations above in °C, then multiply the outcome
by 1.8.

Endress+Hauser 5

TR11

Response time Tests in water at 0.4 m/s (1.3 ft/s), according to IEC 60751; 10 K temperature step change. Measuring

probe Pt100, TF/WW:

Protection tube

Diameter Response

time

9 x 1 mm (0.35
in)

11 x 2 mm
(0.43 in)

12 x 2.5 mm
(0.47 in)

t

50

t

90

t

50

t

90

t

50

t

90

Reduced tip
 5.3 mm (0.2 in)

7.5 s
21 s

7.5 s
21 s

not available
not available

Tapered tip

 6.6 mm (0.26 in) or
 9 mm (0.35 in)

11 s
37 s

not available
not available

11 s
37 s

Straight tip

18 s
55 s

18 s
55 s

38 s
125 s

Response time for the sensor assembly without transmitter.

Insulation resistance Insulation resistance 100 M at ambient temperature.

Insulation resistance between each terminal and the sheath is measured with a voltage of 100 V DC.

Self heating RTD elements are passive resistances that are measured using an external current. This measurement

current causes a self heating in the RTD element itself which in turn creates an additional
measurement error. In addition to the measurement current the size of the measurement error is also
affected by the temperature conductivity and flow velocity of the process. This self heating error is
negligible when an Endress+Hauser iTEMP

®

temperature transmitter (very small measurement

current) is connected.

Calibration specifications Endress+Hauser provides comparison temperature calibration from -80 to +600 °C (-110 °F to 1112

°F) based on the International Temperature Scale (ITS90). Calibrations are traceable to national and
international standards. The calibration report is referenced to the serial number of the thermometer.
Only the measurement insert is calibrated.

Insert-Ø:
6 mm (0.24 in) and 3 mm (0.12 in)

Temperature range without head transmitter with head transmitter

-80 °C to -40 °C (-110 °F to -40 °F) 200 (7.87)

-40 °C to 0 °C (-40 °F to 32 °F) 160 (6.3)

0 °C to 250 °C (32 °F to 480 °F) 120 (4.72) 150 (5.9)

250 °C to 550 °C (480 °F to 1020 °F) 300 (11.81)

550 °C to 650 °C (1020 °F to 1202 °F) 400 (15.75)

Minimum insertion length IL in mm (in)

6 Endress+Hauser

TR11

Material Protection tube, measuring insert.

The temperatures for continuous operation specified in the following table are only intended as
reference values for use of the various materials in air and without any significant compressive load.
The maximum operation temperatures are reduced considerably in some cases where abnormal
conditions such as high mechanical load occur or in aggressive media.

Material
name

AISI 316L/

1.4404

1.4435

AISI
316Ti/

1.4571

1) Can be used to a limited extent up to 800 °C (1472 °F) for low compressive loads and in non-corrosive media. Please contact your Endress+Hauser

Short form Recommended

max. temperature
for continuous use
in air

650 °C (1200 °F)
X2CrNiMo17-12-2
X2CrNiMo18-14-3

X6CrNiMoTi17-12-2700 °C (1292 °F)

sales team for further information.

Properties

1)

• Austenitic, stainless steel

• High corrosion resistance in general

• Particularly high corrosion resistance in chlorine-based and acidic, non-oxidizing
atmospheres through the addition of molybdenum (e.g. phosphoric and sulfuric acids, acetic
and tartaric acids with a low concentration)

• Increased resistance to intergranular corrosion and pitting

• Compared to 1.4404, 1.4435 has even higher corrosion resistance and a lower delta ferrite
content

1)

• Properties comparable to AISI316L

• Addition of titanium means increased resistance to intergranular corrosion even after
welding

• Broad range of uses in the chemical, petrochemical and oil industries as well as in coal
chemistry

• Can only be polished to a limited extent, titanium streaks can form

Transmitter specifications

TMT180

PCP

Pt100

Measurement accuracy 0.2 °C (0.36 °F), optional

0.1 °C (0.18 °F) or 0.08%

% is related to the adjusted measurement range (the larger value applies)

Sensor current I  0.6 mA I  0.2 mA I  0.3 mA

Galvanic isolation (input/
output)

- U = 2 kV AC

TMT181

PCP

Pt100, TC, , mV

0.2 °C (0.36 °F) or 0.08% 0.1 °C (0.18 °F)

TMT182

®

HART

Pt100, TC, , mV

TMT84 PA / TMT85 FF

Pt100, TC, , mV

Transmitter long-term stability

 0.1 °C/year ( 0.18 °F / year) or  0.05% / year
Data under reference conditions; % relates to the set span. The larger value applies.

Endress+Hauser 7

Components

TR11

Family of temperature transmitters

Thermometers fitted with iTEMP® transmitters are an installation ready complete solution to improve
temperature measurement by increasing accuracy and reliability, when compared to direct wired
sensors, as well as reducing both wiring and maintenance costs.

PC programmable head transmitter TMT180 and TMT181

They offer a high degree of flexibility, thereby supporting universal application with low inventory
storage. The iTEMP

®

transmitters can be configured quickly and easily at a PC. Endress+Hauser offers
the ReadWin® 2000 configuration software for this purpose. This software can be downloaded free of
charge at www.readwin2000.com. More information can be found in the Technical Information (see
"Documentation" section).

®

TMT182 head transmitter

HART

HART® communication is all about easy, reliable data access and getting additional information about
the measurement point more inexpensively. iTEMP® transmitters integrate seamlessly into your
existing control system and provide painless access to numerous diagnostic information.
Configuration with a hand-held (Field Xpert SFX100 or DXR375) or a PC with configuration program
(FieldCare, ReadWin

®

2000) or configure with AMS or PDM. Details see Technical Information (see

chapter ’Documentation’).

Type of transmitter Specification

®

iTEMP

TMT18x

• Material: Housing (PC), Potting (PUR)

• Terminals: Cable up to max.  1.75 mm
with wire end ferrules

• Eyelets for easy connection of a HART
alligator clips

• Degree of protection NEMA 4 (see also type of terminal head)

Details see Technical Information (see chapter ’Documentation’)

2

/ 16 AWG (secure screws) or

®

-handheld terminal with

R09-TMT182ZZ-06-06-xx-en-00 1

®

PROFIBUS

Universally programmable head transmitter with PROFIBUS

PA TMT84 head transmitter

®

PA communication. Converting various
input signals into a digital output signal. High accuracy over the complete ambient temperature range.
Swift and easy operation, visualization and maintenance using a PC directly from the control panel, e.
g. using operating software such as FieldCare, Simatic PDM or AMS.
Benefits are: dual sensor input, highest reliability in harsh industrial environments, mathematic
functions, thermometer drift monitoring, sensor back-up functionality, sensor diagnosis functions and
sensor-transmitter matching using Callendar-Van Dusen coefficients. Details see Technical
Information (see chapter ’Documentation’).

FOUNDATION Fieldbus™ TMT85 head transmitter

Universally programmable head transmitter with FOUNDATION Fieldbus™ communication.
Converting various input signals into a digital output signal. High accuracy over the complete ambient
temperature range. Swift and easy operation, visualization and maintenance using a PC directly from
the control panel, e. g. using operating software such as ControlCare from Endress+Hauser or the NI
Configurator from National Instruments.
Benefits are: dual sensor input, highest reliability in harsh industrial environments, mathematic
functions, thermometer drift monitoring, sensor back-up functionality, sensor diagnosis functions and
sensor-transmitter matching using Callendar-Van Dusen coefficients. Details see Technical
Information (see chapter ’Documentation’).

8 Endress+Hauser

TR11

Type of transmitter Specification

®

iTEMP

TMT84 and TMT85

Pluggable display TID10 as option

• Spring range L  5 mm (0.2"), see Pos. A

• Fixing elements for pluggable measured value display, see Pos. B

• Interface for contacting measured value display, see Pos. C

• Material (RoHS-compliant)
Housing: PC
Potting: PU

•Terminals:
Screw terminals (cable up to max.  2.5 mm
or spring terminals (e. g. from 0.25 mm
AWG for flexible wires with wire-end ferrules with plastic ferrule)

• Degree of protection NEMA 4 (see also type of terminal head)

a0007301-en

Details see Technical Information (see chapter ’Documentation’)

• Displays the actual measured value and the measurement point
identification

• Displays fault events in inverse color with channel ident and diagnostics
code

• DIP-switches on the rear for hardware set-up, e. g. PROFIBUS
address

Display is only available with suitable terminal head with display
window, e.g. TA30.

2

/ 16 AWG)

2

to 0.75 mm2/ 24 AWG to 18

®

PA bus

a0009955

Endress+Hauser 9

TR11

Terminal heads All terminal heads have an internal shape and size in accordance with DIN EN 50446, flat face and a

thermometer connection of M24x1.5.
All dimensions in mm (in). The cable glands in the diagrams correspond to M20x1.5 connections.
Specifications without head transmitter installed. For ambient temperatures with head transmitter
installed, see ’Operating conditions’ section.

TA30A Specification

• Degree of protection: IP66/68

• Degree of protection: IP66/67 (for ATEX)

• Max. temperature: 150 °C (300 °F)

• Material: aluminum, polyester powder coated
Seals: silicone

• Cable entry incl. glands: ½" NPT and M20x1.5, only thread: G
½",
plugs: M12x1 PA, 7/8" FF

• Protection armature connection: M24x1.5

• Head color: blue RAL 5012

• Cap color: grey RAL 7035

• Weight: 330 g (11.64 oz)

a0009820

TA30A with display window Specification

• Degree of protection: IP66/68

• Degree of protection: IP66/67 (for ATEX)

• Max. temperature: 150 °C (300 °F)

• Material: aluminum, polyester powder coated
Seals: silicone

• Cable entry incl. glands: ½" NPT and M20x1.5, only thread: G
½",
plugs: M12x1 PA, 7/8" FF

• Protection armature connection: M24x1.5

• Head color: blue RAL 5012

• Cap color: grey RAL 7035

• Weight: 420 g (14.81 oz)

• Head transmitter optional with TID10 display

a0009821

TA30D Specification

• Degree of protection: IP66/68

• Degree of protection: IP66/67 (for ATEX)

• Max. temperature: 150 °C (300 °F)

• Material: aluminum, polyester powder coated
Seals: silicone

• Cable entry incl. glands: ½" NPT and M20x1.5, only thread: G
½",
plugs: M12x1 PA, 7/8" FF

• Protection armature connection: M24x1.5

• Two head transmitters can be mounted. In the standard
version, one transmitter is mounted in the terminal head
cover and an additional terminal block is installed directly on
the insert.

• Head color: blue RAL 5012

• Cap color: grey RAL 7035

• Weight: 390 g (13.75 oz)

a0009822

10 Endress+Hauser

TR11

TA30P Specification

• Degree of protection: IP65

• Max. temperature: 120 °C (248 °F)

• Material: polyamide (PA), antistatic
Seals: silicone

•Cable entry: M20x1.5

• Head and cap color: black

• Weight: 135 g (4.8 oz)

• Types of protection for use in hazardous locations: Intrinsic
Safety (Ex ia)

a0012930

TA20B Specification

• Degree of protection: IP65

• Max. temperature: 80 °C (176 °F)

• Material: polyamide (PA)

• Cable entry: M20x1.5

• Head and cap color: black

• Weight: 80 g (2.82 oz)

®

•3-A

marked

a0008663

TA21E Specification

• Degree of protection: IP65

• Max. temperature: 130 °C (266 °F) silicone, 100 °C (212 °F)
rubber (observe max. permitted temperature of the cable
gland!)

• Material: aluminum alloy with polyester or epoxy coating;
rubber or silicone seal under the cover

• Cable entry: M20x1.5 or plug M12x1 PA

• Protection armature connection: M24x1.5, G ½" or NPT ½"

• Head color: blue RAL 5012

• Cap color: grey RAL 7035

• Weight: 300 g (10.58 oz)

®

•3-A

marked

a0008669

Endress+Hauser 11

TA20R Specification

• Degree of protection: IP66/67

• Max. temperature: 100 °C (212 °F)

• Material: SS 316L (1.4404) stainless steel

• Cable entry: ½" NPT, M20x1.5 or plug M12x1 PA

• Head and cap color: stainless steel

• Weight: 550 g (19.4 oz)

•LABS - free

®

3-A

marked

a0008667

Maximum ambient temperatures for cable glands and fieldbus connectors

Type Temperature range

Cable gland ½" NPT, M20x1.5 (non Ex) -40 to +100 °C (-40 to +212 °F)

Cable gland M20x1.5 (for dust ignition-proof area) -20 to +95 °C (-4 to +203 °F)

Fieldbus connector (M12x1 PA, 7/8" FF) -40 to +105 °C (-40 to +221 °F)

TR11

Protection tube All dimensions in mm (in).

a0009539

Dimensions of the Omnigrad M TR11

A Model with terminal block mounted  X Protection tube diameter
B Model with head transmitter mounted E Neck tube = 35 mm (1.4 in)
C Model with flying leads L Immersion length
 ID Insert diameter IL Insertion length = L + 45 mm (0.4 in)

12 Endress+Hauser

TR11

Tip shape

Ø7 (0.28)

Ø12x2.5
(0.47)

6.1 (0.24)

5(0.2)

3

0.43)Ø11x2 (

1-2.5 (0.04-0.1)

6

1

Ø9x1

(0.35)

11x2 (0.43)

Ø

3.2 (0.13)

40 (1.6)

3 (0.12)

Ø5.3 (0.21)

4

0
2

(0.8)

40 (1.6)

Ø6.6 (0.26)

Available versions of protection tube tips (reduced, straight, tapered). Maximum surface roughness  Ra 0.8 μm (31.5 μin)

Ø9x1
(0.35)

~3.5
(0.14)

3

20 (0.8)

(0.12)

2

Ø9x1
(0.35)

(0.12)
3

Ø5.3 (0.21)

Ø9x1 (0.35)

Ø12x2.5 (0.47)

3.2

(0.13)

5

35 (1.34)

50 (1.97)

Ø9 (0.35)

a0008621

Pos. No. Tip shape,

L = Immersion length

1 Reduced, L  65 mm (2.56 in)  3 mm (0.12 in)

2 Reduced, L  45 mm (1.77 in)  3 mm (0.12 in)

3 Straight as per DIN43772  6 mm (0.24 in)

4 Tapered, L  85 mm (3.35 in)  3 mm (0.12 in)

5 Tapered as per DIN43772,

L  110 mm (4.33 in)

6 Welded tip, weld quality according to EN ISO 5817 - quality class B

Weight From 0.5 to 2.5 kg (1 to 5.5 lbs) for standard options.

Insert diameter

 6 mm (0.24 in)

Endress+Hauser 13

Process connection

TR11

Process connection Version Thread length

Cylindrical

(version G, M)

Conical

(version NPT, R)

M M20x1.5 14 (0.55) 27

G G3/8" BSP 12 (0.47) 27

G½" DIN / BSP 15 (0.6) 32

G¾" BSP

NPT NPT ½" 8 (0.32) 22

NPT ¾" 8.5 (0.33) 27

a0009540

TL in mm (inch)

Width across
flats
SW / AF

Length E in mm
(inch)

35 (1.4)

Spare parts • A thermowell is available as spare part TW11 (see Technical Information in chapter

’Documentation’).

• The RTD insert is available as spare part TPR100 (see Technical Information in chapter
’Documentation’).

If spare parts are required, refer to the following equation: Insertion length IL = L + 45 mm (1.8 in)

Spare part Material-No.

Gasket M21-G½", copper 60001328

Gasket M27-G¾", copper 60001344

Gasket set M24x1.5, aramid+NBR (10 pieces) 60001329

14 Endress+Hauser

TR11

Wiring

Wiring diagrams Type of sensor connection

Head mounted transmitter TMT18x (single input)

T09-TH1112xx-04-xx-XX-ae-000

Head mounted transmitter TMT84 and TMT85 (dual input)

Terminal block mounted

a0008848-en

a0008591-en

Endress+Hauser 15

Installation conditions

Orientation No restrictions.

Installation instructions

TR11

a0009538

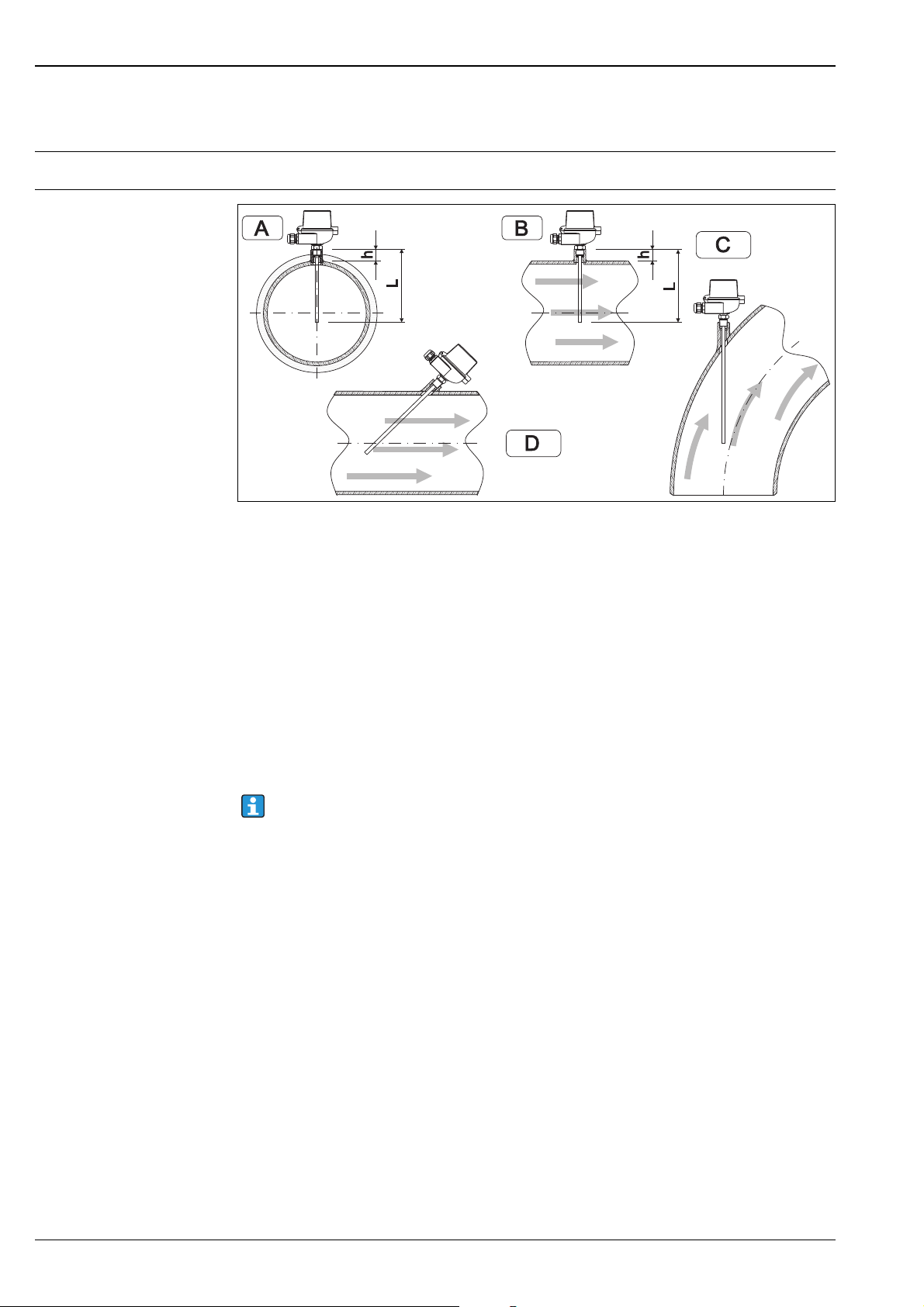

Installation examples

A - B: In pipes with a small cross section the sensor tip should reach or extend slightly past the center line of the pipe (= L).
C - D: Tilted installation.

The immersion length of the thermometer influences the accuracy. If the immersion length is too small
then errors in the measurement are caused by heat conduction via the process connection and the
container wall. If installing into a pipe then the immersion length must be half of the pipe diameter,
ideally.

• Installation possibilities: Pipes, tanks or other plant components

• Minimum immersion length = 80 to 100 mm (3.15 to 3.94 in)
The immersion length should correspond to at least 8 times of the thermowell diameter. Example:
Thermowell diameter 12 mm (0.47 in) x 8 = 96 mm (3.8 in). A standard immersion length of 120
mm
(4.72 in) is recommended

• ATEX certification: Always take note of the installation regulations!

When operating in small nominal bore pipes it must be guaranteed that the thermowell tip is
extending far enough into the process to reach out past the pipe center line (see Pos. A and
B). A further solution could be an angled (tilted) installation (see Pos. C and D). When deter­mining the immersion length all thermometer parameters and the process to be measured
must be taken into account (e.g. flow velocity, process pressure).

16 Endress+Hauser

TR11

Certificates and approvals

CE Mark The device meets the legal requirements of the EC directives if applicable. Endress+Hauser confirms

that the device has been successfully tested by applying the CE mark.

Hazardous area approvals For further details on the available Ex versions (ATEX, CSA, FM, etc.), please contact your nearest

Endress+Hauser sales organization. All relevant data for hazardous areas can be found in separate Ex
documentation. If required, please request copies.

Other standards and guidelines

PED approval The thermometer complies with paragraph 3.3 of the Pressure Equipment Directive (97/23/CE) and

Material certification The material certificate 3.1 (according to standard EN 10204) can be directly selected from the sales

Test on thermowell Thermowell pressure tests are carried out in accordance with the specifications in the DIN 43772

• IEC 60529:
Degrees of protection by housing (IP-Code).

• IEC 61010-1:
Safety requirements for electrical measurement, control and laboratory instrumentation.

• IEC 60751:
Industrial platinum resistance thermometer

• DIN43772:
Thermowells

• DIN EN 50446, DIN 47229:
Terminal heads

• IEC 61326-1:
Electromagnetic compatibility (EMC requirements)

is not marked separately.

structure of the product and refers to the parts of the sensor in contact with the process fluid. Other
types of certificates related to materials can be requested separately. The "short form" certificate
includes a simplified declaration with no enclosures of documents related to the materials used in the
construction of the single sensor and guarantees the traceability of the materials through the
identification number of the thermometer. The data related to the origin of the materials can
subsequently be requested by the client if necessary.

standard. With regards to thermowells with tapered or reduced tips that do not comply with this
standard these are tested using the pressure of corresponding straight thermowells. Sensors certified
for use in Ex Zones, are always tested to pressures according to the same criteria. Tests according to
other specifications can be carried out on request. Dye penetration tests verify the absence of cracks on
the thermowell welding.

Test report and calibration The "Factory calibration" is carried out according to an internal procedure in a laboratory of

Endress+Hauser accredited by the European Accreditation Organization (EA) to ISO/IEC 17025. A
calibration which is performed according to EA guidelines (SIT or DKD calibration) may be requested
separately. The calibration is performed on the replaceable insert of the thermometer. In the case of
thermometers without a replaceable insert, the entire thermometer - from the process connection to
the tip of the thermometer - is calibrated.

Endress+Hauser 17

Ordering information

Detailed ordering information is available from the following sources:

• In the Product Configurator on the Endress+Hauser website:
www.endress.com → Select country → Instruments → Select device → Product page function:
Configure this product

• From your Endress+Hauser Sales Center:
www.endress.com/worldwide

Product Configurator - the tool for individual product configuration:

•Up-to-the-minute configuration data

•Depending on the device: Direct input of measuring point-specific information such as
measuring range or operating language

•Automatic verification of exclusion criteria

•Automatic creation of the order code and its breakdown in PDF or Excel output format

•Ability to order directly in the Endress+Hauser Online Shop

Documentation

TR11

Technical Information:

• RTD Insert for Temperature Sensor Omniset TPR100 (TI268t/02/en)

• Thermowell for temperature sensors Omnigrad M TW11 (TI262t/02/en)

• Temperature head transmitter:
–iTEMP
–iTEMP® Pt TMT180 (TI088r/09/en)
–iTEMP® HART® TMT182 (TI078r/09/en)
–iTEMP
– iTEMP® TMT85 FF (TI134r/09/en)

Hazardous area supplementary documentation:

• Omnigrad TRxx RTD Thermometer ATEX II1GDor II 1/2GD (XA072r/09/a3)

• Omnigrad TRxx, Omniset TPR100, TET10x, TPC100, TEC10x ATEX II 3GD EEx nA (XA044r/09/a3)

Application example Technical Information:

• Field display RIA261 (TI083r/09/en)

• Active barrier with power supply RN221N (TI073R/09/en)

®

PCP TMT181 (TI070r/09/en)

®

TMT84 PA (TI138r/09/en)

18 Endress+Hauser

TR11

Endress+Hauser 19

TR11

www.addresses.endress.com
