Temperature head transmitter
for resistance thermometers Pt100
Configurable using a PC, for installation in a
terminal head, form B
Application
• PC-programmable (PCP) temperature head transmitter for converting a Pt100
input signal to an analog, scalable 4 to 20 mA output signal
• Input: Resistance thermometer Pt100
• Online configuration using a PC with configuration kit and PC software
Your benefits
• Universally PC-programmable for Pt100 input signal
• Two-wire technology, analog output 4 to 20 mA
• High level of accuracy over the entire operating temperature range
• Fault signal in the event of sensor break or sensor short circuit, presettable to
NAMUR NE 43
• EMC according to IEC/EN 61326-1, CE
• Online configuration during operation with SETUP connector
• Customer-specific measuring range setting
• DNV GL marine approval
• UL approval
• CSA GP (General Purpose)
Page 2
Function and system design
iTEMP TMT180
Measuring principle
Measuring system
Measured variable
Measuring range
Electronic recording and conversion of Pt100 input signals in industrial temperature measurement.
The iTEMP TMT180 temperature head transmitter is a two-wire transmitter with an analog output
and measurement input for Pt100 in 2-, 3-, or 4-wire connection. The device is set up using a
configuration kit and the ReadWin 2000 operating software which is free-of-charge.
Input
Temperature (temperature-linear transmission behavior)
DescriptionMeasuring range limitsMin. span
Pt100
as per IEC 60751
• Connection type: 2-, 3- or 4-wire connection
With 2-wire circuit, compensation of wire resistance possible (0 to 20 Ω )
• Sensor breakage; sensor short circuit:
≤ 3.6 mA or ≥ 21.0 mA (if setting is ≥ 21.0 mA an output current ≥ 21.5 mA is guaranteed)
• Underranging:
Linear drop to 3.8 mA
• Overranging:
Linear rise to 20.5 mA
Max. (V
≤ 3.5 mA
≤ 23 mA
4 s (during power up Ia = 3.8 mA)
power supply
- 10 V) / 0.022 A (Current output)
2Endress+Hauser
Page 3
iTEMP TMT180
3
5
6
RTD
3
4
5
6
RTD
3
6
RTD
SETUP
1
2
2-wire
3-wire
4-wire
10 to 35 V DC
4 to 20 mA
Terminal assignment
Power supply
A0018204-EN
1Head transmitter terminal assignment
Supply voltage
Residual ripple
Response time
Reference operating
conditions
Maximum measured error
Ub = 10 to 35 VDC, reverse polarity protection
Permitted ripple Uss ≤ 3 V at Ub ≥ 13 V, f max. = 1 kHz
Performance characteristics
1 s
Calibration temperature: +25 °C (+77 °F) ± 5 K (9 °F)
The data relating to the measured error are typical values and correspond to a standard deviation of
± 3σ (normal distribution), i.e. 99.8% of all measured values achieve the specified values or better
values. Percentage values refer to the set span. The larger value is valid.
DescriptionAccuracy
RTD assembly
RTD
1)optional
Pt100 –200 to +650 °C (–328 to +1202 °F)0.2 K or 0.08%
1)
Pt100
–50 to 250 °C (–58 to +482 °F)0.1 K or 0.08%
Pt100 –200 to +250 °C (–328 to +482 °F)0.2 K or 0.08%
Influence of the supply
≤ ±0.01%/V deviation from 24 V
1)
voltage
2)
or ≤ 0.05%/Year
Long-term drift
Influence of ambient
temperature
1)All data is related to a full scale value
2)Under reference operating conditions
3)% is related to the set span. The larger value is valid.
Δθ = Deviation of the ambient temperature from the reference operating condition (+25 °C (+77 °F)
± 5 K (9 °F)).
Influence of load
Mounting location
≤ ±0.02%/100 Ω
2)
Installation
Orientation
Ambient temperature range
Storage temperature
Humidity
Climate class
Degree of protection
Shock and vibration
resistance
A0008035

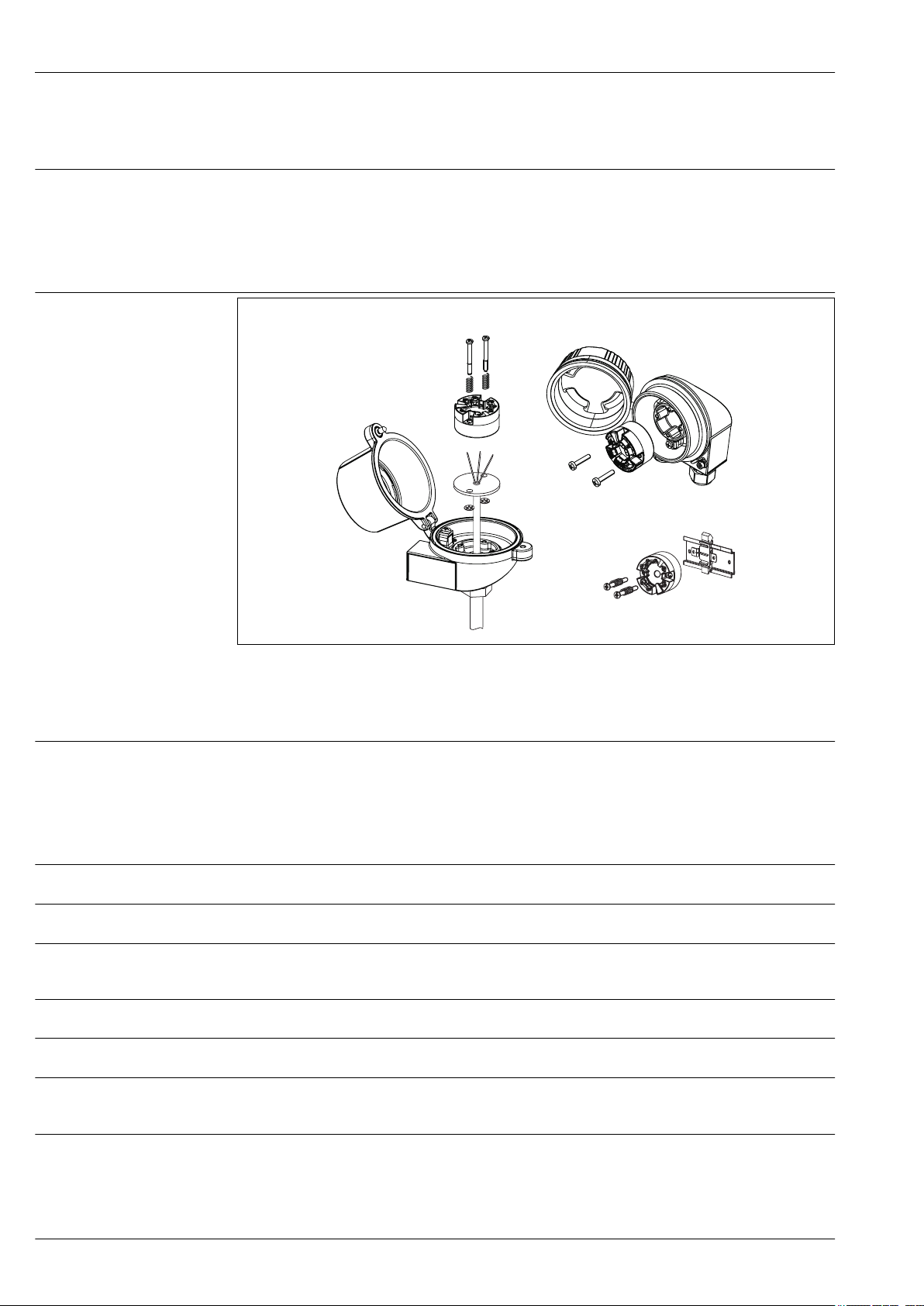

ATerminal head in accordance with DIN EN 50446 form B, direct installation onto insert with cable entry
(middle hole 7 mm (0.28 in))
BSeparate from process in field housing
CWith clip on DIN rail as per IEC 60715 (TH35)
No restrictions
Environment
–40 to +85 °C (–40 to +185 °F)
–40 to +100 °C (–40 to +212 °F)
• Condensation permitted as per IEC 60068-2-33
• Max. rel. humidity: 95% as per IEC 60068-2-30
As per IEC 60 654-1, Class C
IP 00. Depends on the terminal head or field housing when installed.
4 g / 2 to 150 Hz as per IEC 60 068-2-6
Electromagnetic
compatibility (EMC)
CE conformity
EMC to all relevant requirements of the IEC/EN 61326-series and NAMUR Recommendation EMC
(NE21). For details, refer to the Declaration of Conformity.
Maximum fluctuations during EMC-tests: <1% of measuring span.
4Endress+Hauser
Page 5
iTEMP TMT180
22.5
(0.89)
33 (1.3)
!44 (1.73)
!7 (0.28)
!5 (0.2)
Design, dimensions
Interference immunity to IEC/EN 61326-series, requirements for industrial areas.
Interference emission to IEC/EN 61326-series, electrical equipment Class B
Mechanical construction
A0016380

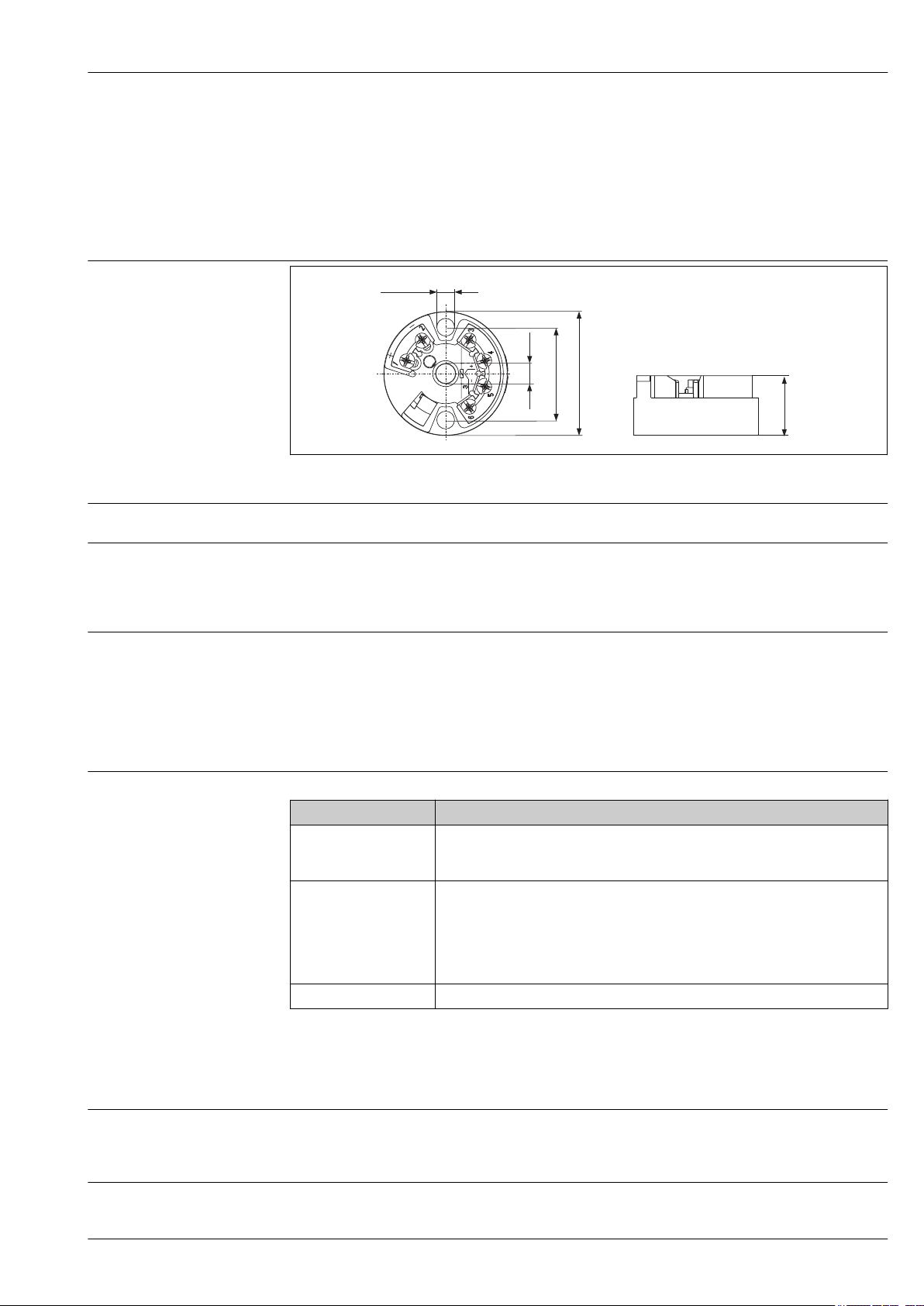

2Dimensions of the head transmitter in mm (in)
Weight
Materials
Terminals
Remote operation
Approx. 40 g (1.41 oz)
• Housing: Polycarbonate (PC), complies with UL94 HB flammability standard (HB: Horizontal
Burning Test). Terminals: Nickel-plated brass and gold-plated contact
• Potting: WEVO PU 403 FP/FL, approved in accordance with UL94 V0 flammability standard (V0:
Vertical Burning Test)
Screw terminals, wires up to max. 1.75 mm2 (15 AWG) (secure screws) or 1.5 mm2 (16 AWG) with
wire end ferrules
Operability
Configuration using PC operating program ReadWin 2000
MenuConfigurable parameters
Standard settings• Connection type (2-, 3- or 4-wire connection)
• Measuring unit (°C/°F)
• Measuring range limits
Advanced settings• Compensation resistance (0 to 20 Ω) on 2-wire connection
• Failsafe mode
• Output (analog standard/inverse)
• Filter (0 to 60 s)
• Offset (–9.9 to +9.9 K)
• Measuring point identification/TAG
Service functionsSimulation (on/off)
Certificates and approvals
CE mark
EAC mark
Endress+Hauser5
The product meets the requirements of the harmonized European standards. As such, it complies
with the legal specifications of the EC directives. The manufacturer confirms successful testing of the
product by affixing to it the CE-mark.
The product meets the legal requirements of the EEU guidelines. The manufacturer confirms the
successful testing of the product by affixing the EAC mark.
Page 6
iTEMP TMT180
UL approval
CSA
Marine approvals
Other standards and
guidelines
UL recognized component (see www.ul.com/database, search for Keyword "E225237")
The product meets the requirements as per "CLASS 2252 05 - Process Control Equipment"
DNV GL
• IEC 60529: Degrees of protection provided by enclosures (IP code)
• IEC/EN 61010: Protection measures for electrical equipment for measurement, control, regulation
and laboratory procedures
• NAMUR: International user association of automation technology in process industries
(www.namur.de).
Ordering information
Detailed ordering information is available from the following sources:
• In the Product Configurator on the Endress+Hauser website: www.endress.com -> Click "Corporate"
-> Select your country -> Click "Products" -> Select the product using the filters and search field ->
Open product page -> The "Configure" button to the right of the product image opens the Product
Configurator.
• From your Endress+Hauser Sales Center: www.addresses.endress.com
Product Configurator - the tool for individual product configuration
• Up-to-the-minute configuration data
• Depending on the device: Direct input of measuring point-specific information such as
measuring range or operating language
• Automatic verification of exclusion criteria
• Automatic creation of the order code and its breakdown in PDF or Excel output format
• Ability to order directly in the Endress+Hauser Online Shop
Accessories
• Adapter for top-hat rail mounting, DIN rail clip according to IEC 60715
Order No.: 51000856
