Emerson Process Management ControlWave GFC, ControlWave MICRO User Manual

Product Information Package

pply

PIP-ControlWaveLS

July, 2006

ontrolWave Loop Power Su

ControlWave LOOP POWER SUPPLY
PRODUCT INSTALLATION GUIDE

For the following ControlWave Series
Products: MICRO, EFM, GFC,
ExpressPAC & Express

www.EmersonProcess.com/Bristol

IMPORTANT! READ INSTRUCTIONS BEFORE STARTING!

Be sure that these instructions are carefully read and understood before any
operation is attempted. Improper use of this device in some applications may result in
damage or injury. The user is urged to keep this book filed in a convenient location for
future reference.

These instructions may not cover all details or variations in equipment or cover
every possible situation to be met in connection with installation, operation or main­tenance. Should problems arise that are not covered sufficiently in the text, the pur­chaser is advised to contact Bristol for further information.

EQUIPMENT APPLICATION WARNING

The customer should note that a failure of this instrument or system, for
whatever reason, may leave an operating process without protection. Depending upon
the application, this could result in possible damage to property or injury to persons.
It is suggested that the purchaser review the need for additional backup equipment
or provide alternate means of protection such as alarm devices, output limiting, fail­safe valves, relief valves, emergency shutoffs, emergency switches, etc. If additional
in-formation is required, the purchaser is advised to contact Bristol .

RETURNED EQUIPMENT WARNING

When returning any equipment to Bristol for repairs or evaluation, please note
the following: The party sending such materials is responsible to ensure that the
materials returned to Bristol are clean to safe levels, as such levels are defined and/or
determined by applicable federal, state and/or local law regulations or codes. Such
party agrees to indemnify Bristol and save Bristol harmless from any liability or
damage which Bristol may incur or suffer due to such party's failure to so act.

ELECTRICAL GROUNDING

Metal enclosures and exposed metal parts of electrical instruments must be
grounded in accordance with OSHA rules and regulations pertaining to "Design
Safety Standards for Electrical Systems," 29 CFR, Part 1910, Subpart S, dated: April
16, 1981 (OSHA rulings are in agreement with the National Electrical Code).

The grounding requirement is also applicable to mechanical or pneumatic in­struments that include electrically-operated devices such as lights, switches, relays,
alarms, or chart drives.

EQUIPMENT DAMAGE FROM ELECTROSTATIC DISCHARGE VOLTAGE

This product contains sensitive electronic components that can be damaged by
exposure to an electrostatic discharge (ESD) voltage. Depending on the magnitude
and duration of the ESD, this can result in erratic operation or complete failure of the
equipment. Read supplemental document S14006 at the back of this manual for
proper care and handling of ESD-sensitive components.

Bristol 1100 Buckingham Street, Watertown, CT 06795

Telephone [phone]

WARRANTY

A. Bristol warrants that goods described herein and manufactured by Bristol are free

from defects in material and workmanship for one year from the date of shipment
unless otherwise agreed to by Bristol in writing.

B. Bristol warrants that goods repaired by it pursuant to the warranty are free from

defects in material and workmanship for a period to the end of the original warranty
or ninety (90) days from the date of delivery of repaired goods, whichever is longer.

C. Warranties on goods sold by, but not manufactured by Bristol, are expressly limited

to the terms of the warranties given by the manufacturer of such goods.

D. All warranties are terminated in the event that the goods or systems or any part

thereof are (i) misused, abused or otherwise damaged, (ii) repaired, altered or
modified without Bristol's consent, (iii) not installed, maintained and operated in
strict compliance with instructions furnished by Bristol, or (iv) worn, injured or
damaged from abnormal or abusive use in service time.

E. THESE WARRANTIES ARE EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES EXPRESS OR IMPLIED (INCLUDING WITHOUT LIMITATION
WARRANTIES AS TO MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE), AND NO WARRANTIES, EXPRESS OR IMPLIED, NOR ANY
REPRESENTATIONS, PROMISES, OR STATEMENTS HAVE BEEN MADE BY
BRISTOL UNLESS ENDORSED HEREIN IN WRITING. FURTHER, THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE
FACE HEREOF.

F. No agent of Bristol is authorized to assume any liability for it or to make any written

or oral warranties beyond those set forth herein.

A. Buyer's sole remedy for breach of any warranty is limited exclusively to repair or

replacement without cost to Buyer of any goods or parts found by Seller to be
defective if Buyer notifies Bristol in writing of the alleged defect within ten (10) days
of discovery of the alleged defect and within the warranty period stated above, and if
the Buyer returns such goods to Bristol's Watertown office, unless Bristol's Water­town office designates a different location, transportation prepaid, within thirty (30)
days of the sending of such notification and which upon examination by Bristol
proves to be defective in material and workmanship. Bristol is not responsible for
any costs of removal, dismantling or reinstallation of allegedly defective or defective
goods. If a Buyer does not wish to ship the product back to Bristol, the Buyer can
arrange to have a Bristol service person come to the site. The Service person's
transportation time and expenses will be for the account of the Buyer. However,
labor for warranty work during normal working hours is not chargeable.

B. Under no circumstances will Bristol be liable for incidental or consequential

damages resulting from breach of any agreement relating to items included in this
quotation, from use of the information herein or from the purchase or use by Buyer,
its employees or other parties of goods sold under said agreement.

REMEDIES

How to return material for Repair or Exchange

Before a product can be returned to Bristol for repair, upgrade, exchange, or to verify
proper operation, form (GBU 13.01) must be completed in order to obtain a RA (Return
Authorization) number and thus ensure an optimal lead time. Completing the form is very
important since the information permits the Bristol Repair Dept. to effectively and
efficiently process the repair order.

You can easily obtain a RA number by:

A. FAX
Completing the form (GBU 13.01) and faxing it to [phone]. A BBI Repair

Dept. representative will return call (or other requested method) with a RA number.

B. E-MAIL
Accessing the form (GBU 13.01) via the Bristol Web site (www.bristolbabcock.com)

and sending it via E-Mail to [e-mail]
representative will return E-Mail (or other requested method) with a RA number.

C. Mail
Mail the form (GBU 13.01) to

Bristol Inc.
Repair Dept.
1100 Buckingham Street
Watertown, CT 06795

A BBI Repair Dept. representative will return call (or other requested method) with

a RA number.

D. Phone

Calling the Bristol Repair Department at [phone]. A Bristol Repair Depart-

ment representative will record a RA number on the form and complete Part I, then
send the form to the Customer via fax (or other requested method) for Customer
completion of Parts II & III.

A copy of the completed Repair Authorization Form with issued RA number should be in­cluded with the product being returned. This will allow us to quickly track, repair, and
return your product to you.

. A BBI Repair Dept.

Bristol Inc. Repair Authorization Form (off-line completion)

(Providing this information will permit Bristol Inc. to effectively and efficiently process your return. Co mpletion is required

to receive optimal lead time. Lack of information may result in increased lead times.)

Date___________________ RA #___________________SH_ Line No.____________
Standard Repair Practice is as follows: Variations to this is

practice may be requested in the “Special Requests” section.

• Evaluate / Test / Verify Discrepancy

• Repair / Replace / etc. in accordance with this form

• Return to Customer

Part I Please complete the following information for single unit or multiple unit returns

Address No. (office use only) Address No. (office use only)
Bill to : Ship to:

Purchase Order: Contact Name:____________________________________
Phone: Fax: E-Mail:

Part II Please complete Parts II & III for each unit returned

Model No./Part No. Description

Please be aware of the Non warranty standard charge:

• There is a $100 minimum evaluation charge, which is

applied to the repair if applicable (√ in “returned”
B,C, or D of part III below)

Range/Calibration S/N
Reason for return

: Failure Upgrade Verify Operation Other

1. Describe the conditions of the failure (Frequency/Intermittent, Physical Damage, Environmental Conditions,

Communication, CPU watchdog, etc.)

(Attach a separate sheet if necessary)

2. Comm. interface used: Standalone RS-485 Ethernet Modem (PLM (2W or 4W) or SNW) Other:______________

3. What is the Firmware revision? _____________________ What is the Software &version?

Part III If checking “replaced” for any question below, check an alternate option if replacement is not available

A. If product is within the warranty time period but is excluded due

to Bristol’s warranty clause, would you like the product:

repaired returned replaced scrapped?

B. If product were found to exceed the warranty period,
would you like the product:

C. If product is deemed not repairable would you like your product:
D. If Bristol is unable to verify the discrepancy, would you like the product:

repaired returned replaced scrapped?

returned replaced scrapped?
returned replaced *see below?

* Continue investigating by contacting the customer to learn more about the problem experienced? The person to contact

that has the most knowledge of the problem is: ______________________________ phone_____________________

If we are unable to contact this person the backup person is: _________________________
Special Requests: ____________________________________________________________________________________

phone_____________________

____________________________________________________________________________________________________

Ship prepaid to: Bristol Inc., Repair Dept., 1100 Buckingham Street, Watertown, CT 06795

Phone: [phone] Fax: [phone] Form GBU 13.01 Rev. B 04/11/06

Bristol

Training

GET THE MOST FROM YOUR BRISTOL

BABCOCK INSTRUMENT OR SYSTEM

• Avoid Delays and problems in getting your system on-line

• Minimize installation, start-up and maintenance costs.

• Make the most effective use of our hardware and software.

• Know your system.

As you know, a well-trained staff is essential to your operation. Bristol Inc. offers a full
schedule of classes conducted by full-time, professional instructors. Classes are offered
throughout the year at three locations: Houston, Orlando and our Watertown, CT
headquarters. By participating in our training, your personnel can learn how to install,
calibrate, configure, program and maintain any and all Bristol products and realize the full
potential of your system.

For information or to enroll in any class, contact our training department in Watertown at
[phone]. For Houston classes, you can also contact our Houston office, at (713) 685-

6200.

A Few Words About Bristol Inc.

For over 100 years, Bristol® has been providing innovative solutions for the measurement
and control industry. Our product lines range from simple analog chart recorders, to
sophisticated digital remote process controllers and flow computers, all the way to turnkey
SCADA systems. Over the years, we have become a leading supplier to the electronic gas
measurement, water purification, and wastewater treatment industries.

On off-shore oil platforms, on natural gas pipelines, and maybe even at your local water
company, there are Bristol Inc. instruments, controllers, and systems running year-in and
year-out to provide accurate and timely data to our customers.

Getting Additional Information

In addition to the information contained in this manual, you may receive additional assis­tance in using this product from the following sources:

Help Files / Release Notes

Many Bristol software products incorporate help screens. In addition, the software typically
includes a ‘read me’ release notes file detailing new features in the product, as well as other
information which was available too late for inclusion in the manual.

Contacting Bristol Inc. Directly

Bristol's world headquarters is located at 1100 Buckingham Street, Watertown,
Connecticut 06795, U.S.A.

Our main phone numbers are:

[phone]
[phone] (FAX)

Regular office hours are Monday through Friday, 8:00AM to 4:30PM Eastern Time,
excluding holidays and scheduled factory shutdowns. During other hours, callers may leave
messages using Bristol's voice mail system.

Telephone Support - Technical Questions

During regular business hours, Bristol's Application Support Group can provide telephone
support for your technical questions.

For technical questions about TeleFlow products call [phone].

For technical questions about ControlWave call [phone] or [phone].

For technical questions regarding Bristol’s OpenEnterprise product, call [phone]
or e-mail: [e-mail]

For technical questions regarding ACCOL products, OpenBSI Utilities, UOI and all other
software except for ControlWave and OpenEnterprise products, call [phone].

For technical questions about Network 3000 hardware, call [phone].

You can e-mail the Application Support Group at: [e-mail]

The Application Support Group maintains an area on our web site for software updates and
technical information. Go to: www.bristolbabcock.com/services/techsupport/

For assistance in interfacing Bristol hardware to radios, contact Bristol’s Communication
Technology Group in Orlando, FL at [phone] or [phone].

You can e-mail the Communication Technology Group at:

[e-mail]

Telephone Support - Non-Technical Questions, Product Orders, etc.

Questions of a non-technical nature (product orders, literature requests, price and delivery
information, etc.) should be directed to the nearest sales office (listed on the rear cover of
this manual) or to your Bristol-authorized sales representative.

Please call the main Bristol Inc. number (860-945-2200) if you are unsure which office
covers your particular area.

Visit our Site on the World Wide Web

For general information about Bristol Inc. and its products, please visit our site on the
World Wide Web at: www.bristolbabcock.com

Training Courses

Bristol’s Training Department offers a wide variety of courses in Bristol hardware and
software at our Watertown, Connecticut headquarters, and at selected Bristol regional
offices, throughout the year. Contact our Training Department at [phone] for course
information, enrollment, pricing, and scheduling.

PIP-ControlWaveLS

ControlWave Loop Supply

Part Numbers 400095-01-7, 721708-01-3 & 721708-02-1

TABLE OF CONTENTS

Section Title Page #

Section 1 – LOOP SUPPLY INTRODUCTION

1.1 GENERAL DESCRIPTION..................................................................................................... 1

1.2 LOOP SUPPLY COMPONENT IDENTIFICATION............................................................. 1

Section 2 – LOOP SUPPLY INSTALLATION

2.1 LOOP SUPPLY MOUNTING ................................................................................................. 4

2.2 LOOP SUPPLY WIRING ........................................................................................................ 6

Field I/O Wiring Considerations ...................................................................................... 6

Power Input and Pass-through Wiring Considerations.................................................. 6

Section 3 – SPECIFICATIONS

3.1 OPERATING SPECIFICATIONS......................................................................................... 10

3.2 ENVIRONMENTAL SPECIFICATIONS............................................................................. 10

3.3 CONNECTORS ...................................................................................................................... 11

3.3.1 Terminal Block TB1............................................................................................................... 11

3.3.2 Terminal Block TB3............................................................................................................... 11

3.3.3 Terminal Block TB2............................................................................................................... 11

3.4 PART NUMBERS .................................................................................................................. 11

3.5 DIMENSIONS........................................................................................................................ 11

PIP-ControlWaveLS 1 Table Of Contents

Section 1

LOOP SUPPLY INTRODUCTION

1.1 GENERAL DESCRIPTION

Bristol’s ControlWave Loop Power Supply (herein referred to as the “Loop Supply”),

provides regulated and isolated 24Vdc power outputs that can be used to power field
devices such as transmitters or non-isolated I/O circuits that are used in conjunction with
ControlWave MICRO, EFM, GFC, Express or Express PAC units. Encapsulated Loop
Supply’s, i.e., those with the printed circuit board (PCB) secured to a Power Supply Back
Plate Bracket and protected by a Power Supply Board Cover, may be mounted directly to a
panel or to a 35mm DIN Rail while the PCB only version can be Snap Track mounted.

Loop Supply’s provide 24Vdc field power distribution via four pairs of wiring terminals
provided on Terminal Block TB2. Additionally, Loop Supply’s are user configured via
Jumper JP1 to operate in conjunction with either a nominal bulk 12Vdc input (with an
input range of +9 to +30Vdc) or a nominal bulk 24Vdc input (with an input range of +19 to
+30Vdc). Loop Supply’s have been designed to provide the following features:

• 4 Loop Power Terminals pairs provide field device wiring flexibility and con-

venience.

• 9 - 30 Vdc bulk power input range accommodated installation flexibility

• Bulk power input can be applied to either of the three-terminal connectors (with one

Terminal Block accommodating input wiring while the other may accommodate non­isolated power pass-through that is used to power the ControlWave MICRO
(Process Automation Controller), ControlWave EFM (Electronic Flow Meter)

ControlWave GFC (Gas Flow Computer), Express (Remote Terminal Unit), or
Express PAC (Process Automation Controller/Remote Terminal Unit).

• Direct Panel, 35mm DIN Rail or Snap Track Mounting accommodated

• Small size minimizes panel space requirements

1.2 LOOP SUPPLY COMPONENT IDENTIFICATION

Loop Supply components that the user should become familiar with are discussed herein.
These components include Connectors TB1, TB2 and TB3, Configuration Jumper JP1, the
Power LED, and Fuse F1.

• Terminal Blocks

Loop Supply’s are provided with three Terminal Blocks which accommodate up to #16 AWG
size wire. Terminal Block Connections are provided in Tables 1 and 2.
.
Terminal Block TB1 typically acts as the interface for the bulk 9 to 30 Vdc input power. In
some cases, TB1 may be used as the bulk dc power pass-through interface to an associated
RTU in lieu of Terminal Block TB3. It should be noted that TB1 & TB3 can be used for
Input Power or Power Pass-through with one accommodating input while the other may
accommodate pass-through, e.g. if TB1 was used to interface bulk Input Power, than TB3
could be used to accommodate Power Pass-through, or vise versa.

PIP-ControlWaveLS Page - 1

Figure 1 - ControlWave Loop Supply Board

Views & Component Identification Diagram

Table 1 - Input/Pass-through Power Connectors – TB1 & TB3

TB1

Pin #

1 3 VIN 9 to 30 +Vdc power Input or Non-fused Throughput
2 2 RET 9-30 Vdc Return Input or Non-fused Throughput
3 1 CHASSIS Chassis Ground

TB3

Pin #

Signal Name Description Notes

Page - 2 PIP-ControlWaveLS

8-Pin Connector (TB2) accommodates distribution of the regulated +24V loop supplies.

Table 2 - Regulated 24V Supply Distribution Connector TB2

TB2 Pin # Signal Name Description

1, 3, 5, 7 +24V Regulated +24Vdc
2, 4, 6, 8 24V Return Reg. 24V Return

• Configuration Jumper JP1

Jumper JP1 is used to set the input voltage range, i.e., 9V to 30V (nominal 12V input) or
19V to 30V (nominal 24V input). Under Voltage Lockout Point circuitry sources current to
affectively lower the ON and OFF switch points.

The nominal setting operating range switch points for the Loop Supply (by design) are
provided below.

JP1 - 1 to 2: 12V Input: ON above 8.4V (Max. ON = 8.8V), OFF below 8.24V (Min. OFF =

7.8V) (Factory Configuration)

JP1 - 2 to 3: 24V Input: ON above 18.8V, (Max. ON = 19.7V), OFF below 18.4V (Min. OFF

= 17.4V

• Power LED

Red LED (CR10) will be ON when regulated 24V is present. When lit, CR10 indicates that
the Loop Supply is operational.

• Fuse F1

Fuse F1 (2A Slow Blow 5 x 20 mm) provides protection for the LOOP Supply and the as­sociated field I/O (powered by Loop Supply). If a short circuit should occur in I/O field
wiring or circuitry within the Loop Supply, F1 will blow and the regulated 24V output will
switch OFF. Note: Power Pass-through is not fused since the ControlWave
GFCs/RTUs provide their own fuse protection.

PIP-ControlWaveLS Page - 3

Section 2

LOOP SUPPLY INSTALLATION

2.1 LOOP SUPPLY MOUNTING

Encapsulated Loop Supply Assemblies are provided with the printed circuit board (PCB)
secured to a Power Supply Back Plate Bracket and protected by a Power Supply Board
Cover. These units may be mounted directly to a panel or to a 35mm DIN Rail. Board only
Loop Supply’s are typically Snap Track mounted (as is the case with the ControlWave
EFM). Figure 2 shows a Snap Track Mounted unit while Figure 3 provides dimensions for
the “Encapsulated” Loop Supply. Table 3 below provides the type of Loop Supply and
mounting arrangement typically associated with the various ControlWave series RTUs.

Table 3 - ControlWave RTU and Loop Supply Assignments

ControlWave Series Loop Supply Type Mounting Notes

ControlWave MICRO
ControlWave EFM
ControlWave GFC
ControlWave Express
ControlWave ExpressPAC

Encapsulated Externally
Snap Track Mounted Internally
Snap Track Mounted Internally
Encapsulated Externally
Snap Track Mounted Internally

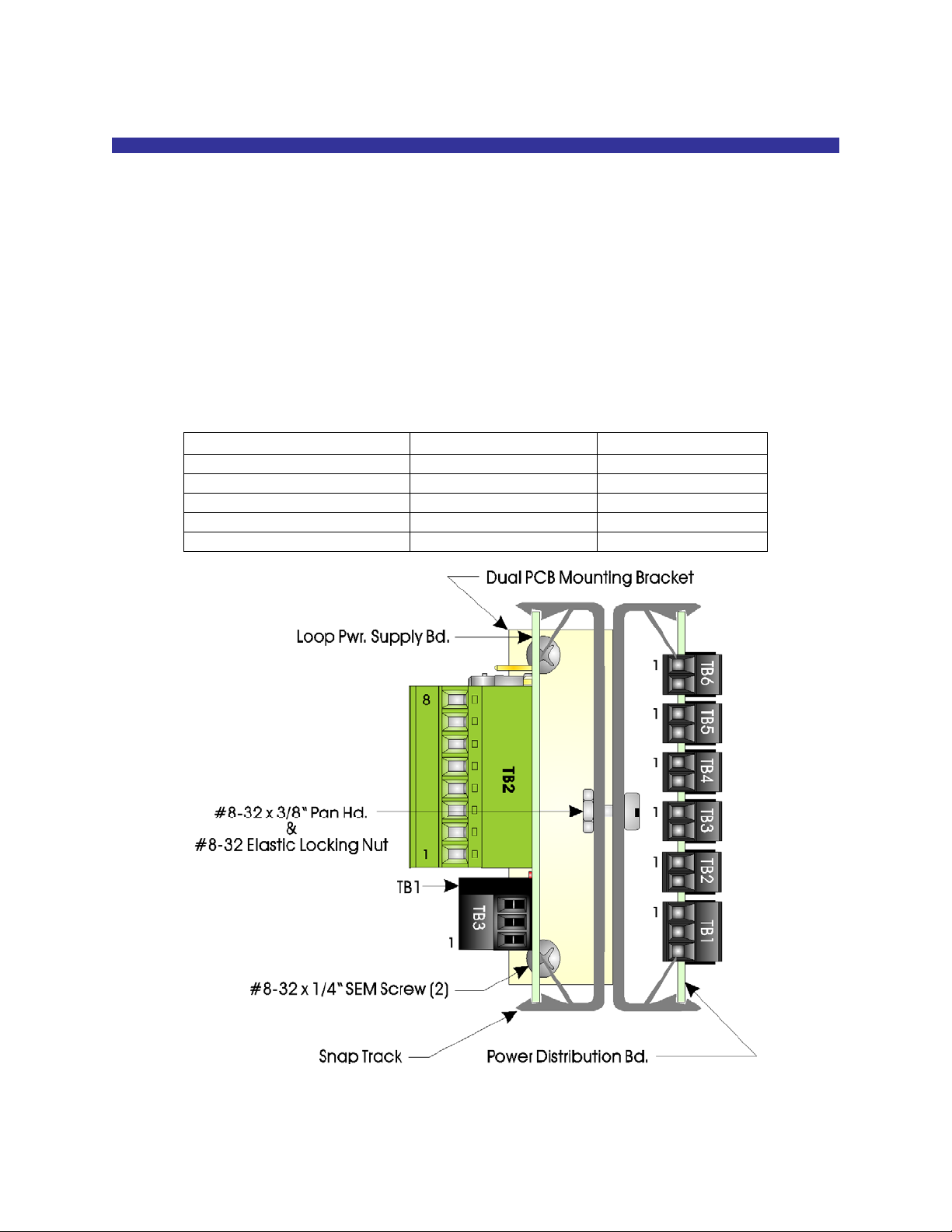

Figure 2 - Snap Track Mounted Loop Supply

(Typically used in Conjunction with a Power Distribution Board)

(Shown Mounted to the ControlWave EFM Fabrication Panel)

Page - 4 PIP-ControlWaveLS

Figure 3 - Encapsulated ControlWave Loop Supply Mounting Diagram

PIP-ControlWaveLS Page - 5

2.2 LOOP SUPPLY WIRING

Loop Supply’s utilize Terminal Blocks that are equipped with compression-type terminals
which accommodate a #16 AWG size wire. A connection is made by inserting the wire’s
bared end (1/4” Max.) into the clamp beneath the screw and then tightening the screw.
Three Loop Supply Terminal Blocks accommodate wiring as follows:

TB1 – Typically interfaces Bulk Power Input (May be used for Bulk Power Pass-through)
TB1-1 – VIN (9-30V Bulk Power Input)
TB1-2 – GND (9-30V Bulk Power Return)
TB1-3 – EARTH (CHASSIS Ground)

TB2 – 24Vdc Loop Power
TB2-1, 3, 5, 7 – 24V (Regulated +24V)
TB2-2, 4, 6, 8 – 24VRET (Regulated 24V Return)

TB3 – Typically interfaces Bulk Power Pass-through (May be used for Bulk Power Input)
TB3-1 – EARTH (CHASSIS Ground)
TB3-2 – GND (9-30V Bulk Power Return)
TB3-3 – VIN (9-30V Bulk Power Input)

Field I/O Wiring Considerations

Regardless of the ControlWave RTU type in question, Loop Supply wiring will only be
utilized in conjunction with non-isolated I//O. Refer to Fig. 4 or 5 for applicable RTU wiring
assignments.

In the case of ControlWave Express, ExpressPAC and GFCs, non-isolated AI and AO
are available but, depending on the Input Voltage type, the unit’s AI/AO will be internally
or externally powered. For 24Vdc powered RTUs AI/AO loop power will typically be sourced
directly from the unit’s associated bulk power supply input. For 6V or 12V (dc) powered
RTUs, both the non-isolated AI and non-isolated AO loop power may be provided by the
Loop Supply’s regulated 24Vdc power output via the EXT POWER Terminal (TB7-3) and
GND terminal (TB7-4) on the Process I/O Board’s Analog Output Terminal Block.

Power Input and Pass-through Wiring Considerations

In some cases the same bulk supply that powers the Loop Supply Assembly may be used to
power the RTU. The bulk source should be wired to TB1 of the Loop Supply and then to
RTU’s power input terminal. If a Power Distribution Board is present, the bulk power
source should be wired as follows:

First to Power Distribution Board Terminal Block TB1
Then from TB2 of the Power Distribution Board to TB1 of the Loop Supply
Then from TB3 of the Loop Supply to the RTU’s Input Power Terminal.

Bulk power may be supplied from Loop Supply connector TB3 (pass-through) to one of the
following RTU Input Power Terminals):

Controlwave MICRO – Power Supply/Sequencer Module (PSSM) - Connector TB1
TB1-1 = +VIN (from loop Supply Connector TB3-3 = VIN)
TB1-2 = -VIN (from loop Supply Connector TB3-2 = GND)

Page - 6 PIP-ControlWaveLS

Figure 4 - ControlWave MICRO & EFM Loop Supply to I/O Module Wiring

PIP-ControlWaveLS Page - 7

Figure 5 - ControlWave Express, ExpressPAC and GFC

Loop Supply to Process I/O Board Wiring Diagrams

ControlWave EFM – System Controller Module - Connector TB1

TB1-1 = +VIN (from loop Supply Connector TB3-3 = VIN)
TB1-2 = -VIN (from loop Supply Connector TB3-2 = GND)

ControlWave Express – CPU/System Controller Board - Connector TB1
TB1-3 = POWER IN+ (from loop Supply Connector TB3-3)
TB1-4 = GND (from loop Supply Connector TB3-2)

Page - 8 PIP-ControlWaveLS

ControlWave ExpressPAC – CPU/System Controller Board - Connector TB1
TB1-3 = POWER IN+ (from loop Supply Connector TB3-3)
TB1-4 = GND (from loop Supply Connector TB3-2)

ControlWave GFC – CPU/System Controller Board - Connector TB1
TB1-3 = POWER IN+ (from loop Supply Connector TB3-3)
TB1-4 = GND (from loop Supply Connector TB3-2)

PIP-ControlWaveLS Page - 9

Section 3

SPECIFICATIONS

3.1 OPERATING SPECIFICATIONS

Function: Provides four isolated 24Vdc power output terminal pairs to

power an RTU , a Transmitter and/or a number of non-isolated
I/O (associated with a particular ControlWave RTU.

Output Voltage : Electrically Isolated & Regulated 24Vdc ±5%, no load or full

load

Output Current: 0.2A maximum, power limited to 150% of Max. rated power

Supply Shutdown: Below +9Vdc or +19Vdc (Nominal) for 12V or 24V system

(respectively)

12V System:
Max. ON Switchpoint = 8.8V
Max. OFF Switchpoint = 7.8V

24V System:
Max. ON Switchpoint = 19.7V
Max. OFF Switchpoint = 17.4V

Input Voltage: +9 to +30 Vdc

Input Current: Supply Loading: 24V @ 0.2A

Vin @ +9V Iin Max. = .85A
Vin @ +12V Iin Max. = .58A
Vin @ +24 Iin Max. = .29A

Fusing: 2A Slow Blow (5x20 mm) Fuse for 12V/24V System

Electrical Isolation: 500Vdc (Transformer Coupled)

Surge Suppression: 500Vdc (MOV between 24V return and CHASSIS)

30V Transient Suppressor across VIN(9-30V)/GND, 24V/24V

Return – meets ANSI/IEEE C37.90-1978

Terminations: Fixed, Max. wire size is 16 guage

3.2 ENVIRONMENTAL SPECIFICATIONS

Temperature: Operating Range: -40° to +85°C (-40° to 185°F)

Storage Range: -40°to +85°C (-40°to 185°F)

Relative Humidity: 15% to 95% (Non-condensing)

Page - 10 PIP-ControlWaveLS

Vibration: 1g for 10-500 Hz on any axis per SAMA PMC-31-1 without

damage or impairment.

.5g for 150-2000Hz

RFI Susceptibility: 10V/meter – 80MHz to 1000MHz

3.3 CONNECTORS

3.3.1 Terminal Block TB1

3-Pin Terminal Block TB1 accommodates input power from the bulk DC source. TB1 could
act as a power pass-through interface to an RTU (in lieu of connector TB3) (see Table 1).

3.3.2 Terminal Block TB3

3-Pin Terminal Block TB3 typically accommodates pass-through power to the associated
ControlWave RTU but could act as the Loop Supply input power interface (in lieu of
connector TB1) (see Table 1).

3.3.3 Terminal Block TB2

8-Pin Terminal Block TB2 accommodates distribution (four pairs of wiring terminals) of
regulated +24Vdc loop power (see Table 2).

3.4 PART NUMBERS

400095-01-7 Snap Track Mount
721708-01-3 Panel Mount
721708-02-1 35mm DIN Rail Mount

3.5 DIMINSIONS

Dimensions are provided in Figure 6.

PIP-ControlWaveLS Page - 11

Figure 6 - Loop Supply Dimensions Drawing

Page - 12 PIP-ControlWaveLS

Product Information Package
