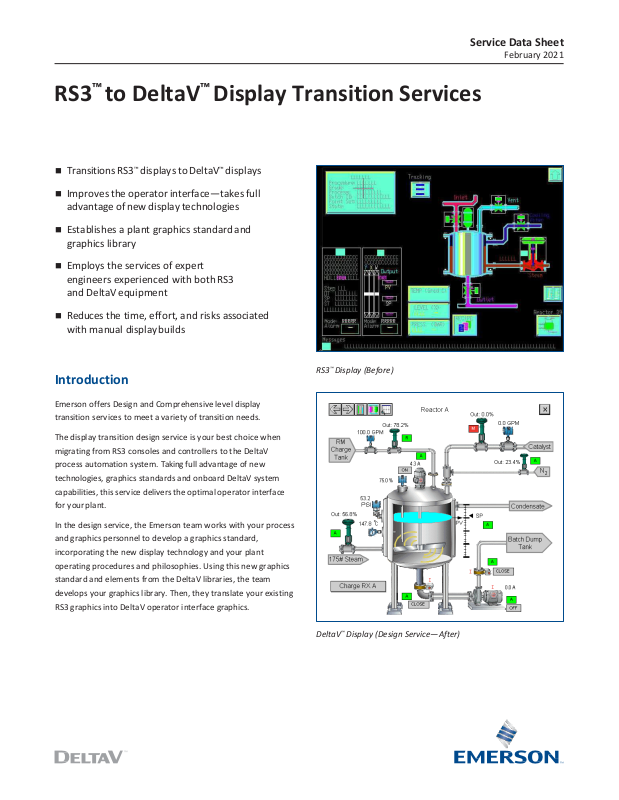

Page 1
RS3™ to DeltaV™ Display Transition Services
Service Data Sheet
February 2021
Transitions RS3
Improves the operator interface—takes full
advantage of new display technologies
Establishes a plant graphics standard and
graphics library
Employs the services of expert
™
displays to DeltaV™ displays
engineers experienced with both RS3
and DeltaV equipment
Reduces the time, effort, and risks associated
with manual display builds
Introduction
Emerson offers Design and Comprehensive level display
transition services to meet a variety of transition needs.
The display transition design service is your best choice when
migrating from RS3 consoles and controllers to the DeltaV
process automation system. Taking full advantage of new
technologies, graphics standards and onboard DeltaV system
capabilities, this service delivers the optimal operator interface
for your plant.
™
Display (Before)
RS3
In the design service, the Emerson team works with your process
and graphics personnel to develop a graphics standard,
incorporating the new display technology and your plant
operating procedures and philosophies. Using this new graphics
standard and elements from the DeltaV libraries, the team
develops your graphics library. Then, they translate your existing
RS3 graphics into DeltaV operator interface graphics.
DeltaV™ Display (Design Service—After)
Page 2
RS3™ to DeltaV™ Display Transition Services
February 2021
The display transition comprehensive service provides DeltaV
displays that are functional equivalents of the original RS3
displays. Combining the expertise of our engineering staff with
the use of an automated conversion utility, the comprehensive
service generates DeltaV operator interface displays with 100% of
the original RS3 display functionality. The service greatly reduces
the time, effort and risk associated with converting your graphic
displays.
Design and comprehensive services feature complete DeltaV
displays, ready for checkout and use at the plant. They are 100%
compatible with DeltaV Operate for easy maintenance.
Benefits
Improved operator interface using DeltaV technology. The
transition service takes advantage of the latest in DeltaV
operator interface capabilities. Your operators will have a
consistent, easy-to-understand and easy-to-use interface,
which helps them run the plant more effectively.
Leverage expertise at Emerson. Emerson is staffed by
engineers who know the RS3 and DeltaV systems extremely
well. They use that expertise to get the most out of the DeltaV
operator interface. They will work with you to create an
operator interface that reinforces and supports your plant
operating procedures.
Reduce the time and effort spent on building new displays. Keep
your personnel and their capabilities focused on more critical
plant priorities.
Manage the pace of your technology investments by phasing the
upgrades. Immediately deploy new DeltaV operator interface
technologies that work with your existing controls, enabling you
to plan future automation investments while enjoying the
benefits of enhanced capabilities.
Service Description
Options
To enhance your transition project, the following service options
should be considered.
Custom dynamic graphic element design. Emerson can
develop customized 2D and 3D graphic elements and DeltaV
dynamic objects to replace grouped objects for
improving the ease of maintenance of your converted DeltaV
graphic displays.
Development of a plant graphic standard. This standard will
document and describe the symbols, guidelines,
color schemes, gray scale, and other conventions that the
team develops. It serves as a reference to ensure ongoing
consistency as you expand and update the system.
Development of a plant graphics library. Use elements from
existing DeltaV libraries with your new graphic standard to
generate graphic elements that can easily be reused.
Site Services. At any time during the development of the
displays, site visits may be advantageous. When the display
transitions are completed, the displays should be checked
out at the plant. Emerson sales/services offices can supply
personnel to assist with or lead this effort. All site work is
priced on a time and materials basis.
Operator Training. Emerson provides comprehensive training
for your entire staff, including engineering, safety,
maintenance, and operations personnel. Emerson’s training
formats—eLearning, traditional classroom, onsite and
dynamic simulation-based training—apply hands- on and
learn-by-doing approaches to ensure that you achieve
your training goals.
Contact your local Emerson office for more details about
these options.
Included in all transition services:
Expert project management using certified and
proven ISO-9000 methodology.
Transition of RS3 graphics to DeltaV operator
interface graphics.
www.emerson.com/deltav 2
Page 3
RS3™ to DeltaV™ Display Transition Services
February 2021
— Transition Service Specifications
new DeltaV operator displays.
Transition Services
Emerson
www.emerson.com/deltav
time without notice.
Summary
By having Emerson transition your RS3 displays, you keep your
own staff’s valuable attention focused on site priorities. When
migrating from RS3 to the DeltaV operator interface, the
transition service takes full advantage of the new display
capabilities and creates a graphic standard and library
tailor-made to fit your plant and your operating procedures.
Migration to the DeltaV operator interface reduces the
maintenance costs of your current operator interface,
while laying a foundation for future technology investments.
Specifications
RS3 to DeltaV Display Transition
Inputs
1. Customer discussions and meetings,
as well as existing plant standards and
conventions concerning
graphic displays.
2. Current RS3 or DeltaV Operate for
RS3 displays as a foundation for the
Graphic Element Conversion
Specifications
“Tapestry” Graphics are supported by use of slide bars.
RS3 symbols are converted as DeltaV grouped objects.
Alarm information is supported through the standard
DeltaV alarm window.
Trend information is provided through the faceplate
trend detail display.
Order Information
Description Model Number
RS3-to-DeltaV Display
Contact your local Emerson office
Prerequisites
Request a services proposal from the Emerson
Sales/Services organization.
Output DeltaV display files on CD-ROM media
Output File Format DeltaV version v7.x and later
North America, Latin America:
+1 800 833 8314 or
+1 512 832 3774
Asia Pacific:
+65 6777 8211
Europe, Middle East:
+41 41 768 6111
©2021, Emerson. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson Electric Co. The DeltaV logo is a
mark of one of the Emerson family of companies. All other marks are the property of their
respective owners.
The contents of this publication are presented for informational purposes only, and while every
effort has been made to ensure their accuracy, they are not to be construed as warranties or
guarantees, express or implied, regarding the products or services described herein or their use or
applicability. All sales are governed by our terms and conditions, which are available on request.
We reserve the right to modify or improve the designs or specifications of our products at any
Provide an up to date RS3 MTCC System configuration
“BACKUP” on ¼ inch tape. Note: A boot tape is
not acceptable.
For RS3 Operator Consoles - ROS (FIX32 format) or DeltaV
Operate for RS3 (FIX32/iFIX format) displays, provide the
latest graphics on CD-ROM.
Attend training on DeltaV configuration. This training will
give you the skills and knowledge to complete any future
editing processes.
