Portable Top Loading CD Boombox with AM/FM Radio

OWNER'S MANUAL

SB225

Copyright 2004 Viacom International Inc. All Rights Reserved. Nickelodeon, SpongeBob SquarePants and all related titles, logos and characters are trademarks of Viacom International Inc. Created by Stephen Hillenburg.

PORTABLE CART WARNING (symbol provided by RETAC)

SAFETY INSTRUCTIONS

Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.

1.READ INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

2.RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3.HEED WARNINGS

All warnings on the product and in the operating instructions should be adhered to.

4.FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5.CLEANING

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.

6.ATTACHMENTS

Do not use attachments not recommended by the product's manufacturer as they may cause hazards.

7.WATER AND MOISTURE

Do not use this product near water–forexample: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool.

8.ACCESSORIES

Do not place this product on an unstable cart,

stand, tripod, bracket or table. The product may fall, causing serious injury and serious damage to the product. Use

only with a cart, stand, tripod, bracket or table recommended

by the manufacturer or sold with

the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

8A. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

9.VENTILATION

Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product

on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10.POWER SOURCES

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11.GROUNDING OR POLARIZATION

This product is equipped with a polarized alternating-currentline plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.POWER-CORDPROTECTION

Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.LIGHTNING

To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-linesurges.

14.POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15.OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16.OBJECT AND LIQUID ENTRY

Never push objects of any kind into this product through openings as they may touch dangerous

1

SAFETY INSTRUCTIONS

voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.

17.OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-upstatic charges. Section 810 of the National Electric Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of thelead-inwire to an antenna discharge product, size of grounding conductors, location of antenna discharge product, connection to grounding electrodes and requirements for grounding electrodes.



ANTENNA



LEAD IN



WIRE



GROUND



CLAMP



ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE

GROUNDING CONDUCTORS

EQUIPMENT

(NEC SECTION 810-21)



GROUND CLAMPS



POWER SERVICE GROUNDING

NEC - NATIONAL ELECTRICAL CODE

ELECTRODE SYSTEM

(NEC ART 250, PART H)

S2898A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

18.SERVICING

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

20.SAFETY CHECK

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21.WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22.DAMAGE REQUIRING SERVICE

Unplug the product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged.

b.If liquid has been spilled or objects have fallen into the product.

c.If the product has been exposed to rain or water.

d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e.If the product has been dropped or the cabinet has been damaged.

f.When the product exhibits a distinct change in performance–thisindicates a need for service.

23.HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

24.NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

2

Thank you for purchasing the SpongeBob SquarePants Portable CD Boombox from Emerson. Please read this manual before operating this unit to become familiar with its features and obtain the performance that will bring you continued enjoyment for many years. In the event you require technical assistance, please call the Emerson Radio Consumer Affairs Department at: 800-898-9020.

For future reference, record the serial number in the space provided.

Serial Number__________________________________________

3

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NOUSER-SERVICEABLEPARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE:

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

LASER SAFETY: This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.

CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

ATTENTION:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER:

Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

4

AC Plug
AC Outlet

POWER SOURCES

AC:

Unwind the AC cord and extend it to its full length. Insert the small end of the AC cord into the AC socket on the side of the unit.

Insert the other end of the AC cord into any convenient 120V AC, 60Hz household outlet.

NOTE: The AC plug supplied with the unit is polarized to help minimize the possibility of

electric shock. If the AC plug does not fit into

a nonpolarized AC outlet, do not file or cut the wide blade. It is the user’s responsibility to have an electrician replace the obsolete outlet.

DC:

Remove the Battery Compartment cover on the bottom of the unit by pressing down the two tabs and insert eight (8) “C” cell batteries (not included), observing the battery polarity indicated inside the compartment. Replace the Battery Compartment cover.

+ –

+ –

+

+

+–

+–



+

+



BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1.Use only the size and type of batteries specified.

2.Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3.Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc)or old batteries with fresh ones.

4.If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5.Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

5

LOCATION OF CONTROLS

1

2

3

4

5

6

7



8

9

10

11 12

13 14

15

16

17

18

19

20

1.

AC Socket (Side of Unit)

12.

Battery Compartment (Bottom of

2.

PROGRAM Button







Unit)











3.

FM Antenna



13.

Repeat Indicator









4.

Carrying Handle



14.

Play/Pause Indicator







5.

CD Compartment



15.

Display











6.

PLAY/PAUSE (®p) Button

16.

OPEN/CLOSE Area







7.

REPEAT Button



17.

TUNING Control









8.

Function Switch



18.

STOP () Button









(CD/POWER OFF/RADIO)

19.

Band Switch (AM/FM/FM ST.)



9.

SKIP/SEARCH o/n Buttons

20.

PHONES (Headphones) Jack



10.

VOLUME Control







(Side of Unit)









11.

AM/FM Dial Scale



















6

OPERATION (CONTINUED)

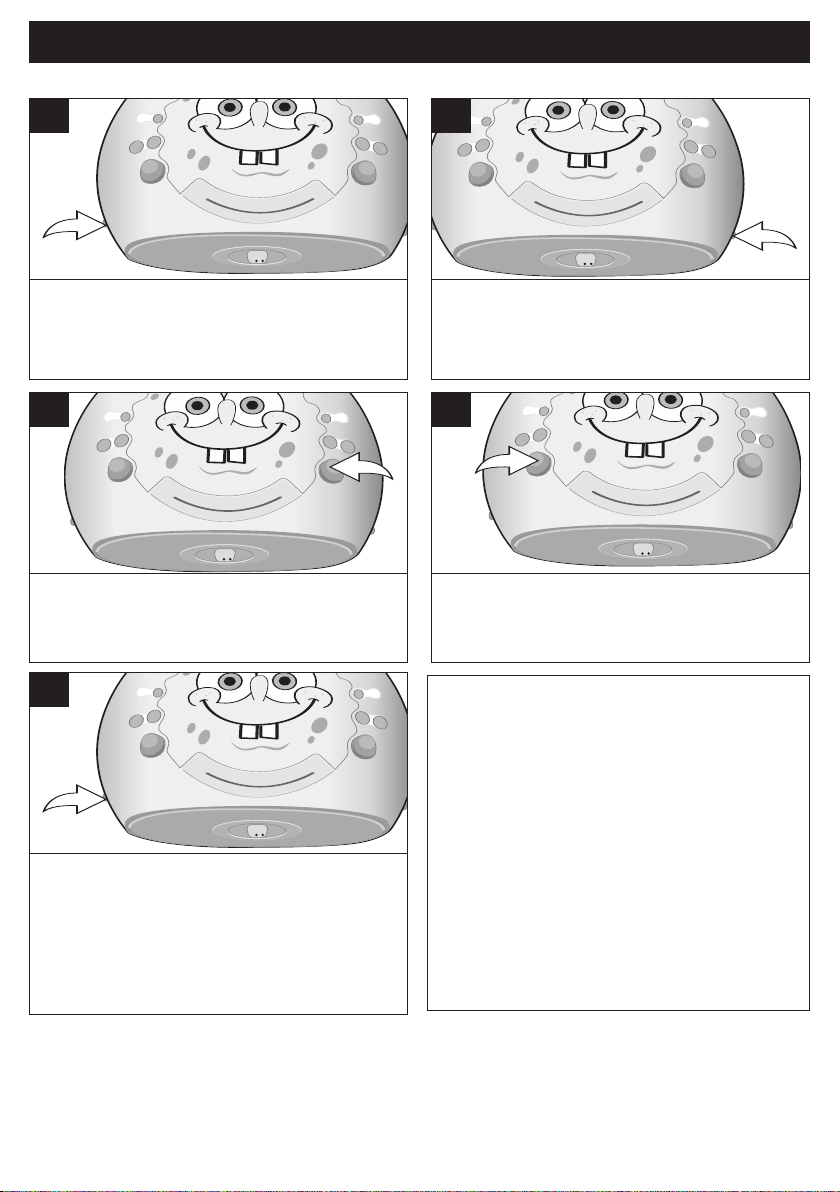

RADIO OPERATION

1

Slide the Function switch to the RADIO position to turn the unit on and select the RADIO mode.

3

2

Slide the BAND switch to the AM, FM or

FM STEREO position.

4

Rotate the TUNING control to select a Adjust the VOLUME control as desired. station.

5

Slide the Function switch to the POWER OFF position to turn the unit off.

ANTENNAS

AM–Thisunit has abuilt-inferrite rod antenna, which provides adequate reception in most areas. If reception is weak, turn the unit to improve reception.

FM–Ifreception is weak, extend and rotate the FM Rod Antenna.

HEADPHONES

For private listening, insert headphones into the PHONES jack. The speakers will be disconnected when the headphones are inserted.

7

OPERATION (CONTINUED)

PLAYING COMPACT DISCS

NORMAL PLAYBACK

1

Slide the Function switch to the CD position to turn the unit on and select the CD mode.

2

Press the OPEN/CLOSE area to open the CD compartment door. Place a CD on the center spindle, with the printed label side facing up. Close the CD compartment door.

3

4

The CD player will read the table of contents on the disc and the total number of tracks will appear in the display.

Press the PLAY/PAUSE (¨) button to begin playback on Track 1; the Play/Pause indicator will light.

CONTINUED ON THE NEXT PAGE

8

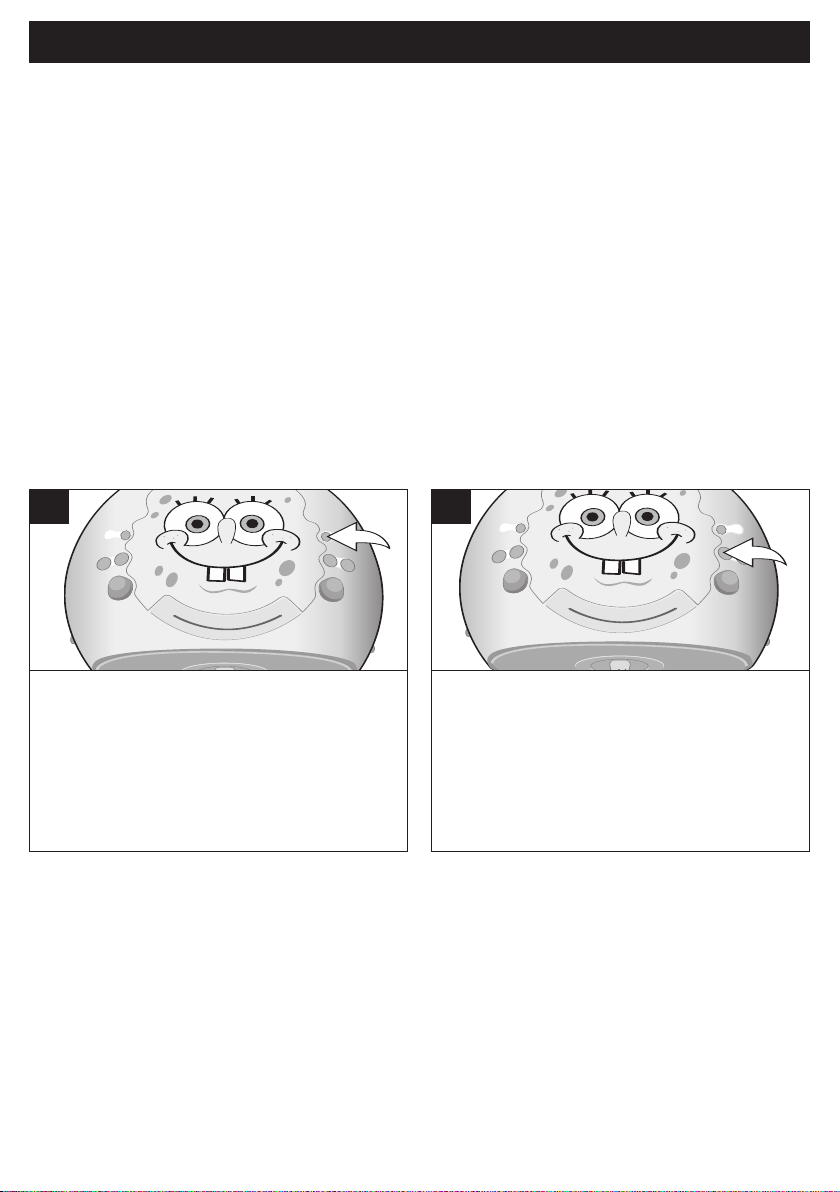

OPERATION (CONTINUED)

5

Adjust the VOLUME control as desired. Playback will continue until all the tracks on the disc have been played.

6

To stop playback before the disc ends, press the STOP () button. The disc will stop and the display will show the total number of tracks on the disc.

7

After the last track has been played, the disc stops automatically and the display shows the total number of tracks on the disc. If you are finished listening, press the OPEN/CLOSE area to open the CD compartment door.

8

Remove your disc, close the CD compartment door and slide the Function switch to the POWER OFF position to turn the unit off.
