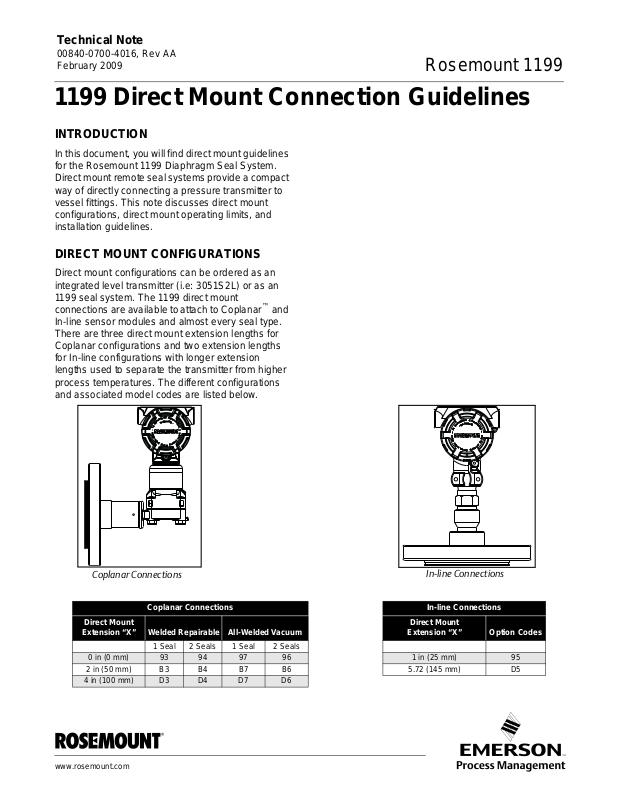

Technical Note
Coplanar Connections
In-line Connections
00840-0700-4016, Rev AA
February 2009
Rosemount 1199
1199 Direct Mount Connection Guidelines
INTRODUCTION
In this document, you will find direct mount guidelines
for the Rosemount 1199 Diaphragm Seal System.
Direct mount remote seal systems provide a compact
way of directly connecting a pressure transmitter to
vessel fittings. This note discusses direct mount
configurations, direct mount operating limits, and
installation guidelines.
DIRECT MOUNT CONFIGURATIONS
Direct mount configurations can be ordered as an
integrated level transmitter (i.e: 3051S2L) or as an
1199 seal system. The 1199 direct mount
connections are available to attach to Coplanar
In-line sensor modules and almost every seal type.
There are three direct mount extension lengths for
Coplanar configurations and two extension lengths
for In-line configurations with longer extension
lengths used to separate the transmitter from higher
process temperatures. The different configurations
and associated model codes are listed below.
™
and
Direct Mount
Extension “X”
0 in (0 mm) 93 94 97 96 1 in (25 mm) 95
2 in (50 mm) B3 B4 B7 B6
4 in (100 mm) D3 D4 D7 D6
www.rosemount.com
Coplanar Connections In-line Connections
Direct Mount
Welded Repairable All-Welded Vacuum
1 Seal 2 Seals 1 Seal 2 Seals
Extension “X”
5.72 (145 mm) D5
Option Codes
Rosemount 1199
DIRECT MOUNT OPERATING LIMITS
Temperature: A direct mount seal system protects
the transmitter from process temperatures while
maintaining the seal system fill fluid within its
operating temperature limits. Pressure transmitter
ambient limits are based on its electronics (typically
-40° to 185°F/85°C) and process temperature limits
are based on the module configuration (typically -40°
to 250°F/121°C for Coplanar flanges or in-line
connections).
The seal system fill fluid is selected to operate within
the process and ambient temperat ur e lim i ts for an
application. For direct mount systems, heat
transferred from the process keeps the fill fluid &
direct mount connection warm. This enables the fill
fluid to continue to respond properly even at cold
ambient conditions. An example is the Thermal
Optimizer In-line code D5 designed for high process
temperature applications. The Thermal Optimizer
separates the In-line sensor module from the high
process temperature while insulating the high
temperature fill fluid to enable it to operate properly
even at the coldest ambient conditions. In capillary
seal systems, the process heat is dissipated and
most of the fill fluid is exposed to the ambient
temperature. At cold ambient temperatures, high
temperature fluids like DC704 or DC705 become too
viscous to provide acceptable time response.
The tables below highlight temperature limits for the
variety of 1199 fill fluids in direct mount or capillary
seal system configurations.
Coplanar Transmitter Seal System Fill Fluid Limits
Direct Mount
Fill Fluid
DC200 -45 °C/
DC704 -40 °C/F 240 °C/
DC705 -40 °C/F 240 °C/
Inert
(Halocarbon)
Glycerine
and Water
Propylene
Glycol and
Water
Neobee
M-20
Syltherm XLT -75 °C/
Minimum
Temperature
-49 °F
-45 °C/
-49 °F
-15 °C/
5 °F
-15 °C/
5 °F
-15 °C/
5 °F
-102 °F
Maximum Temperature
LT/0 ext. 2-in./
205 °C/
401 °F
160 °C/
320 °F
95 °C/
203 °F
95 °C/
203 °F
205 °C/
401 °F
145 °C/
293 °F
50 mm ext.
464 °F
464 °F
225 °C/
437 °F
4-in./
100 mm ext.
260 °C/
500 °F
260 °C/
500 °F
Technical Note
00840-0700-4016, Rev AA
February 2009
In-line Transmitter Seal System Fill Fluid Limits
Fill Fluid Min imum
DC200 -45 °C/-49 °F 205 °C/401 °F
DC704 -40 °C/F 315 °C/599 °F
DC705 -40 °C/F 350 °C/662 °F
Inert
(Halocarbon)
Glycerine and
Water
Propylene
Glycol and
Water
Neobee M-20 -15 °C/5 °F 205 °C/401 °F 225 °C/437 °F
Syltherm XLT -75 °C/-102 °F 145 °C/293 °F
Fill Fluid Minimum Temperature Maximum
DC200 -45 °C/-49 °F 205 °C/401 °F
DC704 0 °C/32 °F 315 °C/599 °F
DC705 20 °C/68 °F 350 °C/662 °F
Inert (Halocarbon) -45 °C/-49 °F 160 °C/320 °F
Glycerine and Water -15 °C/5 °F 95 °C/203 °F
Propylene Glycol and
Water
Neobee M-20 -15 °C/5 °F 225 °C/437 °F
Syltherm XLT -75 °C/-102 °F 145 °C/293 °F
Temperature
-45 °C/-49 °F 160 °C/320 °F
-15 °C/5 °F 95 °C/203 °F
-15 °C/5 °F 95 °C/203 °F
Capillary Seal System Fill Fluid Limits
-15 °C/5 °F 95 °C/203 °F
Pressure: The operating pressure limits for a direct
mount seal system depend on the process
connection and/or sensor URL for the maximum limit
and the sensor static pressure limit and remote seal
construction for the minimum limit. For example, the
maximum limit for a FFW seal with an ANSI class
150 SST flange would be 285 psig(19.6 bar). The
maximum limit for a gage Coplanar range 4 the URL
would be 300 psig(20.7 bar). The maximum limit
would be the lower of these values for a given seal
system. For minimum pressure, the sensor limit
depends on module and sensor type as shown
below.
Module Type Sensor Type Lower Pressure Limit
Coplanar Differential LRL or 0.5 psia (34.5 mbar abs)
Gage LRL or 0.5 psia (34.5 mbar abs)
Absolute 0 psia (0 bar)
In-line Gage -14.7 psig (-1.01 bar)
Absolute 0 psia (0 bar)
Maximum Temperature
1-in. (25 mm) 5.72-in. (145 mm)
Temperature
2
Technical Note
Acceptable to
insulate around remote seal
00840-0700-4016, Rev AA
February 2009
The remote seal construction also needs to be
evaluated for lower limits on vacuum applications.
Standard Welded-Repairable remote seal
construction on Coplanar modules uses PTFE
o-rings, so it can be used for vacuum pressures
down to 6 psia (0.41 bar). Below 6 psia (0.41 bar),
All-Welded V acuum construction should be used as it
also includes welded isolator caps to eliminate any
potential for air to be sucked into the seal system
under deep vacuum conditions.
If the minimum process pressure is below the sensor
pressure limit, then the pressure transmitter needs to
be mounted below the bottom process connection
using a short length of capillary. The vertical column
of fill fluid creates a head pressure on the sensor
module to protect the sensor’s fill fluid within its
operating limit.
INSTALLATION GUIDELINES
Rosemount 1199
Direct mount remote seal systems need to be
installed properly to ensure they operate within the
operating limits stated above. In particular, the use
and location of insulation will determine if a direct
mount remote seal system will operate to its limits.
The general recommendation is to wrap insulation
around vessel process connections and seal only,
not the direct mount transmitter/flange. The direct
mount systems are designed to balance the heat
dissipation from the remote seal and process
connection, so if the entire unit is wrapped in
insulation, the transmitter electronics could be
overheated. For the example shown to the right, it is
acceptable to insulate around the remote seal and
process pipe, but not the direct mount extension.
