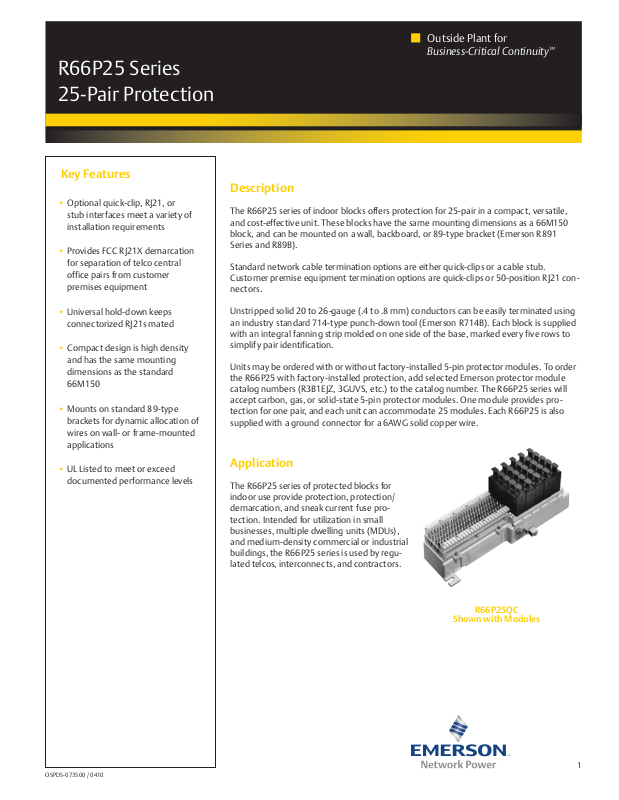

R66P25 Series
25-Pair Protection
Key Features
• Optional quick-clip, RJ21, or
stub interfaces meet a variety of
installation requirements
• Provides FCC RJ21X demarcation
for separation of telco central
office pairs from customer
premises equipment
Outside Plant for
Business-Critical Continuity
™
Description
The R66P25 series of indoor blocks offers protection for 25-pair in a compact, versatile,
and cost-effective unit. These blocks have the same mounting dimensions as a 66M150
block, and can be mounted on a wall, backboard, or 89-type bracket (Emerson R891
Series and R89B).
Standard network cable termination options are either quick-clips or a cable stub.
Customer premise equipment termination options are quick-clips or 50-position RJ21 connectors.
• Universal hold-down keeps
connectorized RJ21s mated
• Compact design is high density
and has the same mounting
dimensions as the standard
66M150
• Mounts on standard 89-type
brackets for dynamic allocation of
wires on wall- or frame-mounted
applications
• UL Listed to meet or exceed
documented performance levels
Unstripped solid 20 to 26-gauge (.4 to .8 mm) conductors can be easily terminated using
an industry standard 714-type punch-down tool (Emerson R714B). Each block is supplied
with an integral fanning strip molded on one side of the base, marked every five rows to
simplify pair identification.
Units may be ordered with or without factory-installed 5-pin protector modules. To order
the R66P25 with factory-installed protection, add selected Emerson protector module
catalog numbers (R3B1EJZ, 3GUVS, etc.) to the catalog number. The R66P25 series will
accept carbon, gas, or solid-state 5-pin protector modules. One module provides protection for one pair, and each unit can accommodate 25 modules. Each R66P25 is also
supplied with a ground connector for a 6AWG solid copper wire.
Application
The R66P25 series of protected blocks for
indoor use provide protection, protection/
demarcation, and sneak current fuse protection. Intended for utilization in small
businesses, multiple dwelling units (MDUs),
and medium-density commercial or industrial
buildings, the R66P25 series is used by regulated telcos, interconnects, and contractors.
OSPDS-073500 / 0410
R66P25QC
Shown with Modules
1
R66P25 Series
25-Pair Protection
Figure 1
Figure 2 Figure 3
2
OSPDS-073500 / 0410
R66P25 Series
25-Pair Protection
Figure 4 Figure 5
R66P25 with R891 Series Mounting Bracket
OSPDS-073500 / 0410
3
R66P25 Series
25-Pair Protection
Ordering Information
Catalog Part — Termination Style — R891 Bracket Fig.
Number Number Application In*2 / Out*3 Required*4 Number
R66P25QC F015360 Protection QC / QC Optional 1
R66P25QCC F015361 Protection QC / RJ21 Optional 2
Receptacle
R66P25QCCR3B1EJZ F015421 Protection e/w R3B1EJZ QC / RJ21 Optional 2
Receptacle
R66P25QCS10 F015362 Protection 10-ft. stub / QC √ 3,5
R66P25QCVS F015409 Protection e/w 6U2VS QC / QC Optional 1
R66P25S10CD*
Abbreviations:
QC = Quick-connect clips or 66 Clips
RJ21 = 50-position RJ21 connector with universal hold-down, mounted for bottom feed
stub = Cable stub, 25-pair, 24-gauge cable
1
*
50 2-position bridging clips (Emerson RA1) are included. Bridging clips are required to connect
protection to customer premises equipment. Bridging is necessary
2
*
Central office or network cable pairs across the two outside vertical rows. (see Figure 4)
3
*
Customer premises equipment or distribution pairs
4
*
R891 Series brackets must be ordered separately
NOTE: See UL card for usage limitations in meeting UL Spec No. 497 or 497A.
1
F015401 Protection/demarcation 10-ft. stub / RJ21 Receptacle √ 4,5
Accessories
Catalog Part
Number Number Description
R891S50 F1003918 Stand-off bracket
RA1 F005170 Bridging clips
R66MHCO2 F015380 Hinged covers, 5-in. orange
R66MHCG2 F015381 Hinged covers, 5-in. gray
P48723 F548723 Universal hold-down
NOTE: For additional brackets, covers, bridging clips, etc. see the Accessories section of this catalog.
