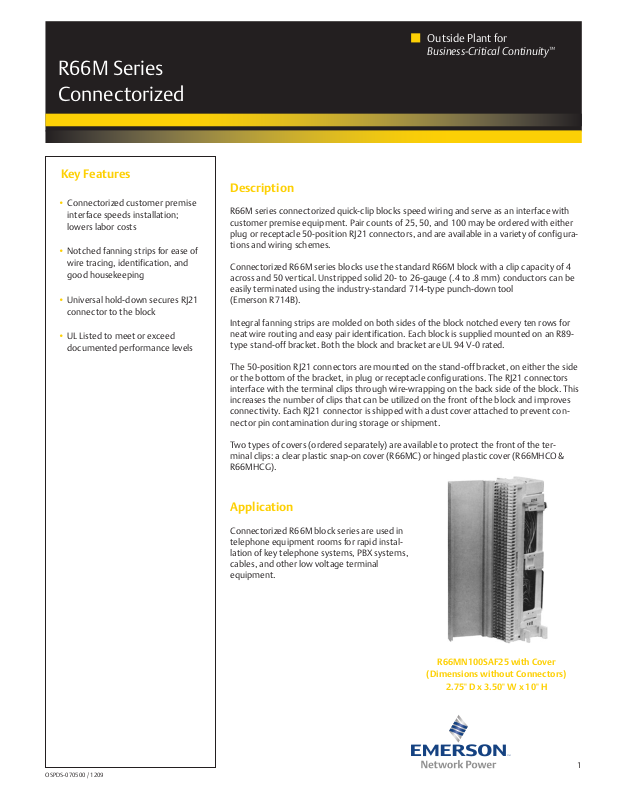

R66M Series
Connectorized
Key Features
• Connectorized customer premise
interface speeds installation;
lowers labor costs
• Notched fanning strips for ease of
wire tracing, identification, and
good housekeeping
• Universal hold-down secures RJ21
connector to the block
• UL Listed to meet or exceed
documented performance levels
Outside Plant for
Business-Critical Continuity
™
Description
R66M series connectorized quick-clip blocks speed wiring and serve as an interface with
customer premise equipment. Pair counts of 25, 50, and 100 may be ordered with either
plug or receptacle 50-position RJ21 connectors, and are available in a variety of configurations and wiring schemes.
Connectorized R66M series blocks use the standard R66M block with a clip capacity of 4
across and 50 vertical. Unstripped solid 20- to 26-gauge (.4 to .8 mm) conductors can be
easily terminated using the industry-standard 714-type punch-down tool
(Emerson R714B).
Integral fanning strips are molded on both sides of the block notched every ten rows for
neat wire routing and easy pair identification. Each block is supplied mounted on an R89type stand-off bracket. Both the block and bracket are UL 94 V-0 rated.
The 50-position RJ21 connectors are mounted on the stand-off bracket, on either the side
or the bottom of the bracket, in plug or receptacle configurations. The RJ21 connectors
interface with the terminal clips through wire-wrapping on the back side of the block. This
increases the number of clips that can be utilized on the front of the block and improves
connectivity. Each RJ21 connector is shipped with a dust cover attached to prevent connector pin contamination during storage or shipment.
Two types of covers (ordered separately) are available to protect the front of the terminal clips: a clear plastic snap-on cover (R66MC) or hinged plastic cover (R66MHCO &
R66MHCG).
Application
Connectorized R66M block series are used in
telephone equipment rooms for rapid installation of key telephone systems, PBX systems,
cables, and other low voltage terminal
equipment.
OSPDS-070500 / 1209
R66MN100SAF25 with Cover
(Dimensions without Connectors)
2.75" D x 3.50" W x 10" H
1
R66M Series
Connectorized
Ordering Information
Catalog Part Pair RJ21 Connector Fig.
Number Number Count Clip Qty. Position Number
Plug RJ21 Connector
R66MN25DAM5 F015351 25 1 double 1 Left side 1
R66MN25DAM9S F015385 25 2 double 1 Left side 2
R66MN50DAM24 F015330 50 2 double 2 Left side 3
R66MN50DAM23 F016444 50 2 double 2 Right side 4
R66MN50DAM14 F015653 50 2 double 2 Back side 5
R66MN50DAM30S F015415 50 2 double 2 Left/right 6
R66MN100SAM25 F015392 100 4 single 4 Back 7
R66MN100SAM27 F015331 100 4 single 4 2-lft./2-rgt. 8
R700A66DAM30S F015389 50 2 double 2 Left/right 9
Receptacle RJ21 Connector
R66MN25DAF9 F015303 25 1 double 1 Left side 1
R66MN25DAF9S F015343 25 2 double 1 Left side 2
R66MN50DAF22 F015313 50 2 double 2 Left side 3
R66MN50DAF23 F015344 50 2 double 2 Right side 4
R66MN50DAF13 F015301 50 2 double 2 Back side 5
R66MN50DAF30S F015413 50 2 double 2 Left/right 6
R66MN100SAF25 F015299 100 4 single 4 Back 7
R66MN100SAF26 F015289 100 4 single 4 2-lft./2-rgt. 8
R700A66DAF30S F015390 50 2 double 2 Left/right 9
NOTE: All part numbers listed are connectorized for cabling stub up unless otherwise noted. Cabling stub down and other special wiring options are available. Please contact your Emerson Outside Plant account representative for part numbers and availability.
Accessories
Catalog Part
Number Number Description
R714B F008640 Termination tool for 66-clip terminal blocks
R66MC F015293 Clear plastic snap-on cover, 10-in. length
R66MHCO F015376 Orange plastic hinged cover, 10-in. length
R66MHCG F015377 Grey plastic hinged cover, 10-in. length
NOTE: For other accessories, including brackets, covers, bridging clips, etc., see the Accessories section of this catalog.
2
OSPDS-070500 / 1209
