The Capacity to Handle the Surges;
The Footprint that Saves You Space
Today’s businesses demand more protection from their surge suppression
products. A power disturbance can strike at any time, causing a loss of data,
productivity and money. Customers require systems that will consistently
provide clean power and safeguard their equipment from the substantial
costs of power disturbances.
Features
n

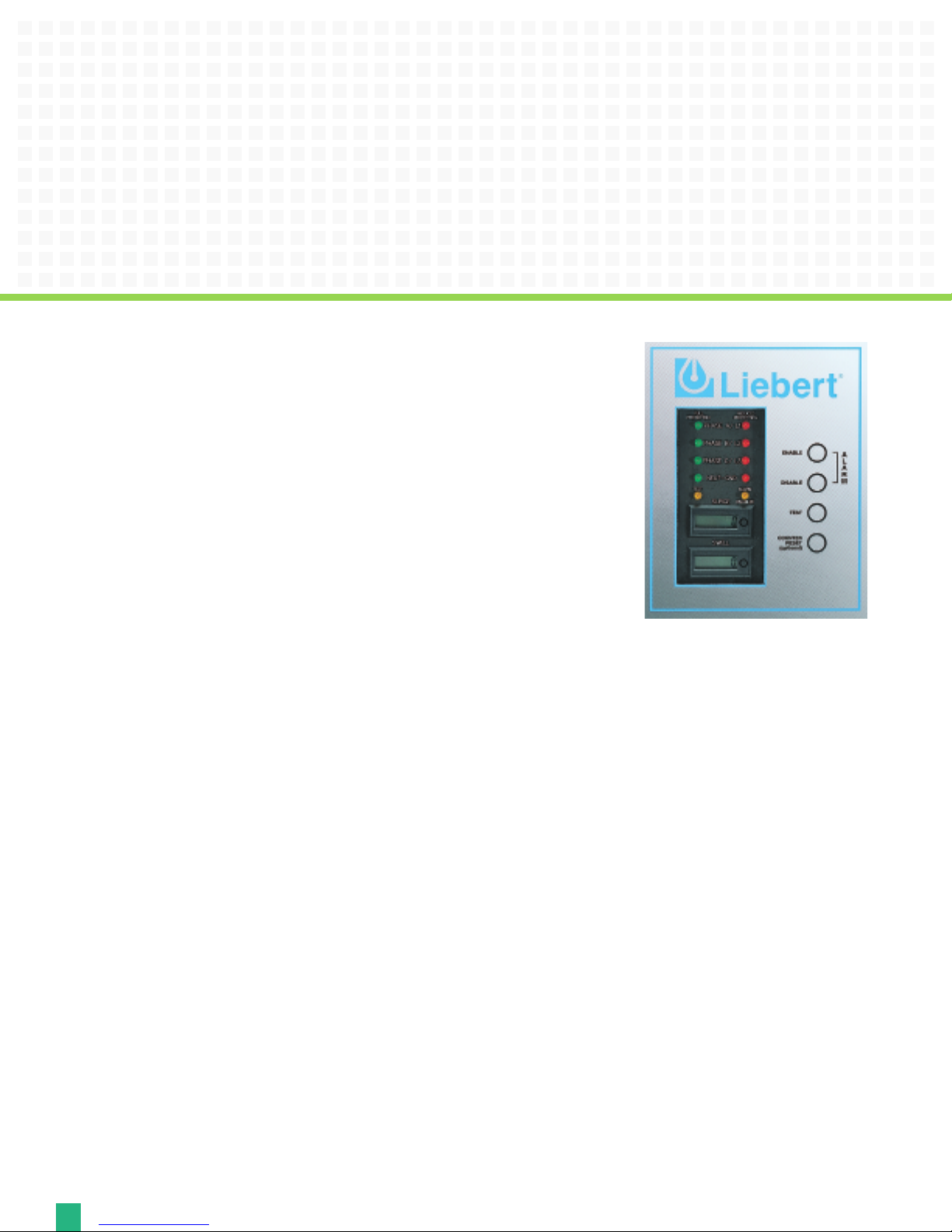

Built-In-Testing - The Liebert Interceptor II comes equipped with a
built-in testing circuit that monitors MOV/fuse link status. The built-in
testing can be operated by the simple push of a button on the display
panel, and testing can occur at any voltage within the continuous
operating voltage range, even during a transient event. No other surge
manufacturer offers this monitoring capability as a standard feature.
n
Precise Current Sharing Assures Performance and Long Life - High
Energy current diversion is handled by a sophisticated parallel system
of computer matched, custom metal-oxide varistor (MOV) array.
n
Protection From Exteme Voltage Conditions - Individual
component-level fusing coordinates to ensure each unit is safeguarded.
n
Lowest Clamping Voltages - through use of low impedance copper
conduction plates.
n
-time Status Indication
al
e
R
alarms and Form C contacts activate when protection is reduced or
phase loss/undervoltage conditions are detected.
n
Best-in-Class Capacitive Filtering - for excellent ringwave transient
ttenuation.
a
n
Stringent 3rd Party Testing - for surge current capacity, life cycle,
EMI/RFI noise rejection, fault interrupt current and industry safety
approvals.
n
10-Year Warranty for parts and 5-Year on-site labor
rnal and external LED's, audible
e
t
- in
2
Page 3
Liebert Interceptor®II Surge Suppression 160kA - 1000kA.
AD
CB
E
F
NEMA LS 1 Test Data (without disconnect/with disconnect)
System B3 6kv/500A B3/C1 C3
Connection Type Parallel Connected
Agency Listings UL1449, UL1283, cUL, FCC Part 15 Class B
Operating Voltage Range + / - 15%
Fault Current Rating (AIC) 200kAIC
Operating Frequency Range 47 - 63 Hertz
50 ohm EMI/RFI Attenuation 100kHz 41 dB
1MHz 31 dB
10MHz 35 dB
100MHz 53 dB
Voltage Mode Ringwave Comb.Wave Comb.Wave Comb.Wave
120/208 L-N 328/344 308/312 376/376 452/536
120/208 L-G 340/348 320/316 364/368 444/584
120/208 L-L 464/448 576/568 680/652 792/832
120/208 N-G 344 284 344 468
277/480 L-N 520/536 532/528 800/800 912/952
277/480 L-G 736/760 688/688 760/776 840/896
277/480 L-L 736/776 720/728 1480/1416 1656/1600
277/480 N-G 736 648 760 896
Protection Modes All applicable modes standard (Line to Neutral, Line
to Ground, Neutral to Ground and Line to Line)
Response Time <0.5 nanoseconds
Temperature -40 to +60 degrees C
Operating Humidity 0% to 95% noncondensing
Status Indication LEDs, Dry Contacts, Audible Alarm
Enclosure NEMA 4 standard
Altitude 0 to 18,000 feet
Audible Noise Less than 45 dBa
Warranty 10-Years Parts and 5-Years On-Site Labor
UL 1449 Clamping Data (Second Edition)
System Voltage L-N L-G N-G L-L
120/240
120/208
240 N/A 800V N/A 800V
230/400
277/480
480 N/A 1200V N/A 1500V
330V 400V 400V 600V
700V 800V 600V 1200V
How To Specify The Appropriate Model:
All Liebert Interceptor II model numbers begin with the SI prefix. Use Chart A to build your Liebert Interceptor II starting with the Surge Rating column.
Moving left to right, choose the correct configurations from each column for your application. Your completed model number should look similar to the
example below or SI016120YARDE. Refer to Chart B for Liebert Interceptor II dimensional data.
Chart A – Liebert Interceptor®II Model Selection
6 1
SI
Interceptor Choose Choose Choose Choose Choose Choose Choose
Series Surge Current Voltage Voltage Modes of Type of Monitoring Enclosure
ode
C
I
S
0 1
Rating (L-G) Configuration Protection Connection Option Type
ode
C
160kA
016
250kA
025
320kA
032
400kA
040
500kA
050
600kA
060
750kA
075
1000kA
100
2 0 Y A R D E
ode Code Code Code Code Code
C
120V N 1 Phase L-N 2+W+GND A All N Wire Lugs S E NEMA 4
120
208V
208
220V
220
230V
230
240V
240
277V
277
480V
480
Chart B – Liebert Interceptor®II Dimensional Data
ge
Sur
160kA
250kA
320kA
500kA Disconnect 16 16 9 17.25 10 0.44 55
600kA Wire lugs 20 16 9 21.25 10 0.44 55
750kA Disconnect 20 20 9 21.25 14 0.44 85
1,000kA
tion A B C D E F Weight
onnec
C
gs 16 12 9 17.25 9.5 0.44 35
e lu
ir
W
16 16 9 17.25 10 0.44 45
t
onnec
c
Dis
s 16 12 9 17.25 9.5 0.44 45
g
e lu
ir
W
Wire lugs 20 20 9 21.25 14 0.44 85
Disconnect 20 24 9 21.25 18 0.44 95
EXAMPLE
Standard Monitoring
1 Phase L-L 2W +GND R Disconnect N Caseless
L
Split Phase 3W+GND
S
3 Phase Wye 4W+GND
Y
3 Phase Delta 3W+GND
D
*O
r mode
the
f protection
o
available; Call
.
y
or
t
ac
f
s
X 3 Phase Wye 3W+GND
H 3 Delta Hi-Leg 4W+GND
LEDs, Audible Alarm,
Form C Contacts
C Standard Monitoring
Plus Single Surge
and
t
S
D
Plus Dual Surge and
Swell Counters
r
e
t
un
o
C
d Monitoring
ar
*Other enclosure
options available;
actory.
all f
C
3
