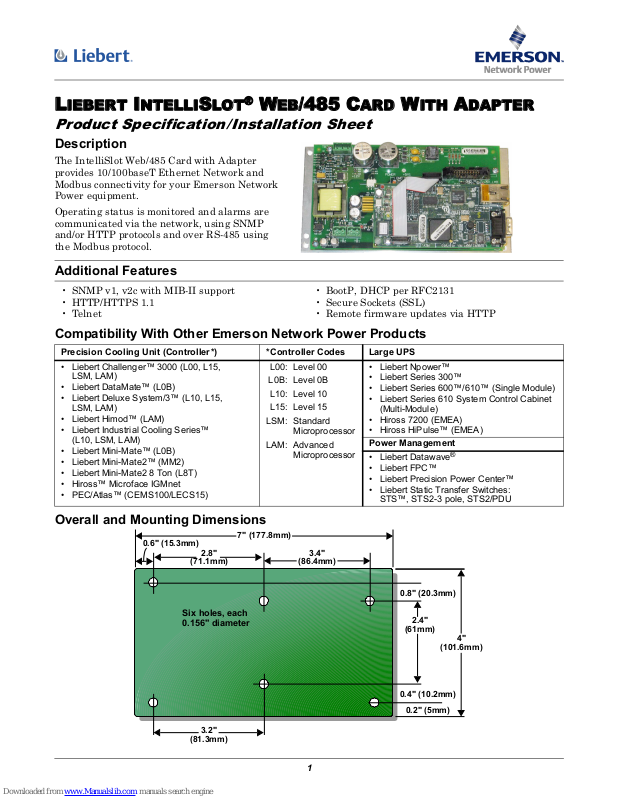

LIEBERT INTELLISLOT® WEB/485 CARD WITH ADAPTER
Product Specification/Installation Sheet
Description
The IntelliSlot Web/485 Card with Adapter
provides 10/100baseT Ethernet Network and
Modbus connectivity for your Emerson Network
Power equipment.
Operating status is monitored and alarms are
communicated via the network, using SNMP
and/or HTTP protocols and over RS-485 using
the Modbus protocol.
Additional Features
• SNMP v1, v2c with MIB-II support
• HTTP/HTTPS 1.1
• Telnet
• BootP, DHCP per RFC2131
• Secure Sockets (SSL)
• Remote firmware updates via HTTP
Compatibility With Other Emerson Network Power Products
Precision Cooling Unit (Controller*) *Controller Codes Large UPS
• Liebert Challenger™ 3000 (L00, L15,
LSM, LAM)
• Liebert DataMate™ (L0B)
• Liebert Deluxe System/3™ (L10, L15,
LSM, LAM)
• Liebert Himod™ (LAM)
• Liebert Industrial Cooling Series™
(L10, LSM, LAM)
• Liebert Mini-Mate™ (L0B)
• Liebert Mini-Mate2™ (MM2)
• Liebert Mini-Mate2 8 Ton (L8T)
• Hiross™ Microface IGMnet
• PEC/Atlas™ (CEMS100/LECS15)
L00:
L0B:
L10:
L15:
LSM:
LAM:
Level 00
Level 0B
Level 10
Level 15
Standard
Microprocessor
Advanced
Microprocessor
• Liebert Npower™
• Liebert Series 300™
• Liebert Series 600™/610™ (Single Module)
• Liebert Series 610 System Control Cabinet
(Multi-Module)
• Hiross 7200 (EMEA)
• Hiross HiPulse™ (EMEA)
Power Management
• Liebert Datawave
• Liebert FPC™
• Liebert Precision Power Center™
• Liebert Static Transfer Switches:
STS™, STS2-3 pole, STS2/PDU
Overall and Mounting Dimensions
0.6" (15.3mm)
2.8"
(71.1mm)
7" (177.8mm)
3.4"
(86.4mm)
®
Six holes, each
0.156" diameter
3.2"
(81.3mm)
0.8" (20.3mm)
2.4"
(61mm)
4"
(101.6mm)
0.4" (10.2mm)
0.2" (5mm)
1
Page 2
Customer Wiring
Input power
(input to TB3)
Pin 1(+)
Pin 2(-)
Pin 3 (NC)
Network port
for NMS and
Web access
Modbus output
for BMS
(output from TB2)
TB1: Pin 1 (+), Pin 2 (-)
TB2: Pin 1 (+), Pin 2 (-)
IGMnet or Liebert SiteScan
from unit (input to TB1 or P1)
Refer to user manual for details
®
Comms
DTE serial port
for configuration
(requires null-modem
connection)
Specifications
Power
Requirements
Dimensions - W x D x H: in. (mm) 7 x 4 x 1.5 (178 x 102 x 38)
Weight
Ambient Operating Environment, °F (°C) 32 to 104 (0 to 40); 10% to 90% RH (non-condensing)
Ambient Storage Temperature, °F (°C) -4 to 140 (-20 to 60)
Protection SELV Isolated User Connections, Watchdog Timer Circuitry
Communication
Ports
AC Inputs 18 - 24 VAC; 50/60 Hz
DC Inputs 12 - 36VDC
Power Consumption 6VA maximum
Net - oz. (kg) 7 (0.2)
Shipping - lb. (kg) 1.3 (0.6)
Service Terminal (RS-232) DB9F, DTE
Unit Input
Communications
Modbus (RS-485) TB2, 2-Position Terminal Block
Ethernet Communications RJ45
TB1, 2-Position Terminal Block
P1, 20-PIN Vertical Header with Ejection Latches (for some UPS models)
Wiring Specifications
Connection Supported Wire Types Maximum Wire Length
TB1 (RS-422)
TB2 (RS-485)
TB3 (Power Input)
DB9F Connector DTE Null Modem Cable 50 ft. (15m)
RJ45 Connector Standard Category 5 Cable 328 ft. (100m)
© 2007 Liebert Corporation
All rights reserved throughout the world. Specifications subject
to change without notice.
18-22 AWG Stranded & Shielded; 18 AWG* recommended
Non Plenum - Belden 9461; Plenum - Belden 88761
18-22 AWG Stranded & Shielded; 18 AWG* recommended
Non Plenum - Belden 9461; Plenum - Belden 88761
18-22 AWG Stranded & Shielded; 18 AWG* recommended
Non Plenum - Belden 8770; Plenum - Belden 88770
Liebert Corporation
1050 Dearborn Drive
P.O. Box 29186
Columbus, OH 43229
Telephone: 1-800-877-9222
Facsimile: 1-614-841-6022
www.liebert.com
® Liebert and the Liebert logo are registered trademarks of
Liebert Corporation. All names referred to are trademarks or
registered trademarks of their respective owners.
SL-29105_REV02_10-07
1000 ft. (300m)
3000 ft. (915m)
20 ft. (6m)
