Emerson iP550, iP550BK User Manual

Portable iPod

R

®

Docking Station

with Dig ital Tuning Stereo Receiver,

Digital Clock and Remote Control

Made for all iPod® models inc luding iPod® nano, iPod® shuffle and iPod® mini

OWNER’S MANUAL

iP550 (Silv er Color)
iP550BK (Black Color)

Visit our web site at www.emersonradio.com

iP550_041907.p65 19/4/2007, 17:5636

!

CAUTION

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrow­head symbol, within an equi­lateral triangle is intended to
alert the user to the presence
of uninsulated ‘dangerous voltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.

WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR BAC K), NO USE R
SERVICEABLE PARTS INSIDE
REFER SERVIC ING TO
Q U A L I F I ED SE R V I C E
PERSONNEL.

The exclamation point within
an equilateral triangle is in­tended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompany­ing the appliance.

The Caution Marking maybe located at the bottom enclosure of the apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1.) Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.

2.) Do not use this apparatus near water.

3.) Clean only with dry cloth.

4.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

5.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

6.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.

7.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.

8.) Only use attachments / accessories specified by the manufacturer.

9.) Unplug this apparatus during lightning storms or when unused for long periods of time.

10.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

11.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
such as vases shall be placed on the apparatus.

12.) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13.) Do not overload wall outlet. Use only power source as indicated.

14.) Use replacement parts as specified by the manufacturer.

15.) The product may be mounted to a wall only if recommended by the manufacturer.

16.) Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks.

1

iP550_041907.p65 19/4/2007, 17:561

Thank you for purchasing this Portable iPod® Docking Station from
Emerson Research. This compact portable unit allows you to listen to
any dockable iPod® (available as of January 2006) through the built in
speakers, for those times when you want to share you music with others,
or when listening through your ear buds is simply not an option. We've
even provided an iPod® compatible USB connector to allow connection of
your iPod® Shuffle as well. And as long as your system is connected to an
AC outlet it will also charge the battery of any iPod® connected to the
docking station.

The powerful amplifier and heavy duty speakers in this system will deliver
sound quality that you would never expect from such a compact unit. There’s
also a built in digital tuner with 20 preset station memories, a digital clock
that allows you to fall asleep to the radio or your iPod® and a full function
remote control.

The system can be operated on 8 “C” batteries or normal 120V AC house
current. And we’ve even included an auxiliary input jack so you can also
connect other MP3 players, personal CD players, or any other external
device that has a headphone jack.

We have taken great care to insure that your system was in perfect working
order when it left our factory. If you experience any problems with the set
up or operation of this system, please do not return it to the retail store.
Please call the Emerson Customer Service hotline, toll free, at:

1-800-898-9020, Monday through Friday between the hours of 9:00 AM
and 5:00 PM Central Time. One of our representatives will try to resolve
the problem for you. If the problem cannot be resolved by phone you will
be advised how to obtain service or a replacement unit.

Once again, thank you for purchasing this portable iPod® docking station
from Emerson Research.

iPod® is a trademark of Apple Computer Inc., registered in the U.S. and other
countries.

2

iP550_041907.p65 19/4/2007, 17:562

IMPORTANT NOTES

• Avoid installing this unit in places

exposed to direct sunlight or close to
heat radiating applianc es such as
electric heaters, on top of other stereo
equipment that radiates too much
heat, places lack ing ventilation or
dusty areas, places subject to
constant vibration and/or humid or
moist areas.

• Operate controls and switches as
described in the manual.

• Before turning on the power, mak e
certain that the AC power c ord is
properly installed.

• When moving the set, be sure to first
disconnect the AC power cord.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference

that may cause undesired operation.

Changes or modifications not expres sly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

3

iP550_041907.p65 19/4/2007, 17:563

PREPARATION FOR USE

Unpacking and Set-up

• This carton contains the main unit, 5 plastic adapters to insure that all dockable

iPod®s fit securely in the docking station, and the remote control. Confirm that
you have all of these items and make sure that nothing is accidentally discarded
with the packing materials.

• We recommend that, if possible, you save the carton and packing materials in

the event that your unit ever needs to be returned for service. Using the original
carton and packing materials is the only way to protect your unit from damage
during shipment.

• Remove the paper “dummy iPod®” from the docking area and discard it. That

is for store display purpose only.
To remove the “dummy iPod®”, slide the docking cradle upward to remove it

from the front panel. Turn the cradle over and push the docking connector
cover out of the cradle as shown in the following illustration, and then remove
the “dummy iPod®”.

(Dummy iPod®)

(Docking
Cradle)

(Docking Cradle)

(Docking Connector Cover)

• Remove any descriptive labels or stickers from the front or top panels. Do not

remove any labels from the back or bottom panels.

4

iP550_041907.p65 19/4/2007, 17:564

Power Sources

AC Outlet

This system is designed to operate on 8 “C” batteries, not included, or on normal
120V 60Hz AC house current. Attempting to operate this system on any other
power source may cause damage to the unit, and such damage is not covered by
your warranty.

AC Operation

Insert the small female plug of the AC power cord into the AC socket on the back
panel. The plug can only be inserted one way.

Insert the AC plug into your normal 120V 60Hz AC household outlet.
The display will show “AM 12:00 ”. The

display backlighting will turn on for a few
seconds and then turn off again.

NOTE: The system has a polarized AC plug with one wide blade and one
narrow blade. The plug will only fit into matching polarized AC outlets.

This is a safety feature to reduce the possibility
of electric shock. If the plug will not fit in your
AC outlet, you probably have an outdated non­polarized outlet. You should have your outdated
outlet changed by a qualified, licensed
electrician. Do not file the wide blade on the
plug, or use an adapter to make the plug fit
into your outlet. This defeats the safety feature
and could expose you to electric shock.

AC Plug

5

iP550_041907.p65 19/4/2007, 17:565

Installing The Batteries

The battery compartment is located on the bottom cabinet. We recommend that
you place the unit on a soft surface such as a carpet, on a towel or blanket before
turning the unit upside down to install the batteries. This will prevent any scratches
on the cabinet finish.

1.) With the unit upside down press the two battery cover locking tabs in the direction

of the arrow marks and remove the battery compartment cover.

2.) Insert 8 “C” batteries, not included, in the battery compartment according to

the polarity markings engraved in the compartment. If the batteries are inserted
incorrectly the unit will not work.

NOTE: We recommend that you use a well-known brand of alkaline
batteries for longest life and best performance.

3.) Replace the battery compartment and make sure that it locks securely in place.

IMPORTANT: In order to operate the unit on batteries the AC power cord
must be disconnected from the AC socket on the back cabinet.

6

iP550_041907.p65 19/4/2007, 17:566

Battery Precautions

• Replacement of batteries must be done by an adult.

• Do not mix old and new batteries.

• Do not mix alkaline, s tandard (carbon-zinc) or rechargeable (nickel-cadmium)
batteries.

• The supply terminals are not to be short-circuited.

• Non-rechargeable batteries are not to be recharged.

• Exhausted batteries are to be removed.

• Only batteries of the equivalent type are to be used.

• Batteries are to be inserted with the correct polarity.

• Dispose of batteries properly. Do not dispose of batteries in fire. The batteries
may explode or leak.

Protect Your Furniture

This model is equipped with non-skid rubber ‘feet’ to prevent the product from
moving when you operate the controls. These ‘feet’ are made from non-migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood preservatives,
or cleaning sprays may cause the rubber ‘feet’ to soften, and leave marks or a
rubber residue on the furniture. To prevent any damage to your furniture we strongly
recommend that you purchase small self-adhesive felt pads, available at hardware
stores and home improvement centers everywhere, and apply these pads to the
bottom of the rubber ‘feet’ before you place the product on fine wooden furniture.

iP550_041907.p65 19/4/2007, 17:567

7

LOCATION OF CONTROLS AND INDICATORS

Front Panel

4

3
2

1

Top Panel

10

9

8

24

11

23

22

12

21

20

19

13

18

17

3

5
6

7

14

15

16

20

iP550_041907.p65 19/4/2007, 17:568

19

5

8

1.) Aux (Auxiliary Input) Jack.

2.) iPod® Docking Station.

3.) Speakers.

4.) Remote Control Sensor.

5.) Docking Cradle.

6.) Phones (Stereo Headphone) Jack.

7.) Battery Compartment (Bottom Cabinet).

8.) Power Button.

9.) FM Telescopic Antenna.

10.) Carrying Handle.

11.) Sleep Button.

12.) Multi-Function LCD Display.

13.) Function Button.

14.) Volume + Button.

15.) Volume – Button.

16.) Skip Forward / Tuning (Up) Button.

17.) Skip reverse / Tuning (Down) Button.

18.) Band/iPod Play Button.

19.) iPod® Shuffle USB Connector.

20.) iPod® 30-Pin Connector.

21.) Time/Display Button.

22.) Memory Button.

23.) Preset + Button.

24.) Preset – Button.

9

iP550_041907.p65 19/4/2007, 17:569

LCD Display

3 4 5 6 7 8 9

2

1

121314

1.) Volume Level (00-64), Sleep Time, Radio Channel Display.

2.) VOLUME Indicator.

3.) MEMORY Indicator.

4.) FM Indicator.

5.) SLEEP Timer Indicator.

10
11

6.) RADIO Select Indicator.

7.) iPod Select Indicator.

8.) Battery Low Indicator.

9.) AUX Select Indicator.

10.) FM STEREO Indicator.

11.) MUTE Indicator.

12.) Clock, Radio Frequencies Display.

13.) Clock PM Indicator.

14.) AM Indicator.

iP550_041907.p65 19/4/2007, 17:5610

10

Remote Control

R

6

7

5

8
9

4
3

2

10
11

12

1

1.) iPod Play/Band Button.

2.) Skip reverse / Tuning – Button.

3.) Volume + Button.

4.) Mute Button.

5.) Time / Display Button.

6.) Infrared Transmitter.

7.) Power Button.

8.) Memory Button.

9.) Function Button.

13

14

10.) Preset + Button.

11.) Preset – Button.

12.) Skip Forward / Tuning + Button.

13.) Volume – Button.

14.) Lithium Battery Compartment (Back Cabinet).

11

iP550_041907.p65 19/4/2007, 17:5611

Remote Control

The remote control supplied with this system allows you to operate all of the features
and functions found on the main unit control panel. The remote control receiver is
located behind the left speaker grill. The effective operating distance of the remote
control is approximately 15 feet.

Please note that bright sunlight can interfere with the proper operation of the remote
control, so the operating range may be reduced when the unit is used outdoors on
a sunny day.

IMPORTANT! Please note that the iPod® Shuffle has no interface to accept
commands from a remote control. The remote control of this system will not
operate an iPod® Shuffle. You must use the controls on the Shuffle itself to
operate an iPod® Shuffle.

Remote Control Battery

The remote control requires one 3V lithium button battery, Type CR2025 or
equivalent, included.

To preserve the life of the battery a small clear plastic spacer tab is installed between
the battery and the battery terminal. This tab must be removed before the remote
control can be used.

To remove the tab simply pull it out of the battery
compartment, as shown, and discard it.

12

iP550_041907.p65 19/4/2007, 17:5612

When the operation of the remote becomes intermittent or fails completely you
should replace the battery as soon as possible.

The battery number is CR2025 or equivalent.

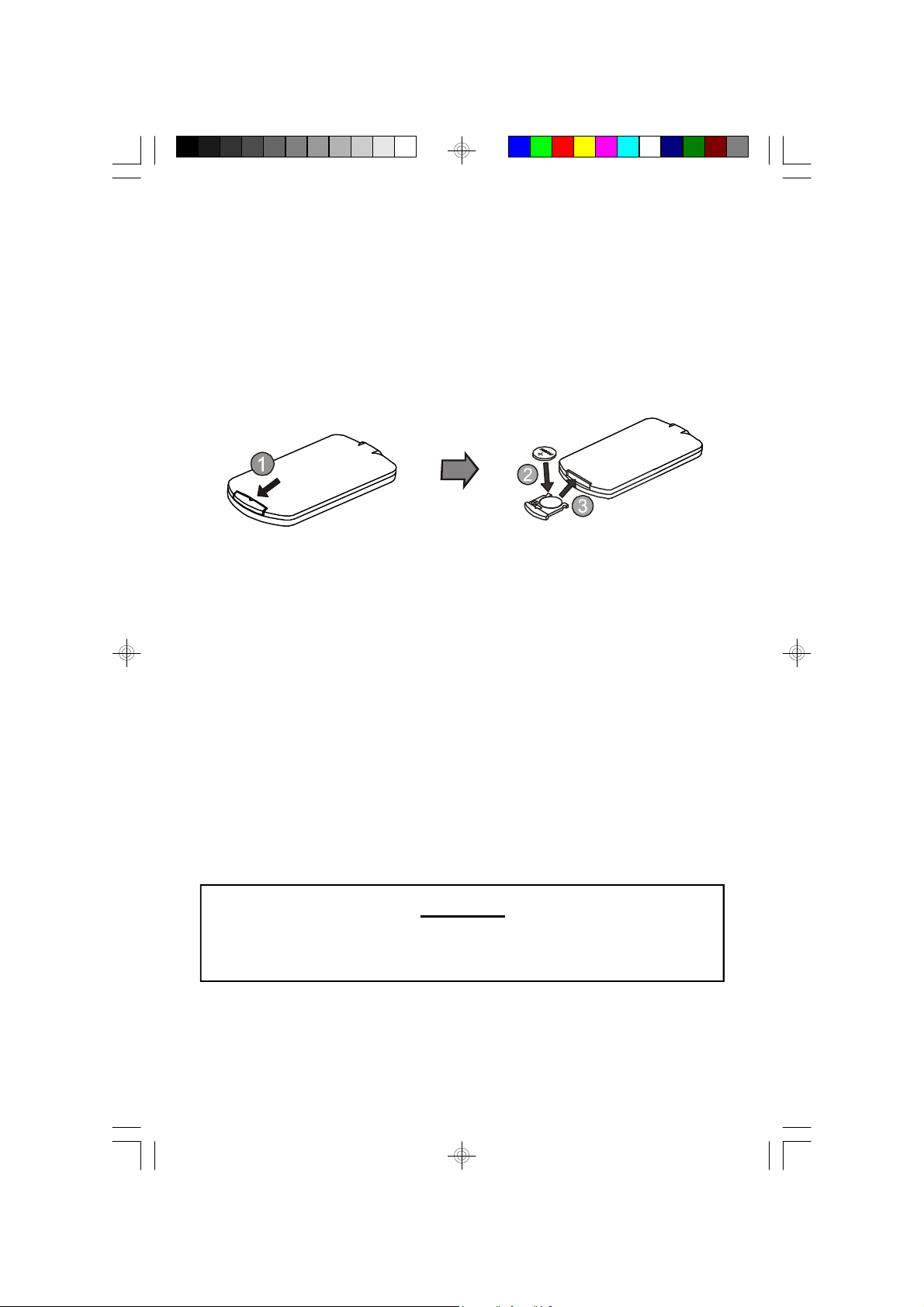

To replace the battery, put the remote control face down, slide the battery holder
out of the remote control as shown in the illustration.

Remove the original battery from the holder and install a new CR2025 battery with
the “+” side facing up. Then slide the battery holder back into the remote control.

CAUTION

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

13

iP550_041907.p65 19/4/2007, 17:5613

OPERATING INSTRUCTIONS

• Make sure that you have either installed the 8 “C” batteries or have
connected the unit to your household AC outlet.

• Make sure that you have removed the clear plastic battery spacer tab
from the remote control.

Setting The Clock

NOTE: The clock can only be set while the system is in the power ‘Off’ mode.
If the power is ‘On’ press the Power button on the main cabinet or remote

control to shut the power ‘Off’, the proceed to set the clock as follows:

1.) Press the Time/Display button once.
The display lighting turns on and the
Hour digits begin to flash.

2.) While the Hour digits are flashing
press the ( ) or ( ) buttons

to move the display forward or back
to the desired hour. Be sure to
observe the AM or PM indicator to
make sure you have set the hour correctly.

3.) Press the Time/Display button
again. The Hour digits stop flashing
and the Minute digits begin to flash.

4.) While the Minute digits are flashing
press the ( ) or ( ) buttons

to move the display forward or back
to the desired minute.

iP550_041907.p65 19/4/2007, 17:5614

14

5.) When the correct time appears on the display press the Time/Display button
once more to enter the time and start the clock running.

The Minute digits stop flashing and
only the colon (:) continues to flash
once per second to confirm that the
clock is running.

NOTES:
After pressing the Time/Display button you must press the ( ) or ( )

buttons within 10 seconds while the display is flashing or the time cannot be
adjusted.

If the display backlighting goes off and the display stops flashing before you
can set the time, repeat the above clock setting procedure and make sure that
you adjust the time within 10 seconds after pressing the Time/Display button.

The correct time will appear on the display when the system is in the power ‘Off’
mode, the iPod mode, or the AUX mode.

When the system is in the RADIO mode the display will show the AM or FM
frequency of the radio station you selected. To see the time in the RADIO mode,
press the Time/Display button once. The display will change from radio frequency
to correct time for 5 seconds, and then back to radio frequency automatically.

15

iP550_041907.p65 19/4/2007, 17:5615

Listening To The Radio

1.) Press the Power button on the main unit or remote control to turn the
system power ‘On’. The display lighting comes ‘On’.

2.) Press the Function button on the main unit or the remote control until the
RADIO indicator appears in the display.

The first time you select the RADIO
function the display will show:

“FM 87.5 MHz”.

To switch back and forth between FM and AM bands press the Band/iPod Play

button repeatedly.

The first time you select the AM band
the display will show “AM 520 KHz”.

3.) Use the ( ) or ( ) buttons select the desired station as follows:

• Automatic Tuning
Press and hold the ( ) or ( ) buttons until the display begins to move

and then release the buttons. The tuner will search for the first strong station
and stop on that station. Repeat this procedure until the tuner stops on your
desired station.

• Manual Tuning
Repeatedly press the ( ) or ( ) buttons to move the display forward

or back until it is showing the frequency of your desired station. Use the manual
tuning procedure to tune to stations that are not strong enough to be selected
by the Automatic Tuning method.

4.) If you have tuned to an FM Stereo
station the STEREO indicator will
appear in the display.

16

iP550_041907.p65 19/4/2007, 17:5616

5.) Press the Volume + or – buttons on the main unit or the remote control to
adjust the volume to the desired level. The VOLUME level indicator appears in
the display when you adjust the volume.

The indicator range is from “00” (minimum) to “64” (maximum).

6.) When you are finished listening press the Power button on the main unit or
the remote control to switch the power ‘Off’. The display lighting turns off and
the display changes from radio frequency to the correct time.

NOTE: The system remembers the last station and the volume level that you
had selected before the power was switched ‘Off’ and automatically returns to
that station and volume level when the power is switched ‘On’ again.

iP550_041907.p65 19/4/2007, 17:5617

17

Antenna Information

AM: The AM bar antenna is located inside the cabinet. If AM reception is

unsatisfactory, try turning the entire unit slightly until the AM antenna is picking
up the strongest possible signal.

FM: The telescopic rod FM antenna is located on the left side of the cabinet. Pull

it out of the cabinet as far as it will go until the swivel base is exposed.

Then raise the antenna to the vertical position, or to the position that provides
the best FM reception.

CAUTION: THE FM ROD ANTENNA MUST BE PULLED ALL THE WAY OUT
BEFORE ATTEMPTING TO RAISE IT TO THE VERTICAL POSITION.

18

iP550_041907.p65 19/4/2007, 17:5618

Presetting Stations In The Tuner Memories

The tuner in this system has 20 preset station memories that allow you to memorize
up to 10 of your favorite FM stations and 10 of your favorite AM stations for
immediate recall at the touch of a button.

1.) Tune to the first station that you wish to memorize by either the Automatic or
Manual Tuning method in the “Listening To The Radio” section.

Example: FM 93.5 MHz.

2.) When the desired station appears in the display press the Memory button
once.

The MEMORY indicator and memory
number “01” begin flashing in the display.

3.) Within 10 seconds, while the indicators
are still flashing, press the Memory
button again. The indicators stop flashing
and your station is now stored in preset
memory number 01.

4.) Tune to the next station you wish to store.
Example: FM 98.7 MHz.

5.) Press the Memory button once. The
MEMORY indicator and memory number
“01” begin flashing.

Press the Preset + button once to advance the memory number from “01” to
“02”, and then press the Memory button once more.

The MEMORY and “02” indicators stop
flashing to indicate that your station is
now stored in preset memory number
“02”.

19

iP550_041907.p65 19/4/2007, 17:5619

6.) Repeat steps 4 and 5, selecting a different preset memory number each time
until you have stored up to 10 FM stations in the memory.

7.) Press the Band/iPod Play button to switch from the FM band to the AM
band and then follow the above procedure to enter up to 10 of your favorite AM
stations in the tuner memory.

Recalling Preset Stations

Turn the system ‘On’, select the RADIO function and the desired band as usual.
Then press the Preset + or Preset – buttons to scroll up or down through the
preset memories to find your desired station.

Changing Preset Stations

1.) Tune to the new station that you wish to memorize.

2.) Press the Memory button once. The MEMORY indicator and the memory
number “01” indicators begin to flash.

3.) Press the Preset + or Preset – buttons to select the number of the preset
station that you wish to change.

4.) Press the Memory button once more. The new station is stored in the desired
memory location and the previously stored station is deleted from the memory.

20

iP550_041907.p65 19/4/2007, 17:5620

nano.

®

will be connected to system

®

Will Be Docked

®

.

®

nano models at time of purchase.

®

model to the docking station. Refer to the chart below to select

®

s with video capability, and 2G (second generation) iPod

®

ADAPTER INFORMATION

®

s at time of purchase. They will fit properly into the d ocking sta tion of this system.

®

and 2G iPod

®

iPod

An Extended Period of Time."

"Docking Station Dust Cover. Install This Cover In The Docking Station If No iPod

For

model and insert that adapter into the docking station before connecting your iPod

®

Adapters

* No adapters provided. Please use the adapters that were included with your 5G iPod

use that adapters that were included with these iPod

proper adapter for your particular iPod
the

This system includes 5 different adapters designed to allow you to securely connect any “dockable” iPod

have also included one flat adapter with no opening at all. This serves as a dust cover that can be inserted in the docking station if no iPod

an extended period of time.

We

NOTE : No adapters are p rovided fo r the 5G (fifth generation) 30GB a nd 60GB iPod

for

Please

21

iP550_041907.p65 19/4/2007, 15:50

Connecting and Playing Your ‘Dockable’ iPod

®

(Refer To Separate Instructions For The iPod® Shuffle)

IMPORTANT: To avoid any unwanted distortion when listening to your iPod

through the speakers of this system we recommend that you shut ‘Off’ the
equalizer in the iPod® before inserting it in the docking station of this system.
To shut off the iPod® equalizer, go to the “Main Menu” in your iPod®, scroll to
the “Settings” menu, select the “EQ” setting and turn the EQ ‘Off’.

1.) The Hold switch on your iPod® should be set to the ‘Off’ position to unlock the
click-wheel navigation controls.

2.) Remove the docking cradle from the front panel by sliding the cradle upward
as shown. If you have not already done so turn the cradle over and press on
the bottom of the connector cover to remove it from the cradle. Discard the
paper “dummy iPod®”.

®

3.) Choose the appropriate adapter for your particular iPod® model from among
the 5 adapters supplied with this system and insert the adapter into the docking
cradle as shown. (Refer to the iPod adapter chart).

Then re-install the docking cradle in the front panel.

22

iP550_041907.p65 19/4/2007, 17:5622

NOTE: If you are using either the 30GB or 60GB fifth generation iPod
models with video capability or the 2G (Second Generation) iPod® nano,
use the adapters that were supplied with the iPod® at time of purchase.
They will fit correctly in the docking cradle of this system.

IMPORTANT!

• If you are using a “1G (First Generation) iPod® nano” you must slide the
docking connector to the ‘left’ position before inserting the required adapter
as shown in the following illustrations:

®

• If later you decide to install a different iPod® model you must remove the
nano adapter from the docking cradle and slide the docking connector
back to the ‘right’ position before inserting the appropriate adapter.

4.) Slide your iPod® into the adapter and make sure that it slides down as far as
possible until it is correctly seated on the iPod® connector.

5.) Press the Power button of this system to turn the power ‘On’.

6.) Press the Function button of this
system to select the iPod function.
The “iPod” indicator appears in the
display.

23

iP550_041907.p65 19/4/2007, 17:5623

7.) If necessary, press the Band/iPod Play button to begin playback.

8.) Press the Volume + / – buttons on this system to adjust the iPod® volume

level.

NOTE: When your iPod® is docked in this system the click-wheel volume
control on the iPod® is automatically defeated. The volume can only be
adjusted with the controls on this system.

9.) To skip forward or back to other iPod® tracks press the ( ) or ( )

buttons on the top panel, on the remote control, or use the iPod® click-wheel
navigation controls.

To perform high-speed search within tracks depress and hold the ( ) or

( ) buttons on the top panel, on the remote control, or use the iPod
click-wheel navigation controls as usual. Release the controls when you hear
the desired passage and normal playback will resume at that point.

10.) To pause during playback, press the Band/iPod Play button again. Press
once more to cancel pause and resume playback.

11.) To shut the iPod® off, depress and hold the Band/iPod Play button until
the iPod® stops playing and the display goes blank, or the ‘Charging’ screen
appears.

®

NOTE: If you wish to navigate through the iPod® menu to select among “Artists”,
“Albums”, “Songs”, “Genres” etc., you must use the iPod® click-wheel navigation
controls as usual. Those options cannot be selected from the controls on the
main unit or the remote.

24

iP550_041907.p65 19/4/2007, 17:5624

Removing or Changing The iPod® Adapter

If you will be using different ‘dockable’ iPod® models with this system you will
have to install the appropriate adapter in the docking area for each different
iPod® model. The procedure for removing and changing the iPod® adapter is
as follows:

1.) Remove your iPod® from the docking station as usual.

2.) Lift up on the docking cradle and remove it from the docking station as

shown.

3.) Press on the bottom of the iPod® adapter as shown to remove it from the

docking cradle.

iPod® Adapter

Docking Cradle

(Bottom Up)

4.) Re-install the docking cradle in the docking station.

5.) Insert the desired iPod® adapter in the docking cradle.

25

iP550_041907.p65 19/4/2007, 17:5625

Connecting and Playing A 1G (First Generation) iPod® Shuffle

The docking station of this system includes an Apple USB connector specifically
designed for the 1G (First Generation) iPod® Shuffle with direct USB connector.

NOTE: If you have a new 2G (Second Generation) iPod® Shuffle you may
connect it to the Auxiliary Input jack of this system. Please refer to the
connection instructions on page 30.

IMPORTANT!

• Do not attempt to connect other portable MP3 players or portable USB

drives to this iPod® Shuffle USB connector. You can connect MP3 players
to the Auxiliary Input (Aux) jack of this system but not to the USB connector.
This system is not compatible with portable USB storage drives that contain
compressed MP3 or WMA audio files.

• The iPod® Shuffle has no interface to receive commands from an external

controller, therefore you cannot use the Band/iPod Play button, the

( ) or ( ) buttons on the top panel, or the buttons on the remote
control of this system to operate the iPod® Shuffle. You can only use the
controls on the iPod® Shuffle itself.

1.) Set the function switch on your iPod® Shuffle to either the Normal or Shuffle
playback position and remove the protective cap.

2.) Connect your iPod® Shuffle to the USB connector on the docking station. It can
only be connected one way, with the front panel of the Shuffle facing outward.

Original iPod® Shuffle

(First Generation)

Press the Power button on this system to turn the power ‘On’.

26

iP550_041907.p65 19/4/2007, 17:5626

3.) Press the Function button on this system to select the iPod function. The
“iPod” indicator appears in the display.

4.) Press the Volume + / – buttons on
this system to adjust volume until the
Volume Level Indicator display is
showing “60”.

5.) Press the Play/Pause button on the iPod® Shuffle to begin playback in
either the Normal or Shuffle mode, according to your selection in Step 1 above.

NOTE: Pressing the Band/iPod Play button of this system has no
effect for the iPod® Shuffle.

6.) Press the Volume + / – buttons on the iPod® Shuffle to adjust the iPod® volume
level. If necessary you can then go back and make final up or down adjustments
to the Volume controls on this system.

7.) To skip forward or back, to perform high-speed search, to pause or to stop
playback, press the corresponding controls on the iPod® Shuffle as usual.

8.) When you are finished listening, remove the iPod® Shuffle, switch it ‘Off’, and
replace the protective cap.

9.) Press the Power button on this system to turn the power ‘Off’.

27

iP550_041907.p65 19/4/2007, 17:5627

Charging the iPod® Battery

IMPORTANT!

The battery charging circuit in this system only functions when this system is
being operated on AC power. This system will not charge the iPod® batteries
when you operating this system on battery power.

When your iPod® is connected to the ‘docking’ station of this system, and the
iPod® is not playing, the iPod® battery will be recharged automatically. The battery
will be charged whether the power of this system is ‘On’ or ‘Off’. It will also be
charged while you are listening to an external auxiliary music source.

NOTE: To prevent interference between the battery charging circuit and the
radio in this system the battery charging circuit is turned ‘Off’ while you are
listening to the radio. When you shut the radio ‘Off’, battery charging resumes
automatically.

iP550_041907.p65 19/4/2007, 17:5628

28

Sleep To Music Timer (Main Unit Only)

This system includes a sleep to music timer that allows you to fall asleep to up to
90 minutes of music from the radio or from your iPod® and then shuts the power off
automatically. The sleep timer function can be selected while the system is 'On' or
‘Off’.

1.) Press the Sleep button on the top panel of the main unit. (There is no Sleep
button on the remote control.)

If the power was ‘Off’, the system will turn on to the last function selected and
the SLEEP indicator and the number
“30” will flash in the volume level
display for 10 seconds. This indicates
that the system will play for 30
minutes before shutting off.

2.) To increase or decrease the amount of Sleep time press the ( ) or

( ) buttons on the top panel of this system while the SLEEP indicator is
still flashing. Release the buttons when the display indicates the desired amount
of Sleep time. The Sleep time can be adjusted between 90 minutes maximum
and 1-minute minimum.

3.) After 10 seconds the Sleep time
display stops flashing and changes
back to the volume level display.
However the SLEEP indicator
remains in the display.

4.) Select the function you wish to hear as you fall asleep, RADIO or iPod, and
operate that function as usual.

5.) When the Sleep timer counts down to “00” the system shuts off automatically.
To shut the system off before the timer counts down to “00” press the Power
button at any time.

NOTE: If you set the Sleep timer for 90 minutes and you are listening to your
iPod®, be sure that the music will not stop before the Sleep timer.

For example, if you selected an Album from the iPod® Album menu, and that
Album is only 30 minutes long, the iPod® will stop after 30 minutes even if the
sleep timer is set for 90 minutes.

29

iP550_041907.p65 19/4/2007, 17:5629

Listening To A 2G (Second Generation) iPod® Shuffle, MP3 Player,
Or Other External Source

This system includes a 3.5mm mini stereo Auxiliary Input (Aux) jack on the left
side panel so that you can easily connect any external audio source with a
headphone jack or a Line Out jack and listen to your external source through the
speakers of this system.

Use the Auxiliary Input jack to connect the new 2G (Second Generation) iPod
shuffle, older non-dockable iPods, other MP3 players, personal CD players, etc.

New 2G (Second Generation)

iPod® Shuffle

®

1.) Connect the headphone jack or Line Out jack of your external audio source to
the Aux In jack on the left side panel of this system.

NOTE: The connection cable is not included.

2.) Turn on the power switch of your external source and operate it as usual.
Switch ‘Off’ any Equalizer or Bass Boost controls on the external source.

3.) Press the Power button of this system to turn the power ‘On’ then press the
Function button to select the AUX function.

The AUX indicator appears in the display.

30

iP550_041907.p65 19/4/2007, 17:5630

4.) You should hear the sound from your external source through the speakers of
this system.

NOTE: If you connected the Line Out jack of your external source then you
only need to adjust the volume control of this system. If you connected the
headphone jack of your external source then you may need to adjust both
the volume control of your external source and the volume control of this
system to find the most desirable volume setting.

5.) When you are finished listening press the Power button of this system to turn
the power ‘Off’. Don't forget to switch off the power to your external source as
well.

NOTE: It is not necessary to disconnect your external source from the
Aux In jack of this system.

iP550_041907.p65 19/4/2007, 17:5631

31

Stereo Headphone Jack

This system includes a 3.5mm mini stereo Phones jack
on the right side panel so that you can listen privately
without disturbing others. When the headphone (not
included) is connected to the Phones jack of this
system the internal speakers are automatically shut off.

IMPORTANT! Before you put on your headphones please reduce the volume
control of this system to a low level. Then put your headphones on and gradually
increase the volume to a comfortable listening level. Remember that digital
music files can contain both very soft and very loud passages. You should
adjust the volume control to a comfortable level while listening to a louder
passage so that you will not experience any discomfort caused by any sudden
increase in volume level.

The headphones must be disconnected from the headphone jack in order to listen
to the internal speakers again.

Mute Button (Remote Control Only)

To shut off the sound from the speakers temporarily, press the Mute button on the
remote control. There is no mute button on the main unit.

The sounds stops and the MUTE
indicator appears in the display.

Press the Mute button again to cancel the mute function and restore the sound.

NOTE: The Mute button only shuts off the speakers. It does not “Pause” your
iPod®. The iPod® continues to play when the mute function is selected.

32

iP550_041907.p65 19/4/2007, 17:5632

CARE AND MAINTENANCE

R

Care Of The Cabinet

If the cabinet becomes dusty, wipe it with a soft cloth. If the cabinet becomes
smudged or dirty, clean it with a soft, slightly dampened cloth.

Never allow water or any liquid to get inside the cabinet. Never use any
abrasive cleaners or cleaning pads as these will damage the finish of your
system.

Lithium Battery Precautions

• Dispose of the old battery properly. Do not leave it lying around

where a young child or pet could play with, or swallow it. If the
battery is swallowed, contact a physician immediately.

• Battery may explode if mistreated. Do not attempt to recharge it

or disassemble it. Do not dispose of the old battery in a fire.

SERVICE

CALL TOLL FREE: 1-800-695-0098

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE

FOR CUSTOMER SERVICE, PLEASE WRITE TO:

iP550_041907.p65 19/4/2007, 17:5633

TO FIND THE LOCATION AND PHONE
NUMBER OF YOUR NEAREST SERVICE
CENTER PERMITTED TO PERFORM
WARRANTY...

PLEASE CALL:

1-800-898-9020

Emerson Radio Corp.,

Consumer Affairs Dept.,

5101 Statesman Drive,

Irving, TX 75063.

33

LIMITED WARRANTY

Emerson Radio Corp. warrants manufacturing defects in original material, including
original parts and workmanship, under normal use and conditions, for a period of
ninety (90) days from the date of original purchase in the U.S. With your dated
proof of purchase, we will provide repair service at no charge for labor and parts
at an authorized Depot Repair Facility, or replace the product in our discretion.
For repair or replacement, pack your unit in a padded box, enclose your check or
money order payable to Emerson Radio Corp. in the amount of $9.00 (not required
by California residents) to cover shipping and handling costs, and enclose a copy
of your proof of purchase. Send your unit to:

Emerson Radio Corp.,

5101 Statesman Drive,

Irving, TX 75063.

This warranty does not cover damage from negligence, misuse, abuse, accident,
failure to follow operating instructions, commercial use, rental, repairs by an
unauthorized facility, or products purchased, used, serviced or damaged outside
of the United States.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

AU898M

The Serial Number can be found on the back cabinet. We suggest that you record
the Serial Number of your unit in the space below for future reference.

Model Number: iP550 / iP550BK
Serial Number:

34

iP550_041907.p65 19/4/2007, 17:5634

iP550-041907-03 Printed in China

R

iP550_041907.p65 19/4/2007, 17:5635
