Emerson CKD5809 User Manual

SmartSet

CD Clock Radio

with Automatic Time Setting System

Digital Tuning Stereo Receiver and Touchless Snooze Control

OWNER’S MANUAL

CKD5809

(U.S. Patent No. 6,567,344)

Visit our web site at www.emersonradio.com

CKD5809_030706.p65 7/3/2006, 14:5740

CAUTION

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO U SER SERVICEABLE PARTS INSIDE REFER SERVICING TO Q U A LI F IE D S E R VI C E PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The Caution Marking maybe located at the bottom enclosure of the apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1.) Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.

2.) Do not use this apparatus near water.

3.) Clean only with dry cloth.

4.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

5.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

6.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

7.) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

8.) Only use attachments / accessories specified by the manufacturer.

9.) Unplug this apparatus during lightning storms or when unused for long periods of time.

10.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids such as vases shall be placed on the apparatus.

12.) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13.) Do not overload wall outlet. Use only power source as indicated.

14.) Use replacement parts as specified by the manufacturer.

15.) The product may be mounted to a wall only if recommended by the manufacturer.

16.) Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.

CKD5809_030706.p65 7/3/2006, 14:571

Thank You…………

For purchasing this Emerson Research Stereo CD Clock Radio with the patented SmartSet® automatic time setting system. As soon as you plug-in your radio for the first time, and after every power interruption, the clock will automatically set itself to the correct, year, month, date, day, and time. It will also automatically adjust itself for all Daylight Saving Time changes, through the year 2099.

There are dual alarms that can be set and used independently. The alarms can be set for weekdays only, weekends only or everyday operation. You can wake to an electronic buzzer tone, your favorite AM or FM station or a specific track on your favorite CD. And if you can’t reach the snooze bar when the alarm goes off you can just wave you hand in front of the “Touchless” snooze sensor on the front panel. The alarm will shut off for 9 minutes and then turn on again. There’s a programmable 99-minute sleep timer that allows you to fall asleep to up to 99 minutes of music and then shuts the power off automatically.

A programmable 99-minute nap timer lets you wake up after a nap without disturbing your normal alarm settings.

The CD player has a 20-track programmable memory and repeat playback. It will also play CD-R and CD-RW discs in addition to normal CDs. The digital tuning stereo receiver locks in your favorite stations perfectly and stores up to 20 stations (10 AM and 10 FM) in memory for immediate recall.

This model also includes a dual battery back up system. There’s a built in CR2430 lithium battery that will maintain the time and alarm settings for up to 5 years or longer, depending on the frequency and length of the power interruptions you experience in your home. We’ve also provided a Sure Alarm battery back up system that will activate the alarm even if the power of off at your wake up time. The Sure Alarm circuit requires a 9-Volt battery, not included.

The time, radio frequency, and CD track number all appear on a large super bright LED display that is easily readable from anywhere in your room. And of course we’ve included a dimmer switch in case you want to reduce the display brightness for sleeping.

With so many useful features packed into such a compact unit it’s imperative that you read this Owner’s Manual carefully and completely.

CKD5809_030706.p65 7/3/2006, 14:572

We have taken great care to make sure that this unit was in perfect working order when it left our factory. If you have any problems with the set-up or operation of this model please do not return it to the dealer. Please call the Emerson Consumer Products Customer Service Hotline, toll-free at: 1-800-898-9020. One of our customer service representatives will try to diagnose and correct the problem for you. If we cannot solve the problem by phone you will be instructed how to receive a replacement unit.

Once again, all of us at Emerson Radio thank you for your purchase.

CKD5809_030706.p65 7/3/2006, 14:573

IMPORTANT NOTES

• Avoid installing this unit in places exposed

to direct sunlight or close to heat radiating appliances suc h as electric heaters, on top of other stereo equipment that radiates too much heat, places lac king ventilation or dusty areas, places subject to cons tant vibration and/ or humid or moist areas.

• Do not attempt to clean this unit with

chemical solvents as this might damage

• Operate controls and switches as described in the manual.

• Before turning ‘On’ the power, make certain that power cord is properly installed.

• Store your CDs in a cool area to avoid damage from heat.

• When moving the s et, be sure to first disconnect the power cord.

the finish. Use a clean dry cloth.

CLASS 1 LASER PRODUCT

APPAREIL Á LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

This product contains a low power Laser Device.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that

may cause undesired operation.

CAUTION

INVISIBLE LASER RADIATION

WHEN OPEN AND INTERLOCKS

DEFEATED.

AVOID EXPOSURE TO BEAM

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CKD5809_030706.p65 7/3/2006, 14:574

PREPARATION FOR USE

Unpacking and Set-up

• Remove the unit from the shipping carton and remove all packing material

from the unit. Please save the carton and packing material if possible in the event that your unit ever needs to be returned for service. Using the original carton and packing materials is the only way to protect your unit from damage in transit.

• Carefully remove any small strips of tape that may have been used to keep the

CD door closed during shipment.

• Press on the CD door in the area marked OPEN/CLOSE to open the door.

Inside the CD compartment you will see a white “dummy CD” transit protection card. This card prevents the laser pick-up from moving during shipment and it must be removed before you can load your own CDs. Carefully remove this transit protection card and discard it.

• Place the unit on a stable, level surface such as a table, desk, shelf, stand, etc,

out of direct sunlight and away from sources of excess heat, dust, vibration, moisture, or humidity, and convenient to a 120V 60Hz AC outlet.

• Unwind the AC power cord and extend it to its full length. This is important. The

FM antenna is built into the AC power cord.

Battery Back-up Systems

This model has two separate battery back up systems. There is a built in 3-Volt CR2430 long life lithium battery that will maintain the clock settings, the alarm settings and the tuner preset memory settings. The lithium battery may last for up to five years or even longer, depending on the frequency and length of the power interruptions that you experience in your home. If AC power is interrupted the display will go off but the lithium battery will continue to power the clock. When AC power is restored the display comes on again and all your settings are correct.

We have also provided a separate Sure-Alarm battery back up circuit that requires a 9-Volt battery, not included.

If you install a 9-Volt battery, the buzzer alarm will operate in BUZZER or RADIO mode, even if the power is off at the selected wake-up time.

CKD5809_030706.p65 7/3/2006, 14:575

Installing The Sure-Alarm Back-up Battery (Not Included)

The Sure-Alarm battery compartment is located on the back panel.

1.) Press down on the battery door locking tab as

shown and remove the battery door.

2.) Gently pull the battery terminal outside

of the compartment just far enough so you can connect the battery.

3.) Connect a fresh, well-known brand of

9-Volt Alkaline battery to the battery terminal. It can only be connected one way.

4.) Push the battery back into the battery compartment and replace the battery

door.

CKD5809_030706.p65 7/3/2006, 14:576

Low Battery Indicator

The Low Battery indicator “ ” only appears in the main display when the unit is in the power ‘Off’ mode.

• If you install a 9-Volt battery in the Sure

Alarm circuit as described above, the Low Battery indicator disappears.

• If the Low Battery indicator remains ‘On’,

this indicates that either you have not installed the 9-Volt battery, or that the 9-Volt battery is exhausted and needs to be replaced.

• If the Low Battery indicator flashes, this

indicates that the 3-Volt lithium battery is getting weak and should be replaced as soon as possible.

Instructions for changing the lithium battery will be found on page 32 of this manual.

CKD5809_030706.p65 7/3/2006, 14:577

Power Source

AC Outlet

This system is designed to operate on 120V AC 60Hz house current only. Connecting this system to any other power source may cause damage to the system and such damage is not covered by your warranty.

NOTE: The system has a polarized AC plug with one wide blade and one narrow

blade. The plug will only fit into matching polarized AC outlets. This is a safety feature to reduce the

possibility of electric shock. If the plug will not fit in your AC outlet, you probably have an outdated non-polarized outlet. You should have your outdated outlet changed by a qualified, licensed electrician. Do not file the wide blade on the plug, or use an adapter to make the plug fit into your outlet. This defeats the safety feature and could expose you to electric shock.

AC Plug

Protect Your Furniture

This model is equipped with non-skid rubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or c leaning sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber 'feet' before you place the product on fine wooden furniture.

CKD5809_030706.p65 7/3/2006, 14:578

LOCATION OF CONTROLS AND INDICATORS

FRONT PANEL

TOP PANEL

33 1

8 7

CKD5809_030706.p65 7/3/2006, 14:579

13 14

15 16

17 18

1.) Speakers.

2.) Multi-Function LED Display.

3.) 3-Volt Lithium Battery Compartment (Bottom Cabinet).

4.) TOUCHLESS SNOOZE SENSOR.

5.) POWER ON/OFF Button.

6.) SLEEP Button.

7.) ALARM 1 (BUZZER/RADIO/CD/OFF) Selector Switch.

8.) ALM (Alarm) 1 Button.

9.) ALARM 2 (BUZZER/RADIO/CD/OFF) Selector Switch.

10.) DIMMER (LO/HI) Selector Switch.

11.) 9-Volt Battery Compartment (Back Cabinet).

12.) AC Power Cord.

13.) CD Door.

14.) PRESET + Button.

15.) REV. SKIP/TUNING – Button.

16.) FWD. SKIP /TUNING + Button.

17.) VOLUME Control.

18.) PLAY/PAUSE Button.

19.) STOP Button.

20.) WAKE UP TRACK Button.

21.) MEMORY Button.

22.) PRESET – Button.

23.) AM/FM Button.

24.) REPEAT Button.

25.) NAP Button.

26.) PROGRAM Button.

27.) SNOOZE/SLEEP/NAP OFF Button.

28.) TIME Button.

29.) MONTH/DATE Button.

30.) TIME ZONE Button.

31.) ALM (Alarm) 2 Button.

32.) ALARM MODE Button.

33.) PHONES (Stereo Headphone) Jack.

CKD5809_030706.p65 7/3/2006, 14:5710

OPERATING INSTRUCTIONS

• Make sure that you have extended the AC power cord to its full length.

The FM antenna is built into the power cord.

• Make sure that you have installed a fresh 9-Volt battery in the Sure

Alarm circuit if you want the Sure Alarm battery back up circuit to operate. If you do not install a 9-Volt battery the Low Battery indicator will remain ‘on’, but this will not affect any other functions or operation of this product.

• Make sure that you have removed the “dummy CD” transit protection

card from the CD compartment.

A Word About The And Controls

In order to minimize the number of controls on this model a few of the controls perform more than one function.

For example, the and buttons on the top panel perform the following functions:

• When pressed together with the TIME ZONE button, the and buttons

allow you to select a lower or higher numbered time zone.

• When pressed together with the TIME button, the and buttons adjust

the time display backward or forward.

• When pressed together with the ALM 1 or ALM 2 buttons, the and

buttons adjust the wake up time display backward or forward.

• When pressed together with the MONTH/DATE button, the and buttons

adjust the Month and Date display backward or forward.

• When pressed together with the TIME and MONTH/DATE buttons, the

and buttons adjust the year display backward or forward.

• When pressed together with the SLEEP or NAP buttons, the and buttons

adjust the amount of Sleep Time or Nap Time display down or up.

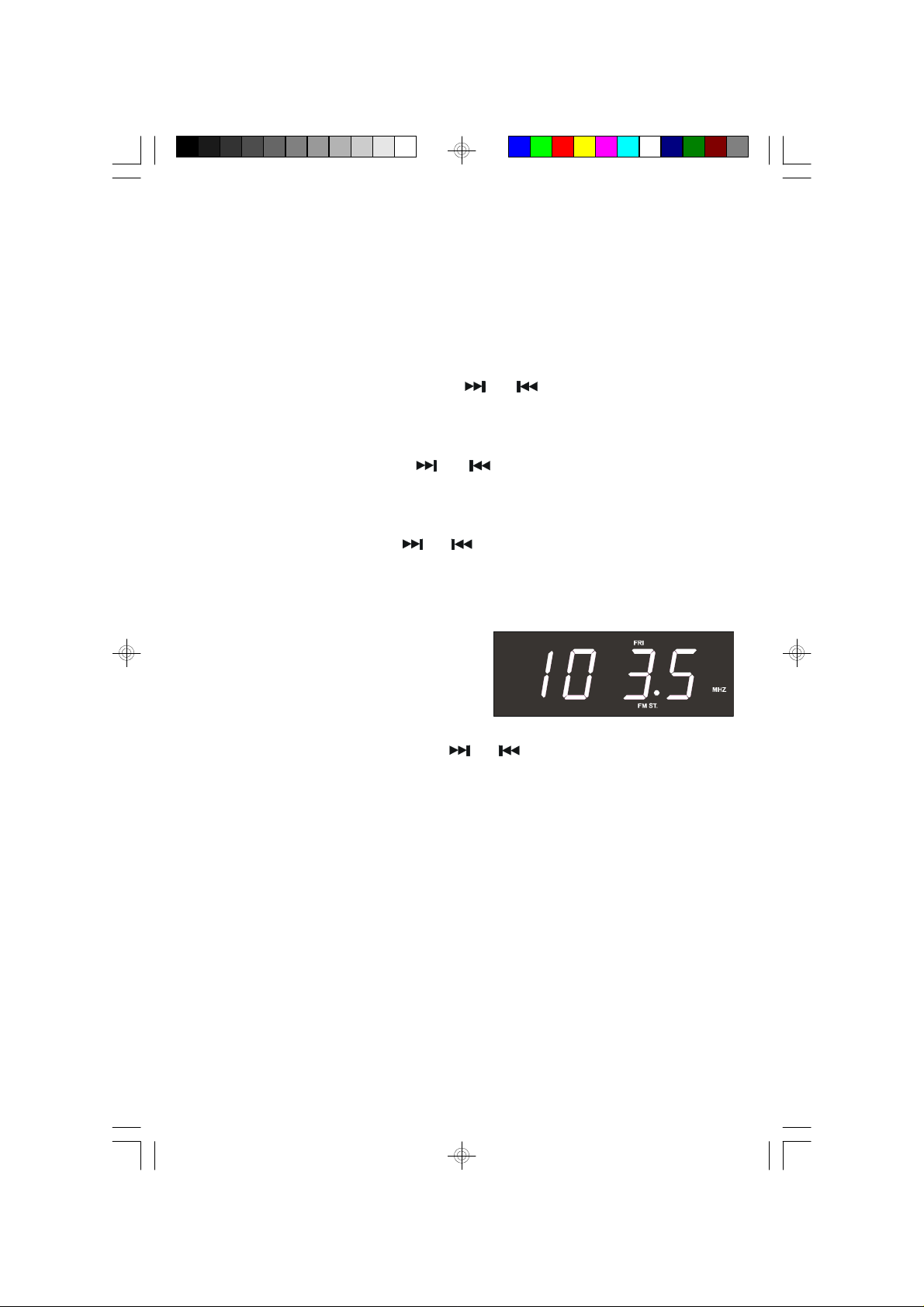

• In Tuner mode (AM/FM) pressing the and buttons moves the tuner

display down or up to lower or higher numbered frequencies.

• In CD mode pressing the and buttons allows you to skip to lower or

higher numbered tracks, or to search backward or forward within a track to locate a specific musical passage.

All of the functions of the and buttons will be fully explained in the appropriate sections of this manual.

CKD5809_030706.p65 7/3/2006, 14:5711
