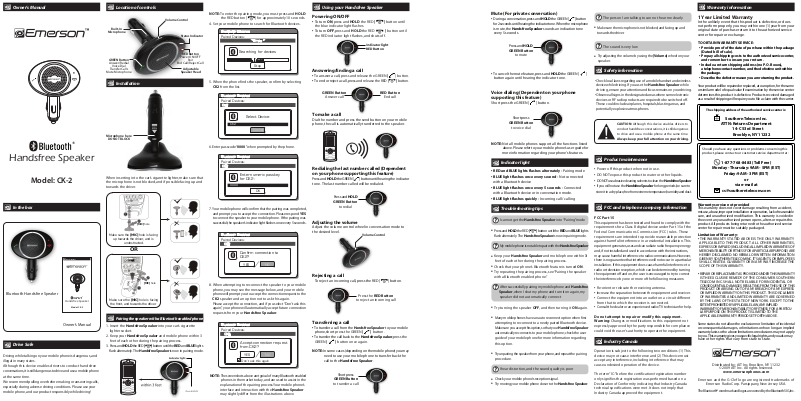

Emerson CK-2 User Manual
Owner’s Manual
®
Handsfree Speaker
Model: CK-2
In the box
Owner’s Manual
Bluetooth Handsfree Speaker
Handsfree Speaker
Owner’s Manual
Drive Safe
Driving while talking on your mobile phone is dangerous, and
illegal in many states.
Although this device enables drivers to conduct handsfree
conversations, it is still dangerous to drive and use a mobile phone
at the same time.
We recommend pulling over before making or answering calls,
especially during adverse driving conditions. Please use your
mobile phone, and our product responsibly while driving!
®
Model: CK-2
Location of controls
Volume Control
Built-In
Microphone
GREEN Button
Answer/Redial
Voice Dial
Transfer Calls
Mute Microphone
Status Indicator
RED Button
Power ON/OFF
Pair
End Call/Reject Call
Adjustable
Speaker Head
Installation
Microphone here
DO NOT BLOCK
When inserting into the car’s cigarette lighter, make sure that
the microphone is not blocked, and if possible facing up and
towards the driver.
[MIC] hole
Make sure the [MIC] hole is facing
up towards the driver, and is
unobstructed.
OR
[MIC] hole
Make sure the [MIC] hole is facing
the front, and towards the driver.
Pairing the speaker with a Bluetooth enabled phone
1. Insert the Handsfree Speaker into your car’s cigarette
lighter socket.
2. Keep your Handsfree Speaker and mobile phone within 3
feet of each other during the pairing process.
3. Press and HOLD the RED [ ] button until the RED and BLUE lights
flash alternately. The Handsfree Speaker is now in pairing mode.
NOTE: To enter the pairing mode, you must press and HOLD
the RED button [ ] for approximately 10 seconds.
4. Set your mobile phone to search for Bluetooth devices.
Bluetooth: Enabled
Paired Devices:
*Empty *
Searching for devices
ound
1 f
Stop
5. When the phone finds the speaker, confirm by selecting
CK2 from the list.
Bluetooth: Enabled
Paired Devices:
CK2
Select Device:
CK2
Cancel
6. Enter passcode “0000” when prompted by the phone.
Bluetooth: Enabled
Paired Devices:
CK2
Enter numeric passkey
for CK2:
0000
OK
7. Your mobile phone will confirm that the pairing was completed,
and prompt you to accept the connection. Please respond YES
to connect the speaker to your mobile phone. If the pairing was
successful, the speaker ’s indicator light flashes once every 5 seconds.
Bluetooth: Enabled
Paired Devices:
CK2
Confirm connection to
CK2?
YES NO
/
8. When attempting to reconnect the speaker to your mobile
phone, you may see the message below, and your mobile
phone will prompt you to accept the connection request to the
CK2 speaker and an option not to ask this again.
Please accept the connection, and if you select “Don’t ask this
again”, your phone will automatically accept future connection
requests from your Handsfree Speaker.
Bluetooth: Enabled
Paired Devices:
CK2
Accept connection request
from CK2?
YES NO
/
Don’t ask this again
NOTE: The screen shots above are typical of many Bluetooth enabled
phones in the market today, and are used to assist in the
explanation of the pairing process. Your mobile phone’s
interface and interaction with the Handsfree Speaker
may slightly differ from the illustrations above.
Using your Handsfree Speaker
Powering ON/OFF
• To turn ON, press and HOLD the RED [ ] button until
the blue indicator light flashes.
• To turn OFF, press and HOLD the RED [ ] button until
the RED indicator light flashes, and shuts off.
RED Button
Answering/Ending a call
• To answer a call, press and release the GREEN [ ] button.
• To end or reject a call, press and release the RED [ ] button.
GREEN Button
Answer call
RED Button
End call
To make a call
Dial the number and press the send button on your mobile
phone, the call is automatically transferred to the speaker.
Redialing the last number called (Dependent
on your phone supporting this feature)
Press and HOLD the GREEN [ ] button until hearing the indicator
tone. The last number called will be redialed.
Press and HOLD
GREEN Button
to redial
Adjusting the volume
Adjust the volume control wheel in conversation mode to
the desired level.
Volume Control
Rejecting a call
To reject an incoming call, press the RED [ ] button.
Press the RED Button
to reject an incoming call
Transferring a call
• To transfer a call from the Handsfree Speaker to your mobile
phone, short press the GREEN [ ] button.
• To transfer the call back to the Handsfree Speaker, press the
GREEN [ ] button once again.
NOTE: In some cases (depending on the mobile phone) you may
need to use your mobile phone to transfer back the
call to the Handsfree Speaker.
Short press
GREEN Button
to transfer a call
Mute (For private conversation)
• During a conversation, press and HOLD the GREEN [ ] button
for 2 seconds until hearing the indicator tone. When the microphone
is mute, the Handsfree Speaker sounds an indication tone
every 5 seconds.
Press and HOLD
GREEN Button
to mute
• To cancel the mute feature, press and HOLD the GREEN [ ]
button again until hearing the indicator tone.
Voice dialing (Dependent on your phone
supporting this feature)
Short press the GREEN [ ] button.
Short press
GREEN Button
to voice dial
NOTE: Not all mobile phones support all the functions listed
above. Please refer to your mobile phone’s user guide for
more information regarding your phone’s features.
Indicator light
• RED and BLUE lights flashes alternately - Pairing mode
• BLUE light flashes once every second - Not connected
with a Bluetooth device
• BLUE light flashes once every 5 seconds - Connected
with a Bluetooth device or in conversation mode.
• BLUE light flashes quickly - Incoming call / calling
Troubleshooting tips
I cannot get the Handsfree Speaker into “Pairing” mode
Press and HOLD the RED [ ] button until the RED and BLUE lights
•
flash alternately. The Handsfree Speaker is now in pairing mode.
My mobile phone is not able to pair with the Handsfree Speaker
Keep your Handsfree Speaker and mobile phone within 3
•
feet of each other during the pairing process.
Check that your phone’s Bluetooth feature is turned ON.
•
Try repeating the pairing process, see “Pairing the speaker
•
with a Bluetooth enabled phone.”
After successfully pairing my mobile phone and Handsfree
Speaker, when I shut my phone and turn it on again, my
speaker did not automatically connect
Try turning the speaker OFF, and then turning it ON again.
•
Many mobile phones have an auto reconnect option when first
•
attempting to reconnect to a newly paired Bluetooth device.
Make sure you accept this option, so that your Handsfree Speaker
automatically reconnects to your mobile phone; check the user
guide of your mobile phone for more information regarding
this option.
Try unpairing the speaker from your phone, and repeat the pairing
•
procedure.
I hear distortion, and the sound quality is poor
Check your mobile phone’s reception signal.
•
Try moving your mobile phone closer to the Handsfree Speaker.
•
The person I am talking to can not hear me clearly
Make sure the microphone is not blocked, and facing up and
•
towards the driver.
The sound is very low
Try adjusting the volume by using the [Volume] wheel on your
•
speaker.
Safety information
• Check local laws regarding use of a mobile handset and wireless
device while driving. If you use the Handsfree Speaker while
driving, ensure your attention and focus remains on your driving.
• Observe all signs in the designated areas where some electronic
devices or RF radio products are required to be switched off.
These could include airplanes, hospitals, blasting areas, and
potentially explosive atmospheres.
CAUTION: Although this device enables drivers to
conduct handsfree conversations, it is still dangerous
to drive and use a mobile phone at the same time.
Always keep your full attention on your driving.
Product maintenance
• Power off this product when not in use.
• DO NOT expose this product to water or other liquids.
• DO NOT use abrasive cleaning solvents to clean the Handsfree Speaker
• If you will not use the Handsfree Speaker for long periods, be sure to
store it in a dry place, free from extreme temperature, humidity and dust.
FCC and telephone company information
FCC Part 15
This equipment has been tested and found to comply with the
requirements for a Class B digital device under Part 15 of the
Federal Communications Commission (FCC) rules. These
requirements are intended to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Do not attempt to repair or modify this equipment.
Warning: Changes or modifications to this equipment not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Industry Canada
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must
accept any interference, including interference that may
cause undesired operation of the device.
The term “IC:” before the certification/registration number
only signifies that registration was performed based on a
Declaration of Conformity indicating that Industry Canada
technical specifications were met. It does not imply that
Industry Canada approved the equipment.
Warranty information
1 Year Limited Warranty
In the unlikely event that this product is defective, or does
not perform properly, you may within one (1) year from your
original date of purchase return it to the authorized service
center for repair or exchange.
TO OBTAIN WARRANTY SERVICE:
• Provide proof of the date of purchase within the package
(Dated bill of sale).
• Prepay all shipping costs to the authorized service center,
and remember to insure your return.
• Include a return shipping address (no P.O. Boxes),
a telephone contact number, and the defective unit within
the package.
• Describe the defect or reason you are returning the product.
Your product will be repaired or replaced, at our option, for the same
or similar model of equal value if examination by the service center
determines this product is defective. Products received damaged
as a result of shipping will require you to file a claim with the carrier.
The shipping address of the authorized service center is:
Southern Telecom Inc.
ATTN: Returns Department
14-C 53rd Street
Brooklyn, NY 11232
Should you have any questions or problems concerning this
product, please contact our customer service department at:
1-877-768-8483 (Toll Free)
Monday - Thursday: 9AM - 5PM (EST)
Friday: 9AM - 3PM (EST)
or
via e-mail at
cs@southerntelecom.com
Warranty service not provided
This warranty does not cover damage resulting from accident,
misuse, abuse, improper installation or operation, lack of reasonable
care, and unauthorized modification. This warranty is voided in
the event any unauthorized person opens, alters or repairs this
product. All products being returned to the authorized service
center for repair must be suitably packaged.
Limitation of Warranty:
• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY
APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE
HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION
GIVEN BY SOUTHERN TELECOM INC. IT’S AGENTS, OR EMPLOYEES
SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE
SCOPE OF THIS WARRANTY.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY
IS THE EXCLUSIVE REMEDY OF THE CONSUMER. SOUTHERN
TELECOM INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER
OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED
BY THE LAWS OF THE STATE OF NEW YORK. EXCEPT TO THE
EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion nor limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts so the above limitations or exclusions may not apply
to you. This warranty gives you specific legal rights, and you also may
have other rights that vary from state to state.
Distributed by: AIT Inc. Brooklyn, NY 11232
© 2009 AIT Inc. All rights reserved.
www.emersonphones.com
Emerson and the G-Clef logo are registered trademarks of
Emerson Radio Corp. Parsippany, New Jersey USA.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
Loading...
